# Health and Structural Integrity of Monitoring Systems: The Case Study of Pressurized Pipelines

^{*}

## Abstract

**:**

## 1. Introduction

- internal pressure with induced vibrations,
- additional bending stress from the subsoil drop loaded with an internal pressure, and
- the pipeline wall thickness decreases caused by corrosion at the point of additional bending stress with an internal pressure, etc.

- which quantities should be measured continuously by sensors,
- what are their permissible limit values for a safe operation of the pipeline systems, and
- how to predict the corrosion process and its synergy with additional bending loading.

## 2. Methodology and Results

#### 2.1. Vibrations Induced in the Side Branches

- the gas flow rate is sufficiently high,
- there are necessary fluid and geometric conditions for the generation of excited pressure oscillations, and
- there was a resonant match between the excitation frequency and the natural frequency of the closed tap volume (existence of Helmholtz standing waves in the branch—the so-called “whistle effect”).

_{t}is the Strouhal number for the geometric and fluid ratios in the T-branch, and f

_{ne}is the oscillation frequency given as

- to determine cyclic properties of the critical volume of the material (often the weld joint) and
- the condition for assessing the criticality of the vibrations.

_{aeq}is an amplitude of equivalent strain in the critical cross-section, taking into account the mean value of the cycle (Goodman [16] or Morrow’s [17] method). Such a cycle is mainly induced due to stresses from the internal pressure and possible combination of normal (axial plus bending loading) and shear stresses (torsional loading). E is the Young modulus of the material.

- safety in terms of the pressure integrity of the pipe,
- fatigue damage accumulation state [19], and
- vibration permissibility.

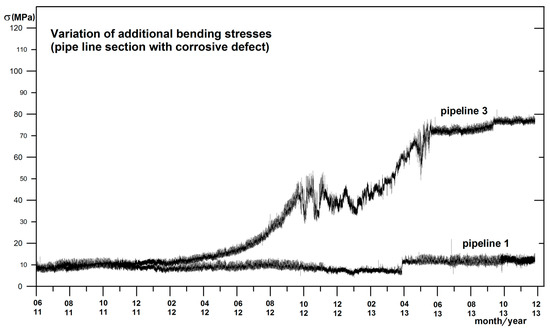

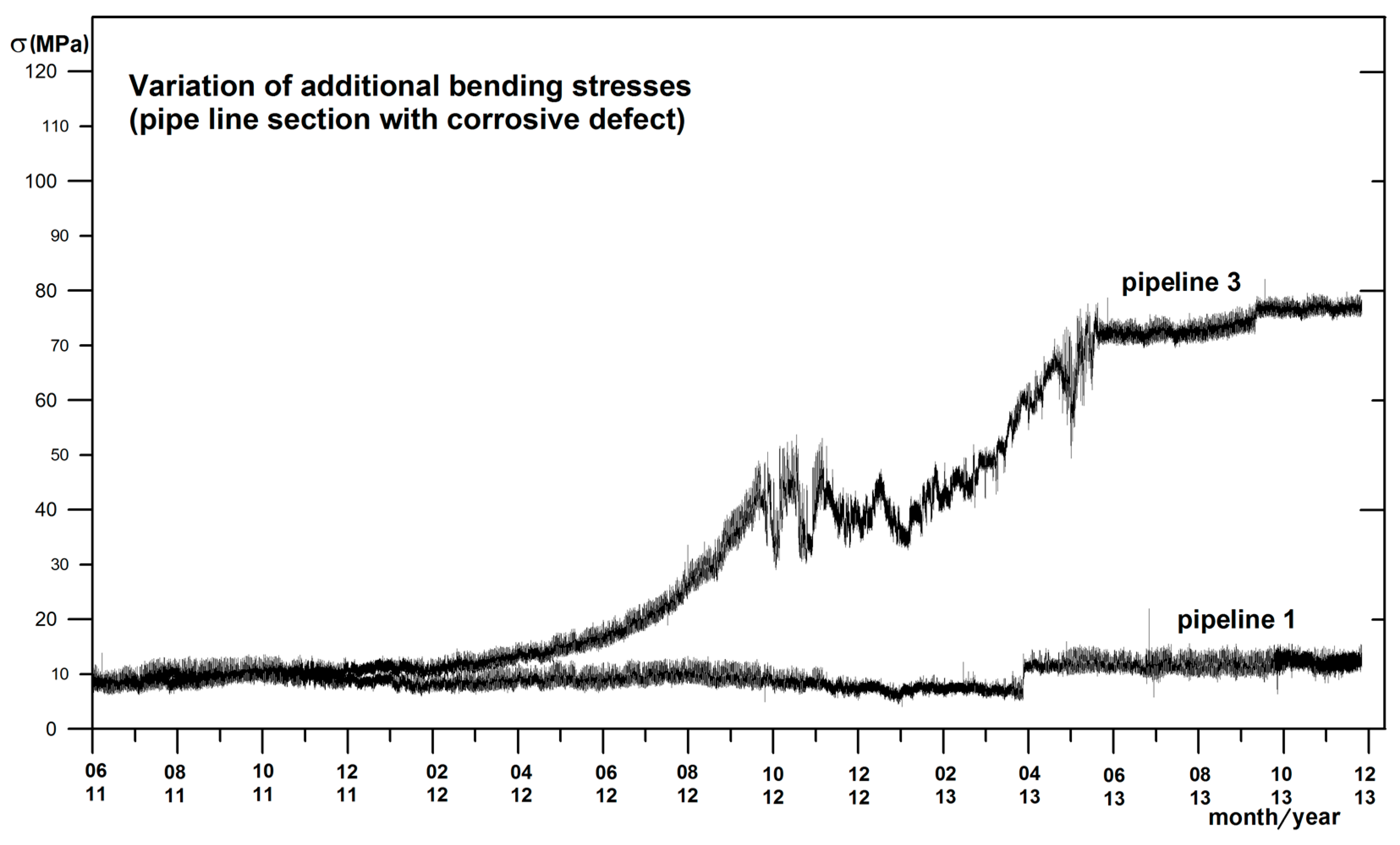

#### 2.2. The Additional Bending in Operations of Pressurized Pipelines

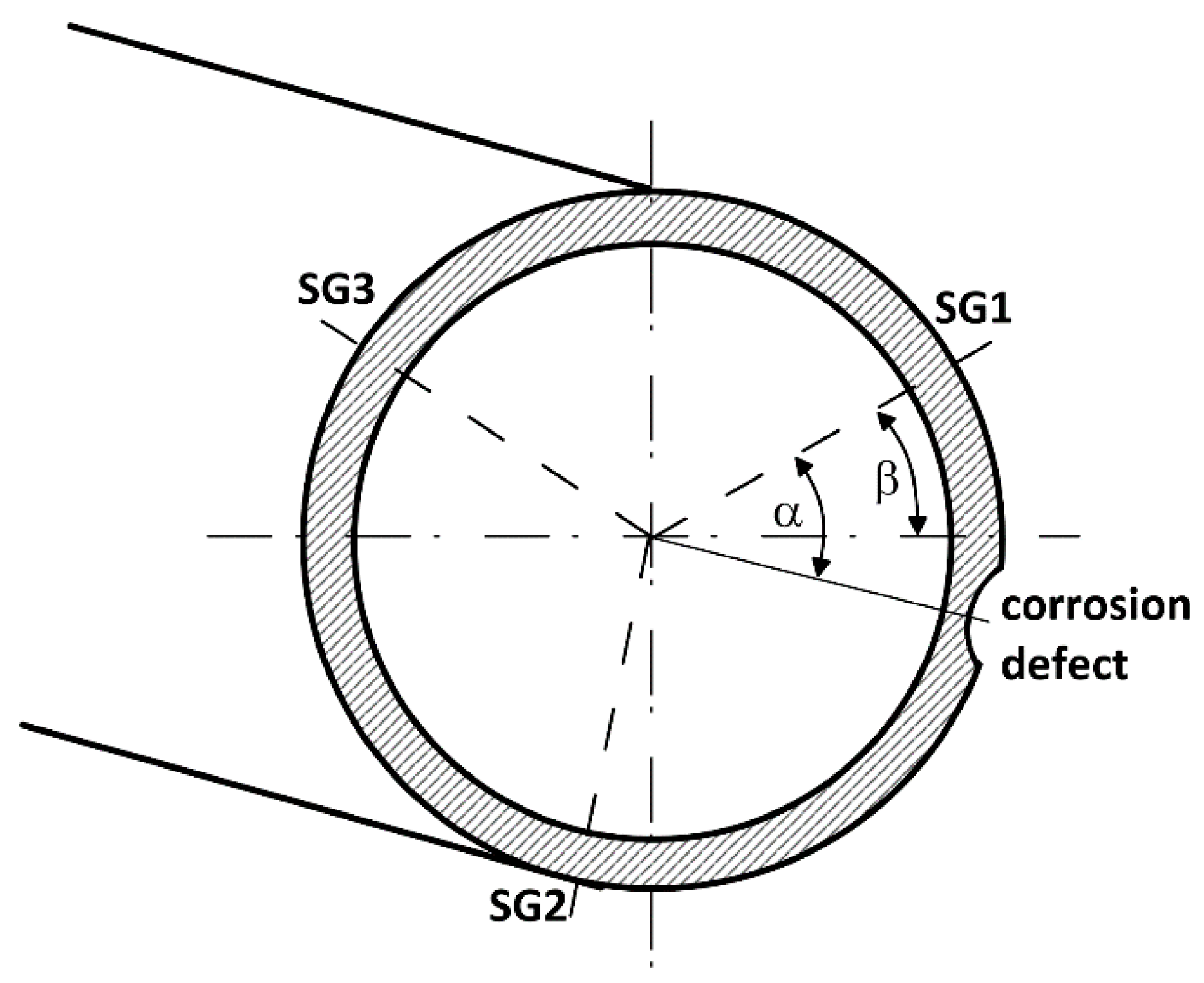

#### 2.3. Weakening of Pipe Walls Due to Corrosion

- depth of existing corrosion defect found by pipeline inspection,
- kinetics of corrosion defect development,
- stress-strain state of the pipeline, and
- material properties of the pipeline.

_{0}is an integration constant calculated from at least one corrosion depth.

_{MBcor}is given by the equation:

**σ**is a true strength limit for given material of pipeline, and σ

_{UT}_{Cmax(t)}is the current value of the maximum stress calculated in the place of the corrosion defect using the diagram in Figure 11 for a measured value of the nominal stress in the pipe and an actual depth of the corrosion defect.

## 3. Conclusions

- induced vibrations due to fluid-geometry or the work of compressors,
- additional bending loading, and
- corrosion losses of the wall thickness.

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Ricker, E.R. Analysis of Pipeline Steel Corrosion Data from NBS (NIST) Studies. J. Res. Natl. Inst. Stand. Technol.
**2010**, 115, 373–392. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Restrepo, C.E.; Simonoff, J.S.; Zimmerman, R. Causes, cost consequences, and risk implications of accidents in US hazardous liquid pipeline infrastructure. Int. J. Crit. Infrastruct. Prot.
**2009**, 2, 38–50. [Google Scholar] [CrossRef] - Wachal, J.C.; Smith, D.R. Vibration Troubleshooting of Existing Piping Systems; EDI Paper No.59; Engineering Dynamics Inc.: San Antonio, TX, USA, 1991. [Google Scholar]
- Radavich, P.M.; Selamet, A.; Novak, J.M. A Computational Approach for Flow-acoustic Coupling in Closed Side Branches. J. Acoust. Soc. Am.
**2001**, 109, 1343–1353. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Jungowski, W.M.; Botros, K.K.; Studzinski, W. Cylindrical Side-branch as Tone Generator. J. Sound Vib.
**1989**, 131, 265–285. [Google Scholar] [CrossRef] - Rogers, L.E. Design Stage Acoustic Analysis of Natural Gas Piping Systems in Centrifugal Compressor Stations. J. Eng. Gas Turbines Power
**1992**, 114, 727–736. [Google Scholar] [CrossRef] - Arnulfi, G.L.; Giannattasio, P.; Giusto, C.; Massardo, A.F.; Micheli, D.; Pinamonti, P. Multistage Centrifugal Compressor Surge Analysis: Part I—Experimental Investigation. J. Turbomach.
**1999**, 121, 305–311. [Google Scholar] [CrossRef] - Arnulfi, G.L.; Giannattasio, P.; Giusto, C.; Massardo, A.F.; Micheli, D.; Pinamonti, P. Multistage Centrifugal Compressor Surge Analysis: Part II—Numerical Simulation and Dynamic Control Parameters Evaluation. J. Turbomach.
**1999**, 121, 312–320. [Google Scholar] [CrossRef] - Gravdahl, J.T.; Willems, F.; De Jager, B.; Egeland, O. Modeling for Surge Control of Centrifugal Compressors: Comparison with experiment. IEEE
**2000**, 2, 1341–1346. [Google Scholar] - Farrar, R.C.; Worden, K. Structural Health Monitoring: A Machine Learning Perspective; John Wiley & Sons: Hoboken, NJ, USA, 2012. [Google Scholar]
- Chmelko, V.; Garan, M. Long-term monitoring of strains in a real operation of structures. In Proceedings of the 14th IMEKO TC10 Workshop on Technical Diagnostics, Milano, Italy, 27–28 June 2016; pp. 333–336. [Google Scholar]
- Chmelko, V.; Garan, M.; Šulko, M. Strain measurement on pipelines for long-term monitoring of structural integrity. Measurement
**2020**, 163, 107863. [Google Scholar] [CrossRef] - Amzallag, C.; Gerey, P.; Robert, J.L.; Bahuaudt, J. Standardization of the rainflow counting method for fatigue analysis. Int. J. Fatigue
**1994**, 16, 287. [Google Scholar] [CrossRef] - Papuga, J.; Vízková, I.; Lutovinov, M.; Nesládek, M. Mean stress effect in stress-life fatigue prediction re-evaluated. MATEC Web Conf.
**2018**, 165, 10018. [Google Scholar] [CrossRef] [Green Version] - Basquin, O.H. The exponential law of endurance tests. Am. Soc. Test. Mater. Proc.
**1910**, 10, 625–630. [Google Scholar] - Morrow, J.D. Fatigue properties of metals, section 3.2. In Fatigue Design Handbook; Pub. No. AE-4; SAE: Warrendale, PA, USA, 1968; p. 21. [Google Scholar]
- Goodman, J. Mechanics Applied to Engineering; Longmans, Green and Co.: London, UK, 1919; pp. 631–636. [Google Scholar]
- Chmelko, V. Cyclic anelasticity of metals. Met. Mater.
**2014**, 52, 353–359. [Google Scholar] [CrossRef] [Green Version] - Chmelko, V.; Kliman, V.; Garan, M. In-time monitoring of fatigue damage. Procedia Eng.
**2015**, 101, 93–100. [Google Scholar] [CrossRef] [Green Version] - Tennyson, R.C.; Don, W.; Cherpillod, T. Monitoring Pipeline Integrity Using Fiber Optic Sensors. In Proceedings of the CORROSION 2005, NACE International, Houston, TX, USA, 3–7 April 2005. [Google Scholar]
- Glisic, B. Comparative study of distributed sensors for strain monitoring of pipelines. Geotech. Eng.
**2019**, 50, 28–35. [Google Scholar] - Hoffmann, K. Eine Einfuh-rung in die Technik des Messens mit Dehnungsmessstreifen; HBM: Darmstadt, Germany, 2012. [Google Scholar]
- Šulko, M.; Garan, M.; Chmelko, V. PUV 5017-2015, G01L 1/22; Industrial Property Office: Banská Bystrica, Slovakia, 2015. [Google Scholar]
- National Research Council Canada. Metallic corrosion. In Proceedings of the 9th International Congress on Metallic Corrosion, Toronto, ON, Canada, 3–7 June 1984. [Google Scholar]
- Chmelko, V.; Berta, I. Analytical Solution of the Pipe Burst Pressure Using Bilinear Stress-Strain Model and Influence of Corrosion Defects on it. Procedia Struct. Integr.
**2019**, 18, 600–607. [Google Scholar] [CrossRef] - ASME B31.G. Manual for Determining the Remaining Strength of Corroded Pipelines; ASME: New York, NY, USA, 2009. [Google Scholar]
- DNV RP F101-Parts A & B: Corroded Pipelines; Det Norske Veritas AS: Oslo, Norway, 2015.
- Cosham, A.; Hopkins, P. The Pipeline Defect Assessment Manual (PDAM); Penspen Ltd.: London, UK, 2003. [Google Scholar]
- Nanney, S. Pipeline Safety Update; NAPCA Workshop: Houston, TX, USA, 2012. [Google Scholar]

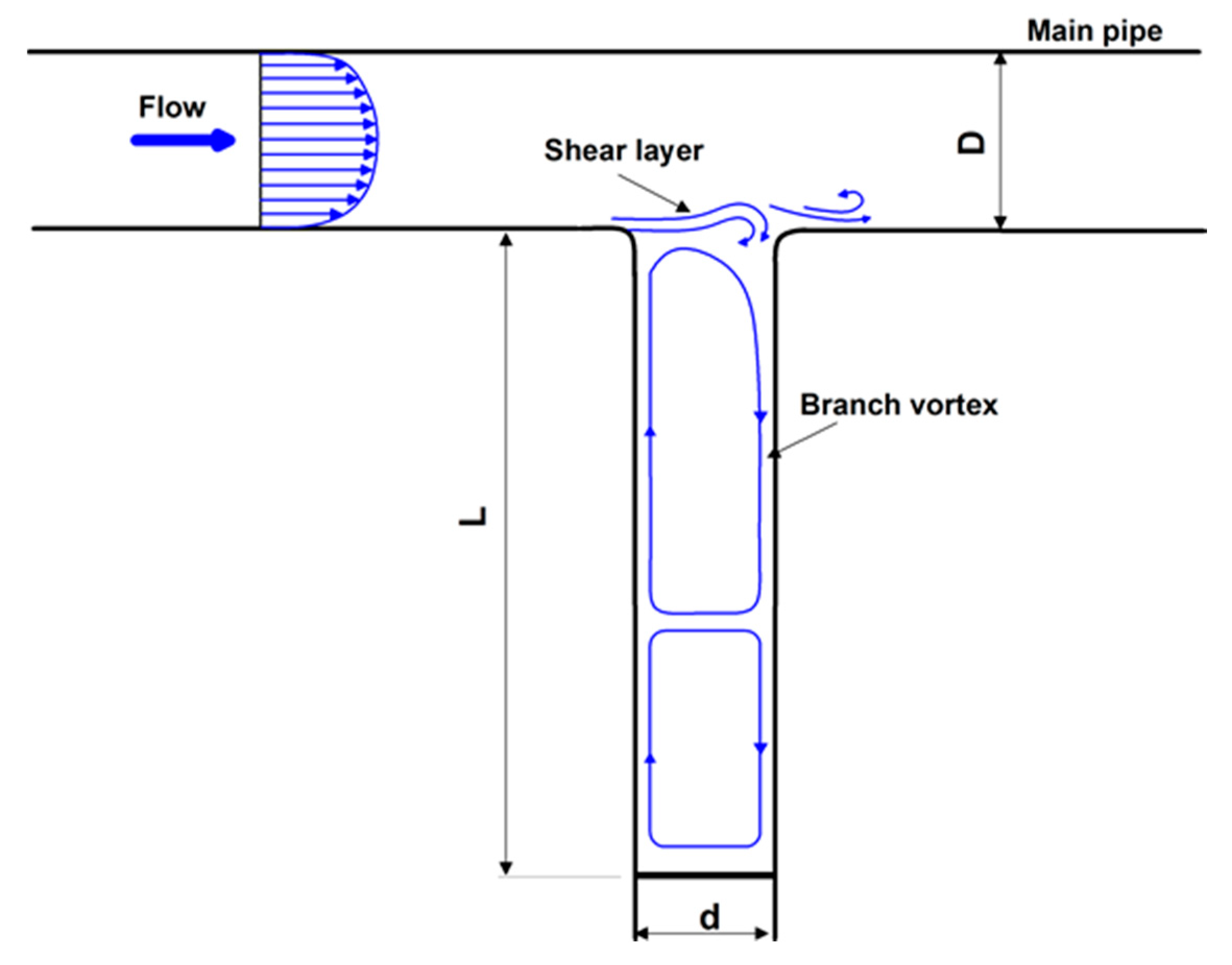

**Figure 1.**Principle of self-excited oscillations in closed side branches. D is the diameter of the main pipe, and L (d) is a length (diameter) of a side branch.

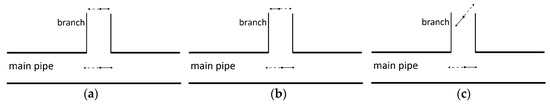

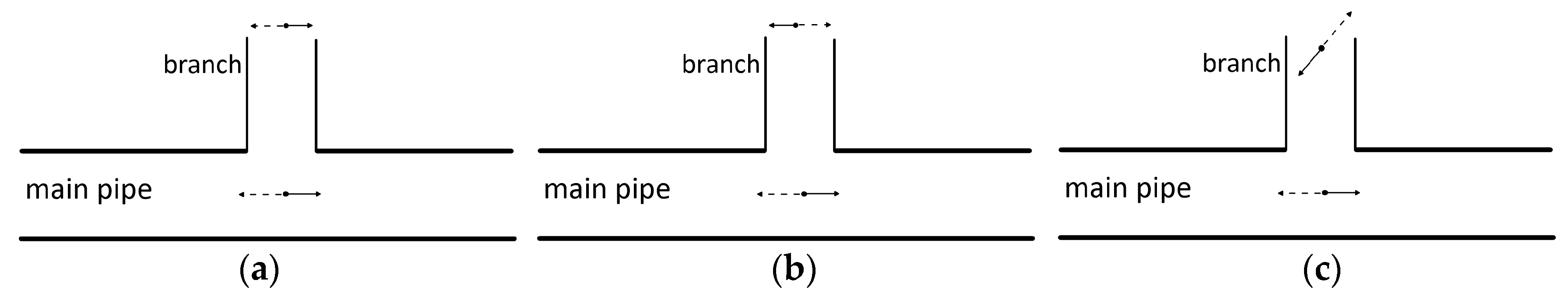

**Figure 2.**Vibration of the pipe and branch: (

**a**) in-phase in the same direction (without the relative deflection) (

**b**) out p-hase in the same direction (inducing deflection of branch), and (

**c**) in a different direction (inducing deflection of the branch).

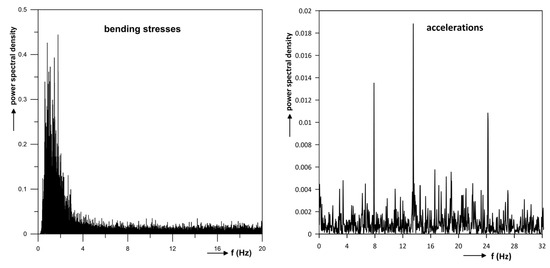

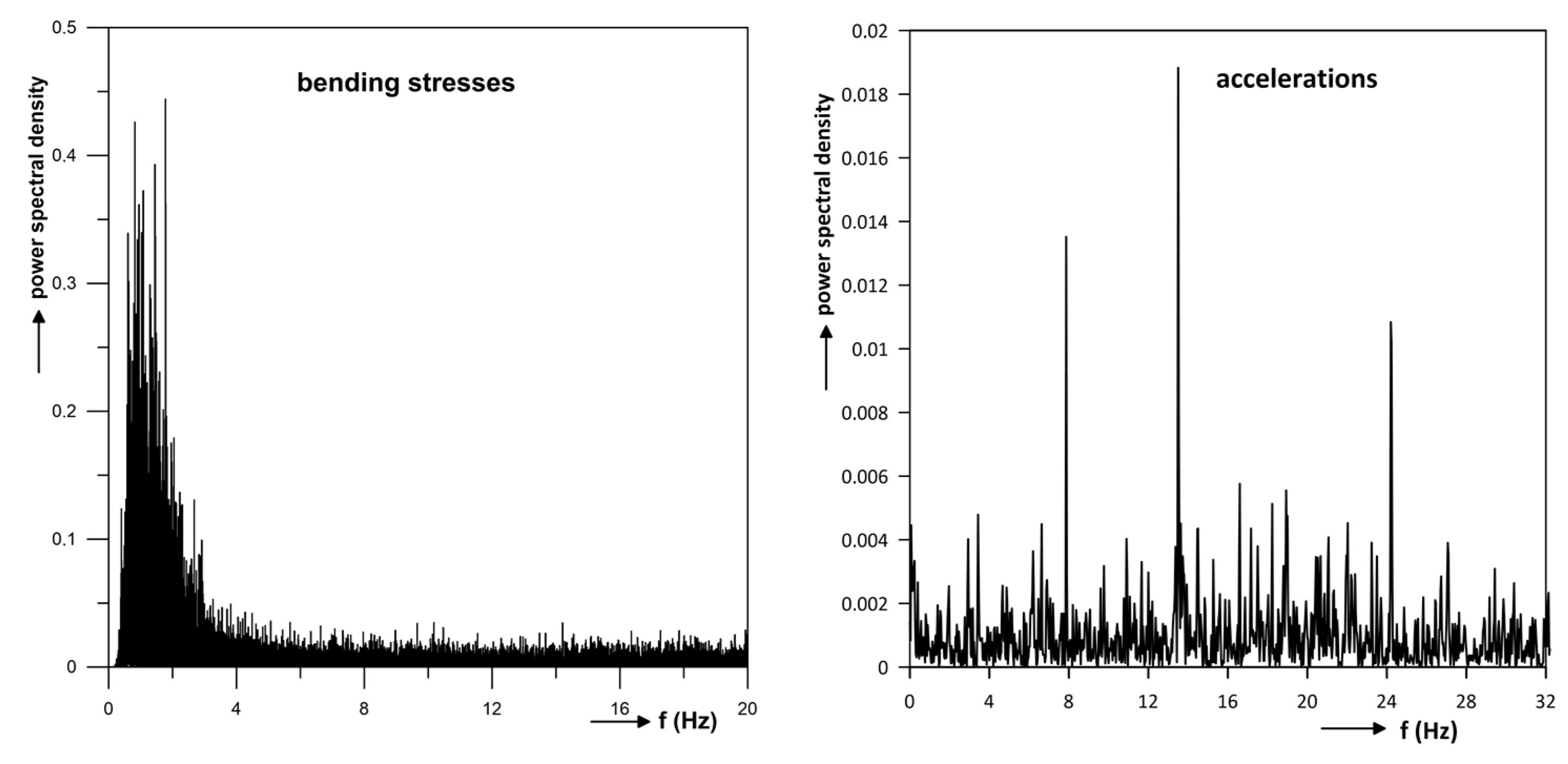

**Figure 3.**Frequency composition of signals measured by accelerometers and strain gauges on the vibrating pipe branch.

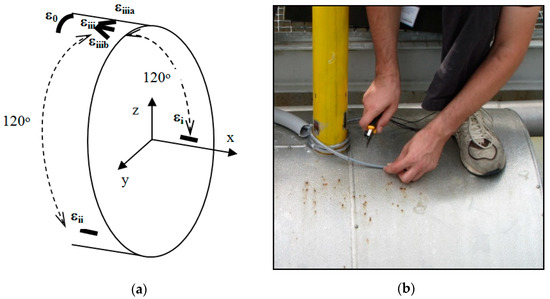

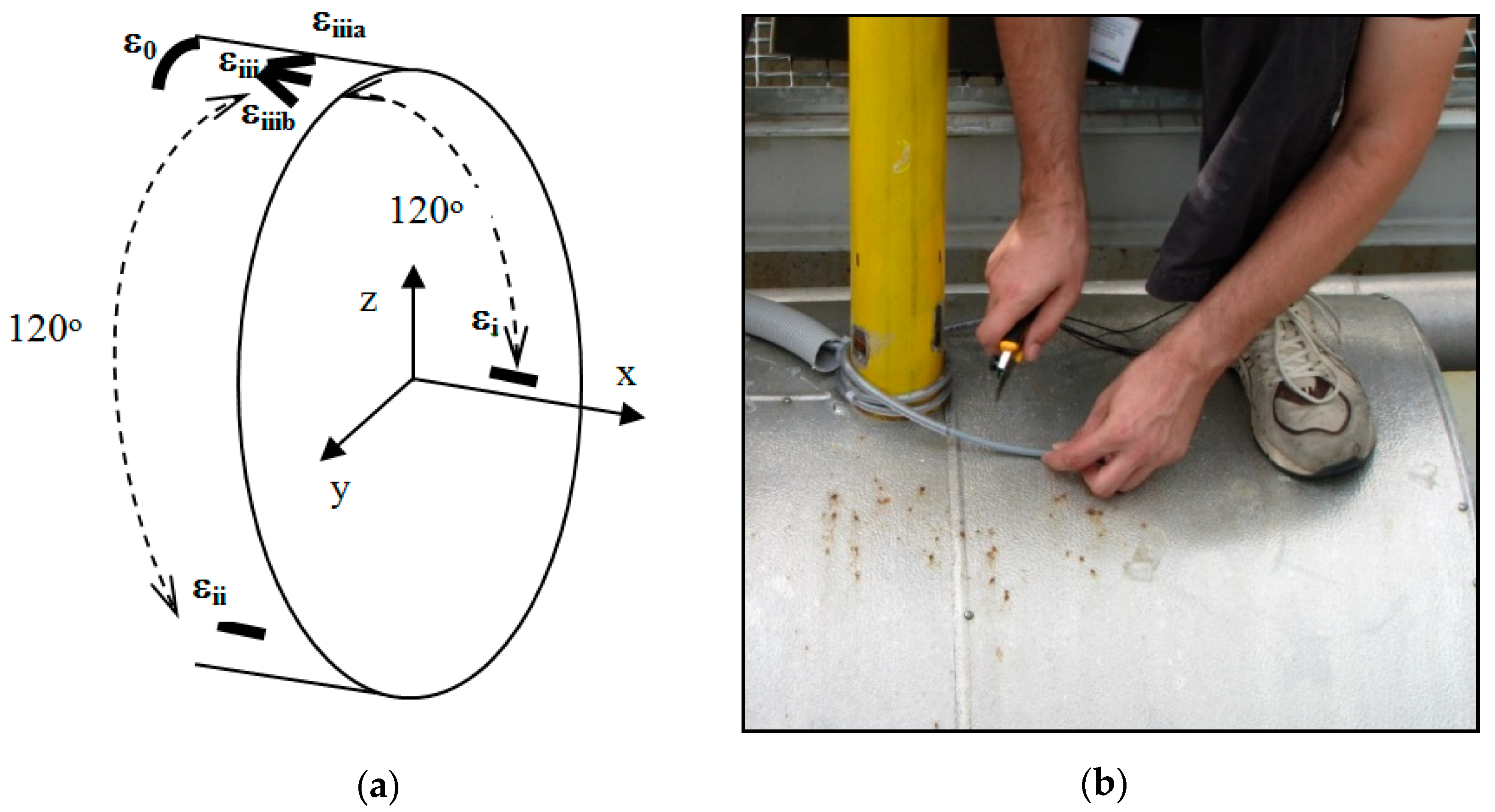

**Figure 4.**(

**a**) The arrangement of strain sensors along the perimeter of the pipeline, and (

**b**) the application of the strain sensors (gauges) on the real pipe.

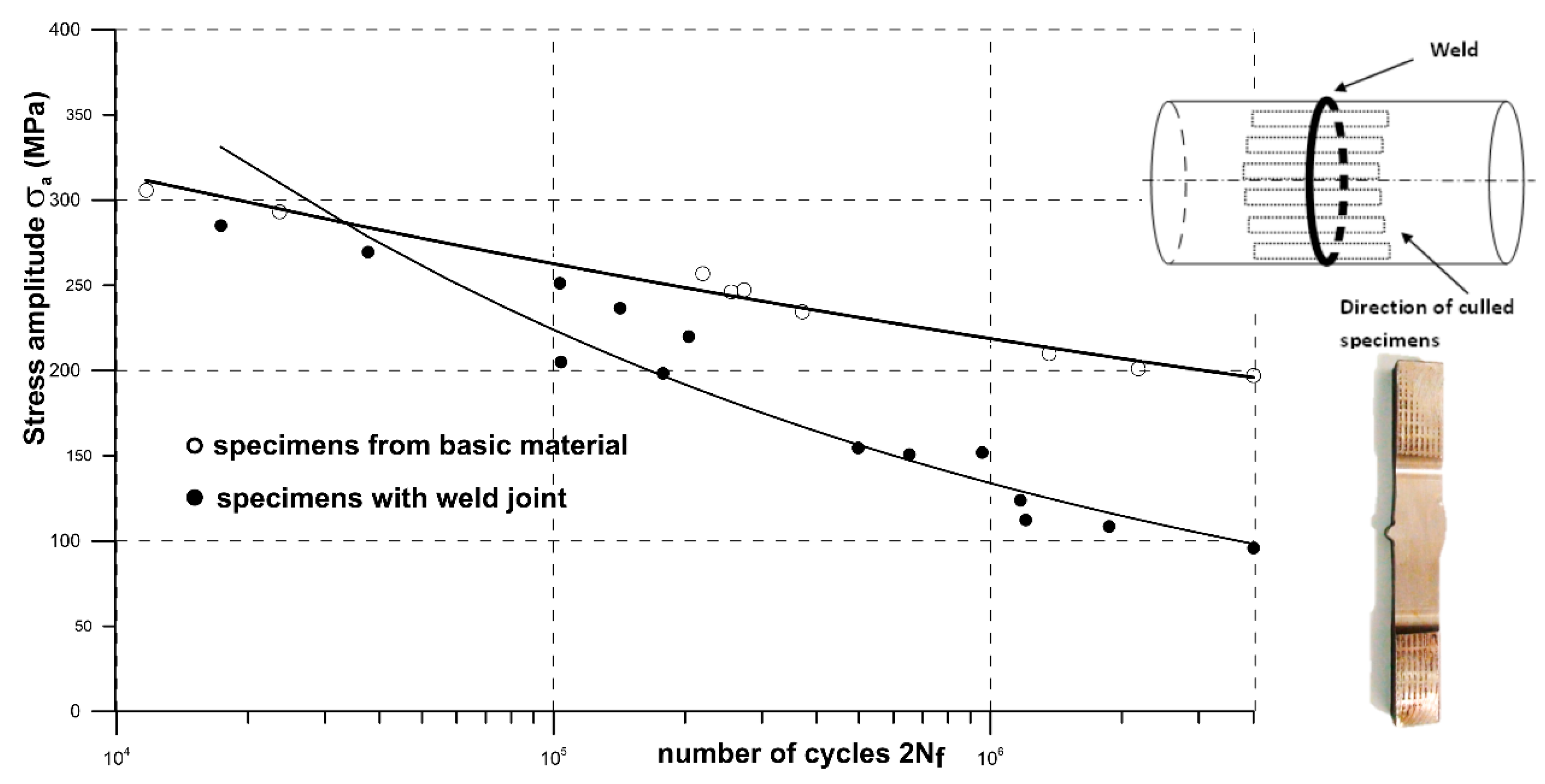

**Figure 5.**Dependency σ

_{a}-2N

_{f}[15] for the base material and pipeline specimens made from the real pipeline with the weld joint.

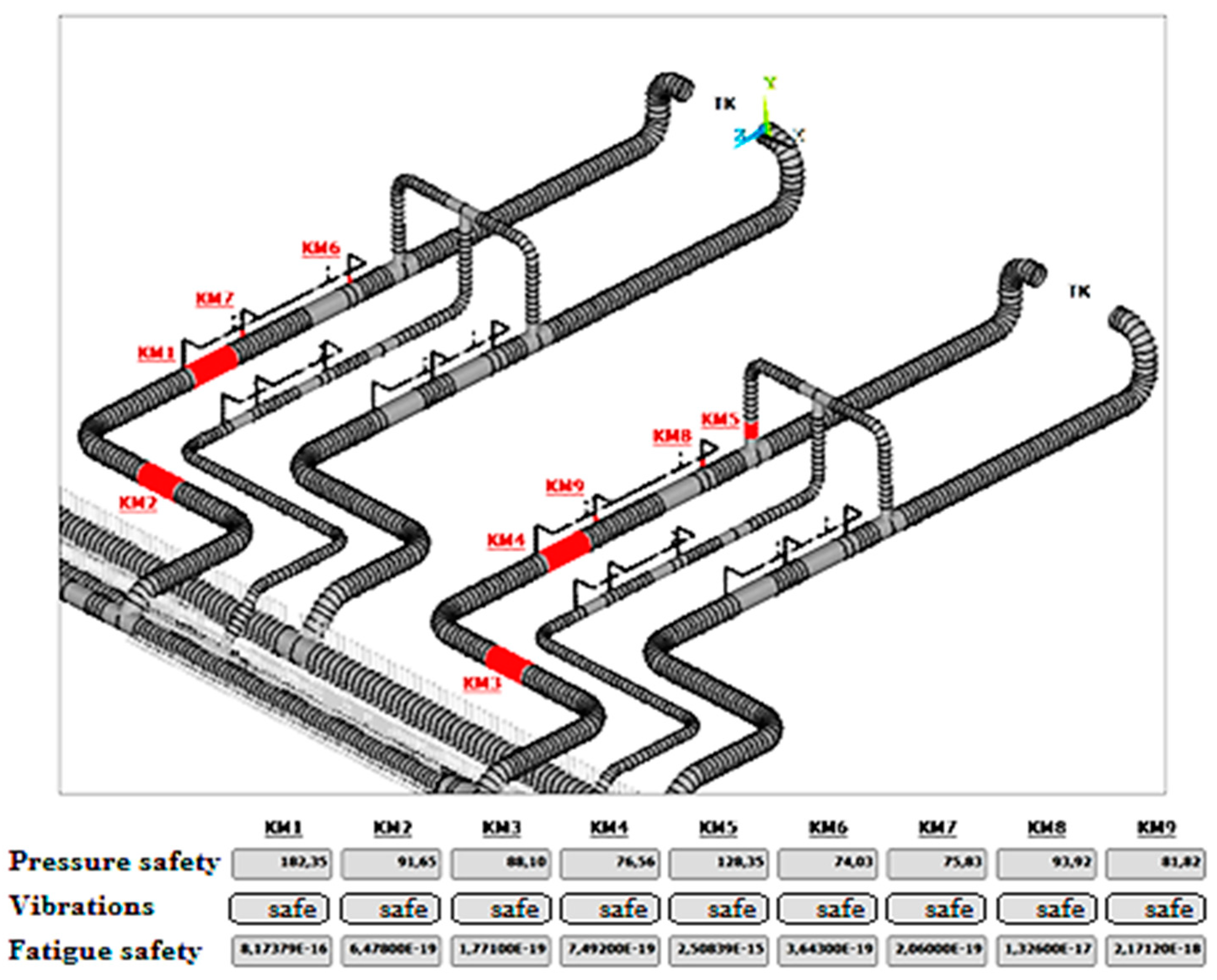

**Figure 6.**Main screen of the monitoring system for the super-structure of the pipeline yard above the ground installed at the compressor station.

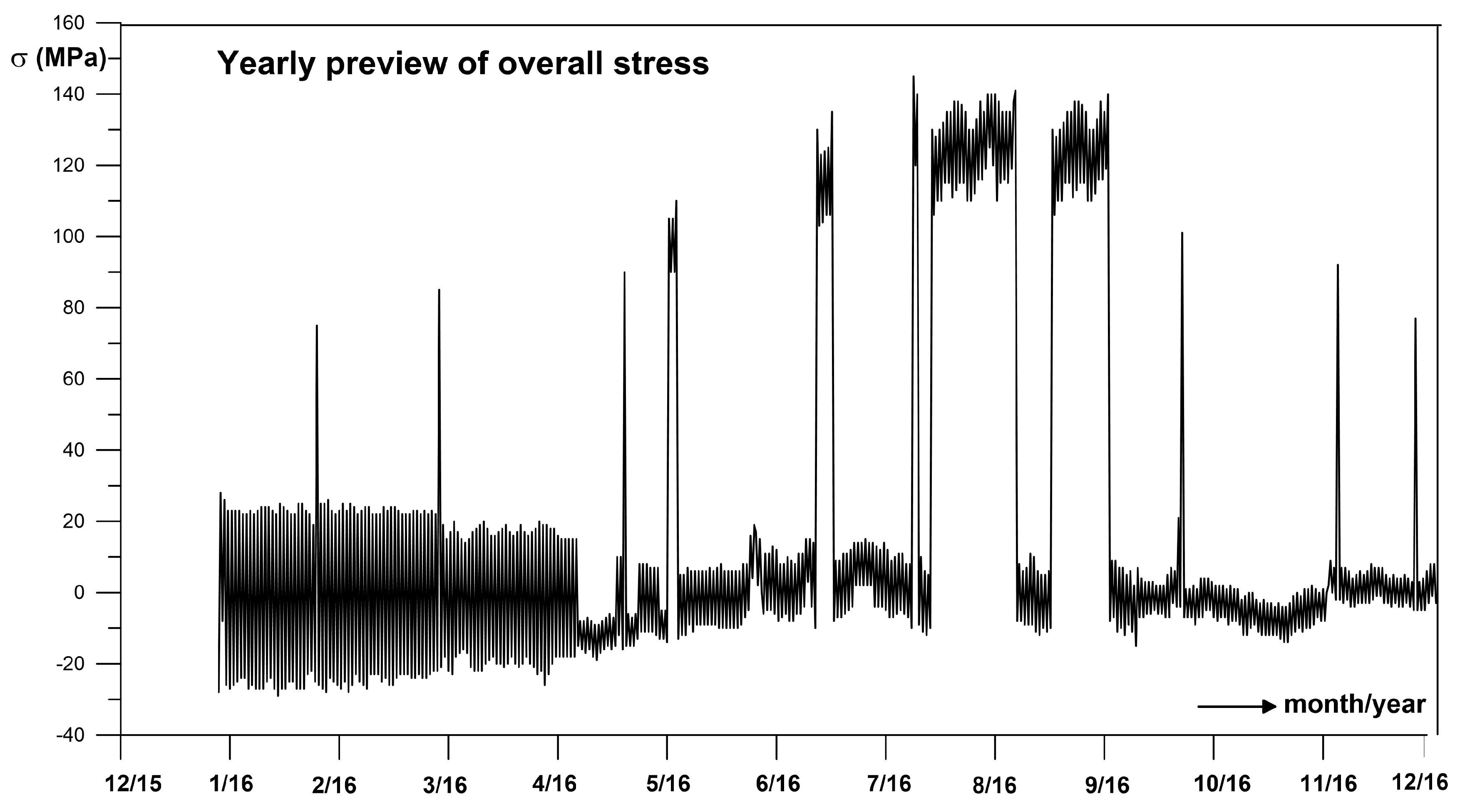

**Figure 7.**The progress of daily stress peaks in the cross-section of the pipe near the compressor obtained by a monitoring system with an extended thermal and device compensation concept.

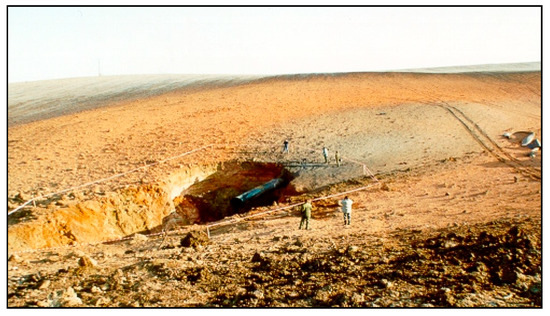

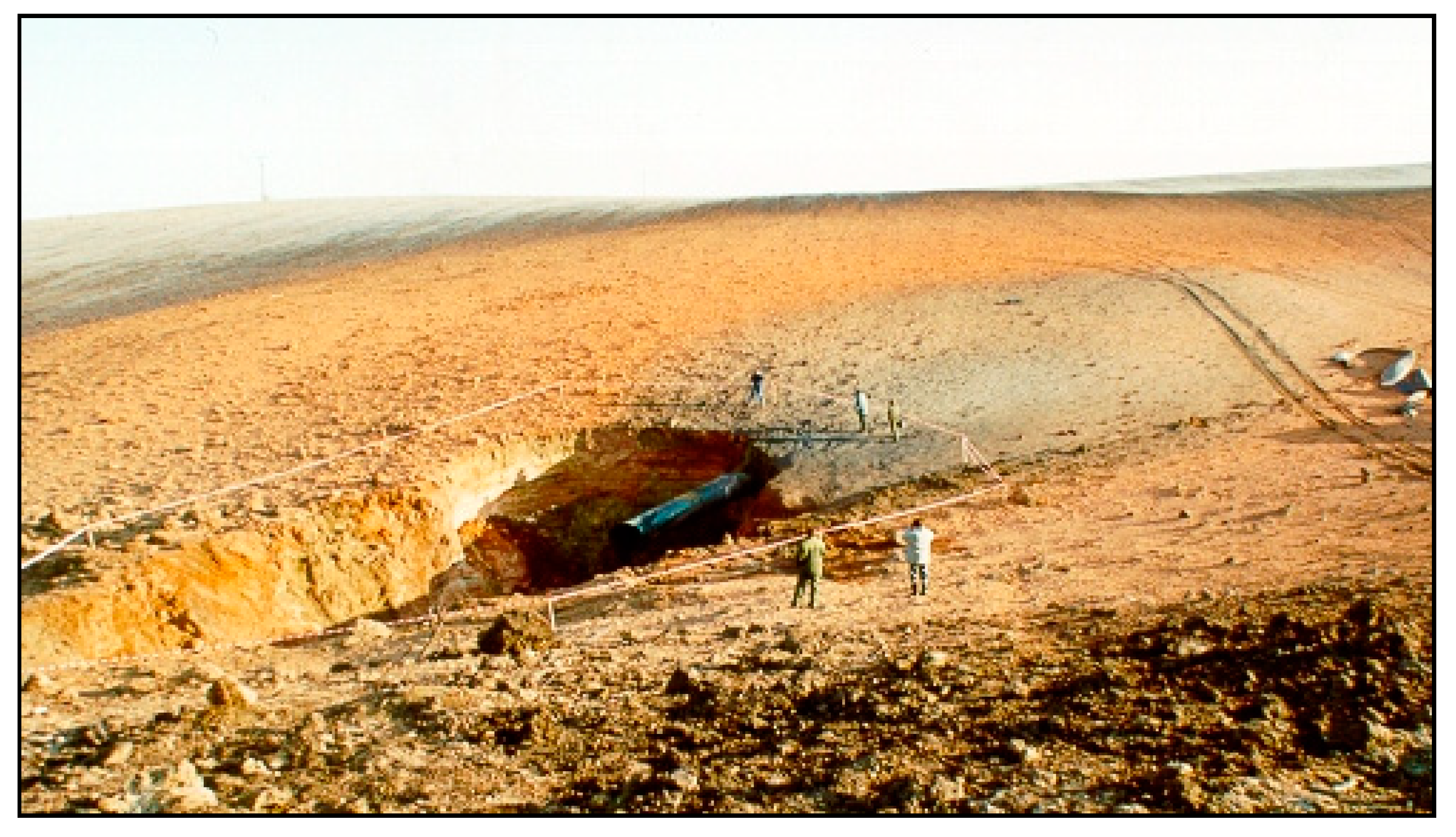

**Figure 8.**Gas pipeline accident due to the additional bending of a pipeline system laid on a slope with insufficient amounts of compacted subsoil.

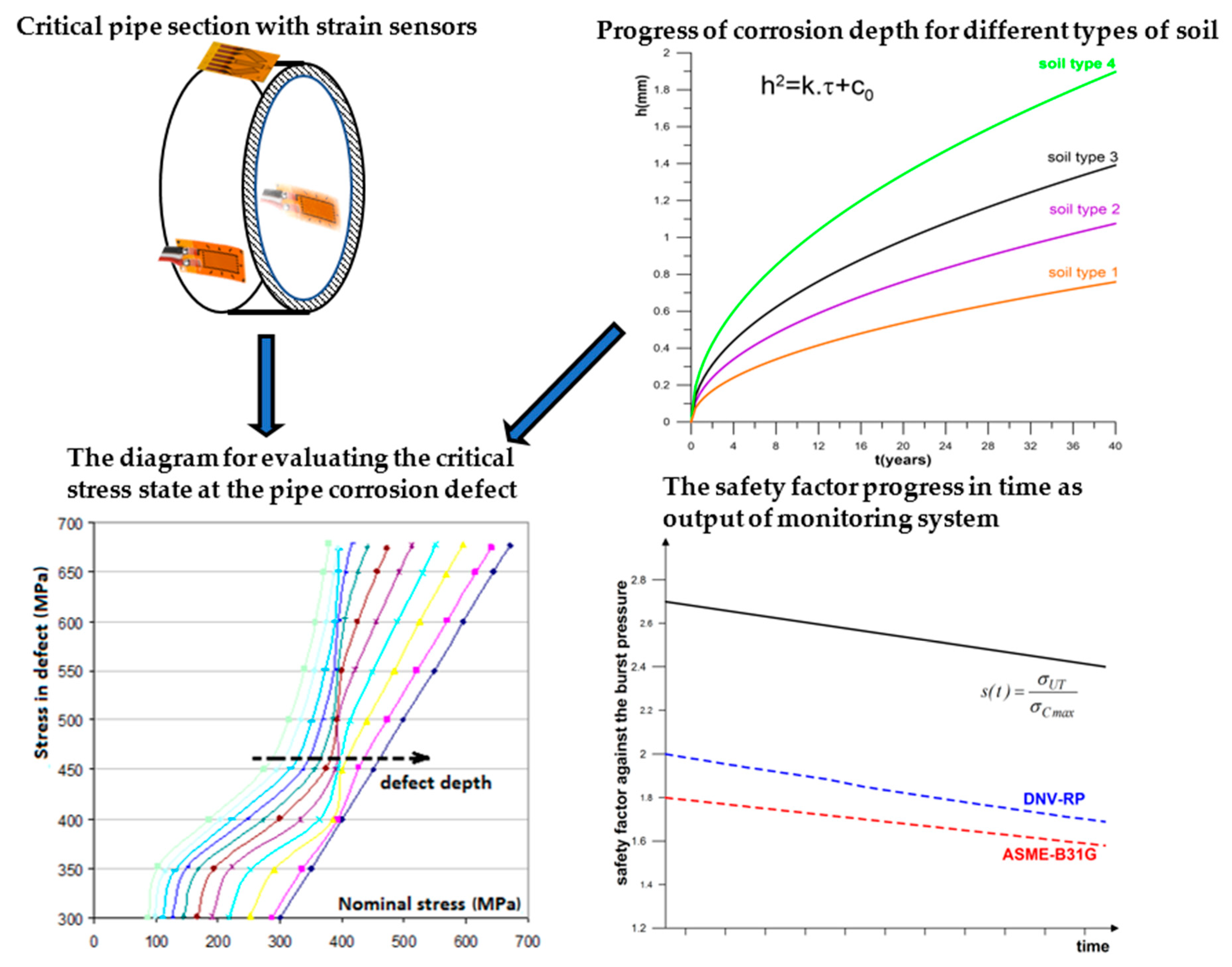

**Figure 10.**The schematic concept of the online monitoring of a pressurized pipeline system with corrosion defects.

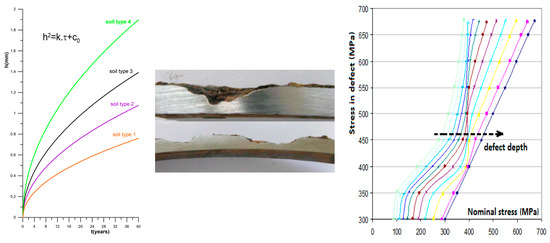

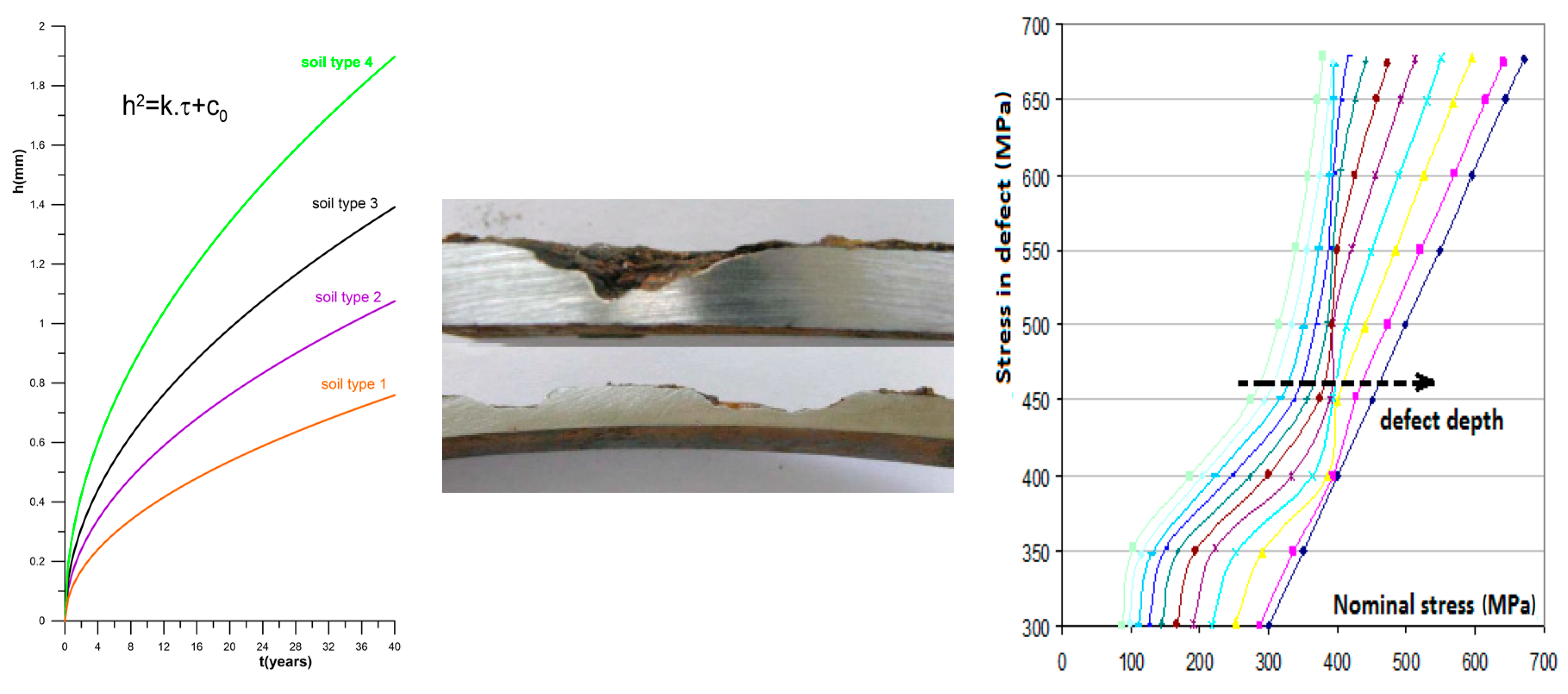

**Figure 11.**The progress of the corrosion depth over time for different soil types and stress diagram for different depths of corrosion defects for nominal stress values obtained by direct measurements.
