The Role of Magmatic and Hydrothermal Fluids in the Formation of the Sasa Pb-Zn-Ag Skarn Deposit, Republic of Macedonia

Abstract

The Sasa Pb-Zn-Ag deposit belongs to the group of distal base metal skarn deposits. The deposit is located within the Serbo-Macedonian massif, a metamorphosed crystalline terrain of Precambrian to Paleozoic age. The mineralization, hosted by Paleozoic marbles, shows a strong lithological control. It is spatially and temporally associated with the calc-alkaline to shoshonitic post-collisional magmatism that affected the Balkan Peninsula during the Oligocene–Miocene time period and resulted in the formation of numerous magmatic–hydrothermal ore deposits. The mineralization at the Sasa Pb-Zn-Ag deposit shows many distinctive features typical for base metal skarn deposits including: (1) a carbonate lithology as the main immediate host of the mineralization; (2) a close spatial relation between the mineralization and magmatic bodies of an intermediate composition; (3) a presence of the prograde anhydrous Ca-Fe-Mg-Mn-silicate and the retrograde hydrous Ca-Fe-Mg-Mn ± Al-silicate mineral assemblages; (4) a deposition of base metal sulfides, predominately galena and sphalerite, during the hydrothermal stage; and (5) a post-ore stage characterized by the deposition of a large quantity of carbonates. The relatively simple, pyroxene-dominated, prograde mineralization at the Sasa Pb-Zn-Ag skarn deposit represents a product of the infiltration-driven metasomatism which resulted from an interaction of magmatic fluids with the host marble. The prograde stage occurred under conditions of a low water activity, low oxygen, sulfur and CO₂ fugacities and a high K⁺/H⁺ molar ratio. The minimum pressure–temperature (P–T) conditions were estimated at 30 MPa and 405 °C. Mineralizing fluids were moderately saline and low density Ca-Na-chloride bearing aqueous solutions. The transition from the prograde to the retrograde stage was triggered by cooling of the system below 400 °C and the resulting ductile-to-brittle transition. The brittle conditions promoted reactivation of old (pre-Tertiary) faults and allowed progressive infiltration of ground waters and therefore increased the water activity and oxygen fugacity. At the same time, the lithostatic to hydrostatic transition decreased the pressure and enabled a more efficient degassing of magmatic volatiles. The progressive contribution of magmatic CO₂ has been recognized from the retrograde mineral paragenesis as well as from the isotopic composition of associated carbonates. The retrograde mineral assemblages, represented by amphiboles, epidote, chlorites, magnetite, pyrrhotite, quartz and carbonates, reflect conditions of high water activity, high oxygen and CO₂ fugacities, a gradual increase in the sulfur fugacity and a low K⁺/H⁺ molar ratio. Infiltration fluids carried MgCl₂ and had a slightly higher salinity compared to the prograde fluids. The maximum formation conditions for the retrograde stage are set at 375 °C and 200 MPa. The deposition of ore minerals, predominantly galena and sphalerite, occurred during the hydrothermal phase under a diminishing influence of magmatic CO₂. The mixing of ore-bearing, Mg-Na-chloride or Fe²⁺-chloride, aqueous solutions with cold and diluted ground waters is the most plausible reason for the destabilization of metal–chloride complexes. However, neutralization of relatively acidic ore-bearing fluids during the interaction with the host lithology could have significantly contributed to the deposition. The post-ore, carbonate-dominated mineralization was deposited from diluted Ca-Na-Cl-bearing fluids of a near-neutral pH composition. The corresponding depositional temperature is estimated at below 300 °C.

1. Introduction

Although skarn deposits represent products of interaction of a silicate melt (proximal skarns) or magmatic fluids (distal skarns) with a carbonate rich lithology, hydrothermal fluids play a significant role in evolution of all types of skarn deposits. Late hydrothermal overprints particularly affect the skarn deposit geometry, type of alteration products and ore distribution [1,2,3,4].

The Sasa Pb-Zn-Ag deposit is a typical distal skarn deposit and has been selected as a site to study processes that involve transport of base metals by magmatic and hydrothermal fluids as well as physicochemical factors that control the deposition of base metal-bearing mineral phases. The Sasa deposit (42.0° N, 22.5° E) is located on the Balkan Peninsula, approximately 150 km east from Skopje, Republic of Macedonia (Figure 1). It consists of three ore-bearing localities: Svinja Reka, Golema Reka and Kozja Reka (Figure 2a). The deposit hosts approximately 23.4 million metric tons of ore at 7.5% of Pb and Zn and up to 22 g/t Ag. Mining activities in the area date back to ancient times. The first geological investigations began in the 19th century and industrial production started in 1966. Since November 2017, the deposit is operated by Central Asia Metals.

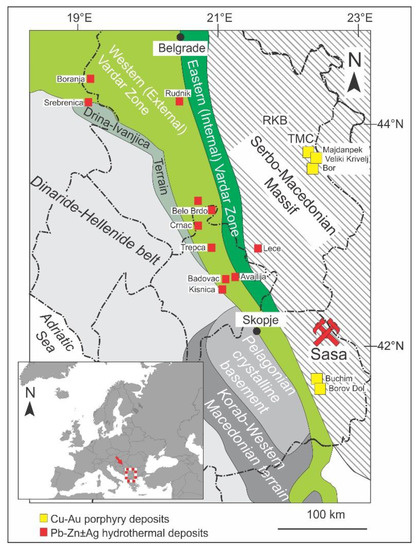

The Sasa Pb-Zn-Ag skarn deposit is hosted by the Serbo-Macedonian massif, a large elongate basement complex situated along the eastern part of the Balkan Peninsula. It extends southward from Serbia through Kosovo, Macedonia and Bulgaria to the Chalkidiki Peninsula in northern Greece (Figure 1) and holds numerous economically important ore deposits of Cu, Au, Pb and Zn (e.g., Bor and Majdanpek, Serbia; Toranica, Sasa and Bucim, Macedonia; Osogovo, Bulgaria; Skouries, Greece [5,6,7,8,9]).

The Sasa deposit is spatially and temporally associated with the Tertiary calc-alkaline magmatism [10]. It comprises prograde and retrograde mineral assemblages hosted by a sequence of Paleozoic marbles intercalated with quartz–graphite schists [11]. The prograde mineralization is represented by anhydrous Ca-Fe-Mn-silicate minerals (pyroxenes and pyroxenoids). A subsequent retrograde stage contains amphiboles, epidote, chlorites and ilvaite [12]. The principal ore minerals, galena and sphalerite, are accompanied by variable amounts of hydrothermal quartz and carbonates.

This study presents the mineral chemistry, fluid inclusion and stable isotope data obtained on the skarn and hydrothermal mineral assemblages to give an insight into the evolution of the mineralizing fluids, to constrain the physiochemical conditions during the skarn formation and ore deposition and to refine the metallogenic model of the deposit.

2. Geological Setting

2.1. Regional Geology

The Serbo-Macedonian massif is a N–S trending crystalline belt outcropping between the Vardar ophiolite zone in the west and the Rhodope massif in the east (Figure 1). This Precambrian to Paleozoic terrain consists of two main tectonostratigraphic units, the Lower unit (also known as the Lower complex in Serbia and Macedonia, the Ograzhden unit in Bulgaria and the Vertiskos unit in Greece) and the Upper unit (the Vlasina unit in Serbia and Macedonia or the Morava unit in Bulgaria), usually distinguished by their metamorphic grade. The Lower unit was metamorphosed up to medium- to lower-amphibolite facies metamorphism, whereas the Upper unit underwent greenschist facies conditions [13,14,15,16]. The Lower unit is composed predominately of gneisses, micaschists, quartzites, amphibolites, and occasionally marbles and migmatites. This unit has been considered as a metamorphosed volcano–sedimentary sequence formed in the late Neoproterozoic to the earliest Cambrian along the active margin of north Gondwana that underwent the amphibolite facies metamorphism during the Variscan orogeny [13,17,18]. In contrast, the Upper unit is mostly composed of the late Neoproterozoic ocean floor sediments and igneous rocks, overlaid by a Lower Ordovician to Lower Carboniferous sedimentary sequence metamorphosed to various schists, phyllites, quartzites and marbles [13,19,20].

In the Cretaceous to Tertiary period, the Serbo-Macedonian massif as well as the adjunct Vardar zone were affected by considerable magmatic activity related to the Alpine orogeny and post-collisional collapse of the Alpine orogen, followed by extension of the Pannonian (Miocene) and Aegean areas (Eocene–Pliocene) [21,22,23,24]. The magmatism had an intermediate, mostly andesitic to trachytic, character and resulted in the formation of numerous ore deposits including porphyry Cu-Mo-Au and subordinate epithermal gold deposits (e.g., Bor, Majdanpek and Veliki Krivelj in Serbia; Buchim and Borov Dol in Macedonia; Skouries [8,9,25,26,27,28]) and Pb-Zn-Ag hydrothermal deposits (e.g., Srebrenica in Bosnia and Herzegovina; Cer and Boranja in Serbia; Trepca, Crnac and Belo Brdo in Kosovo; Sasa, Toranica and Zletovo in Macedonia; Olympias in Greece; [29,30,31,32,33,34,35], Figure 1a). The age of magmatism decreases from approximately 84 Ma in the north to 19 Ma in the southernmost part of the Serbo-Macedonian massif [36,37].

2.2. Geology of the Deposit

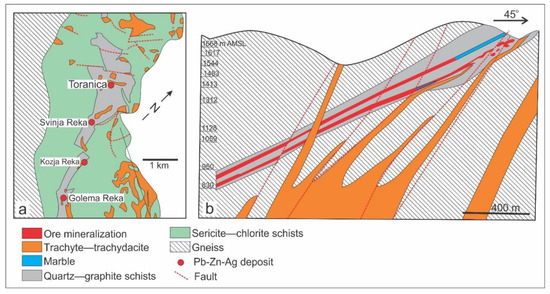

The Sasa Pb-Zn-Ag skarn deposit is hosted by a Paleozoic metamorphic complex composed of marble horizons intercalated with quartz–graphite schist and surrounded by Precambrian gneiss (Figure 2). The cross-section through the Pb-Zn-Ag Sasa skarn deposit reflects the strong lithological control on ore deposition revealing that carbonate rich lithology, i.e. marble, was almost completely replaced by the mineralization whereas other country rocks, including schists, gneisses and magmatic rocks, are mostly barren (Figure 2). The mineralized strata dip at approximately 35° to south-west and range in thickness from 2 m to 30 m. Rare lenses of preserved marble are characterized by a uniform calcite grain size and fine intercalations of grey mica, classifying this marble to the cipollino marble variety (Figure 3a). The dark, medium grained and foliated quartz–graphite schist consists predominately of graphite, quartz and minor sericite (Figure 3b,c). The Precambrian gneiss is strongly foliated, with ductile deformed chlorite and quartz grains and brittle deformed amphiboles (Figure 3d). The mineralization is spatially associated with magmatic rocks (Figure 2), mostly of trachytic to trachydacitic composition (Figure 3e,f) and the K/Ar age is between 31 Ma and 24 Ma [38,39]. A relatively high 87 Sr/86 Sr ratio (0.7095–0.7113, [38]) suggests a significant crustal contamination common for the Oligocene–Miocene calc-alkaline to shoshonitic post-collisional magmatism of the Balkan Peninsula [40,41]. Although the mineralization is lithologically controlled, old structures, reactivated during the Tertiary post-collisional extension, might have played a significant role in emplacement of magmatic bodies (Figure 2).

The mineralization consists of skarn and hydrothermal parageneses. The skarn parageneses are characterized by the presence of Mn-enriched calc-silicate minerals, including pyroxenes, pyroxenoids, garnets, epidote, chlorites and ilvaite. The hydrothermal parageneses are mostly superimposed onto the skarn assemblages, and contain galena, sphalerite and pyrite, as well as minor pyrrhotite, chalcopyrite and magnetite. Carbonates and quartz are the most abundant gangue minerals.

3. Materials and Methods

A total of 30 samples were collected from the Svinja Reka locality, an active underground mine at the Sasa deposit. The representative samples of host rocks, associated magmatic rocks and ore mineralization were selected for further mineralogical and geochemical studies.

Paragenetic relationships were studied in thin polished sections by transmitted and reflected polarized light microscopy. The X-ray powder diffraction (XRD) was conducted at the University of Zagreb on a Philips PW 3040/60 X’Pert PRO powder diffractometer (45 kV, 40 μA), with CuKα-monochromatized radiation (λ = 1.54056 Å) and θ–θ geometry. The area between 4° and 63° 2θ, with 0.02° steps, was measured with a 0.5° primary beam divergence. Compound identifications were based on a computer program X’ Pert high score of 1.0 B and literature data.

The textural features and semi-quantitative analyses of mineralized samples were examined by a Zeiss Merlin Compact VP field emission Scanning Electron Microscope (SEM) equipped with an Energy-Dispersive X-Ray (EDX) spectrometer and an Electron Backscattered Diffraction (EBSD) detector at UiT The Arctic University of Norway. EDX analyses were conducted with an X-Max80 EDX detector by Oxford instruments at a working distance of 8.5 mm, using an accelerating voltage of 20 kV and an aperture of 60 µm. The samples were mechanically polished and carbon-coated. The retrieved data were further processed by applying the AZtec software also provided by Oxford instruments. EBSD analyses for phase identification and distribution were conducted on a Nordlys EBSD detector in combination with the Aztec data processing software, both provided by Oxford instruments. The analyzed samples were mechanically and chemically polished with a colloidal silica solution and coated with a carbon layer. The samples were tilted to 70°. An acceleration voltage of 20 kV was applied in combination with a 240 µm aperture. Step sizes for EBSD mapping were from 4.5 µm to 6 µm; six bands were detected with refined accuracy as indexing mode. Indexing rates were from 74.0% to 88.4%. A camera exposure time of 21 ms was applied in both cases.

Petrographic and microthermometric measurements of fluid inclusions within transparent minerals (quartz, calcite, sphalerite and pyroxene) were performed at the University of Zagreb and at UiT The Arctic University of Norway. Double polished, 0.1 mm to 0.3 mm thick, transparent mineral wafers were studied. Measurements were carried out on Linkam THMS 600 stages mounted on an Olympus BX 51 (University of Zagreb) and an Olympus BX 2 (UiT) using 10× and 50× Olympus long-working distance objectives. Two synthetic fluid inclusion standards (SYN FLINC; pure H₂O and mixed H₂O–CO₂) were used to calibrate the equipment. The precision of the system was ± 2.0 °C for homogenization temperatures, and ± 0.2 °C in the temperature range between −60° and +10 °C. Microthermometric measurements were made on carefully defined fluid inclusion assemblages, representing groups of inclusions that were trapped simultaneously. The fluid inclusion assemblages were identified based on petrography prior to heating and freezing. If all of the fluid inclusions within the assemblage showed similar homogenization temperature, the inclusions were assumed to have trapped the same fluid and to have not been modified by leakage or necking; these fluid inclusions thus record the original trapping conditions [42,43,44].

Carbon and oxygen isotope analyses of calcite separated from the host marble, as well as from skarn and hydrothermal mineral associations, were performed at the University of Lausanne and at UiT The Arctic University of Norway. In both laboratories, calcite powder was extracted from hand-picked samples using a dentist’s drill. A mass of 250 μg of powder was loaded in sealed reaction vessels, then flushed with helium gas and reacted at 72 °C with phosphoric acid. The evolved carbon dioxide was sampled using a ThermoFinnigan Gas-Bench and isotope ratios were measured in continuous flow mode using a ThermoFinnigan Delta + XP mass spectrometer. Data was extracted to an EXCEL file by using the ISODAT NT EXCEL export utility and further calculation steps were carried out using a predefined EXCEL Worksheet. Linearity corrections were applied based on the relationships between the intensity of the first sample peak (m/z 44) and δ ¹⁸O value of the standards. Due to calibration based directly on standard, which were part of each run (Carrara marble), correction for calcite runs was unnecessary. The stable carbon and oxygen isotope ratios are reported in the delta (notation as per mil (‰) deviation relative to the Vienna Standard Mean Ocean Water (V-SMOW) for oxygen and Vienna Pee Dee Belemnite (V-PDB) for carbon. The analytical reproducibility was better than ±0.05‰ for δ ¹³C and ± 0.1‰ for δ ¹⁸O.

4. Results

4.1. Petrography

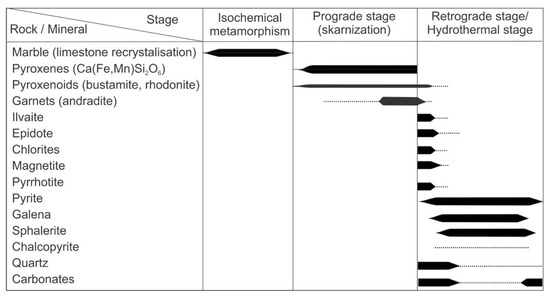

The paragenetic sequence of the Sasa Pb-Zn-Ag skarn deposit (Figure 4) illustrates that the mineralization was deposited as a result of several mineralizing events, similar to other skarn deposits worldwide [45,46,47]. Marble layers represent the main immediate host rock, and they are usually completely replaced by the mineralization. Textural features of the skarn parageneses, including rhythmic banding, scalloping and fingering, reflect infiltration-driven replacement as the main mechanism of their formation (Figure 5, [48]). The prograde stage has an anhydrous character with prevailing Ca-Fe-Mn pyroxenes and minor pyroxenoids and garnets. Pyroxenes form fibroradial aggregates (Figure 5). The retrograde stage resulted in a complex mineral assemblage that consists of a mixture of amphiboles, ilvaite, epidote, chlorites, magnetite, pyrrhotite, carbonates and quartz. It texturally mimics the fibroradial texture inherited from the prograde mineralization (Figure 5). The superimposed hydrothermal mineral assemblages predominantly occur as replacements and open-space fillings. They contain galena, sphalerite, pyrite and minor chalcopyrite, as well as syn-ore and post-ore gangue carbonates and quartz (Figure 6).

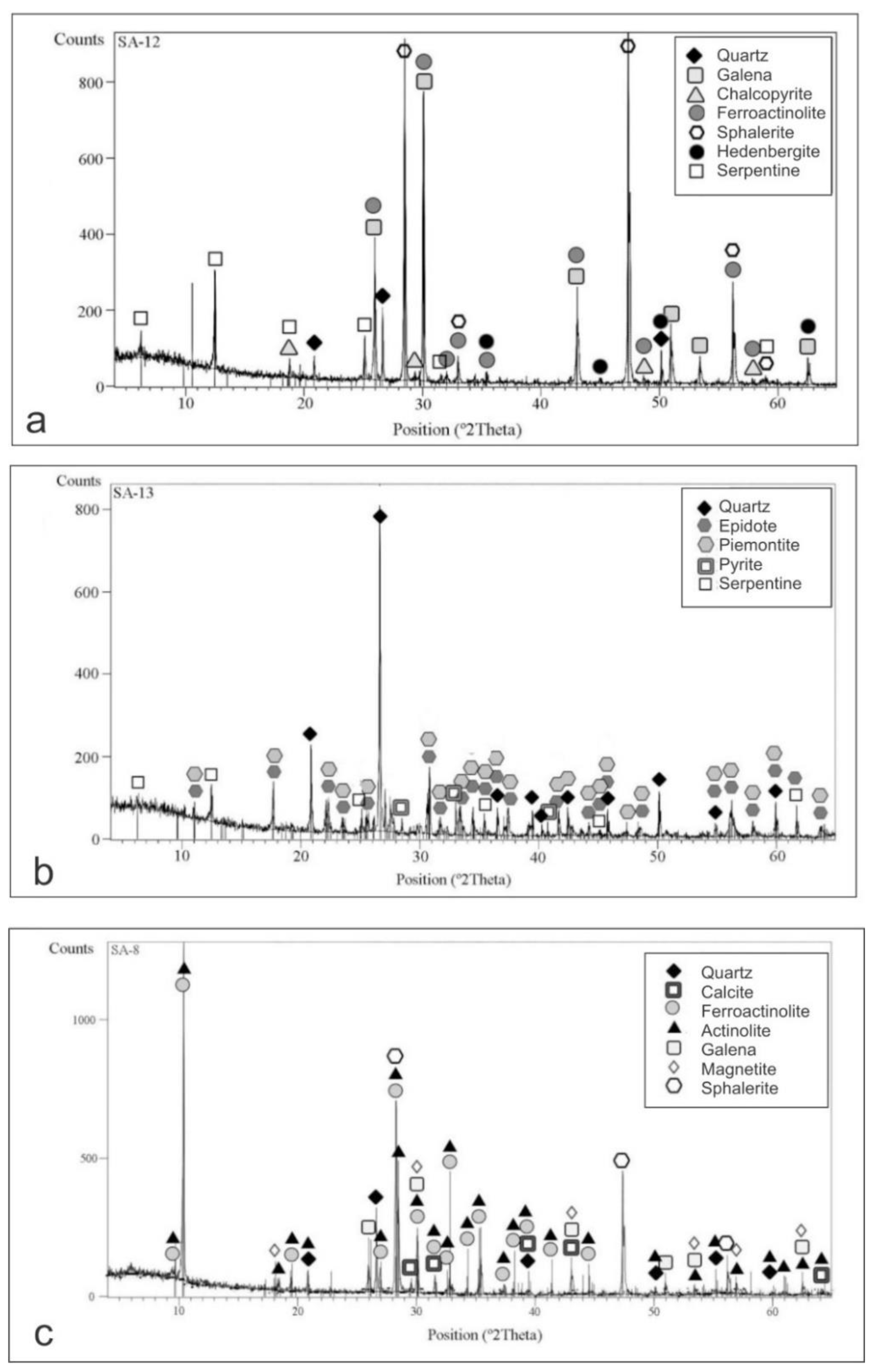

4.2. X-ray Diffraction (XRD)

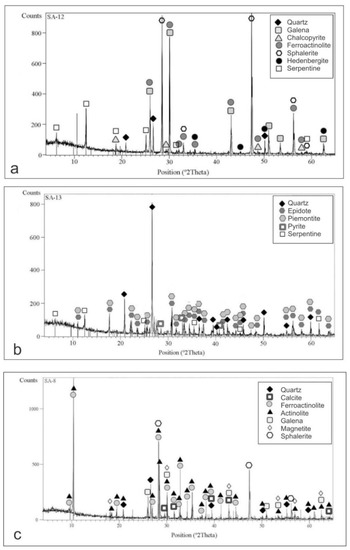

Hydrothermally altered skarn assemblages are characterized by very fine-grained textures that preclude determination of their mineral composition by optical microscopy techniques and, alternatively, the XRD method was applied. The representative XRD patterns presented in Figure 7 suggest that prograde mineral assemblages composed mostly of pyroxenes from the hedenbergite–johannsenite series, which are altered to amphiboles from the actinolite–ferroactinolite series, serpentine, minerals from the epidote group, chlorites of the clinochlore type, magnetite, carbonates and quartz. In addition, ore minerals, including pyrite, galena, sphalerite and chalcopyrite, have been recorded.

4.3. Electron Back Scattered Diffraction (EBSD)

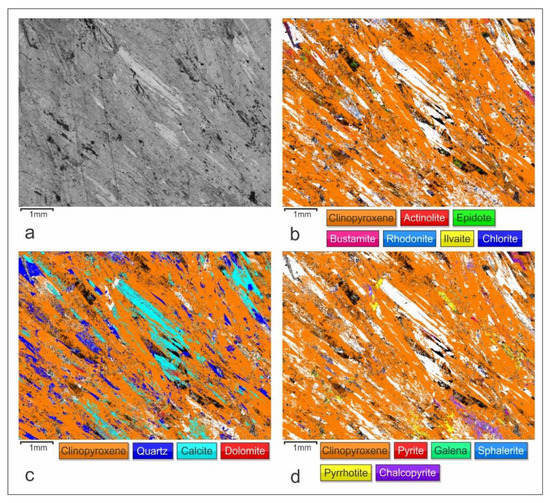

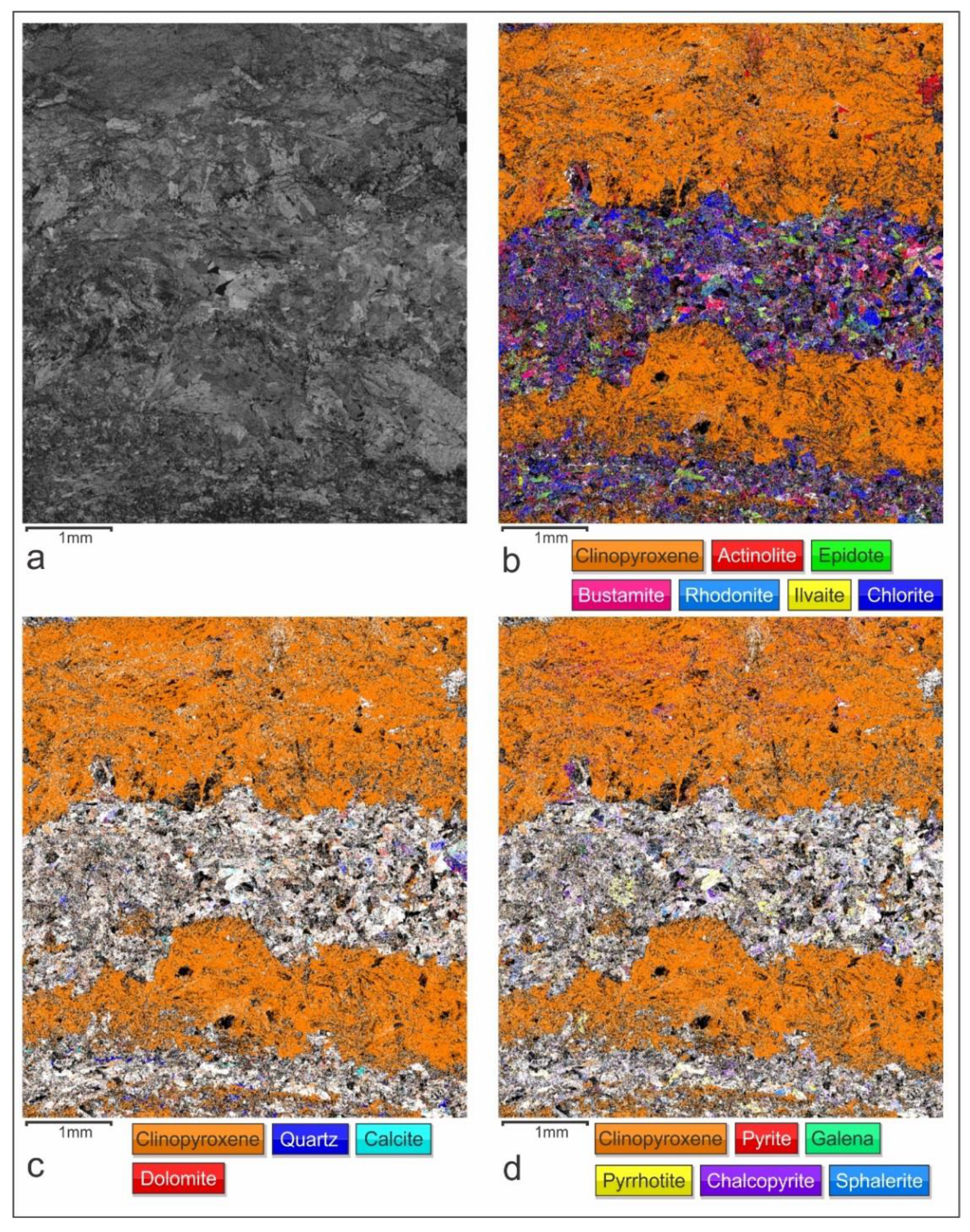

The EBSD method was utilized to determine the spatial distribution of retrograde alteration products. The EBSD maps presented in Figure 8 and Figure 9 suggest that prograde pyroxenes have been altered to various degrees during the infiltration of hydrothermal fluids. Sharp alteration zones composed of a mixture of hydrous calc-silicate minerals, predominantly amphiboles, chlorites, epidote and ilvaite point to an increase in water activity (Figure 8). In contrast, mixtures of quartz and carbonates usually overprint individual pyroxene grains, mimicking the prograde fibroradial texture and reflecting an increase in the CO₂ fugacity (Figure 9). Carbonates from both the calcite and dolomite groups have been identified. Fine grained sulfide minerals suggest an increase in the sulfur fugacity.

4.4. Mineral Chemistry

The major element composition of pyroxenes, analyzed by the EDS/SEM technique, is listed in

Table 1. Chemical composition of pyroxenes from the Sasa Pb-Zn-Ag skarn deposit. Hd—hedenbergite; Jo—johannsenite; Di—diopside.

Sample	Point	CaO	FeO	MnO	MgO	SiO2	Hd	Jo	Di
		wt. %					%
SA-101	Px-1	24.6	22.2	5.1	0.5	47.6	79.8	18.4	1.8
	Px-2	25.1	20.5	4.3	1.1	49.0	79.1	16.5	4.4
	Px-3	24.4	21.8	4.7	0.8	48.3	79.8	17.2	3.0
	Px-4	22.8	21.2	5.6	1.0	49.4	76.3	20.1	3.7
	Px-5	25.0	21.2	5.7	0.7	47.5	77.0	20.6	2.4
	Px-6	24.0	22.8	5.1	0.7	47.4	79.7	17.9	2.4
	Px-7	23.2	19.7	4.9	0.8	51.5	77.5	19.5	3.0
	Px-8	23.1	21.2	6.0	0.8	49.0	75.7	21.3	3.0
	Px-9	23.9	20.2	5.2	1.0	49.6	76.4	19.8	3.8
	Px-10	22.7	19.1	5.2	1.6	51.5	73.9	20.1	6.0
SA-102	Px-11	25.2	21.1	5.2	0.6	47.9	78.6	19.2	2.1
	Px-12	25.4	19.8	5.3	0.7	48.8	76.8	20.5	2.8
	Px-13	25.4	18.9	5.3	0.7	49.6	75.7	21.4	2.9
	Px-14	23.9	21.2	5.6	0.4	48.8	77.9	20.4	1.6
	Px-15	24.0	21.0	5.5	0.4	49.1	78.2	20.4	1.3
	Px-16	24.6	20.4	4.6	0.9	49.4	78.9	17.8	3.4
	Px-17	23.4	20.3	4.6	1.6	50.1	76.5	17.5	5.9
	Px-18	23.0	22.8	5.3	1.0	48.0	78.4	18.1	3.4
	Px-19	24.6	19.8	5.0	0.7	49.9	77.3	19.7	2.9
	Px-20	22.5	19.8	5.4	0.7	51.6	76.6	20.8	2.5

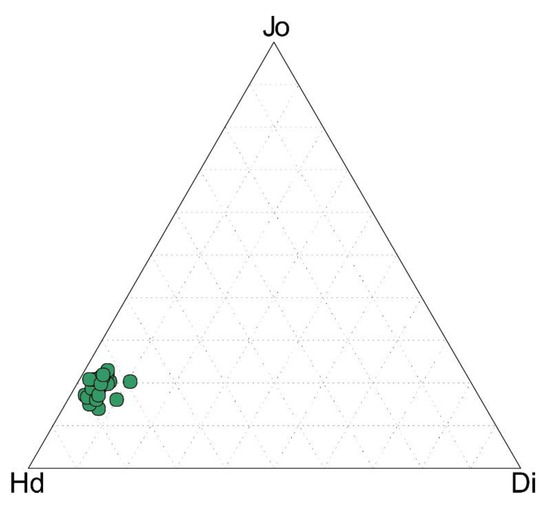

and plotted in the diopside–johannsenite–hedenbergite ternary diagram (Figure 10). Hedenbergite, with 74–80 mol %, represents the main pyroxene constituent. The johannsenite content varies between 16–21 mol % and diopside between 1–6 mol %.

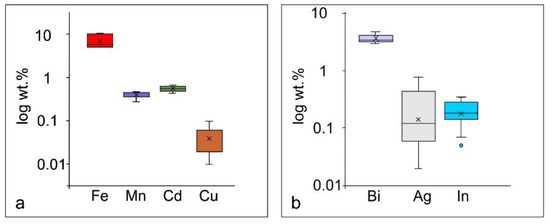

The EDS/SEM analyses of sulfides revealed that sphalerite owes its black color to an enrichment of iron (>10 wt. % of Fe,

Table 2. Semi-quantitative composition of sulfides from the Sasa Pb-Zn-Ag skarn deposit. n—number of point analyses per sample; <d.l.—below detection limit; STD—standard deviation.

Sample	Mineralogy	n	Element	Minimum	Maximum	Mean	STD
Sasa-17	Galena	7		wt.%
			Pb	77.76	82.26	80.23	1.52
			Bi	4.02	4.69	4.36	0.23
			Ag	0.02	0.62	0.16	0.21
			In	0.15	0.31	0.21	0.06
			S	12.12	12.57	12.37	0.18
			Total	94.30	99.22	97.33	1.69
Sasa-17	Sphalerite	4
			Zn	58.44	59.34	58.86	0.39
			Fe	10.18	10.38	10.25	0.09
			Mn	0.28	0.34	0.32	0.03
			Cd	0.43	0.58	0.51	0.08
			Cu	<d.l.	<d.l.
			S	28.37	28.93	28.62	0.26
			Total	97.85	99.55	98.56	0.79
Sasa-20	Galena	11
			Pb	83.12	84.75	83.96	0.59
			Bi	2.97	3.55	3.25	0.19
			Ag	<d.l.	0.77	0.36	0.27
			In	<d.l.	0.28	0.12	0.08
			S	12.48	12.69	12.55	0.07
			Total	99.33	101.13	100.25	0.59
Sasa-20	Sphalerite	12
			Zn	57.56	59.95	58.85	0.92
			Fe	5.11	5.83	5.47	0.34
			Mn	0.43	0.47	0.45	0.01
			Cd	0.45	0.66	0.55	0.07
			Cu	<d.l.	59.92	5.01	17.29
			S	32.15	32.73	32.51	0.21
			Total	96.53	98.89	97.88	0.81
Sasa-24	Galena	7
			Pb	82.06	83.73	82.87	0.56
			Bi	3.15	3.85	3.44	0.24
			Ag	0.03	0.14	0.09	0.04
			In	0.16	0.35	0.28	0.07
			S	12.36	12.55	12.44	0.08
			Total	98.47	100.25	99.11	0.68
Sasa-24	Sphalerite	4
			Zn	55.21	57.95	56.39	1.17
			Fe	9.76	10.48	10.02	0.32
			Mn	0.35	0.43	0.39	0.03
			Cd	0.58	0.63	0.61	0.02
			Cu	<d.l.	0.10	0.03	0.08
			S	30.21	31.19	30.49	0.47
			Total	96.24	100.50	97.92	1.83

). Sphalerite also contains detectable amounts of cadmium, manganese and copper (Table 2). Galena carries significant amounts of bismuth (up to 4.7 wt. % of Bi). Indium and silver have been detected as well (Table 2). Variations in the trace element content of sphalerite and galena are presented in Figure 11.

4.5. Fluid Inclusion Studies

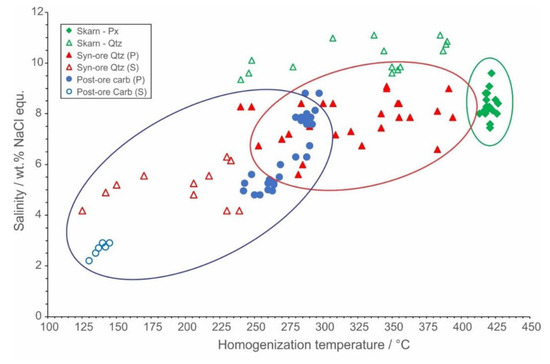

Fluid inclusions entrapped within skarn and hydrothermal minerals preserve information about mineralizing fluids in a magmatic-hydrothermal system and reveal variations of pressure–temperature–chemical composition (P–T–X) conditions over time. Fluid inclusion data collected from pyroxenes, quartz and carbonates from the Sasa Pb-Zn-Ag skarn deposit are summarized in

Table 3. Summary of the fluid inclusion data obtained from the Sasa Pb-Zn-Ag skarn deposit. Px—pyroxene; Qtz—quartz; Cc—calcite; F—Degree of fill; L—Liquid phase; V—Vapor phase.

Mineralization Type	Prograde	Retrograde	Hydrothermal
Host Mineral	Px	Qtz	Syn-ore Qtz	Syn-ore Qtz	Post-ore Cc	Post-ore Cc
Fluid Inclusion Type	Primary	Primary	Primary	Secondary	Primary	Secondary
Phases (at 25 °C)	L+V	L+V	L+V	L+V	L+V	L+V
F (at 25 °C)	0.6	0.7–0.8	0.7	0.8–0.9	0.7–0.8	0.9
Composition	NaCl-CaCl2-H2O	NaCl-MgCl2-H2O	NaCl-MgCl2-H2O or FeCl2-H2O	NaCl-CaCl2-H2O	NaCl-CaCl2-H2O	NaCl-CaCl2-H2O
Salinity (wt% NaCl equ.)	7.5–9.6	9.3–10.9	3.9–9.1	4.2–6.3	4.8–8.8	2.2–2.9
Th (°C)	403–433	237–390	240–394	125–239	242–297	130–145
Density (g/cm3)	0.5270.598	0.680–0.899	0.612–0.890	0.852–0.966	0.820–0.856	0.944–0.951

.

Primary fluid inclusions entrapped by pyroxene are usually found in isolated clusters or along growth zones. The inclusions come in a variety of shapes, mostly elongated, squared and irregular. Their size ranges from <2–20 μm. At room temperature, they contain liquid (L) and vapor (V) phases and are characterized by a uniform degree of fill around 0.6 (Figure 12a,b). The eutectic temperature (Te) recorded near −50 °C reveals NaCl and CaCl₂ as the principal dissolved salts [49]. The final ice melting temperature in the range between −6.3 °C and −4.7 °C corresponds to the salinity between 7.5–9.6 wt. % NaCl equ. [50]. Homogenization to liquid phase was obtained between 403–433 °C. The calculated bulk density spans from 0.527–0.598 g/cm³. Secondary inclusions occur along healed fractures. Their size of <2 μm precludes reliable microthermometric measurements.

Quartz associated with retrogradely altered skarn assemblages hosts visible primary fluid inclusions. Primary fluid inclusions occur within clusters. They are mostly rounded or of irregular shape and range in size up to 20 μm. At room temperature, these types of inclusions contain liquid and vapor phases (Figure 12c). The eutectic temperature around −31 °C indicates that the mineralizing fluids were enriched in MgCl₂ [49]. The final ice melting temperature between −7.5 °C and −6.1 °C corresponds to the apparent salinity between 9.3–10.9 wt. % NaCl equ. [50]. Homogenization to liquid phase was recorded in the wide temperature range from 237–390 °C.

Syn-ore quartz entrapped primary fluid inclusions mostly along its growth zones. The inclusions are two-phase (L and V), have irregular shapes and their size varies up to 25 μm. The degree of fill is estimated around 0.7 (Figure 12d). The eutectic temperature around −35 °C suggests a MgCl₂-NaCl-H₂O or FeCl₂-H₂O system [49]. The final ice melting temperature between −2.3 °C and −5.9 °C points to the apparent salinity between 3.9–9.1 wt. % NaCl equiv. The total homogenization by the vapor phase disappearance is recorded in the temperature interval between 240–394 °C. The calculated fluid density spans from 0.665–0.858 g/cm³. Secondary inclusion trails crosscut mineral grains and contain two-phase (L and V) inclusions of irregular shape with the degree of fill between 0.8 and 0.9 (Figure 12e). They entrapped moderate salinity fluids (4.2–6.3 wt. % NaCl equ.) and exhibit homogenization into the liquid phase between 125–239 °C.

The post-ore stage of the mineral parageneses is characterized by deposition of a significant amount of carbonates, predominantly calcite, and a minor amount of quartz. Primary inclusions in post-ore carbonates commonly occur in isolated clusters and show negative crystal shapes. Their size ranges from 5–50 μm. They contain two phases (L and V) and have the degree of fill between 0.7 and 0.8 (Figure 12f). Obtained microthermometric data indicate that post-ore minerals were deposited from cooler CaCl₂-NaCl-H₂O solutions of moderate salinity (Te ≈ −52 °C; salinity = 4.8–8.8 wt. % NaCl equiv; Th = 242−297 °C). Rare secondary inclusions revealed that diluted and relatively cold fluids (salinity = 2.2–2.9 wt. % NaCl equiv; Th = 130–145 °C) were circulating in the area even when the mineralizing processes had terminated.

4.6. Stable Isotope Data

The δ¹³C and δ¹⁸O values obtained from different generations of calcite are listed in

Table 4. Carbon and oxygen isotope composition of calcite from the Sasa Pb-Zn-Ag skarn deposit. V-SMOW = Vienna Standard Mean Ocean Water. V-PDB = Vienna Pee Dee Belemnite.

Sample	Type of Mineralization	δ13C (‰. V-PDB)	δ18O (‰. V-SMOW)
Sa-1-C	Cippolino marble	1.4	26.3
Sa-101	Altered skarn	−7.4	5.7
Sa-101-1	Altered skarn	−7.3	6.4
Sa-102	Altered skarn	−7.2	7.0
Sa-103	Altered skarn	−7.3	6.4
Sa-15	Hydrothermal ore	−4.7	14.6
Sa-15-2	Hydrothermal ore	−4.8	14.4
Sa-15-3	Hydrothermal ore	−4.8	14.6
Sa-16-C	Hydrothermal ore	−5.1	14.7
Sa-17	Hydrothermal ore	−6.0	14.3
Sa-17-0	Hydrothermal ore	−5.6	15.4
Sa-17-1	Hydrothermal ore	−5.8	14.7
Sa-17-M1	Hydrothermal ore	−4.1	13.9
Sa-17-M2	Hydrothermal ore	−4.2	13.9
Sa-17-C	Hydrothermal ore	−5.6	14.7
Sa-18-O	Hydrothermal ore	−6.4	8.3
Sa-19	Hydrothermal ore	−6.0	14.4
Sa-19-C	Hydrothermal ore	−5.0	14.8

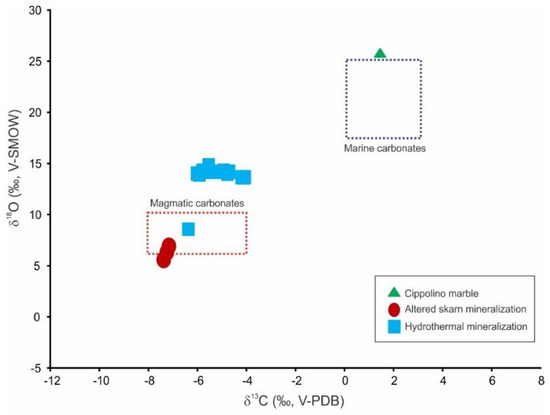

and shown in Figure 13. The barren host cipollino marble has δ¹³C and δ¹⁸O values of 1.4‰ V-PDB and 26.3‰ V-SMOW, respectively. Calcite associated with skarn mineral parageneses have δ¹³C values between −7.4‰ and −7.2‰ V-PDB and δ¹⁸O values between 5.7‰ and 7.0‰ V-SMOW. Syn-ore and post-ore hydrothermal calcite exhibit mostly overlapping δ¹³C and δ¹⁸O values in the range between −6.4‰ and −4.1‰ V-PDB and 13.9‰ and 15.4‰ V-SMOW, respectively.

5. Discussion

Geological, mineralogical and geochemical features of the Sasa Pb-Zn-Ag deposit classify this deposit to the group of calcic Pb-Zn skarn deposits [45]. Although the mineralization is closely associated with magmatic rocks, direct contacts between the mineralization and the magmatic rocks are obscure (Figure 2), suggesting a distal character of the deposit and the interaction of mineralizing fluids with the host carbonate rocks (cipollino marble) as the major mineralizing mechanism.

Geochemical features (trachytic to trachydacitic composition; calc-alkaline character; Na₂O/K₂O < 1; high large-ion lithophile element to high field strength element ratios (LILE/HFSE); strong enrichment in K, Pb and U) as well as their K/Ar age (31–24 Ma) suggest that magmatic rocks associated with the Sasa deposit are a product of the calc-alkaline to shoshonitic post-collisional magmatism that affected the Balkan Peninsula during the Oligocene–Miocene period [21,23,38,39,40,41,53], resulting in the formation of numerous magmatic–hydrothermal ore deposits along the Vardar Zone and the Serbo-Macedonian Massif (Figure 1; [25,26,27,28,29,30,31,32,33,34,35,54]).

The paragenetic sequence (Figure 4) indicates that, during its formation, the Sasa Pb-Zn-Ag deposit underwent three main stages similar to other known skarn deposits worldwide: (1) a stage of isochemical metamorphism; (2) an anhydrous prograde stage and (3) a retrograde/hydrothermal stage [1,55,56]. As the deposit is hosted by a highly metamorphosed terrain, it is difficult to distinguish the regional metamorphic signature from the metamorphism associated with the emplacement of Tertiary magmatic bodies. However, the isotopic composition of preserved lenses of the host marble overlap with values typical for marine carbonates, suggesting that the metamorphism has not disturbed its primary isotopic composition.

The prograde mineral assemblage is marked by the presence of anhydrous Ca-Fe-Mg-Mn silicates, predominantly pyroxenes from the hedenbergite–johannsenite series. The predominance of anhydrous minerals reflects a low water activity, whereas the prevalence of pyroxene (hedenbergite) over garnets (andradite) suggests a high ferrous/ferric ratio and a relatively reductive environment [57]. Absence of Fe-sulfides indicates a low sulfur fugacity during the prograde stage. Although our SEM/EDS analyses (Table 1) revealed that pyroxenes are characterized by a relatively high and uniform FeO/MnO ratio, previously published data [12,58] suggest greater variations in the pyroxene composition among different ore bodies and local predomination of Mn-rich pyroxenes. The variations may be controlled by periodical variations in the chemistry of infiltrating magmatic fluids:

CaCO₃ (calcite) + 2 H₄SiO₄ + Fe²⁺ CaFeSi₂O₆ (hedenbergite) + 3 H₂O + CO₂ + 2 H⁺

(1)

CaCO₃ (calcite) + 2 H₄SiO₄ + Mn²⁺ CaMnSi₂O₆ (johansennite) + 3 H₂O + CO₂ + 2 H⁺

(2)

and/or in local temperature oscillations:

CaFeSi₂O₆ (hedenbergite) + Mn²⁺ CaMnSi₂O₆ (johannsenite) + Fe²⁺
rH_{25 °C, 1atm} = −7 kJ/mole *

(3)

* Calculated for standard conditions using thermodynamic data published by [59,60].

In contrast to the carbonate component of the host cipollino marble that was replaced by pyroxenes, grey mica has not been significantly affected by metasomatic processes during the prograde stage of the mineralization, probably due to the insufficient water activity and a relatively high K⁺/H⁺ molar ratio:

2 KAl₂(AlSi₃O₁₀)(OH)₂ (kaolinite) + 3 H₂O + 2 H⁺ 3 Al₂Si₂O₅(OH)₄ (mica) + 2 K⁺

(4)

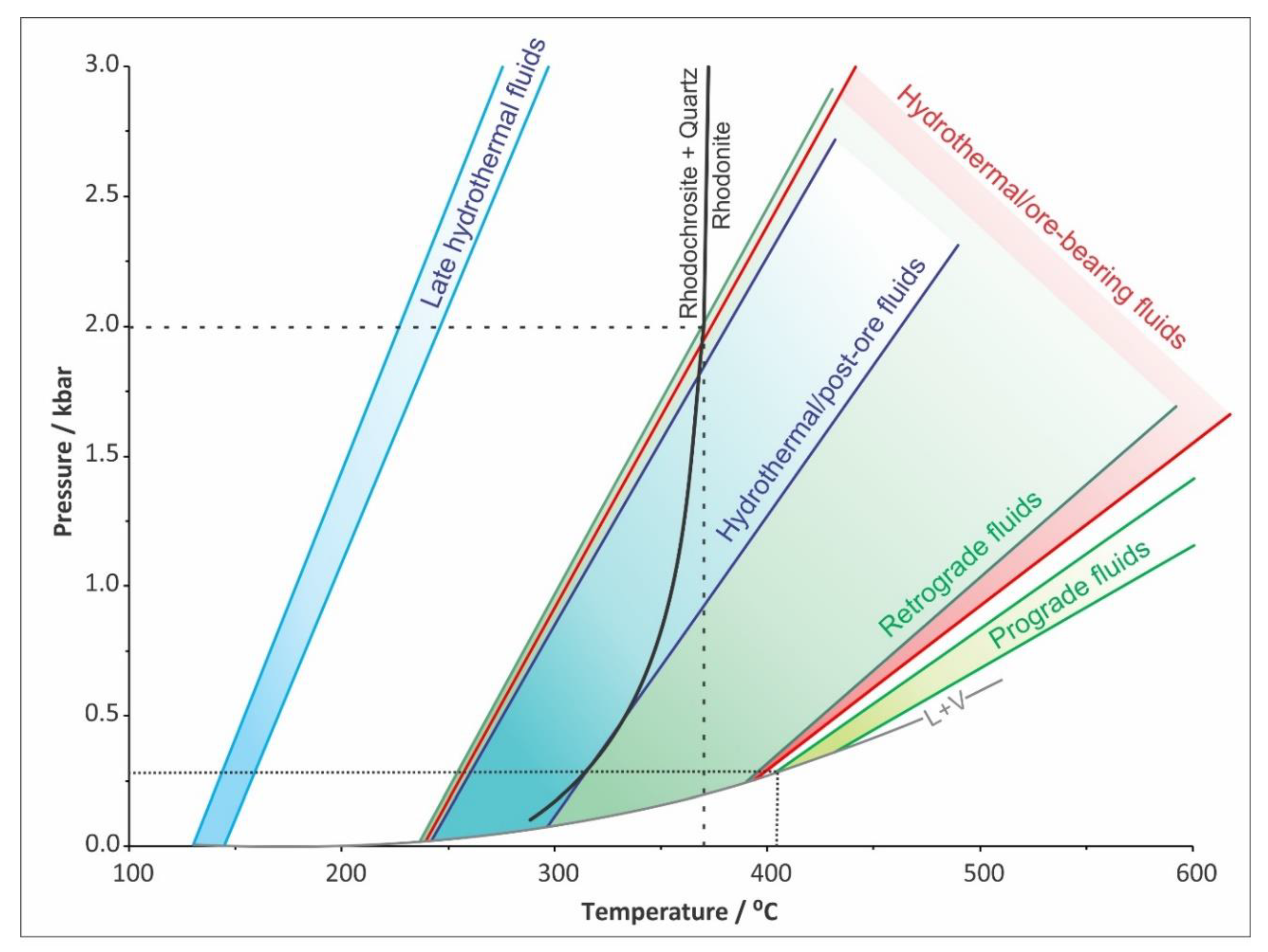

According to the fluid inclusion data, the prograde stage occurred at temperatures above 405 °C and at pressures above 30 MPa under the influence of moderate salinity and low density Ca-Na-chloride bearing aqueous fluids. The absence of liquid CO₂ indicates that XCO₂ was below 0.1 [61,62,63]. Due to absence of any reliable independent geothermometer and/or geobarometer, only the minimum P-T conditions can be set (Figure 14).

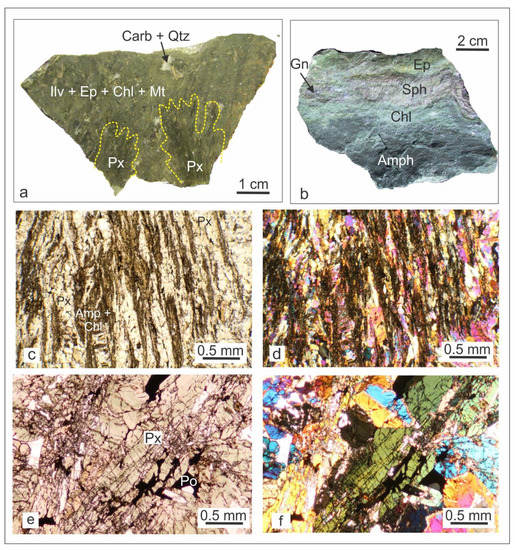

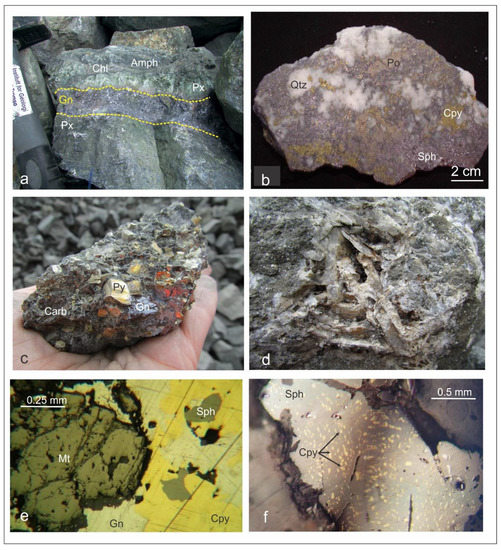

Textural relations (Figure 5, Figure 8 and Figure 9) indicate that pyroxenes were replaced by mixtures of hydrous silicates, carbonates, quartz and magnetite, reflecting an increase in water activity and oxygen and/or CO₂ fugacities:

5 CaFeSi₂O₆ (hedenbergite) + H₂O + 3 CO₂ (g) Ca₂Fe₅Si₈O₂₂(OH)₂ (ferroactinolite) + 3 CaCO₃ (calcite)+ 2 SiO₂ (quartz)

(5)

CaFeSi₂O₆ (hedenbergite) + 2 H₂O + CO₂ (g) Ca₂Fe₃(SiO₄)₃(OH) (piemontite) + CaCO₃ (calcite) + 3 SiO₂ (quartz) + 3 H⁺

(6)

3 CaFeSi₂O₆ (hedenbergite) + ½ O₂ (g) + 3 CO₂ (g) 3 CaCO₃ (calcite)+ FeO·Fe₂O₃ (magnetite) + 6 SiO₂ (quartz)

(7)

CaMgSi₂O₆ (diopside) + 2 H₂O + 2 CO₂ (g) Mg₃Si₂O₅(OH)₄ (chrysotile) + 3 CaCO₃ (calcite)+ 4 SiO₂ (quartz)

(8)

Although minerals formed during the prograde phase do not incorporate Al, the retrograde mineral paragenesis contains aluminosilicates (mostly chlorites and epidote group minerals). The presence of carbonates points to near-neutral pH conditions and a limited capability for hydrothermal transport of aluminum [64]. However, layers of grey mica within the host cipollino marble might have served as a local source of Al:

15 CaMgSi₂O₆ (dioside) + 2 KAl₂(AlSi₃O₁₀)(OH)₂ (mica) + 5 H₂O + 15 CO₂ + 10 H⁺ 3 Mg₅Al(AlSi₃)O₁₀(OH)₈ (clinochlore) +15 CaCO₃ (calcite) + 25 SiO₂ (quartz)

(9)

6 CaFeSi₂O₆ (hedenbergite) + 2 KAl₂(AlSi₃O₁₀)(OH)₂ (mica) + H₂O 3 Ca₂FeAl₂Si₃O₁₂(OH) (epidote) + FeO·Fe₂O₃ (magnetite) + 9 SiO₂ (quartz)

(10)

The stable isotope composition of the carbonates revealed a significant contribution of magmatic CO₂ during the retrograde stage of the Sasa deposit (Figure 13). The fluid inclusion studies suggest that infiltrating fluids were Mg-Na-chloride or Fe²⁺-chloride solutions. Their salinities are slightly greater compared to the prograde fluids and the homogenization temperatures point to the gradual cooling of the system. The coexistence of rhodonite, rhodochrosite and quartz implies that temperature and pressure did not exceed 375 °C and 200 MPa (Figure 14). Cooling of the system below 400 °C resulted with the ductile-to-brittle transition [65,66,67], promoted reactivation of old (pre-Tertiary) faults and shifted the system from the lithostatic to hydrostatic regime. Such conditions allowed progressive infiltration of ground water and therefore increased the water activity and oxygen fugacity. At the same time, due to the lithostatic to hydrostatic transition, the pressure dropped by approximately 2.7 times, triggering a more efficient degassing of the emplaced magmatic body and increasing fugacity of numerous volatiles including H₂O, CO₂, H₂S and/or SO₂. The progressive contribution of magmatic CO₂ has been recognized from the retrograde mineral paragenesis (Equations (5)–(9); Figure 4), as well as from the isotopic composition of associated carbonates (Table 4; Figure 13). As Cl preferentially partitions into the fluid phase [68,69], fluxes of magmatic fluids will increase the total salinity of the circulating fluids. This increase in the salinity during the retrograde stage has been recorded by fluid inclusions entrapped by retrograde quartz, i.e., quartz that crystallized as the retrograde alteration product after prograde pyroxenes (Figure 15). The greater salinity promoted the metal–chloride complexing which, together with the higher water activity in the system, enhanced the hydrothermal transport of base metals, including Pb and Zn [64], and moved the Sasa deposit to the hydrothermal ore-forming stage (Figure 4).

The retrograde stage is marked by an increase in the sulfur fugacity that resulted in a replacement of Fe-silicates, mostly hedenbergite, by pyrrhotite during the early retrograde stage and by pyrite during the later retrograde stage and the hydrothermal stage (Figure 4). The previously published sulfur isotope data show that sulfur is predominantly magmatic in origin [70]. The textural features also point to a slight time lag between intensive degassing of magmatic CO₂ and S-bearing volatiles, probably controlled by the difference in solubility of CO₂ and S in silicate melts [71].

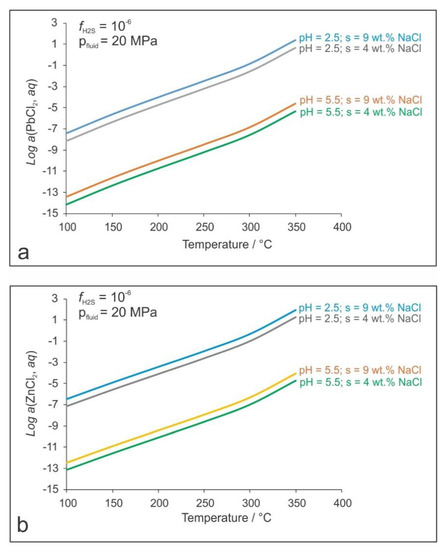

The isotopic composition of hydrothermal carbonates reflects diminishing influence of magmatic CO₂ and more significant contribution of the host cipollino marble (Figure 13). The fluid inclusions studies revealed that the syn-ore mineralization was deposited from Mg-Na-chloride or Fe²⁺-chloride hydrothermal fluids. The wide range of recorded homogenization temperatures, together with the variable salinities (Figure 15), suggest cooling under the influence of cold ground waters as a plausible mechanism for the ore deposition:

PbCl₂ (aq) + H₂S (aq) PbS + 2 H⁺ + 2 Cl⁻

(11)

ZnCl₂ (aq) + H₂S (aq) ZnS + 2 H⁺ + 2 Cl⁻

(12)

However, neutralization of the mineralizing fluids in reactions with host carbonates contributed to the ore deposition (Figure 16):

PbCl₂ (aq) + H₂S (aq) + 2 CaCO₃ PbS + 2 HCO₃⁻ + 2 Ca²⁺ + 2 Cl⁻

(13)

ZnCl₂ (aq) + H₂S (aq) + 2 CaCO₃ ZnS + 2 HCO₃⁻ + 2 Ca²⁺ + 2 Cl⁻

(14)

The post-ore stage is marked by the abundant deposition of calcite, revealing near-neutral pH conditions. The isotopic composition of post-ore carbonates overlaps with the values obtained from syn-ore carbonates (Figure 13). The fluid inclusion data suggest deposition temperatures below 300 °C from relatively diluted Ca-Na-Cl-bearing fluids.

6. Comparison with Other Distal Pb-Zn-Ag Skarn Deposits

The mineralization at the Sasa Pb-Zn-Ag deposit shows many distinctive features typical of base metal skarn deposits including: (1) a carbonate lithology as the main immediate host of the mineralization; (2) a close spatial relation between the mineralization and magmatic bodies of an intermediate composition; (3) a presence of the prograde anhydrous Ca-Fe-Mg-Mn-silicate and the retrograde hydrous Ca-Fe-Mg-Mn ± Al-silicate mineral assemblages; (4) a deposition of base metal sulfides, predominately galena and sphalerite, during the hydrothermal stage; and (5) a post-ore stage characterized by the deposition of a large quantity of carbonates [62,72,73].

However, mineralogical, geochemical and isotope characteristics of the Sasa Pb-Zn-Ag deposit differ in some details from similar deposits elsewhere, including the Trepca Pb-Zn-Ag deposit which represents a product of the same magmatic event (Figure 2; [31]):

(1)

Although the prograde mineralization of the Sasa Pb-Zn-Ag deposit can be described as a Ca-Fe-Mg-Mn-system, the retrograde mineralization shows a significant hydrothermal input of Al, plausibly reflecting a contribution of the aluminosilicate component within the host cipollino marble.

(2)

Prograde skarn mineralization of the great majority of skarn deposits indicates a dominance of high temperature hypersaline magmatic fluids, whereas the later retrograde stage usually reflects mixing with lower temperature and lower salinity fluids of a meteoric origin [4,62,72,73]. However, fluid inclusions and stable isotope data obtained from the retrograde mineral assemblage of the Sasa Pb-Zn-Ag deposit suggest that in this deposit, magmatic fluids played a significant role during the retrograde stage.

(3)

The transition from the prograde to the retrograde stage in different skarn deposits can be triggered by various reasons, including brecciation [31] and reactivation of old fractures [62]. In the Sasa Pb-Zn-Ag deposit, the transition was initiated by cooling of the system below 400 °C and the resulting ductile-to-brittle transition.

7. Conclusions

The geological setting of the Sasa Pb-Zn-Ag skarn deposit and previously published geochemical studies on the associated magmatic rocks (trachytic to trachydacitic composition; calc-alkaline character; Na₂O/K₂O < 1; high LILE/HFSE ratios; strong enrichment in K, Pb and U; the K/Ar age of 31–24 Ma) suggest that the Sasa deposit is a product of the calc-alkaline to shoshonitic post-collisional magmatism that affected the Balkan Peninsula during the Oligocene–Miocene period and resulted in formation of numerous magmatic-hydrothermal ore deposits along the Vardar Zone and the Serbo-Macedonian Massif.

The relatively simple, pyroxene-dominated, prograde mineralization at the Sasa Pb-Zn-Ag skarn deposit resulted from an interaction of magmatic fluids with the host cipollino marble. The absence of direct contacts between the mineralization and the magmatic rocks as well as the textural features of the skarn paragenesis reflect the infiltration-driven metasomatism. Obtained mineralogical and geochemical data suggest that the prograde stage occurred under conditions of low water activity, low oxygen, sulfur and CO₂ fugacities and a high K⁺/H⁺ molar ratio. Fluid inclusion data set the minimum P–T conditions at 30 MPa and approximately 405 °C. Mineralizing fluids were moderately saline and low density Ca-Na-chloride bearing aqueous solutions.

The transition from the prograde to the retrograde stage was initiated by cooling of the system below 400 °C and the associated ductile-to-brittle transition that shifted the system from the lithostatic to hydrostatic regime. The retrograde mineral assemblages reflect conditions of a high water activity, high oxygen and CO₂ fugacities, a gradual increase in the sulfur fugacity and a low K⁺/H⁺ molar ratio. The isotopic composition of retrograde carbonates revealed a significant contribution of magmatic CO₂. Infiltration fluids carried MgCl₂ and had a slightly higher salinity compared to the prograde fluids. The maximum formation conditions are set to 375 °C and 200 MPa.

The deposition of ore minerals (predominantly Bi, In and Ag- enriched galena and Fe and Mn-bearing sphalerite) occurred during the hydrothermal phase under a diminishing influence of magmatic CO₂. The mixing of ore-bearing (Mg-Na-chloride or Fe²⁺-chloride) aqueous solutions with cold and diluted ground waters is the most plausible reason for the destabilization of metal–chloride complexes. However, neutralization of relatively acidic ore-bearing fluids in the interaction with the host lithology could have significantly contributed to the deposition.

The post-ore, predominantly carbonate, mineralization was deposited from diluted Ca-Na-Cl-bearing fluids of a near-neutral pH composition. The depositional temperature is estimated to be below 300 °C.
