Copy Number Variation of the PIGY Gene in Sheep and Its Association Analysis with Growth Traits

by
Ziting Feng
1,
Xinyu Li
1,
Jie Cheng
1,
Rui Jiang
1,
Ruolan Huang
1,
Dingchuan Wang
1,
Yongzhen Huang
1,
Li Pi
2,
Linyong Hu
2 and
Hong Chen
1,*
1
Key Laboratory of Animal Genetics, Breeding and Reproduction of Shaanxi Province, College of Animal Science and Technology, Northwest A&F University, Yangling 712100, China
2
Key Laboratory of Adaptation and Evolution of Plateau Biota, Northwest Institute of Plateau Biology, Chinese Academy of Sciences, Xining 810001, China
*
Author to whom correspondence should be addressed.
Animals 2020, 10(4), 688; https://doi.org/10.3390/ani10040688
Submission received: 26 March 2020 / Revised: 7 April 2020 / Accepted: 10 April 2020 / Published: 15 April 2020
(This article belongs to the Special Issue Farm Animal Gene Exploration)
Browse Figures
Review Reports Versions Notes

Abstract

:

Simple Summary

The PIGY (phosphatidylinositol glycan anchor biosynthesis class Y) gene is a member of the PIG gene family and encodes the glycosylphosphatidylinositol-N-acetylglucosaminyltransferase (GPI-GnT) complex. It initiates the biosynthesis of GPI and plays an important role in cell–cell interactions. Sequencing has revealed a 3600 bp copy number variation (CNV) in exon 2 of the PIGY gene in sheep, potentially altering a functional part of the protein. The CNV overlaps 28 quantitative trait loci that are relevant to some economic traits like muscle density and carcass weight. We screened for this CNV of the PIGY gene in 569 individuals, namely, 240 Chaka sheep (CKS), 168 Hu sheep (HS), and 161 small-tailed Han sheep (STHS), and analyzed the association between the presence of this CNV and sheep body size traits. The results showed that the loss-type CNV was more prevalent than other types in these three breeds, and there were significant effects of the PIGY gene CNV on body weight, chest circumference, and circumference of cannon bone of sheep. The results showed that sheep with gain-type CNV had better growth traits than those with other types. The findings reveal the relationship between the CNV of the PIGY gene and growth traits of sheep, suggesting that CNV could be utilized for improved molecular breeding of sheep.

Abstract

Copy number variation (CNV) is a type of genomic variation with an important effect on animal phenotype. We found that the PIGY gene contains a 3600 bp copy number variation (CNV) region located in chromosome 6 of sheep (Oar_v4.0 36,121,601–36,125,200 bp). This region overlaps with multiple quantitative trait loci related to phenotypes like muscle density and carcass weight. Therefore, in this study, the copy number variation of the PIGY gene was screened in three Chinese sheep breeds, namely, Chaka sheep (CKS, May of 2018, Wulan County, Qinghai Province, China), Hu sheep (HS, May of 2015, Mengjin County, Henan Province, China), and small-tailed Han sheep (STHS, May of 2016, Yongjing, Gansu Province, China). Association analyses were performed on the presence of CNV and sheep body size traits. We used real-time quantitative PCR (qPCR) to detect the CNV for association analysis. According to the results, the loss-type CNV was more common than other types in the three breeds (global average: loss = 61.5%, normal = 17.5%, and gain = 21.0%). The association analysis also showed significant effects of the PIGY gene CNV on body weight, chest circumference, and circumference of the cannon bone of sheep. Sheep with gain-type CNV had better growth traits than those with other types. The results indicate a clear relationship between the PIGY gene CNV and growth traits of sheep, suggesting the use of CNV as a new molecular breeding marker.

1. Introduction

Copy number variation (CNV) is a kind of variation ranging from 50 kb to several Mb in size compared with the normal genome sequence of organisms [1]. Its forms include duplication, deletion, insertion, translocation, and derived chromosomal structural variation. CNV is an important genetic basis for individual differences. This type of variation is widely distributed in the human genome. It covers more nucleotide polymorphisms than single nucleotide polymorphisms (SNPs) and greatly enriches the diversity of genetic variation in the genome [2]. In addition, copy number variation has been demonstrated to contribute to animal phenotypic polymorphism and disease susceptibility, making it an important genetic variation mode. CNVs related to important traits have been screened in humans and many animal models, providing a theoretical basis for molecular studies of human disease and animal breeding [3,4]. Quantitative trait loci (QTL) includes regions of DNA that are associated with a particular phenotypic trait, which varies in degree and can be attributed to polygenic effects [5]. Growth-related traits are generally considered to be quantitative traits, which may be controlled by single genes or several major genes. The addition of environmental effects can make the traits exhibit continuous variation. Overall, QTL is an important reference index to evaluate relationships between genes and growth traits.
PIGY (phosphatidylinositol glycan anchor biosynthesis class Y) gene is a member of the PIG gene family, which is located on chromosome 6 of sheep. Its expression product, together with the expression proteins of PIGA, PIGC, PIGH, PIGP, PIGQ, and DPM2 genes, forms the glycosylphosphatidylinositol-N-acetylglucosaminyltransferase (GPI-GnT) complex, which initiates the biosynthesis of GPI [6]. GPI, an anchor for many surface proteins, is synthesized on the endoplasmic reticulum. Until now, studies on the PIGY gene have mainly focused on human diseases, such as deformities, epilepsy, severe stunting, cataracts, and early death. The study of the PIGY gene in sheep is still in the early stage. However, sequencing analysis has revealed that the CNV of the PIGY gene overlaps with 28 QTL that are related to sheep economic traits like muscle density and carcass weight. Thus, the PIGY may be a key gene influencing important economic traits of sheep.
Sheep is an important species of domestic animals. They are timid, gentle, and easy to tame, making them popular for breeding worldwide. Sheep provide products such as meat and fur for humans, with meat that is tender and tasty. In 2015, the world’s sheep stock totaled 1.16 billion, with 158 million in China. The world output of sheep meat is 9.261 million tons, making it the fourth largest meat species [7]. Thus, the way people can improve the economic characteristics of sheep meat has become a focus of research in the field of animal husbandry. In recent years, scientists have made some progress in the field of sheep CNV research. In 2010, Fontanesi et al. [8] designed a smooth array containing 385,000 oligonucleotide probes using the bovine genome and preliminarily obtained a comparative map of CNVs in the sheep genome. In 2013, Liu et al. analyzed 329 individuals of three sheep breeds (Sunit, Dubois, and German meat sheep) using SNP50 chips for sheep and detected 238 CNV regions, including 73 CNV regions with frequencies greater than 3% [9]. In 2016, Zhu et al. [10] found that genes such as PPARA, RXRA, and KLF11 were related to fat deposition and affected the tail type of sheep. These CNV regions contain a large number of genes associated with fat metabolism and GTPase activity. In 2017, Ma et al. [11] used SNP microarray to study 48 Chinese Tan sheep and determined 1296 CNV regions, accounting for 4.7% of the sheep genome.
Based on the above findings, we hypothesized that the identified CNV of the PIGY gene is an important genetic marker for economic traits of sheep. The goal of this work was to explore the effect of copy number variation of the PIGY gene in three Chinese sheep breeds, namely, Chaka sheep (CKS), Hu sheep (HS), and small-tailed Han sheep (STHS), and examine the association between the presence of this CNV and economic traits of these three sheep breeds. The results of this work should provide the theoretical basis for future molecular breeding of sheep in China.

2. Materials and Methods

2.1. Animal and Growth Trait Measurements

The timeline of the experimental process is shown in Figure 1.
We selected a total of 569 individuals from three sheep breeds to study changes in the copy number of the PIGY gene, including CKS (n = 240, May 2018, Wulan County, Qinghai Province, China), HS (n = 168, May 2015, Mengjin County, Henan Province, China), and STHS (n = 161, May 2016, Yongjing, Gansu Province, China). CKS, HS, and STHS are common sheep breeds in China. CKS is a semifine wool sheep used for both wool and meat in the Qinghai plateau. This breed is native to the area around the Chaka Salt Lake in Wulan County. Influenced by the unique geographical climate and soil environment, the mutton from this sheep breed is rich in minerals and vitamins, and the meat quality is tender and fat but not greasy. Hu sheep exhibit excellent characteristics, including strong fecundity, suitable feeding, rapid early growth, and good meat performance and quality, making this breed important in China’s sheep industry. STHS is a kind of sheep cultivated in China for both meat and fur production. This breed has characteristics of fast growth, strong reproduction, and strong adaptability. It is praised as the “national treasure” of China, “super sheep”, and “high-legged sheep” of the world. To summarize, the sheep varieties selected for this experiment have important value and status in China’s sheep industry, and analysis of variations linked to improved characteristics of these breeds would benefit China’s livestock production.
We measured the different economic traits of the sheep breeds. For CKS, we measured age, gender, body weight, body height, body length, and chest circumference. For HS, we measured age, gender, body weight, body length, chest circumference, tube circumference, body height, and rump width. For STHS, we measured age, gender, chest deep, tube circumference, height at hip cross, chest width, chest circumference, body height, and body length. The minimum value, mean value (sd) and maximum value of each trait are shown in Table S1.
In this study, all animal testing was conducted in accordance with applicable international animal guidelines, animal testing welfare acts, and related policies. All experiments met the requirements of this study and followed the guidance of animal welfare law and related policies of the International Faculty Animal Policy and Welfare Committee of Northwest A&F University (FAPWC-NWAFU, protocol number, NWAFAC1008).

2.2. Sample Collection and Genomic DNA Isolation

Genomic DNA was extracted from the blood of all experimental sheep by phenol–chloroform extraction [12], and the concentration of DNA samples was measured by Nanodrop 2000 spectrophotometer. Then, the DNA samples were diluted to 25 ng/μL and stored at −40 °C for subsequent use. Finally, no sheep suffered any injuries or health problems during blood collection in this study.

2.3. Identification of Target Gene and Internal Reference Gene and Primer Design

Using the PIGY gene sequence of sheep published in the NCBI database as the reference sequence, we found a 3600 bp copy number variation (Oar_v4.0 36,121,601–36,125,200 bp) region in exon 2 of the PIGY gene in sheep (Figure 2) (Huang et al., unpublished data), potentially altering a functional part of the protein. This CNV overlapped 28 quantitative trait loci related to sheep economic traits, such as muscle density and carcass weight (Figure 3). The ANKRD1 gene appeared stable with two copies (Huang et al., unpublished data), and according to the Animal Omics Database (http://animal.nwsuaf.edu.cn/), the ANKRD1 gene is present in two copies in both cattle and sheep. Therefore, we selected the ANKRD1 gene as a diploid internal reference. The information of two PCR primer pairs are listed in Table 1, which were designed by Primer-BLAST from the NCBI website. The size of the amplified fragment in the candidate region of the PIGY gene was 90 bp, and the size for amplification of the ANKRD1 gene was 143 bp.

2.4. Testing of Primers

We used real-Time quantitative polymerase chain reaction (qPCR) to determine whether the primers were suitable by drawing the amplification curve and the dissolution peak. As shown in Figure 4, the curves were consistent for the samples. The curve trend was smooth, the curve peak was high and sharp, and no primer dimers or nonspecific amplification products were observed.

2.5. Copy Number Variation Detection of the PIGY Gene

We used qPCR to determine the copy number of potential CNVs in 569 sheep. The amplification system was performed in 10.0 μL reactions containing the following: 25 ng/μL template DNA (genomic DNA extracted from blood samples), 1 μL; 10 pmol/μL upstream and downstream primers, 0.5 μL; 2 × SYBR Green qPCR Mix, 5 μL; ddH2O, 3 μL. Each sample was assayed in triplicate reactions [13]. Thermal cycling conditions were as follows: 95 °C for 1 min followed by 39 cycles of 95 °C for 15 s, 60 °C for 15 s, and 72 °C for 30 s. The solution curve started at 65 °C, increased 0.5 °C for each cycle, reached 95 °C, and was then measured for 5 s. Melting curve analysis was completed at the end of the amplification with the following conditions: starting from 65 °C, each cycle increased by 0.5 °C for 0.05 s and increased to 95 °C. Finally, we determined the average Ct value of each sample to calculate the copy number of each sheep DNA sample [14].

2.6. Statistical Analyses of Data

We used the calculation formula 2 × 2−∆Ct [15,16,17] to determine the copy number of each sheep sample. Three types of copy number (gain, loss, and normal) were classified as >2, <2, and 2 copies, respectively. Then, we used SPSS v22.0 software (SPSS, Inc., Chicago, IL, USA) to analyze the association between the copy number and economic traits of each sheep, with age and sex considered as fixed factors so as to calculate the distribution of different copy number variation types of the PIGY gene and the dominant variation types of each trait. Individuals of each breed were unrelated and from the same farm, and the phenotypes were measured in the same season.
In the analysis of genotype effect, a fixed model was adopted:
Yijk = μ + Ai + Sj + CNVj + eijk
where Yijk is the observed value of traits, μ is the mean value of the population, Ai is the age of each individual, Sj is the effect of sex, CNVj is the fixed effect of the PIGY gene’s copy number variation type, and eijk is the random error [18,19]. Each breed was analyzed separately. LSD multiple comparison was used to test the differences between each group of data, and the results were expressed as mean values ± SE. Finally, the variance between varieties was tested by chi-square.

3. Results

3.1. Distribution of Copy Number Variation Types in Three Sheep Breeds

Based on the qPCR results, we calculated the PIGY gene copy number of 569 sheep by 2 × 2−∆Ct. The sequencing results revealed a CNV region of the PIGY gene (Chr6: 36,121,601–36,125,200 bp), and the presence of CNV was analyzed for three sheep breeds, as shown in Figure 5A. The data revealed the presence of CNV in this region of the genome. The copy number for each sheep DNA sample was classified as >2, <2, and 2 copies for gain, loss, and normal, respectively. As shown in Figure 5B, the frequencies of copy number polymorphisms in the three sheep breeds revealed that loss-type CNV was the most frequent in all three breeds. The specific frequencies are shown in Table 2. Chi-squared values showed a significantly different CNV distribution among the three sheep breeds (Table 3), indicating that the PIGY CNV may be breed-specific.

3.2. Association Analyses among Copy Number Variation and Sheep Growth Traits

Previous studies have shown that copy number variation of genes can affect the growth traits of animals, so breeding should be tailored to the dominant variation types of animals. In this study, we used the general linear model to associate the economic traits of three sheep breeds to identify the dominant variation type of the PIGY gene in sheep. Association analysis revealed that the CNV of the PIGY gene had a significant effect on body weight and chest circumference in CKS and an extremely significant effect on the circumference of the cannon bone in STHS. However, there was no significant difference between CNV and growth traits of HS. Sheep with gain-type CNV exhibited significantly higher body weight, chest circumference, and circumference of cannon bone than those with loss- or normal-type CNV in CKS and STHS, with a significance of p < 0.01 (Table 4).

4. Discussion

The results support our hypothesis that the CNV of the PIGY gene is an important genetic marker of economic traits of sheep. Copy number variation (CNV) can be used as a marker in molecular breeding to select important economic traits of livestock and facilitate disease diagnosis [20]. Many copy number variations have potential effects on the economic traits of domestic animals [21]. In addition to CNV, SNPs are another important source of phenotypic variation in animals, and SNP loci are also used in sheep breeding as molecular genetic markers. SNP analysis studies have uncovered important genetic effects, but the identified SNPs explain only a small proportion of the phenotypic variation, so the predictive power of these SNPs remains low for many complex traits [22]. CNV may be an alternative marker [23]. Compared with SNP, CNVs are longer fragments of variation with more significant effects on the growth traits of sheep. More and more copy number variation studies have been performed on different species, such as human [24], mouse [25], cattle [26,27], chicken [28], monkey [29], and sheep [30,31]. In recent years, with increasing consumer requirements for sheep quality and the development of molecular breeding, there is a need to exploit CNV molecular genetic variation for economic trait selection and disease prevention. With the development of gene chip technology and new generation sequencing technology, copy number variation will be more efficiently and more widely used in future sheep genetic breeding, creating more development possibilities for the sheep industry in China.
In recent years, few studies have explored the PIGY gene, and most works have focused on human diseases as this gene encodes the anchoring protein GPI complex. This is the first report of the PIGY gene in sheep. We found that the PIGY gene in sheep contains a copy number variation region located in exon 2, and it overlaps with 28 QTLs, including carcass weight and muscle density. Previous studies have reported that, in chickens, some QTLs associated with CNV fragments are related to body weight, carcass weight, and pectoral muscle mass [32,33]. Therefore, we focused on the PIGY gene to investigate the association between copy number variation and sheep economic traits.
In this study, we detected CNV of the PIGY gene in three breeds and its association with growth traits and found that the three breeds showed the same distribution of CNV, with the deletion of copy number variations as the main type. Beyond that, there were significant relationships between multiple growth traits and copy number in Chaka sheep and small-tailed Han sheep, such as body weight, chest circumference, and circumference of cannon bone, and individuals with gain-type CNV had an obvious advantage in these growth traits. However, no significant relationship between the PIGY gene CNV and growth traits was observed in Hu sheep. According to the chi-squared values (χ2) in CNV among breeds (Table 3), the copy number variation of the PIGY gene had significant difference among breeds. We speculate that this result is due to differences in the genetic background and living environment of these different sheep breeds, which will lead to positional uncertainty of CNV on the genome. Chaka sheep and small-tailed Han sheep are from the plateau region of China, but Hu sheep are native to the flatlands. The difference in environments may contribute to the difference among the three breeds, but we cannot eliminate a potential link between this result and the difference in phenotype among the three breeds. These aspects may explain why a significant relationship between CNV and growth traits was not detected in all three varieties. Chaka sheep and small-tailed Han sheep with increased copy number exhibited better phenotypes than other types. Growth traits like body weight, chest circumference, and circumference of cannon bone are all closely related to the economic value of sheep. The data suggest that PIGY gene copy number variation could be used as a molecular genetic marker of sheep, allowing improvement to the quality of sheep and an accelerated breeding process. Sheep products play an increasingly important role in the Chinese market, and molecular breeding can be an effective strategy to improve the quality of sheep. This work links the PIGY gene CNV to sheep growth characteristics, providing a new molecular marker for sheep breeding. Determination of functional differences of copy number variation among different breeds and details of the mechanism of action require further experimental research.

5. Conclusions

This is the first analysis of the PIGY CNVs in three Chinese sheep breeds. The CNV of the PIGY gene overlaps with 28 quantitative trait loci that are related to sheep economic traits, suggesting a promising impact of the PIGY gene on growth traits of sheep, so we hypothesize that the CNV of the PIGY gene is an important genetic marker for economic traits. Additional association analysis supports this hypothesis. Our study provides preliminary evidence for a functional role of the PIGY CNV in larger populations and different sheep breeds, which might provide new insights into the potential applications of CNVs as new promising molecular markers in animal breeding.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-2615/10/4/688/s1, Table S1: The minimum value, mean value (SD), and maximum values of body size traits of three sheep breeds.

Author Contributions

Conceptualization, Z.F., X.L., and J.C.; formal analysis, Z.F., J.C., R.J., and R.H.; funding acquisition, Y.H., L.P., L.H., and H.C.; investigation, Z.F., X.L., and D.W.; methodology, Z.F., X.L., and R.H.; project administration, Y.H., L.P., L.H., and H.C.; resources, Y.H. and H.C.; software, Z.F., J.C., and R.J.; supervision, Y.H. and L.P.; validation, Y.H. and H.C; visualization, Y.H. and H.C.; writing—original draft, Z.F.; writing—review and editing, Z.F. and H.C. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Qinghai Province major science and technology projects (2017-NK-153).

Acknowledgments

We would like to thank the Chaka sheep breeding farm (Wulan, Qinghai, China), Hu sheep breeding farm (Mengjin, Henan, China), Large Tail Han sheep breeding farm (Yongjing, Gansu, China) and small-tailed Han sheep breeding farm (Yongjing, Gansu, China) for providing us with sampling sites.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Sebat, J.; Lakshmi, B.; Troge, J.; Alexander, J.; Young, J.; Lundin, P.; Månér, S.; Massa, H.; Walker, M.; Chi, M.; et al. Large-scale copy number polymorphism in the human genome. Science 2004, 305, 525–528. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Iafrate, A.J.; Feuk, L.; Rivera, M.N.; Listewnik, M.L.; Donahoe, P.K.; Qi, Y.; Scherer, S.W.; Lee, C. Detection of large-scale variation in the human genome. Nat. Genet. 2004, 36, 949–951. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Zhan, B.; Fadista, J.; Thomsen, B.; Hedegaard, J.; Panitz, F.; Bendixen, C. Global assessment of genomic variation in cattle by genome resequencing and high-throughput genotyping. BMC Genomics 2011, 12, 557. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Altshuler, D.M.; Gibbs, R.A.; Peltonen, L.; Altshuler, D.M.; Gibbs, R.A.; Peltonen, L.; Dermitzakis, E.; Schaffner, S.F.; Yu, F.; Peltonen, L.; et al. Integrating common and rare genetic variation in diverse human populations. Nature 2010, 467, 52–58. [Google Scholar] [PubMed]
  5. Georges, M.; Charlier, C.; Hayes, B. Harnessing genomic information for livestock improvement. Nat. Rev. Genet. 2019, 20, 135–156. [Google Scholar] [CrossRef] [PubMed]
  6. Ilkovski, B.; Pagnamenta, A.T.; O’Grady, G.L.; Kinoshita, T.; Howard, M.F.; Lek, M.; Thomas, B.; Turner, A.; Christodoulou, J.; Sillence, D.; et al. Mutations in PIGY: Expanding the phenotype of inherited glycosylphosphatidylinositol deficiencies. Hum. Mol. Genet. 2015, 24, 6146–6159. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. China Information Industry Network. Available online: https://www.chyxx.com (accessed on 15 December 2019).
  8. Fontanesi, L.; Beretti, F.; Martelli, P.L.; Colombo, M.; Dall’olio, S.; Occidente, M.; Portolano, B.; Casadio, R.; Matassino, D.; Russo, V.A. First comparative map of copy number variations in the sheep genome. Genomics 2010, 97, 158–165. [Google Scholar] [CrossRef] [Green Version]
  9. Liu, J.; Zhang, L.; Xu, L.; Ren, H.X.; Lu, J.; Zhang, X.N.; Zhang, S.F.; Zhou, X.L.; Wei, C.H.; Zhao, F.P.; et al. Analysis of copy number variations in the sheep genome using 50K SNP BeadChip array. BMC Genomics 2013, 14, 229. [Google Scholar] [CrossRef] [Green Version]
  10. Zhu, C.; Fan, H.Y.; Yuan, Z.H.; Hu, S.J.; Ma, X.M.; Xuan, J.L.; Wang, H.W.; Zhang, L.; Wei, C.H.; Zhang, Q.; et al. Genome-wide detection of CNVs in Chinese indigenous sheep with different types of tails using ovine high-density 600K SNP arrays. Sci. Rep. 2016, 6, 27822. [Google Scholar] [CrossRef] [Green Version]
  11. Ma, Q.; Liu, X.; Pan, J.; Ma, L.; Ma, Y.; He, X.; Zhao, Q.; Pu, Y.; Li, Y.; Jiang, L. Genome-wide detection of copy number variation in Chinese indigenous sheep using an ovine high-density 600 K SNP array. Sci. Rep. 2017, 7, 912. [Google Scholar] [CrossRef]
  12. Loparev, V.N.; Cartas, M.A.; Monken, C.E.; Velpandi, A.; Srinivasan, A. An efficient and simple method of DNA extraction from whole blood and cell lines to identify infectious agents. J. Virol. Methods 1991, 34, 105–112. [Google Scholar] [CrossRef]
  13. Willems, E.; Leyns, L.; Vandesompele, J. Standardization of real-time PCR gene expression data from independent biological replicates. Anal. Biochem. 2008, 379, 127–129. [Google Scholar] [CrossRef] [PubMed]
  14. Schmittgen, T.D.; Livak, K.J. Analyzing real-time PCR data by the comparative C (T) method. Nat. Protoc. 2008, 3, 1101–1108. [Google Scholar] [CrossRef] [PubMed]
  15. Bae, J.S.; Cheong, H.S.; Kim, L.H.; Nam Gung, S.; Park, T.J.; Chun, J.Y.; Kim, J.Y.; Pasaje, C.F.; Lee, J.S.; Shin, H.D. Identification of copy number variations and common deletion polymorphisms in cattle. BMC Genomics 2010, 11, 232. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Hou, Y.L.; Liu, G.E.; Bickhart, D.M.; Cardone, M.F.; Wan, K.; Kim, E.S.; Matukumalli, L.K.; Ventura, M.; Song, J.Z.; VanRaden, P.M.; et al. Genomic characteristics of cattle copy number variations. BMC Genomics 2011, 12, 127. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Karlen, Y.; McNair, A.; Perseguers, S.; Mazza, C.; Mermod, N. Statistical significance of quantitative PCR. BMC Bioinform. 2007, 20, 131. [Google Scholar] [CrossRef] [Green Version]
  18. Sun, J.J.; Xue, J.; Zhang, C.L.; Lan, X.Y.; Lei, C.Z.; Chen, H. Haplotype combination of the caprine PC1 gene sequence variants and association with growth traits in Chinese Haimen breed. J. Genet. 2012, 91, E54–E59. [Google Scholar] [CrossRef]
  19. Xu, Y.; Liu, J.; Lan, X.; Zhang, Y.; Lei, C.; Zhang, C.; Yang, D.; Chen, H. Consistent effects of single and combined SNP(s) within bovine paired box 7 gene (Pax7) on growth traits. J. Genet. 2011, 90, E53–E57. [Google Scholar] [CrossRef]
  20. Feuk, L.; Carson, A.R.; Scherer, S.W. Structural varia-tion in the human genome. Nat. Rev. Genet. 2006, 7, 85–97. [Google Scholar] [CrossRef]
  21. Zhang, G.M.; Zheng, L.; He, H.; Song, C.C.; Zhang, Z.J.; Cao, X.K.; Lei, C.Z.; Lan, X.Y.; Qi, X.L.; Chen, H.; et al. Associations of GBP2 gene copy number variations with growth traits and transcriptional expression in Chinese cattle. Gene 2018, 647, 101–106. [Google Scholar] [CrossRef]
  22. Hindorff, L.A.; Sethupathy, P.; Junkins, H.A.; Ramos, E.M.; Mehta, J.P.; Collins, F.S.; Manolio, T.A. Potential etiologic and functional implications of genome-wide association loci for human diseases and traits. Proc. Natl. Acad. Sci. USA 2009, 106, 9362–9367. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Momtaz, R.; Ghanem, N.M.; El-Makky, N.M.; Ismail, M.A. Integrated analysis of SNP, CNV and gene expression data in genetic association studies. Clin. Genet. 2018, 93, 557–566. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Li, X.; Tan, L.J.; Liu, X.G. A genome wide association study between copy number variation (CNV) and human height in Chinese population. J. Genet. Genom. 2010, 37, 779–785. [Google Scholar] [CrossRef]
  25. Egan, C.M.; Sridhar, S.; Wigler, M.; Hall, M.I. Recurrent DNA copy number variation in the laboratory mouse. Nat. Genet. 2007, 39, 1384–1389. [Google Scholar] [CrossRef]
  26. Ma, Y.L.; Wen, Y.F.; Cao, X.K.; Cheng, J.; Huang, Y.Z.; Ma, Y.; Hu, L.Y.; Lei, C.Z.; Qi, X.L.; Cao, H.; et al. Copy number variation (CNV) in the IGF1R gene across four cattle breeds and its association with economic traits. Arch. Anim. Breed. 2019, 62, 171–179. [Google Scholar] [CrossRef] [Green Version]
  27. Da Silva, J.M.; Giachetto, P.F.; Da Silva, L.O.; Cintra, L.C.; Paiva, S.R.; Yamagishi, M.E.B.; Caetano, A.R. Genome-wide copy number variation (CNV) detection in Nelore cattle reveals highly frequent variants in genome regions harboring QTLs affecting production traits. BMC Genomics 2016, 17, 454. [Google Scholar] [CrossRef] [Green Version]
  28. Céline, M.; Raphaël, C.; Agathe, V.; Nicolas, B.; David, G.; Bertrand, B.; Michèle, T.B. Quantitative effect of a CNV on a morphological trait in chickens. PLoS ONE 2015, 10, e0118706. [Google Scholar]
  29. Boyd, E.S.; Boyd, E.H.; Brown, L.E. The M-wave and CNV in the squirrel monkey: Generality of cue modality and of reward. Electroencephalogr. Clin. Neurophysiol. 1980, 49, 66–80. [Google Scholar] [CrossRef]
  30. Yang, L.; Xu, L.; Zhou, Y.; Liu, M.; Wang, L.; Kijas, J.W.; Zhang, H.P.; Li, L.; Liu, G.E. Diversity of copy number variation in a worldwide population of sheep. Genomics 2018, 110, 143–148. [Google Scholar] [CrossRef]
  31. Jenkins, G.M.; Goddard, M.E.; Black, M.A.; Brauning, R.; Auvray, B.; Dodds, K.G.; Kijas, J.W.; Cockett, N.; McEwan, J.C. Copy number variants in the sheep genome detected using multiple approaches. BMC Genomics 2016, 17, 441. [Google Scholar] [CrossRef] [Green Version]
  32. Wang, Y.; Gu, X.; Feng, C.; Song, C.; Hu, X.; Li, N. A genome-wide survey of copy number variation regionsin various chicken breeds by array comparative genomic hybridization method. Anim. Genet. 2012, 43, 282–289. [Google Scholar] [CrossRef] [PubMed]
  33. Shi, T.; Xu, Y.; Yang, M.; Huang, Y.; Lan, X.; Lei, C.; Qi, X.; Yang, X.; Chen, H. Copy number variations at LEPR gene locus associated with gene expression and phenotypic traits in Chinese cattle. Anim. Sci. J. 2016, 87, 336–343. [Google Scholar] [CrossRef] [PubMed]
Animals 10 00688 g001 550

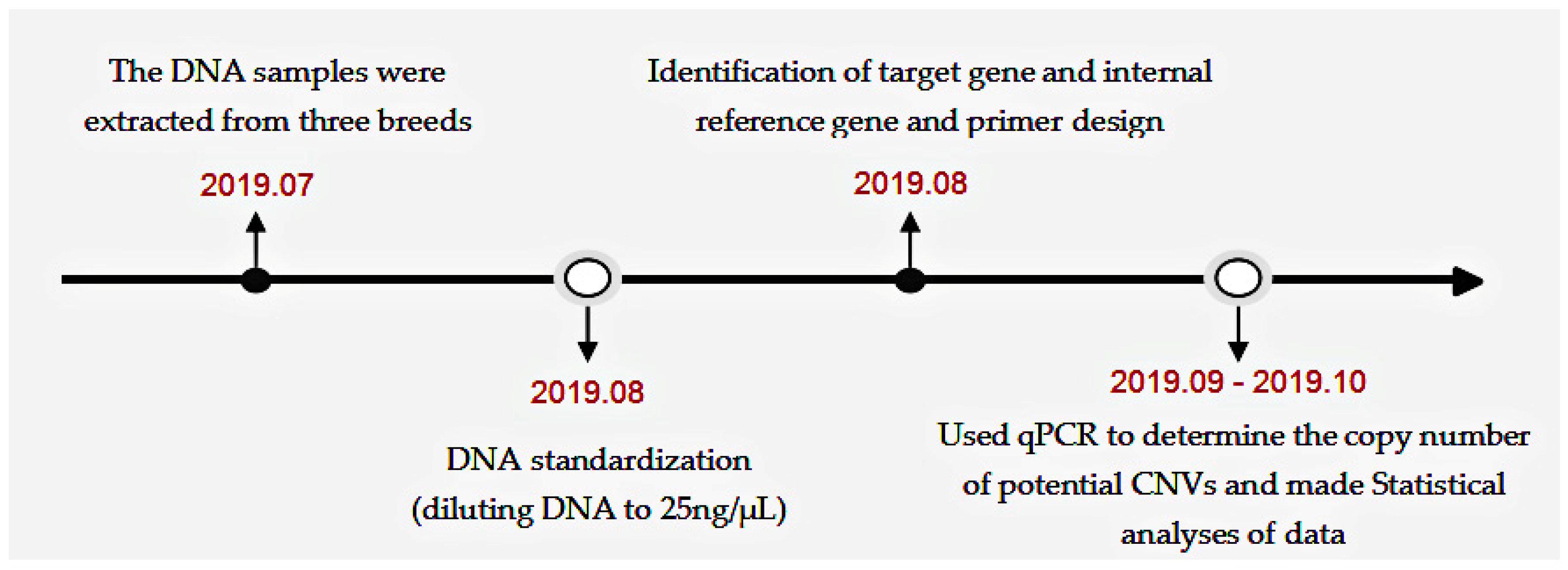

Figure 1. The overall flow diagram of the experiment.
Figure 1. The overall flow diagram of the experiment.
Animals 10 00688 g001
Animals 10 00688 g002 550

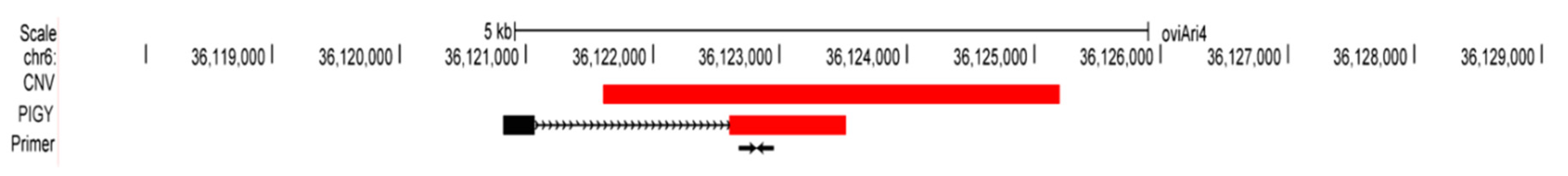

Figure 2. The region of the PIGY gene’s copy number variation (CNV) in sheep breeds. The CNV region: Chr6: Oar_v4.0 36,121,601–36,125,200 bp (Huang et al., unpublished data); the PIGY gene region: Chr6: Oar_v4.0 36,120,820–36,123,522 bp; pp (primer pair CNV): 36,122,803–36,122,892 bp. The detection sequence size is 90 bp.
Figure 2. The region of the PIGY gene’s copy number variation (CNV) in sheep breeds. The CNV region: Chr6: Oar_v4.0 36,121,601–36,125,200 bp (Huang et al., unpublished data); the PIGY gene region: Chr6: Oar_v4.0 36,120,820–36,123,522 bp; pp (primer pair CNV): 36,122,803–36,122,892 bp. The detection sequence size is 90 bp.
Animals 10 00688 g002
Animals 10 00688 g003 550

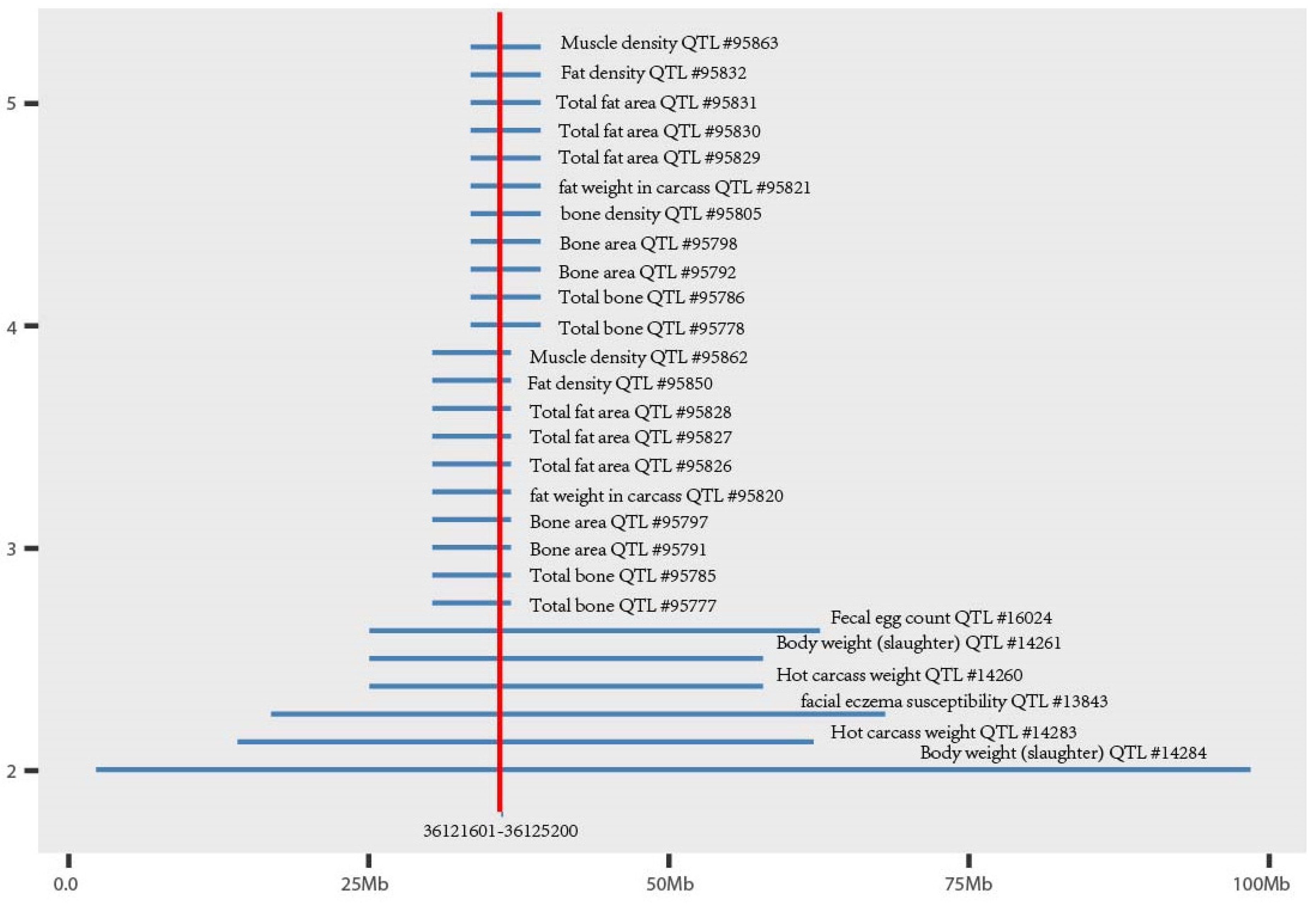

Figure 3. The CNV region of the PIGY gene overlaps with the quantitative trait loci (QTL) of the sheep.
Figure 3. The CNV region of the PIGY gene overlaps with the quantitative trait loci (QTL) of the sheep.
Animals 10 00688 g003
Animals 10 00688 g004 550

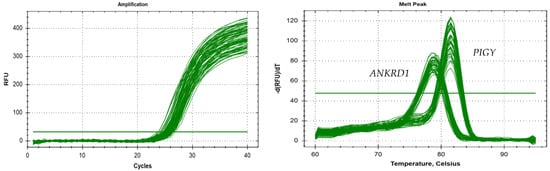

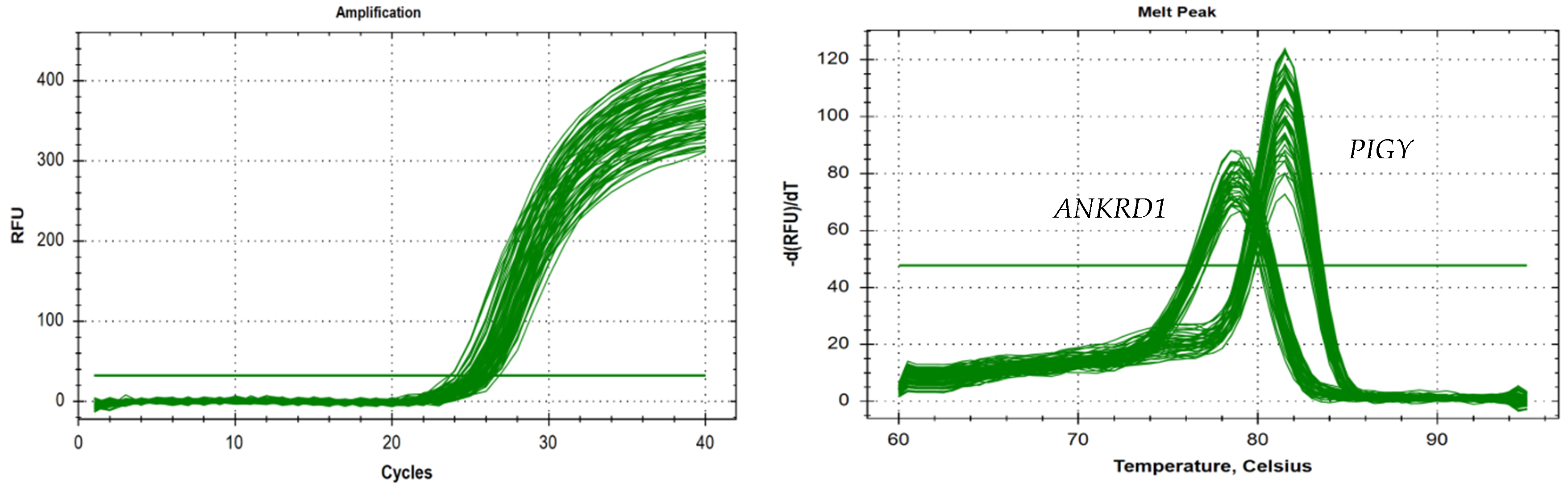

Figure 4. The specificity testing of the PIGY gene and the ANKRD1 gene.
Figure 4. The specificity testing of the PIGY gene and the ANKRD1 gene.
Animals 10 00688 g004
Animals 10 00688 g005 550

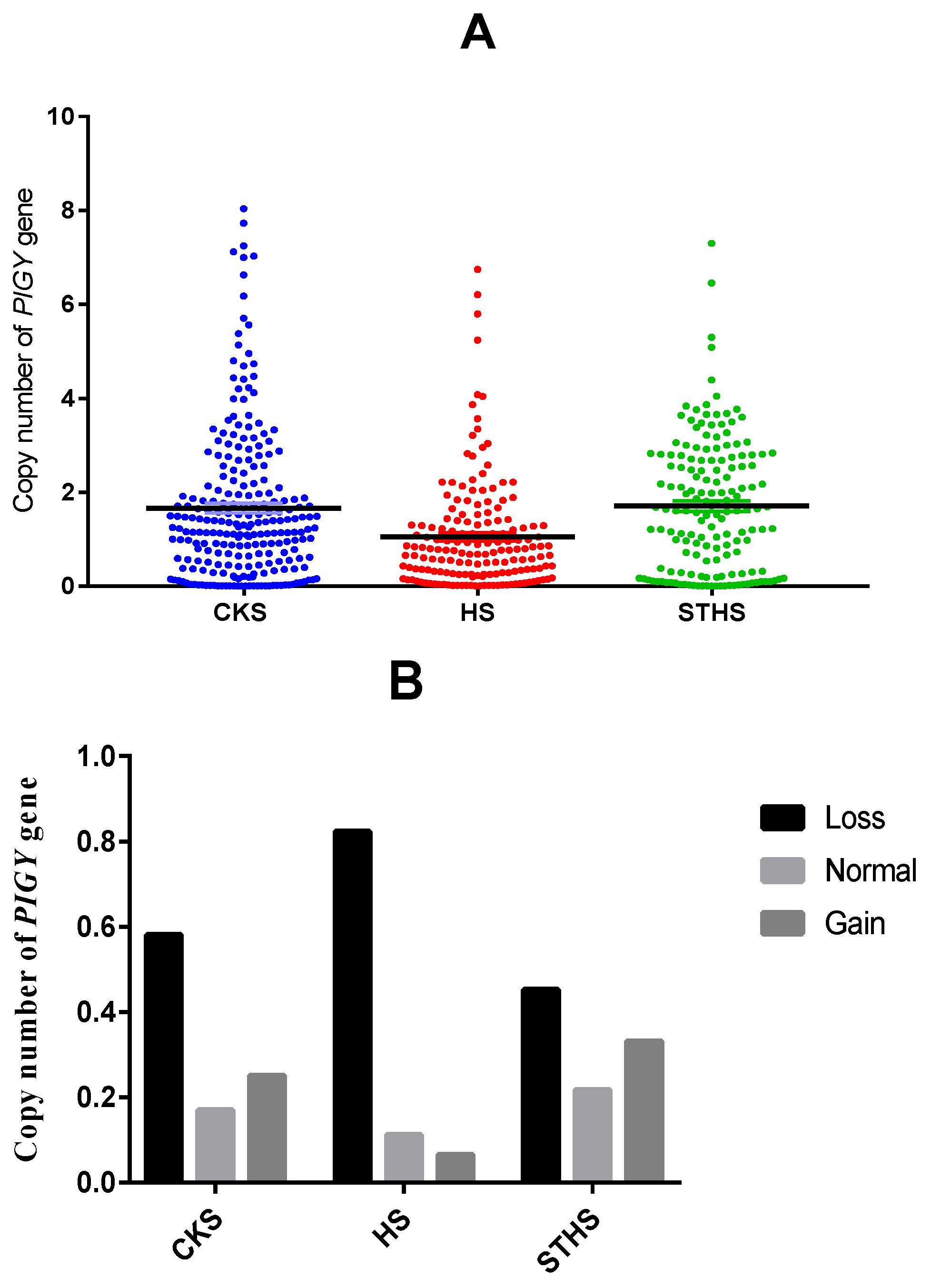

Figure 5. (A) Distribution of the PIGY gene’s CNV in three sheep breeds. (B) Frequency of the copy numbers of the PIGY gene’s CNV in three sheep breeds. CK: Chaka sheep, HS: Hu sheep, STHS: small-tailed Han sheep.
Figure 5. (A) Distribution of the PIGY gene’s CNV in three sheep breeds. (B) Frequency of the copy numbers of the PIGY gene’s CNV in three sheep breeds. CK: Chaka sheep, HS: Hu sheep, STHS: small-tailed Han sheep.
Animals 10 00688 g005
Table
Table 1. The primer information used in this study.
Table 1. The primer information used in this study.
Primer PairsNameGenesSequencesAmplification Length (Bp)Tm (°C)
PIGY-CNVF1PIGY5′-AGAGTGGCGGGTGATAAGTG-3′90 nt59.46
R15′-CAGTCCTGCCAAAGACACCA-390 nt60.18
ANKRD1-CNVF2ANKRD15′-TGGGCACCACGAAATTCTCA-3′143 nt60.00
R25′-TGGCAGAAATGTGCGAACG-3′143 nt60.00
F: forward primer; R: reverse primer.
Table
Table 2. Frequencies of different CNV types in three sheep breeds.
Table 2. Frequencies of different CNV types in three sheep breeds.
BreedsLoss (%)Normal (%)Gain (%)
CKS0.6040.1710.225
HS0.7800.1310.089
STHS0.4600.2240.316
CKS: loss (n = 145), normal (n = 41), gain (n = 54). HS: loss (n = 131), normal (n = 22), gain (n = 15). STHS: loss (n = 74), normal (n = 36), gain (n = 51).
Table
Table 3. The chi-square test of CNV types among Chinese sheep breeds.
Table 3. The chi-square test of CNV types among Chinese sheep breeds.
BreedsCKSHSSTHS
CKS 16.285 (p = 2.91 × 10−4)8.183 (p = 7 × 10−3)
HS 38.733 (p = 3.88 × 10−9)
STHS
Chi-squared values (χ2) for differences in CNV between two breeds.
Table
Table 4. Statistical association analysis of ovine PIGY gene CNV with growth traits of three Chinese sheep breeds.
Table 4. Statistical association analysis of ovine PIGY gene CNV with growth traits of three Chinese sheep breeds.
BreedsGrowth TraitsCNV Type (Mean ± SE)p
Loss (n = 350)Normal (n = 99)Gain (n = 120)
CKSBody weight (kg)58.801 ± 3.084 a54.280 ± 3.156 b61.065 ± 3.353 aC0.027 *
Chest circumference (cm)92.544 ± 2.036 A89.076 ± 2.084 B93.251 ± 2.214 AC0.029 *
STHSCircumference of cannon bone (cm)6.872 ± 0.082 A7.298 ± 0.116 B7.342 ± 0.095 BC0.000 **
a,b Value that differ significantly at p < 0.05; A,B,C value that differ significantly at p < 0.01; * value that differ significantly at p < 0.05; ** value that differ significantly at p < 0.01. CKS: loss (n = 145), normal (n = 41), gain (n = 54). HS: loss (n = 131), normal (n = 22), gain (n = 15). STHS: loss (n = 74), normal (n = 36), gain (n = 51).
