Allocation of Carbon from an Arbuscular Mycorrhizal Fungus, Gigaspora margarita, to Its Gram-Negative and Positive Endobacteria Revealed by High-Resolution Secondary Ion Mass Spectrometry

Abstract

Arbuscular mycorrhizal fungi are obligate symbionts of land plants; furthermore, some of the species harbor endobacteria. Although the molecular approach increased our knowledge of the diversity and origin of the endosymbiosis and its metabolic possibilities, experiments to address the functions of the fungal host have been limited. In this study, a C flow of the fungus to the bacteria was investigated. Onion seedlings colonized with Gigaspora margarita, possessing Candidatus Glomeribacter gigasporarum (CaGg, Gram-negative, resides in vacuole) and Candidatus Moeniiplasma glomeromycotorum (CaMg, Gram-positive, resides in the cytoplasm,) were labelled with ¹³CO₂. The ¹³C localization within the mycorrhiza was analyzed using high-resolution secondary ion mass spectrometry (SIMS). Correlative TEM-SIMS analysis of the fungal cells revealed that the ¹³C/¹²C ratio of CaGg was the lowest among CaMg and mitochondria and was the highest in the cytoplasm. By contrast, the plant cells, mitochondria, plastids, and fungal cytoplasm, which are contributors to the host, showed significantly higher ¹³C enrichment than the host cytoplasm. The C allocation patterns implied that CaMg has a greater impact than CaGg on G. margarita, but both seemed to be less burdensome to the host fungus in terms of C cost.

1. Introduction

The arbuscular mycorrhizal fungi, Glomeromycotina, are obligate mutualistic symbionts of plants that colonize the roots. The fungal–bacterial interaction is well known in this subphylum and the presence of Gram-positive bacteria (GPB) within the fungal cell has been widely observed. Furthermore, some members of Diversisporales also possess Gram-negative bacteria (GNB) [1,2]. The taxonomic position of GNB was first recognized as beta-proteobacteria, Burkholderia related (BRE), and later named Candidatus Glomeribacter gigasporarum (CaGg) [3]; the closest group was Mycoavidus, which was known as an endosymbiont of Mortierella elongata [4,5]. GPB, a sister clade of Mycoplasmatales and Entomoplasmatales, has been referred to as Mycoplasma related endobacteria (Mre) [6] and named Candidatus Moeniiplasma glomeromycotorum (CaMg) [7]. Ultrastructural observations have shown distinct niches in the host cells between CaGg and CaMg: the former resides in the vacuole and the latter in the cytoplasm [2]. Since their presence was discovered [8], their obligate lifestyle has been suspected from unsuccessful attempts to culture them, and recent genomic analysis has confirmed that CaMg and CaGg have reduced genome sizes and lack the ability to biosynthesize many amino acids, and that the former also lack nucleic acids [9,10]. These obligate dependencies agree with the proposed propagation manner of vertical transmission [11], which is estimated to have originated as long as 400 million years ago [12].

In the plant–fungal symbiosis of arbuscular mycorrhiza (AM), the fungus obtains carbon (C) from the host plant; in return, the host obtains mineral nutrients, such as phosphorus (P), and nitrogen (N), from the partner. However, regarding the fungus–endobacteria symbiosis in Glomeromycotina, the relationship and functions are still poorly understood. In other fungus–endobacteria symbioses, Burkholderia rhizoxinica is responsible for the pathogenicity of the fungal host, Rhizopus microsporus, causing rice seedling blight [13,14]. In Mycoavidus cysteinexigens and Mortierella elongata symbiosis, the presence of the bacteria influences the host fungus, resulting in the reduction of the host fungal growth rate by comparison with the fungus when isolated from the endobacteria [5]. In the Glomeromycotina endobacteria, Gigaspora margarita proliferated after removing its only symbiont CaGg and the relationship has been proposed to be facultative for the fungal host [15]. Moreover, recent approaches have shown the bacterial influence on the host fungus by comparing two lines with and without bacteria using transcriptomics and proteomics and proposed that the bacterial presence improves the fungal ecological fitness [16].

Secondary ion mass spectrometry (SIMS) employs an energetic primary ion beam to bombard the sample surface to trigger the ejection of secondary ions. These secondary ions can be identified by their mass through a mass spectrometer and their intensities can be measured individually. The imaging SIMS has been recognized for its high potential in biological applications, mainly because the technique covers all elements from hydrogen [17]. Modern, dynamic SIMS instruments offer high-mass resolution along with high lateral resolutions, allowing us to use them for investigating transfers of biological elements within and between organisms, and between organisms and the environment by tracing stable isotopes at an ultrastructural level [18,19,20]. The purpose of this study is to understand C allocation from the host fungus to its endobacteria. To achieve this aim, we applied ¹³C labelled CO₂ to the arbuscular mycorrhizal plant colonized with the G. margarita C strain (MAFF520054) known to harbor both CaGg and CaMg [2,7] and analyzed the flow in the quadruplet symbiosis, mainly focusing on transfer from the fungus to the two bacteria. The localization of the isotope enrichment was imaged by high-resolution SIMS, further enhanced by the correlative transmission electron microscopy (TEM)—nanoSIMS approach, similar to that for elemental distribution mapping [21].

2. Materials and Methods

An onion seedling was grown in a root box system (Figure S1). The wall of the bottom of a plastic Petri dish was removed in one part. The soil mixture (river sand:field soil:horticultural soil = 5:4:1) was filled in the dish and the surface was covered with a non-woven-fabric, and a cellulose acetate membrane (47 mm in diam., 0.8 μm pore size; ADVANTEC, Tokyo, Japan) was placed on the top so that the developed roots were separated from the soil. An onion seedling was put on the filter and 30 spores of G. margarita Becker & Hall (MAFF520054, Ministry of Agriculture, Forestry and Fisheries, Genebank, Tsukuba, Japan) were inoculated beside the roots. The roots were covered by the lid where the sidewall was partially removed, and the root box was covered with aluminum foil and cultured in a growth room while being kept in a vertical position for 8 weeks (25 °C, 16 h light–8 h dark). The mycorrhizal plants forming new spores were enclosed in a plastic bag (4.5 L), and 225 mL of ¹³CO₂ (¹³C 99%, ISOTEC Inc. Miamisburg, OH, USA) was injected into the bag with a syringe. The labelling was carried out as described above. After labelling for 48 h, the plant roots were fixed in a mixture of freshly prepared 2% paraformaldehyde and 2.5% glutaraldehyde in 50 mM PIPES buffer (piperazine-1,4-bis (2-ethanesulfonic acid), pH 6.9) for two hours, rinsed in the buffer, and the colonized areas were then excised under a binocular microscope. The root pieces were further fixed by 1% OsO₄ in the 50 mM PIPES buffer for two hours. Then, the sample was rinsed with distilled water, dehydrated with a graded ethanol series (50, 70, 80, 90, 95, and 100%), infiltrated, embedded in an epoxy resin (Embed-It^TM; Polysciences Inc., Warrington, PA, USA), and polymerized at 70 °C.

Semi-thin sections (200–500 µm thickness) of the resin-embedded samples were obtained using an ultramicrotome (Leica EM UC7, Leica microsystems, Wetzlar, Germany) and stained with Toluidine blue O (0.05% in 1% sodium borate in H₂O), and samples showing colonized areas were selected using a light microscope (Axio Imager A1, Carl Zeiss, Jena, Germany). For observation, we used an isotope microscope system at Hokkaido University (ims-1270 (CAMECA, Paris, France) coupled with a solid-state ion imager (SCAPS)). Sections that were 1 µm thick were placed on a drop of filtrated water on a 7 mm × 7 mm silicon wafer and adhered by heating of a hot plate. In this system, isotope images were sequentially obtained using a Cs⁺ primary ion in the order ³²S⁻, ¹³C⁻, ¹²C⁻, ¹³C⁻, ³¹P⁻, ¹⁶O⁻, and ¹²C¹⁴N⁻ [18,22]. Two ¹³C images were averaged, then the calculated image was divided by the image of ¹²C. The result was a ¹³C/¹²C ratio image that was multiplied by 100 (r13C). The percentage of the natural abundance of ¹³C is around 1%; therefore, a value of more than 1 for r13C indicates the presence of the isotope tracer.

For correlative TEM-NanoSIMS analysis, sections that were 120 nm thick were obtained by an ultramicrotome using a diamond knife, placed on a formvar carbon coated copper grid (200 mesh, EM Japan Co. Ltd., Tokyo, Japan), and the ultrastructure of the roots was recorded (JEM-1400, JEOL Ltd., Tokyo, Japan). Then, the grid was analyzed by NanoSIMS-50 (CAMECA, Paris, France) where ¹²C⁻, ¹³C⁻, ¹²C¹⁴N⁻, ³¹P⁻ images were taken simultaneously using a Cs⁺ primary ion, and an r13C image was produced by dividing the ¹³C image by the of ¹²C image and multiplying the result by 100. Region of interest (ROI) analysis was conducted on the fungal cytoplasm, vacuoles, mitochondria, Gram-negative, and Gram-positive bacteria, as well as on plant cytoplasm, vacuole, mitochondria and proplastids using ImageJ (Fiji). The ROIs within one image were averaged, and the averaged values were used for a multiple comparison analysis (replicates are the number of images that contain the structures; Tukey–Kramer method; Statcel-the Useful Add-in Forms on Excel-4th ed., OMS Publishing Inc., Tokyo, Japan).

3. Results

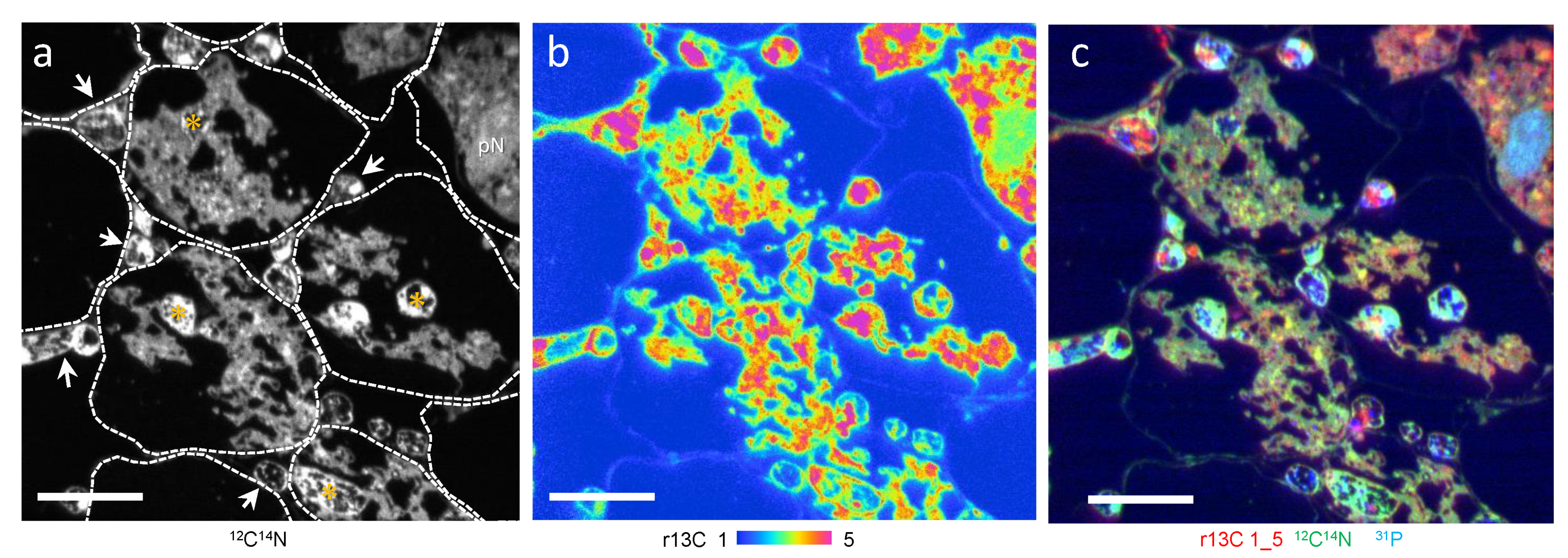

In the onion roots, G. margarita form Arum-type mycorrhiza where intercellular hyphae grow between the host cell and form an arbuscule within cortical cells (Figure 1). Arbuscule-forming hyphae, including a thick trunk and fine branches, were surrounded by the peri-fungal membrane derived from the host plasma membrane. An r13C higher than natural abundance was observed in the mycorrhizal root, especially associated with the host and arbuscule complex and intercellular hyphae (Figure 1a–c). An overlay image of r13C (red), ¹²C¹⁴N (green), and ³¹P (blue) showed the plant nucleus as light blue (Figure 1c).

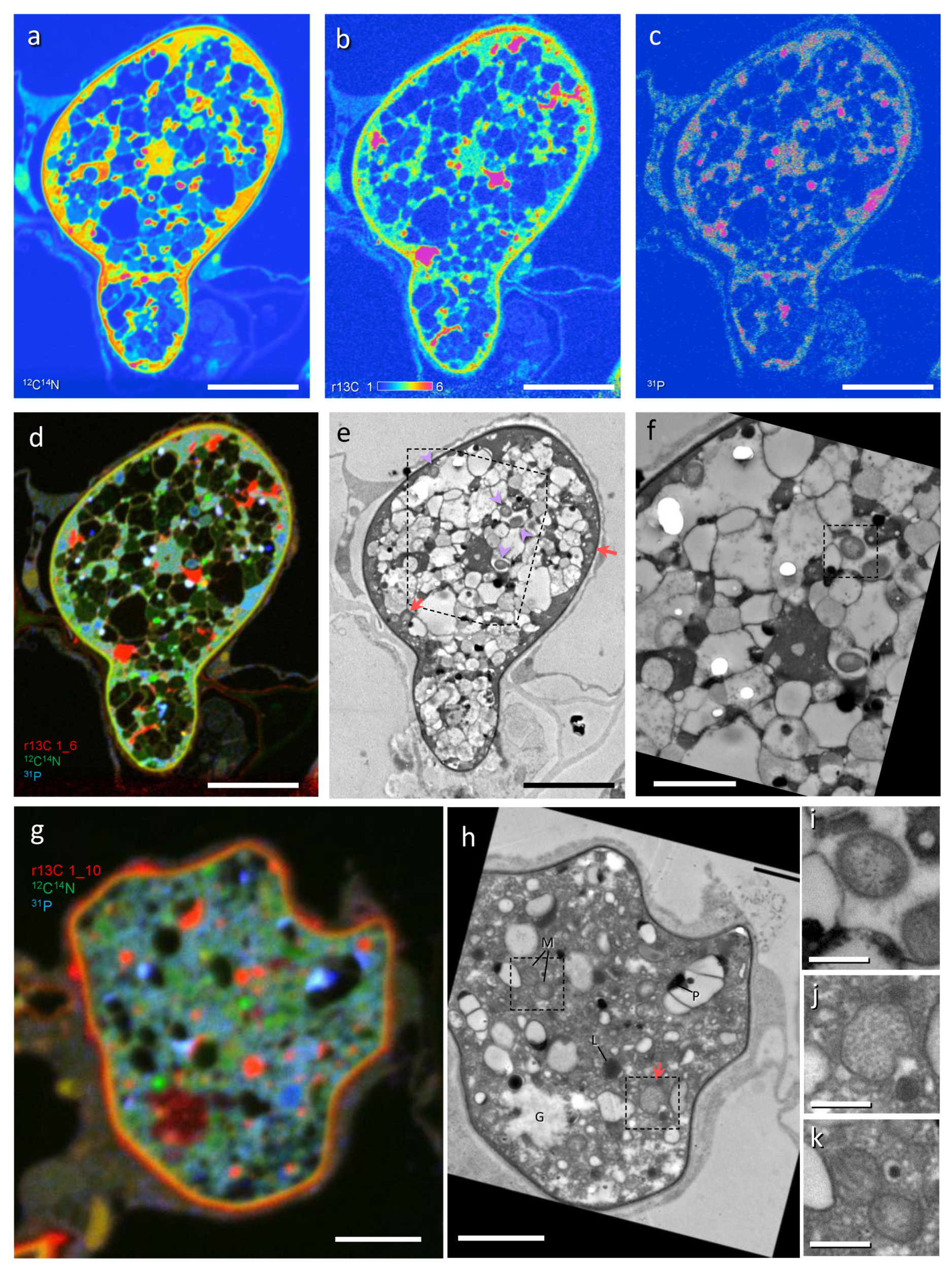

In correlative TEM-NanoSIMS-50 (Figure 2), eleven CaMg and six CaGg were identified structurally in trunks and intercellular hyphae from seven images of SIMS (Table S1). The CaMg was coccoid, often constricted in the center (Figure 2j), 0.44 µm (0.34–0.55 µm) in width (measured in ten cells), and present in fungal cytoplasm (Figure 2e,f,h,j). The CaGg was rod-shaped, 0.45 µm (0.41–0.51 µm) in width (measured in six cells), and present in the vacuoles (Figure 2e,f,i). Overlay images of r13C (red), ¹²C¹⁴N (green), and ³¹P (blue) showed that CaMg was light blue and the CaGg was greenish blue, indicating that both contain P in high amounts (Figure 2d,g). Although only three hyphal profiles include both bacteria, CaMg contains more ³¹P than CaGg (³¹P ratios of CaMg/CaGg ranged between 2.4 and 2.7, Table S1). The bacterial blue colors distinguished them from fungal mitochondria (Figure 2d,g,k) that are clear green (less ³¹P) and often accompanied by r13C elevation outside, seen as an orange fringe. Fungal vacuoles contained ³¹P-rich and electron dense granules of polyphosphate, which were deposited during sample preparation. Together with the morphology, the blue color in the overlay image and high electron density differentiate it from CaGg.

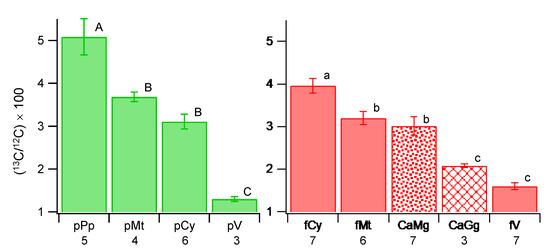

All structures analyzed showed a higher ¹³C ratio than the natural abundance; therefore, ¹³CO₂ fixed by the host plant was transferred to the fungus, and further to the endobacteria (Figure 3 and Figure S2, Tables S1 and S2). The r13C of CaMg was 3.02 ± 0.58 (average ± standard deviation) and CaGg was 2.08 ± 0.08, which were statistically significant (p < 0.05). The values of both bacteria were statistically lower than fungal cytoplasm (3.96 ± 0.45, p < 0.01), although CaMg had direct contact with it. Fungal mitochondrion (3.20 ± 0.38) was slightly higher than CaMg, but significantly lower than that of the fungal cytoplasm. By contrast, in plant cells, plastids (5.09 ± 0.94) and mitochondria (3.69 ± 0.22) showed higher r13C than the plant cytoplasm (3.11 ± 0.42). The fungal cytoplasm was higher than the plant cytoplasm, which was statistically significant when all the ROIs of all the structures were analyzed (Figure S3), indicating a higher uptake of C molecules by the fungus from the host. In the fungal cytoplasm, lipid and glycogen formation proceeded.

4. Discussion

This study revealed for the first time the C flow within a quadruplet symbiosis, from the plant through the arbuscular mycorrhizal fungus and to the two fungal endobacteria.

The G. margarita C strain used in this study has been pot-cultured in our laboratory for two decades and the presence of CaGg and CaMg was confirmed based on the 16S rRNA gene sequences (unpublished data). Their niches in the host cell and the structures agreed with the previous studies [6,15]; rod-shaped bacteria resided in the vacuoles assumed as CaGg, and coccoid bacteria residing in the cytoplasm as CaMg. Because of the size, less than 0.5 µm in width, an ultrastructural resolution was essential to find the endobacteria, and to distinguish CaMg from mitochondria and other vesicular structures and CaGg from granularly deposited polyphosphate during ethanol dehydration [23,24]. The biomasses of the bacteria were unknown, but the CaMg was found more often than the CaGg in this study, which agreed with the study where the quantities of the two bacteria were analyzed using real-time qPCR [2].

In the biological application of SIMS, several requirements and concerns exist: analysis under a high vacuum condition, the necessity of a flat surface, sample erosion due to the destructive character of the SIMS technique, and the deposition of reactive primary ions as Cs⁺ at a high dose on the surface by measurement. Because of the former two requirements, biological samples prepared for electron microscopy are compatible. For the latter two reasons, especially in the correlative TEM-SIMS, the structural data by TEM must be taken prior to NanoSIMS analysis. The thickness of the section must be thin enough for the transmission of electrons and sufficiently thick (robust) to stand for SIMS measurement. Regarding labelling, because this method measures the substances, strengthened conditions seem more necessary than the method that uses radioactive tracers. The two preliminary experiments using a lower quantity of label and shorter labelling time could not allow the detection of ¹³C other than the natural abundance in mycorrhizal roots.

The isotope ratio permits the trafficking of isotopes. A higher ratio implies the deposition of newly fixed ¹³C in the structure unless there is a mechanism of only ¹²C being removed with the same amount. The elevated ratio is most likely accompanied by an increase in the total amount of ¹³C, but it does not necessarily mean that double the value is double the amount. The replacement of ¹²C with ¹³C can also bring a higher ratio without changes in the total quantity. A low ¹³C ratio can be attributed to no, less, or slow allocation and a situation where molecules are metabolized and removed quickly, such as oxygenic respiration in mitochondria. This study showed the ratio value in the plant mitochondria was always slightly higher than in its cytoplasm, even though the difference was not significant, which may indicate a footprint of metabolizing ¹³C in the mitochondria. This study revealed differences in C allocation between CaMg and CaGg and was higher in CaMg. Additionally, compared to the CaMg, C allocation was slightly higher in the fungal mitochondria and was significantly higher in the fungal cytoplasm. This order was consistent with the observations found in other independent experiments (unpublished data). The CaGg lives in the vacuole, which exhibits the lowest r13C, indicating active transport of labelled ¹³C molecules by CaGg from the surrounding area. Fungal vacuoles store polyphosphate in a dispersive form [23,24,25,26] and amino acids [27]. In AMF, arginine has been proposed as a candidate for storage in the vacuoles [28]. Additionally, CaGg lacks the ability to biosynthesize amino acids, such as arginine [1,9], suggesting that it is being supplied from the surrounding area. In this study, a vacant type of vacuole was common in all images and analyzed, where ¹²C¹⁴N was low but the methodological artifact should be taken into account. Indeed, the hypha of Figure 2a–f (Table S1, Image #4) shows two types of vacuoles; one is vacant and the other was filled by N in a dispersed form. The vacuoles containing CaGg showed that the r13C of the vacuole area was lower than CaGg but was not significant and the ¹²C¹⁴N was the same as that of the N-rich vacuoles (Figure S4). This case implied a possibility of CaGg influence in the residing vacuole, but more data with different sample preparations are necessary.

The CaMg and the fungal mitochondria, showed lower r13C than the fungal cytoplasm. By contrast, the fungus, a mutualistic partner of the host plant, was awarded ¹³C, as the ¹³C ratio of the cytoplasm was higher than the host cytoplasm. This is also the case of the plant plastids and mitochondria, accumulating more tracers than the plant cytoplasm. Progress in understanding fungal genomes has suggested that the lack of ability of de novo synthesis of 16C fatty acid seems to be a common characteristic of AMF [29,30,31]. The fungi are dependent on carbon from the host plants, and the intraradical hyphae are the site of C assimilation. In this study, the multiple comparison of r13C using all structures showed, indeed, that fungal cytoplasm was the second highest after plastids and higher than plant cytoplasm (Figure S3). ROI setting of the fungal cytoplasm was difficult because the vacuoles and lipid bodies occupied most of the cell volume and the active lipid and glycogen syntheses in the cytoplasm made the distribution of the isotope heterogenous. Therefore, to discuss the level of r13C by comparing it with the fungal cytoplasm or the surrounding environment may not be adequate. The CaMg had the same level of r13C as the fungal mitochondria and plant cytoplasm, suggesting the CaMg has a higher cost than CaGg for its fungal host in terms of carbons. Indeed, it has been suggested that CaMg obtains the molecules from the fungal host, based on the missing amino acids and nucleic acid synthesis abilities [10]. Particularly, the way to exist in the host cytoplasm without being encased by a host membrane also suggests easy access to the host molecules.

Endobacterial functions in the host remain a challenging topic. Both CaGg and CaMg are obligate symbionts of the host fungus, and AMF are also obligate symbionts of plants. In the host plant cells, mitochondria and plastids are located near the fungal hyphae with higher ¹³C ratios, strongly indicating their significant roles of the C transfer to the fungus. This study showed higher ¹³C ratios of plant organelles, mitochondria and plastids, which are evolved by endosymbiosis and are perpetual residents, compared to that of plant cytoplasm. The higher allocation of C revealed by the higher ¹³C ratio in the cytoplasm was also shown in the mutualistic fungal partner. Applying this to the endobacterial patterns, the CaGg and CaMg seem to be less burdensome to the host fungus in terms of the C cost. They seem not to be mutualists but also not parasitic partners bringing considerable loss or damage to the host. This view may explain the long resident history [5,6]. The influence of the host measured by the C allocation seems to be larger in CaMg than CaGg, which might indicate a stronger dependency caused by the significantly reduced genome size in CaMg [9,10]. Although the CaGg-free strain did not change the performances as AMF [15], recent studies have shown differences in transcriptional activity by the presence and absence of CaGg [32], and the influence of CaGg on the fungus, such as a modulation of fungal protein expression, fatty profiles, fungal growth, oxidative stress, and respiration [16,33]. In this study, allocations of ¹³C in the endobacteria were lower than the surrounding environments. The ¹³CO₂ labelling conditions used in this study were found after two experiments ended with no labelling of mycorrhizal plants and the fungus. If the bacterial life cycles take several days, longer incubation with ¹³CO₂ may be necessary. The low C to N ratio of prokaryotic cells and the stable nutrient-rich environments may explain the low or slow C allocation found in the endobacteria, or the humble allocation may show the control of the partners by the host. The methodology, tracing stable isotopes in the whole organism level and imaging the ratios at the organelle level in situ, opened a new strategy to studying intact cell and symbiotic functions. The results of this study clearly demonstrated the carbon flow hypothesized by Ghignone et al. (2012) and revealed a low carbon cost of the fungal endobacteria. N transfer, the bacterial life cycle, and their interactions with fungal hosts in Glomeromycotina endobacteria symbioses require further investigation.
