Laccase-Catalyzed Derivatization of Antibiotics with Sulfonamide or Sulfone Structures

Abstract

Trametes spec. laccase (EC 1.10.3.2.) mediates the oxidative coupling of antibiotics with sulfonamide or sulfone structures with 2,5-dihydroxybenzene derivatives to form new heterodimers and heterotrimers. These heteromolecular hybrid products are formed by nuclear amination of the p-hydroquinones with the primary amino group of the sulfonamide or sulfone antibiotics, and they inhibited in vitro the growth of Staphylococcus species, including multidrug-resistant strains.

1. Introduction

The evolution of antibiotic resistances amongst microorganisms is a global problem [1,2,3]. Because of this, novel antimicrobial substances and synthesis routes are needed. For this, enzymatic catalysis may be an alternative to conventional chemical synthesis processes [4,5]. The oxidoreductase laccase [E.C. 1.10.3.2, benzenediol:dioxygen oxidoreductase] possesses a number of advantages. The reactions can be performed under mild and environmentally friendly conditions, such as atmospheric pressure and room temperature. Additionally, no cofactors such as a coenzyme or NADPH are needed.

Different laccase-mediated reactions are possible [6,7,8,9]. The laccase substrates may be oxidized by the enzyme and can then react to form homomolecular products [10,11], or the oxidized substrate may react with other compounds, such as amines or thiols, resulting in heteromolecular products [12]. These hybrid products are formed by C−C [13,14], C−N [15,16], C−O [17], or C−S [18,19] bonds. In addition, the reactions may also lead to multiple bond formation by ring closure mechanisms [20,21].

These diverse reaction types resulted in the synthesis or derivatization of antitumor [22,23,24], antioxidative [25,26,27], or estrogenic [28,29] compounds. Additionally, the synthesis of antibiotics by homomolecular and heteromolecular reactions have also been described. Thus, the laccase-catalyzed dimerizations of different ortho-aminophenol derivatives by C=N and C−O bond formations resulted in phenoxazinone pigments proposed as antitumor antibiotics [30,31,32,33,34,35]. Additionally, the catalytic derivatization of β-lactam antibiotics has been of particular interest. Agematu et al. [36] described the laccase-mediated synthesis of homomolecular dimers from different esters of penicillin X. The dimers of the penicillin X methyl ester showed hardly any antibacterial activity. In contrast, the ortho-ortho coupling product formed from penicillin X pivaloyloxymethyl ester represented a precursor (prodrug) of the penicillin X dimer. However, the minimum inhibitory concentration was lower than that of penicillin X sodium salt [36]. The laccase-catalyzed oxidation of a cephalosporanic acid resulted in the formation of two diastereomers, which differed in their configuration at C−2′ and their antibacterial efficacy [37]. Nevertheless, both compounds showed lower activity than the parent compound. Furthermore, penicillins and cephalosporines with free amino groups were derivatized with dihydroxylated aromatic compounds resulting in the formation of heteromolecular products [38,39,40]. The newly synthesized heterodimers had a moderate to high growth inhibitory effect against various bacteria including multidrug-resistant Staphylococcus and Enterococcus species. The products possessed also in vivo efficacy against Staphyloccocus aureus in mice. Additionally, the dimers resulting from reactions of 2,5-dihydroxybenzoic acid derivatives and penicillins or cephalosporins showed no cytotoxicity [41,42].

Consequently, 2,5-dihydroxybenzene derivatives were used for the derivatization of sulfanilamide and structurally related substances. Sulfanilamide is a structural part of 4′-sulfonamide-2,4-diaminoazobenzene (trade name: Prontosil), which was the first antibiotic of the sulfonamide group. This antibiotic was used against Gram-positive cocci such as Streptococcus spp. involved in the induction of sepsis [43]. Because of their structural similarity, sulfonamide acts as an antagonist for para-aminobenzoic acid. This results in the inhibition of bacterial folic acid synthesis, which is essential for prokaryotes [44,45]. The antibacterial effect of the sulfone dapsone relies on the same antagonistic mechanism [46]. The increasing incidence of antibiotic resistance shows the need for the synthesis of novel compounds. In the present study, the extracellular laccase C of Trametes spec. was employed for the production of heterodimers in reactions of sulfanilamide and its derivatives with para-dihydroxylated aromatic substances. The resulting products were tested for their antibacterial efficacy and cytotoxicity to human cells.

Different Staphylococcus strains were chosen for the determination of the antibacterial efficacy of the products formed. S. aureus ATCC6538/DSM799 (American Type Culture Collection/German Collection of Microorganisms and Cell Cultures) and the patient-derived multidrug-resistant S. epidermidis 99847 were used. Additionally, the northern German epidemic MRSA (methicillin-resistant S. aureus; Norddeutscher Epidemiestamm), which is resistant to penicillin, oxacillin, gentamicin, erythromycin, clindamycin, oxytetracycline, trimethoprim-sulfamethoxazole, rifampicin, and ciprofloxacin was employed [47]. Cytotoxicity was tested in a neutral red uptake assay using FL cells (human amniotic epithelial cell line).

2. Materials and Methods

2.1. Enzyme

Extracellular laccase C of Trametes spec. (EC 1.10.3.2) with an activity of 800 nmol·mL⁻¹·min⁻¹ (substrate: 2,2′-amino-bis-3-ethylbenzthiazoline-6-sulfonic acid) was obtained from ASA Spezialenzyme (Wolfenbüttel, Germany) and used in all experiments.

2.2. Substrates and Conditions of Biotransformation

The antibiotics—sulfanilamide, sulfamerazine and dapsone (2 mM)—were dissolved in 60 mL sodium acetate buffer, 20 mM pH 5.6. After addition of laccase C, the 2,5-dihydroxybenzene derivatives—2,5-dihydroxy-N-(2-hydroxyethyl)benzamide, 2,5-dihydroxybenzoic acid methyl ester, 2,5-dihydroxyacetophenone, 2,5-dihydroxyphenylacetic acid, or 2,5-dihydroxy-1,4-benzenediacetic acid—were added (6 mL of a 20 mM solution in sodium acetate buffer, pH 5.6). The reaction mixtures were incubated for 6 h at room temperature (RT) with agitation at 400 rpm.

Chemicals were purchased from the commercial supplier Sigma-Aldrich (Steinheim, Germany) with the exception of 2,5-dihydroxy-N-(2-hydroxyethyl)benzamide purchased from Midori Kagaku Co (Tokyo, Japan).

2.3. Isolation of Biotransformation Products

The isolation of the coupling products was performed by solid phase extraction described in detail by Mikolasch et al. [38].

2.4. Analytical High-Performance Liquid Chromatography (HPLC)

Samples of the incubation mixture were analyzed by HPLC−UV/Vis detector for routine analyses [38].

2.5. Characterization of Biotransformation Products

Products were analyzed by mass spectrometry (LC/MS with API-ES in negative and positive modes). The nuclear magnetic resonance (NMR) spectra were obtained at 300 MHz (¹H) in acetonitrile-d₃. Chemical shifts (δ) are given in part per million (ppm) downfield relative to tetramethylsilane (TMS, SiMe₄), and spin-spin coupling constants (J) are in Hz. Residual solvent central signal was recorded at δ_H = 1.93 ppm and δ_C = 1.3 ppm.

3,6-Dioxo-2-(4-sulfamoylanilino)cyclohexa-1,4-diene-1-carboxyl methyl ester 3a₁. Yield 88%, ¹H NMR (300 MHz, CH₃CN-d₃): δ (ppm) 3.11 (s, 3H, H−8), 5.77 (s, 2H, H−8′), 6.70 (d, ³J = 10.15 Hz, 1H, H−5), 6.81 (d, ³J = 10.15 Hz, 1H, H−4), 7.25 (d, ³J = 8.75 Hz, 2H, H−2′, H−6′), 7.79 (d, ³J = 8.75 Hz, 2H, H−3′, H−5′), 13.41 (s, 1H, H−7′), ¹³C NMR (75 MHz, CH₃CN-d₃): δ 51.6 (C−8), 102.4 (C−1), 125.6 (C−2′, C−6′), 128.3 (C−3′, C−5′), 133.1 (C−5), 139.7 (C−4′), 141.1 (C−4), 145.5 (C−1′), 154.5 (C−2), 169.2 (C−7), 184.5 (C−3), 185.4 (C−6) ppm. LC/MS m/z 337.1 [M + H]⁺ API-ES pos. mode, 335.1 [M − H]⁻ API-ES neg. mode.

N-(2-Hydroxyethyl)-3,6-dioxo-2-(4-sulfamoylanilino)cyclohexa-1,4-diene-1-carboxamide 3b₁. Yield 92%, ¹H NMR (300 MHz, CH₃CN-d₃): δ (ppm) 3.40 (m, ³J = 5.4 Hz, 2H, H−9), 3.59 (t, ³J = 5.4 Hz, 2H, H−10), 5.74 (s, 2H, H−8′), 6.63 (d, ³J = 10.25 Hz, 1H, H−5), 6.71 (d, ³J = 10.25 Hz, 1H, H−4), 7.26 (d, ³J = 8.7 Hz, 2H, H−2′, H−6′), 7.79 (d, ³J = 8.8 Hz, 2H, H−3′, H−5′), 9.49 (s(broad), 1H, H−8), 13.42 (s, 1H, H−7′), ¹³C NMR (75 MHz, CH₃CN-d₃): δ 42.3 (C−9), 61.4 (C−10), 101.4 (C−1), 125.2 (C−2′, C−6′), 128.1 (C−3′, C−5′), 133.3 (C−5), 139.9 (C−4′), 141.4 (C−4), 145.3 (C−1′), 153.5 (C−2), 170.2 (C−7), 184.6 (C−3), 185.5 (C−6) ppm. LC/MS m/z 366.1 [M + H]⁺ API-ES pos. mode, 364.1 [M − H]⁻ API-ES neg. mode.

4-(2-Acetyl-3,6-dihydroxy-anilino)benzenesulfonamide 3c₂. Yield 10% (only available in a mixture with trimers), LC/MS m/z 323.1 [M + H]⁺, 345.1 [M + Na]⁺ API-ES pos. mode.

3,6-Dihydroxy-2-[4-[(4-methylpyrimidin-2-yl)sulfamoyl]anilino]benzoic acid methyl ester 3d. Yield 81%, ¹H NMR (300 MHz, CH₃CN-d₃): δ (ppm) 2.32 (s, 3H, H−13′), 3.10 (s, 3H, H−8), 3.15 (s, 1H, H−8′), 6.65 (d, ³J = 8.9 Hz, 1H, H−5), 6.76 (d, ³J = 8.9 Hz, 1H, H−4), 6.86 (d, ³J = 5.1 Hz, 1H, H−11′), 7.25 (d, ³J = 8.7 Hz, 2H, H−2′, H−6′), 7.95 (d, ³J = 8.7 Hz, 2H, H−3′, H−5′), 8.27 (d, ³J = 5.1 Hz, 1H, H−12′), 13.41 (s, 1H, H−7′), ¹³C NMR (75 MHz, CH₃CN-d₃): δ 22.6 (C−13′), 51.7 (C−8), 114.5 (C−2′, C−6′), 115.1 (C−5), 118.3 (C−4), 120.2 (C−1), 120.4 (C−11′), 124.3 (C−2), 128.9 (C−3′, C−5′), 130.7 (C−4′), 146.1 (C−3), 148.3 (C−10′), 150.4 (C−6), 152.2 (C−1′), 156.3 (C−12′), 163.7 (C−9′), 167.4 (C−7) ppm. ¹H and ¹³C NMR data resulted in hydroquinoid structure 3d₂. LC/MS m/z 427.3 [M − H]⁻ API-ES neg. mode, 855 [2M − H]⁻ API-ES neg. mode, LC/MS data resulted in quinoid structure 3d₁.

3,6-Dihydroxy-N-(2-hydroxyethyl)-2-[4-[(4-methylpyrimidin-2-yl)sulfamoyl]anilino]benzamide 3e. Yield 93%, ¹H NMR (300 MHz, CH₃CN-d₃): δ (ppm) 2.32 (s, 3H, H−13′), 3.15 (s, 1H, H−8′), 3.35 (m, ³J = 5.5 Hz, 2H, H−9), 3.57 (t, ³J = 5.5 Hz, 2H, H−10), 6.63 (d, ³J = 8.9 Hz, 1H, H−5), 6.74 (d, ³J = 8.9 Hz, 1H, H−4), 6.86 (d, ³J = 5.1 Hz, 1H, H−11′), 7.23 (d, ³J = 8.7 Hz, 2H, H−2′, H−6′), 7.95 (d, ³J = 8.7 Hz, 2H, H−3′, H−5′), 8.27 (d, ³J = 5.1 Hz, 1H, H−12′), 9.45 (s, 1H, H−8), 13.30 (s, 1H, H−7′), ¹³C NMR (75 MHz, CH₃CN-d₃): δ 22.7 (C−13′), 42.1 (C−9), 61.2 (C−10), 114.3 (C−2′, C−6′), 115.5 (C−5), 118.6 (C−4), 120.5 (C−1), 120.7 (C−11′), 124.8 (C−2), 128.9 (C−3′, C−5′), 130.8 (C−4′), 146.2 (C−3), 148.2 (C−10′), 150.2 (C−6), 152.2 (C−1′), 156.1 (C−12′), 163.8 (C−9′), 167.3 (C−7) ppm. ¹H and ¹³C NMR data resulted in hydroquinoid structure 3e₂. LC/MS m/z 456.3 [M − H]⁻ API-ES neg. mode, 914 [2M − H]⁻ API-ES neg. mode, LC/MS data resulted in quinoid structure 3e₁.

4-[(2-Acetyl-3,6-dioxo-cyclohexa-1,4-dien-1-yl)amino]-N-(4-methylpyrimidin-2-yl)benzenesulfonamide 3f₁ and 4-(2-acetyl-3,6-dihydroxy-anilino)-N-(4-methylpyrimidin-2-yl)benzenesulfonamide 3f₂. No yields of isolated products (only available in a mixture of dimers and trimers), LC/MS m/z 411.1 [M − H]⁻ API-ES neg. mode, 823 [2M − H]⁻ API-ES neg. mode, LC/MS m/z 413.1 [M − H]⁻ API-ES neg. mode, 827 [2M − H]⁻ API-ES neg. mode, LC/MS data resulted in quinoid and hydroquinoid structures.

4-[[5-Acetyl-3,6-dioxo-4-(4-sulfamoylanilino)cyclohexa-1,4-dien-1-yl]amino]benzene-sulfonamide 4c₁. Yield 80%, ¹H NMR (300 MHz, CH₃CN-d₃): δ (ppm) 2.50 (s, 3H, H−8), 5.74 (s, 2H, H−8′), 5.77 (s, 2H, H−8′), 6.09 (s, 1H, H−4), 7.28 (d, ³J = 8.6 Hz, 2H, H−2′, H−6′), 7.48 (d, ³J = 8.6 Hz, 2H, H−2′, H−6′), 7.80 (d, ³J = 8.6 Hz, 2H, H−3′, H−5′), 7.87 (d, ³J = 8.6 Hz, 2H, H−3′, H−5′), 13.30 (s, 1H, H−7′), 13.42 (s, 1H, H−7′). LC/MS m/z 491.1 [M + H]⁺ API-ES pos. mode.

4-[[5-Acetyl-4-[4-[(4-methylpyrimidin-2-yl)sulfamoyl]anilino]-3,6-dioxo-cyclohexa-1,4-dien-1-yl]amino]-N-(4-methylpyrimidin-2-yl)benzenesulfonamide 4f₁ and 4-[3-acetyl-2,5-dihydroxy-4-[4-[(4-methylpyrimidin-2-yl)sulfamoyl]anilino]anilino]-N-(4-methylpyrimidin-2-yl)benzenesulfonamide 4f₂. No yields of isolated products (only available in a mixture of dimers and trimers), LC/MS m/z 673.4 [M − H]⁻ API-ES neg. mode, LC/MS m/z 675.4 [M − H]⁻ API-ES neg. mode, LC/MS data resulted in quinoid and hydroquinoid structure.

2-[3,6-Dihydroxy-2-(4-sulfamoylanilino)phenyl]acetic acid 5a. Yield 48%, ¹H NMR (300 MHz, CH₃CN-d₃): δ (ppm) 3.47 (s, 2H, H−7), 5.75 (s, 2H, H−8′), 6.78 (d, ³J = 8.6, 1H, H−5), 6.80 (d, ³J = 8.6, 1H, H−4), 7.53 (d, ³J = 8.7 Hz, 2H, H−2′, H−6′), 7.84 (d, ³J = 8.7 Hz, 2H, H−3′, H−5′), 13.41 (s, 1H, H−7′), ¹H NMR data resulted in hydroquinoid structure 5a₂. LC/MS m/z 335.1 [M − H]⁻ API-ES neg. mode, 671 [2M−H]⁻ API-ES neg. mode, LC/MS data resulted in quinoid structure 5a₁.

2-[4-(Carboxymethyl)-3,6-dihydroxy-2-(4-sulfamoylanilino)phenyl]acetic acid 5b. Yield 35%, ¹H NMR (300 MHz, CH₃CN-d₃): δ (ppm) 3.44 (s, 2H, H−7), 3.51 (s, 2H, H−7), 5.77 (s, 2H, H−8′), 6.42 (s, 1H, H−5), 7.52 (d, ³J = 8.7 Hz, 2H, H−2′, H−6′), 7.81 (d, ³J = 8.7 Hz, 2H, H−3′, H−5′), 13.40 (s, 1H, H−7′), ¹H NMR data resulted in hydroquinoid structure 5b₂. LC/MS m/z 393.1 [M − H]⁻ API-ES neg. mode, 787 [2M−H]⁻ API-ES neg. mode, LC/MS data resulted in quinoid structure 5b₁.

2-[2-[4-[(4-Methylpyrimidin-2-yl)sulfamoyl]anilino]-3,6-dioxo-cyclohexa-1,4-dien-1-yl]acetic acid 5c₁ and 2-[3,6-dihydroxy-2-[4-[(4-methylpyrimidin-2-yl)sulfamoyl]anilino]phenyl]acetic acid 5c₂. No yields of isolated products. LC/MS m/z 427.1 [M − H]⁻ API-ES neg. mode, LC/MS m/z 429.1 [M − H]⁻ API-ES neg. mode, LC/MS data resulted in quinoid and hydroquinoid structure.

2-[4-(Carboxymethyl)-5-[4-[(4-methylpyrimidin-2-yl)sulfamoyl]anilino]-3,6-dioxo-cyclohexa-1,4-dien-1-yl]acetic acid 5d₁ and 2-[4-(carboxymethyl)-2,5-dihydroxy-3-[4-[(4-methylpyrimidin-2-yl)sulfamoyl]anilino]phenyl]acetic acid 5d₂. No yields of isolated products. LC/MS m/z 485.1 [M − H]⁻ API-ES neg. mode, LC/MS m/z 487.1 [M − H]⁻ API-ES neg. mode, LC/MS data resulted in quinoid and hydroquinoid structure.

2-[4-[4-[(2-Methoxycarbonyl-3,6-dioxo-cyclohexa-1,4-dien-1-yl)amino]phenyl]sulfonylanilino]-3,6-dioxo-cyclohexa-1,4-diene-1-carboxyl methyl ester 6a₁. LC/MS m/z 577.1 [M + H]⁺ API-ES pos. mode, LC/MS data resulted in a quinoid structure.

N-(2-Hydroxyethyl)-2-[4-[4-[[2-(2-hydroxyethylcarbamoyl)-3,6-dioxo-cyclohexa-1,4-dien-1-yl]amino]phenyl]sulfonylanilino]-3,6-dioxo-cyclohexa-1,4-diene-1-carboxamide 6b₁. LC/MS m/z 635.1 [M + H]⁺ API-ES pos. mode, LC/MS data resulted in a quinoid structure.

3,6-Dihydroxy-2-[4-[4-[(2-methoxycarbonyl-3,6-dioxo-cyclohexa-1,4-dien-1-yl)amino]phenyl]sulfonylanilino]benzoic acid methyl ester 6a₂. LC/MS m/z 579.1 [M + H]⁺ API-ES pos. mode, LC/MS data resulted in a quinoid-hydroquinoid structure.

3,6-Dihydroxy-N-(2-hydroxyethyl)-2-[4-[4-[[2-(2-hydroxyethylcarbamoyl)-3,6-dioxo-cyclohexa-1,4-dien-1-yl]amino]phenyl]sulfonylanilino]benzamide 6b₂. LC/MS m/z 637.1 [M + H]⁺ API-ES pos. mode, LC/MS data resulted in a quinoid-hydroquinoid structure.

2-[4-[4-(3,6-Dihydroxy-2-methoxycarbonyl-anilino)phenyl]sulfonylanilino]-3,6-dihydroxy-benzoic acid methyl ester 6a₃. Yield 22%, ¹H NMR (300 MHz, CH₃CN-d₃): δ (ppm) 3.14 (s, 6H, H−8), 6.62 (d, ³J = 8.7 Hz, 2H, H−5), 6.78 (d, ³J = 8.7 Hz, 2H, H−4), 7.25 (d, ³J = 8.8 Hz, 4H, H−2′, H−6′), 7.85 (d, ³J = 8.8 Hz, 4H, H−3′, H−5′), 13.25 (s, 2H, H−7′). LC/MS m/z 581.1 [M + H]⁺ API-ES pos. mode, LC/MS and ¹H NMR data resulted in a hydroquinoid structure.

2-[4-[4-[3,6-dihydroxy-2-(2-hydroxyethylcarbamoyl)anilino]phenyl]sulfonylanilino]-3,6-dihydroxy-N-(2-hydroxyethyl)benzamide 6b₃. Yield 28%, ¹H NMR (300 MHz, CH₃CN-d₃): δ (ppm) 3.25 (m, ³J = 5.4 Hz, 4H, H−9), 3.54 (t, ³J = 5.4 Hz, 4H, H−10), 6.61 (d, ³J = 8.7 Hz, 2H, H−5), 6.76 (d, ³J = 8.7 Hz, 2H, H−4), 7.28 (d, ³J = 8.8 Hz, 4H, H−2′, H−6′), 7.88 (d, ³J = 8.8 Hz, 4H, H−3′, H−5′), 9.45 (s, 2H, H−8), 13.25 (s, 2H, H−7′). LC/MS m/z 639.1 [M + H]⁺ API-ES pos. mode, LC/MS and ¹H NMR data resulted in a hydroquinoid structure.

2.6. Determination of Antibacterial Activity

An agar diffusion method described by Mikolasch et al. [39] was used to determine the antibacterial activity in the range from 29 to 1490 nmol. In brief, sterile Mueller-Hinton II-Agar in petri dishes (Becton Dickinson Microbiology systems, Cockeysville, Maryland, U.S.A.) was inoculated with 200 µL of bacterial solution (bacterial cell suspension 15 × 10⁷ cells). The bacterial strains Staphylococcus aureus ATCC6538/DSM799, northern German epidemic MRSA (methicillin-resistant S. aureus; Norddeutscher Epidemiestamm), and the multidrug-resistant strain isolated from patients S. epidermidis 99847 were used. The test substances were applied on sterile paper discs (Sensi-Disc, 6 mm diameter, Becton Dickinson Microbiology systems). Petri dishes were kept for 3 h in a refrigerator (for prediffusion) and were then incubated for 24 h at 37 °C. Average inhibition zone diameters were calculated from 3 replicates.

2.7. Cytotoxic Activity

Cytotoxicity was determined by a neutral red uptake assay using FL-cells, a human amniotic epithelial cell line, as reported previously [39].

3. Results

3.1. Biotransformation of Sulfanilamide and Sulfamerazine with 2,5-Dihydroxybenzoic Acid Methyl Ester, 2,5-Dihydroxy-N-(2-Hydroxyethyl)Benzamide, or 2,5-Dihydroxyacetophenone by Laccase

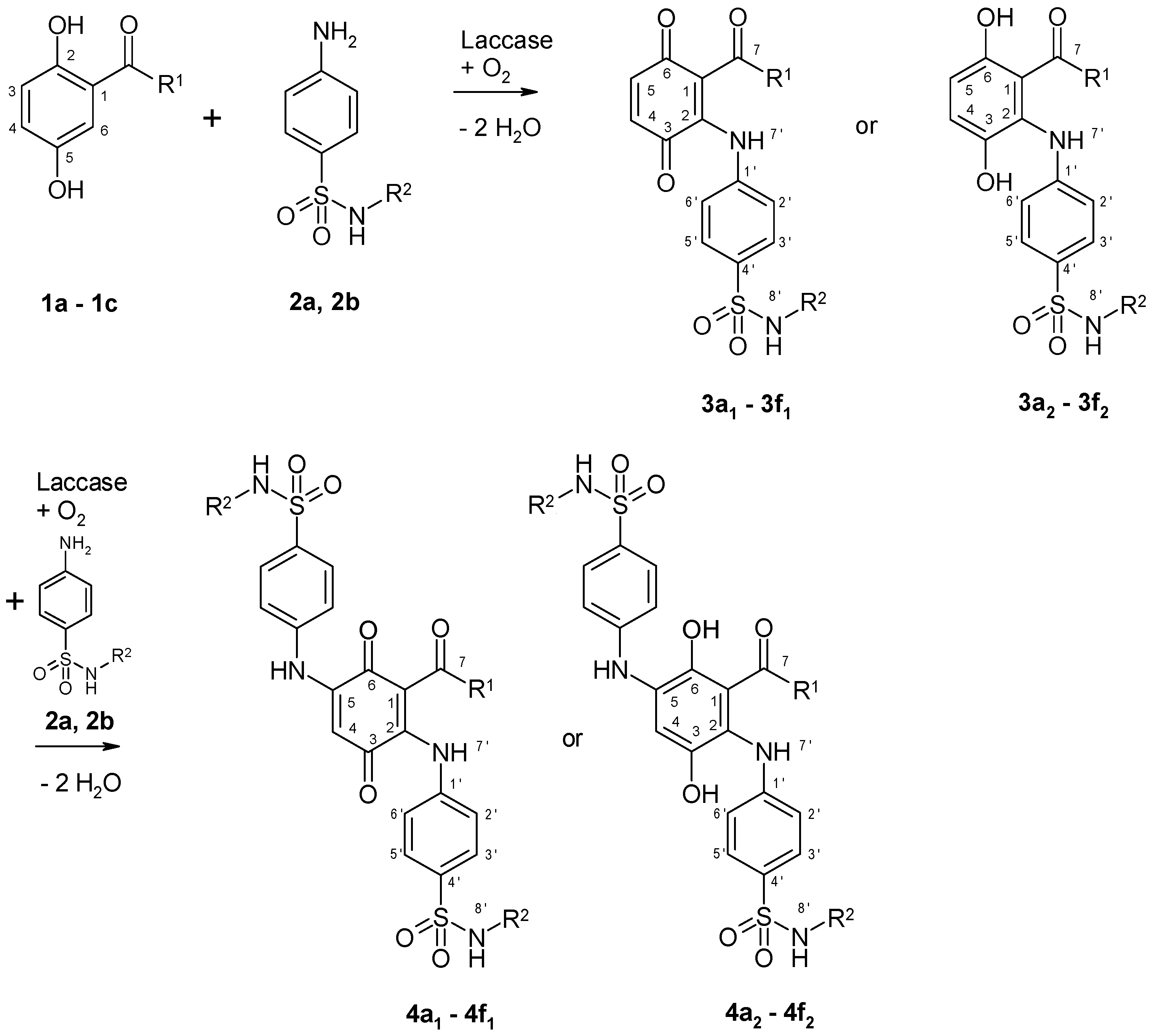

Laccase-mediated reactions of 2,5-dihydroxybenzoic acid methyl ester (1a) with sulfanilamide (2a) resulted in a heteromolecular hybrid dimer with quinoid structure (3a₁). In a similar way, the reaction of 2,5-dihydroxy-N-(2-hydroxyethyl)benzamide (1b) with sulfanilamide (2a) resulted in the production of structure 3b₁ (Figure 1 and

Table 1. Heterodimers and heterotrimers produced by laccase-mediated reactions of 2,5-dihydroxybenzene derivatives (1a–1c) and sulfonamides (2a, 2b).

Educts		Products
		Quinoid Dimers	Hydroquinoid Dimers	Quinoid Trimers	Hydroquinoid Trimers
1a   8 R1=OCH3	2a R2=H	3a1   8 R1=OCH3 R2=H	nd 1	nd	nd
1b   8 9 10 R1=NHCH2CH2OH	2a	3b1   8 9 10 R1=NHCH2CH2OH R2=H	nd	nd	nd
1c   8 R1=CH3	2a	nd	3c2   8 R1=CH3 R2=H	4c1   8 R1=CH3 R2=H	nd
1a   8 R1=OCH3	2b R2=	3d1   8 R1=OCH3 R2=	3d2   8 R1=OCH3 R2=	nd	nd
1b   8 9 10 R1=NHCH2CH2OH	2b	3e1   8 9 10 R1=NHCH2CH2OH R2=	3e2   8 9 10 R1=NHCH2CH2OH R2=	nd	nd
1c   8 R1=CH3	2b	3f1   8 R1=CH3 R2=	3f2   8 R1=CH3 R2=	4f1   8 R1=CH3 R2=	4f2   8 R1=CH3 R2=

¹ not detected by the measurements used.

).

2,5-Dihydroxyacetophenone (1c) reacts with 2a by laccase mediation to a heteromolecular hybrid dimer with the hydroquinoid structure 3c₂, and to a heteromolecular hybrid trimer with quinoid structure 4c₁. When sulfamerazine (2b) was used as reaction partner, the product pattern changed. The sulfonamide 2b reacted with 1a to form heteromolecular hybrid dimers, which showed hydroquinoid character (3d₂) in NMR measurements and quinoid character (3d₁) during LC/MS analyses. The same results were obtained for the laccase-mediated reaction of 1b with sulfamerazine (3e₁, 3e₂), whereas 1c reacted with this sulfonamide to yield a mixture of dimers (3f₁, 3f₂) and trimers (4f₁, 4f₂).

After separation of 3a₁ and 3b₁ by solid phase extraction, LC/MS analyses in negative and positive mode showed molecular masses of these products attributed to the formation of heteromolecular hybrid dimers each consisting of a structural part of a 2,5-dihydroxybenzene derivative (1a or 1b) coupled to 2a accompanied by the loss of four hydrogen atoms. These couplings were confirmed by the presence of characteristic signals for 1a or 1b and for 2a in the ¹H NMR spectra of 3a₁ and 3b₁ as well as by the presence of all carbons of 1a or 1b and of 2a in the ¹³C−NMR spectra of the products, but two signals in the range of 180 ppm indicated a quinoid character of these products. The number of CH proton signals of 1a and 1b changed from three in the substrate, to two signals in the products. The multiplicity of the proton signals H−4 and H−5 indicated an additional substituent at the C−2 atom and the loss of a proton. The chemical shift to lower field of the H−4 and H−5 signals confirmed the presence of an electron-withdrawing group. Signals for phenolic hydroxyl groups could not be measured, but instead additional amine protons were detected. All analytical data confirmed the oxidation of the p-hydroquinone structure of 1a and 1b to a quinone. The heteromolecular hybrid dimers 3a₁ and 3b₁ were formed by nuclear amination of the p-hydroquinones 1a or 1b at the C−6 position with the primary amino group of 2a (Figure 1).

Educt 1c reacted with 2a to a heteromolecular hybrid dimer 3c₂, which was only analyzed by LC/MS in positive mode in a mixture together with a heteromolecular hybrid trimer 4c₁. From the LC/MS data of 3c₂ we deduced a dimer with hydroquinoid structure. The product 4c₁ was described by LC/MS and ¹H NMR analyses. All data showed a heteromolecular hybrid trimer consisting of a structural part of 1c coupled to two molecules of 2a accompanied by the loss of six hydrogen atoms. The number of CH proton signals of 1c changed from three in the substrate, to one singlet in the product. The data of this proton signal H−4 indicated an additional substituent at the C−2 atom and a second substituent at the C−5 atom of the product. The chemical shift of the H−4 signal verified the presence of electron-withdrawing groups. Furthermore, the two amine protons detected confirmed the coupling of two molecules of 2a to one molecule of 1c accompanied by the formation of a heteromolecular hybrid trimer with quinoid structure 4c₁.

Like the reactions of 1a or 1b with 2a, the reactions of 1a or 1b with sulfamerazine (2b) also showed the same reaction patterns. Whereas 1a or 1b each reacted with 2a to yield a heteromolecular hybrid dimer with clear quinoid structure (3a₁ and 3b₁), the reaction of 1a or 1b with 2b each resulted in a heteromolecular hybrid dimer, which yielded the hydroquinoid structures 3d₂ and 3e₂ by ¹H NMR and ¹³C NMR, and as the quinoids 3d₁ and 3e₁ by LC/MS.

From the reaction of 1c with 2b only a product mixture could be isolated and measured by LC/MS. Data for heteromolecular hybrid dimers with quinoid 3f₁ and hydroquinoid 3f₂ structure and for heteromolecular hybrid trimers with quinoid 4f₁ and hydroquinoid 4f₂ structure were detected. In this case, pure substances could not be isolated.

3.2. Biotransformation of Sulfanilamide and Sulfamerazine with 2,5-Dihydroxyphenylacetic Acid or 2,5-Dihydroxy-1,4-Benzenediacetic Acid by Laccase

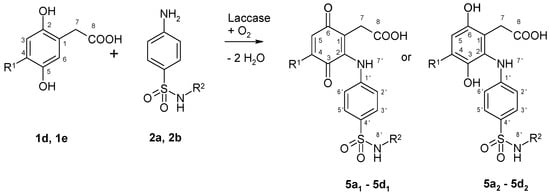

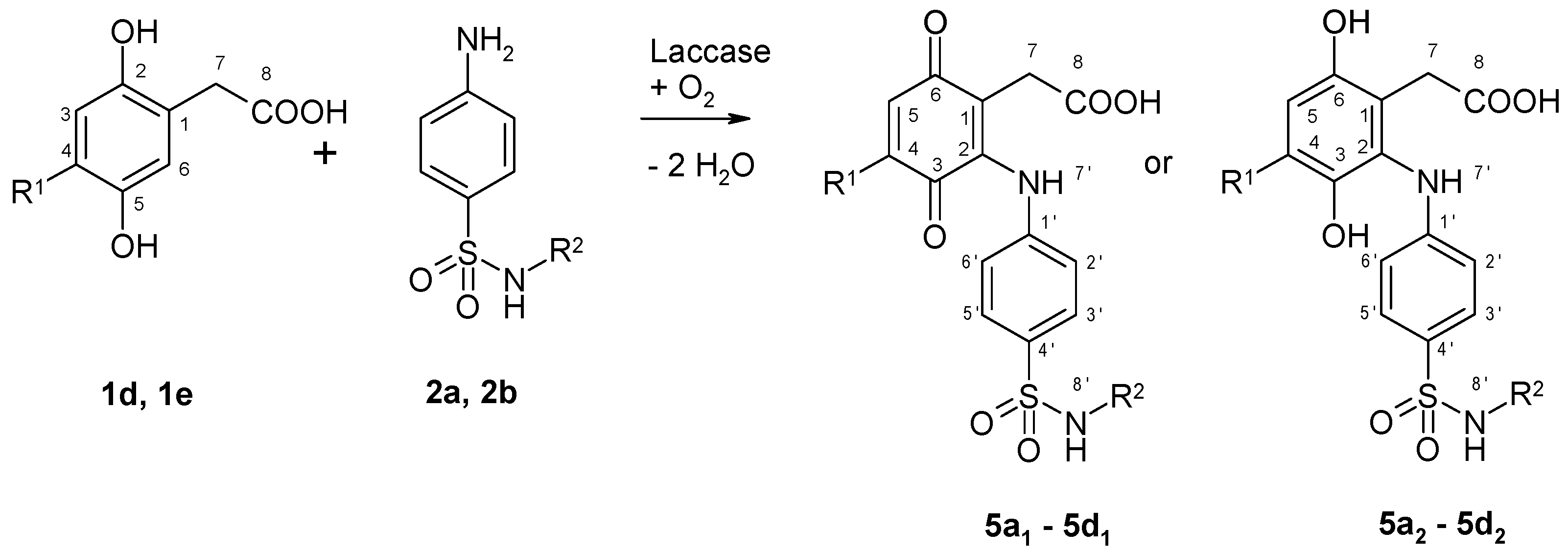

2,5-Dihydroxyphenylacetic acid (1d) or 2,5-dihydroxy-1,4-benzenediacetic acid (1e) coupled with sulfanilamide (2a) proceeded quite differently from 1a and 1b (Figure 2 and

Table 2. Heterodimers produced by laccase-mediated reactions of 2,5-dihydroxyphenylacetic acid (1d) and 2,5-dihydroxy-1,4-benzenediacetic acid (1e) and sulfonamides (2a, 2b).

Educts		Products
		Quinoid Dimers	Hydroquinoid Dimers
1d R1=H	2a R2=H	5a1 R1=H R2=H	5a2 R1=H R2=H
1e R1=CH2COOH	2a	5b1 R1=CH2COOH R2=H	5b2 R1=CH2COOH R2=H
1d R1=H	2b R2=	5c1 R1=H R2=	5c2 R1=H R2=
1e R1=CH2COOH	2b	5d1 R1=CH2COOH R2=	5d2 R1=CH2COOH R2=

). Whereas 1a or 1b each reacted with 2a to yield a heteromolecular hybrid dimer with clear quinoid structure (3a₁ and 3b₁), the reaction of 1d or 1e with 2a each resulted in a heteromolecular hybrid dimer, which were determined to be the hydroquinoids 5a₂ and 5b₂ by ¹H NMR and the quinoids 5a₁ and 5b₁ by LC/MS.

In contrast, the product formation of 1d or 1e with sulfamerazine (2b) was comparable to that of 1a or 1b. Thus, the respective heteromolecular hybrid dimers with quinoid and hydroquinoid structures were detected in all four reactions. The only difference is that 1d or 1e reacted with 2b only to a product mixture from which no pure substance could be isolated and only LC/MS measurements were possible whereas from the reaction of 1a or 1b with 2b products were isolated and analyzed both by LC/MS and by NMR. But all of these four reactions are expected to follow the same reaction mechanism. In general, the reactions of 1d or 1e with 2a or 2b did not lead to isolated pure substances whereas the reactions with 1a or 1b resulted in products, which could be isolated.

3.3. Biotransformation of Dapsone with 2,5-Dihydroxybenzoic Acid Methyl Ester or 2,5-Dihydroxy-N-(2-Hydroxyethyl)Benzamide by Laccase

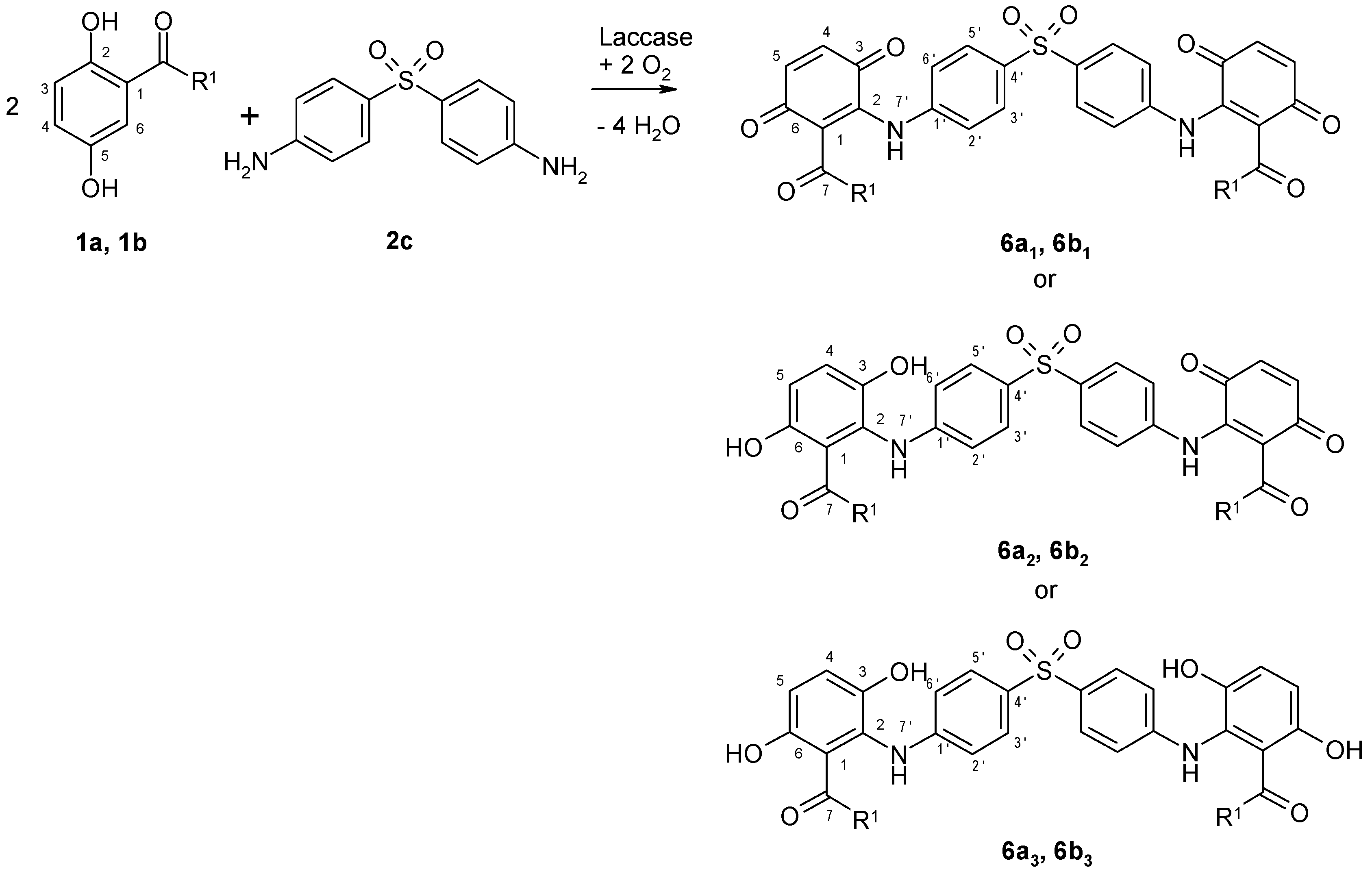

The 2,5-dihydroxybenzoic acid methyl ester (1a) or 2,5-dihydroxy-N-(2-hydroxyethyl)benzamide (1b) reacted with dapsone (2c) as amino reaction partner by Michael addition resulting in heteromolecular products, which were detected by characteristic UV-Vis spectra on HPLC for both substances (Figure 3 and

Table 3. Heterotrimers produced by laccase-mediated reactions of 2,5-dihydroxybenzene derivatives (1a, 1b) with dapsone (2c).

Educts		Products
		Quinoid Trimers	Mixed Quinoid-Hydroquinoid Trimers	Hydroquinoid Trimers
1a   8 R1=OCH3	2c	6a1   8 R1=OCH3	6a2   8 R1=OCH3	6a3   8 R1=OCH3
1b   8 9 10 R1=NHCH2CH2OH	2c	6b1   8 9 10 R1=NHCH2CH2OH	6b2   8 9 10 R1=NHCH2CH2OH	6b3   8 9 10 R1=NHCH2CH2OH

).

After purification of the products by solid phase extraction, mass spectometric analyses (LC/MS with API-ES in positive modus) of the compounds showed a molecular mass attributed to the coupling of two molecules of the laccase substrate 1a or 1b with one molecule of 2c accompanied by the loss of eight, six or four hydrogen atoms forming quinoid (6a₁, 6b₁), mixed quinoid-hydroquinoid (6a₂, 6b₂), and hydroquinoid trimers (6a₃, 6b₃). ¹H NMR analyses of the products also indicated heteromolecular trimers in each reaction. The hydroquinoid trimers (6a₃, 6b₃) were the most prominent such structures determined.

3.4. Biological Activity of Biotransformation Products

The products 3a₁ and 3b₁ were those with the best supported structural data, and they were stable over a longer time period. Because of this, they were selected for assays of biological activity. The agar diffusion test was chosen for the determination of the antibacterial activity of the substances. Thereby, the size of the respective inhibition zone is a measure of the antibacterial efficacy.

Both of these products caused low to moderate growth inhibition of S. aureus and S. epidermidis strains, among them multidrug-resistant staphylococci (

Table 4. Antimicrobial activity of products 3a₁ and 3b₁, educts 1a to 1b and 2a against different Staphylococcus species; Zones of inhibition are given in diameter [mm] including paper disc (6 mm).

Substance	Amount n [µmol]	S. aureus ATCC6538	S. aureus-Northern German Epidemic MRSA	S. epidermidis 99847
1a (educt)	0.069	r *	r	r
	0.30	r	r	r
	0.74	r	r	r
	1.49	r	r	r
1b (educt)	0.069	r	r	r
	0.30	r	r	r
	0.74	r	r	r
	1.49	10	10	10
2a (educt)	0.058	r	r	r
	0.29	r	r	r
	0.73	r	r	r
	1.45	r	r	r
3a1 (product of 1a and 2a)	0.030	r	r	r
	0.15	r	r	r
	0.37	r	12	r
	0.74	10	16	12
3b1 (product of 1b and 2a)	0.030	r	r	r
	0.15	r	18	r
	0.37	20	22	20
	0.74	22	26	26

* resistant (no zone of inhibition).

).

The educts 1a and 2a were not active against the strains tested, 1b showed only very low activity with the highest concentration used. This indicates that products with antimicrobial activity can be produced by laccase-mediated reactions from two initially very poorly active or inactive compounds.

HPLC measurements demonstrated good product stability for the compounds 3a₁ and 3b₁, which had been stored in solid form at 4 °C for several weeks. However, incubation of the compounds 3a₁ and 3b₁ in aqueous solutions at 30 °C resulted in decomposition within some hours. For these reasons, the survey of their antimicrobial effects was restricted to the agar diffusion test.

3a₁ and 3b₁ as well as 1a, 1b, and 2a showed no cytotoxicity against FL cells at concentrations of 12.5, 25, 50, and 100 µg/mL. The growth of FL-cells was comparable with control culture (100–96% vitality).

4. Discussion

Because of increasing bacterial resistance to therapeutically used drugs, there is an urgent need to develop new antimicrobial agents. The laccase-mediated reaction of penicillin and cephalosporanic acid derivatives resulted in a dimerization by C−C or C−O bond formation and the synthesis of diastereomers, respectively [36,37]. These homomolecular products showed antimicrobial activity. Additionally, the laccase-mediated C−N bond formation between different partners resulted in heteromolecular products with antibacterial efficacy [48,49]. Such aminations are consequently a suitable green method for the synthesis of novel antibiotics. Thus, penicillins [38,40,41], cephalosporins [39,40,42], and its basic structures [46] have been structurally altered to achieve advanced antibacterial activities, especially against multidrug-resistant organisms. Furthermore, derivatives of the isolated antibacterial agents corollosporine from the marine fungus Corollospora maritima [50] and the ganomycins from Ganoderma pfeifferi [51] were transformed by one pot laccase-mediated reactions to improve their biological activity [38,42,52].

The sulfonamides and sulfones are antibacterial drugs that have been used for a long time [45,46], but whose value has progressively declined due to the emergence of resistant strains [53,54,55]. We have here derivatized antimicrobial sulfonamides and sulfones by laccase. Heterodimers and heterotrimers were synthesized by laccase-catalyzed reactions of sulfonamide antibiotics or dapsone with 2,5-dihydroxybenzene derivatives via nuclear amination. The formation of dimers (3a–3f, 5a–d) was determined for all reactions of 2a, 2b with 1a–1e. Trimers (4f, 6a, 6b) were only detected in the reactions of 2a, 2b with 1c and for 2c with 1a, 1b. The structure of these trimers differed depending on whether the starting compound possessed one (2a, 2b) or two free amino groups (2c) accessible for a reaction with the p-hydroquinones (1a–c). Thus, the trimers formed with 2a or 2b consisted of one molecule 1c and two molecules of 2a or 2b, respectively, whereas the trimers with 2c were formed from two molecules of 1a or 1b and only one molecule of 2c.

The dimers and trimers were detected in hydroquinoid or quinoid form, as described previously for heterodimers as products of p-hydroquinones with amino compounds such as aminopyrazole carboxamide [56] or aminothiophenol [21]. Interestingly, for the trimers with 2c, also a mixed quinoid-hydroquinoid trimer was formed with one molecule of 1a or 1b as hydroquinone and one quinoid molecule of 1a or 1b.

The results regarding the biological activity showed that, with the exception of compound 1b, the educts showed no inhibiting effect against the tested Staphylococcus species. Compound 1b had low activity only at the highest concentration tested (1.27 µmol). In contrast, the products 3a₁ and 3b₁ were effective at concentrations between 0.14 to 0.74 µmol. This increase in antimicrobial activity of these products of laccase-catalyzed reactions is remarkable, given that previous attempts to use laccase-mediated transformation of β-lactam antibiotics (such as ampicillin, amoxicillin) did not lead to an increase in antibiotic efficacy [36,37,38].

The increased antibacterial efficacy for the products 3a₁ and 3b₁ in comparison to the educts as well as the inhibition of different Staphylococcus species, in particular the multidrug-resistant northern German epidemic MRSA, without toxicity for mammalian cells underlines the high potential of laccase-mediated reactions for the synthesis of novel antibiotics.
