Article

Pseudomonas aeruginosa Virulence Factors Support Voriconazole Effects on Aspergillus fumigatus

by
Gabriele Sass
1,†,
Pallabi Shrestha
1,† and
David A. Stevens
1,2,*
1
California Institute for Medical Research, San Jose, CA 95128, USA
2
Division of Infectious Diseases and Geographic Medicine, Department of Medicine, Stanford University School of Medicine, Stanford, CA 94305, USA
*
Author to whom correspondence should be addressed.
†
Both authors contributed equally.
Pathogens 2021, 10(5), 519; https://doi.org/10.3390/pathogens10050519
Submission received: 19 March 2021 / Revised: 12 April 2021 / Accepted: 23 April 2021 / Published: 26 April 2021
Browse Figures
Versions Notes

Abstract

:
Pseudomonas aeruginosa and Aspergillus fumigatus are pathogens that are associated with deterioration of lung function, e.g., in persons with cystic fibrosis (CF). There is evidence that co-infections with these pathogens cause airway inflammation and aggravate pathology in CF lungs. Intermicrobial competition of P. aeruginosa and A. fumigatus has been described, but it is unknown how anti-fungal therapy is affected. The anti-fungal azole voriconazole (VCZ), supernatants of P. aeruginosa laboratory isolates PA14 or PAO1, or clinical isolate Pa10 independently inhibited biofilm metabolism of A. fumigatus isolates 10AF and AF13073. When VCZ and supernatants were combined at their IC50s, synergistic effects on A. fumigatus were found. Synergistic effects were no longer observed when P. aeruginosa supernatants were prepared in the presence of iron, or when P. aeruginosa mutants were lacking the ability to produce pyoverdine and pyochelin. Combination of pure P. aeruginosa products pyoverdine, pyochelin, and pyocyanin with VCZ showed synergistic anti-fungal effects. Combining VCZ with P. aeruginosa supernatants also improved its MIC and MFC against planktonic A. fumigatus. In summary, in the case of P. aeruginosa–A. fumigatus co-infections, it appeared that the P. aeruginosa co-infection facilitated therapy of the Aspergillus; lower concentrations of VCZ might be sufficient to control fungal growth.

1. Introduction

Persons with cystic fibrosis (CF), a hereditary disease caused by mutations in the genes specifying the cystic fibrosis transmembrane conductance regulator (CFTR), a chloride channel on epithelial cells [1,2,3], frequently suffer from bacterial, fungal, and viral co-morbidities of the lung that aggravate the course of disease. P. aeruginosa, members of the B. cepacia complex, A. fumigatus, respiratory syncytial virus, and influenza virus are prominent bacterial, fungal, and viral pathogens impairing lung function, especially when occurring in co-infections [4,5]. Therapies used during CF encompass drugs targeted against CF itself, encompassing two main classes of CFTR-targeting compounds: CFTR potentiators, increasing activity of CFTR on epithelial surfaces, and CFTR correctors, improving defective protein processing and trafficking [6], as well as drugs against each of the microbial infections, or co-infections. Microorganisms, and also drugs, interact, affect, and are affected by individual conditions in the lungs. A. fumigatus infections can include Aspergillus bronchitis, allergic bronchopulmonary aspergillosis (ABPA), and/or chronic progressive aspergillosis, and ultimately contribute to the need for lung transplantation [7]. In anatomically abnormal lungs, Aspergillus would persist as mycelial forms and generate biofilms. First-line treatment of ABPA is performed with oral corticosteroids [8,9], with concomitant side effects. Voriconazole (VCZ), itraconazole, posaconazole, and the anti-IgE antibody omalizumab might be alternatives [10,11,12]. Co-infections with A. fumigatus and P. aeruginosa trigger more severe outcomes than each mono-infection [13,14]. Interactions of A. fumigatus and P. aeruginosa have been studied for many years, with the majority of studies pointing towards an anti-fungal role of P. aeruginosa, interfering with fungal metabolism or growth via molecules such as its major siderophore pyoverdine [15], phenazines such as pyocyanin (5-N-methyl-1-hydroxyphenazine) [15,16,17], 1-hydroxyphenazine [15], phenazine-1-carboxamide [15], phenazine-1-carboxylic acid [15], and di-rhamnolipids [16]. We here aimed to illuminate interactions between bacterial molecules and anti-fungal therapy (use of VCZ) affecting A. fumigatus biofilm formation.

2. Results

2.1. Determination of IC50s for P. aeruginosa Strain PA14 Supernatants or VCZ against A. fumigatus 10AF Biofilm Formation

Planktonic supernatants of P. aeruginosa, produced under limiting iron conditions in RPMI medium, contain the major siderophore pyoverdine, which inhibits A. fumigatus biofilm metabolism. Here, we determined the IC50 for PA14 supernatants by dilution in RPMI to be between 1:256 and 1:1024 (Figure 1A).
A previous study used VCZ concentrations between 0.125 and 1 µM for drug–drug interaction studies, with A. fumigatus forming biofilm metabolism as a readout [17]. Here, we determined the IC50 for VCZ against forming biofilm metabolism to be between 0.25 and 0.063 µM (Figure 1B).

2.2. PA14 Supernatant Supported VCZ Anti-Fungal Activity against 10AF

Combining PA14 supernatant at concentrations close to its IC50 (twofold dilutions of 1:256 to 1:1024) with VCZ at concentrations close to its IC50 (0.25 to 0.063 µM) resulted in increased effects on forming 10AF metabolism at all combinations of PA14 supernatants with 0.25 µM (Figure 2A) and 0.125 µM VCZ (Figure 2B). At 0.063 µM VCZ (Figure 2C), only the two lower concentrations of supernatants increased the combined effects. Use of the BLISS Independence Model indicated that the interaction of PA14 supernatants with VCZ was mostly synergistic (Table 1 and Table S1).
Independent results calculated for the combinations of VCZ 0.250 and 0.063 µM with PA14 supernatant 1:256 were a result of strong individual component inhibition of 10AF metabolism. None of the combinations showed antagonistic effects.

2.3. Synergistic Interaction of VCZ with P. aeruginosa Supernatants Was Independent of the P. aeruginosa or A. fumigatus Strain Used

In order to determine the biological range of VCZ–P. aeruginosa–A. fumigatus interaction, we studied another reference A. fumigatus strain, AF13073, and found similar effects (compare Figure 3A to Figure 2B).
We then studied supernatants of the widely used P. aeruginosa reference strain PAO1 and investigated combination of its supernatants with VCZ against 10AF forming biofilm metabolism. Our results showed similar effects as observed for the PA14 supernatant–VCZ interaction (compare Figure 3B to Figure 2B).
The BLISS Independence Model revealed overall synergistic and no antagonistic interactions between VCZ and bacterial supernatants. Table 2A,B was constructed for comparative purposes, whereas the calculation process and comparisons for interactions of bacterial supernatant with additional VCZ concentrations are provided in Table S2.
The most synergistic results were obtained when concentrations of bacterial supernatants were used, which by themselves had weak anti-fungal activity (1:1024 for PA14 and PAO1, 1:256 for Pa10).
Synergy of P. aeruginosa supernatants and VCZ against A. fumigatus forming biofilms is therefore not restricted to individual bacterial or fungal strains.

2.4. Iron Interfered with P. aeruginosa/VCZ Synergy

In order to determine molecules in P. aeruginosa supernatants that might contribute to synergistic reactions with VCZ against A. fumigatus forming biofilm metabolism, we prepared PA14 supernatants in the presence of added iron. Iron suppressed the production of the P. aeruginosa major siderophore pyoverdine, thereby decreasing anti-fungal activity. Figure 4A shows that bacterial supernatants, prepared in the presence of iron at a dilution of 1:256 or higher, no longer were anti-fungal (compare to Figure 1A) and were not able to act synergistically with VCZ (compare to Figure 2B).
BLISS Independence Model calculation revealed that interactions of supernatants, prepared in the presence of added iron and VCZ, were mostly antagonistic. Table 3, for comparative reasons using a VCZ concentration of 0.125 µM, showed antagonistic results throughout, whereas combinations of bacterial supernatants with additional VCZ concentrations also partially showed independent results (Table S3).
Supernatants of a PA14 mutant unable to produce the major siderophores pyoverdine and pyochelin (PA14ΔpvdD/ΔpchE) showed some anti-fungal activity of their own (Figure 4B). PA14ΔpvdD/ΔpchE supernatants in combination with VCZ showed no dose–response curve, and anti-fungal activities of the combinations were much weaker than observed for wild-type supernatants (compare Figure 4B to Figure 2B).
BLISS Independence Model calculations revealed that interactions were not synergistic, as observed for PA14 wild-type (compare Table 3 to Table 1). Further BLISS Independence Model calculations and interactions of bacterial supernatant with additional VCZ concentrations are provided in Table S3.
These data suggest that either pyoverdine or pyochelin, or a combination of both, could explain the positive interaction of P. aeuginosa supernatants with VCZ against A. fumigatus forming biofilm metabolism.

2.5. Pyoverdine Contributed to P. aeruginosa/VCZ Synergy

A dose–response study with pure pyoverdine indicated its IC50 to be approximately 0.32 to 0.16 µM (Figure 5A). Combining pure pyoverdine with VCZ revealed synergy against forming 10AF biofilm metabolism (Figure 5B, Table S4). Pyoverdine therefore enhanced VCZ anti-fungal activity.

2.6. Pyochelin Contributed to P. aeruginosa/VCZ Synergy

Performing the same experiments as described in Figure 5, this time using pure pyochelin, we found no or weak anti-fungal activity for concentrations up to 100 µM (Figure 6A) but synergy of 25 to 100 µM pyochelin with VCZ (Figure 6B, Table S5). It is curious that lower concentrations of pyochelin in 6B had stronger effects in combination with VCZ compared to higher concentrations.

2.7. Pyocyanin Contributed to P. aeruginosa/VCZ Synergy

Figure 4A revealed that high dilutions of iron-rich Pa supernatants (1:256 to 1:1024) did not act synergistically with VCZ, and Figure 5B and Figure 6B confirm the contribution of pyoverdine and pyochelin, respectively. Under non-limiting iron conditions, Pa not only represses pyoverdine production but also increases production of pyocyanin and other phenazines, which then exert anti-fungal activity. As iron-induced molecules might be diluted to ineffective concentrations when using 1:256 and higher dilutions of bacterial supernatants, we repeated the experiment shown in Figure 4A that involved high dilutions of iron-rich Pa supernatants combined with VCZ by using lower dilutions of PA14 supernatants that contain higher amounts of pyocyanin/phenazines. Our results showed decreased anti-fungal activity of iron-rich supernatants at dilutions of 1:4 to 1:8 in comparison to iron-limited supernatants (compare Figure 7A to Figure 1A), as well as increased anti-fungal activity in combination with VCZ (Figure 7A, Table S6).
As these supernatants do not contain pyoverdine (as verified by missing blue fluorescence under UV light [18]), but contain anti-fungal phenazines, we then tested for combined anti-fungal effects of pure pyocyanin, a phenazine induced by iron, and VCZ, and found positive interaction (Figure 7B, Table S6).
In summary, VCZ anti-fungal activity is supported by pyoverdine, pyochelin, and pyocyanin, depending on the milieu being limited, or not limited, for iron.

2.8. PA14 Supernatant Supported Anti-Fungal Activity of VCZ against Planktonic A. fumigatus Growth

We tested combined anti-fungal effects against planktonic A. fumigatus growth. We found that the combination with P. aeruginosa supernatants improved the MIC and MFC of VCZ with strong synergistic effects (Table 4). This corroborates the findings with A. fumigatus biofilms.

3. Discussion

A. fumigatus–P. aeruginosa coinfections trigger more severe outcomes than each mono-infection [13,14]. This could be a result of inflammatory signals caused by intermicrobial competition. Several P. aeruginosa molecules have been identified that interfere with fungal metabolism or growth via molecules such as phenazines, e.g., pyocyanin, or di-rhamnolipids [16]. Using defined media and an array of P. aeruginosa mutants, we recently found that under low iron conditions, pyoverdine is the major anti-fungal P. aeruginosa product, inhibiting A. fumigatus metabolism and growth by binding and withholding ferric iron from the fungus. Under high iron conditions, P. aeruginosa no longer produces pyoverdine, and thus anti-fungal effects of phenazines become more prominent [19]. Lungs of persons with CF tend to have higher iron content than infected non-CF lungs or healthy lungs [20]. The iron content in infected lungs varies by compartments, with mucoid plugs being low in iron [21], whereas micro-hemorrhages and hemoptysis provide higher iron levels. We also could show that the P. aeruginosa product 3,4-dihydroxy-2-heptylquinoline (PQS) uniquely affects A. fumigatus metabolism in two ways, depending on the concentrations of iron present: inhibiting the fungus under low iron conditions while promoting fungal metabolism under high iron conditions [22].
Treatment of A. fumigatus infections of the lung with azoles is common [10,11]. Given that P. aeruginosa products inhibit A. fumigatus metabolism, it seemed feasible that some of those products interacted with anti-fungal therapy. In fact, we found synergistic anti-fungal activity between VCZ and P. aeruginosa supernatants that was mediated by e.g., pyoverdine and pyochelin under low iron conditions, and pyocyanin under high iron conditions. VCZ MIC and MFC improved when combined with P. aeruginosa supernatants. There are likely other P. aeruginosa products able to synergistically interact with azoles and maybe with other anti-fungal agents that we did not test here. Preliminary results (unpublished) indicate that products of other bacterial species, e.g., the Burkholderia cepacia complex, affect azoles as well.
Through using several P. aeruginosa and A. fumigatus strains, we are confident that synergy between VCZ and Pseudomonas supernatants is a general feature during co-infections. We included a non-mucoid CF isolate (Pa10) and found synergy here as well. We previously could show, in an iron-restricted liquid milieu, that clinical Pa isolates, derived from persons with CF, have stronger anti-fungal activity than isolates derived from non-CF infections; moreover, mucoid Pa isolates from CF patients were less antifungal than non-mucoid isolates from CF patients. It remains to be seen if non-mucoid CF isolates have stronger synergistic effects than mucoid CF isolates with azoles.
An interesting phenomenon we observed during our studies was that low-iron P. aeruginosa supernatants at some dilutions increased in anti-fungal activity compared to undiluted or less diluted supernatants (e.g., Figure 1A). This phenomenon could either be explained by an increased protective response by A. fumigatus to high amounts of pyoverdine, or by the presence of pro-fungal factors in bacterial supernatants that at high concentrations mask part of their anti-fungal effects. For its own protection, A. fumigatus releases its siderophores into its growth medium to secure iron and withhold iron from its competitors [23]. Preliminary results show that A. fumigatus strains lacking SidA production also show the phenomenon of P. aeruginosa supernatant decreased anti-fungal activity at high concentrations, making it more likely that there also are pro-fungal factors in bacterial supernatants.
Another interesting phenomenon was observed when the P. aeruginosa product pyochelin was combined with VCZ (Figure 6B). We observed synergistic effects that, contrary to effects observed for other P. aeruginosa products, increased with decreasing concentrations. We cannot yet explain this observation, but hypothesize that we might examine pro-fungal effects of pyochelin in this situation.
In bacterial co-infections, VCZ might be effective at lower doses compared to A. fumigatus mono-infections. This might allow for the use of lower doses of VCZ and help to avoid azole side effects. The presence of certain coinfections, or the treatment for some mono-infections, will alter the subsequent microbiome [24]; can alter the subsequent clinical course; and could make initiation of, and choice of, antifungal therapy more cogent. Studies of any interactions with antifungal therapy need increased attention in view of some reports indicating rising antifungal resistance in Af isolates [25,26,27,28,29].
Although bacterial virulence factors would be unlikely to be clinically useful as anti-fungal agents, we see a wide field for the discovery of new agents here but would like to caution the community to the fact that treating bacterial co-infections of aspergillosis might require an adjustment in the dose of the anti-fungal used for therapy, and that treatment of Pseudomonas might make therapy of A. fumigatus more difficult.

4. Materials and Methods

4.1. Materials

Pyocyanin, pyoverdine, pyochelin, ferric iron (FeCl3), 2,3-bis(2-methoxy-4-nitro-5-sulfophenyl)-2H-tetrazolium-5-carboxanilide inner salt (XTT), menadione, and RPMI 1640 medium were purchased from Sigma-Aldrich (St. Louis, MO, USA). Iron contents in RPMI 1640 medium were below the detection limit (<1 µM, measured by inductively coupled plasma optical emission spectroscopy; Paolo Visca, Rome, Italy, personal communication). Voriconazole was obtained from Pfizer, New York City. Stock was prepared in DMSO and was further diluted to test conditions in RPMI. DMSO concentration in our combination experiments was 0.01%. DMSO concentrations below 1% do not affect A. fumigatus biofilm metabolism, and thus did not require dedicated DMSO controls. Large batches of the reagents were prepared in aliquots and frozen, and a fresh aliquot was used in each experiment.

4.2. Strains and Isolates

All bacterial and fungal strains used in this study are provided in Table 5. The use of all microbes in our laboratory is approved by the CIMR Biological Use Committee (approval No. 001-03Yr.15).

4.3. P. aeruginosa Planktonic Supernatant Production and Dilution

P. aeruginosa supernatants were prepared as detailed previously [36]. Briefly, P. aeruginosa wild-type or mutant bacteria (5 × 107 cells/mL) were incubated in RPMI 1640 medium (Sigma-Aldrich) with or without the addition of 50 μM FeCl3 at 37 °C and 100 rpm for 24 h. Bacterial cultures were centrifuged at 2000 rpm for 30 min at room temperature and filtered for sterility (0.22 μm). Supernatants were diluted in RPMI in 1:2 steps with final concentrations ranging from 1:2 to 1:2048.

4.4. Assay for Measurement of Aspergillus Forming Biofilm Metabolism

A. fumigatus conidia (105/mL final concentration) were distributed into the wells of sterile flat-bottom 96-well culture plates at 50 µL/well. Bacterial supernatants or test substances and VCZ were combined in equal parts by volume (25 μL each) to the final concentrations indicated. Final volumes in wells during assays were 100 µL. RPMI 1640 medium served as the negative control. The assay plates were incubated at 37 °C overnight, and hyphae growth was verified by optical microscopy before performing XTT assays.
All assays were evaluated by XTT metabolic assay as detailed previously [36,37]. Briefly, 150 µL of an XTT/menadione mixture (150 µg/mL XTT, 30 µM menadione) were added to each test well and incubated at 37 °C for 1 h. Supernatants from each well were transferred to a fresh 96 well plate (100 µL) and assayed using a plate reader (Vmax, Molecular Devices, San Jose, CA, USA) at 490 nm.

4.5. Minimal Inhibitory Concentration (MIC), Minimal Fungicidal Concentration (MFC), Fractional Inhibitory, and Fungicidal Concentration Indexes (FICi and FFCi)

Fifty microliters of VCZ (drug A, range 0.09–45.8 µM, corresponding to 0.032–16 µg/mL) was distributed in rows and 50 µL of P. aeruginosa supernatant (drug B, range 1:10–1:2560) was distributed in the columns for the interaction. Nine hundred microliters of standardized inoculum were added to the tubes. Tubes were incubated for 48 h at 35 °C before reading of MICs. Fractional inhibitory concentration index (FICi) was determined by the equation: FICi = (MICA in combination/MICA tested alone) + (MICB in combination/MICB tested alone). The fractional fungicidal concentration index (FFCi) was calculated and interpreted in the same way as described for FICi. The assay was performed in duplicate.
Drug interactions were classified as strong synergism when FICi or FFCi < 0.5; weak synergism when 0.5 ≤ FICi or FFCi < 1; additive when 1 ≤ FICi or FFCi < 2; indifferent when FICi or FFCi = 2; and antagonistic when FICi or FFCi > 2 [38].
To determine the minimum fungicidal concentration (MFC), we plated 50 µL of each tube without visual growth on Sabouraud agar and incubated the mixture at 35 °C for 24 h. MFC was considered the minimal concentration of the drug resulting in killing ≥99% of the inoculum.

4.6. BLISS Independence Model for Analysis of Drug Combination Effects

Combined drug effects were also calculated using the BLISS Independence Model as described previously [39]. Briefly, if drugs A (VCZ) and B (P. aeruginosa supernatant) inhibit Ya and Yb percent of growth, respectively, their predicted combined effect (considering they work independently) is given by the following formula: Ypab = Ya + Yb − YaYb. The predicted combined effect is compared to the observed combined effect (anti-fungal activity by the drug combination in XTT assays). The result is interpreted as
-
Observed > Predicted: Synergy
-
Observed = Predicted: Independent (5% range of Ypab)
-
Observed < Predicted: Antagonism
(abbreviations: S = synergy, I = independence, A = antagonism, Ya = inhibition of fungal metabolism by respective VCZ, Yb = inhibition of fungal metabolism by respective Pa sup, Yoab = observed combined antifungal effect, Ypab = predicted combined antifungal effect).

4.7. Statistical Analysis

Results were analyzed using Student’s t-test if two groups were compared, and one-way ANOVA combined with a Tukey’s post-test for multiple comparisons. All data in this study are expressed as a mean ± SD. Data reported as the percent of control were compared using Student’s t-test after arcsin transformation of the proportions; these data are presented as the percentages. Each assay was performed with three to eight biological and technical replicates. Representative experiments are shown.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/pathogens10050519/s1, Table S1: Bliss Independence Model calculation: PA14 supernatant and VCZ (µM) combined effects against 10AF forming biofilm. Table S2: Bliss Independence Model calculation: PA14 supernatant and VCZ (µM) combined effects against AF13073 forming biofilm and P. aeruginosa, PAO1 and Pa10, supernatants, combined with VCZ against 10AF forming biofilm. Table S3: Bliss Independence Model calculation: PA14 supernatant (in RPMI with iron, concentrations 1:256 to 1:1024) or PA14ΔpvdD/ΔpchE supernatant at low concentrations (1:256 to 1:1024), combined with VCZ (µM); combined effects against 10AF forming biofilm. Table S4: Bliss Independence Model calculation: pyoverdine (µM) and VCZ (µM) combination effects against 10AF forming biofilm. Table S5: Bliss Independence Model calculation: pyochelin (µM) and VCZ (µM) combination effects against 10AF forming biofilm. Table S6: Bliss Independence Model calculation: upper part: PA14 supernatant (in RPMI with iron concentrations 1:4 to 1:16), lower part: pyocyanin (µM). Combination effects with VCZ (µM) against 10AF forming biofilm.

Author Contributions

Conceptualization, D.A.S.; data curation, D.A.S., G.S., and P.S.; formal analysis, D.A.S., G.S., and P.S.; funding acquisition, D.A.S.; investigation, D.A.S., G.S., and P.S.; methodology, D.A.S., G.S., and P.S.; project administration, D.A.S. and G.S.; resources, D.A.S.; software, G.S.; supervision, D.A.S. and G.S.; validation, D.A.S., G.S., and P.S.; visualization, D.A.S., G.S., and P.S.; writing—original draft, G.S. and P.S.; writing—review and editing, D.A.S. and G.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Foundation for Research in Infectious Diseases (FRID, grant 8201), grant number 8201.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Raw data for these studies are available from Gabriele.Sass@cimr.org.

Acknowledgments

The authors thank Eric Déziel (INRS-Armand-Frappier Santé Biotechnologie, Laval, Québec, Canada) for providing the PA14ΔpvdD/ΔpchE mutant, and Marife Martinez for excellent technical support.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Riordan, J.R.; Rommens, J.M.; Kerem, B.; Alon, N.; Rozmahel, R.; Grzelczak, Z.; Zielenski, J.; Lok, S.; Plavsic, N.; Chou, J.L.; et al. Identification of the cystic fibrosis gene: Cloning and characterization of complementary DNA. Science 1989, 245, 1066–1073. [Google Scholar] [CrossRef]
  2. Collins, F.; Jurivich, D.; Sistonen, L.; Kroes, R.; Morimoto, R. Cystic fibrosis: Molecular biology and therapeutic implications. Science 1992, 256, 774–779. [Google Scholar] [CrossRef]
  3. Rowe, S.M.; Miller, S.; Sorscher, E.J. Cystic fibrosis. N. Engl. J. Med. 2005, 352, 1992–2001. [Google Scholar] [CrossRef]
  4. King, J.; Brunel, S.F.; Warris, A. Aspergillus infections in cystic fibrosis. J. Infect. 2016, 72, S50–S55. [Google Scholar] [CrossRef]
  5. O’Brien, S.; Fothergill, J.L. The role of multispecies social interactions in shaping Pseudomonas aeruginosa pathogenicity in the cystic fibrosis lung. FEMS Microbiol. Lett. 2017, 364, fnx128. [Google Scholar] [CrossRef]
  6. Gentzsch, M.; Mall, M.A. Ion Channel Modulators in Cystic Fibrosis. Chest 2018, 154, 383–393. [Google Scholar] [CrossRef]
  7. Baxter, C.G.; Dunn, G.; Jones, A.M.; Webb, K.; Gore, R.; Richardson, M.D.; Denning, D.W. Novel immunologic classification of aspergillosis in adult cystic fibrosis. J. Allergy Clin. Immunol. 2013, 132, 560–566. [Google Scholar] [CrossRef] [PubMed]
  8. Moss, R.B. Fungi in Cystic Fibrosis and Non–Cystic Fibrosis Bronchiectasis. Semin. Respir. Crit. Care Med. 2015, 36, 207–216. [Google Scholar] [CrossRef]
  9. Agarwal, R.; Chakrabarti, A.; Shah, A.; Gupta, D.; Meis, J.F.; Guleria, R.; Moss, R.; Denning, D.W.; ABPA complicating asthma ISHAM working group. Allergic bronchopulmonary aspergillosis: Review of literature and proposal of new diagnostic and classification criteria. Clin. Exp. Allergy 2013, 43, 850–873. [Google Scholar] [CrossRef]
  10. Chishimba, L.; Niven, R.M.; Cooley, J.; Denning, D.W. Voriconazole and Posaconazole Improve Asthma Severity in Allergic Bronchopulmonary Aspergillosis and Severe Asthma with Fungal Sensitization. J. Asthma 2012, 49, 423–433. [Google Scholar] [CrossRef]
  11. Hogan, C.; Denning, D.W. Allergic Bronchopulmonary Aspergillosis and Related Allergic Syndromes. Semin. Respir. Crit. Care Med. 2011, 32, 682–692. [Google Scholar] [CrossRef]
  12. Perisson, C.; Destruys, L.; Grenet, D.; Bassinet, L.; Derelle, J.; Sermet-Gaudelus, I.; Thumerelle, C.; Prevotat, A.; Rosner, V.; Clement, A.; et al. Omalizumab treatment for allergic bronchopulmonary aspergillosis in young patients with cystic fibrosis. Respir. Med. 2017, 133, 12–15. [Google Scholar] [CrossRef] [Green Version]
  13. Amin, R.; Dupuis, A.; Aaron, S.D.; Ratjen, F. The Effect of Chronic Infection with Aspergillus fumigatus on Lung Function and Hospitalization in Patients with Cystic Fibrosis. Chest 2010, 137, 171–176. [Google Scholar] [CrossRef] [PubMed]
  14. Reece, E.; Segurado, R.; Jackson, A.; McClean, S.; Renwick, J.; Greally, P. Co-colonisation with Aspergillus fumigatus and Pseudomonas aeruginosa is associated with poorer health in cystic fibrosis patients: An Irish registry analysis. BMC Pulm. Med. 2017, 17, 70. [Google Scholar] [CrossRef] [Green Version]
  15. Briard, B.; Bomme, P.; Lechner, B.E.; Mislin, G.L.A.; Lair, V.; Prévost, M.-C.; Latgé, J.-P.; Haas, H.; Beauvais, A. Pseudomonas aeruginosa manipulates redox and iron homeostasis of its microbiota partner Aspergillus fumigatus via phenazines. Sci. Rep. 2015, 5, 8220. [Google Scholar] [CrossRef]
  16. Briard, B.; Rasoldier, V.; Bomme, P.; Elaouad, N.; Guerreiro, C.; Chassagne, P.; Muszkieta, L.; Latgé, J.-P.; Mulard, L.; Beauvais, A. Dirhamnolipids secreted from Pseudomonas aeruginosa modify antifungal susceptibility of Aspergillus fumigatus by inhibiting β1,3 glucan synthase activity. ISME J. 2017, 11, 1578–1591. [Google Scholar] [CrossRef]
  17. Nazik, H.; Choudhary, V.; Stevens, D.A. Verapamil Inhibits Aspergillus Biofilm, but Antagonizes Voriconazole. J. Fungi (Basel) 2017, 3, 50. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Elliot, R.P. Some properties of pyoverdine, the water-soluble fluorescent pigment of the pseudomonads. Appl. Microbiol. 1958, 6, 241–246. [Google Scholar] [CrossRef]
  19. Chatterjee, P.; Sass, G.; Swietnicki, W.; Stevens, D.A. Review of Potential Pseudomonas Weaponry, Relevant to the Pseudomonas–Aspergillus Interplay, for the Mycology Community. J. Fungi (Basel) 2020, 6, 81. [Google Scholar] [CrossRef]
  20. Stites, S.W.; Walters, B.; O’Brien-Ladner, A.R.; Bailey, K.; Wesselius, L.J. Increased Iron and Ferritin Content of Sputum from Patients with Cystic Fibrosis or Chronic Bronchitis. Chest 1998, 114, 814–819. [Google Scholar] [CrossRef]
  21. Wang, J.; Lory, S.; Ramphal, R.; Jin, S. Isolation and characterization of Pseudomonas aeruginosa genes inducible by respiratory mucus derived from cystic fibrosis patients. Mol. Microbiol. 1996, 22, 1005–1012. [Google Scholar] [CrossRef] [PubMed]
  22. Nazik, H.; Sass, G.; Ansari, S.R.; Ertekin, R.; Haas, H.; Déziel, E.; Stevens, D.A. Novel intermicrobial molecular interaction: Pseudomonas aeruginosa Quinolone Signal (PQS) modulates Aspergillus fumigatus response to iron. Microbiology 2020, 166, 44–55. [Google Scholar] [CrossRef]
  23. Sass, G.; Ansari, S.R.; Dietl, A.-M.; Déziel, E.; Haas, H.; Stevens, D.A. Intermicrobial interaction: Aspergillus fumigatus siderophores protect against competition by Pseudomonas aeruginosa. PLoS ONE 2019, 14, e0216085. [Google Scholar] [CrossRef] [Green Version]
  24. Bargon, J.; Dauletbaev, N.; Köhler, B.; Wolf, M.; Posselt, H.-G.; Wagner, T.O.F. Prophylactic antibiotic therapy is associated with an increased prevalence of Aspergillus colonization in adult cystic fibrosis patients. Respir. Med. 1999, 93, 835–838. [Google Scholar] [CrossRef] [Green Version]
  25. Denning, D.W.; Park, S.; Lass-Florl, C.; Fraczek, M.G.; Kirwan, M.; Gore, R.; Smith, J.; Bueid, A.; Moore, C.B.; Bowyer, P.; et al. High-frequency Triazole Resistance Found In Nonculturable Aspergillus fumigatus from Lungs of Patients with Chronic Fungal Disease. Clin. Infect. Dis. 2011, 52, 1123–1129. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Morio, F.; Aubin, G.G.; Danner-Boucher, I.; Haloun, A.; Sacchetto, E.; Garcia-Hermoso, D.; Bretagne, S.; Miegeville, M.; Le Pape, P. High prevalence of triazole resistance in Aspergillus fumigatus, especially mediated by TR/L98H, in a French cohort of patients with cystic fibrosis. J. Antimicrob. Chemother. 2012, 67, 1870–1873. [Google Scholar] [CrossRef] [Green Version]
  27. Mortensen, K.L.; Jensen, R.H.; Johansen, H.K.; Skov, M.; Pressler, T.; Howard, S.J.; Leatherbarrow, H.; Mellado, E.; Arendrup, M.C. Aspergillus Species and Other Molds in Respiratory Samples from Patients with Cystic Fibrosis: A Laboratory-Based Study with Focus on Aspergillus fumigatus Azole Resistance. J. Clin. Microbiol. 2011, 49, 2243–2251. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Burgel, P.-R.; Baixench, M.-T.; Amsellem, M.; Audureau, E.; Chapron, J.; Kanaan, R.; Honoré, I.; Dupouy-Camet, J.; Dusser, D.; Klaassen, C.H.; et al. High Prevalence of Azole-Resistant Aspergillus fumigatus in Adults with Cystic Fibrosis Exposed to Itraconazole. Antimicrob. Agents Chemother. 2012, 56, 869–874. [Google Scholar] [CrossRef] [Green Version]
  29. Stevens, D.A.; Moss, R.B.; Hernandez, C.; Clemons, K.V.; Martinez, M. Effect of Media Modified To Mimic Cystic Fibrosis Sputum on the Susceptibility of Aspergillus fumigatus, and the Frequency of Resistance at One Center. Antimicrob. Agents Chemother. 2016, 60, 2180–2184. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Denning, D.W.; Clemons, K.V.; Hanson, L.H.; Stevens, D.A.; Morrison, D.C.; Silverstein, R.; Bright, S.W.; Chen, T.-Y.; Flebbe, L.M.; Lei, M.-G. Restriction Endonuclease Analysis of Total Cellular DNA of Aspergillus fumigatus Isolates of Geographically and Epidemiologically Diverse Origin. J. Infect. Dis. 1990, 162, 1151–1158. [Google Scholar] [CrossRef] [PubMed]
  31. Denning, D.W.; Stevens, D.A. Efficacy of cilofungin alone and in combination with amphotericin B in a murine model of disseminated aspergillosis. Antimicrob. Agents Chemother. 1991, 35, 1329–1333. [Google Scholar] [CrossRef] [Green Version]
  32. O’Toole, G.A.; Kolter, R. Flagellar and twitching motility are necessary for Pseudomonas aeruginosa biofilm development. Mol. Microbiol. 1998, 30, 295–304. [Google Scholar] [CrossRef] [PubMed]
  33. Lee, D.G.; Urbach, J.M.; Wu, G.; Liberati, N.T.; Feinbaum, R.L.; Miyata, S.; Diggins, L.T.; He, J.; Saucier, M.; Déziel, E.; et al. Genomic analysis reveals that Pseudomonas aeruginosa virulence is combinatorial. Genome Biol. 2006, 7, R90. [Google Scholar] [CrossRef] [Green Version]
  34. Fischer, S.; Klockgether, J.; Losada, P.M.; Chouvarine, P.; Cramer, N.; Davenport, C.F.; Dethlefsen, S.; Dorda, M.; Goesmann, A.; Hilker, R.; et al. Intraclonal genome diversity of the major Pseudomonas aeruginosa clones C and PA14. Environ. Microbiol. Rep. 2016, 8, 227–234. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Stover, C.K.; Pham, X.Q.; Erwin, A.L.; Mizoguchi, S.D.; Warrener, P.; Hickey, M.J.; Brinkman, F.S.L.; Hufnagle, W.O.; Kowalik, D.J.; Lagrou, M.; et al. Complete genome sequence of Pseudomonas aeruginosa PAO1, an opportunistic pathogen. Nature 2000, 406, 959–964. [Google Scholar] [CrossRef] [PubMed]
  36. Ferreira, J.A.G.; Penner, J.C.; Moss, R.B.; Haagensen, J.A.J.; Clemons, K.V.; Spormann, A.M.; Nazik, H.; Cohen, K.; Banaei, N.; Carolino, E.; et al. Inhibition of Aspergillus fumigatus and Its Biofilm by Pseudomonas aeruginosa Is Dependent on the Source, Phenotype and Growth Conditions of the Bacterium. PLoS ONE 2015, 10, e0134692. [Google Scholar] [CrossRef] [Green Version]
  37. Scudiero, D.A.; Shoemaker, R.H.; Paull, K.D.; Monks, A.; Tierney, S.; Nofziger, T.H.; Currens, M.J.; Seniff, D.; Boyd, M.R. Evaluation of a soluble tetrazolium/formazan assay for cell growth and drug sensitivity in culture using human and other tumor cell lines. Cancer Res. 1988, 48, 4827–4833. [Google Scholar] [PubMed]
  38. Eliopoulos, G.M.; Eliopoulos, C.T. Antibiotic combinations: Should they be tested? Clin. Microbiol. Rev. 1988, 1, 139–156. [Google Scholar] [CrossRef]
  39. Zhao, W.; Sachsenmeier, K.; Zhang, L.; Sult, E.; Hollingsworth, R.E.; Yang, H. A New Bliss Independence Model to Analyze Drug Combination Data. J. Biomol. Screen. 2014, 19, 817–821. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Pathogens 10 00519 g001 550

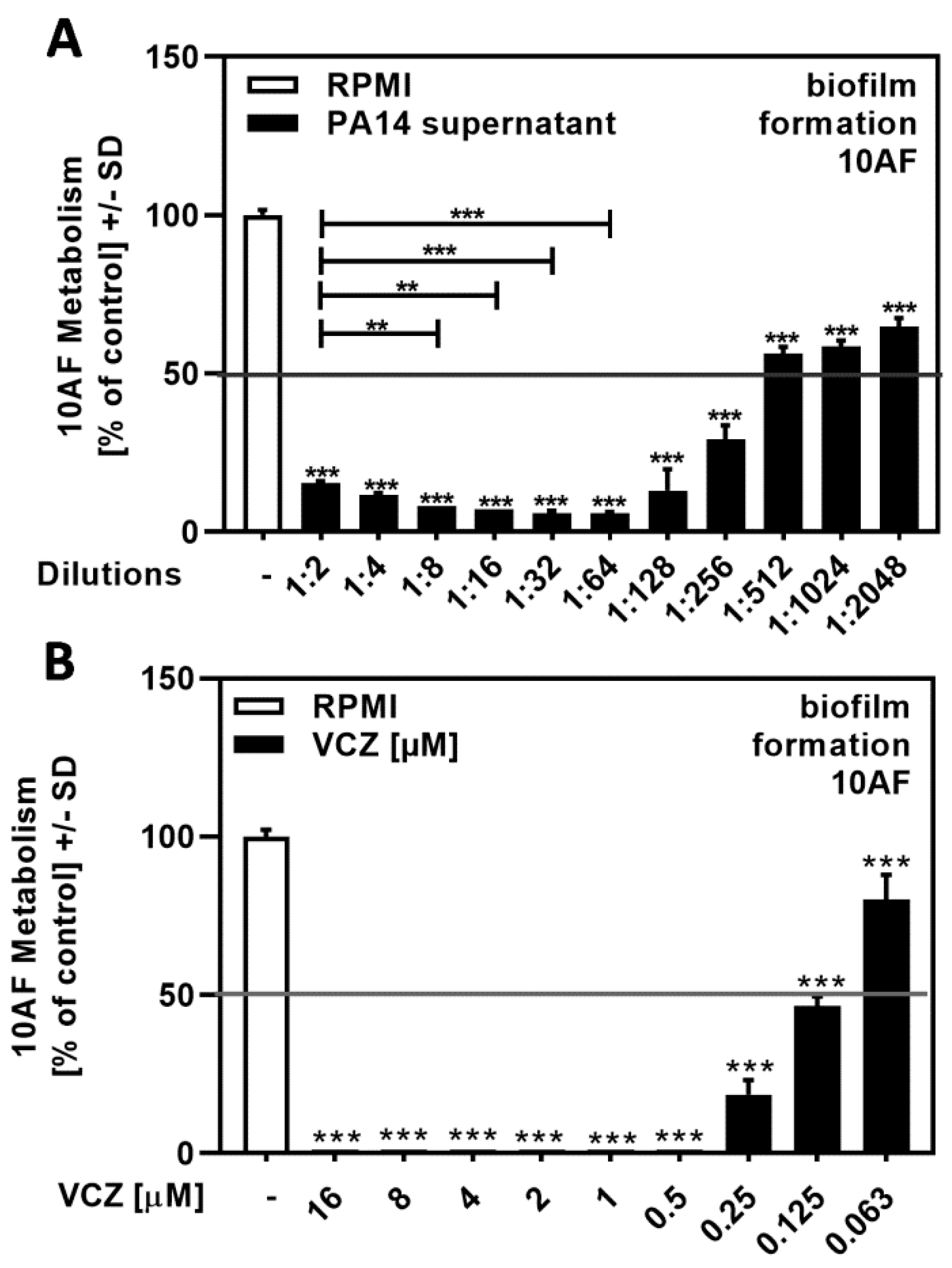

Figure 1. Dose–response curves showing IC50s for the antifungal effects of P. aeruginosa wild-type strain PA14 supernatant and VCZ dilutions against 10AF forming biofilm. PA14 wild-type bacteria (5 × 107/mL in RPMI 1640 medium) supernatant in twofold serial dilutions (final concentrations: 1:2 to 1:2048) (A) or VCZ in twofold serial dilutions (final concentrations: 16 to 0.063 µM) (B) were added to 10AF conidia (105 conidia/mL in RPMI 1640 medium). Assay plates were incubated at 37 °C overnight. Fungal metabolism was measured by XTT assay. Metabolism in the presence of RPMI alone was regarded as 100% and compared to each supernatant dilution. Statistical analysis: one-way ANOVA: two asterisks = p ≤ 0.01, three asterisks = p ≤ 0.001, respectively. Comparison: RPMI (white bar) vs. all other bars (black bars), or as indicated by the ends of the brackets.
Figure 1. Dose–response curves showing IC50s for the antifungal effects of P. aeruginosa wild-type strain PA14 supernatant and VCZ dilutions against 10AF forming biofilm. PA14 wild-type bacteria (5 × 107/mL in RPMI 1640 medium) supernatant in twofold serial dilutions (final concentrations: 1:2 to 1:2048) (A) or VCZ in twofold serial dilutions (final concentrations: 16 to 0.063 µM) (B) were added to 10AF conidia (105 conidia/mL in RPMI 1640 medium). Assay plates were incubated at 37 °C overnight. Fungal metabolism was measured by XTT assay. Metabolism in the presence of RPMI alone was regarded as 100% and compared to each supernatant dilution. Statistical analysis: one-way ANOVA: two asterisks = p ≤ 0.01, three asterisks = p ≤ 0.001, respectively. Comparison: RPMI (white bar) vs. all other bars (black bars), or as indicated by the ends of the brackets.
Pathogens 10 00519 g001
Pathogens 10 00519 g002 550

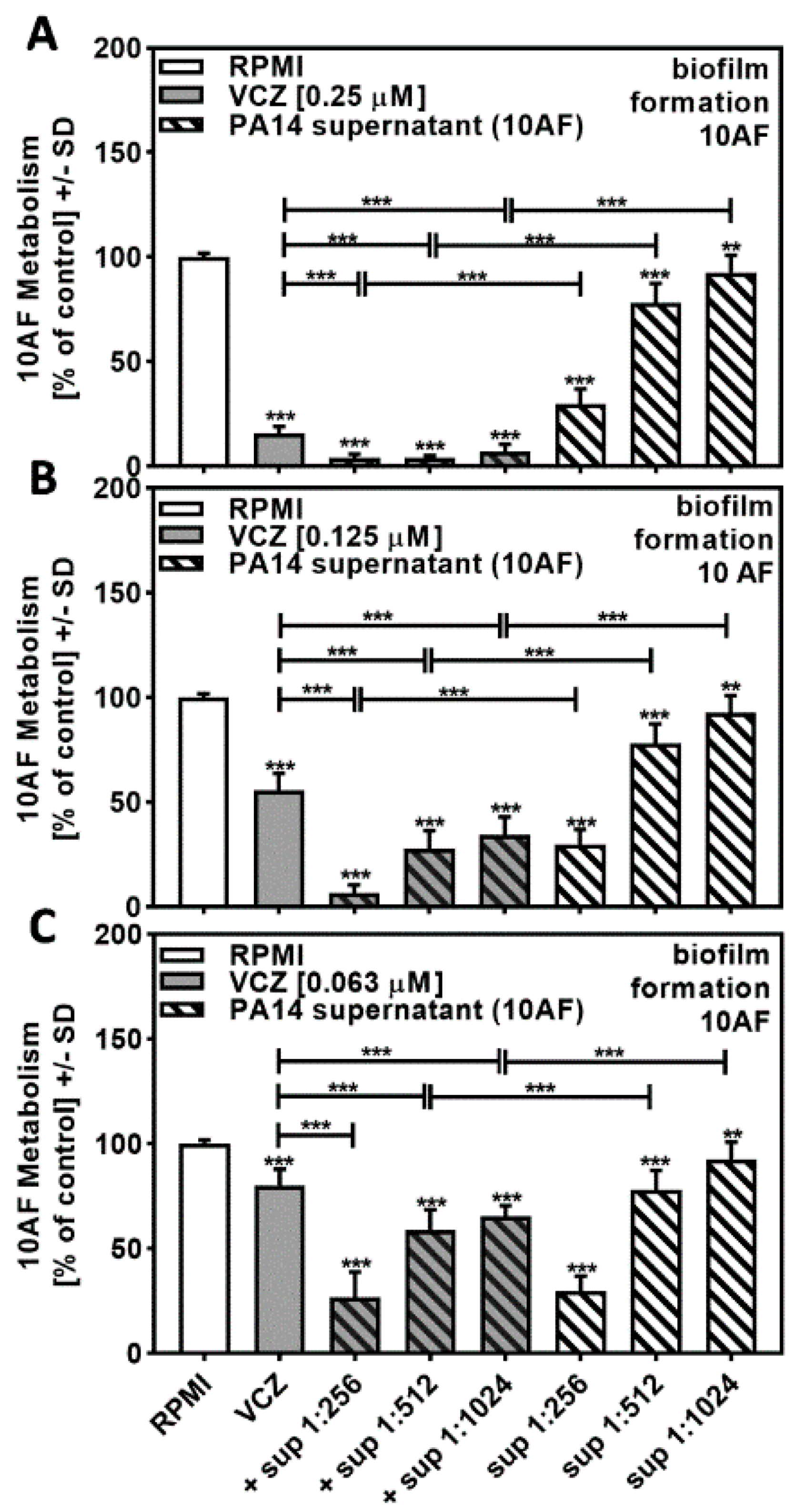

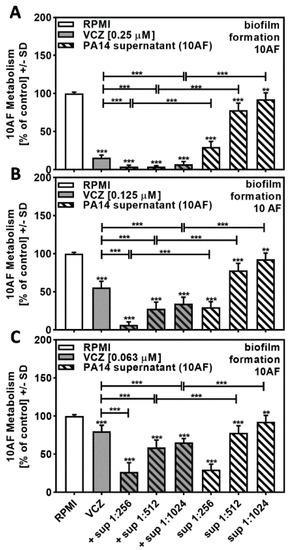

Figure 2. Combination of PA14 supernatant and VCZ significantly increased antifungal effects on forming 10AF biofilm. (A–C) PA14 wild-type bacteria (5 × 107/mL in RPMI 1640 medium) supernatant was diluted to final concentrations of 1:256 to 1:1024 and combined with (A) VCZ 0.250 µM, (B) VCZ 0.125 µM, or (C) VCZ 0.063 µM to test their combined antifungal activities against 10AF forming biofilm (105 conidia/mL in RPMI 1640 medium). Assay plates were incubated at 37 °C overnight. 10AF fungal metabolism was measured by XTT assay. Statistical analysis: metabolism in the presence of RPMI alone (white bar) was regarded as 100%, and compared by unpaired t-test to VCZ alone (gray bar) and PA14 supernatant dilutions alone (striped bars) and their combinations (gray striped bars). One-way ANOVA: VCZ vs. all VCZ combinations. Unpaired t-test for each supernatant dilution vs. its combination with VCZ: two asterisks = p ≤ 0.01, three asterisks = p ≤ 0.001.
Figure 2. Combination of PA14 supernatant and VCZ significantly increased antifungal effects on forming 10AF biofilm. (A–C) PA14 wild-type bacteria (5 × 107/mL in RPMI 1640 medium) supernatant was diluted to final concentrations of 1:256 to 1:1024 and combined with (A) VCZ 0.250 µM, (B) VCZ 0.125 µM, or (C) VCZ 0.063 µM to test their combined antifungal activities against 10AF forming biofilm (105 conidia/mL in RPMI 1640 medium). Assay plates were incubated at 37 °C overnight. 10AF fungal metabolism was measured by XTT assay. Statistical analysis: metabolism in the presence of RPMI alone (white bar) was regarded as 100%, and compared by unpaired t-test to VCZ alone (gray bar) and PA14 supernatant dilutions alone (striped bars) and their combinations (gray striped bars). One-way ANOVA: VCZ vs. all VCZ combinations. Unpaired t-test for each supernatant dilution vs. its combination with VCZ: two asterisks = p ≤ 0.01, three asterisks = p ≤ 0.001.
Pathogens 10 00519 g002
Pathogens 10 00519 g003 550

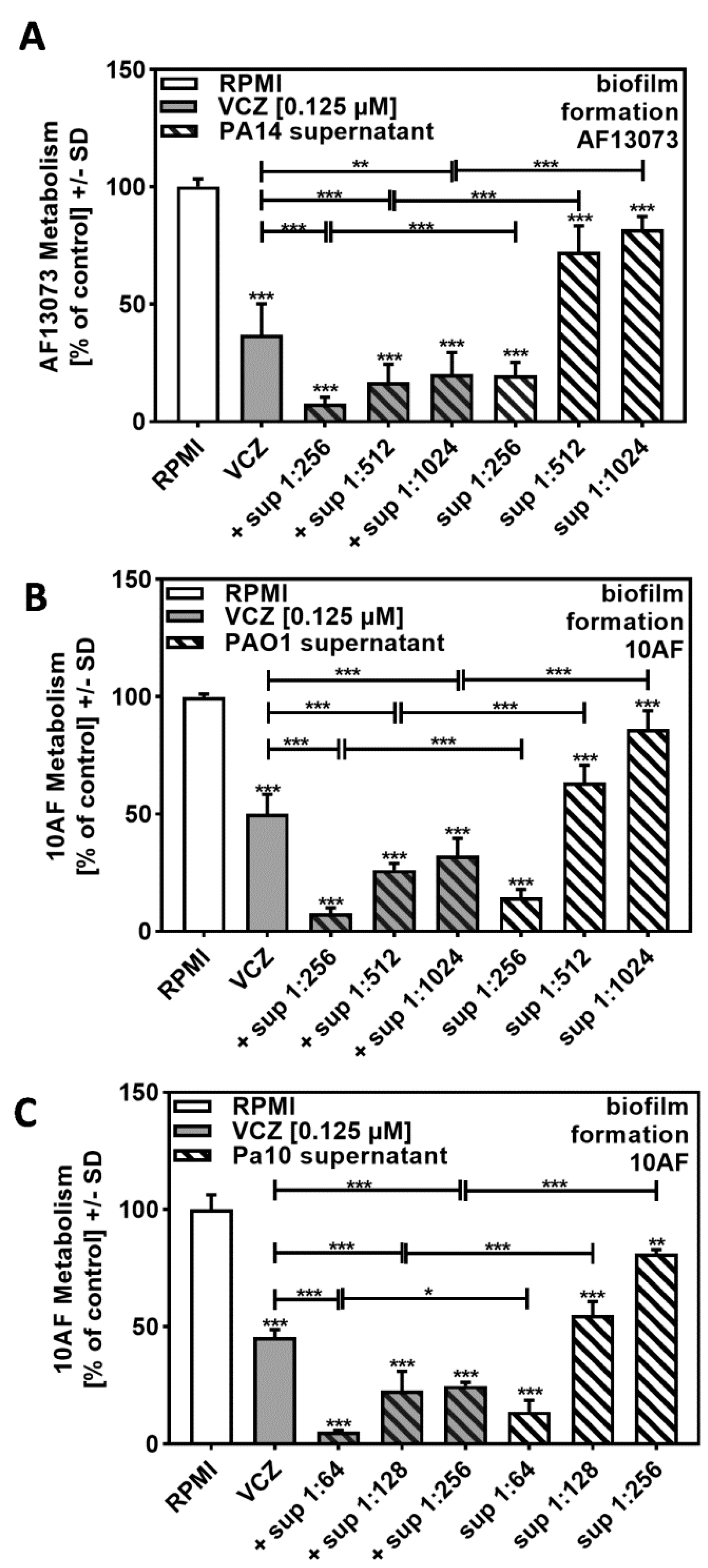

Figure 3. Increased anti-fungal effects by combinations of VCZ and P. aeruginosa supernatants were independent of the bacterial or fungal strains used. PA14 (A), PAO1 (B), or reference non-mucoid CF isolate Pa10 (C) bacteria (5 × 107/mL in RPMI 1640 medium) supernatants were diluted to final concentrations of 1:256 to 1:1024 (A,B) or 1:64 to 1:256 (C), and combined with VCZ 0.125 µM to test their combined antifungal activities against AF13073 (A) or 10AF-forming biofilm (B,C) (105 conidia/mL in RPMI 1640 medium). Assay plates were incubated at 37 °C overnight. Fungal metabolism was measured by XTT assay. Statistical analysis: metabolism in the presence of RPMI alone (white bar) was regarded as 100% and compared by unpaired t-test to VCZ alone (gray bar) and P. aeruginosa supernatant dilutions alone (striped bars) and their combinations (gray striped bars). One-way ANOVA: VCZ vs. all VCZ combinations. Unpaired t-test for each supernatant dilution vs. its combination with VCZ: One, two, and three asterisks: p ≤ 0.05, p ≤ 0.01, p ≤ 0.001, respectively.
Figure 3. Increased anti-fungal effects by combinations of VCZ and P. aeruginosa supernatants were independent of the bacterial or fungal strains used. PA14 (A), PAO1 (B), or reference non-mucoid CF isolate Pa10 (C) bacteria (5 × 107/mL in RPMI 1640 medium) supernatants were diluted to final concentrations of 1:256 to 1:1024 (A,B) or 1:64 to 1:256 (C), and combined with VCZ 0.125 µM to test their combined antifungal activities against AF13073 (A) or 10AF-forming biofilm (B,C) (105 conidia/mL in RPMI 1640 medium). Assay plates were incubated at 37 °C overnight. Fungal metabolism was measured by XTT assay. Statistical analysis: metabolism in the presence of RPMI alone (white bar) was regarded as 100% and compared by unpaired t-test to VCZ alone (gray bar) and P. aeruginosa supernatant dilutions alone (striped bars) and their combinations (gray striped bars). One-way ANOVA: VCZ vs. all VCZ combinations. Unpaired t-test for each supernatant dilution vs. its combination with VCZ: One, two, and three asterisks: p ≤ 0.05, p ≤ 0.01, p ≤ 0.001, respectively.
Pathogens 10 00519 g003
Pathogens 10 00519 g004 550

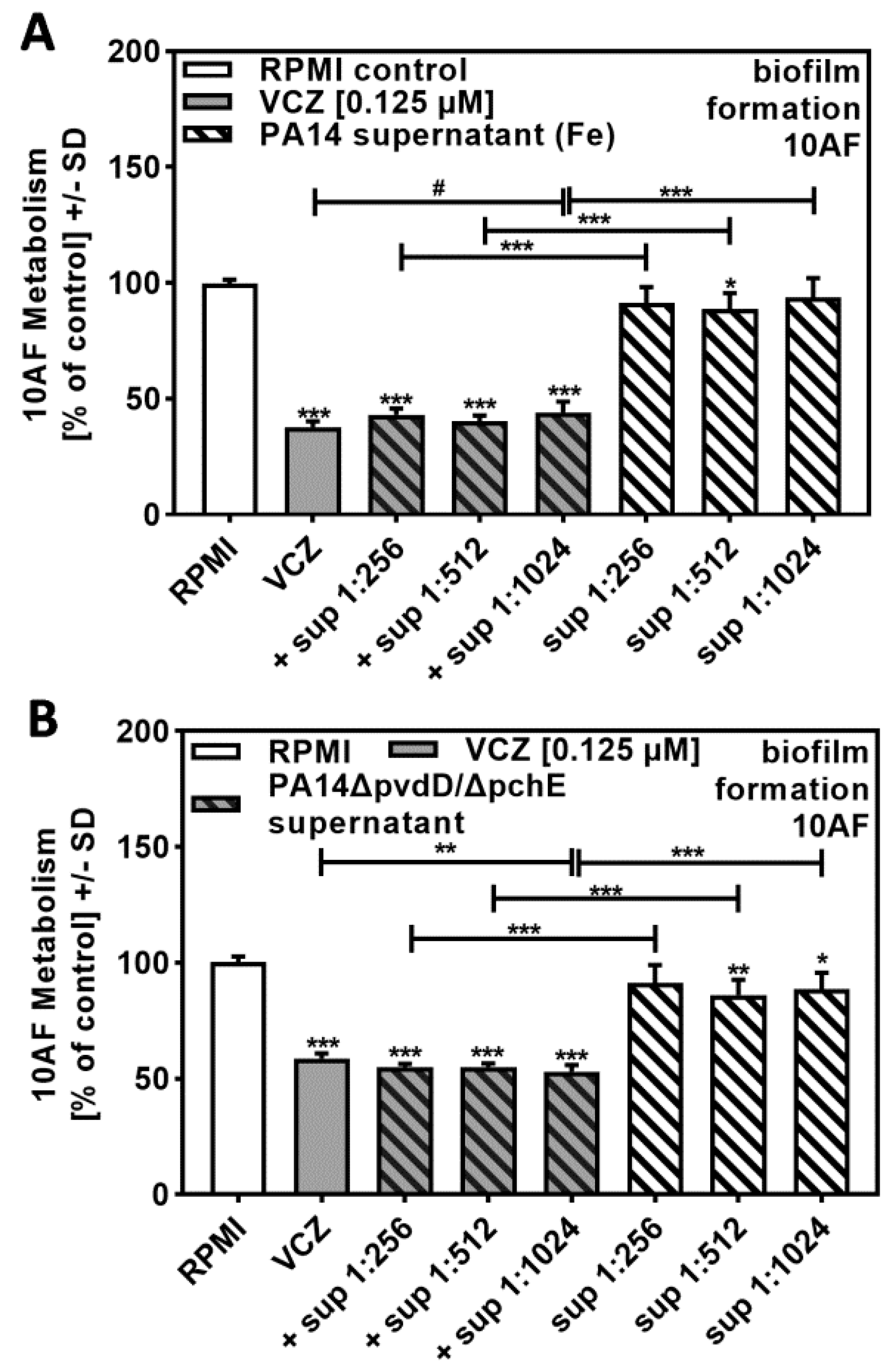

Figure 4. P. aeruginosa siderophores contributed to antifungal effects of VCZ and P. aeruginosa supernatants against A. fumigatus forming biofilm metabolism. PA14 supernatants (produced by 5 × 107 bacteria/mL in RPMI 1640 medium, containing 50 µM ferric iron) (A), or PA14ΔpvdD/ΔpchE supernatants (produced by 5 × 107 bacteria/mL in RPMI 1640 medium) (B) were combined with VCZ (0.125 µM) at dilutions of 1:256 to 1:1024. 10AF (105 conidia/mL in RPMI 1640 medium) fungal metabolism was measured by XTT assay. Statistical analysis: metabolism in the presence of RPMI alone (white bar) was regarded as 100% and compared by unpaired t-test to VCZ alone (gray bar) and P. aeruginosa supernatant dilutions alone (striped bars) and their combinations (gray striped bars). One-way ANOVA: VCZ vs. all VCZ combinations. Unpaired t-test for each supernatant dilution vs. its combination with VCZ: one, two, and three asterisks: p ≤ 0.05, p ≤ 0.01, p ≤ 0.001, respectively. Asterisks indicate increased antifungal activities; pound signs indicate decreased antifungal activities. Separate experiments showed that added iron at the concentrations studied did not affect VCZ anti-fungal activity.
Figure 4. P. aeruginosa siderophores contributed to antifungal effects of VCZ and P. aeruginosa supernatants against A. fumigatus forming biofilm metabolism. PA14 supernatants (produced by 5 × 107 bacteria/mL in RPMI 1640 medium, containing 50 µM ferric iron) (A), or PA14ΔpvdD/ΔpchE supernatants (produced by 5 × 107 bacteria/mL in RPMI 1640 medium) (B) were combined with VCZ (0.125 µM) at dilutions of 1:256 to 1:1024. 10AF (105 conidia/mL in RPMI 1640 medium) fungal metabolism was measured by XTT assay. Statistical analysis: metabolism in the presence of RPMI alone (white bar) was regarded as 100% and compared by unpaired t-test to VCZ alone (gray bar) and P. aeruginosa supernatant dilutions alone (striped bars) and their combinations (gray striped bars). One-way ANOVA: VCZ vs. all VCZ combinations. Unpaired t-test for each supernatant dilution vs. its combination with VCZ: one, two, and three asterisks: p ≤ 0.05, p ≤ 0.01, p ≤ 0.001, respectively. Asterisks indicate increased antifungal activities; pound signs indicate decreased antifungal activities. Separate experiments showed that added iron at the concentrations studied did not affect VCZ anti-fungal activity.
Pathogens 10 00519 g004
Pathogens 10 00519 g005 550

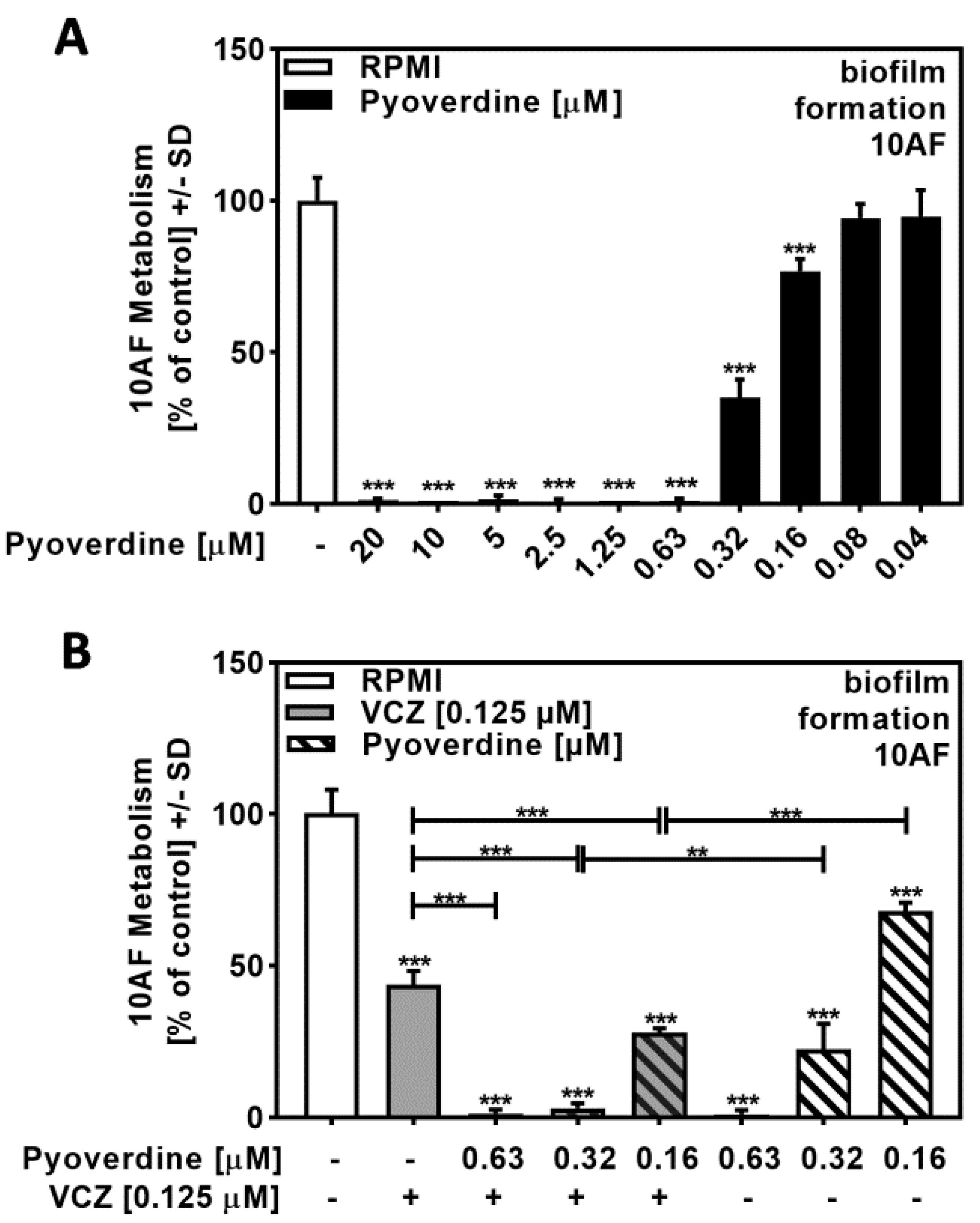

Figure 5. Pyoverdine significantly increased antifungal effects of VCZ against A. fumigatus forming biofilm metabolism. (A) Dilutions of pure pyoverdine in RPMI (20 to 0.04 µM) were tested for activity against forming 10AF (105 conidia/mL in RPMI 1640 medium) biofilm metabolism. RPMI alone (white bar) was regarded as 100% and was compared to pyoverdine dilutions (black bars). Statistical analysis: one-way ANOVA: three asterisks: p ≤ 0.001. (B) Pure pyoverdine (0.063, 0.032, and 0.016 µM) was combined with VCZ (0.125 µM) and tested for combined antifungal activity against 10AF (105 conidia/mL in RPMI 1640 medium) forming biofilm. 10AF fungal metabolism was measured by XTT assay. Statistical analysis: metabolism in the presence of RPMI alone (white bar) was regarded as 100% and compared by unpaired t-test to VCZ alone (gray bar), pyoverdine concentrations alone (striped bars), and their combinations (gray striped bars). One-way ANOVA: VCZ vs. all VCZ combinations. Unpaired t-test for each pyoverdine concentration vs. its combination with VCZ: two or three asterisks: p ≤ 0.01, p ≤ 0.001, respectively.
Figure 5. Pyoverdine significantly increased antifungal effects of VCZ against A. fumigatus forming biofilm metabolism. (A) Dilutions of pure pyoverdine in RPMI (20 to 0.04 µM) were tested for activity against forming 10AF (105 conidia/mL in RPMI 1640 medium) biofilm metabolism. RPMI alone (white bar) was regarded as 100% and was compared to pyoverdine dilutions (black bars). Statistical analysis: one-way ANOVA: three asterisks: p ≤ 0.001. (B) Pure pyoverdine (0.063, 0.032, and 0.016 µM) was combined with VCZ (0.125 µM) and tested for combined antifungal activity against 10AF (105 conidia/mL in RPMI 1640 medium) forming biofilm. 10AF fungal metabolism was measured by XTT assay. Statistical analysis: metabolism in the presence of RPMI alone (white bar) was regarded as 100% and compared by unpaired t-test to VCZ alone (gray bar), pyoverdine concentrations alone (striped bars), and their combinations (gray striped bars). One-way ANOVA: VCZ vs. all VCZ combinations. Unpaired t-test for each pyoverdine concentration vs. its combination with VCZ: two or three asterisks: p ≤ 0.01, p ≤ 0.001, respectively.
Pathogens 10 00519 g005
Pathogens 10 00519 g006 550

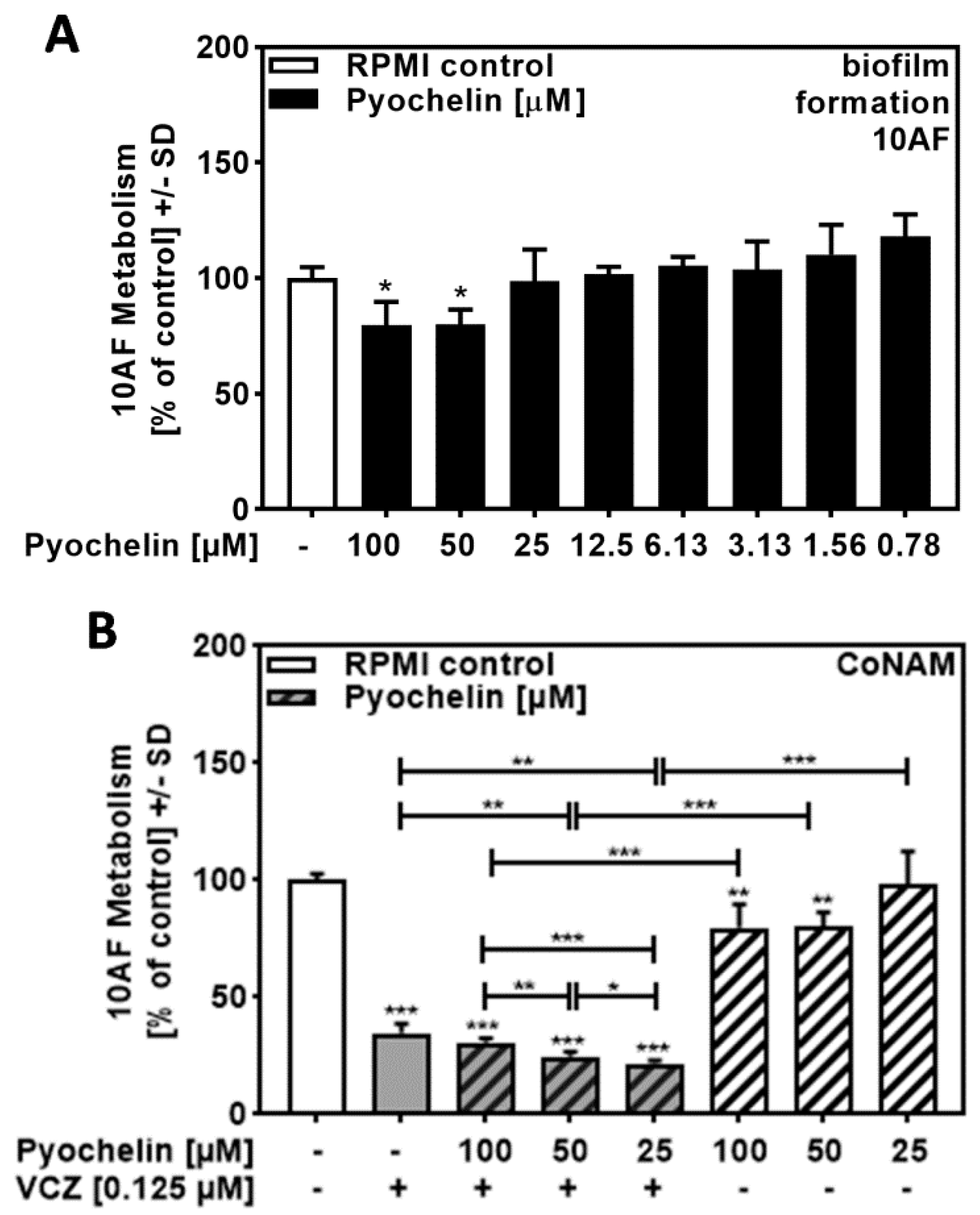

Figure 6. Pyochelin significantly increased anti-fungal effects of VCZ against A. fumigatus forming biofilm metabolism. (A) Dilutions of pure pyochelin in RPMI (100 to 0.78 µM) were tested for anti-fungal activity using forming 10AF (105 conidia/mL in RPMI 1640 medium) biofilm assays. RPMI alone (white bar) was regarded as 100% and compared to all pyoverdine dilutions (black bars). Statistical analysis: one-way ANOVA: one asterisk: p ≤ 0.05. (B) Pure pyochelin (100, 50, and 25 µM) was combined with VCZ (0.125 µM) to test for 10AF (105 conidia/mL in RPMI 1640 medium) forming biofilm metabolism. 10AF metabolism was measured by XTT assay. Statistical analysis: metabolism in the presence of RPMI alone (white bar) was regarded as 100% and compared by unpaired t-test to VCZ alone (gray bar), pyochelin concentrations alone (striped bars), and their combinations (gray striped bars). One-way ANOVA: VCZ vs. all VCZ combinations. Unpaired t-test for each pyochelin concentration vs. its combination with VCZ: one, two, and three asterisks: p ≤ 0.05, p ≤ 0.01, p ≤ 0.001, respectively.
Figure 6. Pyochelin significantly increased anti-fungal effects of VCZ against A. fumigatus forming biofilm metabolism. (A) Dilutions of pure pyochelin in RPMI (100 to 0.78 µM) were tested for anti-fungal activity using forming 10AF (105 conidia/mL in RPMI 1640 medium) biofilm assays. RPMI alone (white bar) was regarded as 100% and compared to all pyoverdine dilutions (black bars). Statistical analysis: one-way ANOVA: one asterisk: p ≤ 0.05. (B) Pure pyochelin (100, 50, and 25 µM) was combined with VCZ (0.125 µM) to test for 10AF (105 conidia/mL in RPMI 1640 medium) forming biofilm metabolism. 10AF metabolism was measured by XTT assay. Statistical analysis: metabolism in the presence of RPMI alone (white bar) was regarded as 100% and compared by unpaired t-test to VCZ alone (gray bar), pyochelin concentrations alone (striped bars), and their combinations (gray striped bars). One-way ANOVA: VCZ vs. all VCZ combinations. Unpaired t-test for each pyochelin concentration vs. its combination with VCZ: one, two, and three asterisks: p ≤ 0.05, p ≤ 0.01, p ≤ 0.001, respectively.
Pathogens 10 00519 g006
Pathogens 10 00519 g007 550

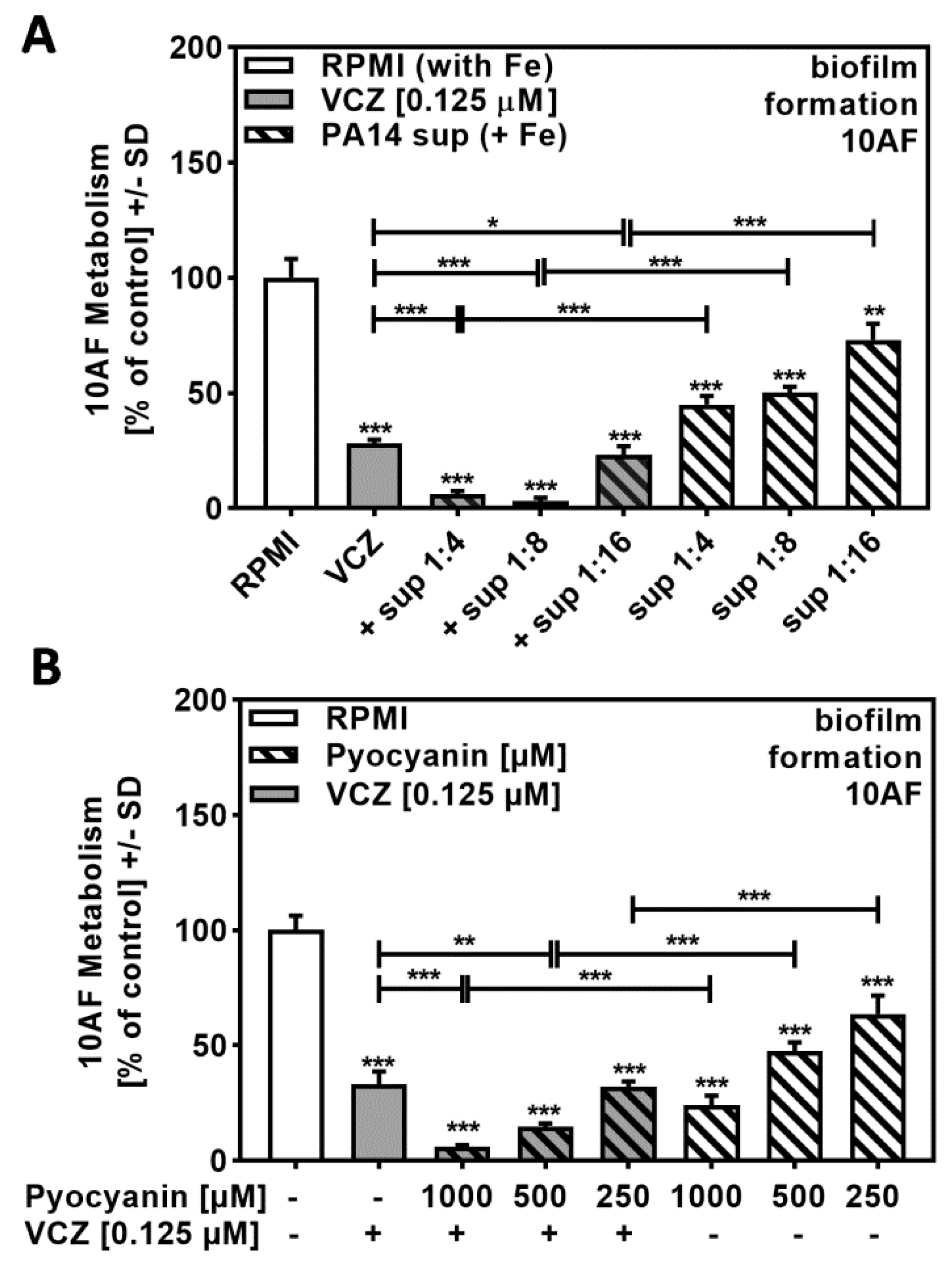

Figure 7. Phenazines/pyocyanin significantly increased anti-fungal effects of VCZ against A. fumigatus forming biofilm metabolism. (A) PA14 supernatant (produced by 5 × 107 bacteria/mL in RPMI 1640 medium, containing 50 µM ferric iron, FeCl3) was combined with VCZ (0.125 µM) at dilutions of 1:4 to 1: 16. 10AF (105 conidia/mL in RPMI 1640 medium) fungal metabolism was measured by XTT assay. Statistical analysis: metabolism in the presence of RPMI alone (white bar) was regarded as 100% and compared by unpaired t-test to VCZ alone (gray bar) and P. aeruginosa supernatant dilutions alone (striped bars) and their combinations (gray striped bars). One-way ANOVA: VCZ vs. all VCZ combinations. Unpaired t-test for each supernatant dilution vs. its combination with VCZ: One, two, or three asterisks: p ≤ 0.05, p ≤ 0.01, p ≤ 0.001, respectively. Separate experiments showed that added iron at the concentrations studied did not affect VCZ anti-fungal activity. (B) Pure pyocyanin (1000, 500, and 250 µM) was combined with VCZ (0.125 µM) to test their combined anti-fungal effects against 10AF (105 conidia/mL in RPMI 1640 medium) forming biofilm metabolism. 10AF fungal metabolism was measured by XTT assay. Statistical analysis: metabolism in the presence of RPMI alone (white bar) was regarded as 100% and compared by unpaired t-test to VCZ alone (gray bar), pyocyanin concentrations alone (striped bars), and their combinations (gray striped bars). One-way ANOVA: VCZ vs. all VCZ combinations. Unpaired t-test for each pyocyanin concentration vs. its combination with VCZ: two or three asterisks: p ≤ 0.01, p ≤ 0.001, respectively.
Figure 7. Phenazines/pyocyanin significantly increased anti-fungal effects of VCZ against A. fumigatus forming biofilm metabolism. (A) PA14 supernatant (produced by 5 × 107 bacteria/mL in RPMI 1640 medium, containing 50 µM ferric iron, FeCl3) was combined with VCZ (0.125 µM) at dilutions of 1:4 to 1: 16. 10AF (105 conidia/mL in RPMI 1640 medium) fungal metabolism was measured by XTT assay. Statistical analysis: metabolism in the presence of RPMI alone (white bar) was regarded as 100% and compared by unpaired t-test to VCZ alone (gray bar) and P. aeruginosa supernatant dilutions alone (striped bars) and their combinations (gray striped bars). One-way ANOVA: VCZ vs. all VCZ combinations. Unpaired t-test for each supernatant dilution vs. its combination with VCZ: One, two, or three asterisks: p ≤ 0.05, p ≤ 0.01, p ≤ 0.001, respectively. Separate experiments showed that added iron at the concentrations studied did not affect VCZ anti-fungal activity. (B) Pure pyocyanin (1000, 500, and 250 µM) was combined with VCZ (0.125 µM) to test their combined anti-fungal effects against 10AF (105 conidia/mL in RPMI 1640 medium) forming biofilm metabolism. 10AF fungal metabolism was measured by XTT assay. Statistical analysis: metabolism in the presence of RPMI alone (white bar) was regarded as 100% and compared by unpaired t-test to VCZ alone (gray bar), pyocyanin concentrations alone (striped bars), and their combinations (gray striped bars). One-way ANOVA: VCZ vs. all VCZ combinations. Unpaired t-test for each pyocyanin concentration vs. its combination with VCZ: two or three asterisks: p ≤ 0.01, p ≤ 0.001, respectively.
Pathogens 10 00519 g007
Table
Table 1. Bliss Independence Model (PA14 supernatant and VCZ combination effects against 10AF forming biofilm).
Table 1. Bliss Independence Model (PA14 supernatant and VCZ combination effects against 10AF forming biofilm).
VCZ 0.250VCZ 0.125VCZ 0.063
Pa sup 1:256ISI
Pa sup 1:512SSS
Pa sup 1:1024SSS
(S = synergy, I = independence).
Table
Table 2. Bliss Independence Model (PA14 supernatant and VCZ combined effect against AF13073 forming biofilm and P. aeruginosa, PAO1 and Pa10, supernatant combined effects with VCZ against 10AF forming biofilm).
Table 2. Bliss Independence Model (PA14 supernatant and VCZ combined effect against AF13073 forming biofilm and P. aeruginosa, PAO1 and Pa10, supernatant combined effects with VCZ against 10AF forming biofilm).
APA14 Sup
(10AF)		PA14 Sup
(AF13073)		PAO1 Sup
(10AF)
Pa sup 1:256SII
Pa sup 1:512SSS
Pa sup 1:1024SSS
VCZ 0.125VCZ 0.125VCZ 0.125
BPa10 Sup
(10AF)
Pa sup 1:256I
Pa sup 1:512I
Pa sup 1:1024S
VCZ 0.125
(S = synergy, I = independence).
Table
Table 3. Bliss Independence Model (PA14 supernatant in RPMI with iron, and PA14ΔpvdD/ΔpchE supernatant combination effects with VCZ against 10AF forming biofilm).
Table 3. Bliss Independence Model (PA14 supernatant in RPMI with iron, and PA14ΔpvdD/ΔpchE supernatant combination effects with VCZ against 10AF forming biofilm).
PA14 Sup
(In RPMI with Iron)		PA14ΔpvdD/ΔpchE
Pa sup 1:256AI
Pa sup 1:512AA
Pa sup 1:1024AI
VCZ 0.125VCZ 0.125
(I = independence, A = antagonism).
Table
Table 4. MIC, MFC, FICi, and FFCi values for PA14 supernatants, VCZ, as well as combinations of both against planktonic 10AF growth.
Table 4. MIC, MFC, FICi, and FFCi values for PA14 supernatants, VCZ, as well as combinations of both against planktonic 10AF growth.
MICMFCFICiFFCi
PA14 supernatant1:32No MFC--
VCZ0.5 µM16 µM--
Combination1:32 + 0.125 µM1:256 + 8 µM0.280.5
Table
Table 5. Strains and isolates used in this study.
Table 5. Strains and isolates used in this study.
OrganismIsolateDescriptionATCCReferences
Aspergillus fumigatus10AFVirulent patient isolate90,240[30,31]
Aspergillus fumigatusAF13073 13,073
Pseudomonas aeruginosaPA14Parental strain of all PA14 mutants studied [32,33,34]
Pseudomonas aeruginosaPAO1 15,692[35]
Pseudomonas aeruginosaPa10Reference non-mucoid CF isolate [36]
Pseudomonas aeruginosaPA14ΔpvdD/ΔpchEPyoverdine-pyochelin double siderophore mutant
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Sass, G.; Shrestha, P.; Stevens, D.A. Pseudomonas aeruginosa Virulence Factors Support Voriconazole Effects on Aspergillus fumigatus. Pathogens 2021, 10, 519. https://doi.org/10.3390/pathogens10050519

AMA Style

Sass G, Shrestha P, Stevens DA. Pseudomonas aeruginosa Virulence Factors Support Voriconazole Effects on Aspergillus fumigatus. Pathogens. 2021; 10(5):519. https://doi.org/10.3390/pathogens10050519

Chicago/Turabian Style

Sass, Gabriele, Pallabi Shrestha, and David A. Stevens. 2021. "Pseudomonas aeruginosa Virulence Factors Support Voriconazole Effects on Aspergillus fumigatus" Pathogens 10, no. 5: 519. https://doi.org/10.3390/pathogens10050519

APA Style

Sass, G., Shrestha, P., & Stevens, D. A. (2021). Pseudomonas aeruginosa Virulence Factors Support Voriconazole Effects on Aspergillus fumigatus. Pathogens, 10(5), 519. https://doi.org/10.3390/pathogens10050519

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
