A Spatio-Temporal Overlap Narrative Experience Model for Archaeological Site Museums: A Case Study of the Panlongcheng Archaeological Site Museum

Abstract

In the global trend of museums transitioning from static displays to digital, narrative, and experiential forms, heritage museums face challenges such as weakened cultural identity, insufficient emotional resonance, and the separation of reality and fiction. To address these issues, this study, based on the theory of spatial narrative, introduces the tripartite theory of spatial production to jointly construct a narrative experience model with overlapping time and space. By expanding the dimensions of time and space, it achieves a deep correspondence of virtual experiences, providing guidance for the virtual-real integration experience design of heritage museums. Methodologically, a combined approach of FAHP1-spatial syntax-FAHP2-FCE is adopted. Taking the Panlongcheng Heritage Museum as an example, with user experience needs as the starting point and the analysis results of the physical exhibition space as the basis, the heritage culture theme serves as the narrative thread, integrating into an experiential model with contextual virtual-real fusion. Finally, the design practice is verified through FCE. The results show that this model can optimize the virtual-real integration experience, enhance users’ cultural identity and emotional resonance, and provide beneficial insights for the digital and experiential transformation of heritage museums.

1. Introduction

Museums have evolved from static guardians of cultural heritage into participatory cultural spaces that, while preserving, interpreting, and disseminating heritage, actively contribute to public education, cultural communication, collective memory, and identity formation in the digital age [1,2,3]. In the digital context, digital cultural experience has become an important means of achieving cultural communication [4,5]. Digital culture, characterized by virtualization, interactivity, and data-driven approaches, is reshaping the presentation and dissemination of museum cultural content [6,7,8]. Emerging technologies such as virtual reality, augmented reality, and artificial intelligence further break the boundaries of physical exhibitions [5,9,10], driving museums toward immersive and personalized experiences [11]. Interactive visitor experience design is becoming a key direction for the innovative integration of digital culture and museums.

Although digital transformation brings new opportunities for museum experiences, the diversity of museum types means that interactive visitor experiences in various museums still have significant room for improvement. Archaeological site museums, in particular, face challenges in their digital transformation, including weakened local identity, insufficient emotional resonance, and limited spatial development [12,13]. Existing research on physical experiences focuses on optimizing circulation routes in exhibition spaces, creating immersive environments through lighting and sound effects, and on-site delivery of cultural information [14,15]. In terms of virtual experiences, research primarily concentrates on technical implementations such as three-dimensional digital modeling, immersive interactions, and virtual tours [16,17,18]. However, the narrative linkage between the two remains insufficient, with virtual experiences often operating independently from physical spaces, lacking systematic correspondence with physical circulation routes and narrative pacing. Some studies attempt to combine physical and virtual elements through mixed reality or digital twin exhibition narrative design [19,20,21], but practical applications still suffer from asynchronization between virtual and physical experiences in temporal and plot progression, as well as insufficient overall narrative continuity. For instance, a comparative study of the physical and virtual exhibitions at the Pitt Rivers Museum revealed that 3D virtual exhibits often become disconnected from the spatial logic and narrative coherence of their physical counterparts, resulting in fragmented visitor experiences [22]. In the recently developed dual-mode virtual museum of Sanxingdui, researchers acknowledged that although virtual reality museums provide immersive environments, they still lack opportunities for deeper user engagement and cultural learning activities [23]. Furthermore, Pietroni’s research on multisensory museums pointed out that while several mixed-reality projects excel in enhancing visual and interactive dimensions, they continue to struggle with synchronizing virtual and physical narratives in terms of temporal rhythm and plot progression [24]. Existing studies and practices therefore indicate persistent challenges in achieving temporal and narrative synchronization between virtual and physical experiences, as well as maintaining overall narrative continuity.

Building upon the above background, this study proposes a spatiotemporal overlapping narrative experience model for site museums. Based on traditional spatial narrative theory and incorporating Lefebvre’s triadic concept of spatial production, the model extends both temporal and spatial dimensions to construct a narrative experience framework encompassing historical time, virtual time, and real time, as well as physical space, virtual space, and hybrid space. Through spatiotemporal overlapping narratives, the model establishes a deep correspondence between physical environments and virtual experiences, enabling visitors to obtain continuous and semantically coherent cultural experiences within space. The Panlongcheng Site Museum serves as the practical case for this study. The proposed method integrates FAHP weight analysis, space syntax optimization, and FCE feedback. Through design practice, the adaptability and feasibility of the model are validated in optimizing cultural identity and emotional resonance experiences, offering insights into the digital and experiential transformation of site museums. This research focuses on localized cultural experiences, spatiotemporal overlapping narrative pathways, and virtual-physical integration approaches in site museums, addressing the following key questions:

• How can deep integration between virtual and physical narratives be achieved in the digital and experiential transformation of site museums?
• How can a spatiotemporal overlapping narrative experience model be constructed to enhance the digital cultural experience of site museums?
• How can the connection between physical space and virtual experience be strengthened to realize deep synchronization between narrative and experience?

2. Literature Review

2.1. Museum Experience Design in the Context of Digital Culture

Digital culture drives the diversification of museum media forms, making cultural content expression more multidimensional, immersive, and personalized. Parry [25] notes that the introduction of digital media transforms museums from static information transmission to dynamic situational simulation, generating multimodal, cross-media perception mechanisms. Giannini and Bowen [26] further propose the concept of “cultural experience systems,” where immersive media, AR/VR systems, visual databases, and other tools not only enhance the accessibility of artifact information but also drive audiences from passive recipients to active explorers, even becoming reproducers of cultural narratives. In this context, cultural experience design based on digital means has become an important direction for contemporary museums to reconstruct communication pathways and audience relationships.

Current museum digital experience design faces multifaceted challenges. In practical applications, virtual systems are often added as additional layers onto physical spaces, lacking deep integration with physical exhibition spaces, visitor pathways, and cultural contexts. Furthermore, some museums still center on exhibits or exhibition items, neglecting user-centered interactive behaviors and perceptual psychology, resulting in fragmented and superficial digital cultural experiences. Archaeological site museums often face additional difficulties such as weakened regional cultural identity, difficulty in inspiring emotional resonance among users, and limited spatial development. Digital design often fails to effectively restore spatial context, exhibiting superficial tendencies while ignoring users’ behavioral pathways, psychological changes, and cognitive rhythms, making it difficult to inspire deep cultural experiences and affecting users’ cultural cognition and emotional connection.

In the current digital cultural context, museum experience design urgently needs to integrate more structural and culturally logical narrative approaches beyond technological application, constructing an experience design system with virtual-physical integration as its strategy. This study focuses on archaeological site museums, exploring collaborative pathways between physical and virtual elements in digital cultural experiences.

2.2. Spatial Narrative and Cultural Construction of Museum Physical Experience

Museum space serves as a comprehensive medium for cultural meaning production and emotional experience [27], not only carrying physical display functions but also requiring narrative logic and cultural symbolism to enable visitors to form deep cultural understanding and emotional resonance during their visits. The introduction of spatial narrative theory provides important theoretical support for extending museum physical experience toward cultural construction functions. Spatial narrative theory originates from the intersection of narratology and spatial theory, emphasizing space as a medium and structural framework for narrative expression [28,29]. Through elements such as exhibition layout, environmental atmosphere, and interactive design, story content is embedded into perceivable, walkable spaces [30]. Narrative is no longer limited to temporal sequence development but forms synergy with spatial layout, making cultural information transmission occur simultaneously in both temporal and spatial dimensions.

The core characteristic of spatial narrative lies in the synchronous integration of temporality and spatiality [31]. Temporality encompasses both the chronological sequence of historical events and the control of narrative rhythm during visitors’ tours [6], such as guiding cognitive focus and emotional transformation through rhythmic variation patterns (e.g., fast-slow-fast). Spatiality manifests in the supportive role of physical structure for narrative pathways, including structural attributes such as accessibility, connectivity, and visibility, which directly influence visitors’ behavioral flow and information reception sequence [32]. Methods such as space syntax are widely used to reveal correlations between spatial structure and visiting behavior, providing methodological basis for narrative pathway optimization [33].

Existing research systematically categorizes the constituent elements of spatial narrative [29,34,35]. Spatial narrative typically consists of five core elements: people, events, objects, time, and place. “People” refers to the behavioral subjects of narrative experience (such as visitors); “events” refers to the events and plots that constitute the narrative chain (such as historical stories and archaeological processes); “objects” refers to artifacts and digital media that carry information; “time” encompasses historical time sequences and visiting rhythm; and “place” includes exhibition pathways, narrative nodes, and spatial atmosphere among other physical contexts. These elements interact to collectively shape the semantic network and emotional environment of cultural narrative.

Meanwhile, the development of digital technology injects new expressive means into spatial narrative while expanding the expressiveness and narrative depth of spatial information. For example, Dima et al. combined augmented reality with live performance, enabling visitors to obtain extended narrative dimensions and immersive perception within the physical space of archaeological sites [36]. The physical realm serves as the foundation for providing cultural information and contextual experience and is also a key link connecting the authenticity of historical sites, local cultural contexts, and visitor immersion, making it crucial in the spatial narrative of archaeological site museums.

2.3. Museum Virtual Experience and Serious Games Research

With the maturation of digital media technology, virtual experience has become an important means of museum cultural communication. In virtual experience design, audiences can obtain immersive cultural cognition and spatial perception in non-site environments. This exhibition form that breaks physical boundaries is particularly suitable for reconstructing irreproducible scenes in archaeological site museums, enriching information expression dimensions and enhancing audiences’ sense of presence and cultural understanding. However, as museums rooted in specific geographical and historical contexts, site museums must place greater emphasis on locality and contextual responsiveness in digital cultural experience design [37,38,39]. At present, the development of site museums faces three major challenges:

• Weakening of regional cultural identity: As immovable cultural heritage, archaeological sites often struggle to concretize their historical temporality due to static display methods, making it difficult for visitors to develop an authentic perception of historical evolution.
• Lack of emotional resonance: Traditional exhibition models focus primarily on the transmission of information while neglecting situational engagement, resulting in limited emotional immersion and empathy among visitors.
• Spatial development constraints: Limited physical space, a small number of artifacts, and fragmented exhibition paths hinder visitors from experiencing a coherent spatial narrative.

The core of these issues lies in the absence of a narrative mechanism that achieves deep synchronization and emotional resonance between physical space and virtual experience. Single virtual experiences still have limitations in contextual authenticity, emotional resonance, and cultural depth communication. Recent research increasingly emphasizes the integration of physical elements. For example, Champion proposes the concept of “hybrid narrative environments” [40], and Rzeszewski proposes “literary place-making” methods [41]. Serious games can combine virtual technology to construct archaeological scenes, spatiotemporal events, and multiple roles, compensating for the limitations of traditional exhibitions while strengthening audiences’ understanding and memory construction of site cultural connotations.

Therefore, this research introduces the concept of serious games, combining game mechanisms with educational objectives to explore more interactive and participatory digital cultural experience models [42]. Serious games center on education and cultural dissemination [43], constructing virtual environments with learning objectives through task-driven approaches, role immersion, and situational construction [44], not only enhancing audiences’ initiative and participation but also reconstructing the narrative pathways of cultural knowledge [45]. Virtual experiences in serious games reconstruct archaeological scenes through serious games, guiding audiences through time and space to generate individualized cultural memories, compensating for the limitations of on-site displays. The integration of virtual experience and serious games provides a promising innovative pathway for museum digital cultural communication.

2.4. Research Trends in Virtual-Physical Integration and Spatiotemporal Overlapping Narrative

With the advancement of digitalization, integrated virtual-physical experience models have become a significant trend in spatial narrative and audience interaction design. This approach not only addresses contemporary audiences’ needs for immersive and diversified experiences but also extends the expressive capacity of cultural narratives across multiple temporal and spatial dimensions.

Traditional research has extensively applied spatial narrative theory to the design of virtual museum experiences. While these studies have made progress in emphasizing the narrative function of physical space and extending virtual experiences based on real-world contexts, they often overlook the alignment between virtual experiences and physical settings [46]. As a result, issues such as insufficient virtual-physical integration and weak emotional resonance remain prevalent. Fundamentally, this reflects a lack of analysis regarding whether the virtual experience truly meets the needs of the real spatial context. Lefebvre’s triadic theory of spatial production emphasizes the interaction among conceived space, perceived space, and lived space, revealing that space is not only a product of practice but also a synthesis of ideology and social relations [47]. This theory provides spatial theoretical support for the virtual-physical integrated experience design of archaeological site museums. Therefore, this study adopts the triadic theory of spatial production to interpret how spatial narratives are constructed within digital cultural environments.

However, site spaces carry layered histories and collective memories; their narratives are not merely the reproduction of physical structures but rather the composite expression of temporality, events, and emotions [48]. Traditional applications of the triadic theory mainly focus on the social construction of space [49], where temporal information is often implicit, making it difficult to fully address the temporal layering and emotional transmission intrinsic to archaeological sites. In the experiential process of site museums, historical context, virtual content, and real-world experience must be temporally aligned to achieve holistic virtual-physical integration. Accordingly, this study extends the traditional spatial narrative framework by incorporating three temporal dimensions—historical time, virtual time, and real time—corresponding to physical space, virtual space, and hybrid space, as summarized in Table 1. It further introduces the concept of spatiotemporal overlapping, referring to the interweaving of multiple temporal-spatial threads within the museum environment. Through the collaborative construction of physical and virtual elements, this approach enhances the sense of immersion and establishes a continuous, emotionally resonant experience that bridges virtual narratives and physical spaces.

Table 1. Spatiotemporal dimensional extension of the triadic theory of space production.

Triadic Theory of Space Production	Temporal Dimension	Spatial Dimension	Primary Experience Characteristics
Perceived Space	Historical Time	Physical Space	Primary Experience Characteristics
Conceived Space	Virtual Time	Virtual Space	Spatiotemporal exploration beyond reality
Conceived Space	Real Time	Hybrid Space	Emotional resonance and meaning generation

Although existing studies have proposed various narrative models and frameworks for virtual-physical integrated experiences, such as the Contextual Model of Learning [50], the Interactive Experiential Model [51], the VR Exhibition Experience Model [52], and the Chronotopic Narratives Model [53], each focusing on aspects such as audience participation, contextual guidance, or immersive experience (Table 2), these models are primarily suited to traditional museums and digital environments. They fail to effectively address the unique challenges currently faced by archaeological site museums. To this end, the present study develops a Spatiotemporal Overlapping Narrative Experience (SONE) Model, which aims to resolve issues of temporal asynchrony, narrative discontinuity, and virtual-physical fragmentation in current museum experiences. By synchronizing narrative rhythms across temporal and spatial dimensions, this model strengthens the virtual-physical connection, stimulates cultural identity and emotional resonance, and directly responds to the core challenges in the digital and experiential transformation of site museums.

Table 2. Comparative analysis of virtual-physical narrative models.

Model Name	Core Mechanism	Applicable Context	Limitations
Contextual Model of Learning	Contextualized learning cycle	Educational museums	Neglects spatial structure and multidimensional temporal narratives
Interactive Experiential Model	Audience interaction and feedback loop mechanism	VR exhibitions, digital museums	Emphasizes interactivity but lacks control over narrative rhythm
VR Exhibition Experience Model	Immersive VR spatial narrative	VR exhibitions, online exhibitions	Difficult to integrate with the structure of physical spaces
Chronotopic Narratives ModelR Exhibition Experience Model	Narrative construction and virtual reconstruction of historical spatiotemporal scenes	Digital heritage, virtual historical reconstruction	Lacks a synchronization mechanism between virtual and physical spaces; fails to establish a closed loop integrating user needs, spatial context, and cultural expression

3. Methodology

3.1. Spatiotemporal Overlapping Narrative Experience Model

In the context of museum digitalization, scholars have proposed various experience design models to address the dual needs of enhancing audience engagement and promoting cultural dissemination. Compared with other models, although each has its own advantages, they fail to meet the requirements of cross-temporal narrative continuity and deep virtual-physical integration in site museums. Therefore, this paper proposes a Spatiotemporal Overlapping Narrative Experience Model for site museums (Figure 1). This model is based on spatial narrative theory, incorporates Lefebvre’s triadic theory of spatial production, and extends its temporal and spatial dimensions to form a narrative experience framework combining three temporal dimensions, three spatial dimensions, and virtual-physical integration. The temporal dimensions include historical time, virtual time, and real time, while the spatial dimensions include physical space, virtual space, and hybrid space. Historical time and physical space carry the authentic reproduction of cultural contexts, forming the foundation of narrative construction; virtual time and virtual space extend historical plots and enhance the expressiveness of information through digital means, providing visitors with immersive exploratory experiences; real time and hybrid space enable the real-time interweaving of virtual and physical realms, where digital content dynamically adjusts according to visitors’ behaviors, locations, and contexts. Through synchronized mapping between physical space and virtual experience, rhythmic alignment and semantic complementarity are achieved in the narrative process. Ultimately, a spatiotemporal overlapping narrative experience is formed, enhancing the connection between physical and virtual experiences and evoking visitors’ cultural identity and emotional resonance.

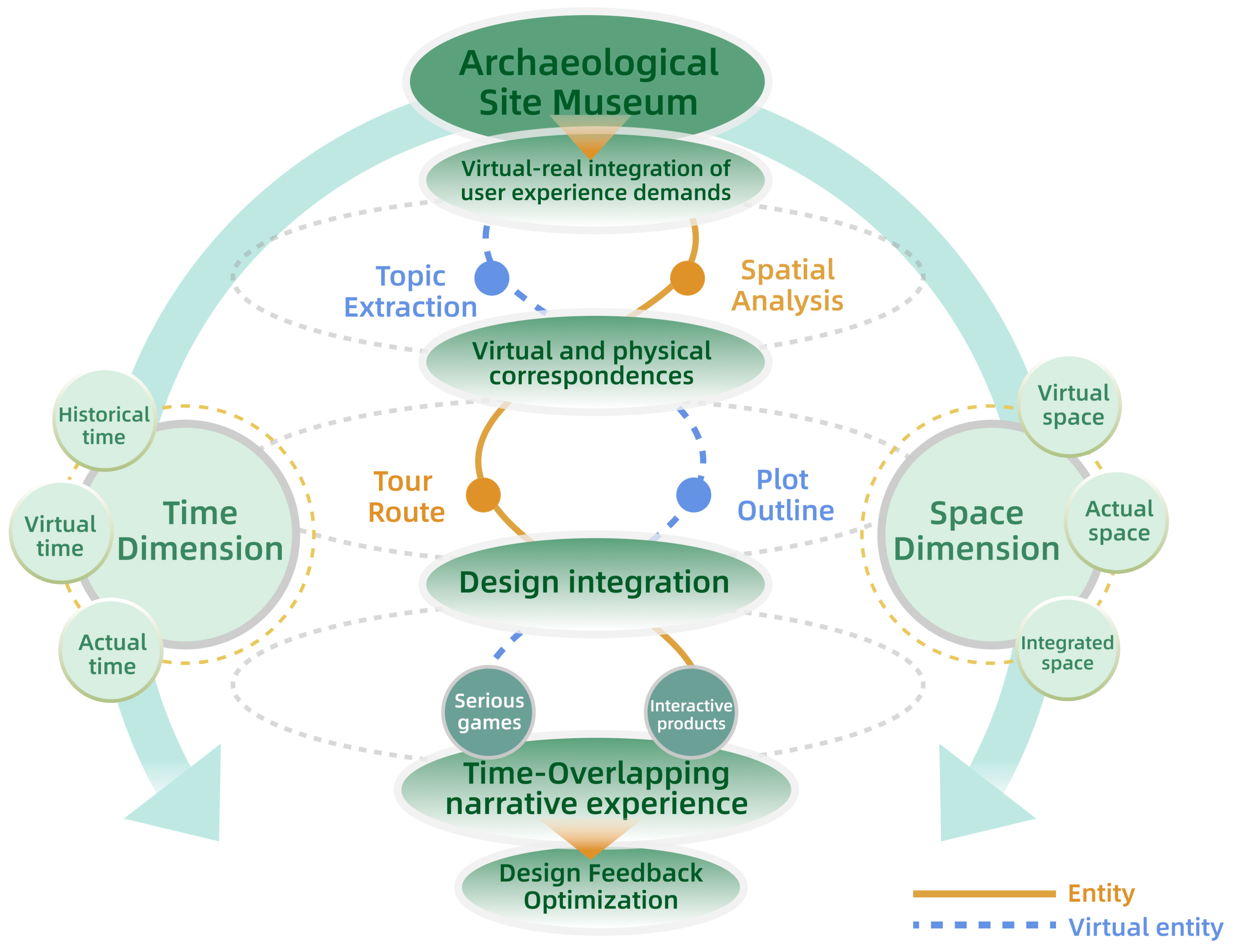

Figure 1. Spatiotemporal overlapping narrative model.

Specific research approach: First, experience design should be user-centered [54], extracting the core needs of museum visitors and transforming them into methods for virtual-physical integrated design. Then, to strengthen the connection between physical space and virtual experience, the virtual and physical components should be analyzed separately before integration. Since the virtual layer is based on the physical one, the physical space is analyzed first to provide the basis for virtual touring routes. Next, the virtual part is analyzed using the three-layer model of culture theory to sort out the cultural characteristics of the site and extract cultural themes and elements. Afterwards, the correspondence between the touring routes and narrative plots is established to realize virtual-physical synchronization, and the design is integrated with visual and game scripts, including serious games and physical interaction practices. Finally, the design practice is evaluated.

3.2. Method Selection

To systematically investigate the virtual-physical integration experience in site museums, this study constructs a combined methodological framework of FAHP1-Space Syntax-FAHP2-FCE based on the theoretical path of the Spatiotemporal Overlapping Narrative Model, forming a closed-loop logic that connects users, space, culture, and experience. The rationale for each methodological choice is as follows:

• FAHP (Fuzzy Analytic Hierarchy Process): This study aims to identify user experience needs and narrative cultural themes that influence immersive experiences. Therefore, a weighting method capable of handling subjective judgments and suitable for multi-level hierarchical structures is required. Compared with traditional AHP, Fuzzy Delphi, or Semantic Network Analysis, FAHP demonstrates stronger capabilities in managing uncertainty and fuzziness, making it particularly suitable for calculating relative weights among multi-dimensional indicators [55]. In this study, FAHP1 is used to extract user experience needs, while FAHP2 is used to identify narrative themes and cultural elements.
• Space Syntax: To explore how exhibition space structure affects narrative rhythm, this study introduces space syntax to quantitatively analyze the visual and spatial attributes of physical exhibition halls, providing structural data support for virtual experience design. Compared with qualitative observation or behavioral tracking methods, space syntax is more generalizable and computational, making it applicable to analyzing site museum spaces characterized by both exhibition functions and narrative logic [56].
• FCE (Fuzzy Comprehensive Evaluation): The evaluation of virtual-physical integrated experiences involves multiple dimensions and hierarchical indicators, requiring a comprehensive evaluation method that can accommodate multi-factor systems. Compared with traditional scoring methods, weighted average methods, or TOPSIS, FCE offers greater flexibility in handling subjective fuzzy data, nonlinear indicator combinations, and normalization across dimensions, making it highly suitable for evaluating complex cultural experience systems [57].

These three methods are complementary and synergistic, jointly addressing the three critical layers of subjective cognition, spatial structure, and comprehensive fuzzy assessment. This integrated approach ensures systematicness and interpretability of results. Compared with a single-path method such as user surveys or spatial analysis, the combined FAHP-Space Syntax-FCE framework maintains quantitative rigor while integrating multi-source data and expert knowledge, making it particularly effective for narrative-, spatial-, and experience-oriented research in site museum design.

3.3. Data Collection

Data collection combined quantitative and qualitative approaches, encompassing three data sources: user questionnaires, expert ratings, and spatial quantitative analysis.

To assess visitors’ museum experience needs, a quantitative questionnaire grounded in user-perception theory was designed, covering five experience dimensions: perception, cognition, emotion, interaction, and immersion. The questionnaire comprised 50 items. Respondents were recruited via social platforms and museum visitor communities to ensure participants had actual visiting experience and relevant background knowledge. A total of 213 questionnaires were distributed; after removing invalid responses using trap questions, 191 valid questionnaires were recovered. Frequency analysis and indicator consolidation extracted 22 secondary indicators, which served as the basis for constructing the user experience needs analysis system and supporting the FCE evaluation.

The study organized three rounds of expert scoring, corresponding to: user experience needs analysis (FAHP1), cultural element extraction (FAHP2), and virtual-physical integration experience evaluation (FCE). Considering the objectives of each round, experts and target users from diverse but related fields—such as museum spatial design, interaction design, and industrial design—were widely invited to participate. The scoring panel was composed to balance theoretical expertise, practical experience, and the perspective of target users. During scoring, the research team provided standardized scoring instructions, explained the methodology, scoring criteria, and objectives in detail, and conducted feedback clarification and follow-up after each round to enhance data reliability and validity.

Physical spatial data were obtained from the official floor plans of the Panlongcheng Site Museum and existing literature. Standardized floor plans were reconstructed in AutoCAD 2017 (Autodesk Inc., San Rafael, CA, USA), and isovist (visibility) analysis was conducted in DepthmapX 0.6.0 (University College London, London, UK) to calculate the spatial visibility metrics Visual Integration and Visual Clustering Coefficient. Visual Integration was used to identify key narrative nodes, while the Visual Clustering Coefficient was applied to locate zones of emotional immersion, providing a structural basis for virtual-physical content allocation and the design of immersive rhythm.

Method implementation procedure: (1) Summarize questionnaire results and perform weighted analysis of user experience needs using FAHP, then translate core experience needs into virtual-physical integration design requirements. (2) Apply space-syntax isovist analysis to identify key narrative nodes and regions of emotional immersion within the museum exhibition, thereby establishing the basis for narrative routes and spatial layout. (3) Construct a cultural-element evaluation system based on the three-layer model of culture, extract cultural narrative priorities via FAHP, and draft narrative plots corresponding to physical loci. (4) Align spatial structure with narrative plots, integrate user requirements, and develop game scripts to carry out design practice. (5) Introduce expert scoring into a FCE to perform a comprehensive assessment of experiential outcomes.

3.4. Research Subject

The Panlongcheng Site Museum is located in Wuhan, Hubei Province, China and primarily displays archaeological achievements and Shang Dynasty civilization history of the Panlongcheng site. It represents an important early urban center in the Yangtze River basin, witnessing the formation of the north-south bronze civilization dual-core system, carrying multiple values including national governance, cultural exchange, and archaeological research [58]. The current indoor exhibitions follow the main narrative thread of site excavation processes, artifacts, and historical background, containing three permanent exhibition halls and one temporary exhibition hall that, respectively, present archaeological processes, unearthed artifacts, historical significance, and cultural value. However, constrained by the fact that the museum was not built directly on the core site area, exhibition formats tend toward information transmission, and virtual-physical display integration is insufficient, the existing viewing pathways are generally linear and static, with insufficient immersive and contextual guidance, making it difficult to fully reproduce historical scenes and inspire cultural resonance among visitors.

This study selects the Panlongcheng Site Museum as the case study for the following reasons: the site possesses a well-preserved cultural context and rich archaeological findings, providing a solid historical foundation for site culture. Its static information displays and linear exhibition characteristics align with the study’s focus on museum digitalization and experiential design challenges. The lack of continuity and contextual extension between virtual content and physical narratives presents a typical scenario for applying the proposed model. In addition, the availability of comprehensive baseline data facilitates spatial analysis and experimental validation. Therefore, this case provides an ideal setting for the validation and practical application of the SONE Model.

4. Research Process of Spatiotemporal Overlapping Narrative Experience at Panlongcheng Site Museum

This study implements the Spatiotemporal Overlapping Narrative Experience Model in the virtual-physical integrated experience design of the Panlongcheng Site Museum, encompassing seven core stages: (1) Virtual-physical integration transformation guided by user experience needs. (2) Quantitative analysis of physical space. (3) Formulation of narrative themes and plots. (4) Virtual-physical correspondence. (5) Design implementation. (6) Description of the immersive experience of virtual-physical integration. (7) Design validation and evaluation.

4.1. User Experience Need-Oriented Virtual-Physical Integration Transformation

User experience need analysis is a crucial component in transforming archaeological site cultural content into immersive interactive experiences. To precisely identify core demands of audiences in spatiotemporal overlapping narrative experiences, this paper constructs five primary indicators based on user perception theory (sensory experience, cognitive experience, emotional experience, interactive experience, and immersion). A total of 213 questionnaires were distributed online, and 191 valid responses were obtained after filtering with trap questions. Based on the high-frequency options in the survey results, 22 secondary indicators were extracted to establish the analytical framework of museum user experience requirements (Figure 2).

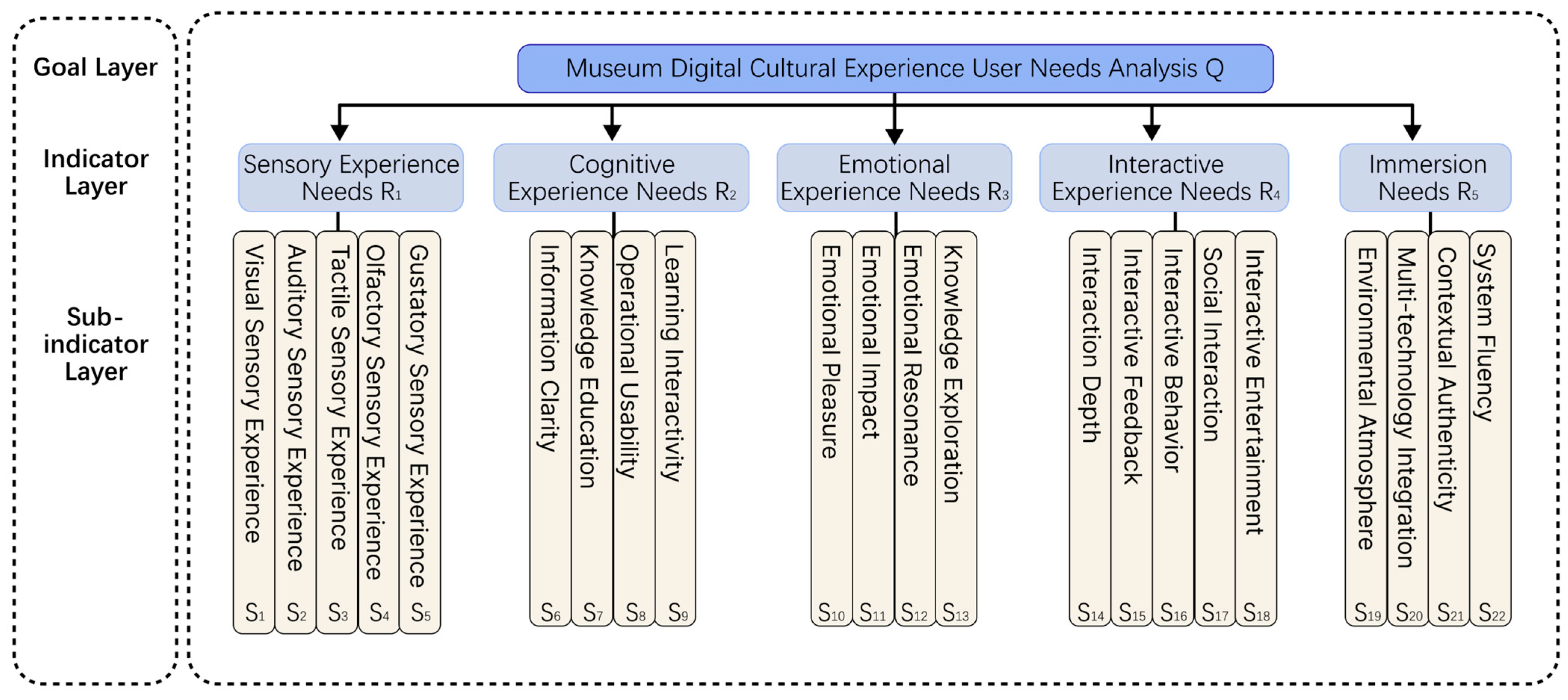

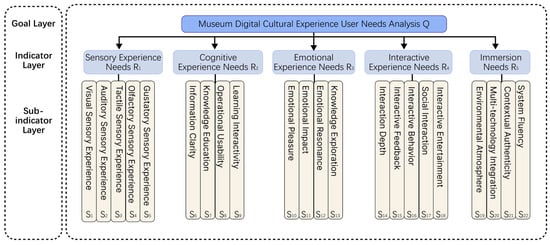

Figure 2. Museum user experience requirements analysis framework.

To ensure the scientific rigor of weight allocation, an evaluation panel was formed consisting of 4 museum spatial design experts, 6 interaction design graduate students, and 11 visitors. A fuzzy complementary judgment matrix was established using the 0.1–0.9 scale method (Table 3) and consistency testing was conducted. Based on the museum user experience needs analysis system Q, an evaluation framework is constructed that includes five primary indicator categories: sensory experience needs R₁, cognitive experience needs R₂, emotional experience needs R₃, interactive experience needs R₄, and immersion needs R₅. Analysis using SPSSAU 25.0 (Beijing Qingsi Technology Co., Ltd., Beijing, China) shows that learning interactivity, visual sensory experience, and emotional resonance ranked as the top three weights (Table 4).

Table 3. A 0.1–0.9 scale method and its meanings.

Scale	Definition	Explanation
0.5	equally important	When comparing two factors, they are equally important
0.6	slightly important	When comparing two factors, the row factor is slightly more important than the column factor
0.7	obviously important	When comparing two factors, the row factor is obviously more important than the column factor
0.8	much more important	When comparing two factors, the row factor is much more important than the column factor
0.9	extremely important	When comparing two factors, the row factor is extremely more important than the column factor
0.1, 0.2, 0.3, 0.4	inverse comparison	If factor ri compared to factor rj receives judgment rij, then factor rj compared to factor ri receives judgment $r_{ji}=1-r_{ij}$

Table 4. Weight ranking of museum user experience needs analysis.

Indicator Layer	Primary Weight	Sub-Indicator Layer	Secondary Weight	Comprehensive Weight	Weight Ranking
Sensory Experience Needs R1	0.22000	Visual Sensory Experience S1	0.24500	0.05390	2
		Auditory Sensory Experience S2	0.20500	0.04510	9
		Tactile Sensory Experience S3	0.21500	0.04730	7
		Olfactory Sensory Experience S4	0.16500	0.03630	18
		Gustatory Sensory Experience S5	0.17000	0.03740	17
Cognitive Experience Needs R2	0.20500	Information Clarity S6	0.25000	0.05125	5
		Knowledge Education S7	0.25000	0.05125	5
		Operational Usability S8	0.22500	0.04613	8
		Learning Interactivity S9	0.27500	0.05638	1
Emotional Experience Needs R3	0.19000	Emotional Pleasure S10	0.25833	0.04908	6
		Emotional Impact S11	0.20833	0.03958	15
		Emotional Resonance S12	0.27500	0.05225	3
		Knowledge Exploration S13	0.25833	0.04908	6
Interactive Experience Needs R4	0.22500	Interaction Depth S14	0.18000	0.04050	14
		Interactive Feedback S15	0.19000	0.04275	12
		Interactive Behavior S16	0.20500	0.04613	9
		Social Interaction S17	0.19500	0.04388	11
		Interactive Entertainment S18	0.23000	0.05175	4
Immersion Needs R5	0.16000	Environmental Atmosphere S19	0.27500	0.04400	10
		Multi-technology Integration S20	0.24167	0.03867	16
		Contextual Authenticity S21	0.25833	0.04133	13
		System Fluency S22	0.21667	0.03467	19

The weight vector of the indicator layer is calculated as follows:

$$W_i={\displaystyle \frac{{\displaystyle \sum _{j=1}^{n}aij+\frac{n}{2}-1}}{n(n-1)}}, i=1,2,\dots ,n,$$

(1)

The characteristic matrix is calculated as follows:

$$W_{ij}={\displaystyle \frac{W_i}{W_i+W_j}}(\forall i,j=1,2,\cdots ,n),$$

(2)

$$W*={\left(W_{ij}\right)}_{n\times n},$$

(3)

The compatibility index is calculated as follows:

$$I\left(A,\left.B\right)\right.={\displaystyle \frac{1}{{\mathrm{n}}^2}}{\displaystyle \sum _{i=1}^n{\displaystyle \sum _{j=1}^n\left|a_{ij}\right.}}+b_{ij}-\left.1\right|,$$

(4)

To respond to users’ multiple experience needs in learning interactivity, visual sensory experience, and emotional resonance, based on user-centered design principles and spatial narrative theory, this paper constructs a User Experience Need Virtual-Physical Integration Transformation model (Figure 3), encompassing a complete pathway from user experience needs to content strategy, then to spatial narrative and virtual-physical integrated experience design. The model consists of three layers: the need identification layer, which identifies key user demands; the narrative mapping layer, which maps needs onto narrative node strategies; and the design execution layer, which specifically guides spatial positioning, virtual interaction, and rhythm design. Based on this model, analysis of user experience need results yields narrative strategies and design methods for archaeological site museums (Table 5), providing structured support for subsequent virtual-physical integrated design and ensuring high alignment between design and audience needs.

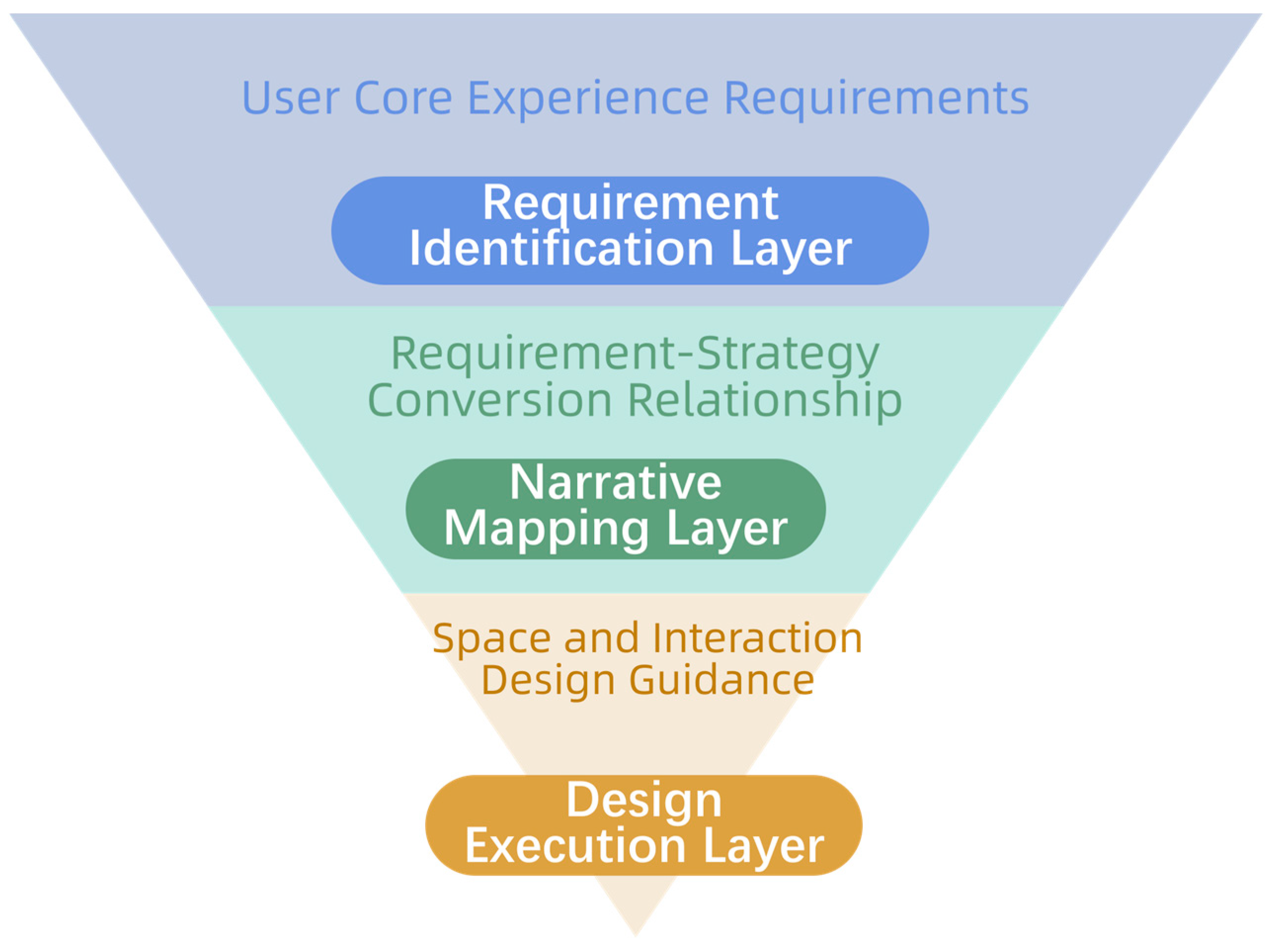

Figure 3. Virtual-physical integration model for user experience requirements transformation.

Table 5. Virtual-physical integration transformation of user experience needs.

User Experience Needs	Narrative Mapping Strategy	Spatial and Interactive Design Methods
Learning Interactivity	Virtual-Physical Task Design	Virtual: Task-driven, knowledge card pop-ups Physical: Artifact information points, trigger devices Integration: Task completion triggers physical space verification or achievements
Visual Sensory Experience	Spatial Node Integration	Virtual: Dynamic narrative scene rendering, lighting, sound effects Physical: Visual integration with high focal enhancement display, unified color scheme Integration: Unified visual style across virtual and physical realms
Emotional Resonance	Collective Emotional Resonance	Virtual: Character empathy, ritual interactive storylines Physical: Immersive node arrangement Integration: Multi-person collaborative interaction

4.2. Quantitative Analysis of Physical Space

Rational spatial organization not only carries artifact exhibitions but also undertakes the task of physical mapping of the narrative rhythm. Particularly in archaeological site museums, spatial structure itself serves as a medium for historical narrative. Based on the analysis results from Section 4.1 (Table 5), this section reconstructs functional node configurations in physical space to strengthen the synergistic relationship between spatial structure and narrative content.

To identify key nodes that can support temporal flow and immersive dwelling, this paper employs the visual field analysis method of space syntax to quantitatively model the main exhibition line of the Panlongcheng Site Museum. Space syntax, proposed by Hillier and Hanson, uses graph theory and topological structure to characterize spatial visibility and connectivity, revealing relationships between spatial form and behavioral patterns [59]. In this study, Depthmap X0.6.0 software is used to conduct visibility analysis of exhibition spaces. Visual integration is used to identify open areas with high visual accessibility suitable for linking multiple narrative segments [60]. Visual clustering coefficients is used to determine closed spatial nodes suitable for emotional immersion and story transitions [61].

Results show that the central axis area of the museum has significant integration (Figure 4a), possessing advantages for guiding linear narrative and suitable as the main axis for linear narrative, achieving comprehensive learning interactivity throughout. The visual clustering coefficients inside exhibition halls are prominent (Figure 4b), with relatively enclosed spaces suitable for creating immersive atmospheres and emotional resonance fields, achieving emotional resonance. In response to users’ attention to visual sensory experience, dynamic visual media and color enhancement devices are embedded in nodes to create visual impact fields with rhythmic undulations. The overall spatial layout follows four narrative rhythm stages of beginning, development, climax, and ending. Through plot supplementation, eight suitable areas are finally determined to support layered transformation of user experience needs and rhythmic configuration of experience pathways in structural organization and functional distribution.

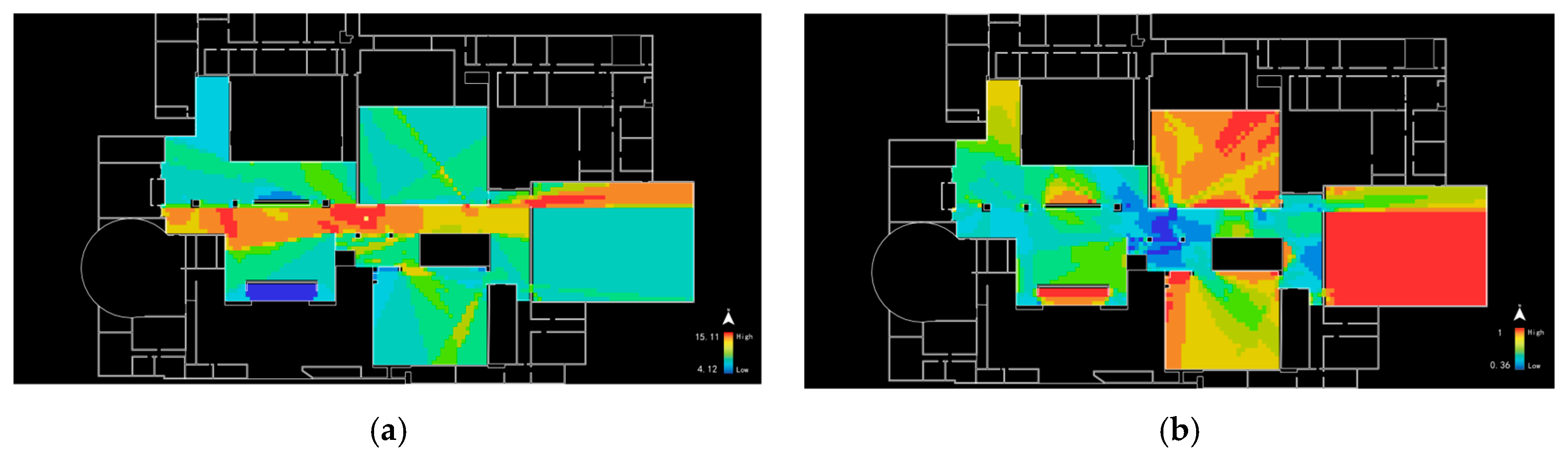

Figure 4. (a) Visual integration analysis; (b) visual clustering coefficient analysis.

The overall spatial layout follows the classic four-stage narrative rhythm: introduction, development, climax, and conclusion. To enrich the narrative progression, an additional plot was incorporated into each stage, resulting in a total of eight designated zones. Based on isovist (visibility) analysis, the key loci were connected to form a visitor circulation route (Figure 5a). Subsequently, the functional roles of each locus within the physical exhibition layout were analyzed (Figure 5b), providing structural support for the correspondence between virtual and physical narrative plots.

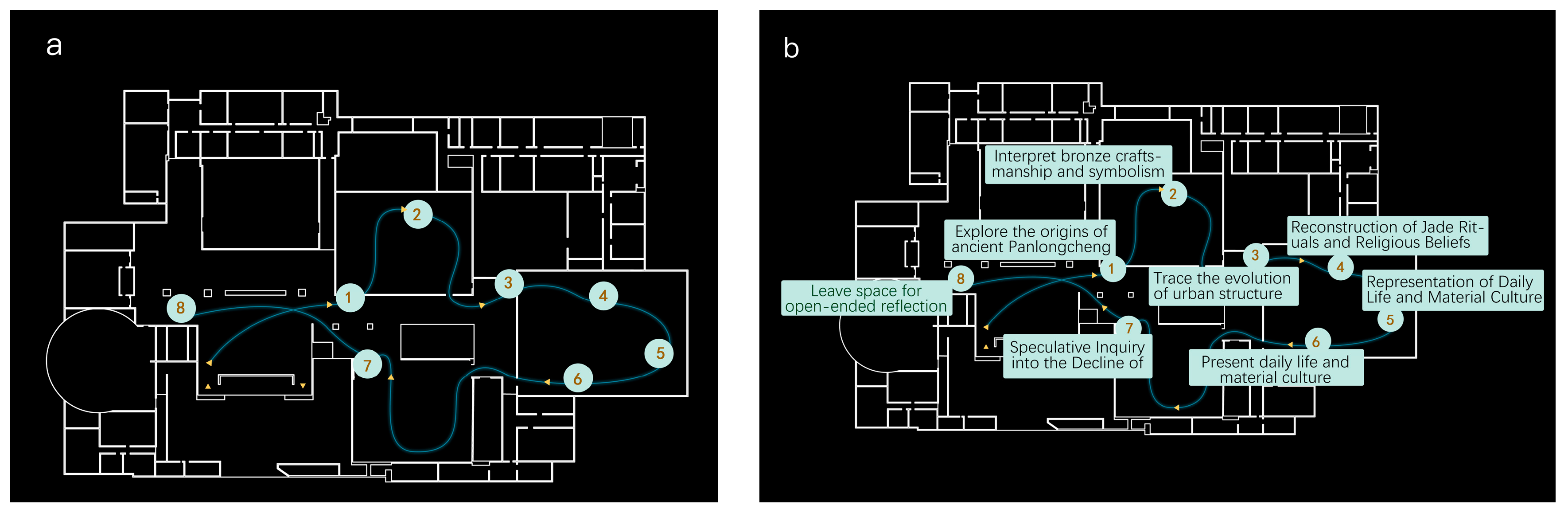

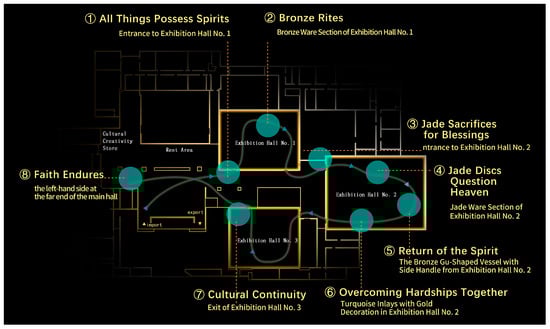

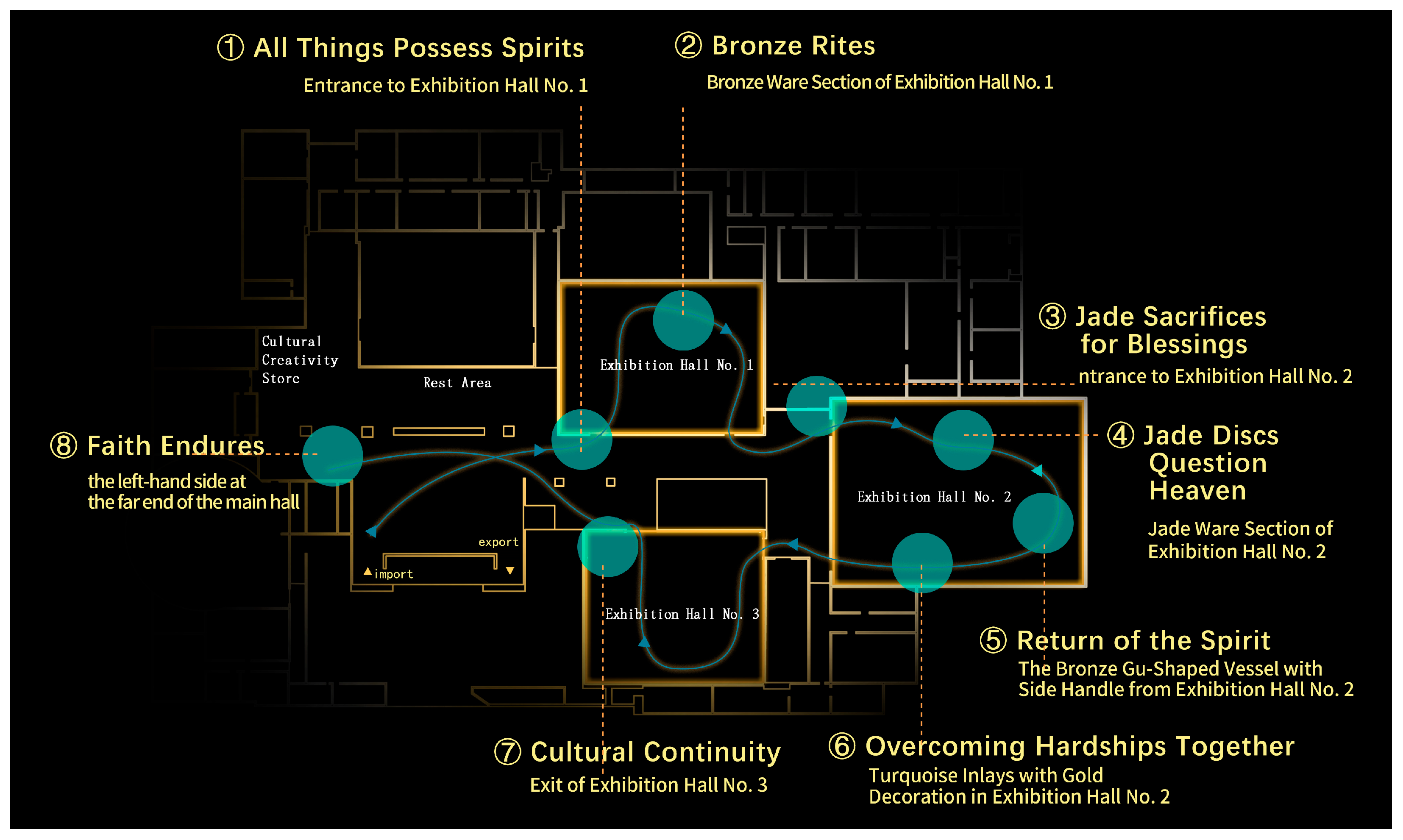

Figure 5. (a) Physical tour route; (b) entity site function.

4.3. Narrative Theme and Plot Formulation

Space is not a physical container but a medium carrying cultural information [62]. This study integrates the Three Levels of Culture Theory to systematically analyze the cultural connotations of the Panlongcheng archaeological site [63]. From the three dimensions of material culture, institutional culture, and spiritual culture, nine core elements were extracted (Table 6), forming the evaluation framework of cultural narrative elements for the Panlongcheng site (Figure 6).

Table 6. Cultural hierarchical classification of Panlongcheng site.

Cultural Level	Type	Corresponding Content	Specific Elements
Material Culture	Settlement Remains	Wangjiazui	Secondary core area where early nobles or craftsmen gathered
		Lijiazui	Noble burial area during the flourishing period
		Yangjiawan	Latest period high-ranking noble burial area of Panlongcheng
	Palace Architecture	Palace Foundation Sites 1, 2, and 3 of Panlongcheng	Site 1: Four-bay rear chamber building; Site 2: Hall-style front court building; Site 3: Forms front court-rear chamber pattern with Sites 1 and 2
	Civilian Architecture	Stilt-style wooden frame houses	Building style and techniques adapted to climate by Panlongcheng ancestors
		Post-hole construction	A process in building construction
	Urban Production	Bronze artifacts Jade objects Pottery Stone tools	Wine vessels, food vessels, weapons, miscellaneous items Ritual vessels, ceremonial implements, ornaments Cooking vessels, food vessels, drinking vessels, storage vessels Production tools, weapons, others
		Bronze artifacts Jade objects Pottery Stone tools	Wine vessels, food vessels, weapons, miscellaneous items Ritual vessels, ceremonial implements, ornaments Cooking vessels, food vessels, drinking vessels, storage vessels Production tools, weapons, others
		Bronze artifacts Jade objects Pottery Stone tools	Wine vessels, food vessels, weapons, miscellaneous items Ritual vessels, ceremonial implements, ornaments Cooking vessels, food vessels, drinking vessels, storage vessels Production tools, weapons, others
		Bronze artifacts Jade objects Pottery Stone tools	Wine vessels, food vessels, weapons, miscellaneous items Ritual vessels, ceremonial implements, ornaments Cooking vessels, food vessels, drinking vessels, storage vessels Production tools, weapons, others
Institutional Culture	Military System	Expansion and Defense	Weapons constitute up to 70% of the total bronze vessels; ring moat and city pattern
	Ritual System	Ritual System	Large jade ge as an important ritual vessel; a sacrificial vessel for heaven worship
		Burial Hierarchy	Hierarchical configuration of burial goods for nobles, commoners, and slaves
	Sacrificial Rituals	Vessel Breaking Burial	Deliberately breaking bronze and jade vessels before burial; objects possess spirits requiring destruction to release spiritual power
		Divination	Using turtle plastrons or ox scapulae for fortune telling
		Slave Sacrifice	Human sacrifice
Spiritual Culture	Spiritual Beliefs	Nature Worship	Tiger motifs, phoenix-bird elements
		Deity Worship	Heavenly Emperor, nature gods, ancestor gods
	Artistic Expression	Craft Aesthetics	Cicada patterns, taotie divine eyes, taotie patterns, kui dragon patterns, symmetry and order, geometric rhythm, round heaven and square earth (cosmic order), gold and jade combination (symbolizing imperial power), nine ways and nine heavens (cosmic concepts and hierarchies)
		Auspicious Blessings	comparing virtue to jade, abundant harvest and peace, warding off evil and disaster, favorable weather

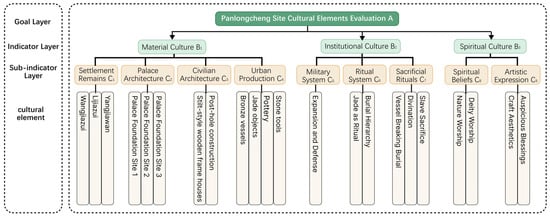

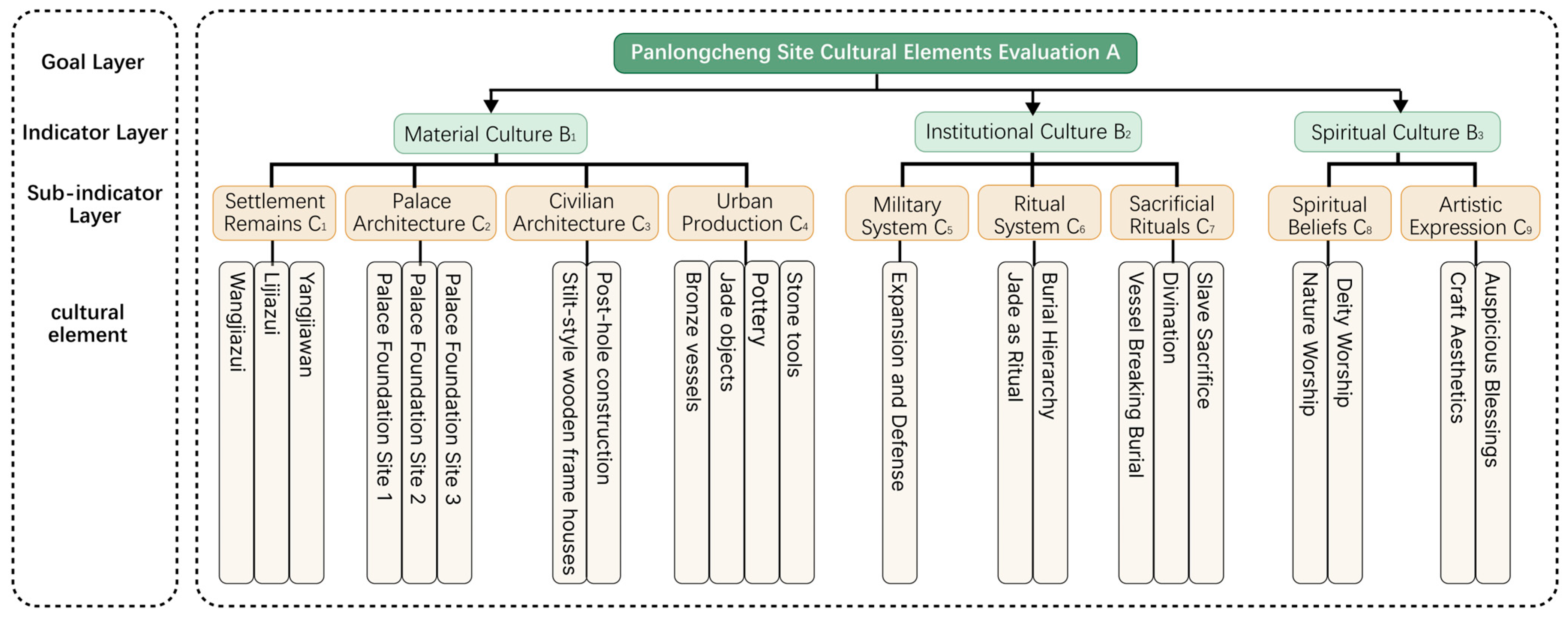

Figure 6. Evaluation of cultural narrative elements at the Panlongcheng site.

To determine the importance of each element, fuzzy analytic hierarchy process is employed for evaluation. The evaluation panel includes 6 industrial design experts, 5 design graduate students, and 5 target users. The 0.1–0.9 scale method is used to construct judgment matrices, and through consistency testing, effective weight vectors and rankings are obtained. The top three themes from the analysis results (Table 7) are selected for design integration. Narrative theme construction adopts spiritual belief as the main axis of spatiotemporal overlapping narrative, based on nature worship and spiritual faith, linking ritual behaviors and cultural symbols from different historical periods to strengthen emotional resonance. Ritual institutions form the task-driven part of narrative structure, embedding interactive tasks and knowledge cards through material culture such as bronze ritual vessels and jade systems, responding to learning interactivity needs. Artistic expression serves as a narrative auxiliary line with symbolic aesthetics, maintaining unified stylistic language throughout spatial visuals and virtual media, enhancing the impact and cognitive depth of visual sensory experience.

Table 7. Weight distribution of Panlongcheng site cultural elements.

Goal Layer	Criterion Layer	Primary Weight	Primary Weight	Secondary Weight	Comprehensive Weight	Weight Ranking
Panlongcheng Site Cultural Narrative Elements A	Material Culture B1	0.30000	Settlement Remains C1	0.23333	0.07000	8
			Palace Architecture C2	0.26667	0.08000	7
			Civilian Architecture C3	0.20833	0.06225	9
			Urban Production C4	0.29167	0.08750	6
	Material Culture B2	0.33333	Military System C5	0.26667	0.08889	5
			Ritual System C6	0.40000	0.13333	2
			Sacrificial Rituals C7	0.33333	0.11110	4
	Spiritual Culture B3	0.36667	Spiritual Beliefs C8	0.65000	0.23830	1
			Artistic Expression C9	0.35000	0.12833	3

To strengthen the connection between physical space and virtual experience, the functional roles of the spatial loci identified in the physical space analysis were combined with the extracted spiritual and belief-related narrative themes, and plots were assigned according to the exhibition context of each node. Specifically: Locus 1: Preparation for ritual. Locus 2: Bronze sacrificial ritual. Locus 3: Evolution of royal authority symbolism. Locus 4: Jade ritual. Locus 5: Tortoise-shell divination. Locus 6: Significance of royal power. Locus 7: Speculation on the conclusion of Panlongcheng. Locus 8: Collective development of civilization.

4.4. Virtual-Physical Correspondence

Based on the core user experience needs derived from virtual-physical integration, the sequence of visitation generated by space syntax analysis was matched with the temporal rhythm of cultural events, and an interactive experience script based on serious games was designed as the basis for the spatiotemporal overlapping narrative experience.

According to the narrative themes and plot formulation of the Panlongcheng Site, a virtual narrative script centered on spiritual beliefs was constructed (Table 8). The overall game is titled “Nantu Huanghuang” (Splendor of the Southern Land). To enhance immersion, a first-person perspective (as a Shang dynasty ritual practitioner) was adopted to guide users into the scenario and advance the narrative. Introduction stage: Establishes user identity, introduces the motivations of natural worship, triggers the first task, and stimulates emotional connection. Development stage: Recreates ritual procedures according to ceremonial systems, incorporates artifact-driven tasks, and promotes knowledge acquisition and interactive participation. Turning stage: Sudden disasters and divination increase game tension, while multi-branch narratives and ritual behaviors evoke collective emotional resonance. Conclusion stage: Integrates blessing nodes in physical space with virtual feedback outcomes, completing bidirectional mapping and reinforcing the significance of cultural heritage. Within the overall spatiotemporal context: historical time reconstructs the events of Panlongcheng’s evolution; virtual time advances the role-based experience; and the hybrid phase integrates serious games, interactive installations, and physical exhibits, forming a coherent spatiotemporal overlapping narrative experience structure.

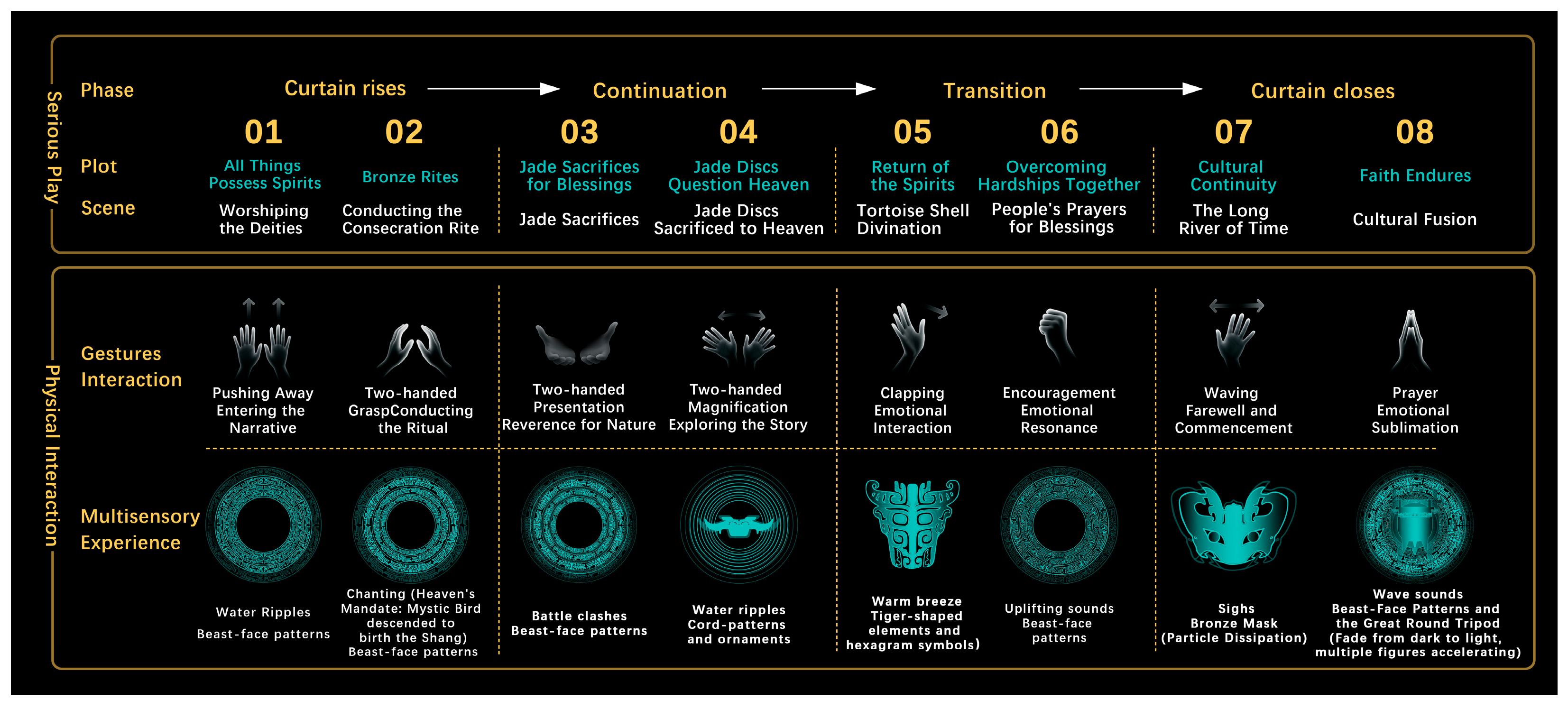

Table 8. Interaction experience script based on serious games.

Rhythm	Plot	Game Storyline	Game Interaction	Game Tasks
	Character Identity	Accept protagonist identity	Confirm the identity of the person	Learn about Shang Dynasty professional ritual and divination practitioners
	Plot Map	Museum map understanding	Begin exploration	Understand narrative rhythm
	Prologue	Disasters occur requiring sacrifice	Continue storyline
01 Opening	All Things Have Spirits	Frequent disasters lead Panlongcheng ancestors to perform sacrificial rituals praying for favorable weather	1: Heavenly Emperor, nature gods, ancestor gods	1. Learn the three-tier system of Shang ritual deities 2. Learn the connotations of nature worship and deity worship
			2: Continue preparing sacrifice
			3: Nature worship, deity worship, Heavenly Emperor, nature gods, ancestor gods knowledge cards
02	Bronze Rituals	Exquisite bronze ritual vessels carry ancestors’ beliefs in communicating with deities	1: Ding, jue, gu vessels	1. Learn bronze ritual vessels, patterns, types, uses 2. Understand types of bronze excavated from Panlongcheng
			2: Prepare libation ceremony
			3: Bronze ritual vessels, Panlongcheng bronzes, bronze mask patterns, bronze vessel types knowledge cards
03 Development	Jade Sacrifice and Blessing	Conveying messages to deities through jade as medium	1: King of jade ge, jade scepter, jade xuanji	1. Learn the functions of jade objects 2. Learn six types of jade ritual implements 3. Learn jade objects excavated from Panlongcheng
			2: Communicating with gods through jade, comparing virtue to jade, six jade ritual implements, Panlongcheng jade knowledge cards
04	Jade Bi Questioning Heaven	Collared jade bi	1: Detailed understanding	Learn the significance of collared jade bi and the connotations of nine-string patterns
			2: Collared jade bi knowledge card
05 Climax	Soul Return	Sacrificial divination of Panlongcheng’s future destiny	Randomly generated hexagrams	Learn turtle shell divination
06	Overcoming Difficulties Together	Ancestors pray together	1: Dispel disasters and pray for blessings	Pray for Panlongcheng
			2: Peace and safety
			3: Favorable weather
07 Closure	Cultural Continuity	Early Shang Panlongcheng disappears	1: Environmental changes forced ancestors to migrate from Panlongcheng	Understand reasons for Panlongcheng’s disappearance
			2: Attacks from surrounding tribes caused Panlongcheng ancestors to migrate
			3: Central Shang Dynasty’s intentions to choose more suitable locations as new southern regional control points
08	Eternal Faith	Hoping for more brilliant world civilization	Prayer and blessing	Perceive history

4.5. Design Implementation

Based on the plot of the game script and the analyzed physical exhibit loci, typical forms, patterns, totem elements, and colors were extracted from key unearthed artifacts such as Panlongcheng bronzes and jade objects to construct the visual system for the virtual-physical integrated experience. The game script, visual system, and core user experience needs were then combined to design the “Nantu Huanghuang” serious game.

In terms of visual design, the symbolic meanings of the artifacts within the Shang dynasty ritual system were analyzed, translating cultural connotations into graphic language and texture patterns, thereby establishing a visual factor library of Panlongcheng’s site culture (Table 9). For color, the material tones of the excavated artifacts were continued, extracting factors such as verdigris green bronze and golden ornament yellow, forming a color system dominated by warm-cool contrasts. This visual system was applied throughout the experience to ensure stylistic consistency of symbols and colors, providing a unified perceptual context and cultural resonance mechanism for the spatiotemporal overlapping narrative experience.

Table 9. Panlongcheng site cultural visual factor library.

Extracted Elements	Cultural Connotations	Process

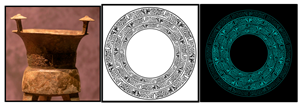

Bronze Vessels	Craft Aesthetics and Nature Reverence
Jade Objects	Royal Power and Craftsmanship

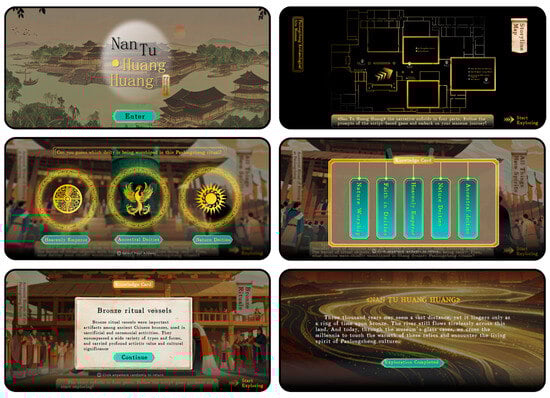

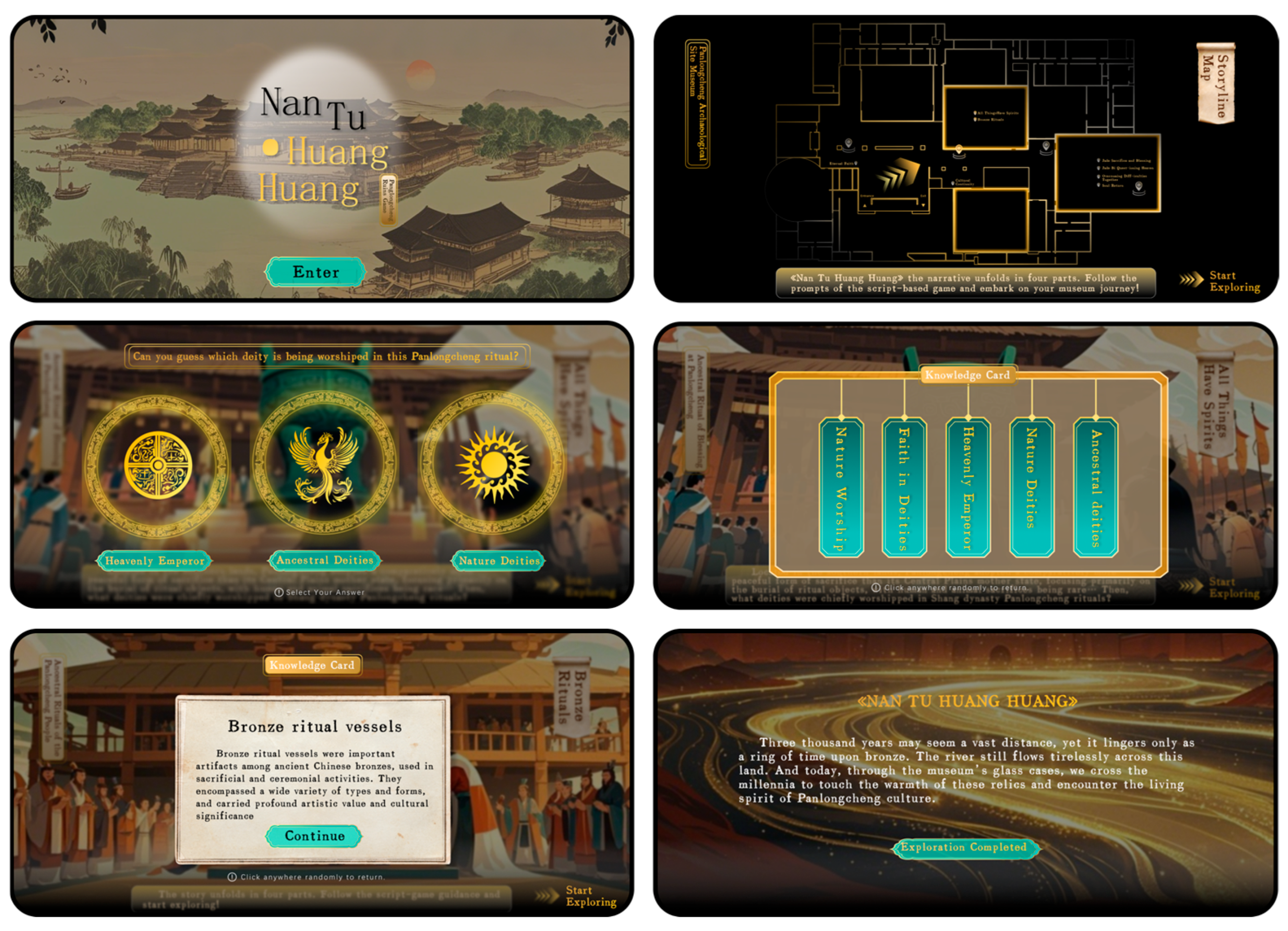

By integrating the interactive experience script, visual system, and the virtual-physical transformation of user experience needs, the final game interface was developed (Figure 7). Through diverse interactions in the serious game—such as task triggers, branching choices, perspective shifts, and knowledge pop-ups—users’ understanding of Panlongcheng’s historical changes and engagement with cultural narrative cues were strengthened, enabling emotional immersion, cultural comprehension, and identity formation, ultimately achieving emotional resonance.

Figure 7. Partial interface display of some serious games.

4.6. Description of the Immersive Experience of Virtual–Physical Integration

In the virtual-physical integration practice at the Panlongcheng Site Museum, starting from user experience needs and centered on the “Nantu Huanghuang” theme, the spatiotemporal overlapping narrative method was applied to achieve synchronized design of physical spatial routes and virtual experiences.

The overall virtual-physical integrated experience is constructed through a spatiotemporal overlapping narrative, creating a cross-temporal context that strengthens the connection between physical and virtual elements. Physical locations are synchronized with narrative plots to produce a continuous virtual-physical experience. The implementation of the spatiotemporal overlapping narrative is reflected in two dimensions. In the temporal dimension, historical timelines are constructed through the physical exhibition narrative. The virtual path extends historical time from the perspective of ritual participation, forming virtual time. Hybrid time is realized through task-linked interactions between virtual and physical spaces, with feedback mechanisms that enable the interweaving of temporal layers and drive the narrative rhythm of “Nantu Huanghuang”. In the spatial dimension, the analysis of physical space provides a foundation for virtual-physical integration. Virtual plots and interactive products follow this analysis to construct synchronized paths (Figure 8). In virtual space, serious games supplement historical information that cannot be displayed by artifacts alone. In the hybrid space, users experience the spatiotemporal overlapping narrative through synchronized virtual-physical interactions, enhancing cultural identity and emotional resonance.

Figure 8. Virtual-physical synchronization path.

The complete integrated experience process is as follows: In the physical space, interactive products are set at each physical locus as media for synchronized narrative experiences between serious games and physical exhibits. These interactive products are combined with the assigned plots of each locus, through methods such as gesture interaction, dynamic projection, multisensory interaction, and group participation, to enhance engagement and guide users through a continuous narrative experience (Figure 9). For example, at the “Perpetual Faith” locus, visitors trigger panoramic visual projections and environmental audio through prayer gestures, which are overlaid with mechanisms enabling synchronous multi-user participation, thereby creating emotional resonance. By overlapping multiple temporal and spatial layers within the narrative space, this practice strengthens users’ cultural identity and emotional engagement. As the virtual experience carrier, the serious game guides users through continuous exploration of the physical space, while the unified narrative context formed by the serious game, interactive products, and physical artifacts compensate for the contextual limitations of physical exhibitions, enhancing cultural understanding and emotional resonance. For instance, during the Bronze Ritual experience, users employ gesture interactions to trigger multisensory cultural perception, then complete ritual tasks in the game to gain knowledge and finally return to the physical bronze artifacts to deepen cultural understanding—guiding visitors step by step from perception to comprehension (Figure 10).

Figure 9. Product interaction experience.

Figure 10. Virtual-physical hybrid interaction.

4.7. Design Validation and Evaluation

Fuzzy comprehensive evaluation method is employed to assess the Nan Tu Huang Huang experience design proposal at Panlongcheng Site Museum, using the previously established user needs analysis system as the evaluation indicator framework for design proposal assessment. Eight interaction design instructors and seven museum design experts were invited to participate in the evaluation. The specific evaluation process is as follows:

• Establish the evaluation set $U=\left\{{\mathrm{u}}_1, {\mathrm{u}}_2, \dots , {\mathrm{u}}_{\mathrm{n}}\right\}$ for the Nan Tu Huang Huang spatiotemporal overlapping narrative experience design and assign values $U=\left\{\begin{array}{cccc}90,& 80,& 60,& 40\end{array}\right\}$
• Obtain evaluation indicator weight vectors. According to previous analysis (Table 3). The weighting vectors for primary and secondary indicators are as follows:

$$W_Q=\left(\begin{array}{cccc}0.22000,& 0.20500,& 0.19000,& \begin{array}{cc}0.22500,& 0.16000\end{array}\end{array}\right),$$

(5)

$$W_{R1}=\left(\begin{array}{cccc}0.24500,& 0.20500,& 0.21500,& \begin{array}{cc}0.16500,& 0.17000\end{array}\end{array}\right),$$

(6)

$$W_{R2}=\left(\begin{array}{cccc}0.25000,& 0.25000,& 0.22500,& 0.27500\end{array}\right),$$

(7)

$$W_{R3}=\left(\begin{array}{cccc}0.25833,& 0.20833,& 0.27500,& 0.25833\end{array}\right),$$

(8)

$$W_{R4}=\left(\begin{array}{cccc}0.18000,& 0.19000,& 0.20500,& \begin{array}{cc}0.19500,& 0.23000\end{array}\end{array}\right),$$

(9)

$$W_{R5}=\left(\begin{array}{cccc}0.27500,& 0.24167,& 0.25833,& 0.21667\end{array}\right),$$

(10)

3.

Construct secondary indicator evaluation matrices. Based on scoring by 15 experts, fuzzy comprehensive evaluation matrices for the Nan Tu Huang Huang design proposal are constructed, with results shown in Equations (11)–(15).

$$R_1=\left[\begin{array}{cccc}0.80& 0.13& 0.07& 0.00\\ 0.47& 0.40& 0.13& 0.00\\ 0.07& 0.60& 0.27& 0.07\\ 0.00& 0.00& 0.00& 1.00\\ 0.00& 0.00& 0.00& 1.00\end{array}\right],$$

(11)

$$R_2=\left[\begin{array}{cccc}0.67& 0.27& 0.07& 0.00\\ 0.67& 0.20& 0.13& 0.00\\ 0.67& 0.13& 0.13& 0.07\\ 0.80& 0.20& 0.00& 0.00\end{array}\right],$$

(12)

$$R_3=\left[\begin{array}{cccc}0.67& 0.20& 0.13& 0.00\\ 0.60& 0.27& 0.13& 0.00\\ 0.67& 0.27& 0.07& 0.00\\ 0.73& 0.20& 0.07& 0.00\end{array}\right],$$

(13)

$$R_4=\left[\begin{array}{cccc}0.80& 0.13& 0.07& 0.00\\ 0.67& 0.13& 0.13& 0.07\\ 0.80& 0.07& 0.13& 0.00\\ 0.47& 0.40& 0.07& 0.07\\ 0.67& 0.27& 0.07& 0.00\end{array}\right],$$

(14)

$$R_5=\left[\begin{array}{cccc}0.80& 0.13& 0.07& 0.00\\ 0.60& 0.27& 0.13& 0.00\\ 0.53& 0.33& 0.13& 0.00\\ 0.53& 0.33& 0.13& 0.00\end{array}\right],$$

(15)

Setting the fuzzy evaluation set as $E$, the fuzzy evaluation sets obtained are $E_1=W_{R1}\times R_1$ = (0.3073 0.2416 0.1013 0.3499), $E_2=W_{R2}\times R_2$ = (0.7041 0.2011 0.0791 0.0158), $E_3=W_{R3}\times R_3$ = (0.6691 0.2331 0.0978 0.0000), $E_4=W_{R4}\times R_4$ = (0.6786 0.2012 0.0934 0.0268), $E_5=W_{R5}\times R_5$ = (0.6245 0.2615 0.1140 0.0000). This constructs the secondary evaluation matrix R, with results shown in Equation (16).

$$E=\left[\begin{array}{c}{E}_1\\ E_2\\ E_3\\ E_4\\ E_5\end{array}\right]=\left[\begin{array}{cccc}0.3073& 0.2416& 0.1013& 0.3499\\ 0.7041& 0.2011& 0.0791& 0.0158\\ 0.6691& 0.2331& 0.0978& 0.0000\\ 0.6786& 0.2012& 0.0934& 0.0268\\ 0.6245& 0.2615& 0.1140& 0.0000\end{array}\right],$$

(16)

Setting the comprehensive evaluation vector for the Nan Tu Huang Huang spatiotemporal overlapping narrative experience design proposal as $W^{·}=W_Q\times E=$ (0.5917 0.2258 0.0963 0.0862), then the comprehensive evaluation weight vector is calculated; the design practice total score is $N=W^{·}\times U=$ 80.543, corresponding to a “Good” evaluation level, indicating good performance of this design in digital cultural experience. Through calculation of primary indicator scores and secondary sub-indicator scores (Figure 11 and Figure 12), user feedback shows overall satisfaction levels above average, but certain key dimensions still display some disadvantages. Further optimization of experience design should focus on tactile, olfactory, and gustatory sensory experience components.

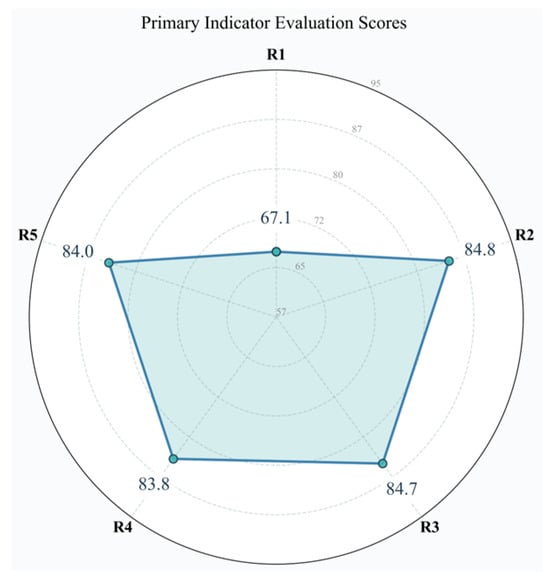

Figure 11. Scores of primary indicators.

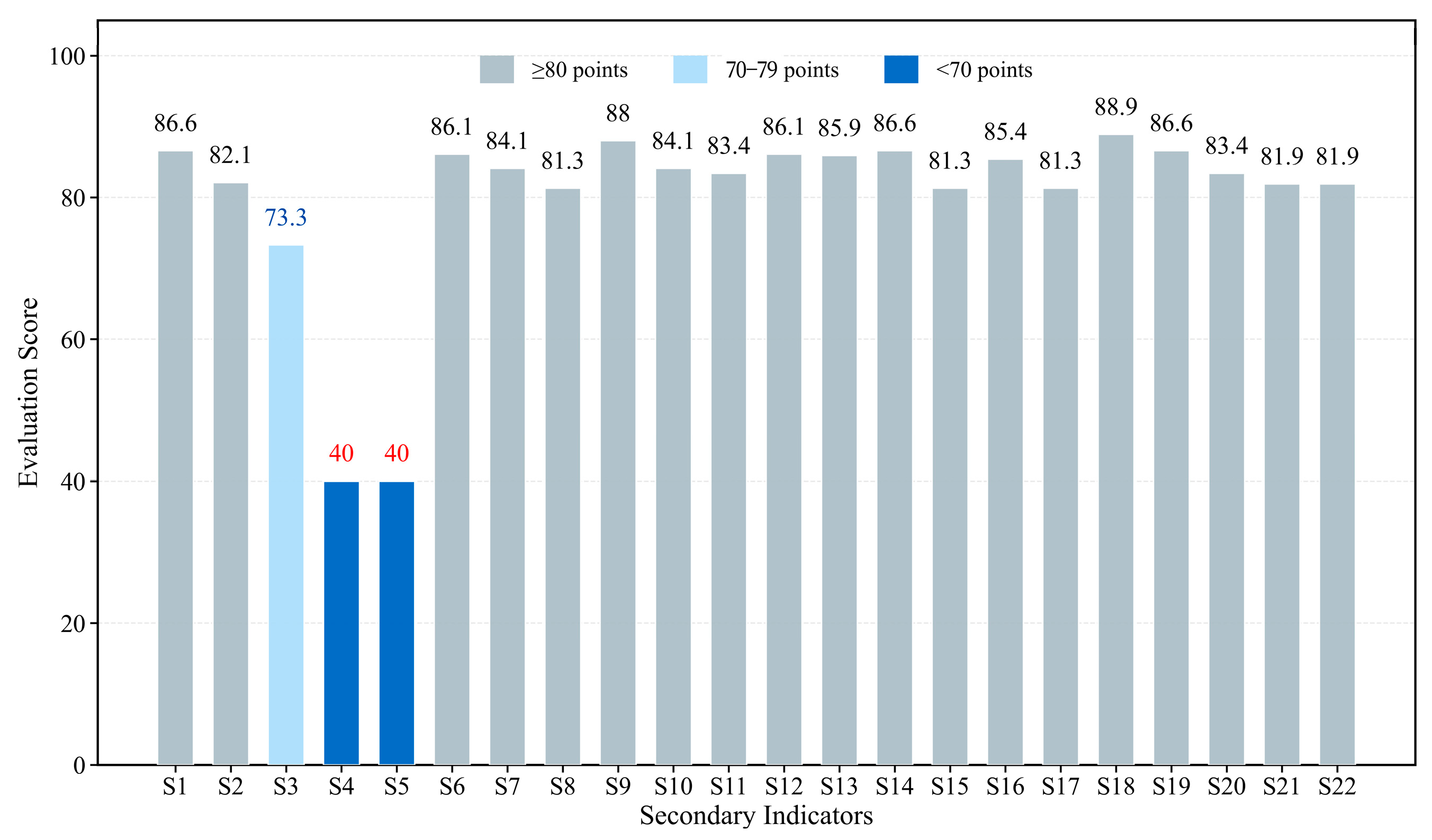

Figure 12. Secondary indicators.

To obtain subjective user feedback, the study conducted a follow-up survey with participants of the experience, comprising five questions covering narrative continuity (Table 10), virtual-physical synchronization, cultural identity, emotional resonance, and overall satisfaction. A five-point Likert scale was used, and a total of 18 follow-up questionnaires were collected. The results indicated generally positive user feedback, with high overall satisfaction, further supporting the effectiveness of the design model in practical experience.

Table 10. Follow-up Satisfaction Questionnaire.

Dimension	Question
Narrative Continuity	Does the virtual content integrate naturally with the physical exhibition in terms of narrative logic?
Virtual-Physical Synchronization	Does the coordination between virtual experience and physical exhibition space enhance your sense of interactive participation?
Cultural Identity	Has this experience deepened your understanding of Panlongcheng’s historical culture?
Emotional Resonance	Did the historical scenes and narrative atmosphere evoke emotional resonance and immersion for you?
Overall Satisfaction	Overall, are you satisfied with this virtual–physical integrated museum experience?

5. Discussion

The design practice at the Panlongcheng Site Museum validated the effectiveness of the spatiotemporal overlapping narrative experience model in improving virtual–physical integrated experiences in site museums. Centered on virtual–physical synchronization, the model coordinates the rhythms of historical time, virtual time, real time, physical space, virtual space, and hybrid space to achieve spatiotemporal overlapping narrative. This approach strengthens the connection between virtual and physical elements, enhances the contextuality and continuity of narrative experiences, and fosters cultural identity and emotional resonance among visitors.

At the theoretical level, the model is grounded in spatial narrative theory and incorporates Lefebvre’s triad of spatial production, which is adaptively extended to include explicit temporal dimensions, thereby constructing a spatiotemporal overlapping narrative experience model. Compared with existing studies—such as the Contextual Model of Learning [50], which focuses on learning paths in physical contexts with limited consideration of virtual media—and unified models of immersive experience [64], which explore immersion mechanisms in virtual environments but lack structural integration strategies at the spatial narrative level, this model offers a more comprehensive framework. Some studies have attempted to guide narratives through physical space. For instance, Chen et al. [65] proposed using spatial layouts to guide narrative theme selection and emphasized the mapping between space and theme, yet they did not integrate temporal synchronization mechanisms. In contrast, the current model positions virtual-physical synchronization as its core mechanism, by embedding virtual experiences within physical trajectories and providing a novel theoretical pathway for narrative construction in site-based cultural spaces.

At the methodological level, the FAHP1-space syntax-FAHP2-FCE combination was applied, integrating user experience analysis, spatial structure quantification, cultural theme identification, and fuzzy comprehensive evaluation feedback. This approach addresses the interrelated elements of users, space, culture, and experience, achieving enhanced virtual-physical narrative integration. The combination forms a closed-loop path from needs analysis to design and feedback. Unlike Dai et al. [66], who focused on spatial structure and individual physiological responses in art exhibition spaces, this study extends spatial analysis to the cultural narrative dimension. Compared with Hu Yukun et al. [67], who primarily applied FAHP to extract traditional cultural design elements from artifact images, the current method achieves integration across space, narrative, and culture.

At the application level, unlike traditional static exhibition modes, the design practice combines serious games, interactive products, and physical exhibits to realize dynamic cultural narrative generation, spatial path organization, and user experience feedback. This allows for the dynamic unfolding of spatiotemporal overlapping narratives within limited physical spaces. The model’s framework and methodological approach provide a reference for narrative, experiential, and digital transformation of site museums.

6. Model Limitations and Research Prospects

The spatiotemporal overlapping narrative model has achieved positive results in practice, but several limitations remain and should be addressed in future research:

• Sample limitation: This study validated the design method using the Panlongcheng Site Museum as a case. While effective in this context, the single-case nature limits generalizability. Future research should select diverse types of cultural heritage museums to examine the model’s stability and applicability across different contexts.
• Spatial type limitation: The current case primarily involves linear exhibition layouts. For open or nonlinear exhibition spaces, further validation by other research teams is needed. Future studies should include a variety of spatial configurations to explore the adaptation boundaries of the model.
• Cultural adaptability: This study focuses on a Chinese cultural context. The model’s universality across different cultural backgrounds remains untested. Variations in how different cultures interpret historical narratives and interactive experiences may affect applicability. Cross-cultural comparative studies are recommended to enhance the model’s international adaptability.
• Technical and environmental interference: Virtual-physical integrated experiences rely heavily on equipment performance and environmental conditions. Factors such as the processing capability of mobile devices, positioning accuracy, museum lighting, and ambient noise may affect the synchronization of virtual-physical narratives and the emotional resonance of the experience.

7. Conclusions

This study proposes a spatiotemporal overlapping narrative experience model aimed at enhancing cultural identity and emotional resonance in site museums and applies it to the design practice of the Panlongcheng Site Museum. Grounded in spatial narrative theory and incorporating Lefebvre’s triad of spatial production, the model is further extended along temporal and spatial dimensions to construct a framework for spatiotemporal overlapping narrative experience. The design practice demonstrates that this model strengthens the connection between physical space and virtual experience, creating a hybrid, cross-temporal narrative environment through the synchronization of physical and virtual storytelling, thereby enhancing users’ cultural identity and emotional resonance.

Methodologically, the study employs a combination of FAHP, space syntax, and FCE, starting from user needs, informing design through physical space analysis, constructing virtual narratives based on cultural themes and elements, and concluding with virtual-physical integration and evaluation feedback. Compared to traditional single-method approaches, this combination systematically integrates users, space, culture, and experience. In practice at the Panlongcheng Site Museum, serious games and interactive physical products guide users through multisensory interactions, facilitating cross-temporal cultural perception. Results indicate that the proposed model effectively enhances narrative continuity, visitor immersion, and cultural engagement, providing valuable insights for designing virtual-physical integrated experiences in site museums.

However, this study has certain limitations. Validation was conducted solely at the Panlongcheng Site Museum. Future research should include different types, scales, and cultural themes of site museums to further test the model’s applicability. The case study focuses on a linear exhibition, while validation in open or nonlinear exhibition spaces is still required. Additionally, dynamic environmental and equipment factors may affect user experiences. To address these limitations, future studies could employ cross-cultural case comparisons, physiological feedback analyses, and multidimensional immersion evaluation methods to further refine the model’s applicability and rigor. Overall, the study provides new theoretical support and practical insights for the digital and experiential transformation of site museums.
