# Health Risk Prediction of Operational Subsea Tunnel Structure Based on Bayesian Network

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Risk Prediction Method

#### 2.1. Discrete Bayesian Network Model

_{1}, A

_{2}, …, A

_{n}, B, and directed edges from nodes A

_{1}, A

_{2}, …, A

_{n}to node B. In the graph, the originating nodes of directed edges A

_{1}, A

_{2}, …, and A

_{n}are deemed parent node variables, and the destination node B is the child node variable. Directed edges from A

_{1}, A

_{2}, …, A

_{n}to B represent the dependency relationships whereby the parent node variables A

_{1}, A

_{2}, …, A

_{n}each influence the occurrence of the child node variable B. The strength of each dependency relationship expressed by a directed edge is quantified by the conditional probability of the child node variable occurring given that only the corresponding parent node variable occurs. If there is no direct connection between two nodes, these node variables are conditionally independent. In the discrete Bayesian network structure shown in Figure 1a, the parent node variable A

_{1}has q possible states, the parent node variable A

_{n}has r states, and the child node variable B has m states. The conditional probability table corresponding to the discrete Bayesian network structure shown in Figure 1a is exhibited in Figure 1b.

_{1}, A

_{2}, …, A

_{n}, and B is decomposed into a product of conditional probabilities using the chain rule. Then, the product of conditional probabilities is reduced by exploiting the conditional independence of discrete variables A

_{1}, A

_{2}, …, A

_{n}given discrete variable B. Consequently, the marginal probability distribution of discrete variable B is determined, as shown in Equation (1), which can predict the likelihood of occurrence of variable B. This article applies this formula to predict the likelihood of risk events during the operation of engineering projects.

#### 2.2. Conditional Probability

## 3. Health Risk Prediction Process of Operational Subsea Tunnel Structure

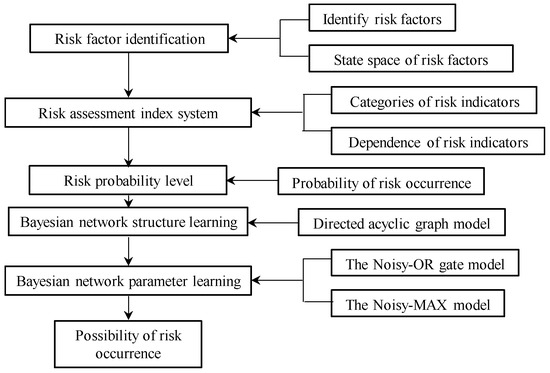

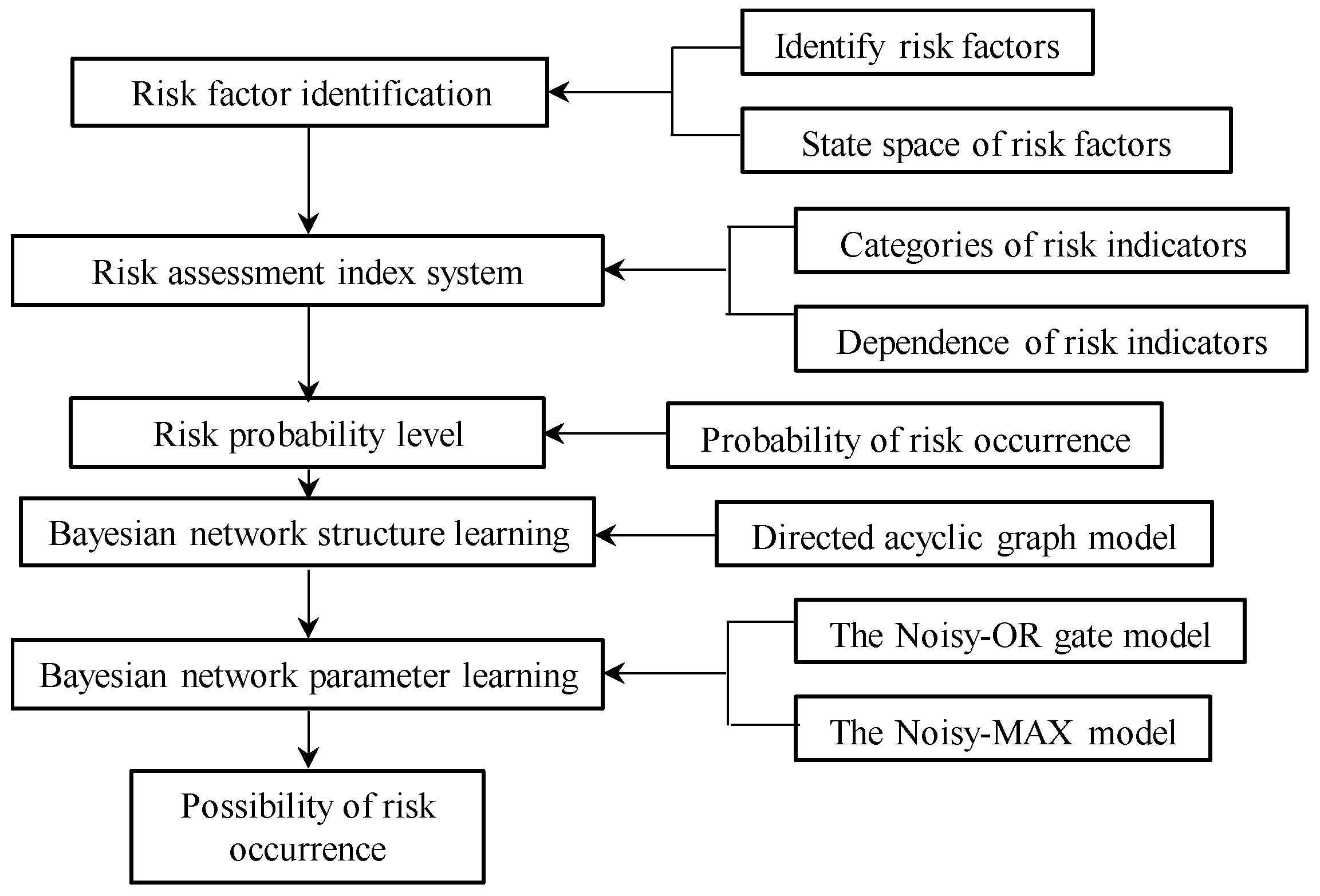

#### 3.1. Health Risk Prediction Steps

- (1)
- Identifying the risk factors that affect the health of subsea metro shield tunnel structure in operation, and determining the state space of each risk factor. Establishing a risk indicator system for the health risks of the operational shield tunnel structure based on the relationships of these risk factors.
- (2)
- Using the probability of risk occurrence to establish the likelihood rating standards for the operational health risks of the subsea metro shield tunnel structure.
- (3)
- Learning the Bayesian network structure for the operational health risks of subsea metro shield tunnel structure.
- (4)
- Learning the parameters of the Bayesian network for the health risks of operational subsea metro shield tunnel structure by computing the conditional probabilities of the child nodes.
- (5)
- Inferring the probability of health risks for the operational subsea metro shield tunnel structure.

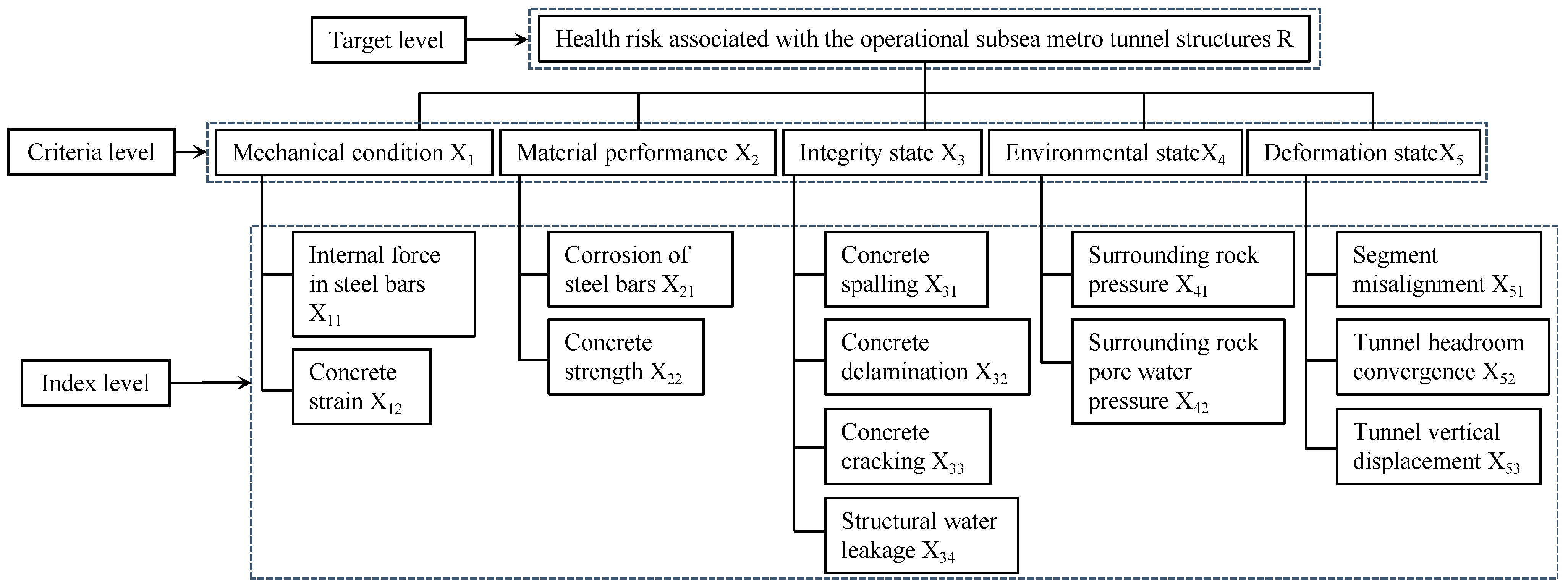

#### 3.2. Risk Factors Identification

_{1}), material performance (X

_{2}), integrity state (X

_{3}), environmental state (X

_{4}), and deformation state (X

_{5}). Furthermore, the index level comprises 13 risk factors that have been identified as internal force in steel bars (X

_{11}), concrete strain (X

_{12}), corrosion of steel bars (X

_{21}), concrete strength (X

_{22}), concrete spalling (X

_{31}), concrete delamination (X

_{32}), concrete cracking (X

_{33}), structural water leakage (X

_{34}), surrounding rock pressure (X

_{41}), surrounding rock pore water pressure (X

_{42}), segment misalignment (X

_{51}), tunnel headroom convergence (X

_{52}), and tunnel vertical displacement (X

_{53}).

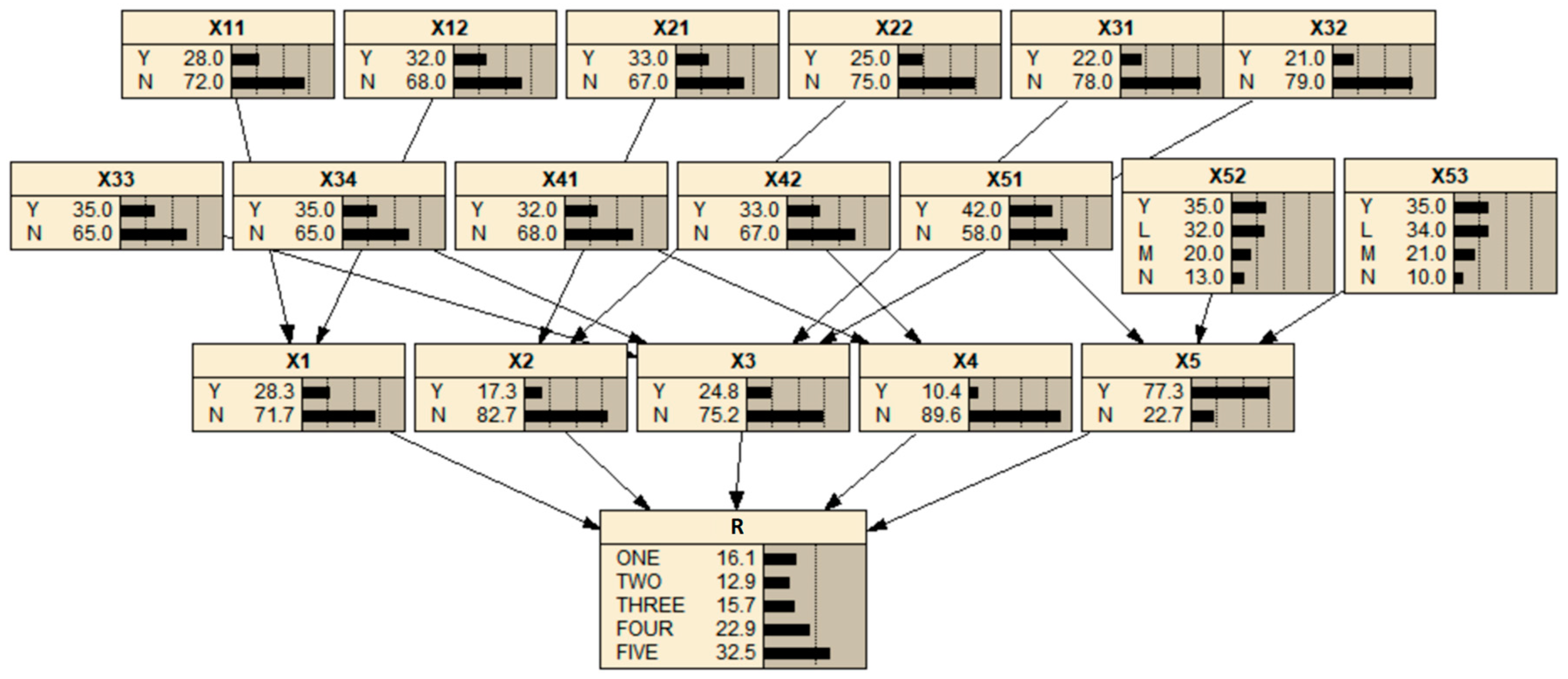

#### 3.3. Risk Prediction Based on Bayesian Networks

_{52}) and vertical displacement (X

_{53}) are also included in the network and have multiple states. Other risk factors such as internal force in steel bars (X

_{11}) and strain in concrete (X

_{12}) are represented as variables with two states. The current Chinese national standard [35] divides variables with multiple states into four different states. Table 2 provides the specific limits for each state of the variables with multiple states.

_{1}” and the multistate variable “Health risk associated with the operational subsea metro tunnel structure R” are employed.

_{1}” being compromised due to the adverse effects in the “Internal force in steel bars X

_{11}” is determined by experts specialized in underground structure. A survey was conducted among 20 experts, including 3 experts from the first category, 3 experts from the second category, 6 experts from the third category, and 6 experts from the fourth category. These experts unanimously agreed that only when there is excessive internal force in steel bars during operation, the mechanical condition of the tunnel structure can become unfavorable. According to Formula (6), the probability ${p}_{11}$ is calculated to be 0.886.

_{11}= (1 × 3 + 0.9 × 3 + 0.8 × 6 + 0.7 × 6)/(1 × 4 + 0.9 × 4 + 0.8 × 6 + 0.7 × 6) = 0.886.

_{1}” node are determined as shown in Table 3. In the table, X

_{11}= Y represents an excessive internal force in steel bars, X

_{11}= N represents a non-excessive internal force in steel bars, X

_{12}= Y represents excessive concrete strain, X

_{12}= N represents non-excessive concrete strain X

_{1}= Y represents an unfavorable mechanical condition, and X

_{1}= N represents a favorable mechanical condition.

_{1}” causing the “Health risk associated with the operational subsea metro tunnel structure R” to be at levels 1 to 5 are determined by experts. The probabilities of levels 1 to 5 are denoted by ${p}_{r1}^{1}$ to ${p}_{r5}^{1}$ respectively.

_{1}” is adverse, the “Health risk associated with the operational subsea metro tunnel structure R” will be at level 5. According to Formula (6), the probability ${p}_{r5}^{1}$ is calculated to be 0.410. Using the same approach, ${p}_{r4}^{1}$ = 0.253, ${p}_{r3}^{1}$ = 0.205, ${p}_{r2}^{1}$ = 0.090, and ${p}_{r1}^{1}$ = 0.042.

_{1}to X

_{5}. Similarly, the probabilities of the adverse occurrence of R at levels 1 to 5 are determined when only a single parent node occurs. Then, using Formulas (4) and (5), the conditional probabilities of the node R are obtained as shown in Table 4. Due to space limitations, only the status combinations of the parent nodes X

_{1}= Y are listed. Here, the variables X

_{1}, X

_{2}, X

_{3}, X

_{4}, and X

_{5}represent different aspects of the tunnel’s condition. X

_{1}= Y represents an unfavorable mechanical condition, X

_{2}= Y represents poor material performance, X

_{3}= Y represents a compromised integrity state, X

_{4}= Y represents adverse environmental conditions, and X

_{5}= Y represents a problematic deformation state. Conversely, X

_{1}= N, X

_{2}= N, X

_{3}= N, X

_{4}= N, and X

_{5}= N represent favorable conditions in each respective aspect.

## 4. Validation of Health Risk Prediction Model for Operational Subsea Tunnel Structures

## 5. Case Study

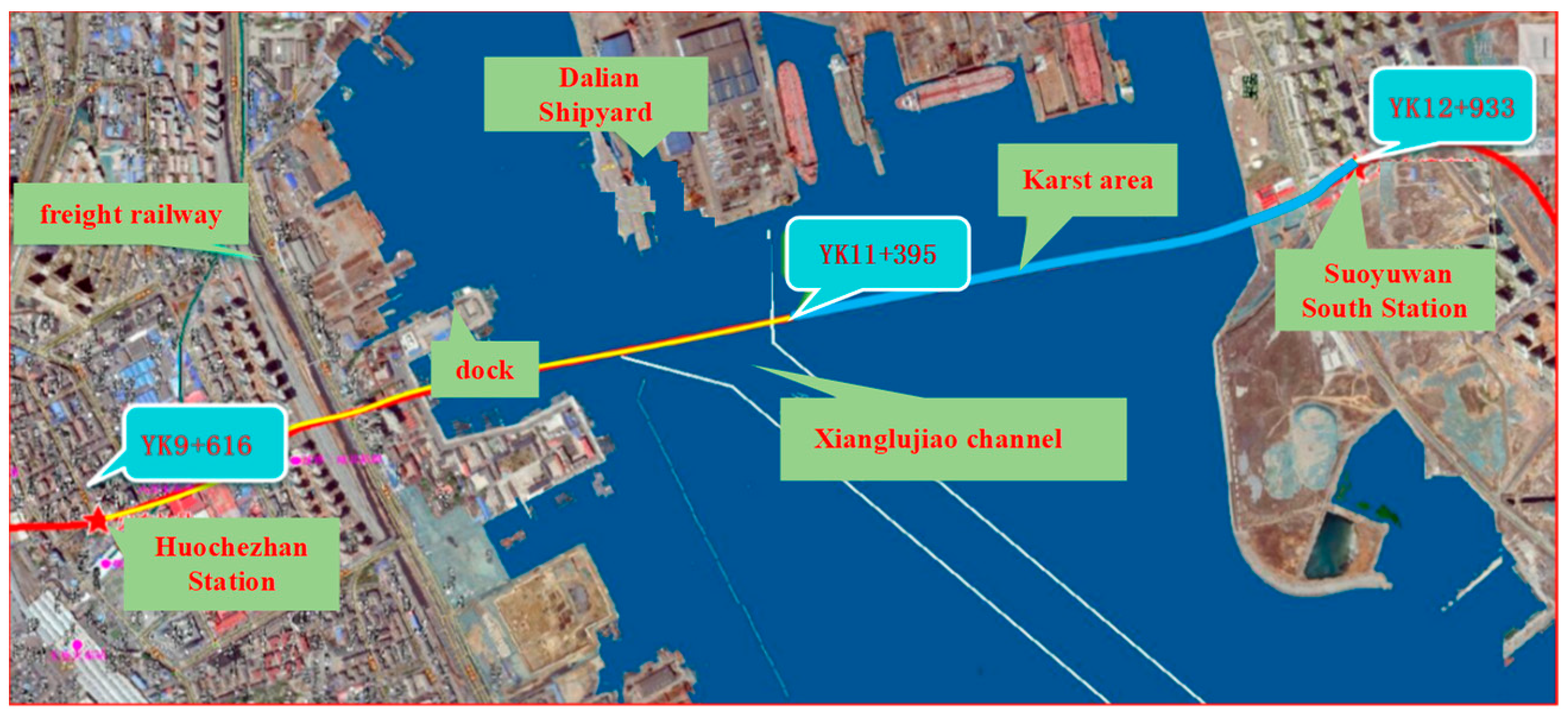

#### 5.1. Overview of the Structural Engineering of the Dalian Subsea Metro Tunnel

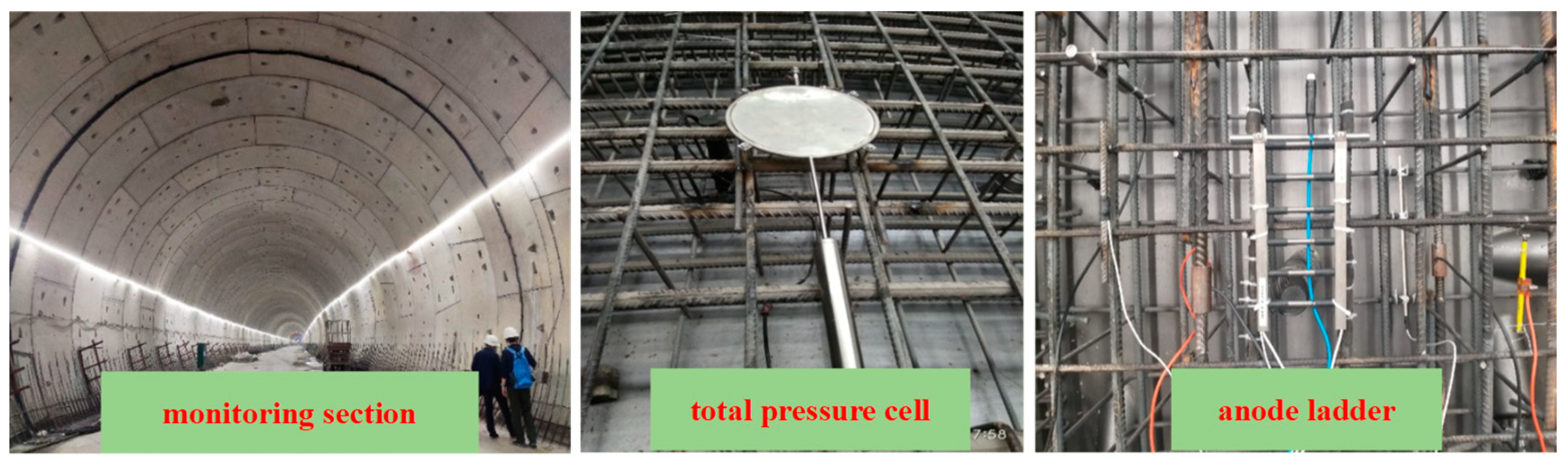

#### 5.2. General Situation of the Health Monitoring System of the Dalian Subsea Tunnel Structure

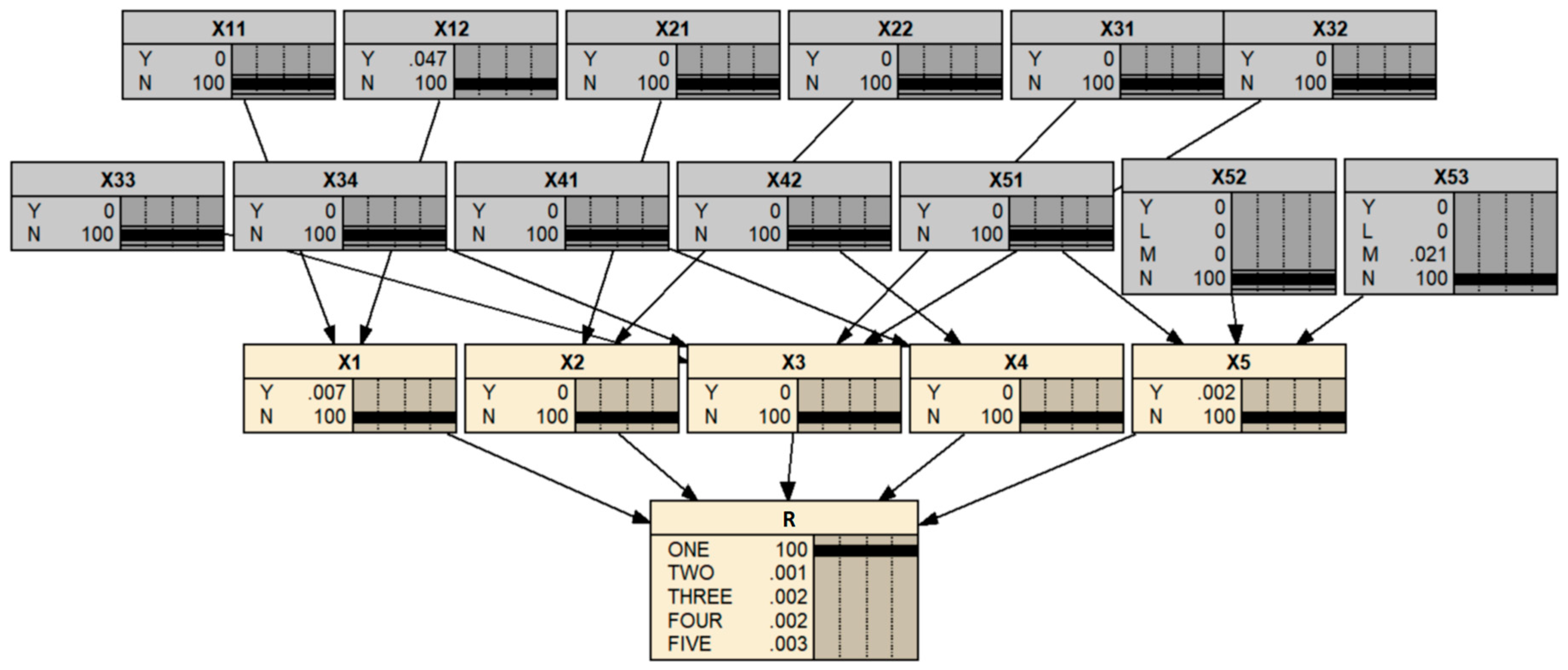

#### 5.3. Health Risk Prediction of the Dalian Subsea Tunnel Structure

## 6. Conclusions and Suggestion

- (1)
- The health risk prediction method for the operational subsea metro shield tunnel structure is proposed based on a discrete Bayesian network, Noisy-OR gate model, and Noisy-MAX model, combining with engineering detection and monitoring data of 13 risk factors in five aspects such as structure mechanical condition, material properties, structural integrity state, environmental state, and structural deformation state.
- (2)
- The Noisy-OR gate and Noisy-MAX models are used to calculate the conditional probabilities of variables, which ensures that the workload of experts increases linearly with the number of parent nodes, rather than exponentially. And the workload of experts is significantly reduced.
- (3)
- Based on the proposed health risk prediction method and expert experience with tunnel structures of poor health status, it is calculated that the probability of structural health risk is at level 4 and level 5, reaching 22.9% and 32.5%, respectively. It shows the rationality of the prediction model proposed in this paper.
- (4)
- The proposed health risk prediction method is used to predict the health risk of the Dalian subsea metro tunnel structure. The health risk prediction outcomes are consistent with the actual operational status, which verifies the rationality of the method and provides decision support for health risk management.
- (5)
- Based on the proposed health risk prediction method, health risk prediction is carried out by combination with engineering field detection and monitoring data, which effectively reflect the real service state of the shield tunnel structure.

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Xiao, M.Q. Reprcsentativc projecis and development trend of underwater shield lunnels in China. Tunn. Constr.
**2018**, 38, 360–371. [Google Scholar] - Chen, J.Q.; Feng, X.Y.; Wei, H.; Feng, H.H. Statistics on underwater tunnels in China. Tunn. Constr.
**2021**, 41, 483–516. [Google Scholar] - Li, J.; Wei, D.H.; Cao, Y.Y.; Du, H.G. Geophysical prospecting for Xiang an Submarine Tunnel in Xiamen. J. Railw. Eng. Soc.
**2010**, 144, 27–31. [Google Scholar] - Pan, G.D.; Zhou, S.M.; Duan, W.Z. Risk assessment and contrl of grouting construction of Qingdao Jiaozhouwan tunnel in subsea zone. J. Shi Jia Zhang Tiedao Univ. (Nat. Sci.)
**2010**, 23, 53–57. [Google Scholar] - Xu, H.Y. Research on Risk Assessment of Operational Tunnelucture Based on Bayesian Network. Master’s Thesis, Hu Bei University of Technology, Wuhan, China, 2023. [Google Scholar]
- Hou, J.Y.; Yang, Q.X.; Guo, C. Study on Comprehensive Evaluation of Operation Safety of Long Highway Tunnel. Railw. Stand. Des.
**2015**, 59, 88–91+109. [Google Scholar] - Luo, Y.; Li, Y.W.; Yuan, J.W.; Liu, D.G.; Wang, M.N. Study on Risk Assessment of Highway Tunnel Operational Safety. Mod. Tunn. Technol.
**2016**, 53, 25–30. [Google Scholar] - Pan, Z.Z.; Wu, H.B.; Liao, J.H.; Wang, R.G. Study of Risk Management Techniques for Expressway Tunnels at Operation Phase. High Way
**2017**, 62, 141–146. [Google Scholar] - Wang, Z.J.; Wang, R.L.; Shu, Y.X.; Wei, R.; Wang, Z.J.; Tan, J. Study on operation safety risk assessment of the extra-long expressway tunnel and tunnel group. Mod. Tunn. Technol.
**2019**, 56 (Suppl. S2), 36–43. [Google Scholar] - Xu, C.; Liu, X.L.; Wang, E.Z.; Wang, S.J. Prediction and classification of strain mode rockburst based on five-factor criterion and combined weight-ideal point method. Chin. J. Geotech. Eng.
**2017**, 39, 2245–2252. [Google Scholar] - Luo, Y.P.; Gao, G.F.; Wu, H.L. Study on Fuzzy evaluating system of traffic safety in higyway tunnel. J. Shi Jia Zhang Tiedao Univ.
**2006**, 19, 75–79. [Google Scholar] - Gong, H.J. Reseath of Operation Safety Comprehensive Evaluation on the Tunnel of Freeway. Ph.D. Thesis, Chang’an University, Xi’an, China, 2009. [Google Scholar]
- Cheng, Y.; Liu, Z.B.; Liu, S.Y.; Cai, G.J.; Tong, L.Y. Risk recognition of construction of large-span and shallow buried-highway tunnels based on analytic hierarchy process. Chin. J. Geotech. Eng.
**2011**, 33 (Suppl. S1), 198–202. [Google Scholar] - Khademi Hamidi, J.; Shahriar, K.; Rezai, B.; Rostami, J.; Bejari, H. Risk assessment based selection of rock TBM for adverse geological conditions using Fuzzy-AHP. Bull. Eng. Geol. Environ.
**2010**, 69, 523–532. [Google Scholar] [CrossRef] - Aliahmadi, A.; Sadjadi, S.J.; Jafari-Eskandari, M. Design a new intelligence expert decision making using game theory and fuzzy AHP to risk management in design, construction, and operation of tunnel projects (case studies: Resalat Tunnel). Int. J. Adv. Manuf. Technol.
**2011**, 53, 789–798. [Google Scholar] [CrossRef] - Liu, H.; Sun, S.M.; Zhang, X.M. Study and application of safety fuzzy assessment model for highway tunnel construction. Mod. Tunneling Technol.
**2008**, 45, 5–9. [Google Scholar] - Liu, W. Risk Assessment and Its Application in Mountain Highway Tunnel Construction. Master’s Thesis, Changan University, Xi’an, China, 2011. [Google Scholar]
- Ma, A.Z. Research on Safety Risk Assessment and Its Application in Long and Large Tunnel Construction. Master’s Thesis, Southwest Jiaotong University, Chengdu, China, 2016. [Google Scholar]
- Tian, Y.; Ma, R.J.; Chen, A.R. Safety risk assessment for interactive influences between adjacent and parallel high-speed railway bridges and highway. J. Vib. Shock.
**2016**, 35, 69–75. [Google Scholar] - Hyun, K.C.; Min, S.; Choi, H. Risk analysis using fault-tree analysis (FTA) and analytic hierarchy process (AHP) applicable to shield TBM tunnels. Tunn. Undergr. Space Technol.
**2015**, 49, 121–129. [Google Scholar] [CrossRef] - Wang, Z.C.; Lu, B.Q.; Li, S.C. Risk assessment for an underground crude oil storage facility with water-curtaining system during construction phase. Chin. J. Geotech. Eng.
**2015**, 37, 1057–1067. [Google Scholar] - Špačková, O.; Novotná, E.; Šejnoha, M. Probabilistic models for tunnel construction risk assessment. Adv. Eng. Softw.
**2013**, 62, 72–84. [Google Scholar] [CrossRef] - Jiang, S.H.; Yang, J.H.; Yao, C. Quantitative risk assessment of slop failure considering spatial variability of soil properties. Eng. Mech.
**2018**, 35, 136–147. [Google Scholar] - Kampmann, J.; Eskesen, S.; Summers, J. Risk assessment helps select the contractor for the Copenhagen Metro System. Proc. World Tunn. Congr.
**1998**, 98, 123–128. [Google Scholar] - Xiang, W.; Zhou, W. Bayesian network model for predicting probability of third-party damage to underground pipelines and learning model parameters from incomplete datasets. Reliab. Eng. Syst. Saf.
**2021**, 20, 107–262. [Google Scholar] [CrossRef] - Lu, X.Y.; Xu, C.S.; Hou, B.W. Risk assessment of metro construction based on dynamic Bayesian network. Chin. J. Geotech. Eng.
**2022**, 44, 492–501. [Google Scholar] - Xu, X.L.; Ma, W.B.; Cai, D.G. Research on the whole life cycle detection and monitoring system of railway tunnel. Mod. Tunn. Technol.
**2021**, 58, 31–40. [Google Scholar] - Huang, Z.; Fu, H.L.; Huang, H.C.W. A method for evaluating the structural health status of shield tunnel in operating subway. J. Undergr. Space Eng.
**2018**, 14, 1410–1418. [Google Scholar] - Zagorecki, A.; Druzdzel, M.J. An empirical study of probability elicitation under Noisy-or assumption. In Proceedings of the American Association for Artificial Intelligence Flairs Conference, Miami Beach, FL, USA, 17–19 May 2004. [Google Scholar]
- Rui, M.; Yadi, W. Knowledge engineering for Bayesian networks: How common are Noisy-max distributions in practice. IEEE Trans. Syst. Man Cybern. Syst.
**2013**, 43, 186–195. [Google Scholar] - Gao, X.L.; Chen, H.Y. Discrete Dynamic Bayesian Network Inference and Its Application; National Defense Industry Press: Beijing, China, 2016. [Google Scholar]
- Weber, P.; Medina-Oliva, G.; Simon, C.; Lung, B. Overview on Bayesian networks applications for dependability, risk analysis and maintenance areas. Eng. Appl. Artif. Intell.
**2012**, 25, 671–682. [Google Scholar] [CrossRef] - GB 50652-2011; Code for Risk Management of Underground Works in Urban Rail Transit. China Standards Press: Beijing, China, 2011.
- Zhang, L.W.; Guo, H.H. Introduction to Bayesian Networks; Science Press: Beijing, China, 2006. [Google Scholar]
- GB 39559.3-2020; Specifications for Operational Monitoring of Urban Rail Transit Facilities—Part 3: Tunnel. China Standards Press: Beijing, China, 2020.

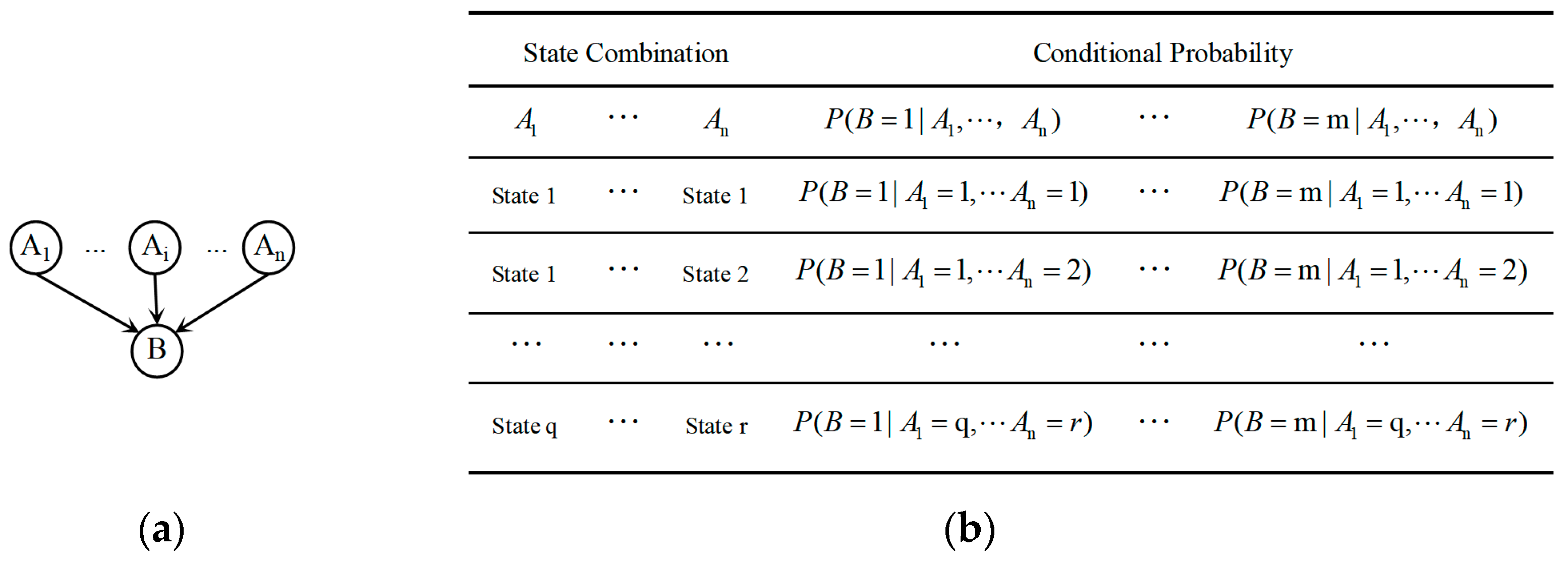

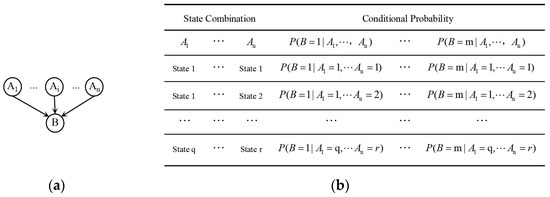

**Figure 1.**Schematic graph of discrete Bayesian network. (

**a**) A directed acyclic graph; (

**b**) conditional probability table.

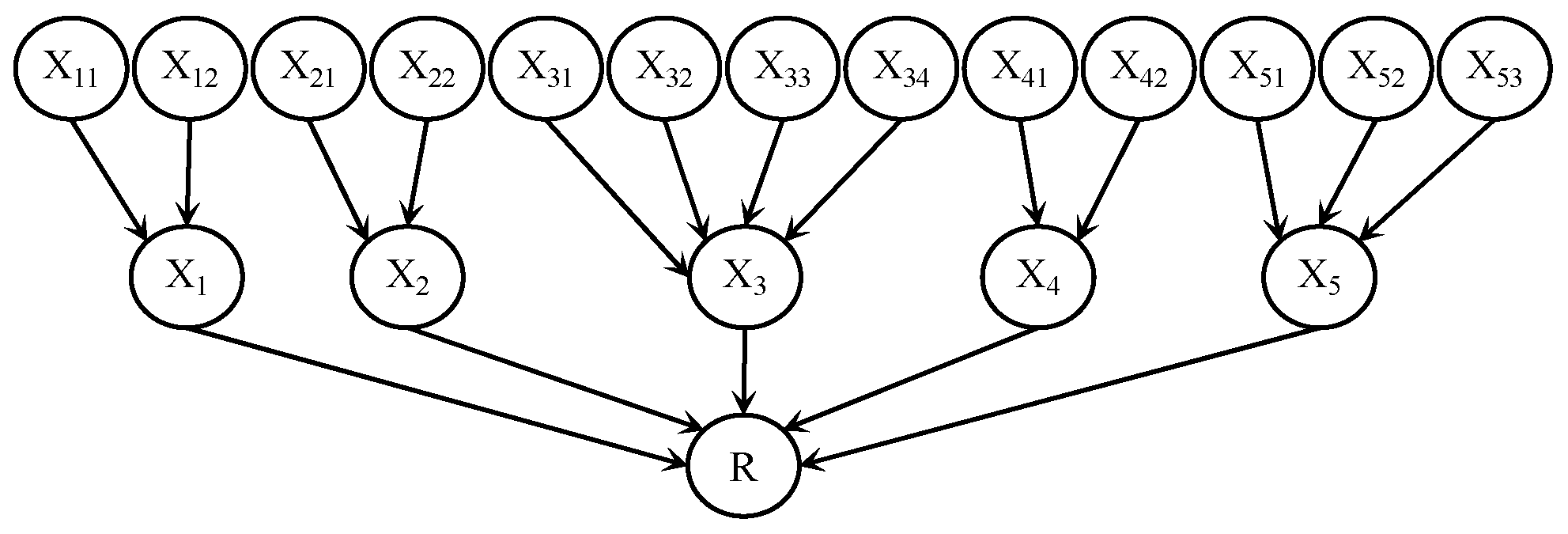

**Figure 4.**Bayesian network framework for the health risk of operational subsea metro tunnel structure.

**Table 1.**Tunnel structure status and disposal measures corresponding to various levels of health risk.

Level | Tunnel Structure Status | Disposal Measures |
---|---|---|

Level 1 | Excellent | Normal operation, regular monitoring |

Level 2 | Good | Normal operation, enhanced monitoring |

Level 3 | Fair | Normal operation, requiring maintenance |

Level 4 | Poor | Conducting a safety assessment to determine whether to restrict the use |

Level 5 | Very poor | Conducting a safety assessment to determine whether to stop the use |

State | Tunnel Headroom Convergence | Tunnel Vertical Displacement |
---|---|---|

N | <6‰ | <1 mm/a |

M | ≥6‰, <9‰ | ≥1 mm/a, <3 mm/a |

L | ≥9‰, <12‰ | ≥3 mm/a, <10 mm/a |

Y | ≥12‰ | ≥10 mm/a |

X_{11} | X_{12} | X_{1} = Y | X_{1} = N |
---|---|---|---|

Y | Y | 0.564 | 0.436 |

Y | N | 0.205 | 0.795 |

N | Y | 0.452 | 0.548 |

N | N | 0.000 | 1.000 |

**Table 4.**Conditional probability of the node “Health risk associated with the operational subsea metro tunnel structure R”.

Stress State X _{1} | Material Performance X _{2} | Integrity State X _{3} | Environmental Conditions X _{4} | Deformation State X _{5} | Likelihood Level of Health Risk | ||||
---|---|---|---|---|---|---|---|---|---|

Impossible (r = 1) | Rare (r = 2) | Occasional (r = 3) | Possible (r = 4) | Frequent (r = 5) | |||||

Y | Y | Y | Y | Y | 0.000 | 0.000 | 0.004 | 0.071 | 0.925 |

Y | Y | Y | Y | N | 0.000 | 0.000 | 0.006 | 0.072 | 0.922 |

Y | Y | Y | N | Y | 0.000 | 0.002 | 0.023 | 0.220 | 0.754 |

Y | Y | Y | N | N | 0.000 | 0.004 | 0.030 | 0.212 | 0.754 |

Y | Y | N | Y | Y | 0.000 | 0.001 | 0.009 | 0.097 | 0.893 |

Y | Y | N | Y | N | 0.000 | 0.001 | 0.012 | 0.098 | 0.889 |

Y | Y | N | N | Y | 0.000 | 0.008 | 0.048 | 0.277 | 0.666 |

Y | Y | N | N | N | 0.002 | 0.016 | 0.058 | 0.273 | 0.651 |

Y | N | Y | Y | Y | 0.000 | 0.001 | 0.019 | 0.107 | 0.873 |

Y | N | Y | Y | N | 0.000 | 0.003 | 0.024 | 0.106 | 0.867 |

Y | N | Y | N | Y | 0.000 | 0.016 | 0.098 | 0.284 | 0.601 |

Y | N | Y | N | N | 0.002 | 0.031 | 0.120 | 0.264 | 0.584 |

Y | N | N | Y | Y | 0.000 | 0.005 | 0.039 | 0.136 | 0.819 |

Y | N | N | Y | N | 0.002 | 0.009 | 0.048 | 0.130 | 0.812 |

Y | N | N | N | Y | 0.009 | 0.058 | 0.188 | 0.311 | 0.435 |

Y | N | N | N | N | 0.042 | 0.090 | 0.205 | 0.253 | 0.410 |

Categories of risk factors | X_{1} | X_{2} | X_{3} | X_{4} | ||||||

Risk factor indicators | X_{11} | X_{12} | X_{21} | X_{22} | X_{31} | X_{32} | X_{33} | X_{34} | X_{41} | X_{42} |

Risk factor status | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |

Prior probability | 28 | 32 | 33 | 25 | 22 | 21 | 35 | 35 | 32 | 33 |

Categories of risk factors | X_{5} | |||||||||

Risk factor indicators | X_{51} | X_{52} | X_{53} | |||||||

Risk factor status | Y | N | M | L | Y | N | M | L | Y | |

Prior probability | 42 | 13 | 20 | 32 | 35 | 10 | 21 | 34 | 35 |

Number | Monitoring Content | Monitoring Index | Sensor Type |
---|---|---|---|

1 | Structural mechanical condition | Internal force in steel bars | Instrumented rebar |

2 | Strain of concrete | Concrete strain meter | |

3 | Structural load | Surrounding rock pressure | Total pressure cell |

4 | Surrounding rock pore water pressure | Vibrating wire piezometer | |

5 | Durability of structure | Steel corrosion | Anode ladder |

6 | Structural vibration | Acceleration | Accelerometer |

7 | Structure leaking | Leakage | Distributed optical fiber |

8 | Structural distortion | Segment misalignment, Tunnel vertical displacement | Distributed optical fiber |

Categories of risk factors | X_{1} | X_{2} | X_{3} | X_{4} | ||||||

Risk factor indicators | X_{11} | X_{12} | X_{21} | X_{22} | X_{31} | X_{32} | X_{33} | X_{34} | X_{41} | X_{42} |

Risk factor status | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |

Measured probability | 0 | 0.001 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |

Categories of risk factors | X_{5} | |||||||||

Risk factor indicators | X_{51} | X_{52} | X_{53} | |||||||

Risk factor status | Y | N | M | L | Y | N | M | L | Y | |

Measured probability | 0 | 1 | 0 | 0 | 0 | 0.9999 | 0.0001 | 0 | 0 |
