Next Article in Journal
Investigation on Springback Behavior of Cu/Ni Clad Foils during Flexible Die Micro V-Bending Process
Previous Article in Journal
Influence of Nickel Powders on Corrosion Resistance of Cold Sprayed Coatings on Al7075 Substrate
Previous Article in Special Issue
Continuous Electron Beam Post-Treatment of EBF3-Fabricated Ti–6Al–4V Parts
Article Menu

Export Article

Open AccessArticle

Initial β Grain Size Effect on High-Temperature Flow Behavior of Tb8 Titanium Alloys in Single β Phase Field

1
Guizhou Key Laboratory of Materials Mechanical Behavior and Microstructure, College of Materials and Metallurgy, Guizhou University, Guiyang 550025, China
2
College of Materials Science and Engineering, Hunan University of Science and Technology, Xiangtan 411201, China
*
Author to whom correspondence should be addressed.
Metals 2019, 9(8), 891; https://doi.org/10.3390/met9080891
Received: 25 June 2019 / Revised: 5 August 2019 / Accepted: 9 August 2019 / Published: 15 August 2019
(This article belongs to the Special Issue Titanium Alloys: Processing and Properties)
  |
PDF [13580 KB, uploaded 15 August 2019]
  |

Abstract

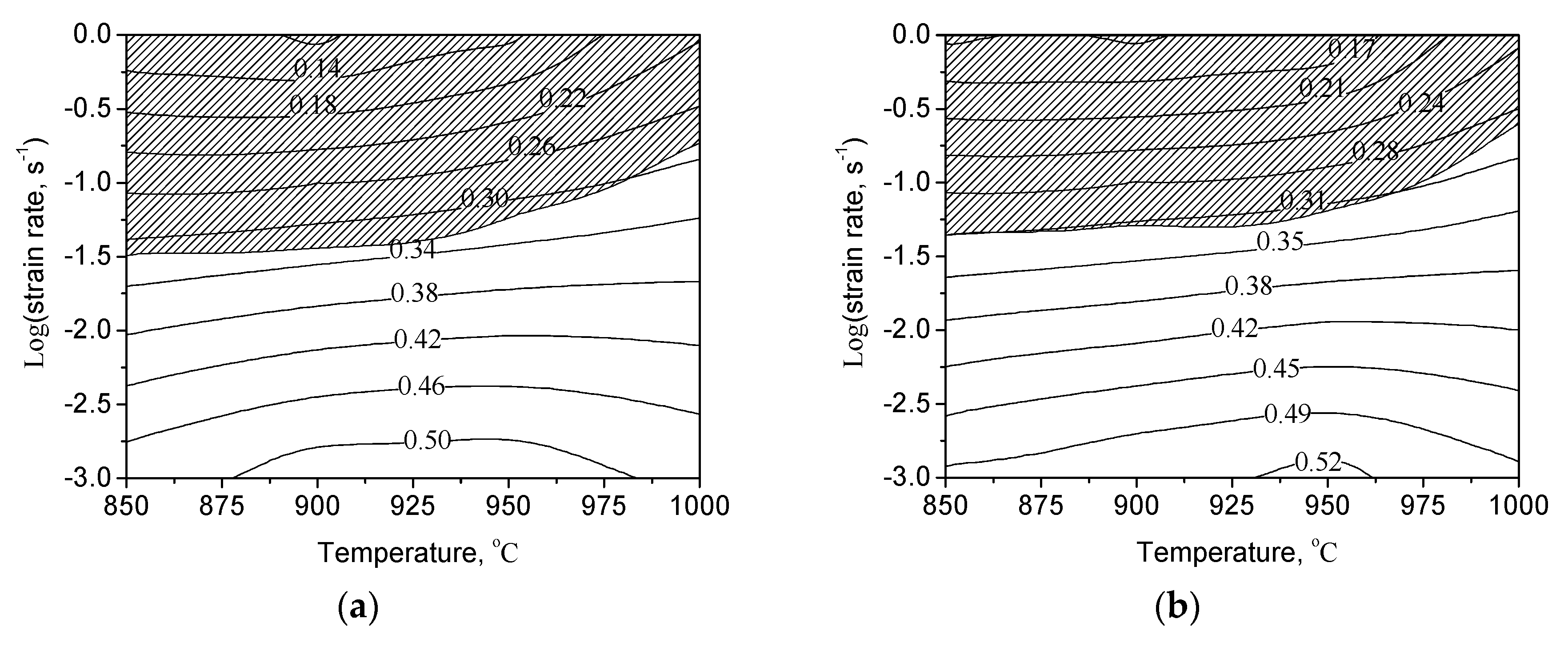

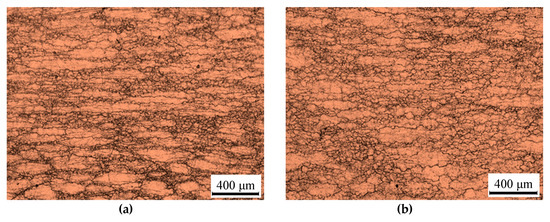

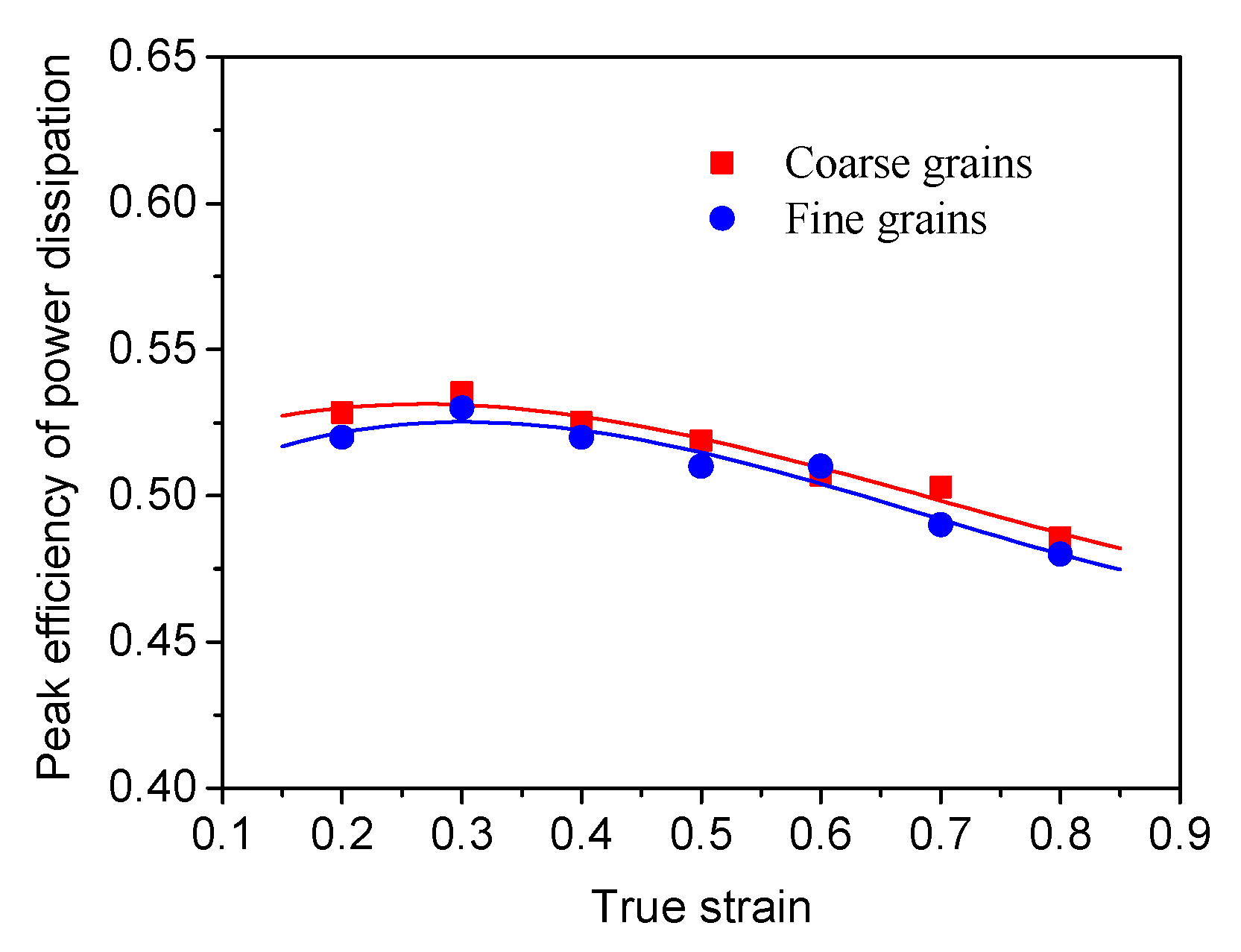

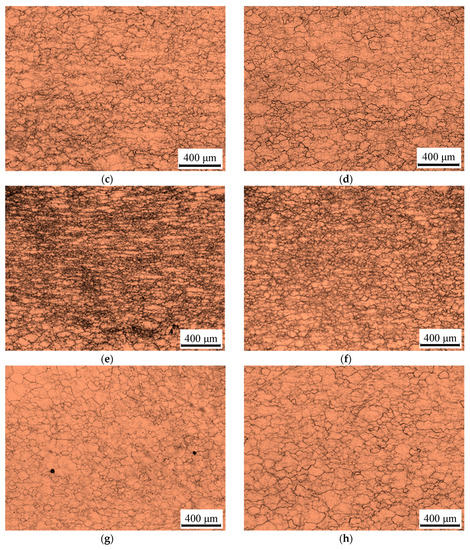

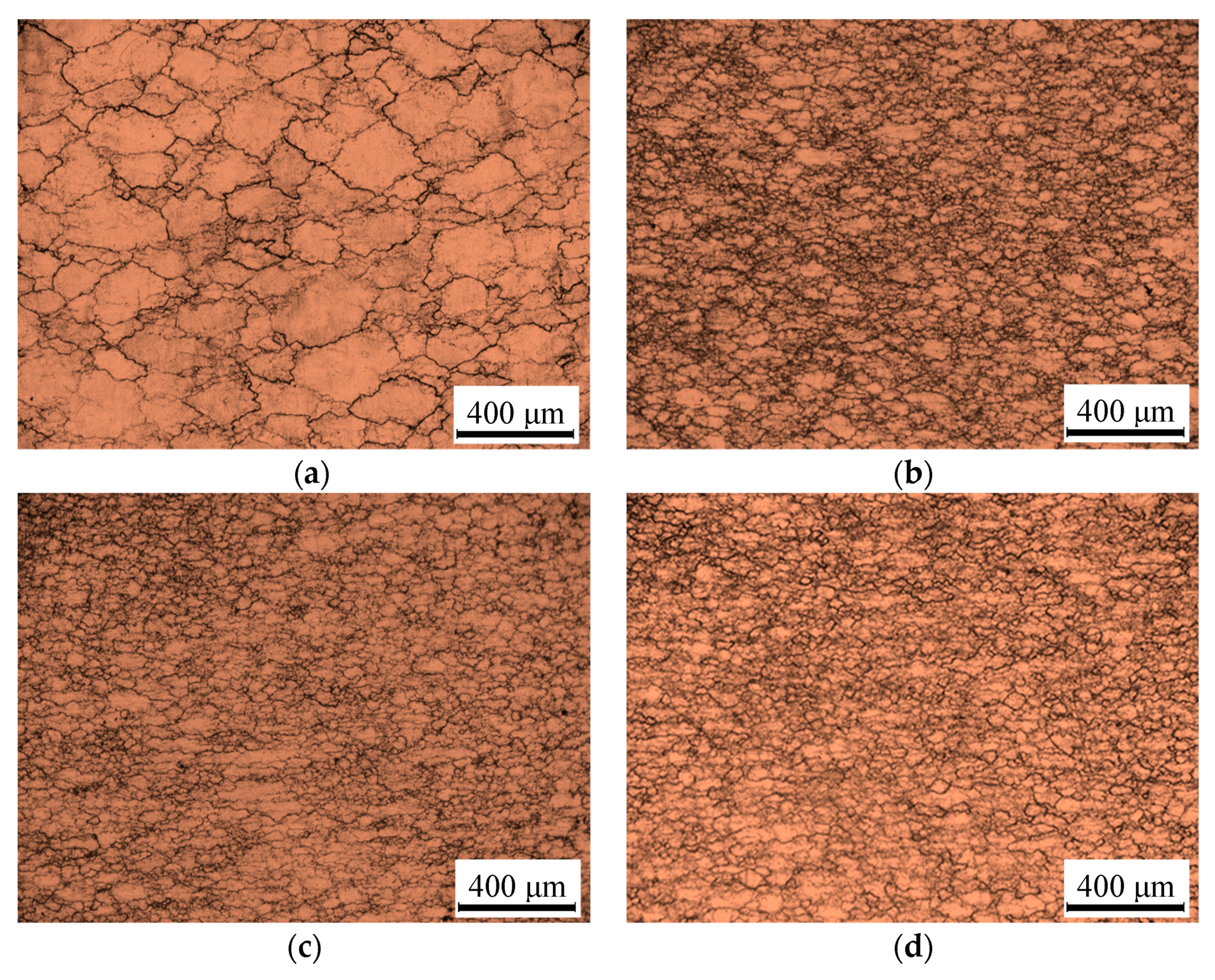

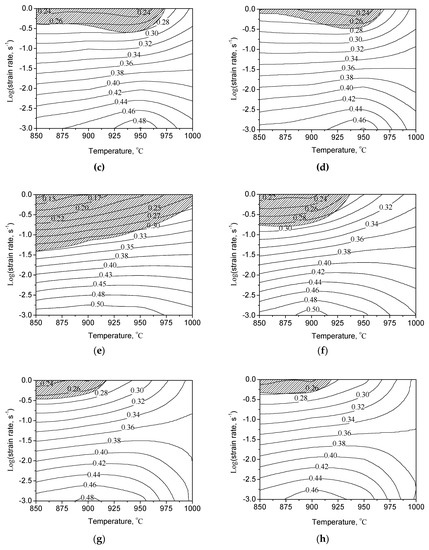

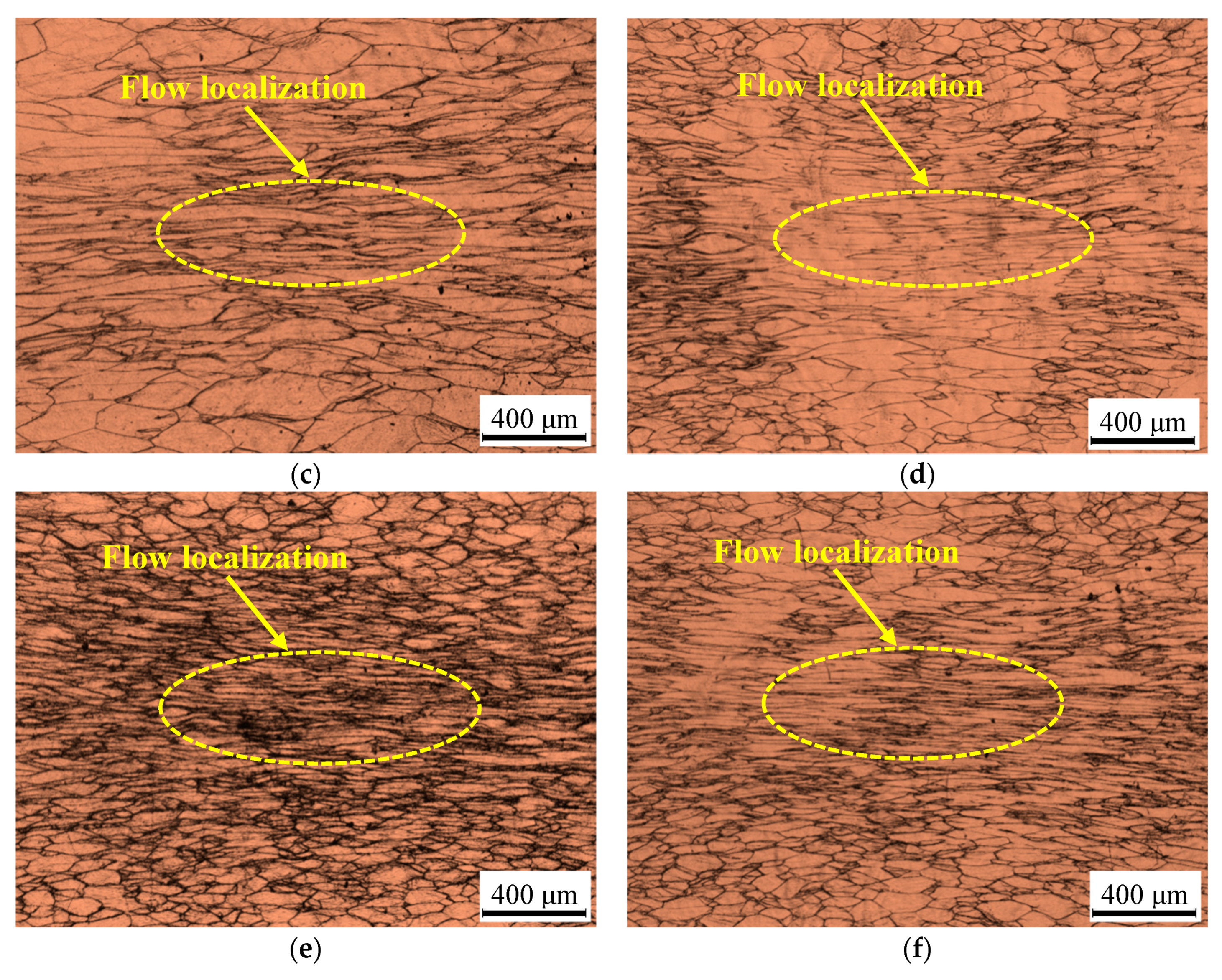

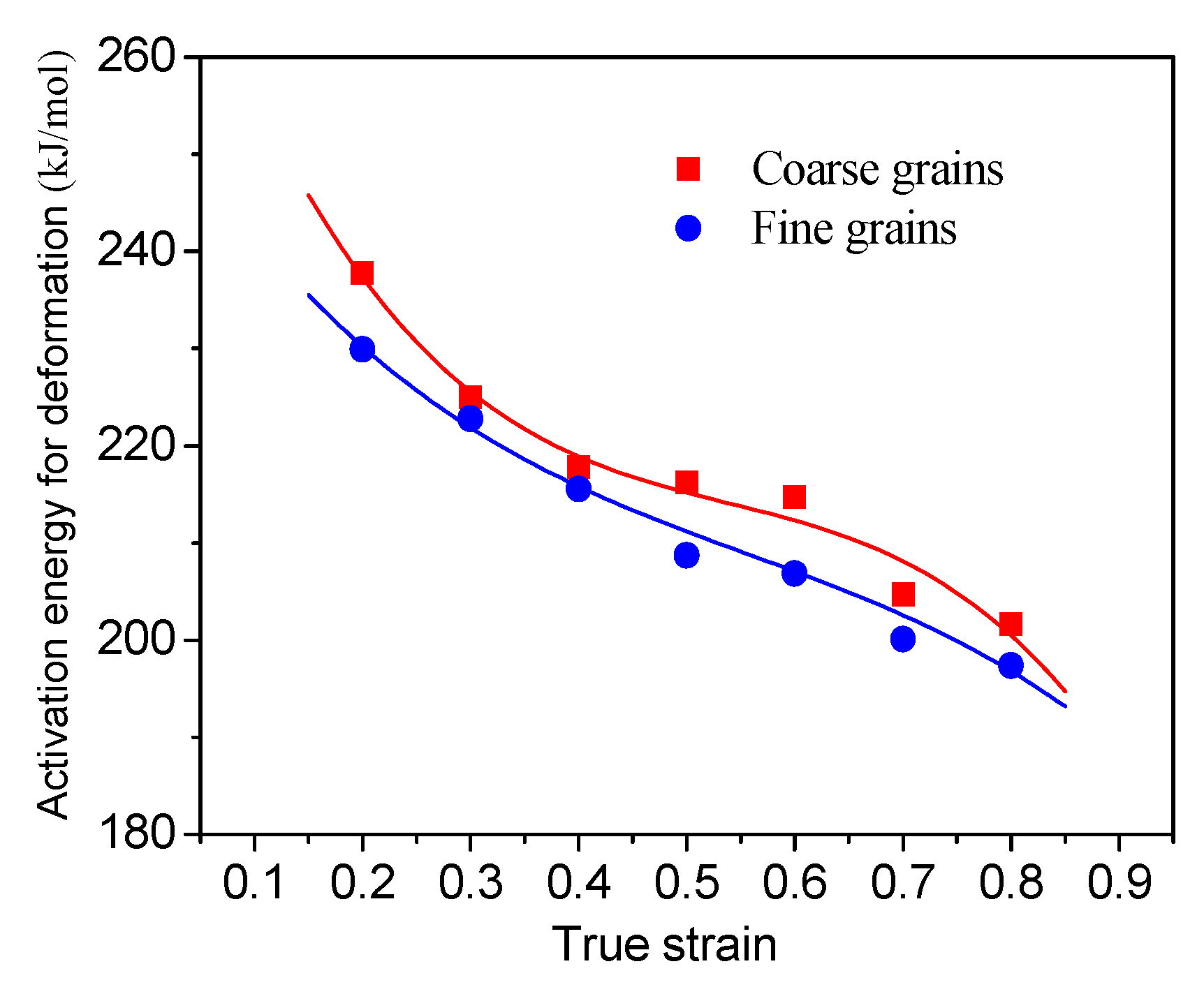

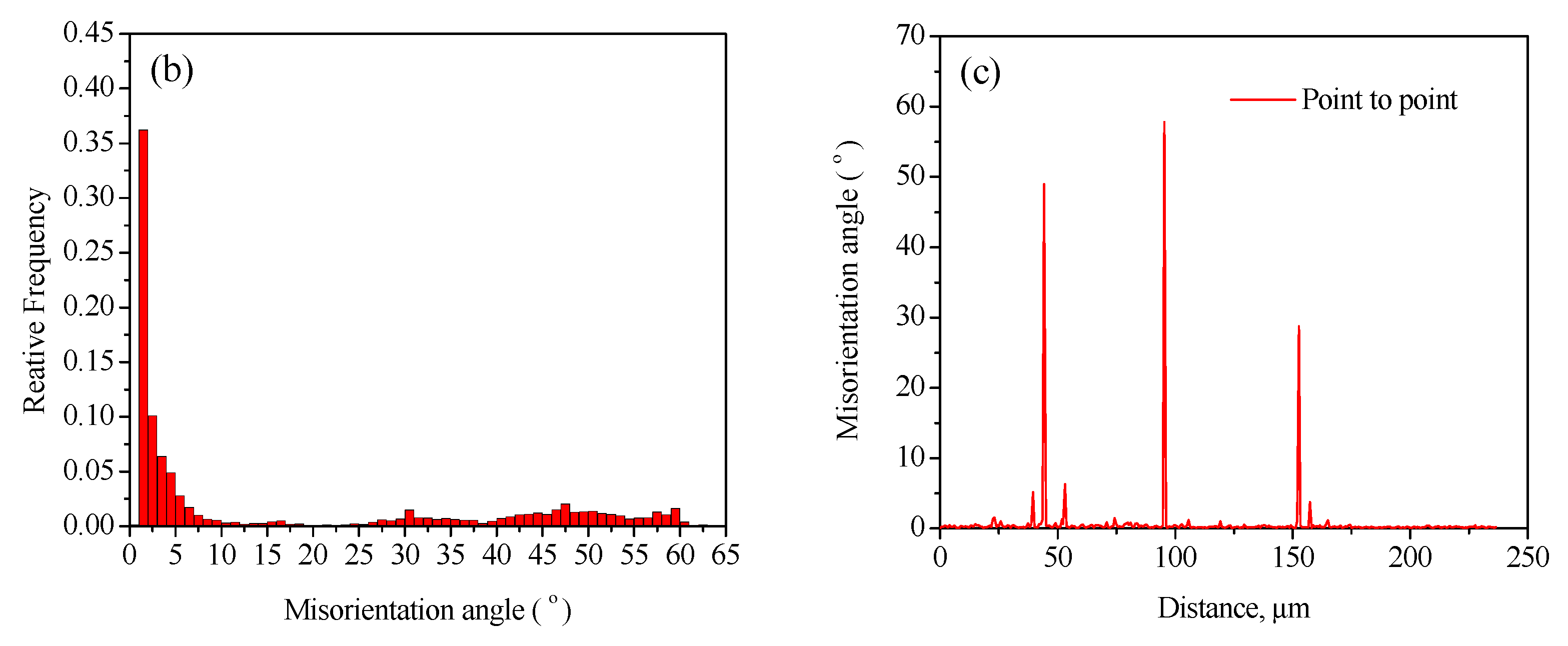

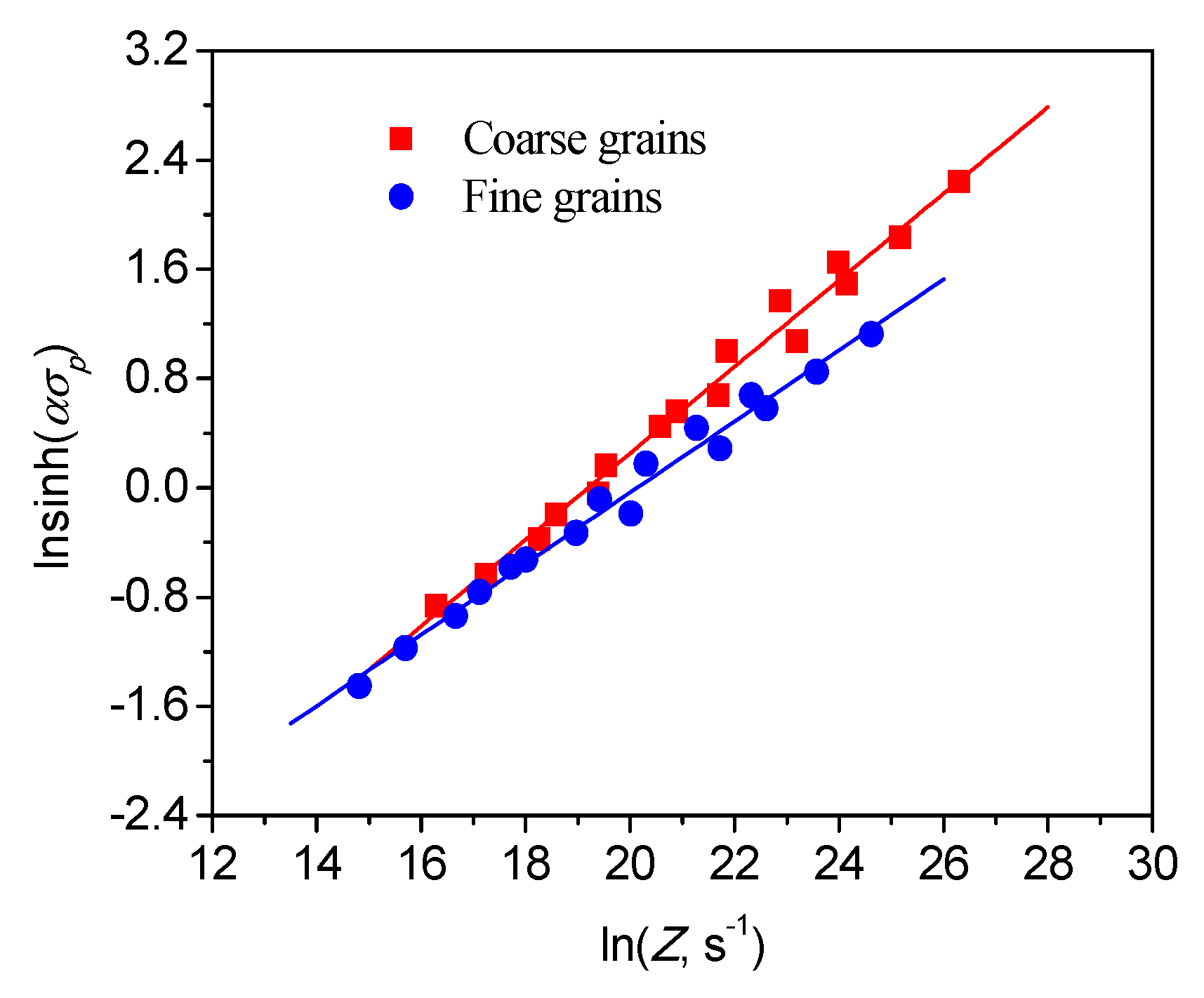

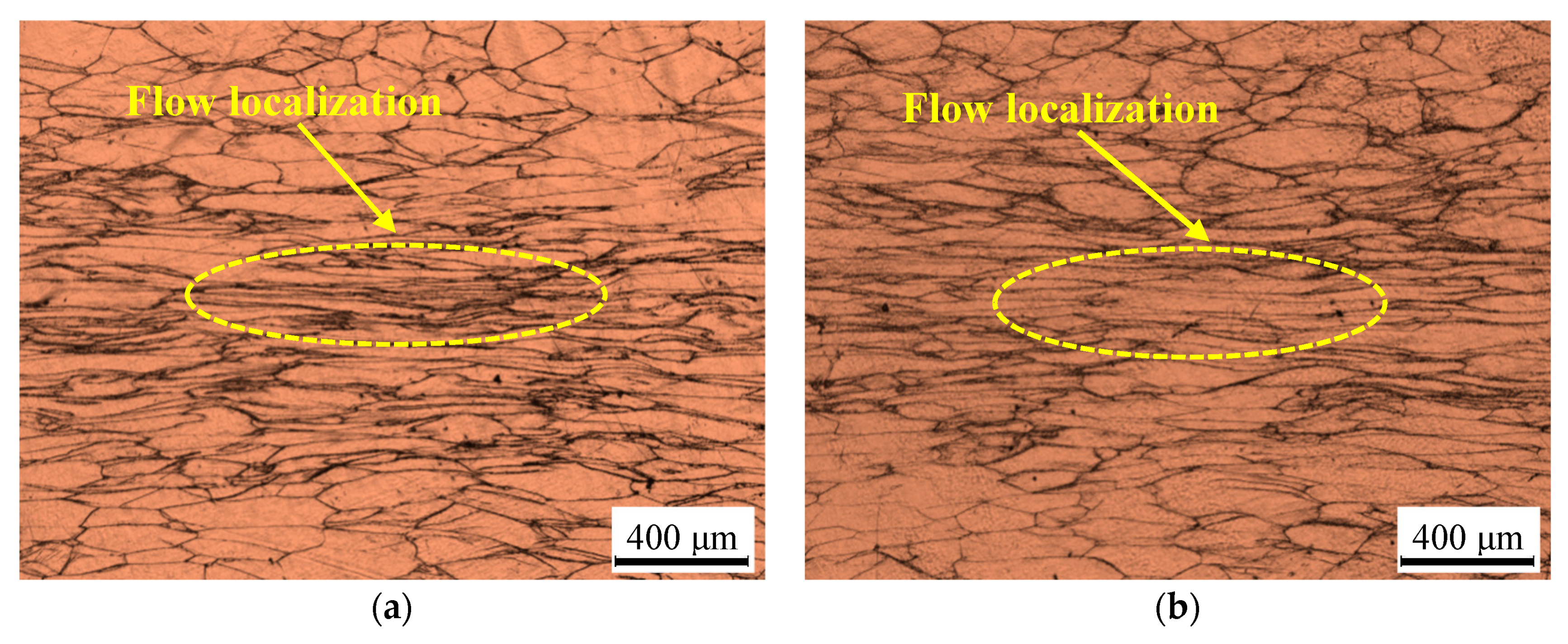

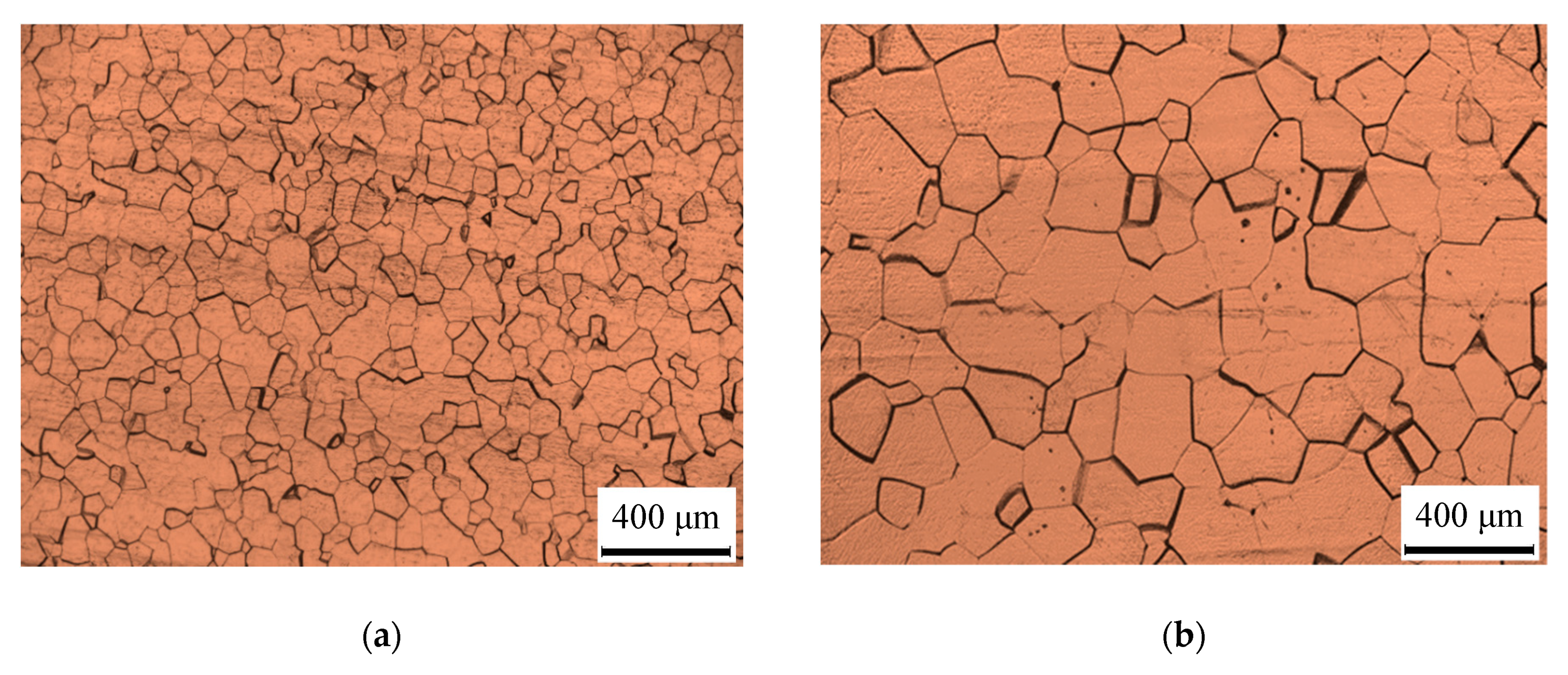

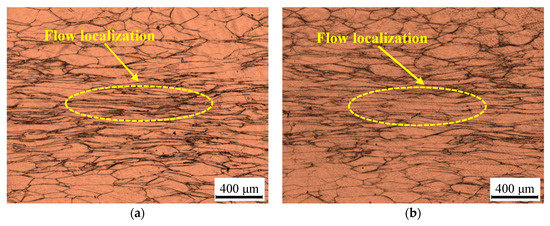

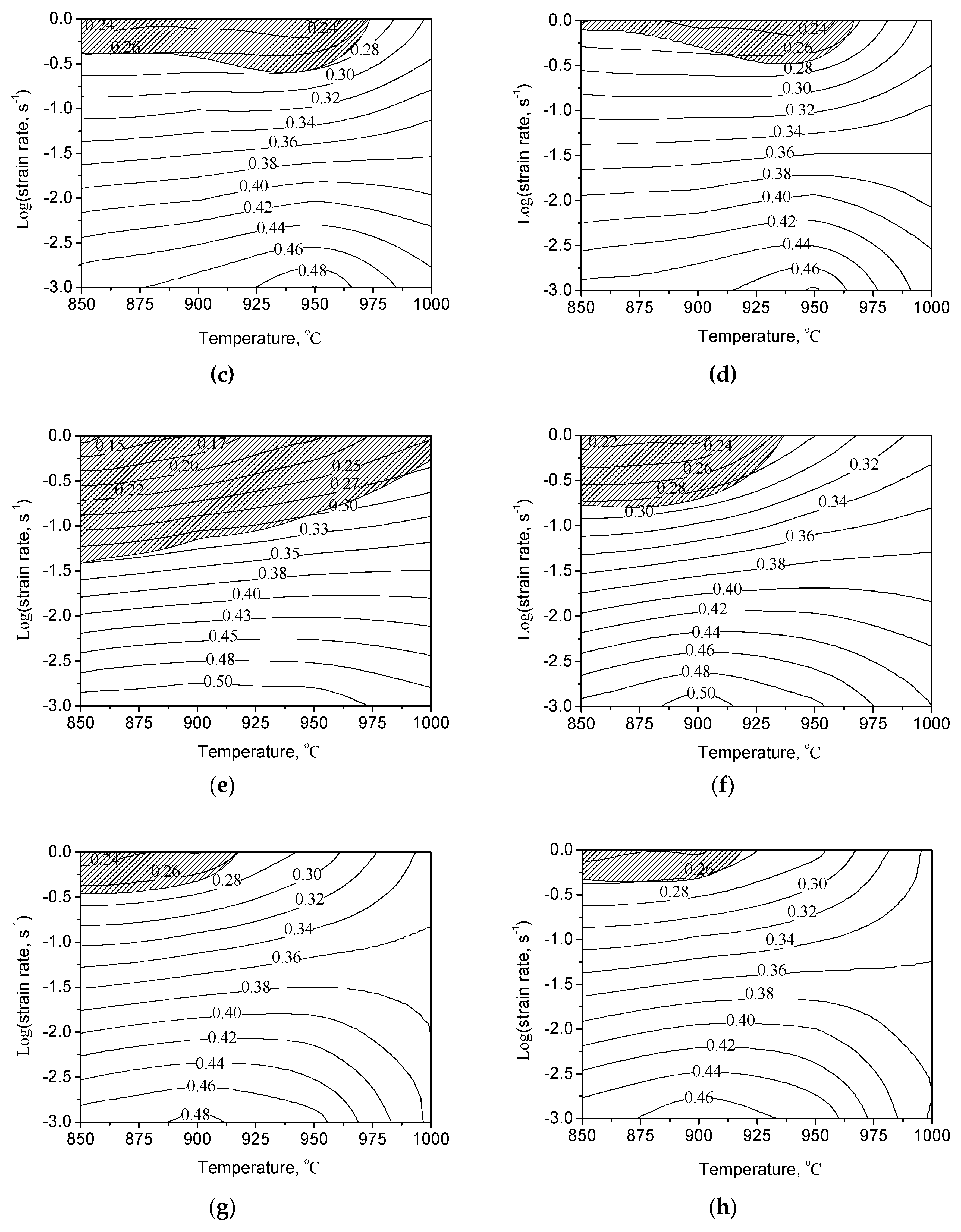

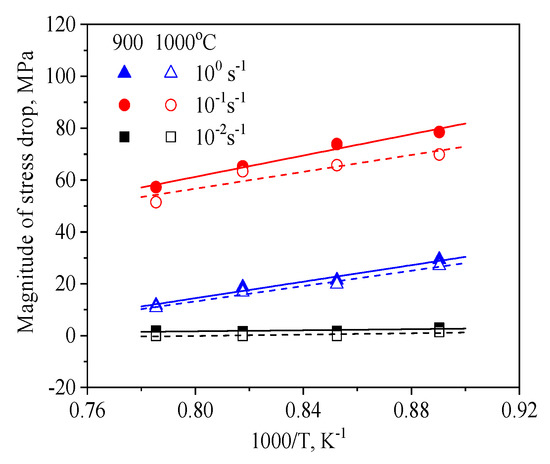

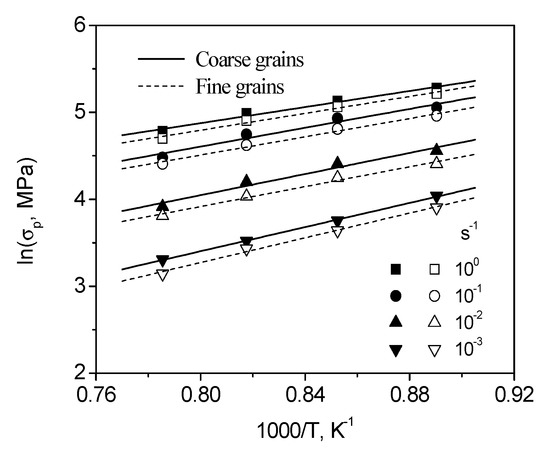

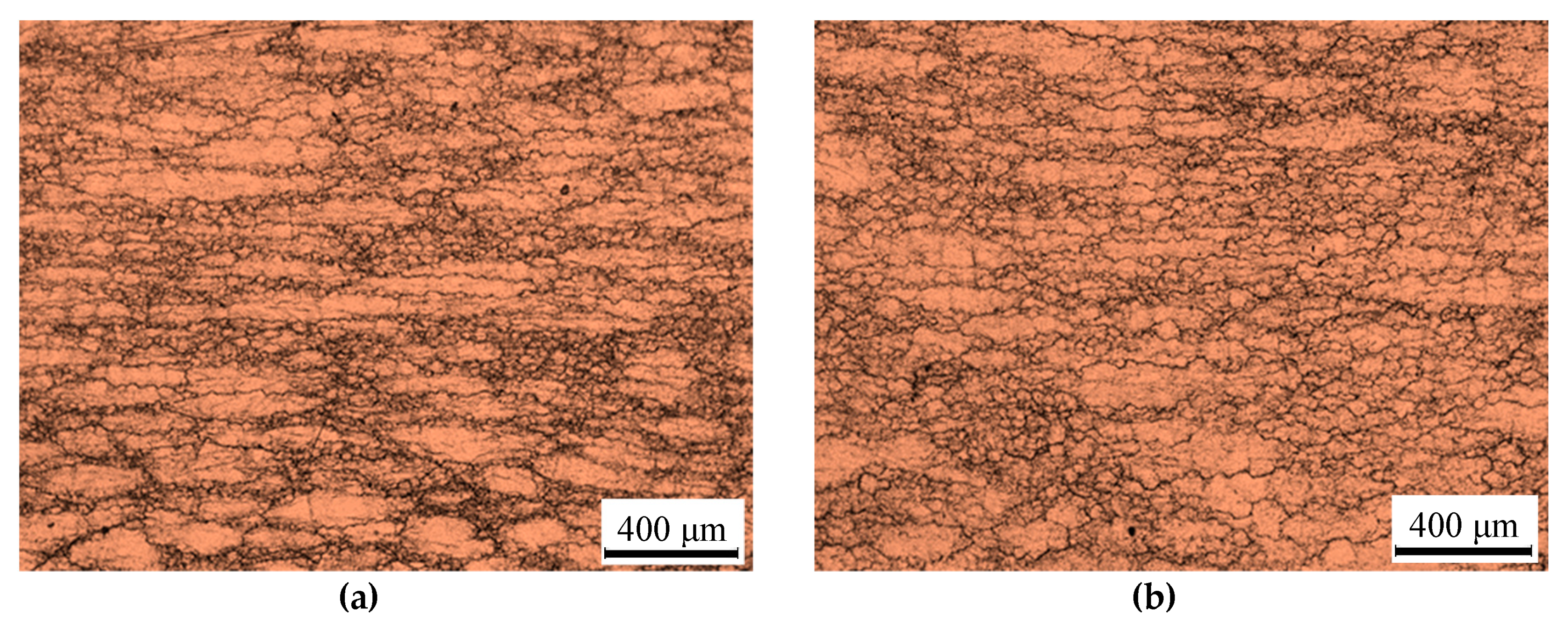

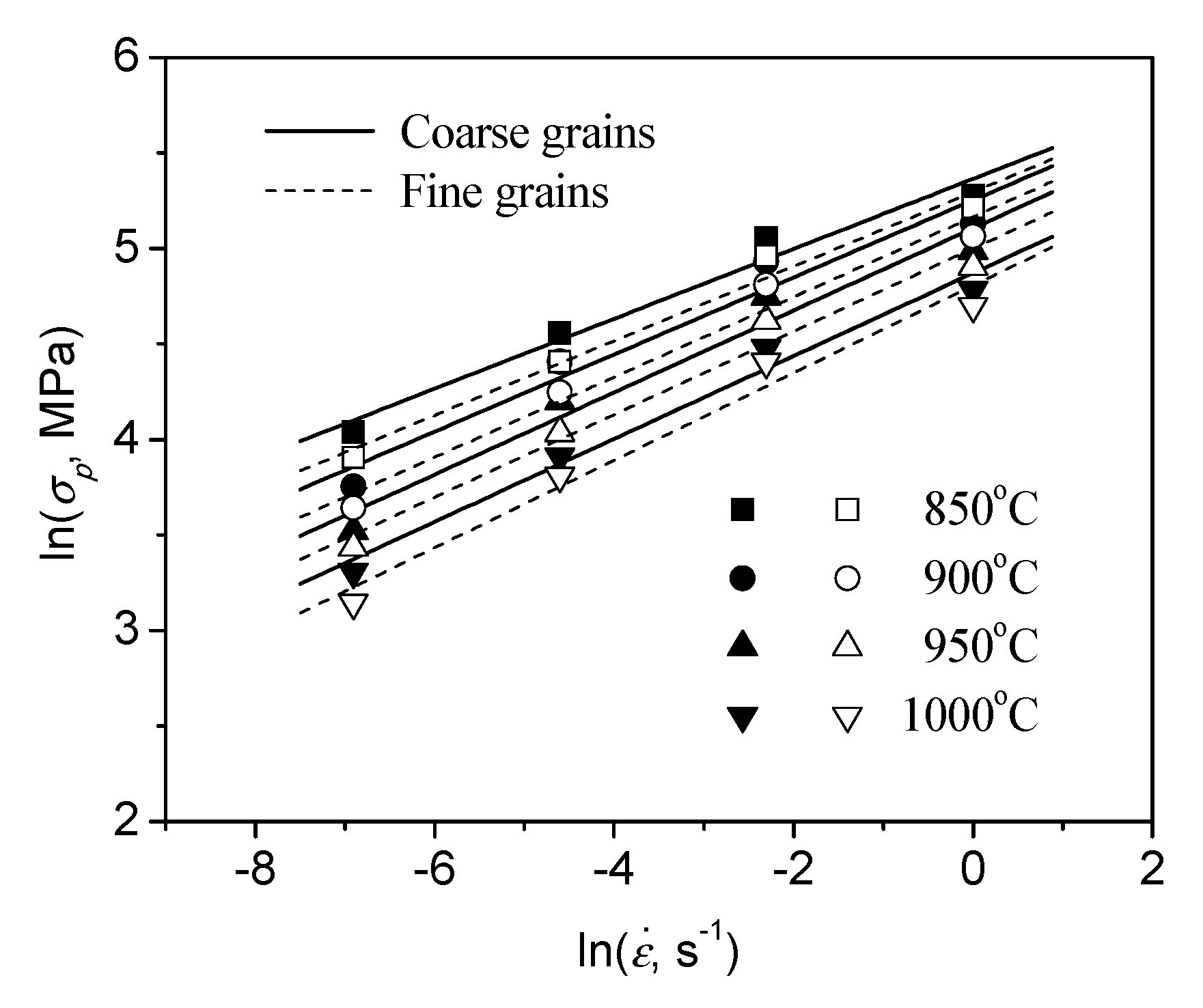

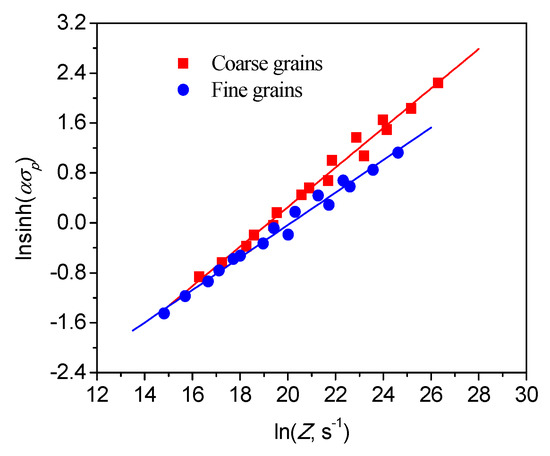

The high-temperature flow behavior of TB8 titanium alloys with two different grain sizes was investigated in this present work. Results show that a significant characteristic of stress drop is visible at the start stage of the hot deformation process when the strain rates are 100 and 10−1 s−1. With the further increasing of strain, the flow stress initially rises to a maximum value and subsequently attains a plateau for the strain rates of 100 s−1 and a slight decrease for the strain rates of 10−1 s−1. Only dynamic recovery occurs under these deformation conditions. When the strain rates drop to 10−3 s−1, the dynamic recrystallization takes place during hot deformation. The values of deformation activation energy and materials constants at different strains were calculated. The processing maps at different strains were established for the fine- and coarse-grained alloys. The optimal processing parameter for hot processing was attained to be 900 °C/10−3 s−1 for fine-grained alloys and 950 °C/10−3 s−1 for coarse-grained alloys, respectively. View Full-Text
Keywords: TB8 titanium alloy; hot deformation; flow behavior; dynamic recrystallization; microstructure TB8 titanium alloy; hot deformation; flow behavior; dynamic recrystallization; microstructure
Figures

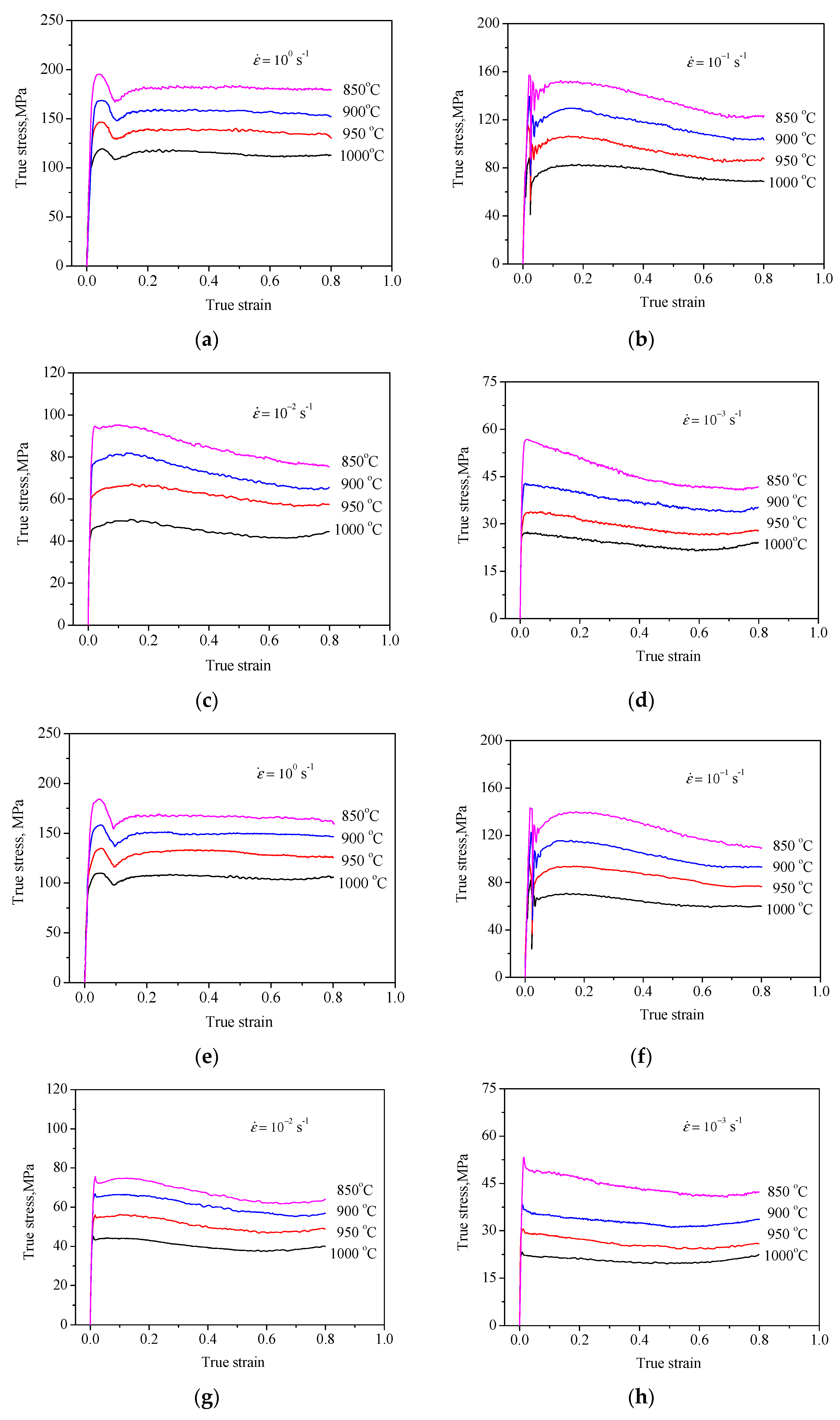

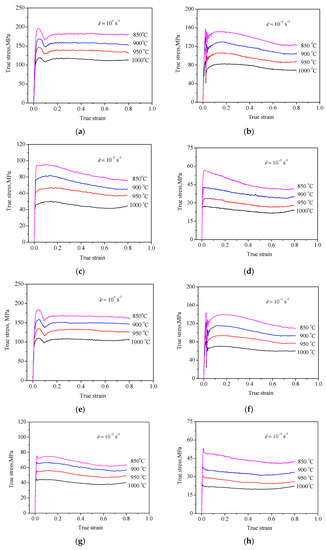

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Yang, Q.; Ma, M.; Tan, Y.; Xiang, S.; Zhao, F.; Liang, Y. Initial β Grain Size Effect on High-Temperature Flow Behavior of Tb8 Titanium Alloys in Single β Phase Field. Metals 2019, 9, 891.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
