Next Article in Journal
The Effects of Electrochemical Hydrogen Charging on Room-Temperature Tensile Properties of T92/TP316H Dissimilar Weldments in Quenched-and-Tempered and Thermally-Aged Conditions
Previous Article in Journal
In-Situ Synchrotron X-Ray Diffraction of Ti-6Al-4V During Thermomechanical Treatment in the Beta Field
Open AccessArticle

Effect of Experimental Aging on the Performance of Al-7.9Mg-13.3Zn and Al-10.5Mg-8.6Zn Alloys as Sacrificial Anodes

1
Facultad de Química-UNAM, Circuito de la Investigación Científica S/N, Mexico City 04510, Mexico
2
Facultad de Ingeniería, Universidad Anáhuac Mexico Norte. Avenida Lomas Anáhuac 46, Col. Lomas Anáhuac, Huixquilucan 52786, Mexico
3
Facultad de Ciencias Químicas e Ingeniería P.A. Ing. Mecánica, Universidad Autónoma del Estado de Morelos, Av. Universidad 1001, Col. Chamilpa, Cuernavaca 62209, Morelos, Mexico
4
CIICAp, Universidad Autónoma del Estado de Morelos, Av. Universidad 1001, Col. Chamilpa, Cuernavaca 62609, Mexico
5
CONACYT, CIATEQ, Unidad San Luis Potosí, Eje 126 No. 225, Zona Industrial, San Luis Potosí 78395, Mexico
6
Instituto de Ciencias Físicas-UNAM, Av. Universidad 1001, Col. Chamilpa, Cuernavaca 62609, Mexico
*
Author to whom correspondence should be addressed.
Metals 2019, 9(8), 863; https://doi.org/10.3390/met9080863
Received: 7 June 2019 / Revised: 9 July 2019 / Accepted: 12 July 2019 / Published: 7 August 2019

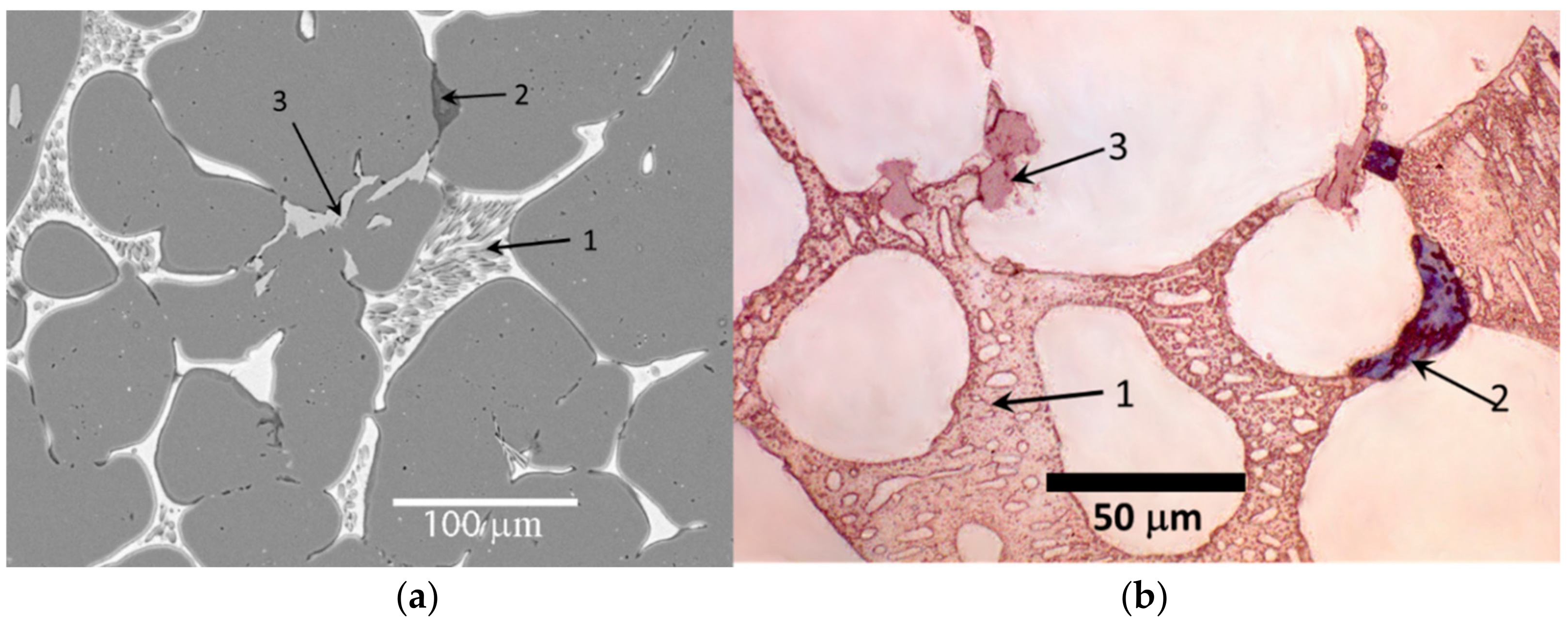

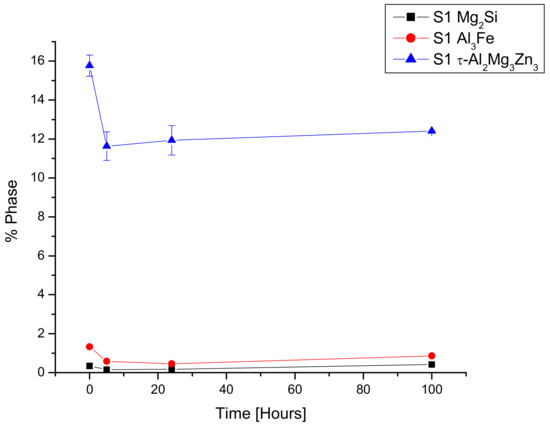

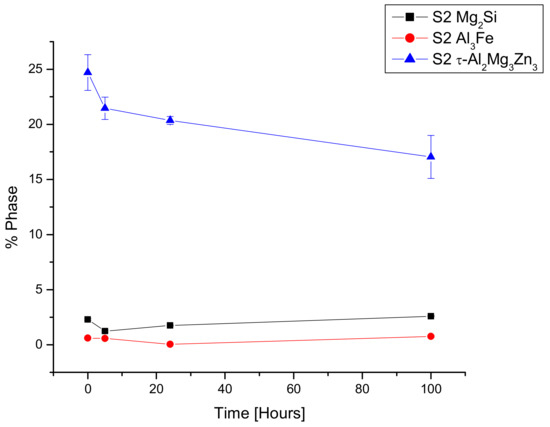

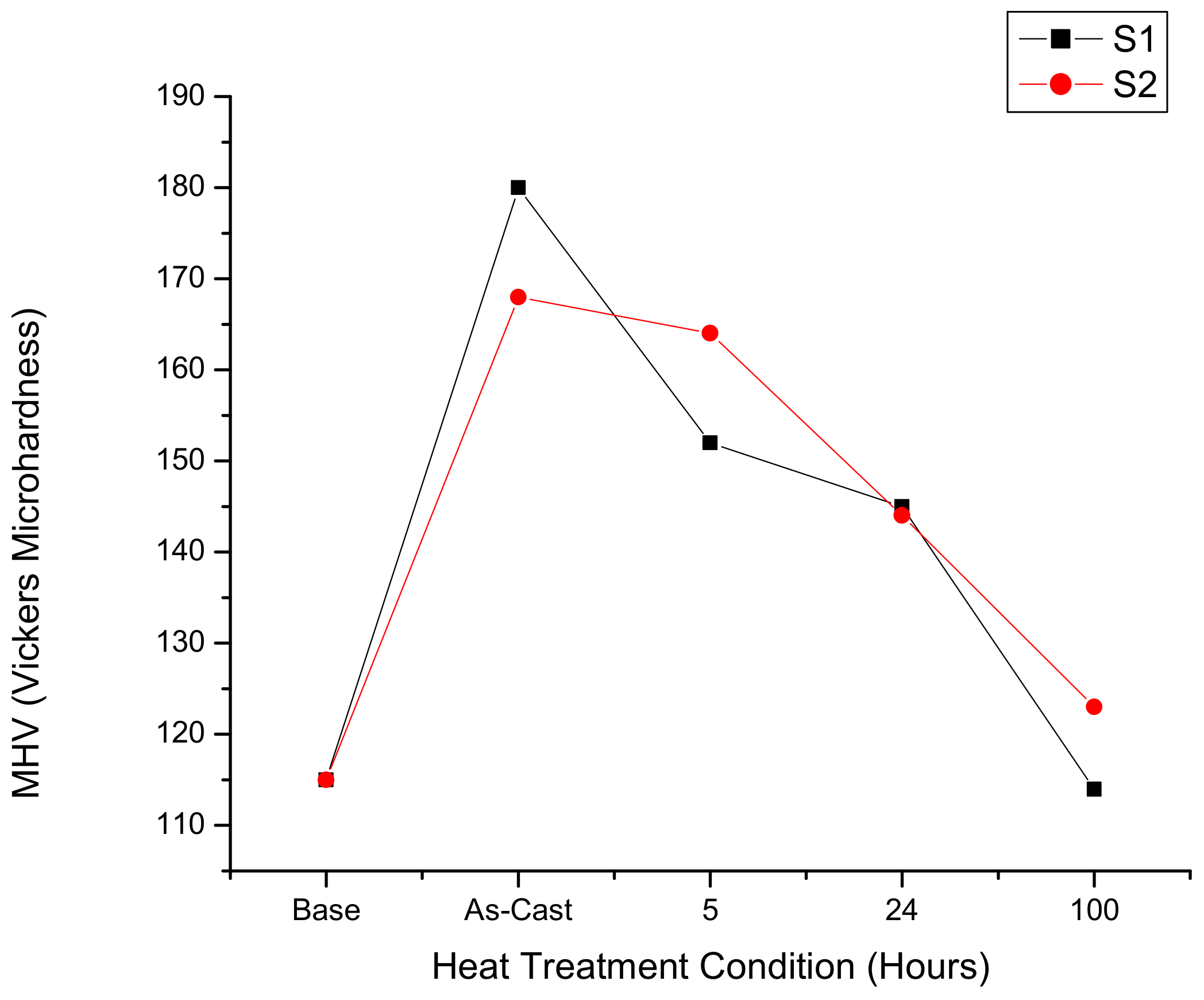

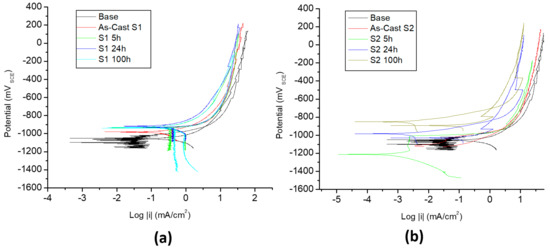

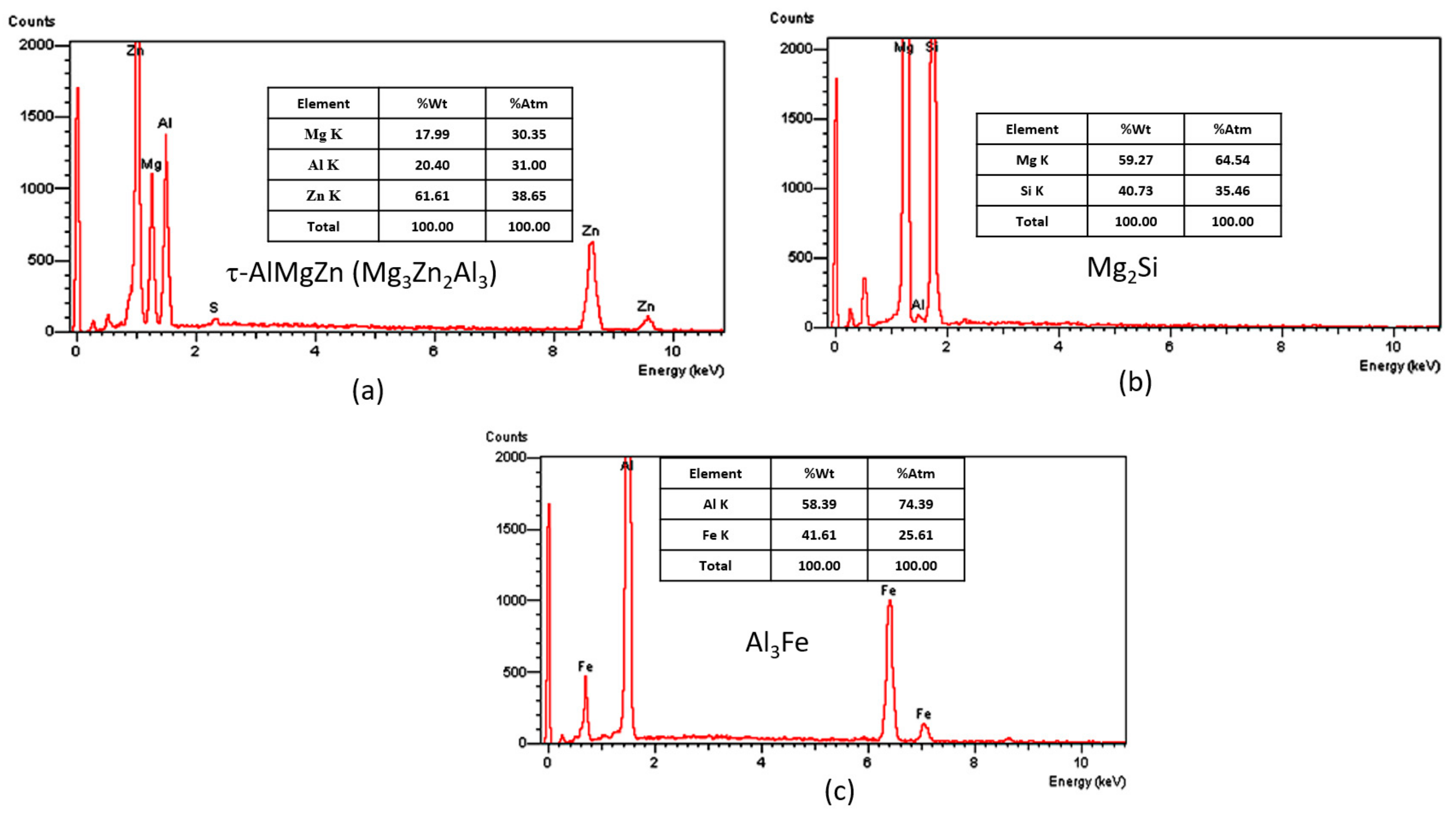

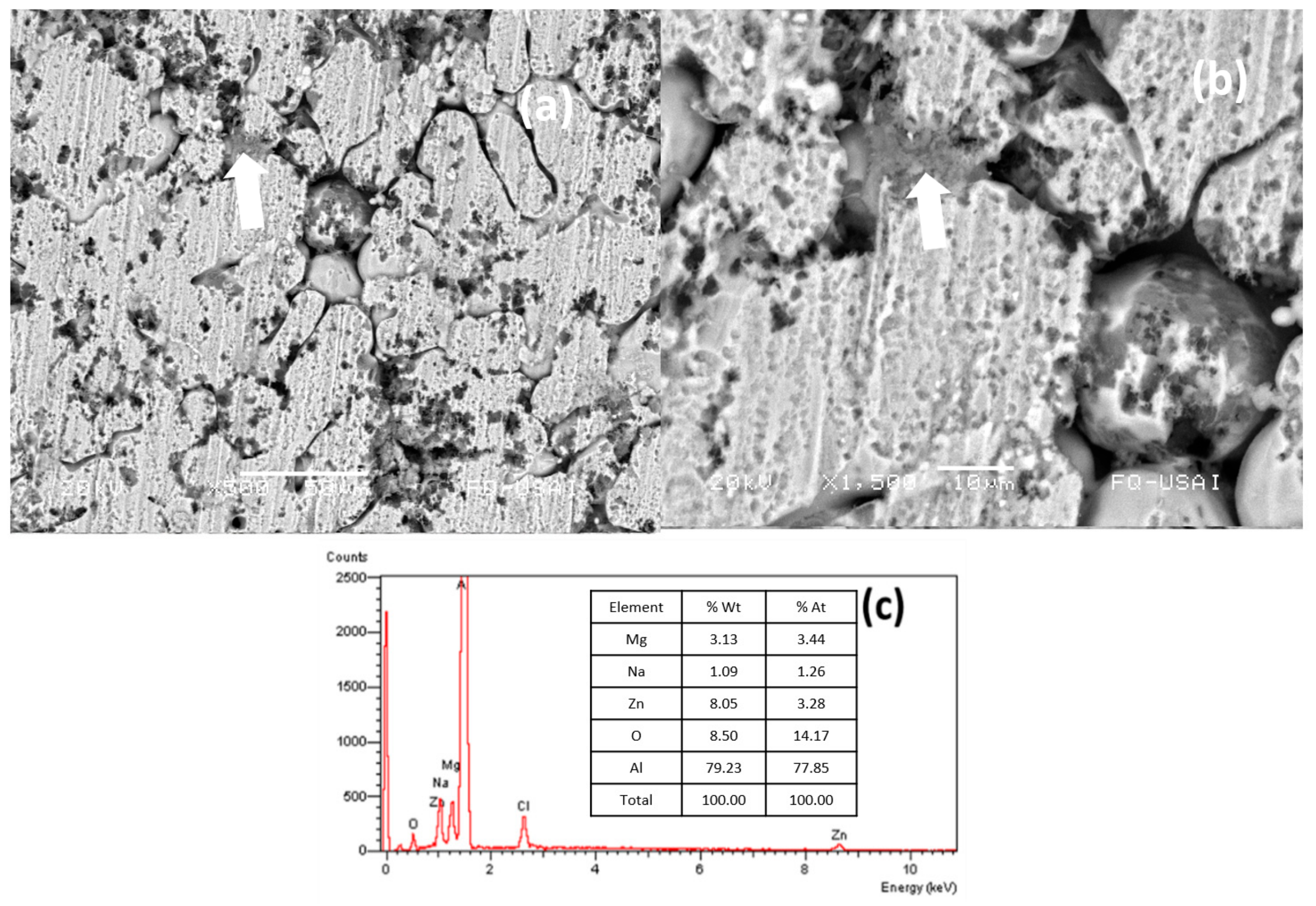

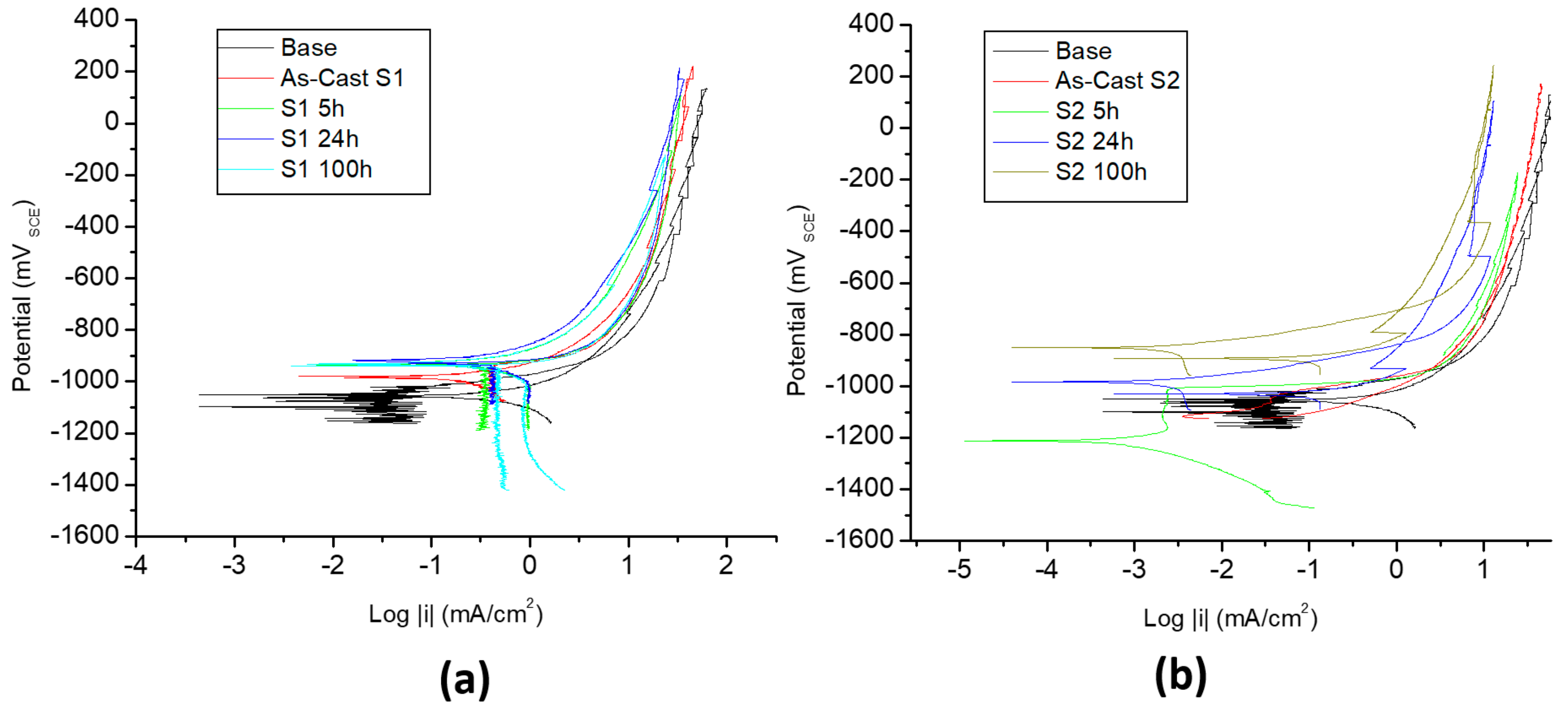

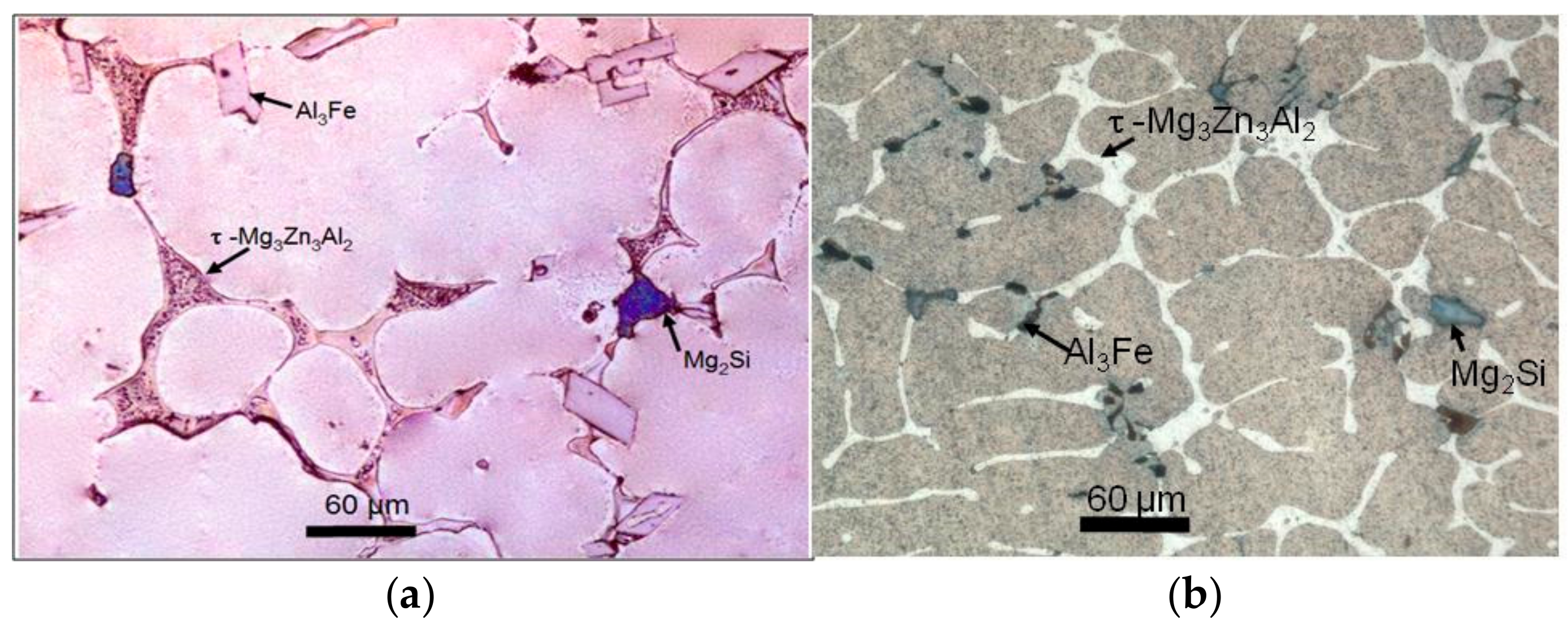

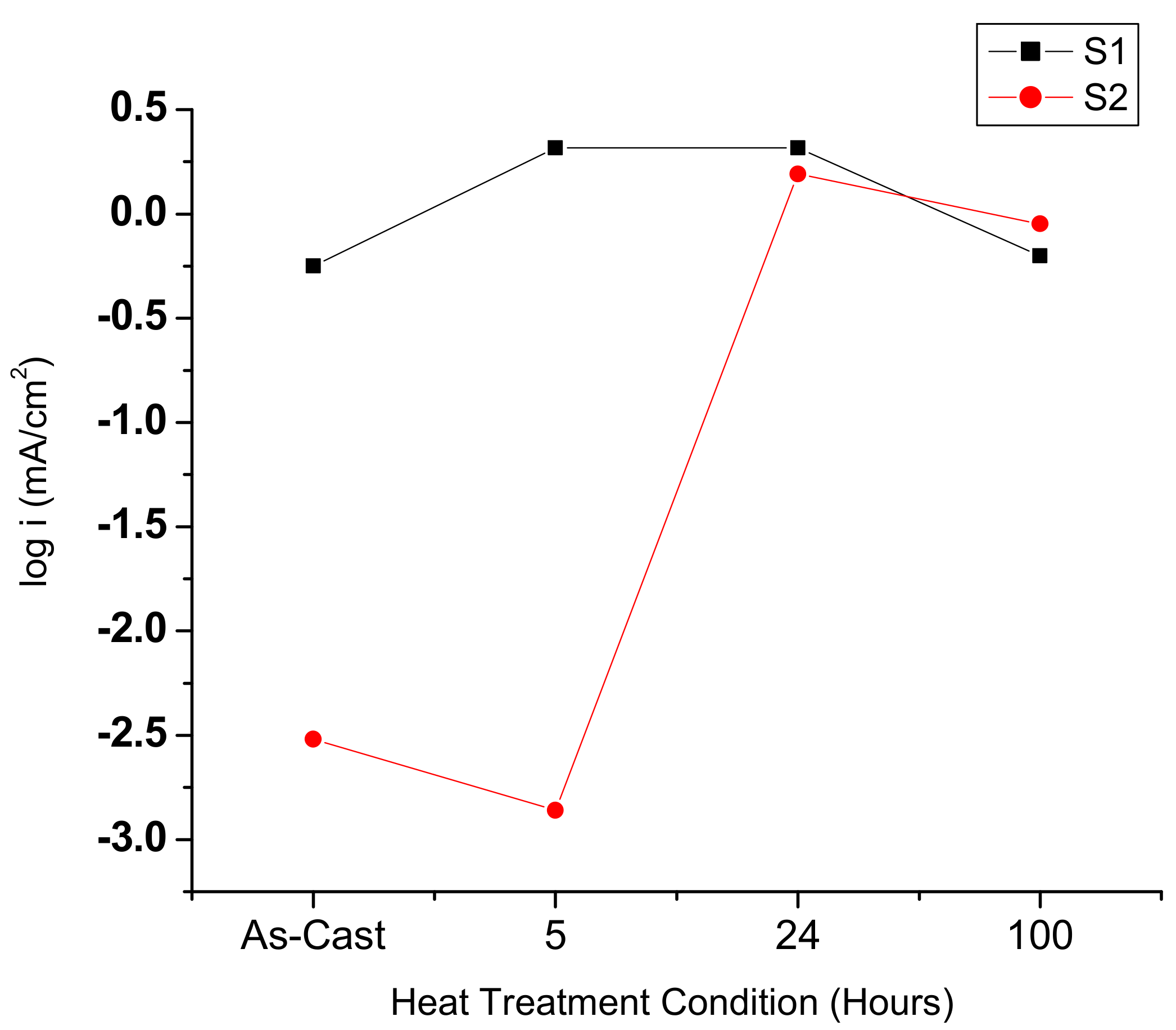

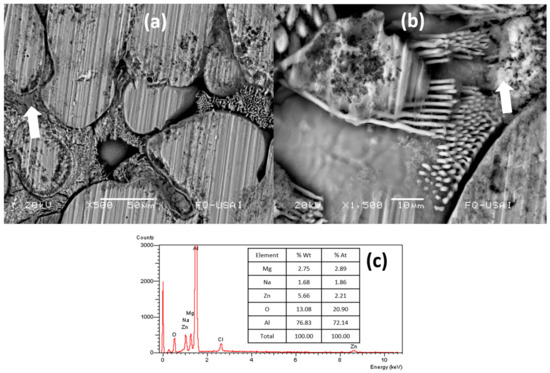

Light aluminum alloys have a great importance in industry owing to generally accessible costs, low density, good machinability, and corrosion resistance under certain environments. The present work studies aging treatments that preform important roles on the distribution and microstructural changes of two AlMg-Zn alloys, and the resulting effect on the corrosion behavior. The experimental AlMg-Zn alloys were cast and then heat treated at 200 °C, after the solubilization treatments were made, using different treatment times. These alloys showed important changes in their corrosion mechanisms, but mainly, corrosion started at AlxMgyZnz complex phases in both alloys. The optimal corrosion rates were reached after 5 and 24 h of heat treatment. These results were obtained through electrochemical techniques in NaCl solutions, and by metallographic analysis using SEM and optical microscopy. View Full-Text
Keywords: artificial aging; new aluminum alloys; sacrificial anodes artificial aging; new aluminum alloys; sacrificial anodes
Show Figures

Figure 1

MDPI and ACS Style

Hernández, A.; Torres, Á.; Serna, S.; Mayén, J.; Campillo, B. Effect of Experimental Aging on the Performance of Al-7.9Mg-13.3Zn and Al-10.5Mg-8.6Zn Alloys as Sacrificial Anodes. Metals 2019, 9, 863.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
