Microstructure Evolution and Mechanical Properties of Titanium/Alumina Brazed Joints for Medical Implants

1
School of Materials Science and Engineering, Harbin Institute of Technology, Harbin 150001, China
2
State Key Laboratory of Advanced Welding and Joining, Harbin Institute of Technology, Harbin 150001, China
3
Shandong Provincial Key Lab of Special Welding Technology, Harbin Institute of Technology at Weihai, Weihai 264209, China
4
State Key Laboratory of Advanced Brazing Filler Metals and Technology, Zhengzhou Research Institute of Mechanical Engineering, Zhengzhou 450001, China
*
Author to whom correspondence should be addressed.
Metals 2019, 9(6), 644; https://doi.org/10.3390/met9060644
Received: 7 May 2019 / Revised: 31 May 2019 / Accepted: 31 May 2019 / Published: 3 June 2019
(This article belongs to the Special Issue Characterization of Welded Joints)
  |
PDF [4074 KB, uploaded 3 June 2019]
  |

Abstract

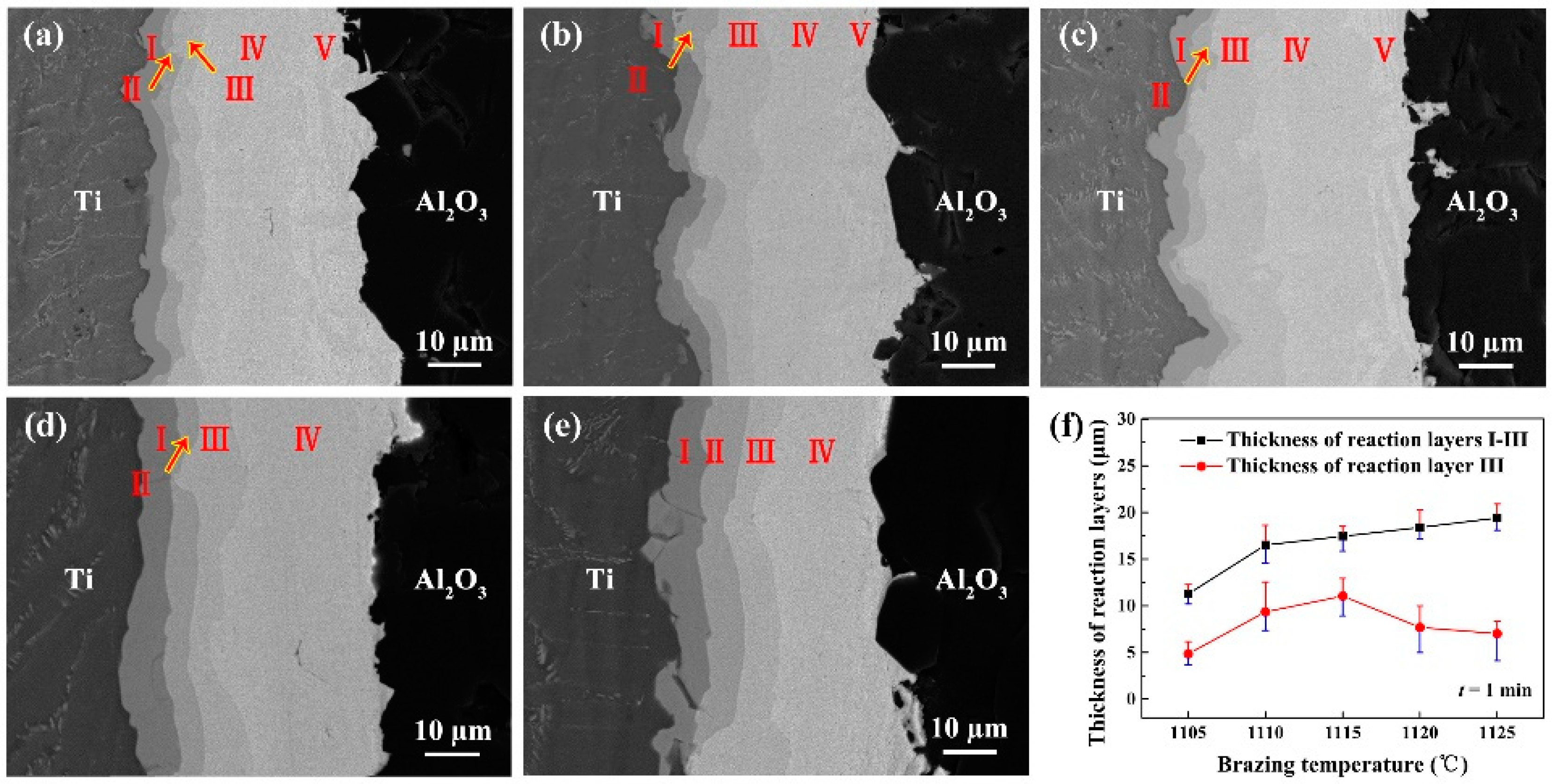

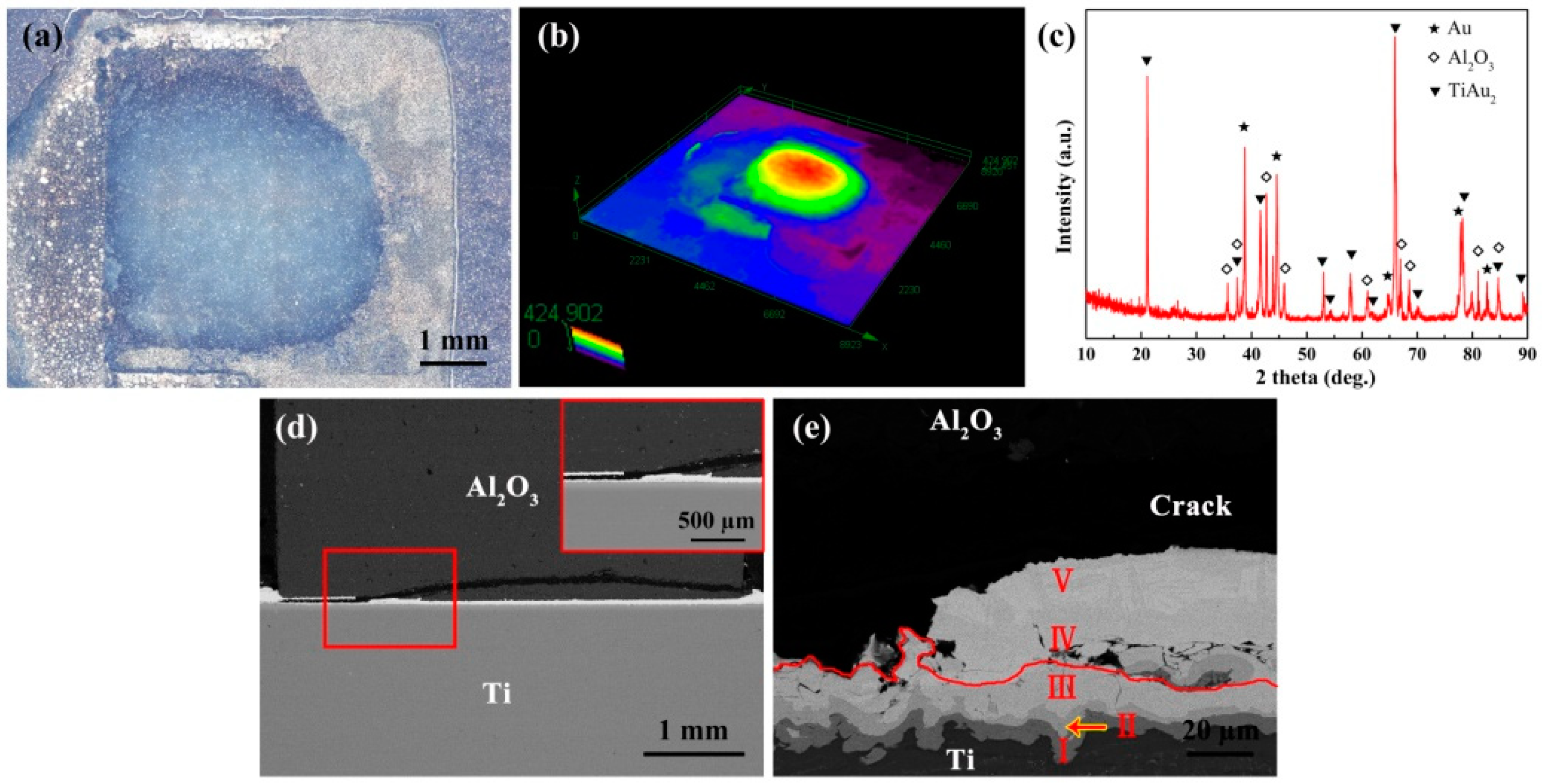

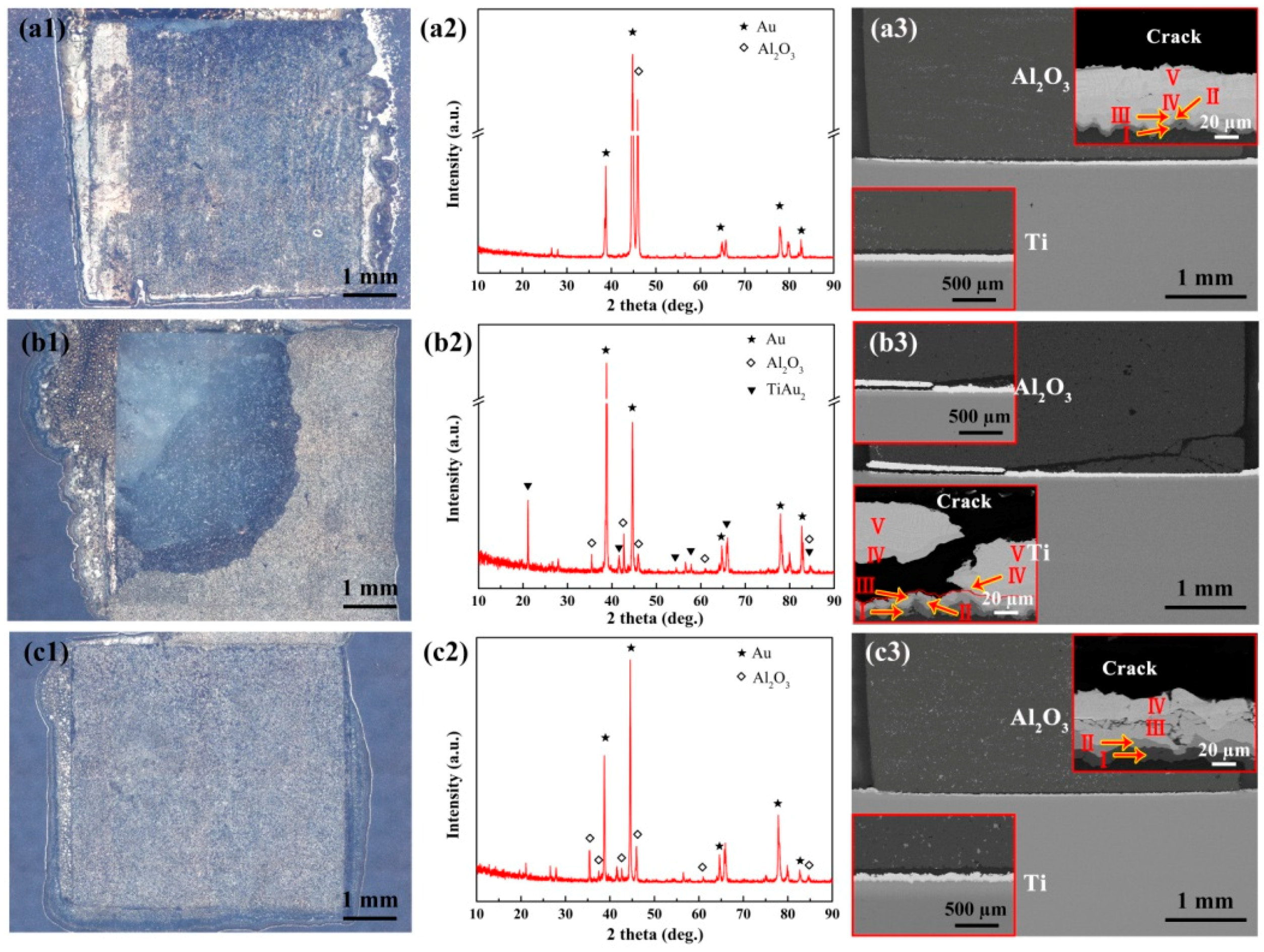

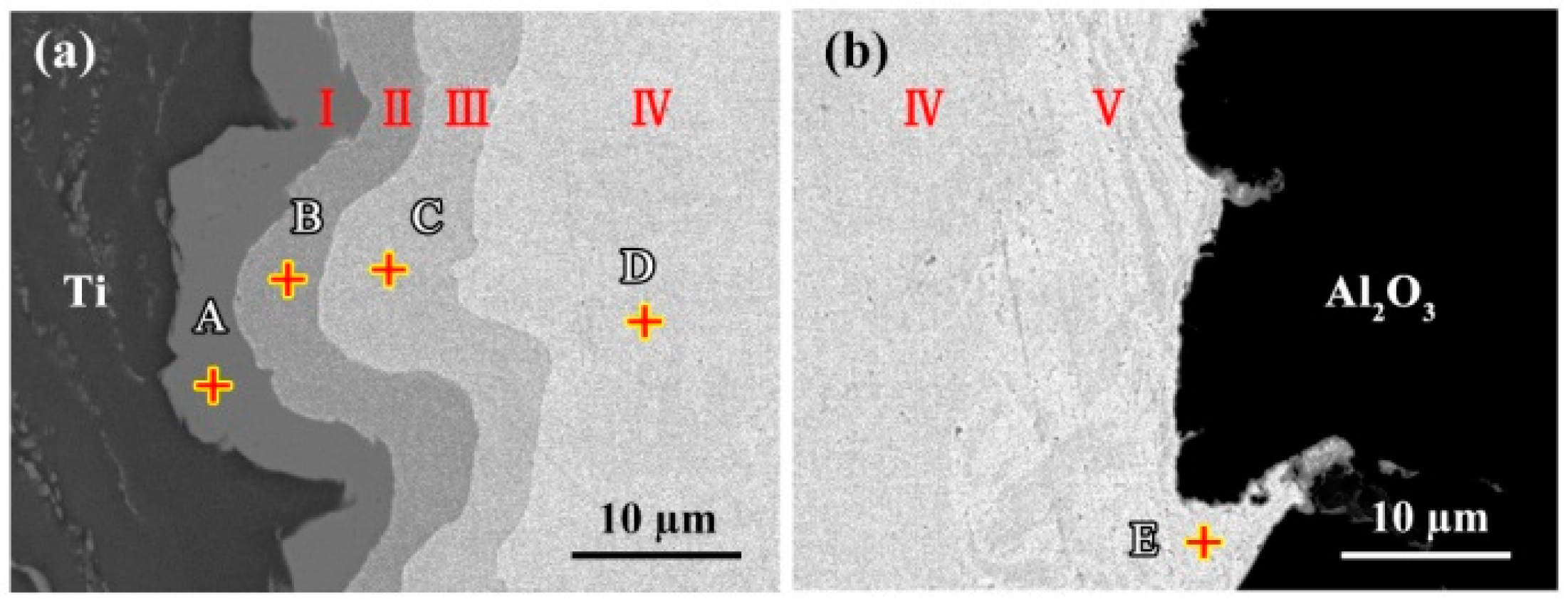

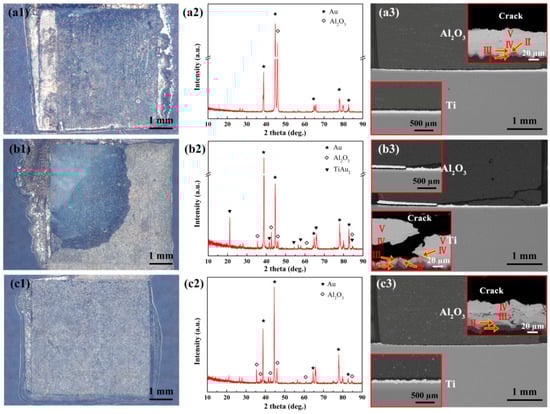

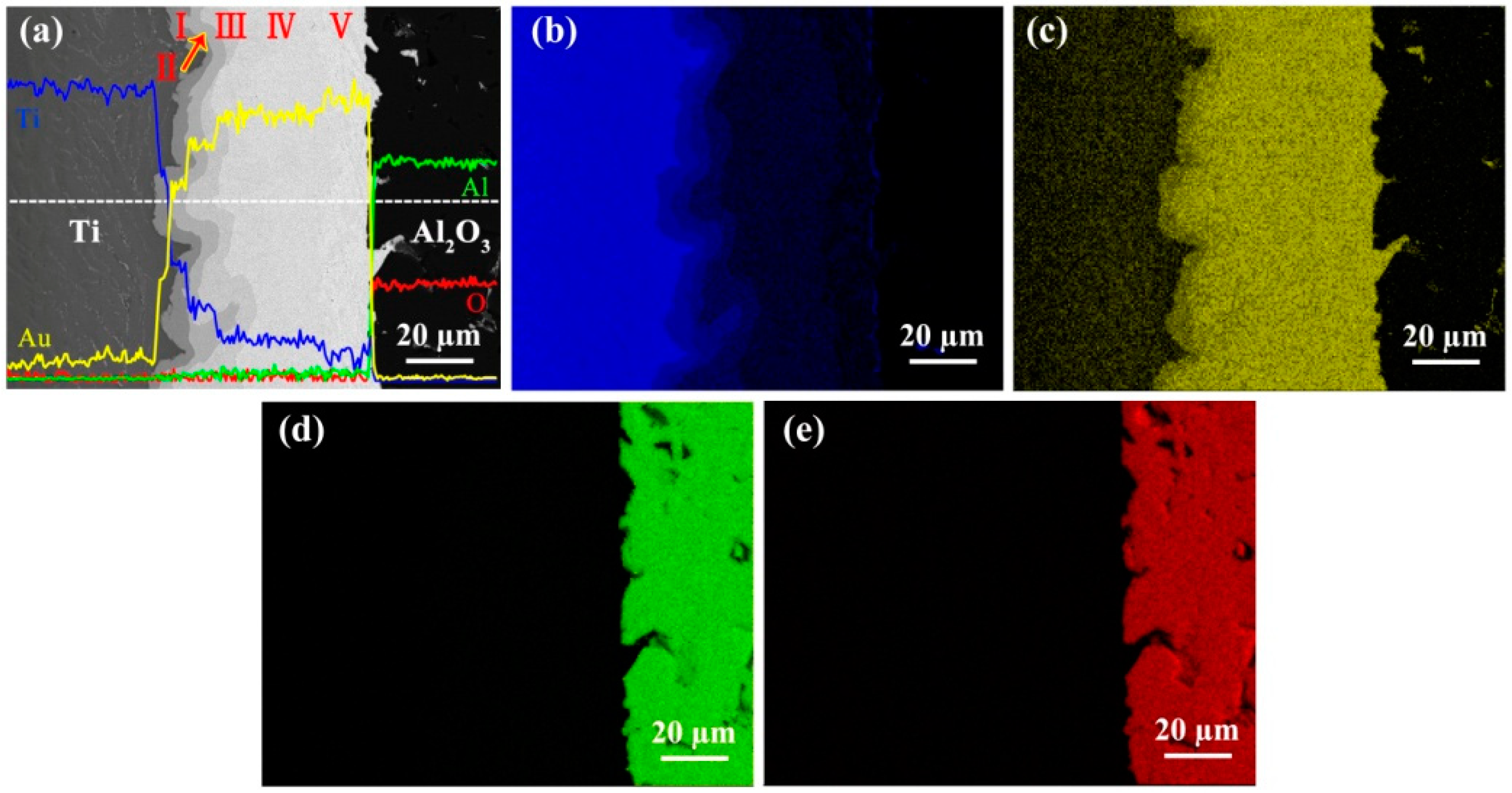

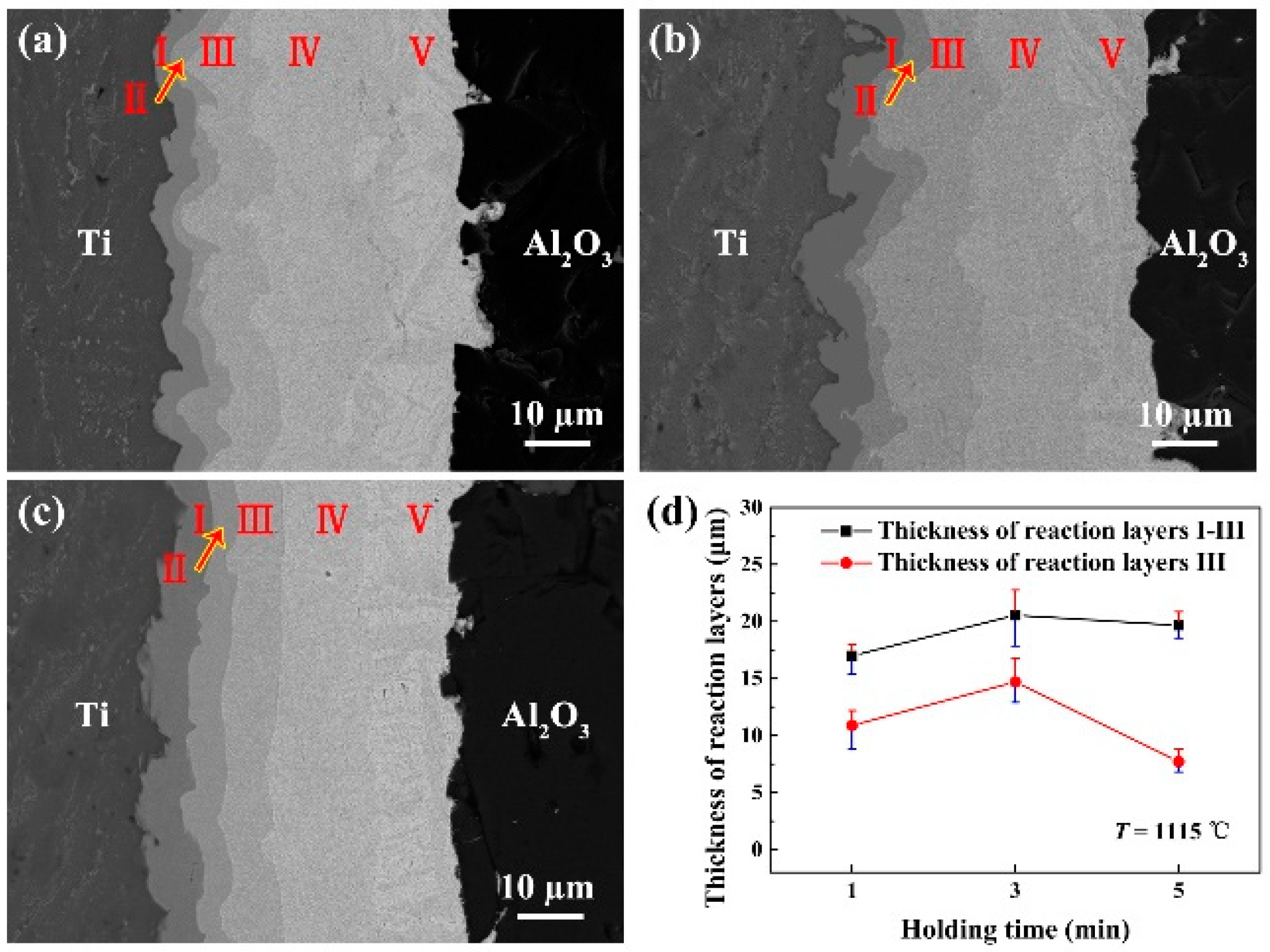

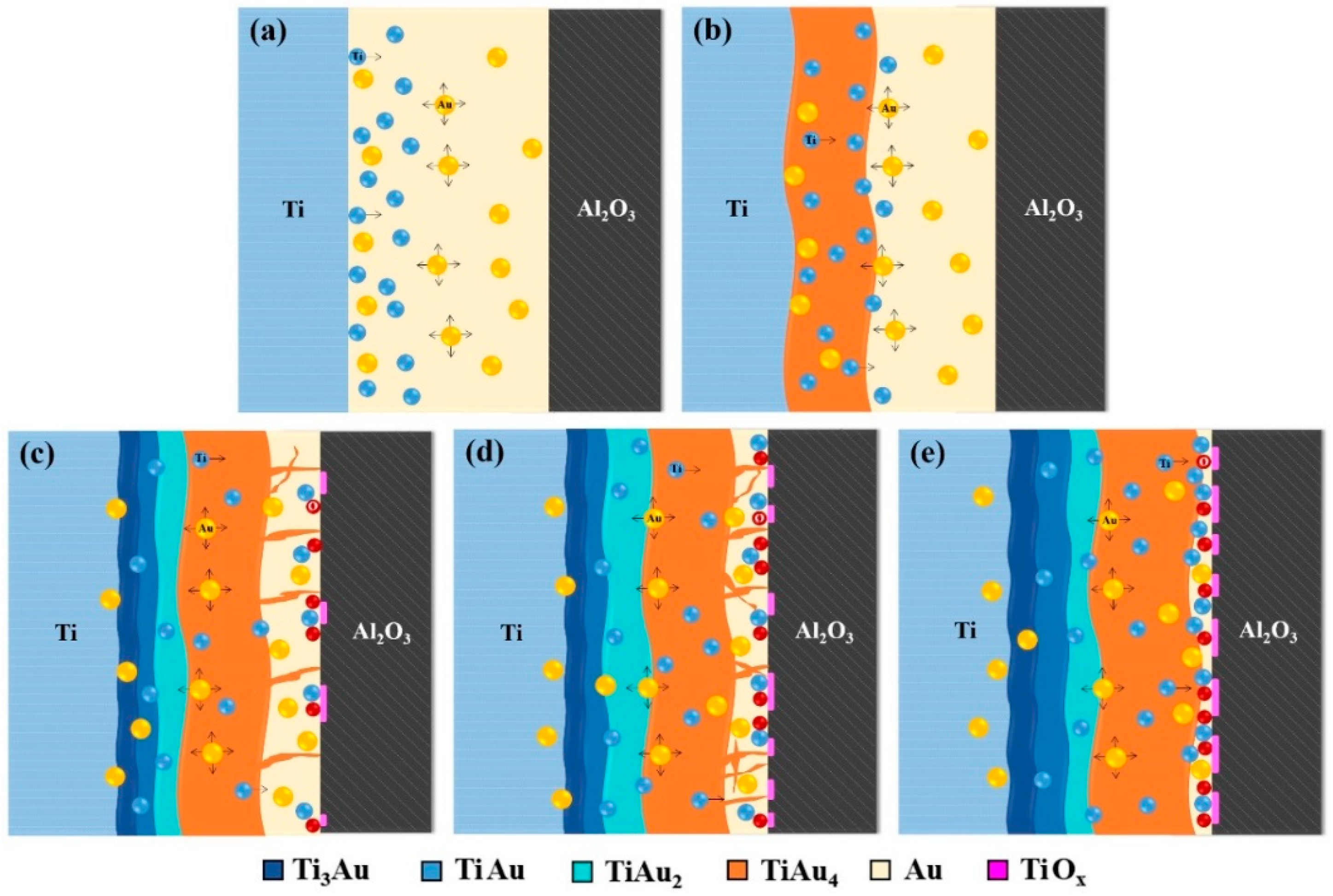

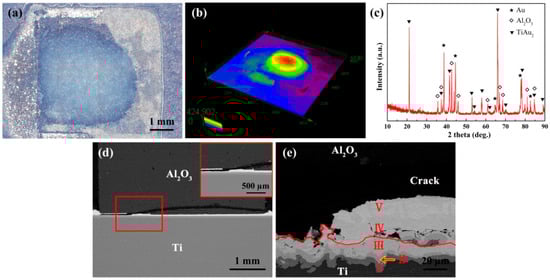

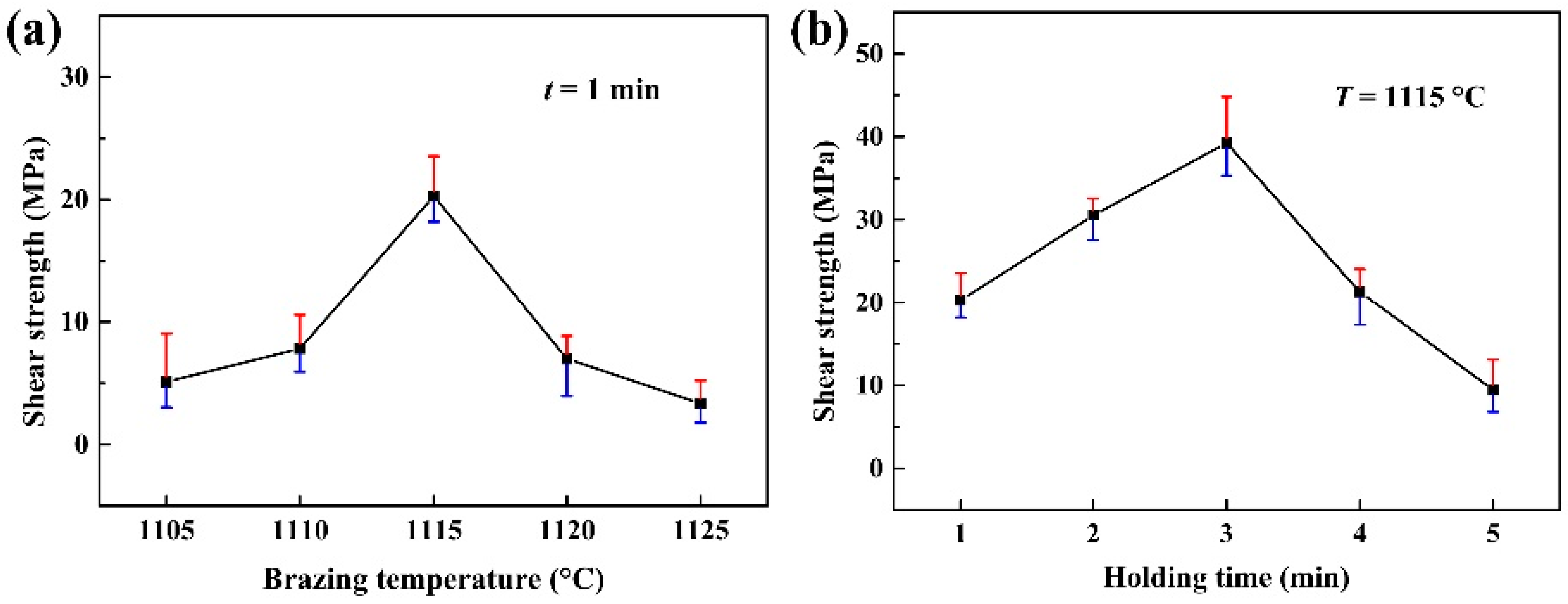

Medical titanium and alumina (Al2O3) bioceramic are widely utilized as biomaterials. A reliable brazed joint of titanium and alumina was successfully obtained using biocompatible Au foil for implantable devices in the present study. The interfacial microstructure and reaction products of titanium/Au/Al2O3 joints brazed under different conditions were investigated by scanning electron microscopy (SEM), energy dispersive spectroscopy (EDS), and X-ray diffraction (XRD). In this study, the typical interfacial microstructure of the titanium/Au/Al2O3 joint was titanium/Ti3Au layer/TiAu layer/TiAu2 layer/TiAu4 layer/Au + granular TiAu4 layer/TiOx phase/Al2O3 ceramic. With increasing brazing temperature or holding time, the thicknesses of Ti3Au + TiAu + TiAu2 layers adjacent to the titanium substrate increased gradually. Shear tests indicated that the joint brazed at 1115 °C for 3 min exhibited the highest shear strength of 39.2 MPa. Typical fracture analysis displayed that the crack started at the Al2O3 ceramic and propagated along the interface of TiAu2 and TiAu4 reaction layers. View Full-Text
Keywords: brazing; titanium; alumina; interfacial microstructure; mechanical properties brazing; titanium; alumina; interfacial microstructure; mechanical properties
