Next Article in Journal
An Experimental and Simulated Study on Gas-Liquid Flow and Mixing Behavior in an ISASMELT Furnace
Next Article in Special Issue
Additive Manufacturing of Complex Components through 3D Plasma Metal Deposition—A Simulative Approach
Previous Article in Journal
Research on AZ80 + 0.4%Ce (wt %) Ultra-Thin-Walled Tubes of Magnesium Alloys: The Forming Process, Microstructure Evolution and Mechanical Properties
Previous Article in Special Issue
Manufacturing of Titanium Components with 3DPMD
Article Menu

Export Article

Open AccessArticle

GMAW Cold Wire Technology for Adjusting the Ferrite–Austenite Ratio of Wire and Arc Additive Manufactured Duplex Stainless Steel Components

Institute of Materials and Joining Technology, Otto von Guericke University Magdeburg, Universitaetsplatz 2, 39106 Magdeburg, Germany
*
Author to whom correspondence should be addressed.
Metals 2019, 9(5), 564; https://doi.org/10.3390/met9050564
Received: 27 March 2019 / Revised: 30 April 2019 / Accepted: 12 May 2019 / Published: 14 May 2019
(This article belongs to the Special Issue Arc-based Additive Manufacturing)
  |
PDF [1909 KB, uploaded 14 May 2019]
  |

Abstract

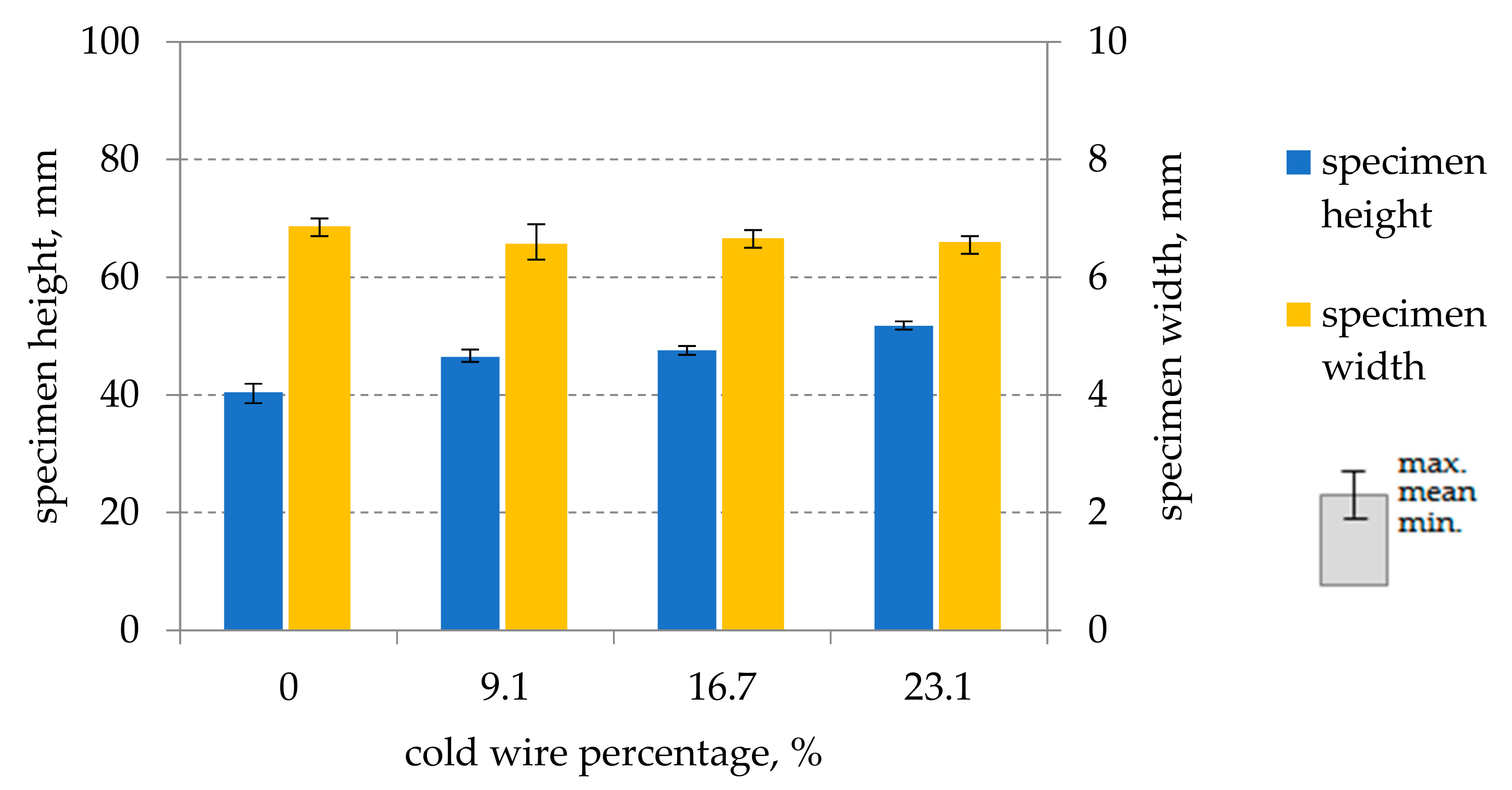

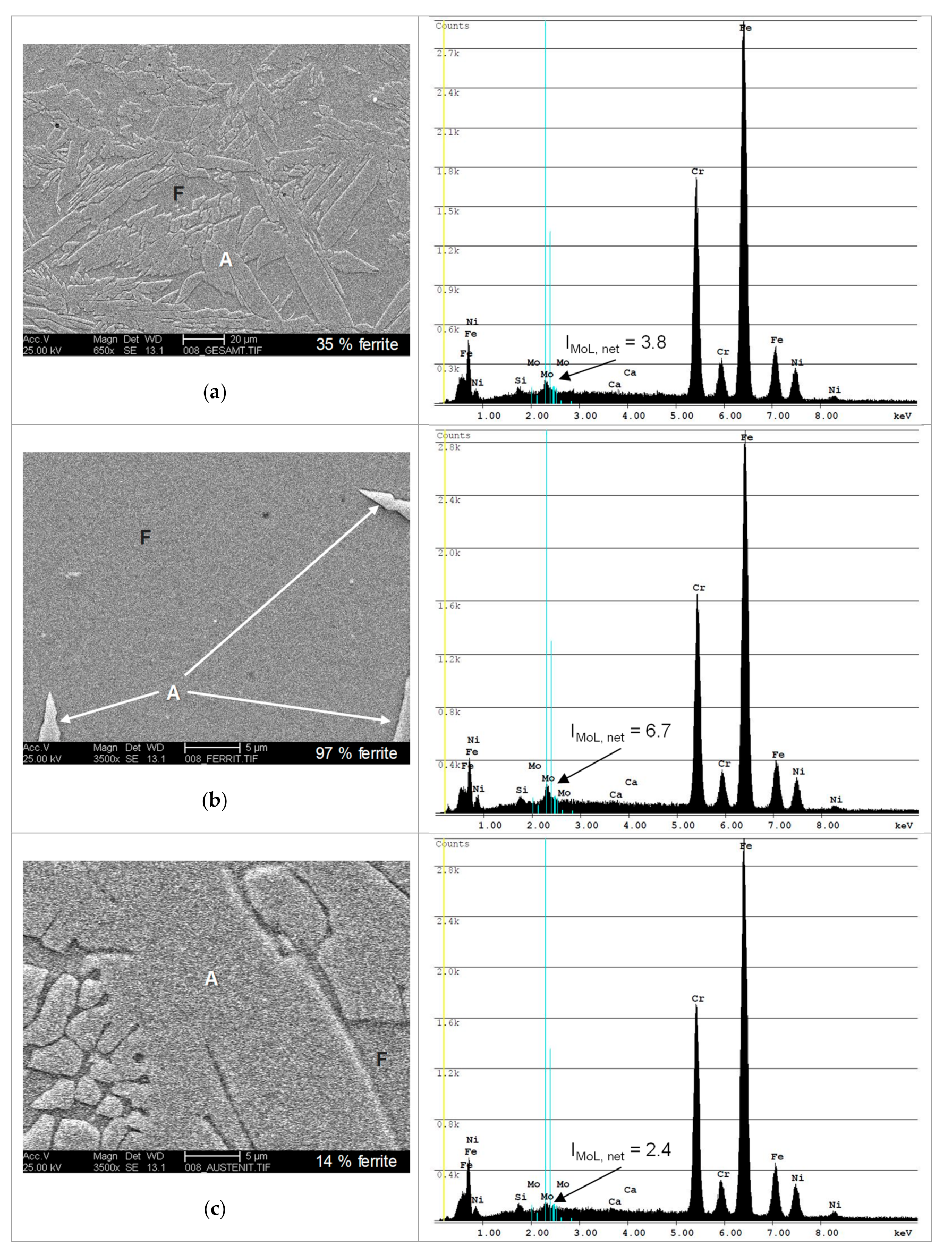

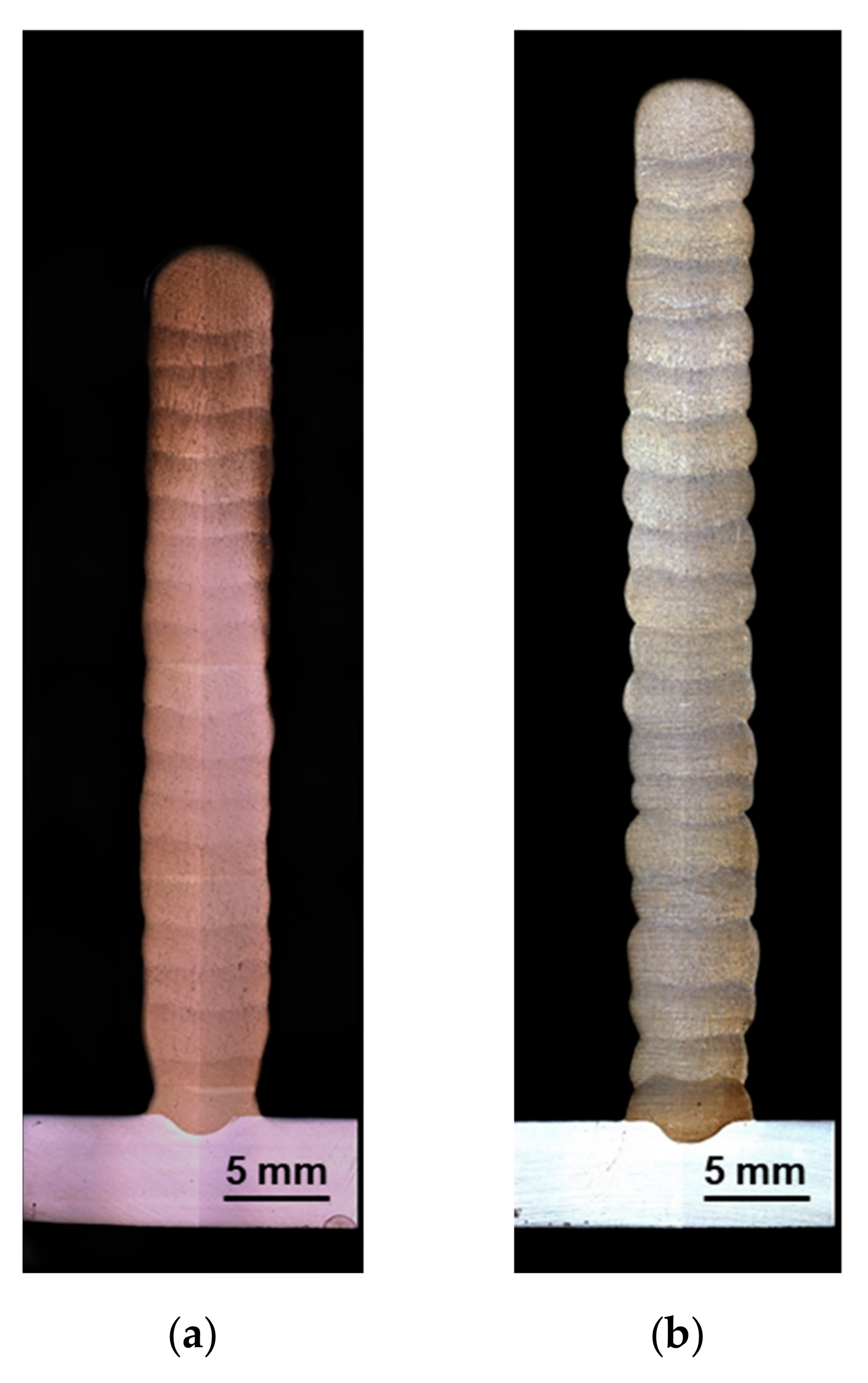

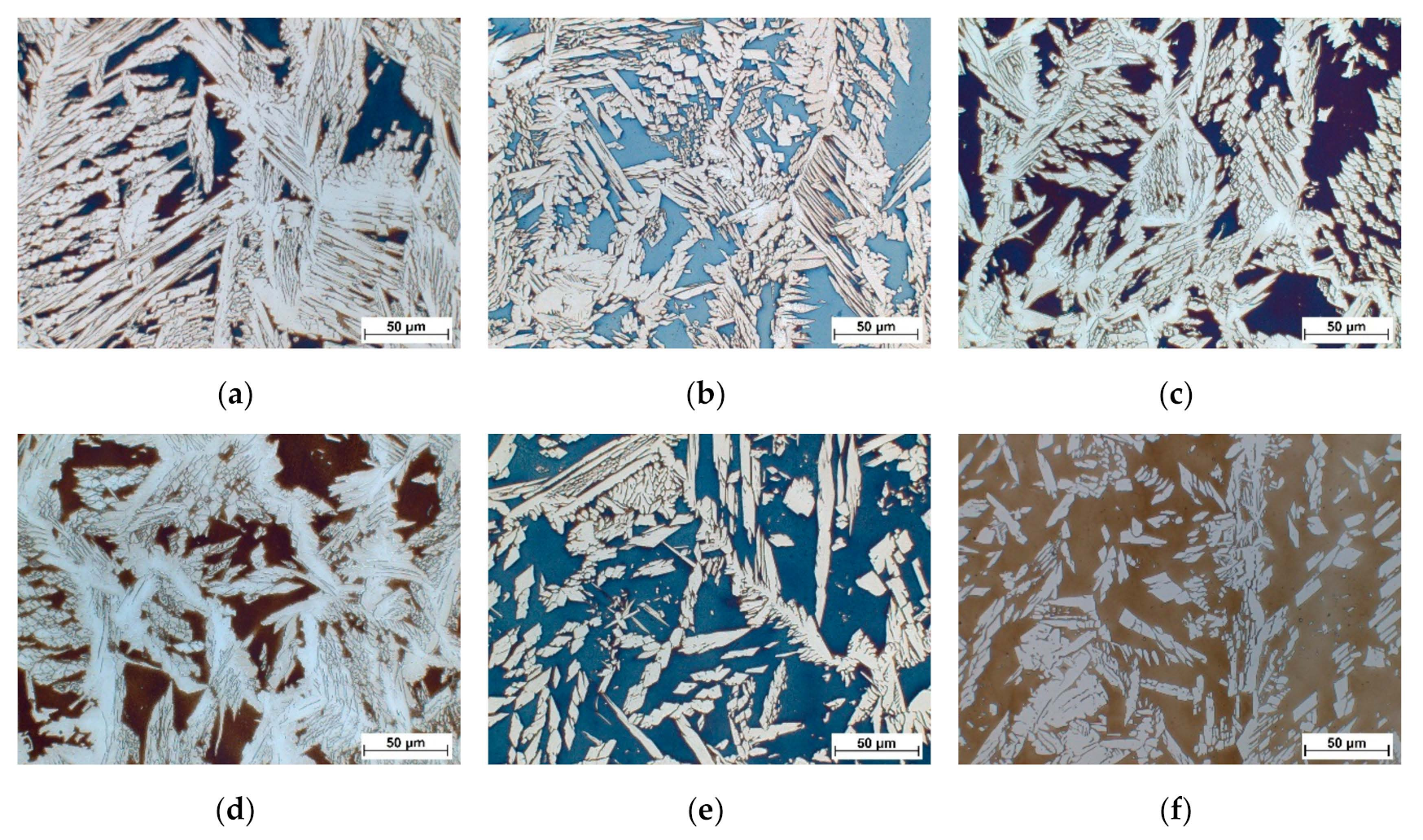

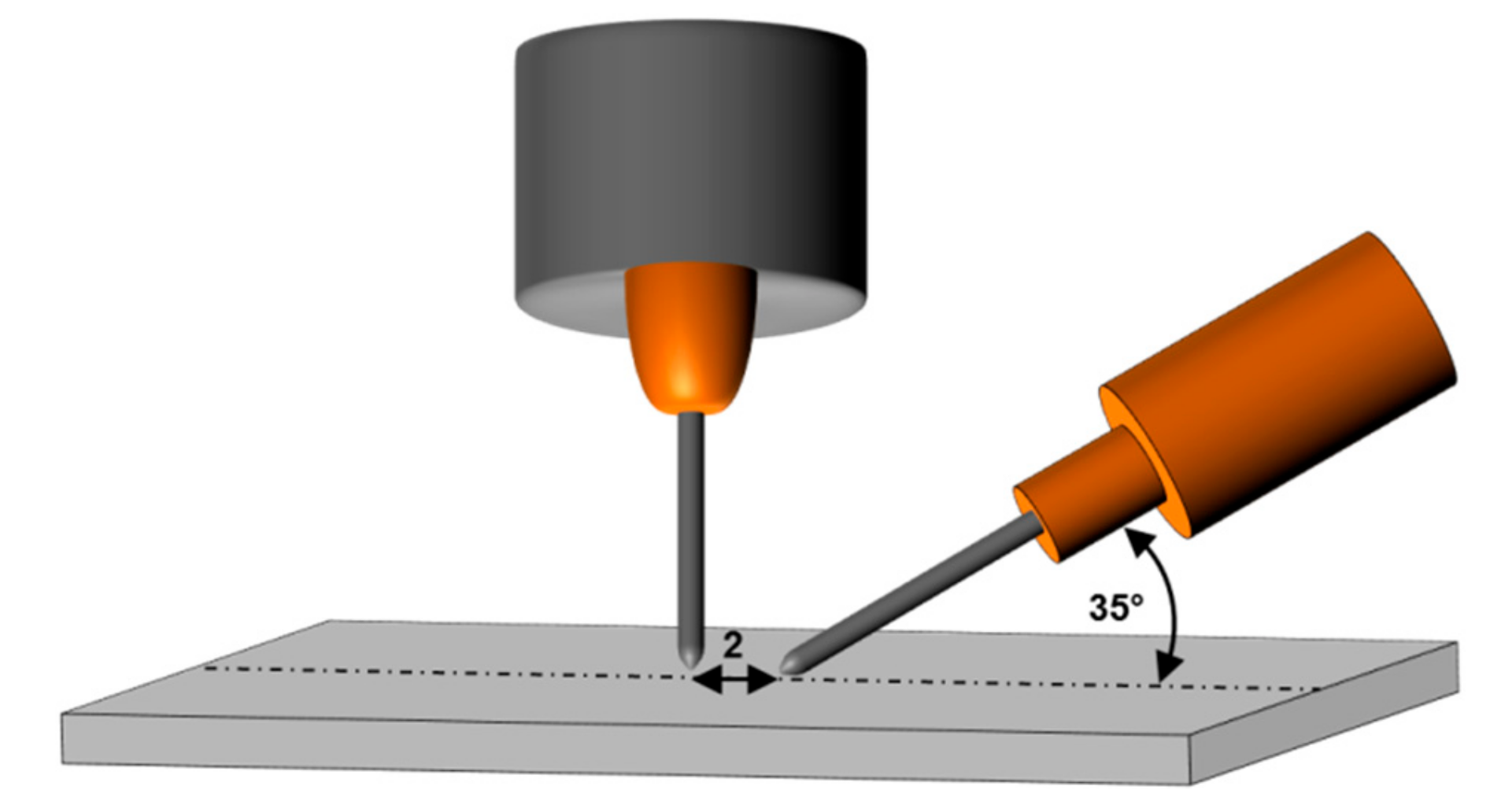

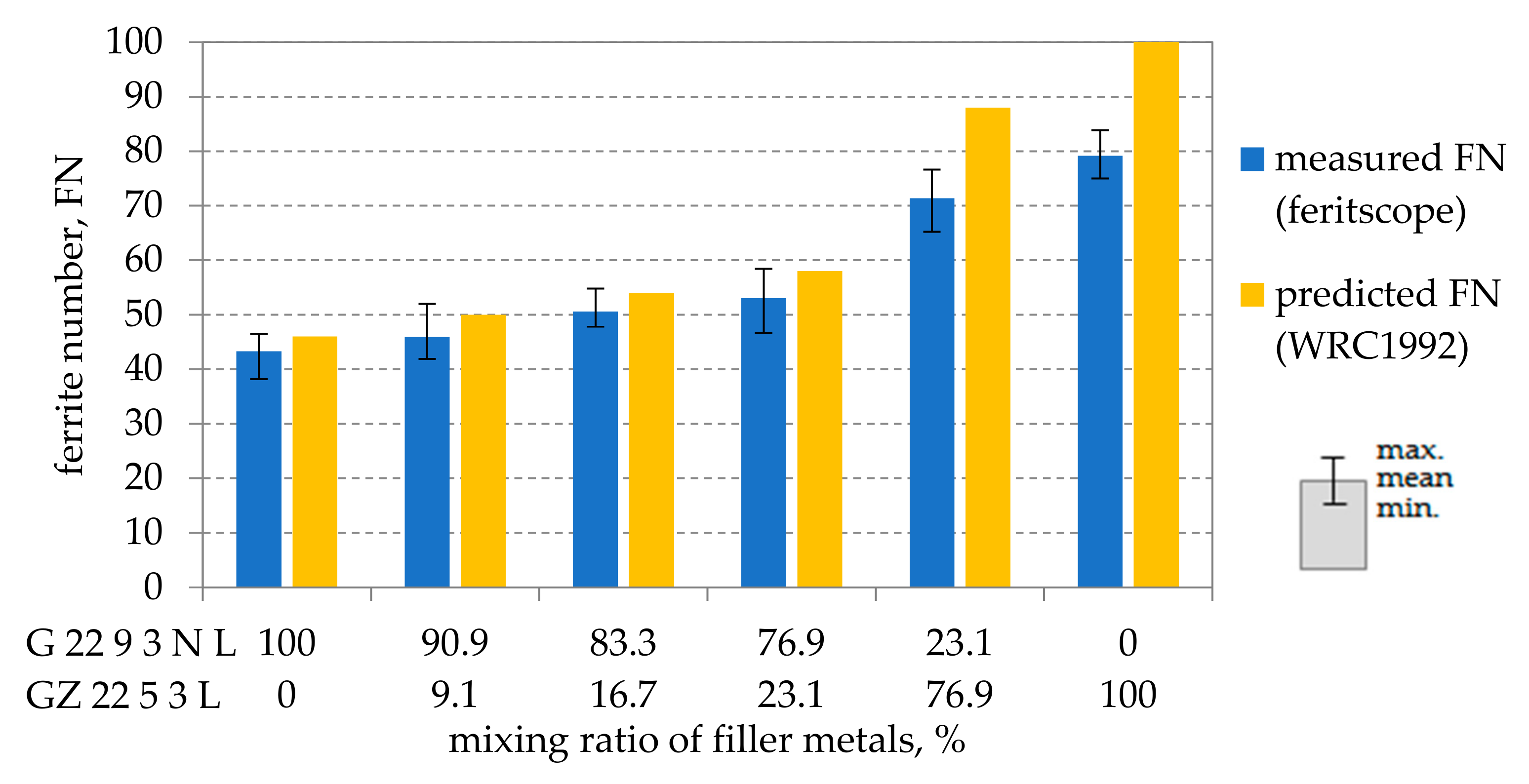

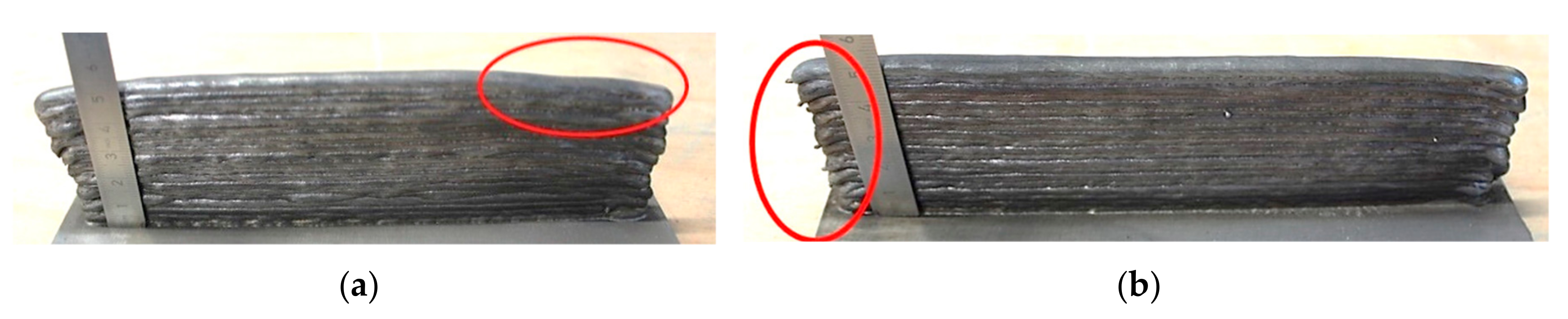

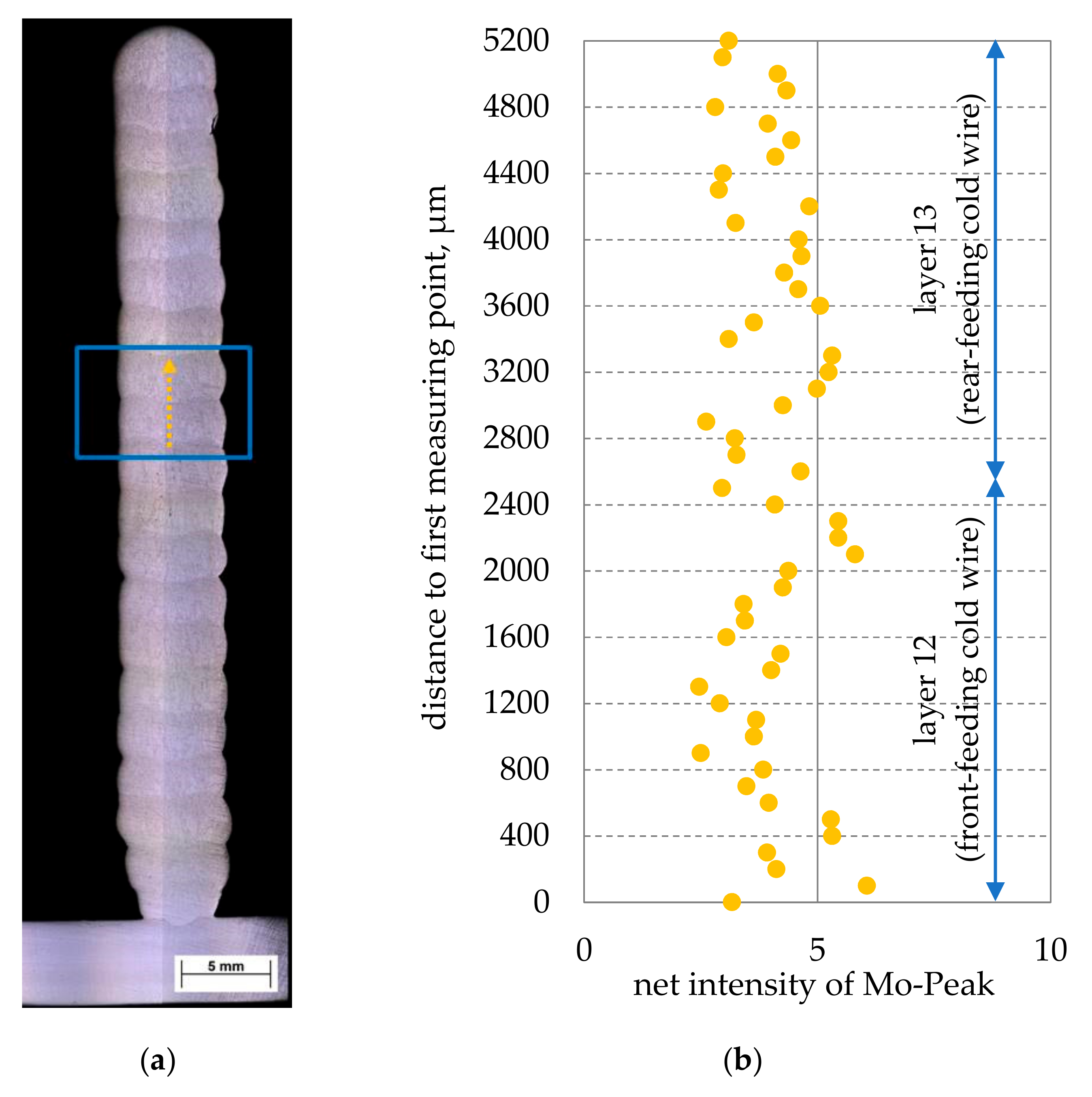

The use of commercially available filler metals for wire and arc additive manufacturing (WAAM) of duplex stainless steel components results in a microstructure with a very low ferrite content. The ferrite–austenite ratio in the duplex stainless steel weld metal depends on both the cooling rate and particularly on the chemical composition. However, the research and testing of special filler metals for additive deposition welding using wire and arc processes is time-consuming and expensive. This paper describes a method that uses an additional cold wire feed in the gas metal arc welding (GMAW) process to selectively vary the alloy composition and thus the microstructure of duplex stainless steel weld metal. By mixing different filler metals, a reduction of the nickel equivalent and hence an increase in the ferrite content in additively manufactured duplex stainless steel specimens was achieved. The homogeneous mixing of electrode and cold wire was verified by energy dispersive spectroscopy (EDS). Furthermore, the addition of cold wire resulted in a significant increase in sample height while the sample width remained approximately the same. View Full-Text
Keywords: duplex stainless steel (DSS); 1.4462; filler metals; G 22 9 3 N L; GZ 22 5 3 L; cold wire; wire and arc additive manufacturing (WAAM) duplex stainless steel (DSS); 1.4462; filler metals; G 22 9 3 N L; GZ 22 5 3 L; cold wire; wire and arc additive manufacturing (WAAM)
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Stützer, J.; Totzauer, T.; Wittig, B.; Zinke, M.; Jüttner, S. GMAW Cold Wire Technology for Adjusting the Ferrite–Austenite Ratio of Wire and Arc Additive Manufactured Duplex Stainless Steel Components. Metals 2019, 9, 564.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
