Next Article in Journal
Classification and Quantitative Evaluation of Eddy Current Based on Kernel-PCA and ELM for Defects in Metal Component
Next Article in Special Issue
Size Effects of High Strength Steel Wires
Previous Article in Journal
Compressive Properties of A2024 Alloy Foam Fabricated through a Melt Route and a Semi-Solid Route
Article Menu
Issue 2 (February) cover image

Export Article

Open AccessEditorial
Metals 2019, 9(2), 154; https://doi.org/10.3390/met9020154

Dislocation Mechanics Pile-Up and Thermal Activation Roles in Metal Plasticity and Fracturing

Center for Engineering Concepts Development, Department of Mechanical Engineering, University of Maryland, College Park, MD 20742, USA
Received: 14 January 2019 / Accepted: 27 January 2019 / Published: 31 January 2019
(This article belongs to the Special Issue Dislocation Mechanics of Metal Plasticity and Fracturing)
Full-Text   |   PDF [1407 KB, uploaded 31 January 2019]   |

Abstract

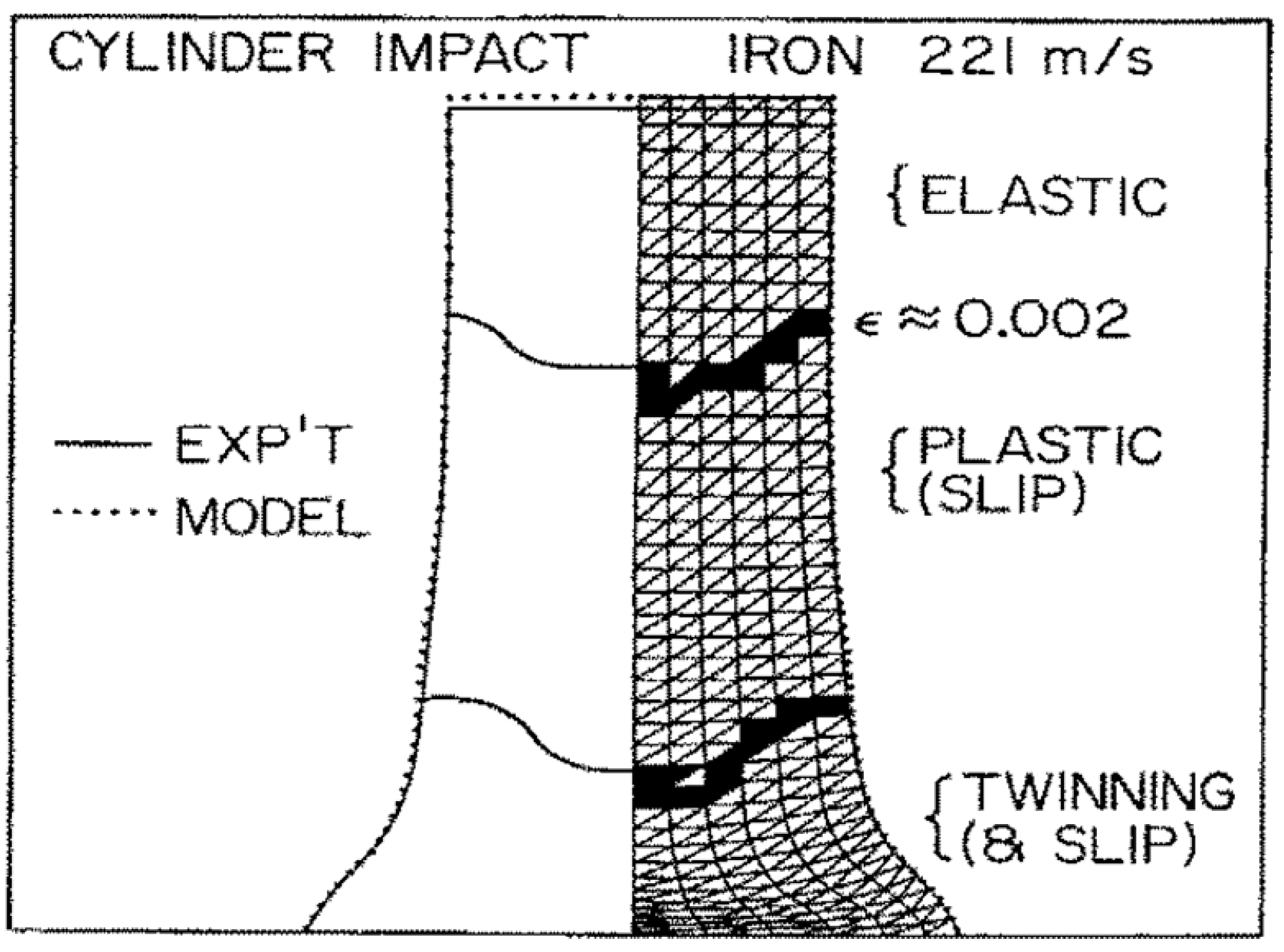

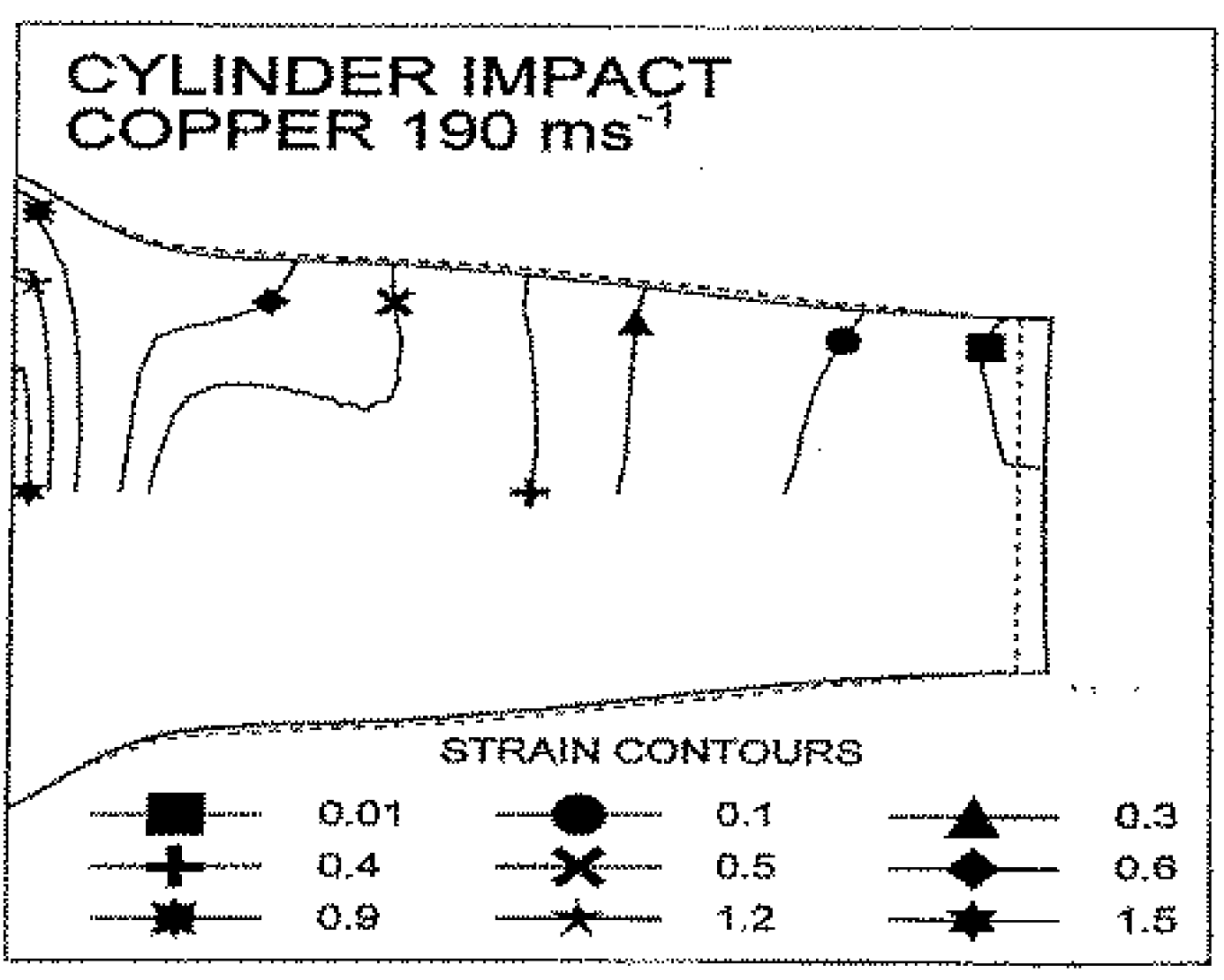

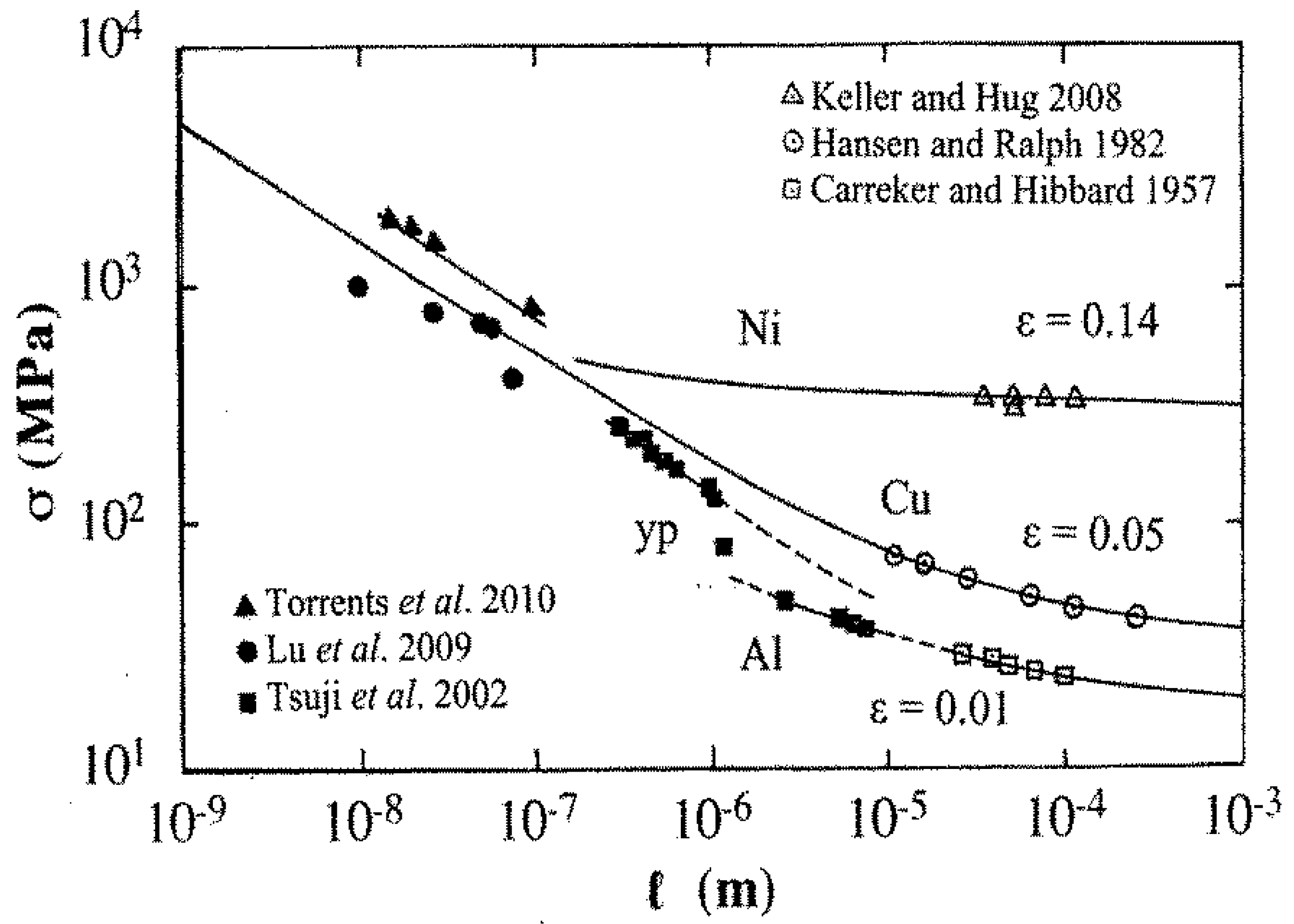

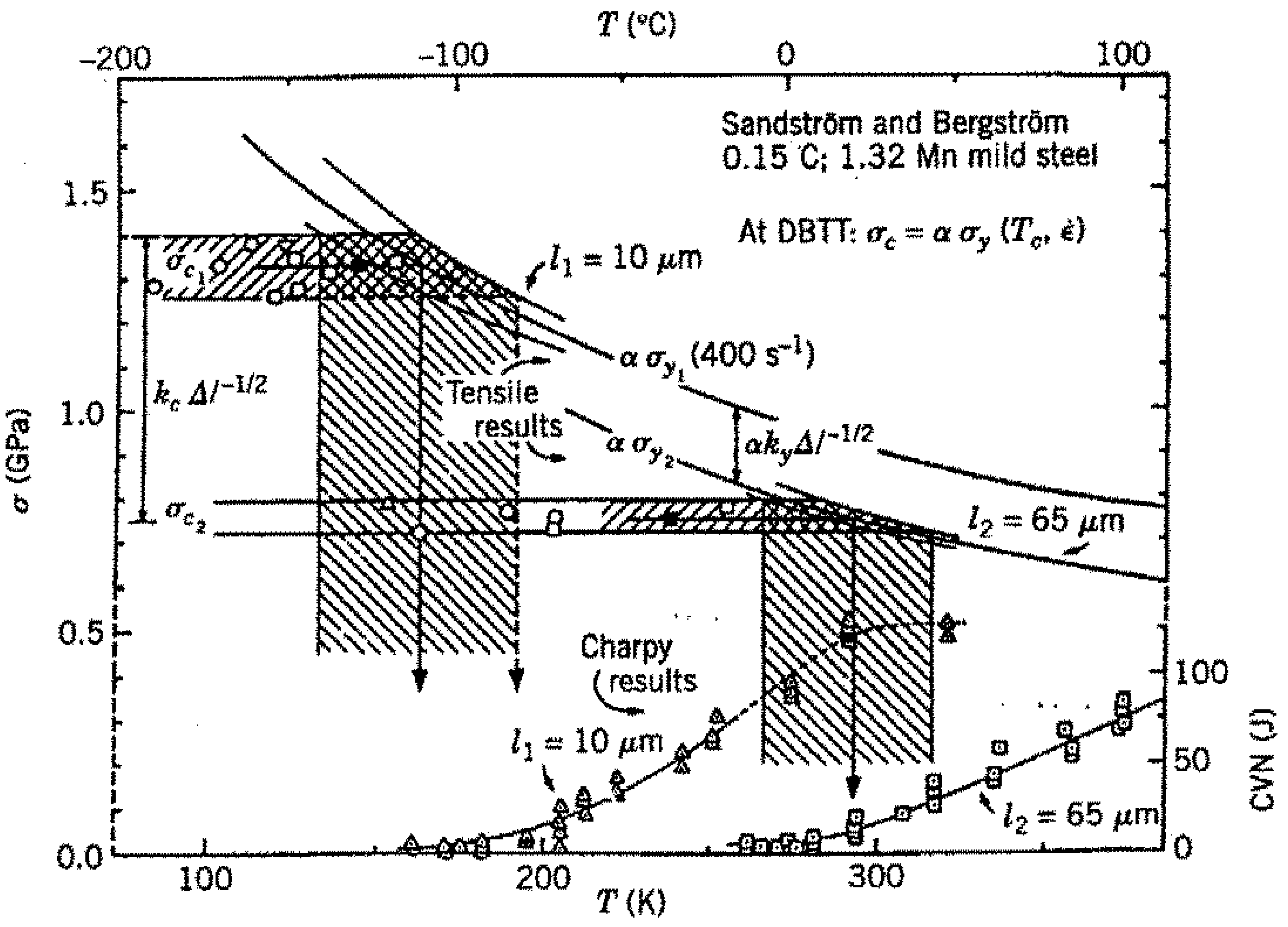

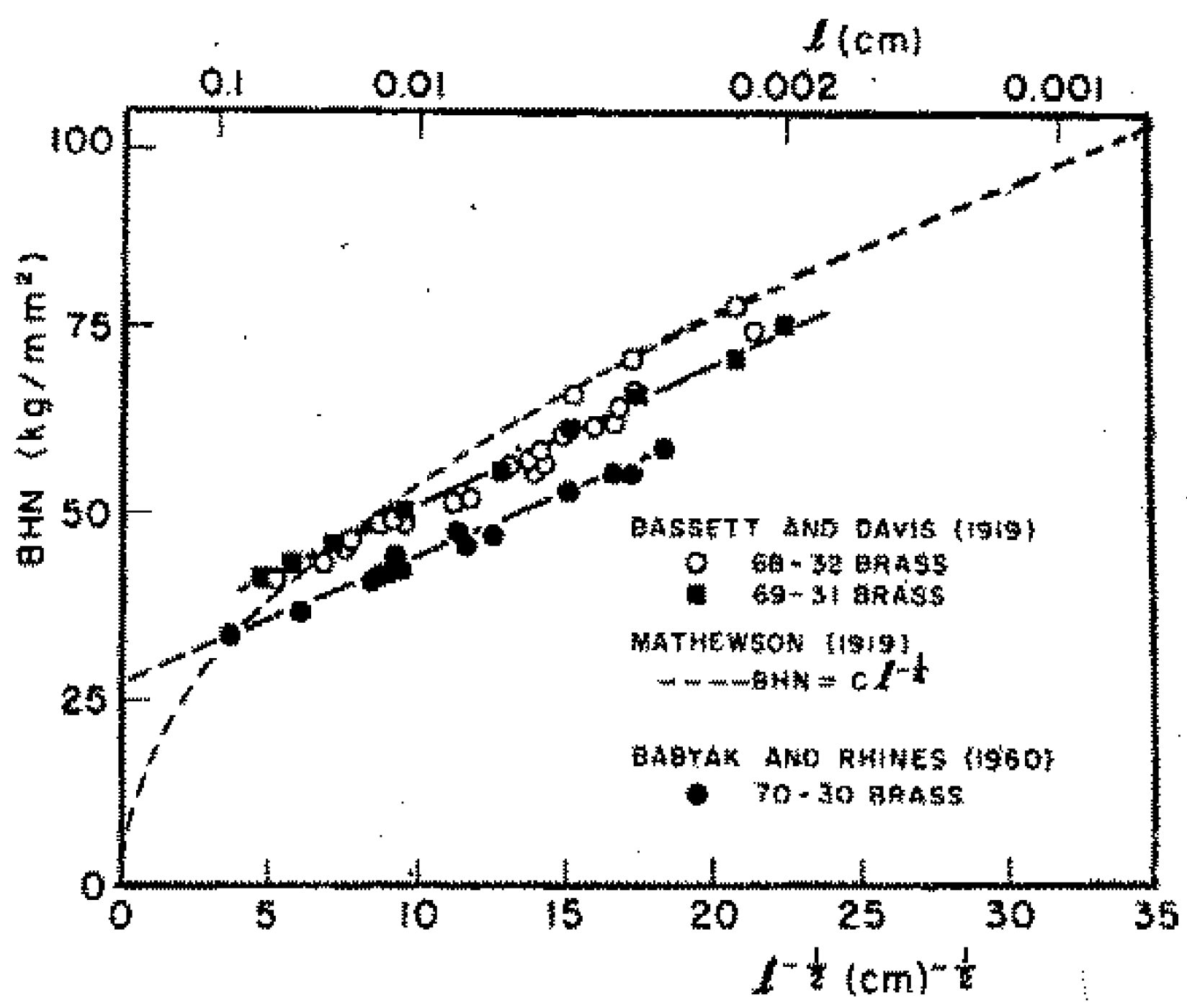

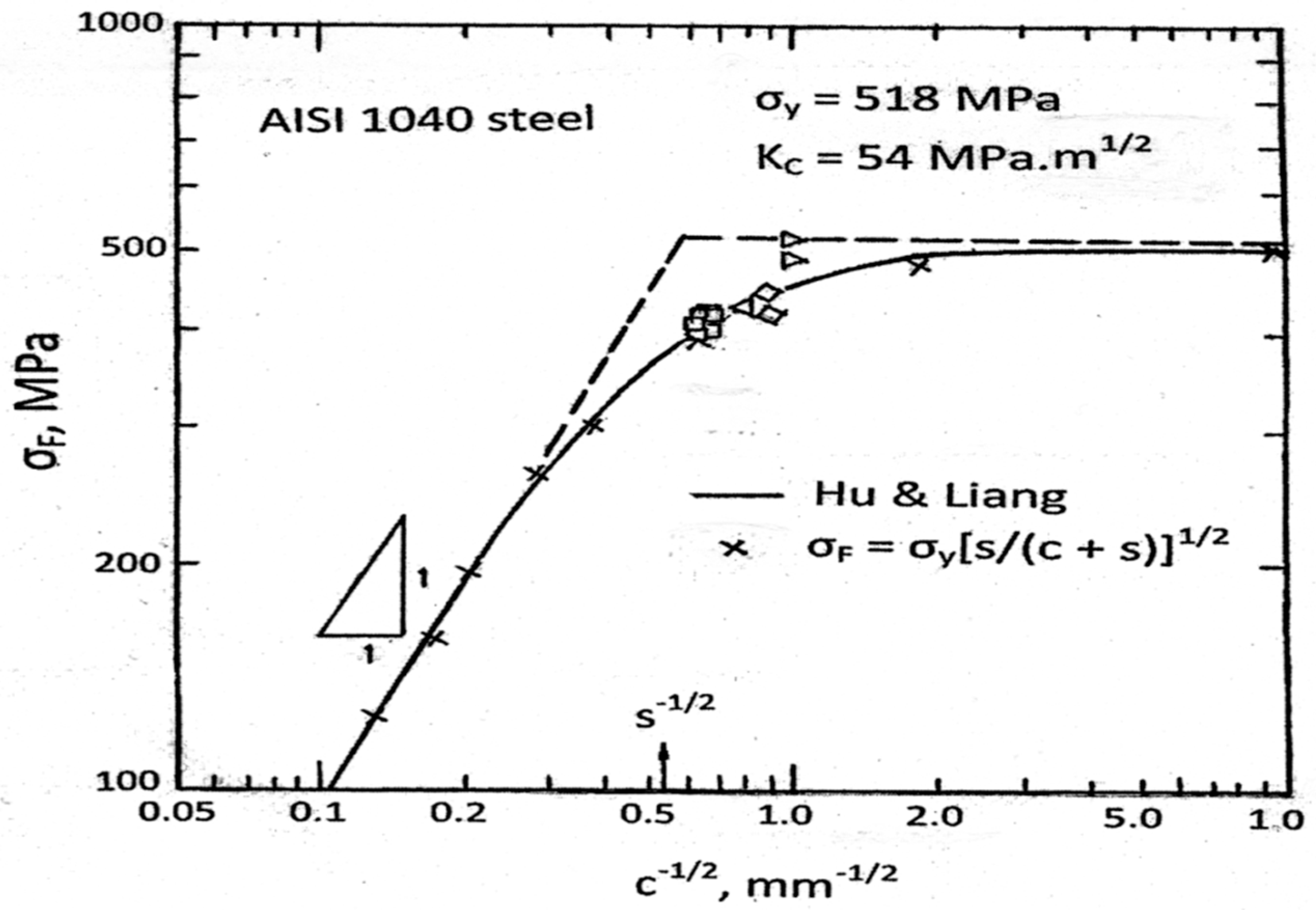

Dislocation pile-up and thermal activation influences on the deformation and fracturing behaviors of polycrystalline metals are briefly reviewed, as examples of dislocation mechanics applications to understanding mechanical properties. To start, a reciprocal square root of grain size dependence was demonstrated for historical hardness measurements reported for cartridge brass, in line with a similar Hall-Petch grain size characterization of stress-strain measurements made on conventional grain size and nano-polycrystalline copper, nickel, and aluminum materials. Additional influences of loading rate (and temperature) were shown to be included in a dislocation model thermal activation basis, for calculated deformation shapes of impacted solid cylinders of copper and Armco iron materials. Connection was established for such grain size, temperature, and strain rate influences on the brittle fracturing transition exhibited by steel and other related metals. Lastly, for AISI 1040 steel material, a fracture mechanics based failure stress dependence on the inverse square root of crack size was shown to approach the yield stress at a very small crack size, also in line with a Hall-Petch dependence of the stress intensity on polycrystal grain size. View Full-Text
Keywords: dislocation mechanics; yield strength; grain size; thermal activation; strain rate; impact tests; brittleness transition; fracturing; crack size; fracture mechanics dislocation mechanics; yield strength; grain size; thermal activation; strain rate; impact tests; brittleness transition; fracturing; crack size; fracture mechanics
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Armstrong, R.W. Dislocation Mechanics Pile-Up and Thermal Activation Roles in Metal Plasticity and Fracturing. Metals 2019, 9, 154.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
