Phase Diagram of near Equiatomic Zr-Pd Alloy

1
Division of Materials Science, Faculty of Advanced Science and Technology, Kumamoto University, Kumamoto 860-8555, Japan
2
Interdisciplinary Graduate School of Science and Engineering, Kyushu University, Kasuga, Fukuoka 816-8580, Japan
3
Technical Division, Faculty of Engineering, Kumamoto University, Kumamoto 860-8555, Japan
4
Department of Advanced Materials Science and Engineering, Faculty of Engineering Sciences, Kyushu University, Kasuga, Fukuoka 816-8580, Japan
*
Author to whom correspondence should be addressed.
Present address: Advanced Technology Research Laboratories, Nippon Steel & Sumitomo Metal Corporation, 1-8 Fuso-Cho, Amagasaki, Hyogo 660-0891, Japan.
Metals 2018, 8(5), 366; https://doi.org/10.3390/met8050366
Received: 28 April 2018 / Revised: 16 May 2018 / Accepted: 18 May 2018 / Published: 21 May 2018
(This article belongs to the Special Issue Zirconium Alloys)
  |
PDF [11323 KB, uploaded 21 May 2018]
  |

Abstract

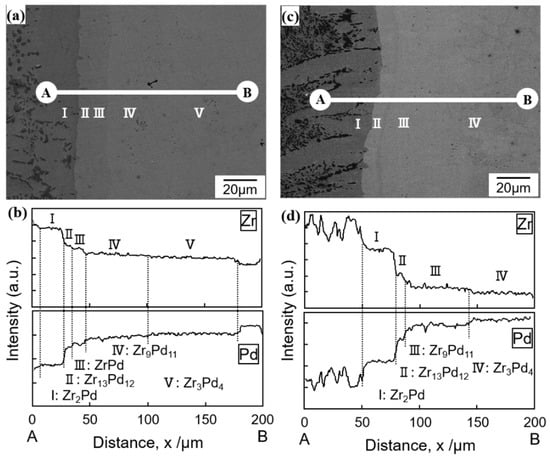

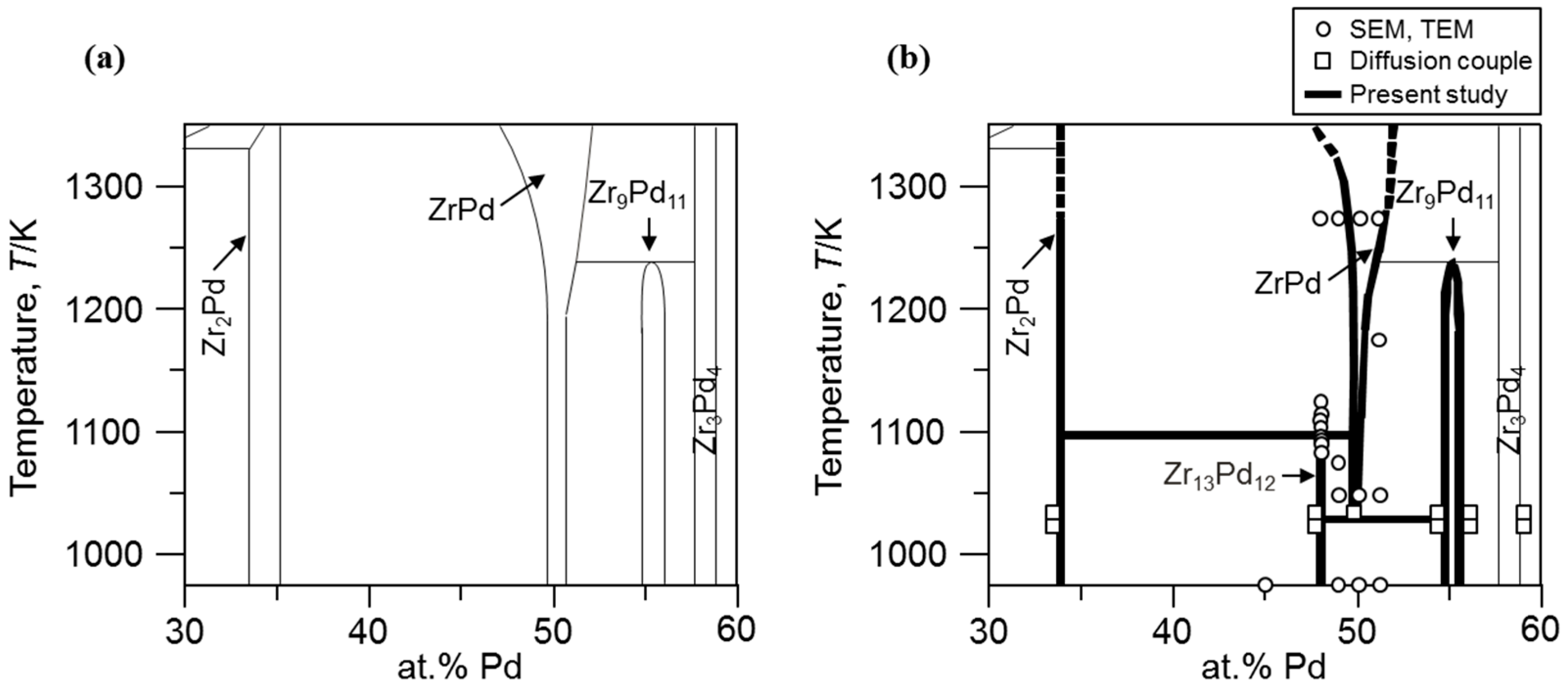

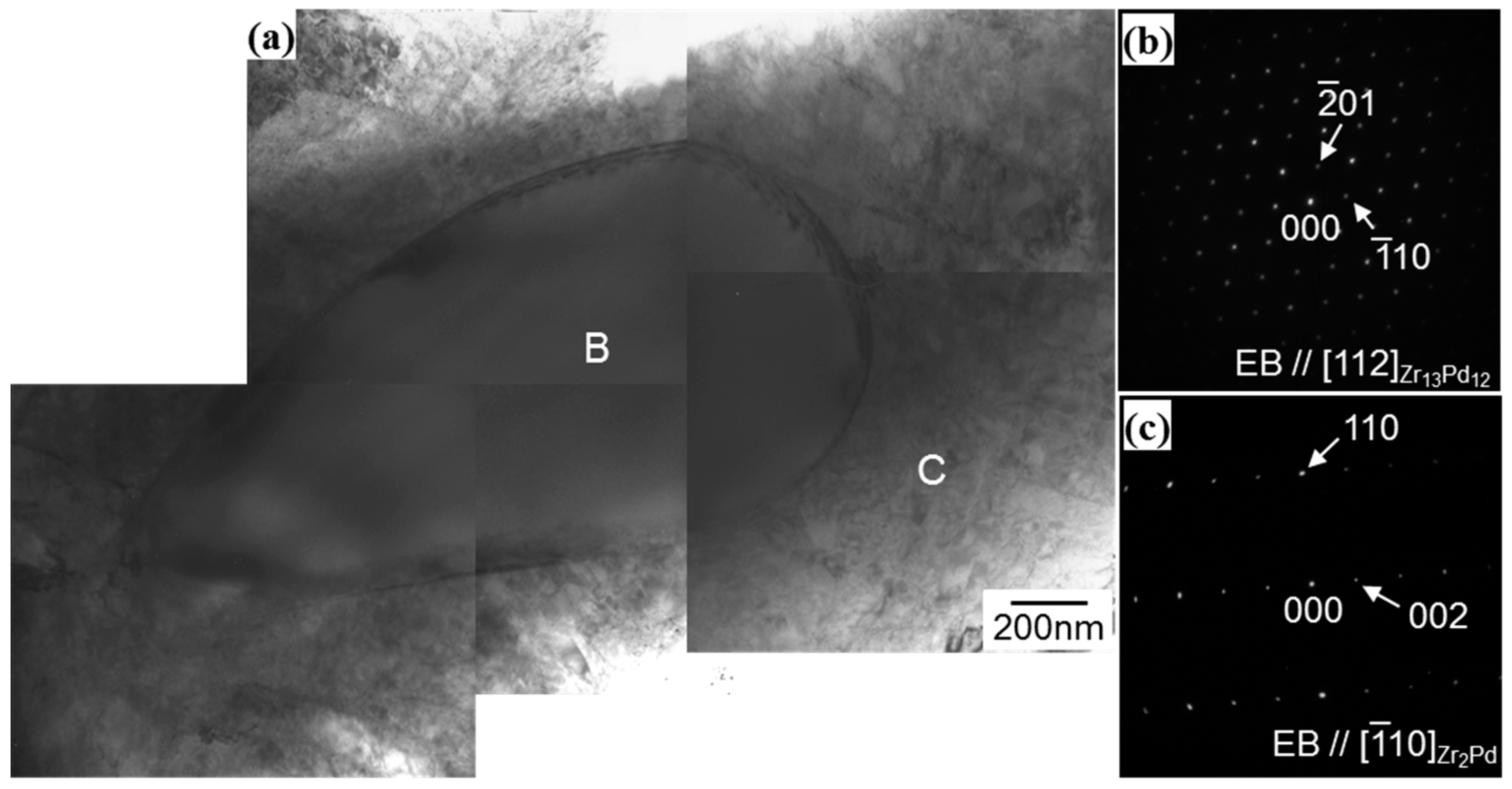

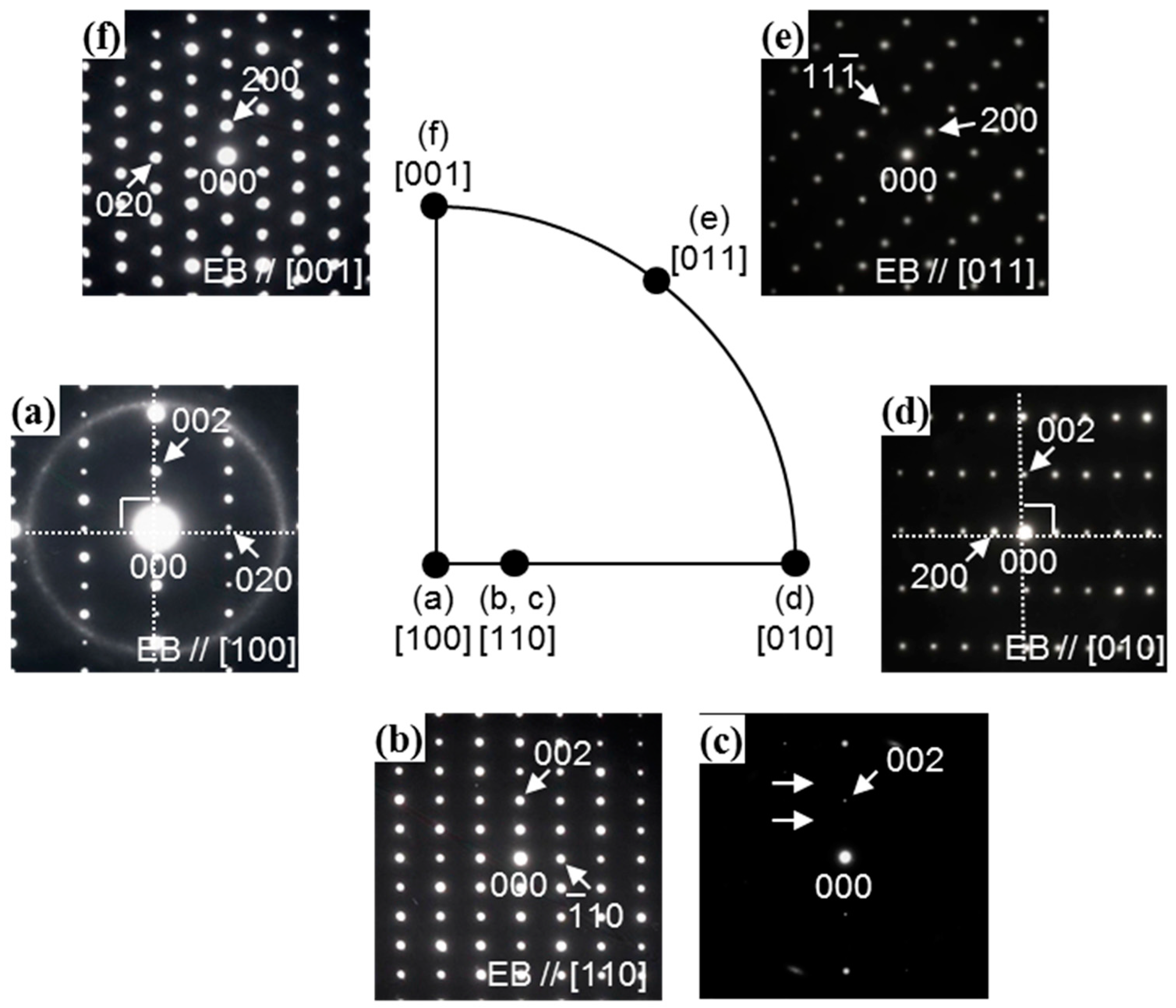

The exact eutectoid and peritectoid temperatures in near equiatomic Zr-Pd compositions have been determined by using the diffusion couple method and microstructure analysis. The crystal structure of Zr13Pd12 compound were estimated to be orthorhombic with a = 1.78 nm, b = 0.80 nm and c = 1.00 nm from the electron diffraction experiments. The Zr13Pd12 compound is formed at 1100 ± 2 K with a peritectoid reaction between Zr2Pd and ZrPd compounds. The ZrPd compound transforms to Zr13Pd12 and Zr9Pd11 compounds by a eutectoid reaction at 1028 ± 4 K. Based on these results, the phase diagram of near equiatomic Zr-Pd binary system is reconstructed. View Full-Text
Keywords: Zr-Pd alloy; crystal structure; microstructure; phase diagrams; transmission electron microscopy Zr-Pd alloy; crystal structure; microstructure; phase diagrams; transmission electron microscopy
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
