Next Article in Journal
An Equivalent Calculation Method for Press-Braking Bending Analysis of Integral Panels
Next Article in Special Issue
Effect of Jet Flow between Electrodes on the Cathode Quality in Copper Electrorefining with High Current Density
Previous Article in Journal
Structure and Mechanical Properties of a Copper Combustion Chamber throughout Its Life Cycle
Article Menu
Issue 5 (May) cover image

Export Article

Open AccessArticle

Electrodeposition of Fe-C Alloys from Citrate Baths: Structure, Mechanical Properties, and Thermal Stability

Erich Schmid Institute of Materials Science, Austrian Academy of Sciences, 8700 Leoben, Austria
Author to whom correspondence should be addressed.
Metals 2018, 8(5), 363;
Received: 13 April 2018 / Revised: 8 May 2018 / Accepted: 16 May 2018 / Published: 17 May 2018
(This article belongs to the Special Issue Electrochemical Deposition)
PDF [2852 KB, uploaded 21 May 2018]


A new citrate-based electrolyte is proposed for the electrodeposition of thick Fe-C films. The structure and properties of the deposits are compared to those from another electrolyte previously reported in the literature. Both consist of a nanocrystalline single-phase structure with a grain size of 20 nm, which results in a hardness of up to 660 HV. Due to its higher growth rate, the new electrolyte is a promising candidate for the deposition of thick films. However, the codeposition of oxygen causes embrittlement, limiting the application of the deposits from both the new and the known electrolyte. On the other hand, the codeposited carbon and oxygen provide considerable thermal stability and even a hardening capacity upon annealing. The results are compared and discussed with respect to the previous investigations of electrodeposited Fe-C alloys. View Full-Text
Keywords: electrodeposition; iron-carbon; oxygen; nanocrystalline; mechanical properties electrodeposition; iron-carbon; oxygen; nanocrystalline; mechanical properties

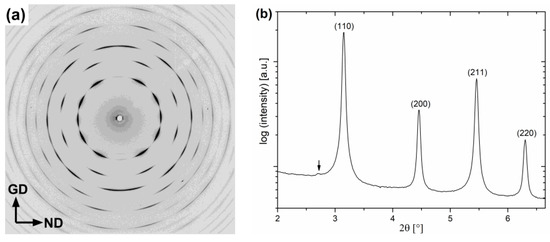

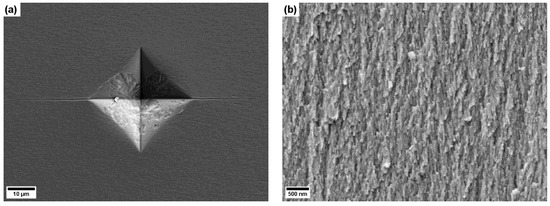

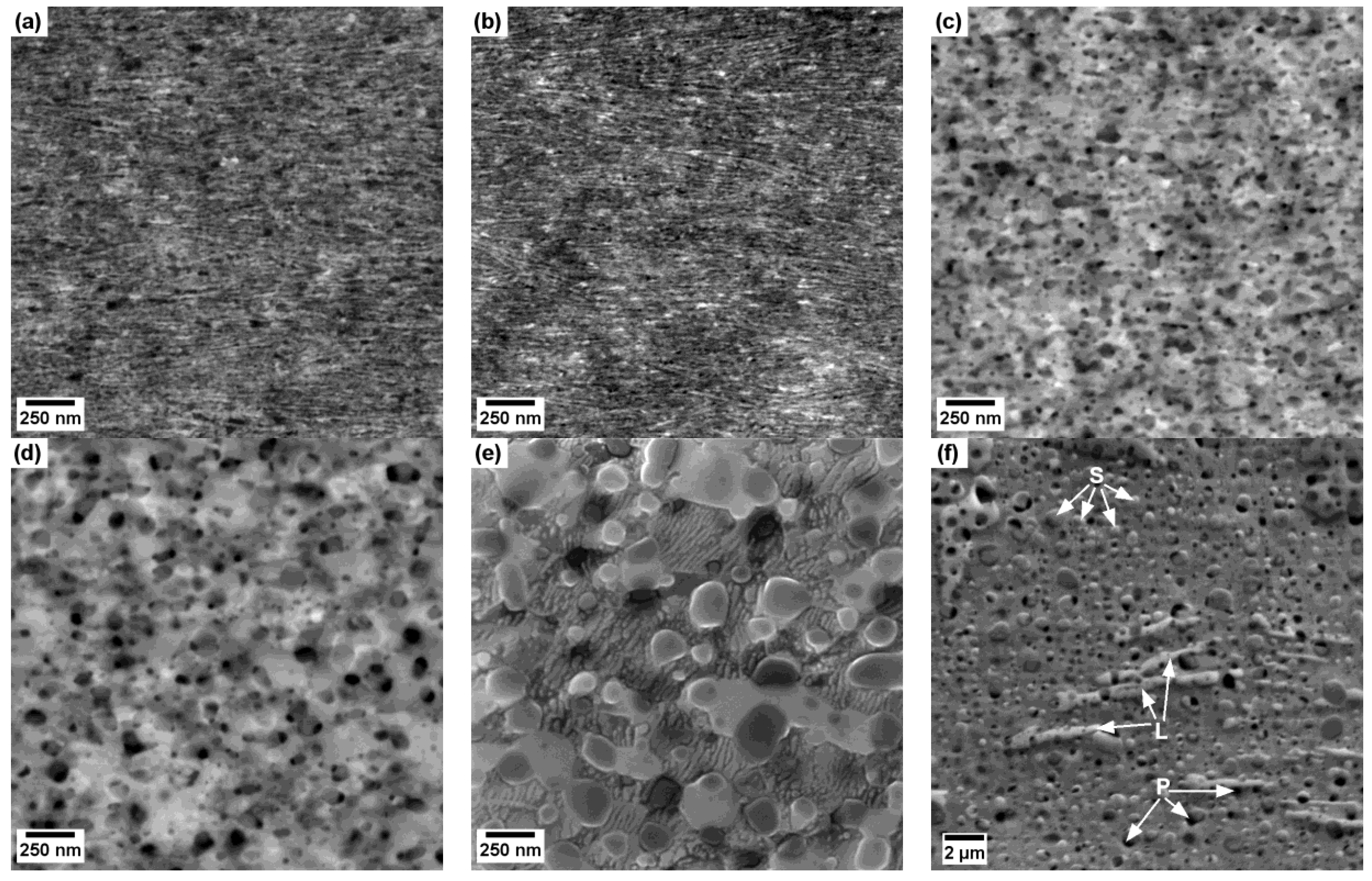

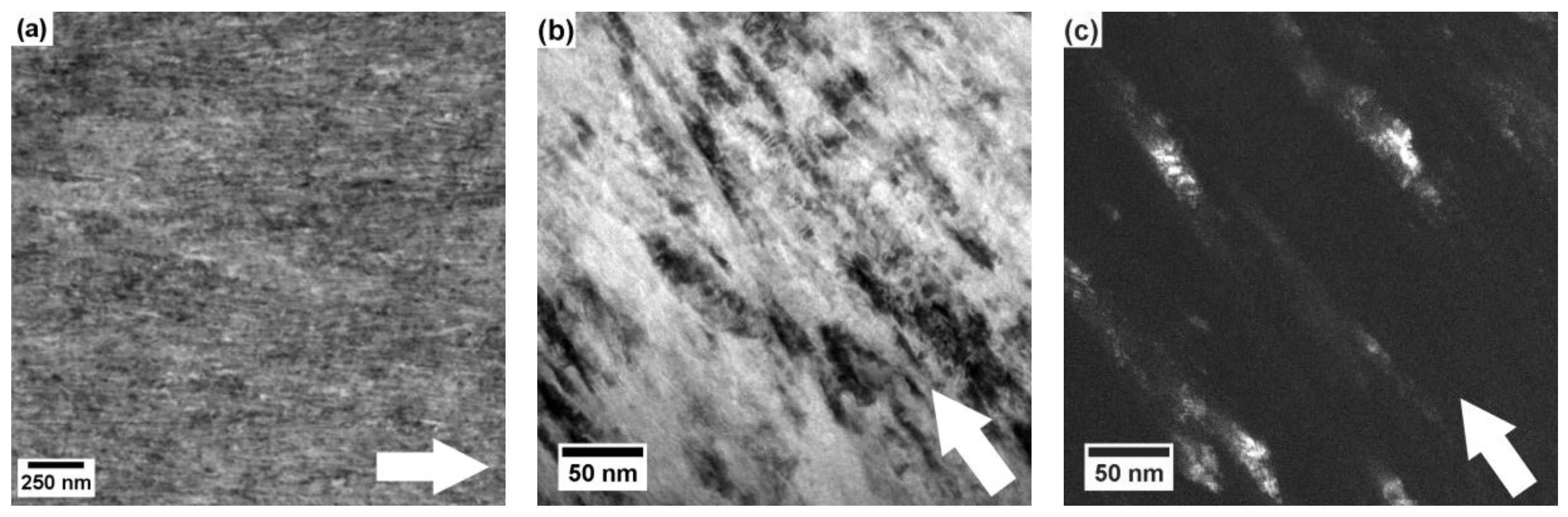

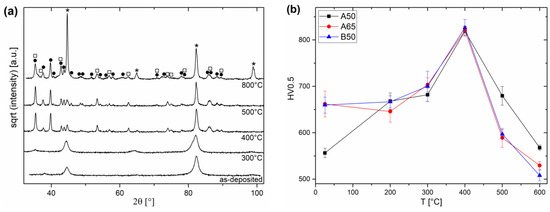

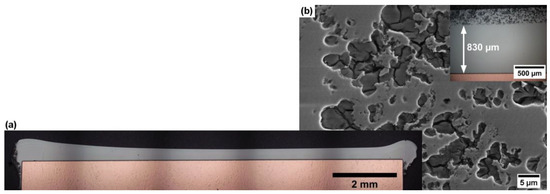

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Müller, T.; Grimwood, J.; Bachmaier, A.; Pippan, R. Electrodeposition of Fe-C Alloys from Citrate Baths: Structure, Mechanical Properties, and Thermal Stability. Metals 2018, 8, 363.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
