Microstructure, Texture Evolution and Magnetic Properties of Fe-6.5 wt. % Si and Fe-6.5 wt. % Si-0.5 wt. % Cu Alloys during Rolling and Annealing Treatment

The State Key Laboratory of Refractories and Metallurgy, Wuhan University of Science and Technology, Wuhan 430081, China
*
Author to whom correspondence should be addressed.
Metals 2018, 8(2), 144; https://doi.org/10.3390/met8020144
Received: 15 November 2017 / Revised: 9 February 2018 / Accepted: 13 February 2018 / Published: 22 February 2018
(This article belongs to the Special Issue Metallic Materials and Manufacturing)
  |
PDF [5864 KB, uploaded 22 February 2018]
  |

Abstract

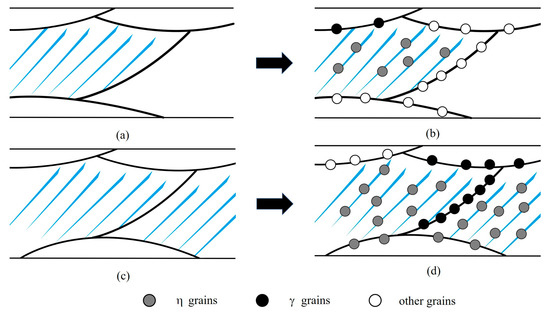

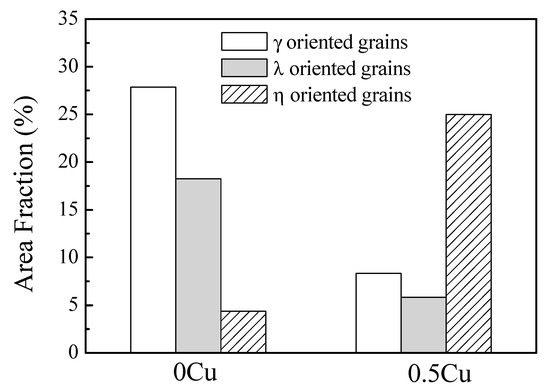

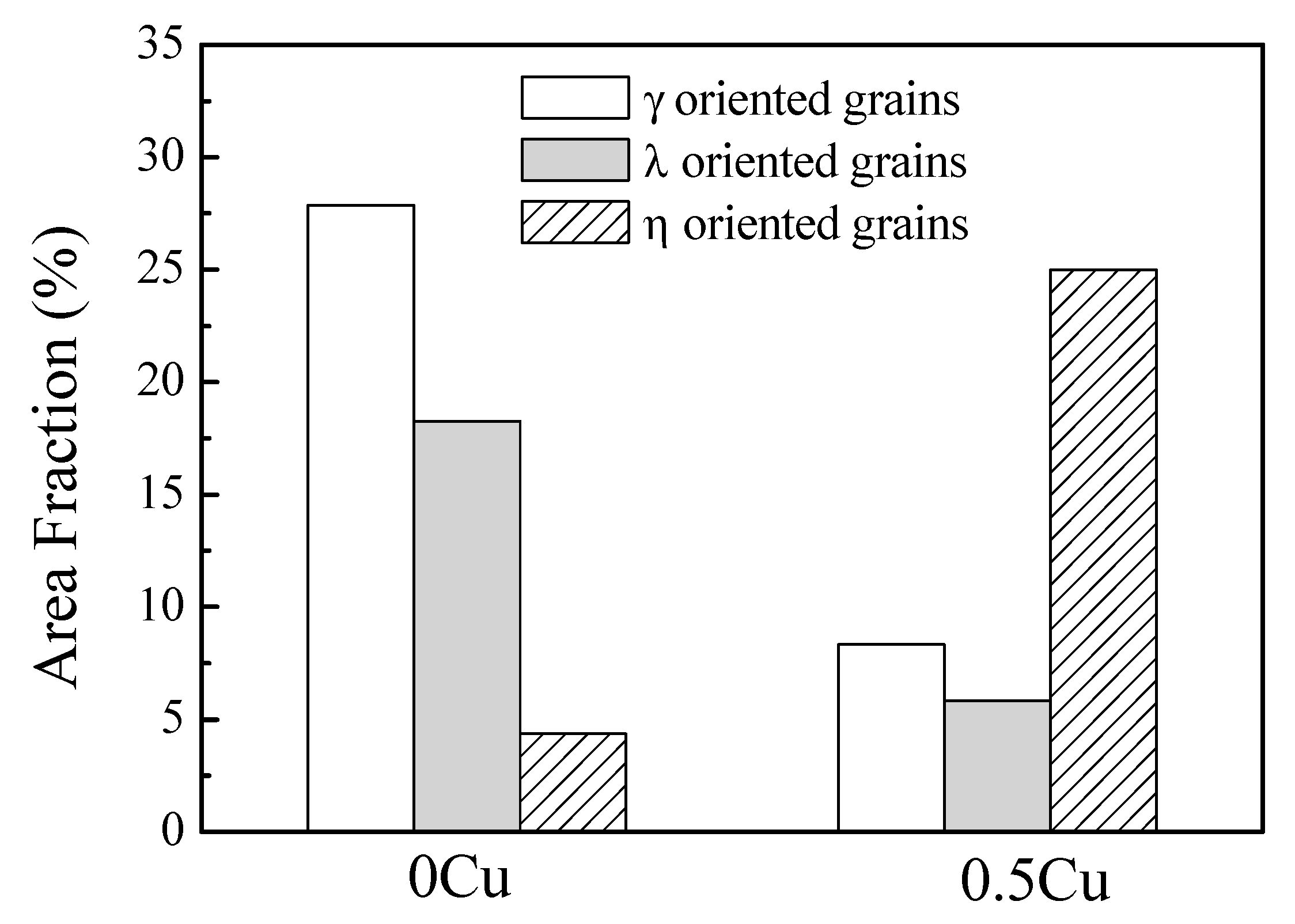

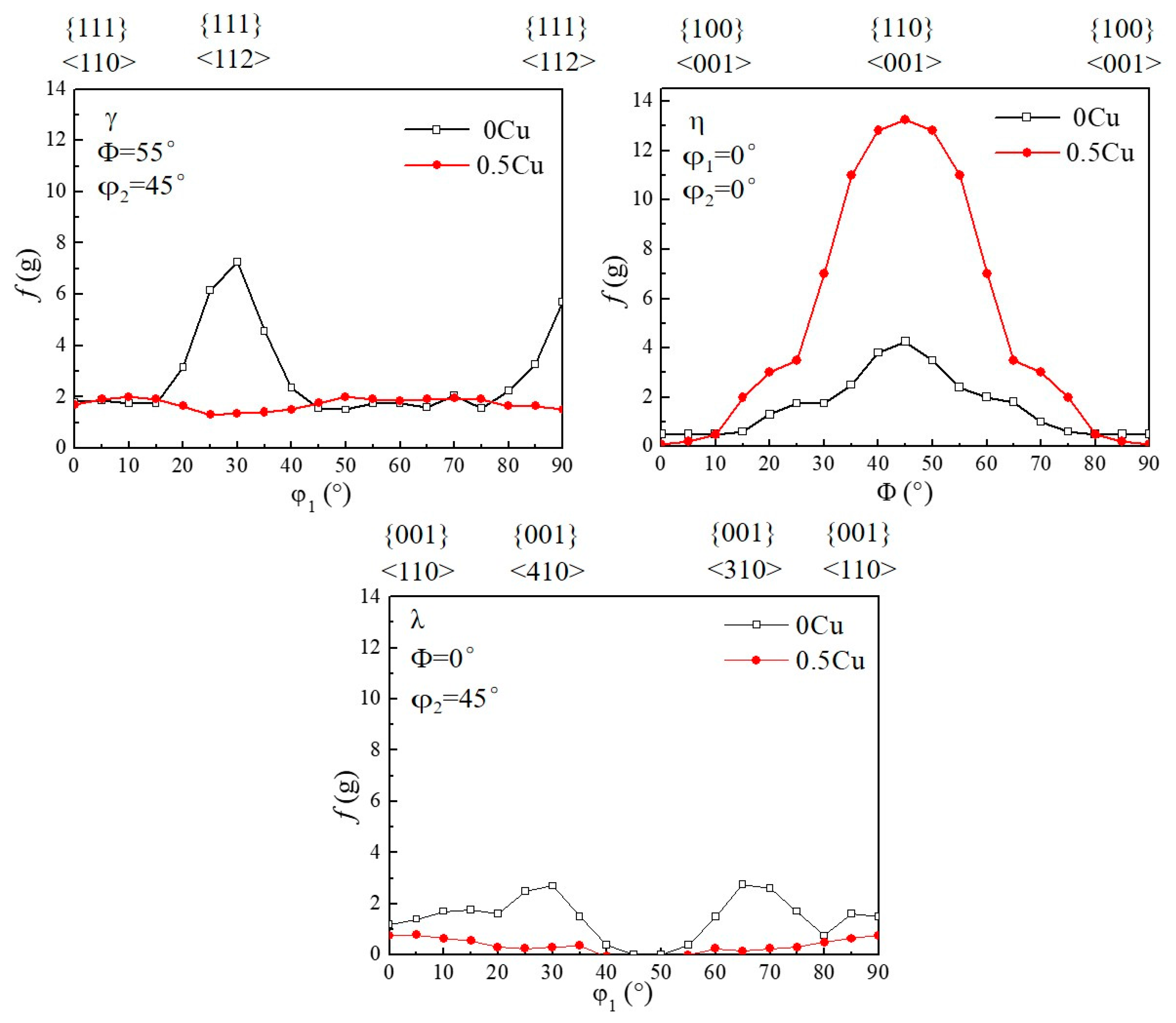

Sheets of Fe-6.5 wt. % Si and Fe-6.5 wt. % Si-0.5 wt. % Cu with the thickness of 0.3 mm have been produced by hot and warm rolling. The microstructure, texture evolution and magnetic properties of the two alloys were investigated. It was found that the addition of 0.5 wt. % Cu promoted the formation of shear bands during warm rolling, and enhanced the {110}<001> texture at surface layer and {111}<112> texture in the middle layer. After annealing treatment, a strong η fiber texture with a peak at {110}<001> was formed in the Fe-6.5 wt. % Si-0.5 wt. % Cu sample, while the Fe-6.5 wt. % Si sample was characterized by complex γ, η and λ fibers. The formation of dominating η fiber in the annealed Fe-6.5 wt. % Si-0.5 wt. % Cu sample is attributed to the shear bands formed in {111}<112> oriented grains. These shear bands in {111}<112> oriented grains acted as the nucleation sites of η oriented grains and promoted the growth of Goss oriented grains. The presence of strong η fiber with a peak at Goss in Fe-6.5 wt. % Si-0.5 wt. % Cu sample was the cause for the higher magnetic induction observed for this sample than for the Fe-6.5 wt. % Si sample. View Full-Text
Keywords: Fe-6.5 wt. % Si alloy; alloying; microstructure; texture evolution; magnetic properties Fe-6.5 wt. % Si alloy; alloying; microstructure; texture evolution; magnetic properties
Figures

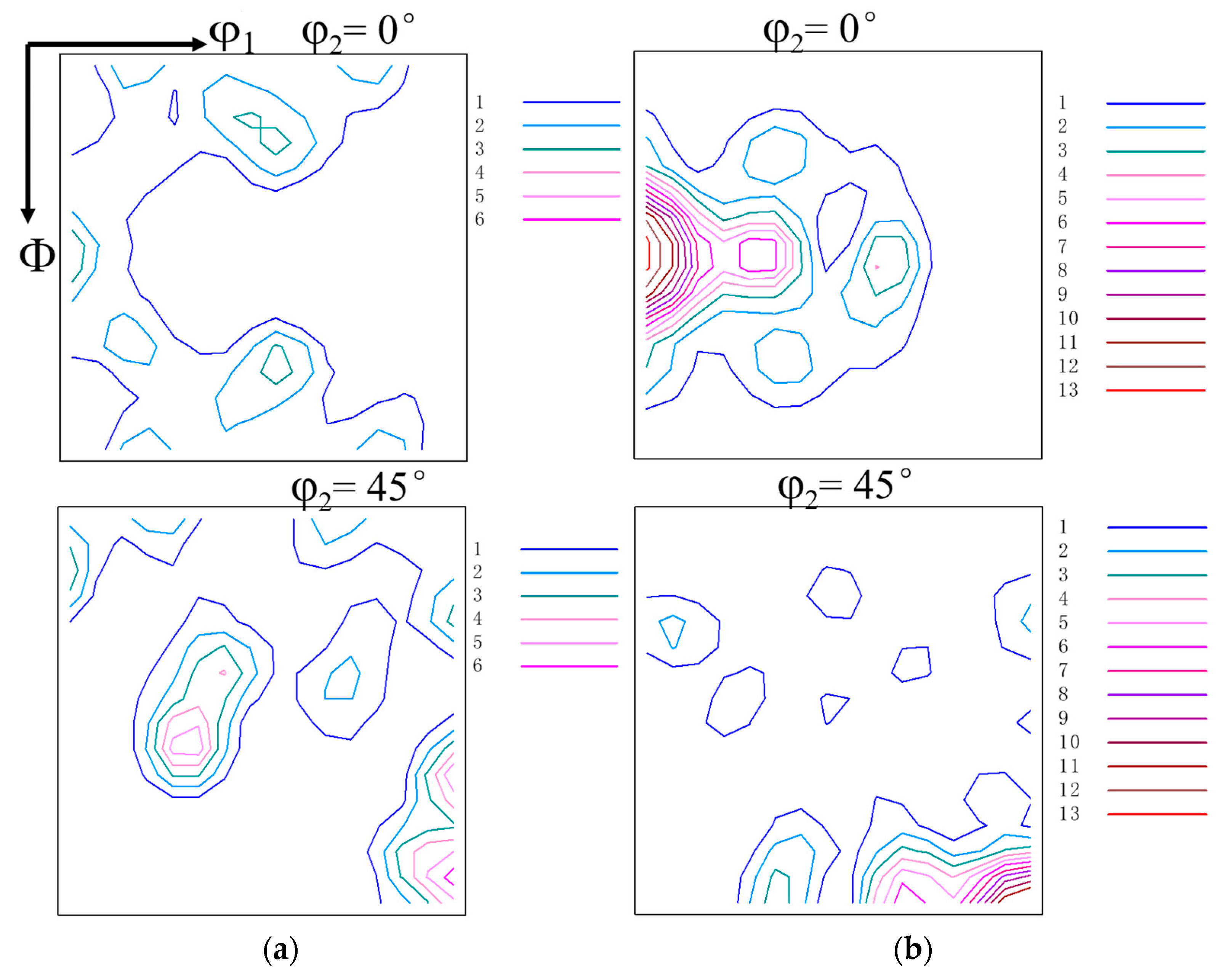

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
