Next Article in Journal
Recent Progress in the Joining of Titanium Alloys to Ceramics
Next Article in Special Issue
Effect of Temperature and Dwell Time on Fatigue Crack Growth Behavior of CP-Ti
Previous Article in Journal
Behaviour of Steel Grade S275JR Columns under the Influence of High-Temperature Creep
Article Menu
Issue 11 (November) cover image

Export Article

Open AccessArticle

TiFe Precipitation Behavior and its Effect on Strengthening in Solution Heat-Treated Ti-5Al-3.5Fe During Isothermal Aging

Metal Materials Division, Korea Institute of Materials Science, Changwon 51508, Korea
School of Materials Science and Engineering, Busan National University, Pusan 46241, Korea
Author to whom correspondence should be addressed.
Metals 2018, 8(11), 875;
Received: 16 October 2018 / Revised: 23 October 2018 / Accepted: 24 October 2018 / Published: 26 October 2018
(This article belongs to the Special Issue Titanium Alloys: Processing and Properties)
PDF [2372 KB, uploaded 26 October 2018]

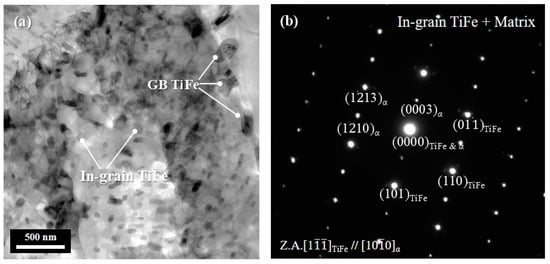

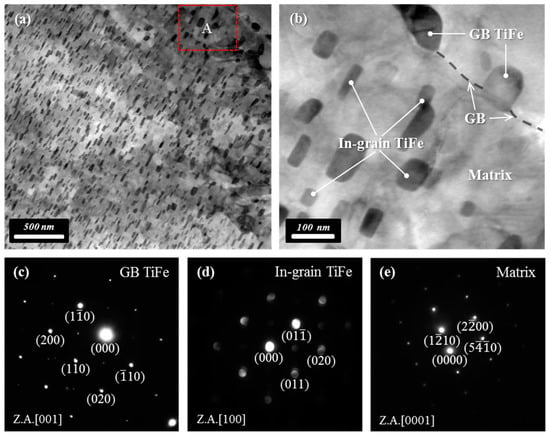

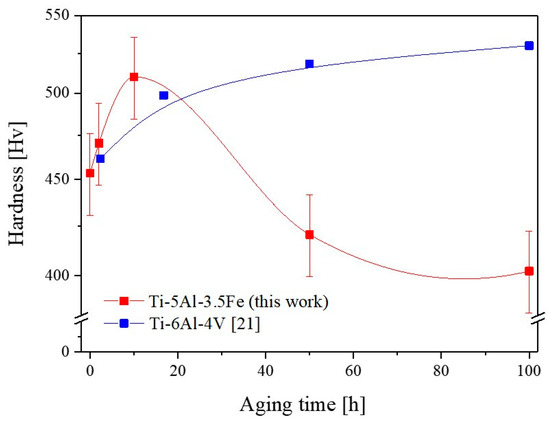

We investigated the TiFe precipitation behavior of solution heat-treated Ti-5Al-3.5Fe during isothermal aging, quantified the effect of precipitation on strengthening by evaluating the hardness, and compared it to the effect of Ti3Al precipitation in Ti-6Al-4V. TiFe precipitates formed both at grain boundaries (GBs) and within the grain matrices. Phase transformation from the β to α phase also occurred during isothermal aging; this transformation generated lamellar interphase boundaries between the transformed α phase and remaining β phase in prior β grains. These interphase boundaries enabled the formation of in-grain TiFe precipitates by acting as a nucleation site. GB precipitation did not require prior βα phase transformation to generate nucleation sites (i.e., interphase boundaries), so TiFe precipitation could occur immediately upon isothermal aging. Thus, GB precipitation proceeded more quickly than in-grain precipitation; as a result, precipitates were larger and more spherical at the GBs than in grains. The strengthening behavior exhibited by TiFe precipitation differed obviously from that caused by Ti3Al precipitation in Ti-6Al-4V because of its differing precipitation kinetics and related microstructural evolution. View Full-Text
Keywords: titanium alloys; precipitates; phase transformation; hardness titanium alloys; precipitates; phase transformation; hardness

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Choe, H.-J.; Won, J.W.; Hyun, Y.-T.; Lim, K.R.; Yoon, S.-Y. TiFe Precipitation Behavior and its Effect on Strengthening in Solution Heat-Treated Ti-5Al-3.5Fe During Isothermal Aging. Metals 2018, 8, 875.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
