Structural Transformations and Mechanical Properties of Metastable Austenitic Steel under High Temperature Thermomechanical Treatment

Abstract

The effect of high-temperature thermomechanical treatment on the structural transformations and mechanical properties of metastable austenitic steel of the AISI 321 type is investigated. The features of the grain and defect microstructure of steel were studied by scanning electron microscopy with electron back-scatter diffraction (SEM EBSD) and transmission electron microscopy (TEM). It is shown that in the initial state after solution treatment the average grain size is 18 μm. A high (≈50%) fraction of twin boundaries (annealing twins) was found. In the course of hot (with heating up to 1100 °C) plastic deformation by rolling to moderate strain (e = 1.6, where e is true strain) the grain structure undergoes fragmentation, which gives rise to grain refining (the average grain size is 8 μm). Partial recovery and recrystallization also occur. The fraction of low-angle misorientation boundaries increases up to ≈46%, and that of twin boundaries decreases to ≈25%, compared to the initial state. The yield strength after this treatment reaches up to 477 MPa with elongation-to-failure of 26%. The combination of plastic deformation with heating up to 1100 °C (e = 0.8) and subsequent deformation with heating up to 600 °C (e = 0.7) reduces the average grain size to 1.4 μm and forms submicrocrystalline fragments. The fraction of low-angle misorientation boundaries is ≈60%, and that of twin boundaries is ≈3%. The structural states formed after this treatment provide an increase in the strength properties of steel (yield strength reaches up to 677 MPa) with ductility values of 12%. The mechanisms of plastic deformation and strengthening of metastable austenitic steel under the above high-temperature thermomechanical treatments are discussed.

1. Introduction

Austenitic steels are widely used in many industries, but their application is still limited by relatively low strength properties (yield strength of 200–340 MPa) in the initial (quenched or solution treated) state [1,2,3]. The mechanical properties of these steels are successfully improved relative to the initial values by plastic deformation and (or) by thermomechanical treatments [4,5,6]. Under conditions of cold plastic deformation in metastable austenitic steels, dislocation gliding is not the only deformation mechanism of plastic deformation; there are also strain-induced γ → ε (face-center-cubic (fcc) → hexagonal-closed-packed (hcp)) and γ → ε → α′ (fcc → hcp → body-center-cubic (bcc)) martensitic transformations [1,2,5,7,8,9,10,11]. In austenitic steels with low stacking fault (SF) energy under these conditions, a high density of microtwin packets is formed [12,13,14,15]. It is shown that with increasing deformation degree the microstructure of 304-type steel progressively changes: Dislocations (Ds) → Ds + SFs + ε → Ds + SFs + Twins + ε → Ds + SFs + Twins + ε + α′ → Ds + Twins + α′ [16]. The heterophase submicrocrystalline structure of metastable austenitic steel represented by deformation α′-martensite packets with a high dislocation density and austenite microtwins, provides a significant increase in strength (yield strength of more than 1000 MPa) relative to the initial state. This markedly reduces the plastic properties of the material [15,17]. It should also be noted that as a result of the formation of α′-martensite, steel becomes magnetic [18], which might limit its practical application. Under annealing after cold deformation, reverse transformations of martensitic phases into austenite, recovery and recrystallization of austenite occur. In this case, the plastic properties increase, but the full completion of the reverse transformations with the formation of 100% austenite leads to a significant decrease in strength, compared to the cold-deformed state [19,20,21].

Under hot and warm plastic deformation of austenitic steels, less deformed structural states are formed, compared to the cold deformation [22,23,24,25]. This is due to the lack of conditions for the martensitic transformations and mechanical twinning and to the effects of dynamic recovery and recrystallization. The stacking faults energy increases with increasing temperature [26,27], so high stresses are required to split perfect dislocations to partial dislocations, which prevents deformation twinning. The ductility after such treatments is significantly higher while the strength properties are lower, compared to those at similar degrees of low temperature deformation. To achieve high-strength states (yield strength more than 1000 MPa), severe plastic deformations are required [28]. A combination of high degrees of deformation and temperature-strain rate treatment modes can activate the processes of dynamic recrystallization. In this case, an equiaxed submicrocrystalline structure is formed. This structure contains a combination of grains with an increased dislocation density and low-defect grains [23,28,29].

Extensive investigations of the effect of thermomechanical control processing on the grain structure and mechanical properties of austenitic steels have been performed [30,31,32,33] and recrystallization of type 321 steel during and after hot deformation was studied [34,35]. It was shown that for the formation of a recrystallized structure, deformation should be carried out in the temperature range of 900–1200 °C. The recrystallization temperature depends on the elemental composition of the steels. The reduction in the austenite grain size is achieved by lowering the rolling end temperature, increasing the cooling rate, and by increasing the cooling start temperature in the recrystallization region [31]. In this case, low values of hardening are achieved (the yield point does not exceed 300 MPa). Deformation at lower temperatures leads to the formation of a pancake structure and localization of deformation [30]. In this case, the values of the yield strength are generally higher than 400 MPa with a corresponding loss of ductility.

Despite the extensive research into the effect of warm deformation on the microstructure and mechanical properties of austenitic steels, the effect of deformation in the recrystallization region followed by deformation at lower temperatures remains unclear. Type 321 steel is relatively little studied compared to other austenitic steels such as 304 and 316. The presence of titanium in the solid solution of 321 steel can lead to rapid precipitation of dispersed Ti (C, N) particles during warm deformation in the temperature range of 750–800 °C [36]. Deformation at 800 and 850 °C is accompanied by the formation of M₂₃C₆ precipitates at the grain boundaries of austenite [37].

In this work, we focus on the microstructure features and their impact on the strength and plastic properties of metastable AISI 321 austenitic steel after hot deformation and a combination of hot and warm deformations at moderate deformation degrees.

2. Materials and Methods

The material used was Russian grade (08Kh18N10T) austenitic chromium-nickel steel (AISI 321 type) Fe-18.02Cr-9.77Ni-1.4Mn-0.59Ti-0.39Si-0.19Cu-0.1Mo-0.08C (mass.%). Prior to deformation, the samples were solution treated (ST) at 1100 °C for 1 h followed by water quenching. The initial sample size was ≈50 × 12 × 10 mm³. Thermomechanical treatments were performed in two modes. The first treatment consisted of hot (with heating up to 1100 °C) rolling deformation in 3 passes with a total degree of deformation e = 1.6, where e is true strain. Heating was carried out in a tubular electric furnace of the T-40/600 type (Russia). The temperature was determined by the furnace thermocouple. Before the first pass, the sample was kept in the furnace for 1 h to align the chemical composition, similar to ST. Before the second and third passes, the samples were kept in the furnace for 10 and 5 min, respectively, to align the temperature to the sample. After removal from the mill the samples were quenched in water after each pass. The rolling mill was maintained at room temperature. The strain rate was ~1 s⁻¹. This treatment is termed as high-temperature thermo-mechanical treatment-1 (HTMT-1). The second treatment consisted of hot rolling deformation with heating up to 1100 °C, e = 0.8 in one pass, and subsequent deformation with heating up to 600 °C, e = 0.7 in one pass (HTMT-2). As in the first case, after each pass the samples were quenched in water.

The time before the transfer of the sample from the furnace to the rolling mill was 5–10 s, so the actual deformation temperature was lower than the temperature in the furnace. The first treatment and the first stage of the second treatment were performed with heating above the recrystallization start temperature. The deformation temperature in the second stage of the second treatment is lower than the recrystallization temperature. It is chosen low enough to significantly increase the strength of the material and prevent the intensive precipitation of dispersed particles during warm deformation. This significantly increases the load on the rolling mill.

The microstructural characterization was performed using a Tescan MIRA 3 LMU scanning electron microscope (SEM) equipped with a field emission gun (FEG) and an Oxford Instruments Nordlys F electron back-scattered diffraction (EBSD) detector. The SEM samples were prepared by mechanical polishing followed by ion milling as a final polishing step. Ion polishing was performed using a Technoorg Linda SEMPrep 2 system. The EBSD data were obtained with step sizes of 500 nm (ST), 300 nm (HTMT-1), and 100 nm (HTMT-2). After deformation treatments, the EBSD images were taken perpendicular to the rolling plane. The microstructure and texture analyses were carried out by the Oxford Instruments AZtec software. It is assumed in this paper that the average grain size corresponds to the equivalent circle diameter obtained from EBSD data. The high angle boundaries are the boundaries with a misorientation angle of >15°; only these boundaries are taken into account when estimating the average grain size.

Transmission electron microscopy (TEM) investigations were conducted using a Philips CM-12 electron microscope at an accelerating voltage of 120kV. Thin foils were prepared from sections perpendicular to the rolling plane by electropolishing in an electrolyte containing 450 mL of orthophosphoric acid and 50 g of chromic anhydride. The dislocation density was estimated by the linear intercept method [38].

Mechanical tests were carried out at ambient temperature by the method of static tensile deformation at a strain rate of ≈2 × 10⁻³ s⁻¹ on a NIKIMT 1246R-2/2300 high-temperature vacuum testing machine (Russia) using dog-bone samples with the gage length of 13 mm and gage section of 2 × 1 mm². Samples were cut parallel to the rolling plane. The scheme of microstructure observation and cutting of samples for tension tests is presented in Supplementary Materials Figure S1.

3. Results

3.1. EBSD Study

The results of EBSD studies and their statistical analysis are presented in Figure 1, Figure 2 and Figure 3 and in Supplementary Materials Figure S2.

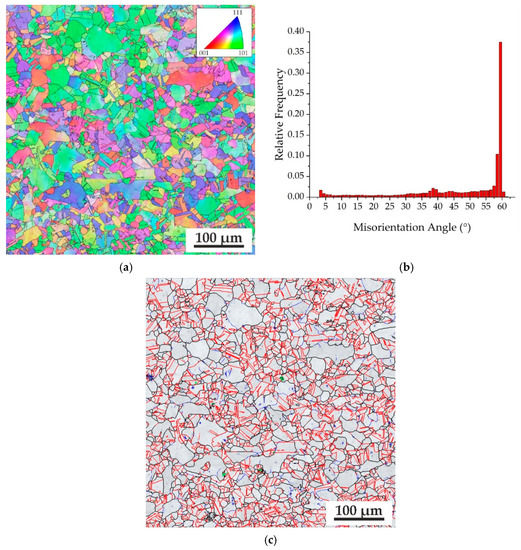

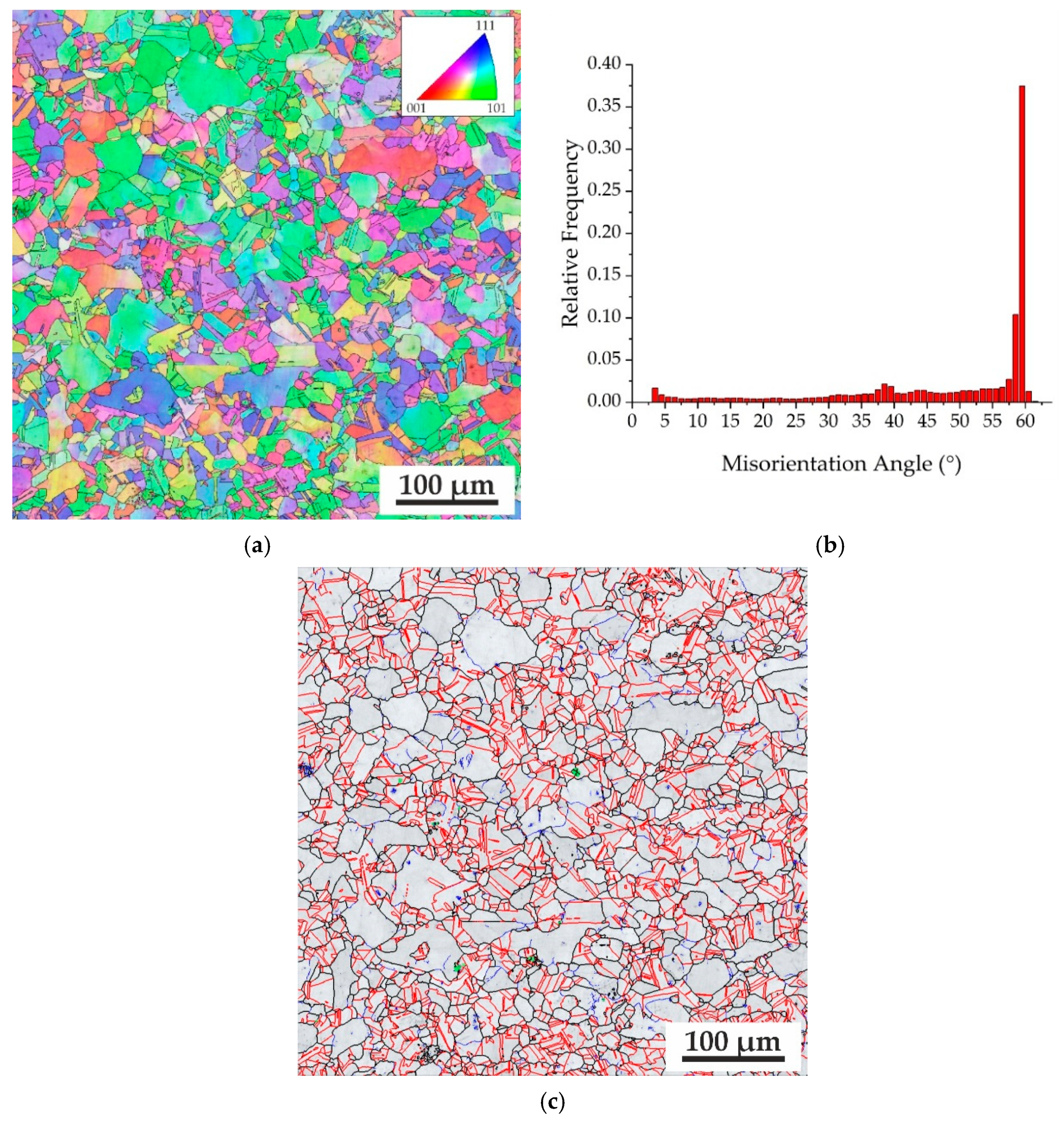

According to these data, in the initial (after quenching) state, the steel consists mainly of austenite (Figure 1). At the same time, sufficiently coarse (up to several microns) TiC particles and a small amount of the BCC phase (not shown) are detected. In some areas, its content can reach several percent. It can be the δ-ferrite phase or as an artifact of strain-induced α′-martensite formed in the final stage of sample preparation during ion polishing. According to the EBSD analysis, in the initial state, high-angle misorientation boundaries dominate in the material and the fraction of low-angle boundaries is insignificant (Figure 1b,c). At the same time, it is necessary to note a high fraction of twin boundaries ≈ 50% (Figure 1b,c). On the histogram of grain misorientation distribution, this corresponds to a narrow high peak at 60°. The characteristic shape and size of the twins indicate that they are annealing twins. Without taking into account the twins, the average grain size is 18 μm (given the twin boundaries in the ensemble of grain boundaries, it decreases to 8 μm).

The grain size distribution (see Supplementary Materials Figure S2) implies that in the initial state the material has a varied-grain state: a significant fraction (≈40%) of fine grains (up to 5 μm) and ≈15% of coarse (more than 50 μm) grains. Taking into account twins, the fraction of fine and medium (5–15 μm) grains in the grain size distribution increases, while that of grains larger than 15 μm decreases.

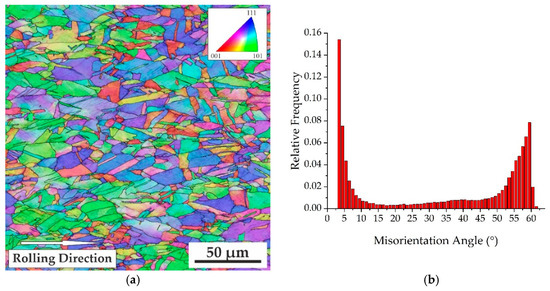

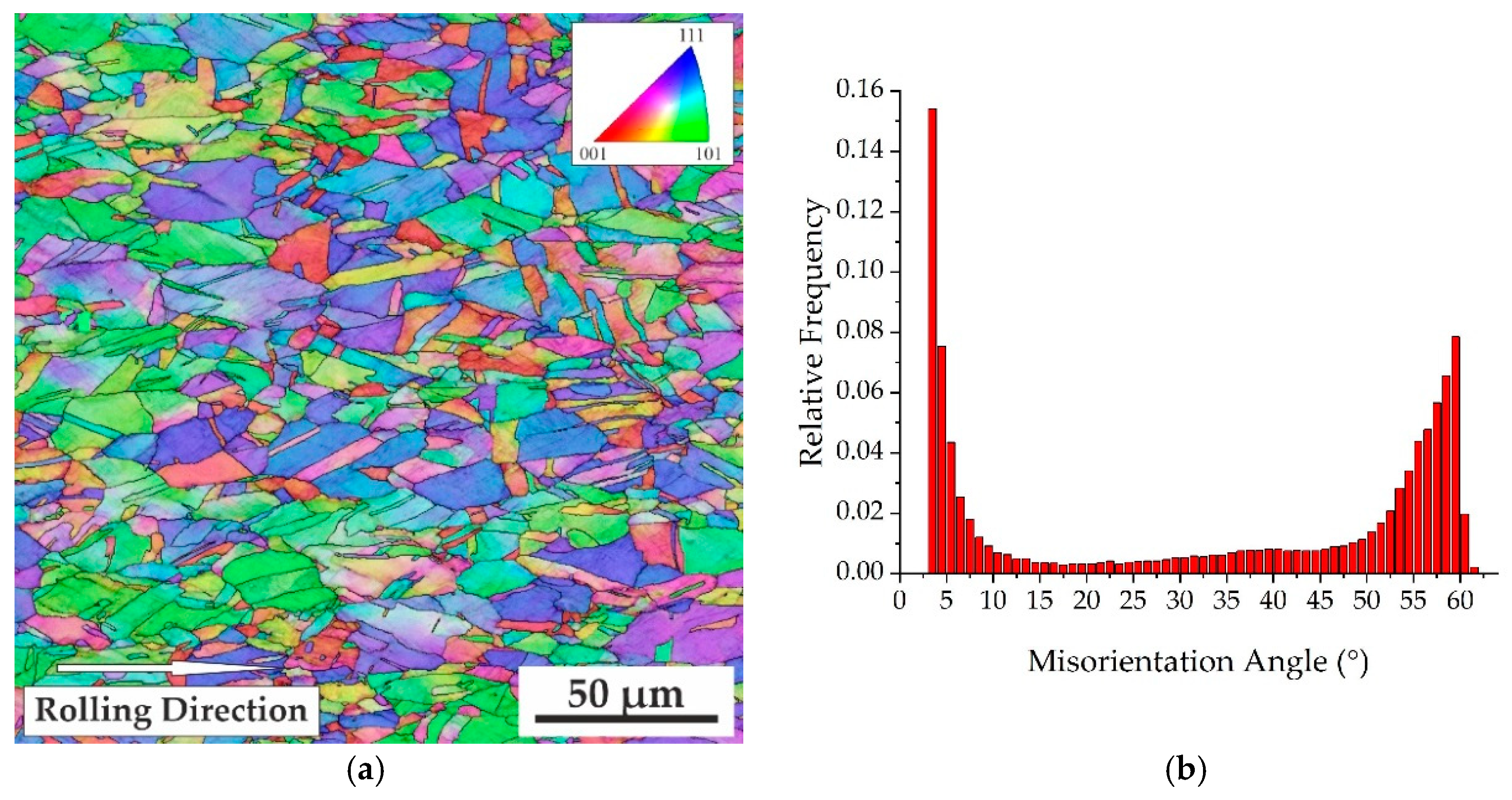

Multi-pass rolling of steel with heating to 1100 °C (HTMT-1) contributes to stretching of the initial grains in the rolling direction (Figure 2). At the same time, there are equiaxed grains, but their fraction is insignificant. The grain sizes in the rolling direction may be several times larger than those in the perpendicular direction. Many low-angle misorientation boundaries are formed in the material; their fraction is 46%. (Figure 2c). The fraction of twin boundaries reaches 22% (at a tolerance angle of 8°), which is less than that in the initial state. When the tolerance angle is reduced to 5°, this value is reduced to 16%. Thus, a significant number of twin boundaries after the above processing experience deviations from the exact twin position by small angles. In the grain misorientation distribution two peaks are clearly seen, corresponding to the low-angle and twin (60°) boundaries. Both low-angle and twin boundaries lie mainly at the angles less than 30° relative to the rolling direction (Figure 2c). Maps of geometrically necessary dislocations (GND) were reconstructed based on the EBSD data. It follows from the analysis of the GND map after HTMT-1 (Figure 2d) that the dislocation density inside the largest grains is rather low (less than 1 × 10¹⁴ m⁻²). The areas of increased (~10¹⁵ m⁻²) dislocation density correlate with the locations of low-angle misorientation boundaries in Figure 2c.

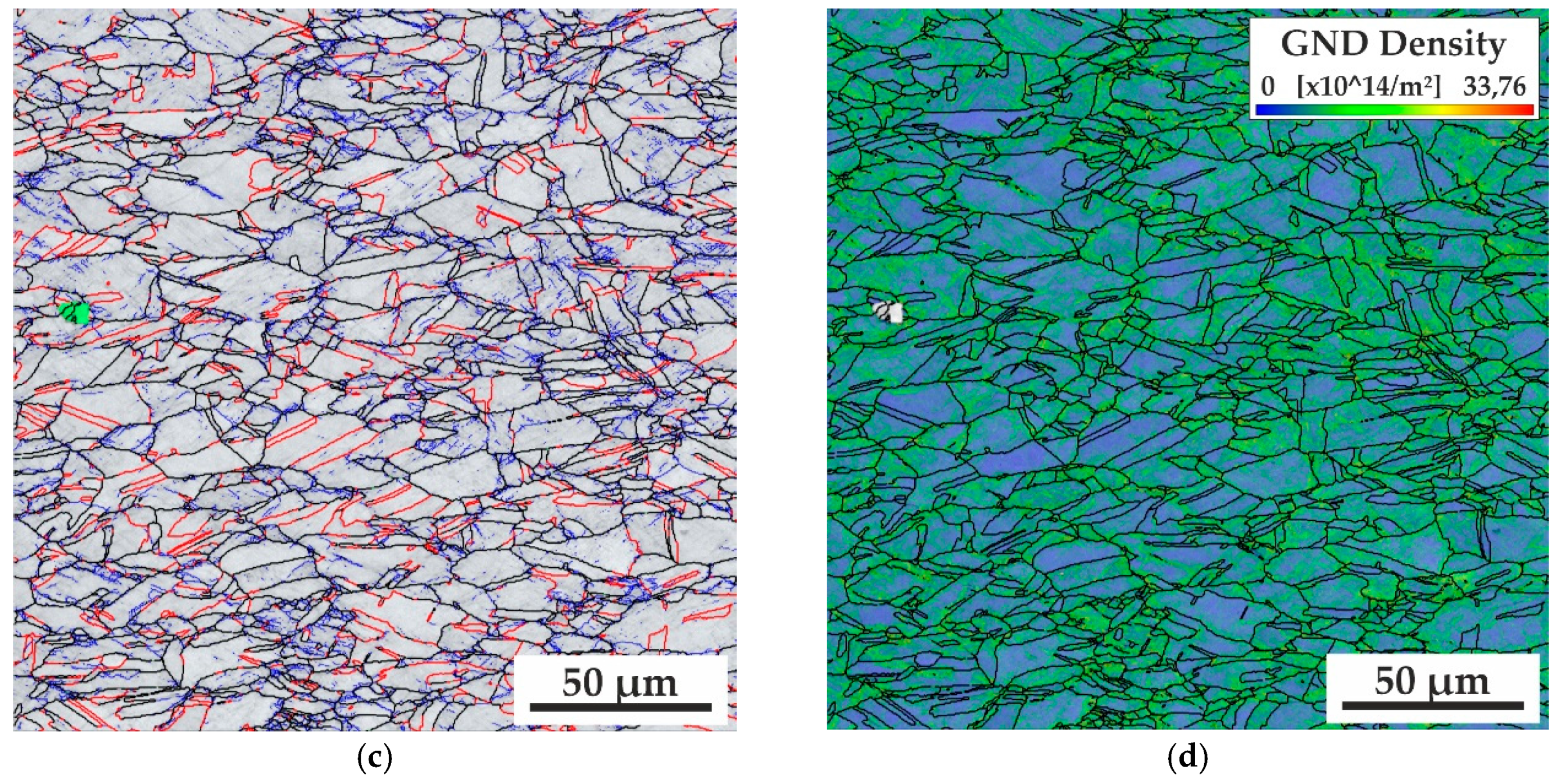

The actual deformation temperature was lower than the furnace temperature (1100 °C). However, during heating to this temperature and holding, the samples were undergoing recovery and initial stages of recrystallization, at which annealing twins were formed. During deformation, the initial annealing twins experience significant deviations from the twinning positions and become arbitrary high-angle boundaries. It is not possible to estimate which parts of the initial annealing twins were retained during deformation in three passes nor which twins were formed during heating before the last pass.

The average grain size after HTMT-1 is 8 μm (including twins—6 μm). From the analysis of the grain size distribution after this treatment (see Supplementary Materials Figure S1), it follows that in the material, the fraction of fine (up to 5 μm) grains increases (to more than 50%), the fraction of coarse grains decreases, and there are practically no grains larger than 50 μm. In this case, the shape of the distribution practically does not change relative to the initial state; the distribution itself shifts to smaller sizes. As in the case of the initial state, taking into account of twins in the distribution increases the fraction of fine and medium grains and decreases the fraction of grains larger than 15 μm. It should be noted that no submicron grains were found after this treatment.

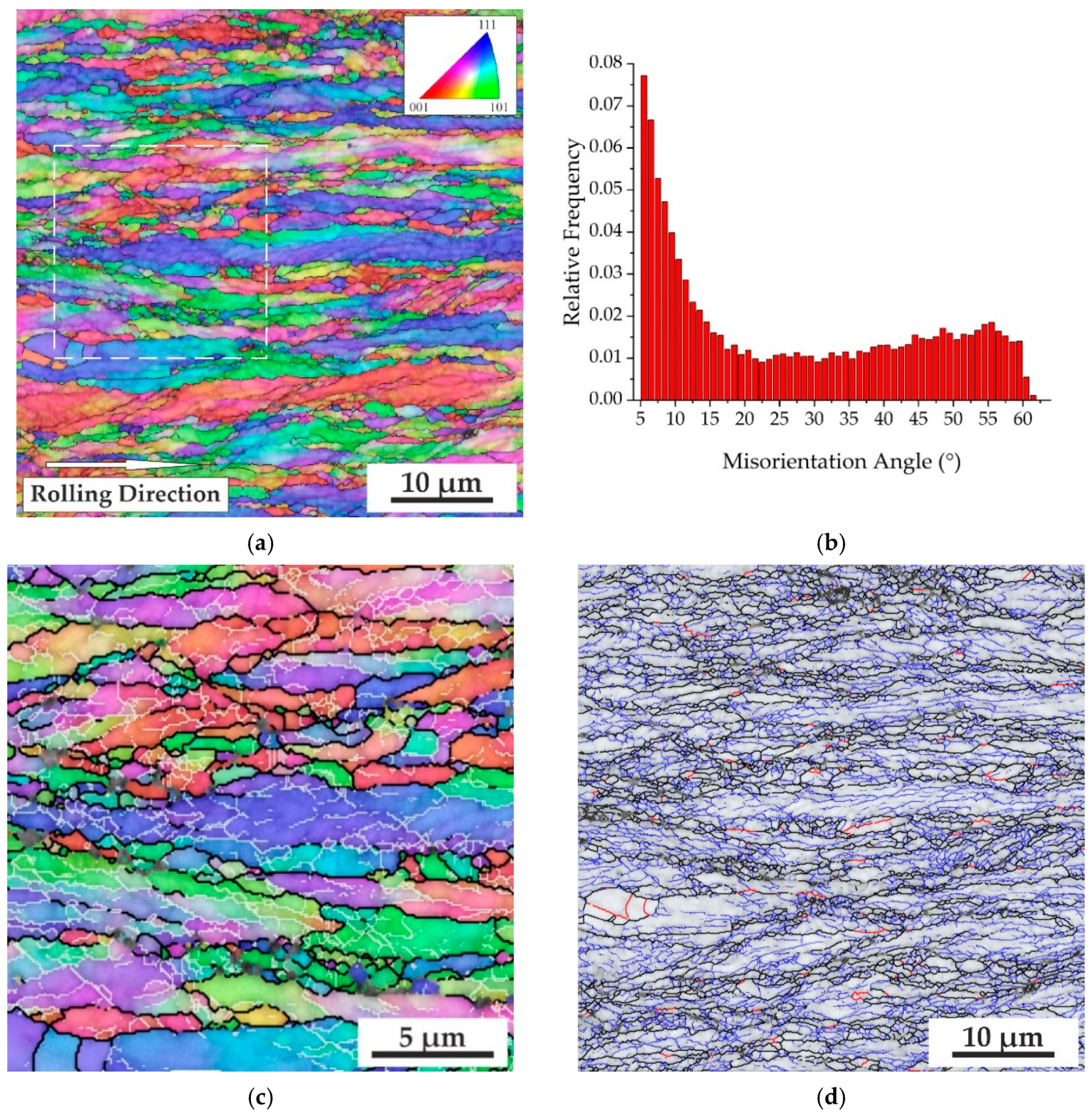

Two-stage thermomechanical treatment with deformation (e = 0.8) with heating to 1100 °C and subsequent deformation (e = 0.7) with heating to 600 °C (HTMT-2) contributes to additional stretching of the initial grains in the rolling direction and their refining (Figure 3) compared to HTMT-1.

Numerous new low-angle misorientation boundaries are formed, many of which are roughly parallel to the rolling direction (Figure 3a,d). The boundaries that are perpendicular to the rolling direction are often curved; these boundaries close the elongated fragments and form new fine equiaxed grains and subgrains (Figure 3c). However, the fraction of these boundaries in the overall structure of steel is insignificant; they are formed mainly along the grain boundaries stretched in the rolling direction. The average grain size is reduced to 1.4 µm. An analysis of the grain size distribution (see Supplementary Materials Figure S2) suggests that fine grains up to 3 μm dominate. The fraction of coarse grains is less than 10%. The distribution type is qualitatively similar to the distributions in the initial state and after HTMT-1, while the distribution itself is shifted to the fine grain sizes. The submicron grains are observed with a fraction of ≈50%.

In the distribution of grains by misorientation the fraction of low-angle boundaries increases and reaches ≈60%. At the same time, the fraction of twin boundaries significantly decreases, compared to the initial state and after HTMT-1, and is 3% at a tolerance angle of 8° (1.2% at a tolerance angle of 5°). The distribution itself has a pronounced peak corresponding to low-angle misorientations and a smooth increase in the fraction of boundaries with an increase in the misorientation angle to 60° corresponding to twin orientations (Figure 3b).

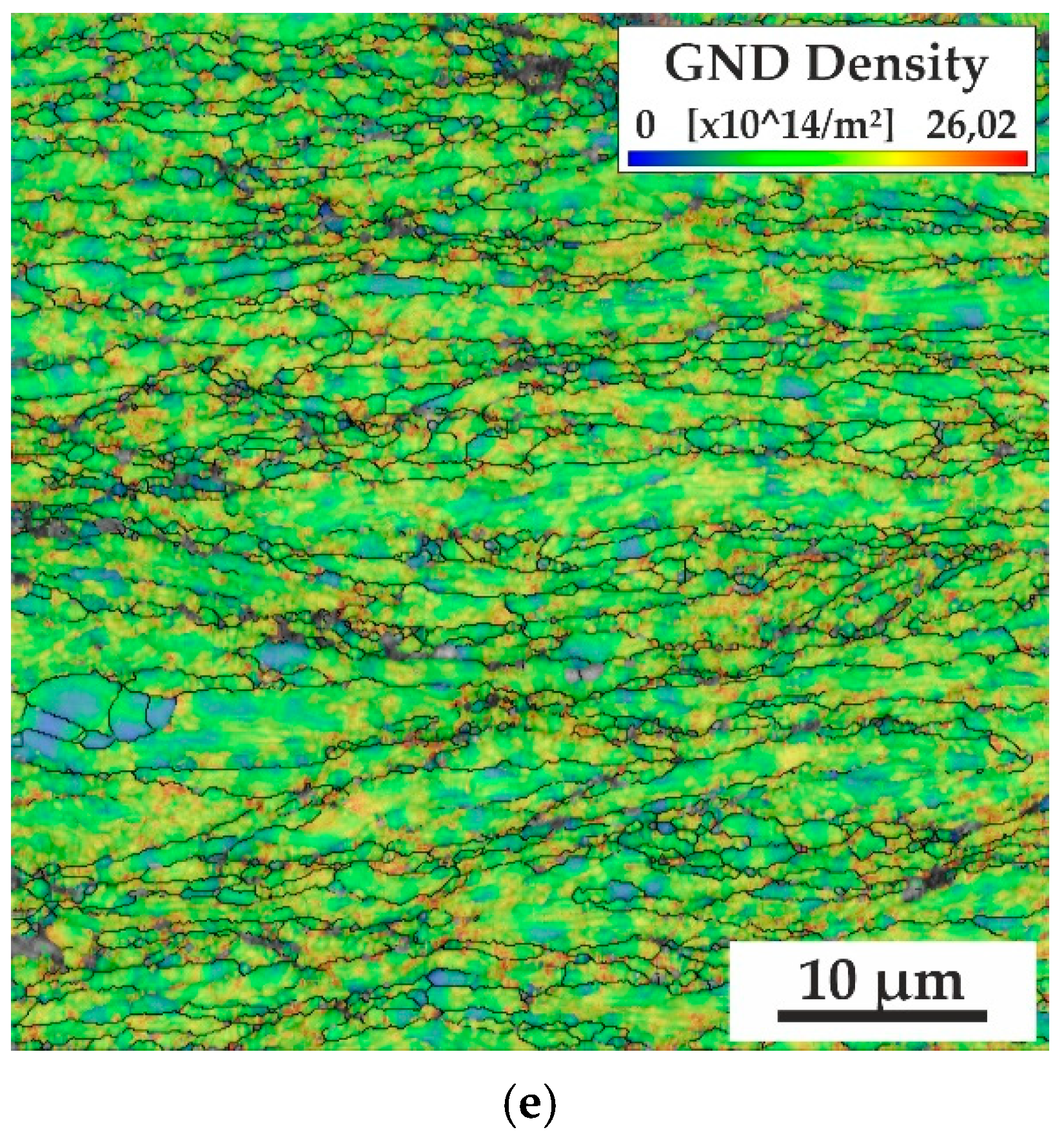

After HTMT-2 (Figure 2d) on the GND map the dislocation density is ~10¹⁵ m⁻² in a significant part of the material. In this case, individual grains with a much lower dislocation density are also observed.

After HTMT-1 and HTMT-2, the textures are typical for warm rolling of fcc metals, namely the components: Goss–{110} <001>, A–{110} <111>, Brass–{110} <112>, and to a lesser extent Cu–{112} [111] and S–[123] <634>. The texture is dominated by the α-fiber (<110> parallel to the normal to the rolling plane).

3.2. TEM

The features of microstructure of 321-type steel after initial state (ST), cold rolling, and annealing are well known and are presented in detail elsewhere [39]. It should be noted that low stacking faults energies (γ_sfe ≤ 22 mJ/m⁻²) of steel lead to the formation of multiple stacking faults in the quenched state and annealing twins, which is confirmed by EBSD data (Figure 1).

TEM investigations have shown that under HTMT-1 the fragmentation of the grain structure with the formation of dislocation substructures and low-angle grain boundaries occurs. Figure 4a shows an area of thin foil with a width of ≈2 microns, bounded by parallel boundaries. There are rows of dislocation walls with low-angle misorientations up to ≈0.5° and chaotically distributed dislocations in this area. The orientation of this area is close to the zone axis of [110] (Figure 4b). Figure 4c shows an area of thin foil in the left part of which there are straight plates of micro-twins with selected area electron diffraction (SAED) corresponding to the exact twin position (inset on Figure 4c). In the right part of this figure the twin boundaries are strongly curved; in the lower part of the figure, there is a bulging grain boundary. A diffraction pattern with a large selector diaphragm that captures the area of microtwins (left) and curved boundaries (right) reveals low-angle (up to ≈ 10°) azimuthal misorientation around the zone axis of [110] and a deviation of the diffraction from the exact twin position (Figure 4d).

The dark-field analysis in the g = 002 reflection with a tilt of thin foil in the goniometer (Figure 4f–h) reveals submicron fragments with low-angle misorientation boundaries. The orientation of this region is close to the zone axis [130] (Figure 4e). Taking into account the angle (≈50°) between the active reflection and the projection of the goniometer tilt axis, the 1° tilt in the goniometer corresponds to a change in the orientation of the dark-field image by 1° × sin (50°) ≈ 0.7°. In other words, the misorientations of subgrain boundaries are found to be from 0.7 to 2.1°. Note the smooth curved shape of the sub-boundaries and the presence of almost equiaxed and elongated fragments, as well as an increased density of dislocations within the fragments (no less than 10¹⁴ m⁻²).

As a result of HTMT-2 the grain structure fragmentation is more intense than after HTMT-1 (Figure 5). The bright-field image (Figure 5a) shows submicron fragments with pronounced misorientation boundaries. Some boundaries are strongly curved. The shape of the fragments is nearly equiaxed. Dislocation substructures are visible inside the fragments. The density of dislocations within individual fragments reaches 10¹⁵ m⁻². The dislocation density estimates are consistent with the data of EBSD GND maps. In SAED patterns (Figure 5b) two zone axes of [001] and [110] are detected together in a position close to the reflecting one (the zone axis of [110] is deviated from the exact reflecting position, resulting in some weak-intensity reflexes). Since the angle between these crystallographic directions in cubic crystals is at least 45°, high-angle misorientation boundaries are present in the area under consideration. In addition to high-angle misorientation boundaries, low-angle azimuthal misorientations are observed on the SAED pattern.

In addition to almost equiaxed fragments, there are elongated lamellar fragments with a width of 100–300 nm in the steel structure, Figure 5c. The orientation of these lamellar microstructures on SAED patterns is close to the zone axis of [112] (Figure 5d). Weak reflections located near the bright reflections g = −200 and g = 11−1 of this zone axis indicate the presence of low-angle azimuthal misorientations. Nanoscale TiC particles are also found in this structure.

In addition to these structural features, some submicron grains exhibit thin plates of nanotwins (Figure 5e). In this figure, nanotwins are detected near a TiC particle of about 100 nm in size. It is assumed that this non-deformable particle plays the role of a stress concentrator under high-temperature deformation. In this case the deformation nanotwins could have been formed during the relaxation of internal stresses. In SAED patterns (Figure 5f), in addition to reflections from the zone axis of [112], there are reflections belonging to other zone axes, twin reflections with a characteristic extension due to the small thickness of the nanotwins, and reflections of the TiC particles.

3.3. Mechanical Properties

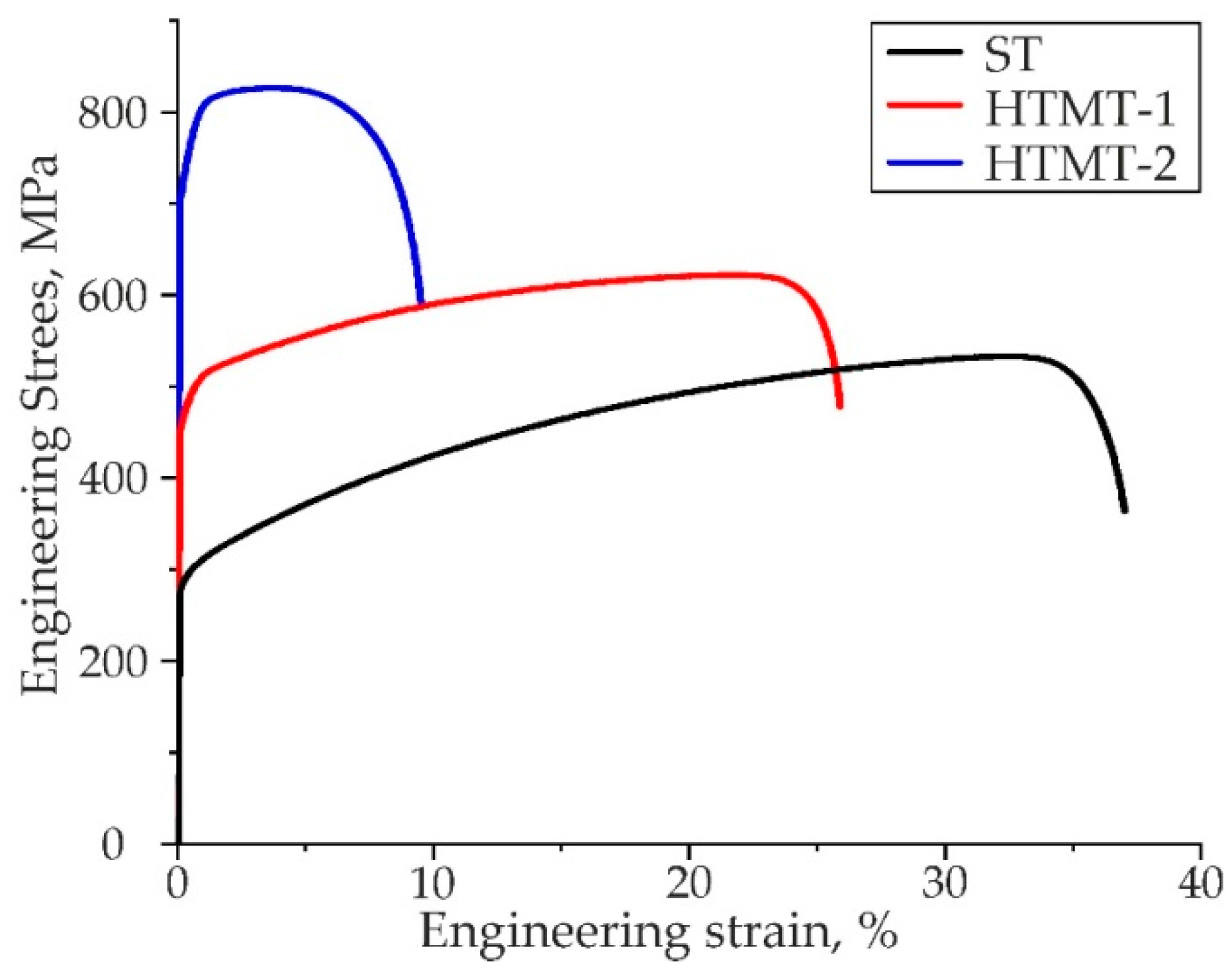

The results of the studies of mechanical properties of steel obtained during tensile tests of the samples in the initial (ST) state and after HTMT-1 and HTMT-2 treatments are presented in Figure 6 and

Table 1. Mechanical Properties of AISI 321-type Steel.

Treatment	Yield Strength, MPa	Tensile Strength, MPa	Elongation to Failure, %
ST	272 ± 11	554 ± 26	39 ± 3
HTMT-1	477 ± 38	637 ± 41	26 ± 7
HTMT-2	677 ± 34	793 ± 34	12 ± 6

. The data imply that HTMT-1 results in an ≈1.7 yield strength increase of steel, while the tensile strength increases by ≈1.3 times compared to the initial state. The elongation-to-failure reaches 26%, which is 1.5 times lower than in the initial state. Based on the above studies of the structural features of steel by the EBSD and TEM methods, its mechanical properties are determined by a decrease (relative to the initial state) in the average grain size down to 8 μm and a formation of preferentially low-angle misorientation boundaries (46% of all boundaries) and dislocation substructures during processing.

After HTMT-2, the yield strength increases by a factor of 2.5, and the ultimate strength increases by a factor of 1.4 relative to the initial state. In this case, the elongation to failure decreases to 12%, which is ≈ 3 times lower than in the initial state. According to the results of structural investigations, the average grain size resulting from HTMT-2 reaches down to 1.4 μm; the structure contains numerous low-angle misorientation boundaries (60% of all boundaries) and an increased dislocation density. It should be noted, however, that the grains (and subgrains) after these treatments are mainly elongated in the rolling direction. Small equiaxed grains are formed, but they are much fewer than elongated grains (Figure 3).

4. Discussion

Based on the results of the microstructure and mechanical properties studies, it was found that grain refinement with the formation of an elongated grain-subgrain structure with a high fraction of low-angle boundaries provides an increase in the strength of the 321-type steel relative to ST values. After HTMT-2, the average grain size is finer and the structure is more defective than after HTMT-1, in which a significant (25%) fraction of twin boundaries is found. These twins are formed during annealing at 1100 °C before rolling, which is confirmed by the high (50%) fraction of twin boundaries in the ST state. A significant number of twin boundaries in metastable austenitic steels was also observed by EBSD method [25,37,40] in ST and hot deformed states. Deformation at 600 °C almost completely destroys the annealing twins; as a result, the fraction of twin boundaries decreases to 3%. A significant number of high-angle boundaries after thermomechanical treatments have small (several degrees) deviations from the exact twin position. This occurs as a result of the incorporation of gliding dislocations into twin boundaries.

It should be noted that the main deformation mechanism under above treatments is dislocation slip (including cross slip or/and climb). It provides for the formation of multiple sub-boundaries within the grains, the elongation of the original grains along the rolling direction, and the deviation of the twin boundaries from the exact position. As a result, the fraction of low-angle boundaries in the distribution of boundaries by misorientations reaches 46% after HTMT-1 and 60% after HTMT-2. The detected thin nanotwins are likely to form as a result of local stress relaxation from concentrators (for example, TiC particles) after treatment. The formation of geometrically necessary dislocations also takes place in the process of the studied treatments. The used degrees and temperatures of deformation do not provide a transition from preferentially low-angle deformation misorientation boundaries to high-angle ones, which is clearly seen in the distribution of grain boundaries by misorientations (Figure 3 and Figure 4).

The deformation temperatures used in this work prevent intense precipitation of TiC and M₂₃C₆ particles, which can form under conditions of hot deformation of type 321 steel in the temperature range of 750–850 °C [36,37].

The results obtained confirm the previously identified main regularities of the microstructure formation in series 300 austenitic steels under hot deformation conditions. In [30,31,32], using thermomechanical control processing, it is shown that deformation above the recrystallization start temperature leads to a slight decrease in the grain size and an increase in the yield strength relative to ST by 50–100 MPa at good values of elongation. As the rolling end temperature decreases below the recrystallization start temperature, a deformed structure is formed which is elongated in the rolling direction. This leads to the formation of a well-developed substructure, a significant increase in the yield strength, and a corresponding decrease in the elongation. A decrease in the temperature and an increase in the degree of deformation are limited by a significant increase in the rolling load [32].

In the HTMT-1 and HTMT-2 mode, the temperature of hot and warm rolling was determined by the furnace temperature and the time of the sample transfer to the rolling mill (without heating the rolls), in contrast to thermomechanical control processing [32]. Therefore, in our case the actual rolling end temperature was lower than the furnace temperature. It should also be noted that after each pass, the samples were quenched in water. These differences in the processing conditions determine the features of the resulting structural states and the mechanical properties of steel 321. The formation of a well-developed substructure (Figure 2 and Figure 4) in steel 321 after HTMT-1 makes an additional contribution to strengthening compared to typical values [32] of the yield strength of austenitic steels after hot deformation above the recrystallization start temperatures. The new processing scheme (HTMT-2), combining deformation in the recrystallization region with warm deformation at a relatively low (600 °C) temperature, is aimed at further increasing the density of defects, including sub-boundaries. The formation of these microstructure features is confirmed in detail by the EBSD and TEM methods (Figure 2, Figure 3, Figure 4 and Figure 5).

In this work, the strengthening of metastable austenitic steel of 321-type under conditions of hot and warm deformation is achieved due to fine grains elongated in the rolling direction, high density of submicron subgrains, and dislocations. Moreover, there are too few defect-free grains in the steel structure, the formation of which contributes to an increase in the ductility of steels. The specified features of the microstructure of steel lead to weaker strengthening compared to the equiaxed fine-grained structure with similar grain sizes as in [28,29,41]. In these works the conditions of dynamic recrystallization in the process of hot and warm plastic deformation of austenitic steels were achieved by a higher strain (e ≥ 2) with the corresponding choice of temperature–rate treatment modes. To sum up, in this work we have observed the initial stages of recrystallization only. For HTMT-2, some recrystallized grains can appear in the first stage of deformation at 1100 °C and persist during the subsequent deformation at lower temperatures.

5. Conclusions

In this work, for the first time, the microstructure and mechanical properties of 321-type steel have been studied in detail after a combination of the deformation above the recrystallization start temperature and significantly below this temperature. It has been shown that multiple rolling of AISI 321 steel with heating to 1100 °C with a moderate strain of e = 1.6 leads to a decrease in the average grain size (down to 8 μm), elongation of the initial grains in the rolling direction and the formation of preferentially low-angle misorientation boundaries (46%) and twin (25%) boundaries. These features of the microstructure lead to increase (by a factor of 1.7) in the yield strength relative to the initial state and high values of the elongation-to-failure (26%). The combination of deformation with heating to 1100 °C (e = 0.8) and subsequent deformation with heating to 600 °C (e = 0.7) provides a decrease in the average grain size down to 1.4 μm. Grains and subgrains after this treatment are more elongated in the rolling direction; the fraction of low-angle misorientation boundaries increases and reaches 60%, while the fraction of twin boundaries decreases to 3%, compared to the first treatment. In grains and subgrains, an increased dislocation density is observed (10¹⁴–10¹⁵ m⁻²). The yield strength after this treatment increases by a factor of about 2.5 relative to the initial values at a ductility of 12%. The main deformation mechanism under the above treatments is dislocation slip (including cross slip or/and climb).
