Next Article in Journal
Studies on the β → α Phase Transition Kinetics of Ti–3.5Al–5Mo–4V Alloy under Isothermal Conditions by X-ray Diffraction
Next Article in Special Issue
A New Electron Backscatter Diffraction-Based Method to Study the Role of Crystallographic Orientation in Ductile Damage Initiation
Previous Article in Journal
Electrochemical Deposition of Al-Ti Alloys from Equimolar AlCl3 + NaCl Containing Electrochemically Dissolved Titanium
Previous Article in Special Issue
The Significance of Central Segregation of Continuously Cast Billet on Banded Microstructure and Mechanical Properties of Section Steel
Open AccessFeature PaperArticle

Impact of Precipitate Morphology on the Dissolution and Grain-Coarsening Behavior of a Ti-Nb Microalloyed Linepipe Steel

1
Ferrous Physical Metallurgy Group, University of Pittsburgh, Pittsburgh, PA 15261, USA
2
United States Steel Corporation, Pittsburgh, PA 15120, USA
*
Author to whom correspondence should be addressed.
Metals 2020, 10(1), 89; https://doi.org/10.3390/met10010089
Received: 28 November 2019 / Revised: 31 December 2019 / Accepted: 1 January 2020 / Published: 4 January 2020
(This article belongs to the Special Issue High-Strength Low-Alloy Steels)

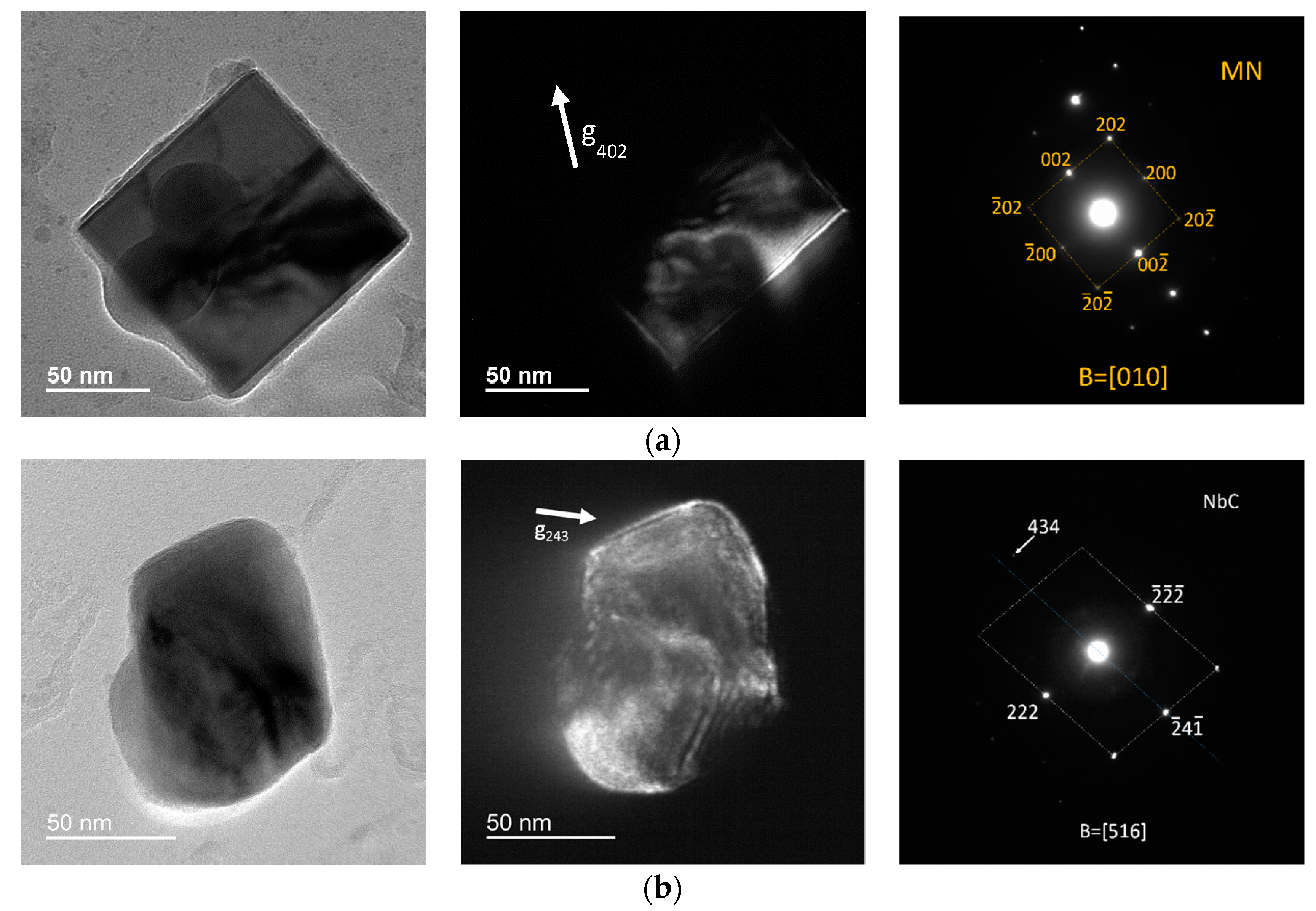

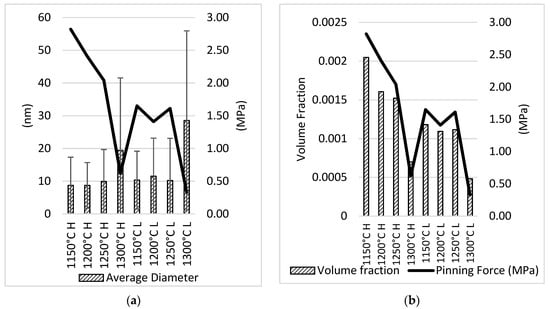

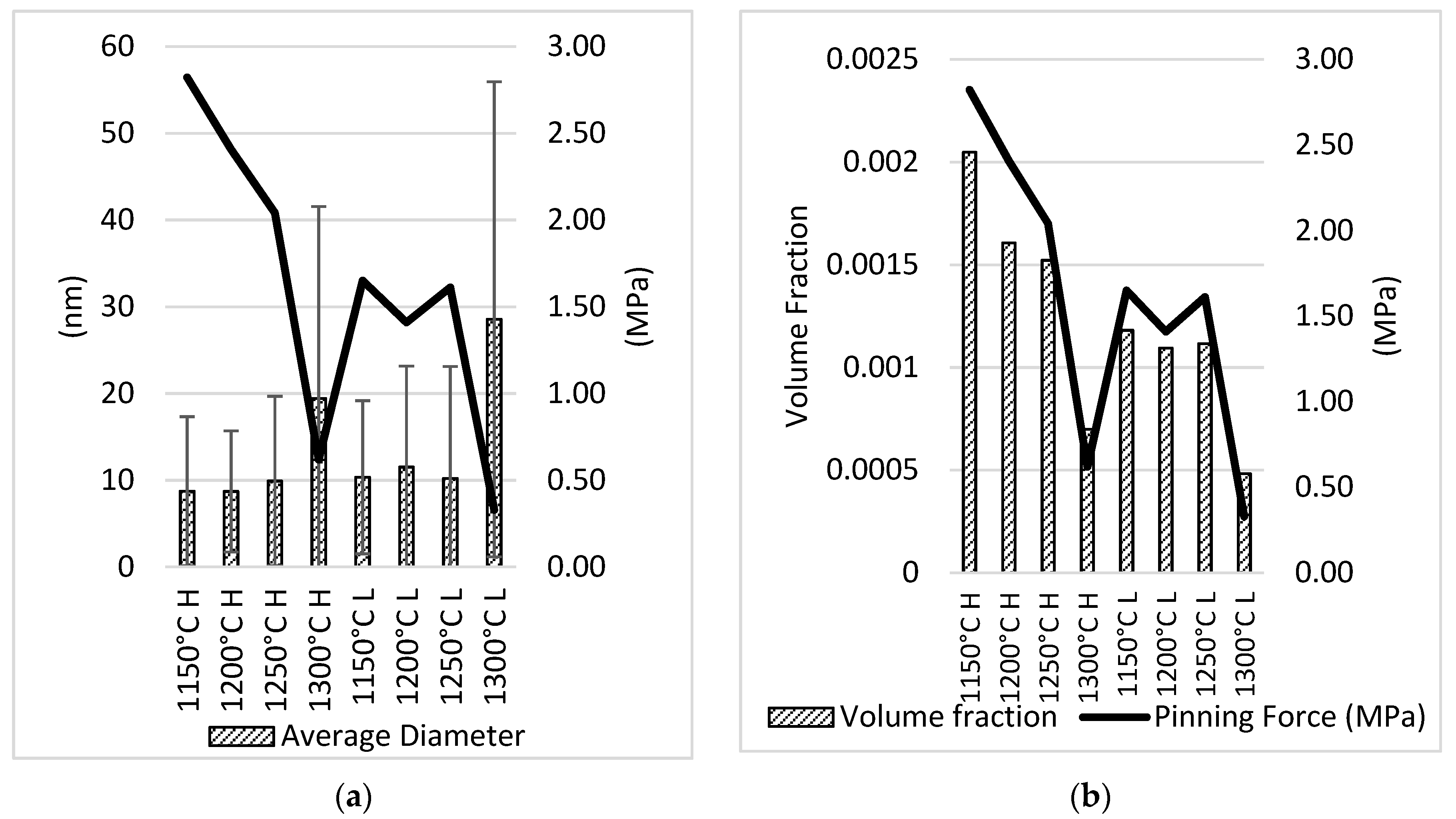

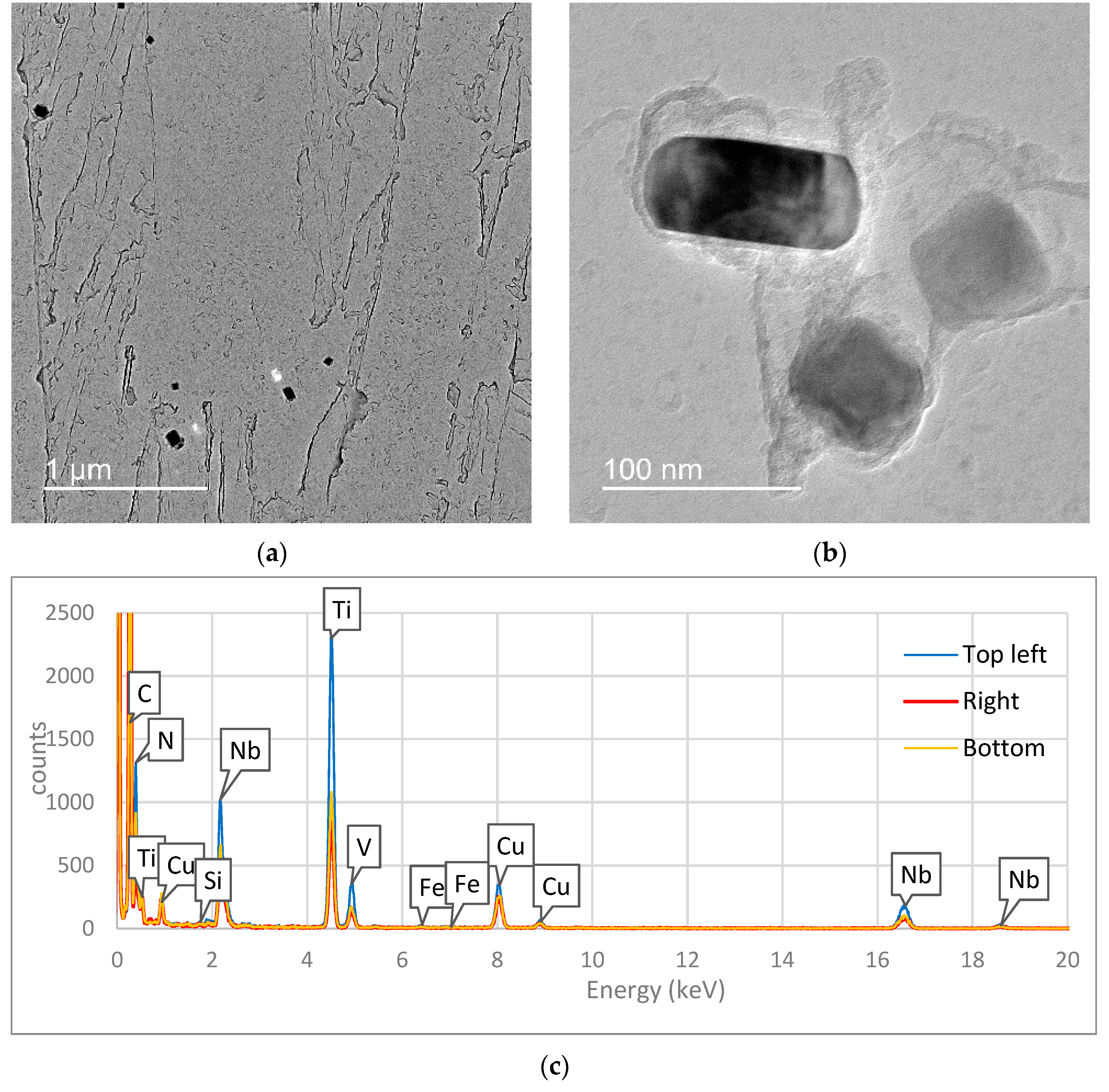

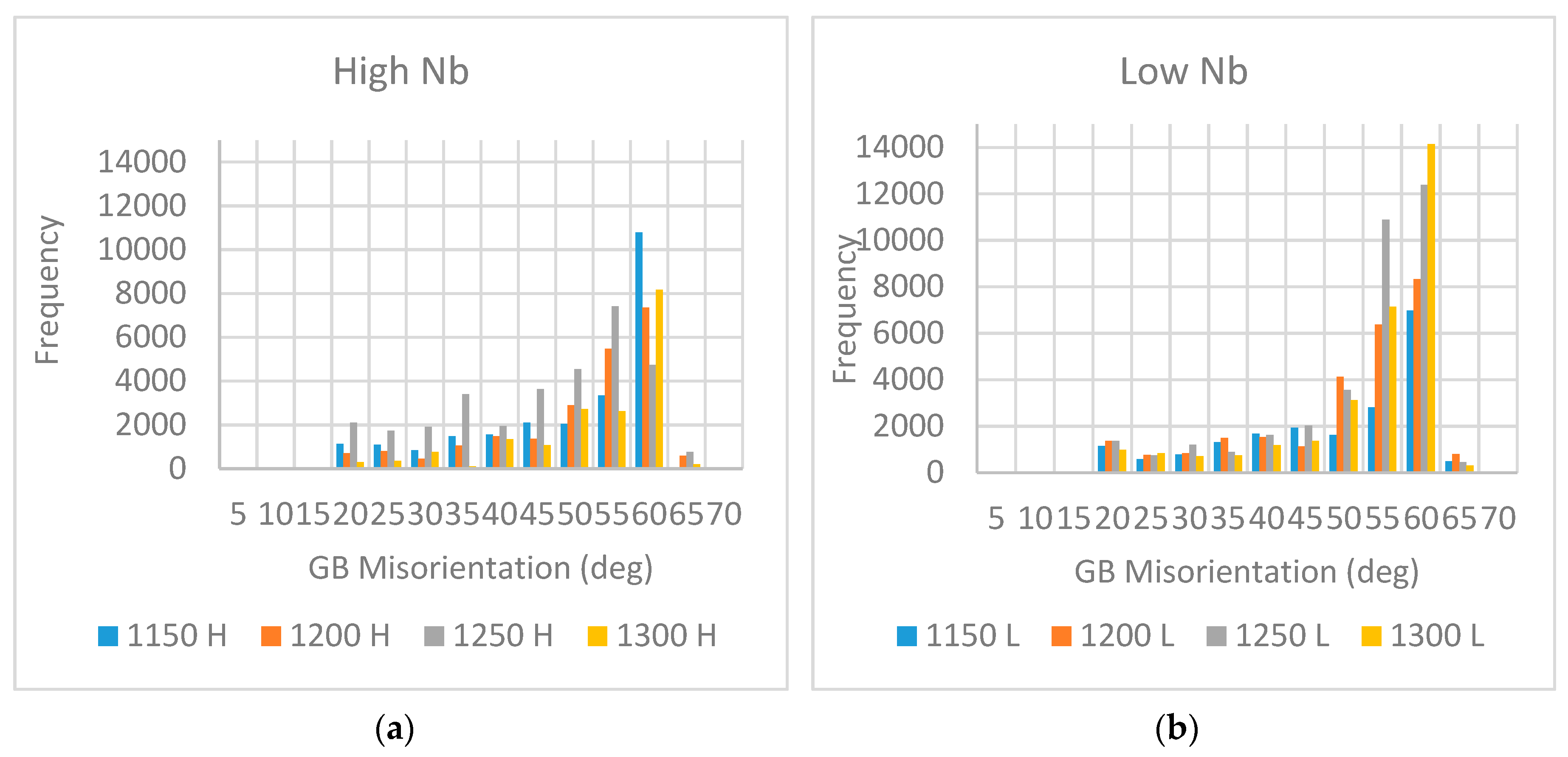

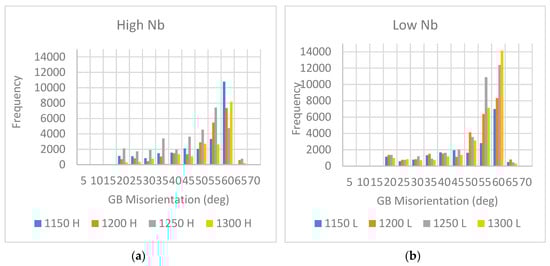

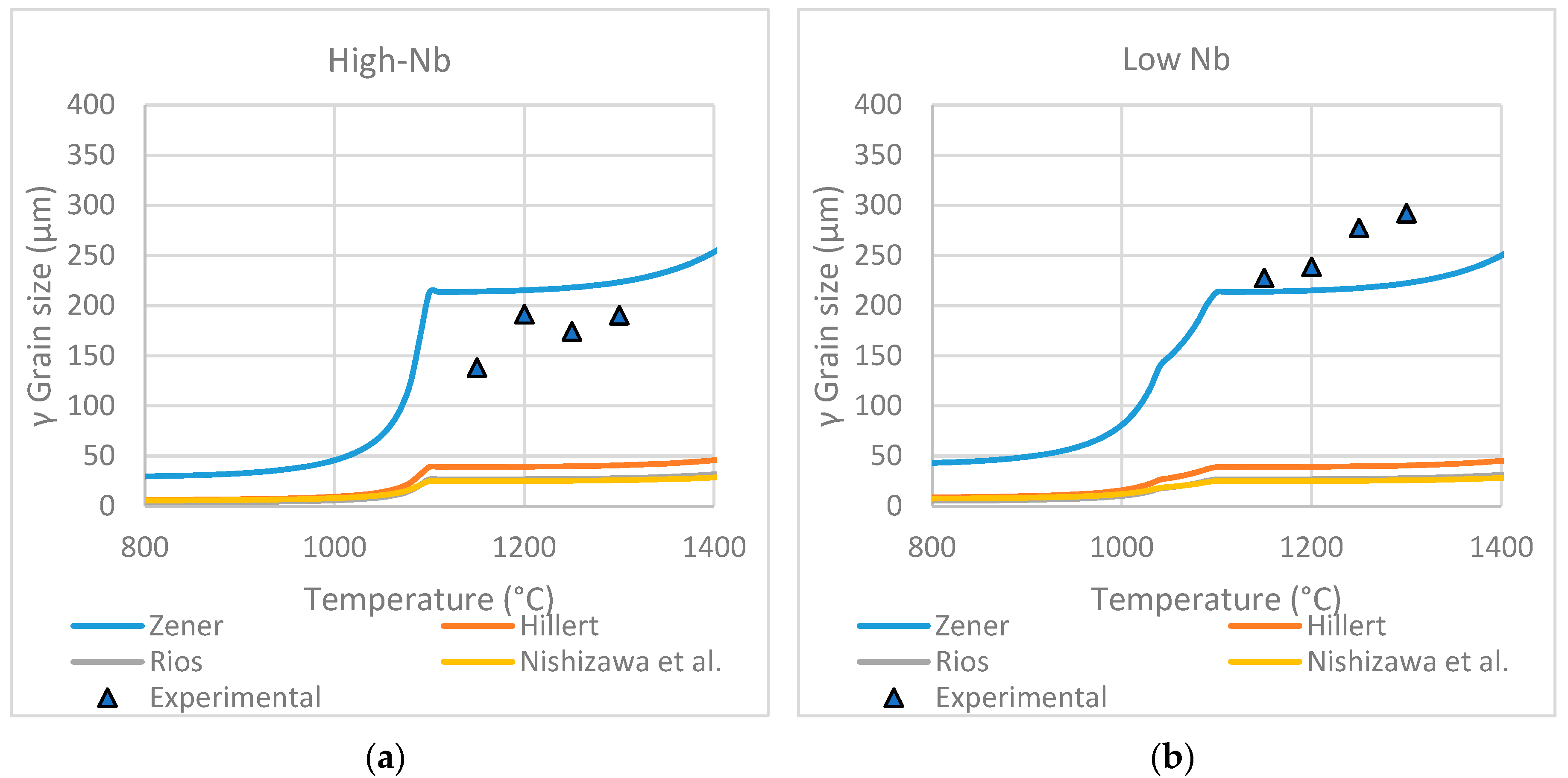

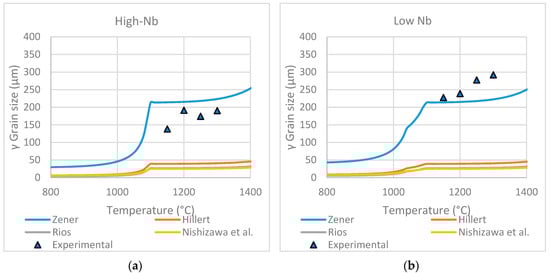

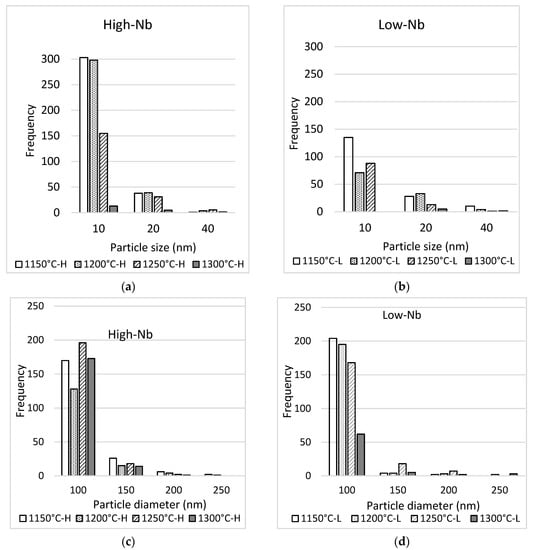

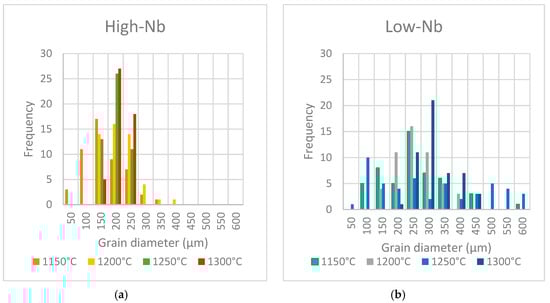

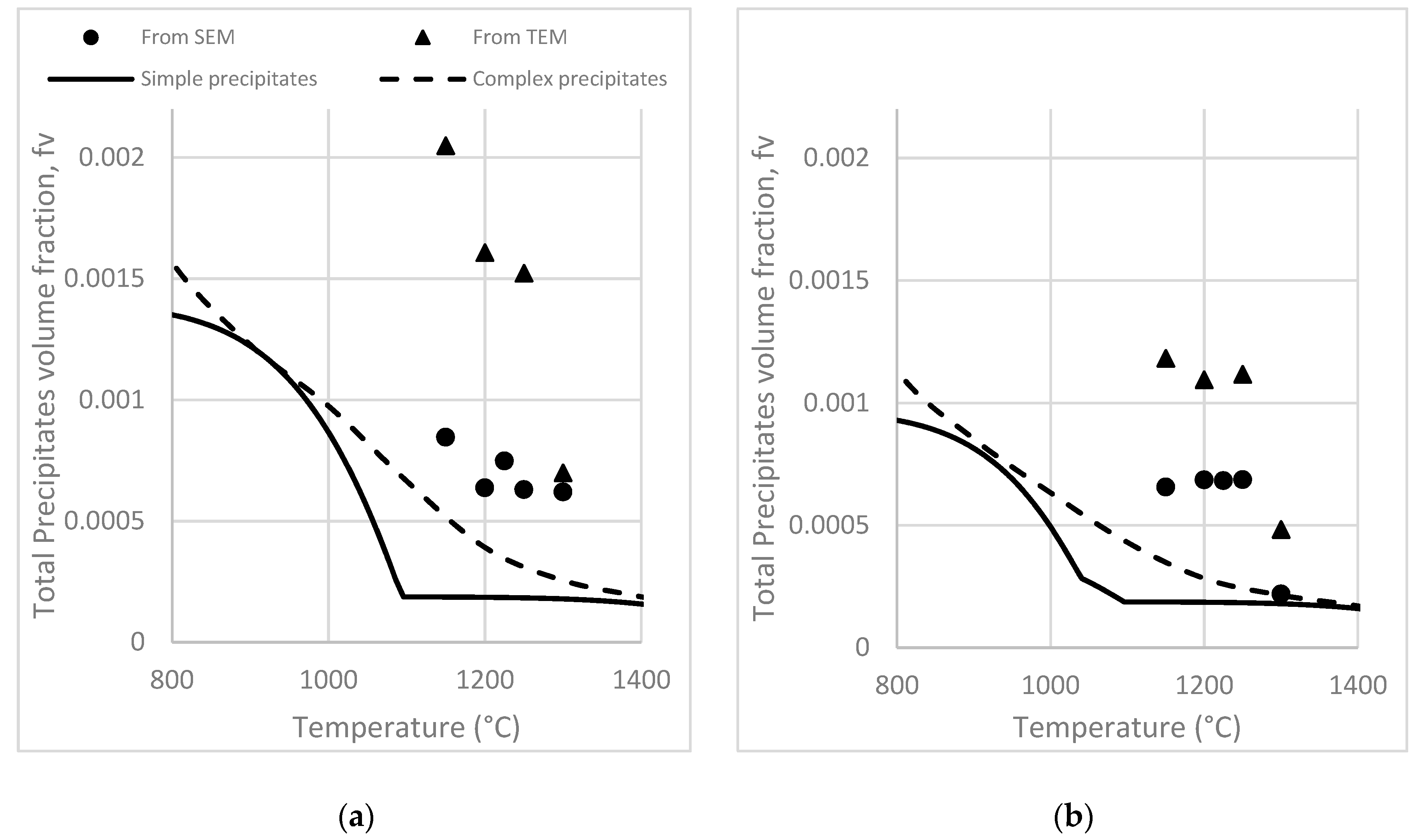

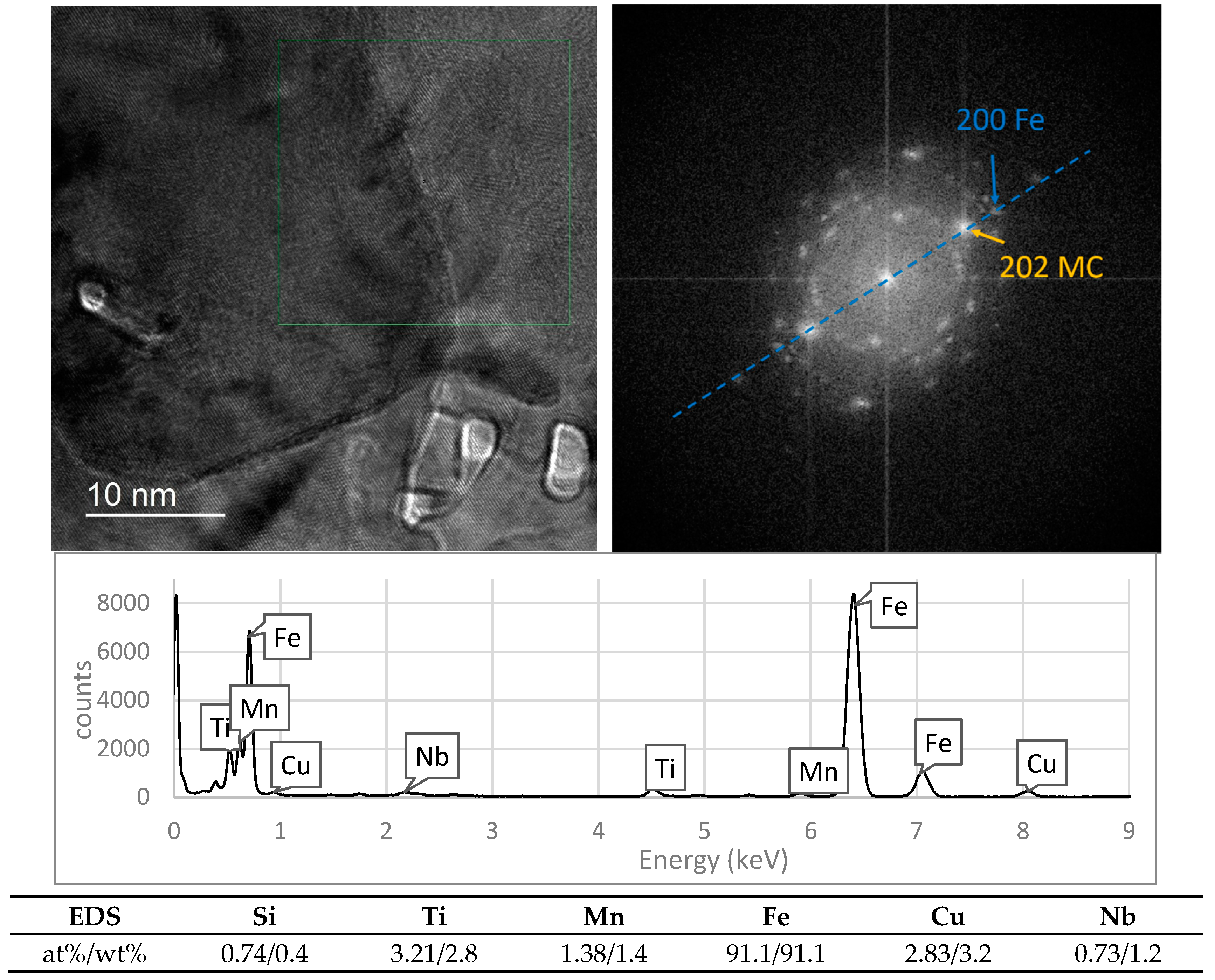

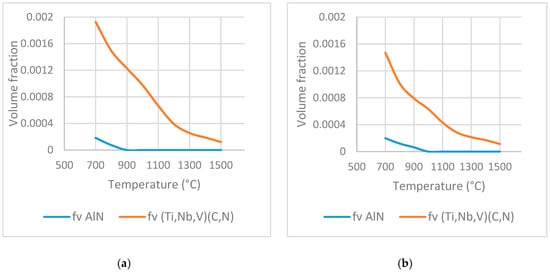

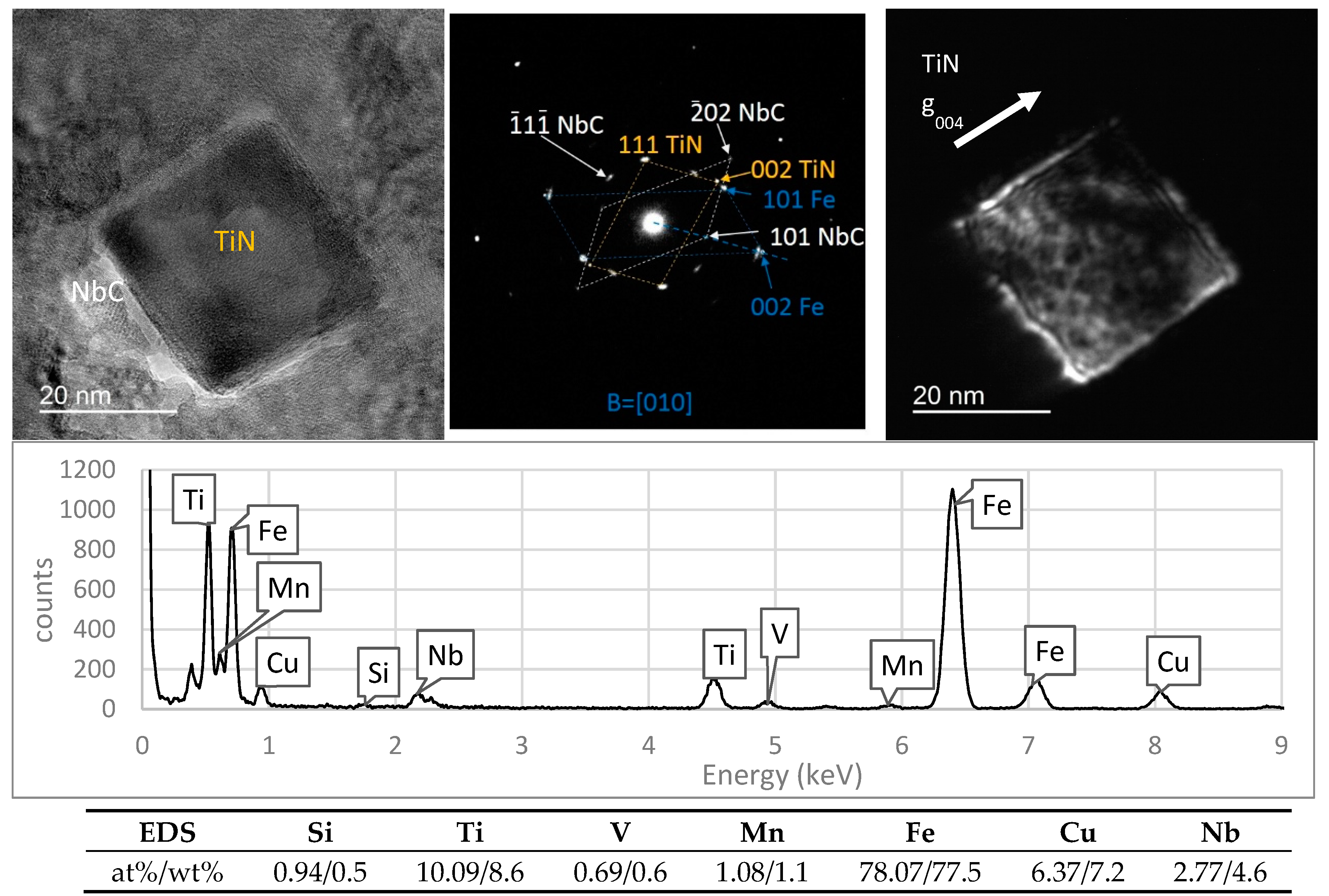

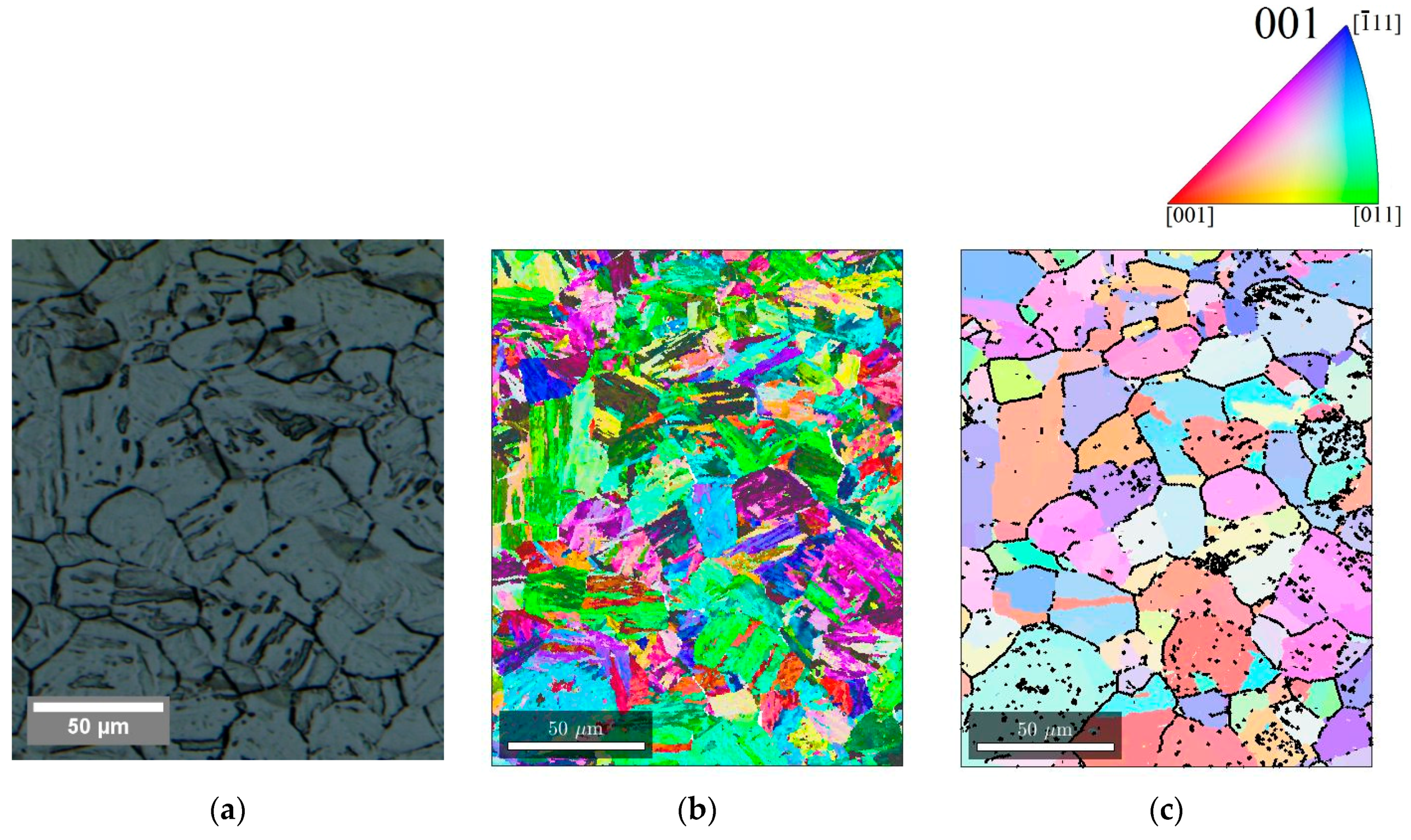

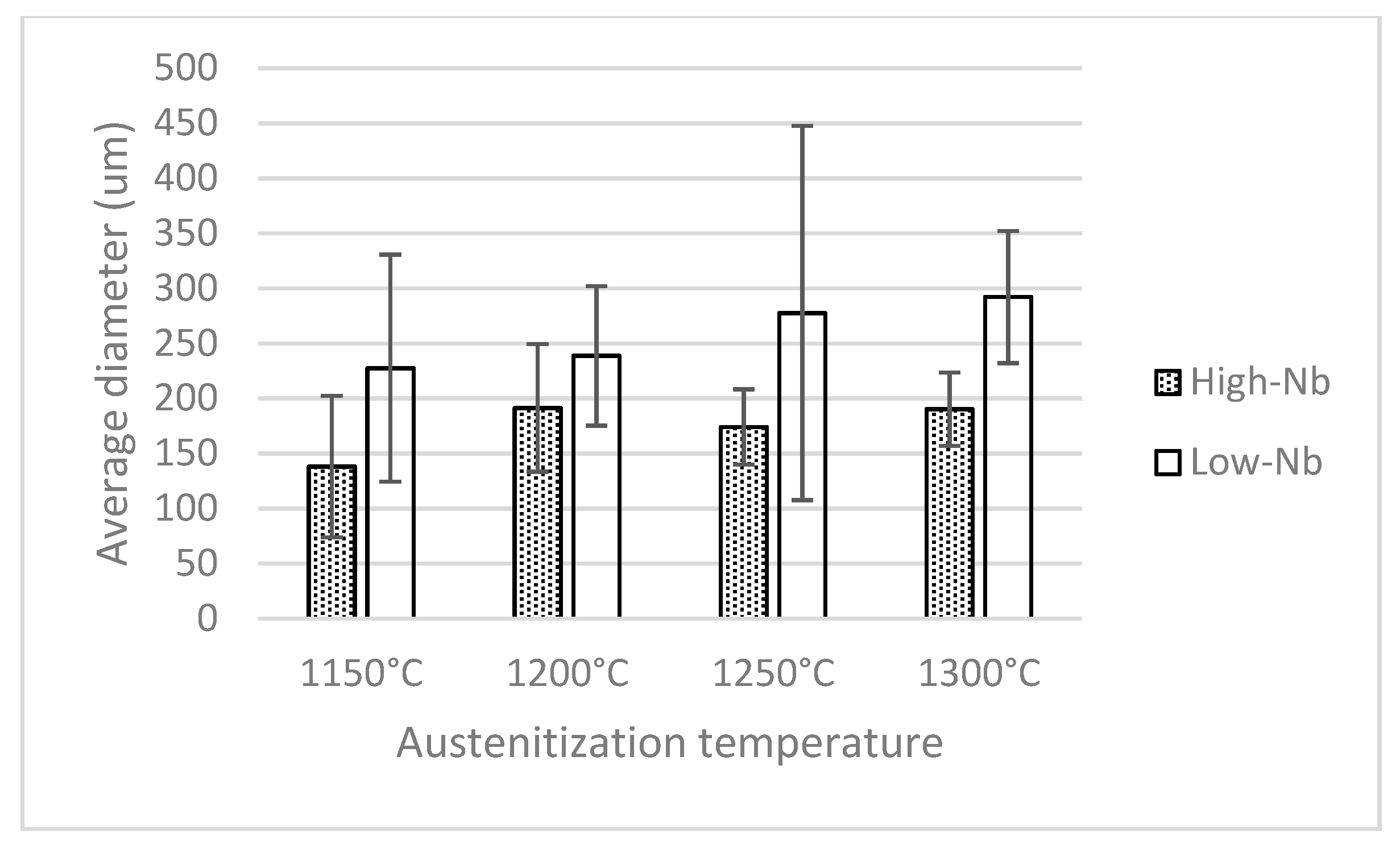

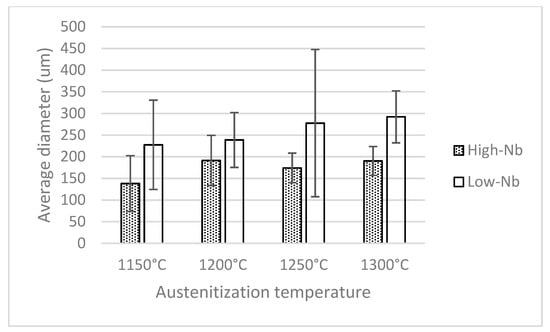

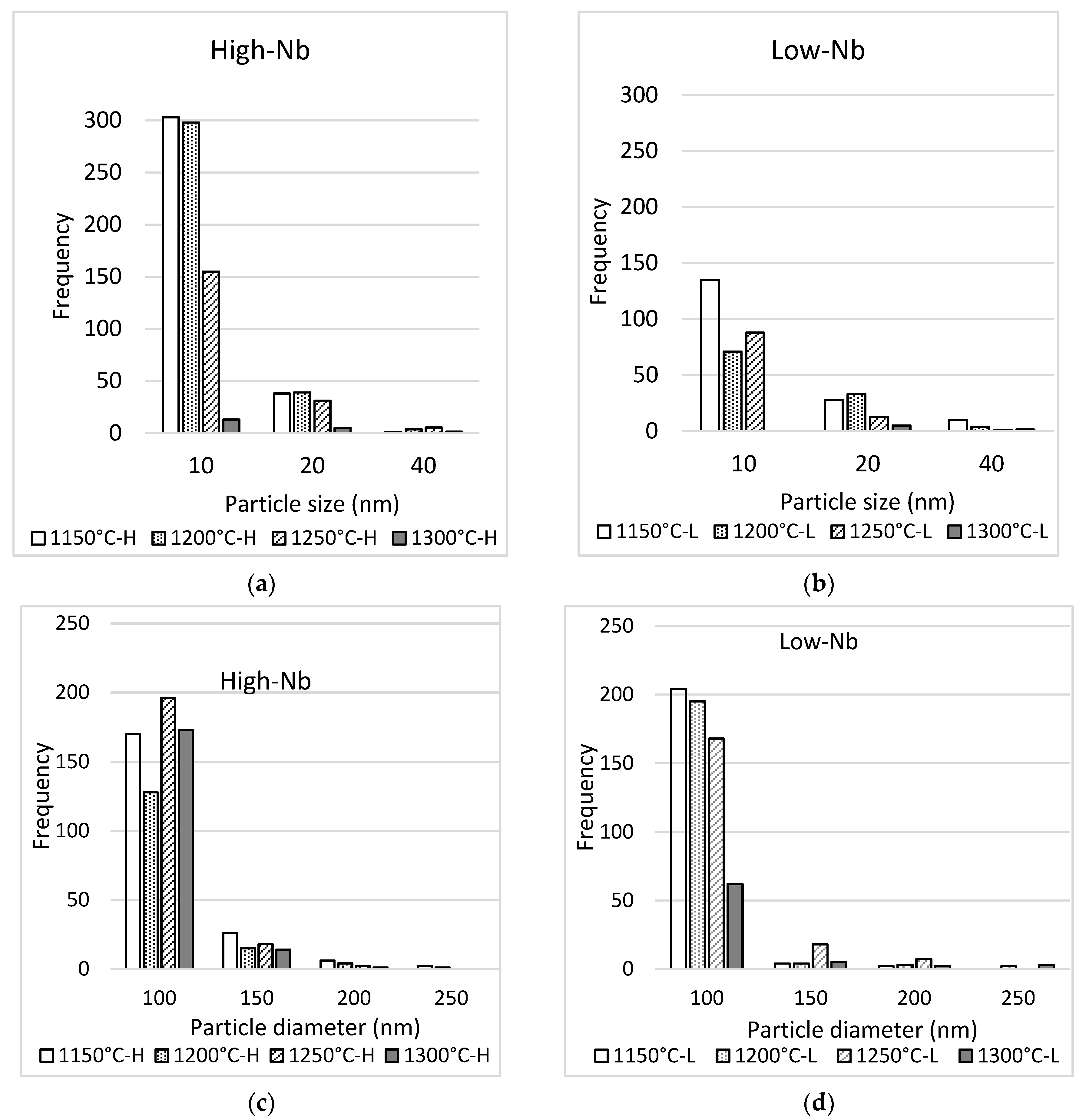

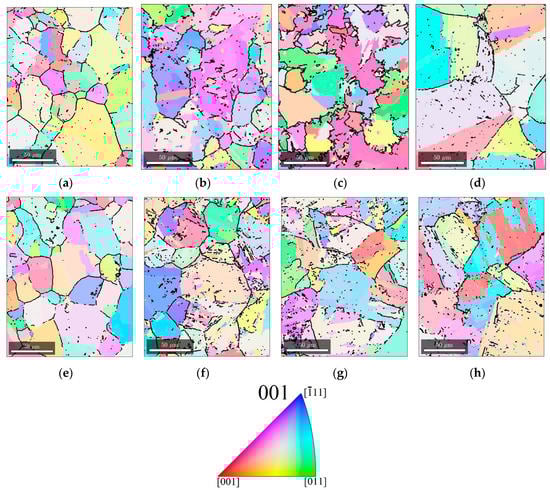

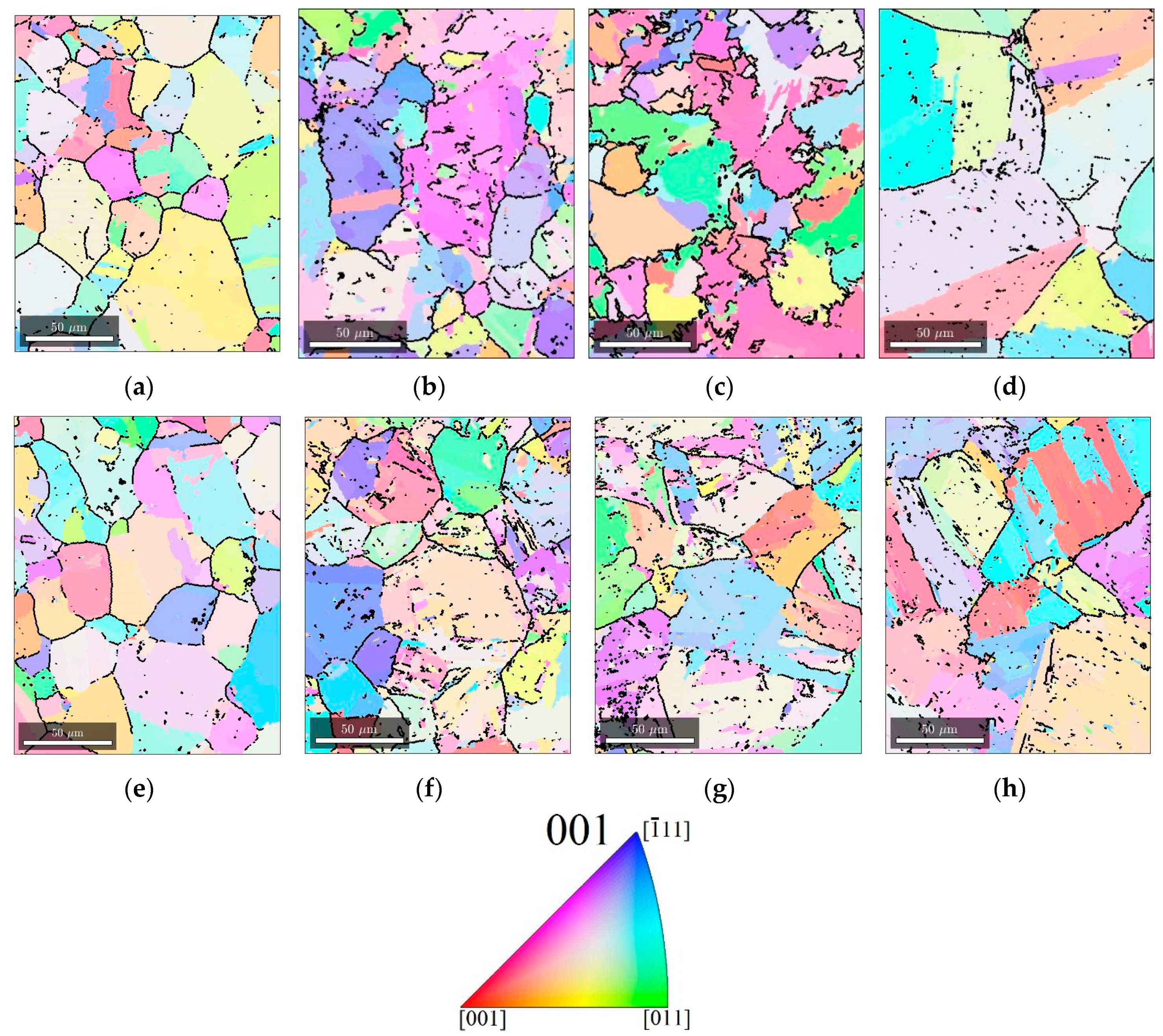

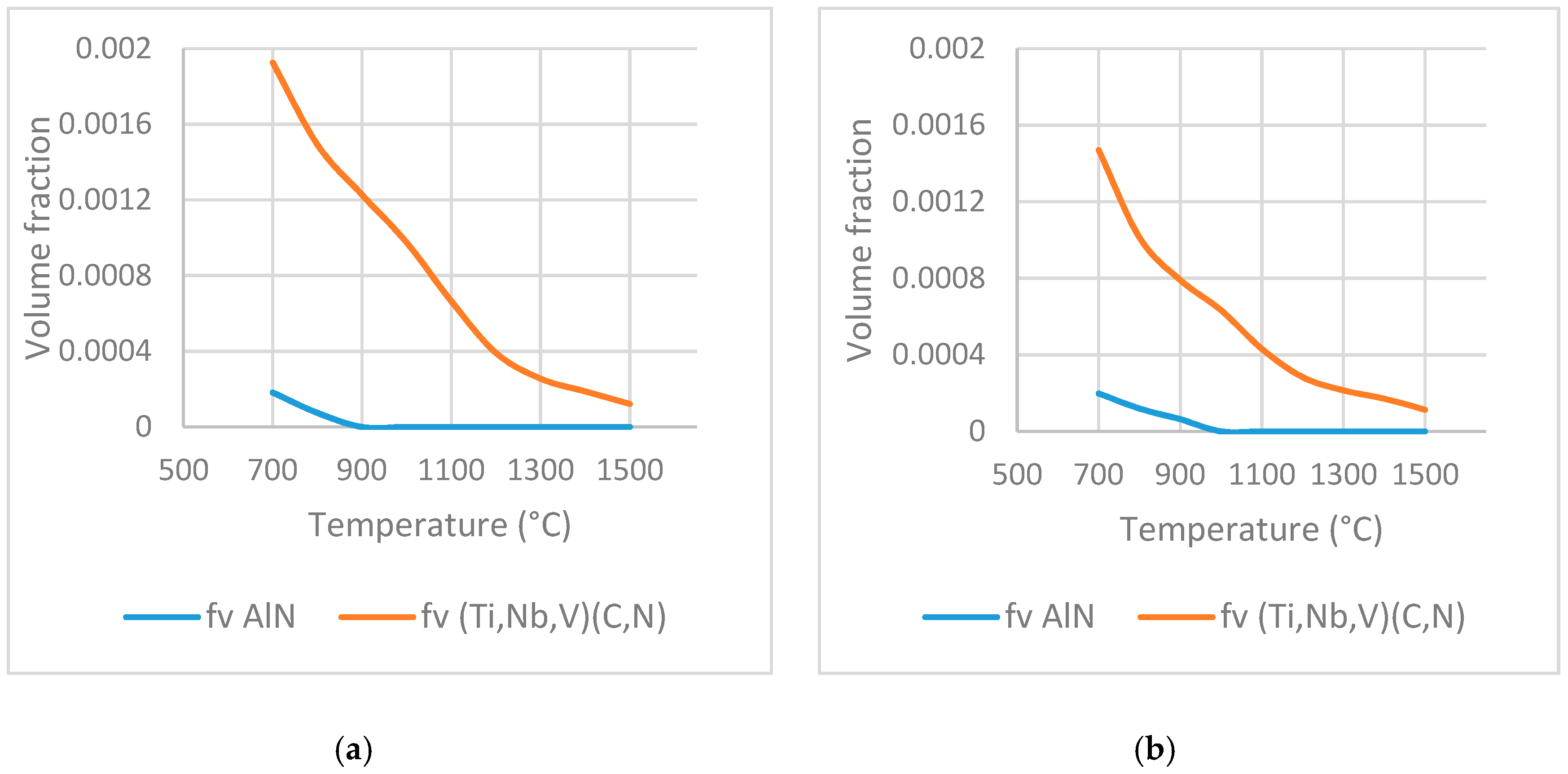

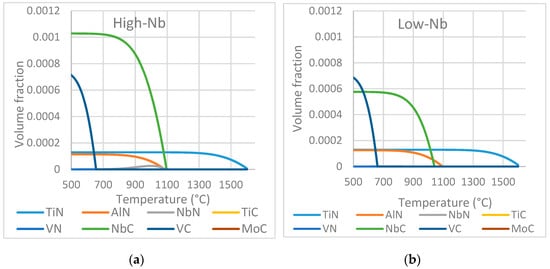

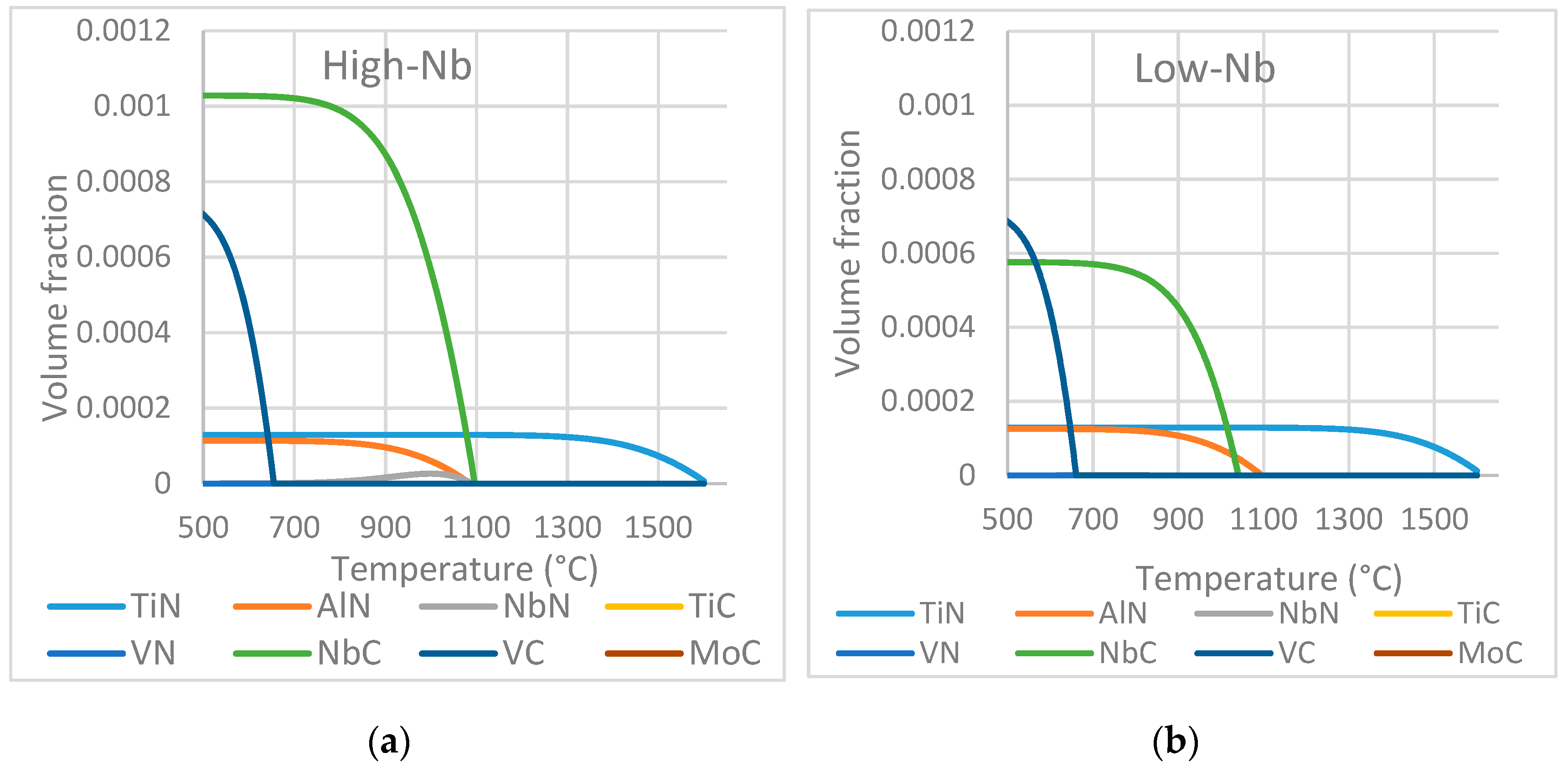

The relationship between precipitate morphology and dissolution on grain coarsening behavior was studied in two Ti-Nb microalloyed Linepipe (LP) Steels. The developed understanding highlights the importance of the complex relationship between precipitate constitutive make-up, dissolution mechanism and grain boundary (GB) pinning force. Equilibrium-based empirical solubility products were used to calculate precipitate volume fractions and compared to experimental measurements. Scanning Electron Microscopy (SEM), Electron Backscatter Diffraction (EBSD) and Electron Probe Micro-Analysis (EPMA) were conducted on bulk samples. Transmission Electron Microscopy (TEM)-based techniques were used on C-replica extractions and thin-foils. A retardation in the grain-coarsening temperature compared to the predicted coarsening temperature based on equilibrium calculations was noticed. In addition, a consistent NbC epitaxial formation over pre-existing TiN was observed. The resulting reduction in total precipitate/matrix interface area and the low energy of the TiN/NbC interface are pointed to as responsible mechanisms for the retardation in the kinetics of precipitates’ dissolution. This dissolution retardation mechanism suggests that a lower Nb content might be effective in controlling the grain coarsening behavior of austenite. View Full-Text
Keywords: grain coarsening; precipitate dissolution; epitaxial precipitation; Ti-Nb microalloyed steel; linepipe grain coarsening; precipitate dissolution; epitaxial precipitation; Ti-Nb microalloyed steel; linepipe
Show Figures

Graphical abstract

MDPI and ACS Style

Solis-Bravo, G.; Merwin, M.; Garcia, C.I. Impact of Precipitate Morphology on the Dissolution and Grain-Coarsening Behavior of a Ti-Nb Microalloyed Linepipe Steel. Metals 2020, 10, 89.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
