# The Qualitative Analysis of Host–Parasitoid Model with Inclusion of Spatial Refuge Effect

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

- (i)
- Where the constant ratio of the host populations is safe within refuge.
- (ii)
- Where the constant number is protected.

## 2. Stability Analysis around Equilibria

**Lemma**

**1.**

- The equilibrium point $\Omega \left({x}^{\star},{y}^{\star}\right)$ is a sink, if and only if $F\left(-1\right)>0$ and $F\left(0\right)<1$.
- The equilibrium point $\Omega \left({x}^{\star},{y}^{\star}\right)$ is a source, if and only if $F\left(-1\right)>0$ and $F\left(0\right)>1$.
- The equilibrium point $\Omega \left({x}^{\star},{y}^{\star}\right)$ is a saddle point, if and only if $F\left(-1\right)<0$.

- The unique steady-state $\left({x}^{\star},{y}^{\star}\right)$ is locally asymptotically stable if and only if:$$\frac{a\left(1+r\right)\left(r{x}_{0}-{x}^{\star}\right){y}^{\star}}{r\left({x}_{0}+r{x}_{0}-2{x}^{\star}\right)}<{e}^{-a{y}^{\star}}-1\mathrm{and}\frac{a\left({x}^{\star}-r{x}_{0}\right){y}^{\star}}{\left({x}^{\star}-{x}_{0}\right)}1-{e}^{-a{y}^{\star}}.$$
- The unique steady-state $\left({x}^{\star},{y}^{\star}\right)$ is unstable if and only if:$$1+\frac{a\left(1+r\right)\left(r{x}_{0}-{x}^{\star}\right){y}^{\star}}{r\left({x}_{0}+r{x}_{0}-2{x}^{\star}\right)}<{e}^{-a{y}^{\star}}\mathrm{and}\frac{a\left({x}^{\star}-r{x}_{0}\right){y}^{\star}}{\left({x}^{\star}-{x}_{0}\right)}\frac{{e}^{a{y}^{\star}}-1}{{e}^{a{y}^{\star}}}.$$
- The unique steady-state $\left({x}^{\star},{y}^{\star}\right)$ is saddle if and only if:$${e}^{-a{y}^{\star}}-1<\frac{a\left(1+r\right)\left(r{x}_{0}-{x}^{\star}\right){y}^{\star}}{r\left({x}_{0}+r{x}_{0}-2{x}^{\star}\right)}.$$
- The eigenvalues of the characteristic polynomial are complex conjugate with magnitude 1, if and only if:$$\left|\frac{\left({x}^{\star}-r{x}_{0}\right)\left({e}^{a{y}^{\star}}\left(r+ay\right)-r\right)}{\left({e}^{a{y}^{\star}}-1\right)r\left({x}^{\star}-{x}_{0}\right)}\right|<2,$$$$r=\frac{{e}^{-a{y}^{\star}}\left({x}^{\star}-{x}_{0}+{e}^{a{y}^{\star}}\left({x}_{0}+{x}^{\star}\left(a{y}^{\star}-1\right)\right)\right)}{a{x}_{0}{y}^{\star}}.$$

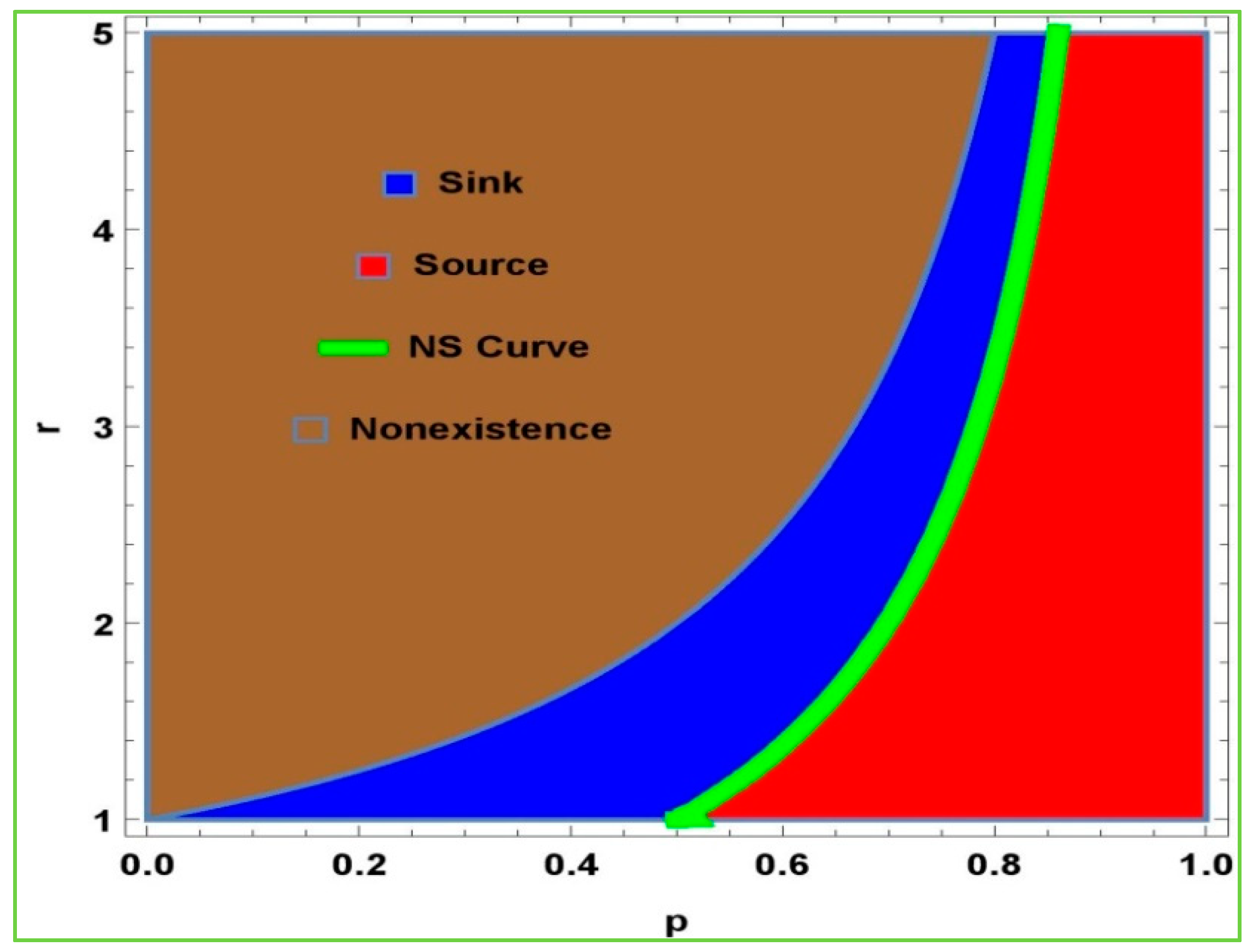

## 3. Neimark–Sacker Bifurcation in Model (2)

**Theorem**

**1.**

## 4. Neimark–Sacker Bifurcation in Model (3)

**Theorem**

**2.**

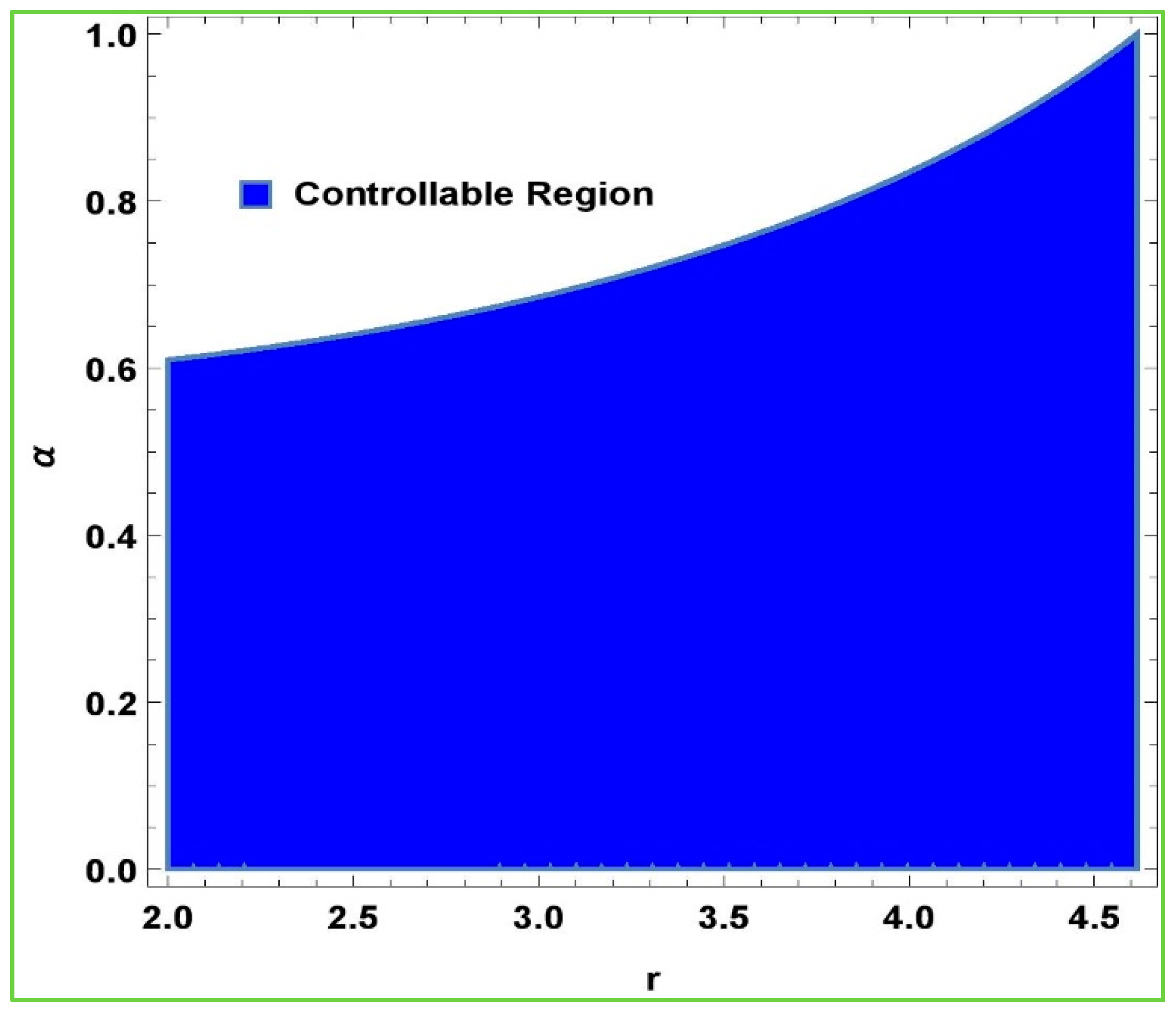

## 5. Chaos Control

## 6. Numerical Simulations

**Example**

**1.**

**Example**

**2.**

## 7. Conclusions

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Agarwal, T. Bifurcation analysis of a host-parasitoid model with the beddington-deangelis functional response. Glob. J. Math. Anal.
**2014**, 2, 565–569. [Google Scholar] [CrossRef] - Bešo, E.; Mujic, N.; Kalabušić, S.; Pilav, E. Neimark–Sacker bifurcation and stability of a certain class of host-parasitoid models with host refuge effect. Int. J. Bifurc. Chaos
**2020**, 29, 1950169. [Google Scholar] [CrossRef] - Bešo, E.; Mujic, T.; Kalabušić, S.; Pilav, E. Stability of a certain class of a host-parasitoid model with a spatial refuge effect. J. Biol. Dyn.
**2020**, 14, 1–31. [Google Scholar] [CrossRef] - Wu, D.; Zhao, H. Global qualitative analysis of a discrete host-parasitoid model with refuge and strong Allee effects. Math. Methods Appl. Sci.
**2018**, 41, 2039–2062. [Google Scholar] [CrossRef] - Din, Q.; Hussain, M. Controlling chaos and Neimark-Sacker bifurcation in a host-parasitoid model. Asian J. Control.
**2019**, 21, 1202–1215. [Google Scholar] [CrossRef] - Din, Q.; Saeed, U. Bifurcation analysis and chaos control in a host-parasitoid model. Math. Methods Appl. Sci.
**2017**, 40, 5391–5406. [Google Scholar] [CrossRef] - Kapçak, S.; Ufuktepe, U.; Elaydi, S. Stability and invariant manifolds of a generalized Beddington host-parasitoid model. J. Biol. Dyn.
**2013**, 7, 233–253. [Google Scholar] [CrossRef] [PubMed] - Livadiotis, G.; Assas, L.; Dennis, B.; Elaydi, S.; Kwessi, E. A discrete-time host–parasitoid model with at Allee effect. J. Biol. Dyn.
**2014**, 9, 34–51. [Google Scholar] [CrossRef] - Liu, X.; Chu, Y.; Liu, Y. Bifurcation and chaos in a host-parasitoid model with a lower bound for the host. Adv. Differ. Equ.
**2018**, 2018, 1–15. [Google Scholar] [CrossRef] - Ma, X.; Din, Q.; Rafaqat, M.; Javaid, N.; Feng, Y. A Density-dependent host-parasitoid Model with stability, bifurcation and chaos control. Mathematics
**2020**, 8, 536. [Google Scholar] [CrossRef] - Schreiber, S.J. Host-parasitoid dynamics of a generalized Thompson model. J. Math. Biol.
**2006**, 52, 719–732. [Google Scholar] [CrossRef] [PubMed] - Sebastian, E.; Victor, P. Stability analysis of a host-parasitoid model with logistic growth using Allee effect. Appl. Math. Sci.
**2015**, 9, 3265–3273. [Google Scholar] [CrossRef] - Wiggins, S. Introduction to Applied Nonlinear Dynamical Systems and Chaos; Springer: New York, NY, USA, 2003. [Google Scholar]
- Yuan, L.G.; Yang, Q.G. Bifurcation, invariant curve and hybrid control in a discrete-time predator-prey system. Appl. Math. Model.
**2015**, 39, 2345–2362. [Google Scholar] [CrossRef] - Luo, X.S.; Chen, G.R.; Wang, B.H.; Fang, J.Q. Hybrid control of period-doubling bifurcation and chaos in discrete nonlinear dynamical systems. Chaos Solitons Fractals
**2003**, 18, 775–783. [Google Scholar] [CrossRef] - Bailey, V.A.; Nicholson, J. The balance of animal populations. Proc. Zool. Soc. Lond
**1935**, 105, 551–598. [Google Scholar] [CrossRef] - Hassell, M.P. The Dynamics of Arthropod Predator-Prey Systems; Pritnceton Univeristy Press: Princeton, NJ, USA, 1978. [Google Scholar]
- Jury, E.I. Inners and Stability of Dynamic Systems; Research supported by the National Science Foundation; Wiley-Interscience: New York, NY, USA, 1974; Volume 316. [Google Scholar]
- Liu, X.; Xiao, D. Complex dynamic behaviors of a discrete-time predator-prey system. Chaos Solitons Fractals
**2007**, 32, 80–94. [Google Scholar] [CrossRef] - Shabbir, M.S.; Din, Q.; Alabdan, R.; Tassaddiq, A.; Ahmad, K. Dynamical complexity in a class of novel discrete-time predator-prey interaction with cannibalism. IEEE Access
**2020**, 8, 100226–100240. [Google Scholar] [CrossRef] - Taylor, A.D. Parasitiod competition and the dynamics of host-parasitoid models. Am. Nat.
**1988**, 132, 417–436. [Google Scholar] [CrossRef] - Tang, S.Y.; Chen, L.S. Chaos in functional response host-parasitoid ecosystem models. Chaos Solitons Fractals
**2002**, 13, 875–884. [Google Scholar] [CrossRef] - Xu, C.L.; Boyce, M.S. Dynamic complexities in a mutual interference host-parasitoid model. Chaos Solitons Fractals
**2005**, 24, 175–182. [Google Scholar] [CrossRef] - Jamieson, W.T. On the global behaviour of May’s host-parasitoid model. J. Differ. Equ. Appl.
**2019**, 25, 583–596. [Google Scholar] [CrossRef] - Tassaddiq, A.; Shabbir, M.S.; Din, Q. Discretization, bifurcation and control for a class of predator-prey interaction. Fractal Fract.
**2022**, 6, 31. [Google Scholar] [CrossRef] - Kaitala, V.; Ylikarjula, J.; Heino, M. Dynamic complexities in host-parasitoid interaction. J. Theor. Biol.
**1999**, 197, 331–341. [Google Scholar] [CrossRef] [PubMed]

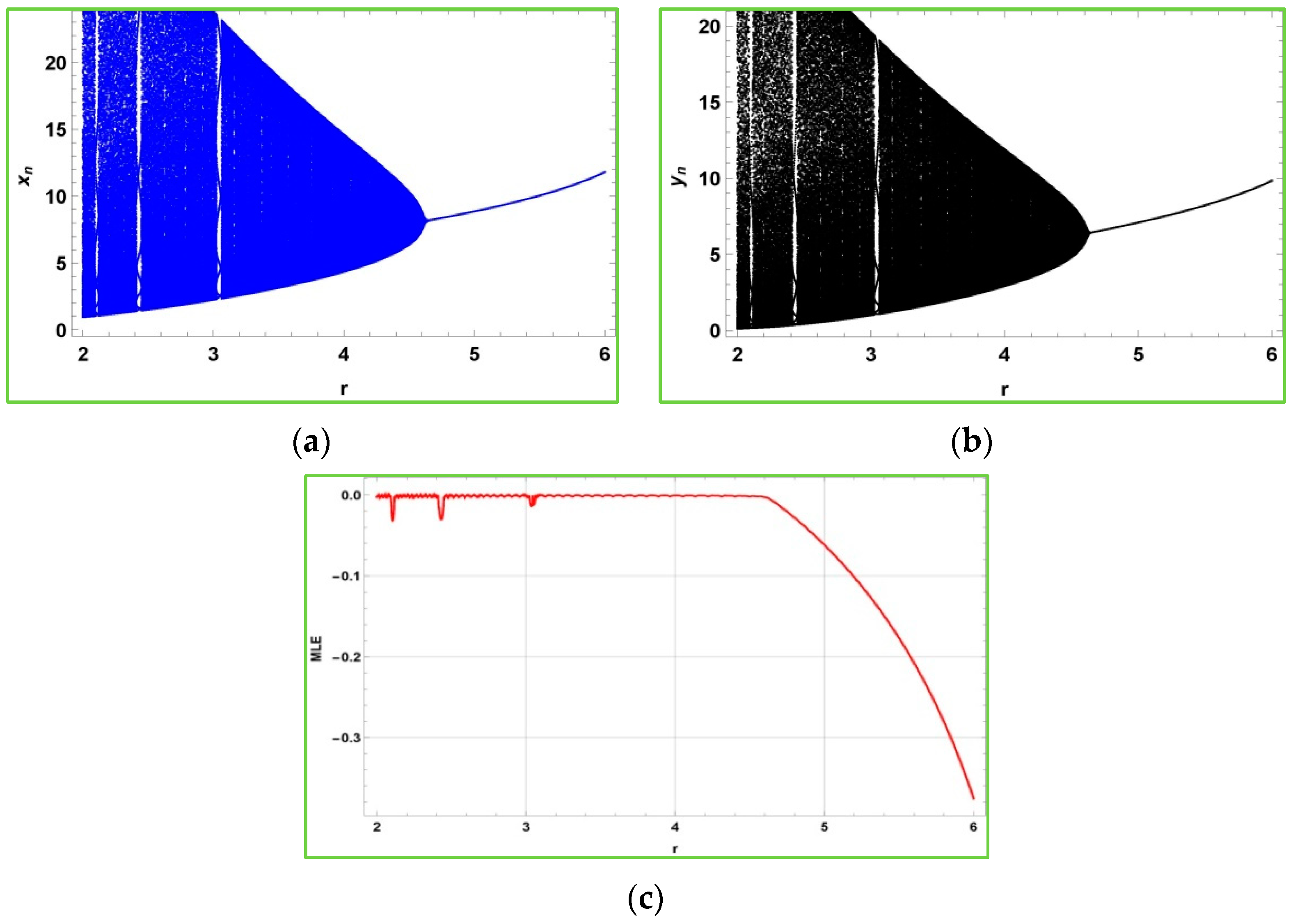

**Figure 2.**Bifurcation diagrams and MLE of model (2) with a = 0.4, p = 0.85, and r ∈ [2, 6] (

**a**) bifurcation diagram for host (

**b**) bifurcation diagram for parasitoid (

**c**) MLE.

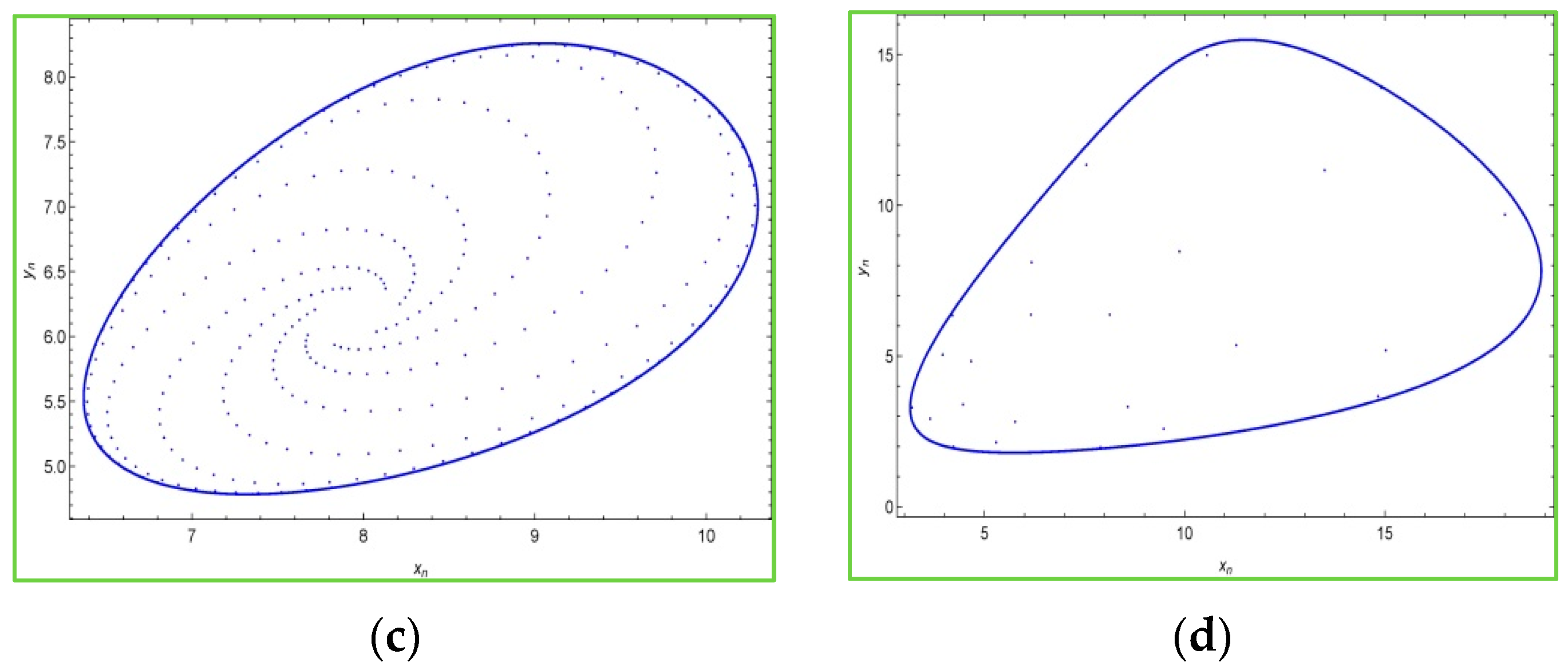

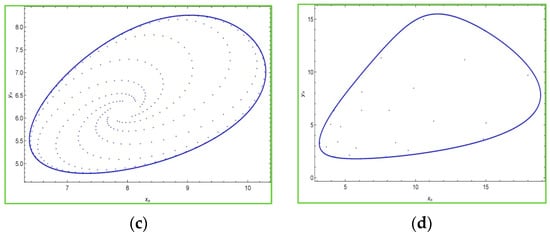

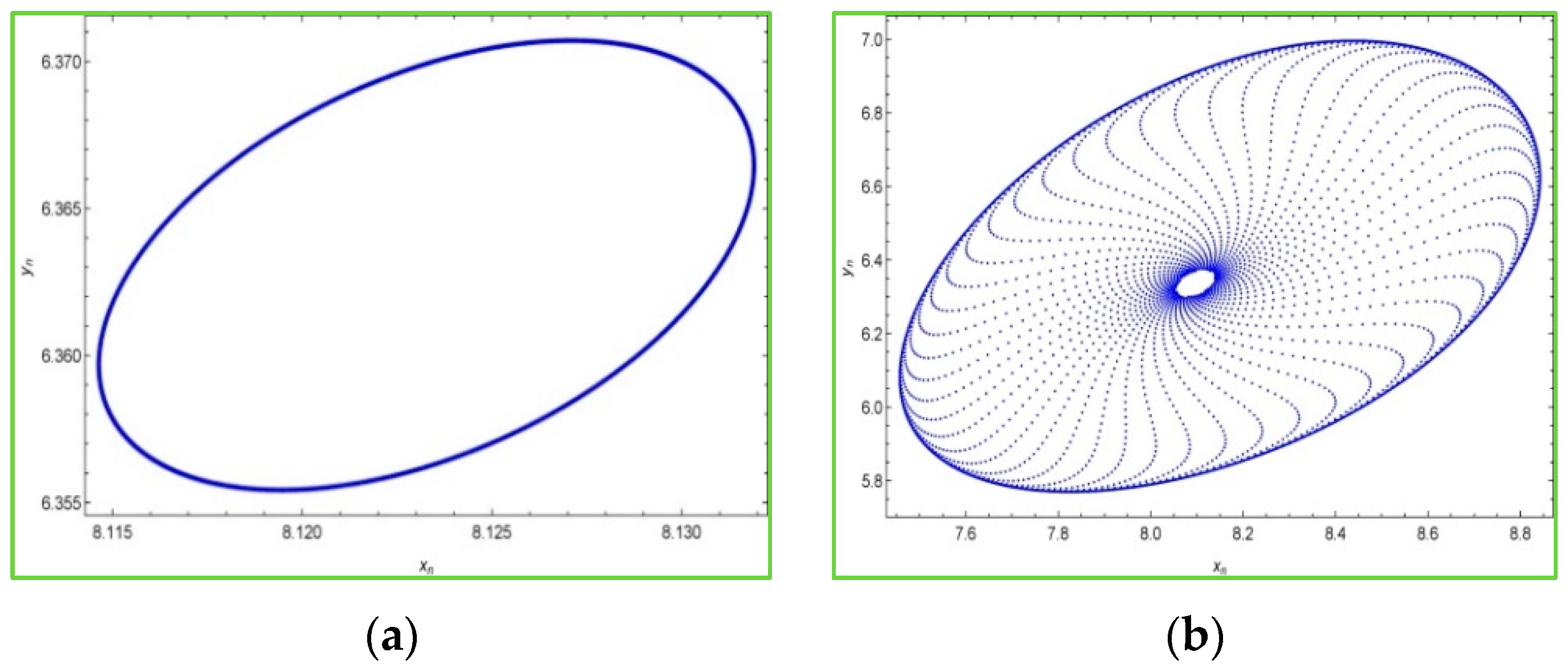

**Figure 3.**Phase portraits of model (2) in x

_{n}y

_{n}-plane for a = 0.4, p = 0.85 and (x

_{0}, y

_{0}) = (8.12, 6.36). (

**a**) r = 4.614946371656745 (

**b**) r = 4.6 (

**c**) r = 4.5 (

**d**) r = 3.5.

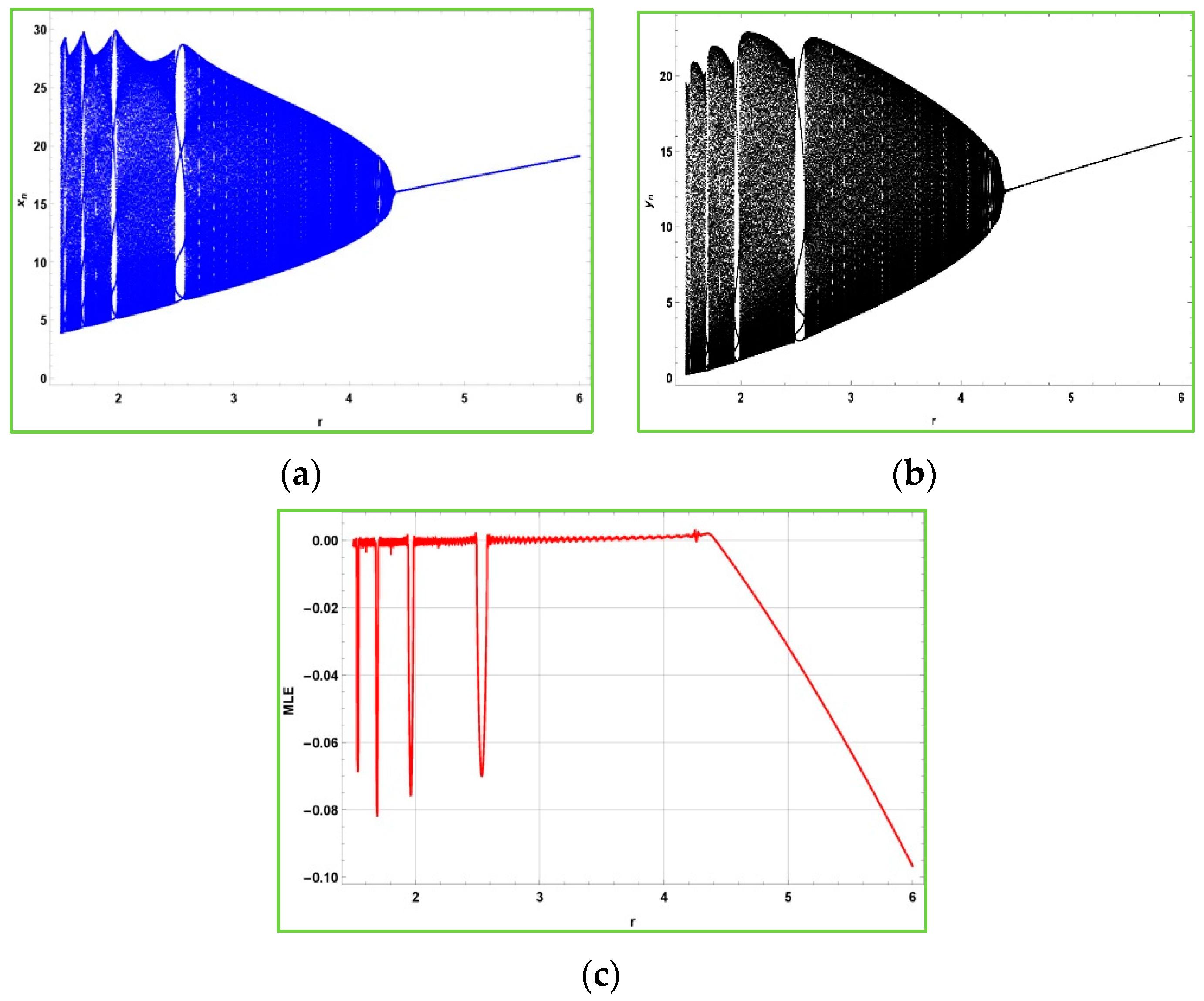

**Figure 5.**Bifurcation diagrams and MLE of model (3) when a = 0.2 and H

_{0}= 2.5. (

**a**) bifurcation for host (

**b**) bifurcation in parasitoid (

**c**) MLE.

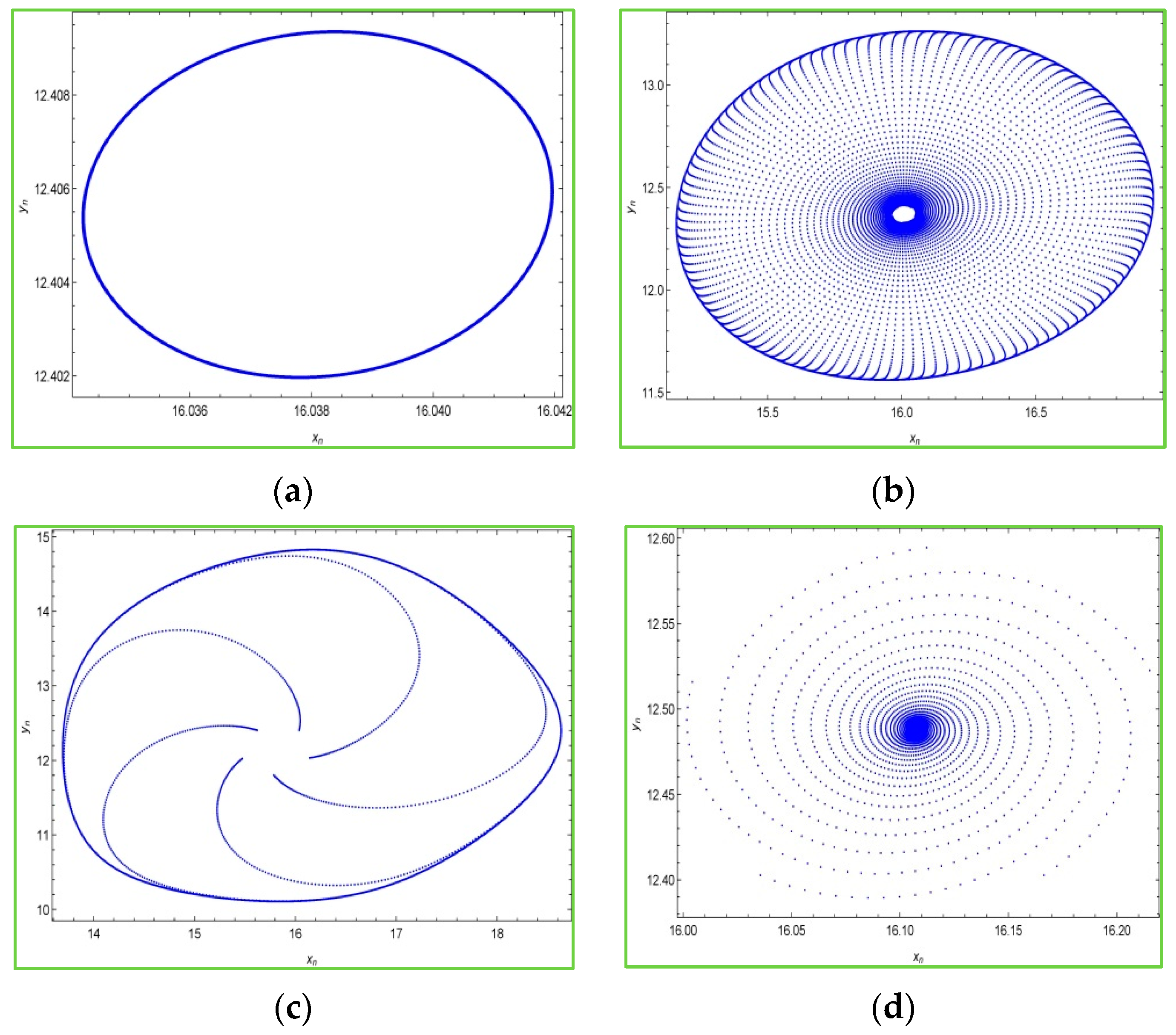

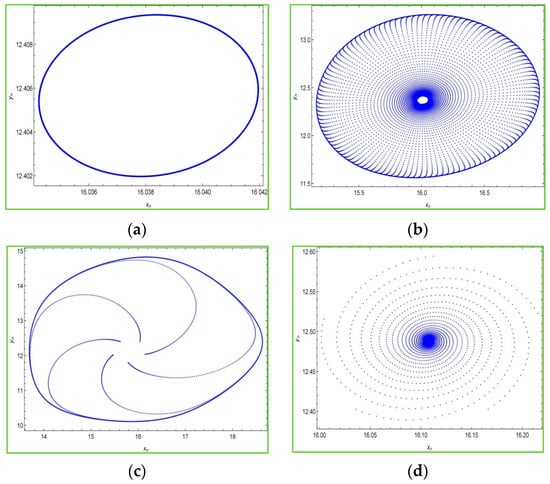

**Figure 6.**Phase portraits of model (3) in x

_{n}y

_{n}-plane for a = 0.2, H

_{0}= 2.5. (

**a**) r = 4.41524 (

**b**) r = 4.4 (

**c**) r = 4.3 (

**d**) r = 4.45.
