Strategic Alliances for Sustainable Development: An Application of DEA and Grey Theory Models in the Coal Mining Sector

Abstract

Sustainable development is a global trend and an economic priority for many governments. Although new energies can be considered good investments in green growth, they may lead to financial barriers to developing countries. The purpose of the study concentrates on an alternative solution that increases the efficiency performance of current fossil energy industries. The study has combined two models of Data Envelopment Analysis (DEA) and Grey Theory in determining inefficient units to propose potential strategic alliances for sustainable development in the Vietnam Coal industry. Besides considering inputs and outputs in the models, the location of coal mines is also a key indicator in recommending good alliances. The results show that the collaborations between the Cao Son coal mine and the Coc Sau coal mine, and between the Nui Beo coal mine and the Vang Danh coal mine, bring the best improvement for sustainable development. The study suggests detailed strategies in action that enterprises and policymakers can refer to, to apply in practice.

1. Introduction

In 2020–2021, given the impact of the COVID-19 pandemic, Vietnam is one of few countries keeping a positive GDP growth rate due to its successful efforts in containing the spread of the virus nationwide. Vietnam’s economy is expected to develop through robust domestic demand and export-oriented manufacturing. It is accompanied by a surge in power demand and consumption to support its fast-growing economy. The energy demand is forecasted to rise by 8% per annum during 2021–2030 [1]. It boosts the demand for coal since this is still a cheap fuel source for power generation in a developing economy such as Vietnam. Since 2015, coal has overtaken hydropower in ranking as the most important energy source for the power industry, comprising 49.86% of the power generation share. With about 49 billion tons of coal reserves over the country, Vietnam has become a key coal supplier for both the domestic and the Asia Pacific regions. In the coming decades, coal mining is projected as a dominant investment of $150 billion from energy investors. Hence, the coal mining sector has contributed significantly to the economic growth of Vietnam.

1.1. The Coal Mining Sector in Vietnam

In Vietnam, all coal mines are owned by the government. Approximately 95% of the total coal is produced and mined by a state-owned holding company called the Vietnam National Coal-Mineral Industries Group (VINACOMIN). VINACOMIN was established in 2005 through the merger of Vietnam National Coal Corp. (Vinacoal) and Vietnam National Minerals Corp [2]. The corporation has become a major coal producer in Vietnam and has various activities such as providing anthracite for the power sector, and industries for both domestic and global markets. Most of Vietnam’s coal resources are located in the North. In the red river Delta coal basin, 39.4 billion tons of sub-bituminous accounted for 81% of four types of coal including anthracite; fat coal; sub-bituminous; and peat coal. VINACOMIN has operated five large surface coal mines with an annual capacity greater than 2 million tons (the Cao Son, Coc Sau, Deo Nai, Ha Tu, and Nui Beo mines); 15 surface coal mines with production from 0.1 to 0.7 million tons per year.

1.2. Environmental Issues from Mining Coal

Vietnam’s coal mining industry meets many difficulties in the increase of coal production, prospecting, exploration, and mining technologies. It would be more challenging when the Vietnamese government has many efforts to “go green”. Environmental problems and sustainable development are two significant issues that the Vietnam coal mining sector could encounter. In terms of the environmental aspect, mining coal causes land subsidence, damages to the water ecology, mining waste disposal, and air pollution. It may change either environmental pollution or the landscape [3]. Coal exploration could impact the water systems, and extraction can affect groundwater levels and acidity. For example, the amount of sulfur dioxide (SO₂) released from coal burning is approximately 75 (Tg S yr−1). It causes acid rain and acidification of ecosystems [4]. Moreover, there are many problems from waste coal mines such as occurring settlements in tunnels, infrastructure, or arable land damages. In 2013, the head of the UN climate agency argued that the inefficient mining of underground coal contributes to global warming.

1.3. Strategic Alliance for Sustainable Development

The strategic alliance is a collaboration form to achieve mutual goals, for example, two different units collaborate to facilitate reciprocal learning processes [5]. Across the world, there are many examples of alliances for sustainable development. The Central American Council for Sustainable Development has promoted alliance agreements designed to support sustainable development in Central America at both the national and regional levels [6]. The Italian landscape applied alliance strategies to enhance the importance of the Sustainable Development Agenda for the Italian society and economic stakeholders. Participating in alliances supports them to pursue the Sustainable Development Goals of the United Nations [7].

There are many difficulties that an organization encounters if they have a sustainably developing orientation. These challenges are related to various aspects such as technical, social, and organizational innovations. Strategic alliances can be considered an important sustainability innovation in improving resource efficiency [5].

1.4. Problem Statement and Motivation

As mentioned above, the inefficiency of coal mining causes many environmental problems, especially significant barriers if the Vietnamese government wants to have sustainable development. VINACOMIN has encountered a lack of efficient performance measurement for mining projects operating independently. The motivation of this study is to find a novel way of measuring the efficiency performance of operating coal manufacturers, then to have recommendations for improving its performance.

This study proposes a hybrid research approach that combines a multiple-criteria decision-making (MCDM) model and a prediction model. The novelty of the research framework proposed is to take advantage of Grey Model (GM) and Data Envelopment Analysis (DEA) models in solving uncertain problems with inadequate information. The results of the Grey Theory model have interacted with the Data Envelopment Analysis (DEA) model. Then, the findings are used to evaluate the efficiency performance of major coal mines, then suggest possible strategic alliances. In addition, another motivation of the study is to contribute the proposed research framework to the relevant literature on evaluating efficiency performance.

2. Literature Review and Research Process

2.1. DEA Model, Grey Theory, and Its Application

2.1.1. DEA Model

The reference [8] implemented Data Envelopment Analysis (DEA) to evaluate the performance of business units by estimating the ratio between inputs and outputs as an efficiency index. There are two traditional versions of DEA models, namely, the Charnes–Cooper–Rhodes (CCR) and the Banker–Charnes–Cooper (BCC) models [8]. The former is used to determine the overall inefficiency, whereas the latter differentiates between technical efficiency and scale efficiency. After several years, the super slack-based measure (super SBM) model was developed to optimize the shortcomings of the traditional DEA model and obtain reasonable metrics. It has eliminated the slack problems while accurately ranking the effectiveness of decision-making units (DMUs) [5]. Many studies related to the application of DEA are studied across different fields such as logistics [9], automobile manufacturing [10], the steel industry [5], and the textile and garment industries [11]. In addition, the DEA models can be coordinated with other models such as the Analytic Hierarchy Process (AHP) model, the Grey model, and so on. For instance, related to sustainable development, a hybrid approach of the DEA and AHP model was applied to select the potential location for constructing wind power plants in Vietnam in 2021 [12].

2.1.2. Grey Theory Model

The reference [13] introduced an approach to construct forecasting models with limited samples. Due to the development of the Grey systems theory, these models are commonly named grey models (GM). The advantages of GM models are to solve uncertain problems with inadequate information. The research implemented in developing countries such as Vietnam often encounters a problem of disorderly and unsystematic data. Grey theory has been a powerful tool in projecting historical business data with a limited amount [14].

The Grey prediction models are applied widely in various fields from private to public sectors, such as economics, technology, science, or government policies. For example, the GM models are applied to forecast the number of COVID-19 cases and deaths in Turkey [15]. The reference [14] demonstrated the effectiveness of Grey theory models in predicting three real cases including natural gas consumption, electricity consumption, and the elderly population. In terms of sustainable development, the GM models are implemented to forecast the demand for green mental material in 2019 [16].

2.1.3. Research Gap

There is much literature on the application of DEA in efficiency evaluation; however, there are a limited number of studies on environmental efficiency or sustainable development [17]. There has been no research implemented for the case of the Vietnamese coal mining industry to evaluate the performance efficiency and give suggestions for sustainable development. This study aims to fill the gap in the existing literature by evaluating the efficiency performance of independent coal mining projects that are operated by VINACOMIN, then integrating the Grey Model to simulate strategic alliances between inefficient projects.

There is an existing issue related to limited and incomplete information on the coal projects operating. It causes unavoidable errors in data collection as well as getting a high-accuracy analysis. The advantage of the DEA model is to deal with such an issue by a non-parametric approach converting multiple inputs into outputs [8]. In addition, the DEA does not require the specification of a functional form for the production technology like other stochastic parametric methods. However, many researchers believe that the disadvantage of the DEA model is about sample size and not offering a prediction model of units’ performance [18]. The reference [19] argued that the number of DMUs should exceed the total number of inputs and outputs by several times. The references [5,20] argued that the number of DMUs selected needs to be at least double the number of inputs and outputs in total, so the problem of sample size can be solved by considering a sufficient size of the sample. To deal with the second limitation of DEA, [21] introduced the Grey Theory model as a time series prediction to forecast the future business operation of units in the next three-year period. The advantage of DEA is to reduce randomness and promote the regular pattern of disorderly and unsystematic data [17].

Therefore, a hybrid approach between the DEA model and the Grey Theory model is suitable to provide a prominent level of accuracy in predicting and evaluating performance when the information is limited and fluctuated.

2.2. Research Process

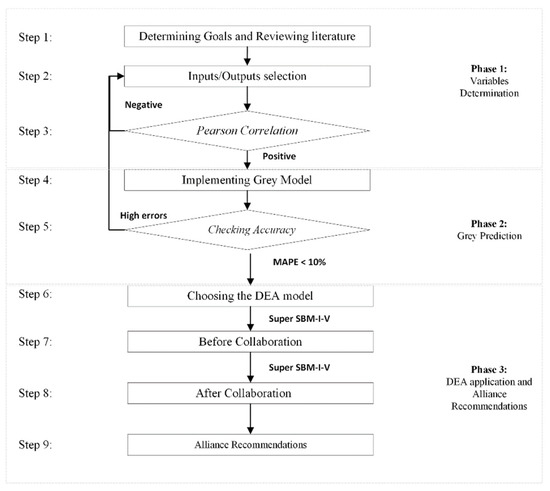

There are three phases implemented in the research process in Figure 1.

Figure 1. Research development.

• Phase 1: Variables Determination
• Step 1: Determining goals and reviewing the literature

There is 95% of the total coal production in Vietnam explored by e VINACOMIN. Regarding underground mining, VINACOMIN has operated thirty coal mines in which some mines produce less than 0.1 million tons per year. The goal of this study is to determine the inefficiency performance of coal mines by using two models (i.e., Grey Model and DEA), then recommend strategic alliances to improve as well as develop sustainably for the Vietnamese coal mining industry.

To select appropriate inputs and outputs, relevant studies are reviewed in Table 1. In this study, the top 10 major mines with high investments and a producing capacity greater than 1 million tons per year (see the list of mines in Table 2) are chosen as DMUs in the research model.

Table 1. Summary of methodologies and inputs/outputs selection in previous studies.

References	Year	Inputs	Outputs	Methodologies	Applied Areas
[9]	2022	Net Fixed Assets	Operating income	CCR BCC	Logistics
		Salaries and Wages
		Operating Expenses
		Current Liabilities
[10]	2016	Fixed Assets	Revenue Total Equity Net Income	Hybrid DEA Grey Theory model	Automobile Industry
		Cost of Goods Sold
		Operating Expenses
		Long-term Investment
[11]	2019	Fixed Assets	Revenue Net Profit	DEA and Grey Theory	Textile and Garment Industry
		Cost of Goods Sold
[5]	2020	Fixed Assets	Net revenue Net Profit	Super-SBM-I-V Grey Theory	Steel Industry
		Cost of Goods Sold
		Operating Cost
[22]	2021	Total Asset	Revenue Net profit	DEA-SBM	Banking
		Fixed Assets
		Operating Expense
		Equity
		Deposits
		Loans

Note: Charnes–Cooper–Rhodes (CCR), Banker–Charnes–Cooper (BCC), slack-based measure (SBM), epsilon-based measure (EBM).

Table 2. The list of DMUs.

No.	DMUs	Stock Code	Company Name	Market Capital (in Bil.VND)
1	DMU1	MVB	Vinacomin—Viet Bac Mining Industry Holding Corporation	1627.50
2	DMU2	TVD	Vinacomin—Vang Danh Coal Joint Stock Company	350.71
3	DMU3	NBC	Vinacomin—Nui Beo Coal Joint Stock Company	270.09
4	DMU4	TDN	Vinacomin—DeoNai Coal Joint Stock Company	235.51
5	DMU5	TMB	Vinacomin—Northern Coal Trading Joint Stock Company	216.08
6	DMU6	TCS	Vinacomin—Cao Son Coal Joint Stock Company	214.07
7	DMU7	HLC	Vinacomin—Ha Lam Coal Joint Stock Company	210.95
8	DMU8	THT	Vinacomin—Ha Tu Coal Joint Stock Company	203.92
9	DMU9	TC6	Vinacomin—Coc Sau Coal Joint Stock Company	149.48
10	DMU10	MDC	Vinacomin—Mong Duong Coal Joint Stock Company	147.79

• Step 2: Inputs/Outputs selection

Table 1 presented the studies that applied DEA in evaluating the efficiency performance of DMUs across sectors. In addition, different variables are also shown. The common variables that are used frequently across previous studies would be prioritized. In this study, DMUs are coal mining firms that consider many cashflow indicators. To evaluate performance efficiency for manufacturing and producing firms, variables related to expenditures and profits are important. For example, the references of [5] and [11], respectively, evaluated steel and textile-garment manufacturers on inputs including Fixed Assets, Cost of Goods Sold (COGS), and Operating Costs; and outputs including Revenue and Operating Profit. The reference of [10] additionally considered a long-term investment and total equity to assess the automobile industry. According to Table 1, a common point is that inputs are related to “cost” indicators and outputs are related to “benefit” indicators. Hence, in this study, three inputs including (I1) Fixed assets; (I2) Cost of goods sold; (I3) Operating Costs; and two Outputs including (O1) Revenues; (O2) Operating profit were selected.

• Step 3: Pearson correlation

A requirement of applying DEA is the positive correlation between inputs and outputs. The Pearson correlation, hence, is implemented to ensure the accuracy of the selection of the indicators.

• Phase 2: Grey Prediction
• Step 4: Implementing Grey Model

The Grey Model (1,1) model is implemented to forecast the inputs and outputs of each DMU in the next 3-year period (i.e., 2022–2024).

• Step 5: Checking Accuracy

To check the accuracy level of projections, the index of Mean Absolute Percent Error (MAPE) is estimated as $MAPE=\frac{100\%}{n}{\displaystyle \sum }_{t=1}^n\left[\frac{A_t-F_t}{A_t}\right]$, where $A_t$, $F_t$ are the actual values and forecast values, respectively.

If the value of MAPE is higher than 10%, then the errors of forecasting are too high than the actual values [10,23]. It means that the data must be re-selected.

• Phase 3: DEA application and Alliance Recommendations
• Step 6: Choosing the DEA model

To eliminate the slack problems that traditional DEA models (i.e., CCR and BCC) cannot deal with, the advantage of the Super -SBM-I-V of DEA is considered to evaluate efficiency units and rankings of each coal mining project.

• Step 7: Before collaboration

In this step, the super SBM-I-V model [20] is used to evaluate the efficiency of DMU(x0, y0) over the period 2017–2021. It aims to define a target DMU which received a high investment from VINACOMIN but has shown a low-efficiency score in performance.

• Step 8: After Collaboration

After the target DMU is determined, “virtual alliances” are constructed by getting the forecasted values between the target and other DMUs. Then, the super SBM-I-V model is reimplemented to compare the difference.

• Step 9: Alliance Recommendations

The study shows the coal mines operating inefficiently and then suggests possible strategic alliances for a sustainable development orientation at VINACOMIN as well as the government level.

3. Methodology

3.1. Grey Theory Model

The GM(1,1) model has five main steps described as follows:

Input original time series data X⁽⁰⁾ [13]

$$X^{\left(\left(0\right)\right)}=\left(x^{\left(\left(0\right)\right)}\left(1\right),x^{\left(\left(0\right)\right)}\left(2\right), \dots , x^{\left(\left(0\right)\right)}\left(n\right)\right),n\ge 4$$

(1)

where $X^{\left(\left(0\right)\right)}$ is a non-negative sequence; n is the number of data observed; then, generate time-series data X⁽¹⁾(k) by 1-Accumulating Generation Operator AGO (1-AGO) of X⁽⁰⁾ and generate partial series data Z⁽¹⁾(k) from X⁽¹⁾(k), as in Equation (2) below

$$X^{\left(\left(1\right)\right)}=\left(x^{\left(\left(1\right)\right)}\left(1\right),x^{\left(\left(1\right)\right)}\left(2\right), \dots , x^{\left(\left(1\right)\right)}\left(n\right)\right), n \ge 4$$

(2)

where

$$x^{\left(1\right)}\left(k\right)={\displaystyle \sum }_{i=1}^k{x}^{\left(0\right)}\left(i\right), k=1, 2, \dots n.$$

(3)

Next, the data matrix is established by a least square method to acquire the value of coefficient a and grey input b

$$Z^{\left(\left(1\right)\right)}=\left(z^{\left(\left(1\right)\right)}\left(2\right),z^{\left(\left(1\right)\right)}\left(3\right), \dots , z^{\left(\left(1\right)\right)}\left(n\right)\right)$$

(4)

where

$$z^{\left(\left(1\right)\right)}\left(k\right)=1/2\left(x^{\left(\left(1\right)\right)}\left(k\right)+x^{\left(\left(1\right)\right)}\left(k-1\right)\right) , k=2, 3, \dots , n$$

(5)

Construct GM(1, 1) forecasting equation

$$\frac{d{X}^{\left(1\right)}\left(k\right)}{dk}+a{x}^{\left(1\right)}\left(k\right)=b$$

(6)

where parameters a and b are called the developing coefficient and grey input, respectively. However, these parameters a and b are undetermined from Equation (6). Instead, the least square method as the Equations (7)–(11) below can be used:

$${\widehat{X}}^{\left(1\right)}\left(k+1\right)=\left(X^{\left(0\right)}\left(1\right)-\frac{b}{a}\right)e^{-ak}+\frac{b}{a} , k=1, 2, 3, \dots$$

(7)

where $X^{\left(1\right)}\left(k+1\right)$ denotes the prediction X at time point k + 1 and the coefficients [a,b]^T can be obtained by the Ordinary Least Squares (OLS) method:

$${\left[\begin{array}{c}a\\ b\end{array}\right]}^T=\widehat{\theta }={\left(B^{T}B\right)}^{-1}{B}^T{Y}_N$$

(8)

$$\mathrm{and} B=\left[\begin{array}{cc}-Z^{\left(1\right)}\left(2\right)& 1\\ \dots & \dots \\ -Z^{\left(1\right)}\left(n\right)& 1\end{array}\right]$$

(9)

$$Y_N=\left[\begin{array}{c}{X}^{\left(0\right)}\left(2\right)\\ \dots \\ X^{\left(0\right)}\left(n\right)\end{array}\right]$$

(10)

(B is the data matrix, Y_N is the data series, [a,b]^T is the parameter series), ${\widehat{X}}^{\left(1\right)}$ is acquired from Equation (7). Let ${\widehat{X}}^{\left(0\right)}$ be the GM(1,1) fitted and predicted series:

$${\widehat{X}}^{\left(0\right)}=\left({\widehat{X}}^{\left(0\right)}\left(1\right),{\widehat{X}}^{\left(0\right)}\left(2\right),\dots ,{\widehat{X}}^{\left(0\right)}\left(n\right),\dots \right)\mathrm{where} {\widehat{X}}^{\left(0\right)}\left(1\right)=X^{\left(0\right)}\left(1\right)$$

Evaluate average residual γ, and calculate forecast values as Equation (11):

$$X^{\left(0\right)}\left(k+1\right)=\left(X^{\left(0\right)}\left(1\right)-\frac{b}{a}\right)e^{-ak}\left(1-e^a\right) (k=1, 2, 3, \dots )$$

(11)

3.2. Super Slacks-Based Measure DEA Model

The non-negative data input is a compulsory requirement in the application of DEA models. In 2001, [24] developed the Slacks-based measure of efficiency (SBM) to evaluate the efficiency of the DMU_k by Equation (12):

$$\begin{gathered} \min {\rho }_1=\frac{1-\frac{1}{m}{{\displaystyle \sum }}_{i=1}^m\frac{s_i^{-}}{x_{ik}}}{1+\frac{1}{s}{{\displaystyle \sum }}_{r=1}^s\frac{s_r^{+}}{y_{rk}}} \\ s.t.x_{ik}={{\displaystyle \sum }}_{j=1}^n{x}_{ik}{\lambda }_j+s_i^{-}, i=1,\dots ,m \\ {y}_{rk}={{\displaystyle \sum }}_{j=1}^n{y}_{rj}{\lambda }_j-s_r^{+}, r=1, \dots , s \\ {\lambda }_j\ge 0, j=1, \dots , n \\ {s}_i^{-}\ge 0, i=1, \dots , m \\ {s}_r^{+}\ge 0, r=1, \dots , s \end{gathered}$$

(12)

where $x_{ij}$ and $y_{rj}$ denote the ith input and the rth output of the DMUj, respectively.

Let $x_i^1=x_{ik}-s_i^{-}$ and $y_r^1=y_{rk}-s_r^{+}$. The SBM model can be rewritten by Equation (13)

$$\begin{gathered} \min {\rho }_1=\frac{\frac{1}{m}{{\displaystyle \sum }}_{i=1}^m\frac{x_i^1}{x_{ik}}}{\frac{1}{s}{{\displaystyle \sum }}_{r=1}^s\frac{y_r^1}{y_{rk}}} \\ s.t.x_i^1\ge {{\displaystyle \sum }}_{j=1}^n{x}_{ik}{\lambda }_j, i=1, \dots , m \\ {y}_r^1\le {{\displaystyle \sum }}_{j=1}^n{y}_{rj}{\lambda }_j, r=1, \dots , s \\ {\lambda }_j\ge 0, j=1,\dots ,n x_{ik}\ge x_i^1\ge 0, i=1, \dots , m \\ {y}_r^1\ge y_{rk}, r=1, \dots , s \end{gathered}$$

(13)

In 2002, [20] proposed the following Super-SBM to evaluate the super-efficiency of the DMU_k in Equation (14)

$$\begin{gathered} \min {\rho }_2=\frac{\frac{1}{m}{{\displaystyle \sum }}_{i=1}^m\frac{x_i^2}{x_{ik}}}{\frac{1}{s}{{\displaystyle \sum }}_{r=1}^s\frac{y_r^2}{y_{rk}}} \\ s.t.x_i^2\ge {{\displaystyle \sum }}_{j=1,j\ne k}^n{x}_{ij}{\lambda }_j, i=1, \dots , m \\ {y}_r^2\le {{\displaystyle \sum }}_{j=1,j\ne k}^n{y}_{rj}{\lambda }_j, r=1, \dots , s \\ {\lambda }_j\ge 0, j=1, \dots , n, j\ne k \\ {x}_{ik}\le x_i^2, i=1, \dots , m \\ 0\le y_r^2\le y_{rk}, r=1, \dots , s \end{gathered}$$

(14)

Note that the optimal value of the objective function (14) is ${\rho }_2 \ge 1$. If the DMU_k is identified as efficient by Equation (13), then model (14) is used to calculate super-efficiency.

4. Empirical Analysis and Results

4.1. Collecting the DMUs

According to the rule of thumb from [5,20,23], the number of DMUs selected needs to be at least double the number of inputs and outputs in total. With five variables considered, the paper studied 10 major coal mining projects of VINACOMIN as DMUs in the research model.

The financial statements during 2017–2021 were collected from a reliable database source, the State Securities Commission of Vietnam (ssc.gov.vn), and double-checked with the official reports of VINACOMIN. Table 2 presents the list of DMUs and their market capitals in billions of Vietnam dong (Bil. VND).

4.2. Variables Collection

According to step 2 in Section 2.2, the selection of inputs is supported by reviewing the relevant literature of DEA and coal mining industry reports. There are three important factors to the sources of coal mining manufacturers, namely, fixed assets, operating cost, and cost of goods sold (COGS). In terms of outputs, Revenues and Operating profit are considered as two output factors, because the indicators are good signals to analyze the company’s financial effectiveness. The statistical description of input and output data is presented in Table 3, in millions of Vietnam dong (Mil. VND).

The inputs and outputs selection is also confirmed by the Pearson correlation test with all high positive correlations shown in Section 4.5 below:

Table 3. Input and output factors of 10 coal mining projects in 2017–2021 (in Mil. VND).

		Inputs (in Mil. VND)			Outputs (in Mil. VND)
	Statistics	Fixed Assets	Operating Cost	COGS	Revenues	Operating Profit
2017	Max	3,037,449	6,081,202	398,600	6,464,727	110,727
	Min	95,942	984,287	135,054	1,221,125	961
	Average	1,122,746	2,602,439	220,473	2,940,333	38,723
	SD	1,059,424	1,476,634	84,500	1,551,590	33,002
2018	Max	3,139,566	3,945,504	351,387	4,201,420	150,130
	Min	89,514	1,115,936	112,735	1,444,347	21,089
	Average	1,145,740	2,421,367	203,947	2,773,617	54,974
	SD	1,086,383	972,039	67,187	1,035,770	41,038
2019	Max	2,988,038	5,361,165	386,748	5,712,483	279,104
	Min	90,632	1,740,493	62,385	1,957,178	21,622
	Average	1,111,524	3,172,208	177,928	3,541,372	91,345
	SD	996,001	1,158,668	103,099	1,224,661	72,455
2020	Max	2,661,291	10,066,757	671,218	10,867,337	409,852
	Min	92,990	1,841,387	116,821	2,087,359	1842
	Average	1,098,891	3,944,922	224,573	4,376,882	114,631
	SD	826,271	2,466,641	180,541	2,612,602	108,327
2021	Max	2,327,035	10,218,072	648,840	10,990,285	410,780
	Min	85,277	1,835,560	72,209	2,193,027	4484
	Average	1,116,725	3,741,347	218,920	4,146,550	89,518
	SD	728,762	2,428,944	173,718	2,583,992	117,465

Table 3. Input and output factors of 10 coal mining projects in 2017–2021 (in Mil. VND).

		Inputs (in Mil. VND)			Outputs (in Mil. VND)
	Statistics	Fixed Assets	Operating Cost	COGS	Revenues	Operating Profit
2017	Max	3,037,449	6,081,202	398,600	6,464,727	110,727
	Min	95,942	984,287	135,054	1,221,125	961
	Average	1,122,746	2,602,439	220,473	2,940,333	38,723
	SD	1,059,424	1,476,634	84,500	1,551,590	33,002
2018	Max	3,139,566	3,945,504	351,387	4,201,420	150,130
	Min	89,514	1,115,936	112,735	1,444,347	21,089
	Average	1,145,740	2,421,367	203,947	2,773,617	54,974
	SD	1,086,383	972,039	67,187	1,035,770	41,038
2019	Max	2,988,038	5,361,165	386,748	5,712,483	279,104
	Min	90,632	1,740,493	62,385	1,957,178	21,622
	Average	1,111,524	3,172,208	177,928	3,541,372	91,345
	SD	996,001	1,158,668	103,099	1,224,661	72,455
2020	Max	2,661,291	10,066,757	671,218	10,867,337	409,852
	Min	92,990	1,841,387	116,821	2,087,359	1842
	Average	1,098,891	3,944,922	224,573	4,376,882	114,631
	SD	826,271	2,466,641	180,541	2,612,602	108,327
2021	Max	2,327,035	10,218,072	648,840	10,990,285	410,780
	Min	85,277	1,835,560	72,209	2,193,027	4484
	Average	1,116,725	3,741,347	218,920	4,146,550	89,518
	SD	728,762	2,428,944	173,718	2,583,992	117,465

4.3. Variables Calculations—Forecast Inputs/Outputs by GM(1,1)

The GM(1,1) model is implemented on the realistic inputs/outputs factors from 2017 to 2021 to predict the values of all DMUs in 2022–2024. Table 4 has shown the projection of data for DMUs in 2022.

Table 4. Forecasted inputs/outputs data for the year of 2022.

		Inputs (in Mil. VND)			Outputs (in Mil. VND)
	DMUS	Fixed Assets	Operating Cost	COGS	Revenues	Operating Profits
1	DMU1	1,568,410.67	4,620,907.96	460,390.28	5,873,246.47	987,681.63
2	DMU2	736,729.29	6,501,211.17	200,846.25	6,762,141.97	119,246.68
3	DMU3	3,619,170.38	3,015,653.60	97,808.49	3,299,779.70	23,318.65
4	DMU4	1,139,007.68	4,045,995.06	127,167.52	4,338,518.08	110,239.34
5	DMU5	85,142.51	27,043,605.30	1,711,436.97	29,374,561.94	156,003.12
6	DMU6	674,020.88	6,258,457.75	108,106.44	6,503,059.47	96,354.96
7	DMU7	1,776,649.97	2,527,970.23	106,926.54	2,972,206.37	280,453.29
8	DMU8	5,631,005.94	3,402,431.90	82,722.93	3,659,750.22	67,407.18
9	DMU9	791,763.11	4,195,838.30	80,536.02	4,188,567.84	662.02
10	DMU10	513,921.22	4,020,468.91	104,228.95	4,090,241.67	58,895.59

4.4. Accurate Checking

The imperfect information is a constraint in the prediction. To check the accuracy of applying GM(1,1), the study estimated the MAPE score in percentage and showed the results in Table 5.

Table 5. Average MAPE of DMUs (in %).

DMUs	Fixed Assets	Operating Cost	COGS	Revenues	Operating Profits	Average MAPE of DMUs
DMU1	2.81	6.34	10.67	15.24	7.34	8.48
DMU2	10.28	3.38	7.72	12.11	14.75	9.648
DMU3	12.25	5.34	6.54	10.34	16.54	10.202
DMU4	14.28	10.55	12.91	5.22	13.43	11.278
DMU5	5.23	14.22	12.27	5.65	7.32	8.938
DMU6	4.76	12.02	9.65	4.78	4.71	7.184
DMU7	7.56	5.69	7.83	5.23	4.05	6.072
DMU8	3.09	2.35	8.34	4.87	12.31	6.192
DMU9	12.34	6.12	2.65	11.23	15.23	9.514
DMU10	5.43	7.23	15.34	5.12	3.78	7.38
Average MAPE of all 10 DMUs						8.49

The predicted values are good and qualified if the value of MAPE is less than 10% [23]. In Table 5, the average MAPE of 8.49% confirms that the estimations by using GM(1,1) are accurate to use in the next phases.

4.5. Pearson Correlation

Table 6 presents the results of the Pearson correlation test between inputs and outputs over the period 2017–2021. The significant positive associations confirm the “homogeneity” and “isotonicity” data that satisfied two requirements for applying the DEA model. In addition, the high correlation among variables shows that selecting inputs and outputs is reasonable; for example, the value of the correlation between COGS and RE is 0.997. It means that the reliability level of data collection is very high because a business that gets high revenues would obtain higher COGS than other peers.

Table 6. Pearson Correlation of input and output data in 2017–2021.

		FA	COGS	OC	RE	OP
Fixed Asset (FA)	Pearson Correlation	1	0.927 **	0.841 **	0.775 **	0.673 *
	Sig. (2-tailed)	0.000	0.000	0.000	0.000	0.000
	Sample	504	504	504	504	504
Cost of Goods Sold (COGS)	Pearson Correlation	0.927 **	1	0.912 **	0.997 **	0.812 **
	Sig. (2-tailed)	0.000	0.000	0.000	0.000	0.000
	Sample	504	504	504	504	504
Operating Cost (OC)	Pearson Correlation	0.841 **	0.912 **	1	0.612 *	0.854 **
	Sig. (2-tailed)	0.000	0.000	0.000	0.000	0.000
	Sample	504	504	504	504	504
Revenue (RE)	Pearson Correlation	0.775 **	0.997 **	0.612 *	1	0.572 *
	Sig. (2-tailed)	0.000	0.000	0.000	0.000	0.000
	Sample	504	504	504	504	504
Operating Profit (OP)	Pearson Correlation	0.673 *	0.812 **	0.854 **	0.572 *	1
	Sig. (2-tailed)	0.000	0.000	0.000	0.000	0.000
	Sample	504	504	504	504	504

*; **. Correlation is significant at the 0.05; 0.01 level (2-tailed).

4.6. Analysis before Alliance

The super-SBM-I-V algorithm based on the business performance of all DMUs in 2021 is implemented to evaluate the efficiency of 10 major coal mines.

Table 7 and Table 8 present the example of efficiency score ranking in 2020 and 2021, respectively, all the performance rankings in the period of 2017–2021 are reviewed to select the target DMU.

Table 7. Performance ranking of DMUs in 2020.

Rank	Score	DMUs	Rank	Score	DMUs
1st	1.83798	HLC	6th	1.00001	MVB
2nd	1.45566	TCS	7th	1	TMB
3rd	1.26283	MDC	8th	0.88751	TVD
4th	1.18094	TDN	9th	0.87454	TC6
5th	1.06304	NBC	10th	0.85346	THT

Table 8. Performance ranking of DMUs in 2021.

Rank	Score	DMUs	Rank	Score	DMUs
1st	1.71416	HLC	6th	1.02582	TDN
2nd	1.30716	THT	7th	1	MVB
3rd	1.13554	MDC	8th	1	TMB
4th	1.1233	NBC	9th	0.92088	TVD
5th	1.06334	TCS	10th	0.88667	TC6

The Vang Danh coal mine referred to as TVD (i.e., DMU2) is one of the big projects invested in by VINACOMIN and a major unit in exploring the coal industry that accounts for the second-highest market capital with 350.71 billion VND in 2020 (Table 2). However, the TVD has performed with a “less 1” efficiency score over the 5-year period (2017–2021). It means that there are some issues in operating despite having good potential inputs. Therefore, TVD is selected as the target DMU to set up different virtual alliances.

In terms of geography, the four major coal mines, namely, Cao Son (TCS), Mong Duong (MDC), Deo Nai (TDN), and Coc Sau (TC6) are considered. Because the locations of these coal mines are very closed (highlighted in RED as Figure 2). However, TC6 has performed inefficiently (i.e., “less 1”) throughout 2017–2021. Three virtual alliances are constructed between TC6 with three neighbor coal mines.

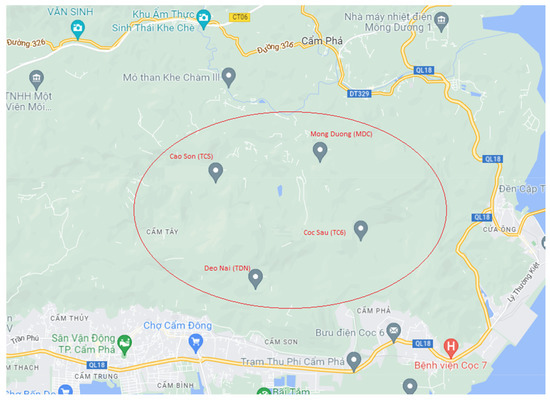

Figure 2. Locations of the Cao Son, Mong Duong, Deo Nai and Coc Sau coal mines. Source: Google map.

4.7. Analysis after Alliance

With the data forecasted by the Grey model, 12 virtual alliances are formed, including 9 collaborations between DMU2 (i.e., TVD) and other DMUs and 3 virtual alliances between TC6 and other coal mines nearby (TCS; MDC; TDN), as shown in Table 9.

Table 9. Forecasted inputs/outputs data for the year of 2022.

		Inputs (in Mil. VND)			Outputs (in Mil. VND)
	DMUs	Fixed Assets	Operating Cost	COGS	Revenues	Operating Profits
1	MVB	1,568,410.67	4,620,907.96	460,390.28	5,873,246.47	987,681.63
2	TVD	736,729.29	6,501,211.17	200,846.25	6,762,141.97	119,246.68
3	NBC	3,619,170.38	3,015,653.60	97,808.49	3,299,779.70	23,318.65
4	TDN	1,139,007.68	4,045,995.06	127,167.52	4,338,518.08	110,239.34
5	TMB	85,142.51	27,043,605.30	1,711,436.97	29,374,561.94	156,003.12
6	TCS	674,020.88	6,258,457.75	108,106.44	6,503,059.47	96,354.96
7	HLC	1,776,649.97	2,527,970.23	106,926.54	2,972,206.37	280,453.29
8	THT	5,631,005.94	3,402,431.90	82,722.93	3,659,750.22	67,407.18
9	TC6	791,763.11	4,195,838.30	80,536.02	4,188,567.84	662.02
10	MDC	513,921.22	4,020,468.91	104,228.95	4,090,241.67	58,895.59
11	TVD + MVB	2,305,139.96	11,122,119.13	661,236.53	12,635,388.44	1,106,928.31
12	TVD + NBC	4,355,899.67	9,516,864.77	298,654.74	10,061,921.67	142,565.33
13	TVD + TDN	1,875,736.97	10,547,206.23	328,013.77	11,100,660.05	229,486.02
14	TVD + TMB	821,871.80	33,544,816.47	1,912,283.22	36,136,703.91	275,249.80
15	TVD + TCS	1,410,750.18	12,759,668.92	308,952.69	13,265,201.44	215,601.63
16	TVD + HLC	2,513,379.27	9,029,181.40	307,772.79	9,734,348.34	399,699.97
17	TVD + THT	6,367,735.24	9,903,643.07	283,569.18	10,421,892.19	186,653.85
18	TVD + TC6	1,528,492.41	10,697,049.47	281,382.27	10,950,709.81	119,908.69
19	TVD + MDC	1,250,650.51	10,521,680.08	305,075.20	10,852,383.64	178,142.27
20	TC6+ TCS	1,465,784.00	10,454,296.04	188,642.46	10,691,627.32	97,016.97
21	TC6 + MDC	1,305,684.33	8,216,307.21	184,764.97	8,278,809.52	59,557.61
22	TC6 + TDN	1,930,770.79	8,241,833.36	207,703.54	8,527,085.92	110,901.36

Then, Super-SBM-I-V is repeatedly implemented to estimate and rank the efficiency of these DMUs in 2022 and 2023.

4.8. Alliance Selection

The advantages of alliances are improving performance; enhancing productivity; raising a firm’s market power [25]. A key motivation to form alliances is improving performance efficiency.

This study aims to figure out the inefficient DMUs and suggest potential partners to improve performance. As the analysis in step 7, there are two target DMUs (i.e., TVD and TC6) that formed additional 12 virtual alliances. Then, the super SBM-I-V model is applied to estimate the performance efficiency scores. Table 10 and Table 11 showed that five potential good alliances improved the efficiency ranking of TVD and TC6 after cooperating. However, the two groups of these alliances are separated according to the level of priority.

Table 10. Performance ranking of virtual alliance 2022.

Rank	DMU	Score	Rank	DMU	Score
1st	TMB	1.89008	12th	TVD + TMB	1
2nd	THT	1.72023	13th	TDN	0.94399
3rd	MVB	1.6074	14th	TVD + MDC	0.8995
4th	HLC	1.43775	15th	TVD + TC6	0.86549
5th	MDC	1.22765	16th	TVD	0.86385
6th	TC6 + TCS	1.19298	17th	NBC	0.8582
7th	TVD+ NBC	1.11977	18th	TVD + TDN	0.84941
8th	TCS	1.09497	19th	TC6 + MDC	0.83482
9th	TC6	1.09339	20th	TC6 + TDN	0.75497
10th	TVD + MVB	1.02966	21st	TVD + TCS	0.73032
11th	TVD + HLC	1.0028	22nd	TVD + THT	0.71258

Table 11. Performance ranking of virtual alliance 2023.

Rank	DMU	Score	Rank	DMU	Score
1st	TMB	2.43506	12th	TVD + TMB	1
2nd	THT	1.86798	13th	TVD	0.959
3rd	MVB	1.65072	14th	TVD + TC6	0.92934
4th	HLC	1.56983	15th	TVD + TDN	0.87388
5th	TC6 + TCS	1.20859	16th	TDN	0.86126
6th	MDC	1.20185	17th	TC6 + MDC	0.85962
7th	TCS	1.16004	18th	NBC	0.76097
8th	TC6	1.13052	19th	TC6 + TDN	0.74546
9th	TVD + NBC	1.06859	20th	TVD + MVB	0.72076
10th	TVD + MDC	1.06054	21st	TVD + THT	0.70813
11th	TVD + HLC	1.00084	22nd	TVD + TCS	0.36444

A good strategic alliance should be a collaboration that brings benefits to every counterpart. In this context, the first group includes DMUs that improve the efficiency scores of the target DMUs and themselves. In Table 10 and Table 11, the virtual alliances in green cells (TCS and TC6; TVD and NBC) have increased the performance of counterparts. If there is a cooperation between TCS and TC6, the position of both in the efficiency ranking is 6th in 2022 (Table 10). It is better than the position of TCS and TC6 if they operate independently. Similarly, the virtual alliance TVD and NBC improves significant performance scores of TVD and NBC in 2022 and 2023. Without collaboration, the performance of TVD and NBC is ranked 16th and 17th in 2022 according to the estimation in Table 10, respectively. Hence, the most priority in the strategic alliance is recommended for VINACOMIN; including TCS andTC6 (Cao Son coal mine and Coc Sau coal mine); Nui Beo coal mine and Vang Danh coal mine (TVD).

In addition, the second priority group includes potential DMUs that support the target DMU to improve performance, although it may influence its performance. However, the study recommends these alliance strategies to VINACOMIN since the efficiency scores are still higher than 1, which is an acceptable level. In addition, these DMUs are all under-managed by VINACOMIN, so such alliances are possible to implement toward a common goal of sustainable development.

5. Discussion

Sustainable development has become a global trend and long-term orientation in most countries. There are many various approaches to achieve this goal; however, each government will choose different ways that are suitable for its contexts. For example, some nations have applied environmental taxes on sectors that have significant negative impacts on the environment such as steel manufacturing, mining, etc. On the other hand, some countries choose to support using alternative renewable energies such as hydrogen (water, solar, wind, etc.). Nevertheless, in a developing country like Vietnam, economic growth is still the most priority and fossil energies such as the coal mining industry have an important role in economic development. Although the Vietnamese government has some commitment to climate change, the internal energy market is still dominated mainly by fossil fuel-based technologies, and new thermal coal power plants are heavily invested during the last two decades. According to the Vietnam National Power Development Master Plan from government decision letter No. 428/QD-TTg, coal-fired thermal power is an energy source providing approximately 53.2% of national electricity and consuming approximately 129 million tons of coal per year by 2030. Therefore, if the Vietnam Government wants to integrate with global tendency as well as keep growth in the economy, it is necessary to improve the efficiency performance of current sectors.

There is no denying that the coal industry has a significant impact on the environment, especially in global climate change. With over 3.3 billion tons of proven coal reserves at the end of 2020, coal-fired plants in Vietnam mainly depend on domestic supply [26]. If coal mines have inefficient performance, it causes serious problems in terms of environmental, social, and economic aspects. Therefore, it is necessary to define the inefficiency of coal mines and have solutions such as M&A or involving partnership; because this is not only a common motivation among units but also is aligned with the orientation of the government.

The findings of this study are valuable references to answer the questions “what” and “how” to have good strategic alliances in sustainable development.

Which are inefficient units?

The study took an advantage of combing two models of DEA and Grey Theory to define inefficiency units. The ratio between the outputs and the inputs has been considered and made comparisons among units. Table 7 and Table 8 present the performance estimation of the top 10 coal mines managed by VINACOMIN. There are two units, namely, “Coc Sau coal mine” (TC6) and “Vang Danh coal mine” (TVD), that obtained performance scores less than 1, i.e., these mines have not optimized investments from the head corporation, VINACOMIN, to achieve an efficient performance as other units. Hence, these two coal mines are selected as target units to propose virtual alliances.

How to improve its performance?

Eliminating under-performance units is necessary for sustainable development. This is more important in sectors related to fossil energy such as coal mining due to its environmental impacts. A strategic alliance, hence, is worth taking into account as a solution.

Various enterprises with different missions and visions will have different forms of alliances [5]. For example, two firms will sign a formal contract regarding equity ownership; shared managerial control; cross-selling; or shared resources. The reference [27] introduced asymmetric alliances in which small firms accept to invest more than a larger partner, but they expect to gain more reputation in the market.

There are two key reasons that strategic alliance is a suitable and less costly solution. Firstly, an agreement toward a correlating business goal such as developing a more effective process; sharing the resources and risks; etc. is the foundation of a strategic alliance [28]. The scope of this study is related to all coal mines operated by VINACOMIN; hence, the goal of sustainable development is a key motivation in strategic alliances. In addition, setting alliances is possible to implement since all units are under-controlled by VINACOMIN. The study also considered the location of units as a key indicator in selection. Most coal mines in the study are located in nearby areas; hence, the process of cooperating is easy and feasible. Traditional methods of control and management as well as integrated operating procedures are not enough. Strategic alliances with such a new reorganization can improve the efficiency of resource allocation and sharing, minimize costs, and reduce waste.

In terms of literature contribution, a novel hybrid approach integrating between the DEA model and the Grey Model can support to evaluate and solve issues related to the efficiency improvement of decision-making units. The advantage of the research model is that estimations are based on realistic data in five consecutive years from 2017 to 2021. It is better than the only three-year period in many previous studies [5,10,11].

Moreover, the application of the research framework proposed by this study is not limited to the coal mining industry, but it is possible to apply it in various sectors. The findings and recommendations in this study are not only useful for managers in VINACOMIN but can also be seen as a good reference for decision-makers in other private and public sectors. Besides evaluations subjectively, managers can assess objectively with a high level of accuracy via estimations by such a mathematical model. Hence, policymakers can apply the proposed model to evaluate the performance in various fields for a common goal of sustainable development. For example, government officers apply the model to evaluate potential locations to develop industrial parks, new energy locations, etc. Furthermore, managers can apply the model in evaluating and selecting the “green suppliers”; “green materials”; “efficiency equipment”, or “green strategies” to construct sustainable development orientation for their organizations.

Limitations and further research

A limitation of this study is the condition of sample size, the condition on the number of inputs, outputs, and number of DMUs. If the number of DMUs is less than twice the total number of input-outputs or the negative correlation problem, it may lead to failures in obtaining correct calculations of the DEA model. For further research, it can consider other MCDM models such as AHP or The Technique for Order of Preference by Similarity to Ideal Solution (TOPSIS), which determine the most alternative on nearest the positive ideal solution and simultaneously farthest negative ideal solution. On the other hand, further research can combine the proposed model with the prospect theory which was introduced by [29] to study psychological aspects.
