Agates belong to the fascinating variety of gemstones that have attracted people’s attention since ancient times, owing to the showiness and uniqueness of their patterns. Due to the wide variation in shape, size and colour, agates are of considerable use in stone-cutting art as a valuable decorative and ornamental material. Agates are generally defined as banded or patterned chalcedony that are mainly composed of minute crystals of α-quartz [1
]. They usually contain other silica polymorphs (moganite, crystobalite, tridymite, opal-CT) and paragenetic minerals (carbonates, zeolites, clay minerals, iron oxides, etc.) [2
]. Agate occurrences are distributed throughout the world and related to various volcanic and, to a lesser extent, sedimentary rocks. Agates ordinarily fill veins and cavities in volcanic rocks where the supply of silica is triggered by post-magmatic hydrothermal activity, combined with the influence of meteoric waters [3
]. Silica accumulation in cavities and empty pore space of sedimentary rocks often takes place during sedimentation or early diagenesis, when the sediments contain enough moisture [2
]. The established agate hosts range in age from 13 to 3480 Ma [5
]. The oldest known agate occurrence was found in Western Australia (Warrawoona) within Archean metamorphosed rhyolitic tuffs [6
]. Miocene (13 Ma) volcanic tuffs of Yucca mountain, USA, belong to the youngest known agate-bearing host [1
Agate occurrences on the Southeast Fennoscandia Shield are mainly related with Precambrian mafic volcanic rocks. The oldest famous agate hosts are the Paleoproterozoic massive and pillow lavas of the Ludicovian Superhorizont (ca. 2100−1920 Ma) within the Onega Basin [7
]. In the present paper, agates from the volcanic rocks of the Mesoproterozoic Pasha–Ladoga Basin (Fennoscandian Shield, NW Russia) were investigated. The occurrence of so-called Salmi agates (after the name of the nearby village) was initially discovered in 1969 during a geologic exploration to the south of Pitkäranta town and later described by Polekhovsky and Punin in 2008 [9
]. The study aims to obtain new information concerning the genesis of the Salmi agates. An integrated geological, mineralogical, geochemical, and C-O isotope data provides information for the reconstruction of geological and geochemical processes leading to the agate formation in the volcanics and the interpretation of their mineralogical features.
2. Geological Setting
The Mesoproterozoic Pasha–Ladoga Basin (PLB) is located at the margin of the Archean Karelian Craton and the Paleoproterozoic Svecofenian Belt in northwest Russia (Figure 1
]. The PLB, with an area of about 70,000 km2
, is bounded by a northwest-striking faults system. The PLB was formed during the Early Mesoproterozoic rifting.
The PLB rocks with angular unconformity overlay Archean granitoids (2.70–2.66 Ga), Paleoproterozoic hornblende-biotitic gneisses, shales, amphibolites (1.97–1.95 Ga), and metaturbidites (ca. 1.88 Ga) [13
], and are intruded by the Salmi anorthosite–gabbro–gapakivi-granite complex (1.55–1.53 Ga) [14
]. PLB is separated from these Archean and Paleoproterozoic rocks by a horizon of crust of weathering. The crust of weathering with a thickness of 0.5–5 to 30 m has a wide lateral distribution. It was probably formed in a range of 1.53–1.50 Ga and represented by hematized clay-altered basement rocks [16
The PLB comprises four Mesoproterozoic (Riphean in Russian stratigraphic scale) units (from oldest to youngest): the Priozersk, Salmi, Pasha and Pliladoga, with a total thickness of 430–1250 m and Neoproterozoic (Vendian in Russian stratigraphic scale) Yablonovka Formation with thickness 90–380 m [11
] (pp. 145–147), [12
]. Volcanics are recognized only in the upper parts of Priozersk, Salmi, and Pasha Formations. The studied PLB area (the northeastern side of basin) is characterized by the following sequences, respectively, [10
] (pp. 74–75), [11
] (pp. 145–147), [17
] (pp. 49–50), [12

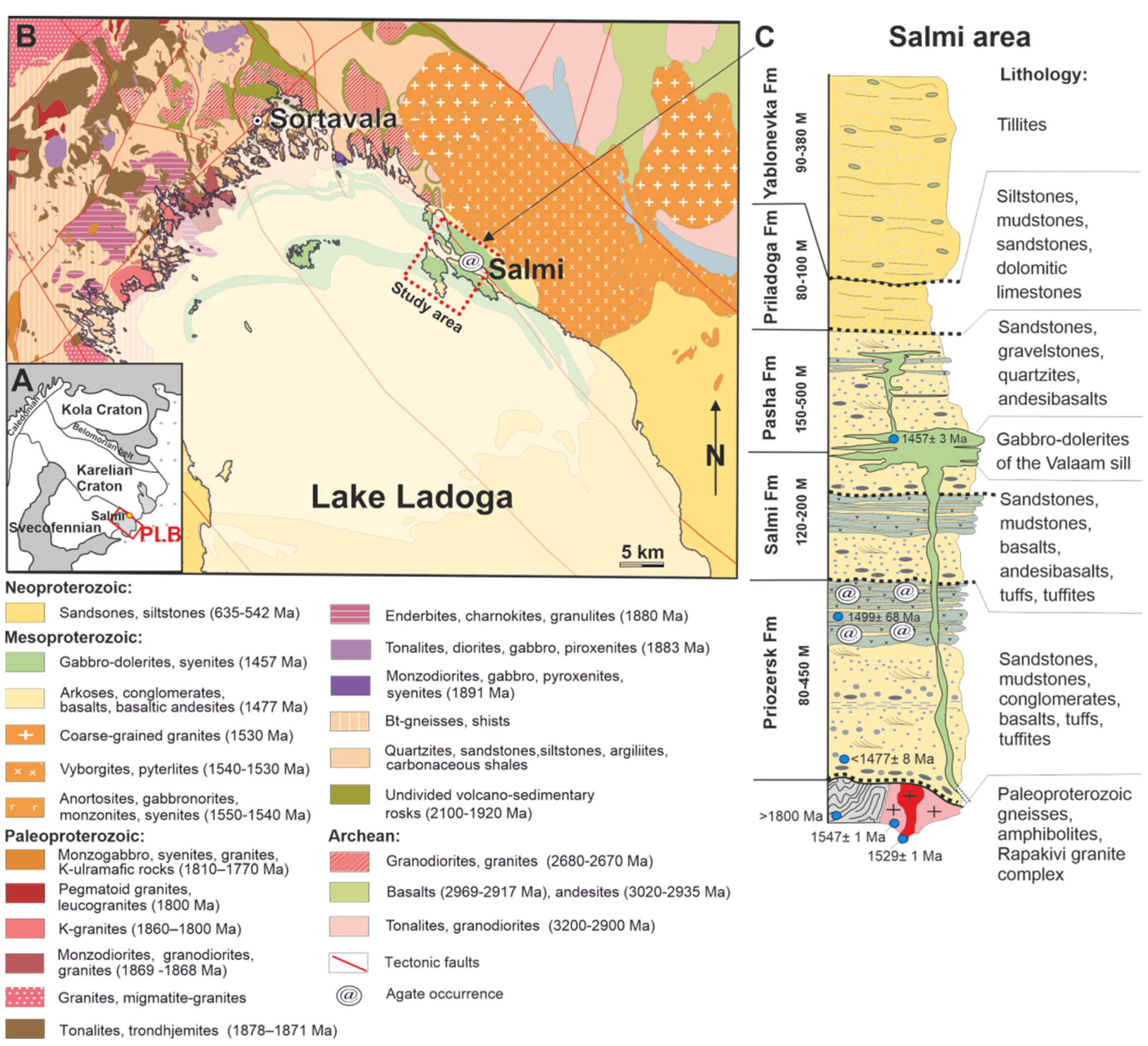

] (Figure 1
) Location of sampling areas. (B
) simplified geological map of the Pasha–Ladoga Basin based on [18
) simplified geological section of the studied area based on [12
] (pp. 49–50). Dotted line marks position of weathered crusts or erosion rock layers; @ represents sampled agate-bearing flows.
) Location of sampling areas. (B
) simplified geological map of the Pasha–Ladoga Basin based on [18
) simplified geological section of the studied area based on [12
] (pp. 49–50). Dotted line marks position of weathered crusts or erosion rock layers; @ represents sampled agate-bearing flows.
Priozersk Formation (PrF) comprises terrigenous sedimentary sequence (with a thickness from the first to 450 m) of red-coloured arkose sandstones, mudstones, gravelstones, and conglomerates, underlying the volcanic sequence (with a total thickness of 120 m or more). Volcanics are presented by nine lava flows of basalts interbedded with horizons of tuff, tuff-breccia, tuffites, and sandstones.
Salmi Formation (SalF) with a total thickness of 120−200 m overlies erosion rock layer covering the PrF volcanics. The basement of the PrF sequence is formed by quartz-feldspar and polymictic sandstones, mudstones with thin carbonate interbeds. The sedimentary sequence is overlain by lavas of porphyritic basalt and andesibasalts interbedded with tuffs and tuffites. The thickness of volcanics is about 80 m.
Pasha Formation (PashF) has a total thickness of 150 to 500 m and is represented by coarse-grained feldspar-quartz sandstones and gravelstones with fragments of quartzites. Single lava flows and interlayers of tuffs similar to PrF volcanic rocks were found within the sedimentary sequence. The thickness of the volcanic sequence is about 20 m.
The erosion rock layer developed after the PashF sequence is overlain with rocks of the Priladoga Formation (PrilF)
formed by thin-layered siltstones, mudstones and fine-medium-grained sandstones, with interlayers of dolomitic limestones in the upper part of the sequence. The total thickness of PrilF is ca. 80−100 m. The PrilF rocks with angular unconformity are overlain by the Neoproterozoic rocks of the Yablonovka Formation (JabF).
The JabF sequence has a thickness of 90–380 m and is represented by tillites [17
] (p. 49).
The PLB volcanics (observed in PrF, SalF, PashF) age can be comprehensively estimated based on the following data. PrF overlaps the weathered crust of rapakivi granites (Salmi batholith), aged on intrusion phases from 1547 ± 1 to 1529 ± 1 Ma [14
]. A depositional age of the PrF volcanics by the Sm/Nd isotopic data is 1499 ± 68 Ma [19
]. The U–Pb dating of the youngest detrital zircon from the basal part of the PrF sandstone is ca. 1477 ± 8 Ma [20
]. The PrF, SalF, and PashF rocks are intruded by gabbro-dolerites of the Valaam Sill aged 1457 ± 3 Ma and 1459 ± 3 Ma [21
]. The data obtained indicates that the dominating part of the PLB (PrF, SalF, PashF) was formed very rapidly in the interval 1477−1457 Ma in the intraplate riftogenic regime [11
] (pp. 145–147).
The volcanic-sedimentary complexes of the PLB basement have not undergone regional metamorphism, but were affected to diagenetic and local hydrothermal alterations [12
]. The PLB is overlapped by the Vendian and Phanerozoic sediments [11
] (pp. 145–147).
3. Agate Occurrence
The studied area is located near the Salmi village, where, in the Tulemajoki River-valley outcrop, bedrock attributed to the upper part of the PrF sequence are recorded. The volcanic sequence with a thickness about of 100 m is exposed in riverbed outcrops (on rapids and rifts). It is represented by interbedded gently dipping massive lava flows of basalts, andesibasalts, and andesites that are 1−30 m in thickness. The lava flows are alternated with slag lavas, agglomerate tuffs, tuffites, tuff sandstones, gravelstones, and small-pebble conglomerates. The thickness of these beds varies from tens of cm to 5 m.

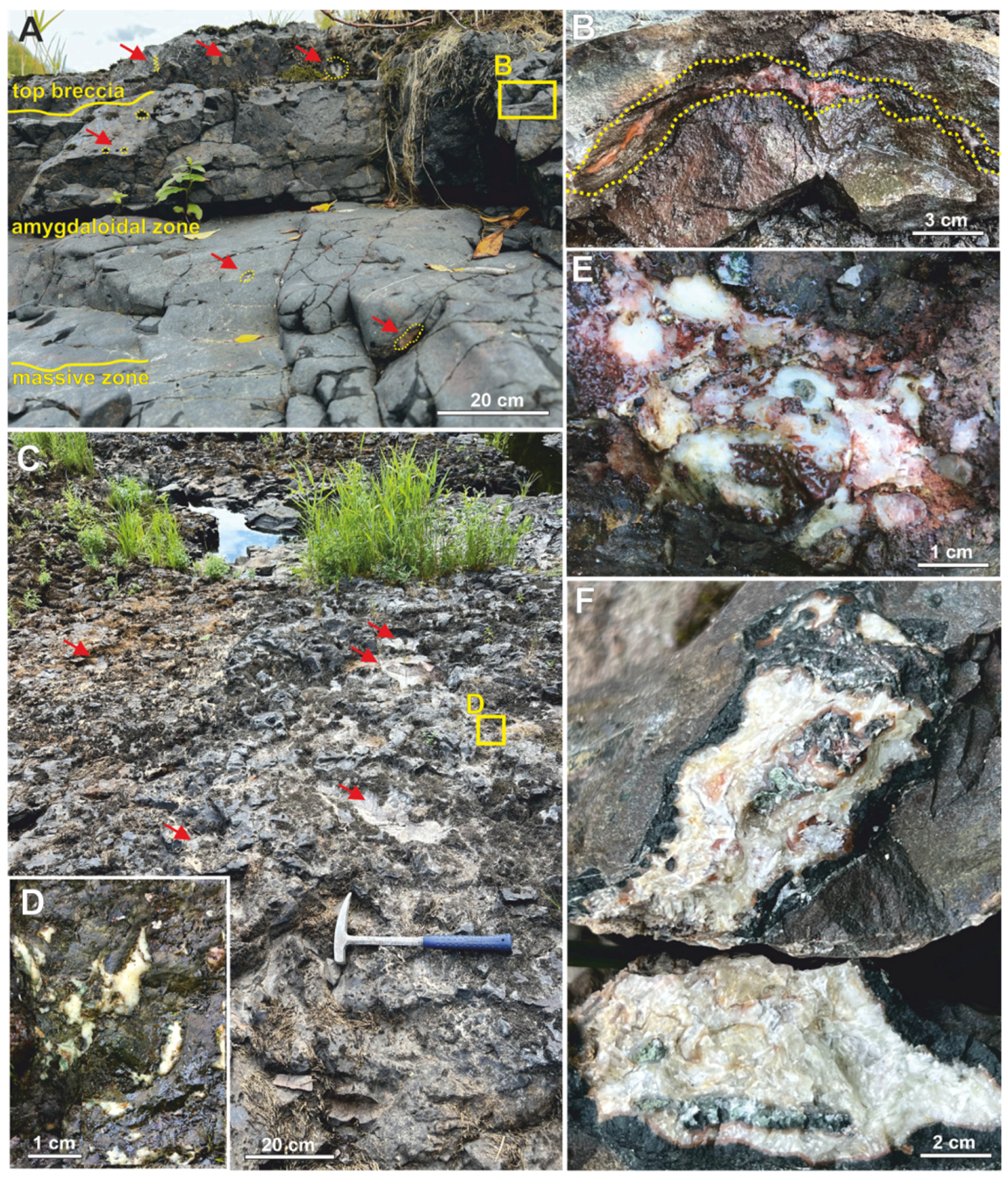

The thick lava flows (>5 m) are differentiated (Figure 2
A,B). They are formed by massive rocks with single agate nodules at the flow’s base. The middle part of the flows is characterized by porphyritic structure. The number of agate nodules and veinlets increases (it can reach 40% of the volume) towards the upper parts of the lava flows. The top lava flows are formed of breccias or frothy lavas (similar to slags) and contain numerous cavities and gas vesicles partially or completely filled with agates of quartz-carbonate composition (Figure 2
In the thin lava flows, porphyritic structures are rare; they are characterized by homogenic massive texture and top lava-breccia. The lavas exhibit a grayish-brown, rarely brownish colour. The tuff material with local gradational bedding is recognized between lava flows. The tuffs are represented by agglomerate and, to a lesser extent, by bomb varieties. The volcanic clasts with the thin chill zones range from 0.2 to 20 cm in size. The matrix is represented by chloritized pelitic material. The fragments of feldspars and granites are occasionally observed within the agglomerate tuffs [10
] (pp. 74–75).
The individual zones of vesicular basalts (mandelstones) with the thickness of 5–30 cm are locally recognized within the top massive lava flows. Mineralized vesicles compose up to 80% of the rock volume, their size ranging from 2 to 20 mm (Figure 3
). They have usually rounded, elongated shapes or shapes of coalesced amygdales, and they are characterized by light-green or red-brownish coloration. The amygdales have different orientation, and most of them exhibit concentric zoning.
Agate mineralization is mainly exposed in the upper part of PrF lava flows. Agates are widespread as an infill of fissures, gas vesicles in lavas, and an infill of cavities in slags and lava-breccias (Figure 2
B–F). Most agates are round-shaped nodules and veinlets, their size ranges from 1 to 15−20 cm. The frequency of agate occurrence is about of 3–14 per 10 m2
of the lava flow surface (Figure 2
A,C). According to the data of Polekhovsky and Punin [9
], agates were also found in cores of boreholes drilled in the area of Salmi village. They fill gas vesicles in basalts, cavities in frothy lavas, as well as occur as pebbles in conglomerate and gravelstone beds of the SalF, overlying the PrF volcanic rocks.
4. Materials and Methods
The Salmi agates and parent volcanic rocks were examined using optical microscopy, scanning electron microscopy with energy-dispersive spectroscopy (SEM-EDS), X-ray fluorescence (XRF), powder X-ray diffraction (XRD), Raman spectroscopy, inductively coupled plasma mass spectrometry (ICP-MS), wet chemistry at the Institute of Geology, Karelian Research Centre, RAS (IG KRC RAS, Petrozavodsk, Russia).
Six agate-bearing volcanic rocks samples (including two samples of vesicular basalts) and two agate nodules with visually different chalcedony/calcite ratio (calcite-rich and calcite-poor samples) were selected from the broad author’s collection for detailed mineralogical and geochemical investigation. Additionally, a macrocrystalline quartz sample and three crystalline calcite samples extracted from individual agate nodules were used for geochemical and C-O isotope analysis. Polished thin sections and powders were prepared for the studies.
Standard petrographic investigations were carried out using the Polam-211 optical microscope. The SEM-EDS analyses were applied to determine the chemical composition of the mineral phases comprising the agates. The experiments were performed using a VEGA II LSH (Tescan, Brno, Czech Republic) scanning electron microscope with EDS INCA Energy 350 (Oxford Instruments, Oxford, UK) on carbon-coated, polished thin section. The analyses were carried out at the following parameters: W cathode, 20 kV accelerating voltage, 20 mA beam current, 2 µm beam diameter, and counting time of 90 s. The following standards were used: calcite, albite, MgO, Al2O3, SiO2, FeS2, wollastonite, Fe, Zn, and InAs. SEM-EDS quantitative data and determination of the analysis accuracy were acquired and processed using the Microanalysis Suite Issue 12, INCA Suite version 4.01.
The concentrations of major elements in the agate-bearing volcanics were determined by wet chemistry and XRF. XRF analysis was performed using an ARL ADVANT’X-2331 (Thermo Fisher Scientific, Ecublens, Switzerland) wavelength-dispersive spectrometer with a rhodium tube, working voltage of 60 kV, working current of 50 mA, and resolution of 0.01. Preliminarily, 2 g of each powdered sample was heated in ceramic crucibles, at 1000 °C, in a muffle furnace for 30 min. The loss of ignition was determined by a change in the mass of the sample after heating. For XRF measurements, 1 g of heated sample was mixed with Li-tetraborate flux and heated in an Au-Pt crucible to 1100 °C to form a fused bead.
The concentrations of trace and rare-earth elements were determined by ICP-MS using an X Series 2 (Thermo Scientific, Bremen, Germany) mass spectrometer. The powdered samples were digested in an acid mixture following the standard procedure [22
]. The accuracy of the analyses was monitored by analysing the USGS standard BHVO-2 (see Supplementary Materials, Table S2
The concentrations of the trace element and rare earth elements were normalized to the concentrations in chondrite (C1) and primitive mantle (PM) [23
]. Parameters were calculated: Nb anomaly as Nb/Nb* = Nbn
)1/2, Sr anomaly as Sr/Sr* = Srn
)1/2 and Eu anomaly as Eu/Eu* = Eun
Powder XRD analysis was carried out using a Thermo Scientific ARL X’TRA (Thermo Fisher Scientific, Ecublens, Switzerland) diffractometer (CuKα-radiation (γ = 0.1790210 nm), voltage 40 kV, current 30 mA). Diffractograms of agate samples in the range of 5–75° 2θ were recorded at a scanning step of 0.40 2θ/min. X-ray phase analysis was performed using the program packWin XRD, ICCD (DDWiew2008). The detection limit for XRD phase identification was 3 wt%.
Raman spectroscopy was used to identify mineral phases (SiO2, Fe-oxides, Mn-oxides) in agates. Raman spectroscopy analysis was conducted on a dispersive Nicolet Almega XR Raman spectrometer (Thermo Fisher Scientific, Waltham, MA, USA) with a green laser (532 nm, Nd-YAG (Thermo Fisher Scientific, Waltham, MA, USA). The spectra were collected at 2 cm–1 spectral resolution. A confocal microscope with a 50× objective was used to focus an excitation laser beam on the sample and to collect a Raman signal from a 2 µm diameter area. Raman spectra were acquired in the 85–4000 cm−1 spectral region, with the exposition time between 30 s and 100 s for each scan, depending on the signal intensity and laser power of 2–10 mW to prevent any sample degradation.
Isotope studies of agate-associated calcite samples were carried out at the Institute of Geology, Komi Scientific Center, Uralian Branch, RAS (IG Komi SC UB RAS, Syktyvkar, Russia). The decomposition of calcite in phosphoric acid and the C-O isotopic composition measurement by flow mass spectrometry (CF-IRMS) were carried out on the Thermo Fisher Scientific analytical complex, which includes a Gas Bench II sample preparation and injection system connected to a mass spectrometer DELTA V Advantage. The δ13C values are given in per mille relative to the PDB standard, δ18O—the SMOW standard. The international standards NBS 18 and NBS 19 were used for calibration. The analytical precision for δ13C and δ18O was ±0.15 ‰ (1σ).
5.1. Host Rock Characteristic
The studied volcanics are mostly aphyric and porphyritic with phenocrysts composed of zoning plagioclase crystals with labradorite composition. Plagioclase, augite, and forsterite are the major rock-forming minerals of PrF volcanics. Dominating accessory minerals are apatite, titanite, chlorite, epidote, magnetite, titanomagnetite, ilmenite.
The geochemical differentiation of the PLB volcanic rocks is variable. Using the SiO2
(49.24−62.01 wt%) and Na2
O + K2

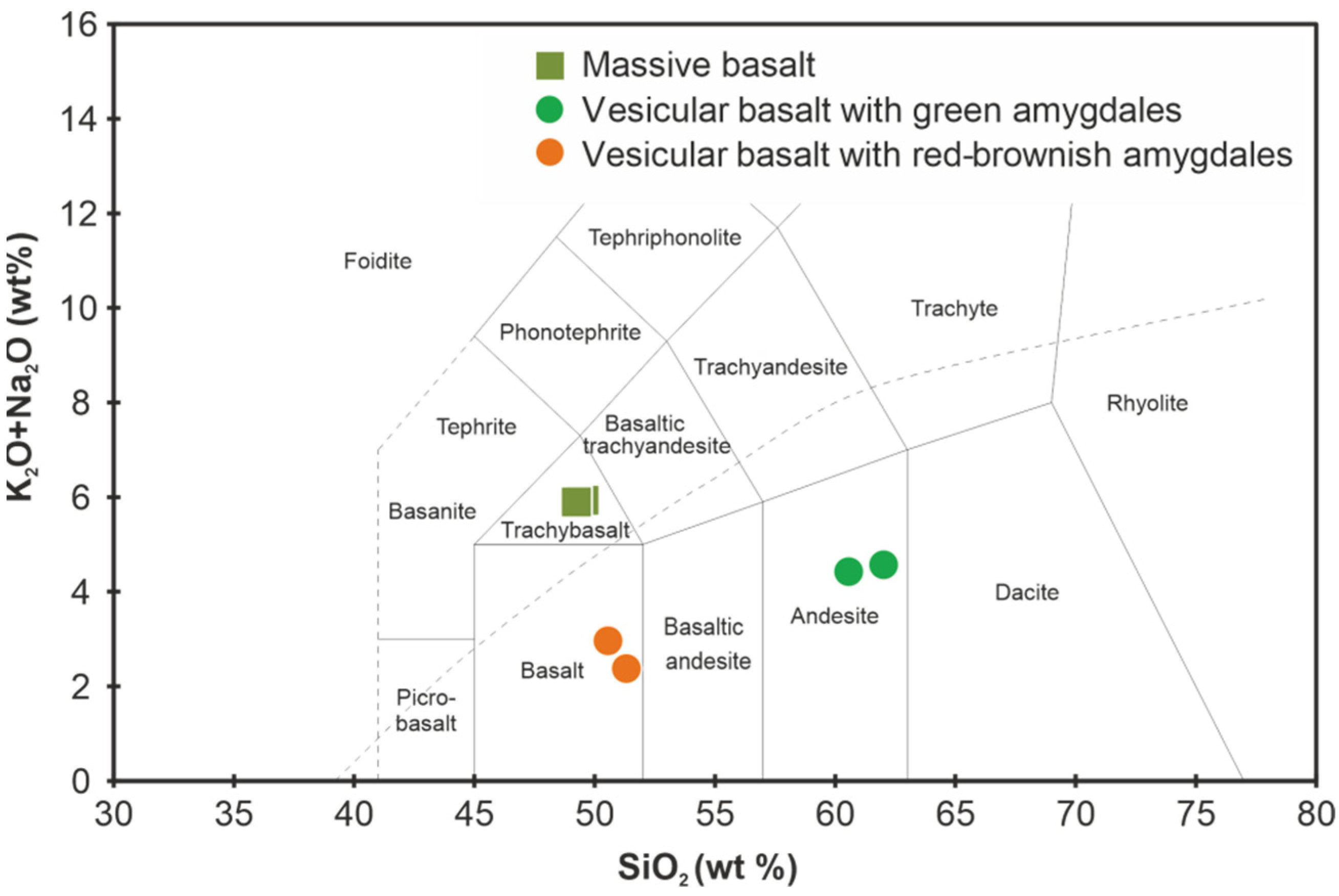

O (4.42−5.93 wt%) content, volcanic rocks are classified as trachybasalt, basaltic andesites, andesites of the alkaline/subalkaline series (Table 1
, Figure 4
). Basalts and andesites dominate in the studied succession. In accordance with FeOtot
(12.61−15.76 wt%) and TiO2
(2.13−3.87 wt%) content, volcanics belong to the Fe-Ti-rich type.
The massive lavas are more primitive and differ from vesicular basalts by the lower contents of SiO2 (<50 wt%), elevated MgO (5.34−6.53 wt%), Al2O3 (14.24−15.58 wt%), and P2O5 (>1 wt%) contents.
Mandelstones with light-greenish amygdales compared to the mandelstones with red-brownish ones are enriched in Al2O3 (9.9−10.7 vs. 5.8−6.3 wt%) and Na2O (3.8−4 wt% vs. below detection limit), but depleted in CaO (~3 wt % vs. ~18 wt %) and MnO (~0.15 wt % vs. ~0.3 wt %). The high content of CaO in mandelstones with red-brownish amygdales is probably caused by a local hydrothermal alteration of volcanic rocks. This observation is confirmed by the anomalously high LOI values (up to 15.32 wt %, compared to common values 2.72−4.74 wt%).
5.2. Macro- and Microscopic Characteristics of the Agates

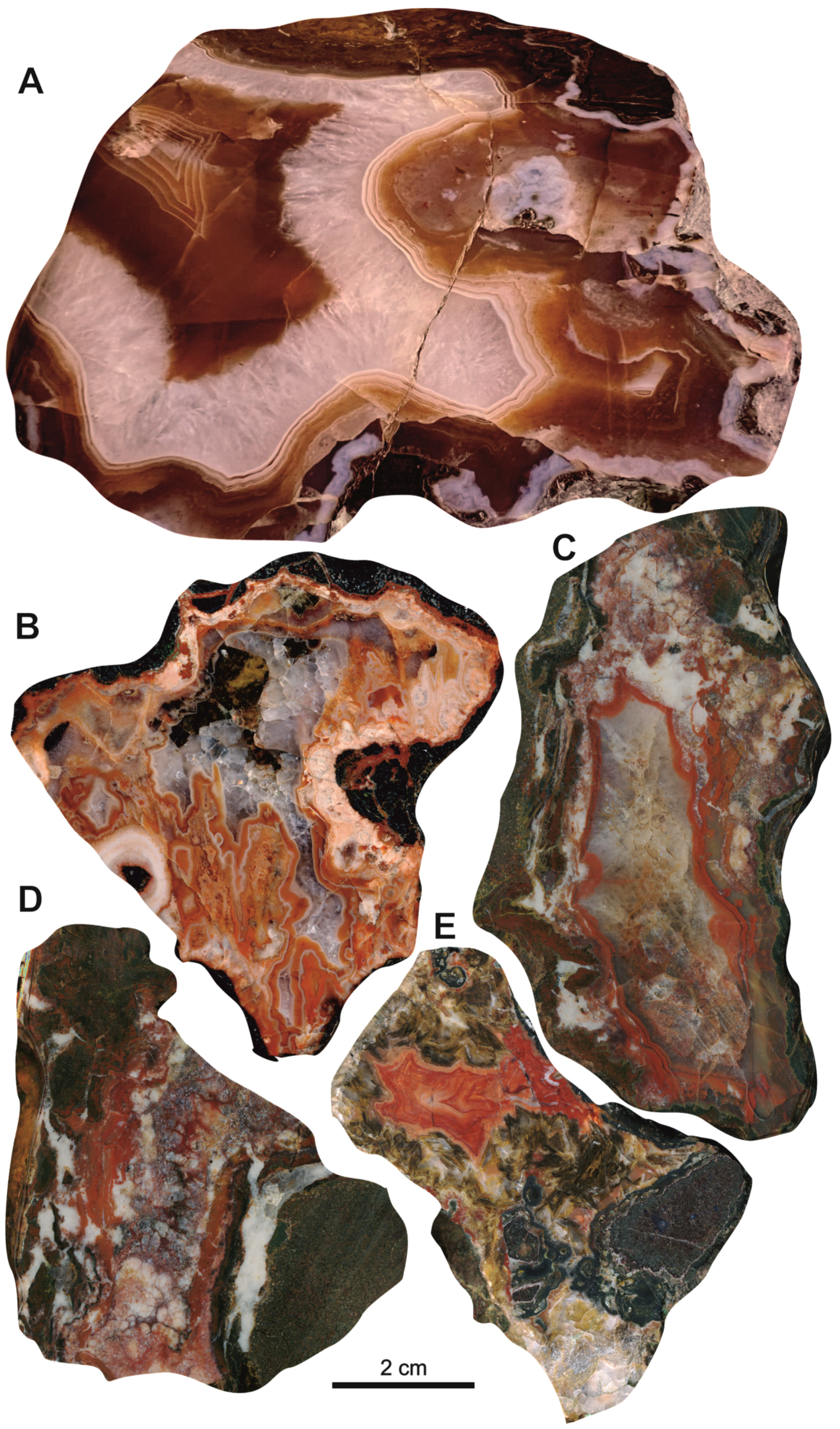

The Salmi agates are characterized by specific red-brownish coloration (Figure 5
). The colour likely results from chromogenic Fe-oxides compounds disseminated within the agate matrix [25
]. The agate nodules often exhibit concentrically zoning patterns (Figure 5
A,C,E). Some of them are characterized by distinct coarse (1−2 cm) and fine (from few micrometres) banding (Figure 5
A), poor-fancy agate varieties are also widespread (Figure 5
B,D). Frequently agates contain large calcite and/or quartz crystals. Aggregations of chlorite inclusions were commonly observed in the contact area to the host rock (Figure 5

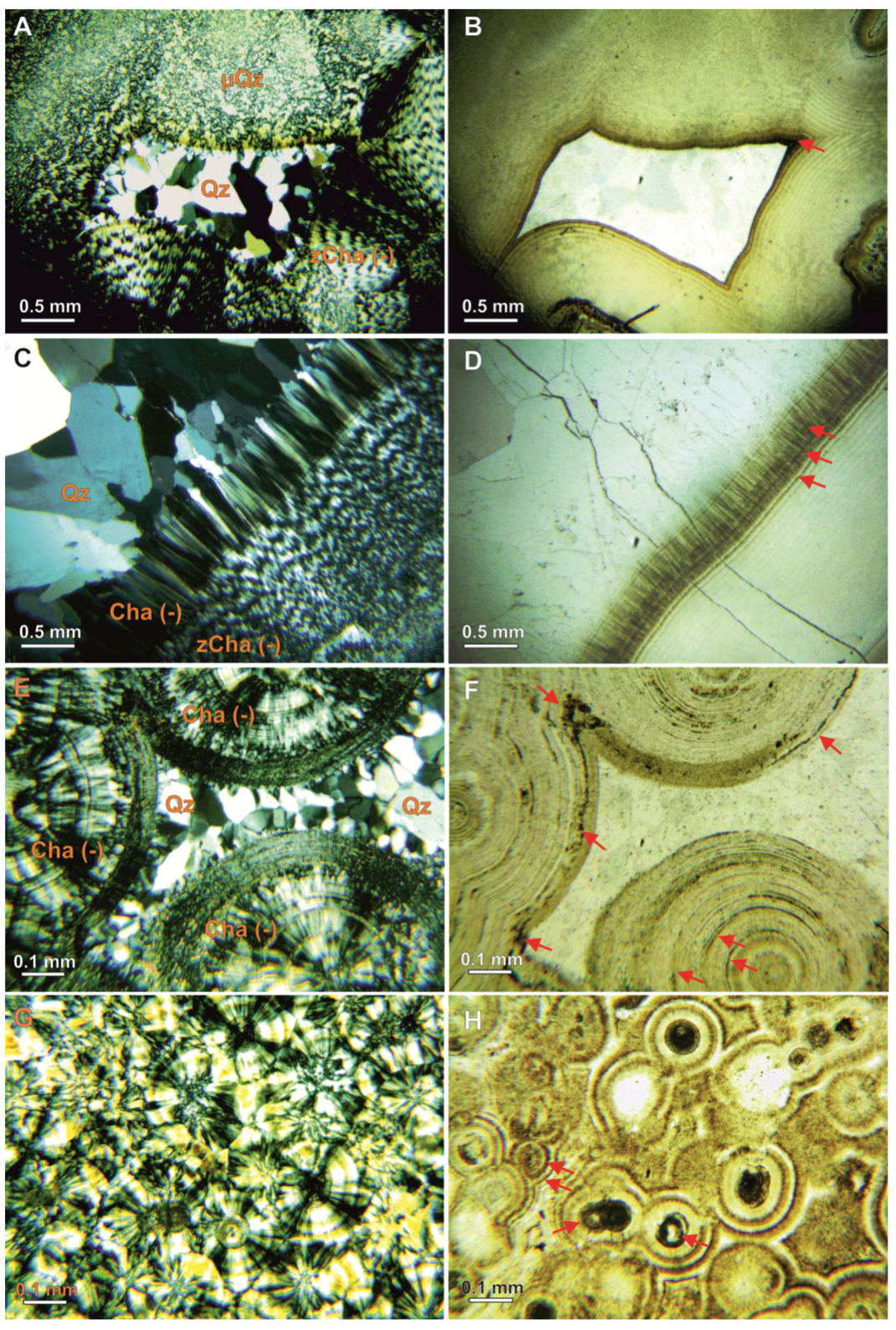

The petrographic study revealed various microtextures of agates. The silica matrix of agates is represented by micro- and macro-crystalline quartz, length-fast chalcedony (with c-axis oriented perpendicular to the fibre direction), as well as zebraic chalcedony (length-fast with a helical twisting of fibres along fibre direction) (Figure 6
). These silica phases form banded zones, micro-geodes, and radial fibrous spherolites varying both in thickness and number of concentric layers (Figure 6
A,C,E,G). Agates contain an appreciable quantity of calcite phases in the form of elongated or isometric crystals up to 1 cm in size, grained aggregates in the intergrowth with chalcedony, as well as fine-grained aggregates filling the fissures crosscutting the silica matrix (Figure 6
C,D). Fine-dispersed Fe-oxide inclusions disseminated along the agate banding emphasize agate zoning (Figure 6
B,D,F,H). It is noteworthy that the minute Fe-oxide particles are mostly concentrated within the chalcedony fibres and between microcrystalline quartz grains, whereas macrocrystalline quartz zones are depleted in it.

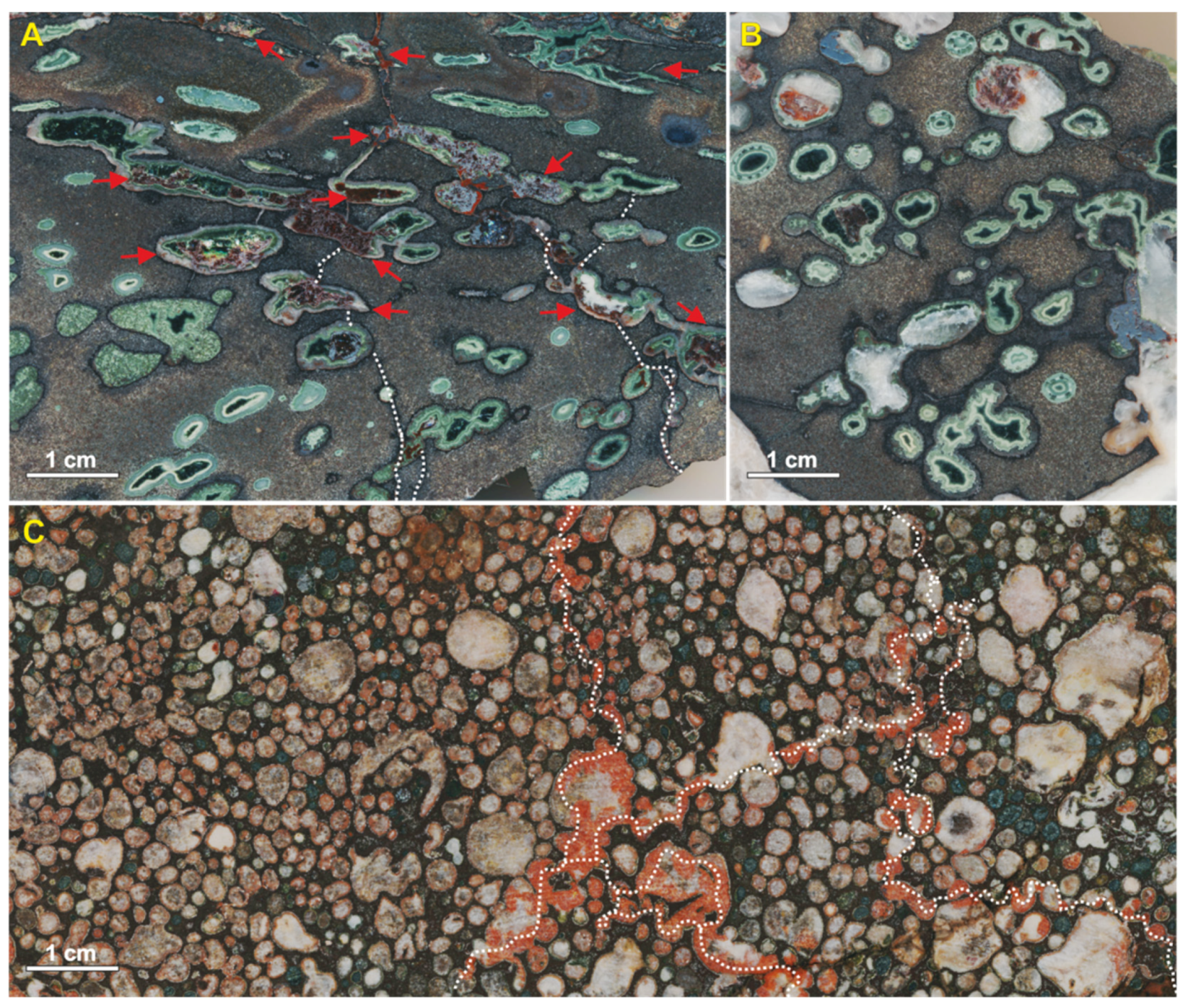

In the studied area, at least two different types of vesicular basalts were distinguished during the macroscopic observation (Figure 3
). The first one displays amygdales predominantly light-green in colour due to a high content of chlorite (Figure 3
A,B). The amygdales are characterized by elongated, rounded, as well as irregular shapes. It is noteworthy that amygdales with differences in shape and texture can be located directly next to each other (Figure 3
A). Additionally, tectonically deformed mineralized vesicles show a significant amount of iron oxides penetrating with the amygdale matrix, whereas intact amygdales are depleted by them (Figure 3
A). The other type of vesicular basalts contains amygdales of rounded and, to a lesser extent, irregular forms with close packing (Figure 3
C). The larger amygdales tend to be filled with calcite, whereas minute ones can be filled with silica, chlorite, calcite, as well as with their mixture. Most amygdales have a red-brownish tint caused by iron oxides pigmentation. The development of iron oxides is also observed along the fissures connecting the amygdales (Figure 3

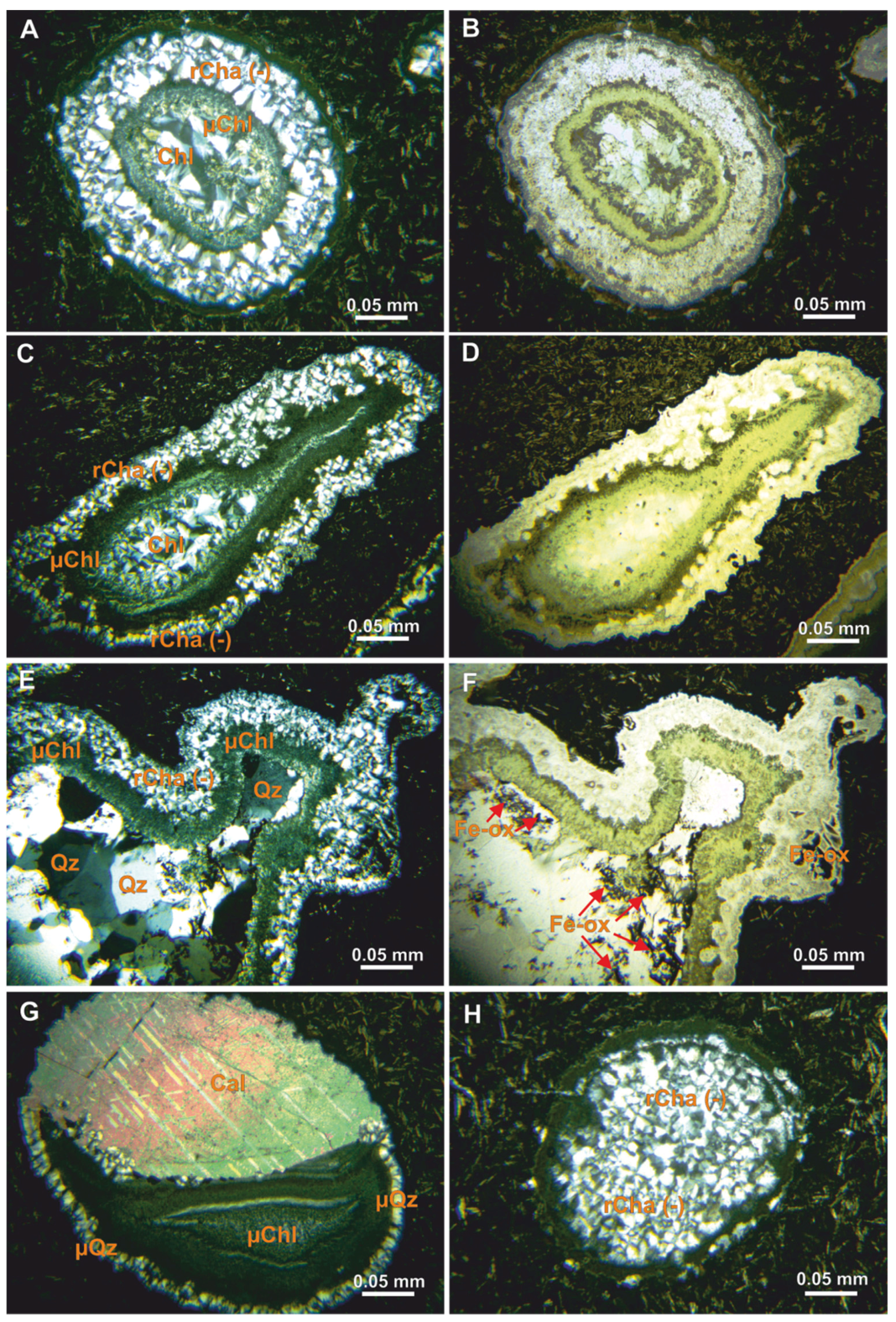

Microscopic investigation revealed that most of the amygdales exhibiting concentric zoning are composed of successive layers of minute radial fibrous chalcedony, fine-grained, and plate-like chlorite from the margin towards the vesicle centre (Figure 7
A–D). Occasionally, amygdales contain macrocrystalline quartz cores (Figure 7
E,F). Another zoning type is rarer: amygdales could be filled half with coarse-crystalline calcite and half with concentrically zoned chlorite (Figure 7
G). Additionally, gas vesicles could be completely filled with coarse-crystalline calcite or radial fibrous chalcedony (Figure 7
H). In the latter case, dusty chlorite is scattered ordinarily between the chalcedony spherulites.
5.3. Mineral Composition
5.3.1. X-ray Powder Diffraction
The X-ray powder diffraction of two bulk agate samples was applied to determine their phase composition. Only peaks corresponding to calcite and alpha-quartz have been identified on the X-ray diffraction patterns (Figure S1
). No other silica polymorphs (e.g., opal, cristobalite, tridymite, and moganite) were revealed. The calcite content in one of the examined samples was 69 wt%, while the other sample was poor in calcite.
5.3.2. Raman Spectroscopy Results

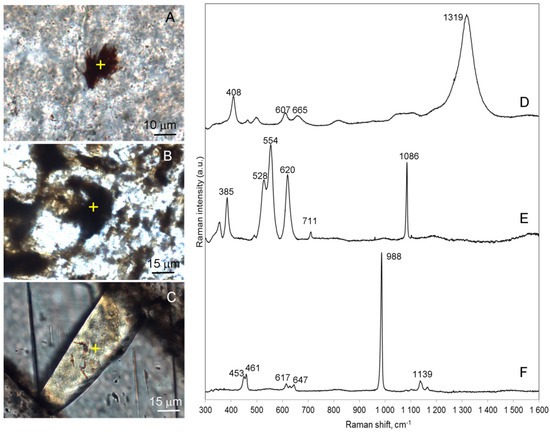

Micro-Raman spectroscopy investigation of individual silica bands of agates showed that in all cases, they are only composed of alpha-quartz recognized by the characteristic bands at 464, 353, 208, and 127 cm−1

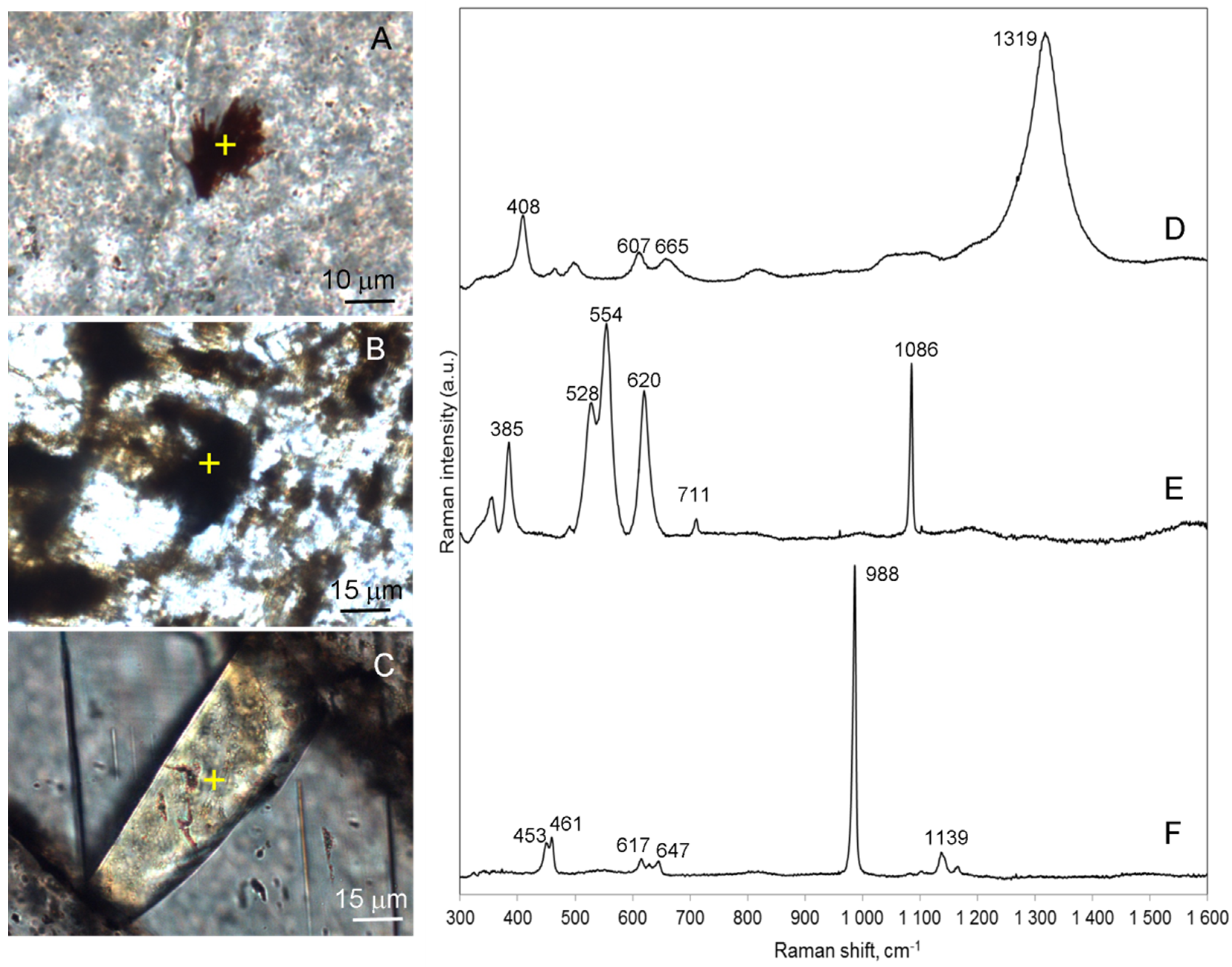

. Numerous Fe-oxide inclusions appeared as needle-like, spherical, irregular grains with a size up to 200 μm distributed in agate nodules and were identified as hematite by their main Raman bands located at 408, 607, 665, 1319 cm−1
]. The grains of dark minerals surrounding the calcite in agate were evidenced as manganite (MnOOH) according to characteristic Raman bands at 386, 528, 554, 620 cm−1
]. Additionally, barite, which frequently occurred in the agates as prismatic crystals with a size up to 0.6 mm surrounded by calcite was identified by its characteristic Raman bands at 453, 461, 617, 647,988, 1139 cm−1

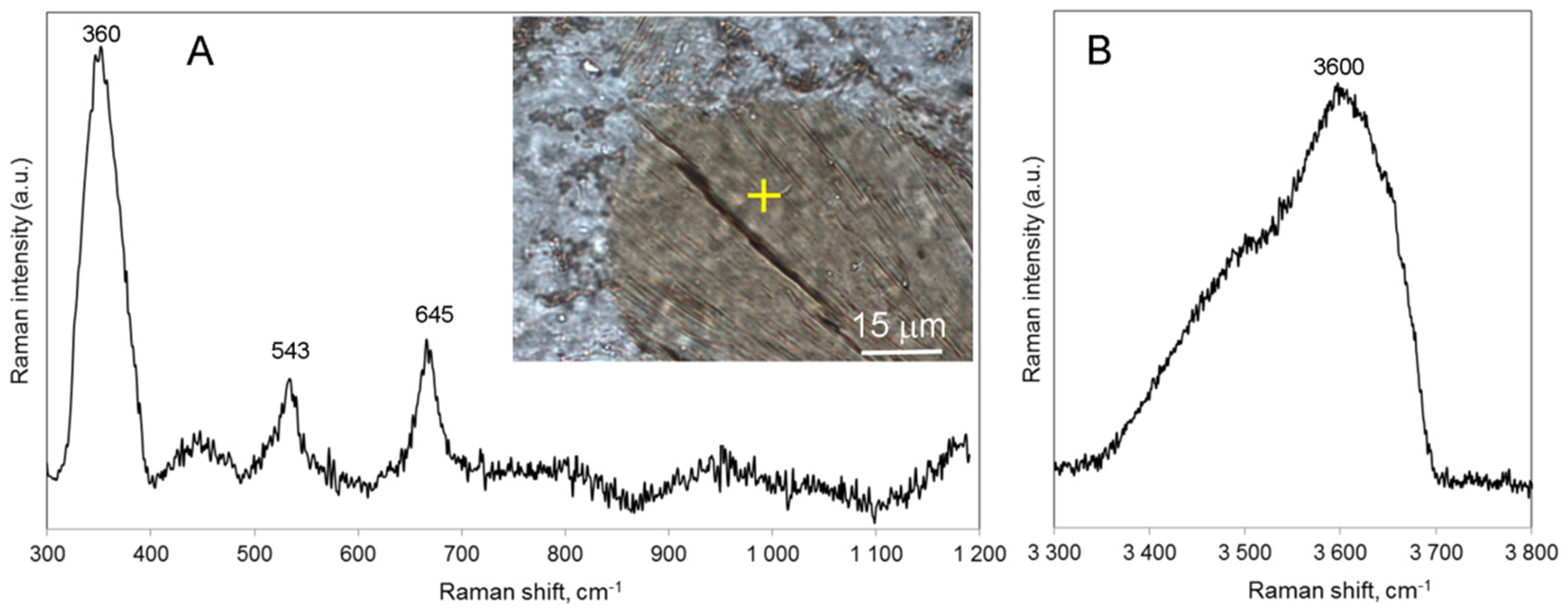

According to the local Raman study of mineralized gas vesicles in mandelstones, they are filled with alpha-quartz, calcite, and chlorite. The plate-like chlorite crystals predominantly fill the central parts of greenish zoned amygdales from either mandelstone types are characterized by similar Raman bands at 355−367 cm−1
, 541−548 cm−1
, 673−677 cm−1
, and diffused bands at 3600−3657 cm−1
). The apparent downshift in the Si-O-Si related Raman band to 673−677 cm−1
(from the 681−683 cm−1
of Mg-rich chlorite) [31
], together with the high intensity of the band at 355−367 cm−1
suggest an intermediate Mg-Fe composition of examined chlorites. In the spectral range of H2
O/OH vibrations (3400–3700 cm−1
), the Raman spectral patterns from studied chlorite samples show insignificant variations, which are most probably related to different proportions of Mg and Fe in the structure of chlorite [32
Red-brownish spherical, needle-like, and crystalline inclusions within the amygdales were all identified as hematite by their characteristic Raman bands. No other Fe-oxide/hydroxide phases were found.
5.4. SEM-EDS Investigation

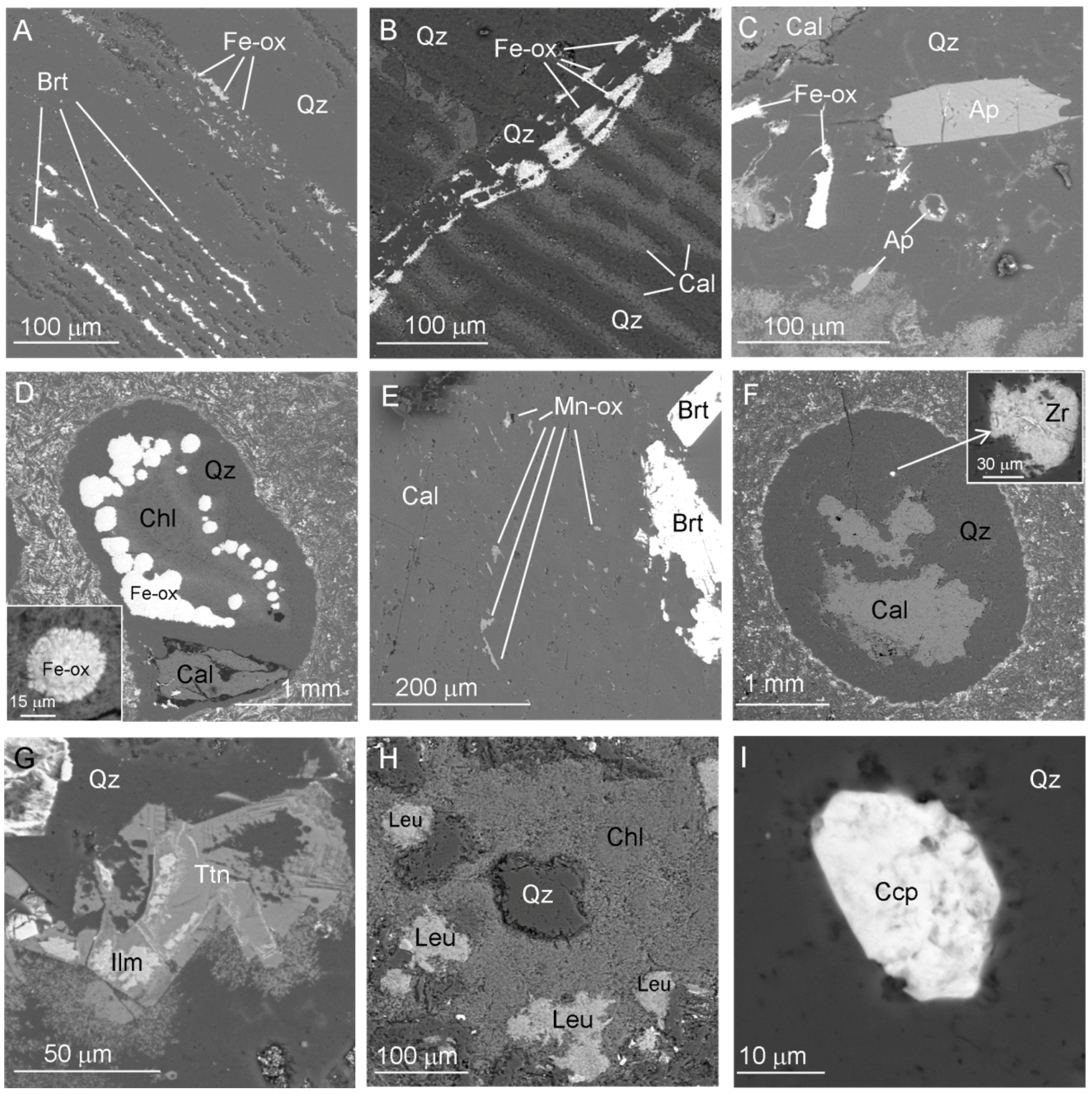

More evidence concerning the mineral composition of the agates from PLB volcanics was obtained by SEM-EDS investigation. In general, the mineral assemblage of agate nodules and amygdales from vesicular basalts is similar. Banded agate zones are related to the difference in porosity of individual silica layers (Figure 10
A). In the higher porosity area scattered needle-like crystals of Fe-oxide and minute inclusions of barite have been concentrated (Figure 10
A). Inclusions of Fe-oxide composition often appear at the fissures both in the amygdales and agate nodules (Figure 10
B). Fe-oxide phases in the form of large idiomorphic crystals or spherulitic aggregates randomly arranged both in nodules and amygdales are also observed (Figure 10
C,D). The most examined Fe-oxide phases are Ti-rich (up to 3 wt%). Numerous barite crystals frequently form clusters embedded within the calcite matrix (Figure 10
E). Pseudomorphs of calcite after silica frequently forming banded pattern were revealed in the internal parts of some agates (Figure 10
The chemical compositions of chlorites occurring both in agate nodules (Figure 9
H) and amygdales of mandelstones (Figure 10
D) are characterized by high FeO and MgO contents (Table S1
). The total FeO content of chlorite hosted in nodules (21.6%–27.3%) is slightly higher than that in the amygdales (17.0%–23.4%). The MgO content is 12.9%–15.7% and 16.0%–21.6% in chlorite from nodules and amygdales, respectively. It is noteworthy that chlorite compositions of amygdales recorded for both types of mandelstones are generally similar. Alkali contents (CaO + K2
O + Na2
O) are low and do usually not exceed 1 wt%.
The EDS data from chlorite occurring both in agate nodules and amygdales of mandelstones are used to calculate the structural formulae based on the 20 oxygens (Table S1
). The data indicated that chlorite composition is quite homogeneous. In the Al(IV)-Mg-Fe ternary diagram [33
], chlorite markers of the amygdales are plotted in the Mg-rich chlorite domain, whereas agate nodules markers are on the limit with Mg-chlorite and Fe-chlorite domains (Figure 11

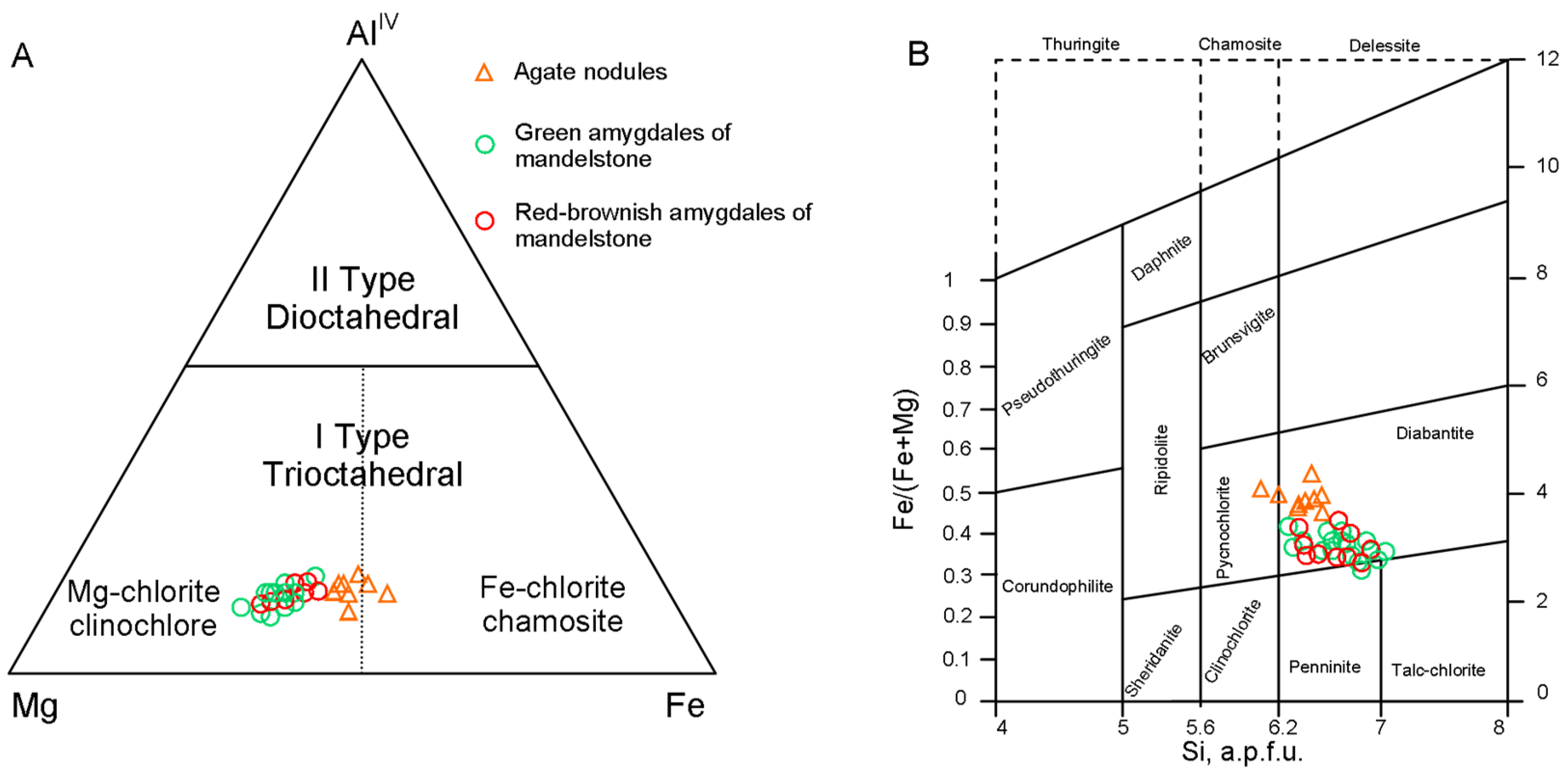

A). The Si vs. Fe/(Fe + Mg) classification diagram of Hey [34
] displays that examined chlorite samples mainly fall in/near the diabantite field (Figure 11
Additionally, manganese hydroxide, hydroxyapatite, titanite, leucoxene, rutile, ilmenite, muscovite were recorded as characteristic mineral inclusions for the Salmi agates, whereas sulphide minerals (pyrite, chalcopyrite) are extremely rare in them (Figure 10
E,G,H,I)). In a single case, a corroded grain of zircon within the amygdale of quartz-calcite composition was identified (Figure 10
5.5. Geochemical and Isotopic Characterization
5.5.1. Trace Elements

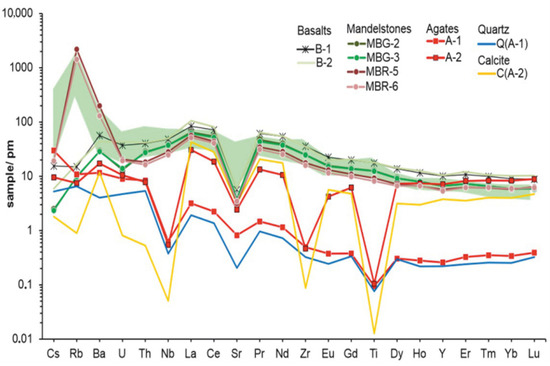

ICP-MS trace element analyses of Salmi agates, PrF host volcanics, as well as quartz and calcite separated from agate nodules were carried out to obtain more information about the geochemistry of agates and the mineral-forming fluids (Table S2

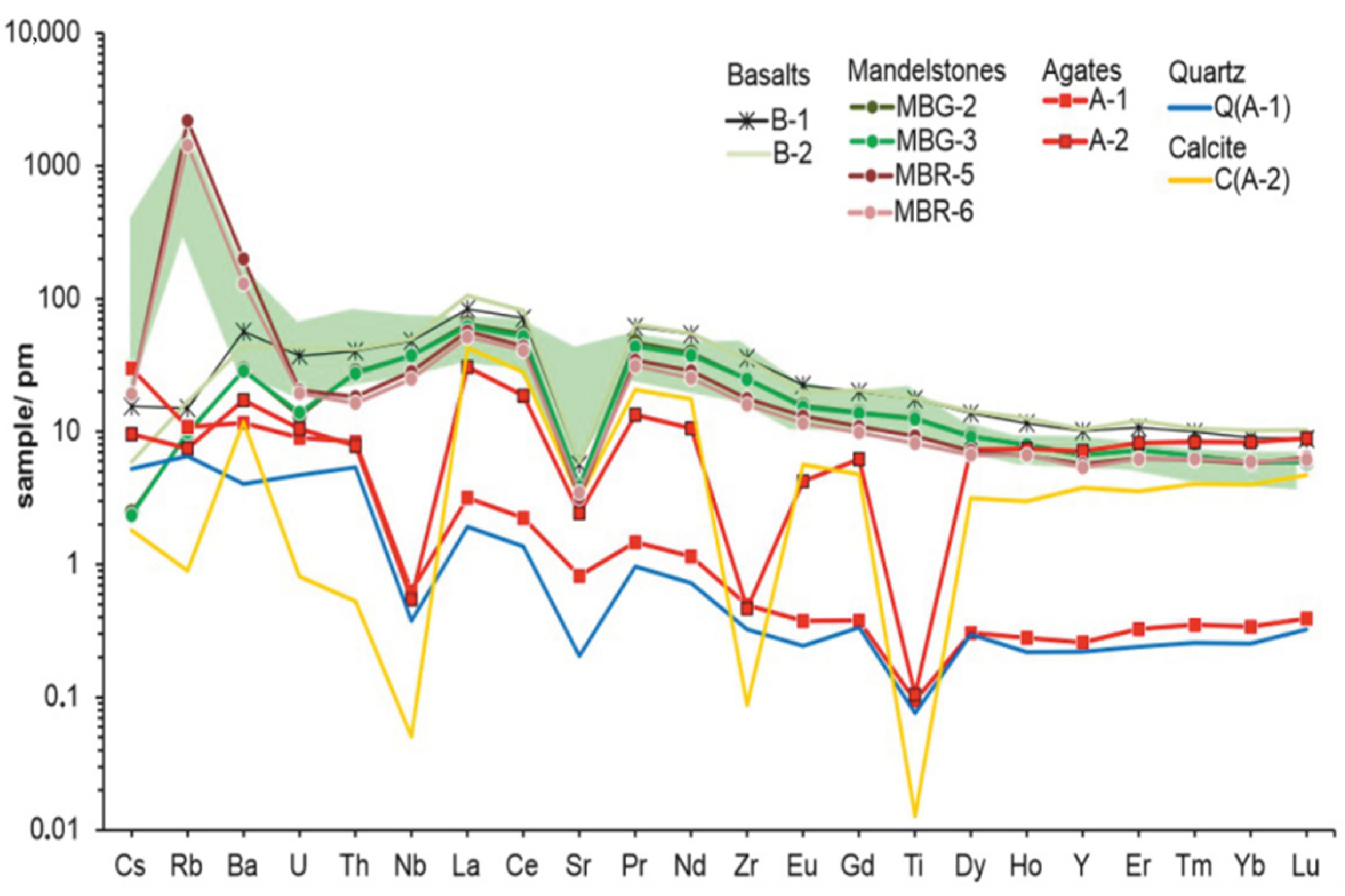

). Massive and vesicular types of PrF volcanics were all characterized by similar chondrite-normalized rare-earth element (REE) patterns with ΣREE = 179−367 ppm, enrichment in light rare-earth elements (LREE), slight depletion in heavy rare-earth elements (HREE) ([La/Sm]n = 2.48–3.19; [Gd/Yb]n = 1.62−2.30), as well as the minor negative Eu anomaly (Eu/Eu* = 0.77−0.95) (Figure 12
). Additionally, volcanic rocks are significantly enriched in Rb, Ba, Zr, Nb and F (0.16%–0.25%) and exhibit a strong negative Sr anomaly (Sr/Sr* = 0.09–0.12) (Figure 13
). Elevated concentrations of Rb (37 ppm), Ba (1390 ppm), Mn (2200 ppm), Cs (0.6 ppm) and depleted concentrations of P, Sc, Ti, Cr, Co, Ni, Cu, Ga, Sr, Y, Zr, Nb, Mo, REE in mandelstones with red-brownish amygdales compared to mandelstones with green amygdales were determined.
The concentration of the most trace elements in agates is much lower than in the host volcanic rocks (Table S2

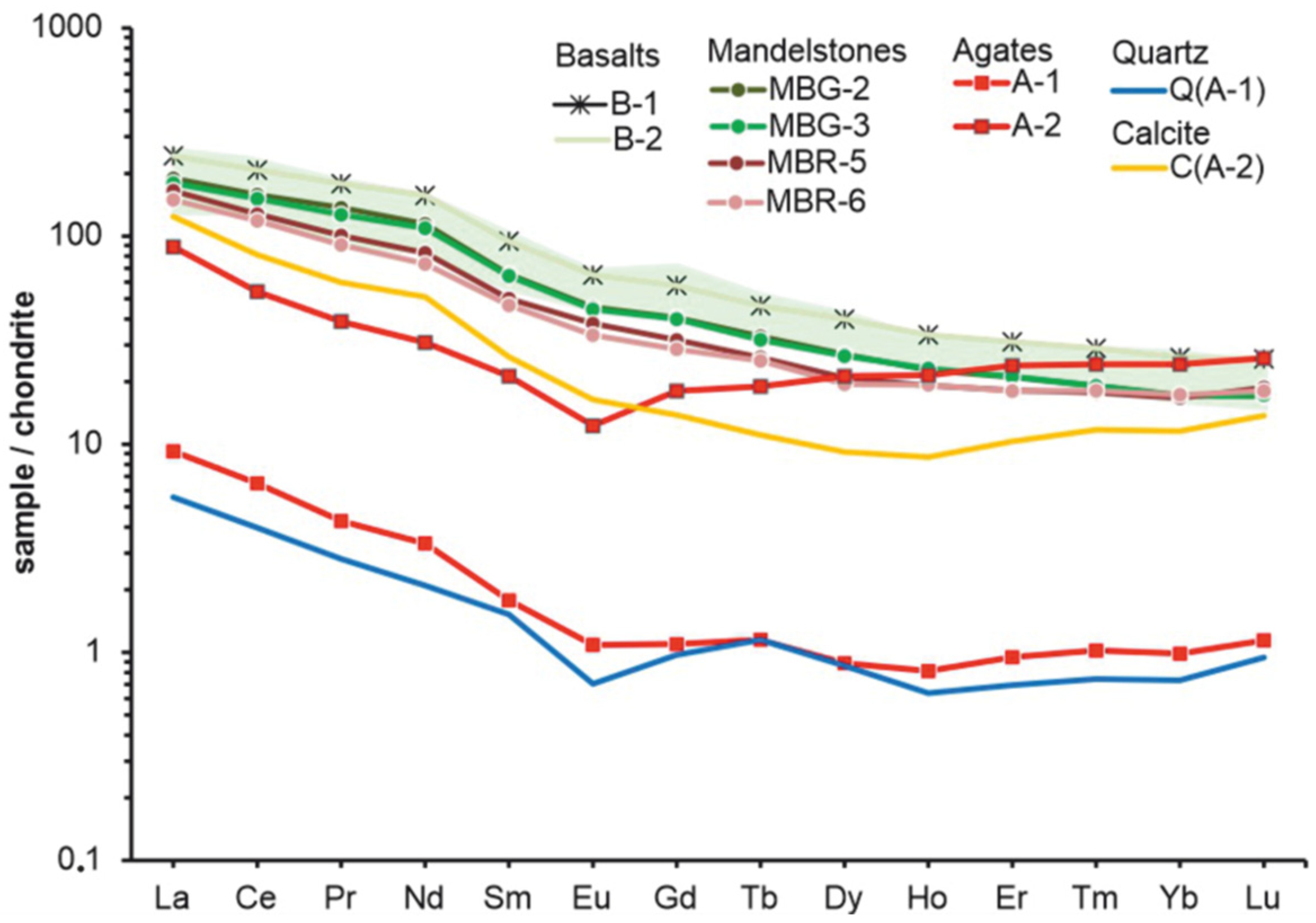

). Two examined agate nodules with various quartz/calcite ratio exhibit REE distribution trends with enrichment of LREE ([La/Sm]n = 4.04–5.07), and slightly negative Eu anomaly (Eu/Eu* = 0.62–0.78) (Figure 12
). However, they are characterized by difference in distribution of HREE and different levels of REE content. The calcite-rich agate has slightly enrichment of HREE, while calcite-poor agate is characterized by unfractionated HREE trend. The ΣREE are 9 and 97 ppm for calcite-poor (A-1) and calcite-rich (A-2) samples, respectively. The pattern of the REE distribution for the studied agates slightly differs from that for the host rocks. The degree of LREE enrichment of agates ([La/Sm]n = 4–5) is higher than that of volcanics ([La/Sm]n = 2–3), but the degree of HREE enrichment ([Gd/Yb]n = 0.7–1) in agates is lower than that for volcanics ([Gd/Yb]n= 1.9–2.3). Salmi agates have very low V, Cr, Co, Ni, Cu, Zn, Ga, Sr, Zr, Nb, Mo, Cd, Sn, Ba, Hf, Ta, W, Pb, Th concentrations. In contrast, elements such as Mn (max 5302), Ti (max 136 ppm), Li (max 66 ppm), Cs (max 0.96 ppm), and Tl (max 0.78 ppm) are concentrated in them. Only the contents of Rb (4−6 ppm), Sb (0.04−0.07 ppm), and Bi (0.02 ppm) are the same in agates and host rocks.
Microcrystalline quartz hosted in the agate is depleted in the most trace elements compared to the host agate, with the exception of Cr, Cu, Zn, Rb, Sn, Sb, Hf, Ta, Tl and Bi (Figure 13
, Table S2
). The quartz had a lower REE concentration (ΣREE = 6 ppm) compared with the agates and shows the distinct Eu anomaly (Eu/Eu* = 0.58−0.6) (Figure 12
). The REE distribution pattern of quartz with enrichment in LREE is generally similar to the REE pattern for calcite-poor agate (A-1). In contract, the agate-associated calcite had a higher total REE content (ΣREE = 124) than agates and is characterized by a high concentration of Mn (3680 ppm), Ba (83 ppm), Sr (67 ppm), La (29 ppm), Ce (49 ppm), Nd (23 ppm), Y (17 ppm), Ti (16 ppm), Zn (14 ppm), P (11 ppm). The concentration of follow elements are lower: Li, Ni, Cu, Pr, Sm, Gd, Dy, Er, Yb (1–8 ppm); V, Cr, Co, Rb, Zr, Sn, Eu, Tb, Ho, Tm, Lu, Tl, Pb (0.3–0.9 ppm). Content of some trace elements are below the detection limit (0.3 ppm) of the ICP-MS method.
5.5.2. C-O Isotopic Composition
To specify the origin of carbonate material in Salmi agates, the stable isotope composition of agate-associated calcite samples was studied (Table 2
). The results show that calcites have narrow δ13
C (–3.4‰ to –6.94‰, PDB) and δ18
O (24.83‰ to 25.16‰, SMOW) intervals. The correlation diagram δ13

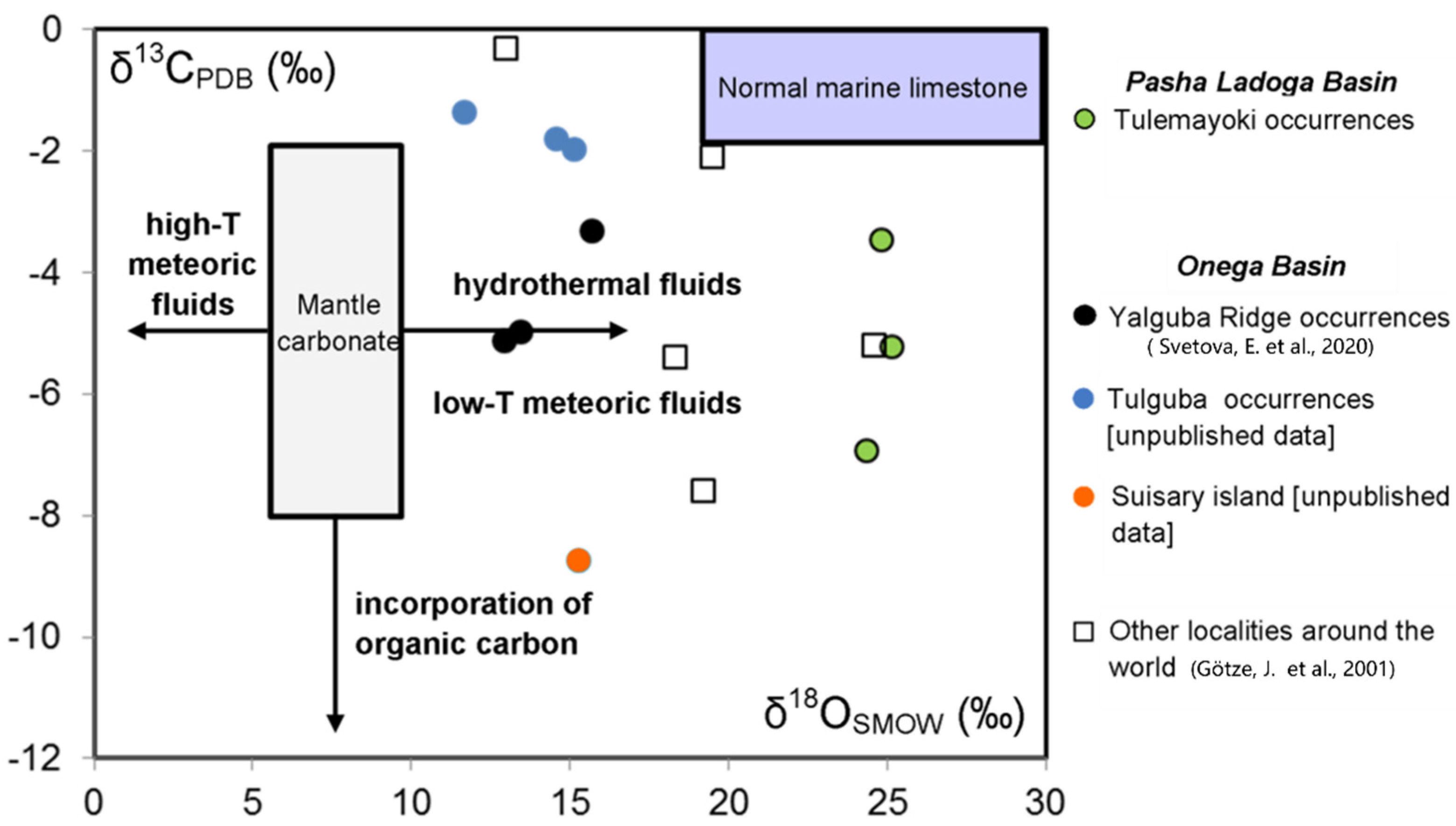

O (Figure 14
) displays that the δ13
C values fall within the interval (−2‰ to −8‰) that is typical of mantle carbonate [36
]. However, the δ18
O values of examined calcites are significantly higher than those ones that characterize the deep carbon sources and coincide with the values (20‰ to 26 ‰) that are typical of sedimentary carbonates (normal marine limestone) [37
The obtained data by the integrated mineralogical, geochemical, and C-O isotope investigation of the Salmi agates together with the analysis of published geological materials for the studied area allow the discussion of the agate’s peculiarities in more detail, speculating about coloration origin, agate provenance, and age.
6.1. Agate-Bearing Volcanic Rocks in the PLB
Mesoproterozoic volcanic rocks of the Priozersk Formation within the PLB are the youngest known agate-bearing volcanics at the Southeast Fennoscandia. Agates are mostly associated with massive varieties of basalt, andesites, as well as lava breccias and frothy lavas.
Volcanic host rocks are significantly enriched in Rb, Ba, Zr, and F, characterized by highly fractionated LREE/HREE chondrite-normalized patterns with no significant negative Eu anomaly. The chondrite-normalized REE diagram (Figure 12
) exhibits patterns very similar to intracontinental rift basalts (CRB), such as Late Permian High-Ti Basalts in the Songpan–Ganzi Terrane, which mark the continental breakup of the South China Block [34
] and close to Eocene-Oligocene alkaline rocks of Tibetan magmatic complex [38
The low contents of Cr (54–61 ppm) and Ni (25–28 ppm) together with the strong negative Sr anomaly in PrF basalts (Figure 13
) indicates crystallization from previously differentiated melts, which were formed at low-degree melting of a metasomatized mantle source containing amphibole and phlogopite [11
] (pp. 145–147). Most likely, the primary melts were contaminated with crustal components [11
] (pp.146), [19
The comagmatic intrusive complex for PLB volcanics is the Valaam sill [11
] (pp. 145–147), [17
]. It forms a flat intrusive body extending over 2000 km2
and exposed on the pre-Quaternary surface of the Valaam archipelago in the northern part of the Ladoga Lake. The Valaam sill intrudes the PrF, SalF, and PashF and is represented by subalkaline ferro-gabbro-dolerites, while more felsic rocks occur in the uppermost part of the intrusion. The U-Pb age of the intrusion is 1457 ± 3 Ma [21
The geochemical composition of the PLB volcanics and Valaam sill rocks [11
] (pp. 145–147) gives evidence of the intraplate character of magmatism (continental rifting), which took place within the Pasha–Ladoga Basin (ca. 1485−1454 Ma).

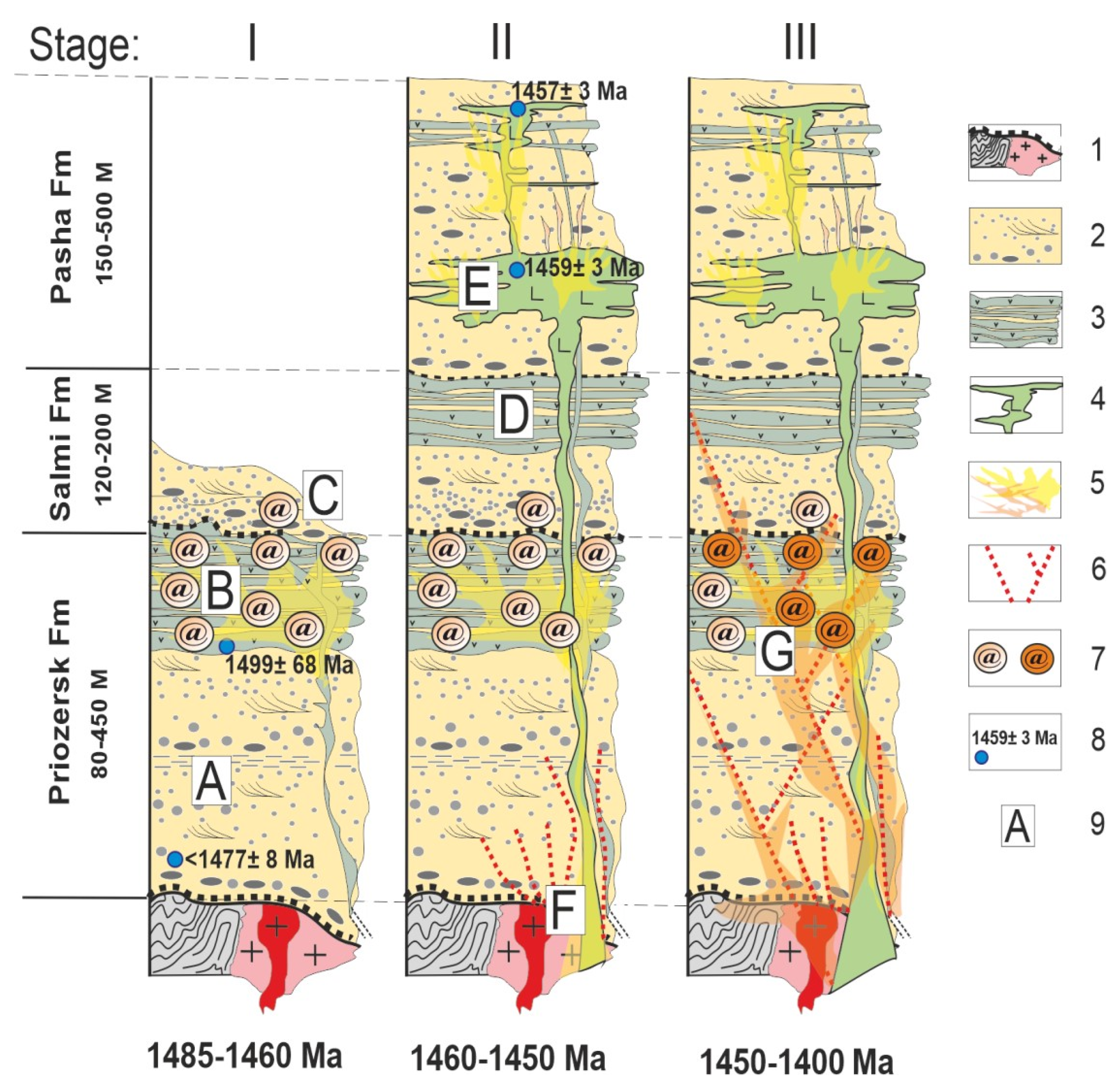

The obtained data suggest that the agates formation in the Pasha–Ladoga Basin are connected with post-magmatic processes, as well as hydrothermal fluids related to the intrusion of gabbro-dolerite sills (1459−1457 Ma).
6.2. Distribution and Morphology of Salmi Agates
Agates have been recognized in the upper part of PrF within the PLB and also observed as pebbles in conglomerate and gravelstone beds of the SalF [9
], overlying the PrF volcanic rocks. Agate mineralization appears mostly as an infill of fissures, cavities, gas vesicles in massive and vesicular basalts, and lava-breccias. The agates are characterized by diverse textures and frequently exhibited concentric zoning patterns. The vein agates most often have a poor-fancy texture pattern (Figure 5
D). According to Polekhovsky and Punin [9
], this is determined by the quiet regime of silica deposition from the post-magmatic fluids in a connected system of open cavities. It is assumed that after filling with chalcedony and blockage of silica supply channels, a cavity passes to feeding by diffusion through the micropores of cavity walls and previously precipitated layers [24
]. The diffusion of silica and its precipitation lead to oscillatory zoning. The zoning patterns in the individual cavities are varied probably because of variable permeability and rate of silica transfer (Figure 5
). As for mandelstones, the vesicles were initially closed, and therefore, an individual regime of silica precipitation is established in each of them. This probably leads to a difference in the microtexture of the closely located amygdales (Figure 3
). Additionally, the sporadic presence of discordant-filling vesicles (Figure 7
G) indicates that the orientation of the amygdales has been changed during the agates formation under the influence of local tectonics. The abundance of fissures filled with silica, calcite and Fe-oxides in both agate nodules and mandelstones indicates that basalts were subjected to tectonic destructions and at least two phases of agate formation took place.
6.3. Mineralogy and Geochemistry of Salmi Agates
The agates exhibit diversified internal microtextures due to the individual layers composed of micro- and macro-crystalline quartz, length-fast chalcedony, and zebraic chalcedony. An insignificant moganite impurity in Salmi agates was reported by Polekhovsky and Punin according to X-ray diffraction data [9
]. In the present study, X-ray diffraction analysis revealed only alpha-quartz and calcite phases in Salmi agates. No other silica phases beside alpha-quartz in the agates were also identified by the local Raman spectroscopy method. The absence of amorphous silica or other silica phases that appear during its crystallization (cristobalite, tridymite, moganite) is common for agates from relatively old volcanic host rocks that have been subjected to thermal effect [39
]. Such silica phases are metastable and thus tend to transform into water-poor α-quartz.
The agates with the characteristic red coloration are widely distributed and have been described for many localities of Germany, Poland, Morocco, China, USA, Russia, etc. (e.g., [4
]). It is shown that such coloration is associated with different types of iron compounds disseminated within the agate matrix.
Petrographic and Raman spectroscopy investigations revealed that the specific red-brownish colour of the Salmi agates (including amygdales in vesicular basalts) is caused by hematite inclusions. These inclusions occur in two main generations. The first one is represented by minute hematite particles (fine-grained or needle-liked) aligned along the micro-banding of agate (Figure 6
B,D,F,H). Most likely, Fe-oxides and silica precipitated simultaneously from the same primary mineralizing fluids enriched in Fe. The observed agate’s banding can be the result of a process of “self-purification” of silica during crystallization [44
]. The second one is characterized by large spherical and irregular aggregates randomly distributed within the agate matrix (Figure 7
E) or associated with fissures (e.g., Figure 3
A and Figure 10
B) in which late silica fluids were transported. The abundance of two generations of hematite point to a high activity of iron both in primary silica-bearing fluids and in late hydrothermal solutions. We suggest that late hydrothermal fluids could mobilize the Fe-compounds from the crust of weathering underlying PrF volcanics, which are then accumulated in vesicles and fissures. As a result, an additional red coloration of the agates appears and hematized zones were formed in the mandelstones.
Besides the abundance of hematite in agates, elevated FeO content in chlorite also indicates a high activity of iron in the agate-forming fluid. The empirical geothermometers based on chemical composition of chlorites are widely used in different geological environments [46
]. Since examined chlorites can be assigned to Mg-Fe variety and classified as diabantite, we applied a thermometer proposed by Kranidiotis and MacLean [47
] to evaluate the chlorite formation temperatures (Table S1
). This thermometer is based on the linear relation between Al(IV) in chlorite (with correction using Fe and Mg contents) and temperature. The calculation formula is T (°C) = 106 (Al(IV)corr) + 18, where Al(IV)corr = Al(IV) + 0.7 (Fe/[Fe + Mg]). As a result, it was found that crystallization temperatures of chlorite from green amygdales (146−232 °C, mean = 189 °C) are slightly lower than those of chlorite from red-brownish amygdales (160−219 °C, mean = 191 °C). Meanwhile, the calculated results of chlorite from agate nodules (206−261 °C, mean = 225 °C) are unequivocally higher than those for amygdales from mandelstones. The estimated chlorite formation temperatures correspond to low-temperature hydrothermal environments. The difference in chlorite formation temperatures between agate nodules and amygdales from mandelstone is probably due to two-stage hydrothermal activities. Crystallization of chlorite apparently occurred under decrease in temperature, first in agate nodules and then in amygdales of mandelstone.
Thus, the mineral assemblage characterising the Salmi agates is predominantly represented by alpha-quartz, calcite, hematite, and chlorite, but it also contains inclusions of barite, hydroxyapatite, titanite, leucoxene, rutile, ilmenite, manganite, muscovite, as well as in rare cases, zircon, pyrite, and chalcopyrite. They were probably formed during the post-magmatic processes and/or at the hydrothermal stage.
The comparison of trace element data of agates and agate-bearing volcanic rocks are of special interest in view of the reconstruction of the hydrothermal mineral-forming process [3
]. According to ICP-MS measurements, the agates are depleted in most trace elements compared to host volcanics, which is consistent with data of other investigations [3
]. The general REE trends of agates and host volcanics display similarities in enrichment of LREE in regard to HREE and presence of negative Eu-anomaly, which may indicate the mobilization of some elements by circulating post-magmatic fluids from volcanic rocks. However, different fractionation trends for HREE in agate and host volcanics probably point to unrelated sources of their transporting. The common feature is also the absence of a Ce anomaly. The development of positive Ce-anomalies is associated usually with hydrothermal alteration of volcanic rocks [52
]. According to petrographic and geochemical data the studied rocks were not subjected to regional alteration.
Elevated (5320 ppm) Mn concentrations (exceeding the values reported for host volcanic rocks) in calcite-rich agate possibly arise from both manganite microinclusions and structural incorporation of Mn within calcite. The quite high Ba (up to 121 ppm) and Ti (to 136 ppm) contents in agates are probably related to barite and titanite inclusions, respectively. Meanwhile, the unexpected high Ti concentrations in quartz sample (98 ppm) may provide evidence for the high temperature of agate crystallization (>200 °C) [53
], which has been also suggested on the basis of chlorite data.
The general similarity between REE distribution trends and elevated total REE contents in calcite-rich agates and extracted calcite suggest that calcite is a concentrator of REE. In contrast, the quartz together with calcite-poor agate is characterized by low REE content, which has also been reported in other studies [3
]. Interestingly, macrocrystalline quartz from the central part of the agate nodule (which was formed on the final stage of agate crystallization) is significantly depleted in trace elements compared to host agate. The decreasing trend of trace element concentration in the banded agates from the outer zone to the core provide by local LA-ICP-MS analyses indicated the chemical purification process during crystallization [2
C and δ18
O values obtained for agate-associated calcite point to unrelated origin of carbon and oxygen (Figure 14
). The δ13
C values in the range (–2…–8‰, PDB) probably reflect primary magmatic origin, whereas relatively high δ18O values (24…25‰, SMOW) point to a sedimentary source. The close δ13
O rations display agate-associated calcite samples from Phanerozoic and Precambrian volcanics of some other regions in the world (Figure 14
). The majority of δ13
O markers are in the transition zone between sedimentary carbonates (normal marine limestone) and magmatic carbonates with the influence of hydrothermal or low-thermal meteoric fluids. It is suggested that isotope feature of calcite can be connected with the processes of fluid mixing during formation, where carbon inherits its primary magmatic signature (volcanic H2
as the dominant carbon species), whereas the signature of oxygen isotopes is overprinted by the secondary influence of meteoric water [2
]. The close C-O isotopic characterization of agate calcite from different localities suggests that agates in volcanic rocks were formed with the active participation of post-magmatic hydrothermal fluids.
6.4. Origin of Agates
Summarizing the data on the mineralogy and geochemistry of Salmi agates from the PrF volcanics obtained in the present study and compilation of a regional geological information [10
] (pp. 74–75), [11
] (pp.145–147), [12
] (pp. 49−50] the agate mineralisation in PLB can be generalized into three stages, as illustrated in Figure 15
Stage I involves the initial formation of PLB, including accumulation of terrigenous sedimentary rocks of PrF (after ca. 1477 Ma) and appearance of riftogenic volcanics (Figure 15
A). The primary agate mineralization occurred after the formation of volcanic rocks of PrF (1485−1460 Ma) (Figure 15
B). The upper lava flows were eroded simultaneously with the accumulation of terrigenous sediments of SalF, which resulted in the ingress of agate-bearing basalt fragments into the conglomerate sequence at the SalmF basement (Figure 15
C). The migration of post-magmatic fluids toward sediments of SalF was blocked because of low permeability of argillaceous sandstone of SalF.
Stage II involves the formation of volcanic-sedimentary complexes of SalmF and PashF (ca. 1460 Ma) (Figure 15
D). The multiphase intrusion of gabbro-dolerite Vallaam sill at 1459−1454 Ma (Figure 15
E) most likely results in the formation of tectonically permeable zones at the basement of PLB rocks (Figure 15
F). Fluid flows associated with late post-magmatic phases of sill were interacted with basin fluids and remobilized the iron compounds from the crust of weathering.
Stage III (1450−1400 Ma) involves the top-up of previously formed agate nodules and mineralized vesicles by hematite-rich calcite/silica matter, as well as mineralization of newly formed fissures and cavities, including gas vesicles in mandelstones (Figure 15
The present contribution provides an integrated mineralogical and geochemical investigation of agate gemstones occurring in the Mesoproterozoic volcanic rocks of the PrF (ca. 1485−1460 Ma) within the Pasha–Ladoga Basin (Fennoscandian Shield, NW Russia).
The mineral composition of agates is dominated by alpha-quartz (fibrous chalcedony, microcrystalline and macrocrystalline quartz), but also displays abundances of calcite. The characteristic red-brownish agate’s coloration is caused by multiple hematite inclusion distributed in an agate matrix.
The C−O isotope characteristic of agate-associated calcite points to the processes of fluid mixing during formation, where carbon inherits its primary magmatic origin, whereas the oxygen isotopes are reflected by the secondary influence of hydrothermal or meteoric waters.
The study revealed the two phases of agate formation in the PrF volcanics, which are most likely controlled by two distinctly different fluids and/or their mixture. At first, agates of quartz–calcite–chlorite composition with disseminated minute hematite inclusions appeared due to post-magmatic iron rich fluids. The late hydrothermal activity was probably triggered by the intrusion of the gabbro-dolerite Valaam sill and results in the second phase of agate formation. The hydrothermal fluids remobilized the iron oxides from the crust of weathering underlying the basement of PrF volcanics, which led to formation of vein agate, and filling of gas vesicles with hematite-rich calcite/silica matter. Fluid migration in the PLB was hindered by low permeability of argillaceous sandstone of SalF. Therefore, agates occur only locally in the PrF volcanics within the PLB sequence.
The studied agate occurrence could potentially be the source of a decorative agate gemstones, which is evidenced by single spectacular agate findings. This area is a tourist attraction, but the limited outcrop of the complex does not allow agates to be mined in large volumes.
