Fractal Complexity and Symmetry in Lava Flow Emplacement

Abstract

This study presents a cohesive physical model that predicts lava flow morphology by establishing a quantitative link between a lava’s yield strength and its geometric complexity, measured by a prefractal dimension. The model is founded on the principle of symmetry, where the potential for fracturing and complexity peaks at an intermediate yield strength. This peak in complexity, observed with a predicted prefractal dimension (D_pf) of 1.15 for terrestrial ‘a’ā-like lava, arises from a critical state where a balance between gravitational driving forces and internal resistance allows for the formation of intricate margins. The model demonstrates that as lavas deviate from this optimal strength, becoming either too fluid (pāhoehoe, D_pf = 1.05) or too rigid (rhyolite, D_pf = 1.07), their morphology becomes progressively simpler, representing a symmetrical decline in complexity. Our approach also incorporates the overriding influence of topographic confinement and the temporal evolution of complexity as the lava cools. Validated against terrestrial lavas and successfully applied to lower-gravity environments, the model predicts a reduction in complexity for similar flows on Mars (D_pf = 1.13) and the Moon (D_pf = 1.09), providing a tool for interpreting volcanic processes grounded in the fundamental principles of symmetry and complexity.

1. Introduction

Complex flow patterns are omnipresent in natural systems [1]. These patterns often arise from the fundamental principles of complexity theory, where intricate, emergent structures are generated from a few simple rules [2,3,4]. A key concept is the role of symmetry and symmetry-breaking, where the most complex and interesting patterns in many physical systems appear not at the extremes of a parameter range, but at a critical intermediate state where competing forces are balanced. In geology, complex patterns serve as a physical record of the dynamic processes that shape a planet’s surface, offering crucial insights into its history [5,6,7]. Among the most important examples are lava flows, whose final morphology provides a real link to the complex interplay between the intrinsic properties of magma and the external forces it encounters during emplacement [8,9]. Researchers have sought to decipher this relationship, aiming to develop models that can predict a flow’s final form from a set of initial conditions [10,11].

The foundation of this effort lies in understanding lava rheology, particularly the concept of yield strength, i.e., the internal resistance that must be overcome for the lava to deform and flow [12,13]. Early studies established a clear link between a lava’s yield strength and its classification, with low-strength magmas forming the smooth, ropy surfaces of pāhoehoe and high-strength magmas forming the rough, clinkery crust of ‘a’ā or blocky flows [14,15]. However, simply classifying flows proved insufficient for capturing the full variety of their geometric diversity. A more quantitative approach was needed to describe the intricate and often irregular margins of lava flows.

A significant advancement came with the application of fractal geometry, which provided a mathematical framework for quantifying the complexity of these irregular shapes [1,2,16,17]. This method allowed researchers to move beyond qualitative descriptions and assign a numerical value, the prefractal dimension, to a flow’s complexity [1,2,18,19]. Groundbreaking work in this area revealed a non-monotonic relationship between a lava’s yield strength and its prefractal dimension, suggesting that complexity does not increase indefinitely with internal strength [20]. Instead, it peaks at an intermediate yield strength, characteristic of ‘a’ā lava, and diminishes for lavas that are either weaker or stronger. This observation points to a deeper, more fundamental principle: the role of symmetry in the emergence of complex geological structures [5]. In many physical systems, the most complex patterns arise not at the extremes, but from a critical state of broken symmetry where competing forces are perfectly balanced [2,3,21]. In the context of lava flows, this peak complexity can be viewed as a state where the driving gravitational forces and the lava’s internal resistance to fracturing are in optimal opposition. The simpler morphologies of pāhoehoe and rhyolite then represent a symmetrical decline from this peak, where one force tremendously dominates the other.

While intrinsic properties are fundamental, the external environment, particularly topography, can exert a dominant control on a flow’s final morphology. Studies have shown that even lavas with a high intrinsic potential for complexity can be forced into simple, linear forms when confined by a channel or valley [22,23,24]. This highlights the need for any comprehensive model to account for both the lava’s internal nature and the landscape through which it travels. Despite the progress in understanding these individual components, a unified model that synthesizes them into a single, predictive framework has remained unavailable.

Therefore, the goal of this study is to develop and validate a cohesive physical model that predicts the geometric complexity of a lava flow by integrating its intrinsic rheological properties with the extrinsic influence of its environment. Building upon the foundational principles of symmetry and complexity, this work aims to create a comprehensive framework that can trace the evolution of a lava flow from its initial state to its final, solidified form. By doing so, we seek to provide a robust tool for interpreting volcanic processes on Earth and other planetary bodies.

2. Materials and Methods

Modeling lava flow is complicated by its composite nature, a molten interior covered by a rigid or semi-rigid crust. The style of flow advancement, whether as a cohesive unit or through a series of smaller breakouts, is largely determined by the mechanical properties of this crust. A critical parameter governing this behavior is the lava’s yield strength, which is the stress required to initiate flow or fracture the crust.

Observational data suggests that the tendency for a flow to advance via crustal fracturing is maximized at an intermediate, or “peak,” yield strength. Low-strength lavas (e.g., pāhoehoe) are too fluid to form a strong, brittle crust, while high-strength lavas (e.g., some andesites) are too rigid to break apart easily, tending to move as a single, thick mass. Consequently, intermediate-strength lavas (e.g., ‘a’ā) have a crust that is strong enough to be brittle but weak enough to be consistently fractured by the pressure of the molten interior, promoting advance through breakouts. This relationship, where breakout activity peaks at a specific yield strength, can be effectively described by a Gaussian function [25]. Because yield strength in lavas spans several orders of magnitude, it is best analyzed on a logarithmic scale. In this context, the yield strength (τ_y) represents the strength of the solidified or semi-solid crust. The Gaussian term models the efficiency of crustal fracturing: when the lava’s yield strength is close to the optimal peak strength (τ_peak), the crust breaks apart easily, leading to a smaller effective flow thickness (h_eff) as the flow advances through breakouts. Conversely, when τ_y is very high or very low, the crust either resists fracture or is too weak to form a brittle structure, respectively, resulting in an effective thickness closer to the bulk thickness. This leads to the following approach for a normalized effective flow thickness

$${\displaystyle \frac{{\mathrm{h}}_{\mathrm{eff}}}{\mathrm{h}}}=1-\left(1-{\mathrm{h}}_{\min }^{*}\right)\exp \left[-{\displaystyle \frac{{\left({\log }_{10}({\mathrm{\tau }}_{\mathrm{y}})-{\log }_{10}({\mathrm{\tau }}_{\mathrm{p}\mathrm{e}\mathrm{a}\mathrm{k}})\right)}^2}{2{\mathrm{\sigma }}^2}}\right],$$

(1)

where h_eff is the effective flow thickness, h is the bulk thickness, τ_y is the lava’s yield strength, τ_peak is the peak yield strength at which fracturing is most pronounced, h*_min is the minimum h_eff/h observed in nature, and σ is parameter that controls how broadly the fracturing behavior extends across the range of yield strengths.

Equation (1) quantifies the characteristic thickness of the active flow margin as a function of the lava’s yield strength relative to the peak strength for fracturing. To standardize this model, we must identify a lava type that best embodies the physical process of efficient crustal fracturing. Pāhoehoe lava (yield strength ~10² Pa [14]) is too fluid, forming a skin that stretches and inflates. Rhyolite lava (yield strength ~10⁵ Pa [15]) is so rigid that it resists internal deformation and moves as a coherent block. In contrast, ‘a’ā lava (yield strength ≈ 10³ Pa [14]) is strong enough to form a brittle crust but weak enough for the molten core to consistently break it apart. It is just right because it maximizes the creation of a fragmented, rubbly flow front where the advancing lobes are much thinner than the flow’s core. Therefore, ‘a’ā lava provides the core observational data to define the model parameters for Equation (1): τ_peak = 10³ Pa, h*_min = 0.25 and σ = 0.75. Notice that the h*_min represents the physical limit of crustal collapse efficiency. An analogy can be found in the study of granular materials, such as packed beds. When uniform spheres are randomly packed, they achieve a maximum packing density that leaves a minimum void fraction of approximately 0.26. By analogy, h*_min can be viewed as the minimum possible height ratio (h_eff/h) for the fractured crust, representing a state of maximum collapse where further compaction is physically resisted, similar to a densely packed rubble pile.

For the lava to flow, the shear stress at some point within the flow must exceed the yield stress. The gravitational component of shear stress acting on a fluid layer of density ρ and height h on a slope with angle α is

$${\mathrm{\tau }}_{\mathrm{b}\mathrm{a}\mathrm{s}\mathrm{e},\mathrm{e}\mathrm{f}\mathrm{f}}=\mathrm{\rho }\mathrm{g}{\mathrm{h}}_{\mathrm{e}\mathrm{f}\mathrm{f}}\sin (\mathrm{\alpha }),$$

(2)

Since the shear stress is maximum at the base of the flow, the condition for the entire flow to move is that the shear stress at the base must be greater than or equal to the yield stress. So, this condition can be written as a dimensionless number by dividing the driving stress by the resisting yield stress

$${\mathrm{N}}_{\mathrm{p}\mathrm{f},\mathrm{e}\mathrm{f}\mathrm{f}}={\displaystyle \frac{\mathrm{\rho }\mathrm{g}{\mathrm{h}}_{\mathrm{e}\mathrm{f}\mathrm{f}}\sin (\mathrm{\alpha })}{{\mathrm{\tau }}_{\mathrm{y}}}},$$

(3)

where N_pf,eff represents the ratio between the gravitational pressure pushing the lava forward and the lava’s internal strength resisting its flow. This is a generalized form of fracturing number [26] and replaces the very often unmeasurable internal viscous stress with the overall gravitational driving stress, which is the definitive cause of the flow. N_pf,eff can be considered a control variable because it quantifies the behavior of the system, i.e., it limits the fate of the lava’s surface. If the stress imposed by the flowing lava is less than the strength of the crust, N_pf,eff < 1: the crust is strong enough to resist breaking and can deform in a ductile manner, resulting in the smooth that characterizes the pāhoehoe lava. On the other hand, if the stress from the underlying flow exceeds the crust’s strength, causing it to fracture and break apart, N_pf,eff > 1. This is characteristic of surfaces of ‘a’ā lava flows.

We propose that the intrinsic complexity defined by the corresponding prefractal dimension is a non-monotonic, log-normal function of N_pf,eff, peaking at moderate strength and decreasing at high strength due to channelization

$${\mathrm{D}}_{\mathrm{int}}={\mathrm{D}}_{\min }+\left({\mathrm{D}}_{\max }-{\mathrm{D}}_{\min }\right)\exp \left[-{\displaystyle \frac{{\left(\ln ({\mathrm{N}}_{\mathrm{p}\mathrm{f},\mathrm{e}\mathrm{f}\mathrm{f}})-\ln ({\mathrm{N}}_{\mathrm{p}\mathrm{f},\mathrm{c}\mathrm{r}\mathrm{i}\mathrm{t}})\right)}^2}{2{\mathrm{\sigma }}^2}}\right],$$

(4)

where D_int is the intrinsic prefractal dimension, D_max is the prefractal dimension that correspond to the peak complexity, D_min is the basal prefractal dimension for near-stationary flow, and σ is a coefficient that controls the width or spread of the peak (i.e., the standard deviation of ln(N_pf,eff) and 2σ² is related to the variance of the log-normal distribution). Similarly to Equation (1), the term $-{\displaystyle \frac{{\left(\ln ({\mathrm{N}}_{\mathrm{p}\mathrm{f},\mathrm{e}\mathrm{f}\mathrm{f}})-\ln ({\mathrm{N}}_{\mathrm{p}\mathrm{f},\mathrm{c}\mathrm{r}\mathrm{i}\mathrm{t}})\right)}^2}{2{\mathrm{\sigma }}^2}}$ represents the probability density function of a log-normal distribution, normalized to have a peak value of 1, and the corresponding exponential term acts as a weighting factor that determines the contribution of the complexity range D_max − D_min to the final intrinsic prefractal dimension. So, the prefractal dimension is not simply monotonic with fracturing number N_pf,eff, but it can reach a maximum at a critical value (N_pf,crit) and decreases on either side.

Consider that the yield strength governs the characteristic size of the structural elements that make up the lava flow. So, this directly influences the flow’s geometric complexity, which is measured by the prefractal dimension. For low-yield-strength lavas (e.g., pāhoehoe lava), maximum complexity (D_max) means a low-strength crust that is easily deformed that allow to form numerous small, intricate, and overlapping lobes. In addition, minimum complexity (D_min) means that lava flow can form simple, channelized paths. For high-yield-strength lavas (e.g., rhyolite lava), low maximum complexity (D_max) means that a high-strength crust that strongly resists deformation cannot breach to form small lobes, and stress builds up until the crust fails to create big, blocky structures. The flow advances as a more unified front because it lacks the ability to create fine details. Consequently, the resistance to forming complex shapes lowers the maximum possible complexity (D_max). It is important to note that very strong lavas are characterized by almost non-distinction between the simplest and most complex possible shapes. So, lava flow is always blocky and simple, and the values of the prefractal D_max and D_min converge.

The relationship between a lava’s internal resistance (and yield strength) and its resulting morphology is logarithmic, and it was found that D_max and D_min have a linear dependence of the logarithmic yield strength [10,20]; i.e., for each increase in yield strength, the prefractal dimension decreases by a constant amount [10,20]

$${\mathrm{D}}_{\max }=1.26-0.03{\log }_{10}\left({\mathrm{\tau }}_{\mathrm{y}}\right),$$

(5)

$${\mathrm{D}}_{\min }=1.045-0.0025{\log }_{10}\left({\mathrm{\tau }}_{\mathrm{y}}\right),$$

(6)

To illustrate this sensitivity, the dependence of maximum complexity on yield strength is shown in

Table 1. Sensitivity of maximum complexity (D_max) to yield strength (τ_y).

Lava	τy (Pa)	Dmax
pāhoehoe	102 [27]	1.20
‘a’ā	103 [27]	1.17
andesite	104 [12]	1.14
rhyolite	105 [15]	1.11

. This shows a linear relationship with the logarithm of the yield strength, where D_max decreases as the lava becomes more rigid. For each order of magnitude increase in yield strength, the maximum potential complexity decreases by 0.03.

The negative sign in Equations (5) and (6) captures the fact that higher yield strength inhibits complexity (i.e., as lava becomes stiffer, it resists breaking into the small-scale instabilities and branches that create a complex margin).

Lava flow’s complexity does not just depend on its yield strength but also depends on the landscape it flows through. Topography strongly controls lava flow morphology, often overriding its intrinsic properties [22]. So, topography can override the lava’s natural tendency to form complex shapes. To account for topography, we introduce the confinement index [23]

$${\mathrm{C}}_{\mathrm{c}}=1-{\displaystyle \frac{\mathrm{w}}{{\mathrm{w}}_{\mathrm{c}\mathrm{h}\mathrm{a}\mathrm{n}}}},$$

(7)

where w is the width of the lava flow and w_chan is the width of the channel or valley confining it, and it ranges from 0 (unconfined) to 1 (perfectly confined).

Bruno et al. [20] suggest that lava flows have an intrinsic complexity based on their properties, which is then simplified by channels. Assuming a linear interpolation to create a smooth transition between two states (D_int and D_chan) based on the confinement index, the prefractal dimension is calculated as

$${\mathrm{D}}_{\mathrm{p}\mathrm{f}}=\left(1-{\mathrm{C}}_{\mathrm{c}}\right){\mathrm{D}}_{\mathrm{int}}+{\mathrm{C}}_{\mathrm{c}}{\mathrm{D}}_{\mathrm{c}\mathrm{h}\mathrm{a}\mathrm{n}},$$

(8)

where D_chan is the prefractal dimension of a perfectly straight, confining channel or valley. Studies [17,19] suggest that real-world quasi-linear features including natural channels have minor sinuosity and present a prefractal dimension slightly greater than 1.0, ranging from 1.01 to 1.03. So, we assume that D_chan = 1.02 is for the geometry of a lava flow through a completely straightened, confining channel.

The previously developed approaches are static, calculating a final complexity without accounting for temporal evolution. However, lava flow is a dynamic process where properties change over time. Specifically, lava’s yield strength is not constant; it increases as the lava cools and crystallizes, which raises its internal resistance. This evolution of yield strength can be described by an Arrhenius-type equation and can be written as [12,26]

$${\mathrm{\tau }}_{\mathrm{y},\mathrm{T}}={\mathrm{\tau }}_0\exp \left[{\displaystyle \frac{{\mathrm{E}}_{\mathrm{a}}}{\mathrm{R}}}\left({\displaystyle \frac{1}{\mathrm{T}}}-{\displaystyle \frac{1}{{\mathrm{T}}_0}}\right)\right],$$

(9)

where τ₀ is the initial yield strength, T₀ is the initial absolute temperature, E_a is the activation energy for viscous flow, and R is the universal gas constant.

Since the variation in yield strength is a result of changes in lava temperature (Equation (9)), an equation for the lava’s temperature evolution is also required. Heat loss from a very hot body, such as a lava flow, is dominated by thermal radiation to its cooler surroundings. The rate at which the lava’s temperature changes is directly proportional to this net energy loss and can be written based on the Stefan–Boltzmann law

$${\displaystyle \frac{\mathrm{d}\mathrm{T}}{\mathrm{d}\mathrm{t}}}=-{\displaystyle \frac{\mathrm{\gamma }\mathrm{\epsilon }}{\mathrm{\rho }{\mathrm{c}}_{\mathrm{lava}}\mathrm{h}}}\left({\mathrm{T}}^4-{\mathrm{T}}_{\mathrm{atm}}^4\right),$$

(10)

where γ is the Stefan–Boltzmann constant, ϵ is the lava’s emissivity, ρ is density of the lava, c_lava is the lava’s capacity to store heat, h is the bulk thickness of lava flow, and t the time.

The time variation of complexity D_pf,t is then calculated using Equation (8).

3. Results and Discussion

To understand the interplay between intrinsic lava properties and external environmental factors of our model, we performed a sensitivity analysis. We systematically varied key parameters such as slope and flow thickness, for an unconfined ‘a’ā lava flow (τ_y = 10³ Pa, C_c = 0), which represents the peak intrinsic complexity in our model. All calculations assume a standard basaltic lava density of 2650 kg/m³ [12], and other parameters used in this analysis are shown in

Table 2. Value of the parameters used in the calculations.

Parameter	Value or Range Used
τy	102–105 Pa
h	10 m (for simulations)
α	1°−8° (sensitivity analysis), 2° or 10° (scenarios)
Cc	0 (unconfined) or 0.85 (confined)
g	9.81 m/s2 (Earth) 3.71 m/s2 (Moon) 1.62 m/s2 (Mars)
ρ	2650 kg/m3
T0	1423 K
Tatm	293 K
τpeak	103 Pa
h*min	0.25
σ	0.75
Dchan	1.02
Ea	300 kJ/mol
clava	1300 J/kg K
ϵ	0.95

.

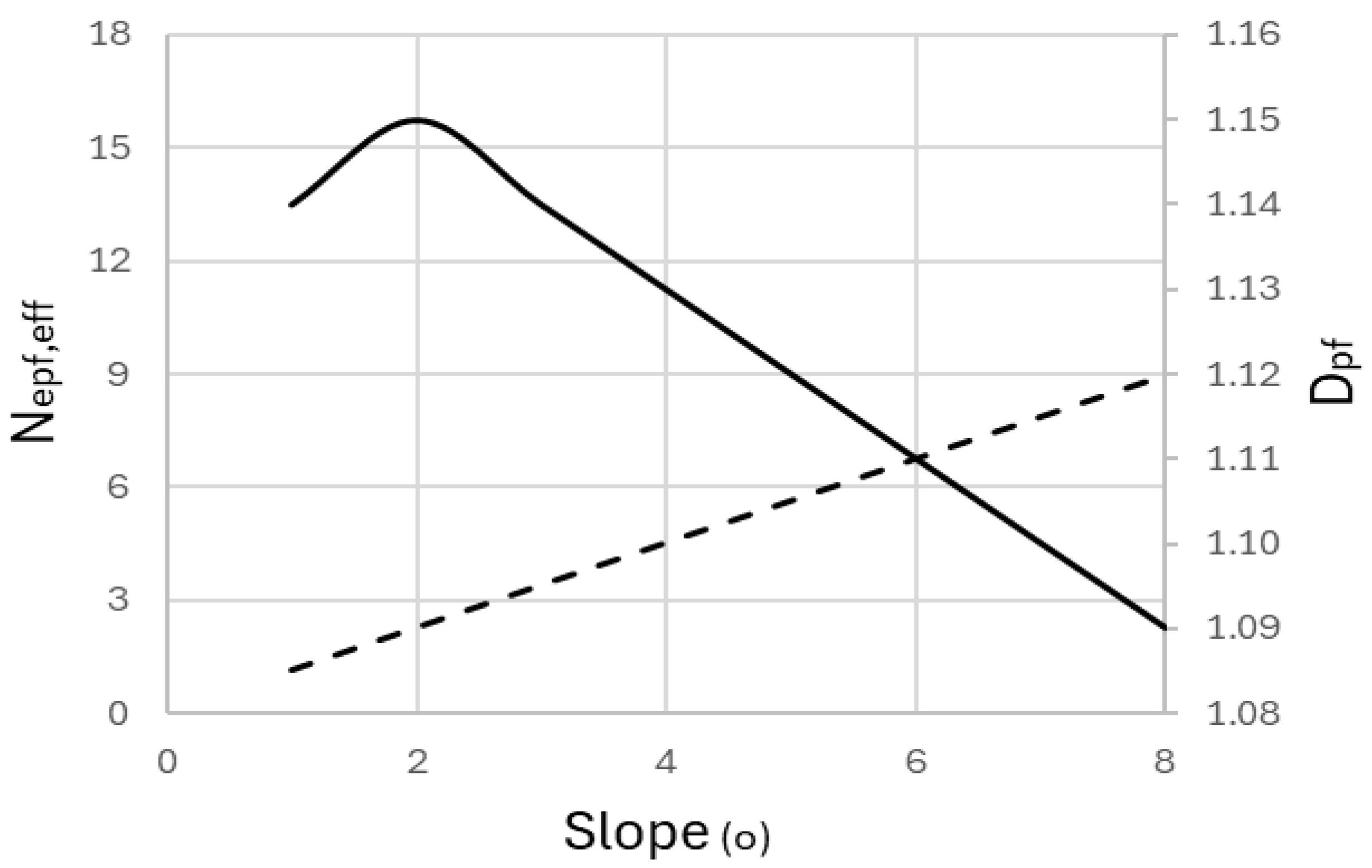

Figure 1 reveals that the fracturing number (N_pf,eff), and consequently the flow’s intrinsic complexity (D_pf), is sensitive to the topographic slope. On a small 1° slope, the fracturing number is low, but as the slope increases, the fracturing number rises, indicating that the gravitational driving forces are increasing. The complexity (D_pf) is a non-monotonic function of this stress: it begins high (D_pf = 1.14), peaks at a slope of approximately 2° with a maximum complexity of D_pf = 1.15, and then decreases as the slope continues to rise. For instance, at a slope of 8°, the complexity is reduced to approximately D_pf = 1.09. This demonstrates a key feature of our approach: while a certain level of stress is required to initiate fracturing, excessive stress may lead to more efficient, channelized flow paths within the breakout lobes, thereby reducing the overall geometric complexity of the margin.

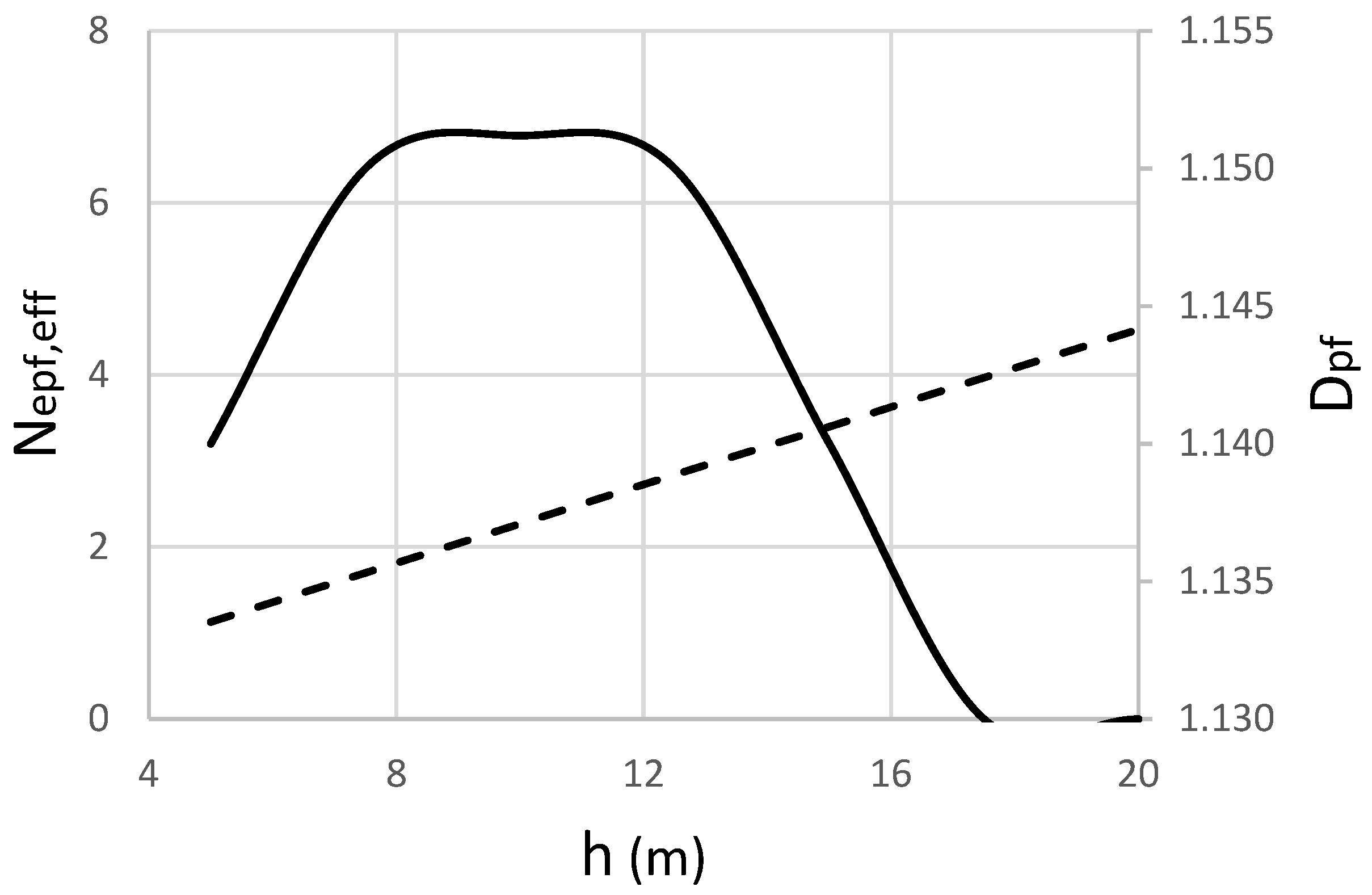

Figure 2 shows how flow thickness influences complexity for a flow on a 2° slope. For a thin flow of 5 m, the fracturing number is relatively low, leading to a high complexity of D_pf = 1.14. As the flow thickness increases towards 10 m, the fracturing number increases, and the system reaches its peak complexity with a prefractal dimension of D_pf = 1.15. As the flow continues to thicken to 20 m, the fracturing number continues to rise, pushing the system past its peak complexity, with the prefractal dimension slightly decreasing to D_pf = 1.145. This means that for a given lava type, thicker and more rapidly advancing flows are not necessarily more morphologically complex; their immense driving force can lead to simpler, more direct flow paths.

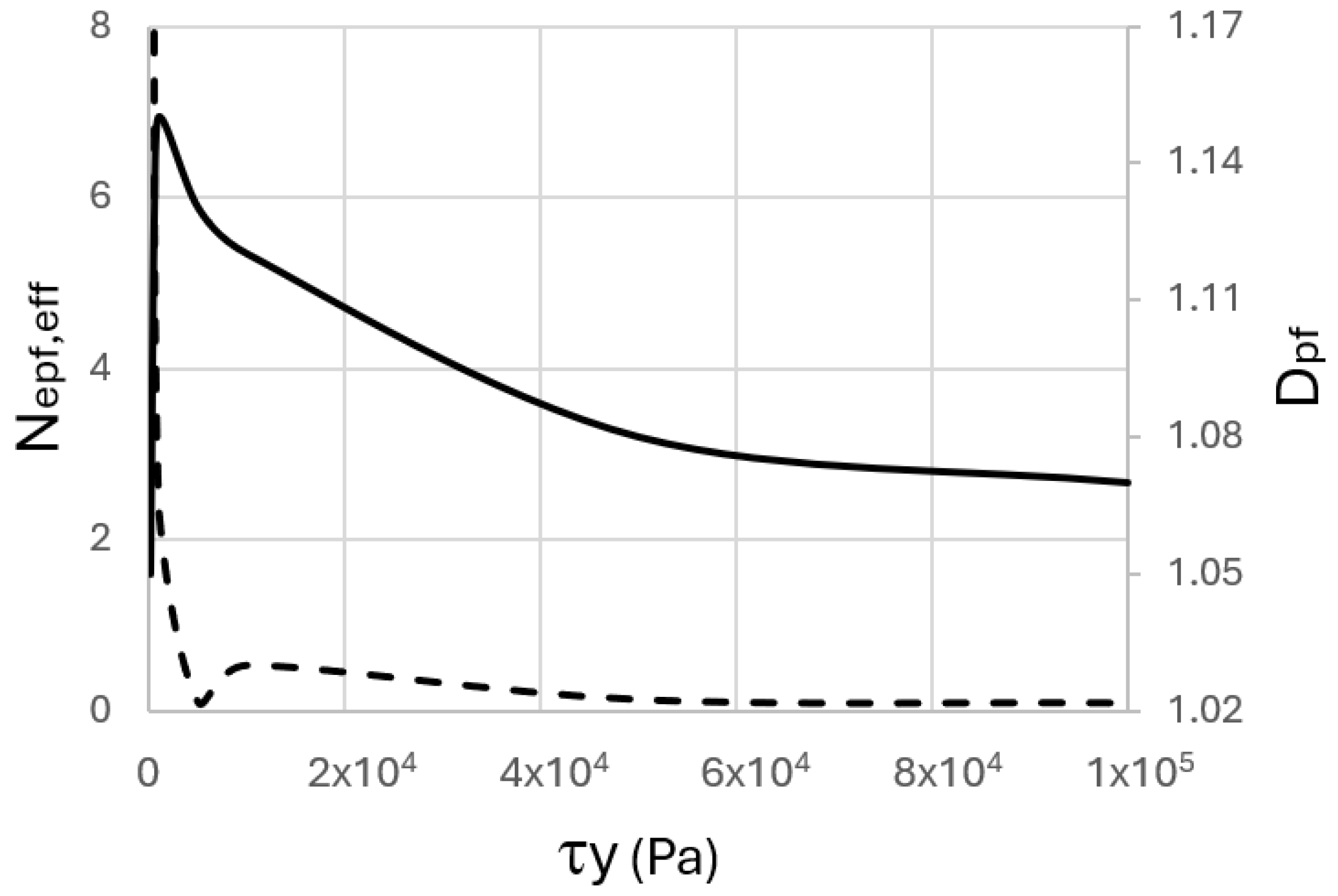

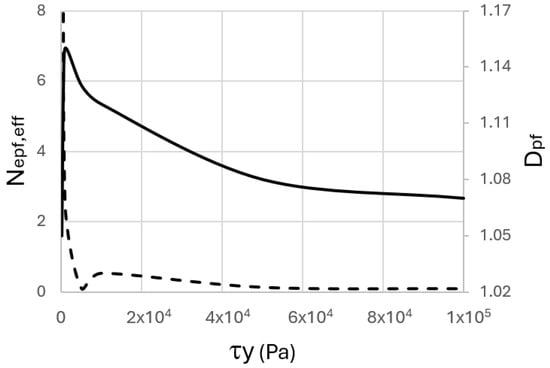

The influence of yield strength on complexity is depicted in Figure 3. This figure shows a curve that begins at a low complexity for fluid-like pāhoehoe lava (τ_y∼10² Pa), rises to a distinct peak in the intermediate-strength range characteristic of ‘a’a lava (τ_y∼10³ Pa), and then declines again for high-strength rhyolitic lavas (τ_y∼10⁵ Pa). This figure shows that the most complex flow margins are formed at an optimal yield strength, where the crust is strong enough to be brittle but weak enough to be consistently fractured by the molten interior.

To solve the differential equation for temperature evolution (Equation (10)), specific initial and boundary conditions must be defined. The initial condition is the lava’s eruption temperature, T₀. For the simulations in this study, a typical basaltic eruption temperature of T₀ = 1423 K is used. The primary boundary condition is the temperature of the surrounding environment to which the lava radiates heat, T_atm. A standard ambient temperature of T_atm = 293 K is assumed. The initial yield strength is calculated based on the initial temperature.

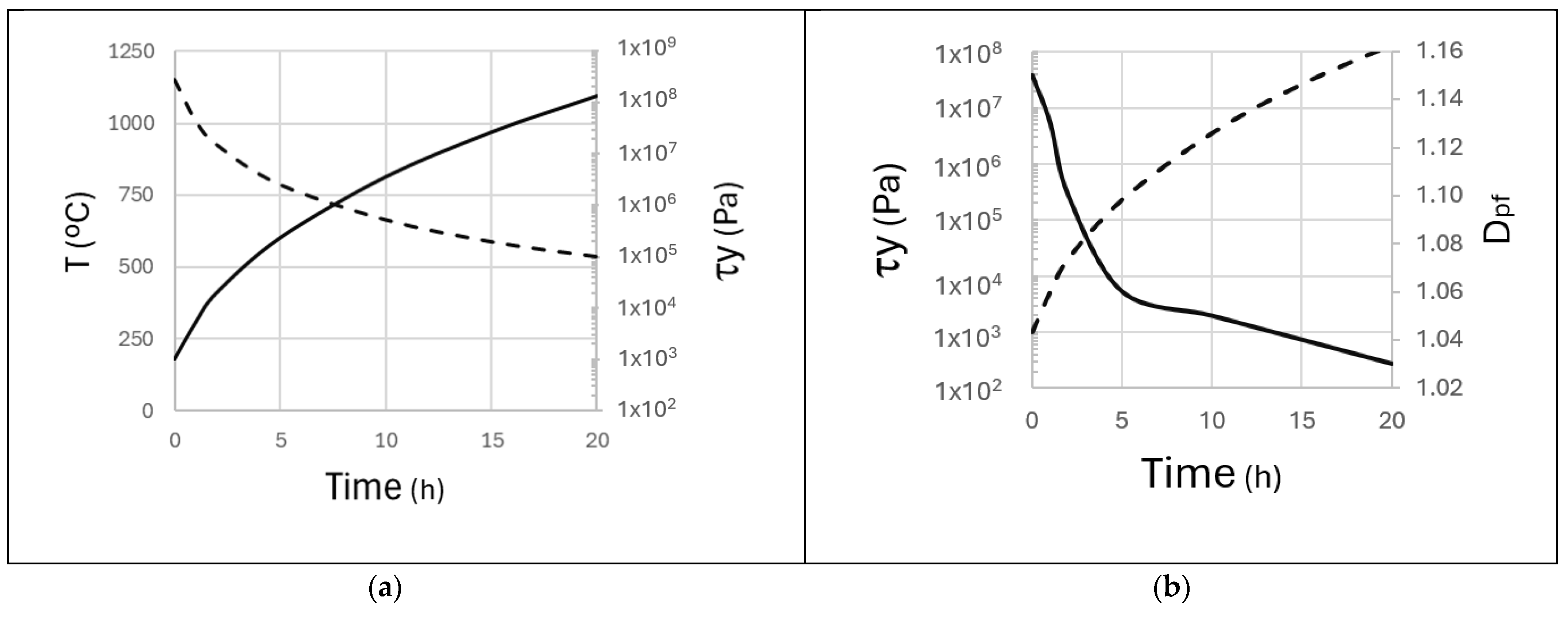

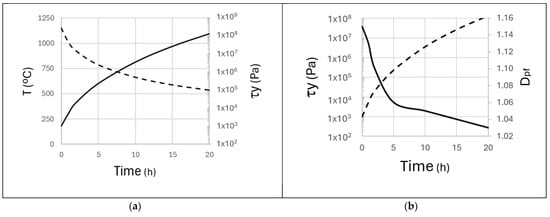

Figure 4a,b show the evolution of a lava’s temperature, yield strength, and the prefractal dimension over 20 h. The simulation depicts a scenario consistent with the transition from a more fluid state to a rigid one. Initially, the lava flow has a low complexity (D_pf = 1.04). As the lava begins to cool, its yield strength increases, approaching the optimal value for fracturing. Consequently, after approximately two hours of cooling, the flow’s complexity peaks at D_pf = 1.15. At this point, the lava’s crust is strong enough to be brittle but weak enough to be consistently fractured, maximizing its geometric complexity. Beyond this peak, as the lava continues to cool and solidify, its yield strength becomes too high for efficient fracturing, and its ability to form fine-scale features diminishes, causing the complexity to drop steadily. The initial rise to peak complexity can be seen as a representation of the pahoehoe-to-‘a’a transition. The steady decrease in complexity after the peak demonstrates the principle that as lava becomes stiffer, its ability to form complex features diminishes, which agrees with [20].

To assess the predictive capacity of the model, its performance was evaluated against four distinct lava types (two basaltic and two non-basaltic) under two contrasting environmental scenarios: an unconfined, gentle slope and a confined, steep slope. The results are depicted in

Table 3. Comparison of predicted and observed complexity for different lava types in an unconfined setting. Predictions were calculated assuming h = 10 m, α = 2° and Cc = 0.

Lava	τy (Pa)	heff/h	Npf,eff	Dpf	Dpf,observed
pāhoehoe	102 [27]	0.692	62.8	1.05	1.05–1.12 [20]
‘a’ā	103 [27]	0.250	2.27	1.15	1.13–1.24 [20]
andesite	104 [12]	0.692	0.63	1.12	1.07–1.18 [16]
rhyolite	105 [15]	0.979	0.09	1.07	1.10–1.15 [28]

and

Table 4. Influence of topographic confinement on the complexity of different lava types. Predictions were calculated for α = 10° and Cc = 0.85 (i.e., a high degree of confinement where the flow occupies 15% of the channel width).

Lava	τy (Pa)	heff/h	Npf,eff	Dpf	Dpf,observed
pāhoehoe	102 [27]	0.692	299.7	1.03	1.02–1.04 [18]
‘a’ā	103 [27]	0.250	11.86	1.04
andesite	104 [12]	0.692	2.99	1.04
rhyolite	105 [15]	0.979	0.50	1.03

.

Table 3 shows the model’s good agreement in capturing how a lava’s inherent properties influence its geometric complexity for unconfined flows. Regarding low- and high- yield-strength lavas, such as pāhoehoe lava, it results in a low complexity (D_pf = 1.05) due to the fact that it is too fluid to form a strong crust capable of significant fracturing. Similarly, rhyolite lava, with its extremely high yield strength, also has a relatively low complexity (D_pf = 1.07) because it resists breaking and moves as a more unified, blocky mass. Regarding intermediate-strength lavas, ‘a’a (D_pf = 1.15) and andesite (D_pf = 1.12) lavas show the highest complexities. This is because their yield strength is in the optimal range to form a brittle crust that the molten interior can consistently fracture, which creates a fragmented flow front with a high degree of geometric complexity.

The geometry complexity for flows influenced by topography (confined flows) is analyzed based on Table 4. For every lava type, the calculated complexity is significantly lower in the confined scenario than in the unconfined one. For example, the complexity of ‘a’a lava drops from 1.15 to 1.04, and pāhoehoe lava drops from 1.05 to 1.03. This illustrates a key principle that topography can override a lava’s intrinsic tendency to form complex shapes. As confinement increases, the final prefractal dimension is pushed toward the dimension of the confining channel (D_chan = 1.02). This aligns with field observations where flows that might otherwise be complex are forced into simpler, quasi-linear forms by the surrounding landscape.

Basaltic lava, which is the most common on Earth, is a key feature of the volcanic history of Moon and Mars. While ‘a’ā-like flows exist on both the Moon and Mars, their appearance and scale differ from those on Earth [6,7]. To test the model’s applicability beyond Earth, the prefractal dimension for basaltic lava flows on Mars and the Moon is calculated and the results compared with observational data in the literature [18,20]. The results are depicted at

Table 5. Effect of gravity on the complexity of an ‘a’ā-type lava flow on Earth, Mars, and the Moon. Predictions for each planetary body were calculated for an unconfined setting (Cc = 0), and h = 10 m and α = 2°.

Planet	g (m/s2)	Npf,eff	Dpf	Dpf,observed
Earth	9.81	2.27	1.15	1.13–1.24 [20]
Mars	3.71	0.86	1.13	1.05–1.17 [27]
Moon	1.62	0.37	1.09	1.03–1.08 [18]

.

Table 5 shows that for lava with similar characteristics, gravity has a direct impact on complexity: Earth (D_pf = 1.15), Mars (D_pf = 1.13), and the Moon (D_pf = 1.09). This trend directly correlates with the gravitational acceleration of each body, which agrees with the study of Wilson and Head [6]. The fracturing number quantifies the ratio of gravitational driving forces to the lava’s internal strength. On Earth, higher gravity results in a higher fracturing number (N_pf,eff = 2.27), meaning the driving forces can efficiently overcome the lava’s resistance, leading to significant crustal breaking and high complexity. On Mars and the Moon, the lower gravity reduces the fracturing number to 0.86 and 0.37, respectively. With weaker driving forces, the lava is less able to fracture its crust, resulting in simpler flow margins and a lower prefractal dimension. ‘A’a lava on Earth exists in such a way that its yield strength is perfectly suited to form a brittle crust that is consistently broken by the flow’s pressure, maximizing complexity.

Model Applications and Limitations

The predictive capacity of the model presented here lends itself to several applications in volcanology. As demonstrated in the validation tables, its primary use is to infer the rheological properties and emplacement dynamics of lava flows from their final morphology. This is particularly valuable when direct sampling is impossible. By analyzing the complexity of lava flows on Mars and the Moon, we can better constrain the eruption conditions and composition of ancient lavas. Furthermore, the model could be extended for volcanic hazard assessment.

However, the model is based on several simplifying assumptions that constitute its limitations: (a) The model is a 1D representation of an inherently 3D process. It calculates a single complexity value and does not simulate the spatial path of the flow. (b) The model assumes uniform thermal and physical properties (e.g., density, emissivity) throughout the lava flow at any given time. (c) The temporal evolution component assumes heat loss is dominated by thermal radiation. It neglects other mechanisms such as convection to the atmosphere, conduction to the ground, and heat generated by latent heat of crystallization.

4. Conclusions

This study has developed and validated a predictive model for the geometric complexity of lava flows, unifying their intrinsic rheological properties with extrinsic environmental forces. Our approach shows that the morphology of a lava flow is not arbitrary but is governed by a predictable interplay between the lava’s internal strength and the external stresses it endures.

The basis of our model is the principle that a lava’s potential for fracturing diminishes symmetrically from an optimal yield strength. This leads to a non-monotonic relationship between a lava’s internal resistance and its resulting complexity. It is shown that the most intricate flow margins do not arise from the most fluid or the most viscous lavas, but from those at the peak of this symmetrical curve. It is in this critical, ‘a’a lava-like state that the crust is perfectly balanced: strong enough to fracture, yet weak enough to be consistently broken by the molten interior. The simpler, less complex morphologies of pāhoehoe and rhyolite lavas represent the symmetrical decline from this peak. Furthermore, the model accounts for the influence of the surrounding landscape by incorporating a confinement index, which quantifies how topography can override a lava’s inherent tendencies.

The critical contributions and key findings of this work can be summarized as follows:

-

Presents a unified physical model linking lava rheology (yield strength) and environmental factors (topography; gravity) to geometric complexity (prefractal dimension).

-

Demonstrates that complexity follows a symmetrical, non-monotonic relationship with yield strength, peaking for intermediate-strength lavas like ‘a’ā.

-

Successfully validates the model against a range of terrestrial and planetary (Mars; Moon) lava flows, confirming the critical role of gravity in influencing morphology.

-

Includes a dynamic component to model the temporal evolution of complexity as the lava cools and solidifies, linking initial fluid states to final solidified forms.
