# Rapid Electromagnetic Modeling and Simulation of Eddy Current NDE by MLKD-ACA Algorithm with Integral Kernel Truncations

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

**Z**with dimension m × n, ACA algorithm generates the U and V matrices with dimensions m × r and r × n, which resulting in the computational cost to be ${r}^{2}\left(m+n\right)$, here r is the rank to approximate

**Z**necessarily with a predefined tolerance. FFT projects the current basis functions to regular grids by interpolation to produce the same fields as the original currents [12]. $\mathscr{H}$ matrix algorithm provides an efficient mathematical framework to categorize the blocks into admissible and inadmissible ones. The inadmissible blocks are computed by full matrices and the admissible blocks are approximated by the low rank matrix compression techniques [13,14,15].

## 2. Description of MLKD-ACA with Kernel Truncations

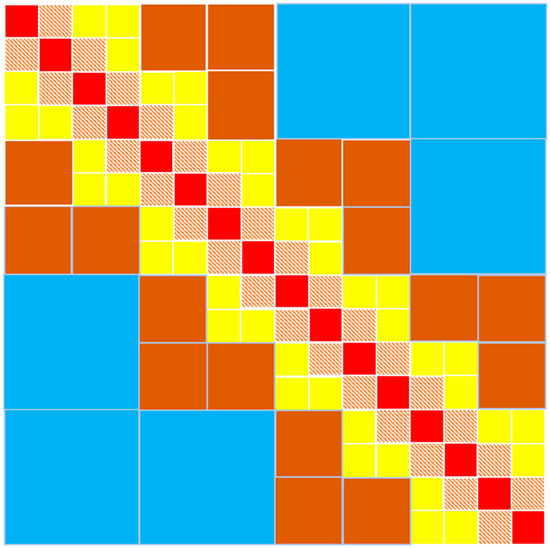

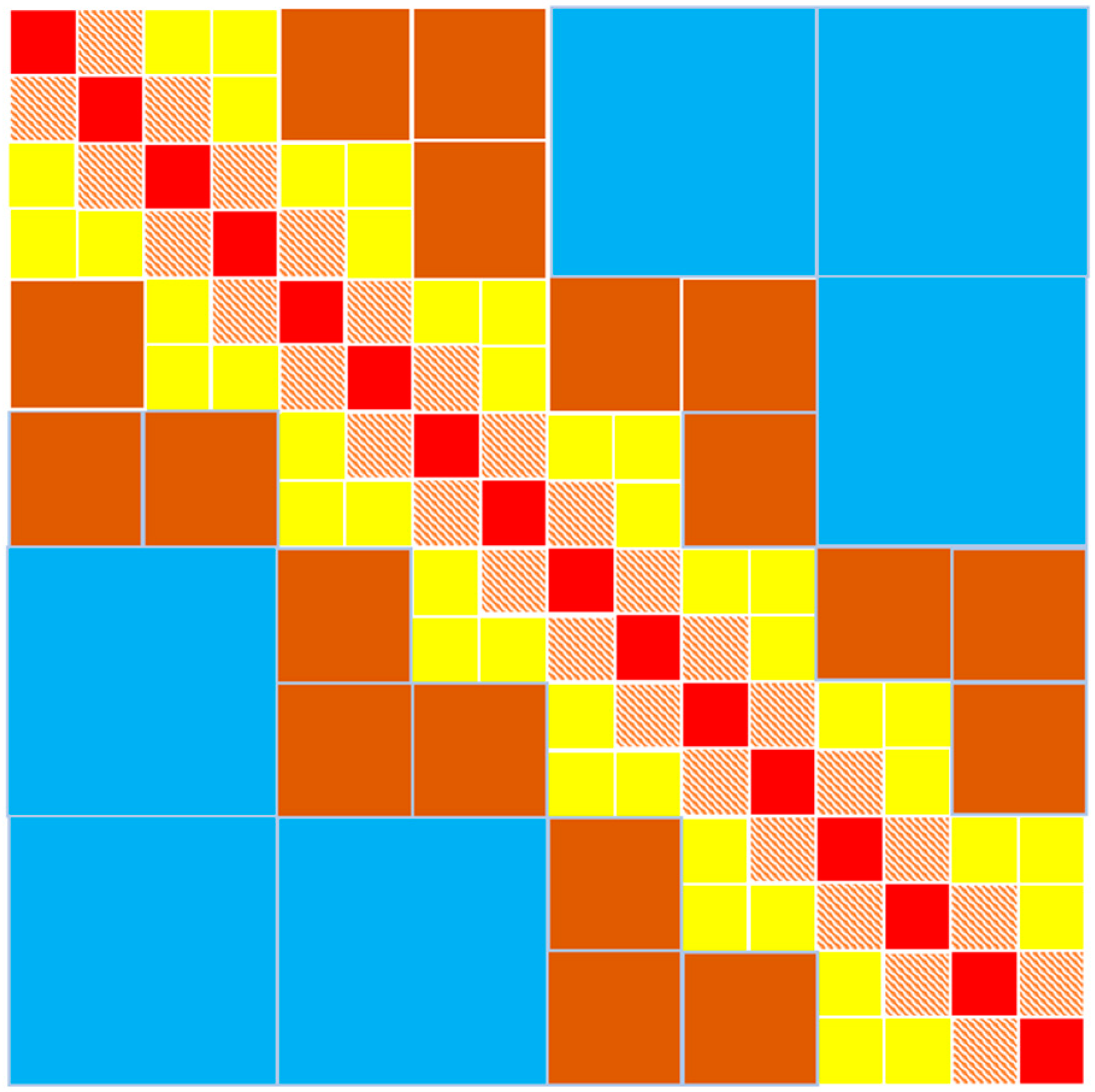

#### 2.1. Multilevel Partition

#### 2.2. MLKD Algorithm

**K**,

**L**and

**R**operators shown in Equations (1) and (2) relate to the Green function [10]

**K**,

**L**and

**R**operators for the far block interactions in the submatrices ${\mathbf{R}}_{1}^{\times}$, $-{\mathbf{R}}_{2}^{n}$, $-{\mathbf{K}}_{1}^{\times}$, ${\mathbf{K}}_{2}^{\times}$, ${\mathbf{K}}_{2}^{n}{\mu}_{2}/{\mu}_{1}$, ${\mathbf{L}}_{2}^{\times}{\mu}_{2}/{\mu}_{1}$, and $-{k}_{2}^{2}{\mathbf{L}}_{2}^{n}$ can be degenerated accordingly [10].

**c**and d at coarser levels can be accessed by those at leaf level and the transfer matrices

#### 2.3. MLACA Algorithm with Kernel Truncations

**Z**of far block pair t and s is with dimension T by S. Application of the ACA algorithm yields the following approximate factorization [9,10,11,20,21,22,23,24,25]

**Z**are calculated in ACA. The dimensions of

**U**and

**V**matrices are T by rank and rank by S, respectively. Since the rank is much smaller than T or S, only rank × (T + S) elements need to be computed and stored instead of T × S.

## 3. Numerical Experiments

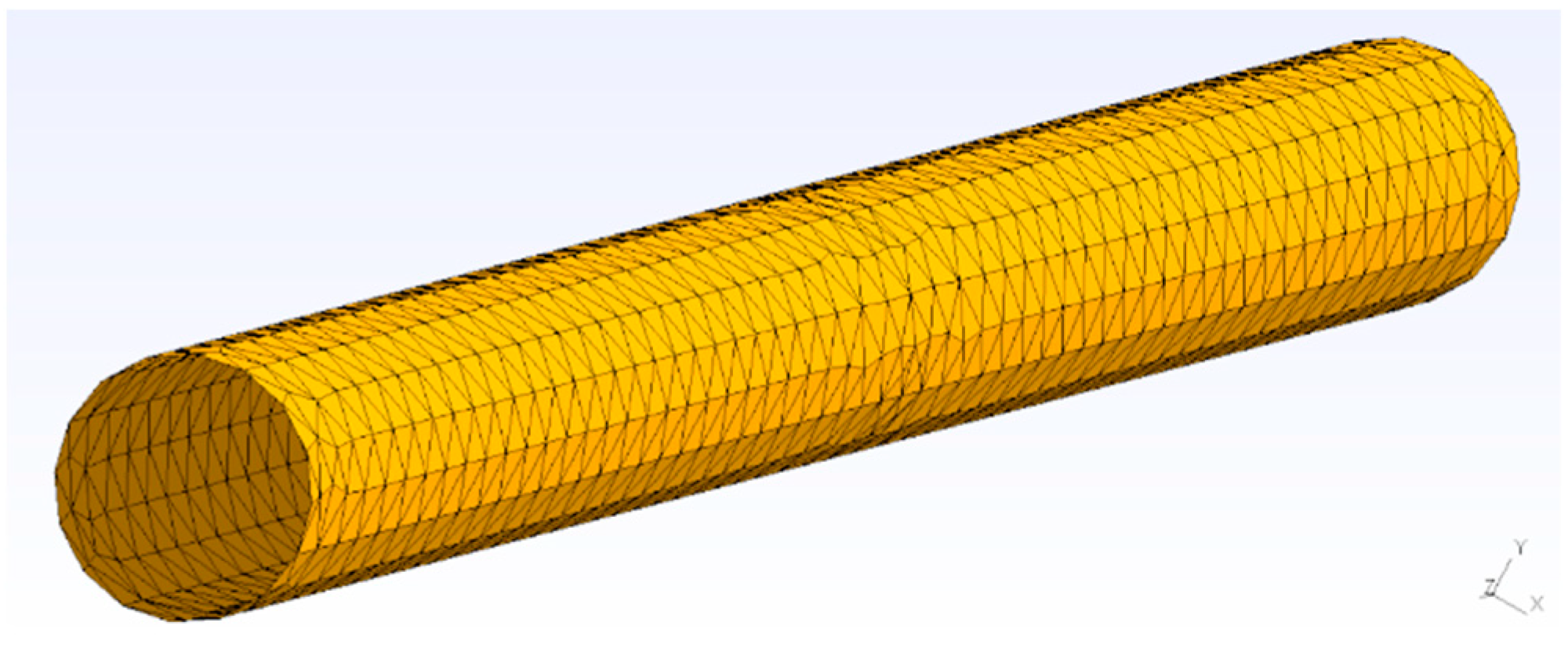

#### 3.1. Coil with Finite Cross Section Placing above a Conductive Plate

#### 3.2. Single Turn Coil Placing above a Conductive Sphere

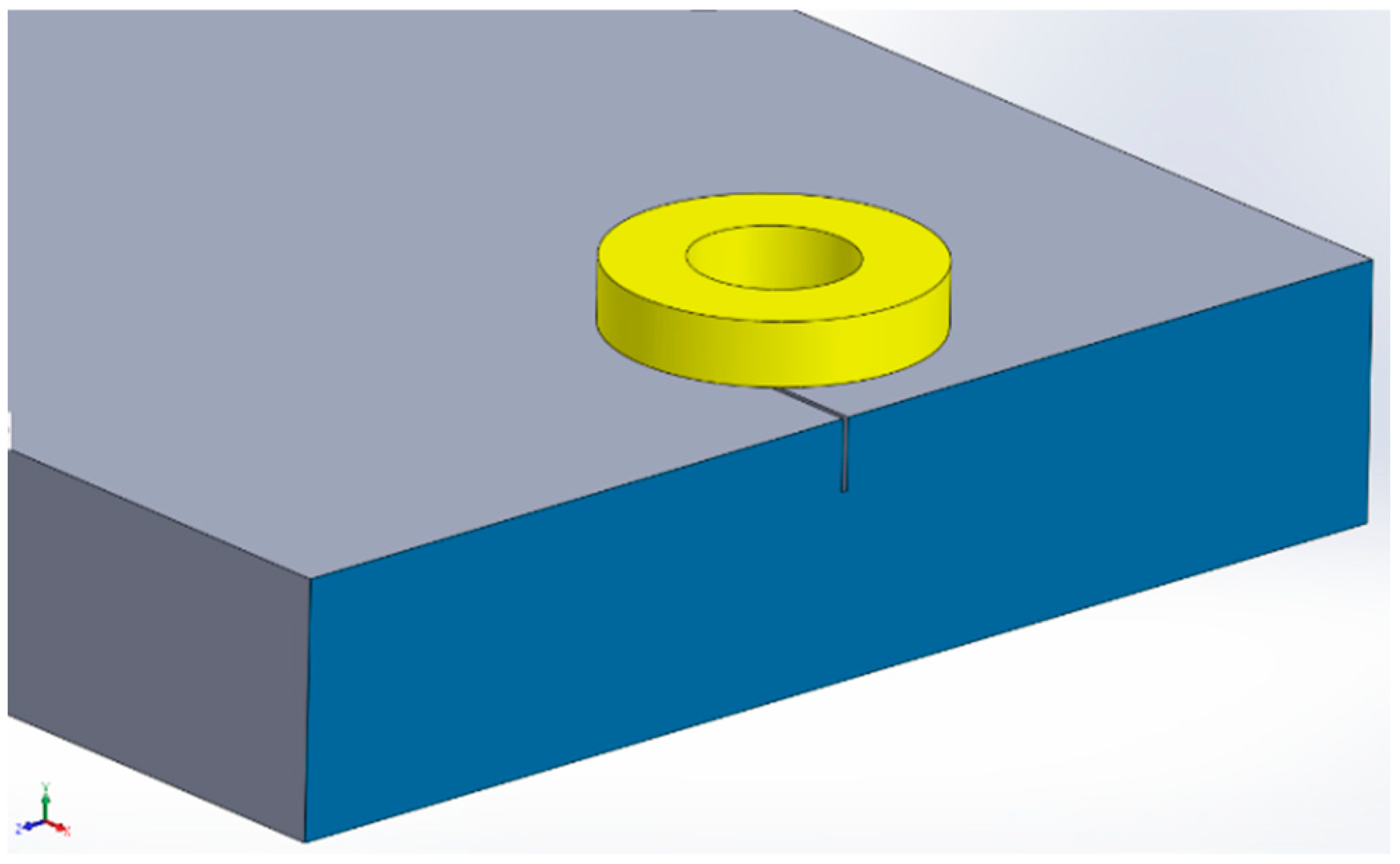

#### 3.3. Coil with Finite Cross Section Placing above a Conductive Plate with Surface Slot

## 4. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Lu, M.; Meng, X.; Huang, R.; Chen, L.; Tang, Z.; Li, J.; Peyton, A.; Yin, W. Determination of surface crack orientation based on thin-skin regime using triple-coil drive–pickup eddy-current sensor. IEEE Trans. Instrum. Meas.
**2020**, 70, 1–9. [Google Scholar] [CrossRef] - Bao, Y.; Song, J.M. Analysis of electromagnetic non-destructive evaluation modelling using Stratton-Chu formulation-based fast algorithm. Philos. Trans. R. Soc. A
**2020**, 378, 20190583. [Google Scholar] [CrossRef] [PubMed] - Pichenot, G.; Buvat, F.; Hristoforou, E. Eddy current modelling for nondestructive testing. J. Nondestruct. Test.
**2003**, 8, 1–5. [Google Scholar] - Gilles-Pascaud, C.; Pichenot, G.; Premel, D.; Reboud, C.; Skarlatos, A. Modelling of eddy current inspections with CIVA. In Proceedings of the 17th World Conference on Nondestructive Testing, Shanghai, China, 25 October 2008. [Google Scholar]
- Yang, M. Efficient Method for Solving Boundary Integral Equation in Diffusive Scalar Problem and Eddy Current Nondestructive Evaluation. Ph.D. Dissertation, Iowa State University, Ames, IA, USA, 2010. [Google Scholar]
- Chew, W.C.; Tong, M.S.; Hu, B. Integral Equation Methods for Electromagnetic and Elastic Waves, 1st ed.; Morgan & Claypool: London, UK, 2008; pp. 107–160. [Google Scholar]
- Rubinacci, G.; Tamburrino, A.; Ventre, S.; Villone, F. A fast 3-D multipole method for eddy-current computation. IEEE Trans. Mag.
**2004**, 40, 1290–1293. [Google Scholar] [CrossRef] - Song, J.M.; Lu, C.-C.; Chew, W.C. Multilevel fast multipole algorithm for electromagnetic scattering by large complex objects. IEEE Trans. Antennas Propag.
**1997**, 45, 1488–1493. [Google Scholar] [CrossRef] [Green Version] - Bebendorf, M. Approximation of boundary element matrices. Numer. Math.
**2000**, 86, 565–589. [Google Scholar] [CrossRef] - Bao, Y.; Liu, Z.W.; Song, J. Adaptive cross approximation algorithm for accelerating BEM in eddy current nondestructive evaluation. J. Nondestruct. Eval.
**2018**, 37, 68. [Google Scholar] [CrossRef] - Bao, Y.; Liu, Z.W.; Bowler, J.R.; Song, J. Multilevel adaptive cross approximation for efficient modeling of 3D arbitrary shaped eddy current NDE problems. NDTE Int.
**2019**, 104, 1–9. [Google Scholar] [CrossRef] - Tamburrino, A.; Ventre, S.; Rubinacci, G. A FFT integral formulation using edge-elements for eddy current testing. Int. J. Appl. Electromag. Mech.
**2000**, 11, 141–162. [Google Scholar] [CrossRef] - Hackbusch, W. A sparse matrix arithmetic based on H-matrices. Part I: Introduction to H-matrices. Computing
**1999**, 62, 89–108. [Google Scholar] [CrossRef] - Chai, W.W.; Jiao, D. An H
^{2}-matrix-based integral-equation solver of reduced complexity and controlled accuracy for solving electrodynamic problems. IEEE Trans. Antennas Propag.**2009**, 57, 3147–3159. [Google Scholar] [CrossRef] - Bao, Y.; Wan, T.; Liu, Z.; Bowler, J.R.; Song, J. Integral equation fast solver with truncated and degenerated kernel for computing flaw signals in eddy current non-destructive testing. NDT E Int.
**2021**, 124, 102544. [Google Scholar] [CrossRef] - Stratton, J.A. Electromagnetic Theory; McGraw-Hill: New York, NY, USA, 1941. [Google Scholar]
- Saad, Y.; Schultz, M.H. GMRES: A generalized minimal residual algorithm for solving nonsymmetric linear systems. SIAM J. Sci. Stat. Comp.
**1986**, 7, 856–869. [Google Scholar] [CrossRef] [Green Version] - Smith, C.F.; Peterson, A.F.; Mittra, R. A conjugate gradient algorithm for the treatment of multiple incident electromagnetic fields. IEEE Trans. Antennas Propag.
**1989**, 37, 1490–1493. [Google Scholar] [CrossRef] - Rao, S.M.; Wilton, D.R.; Glisson, A. Electromagnetic scattering by surfaces of arbitrary shape. IEEE Trans. Antennas Propag.
**1982**, 30, 409–428. [Google Scholar] [CrossRef] [Green Version] - Tamayo, J.M.; Heldring, A.; Rius, J.M. Multilevel adaptive cross approximation (MLACA). IEEE Trans. Antennas Propag.
**2011**, 59, 4600–4608. [Google Scholar] [CrossRef] [Green Version] - Chen, X.L.; Gu, C.Q.; Ding, J.; Li, Z.; Niu, Z. Multilevel fast adaptive cross approximation algorithm with characteristic basis functions. IEEE Trans. Antennas Propag.
**2015**, 63, 3994–4002. [Google Scholar] [CrossRef] - Gibson, W.C. Efficient solution of electromagnetic scattering problems using multilevel adaptive cross approximation and LU factorization. IEEE Trans. Antennas Propag.
**2020**, 68, 3815–3823. [Google Scholar] [CrossRef] - Nel, B.A.P.; Botha, M.M. An efficient MLACA-SVD solver for superconducting integrated circuit analysis. IEEE Trans. Appl. Supercond.
**2019**, 29, 1303301. [Google Scholar] [CrossRef] - Heldring, A.; Ubeda, E.; Rius, J.M. Improving the accuracy of the adaptive cross approximation with a convergence criterion based on random sampling. IEEE Trans. Antennas Propag.
**2021**, 69, 347–355. [Google Scholar] [CrossRef] - Liu, Y.; Sid-Lakhdar, W.; Rebrova, E.; Ghysels, P.; Li, X.S. A parallel hierarchical blocked adaptive cross approximation algorithm. Int. J. High Perform. Comput. Appl.
**2022**, 34, 394–408. [Google Scholar] [CrossRef] - Auld, B.A.; Moulder, J.C. Review of advances in quantitative eddy current nondestructive evaluation. J. Nondestruct. Eval.
**1999**, 18, 3–36. [Google Scholar] [CrossRef] - Theodoulidis, T.P.; Bowler, J.R. Eddy current coil interaction with a right-angled conductive wedge. Proc. R. Soc.
**2005**, 461, 3123–3139. [Google Scholar] [CrossRef] - Dodd, C.V.; Deeds, W.E. Analytical solutions to eddy-current probe-coil problems. J. Appl. Phys.
**1968**, 39, 2829–2838. [Google Scholar] [CrossRef] [Green Version] - Antimirov, M.Y.; Kolyshkin, A.A.; Vaillancourt, R. Mathematical Models for Eddy Current Testing; Les Publications CRM: Montreal, QC, Canada, 1997; pp. 107–114. [Google Scholar]
- Bao, Y.; Song, J.M. Multilevel kernel degeneration–adaptive cross approximation method to model eddy current NDE problems. J. Nondestruct. Eval.
**2022**, 41, 17. [Google Scholar] [CrossRef] - Bao, Y.; Liu, Z.W.; Bowler, J.R.; Song, J. Nested kernel degeneration-based boundary element method solver for rapid computation of eddy current signals. NDTE Int.
**2022**, 128, 102633. [Google Scholar] [CrossRef] - Sabbagh, H.A.; Burke, S.K. Benchmark problems in eddy-current NDE. In Proceedings of the Review of Progress in Quantitative Nondestructive Evaluation, Brunswick, ME, USA, 2 August 1992. [Google Scholar]

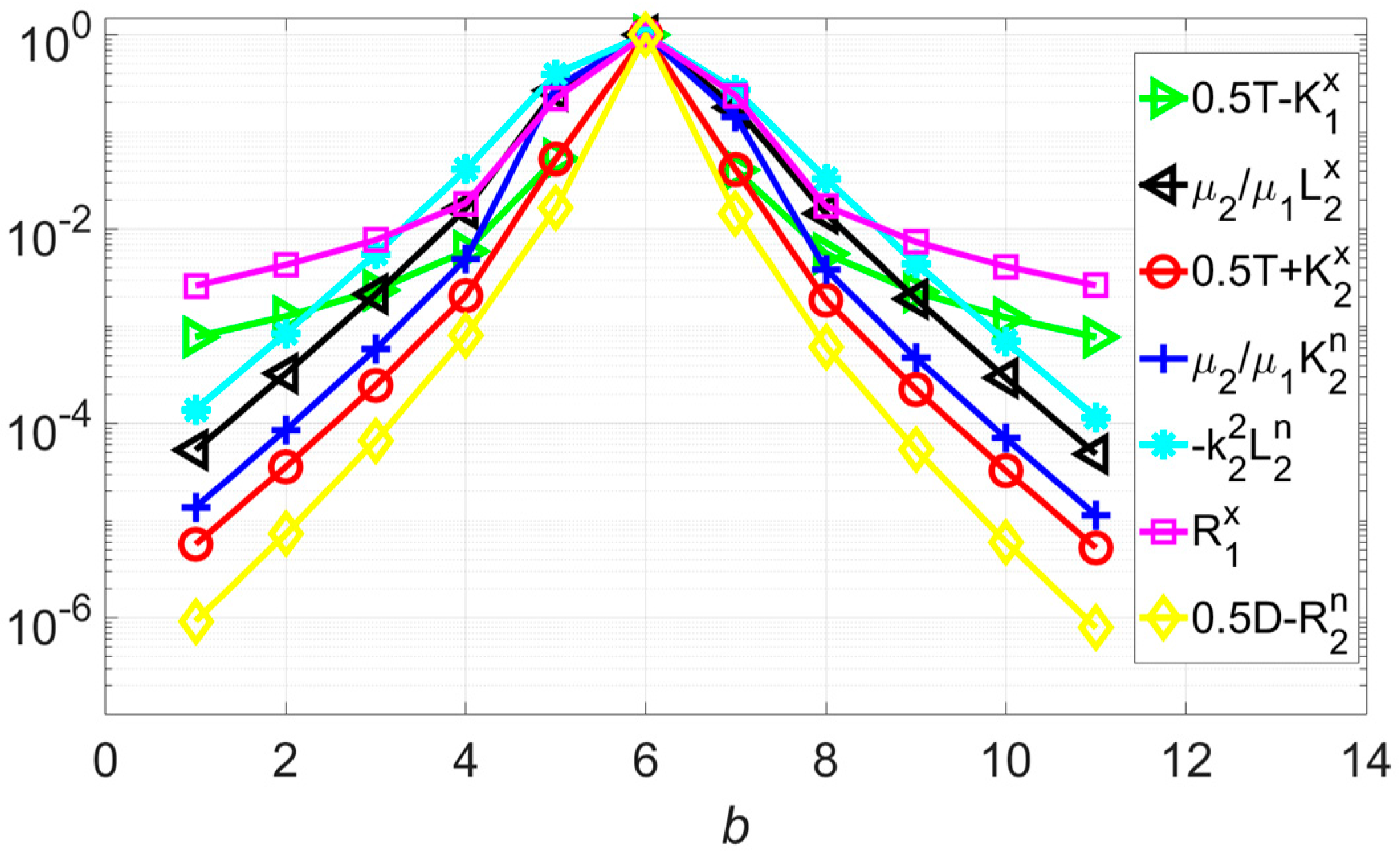

**Figure 3.**The ratios between block 6′s diagonal, near and far interactions, and its diagonal interactions of seven submatrices.

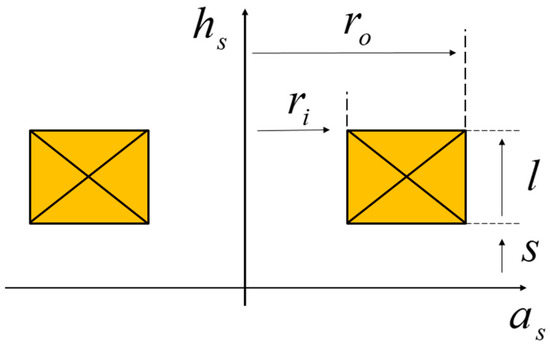

**Figure 4.**A coil with finite cross section. ${r}_{i}$ and ${r}_{o}$ represent the inner and outer radii of the coil, respectively. S is the lift-off distance between the coil and the conducting plate. l is the thickness of the coil. ${a}_{s}$ and ${h}_{s}$ are the continuous variables in the radial and vertical directions, respectively [2].

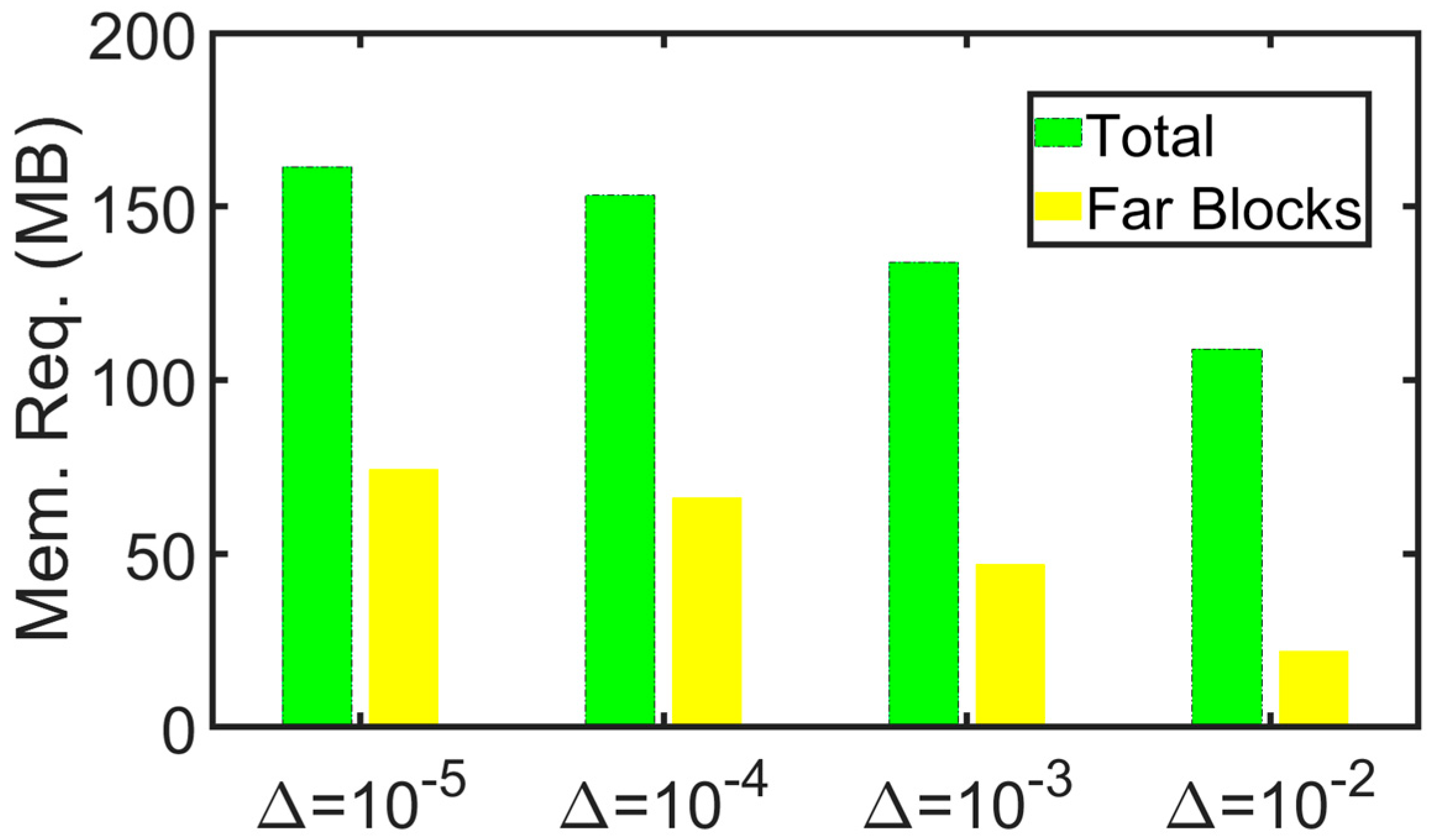

**Figure 5.**Case of placing coil C5 above the conductive plate. Memory requirements for total and far block interactions of MLKD-ACA algorithm with threshold values of kernel truncations.

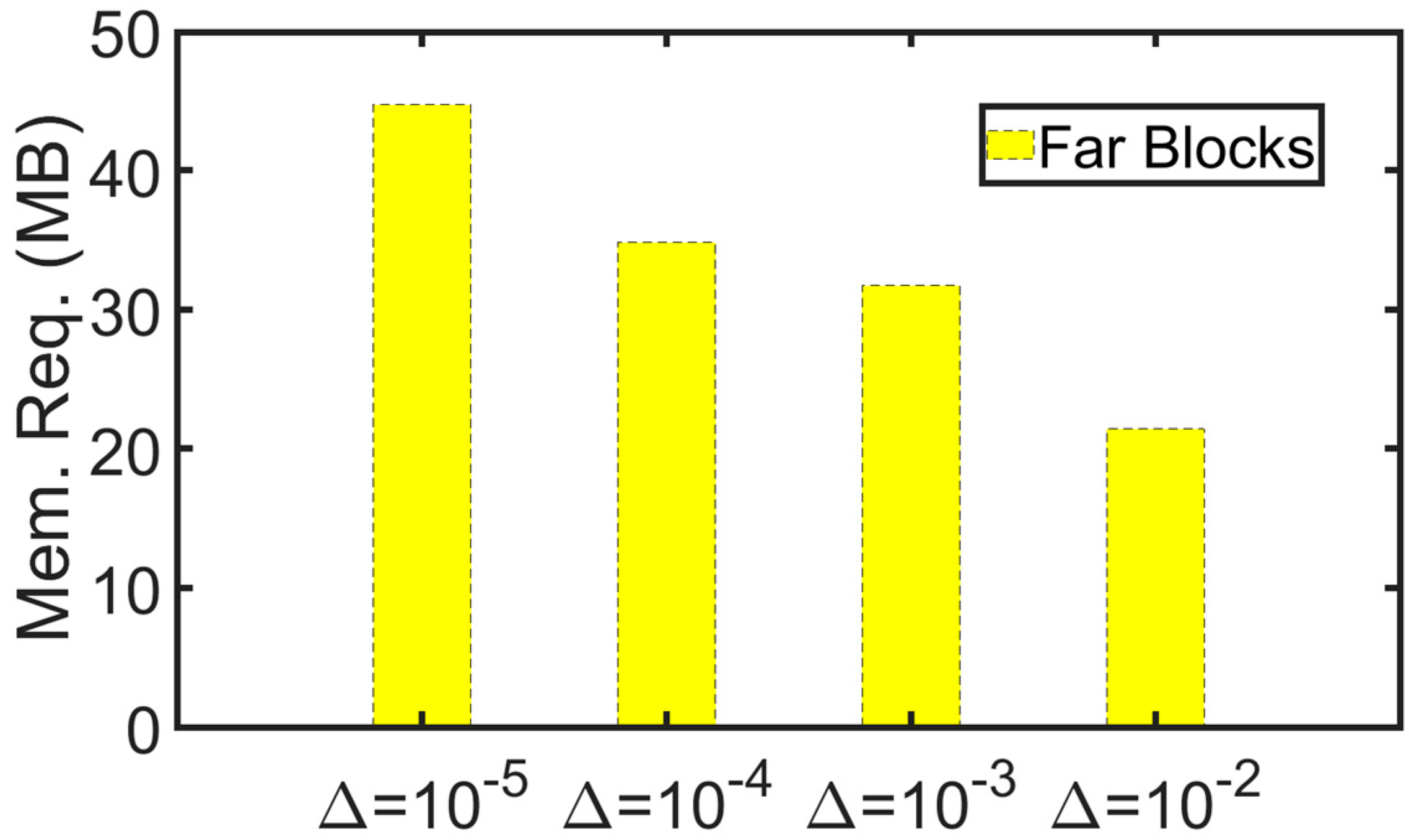

**Figure 6.**Case of placing coil C27 above the conductive plate. Memory requirements for total and far block interactions of MLKD-ACA algorithm with threshold values of kernel truncations.

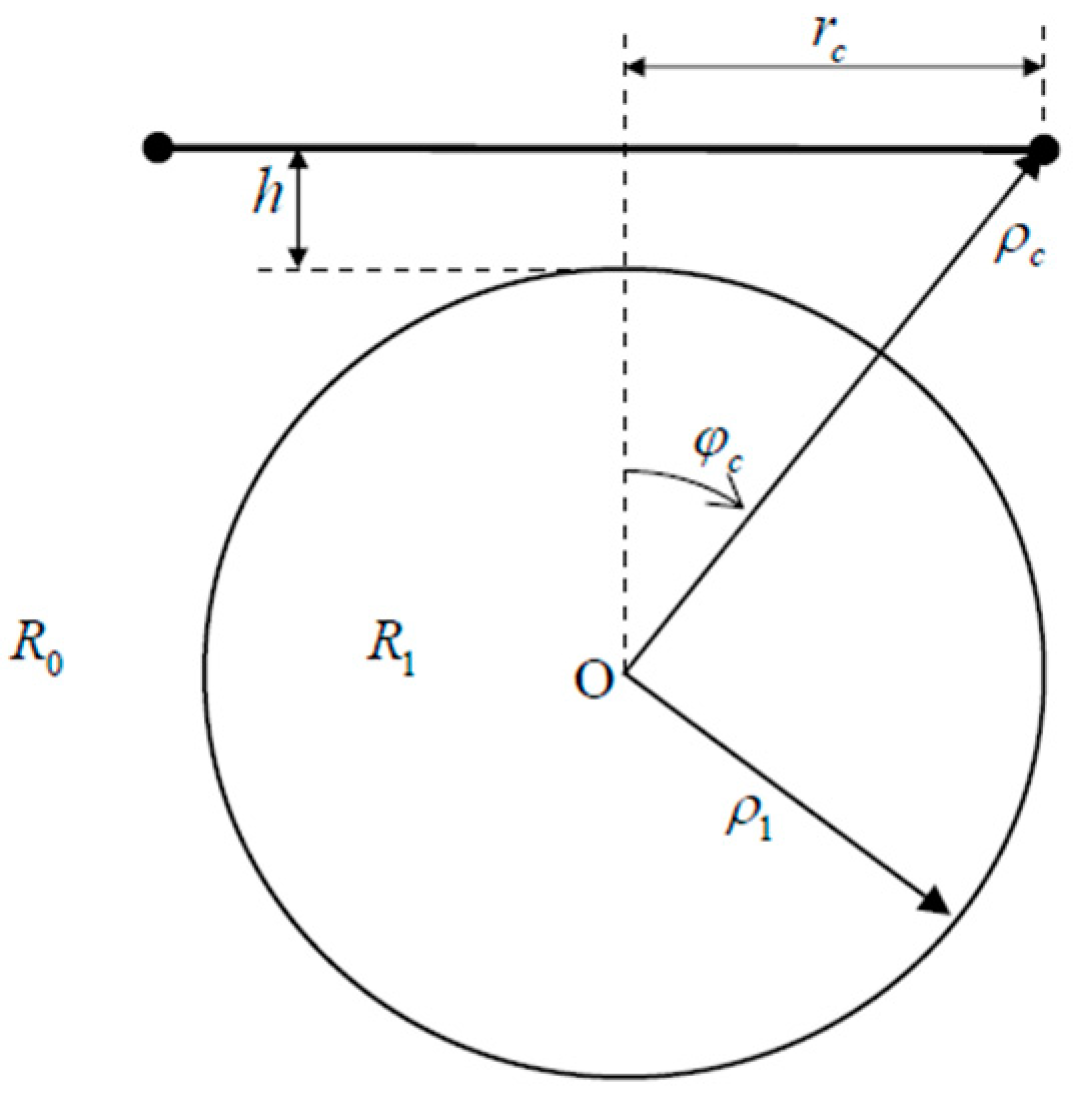

**Figure 7.**Problem description of placing single turn coil above a conducting sphere [29]. R

_{0}and R

_{1}represent the free space and conducting sphere. The radius of the single turn coil is ${r}_{c}$ with lift-off distance h between the coil and the sphere with radius ${\rho}_{1}$. ${\rho}_{c}$ is the distance between the origin of the sphere and the edge of the coil.

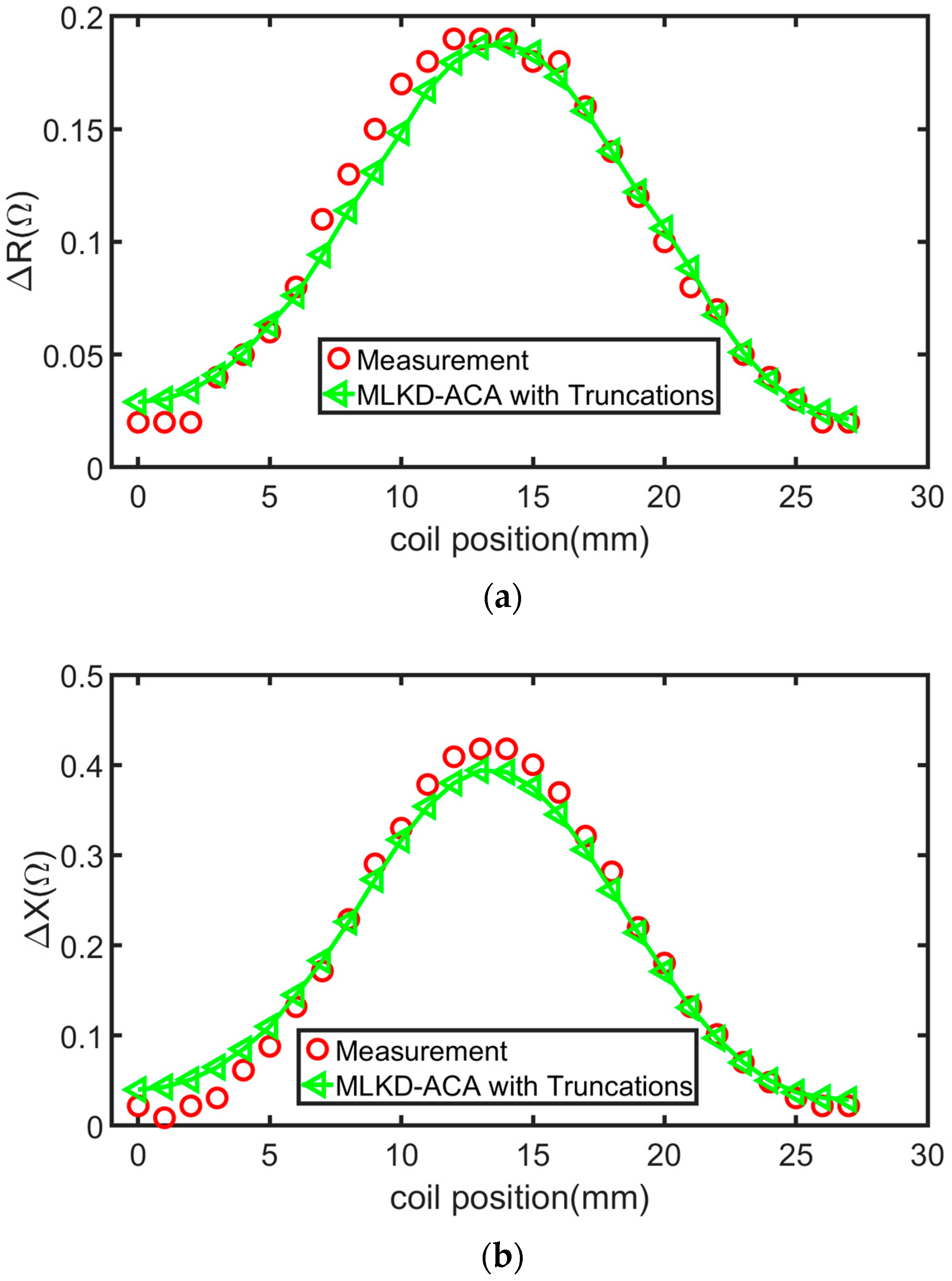

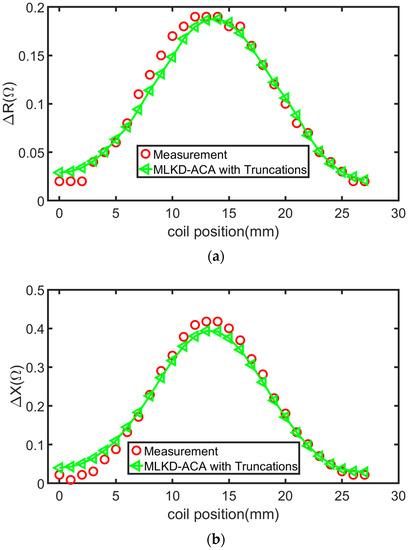

**Figure 9.**Impedance variations of scanning the coil above the conductive plate with surface slot predicted and measured by the MLKD-ACA algorithm with kernel truncations solver and measurements: (

**a**) Resistance variations; (

**b**) reactance variations.

**Table 1.**Impedance variations achieved by different solvers for placing coil C5, operating at 850 Hz, above a conductive plate.

Solver or Method | $\mathbf{Impedance}\text{}\mathbf{Variation}\text{}\left(\mathsf{\Omega}\right)$ |
---|---|

$\mathrm{MLKD}\text{-}\mathrm{ACA}\text{}\mathrm{with}\text{}{\Delta}_{1}={10}^{-2}$ | $22.054-69.312j$ |

$\mathrm{MLKD}\text{-}\mathrm{ACA}\text{}\mathrm{with}\text{}{\Delta}_{1}={10}^{-3}$ | $22.237-70.437j$ |

$\mathrm{MLKD}\text{-}\mathrm{ACA}\text{}\mathrm{with}\text{}{\Delta}_{1}={10}^{-4}$ | $22.141-70.431j$ |

$\mathrm{MLKD}\text{-}\mathrm{ACA}\text{}\mathrm{with}\text{}{\Delta}_{1}={10}^{-5}$ | $22.143-70.428j$ |

MoM [10] | $22.153-70.409j$ |

Experiment [27] | $20.00-70.5j$ |

Theodoulidis and Bowler [27] | $22.25-70.45j$ |

Dodd and Deeds [28] | $22.20-70.49j$ |

**Table 2.**Impedance variations achieved by different solvers for placing coil C27, operating at 20 kHz, above a conductive plate.

Solver or Method | $\mathbf{Impedance}\text{}\mathbf{Variation}\text{}\left(\mathsf{\Omega}\right)$ |
---|---|

$\mathrm{MLKD}\text{-}\mathrm{ACA}\text{}\mathrm{with}\text{}{\Delta}_{1}={10}^{-1}$ | $10.583-127.438j$ |

$\mathrm{MLKD}\text{-}\mathrm{ACA}\text{}\mathrm{with}\text{}{\Delta}_{1}={10}^{-2}$ | $12.825-124.837j$ |

$\mathrm{MLKD}\text{-}\mathrm{ACA}\text{}\mathrm{with}\text{}{\Delta}_{1}={10}^{-3}$ | $12.721-124.992j$ |

$\mathrm{MLKD}\text{-}\mathrm{ACA}\text{}\mathrm{with}\text{}{\Delta}_{1}={10}^{-4}$ | $12.721-124.990j$ |

$\mathrm{MLKD}\text{-}\mathrm{ACA}\text{}\mathrm{with}\text{}{\Delta}_{1}={10}^{-5}$ | $12.722-124.989j$ |

MoM [10] | $12.734-124.98j$ |

Experiment [27] | $12.650-125.1j$ |

Theodoulidis and Bowler [27] | $12.801-125.329j$ |

Dodd and Deeds [28] | $12.801-125.388j$ |

**Table 3.**Impedance variations predicted, and memory of far block pairs required, by different solvers for placing single turn coil, operating at 500 Hz, above a conductive sphere.

Solver or Method | $\mathbf{Impedance}\text{}\mathbf{Variation}\text{}\left(\mathsf{\mu}\mathsf{\Omega}\right)$ | Memory Requirement for Far Block Pairs (MB) |
---|---|---|

$\mathrm{MLKD}\text{-}\mathrm{ACA}\text{}\mathrm{with}\text{}{\Delta}_{1}={10}^{-2}$ | $0.2293-1.497j$ | 24.8 |

$\mathrm{MLKD}\text{-}\mathrm{ACA}\text{}\mathrm{with}\text{}{\Delta}_{1}={10}^{-3}$ | $0.2431-1.478j$ | 104.3 |

$\mathrm{MLKD}\text{-}\mathrm{ACA}\text{}\mathrm{with}\text{}{\Delta}_{1}={10}^{-4}$ | $0.2422-1.478j$ | 151.3 |

$\mathrm{MLKD}\text{-}\mathrm{ACA}\text{}\mathrm{with}\text{}{\Delta}_{1}={10}^{-5}$ | $0.2421-1.480j$ | 190.3 |

MoM [30,31] | $0.2416-1.484j$ | NA |

Analytical method [29] | $0.2425-1.489j$ | NA |
