Article

Exploring the High-Temperature Electrical Performance of Ca3−xLaxCo4O9 Thermoelectric Ceramics for Moderate and Low Substitution Levels

by
Gabriel Constantinescu
1,*,
Shahed Rasekh
1,
Parisa Amirkhizi
1,
Daniela V. Lopes
1,
Miguel A. Vieira
1,
Andrei V. Kovalevsky
1,
Juan C. Diez
2,
Andres Sotelo
2,
Maria A. Madre
2 and
Miguel A. Torres
2
1
Department of Materials and Ceramics Engineering, CICECO—Aveiro Institute of Materials, University of Aveiro, 3810-193 Aveiro, Portugal
2
Instituto de Nanociencia y Materiales de Aragón (INMA), CSIC-Universidad de Zaragoza, 50009 Zaragoza, Spain
*
Author to whom correspondence should be addressed.
Symmetry 2021, 13(5), 782; https://doi.org/10.3390/sym13050782
Submission received: 19 March 2021 / Revised: 24 April 2021 / Accepted: 29 April 2021 / Published: 1 May 2021
(This article belongs to the Section Physics)
Browse Figures
Versions Notes

Abstract

:
Aliovalent substitutions in Ca3Co4O9 often result in complex effects on the electrical properties and the solubility, and impact of the substituting cation also depends largely on the preparation and processing method. It is also well-known that the monoclinic symmetry of this material’s composite crystal structure allows for a significant hole transfer from the rock salt-type Ca2CoO3 buffer layers to the hexagonal CoO2 ones, increasing the concentration of holes and breaking the electron–hole symmetry from the latter layers. This work explored the relevant effects of relatively low La-for-Ca substitutions, for samples prepared and processed through a conventional ceramic route, chosen for its simplicity. The obtained results show that the actual substitution level does not exceed 0.03 (x < 0.03) in Ca3−xLaxCo4O9 samples with x = 0.01, 0.03, 0.05 and 0.07 and that further introduction of lanthanum results in simultaneous Ca3Co4O9 phase decomposition and secondary Ca3Co2O6 and (La,Ca)CoO3 phase formation. The microstructural effects promoted by this phase evolution have a moderate influence on the electronic transport. The electrical measurements and determined average oxidation state of cobalt at room temperature suggest that the present La substitutions might only have a minor effect on the concentration of charge carriers and/or their mobility. The electrical resistivity values of the Ca3−xLaxCo4O9 samples with x = 0.01, 0.03 and 0.05 were found to be ~1.3 times (or 24%) lower (considering mean values) than those measured for the pristine Ca3Co4O9 samples, while the changes in Seebeck coefficient values were only moderate. The highest power factor value calculated for Ca2.99La0.01Co4O9 (~0.28 mW/K2m at 800 °C) is among the best found in the literature for similar materials. The obtained results suggest that low rare-earth substitutions in the rock salt-type layers can be a promising pathway in designing and improving these p-type thermoelectric oxides, provided by the strong interplay between the mobility of charge carriers and their concentration, capable of breaking the electron–hole symmetry from the conductive layers.

1. Introduction

Thermoelectric (TE) materials have the ability to directly transform temperature gradients into electrical power, thanks to the Seebeck effect. The efficiency of this conversion is normally quantified using the dimensionless figure of merit ZT, equal to S2T/ρκ (in which S2/ρ is also called the power factor, PF, representing the electrical performance), where S, ρ, κ and T are the Seebeck coefficient (or thermopower), electrical resistivity, total thermal conductivity and absolute temperature, respectively [1]. The focus on TE materials capable of direct solid-state energy conversion using high-temperature waste heat is increasingly rising due to some environmental challenges imposed by global warming effects [2,3,4]. These renewable energy materials can be used in various high-temperature power generation applications, such as waste heat recovery devices [5] and solar TE generators [6]. They can also be used in heating/refrigeration devices [7], owing to the inverse Peltier effect.
Considering the expression for ZT, high-performance TE materials must simultaneously possess large Seebeck coefficients and low electrical resistivity and thermal conductivity values. Large temperature gradients also result in a higher TE conversion efficiency. Generally, a low electrical resistivity is also necessary to minimize the Joule heating effect, while a low thermal conductivity can lead to different temperature gradients being maintained between the involved hot and cold sides.
Modern commercial TE modules/devices constructed from intermetallic compounds such as Bi2Te3 [8] or CoSb3 [9], with ZT values around one, are industrially used in some niche applications (such as remote probing/sensing) at relatively low temperatures. These materials are incapable of working at high temperatures in air because of the degradation and/or evaporation of the heavy constitutive elements, which are also expensive, scarce and/or toxic and can pose a real threat to the environment and human health. The stability and working temperature limitations, characteristic for “classical” TE materials, were left behind with the discovery of promising TE properties in NaCo2O4 ceramics [10] in 1997. From this point onwards, substantial work has been performed on other cobaltite species with promising TE performance, especially at high temperatures and in oxygen-rich environments. The p-type Bi-AE-Co-O-based (AE: alkaline earth metals) materials [11,12,13] and the so-called Ca3Co4O9 compound [14,15] are regarded as the most promising candidates from this particular class of functional electroceramics.
Crystallographic studies of these layered cobaltites have revealed an intrinsically nanostructured nature. These materials possess a complex monoclinic crystal structure (unit cell), made from two distinct layers, alternatively stacked in the direction of the c-axis, having all the crystal parameters equal, except the b-axis lengths [16,17]. A triple distorted rock salt (RS)-type [Ca2CoO3] insulating layer (regarded as the first subsystem) is sandwiched between two hexagonal CdI2-type [CoO2] common conductive layers (regarded as the second subsystem), and a “misfit” or incommensurability ratio results from the two different b-axis lengths. These layered structures exhibit high electrical conductivity and low thermal conductivity, resulting in figures of merit comparable to those of traditional intermetallic TEs, while exhibiting superior thermal and chemical stability, especially at higher temperatures.
The incommensurability ratio and/or the electrical charge from the RS-type layers situated between the [CoO2] ones have been found to govern the Seebeck coefficient values from these materials [16]. It was also reported that the two distinct Co sites from Ca3Co4O9 play two completely different roles in its TE behavior, which are to provide charge carriers to the CoO2 layers and to conduct holes along the CoO2 layers [18]. This has allowed the TE properties of this class of compounds to be tailored via chemical substitutions, such as Sb3+ for Ca2+ in Ca3Co4O9 [19] or Pb2+ for Bi3+ in Bi2Sr2Co1.8Ox [20] or Bi2Ca2Co1.7Ox [21]. Other significant improvements in the TE properties of these materials can be achieved by additions of metallic Ag, where an increase in the material’s electrical performance is produced by improving the electrical contacts between the grains [22,23,24,25].
The high crystallographic/structural anisotropy from these materials leads to the formation of plate-like grains during sintering processes, which opens the possibility to preferentially align them using different methods that take advantage of their intrinsic properties. Such processing/texturing processes performed on bulk, polycrystalline materials would allow for the alignment of the conducting ab planes, which in turn would lead to electrical properties comparable to those obtained in single crystals. Various methods have been reported to be successful in producing well-aligned materials with high density and improved electrical properties in these cobaltites or in similar anisotropic ceramic systems, such as uniaxial hot-pressing (HP) [26], spark plasma sintering (SPS) [27], microwave sintering (MS) [28], (electrically assisted) laser floating zone melting ((EA)LFZ) [29,30] and reactive templated grain growth (TGG) [31]. These techniques have the main advantage of producing dense materials with very low electrical resistivity values, owing to the preferential alignment of the conducting planes with the direction of current flow. Unfortunately, they possess some important drawbacks, such as the high prices associated with the spark plasma sintering systems/processes and the relatively long processing times involved in the uniaxial hot-pressing and the reactive templated grain growth methods.
The calcium substitution with lanthanum in Ca3Co4O9 materials has been studied in several works aimed at TE [32,33] and solid oxide fuel cell (SOFC) [34] applications. Good prospects for tailoring TE performance were demonstrated for the materials prepared by wet chemistry methods and for those consolidated using SPS. The implemented substitution levels were remarkably large (up to x = 0.3 in Ca3−xLaxCo4O9), while little or no attention was given to low and moderate values of x. The attained substitution level is also significantly affected by the preparation/processing route. This work explores the relevant effects of relatively low substitutions of La for Ca on the microstructure and high-temperature electrical properties of Ca3−xLaxCo4O9 (x = 0.00, 0.01, 0.03, 0.05 and 0.07) ceramics, prepared through a classical solid-state (ceramic) route. This conventional synthetic method was chosen for its simplicity, reduced pollution, low costs, industrial importance and scalability, despite its known major disadvantage of producing low surface area products that can possibly exhibit low reactivity in the sintering stage. The electron–hole symmetry from the conductive CoO2 layers was expected to change as a result of a mobile hole concentration and/or mobility increase, produced by the incorporation of the trivalent lanthanum ions into the RS-type sublattices, to a certain extent. The compositional and morpho-structural modifications produced by the partial substitutions are related to the changes in TE performance.

2. Materials and Methods

Ca3−xLaxCo4O9 bulk polycrystalline ceramics, with x = 0.00, 0.01, 0.03, 0.05 and 0.07, were prepared through a conventional solid-state synthesis route using stoichiometric amounts of CaCO3 (Sigma-Aldrich (Darmstadt, Germany), ≥99%), La2O3 (Sigma-Aldrich, ≥99.9%) and CoO (Panreac (Barcelona, Spain), 99.5%) commercial powders as precursors. Appropriate quantities of starting powders were carefully mixed and ball-milled for 30 min at 8 relative centrifugal force (RCF) in acetone using an agate ball mill. The resulting ceramic slurries were dried until full evaporation of the acetone. The dry mixtures were then manually ground in an agate mortar for a final homogenization, followed by 2 annealing cycles performed in air, at 750 and 800 °C for 12 h each, with an intermediate manual grinding in order to assure the complete decomposition of any remaining carbonates [35] and improve the reactivity of the ceramic powders in the following sintering stage. After the two thermal treatments, rectangular, bar-shaped samples (3 × 2.5 × 14 mm3) were obtained by uniaxial pressing (400 MPa, one minute) of appropriate amounts of corresponding green powders. The consolidated green bars were subsequently sintered in air, at 910 °C for 24 h, with a final, free cooling [35].
X-ray diffraction (XRD) analyses (at room temperature, with 2θ angles between 5 and 70 degrees and a step of 0.03 °2θ) were performed on powdered, sintered samples to identify the phase composition in each case, using Rigaku D/max-B powder XRD equipment working with CuKα radiation (λ = 1.54 Å). The corresponding lattice parameters (including β angles and unit cell volumes) were calculated using a profile matching method through Rietveld refinement, with the FullProf program [36].
Morphological and microstructural studies were performed on longitudinal polished surfaces of selected samples from each composition, with the help of a field emission scanning electron microscope (FESEM, Carl Zeiss Merlin) equipped with an energy dispersive spectrometry (EDS) analyzer. Several micrographs (taken using both backscattered and secondary electrons, using an acceleration voltage of 20 kV) from each composition were taken to analyze the different phases present and their distribution in the bulk materials.
Apparent density calculations (using the samples’ masses and volumes) were performed for several sintered samples from each composition (to minimize measurement errors) using the theoretical density value of 4.677 g/cm3 for the Ca3Co4O9 phase [37].
The oxygen content from all compositions was determined through room-temperature cerimetry in order to calculate the mean cobalt valence (Co3+ + Co4+) from the conductive layers using a procedure described in previous works [38].
The electrical resistivity (ρ) and Seebeck coefficient (S) values were simultaneously measured using the standard four-point probe DC technique in a commercial LSR-3 measurement system (Linseis, GmbH (Selb, Germany)) in a steady-state mode and at temperatures (T) between 50 and 800 °C, under inert He atmosphere. The estimated experimental error of the measured electrical resistivity and Seebeck coefficient values did not exceed 3–5% and 5–7%, respectively.
From the measured resistivity values, the activation energies (from the semiconducting regime) for each composition were calculated and compared with the reference, undoped samples, based on the relationship σTαexp(-Ea/kBT), where σ, T, Ea and kB are the electrical conductivity, absolute temperature, activation energy and Boltzmann constant, respectively. The activation energies were obtained from the Ln(σT) vs. 1000/T plots, from the fitting slopes below T*, which represents the semiconducting-to-metallic transition temperature and which is clearly marked in all the corresponding modified Arrhenius plots. The fitting slopes from the metallic conductivity regime are also shown in these plots (linear fits are just visual guides) to clearly indicate T*.
The PF values were calculated from the determined electrical resistivity and Seebeck coefficient values (using the S2/ρ formula, mentioned earlier) and compared with the relevant results from the literature.
All plots were constructed using the KaleidaGraph (Synergy Software, Reading, PA, USA) software. The profile refinement graph was constructed with the WinPLOTR tool [39] from the FullProf suite (ILL.EU).

3. Results and Discussion

The powder XRD patterns of the different Ca3−xLaxCo4O9 samples are displayed in Figure 1, between 5 and 40 degrees for clarity. All samples show very similar diffraction patterns, and the highest peaks (indexed in Figure 1A(a)) in all cases belong to the Ca3Co4O9 TE phase, with monoclinic symmetry [37], in agreement with the PDF cards #00-058-0661 [37] and #00-062-0692 and with previously reported results [40,41,42]. In the same figure, the peak marked with a * and situated at ~31 °2θ corresponds to the secondary Ca3Co2O6 phase [41,43,44], in agreement with the PDF cards #00-051-0311 [45] and #04-010-0812. Upon the substitution with La, new peaks attributed to the secondary Ca3Co2O6 phase start to appear and increase in intensity (Figure 1A(b–e)), proportional to the nominal substitution level. A similar phase evolution was observed previously for Nd-substituted Ca3Co4O9 samples [35] for similar substitution levels. However, this tendency is not seen for the Ca2.93La0.07Co4O9 samples, probably due to the formation of other secondary phases not detected by the XRD technique. When the XRD peaks corresponding to the Ca3Co4O9 and Ca3Co2O6 phases are analyzed in more detail, a small shift (visible in Figure 1B) to higher 2θ angles is seen, indicating a slight decrease in the corresponding lattice parameters and unit cell volumes. The corresponding results (and their standard errors) are presented in Table 1, together with the Rietveld refinement agreement factors, calculated apparent (geometrical) density and activation energy (corresponding to the semiconducting regime of the electrical resistivity) values.
The profile matching technique from the Rietveld refinement allowed for the identification of the C12/m1 (base-centered) space group for the Ca3Co4O9 phase in all cases. Furthermore, a supercell approximation was used for the calculation of the lattice parameters of the Ca3Co4O9 phase, for simplicity. The “goodness of fit” is reflected in Figure 1B and the agreement factors from Table 1, where it is easy to see that the best fit was achieved for the 0.05 La-substituted Ca3Co4O9 samples, having the smallest agreement factors from this work. The variation of the unit cell volumes seen in Table 1 is rather minor, being partially provided by the relatively small difference in the ionic radii of Ca2+ and La3+ [46] and, presumably, by the low substitution levels attained in the corresponding samples. The calculated unit cell volumes for the Ca3−xLaxCo4O9 samples prepared in this work are very close to those found in the literature (~0.24 nm3) [32], for similar compositions. A minor variation of the unit cell size is also in accordance with that stated in Reference [35] for the Ca3−xNdxCo4O9 samples. However, in contrast, it has also been reported that the unit cell volume for some Ca2.7La0.3Co4O9 samples (with higher nominal amounts of La) prepared via a nitrate self-combustion synthesis method increases slightly [34]. Still, the tendency observed in the present work is weak and comparable to the experimental error, being possibly affected by the formation of other phases, as discussed below.
General FESEM-EDS analyses revealed that all samples possess very similar grain morphology and microstructure (Figure 2). A relatively high degree of porosity, which is nonuniformly distributed in the bulk, is indicated by the black contrast. The porosity can be explained by the relatively low thermal and compositional stability of the Ca3Co4O9 phase (which is stable up to ~926 °C in air), when compared to the minimum temperature necessary to produce the liquid phase (~1350 °C) [41,42] to attain a good densification by conventional sintering. The highest degree of porosity can be seen for the Ca2.93La0.07Co4O9 samples (Figure 2d). The complementary EDS analysis suggests that all Ca3−xLaxCo4O9 samples are mainly composed of the Ca3Co4O9 phase, with some small inclusions of the Ca3Co2O6 one, in agreement with the previously discussed XRD results. In Figure 2, both phases can be seen as having very similar contrasts and only present slightly different grain shapes and sizes, being hard to distinguish one phase from another with this technique. The major Ca3Co4O9 phase can be easily identified in Figure 2 as the plate-like grains with different orientation and of different shapes and sizes (a typical trait of the solid-state synthesis method). Lanthanum was detected by point EDS analyses in small (~0.02 wt. %) and large (~0.1 wt. %) amounts in Ca3−xLaxCo4O9 and Ca3−xLaxCo2O6, respectively, similarly to the case of the substitution with Nd [35]. Some scattered white-contrast areas (in Figure 2c,d) correspond to La-rich phases, which appear at the highest substitution levels.
More detailed point EDS analysis of the white-contrast areas from Figure 2c,d shows that they correspond to a (La,Ca)CoO3 secondary phase, with a (La + Ca):Co ratio of 1:1. In the ternary equilibrium-phase diagram of the CaO-La2O3-CoO system [47], a LaCoO3 solid solution phase having a rhombohedral-distorted perovskite structure can be found. It can therefore be assumed that the secondary (La,Ca)CoO3 phase identified by the EDS analysis corresponds to a LaCoO3-based solid solution, which, however, was not detected by the XRD technique. The formation of these secondary phases can also be found in other experimental works from the literature [34] and are attributed to the higher stability of the perovskite-type LaCoO3 phase, as compared to Ca3−xLaxCo4O9 and Ca3−xLaxCo2O6. For a closer view of the perovskite-type LaCoO3 phase, Figure 3 shows the morphology and microstructure of the additional secondary (La + Ca)CoO3 phase in more detail for the Ca2.93La0.07Co4O9 samples. These La-rich secondary phases discovered by the EDS analyses possess a very bright contrast and completely different morphology and microstructure, being easily distinguished as irregular grain shapes, with much smaller grain size (≤1.5 μm). It should be noted that, in the case of Nd-substituted Ca3Co4O9 samples [35], the corresponding white-contrast inclusions were mainly attributed to the Nd-rich Ca3Co2O6 phase (for x ≤ 0.05). A different phase evolution for the Ca3−xLaxCo4O9 samples can be at least partially related to the higher thermodynamic stability of LaCoO3 as compared to NdCoO3 [48].
The substitution with lanthanum does not seem to modify the morphology of the grains corresponding to the Ca3−xLaxCo4O9 or Ca3−xLaxCo2O6 phases, their mean sizes in all cases being estimated between 1 and 5 μm in the planar dimension, equivalent to the a-b crystallographic plane, and ~0.5 μm in thickness, along the direction of the c-axis, as in other, similar works found in the literature [49,50,51]. The approximate thickness of 0.5 μm along the c-axis direction results from the pile up of very-thin plate-like grains of Ca3Co4O9, each one measuring an individual thickness of ~35 nm and exhibiting a preferential growth along the a–b plane, as was estimated for similar polycrystalline layered cobaltites using Scherrer’s formula [52].
The pristine and substituted samples show comparable apparent density values (Table 1) of ~72% (for the x = 0.01, 0.03 and 0.05 samples) of the theoretical value chosen for this work. The x = 0.07 sample possesses a notably lower density (54% of the theoretical density). All other calculated densities are very close to other values found in the literature for similar compositions [35,50,51]. This indicates that the small substitutions with lanthanum do not improve the densification process during normal sintering. The relatively high porosity can be mostly attributed to the inefficient packing of the plate-like grains (low grain-packing density) during grain growth. The calculated density values support the previously discussed FESEM results, where the porosity was detected in all La-doped samples and especially in the Ca2.93La0.07Co4O9 ones. The calculated decrease in density for the Ca2.95La0.05Co4O9 and Ca2.93La0.07Co4O9 samples can also be attributed to the formation of the secondary (La,Ca)CoO3 phase (detected by the EDS analysis), which was most prevalent in the samples with the largest porosity (Ca2.93La0.07Co4O9).
The variation of the Seebeck coefficient values with temperature for all Ca3−xLaxCo4O9 samples is shown in Figure 4. The sign of the thermopower is positive for all samples at all measured temperatures, confirming a conduction mechanism governed by p-type charge carriers, typical for the Ca3Co4O9 compound. The Seebeck coefficient values for all samples are very close and increase proportionally with temperature, following similar behavior and being almost independent of the La content. Similar trends were previously observed for Nd-substituted Ca3Co4O9 samples [35] for the same substitution levels.
These results indicate that the small substitutions with La performed in this study do not seem to significantly alter the charge carrier concentration from the conductive layers of the Ca3Co4O9 compound, which is to be expected, considering the higher oxidation state of the lanthanum (La3+) ions with respect to the calcium (Ca2+) ones. The comparable charge carrier concentrations in all samples were confirmed by the room-temperature cerimetric titrations, with which a mean cobalt valence of ~3.11 was calculated in all cases. The highest S values measured at 800 °C (~210 μV/K) are, however, higher than some of the best-reported values in the literature, obtained for various high-density La-doped Ca3Co4O9 samples [33,53,54].
The electrical resistivity versus temperature graphs for the various Ca3−xLaxCo4O9 samples are shown in Figure 5. Between 50 and around 440 °C, all samples express a semiconducting-type behavior (dρ/dT < 0), followed by a metallic-type dependence (dρ/dT > 0) at higher temperatures. This transition temperature varies only slightly (~20–40 °C), for each composition. The ρ values measured for the x = 0.01, 0.03 and 0.05 substituted samples are approximately the same, being lower than for the pristine composition. On the other hand, the ρ values of the Ca2.93La0.07Co4O9 samples (around 25 mΩ·cm) are notably higher than the reference in the entire measured temperature range. In these misfit layered cobaltites, a thermally activated hole-hopping (from Co4+ to Co3+) conduction mechanism is known to be behind the charge carrier transport from the semiconducting regime [55,56], while a more-simple valence or conduction band transport is attributed to the metallic conduction regime [35,57].
The electrical resistivity trends seen in Figure 5 can be easily explained on the basis of the highly anisotropic properties of the Ca3Co4O9 phase, which is widely known to present a metallic-like behavior in the direction of the a–b plane and a semiconducting-like one in the direction of the c-axis [37]. Furthermore, when substituting Ca2+ with La3+ in the RS-type layers (which are regarded as an electrical charge reservoir for supplying charge carriers into the [CoO2] layers), the resistivity values of all La-doped samples are expected to increase proportionally with lanthanum contents due to a consecutive, proportional decrease in the concentration of holes from the conductive layers along the a–b planes. In particular, such a tendency was reported in Reference [32] for Ca3−xLnxCo4O9 (Ln = La, Pr, Dy and Yb) samples when studying the compositions with x = 0, 0.1, 0.2, 0.3, the behavior being attributed to the simultaneous decrease in the charge carrier concentration and mobility. This does not seem to be the case in this study, where the electrical resistivity values measured for the samples with x = 0.01, 0.03 and 0.05 (considered relatively similar, with a mean of around 16 mΩ·cm) are around 1.3 times (21/16 mΩ·cm) or 24% ([(21 − 16)/21]*100) lower than the ρ values measured for the pristine, reference sample (having a mean of around 21 mΩ·cm). The latter indicates that the relevant effects may be different at relatively low substitution levels. Similar behavior was observed for low terbium contents in Tb-substituted Ca3Co4O9 samples [58]. In the case of Ca3−xBixCo4O9 thin films, the resistivity was also found to decrease from x = 0 to x = 0.4 [59]. Finally, a significant decrease in resistivity was observed while incorporating a minor amount of Nd (x = 0.01) into Ca3−xNdxCo4O9 samples [35]. This opposite effect can probably be explained by an increase in the charge carrier mobility, which, at low substitution levels, may dominate over the suppression of the charge carrier concentration. While comparing the relevant effects in Ca3−xLaxCo4O9 and Ca3−xNdxCo4O9 samples [35] for a similar substitution level, cation size effects could be considered. The ionic radius of six-fold coordinated Ca2+ (1.0 Å) is slightly larger than for Nd3+ (0.983 Å) and slightly smaller than for La3+ (1.032 Å) [46]. This implies that opposite lattice stresses will be induced when Nd is replaced by La. Correspondingly, this might affect the charge compensation mechanism, facilitating the cobalt reduction and the corresponding increase in cobalt cation size in the case of smaller Nd3+, with an opposite effect for larger La3+. Interestingly, these assumptions correlate well with the resistivity behaviour seen in both systems: Further increase in Nd concentration to x = 0.03 and x = 0.05 impairs the charge carrier transport, presumably due to a decrease in the average oxidation state of cobalt and corresponding decrease in the charge carrier concentration, while Ca3−xLaxCo4O9 samples with x = 0.01, 0.03 and 0.05 maintain similar and notably lower resistivity as compared to the pristine, reference Ca3Co4O9 samples. Additional factors including local changes in the crystal structure and modifications of the misfit relationship between [CoO2] and [Ca2CoO3] may also contribute to this complex behavior, as evidenced by Reference [60]. The highest resistivity values measured for the Ca2.93La0.07Co4O9 samples (which also showed the lowest density value) can be attributed to a higher porosity and partial decomposition of the Ca3Co4O9 matrix, facilitated by the formation of the more stable (La,Ca)CoO3 perovskite phase. In any case, the lowest resistivity values of the 0.01, 0.03 and 0.05 La-doped samples, measured at room temperature and 800 °C (~16 mΩ·cm), are notably lower than some of the best values found in the literature (~30 mΩ·cm at room temperature and ~20 mΩ·cm at around 730 °C) for Ca2.7La0.3Co4O9 samples prepared by a conventional solid-state reaction method [32].
Finally, if the basic equation 1/ρ = neμ [61] is applied using the module, with n, e (=−1.602·10−19 C) and μ (≈1 cm2V−1s−1 [62]) standing for the concentration of holes, charge of the electron and the mobility of the holes, respectively, the concentration of holes n (=1/ρeμ) comes out in the range 37–42·1019cm−3 for the Ca3−xLaxCo4O9 samples with x = 0.01, 0.03 and 0.05, and in the range 28–31·1019 cm−3 for the reference Ca3Co4O9 samples. These values are slightly higher than the typical n values found in the literature (20–40·1019 cm−3 [62]), for transition-metal-doped Ca3Co4O9 samples, and the n values for the Ca3−xLaxCo4O9 samples with x = 0.01, 0.03 and 0.05 are indeed slightly higher than those for the reference Ca3Co4O9 samples (in contrast with the n values for the low density Ca2.93La0.07Co4O9 samples, which are found in the range 23–26·1019 cm−3, being slightly lower than those for the reference), thus quantitatively explaining the minor effects of the small La substitutions on the charge carrier concentrations at higher temperatures.
The semiconducting-to-metallic transition temperature T* can be clearly seen in Figure 6, where the modified Arrhenius plots for the various Ca3−xLaxCo4O9 samples are shown. The T* values do not appear to vary significantly, in agreement with the previous resistivity results (a variation of ~20–40 °C). The calculated activation energy (relative to the semiconducting regime) values Ea were found to be around 34 meV for the 0.03 and 0.05 La-doped samples, ~35 meV for the 0.01 La-doped samples and ~37 meV for the undoped, reference samples and 0.07 La-doped ones (also in Table 1), confirming that small substitutions of La do not have a great influence on the thermally activated hole-hopping process from the relevant temperature range, being partially responsible for the electrical conduction from these materials. The same trends can also be found elsewhere in the literature for similar cases and compositions [35,53,63,64,65].
The TE performance of the various Ca3−xLaxCo4O9 materials was finally evaluated using the PF values, plotted in Figure 7. The PF values of the samples with x = 0.01, 0.03 and 0.05 are almost identical, while being higher than those measured for the reference, pristine composition. This improvement is mainly provided by the decrease in electrical resistivity, apparently stemming from the faster charge carrier transport outweighing the hole consumption effect on substitution with small amounts of La. The highest PF values, obtained for the 0.01 La-doped samples, are between ~22% (at room temperature) and ~40% (at 800 °C) higher than the ones obtained for the reference, non-substituted samples.

4. Conclusions

In this study, Ca3−xLaxCo4O9 samples with x = 0.00, 0.01, 0.03, 0.05 and 0.07 were successfully synthesized and processed through a classical solid-state route, chosen for its simplicity, and their high-temperature electrical properties were analyzed and related to their composition, morphology and microstructural features.
  • The La3+ ions were found to substitute the Ca2+ ones in the Ca3Co4O9 phase, only in small amounts (x < 0.03), disturbing the electron–hole symmetry from the conductive CoO2 layers and improving the mobile hole conduction in the corresponding samples.
  • The microstructural characterizations showed that the ceramic morphology is mostly unaffected by the substitutions with lanthanum, except for the Ca2.93La0.07Co4O9 samples, which showed an additional secondary phase with very distinct morphology of its grains.
  • Higher levels of La substitutions (x > 0.03) were found to promote the secondary Ca3Co2O6 phase formation and, further on, of the (La,Ca)CoO3 phase in the Ca2.93La0.07Co4O9 samples with the largest substitutions from this work.
  • The PF values calculated for the 0.01, 0.03 and 0.05 La-doped samples are almost identical and higher than for the pristine Ca3Co4O9 samples, provided by their lower electrical resistivity and caused by a possible increase in charge carrier concentration and/or mobility.
  • Higher substitution levels (x > 0.05) resulted in the appearance of additional porosity and a noticeable decrease in electrical performance in the Ca2.93La0.07Co4O9 samples.
  • The highest PF values at 50 and 800 °C, calculated for the 0.01 La-doped samples (~0.11 and ~0.28 mW/K2m respectively), are around 31% higher than for the pristine Ca3Co4O9 materials used as reference.
These conclusions suggest that small substitutions with rare-earth metals in the RS-type layers are a promising pathway for boosting the high-temperature electrical performance of the strongly correlated Ca3Co4O9 compound, known to be highly susceptible to even the slightest breaks in the electron–hole symmetry of the conductive layers of its structure.

Author Contributions

Conceptualization, G.C., A.V.K., J.C.D. and A.S.; Data curation, G.C., S.R. and D.V.L.; Formal analysis, G.C., S.R., A.V.K., J.C.D., A.S., M.A.M. and M.A.T.; Funding acquisition, G.C. and A.V.K.; Investigation, G.C., S.R., P.A., D.V.L., M.A.V., M.A.M. and M.A.T.; Methodology, G.C., S.R., D.V.L., A.V.K., A.S. and M.A.M.; Project administration, G.C. and A.V.K.; Software, G.C. and S.R.; Supervision, A.V.K., J.C.D. and A.S.; Validation, G.C., S.R., P.A., D.V.L. and M.A.V.; Visualization, G.C., S.R., P.A., D.V.L., M.A.V. and A.V.K.; Writing—original draft, G.C., A.V.K. and A.S.; Writing—review and editing, G.C., S.R., P.A., D.V.L., M.A.V., A.V.K., J.C.D., M.A.M. and M.A.T. All authors have read and agreed to the published version of the manuscript.

Funding

Symmetry 13 00782 i001 This project has received funding from the European Union’s Horizon 2020 research and innovation programme Symmetry 13 00782 i001.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

Data sharing not available.

Acknowledgments

G. Constantinescu acknowledges the support of the TEOsINTE project (Grant agreement ID: 101003375), funded under the H2020-EU.4. Programmes (Funding Scheme: MSCA-IF-EF-ST—Standard EF). Partial support of the project REMOTE (POCI-01-0145-FEDER-031875) is also acknowledged. This work was partially developed within the scope of the project CICECO-Aveiro Institute of Materials, UIDB/50011/2020 and UIDP/50011/2020, financed by national funds through the Portuguese Foundation for Science and Technology/MCTES. J.C. Diez, A. Sotelo, M.A. Madre and M.A. Torres acknowledge the financial support of the Spanish MINECO-FEDER project MAT2017-82183-C3-1-R and the Aragón Government (Research Group T54-20R). The technical contributions of C. Estepa, and C. Gallego are highly appreciated and acknowledged. Sh. Rasekh acknowledges the support of the Research Employment Contract FCT–CEECIND/02608/2017. P. Amirkhizi acknowledges the financial support of the Portuguese FCT Doctoral Studentship 2020.08051.BD. D. V. Lopes acknowledges the financial support of the research fellowship BI/UI50/9051/2020 provided by the European Commission (project SIDERWIN-DLV-768788—Horizon 2020/SPIRE10).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript or in the decision to publish the results.

References

  1. Rowe, D.M. Thermoelectrics Handbook: Macro to Nano, 1st ed.; CRC Press: Boca Raton, FL, USA, 2006; pp. 1-3–1-7. [Google Scholar]
  2. Freer, R.; Powell, A.V. Realising the potential of thermoelectric technology: A Roadmap. J. Mater. Chem. C 2020, 8, 441–463. [Google Scholar] [CrossRef]
  3. Bahrami, A.; Schierning, G.; Nielsch, K. Waste Recycling in Thermoelectric Materials. Adv. Energy Mater. 2020, 10. [Google Scholar] [CrossRef] [Green Version]
  4. Beretta, D.; Neophytou, N.; Hodges, J.M.; Kanatzidis, M.G.; Narducci, D.; Martin-Gonzalez, M.; Beekman, M.; Balke, B.; Cerretti, G.; Tremel, W.; et al. Thermoelectrics: From history, a window to the future. Mater. Sci. Eng. R Rep. 2019, 138, 100501. [Google Scholar] [CrossRef]
  5. Mahan, G.; Sales, B.; Sharp, J. Thermoelectric materials: New approaches to an old problem. Phys. Today 1997, 50, 42–47. [Google Scholar] [CrossRef]
  6. Naito, H.; Kohsaka, Y.; Cooke, D.; Arashi, H. Development of a solar receiver for a high-efficiency thermionic/thermoelectric conversion system. Sol. Energy 1996, 58, 191–195. [Google Scholar] [CrossRef]
  7. Kim, C.M.; Hwang, Y.J.; Ryu, Y.H. Air Conditioner for Individual Cooling/Heating. U.S. Patent 6,393,842, 28 May 2002. [Google Scholar]
  8. Liu, W.; Lukas, K.C.; McEnaney, K.; Lee, S.; Zhang, Q.; Opeil, C.P.; Chen, G.; Ren, Z. Studies on the Bi2Te3-Bi2Se3-Bi2S3 system for mid-temperature thermoelectric energy conversion. Energy Environ. Sci. 2013, 6, 552–560. [Google Scholar] [CrossRef]
  9. Artini, C.; Carlini, R.; Spotorno, R.; Failamani, F.; Mori, T.; Mele, P. Structural properties and thermoelectric performance of the double-filled skutterudite (Sm,Gd)y(FexNi1-x)4Sb12. Materials 2019, 12, 2451. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Terasaki, I.; Sasago, Y.; Uchinokura, K. Large thermoelectric power in single crystals. Phys. Rev. B Condens. Matter Mater. Phys. 1997, 56, R12685–R12687. [Google Scholar] [CrossRef]
  11. Sotelo, A.; Rasekh, S.; Madre, M.A.; Guilmeau, E.; Marinel, S.; Diez, J.C. Solution-based synthesis routes to thermoelectric Bi2Ca2Co1.7Ox. J. Eur. Ceram. Soc. 2011, 31, 1763–1769. [Google Scholar] [CrossRef] [Green Version]
  12. Madre, M.A.; Rasekh, S.; Diez, J.C.; Sotelo, A. New solution method to produce high performance thermoelectric ceramics: A case study of Bi-Sr-Co-O. Mater. Lett. 2010, 64, 2566–2568. [Google Scholar] [CrossRef] [Green Version]
  13. Constantinescu, G.; Rasekh, S.; Torres, M.A.; Madre, M.A.; Diez, J.C.; Sotelo, A. Enhancement of the high-temperature thermoelectric performance of Bi 2Ba 2Co 2O x ceramics. Scr. Mater. 2013, 68, 75–78. [Google Scholar] [CrossRef] [Green Version]
  14. Funahashi, R.; Matsubara, I.; Ikuta, H.; Takeuchi, T.; Mizutani, U.; Sodeoka, S. Oxide single crystal with high thermoelectric performance in air. Jpn. J. Appl. Phys. 2000, 39, L1127. [Google Scholar] [CrossRef]
  15. Torres, M.A.; Costa, F.M.; Flahaut, D.; Touati, K.; Rasekh, S.; Ferreira, N.M.; Allouche, J.; Depriester, M.; Madre, M.A.; Kovalevsky, A.V.; et al. Significant enhancement of the thermoelectric performance in Ca3Co4O9 thermoelectric materials through combined strontium substitution and hot-pressing process. J. Eur. Ceram. Soc. 2019, 39, 1186–1192. [Google Scholar] [CrossRef] [Green Version]
  16. Maignan, A.; Pelloquin, D.; Hebert, S.; Klein, Y.; Hervieu, M. Thermoelectric power in misfit cobaltites ceramics: Optimization by chemical substitutions. Bol. Soc. Esp. Ceram. Vidr. 2006, 45, 122–125. [Google Scholar] [CrossRef]
  17. Maignan, A.; Hébert, S.; Hervieu, M.; Michel, C.; Pelloquin, D.; Khomskii, D. Magnetoresistance and Magnetothermopower Properties of Bi/Ca/Co/O and Bi(Pb)/Ca/Co/O Misfit Layer Cobaltites. Available online: https://iopscience.iop.org/article/10.1088/0953-8984/15/17/323 (accessed on 17 July 2020).
  18. Yang, G.; Ramasse, Q.; Klie, R.F. Direct measurement of charge transfer in thermoelectric Ca3Co4O9. Phys. Rev. B Condens. Matter Mater. Phys. 2008, 78, 153109. [Google Scholar] [CrossRef]
  19. Demirel, S.; Aksan, M.A.; Altin, S. Low temperature electrical and thermal transport properties of the Ca 3-xSbxCo4O9 system. J. Mater. Sci. Mater. Electron. 2012, 23, 2251–2256. [Google Scholar] [CrossRef]
  20. Sotelo, A.; Rasekh, S.; Guilmeau, E.; Madre, M.A.; Torres, M.A.; Marinel, S.; Diez, J.C. Improved thermoelectric properties in directionally grown Bi 2Sr2Co1.8Oy ceramics by Pb for Bi substitution. Mater. Res. Bull. 2011, 46, 2537–2542. [Google Scholar] [CrossRef] [Green Version]
  21. Sotelo, A.; Guilmeau, E.; Rasekh, S.H.; Madre, M.A.; Marinel, S.; Diez, J.C. Enhancement of the thermoelectric properties of directionally grown Bi-Ca-Co-O through Pb for Bi substitution. J. Eur. Ceram. Soc. 2010, 30, 1815–1820. [Google Scholar] [CrossRef] [Green Version]
  22. Mikami, M.; Ando, N.; Funahashi, R. The effect of Ag addition on electrical properties of the thermoelectric compound Ca3Co4O9. J. Solid State Chem. 2005, 178, 2186–2190. [Google Scholar] [CrossRef]
  23. Kahraman, F.; Madre, M.A.; Rasekh, S.; Salvador, C.; Bosque, P.; Torres, M.A.; Diez, J.C.; Sotelo, A. Enhancement of mechanical and thermoelectric properties of Ca3Co4O9 by Ag addition. J. Eur. Ceram. Soc. 2015, 35, 3835–3841. [Google Scholar] [CrossRef] [Green Version]
  24. Sotelo, A.; Torres, M.A.; Constantinescu, G.; Rasekh, S.; Diez, J.C.; Madre, M.A. Effect of Ag addition on the mechanical and thermoelectric performances of annealed Bi 2Sr 2Co 1.8O x textured ceramics. J. Eur. Ceram. Soc. 2012, 32, 3745–3751. [Google Scholar] [CrossRef] [Green Version]
  25. Sotelo, A.; Rasekh, S.; Constantinescu, G.; Torres, M.A.; Madre, M.A.; Diez, J.C. Improvement of textured Bi1.6Pb0.4Sr 2Co1.8Ox thermoelectric performances by metallic Ag additions. Ceram. Int. 2013, 39, 1597–1602. [Google Scholar] [CrossRef] [Green Version]
  26. Madre, M.A.; Urrutibeascoa, I.; García, G.; Torres, M.A.; Sotelo, A.; Diez, J.C. High-Temperature Stability of Hot-Pressed Sr-Doped Ca3Co4O9. J. Electron. Mater. 2019, 48, 1965–1970. [Google Scholar] [CrossRef]
  27. Noudem, J.G.; Kenfaui, D.; Chateigner, D.; Gomina, M. Toward the enhancement of thermoelectric properties of lamellar Ca 3Co 4O 9 by edge-free spark plasma texturing. Scr. Mater. 2012, 66, 258–260. [Google Scholar] [CrossRef]
  28. Miyazawa, K.; Amaral, F.; Kovalevsky, A.V.; Graça, M.P.F. Hybrid microwave processing of Ca3Co4O9 thermoelectrics. Ceram. Int. 2016, 42, 9482–9487. [Google Scholar] [CrossRef]
  29. Ferreira, N.M.; Rasekh, S.; Costa, F.M.; Madre, M.A.; Sotelo, A.; Diez, J.C.; Torres, M.A. New method to improve the grain alignment and performance of thermoelectric ceramics. Mater. Lett. 2012, 83, 144–147. [Google Scholar] [CrossRef] [Green Version]
  30. Diez, J.C.; Rasekh, S.; Constantinescu, G.; Costa, F.M.; Ferreira, N.M.; Torres, M.A.; Madre, M.A.; Sotelo, A. High Thermoelectric Performances in Co-oxides Processed by a Laser Floating Zone Technique. Mater. Today Proc. 2015, 2, 654–660. [Google Scholar] [CrossRef]
  31. Tani, T.; Itahara, H.; Kadoura, H.; Asahi, R. Crystallographic orientation analysis on calcium cobaltite ceramic grains textured by reactive-templated grain growth. Int. J. Appl. Ceram. Technol. 2007, 4, 318–325. [Google Scholar] [CrossRef]
  32. Wang, Y.; Sui, Y.; Li, F.; Xu, L.; Wang, X.; Su, W.; Liu, X. Thermoelectrics in misfit-layered oxides [(Ca,Ln) 2CoO 3] 0.62[CoO 2]: From bulk to nano. Nano Energy 2012, 1, 456–465. [Google Scholar] [CrossRef]
  33. Liu, Y.; Zhang, L.; Shirsath, S.E.; Zheng, J.; Liu, Y.; Ulrich, C.; Li, S. Manipulation of charge carrier concentration and phonon scattering via spin-entropy and size effects: Investigation of thermoelectric transport properties in La-doped Ca3Co4O9. J. Alloys Compd. 2019, 801, 60–69. [Google Scholar] [CrossRef]
  34. Ben Yahia, H.; Mauvy, F.; Grenier, J.C. Ca3-xLaxCo4O9+δ (x = 0, 0.3): New cobaltite materials as cathodes for proton conducting solid oxide fuel cell. J. Solid State Chem. 2010, 183, 527–531. [Google Scholar] [CrossRef]
  35. Constantinescu, G.; Torres, M.A.; Rasekh, S.; Madre, M.A.; Diez, J.C.; Sotelo, A. Modification of thermoelectric properties in Ca3Co 4Oy ceramics by Nd doping. J. Mater. Sci. Mater. Electron. 2014, 25, 922–927. [Google Scholar] [CrossRef] [Green Version]
  36. Rodríguez-Carvajal, J. Recent advances in magnetic structure determination by neutron powder diffraction. Phys. B Phys. Condens. Matter 1993, 192, 55–69. [Google Scholar] [CrossRef]
  37. Masset, A.; Michel, C.; Maignan, A.; Hervieu, M.; Toulemonde, O.; Studer, F.; Raveau, B.; Hejtmanek, J. Misfit-layered cobaltite with an anisotropic giant magnetoresistance. Phys. Rev. B Condens. Matter Mater. Phys. 2000, 62, 166–175. [Google Scholar] [CrossRef]
  38. Madre, M.A.; Costa, F.M.; Ferreira, N.M.; Sotelo, A.; Torres, M.A.; Constantinescu, G.; Rasekh, S.; Diez, J.C. Preparation of high-performance Ca3Co4O9 thermoelectric ceramics produced by a new two-step method. J. Eur. Ceram. Soc. 2013, 33, 1747–1754. [Google Scholar] [CrossRef] [Green Version]
  39. Roisnel, T.; Rodríguez-Carvajal, J. WinPLOTR: A Windows tool for powder diffraction patterns analysis Materials Science Forum, Proceedings of the Seventh European Powder Diffraction Conference (EPDIC 7). R. Delhez E J. Mittenmeijer 2000, 118–123. [Google Scholar]
  40. Brisi, C.; Rolando, P. Ricerche sul sistema ossido di calcio-ossido cobaltoso-ossigeno. Ann. Chim. 1968, 58, 676–683. [Google Scholar]
  41. Woermann, E.; Muan, A. Phase equilibria in the system CaO-cobalt oxide in air. J. Inorg. Nucl. Chem. 1970, 32, 1455–1459. [Google Scholar] [CrossRef]
  42. Sedmidubský, D.; Jakeš, V.; Jankovský, O.; Leitner, J.; Sofer, Z.; Hejtmánek, J. Phase equilibria in Ca-Co-O system. J. Solid State Chem. 2012, 194, 199–205. [Google Scholar] [CrossRef]
  43. Fjellvåg, H.; Gulbrandsen, E.; Aasland, S.; Olsen, A.; Hauback, B.C. Crystal Structure and Possible Charge Ordering in One-Dimensional Ca3Co2O6. J. Solid State Chem. 1996, 124, 190–194. [Google Scholar] [CrossRef]
  44. Takahashi, J.; Yamane, H.; Shimada, M. Thermoelectric Properties of Ca3Co2O6 Single Crystal. Jpn. J. Appl. Phys. 2004, 43, L331–L333. [Google Scholar] [CrossRef]
  45. Bezdicka, P. Academy of Sciences of the Czech Republic, Inst. of Inorganic Chemistry, Rezu Prahy, Czech Republic. ICDD Grant-in-Aid 1999. Available online: https://www.icdd.com/ (accessed on 13 May 2019).
  46. Shannon, R.D. Revised effective ionic radii and systematic studies of interatomic distances in halides and chalcogenides. Acta Crystallogr. Sect. A 1976, 32, 751–767. [Google Scholar] [CrossRef]
  47. Cherepanov, V.A.; Gavrilova, L.Y.; Barkhatova, L.Y.; Voronin, V.I.; Trifonova, M.V.; Bukhner, O.A. Phase Equilibria in the La-Me-Co-O (Me = Ca, Sr, Ba) Systems. Ionics 1998, 4, 309. [Google Scholar] [CrossRef]
  48. Sahu, S.K.; Tanasescu, S.; Scherrer, B.; Marinescu, C.; Navrotsky, A. Energetics of lanthanide cobalt perovskites: LnCoO3-δ (Ln = La, Nd, Sm, Gd). J. Mater. Chem. A 2015, 3, 19490–19496. [Google Scholar] [CrossRef]
  49. Matsubara, I.; Funahashi, R.; Takeuchi, T.; Sodeoka, S. Thermoelectric Properties of Spark Plasma Sintered Ca2.75Gd0.25Co4O9 ceramics; American Institute of Physics AIP: College Park, MD, USA, 2001; Volume 90, pp. 462–465. [Google Scholar]
  50. Song, X.; Chen, Y.; Chen, S.; Barbero, E.; Thomas, E.L.; Barnes, P. Significant enhancement of electrical transport properties of thermoelectric Ca 3Co 4O 9δ through Yb doping. Solid State Commun. 2012, 152, 1509–1512. [Google Scholar] [CrossRef]
  51. Rasekh, S.; Constantinescu, G.; Torres, M.A.; Diez, J.C.; Madre, M.A.; Sotelo, A. Thermoelectric properties of rare earth doped Ca3-xRE xCo4O9 (RE = Dy, Er, Gd, and Tb; X∈=∈0, 0.01, 0.03, and 0.05). J. Electroceram. 2014, 32, 376–382. [Google Scholar] [CrossRef] [Green Version]
  52. Torres, M.A.; Sotelo, A.; Rasekh, S.; Serrano, I.; Constantinescu, G.; Madre, M.A.; Diez, J.C. Improvement of thermoelectric properties of Bi2Sr2Co1.8Ox through solution synthetic methods. Bol. Soc. Esp. Ceram. Vidr. 2012, 51, 1–6. [Google Scholar] [CrossRef] [Green Version]
  53. Song, Y.; Nan, C.W. High temperature transport properties of Ag-added (Ca 0.975La0.025)3Co4O9 ceramics. Phys. B Condens. Matter 2011, 406, 2919–2923. [Google Scholar] [CrossRef]
  54. Lin, Y.H.; Nan, C.W.; Liu, Y.; Li, J.; Mizokawa, T.; Shen, Z. High-temperature electrical transport and thermoelectric power of partially substituted Ca3Co4O9-based ceramics. J. Am. Ceram. Soc. 2007, 90, 132–136. [Google Scholar] [CrossRef]
  55. Lin, Y.H.; Lan, J.; Shen, Z.; Liu, Y.; Nan, C.W.; Li, J.F. High-temperature electrical transport behaviors in textured Ca 3Co4O9-based polycrystalline ceramics. Appl. Phys. Lett. 2009, 94. [Google Scholar] [CrossRef]
  56. Mott, N.F.; Jones, H. The Theory of the Properties of Metals and Alloys; Dover: New York, NY, USA, 1958; p. 305. [Google Scholar]
  57. Pinitsoontorn, S.; Lerssongkram, N.; Keawprak, N.; Amornkitbamrung, V. Thermoelectric properties of transition metals-doped Ca 3Co 3.8M 0.2O9δd (M 5 Co, Cr, Fe, Ni, Cu and Zn). J. Mater. Sci. Mater. Electron. 2012, 23, 1050–1056. [Google Scholar] [CrossRef]
  58. Saini, S.; Yaddanapudi, H.S.; Tian, K.; Yin, Y.; Magginetti, D.; Tiwari, A. Terbium Ion Doping in Ca3Co4O9: A Step towards High-Performance Thermoelectric Materials. Sci. Rep. 2017, 7, srep44621. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Sun, T.; Hng, H.H.; Yan, Q.Y.; Ma, J. Enhanced high temperature thermoelectric properties of Bi-doped c -axis oriented Ca3Co4O9 thin films by pulsed laser deposition. J. Appl. Phys. 2010, 108, 83709. [Google Scholar] [CrossRef]
  60. Mikam, M.; Chong, K.; Miyazaki, Y.; Kajitani, T.; Inoue, T.; Sodeoka, S.; Funahashi, R. Bi-substitution effects on crystal structure and thermoelectric properties of Ca3Co4O9 single crystals. Jpn. J. Appl. Phys. Part 1 Regul. Pap. Short Notes Rev. Pap. 2006, 45, 4131–4136. [Google Scholar] [CrossRef]
  61. Snyder, G.J.; Toberer, E.S. Complex thermoelectric materials. Nat. Mater. 2008, 7, 105–114. [Google Scholar] [CrossRef]
  62. Wang, Y.; Sui, Y.; Wang, X.; Su, W.; Liu, X. Enhanced high temperature thermoelectric characteristics of transition metals doped Ca3Co4O9+δ by cold high-pressure fabrication. J. Appl. Phys. 2010, 107, 033708. [Google Scholar] [CrossRef]
  63. Wang, D.; Chen, L.; Wang, Q.; Li, J. Fabrication and thermoelectric properties of Ca3-xDy xCo4O9+δ system. J. Alloys Compd. 2004, 376, 58–61. [Google Scholar] [CrossRef]
  64. Bhaskar, A.; Jhang, C.S.; Liu, C.J. Thermoelectric properties of Ca3-xDyx Co 4O9+δ with x=0.00, 0.02, 0.05, and 0.10. J. Electron. Mater. 2013, 42, 2582–2586. [Google Scholar] [CrossRef]
  65. Pei, J.; Chen, G.; Lu, D.Q.; Liu, P.S.; Zhou, N. Synthesis and High Temperature Thermoelectric Properties of Ca3.0-x-yNdxNayCo4O9+δ; Pergamon: Oxford, UK, 2008; Volume 146, pp. 283–286. [Google Scholar]
Symmetry 13 00782 g001 550

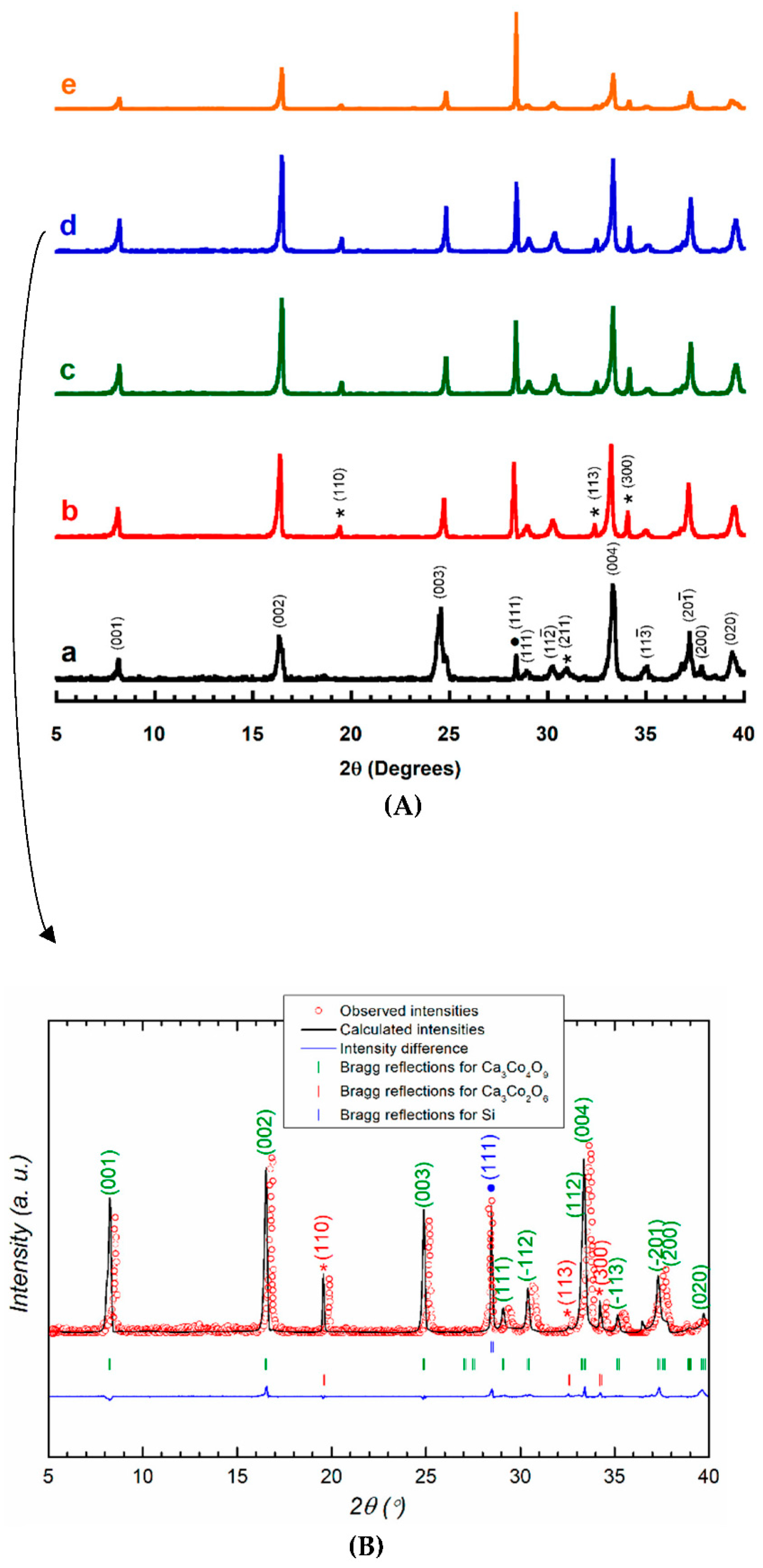

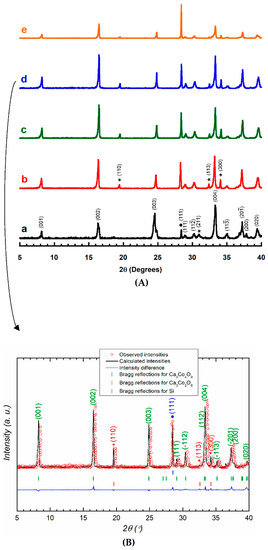

Figure 1. (A) Powder XRD patterns obtained for the different Ca3−xLaxCo4O9 samples, with x = 0.00 (a), 0.01 (b), 0.03 (c), 0.05 (d) and 0.07 (e). The peaks from (a) identify the main Ca3Co4O9 phase and those with an asterisk (*) correspond to the secondary Ca3Co2O6 phase (a and b). The •(111) plane from (a) belongs to silicon, used as internal reference. (B) Example of a FullProf XRD profile refinement graph (LeBail fitting) for the Ca2.95La0.05Co4O9 samples, showing the crystallographic planes for the Ca3Co4O9 phase (the other corresponding planes from (A) are also shown, i.e., for Si and for the Ca3Co2O6 phase).
Figure 1. (A) Powder XRD patterns obtained for the different Ca3−xLaxCo4O9 samples, with x = 0.00 (a), 0.01 (b), 0.03 (c), 0.05 (d) and 0.07 (e). The peaks from (a) identify the main Ca3Co4O9 phase and those with an asterisk (*) correspond to the secondary Ca3Co2O6 phase (a and b). The •(111) plane from (a) belongs to silicon, used as internal reference. (B) Example of a FullProf XRD profile refinement graph (LeBail fitting) for the Ca2.95La0.05Co4O9 samples, showing the crystallographic planes for the Ca3Co4O9 phase (the other corresponding planes from (A) are also shown, i.e., for Si and for the Ca3Co2O6 phase).
Symmetry 13 00782 g001
Symmetry 13 00782 g002 550

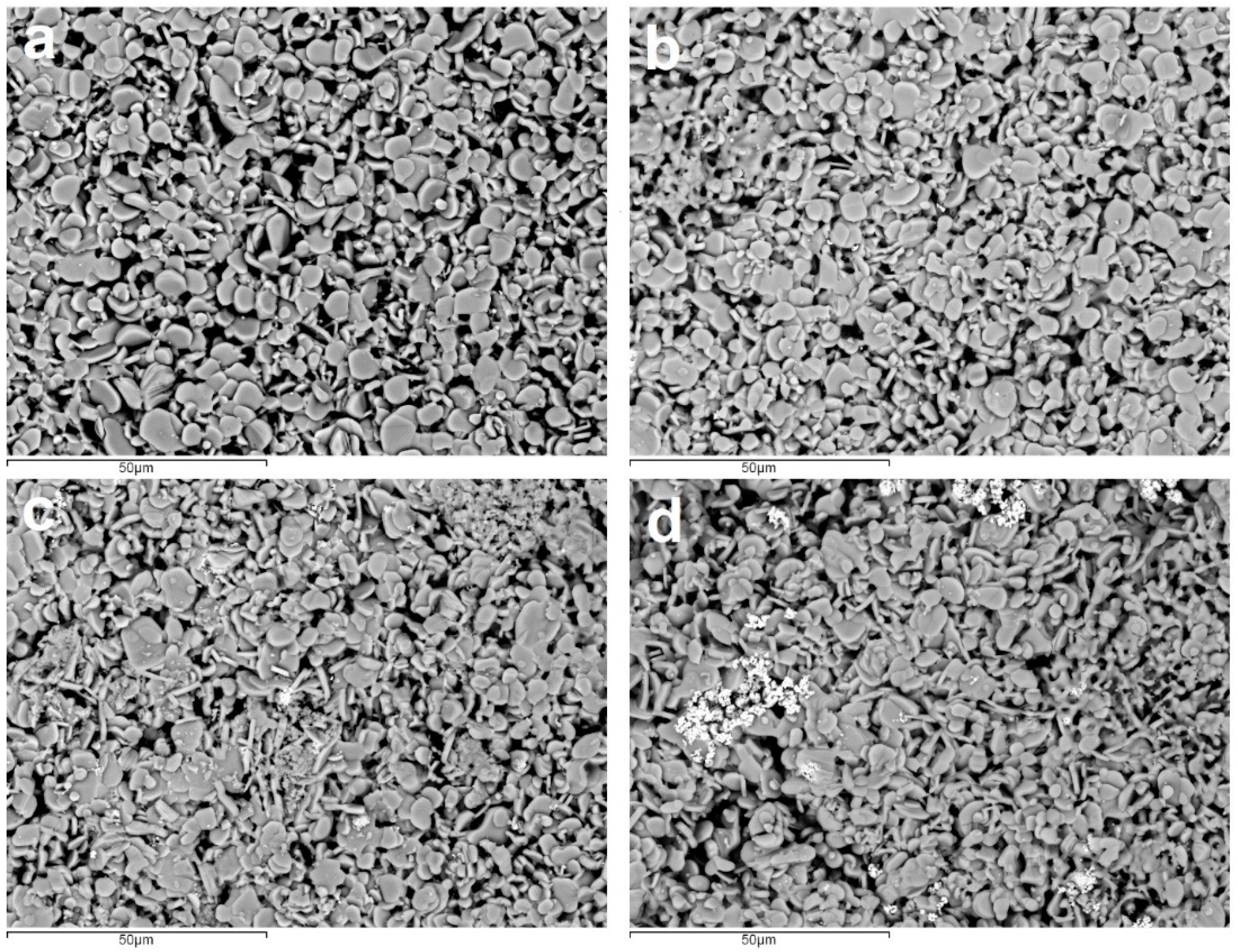

Figure 2. Representative FESEM micrographs (taken using back-scattered electrons) of selected longitudinal polished surface sections from Ca3−xLaxCo4O9 samples, with x = 0.01 (a), 0.03 (b), 0.05 (c) and 0.07 (d).
Figure 2. Representative FESEM micrographs (taken using back-scattered electrons) of selected longitudinal polished surface sections from Ca3−xLaxCo4O9 samples, with x = 0.01 (a), 0.03 (b), 0.05 (c) and 0.07 (d).
Symmetry 13 00782 g002
Symmetry 13 00782 g003 550

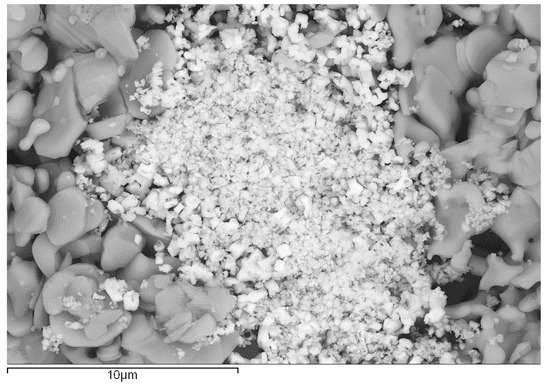

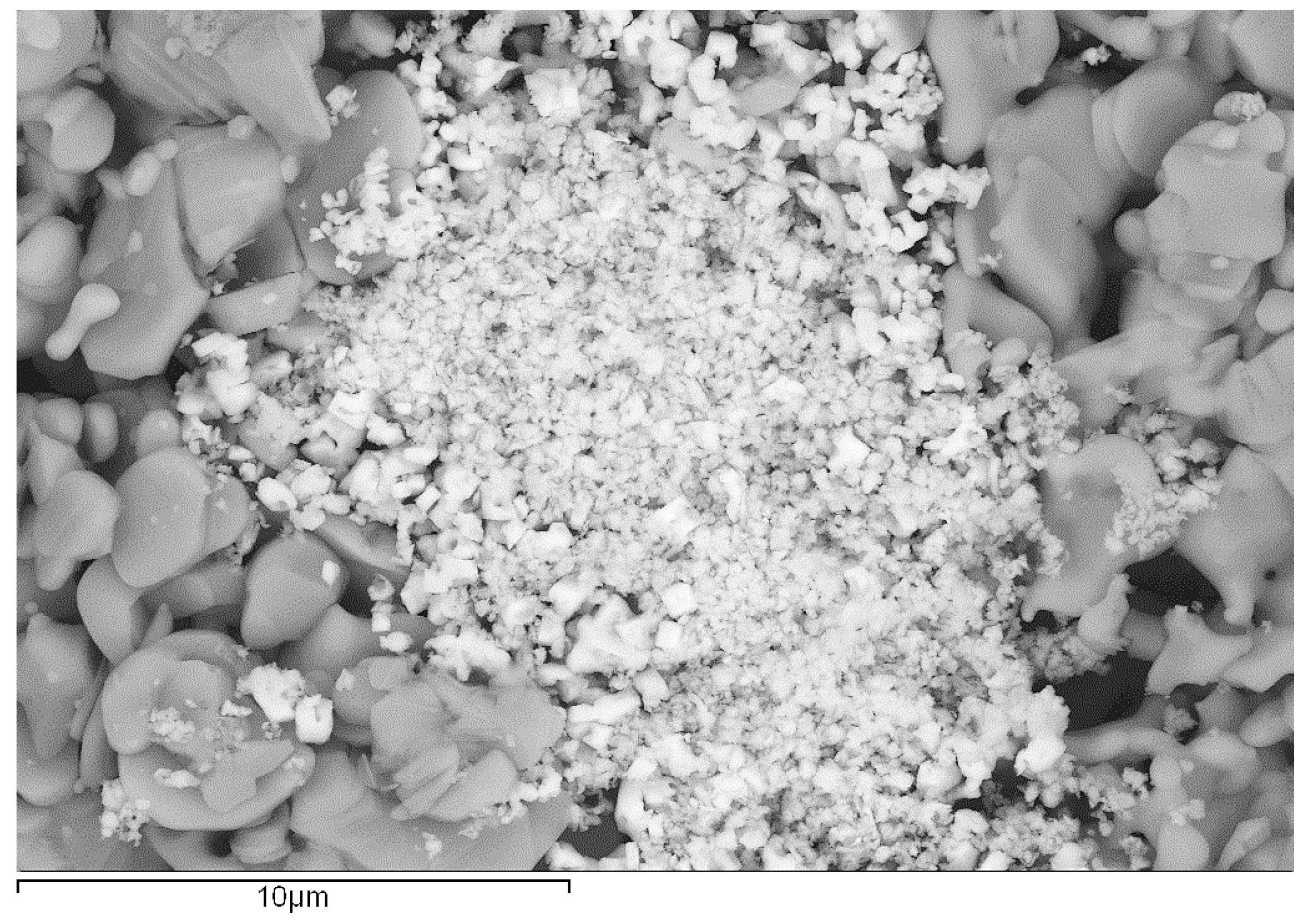

Figure 3. Representative high-magnification FESEM micrograph (taken using back-scattered electrons) of a selected longitudinal polished surface section of Ca2.93La0.07Co4O9 sample, showing the lanthanum-rich phase.
Figure 3. Representative high-magnification FESEM micrograph (taken using back-scattered electrons) of a selected longitudinal polished surface section of Ca2.93La0.07Co4O9 sample, showing the lanthanum-rich phase.
Symmetry 13 00782 g003
Symmetry 13 00782 g004 550

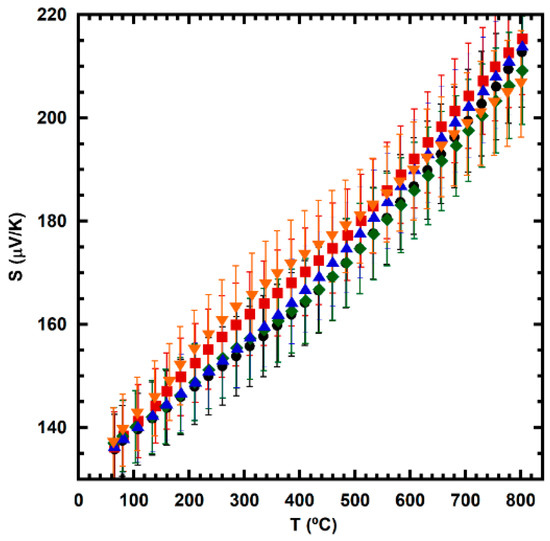

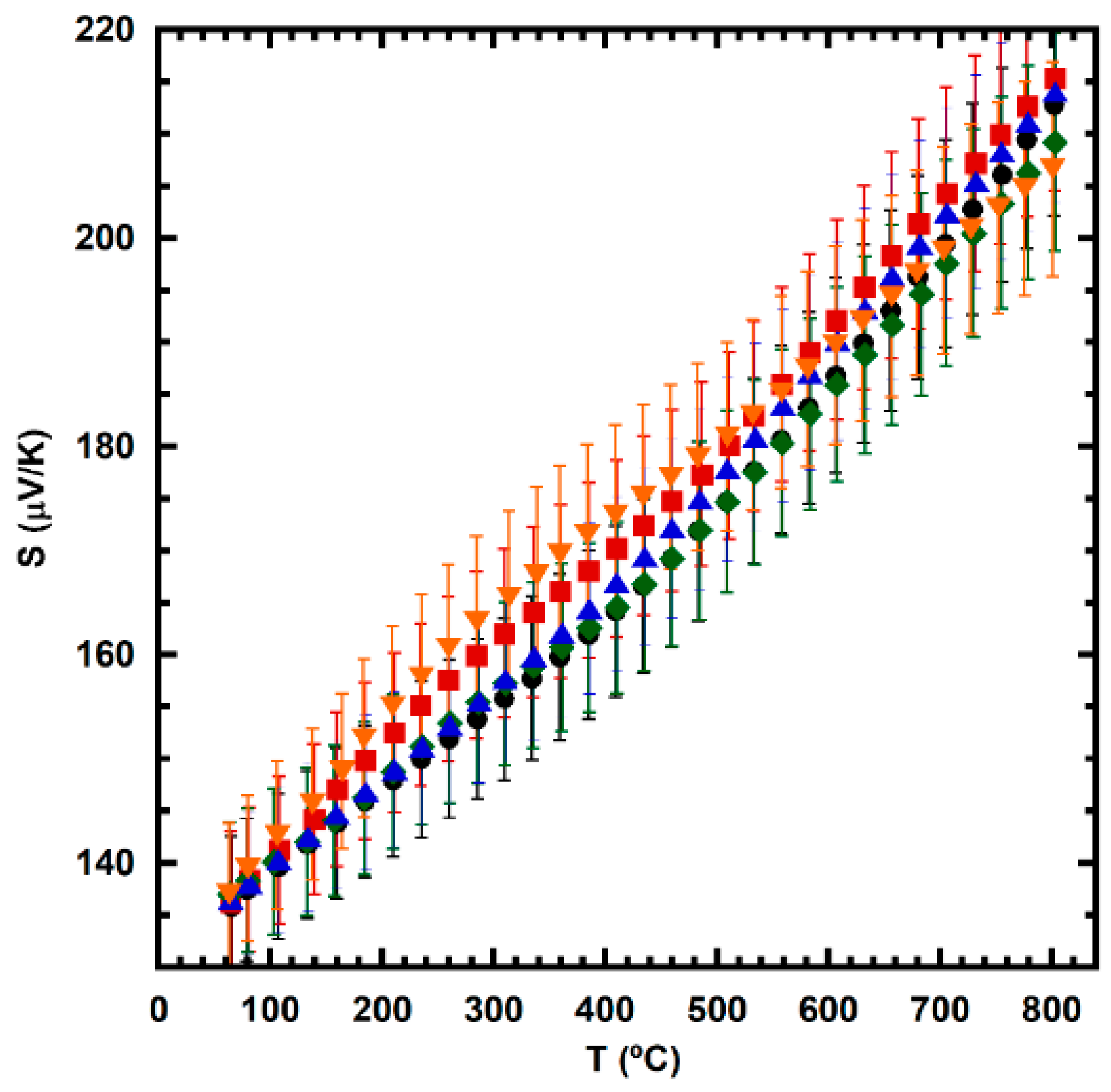

Figure 4. Temperature (T) dependence of the Seebeck coefficient (S) values for Ca3−xLaxCo4O9 samples, with x = 0.00 (black circles), 0.01 (red squares), 0.03 (green diamonds), 0.05 (blue triangles) and 0.07 (orange inverse triangles).
Figure 4. Temperature (T) dependence of the Seebeck coefficient (S) values for Ca3−xLaxCo4O9 samples, with x = 0.00 (black circles), 0.01 (red squares), 0.03 (green diamonds), 0.05 (blue triangles) and 0.07 (orange inverse triangles).
Symmetry 13 00782 g004
Symmetry 13 00782 g005 550

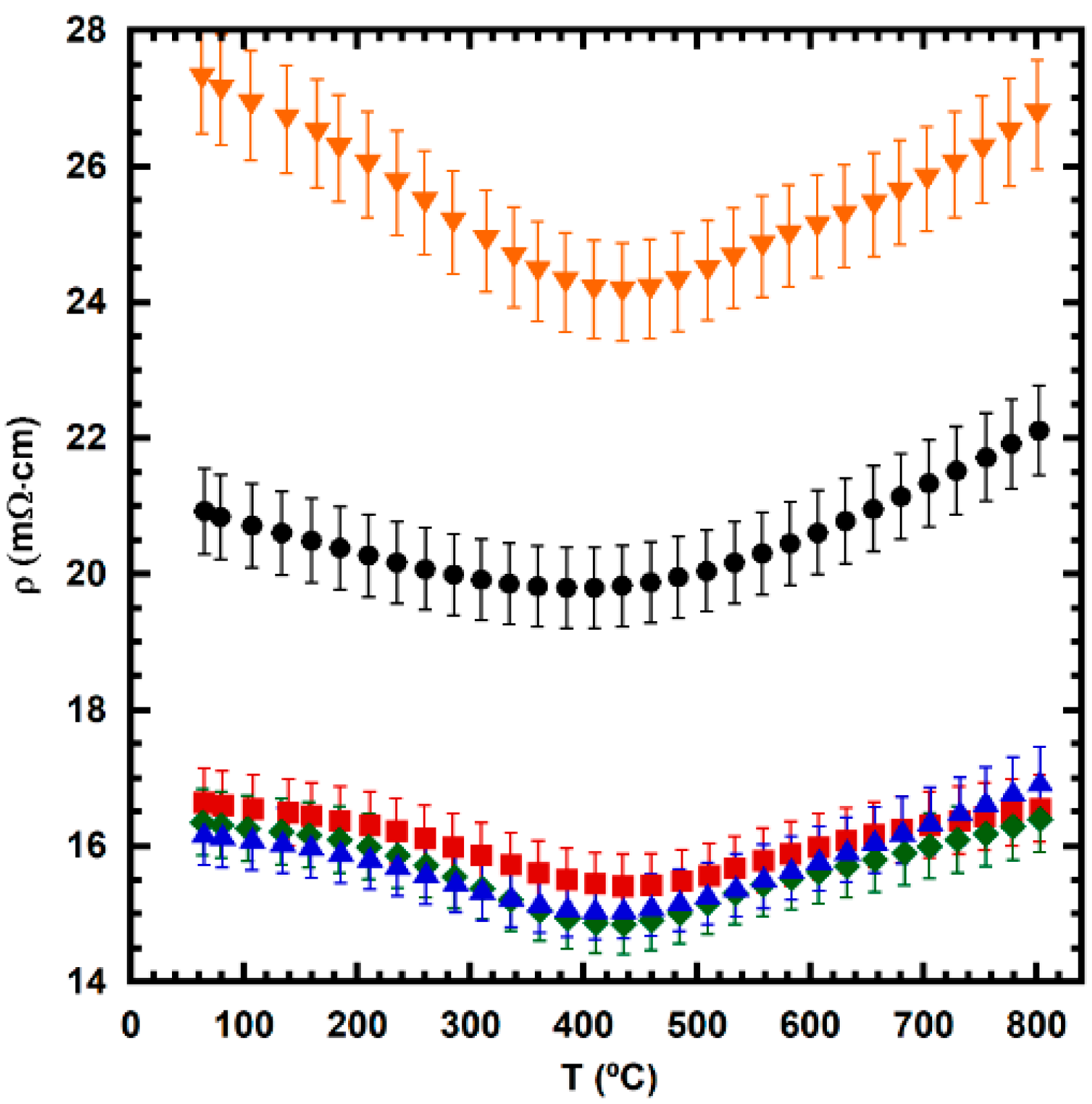

Figure 5. Temperature (T) dependence of the electrical resistivity (ρ) values for Ca3−xLaxCo4O9 samples, with x = 0.00 (black circles), 0.01 (red squares), 0.03 (green diamonds), 0.05 (blue triangles) and 0.07 (orange inverse triangles).
Figure 5. Temperature (T) dependence of the electrical resistivity (ρ) values for Ca3−xLaxCo4O9 samples, with x = 0.00 (black circles), 0.01 (red squares), 0.03 (green diamonds), 0.05 (blue triangles) and 0.07 (orange inverse triangles).
Symmetry 13 00782 g005
Symmetry 13 00782 g006 550

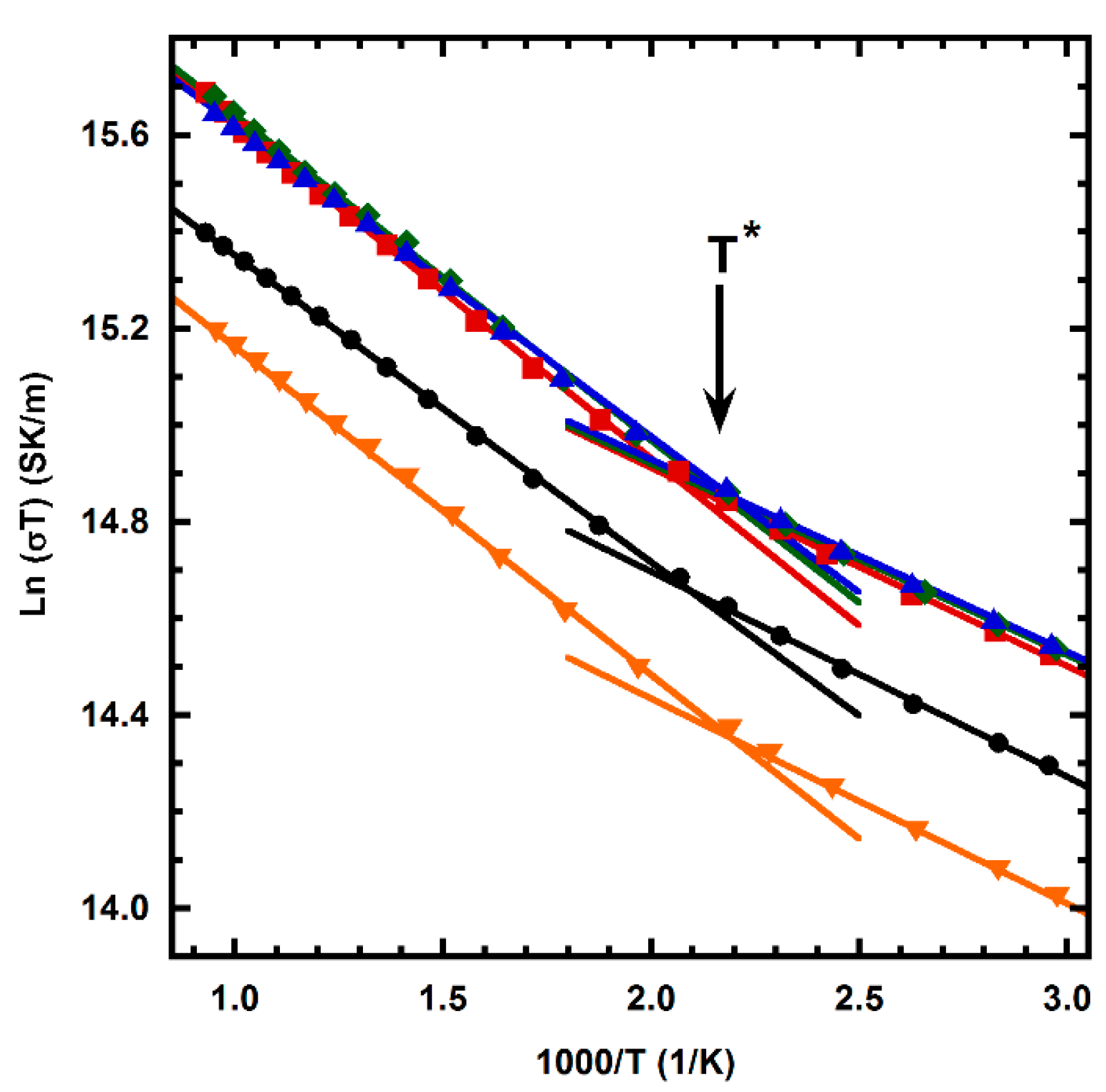

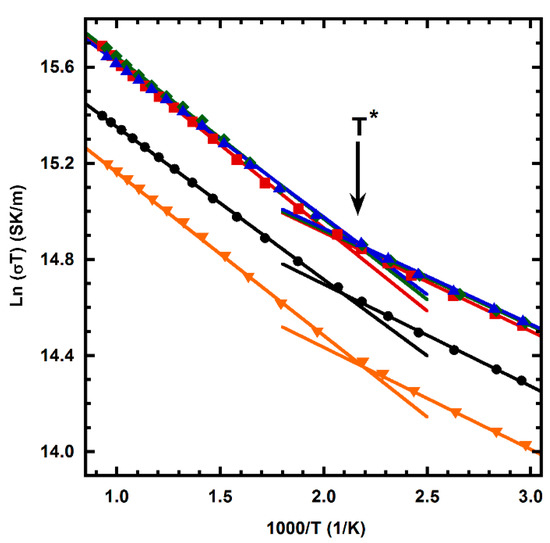

Figure 6. Modified Ln (σT) versus 1000/T Arrhenius plots for Ca3−xLaxCo4O9 samples, with x = 0.00 (black circles), 0.01 (red squares), 0.03 (green diamonds), 0.05 (blue triangles) and 0.07 (orange inverse triangles). T* indicates the semiconducting-to-metallic transition temperature.
Figure 6. Modified Ln (σT) versus 1000/T Arrhenius plots for Ca3−xLaxCo4O9 samples, with x = 0.00 (black circles), 0.01 (red squares), 0.03 (green diamonds), 0.05 (blue triangles) and 0.07 (orange inverse triangles). T* indicates the semiconducting-to-metallic transition temperature.
Symmetry 13 00782 g006
Symmetry 13 00782 g007 550

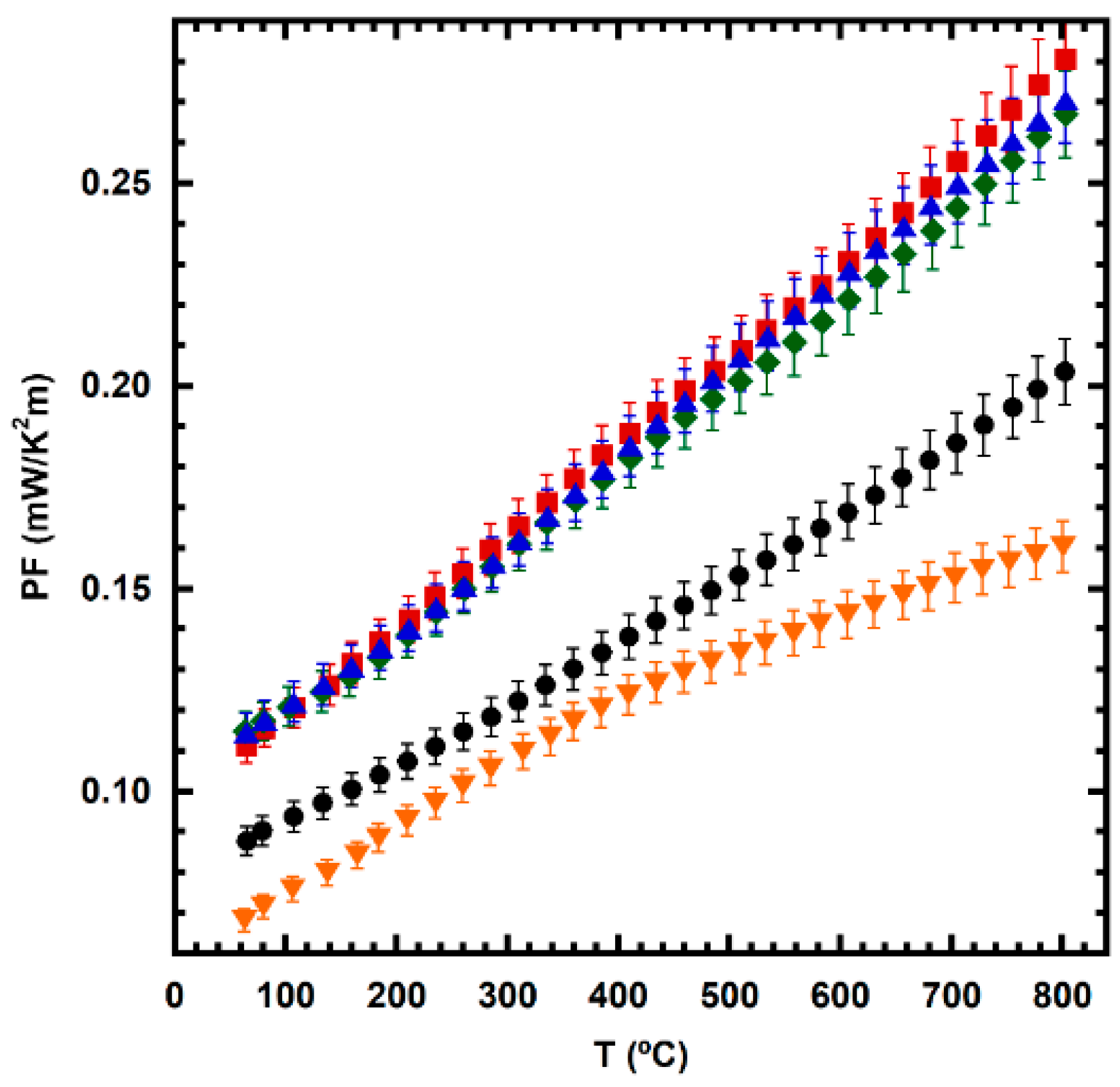

Figure 7. Temperature (T) dependence of the power factor (PF) values for Ca3−xLaxCo4O9 samples, with x = 0.00 (black circles), 0.01 (red squares), 0.03 (green diamonds), 0.05 (blue triangles) and 0.07 (orange inverse triangles).
Figure 7. Temperature (T) dependence of the power factor (PF) values for Ca3−xLaxCo4O9 samples, with x = 0.00 (black circles), 0.01 (red squares), 0.03 (green diamonds), 0.05 (blue triangles) and 0.07 (orange inverse triangles).
Symmetry 13 00782 g007
Table
Table 1. Lattice parameters (a, b, c, β, V), agreement factors (Rp, Rwp and RBragg(Ca3Co4O9)), apparent density (ρap) and activation energy (Ea) values of the various Ca3−xLaxCo4O9 samples.
Table 1. Lattice parameters (a, b, c, β, V), agreement factors (Rp, Rwp and RBragg(Ca3Co4O9)), apparent density (ρap) and activation energy (Ea) values of the various Ca3−xLaxCo4O9 samples.
x Value in Ca3−xLaxCo4O9a, nmb, nmc, nmβ, degV, nm3RpRwpRBragg
(Ca3Co4O9)		ρap, g/cm3Ea, meV
0.000.4839(3)0.4563(1)1.0852(3)98.10(5)0.2373(2)9.228.637.583.39(1)36.52(7)
0.010.4837(3)0.4548(2)1.0851(5)98.12(6)0.2362(2)6.426.995.33.35(2)35.40(1)
0.030.4829(2)0.4543(1)1.0845(4)98.13(5)0.2353(1)6.787.174.583.33(1)34.21(3)
0.050.4835(2)0.4546(1)1.0847(3)98.14(4)0.2359(1)6.026.674.153.36(1)34.36(7)
0.070.4836(2)0.4561(1)1.0849(3)98.14(5)0.2371(2)6.247.384.332.55(3)36.62(1)
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Constantinescu, G.; Rasekh, S.; Amirkhizi, P.; Lopes, D.V.; Vieira, M.A.; Kovalevsky, A.V.; Diez, J.C.; Sotelo, A.; Madre, M.A.; Torres, M.A. Exploring the High-Temperature Electrical Performance of Ca3−xLaxCo4O9 Thermoelectric Ceramics for Moderate and Low Substitution Levels. Symmetry 2021, 13, 782. https://doi.org/10.3390/sym13050782

AMA Style

Constantinescu G, Rasekh S, Amirkhizi P, Lopes DV, Vieira MA, Kovalevsky AV, Diez JC, Sotelo A, Madre MA, Torres MA. Exploring the High-Temperature Electrical Performance of Ca3−xLaxCo4O9 Thermoelectric Ceramics for Moderate and Low Substitution Levels. Symmetry. 2021; 13(5):782. https://doi.org/10.3390/sym13050782

Chicago/Turabian Style

Constantinescu, Gabriel, Shahed Rasekh, Parisa Amirkhizi, Daniela V. Lopes, Miguel A. Vieira, Andrei V. Kovalevsky, Juan C. Diez, Andres Sotelo, Maria A. Madre, and Miguel A. Torres. 2021. "Exploring the High-Temperature Electrical Performance of Ca3−xLaxCo4O9 Thermoelectric Ceramics for Moderate and Low Substitution Levels" Symmetry 13, no. 5: 782. https://doi.org/10.3390/sym13050782

APA Style

Constantinescu, G., Rasekh, S., Amirkhizi, P., Lopes, D. V., Vieira, M. A., Kovalevsky, A. V., Diez, J. C., Sotelo, A., Madre, M. A., & Torres, M. A. (2021). Exploring the High-Temperature Electrical Performance of Ca3−xLaxCo4O9 Thermoelectric Ceramics for Moderate and Low Substitution Levels. Symmetry, 13(5), 782. https://doi.org/10.3390/sym13050782

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
