# Recognition of Crack-Rubbing Coupling Fault of Bearing under High Water Pressure Based on Polar Symmetry Mode Decomposition

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

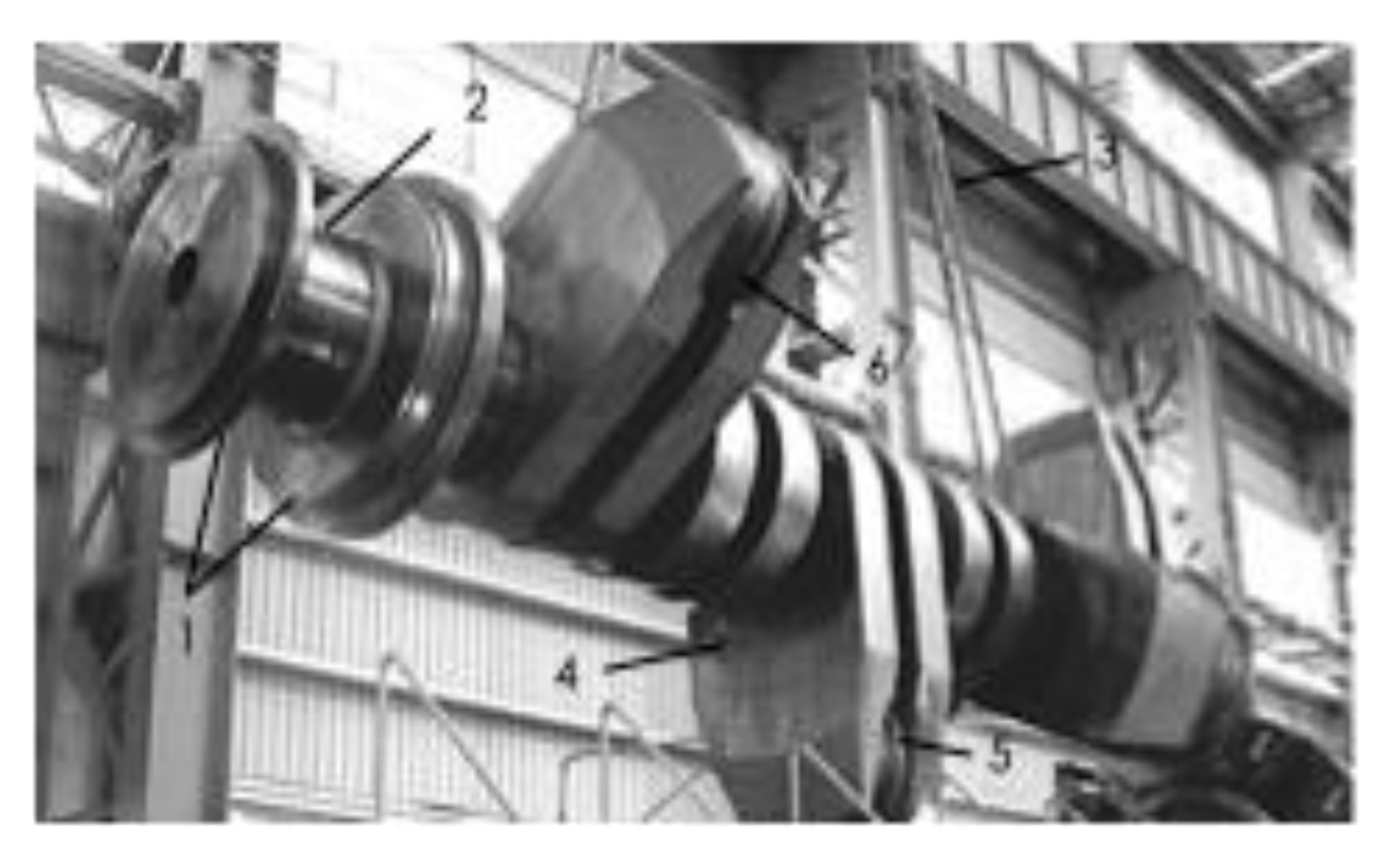

## 2. Materials and Methods

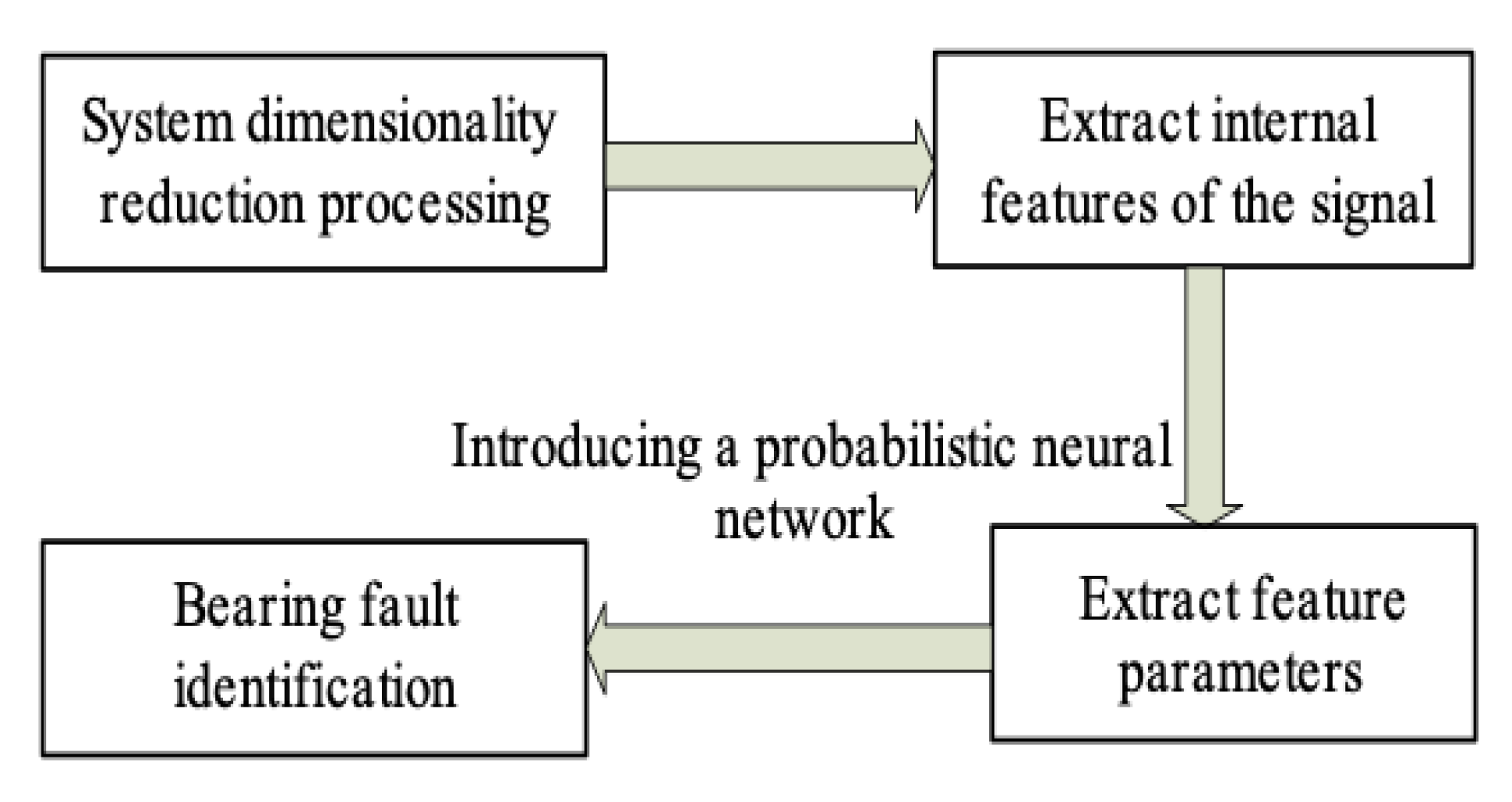

- (1)
- Dimensionality reduction was carried out for the system to improve the efficiency and the accuracy of the fault recognition and support the fault detection.
- (2)
- The internal characteristics of the signal were extracted.
- (3)
- According to the extraction results of characteristic parameters, the probability neural network was introduced to achieve the final recognition of bearing crack-rub coupling fault under high water pressure.
- (4)
- The validity of the fault recognition method was verified via experiment and discussion.
- (5)
- Summary was proposed, and prospects were put forward.

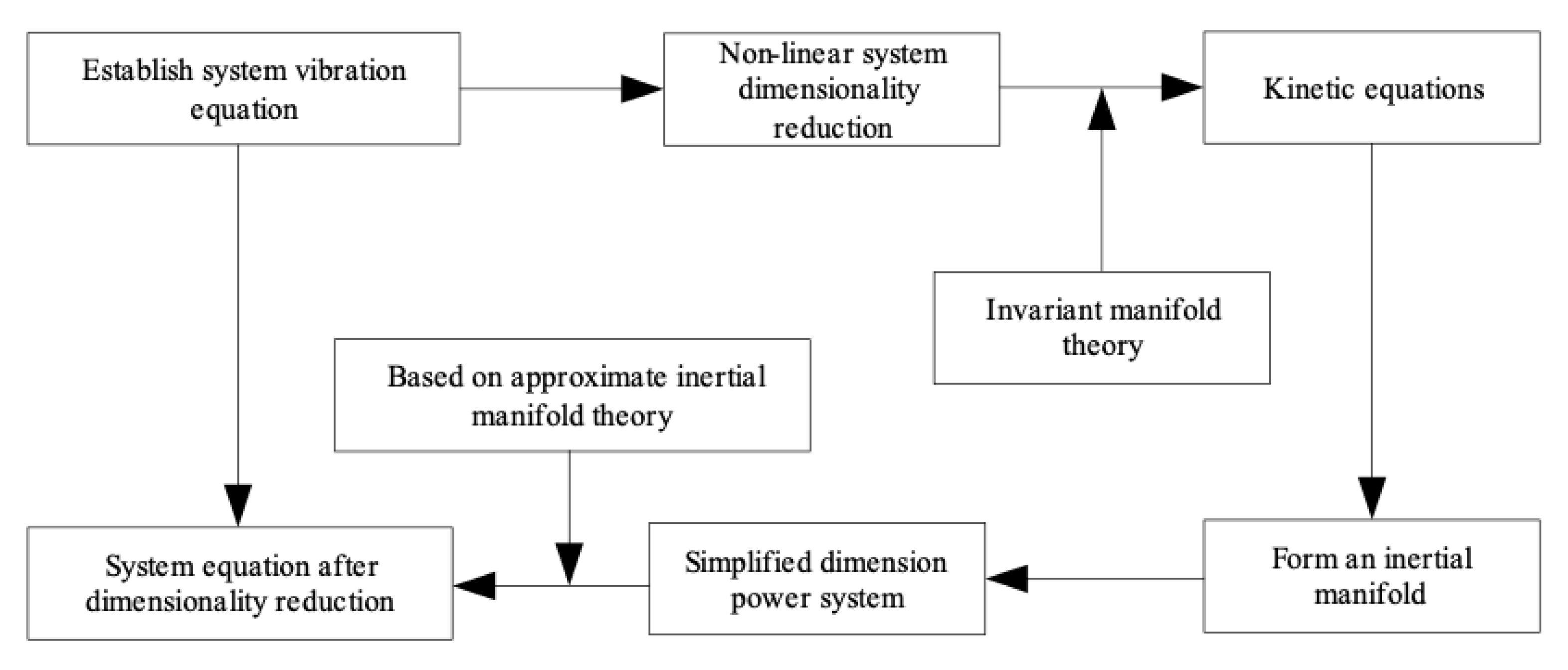

#### 2.1. Dimensionality Reduction of System

_{n}, ${P}_{z}$ represents the rectangular projection of ${X}_{z}$. ${Q}_{z}=I-{P}_{z}$ is the projection operator. The Equation (1) can be broken down as follows via linear variation:

#### 2.2. Feature Parameters Extraction Based on Polar Symmetry Mode Decomposition

- (1)
- All the extreme points of time series X’ are marked and expressed via ${E}_{i}\left(1\le i<n\right)$.
- (2)
- The midpoint of the line among the extreme points is marked as ${{F}^{\prime}}_{i}\left(1\le i<n-1\right)$.
- (3)
- Boundary points ${{F}^{\prime}}_{0}$ and ${{F}^{\prime}}_{n}$ are added via linear interpolation method.
- (4)
- According to ${{F}^{\prime}}_{i}\left(1\le i<n-1\right)$, curves ${L}_{1},\cdots ,{L}_{p}\left(p\ge 1\right)$ are obtained via direct interpolation algorithm. The ${L}^{\ast}$ is calculated.$${L}^{\ast}=\frac{\left({L}_{1}+\cdots +{L}_{p}\right)}{p}$$
- (5)
- ${X}^{\prime}-{L}^{\ast}$. The above four steps are repeated until $\left|{L}^{\ast}\right|\le \epsilon $ is set up, where the $\epsilon $ represents the allowable error.In another situation, when the number iterations achieves the set value ${K}^{\prime}$, the modal function ${{M}^{\prime}}_{1}$ is obtained.
- (6)
- As shown in Equation (10), for ${{R}^{\prime}}_{1}$, the ${{M}^{\prime}}_{1}$ is solved repeatedly to obtain ${{M}^{\prime}}_{2},{{M}^{\prime}}_{3},\cdots $, respectively, until the end condition is achieved.$${{R}^{\prime}}_{1}={X}^{\prime}-{{M}^{\prime}}_{1}$$
- (7)
- The value of maximum screen number is changed in section $\left[{{K}^{\prime}}_{\mathrm{min}},{{K}^{\prime}}_{\mathrm{max}}\right]$. The decomposition method is repeated to obtain a series of results.
- (8)
- The ${{K}^{\prime}}_{0}$ making the $\sigma /{\sigma}_{0}$ minimum value in the section $\left[{{K}^{\prime}}_{\mathrm{min}},{{K}^{\prime}}_{\mathrm{max}}\right]$. Then, the ${{K}^{\prime}}_{0}$ is substituted. The IMF is obtained via ESMD decomposition. The obtained R’ is the optimal AGM curve.

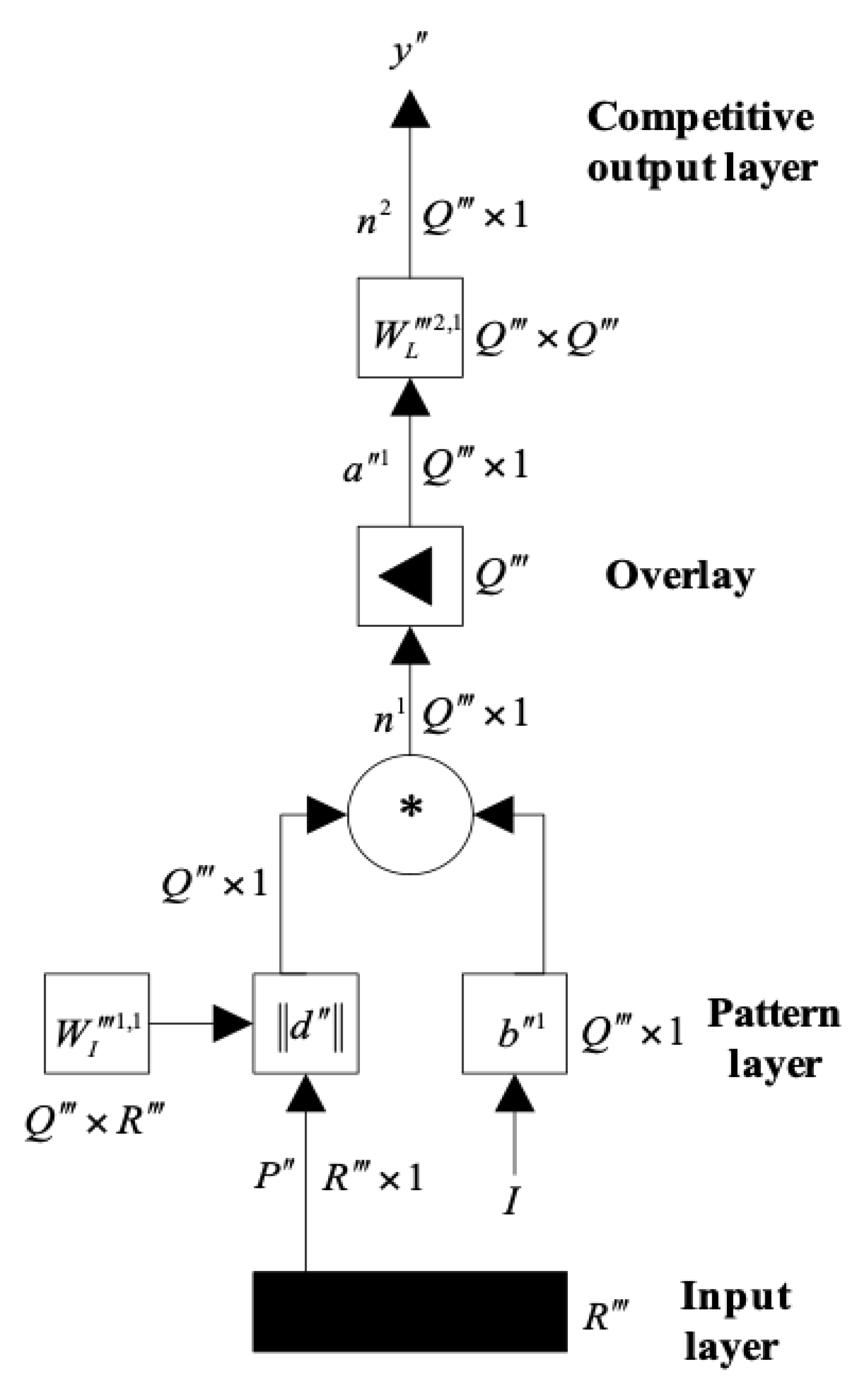

#### 2.3. Fault Recognition

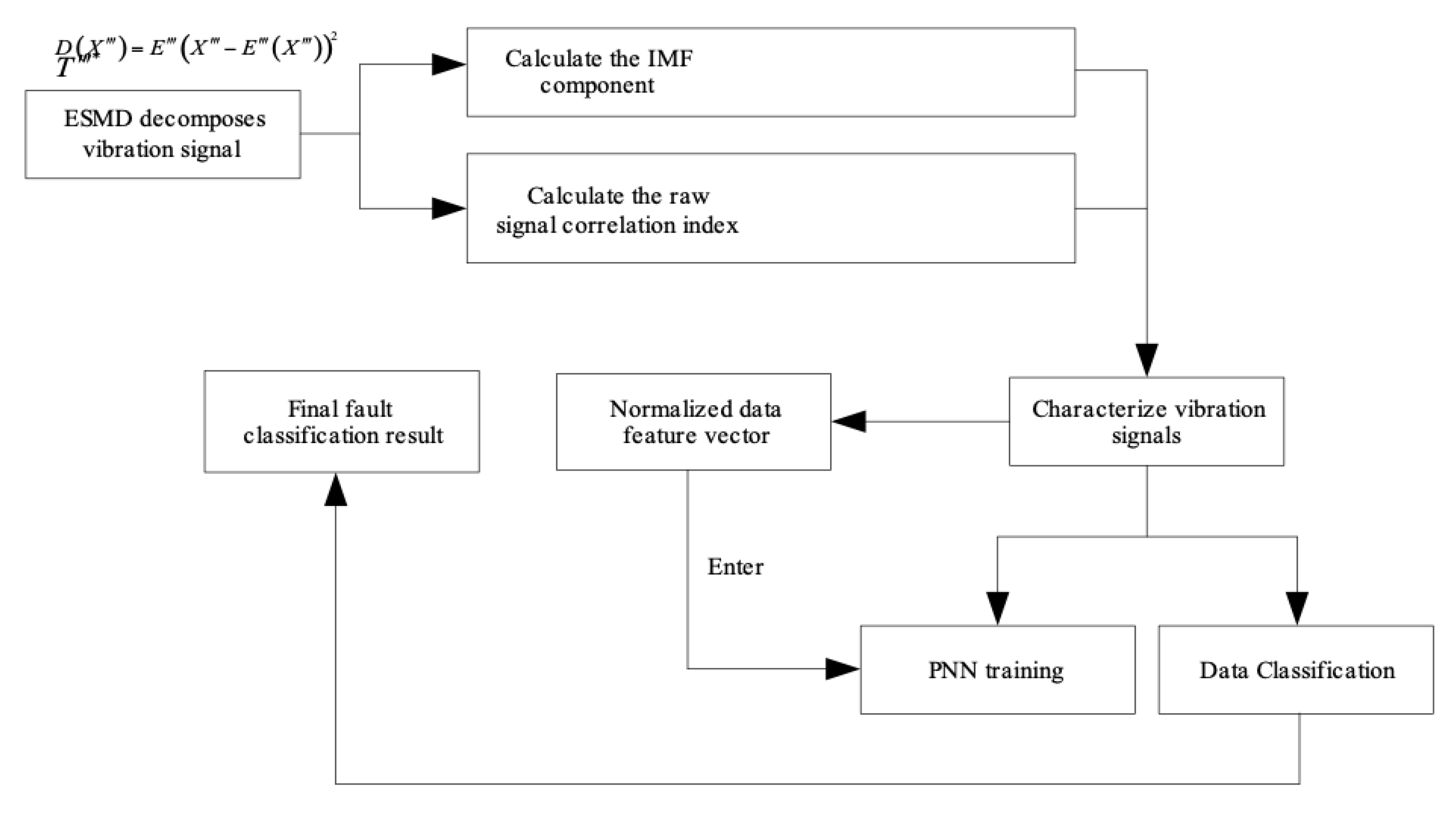

- (1)
- ESMD decomposition was carried out for the vibration signal.
- (2)
- The correlation index of the obtained IMF components and the original signal were calculated and ranked respectively. The former n IMF components were taken to characterize the vibration signal (the value of n depended on the specific vibration signal decomposition).
- (3)
- In order to facilitate PNN training and classification of the data, the obtained IMF component with high correlation was calculated in terms of energy. We created a vector and normalize the obtained vector as a whole.
- (4)
- ${{T}^{\u2034}}^{*}$ was input into the PNN as the eigenvector to train until the optimal solution was output. The final classification results of the fault were obtained.

## 3. Results

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Esmaeili, K.; Zuercher, M.; Wang, L.; Harvey, T.; White, N.; Holweger, W.; Schlücker, E. A study of white etching crack bearing failure detection using electrostatic sensing in wind turbine gearboxes. Int. J. Cond. Monit.
**2018**, 12, 12–18. [Google Scholar] [CrossRef] - Tang, C.; Yao, Q.; Li, Z.; Zhang, Y.; Ju, M. Experimental study of shear failure and crack propagation in water-bearing coal samples. Energy Sci. Eng.
**2019**, 7, 54–58. [Google Scholar] [CrossRef] - Shaohu, L.; Yuandeng, W.; Hao, Z. Critical Ultimate Load and Ultimate Bearing Failure of CT110 with Initial Crack Defect. J. Fail. Anal. Prev.
**2020**, 12, 1–9. [Google Scholar] [CrossRef] - Corne, B.; Vervisch, B.; Derammelaere, S.; Knockaert, J.; Desmet, J. Emulating single point bearing faults with the use of an active magnetic bearing. IET Sci. Meas. Technol.
**2018**, 12, 39–48. [Google Scholar] [CrossRef] - Sathujoda, P. Detection of a slant crack in a rotor bearing system during shut-down. J. Struct. Mech.
**2020**, 48, 266–276. [Google Scholar] [CrossRef] - Liu, Y.; Li, Y.Z.; Shi, T.; Ma, H.; Wen, B. Study on misalignment-rubbing coupling fault of rotor system supported by oil film force. J. Mech. Eng.
**2016**, 52, 79–86. [Google Scholar] [CrossRef] - Xiang, L.; Gao, X.Y.; Zhang, L.J.; Di, W.W. Dynamic Analysis of a Rotor with Coupling Faults of Crack and Rub-Impact Under Nonlinear Oil-film Force. J. Chin. Soc. Power Eng.
**2016**, 36, 788–794. [Google Scholar] - Zhuang, Z.; Chen, X.; Shi, Y.; Liu, Z.C. Research on fault detection of wheel set bearing based on IMF-SVD envelop spectrum method. China Meas. Test
**2017**, 43, 93–98. [Google Scholar] - Bruce, T.; Long, H.; Dwyer-Joyce, R.S. Threshold Maps for Inclusion-Initiated Micro-Cracks and White Etching Areas in Bearing Steel: The Role of Impact Loading and Surface Sliding. Springer Open Choice
**2018**, 66, 223–241. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Li, Z.; Niu, Y.; Wang, E.; Liu, L.; Wang, H.; Wang, M.; Ali, M. Experimental Study on Electric Potential Response Characteristics of Gas-Bearing Coal During Deformation and Fracturing Process. Processes
**2019**, 7, 72. [Google Scholar] [CrossRef] [Green Version] - Caesarendra, W.; Pratama, M.; Kosasih, B.; Tjahjowidodo, T.; Glowacz, A. Parsimonious Network Based on a Fuzzy Inference System (PANFIS) for Time Series Feature Prediction of Low Speed Slew Bearing Prognosis. Appl. Sci.
**2018**, 8, 2656. [Google Scholar] [CrossRef] [Green Version] - Zhang, T.T.; Jia, M.Y. Common methods of mechanical equipment fault diagnosis technology and application research of new technology. Autom. Instrum.
**2017**, 10, 38–39. [Google Scholar] - Glowacz, A. Acoustic fault analysis of three commutator motors. Mech. Syst. Signal Process.
**2019**, 133, 106226. [Google Scholar] [CrossRef] - Adam, G.; Witold, G.; Jarosław, K.; Krzysztof, P.; Miroslav, G.; Wahyu, C.; Hui, L.; Frantisek, B.; Muhammad, I.; Faizal, K. Detection of Deterioration of Three-phase Induction Motor using Vibration Signals. Meas. Sci. Rev.
**2019**, 19, 241–249. [Google Scholar] - Huang, D.; Yang, J.; Zhou, D.; Litak, G. Novel adaptive search method for bearing fault frequency using stochastic resonance quantified by amplitude-domain index. IEEE Trans. Instrum. Meas.
**2019**, 99, 1–13. [Google Scholar] [CrossRef]

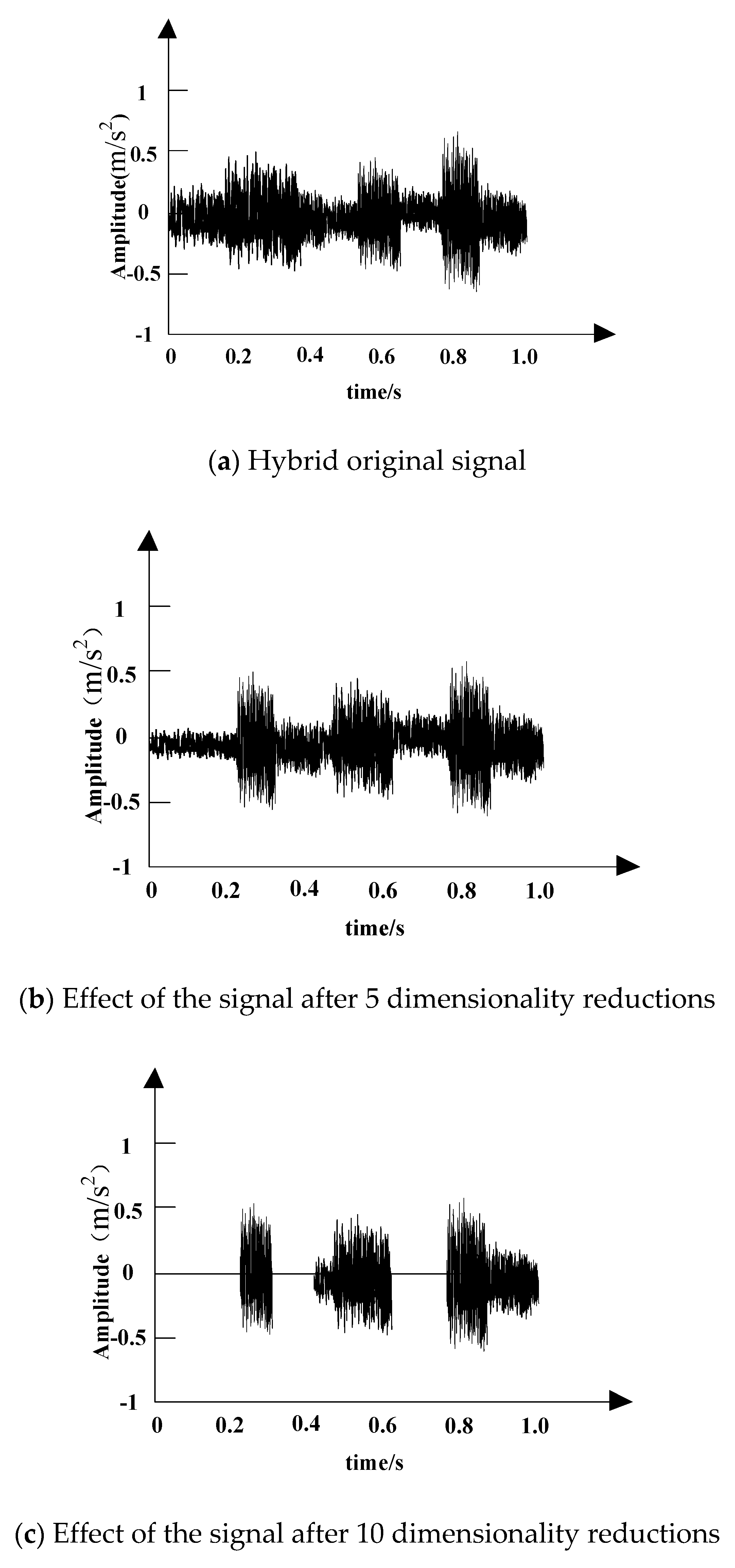

**Figure 7.**Dimensionality reductions effect of the recognition method of crack-rubbing coupling fault of bearing under high water pressure based on polar symmetry mode decomposition.

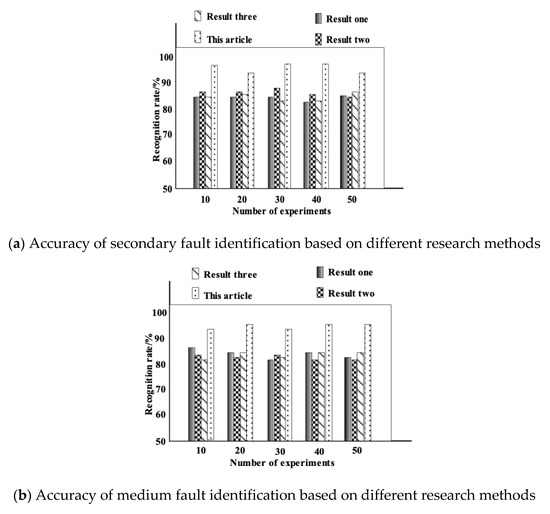

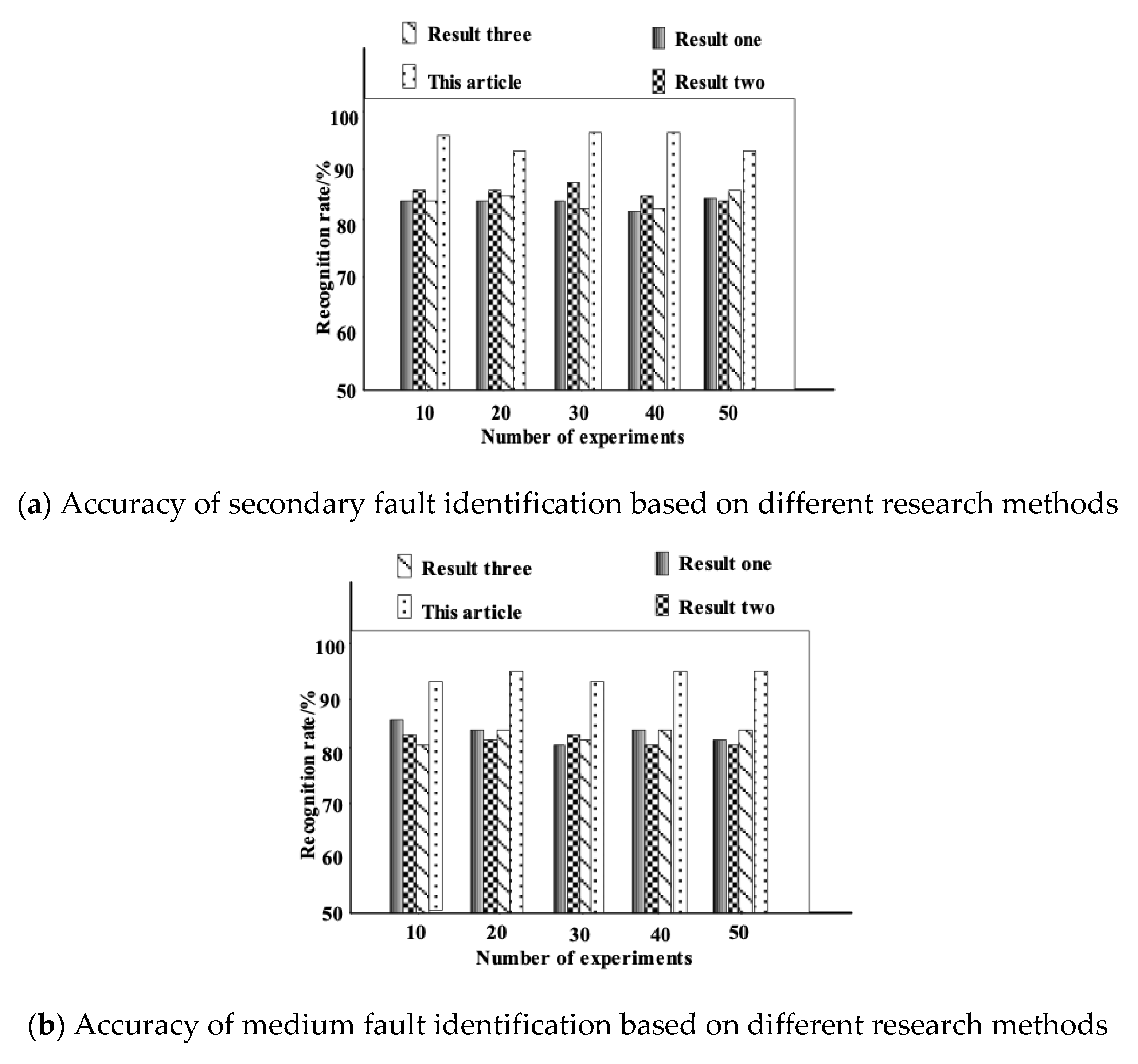

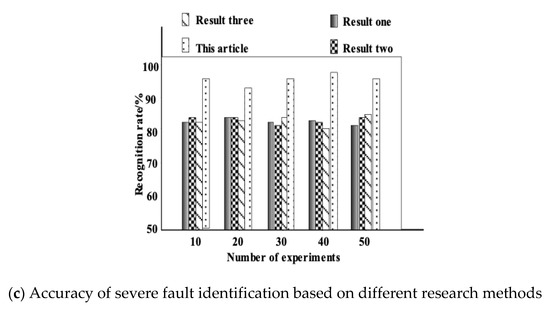

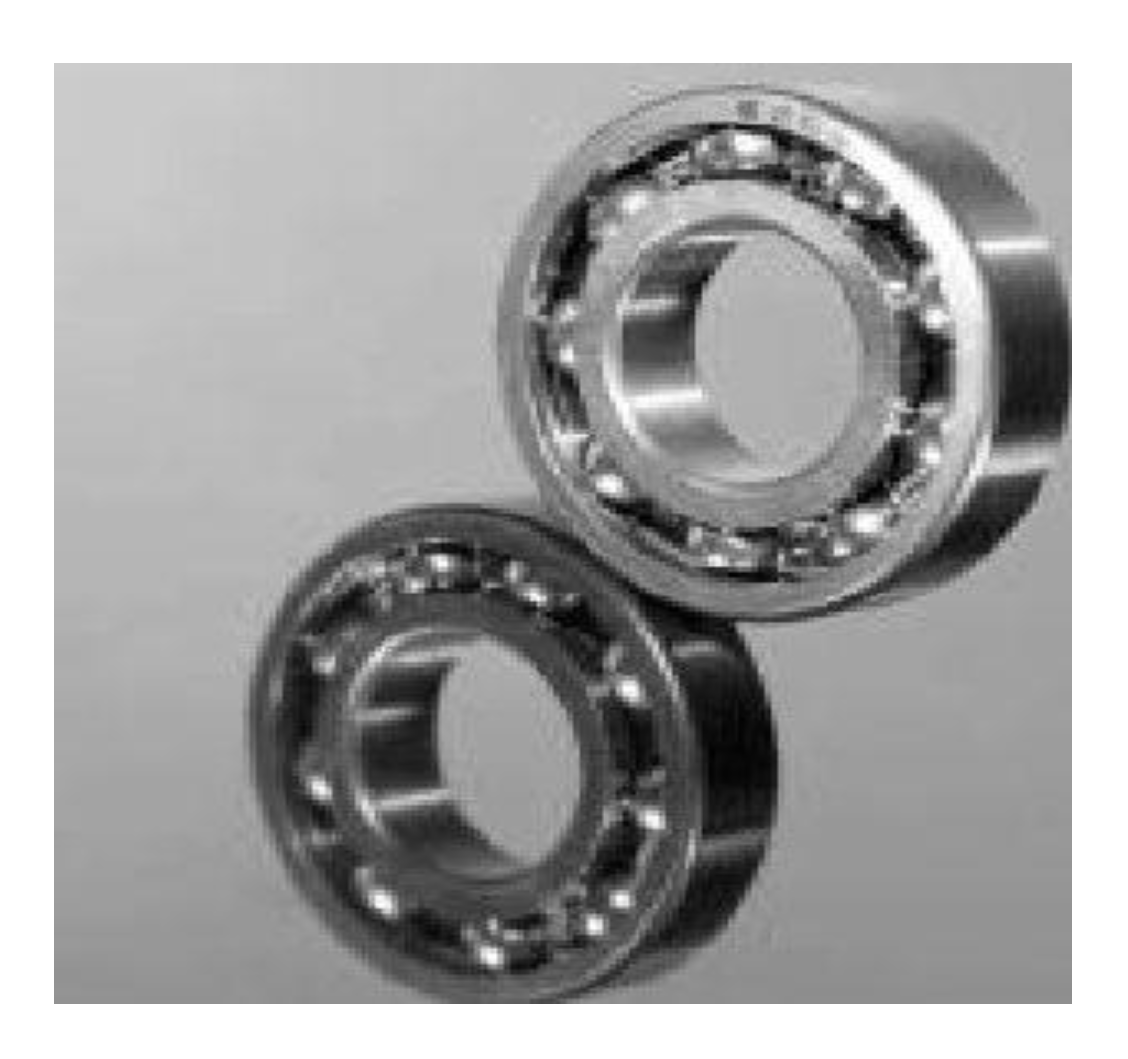

Model | SKF6203 | SKF6205 |
---|---|---|

Rolling element diameter | 6.746 | 15.001 |

Outer ring diameter | 39.99 | 51.9989 |

Inner diameter | 17.0002 | 25.001 |

Pitch diameter | 28.50 | 39.0398 |

Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
