# Malware Classification Using Simhash Encoding and PCA (MCSP)

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Background

#### 2.1. Static, Dynamic and Hybrid Approaches

#### 2.2. Simhash, N-Gram, MCSC Image and N-Gram MCSC

#### 2.3. Principal Component Analysis (PCA)

## 3. Proposed Methods

#### 3.1. Experimental Dataset

#### 3.2. Method 1: Malware Classification Using Simhah Encoding and PCA (MCSP)

#### 3.3. Method 2: Malware Classification Using Simhash Encoding and Linear Transformation Layer (MCSLT)

## 4. Experimental Results

## 5. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Gandotra, E.; Bansal, D.; Sofat, S. Malware analysis and classification: A survey. J. Inf. Secur.
**2014**, 2014, 44440. [Google Scholar] [CrossRef] [Green Version] - Lu, R. Malware Detection with LSTM using Opcode Language. arXiv
**2019**, arXiv:1906.04593. [Google Scholar] - Nataraj, L.; Yegneswaran, V.; Porras, P.; Zhang, J. A comparative assessment of malware classification using binary texture analysis and dynamic analysis. Available online: http://www.csl.sri.com/users/vinod/papers/aisec17-nataraj.pdf (accessed on 2 March 2020).
- Ni, S.; Qian, Q.; Zhang, R. Malware identification using visualization images and deep learning. Comput. Secur.
**2018**, 77, 871–885. [Google Scholar] [CrossRef] - Sun, G.; Qian, Q. Deep learning and visualization for identifying malware families. IEEE Trans. Dependable Secure Comput.
**2018**. [Google Scholar] [CrossRef] - Damodaran, A.; Di Troia, F.; Visaggio, C.A.; Austin, T.H.; Stamp, M. A comparison of static, dynamic, and hybrid analysis for malware detection. J. Comput. Virol. Hacking Tech.
**2017**, 13, 1–12. [Google Scholar] [CrossRef] - Charikar, M.S. Similarity estimation techniques from rounding algorithms. In Proceedings of the thiry-fourth annual ACM symposium on Theory of computing, Montreal, QC, Canada, 19–20 May 2020; pp. 380–388. [Google Scholar]
- Witten, I.H.; Frank, E. Data mining: Practical machine learning tools and techniques with Java implementations. Acm Sigmod Rec.
**2002**, 31, 76–77. [Google Scholar] [CrossRef] - Poudyal, S.; Dasgupta, D.; Akhtar, Z.; Gupta, K. A multi-level ransomware detection framework using natural language processing and machine learning. In Proceedings of the 14th International Conference on Malicious and Unwanted Software” MALCON, Nantucket, MA, USA, 2–4 October 2019. [Google Scholar]
- Lim, M.J.; Kwon, Y.M. Efficient algorithm for malware classification: N-gram MCSC. Int. J. Comput. Digit. Syst.
**2020**, 9, 179–185. [Google Scholar] - Wold, S.; Esbensen, K.; Geladi, P. Principal component analysis. Chemom. Intell. Lab. Syst.
**1987**, 2, 37–52. [Google Scholar] [CrossRef] - Zhang, T.; Yang, B. Big data dimension reduction using PCA. In Proceedings of the IEEE International Conference on Smart Cloud (SmartCloud), New York, NY, USA, 18–20 November 2016; pp. 152–157. [Google Scholar]
- Ronen, R.; Radu, M.; Feuerstein, C.; Yom-Tov, E.; Ahmadi, M. Microsoft malware classification challenge. arXiv
**2018**, arXiv:1802.10135. [Google Scholar] - Krawczyk, B. Learning from imbalanced data: Open challenges and future directions. Prog. Artif. Intell.
**2016**, 5, 221–232. [Google Scholar] [CrossRef] [Green Version] - Dang, Q.H. Secure hash standard; (No. Federal Inf. Process. Stds.(NIST FIPS)-180-4); National Institute of Standards and Technology: Gaithersburg, MD, USA, 2015.
- Miller, R.G., Jr. Beyond ANOVA: Basics of applied statistics; CRC Press: Boca Raton, FL, USA, 1997. [Google Scholar]
- Van Asch, V. Macro-and micro-averaged evaluation measures. Available online: https://pdfs.semanticscholar.org/1d10/6a2730801b6210a67f7622e4d192bb309303.pdf (accessed on 2 February 2020).

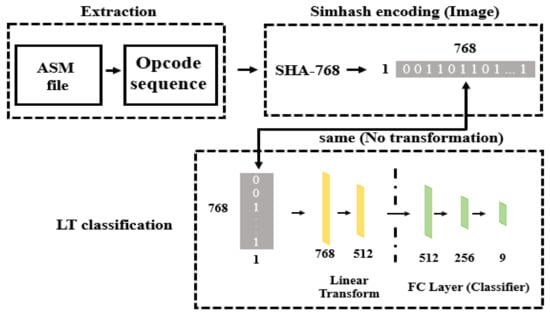

**Figure 4.**The overall procedure of the malware classification using Simhash and linear transform (MCSLT) method.

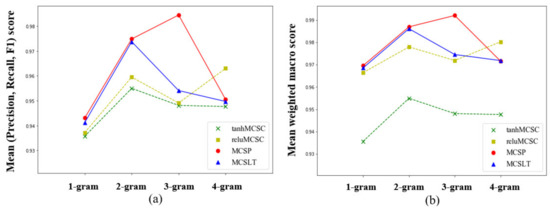

**Figure 8.**Mean (Precision, Recall, F1) score (

**a**) and mean weighted macro score (

**b**) for compared methods.

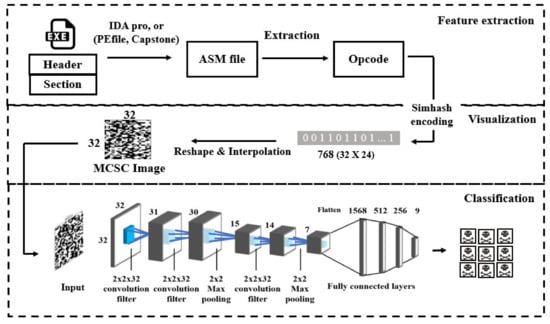

**Table 1.**Detailed parameters for the classification in Figure 1.

Layer (Type) | Output Shape | Param # | Remarks |
---|---|---|---|

Conv2d | [−1, 32, 31, 31] | 160 | |

Tanh | [−1, 32, 31, 31] | 0 | |

Conv2d | [−1, 32, 30, 30] | 4128 | |

Tanh | [−1, 32, 30, 30] | 0 | |

MaxPool2d | [−1, 32, 15, 15] | 0 | |

Dropout2d | [−1, 32, 15, 15] | 0 | |

Conv2d | [−1, 32, 14, 14] | 4128 | |

Tanh | [−1, 32, 14, 14] | 0 | |

MaxPool2d | [−1, 32, 7, 7] | 0 | |

Dropout2d | [−1, 32, 7, 7] | 0 | |

Linear | [−1, 512] | 803,328 | | |

Tanh | [−1, 512] | 0 | | |

Linear | [−1, 256] | 131,328 | | FC classifier |

Tanh | [−1, 256] | 0 | | |

Linear | [−1, 9] | 2313 | | |

Virus Name | Number of Files | TYPE |
---|---|---|

Ramnit | 1532 | Worm |

Lollipop | 2470 | Adware |

Kelihos_ver3 | 2937 | Backdoor |

Vundo | 447 | Trojan |

Simda | 39 | Backdoor |

Tracur | 732 | TrojanDownloader |

Kelihos_ver1 | 387 | Backdoor |

Obfuscator.ACY | 1179 | Any kind of obfuscated malware |

Gatak | 1013 | Backdoor |

N-Gram | The Size of the Vocabulary Dictionary of N-Gram |
---|---|

1-gram | 231 |

2-gram | 24,920 |

3-gram | 24,916 |

4-gram | 24,910 |

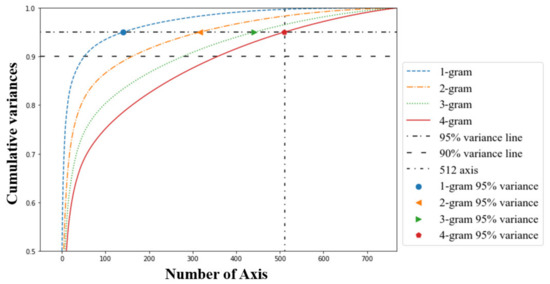

**Table 4.**The number of principal component analysis (PCA) axis for explained variance against the total variance.

The Number of PCA Axis\N-Gram | 1-Gram | 2-Gram | 3-Gram | 4-Gram |
---|---|---|---|---|

The number of PCA axis for 95% explained variance | 141 | 316 | 441 | 510 |

The number of PCA axis for 90% explained variance | 53 | 162 | 278 | 358 |

Methods | FC Classifier | MCSC (tanh, relu) | MCSP | MCSLT |
---|---|---|---|---|

Model + Classifier layers | 393,728 + 133,641 | 811,744 + 133,641 | 262,656 + 133,641 | 1246976 + 133,641 |

The total number of parameters | 527,369 | 945,385 | 396,297 | 1,477,641 |

N-Gram\Methods | FC Classifier | tanhMCSC | reluMCSC | MCSP | MCSLT | |
---|---|---|---|---|---|---|

1-gram | Mean | 94.73 | 94.40 | 94.48 | 95.13 | 94.95 |

Max | 95.07 | 94.65 | 94.79 | 95.30 | 95.16 | |

Std | 0.0020 | 0.0012 | 0.0017 | 0.0007 | 0.0011 | |

2-gram | Mean | 97.47 | 97.53 | 97.60 | 98.16 | 97.95 |

Max | 97.86 | 98.04 | 97.91 | 98.42 | 98.28 | |

Std | 0.0018 | 0.0018 | 0.0014 | 0.0007 | 0.0017 | |

3-gram | Mean | 97.21 | 97.80 | 97.80 | 98.60 | 98.04 |

Max | 97.22 | 98.09 | 98.00 | 98.74 | 98.46 | |

Std | 0.0031 | 0.0014 | 0.0016 | 0.0008 | 0.0019 | |

4-gram | Mean | 96.71 | 97.46 | 97.60 | 98.47 | 97.85 |

Max | 97.63 | 97.81 | 97.81 | 98.56 | 98.23 | |

Std | 0.0033 | 0.0018 | 0.0014 | 0.0005 | 0.0020 |

Methods | Ramnit | Lolli pop | Kelihos_ ver3 | Vundo | Simda | Tracur | Kelihos_ ver1 | Obfuscator. ACY | Gatak | Mean Score | Weighted Mean Score | |
---|---|---|---|---|---|---|---|---|---|---|---|---|

1-gram | tanhMCSC | 0.8193 | 0.9539 | 0.9999 | 0.9924 | 0.8524 | 0.9005 | 1 | 0.9159 | 0.9868 | 0.9357 | 0.9357 |

reluMCSC | 0.8417 | 0.9574 | 1 | 0.9924 | 0.8571 | 0.9084 | 1 | 0.9185 | 0.9859 | 0.9372 | 0.9694 | |

MCSP | 0.8213 | 0.9699 | 1 | 0.9981 | 0.8571 | 0.918 | 1 | 0.9281 | 0.9948 | 0.9431 | 0.9696 | |

MCSLT | 0.8146 | 0.9676 | 1 | 0.9936 | 0.8571 | 0.9126 | 1 | 0.9328 | 0.9924 | 0.9412 | 0.9685 | |

2-gram | tanhMCSC | 0.9556 | 0.9814 | 1 | 0.9962 | 0.8095 | 0.9267 | 1 | 0.9425 | 0.9826 | 0.9549 | 0.9549 |

reluMCSC | 0.9565 | 0.981 | 1 | 0.9951 | 0.8429 | 0.9336 | 1 | 0.9432 | 0.9832 | 0.9595 | 0.9779 | |

MCSP | 0.963 | 0.9868 | 1 | 1 | 0.9333 | 0.9397 | 1 | 0.9555 | 0.9948 | 0.9748 | 0.9869 | |

MCSLT | 0.9611 | 0.9834 | 1 | 0.9951 | 0.9476 | 0.932 | 0.9982 | 0.957 | 0.989 | 0.9737 | 0.9861 | |

3-gram | tanhMCSC | 0.9643 | 0.9767 | 0.9984 | 0.9788 | 0.7143 | 0.9724 | 0.9958 | 0.953 | 0.979 | 0.9481 | 0.9481 |

reluMCSC | 0.9608 | 0.9731 | 0.9988 | 0.9742 | 0.7333 | 0.9756 | 0.9970 | 0.9503 | 0.9782 | 0.9490 | 0.9719 | |

MCSP | 0.9717 | 0.9897 | 1 | 1 | 0.9857 | 0.9795 | 0.9848 | 0.9592 | 0.9892 | 0.9844 | 0.9920 | |

MCSLT | 0.9603 | 0.9842 | 0.9997 | 0.9898 | 0.7524 | 0.9749 | 0.9873 | 0.9536 | 0.9844 | 0.9541 | 0.9745 | |

4-gram | tanhMCSC | 0.9647 | 0.9782 | 0.9971 | 0.9697 | 0.7762 | 0.9231 | 0.9855 | 0.9583 | 0.9763 | 0.9477 | 0.9477 |

reluMCSC | 0.9592 | 0.9784 | 0.9988 | 0.9723 | 0.9000 | 0.9260 | 0.9891 | 0.9667 | 0.9763 | 0.963 | 0.9802 | |

MCSP | 0.9779 | 0.9886 | 1 | 0.9886 | 0.6857 | 0.9797 | 0.9945 | 0.9595 | 0.9796 | 0.9505 | 0.9716 | |

MCSLT | 0.9658 | 0.9844 | 0.998 | 0.9784 | 0.7429 | 0.9562 | 0.9909 | 0.9525 | 0.978 | 0.9497 | 0.9718 |
