# Optimizing the Paths of Trains Formed at the Loading Area in a Multi-loop Rail Network

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Literature Review

- Combining with the multi-loop network, a new route optimization strategy for direct train service is proposed. For direct train service, when the origin and destination of the goods are determined, it is not necessary to find the best path in the whole rail network. On the contrary, we only need to choose the best path within the range of the freight channel that may include a multi-loop structure.
- Two integer linear programming models for optimizing the paths of trains formed at the loading area in a multi-loop rail network are proposed. Unlike the models in previous studies, which often choose the best path from a path set (e.g., Lin et al., 1997), the model in this paper does not need to determine the path set in advance but only needs to select the arc for each loop and finally form a path by connecting each arc.
- A set of numerical experiments with various rail loops and train flows are conducted to evaluate the performance of the proposed methods. We use the Lingo solver to solve the proposed models. For small-scale case studies, the results demonstrate the feasibility of the proposed models.
- For large-scale train flows and rail loops, which Lingo may not solve in a short time, a genetic algorithm is designed. This algorithm performs well in optimizing the paths of large-scale train flows formed at the loading area in a multi-loop rail network.

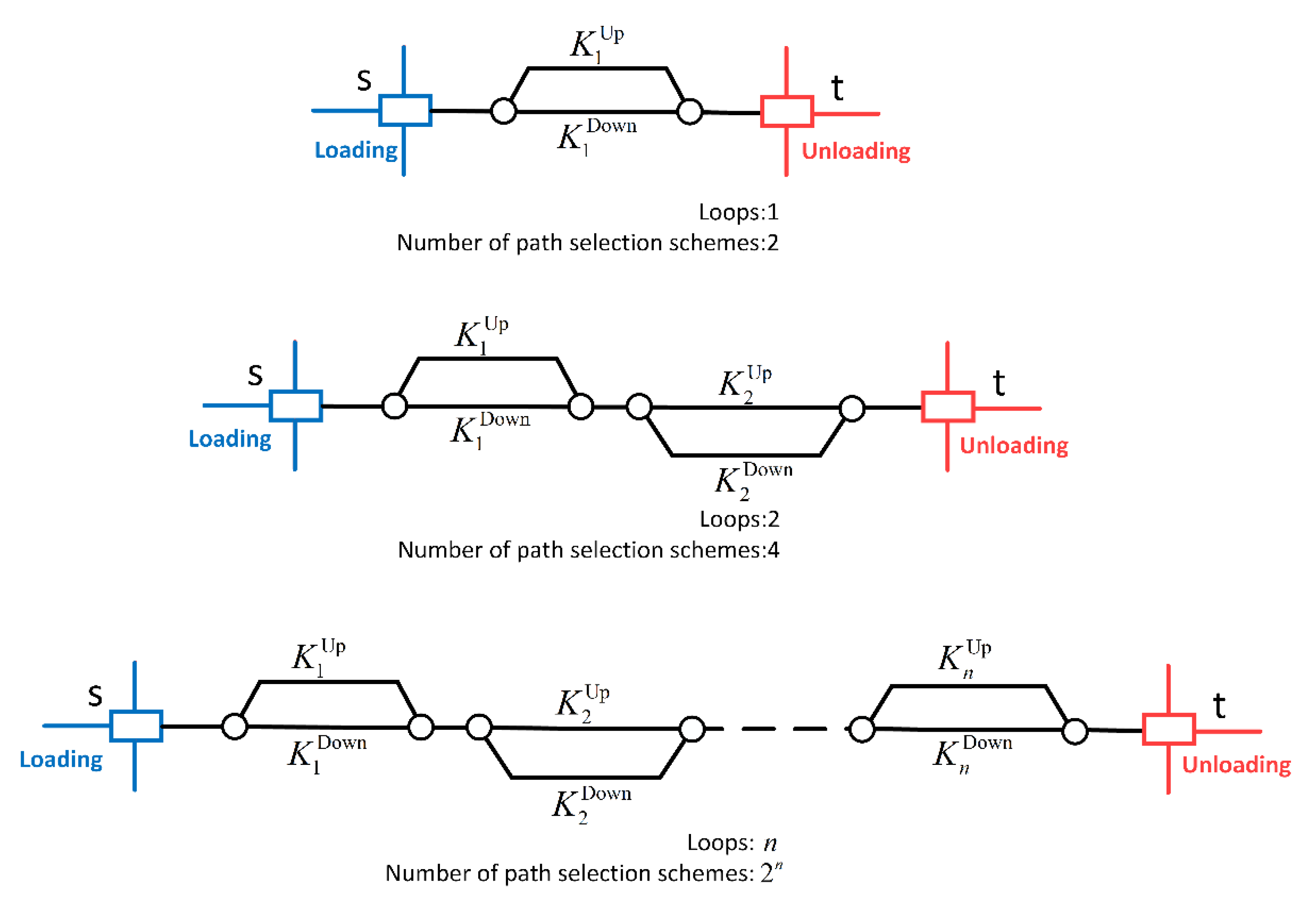

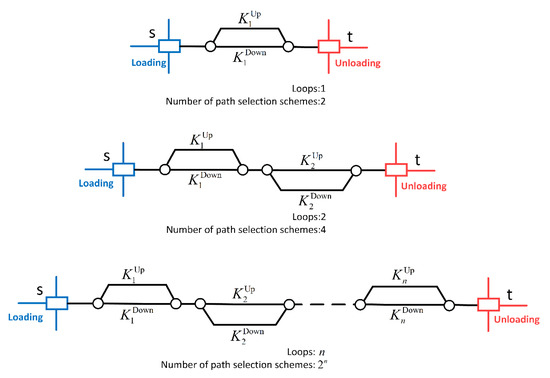

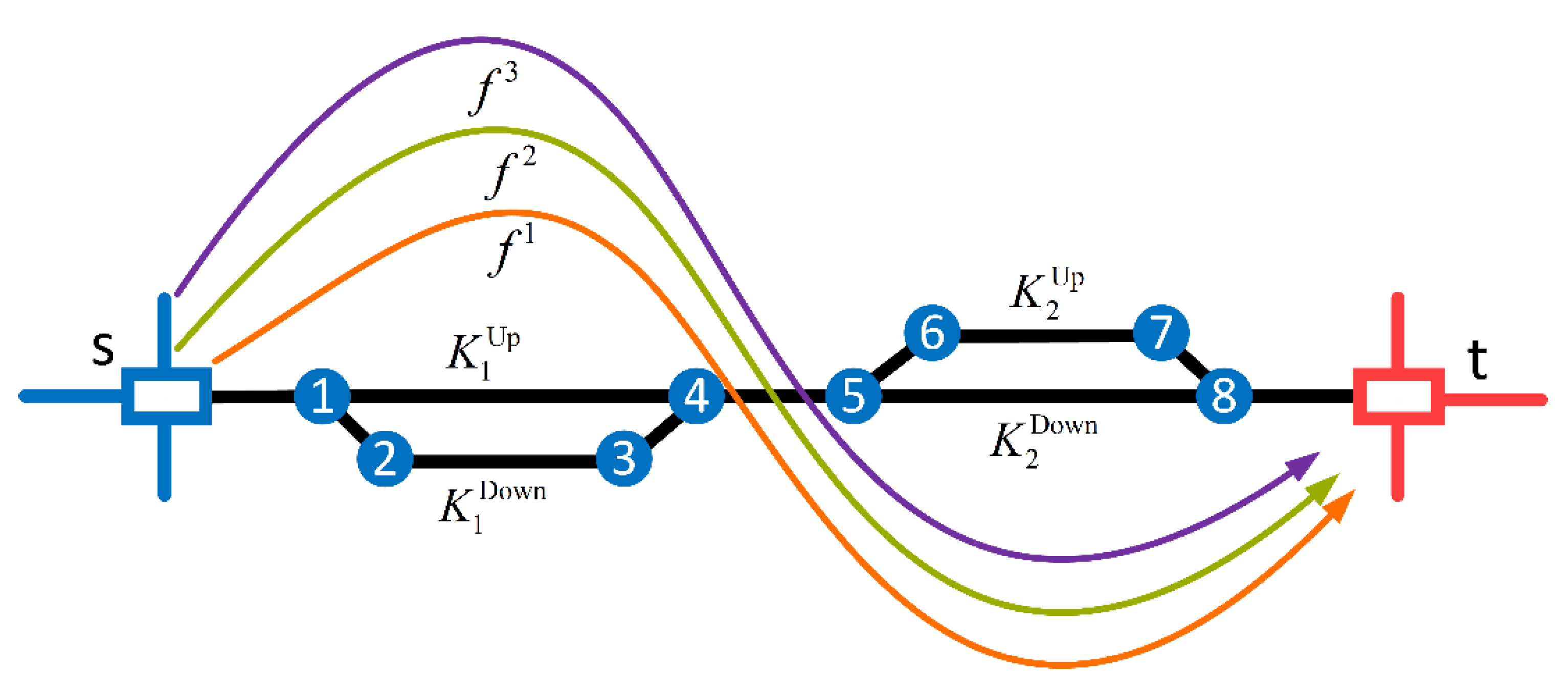

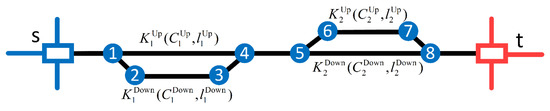

## 3. The Path Problem of Trains Formed at Loading Area in a Multi-Loop Rail Network

## 4. Mathematical Models

#### 4.1. Variables and Parameters

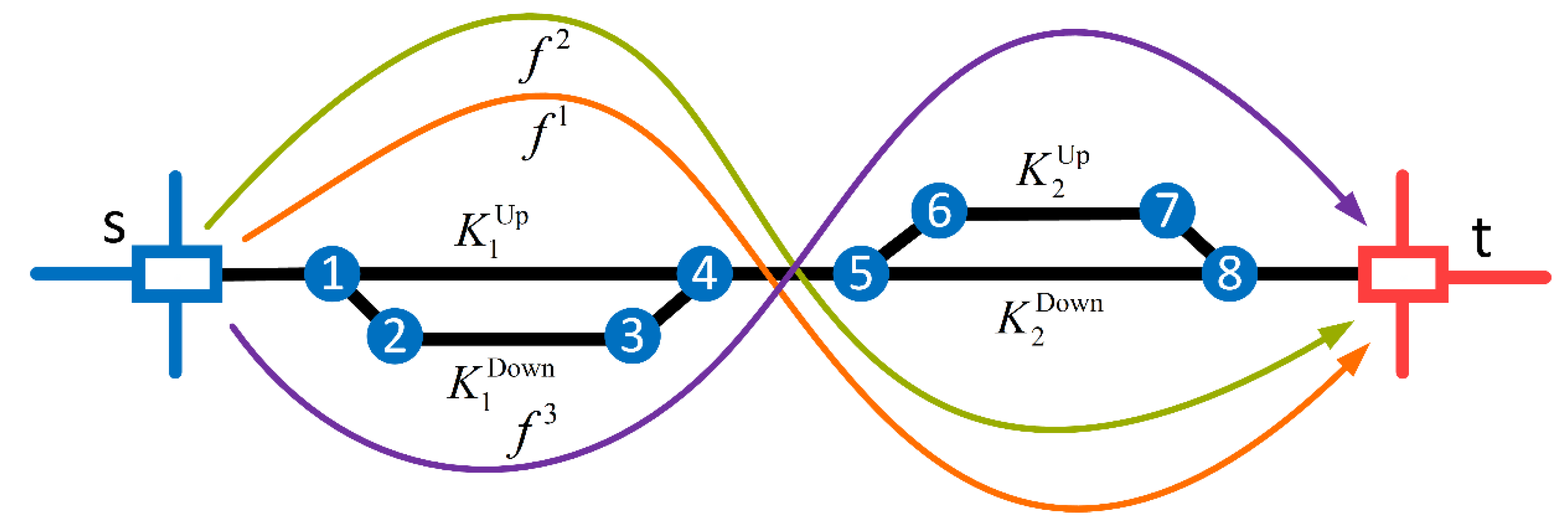

#### 4.2. Mathematical Models under Situation 1 and Situation 2

- The capacity of a network can meet the demands of all train flows;
- A single train flow cannot be split during the itinerary.

**Model I:**

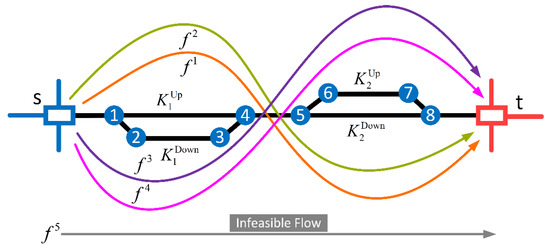

#### 4.3. Mathematical Mode under Situation 3

**Model II:**

## 5. Computational Experiments

^{4}Tons/Year.

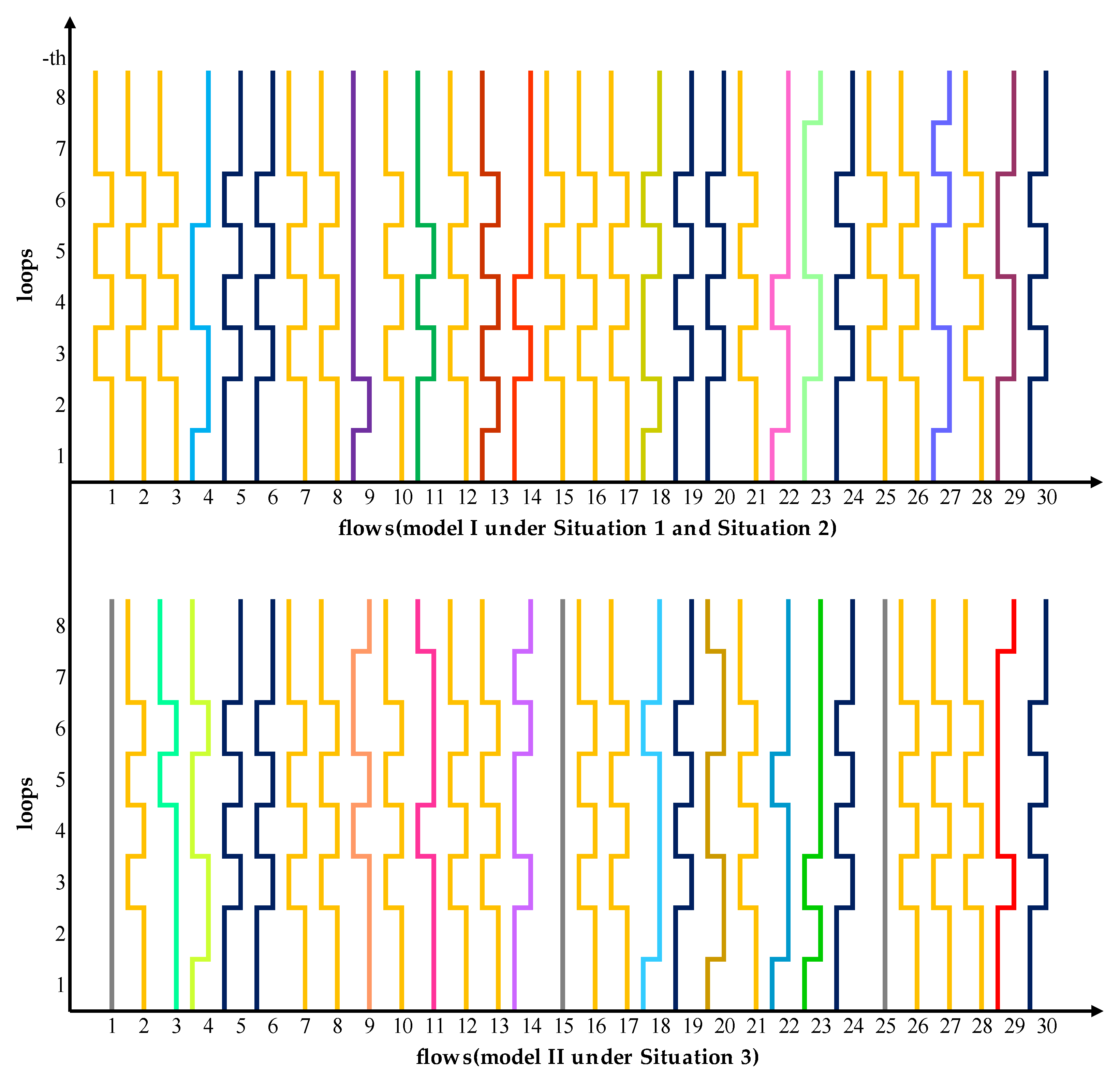

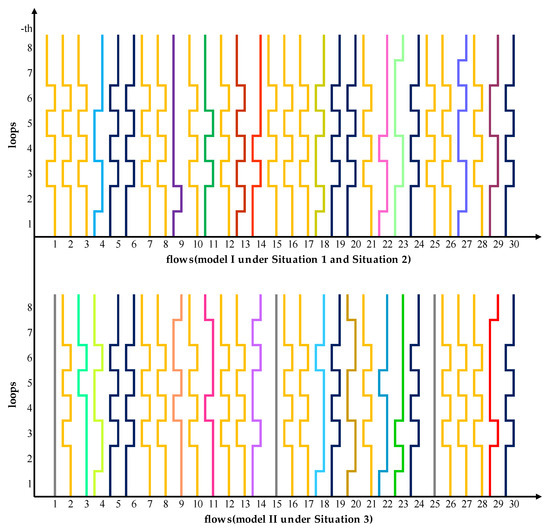

#### 5.1. The Results of the Two Models under Situation 1 and Situation 2

#### 5.2. Comparison the Solution Time between Model I and Model II under Situation 1 and Situation 2

#### 5.3. Analysis of the Solution Efficiency of Model II under Situation 3

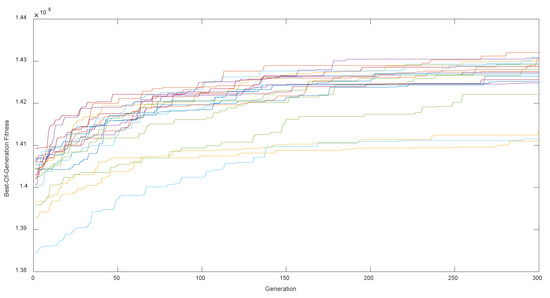

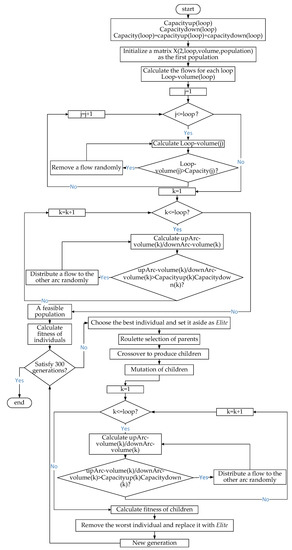

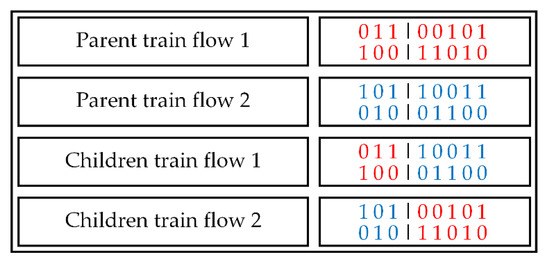

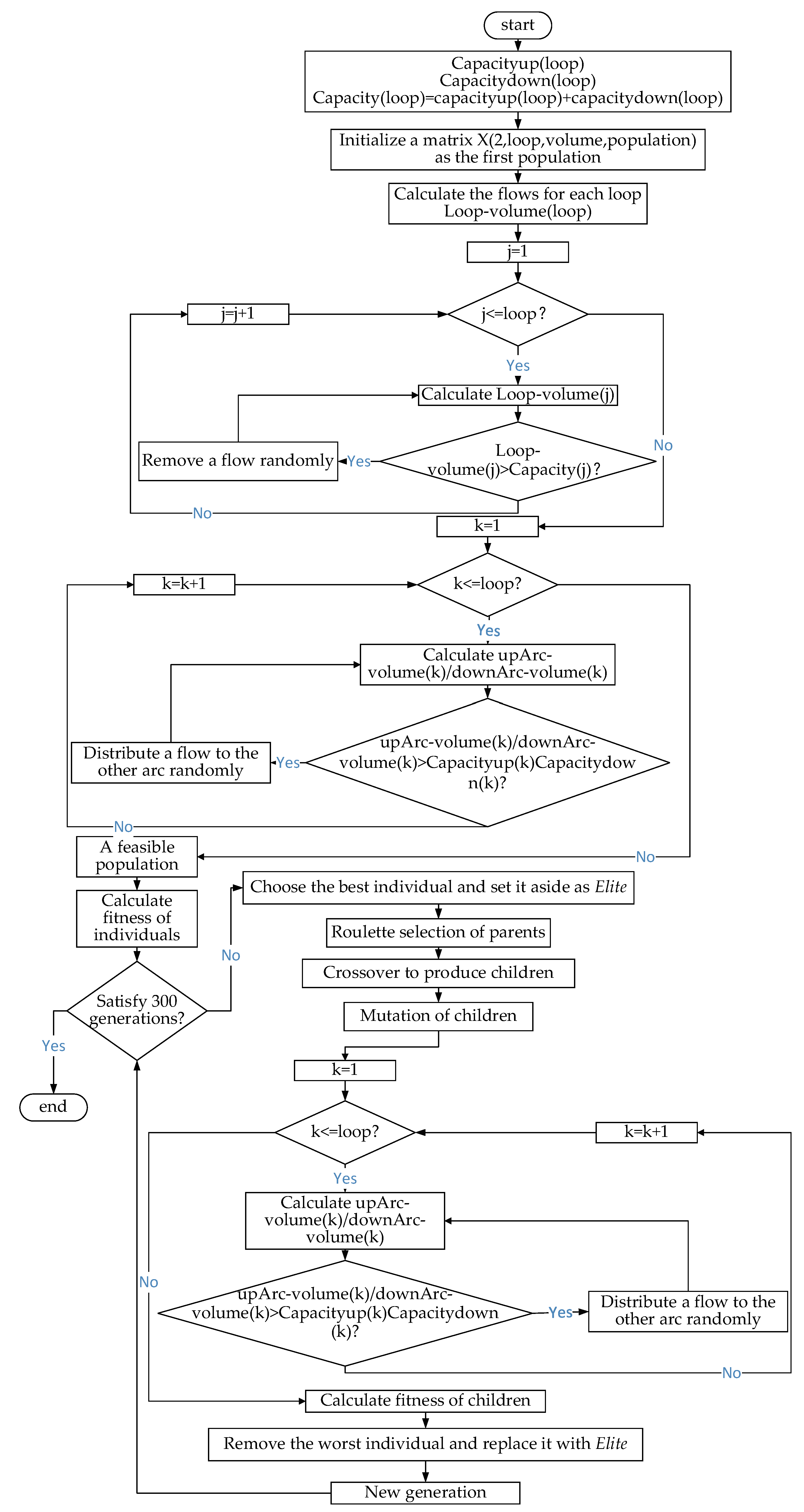

#### 5.4. A Genetic Algorithm for Solving this Problem

## 6. Conclusions and Future Work

## Author Contributions

## Acknowledgments

## Conflicts of Interest

## References

- Lin, B.L.; Zhu, S.N.; Chen, Z.S.; Peng, H. The 0–1 integer programming model for optimal car routing problem and algorithm for the available set in rail network. J. China Railw. Soc.
**1997**, 1, 9–14. [Google Scholar] [CrossRef] - Jiang, N.; Li, X.M.; Zhu, Y.H.; Wei, C.Y. Mathematical problems in car flow routing. China Railw. Sci.
**2004**, 25, 121–124. [Google Scholar] [CrossRef] - Wang, B.H.; He, S.W.; Song, R.; Wang, B. Stochastic dependent-chance programming model and hybrid genetic algorithm for car flow routing plan. J. China Railw. Soc.
**2007**, 29, 6–11. [Google Scholar] [CrossRef] - Nong, J.; Ji, L.; Ye, Y.L.; Liu, Z.J. Distributed algorithm for the optimization of railway car flow routing. China Railw. Sci.
**2008**, 29, 115–121. [Google Scholar] [CrossRef] - Cao, X.M.; Wang, X.F.; Lin, B.L. Collaborative optimization model of the loaded & empty car flow routing and the empty car distribution of multiple car types. China Railw. Sci.
**2009**, 30, 114–118. [Google Scholar] [CrossRef] - Sadykov, R.; Lazarev, A.; Shiryaev, V.; Stratonnikov, A. Solving a freight railcar flow problem arising in Russia. In 13th Workshop on Algorithmic Approaches for Transportation Modelling, Optimization, and Systems, Proceedings of the ATMOS ’13, Sophia Antipolis, France, 5 September 2013; Dagstuhl: Wadern, Germany, 2013; pp. 55–67. [Google Scholar] [CrossRef]
- Borndörfer, R.; Fügenschuh, A.; Klug, T.; Schang, T.; Schlechte, T.; Schülldorf, H. The Freight Train Routing Problem; Konrad-Zuse-Zentrum für Informationstechnik Berlin: Berlin, Germany, 2014. [Google Scholar]
- Borndörfer, R.; Fügenschuh, A.; Klug, T.; Schang, T.; Schlechte, T.; Schülldorf, H. The freight train routing problem for congested railway networks with mixed traffic. Transp. Sci.
**2016**, 50, 408–423. [Google Scholar] [CrossRef] - Zhao, C.; Yang, L.X.; Li, S.K. Allocating freight empty cars in railway networks with dynamic demands. Discret. Dyn. Nat. Soc.
**2014**. [Google Scholar] [CrossRef] - Wen, X.H.; Lin, B.L.; Chen, L. Optimization model of railway vehicle flow routing based on tree form. J. China Railw. Soc.
**2016**, 38, 1–6. [Google Scholar] [CrossRef] - Fu, L.; Dessouky, M. Algorithms for a special class of state-dependent shortest path problems with an application to the train routing problem. J. Sched.
**2018**, 1–20. [Google Scholar] [CrossRef] - Brucker, P.; Hurink, J.; Rolfes, T. Routing of railway carriages. J. Glob. Optim.
**2003**, 27, 313–332. [Google Scholar] [CrossRef] - Fügenschuh, A.; Homfeld, H.; Schülldorf, H. Single-car routing in rail freight transport. Transp. Sci.
**2013**, 49, 130–148. [Google Scholar] [CrossRef] - Assad, A.A. Modelling of rail networks: Toward a routing/makeup model. Transp. Res. Part B: Methodol.
**1980**, 14, 101–114. [Google Scholar] [CrossRef] - Haghani, A.E. Formulation and solution of a combined train routing and makeup, and empty car distribution model. Transp. Res. Part B Methodol.
**1989**, 23, 433–452. [Google Scholar] [CrossRef] - Lin, B.L.; Zhu, S.N. Synthetic optimization of train routing and makeup plan in a railway network. J. China Railw. Soc.
**1996**, 18, 1–7. [Google Scholar] [CrossRef] - Yan, Y.S.; Hu, Z.A.; Li, X.Y. Comprehensive optimization of train formation plan and wagon-flow path based on fluctuating wagon-flow. J. Transp. Syst. Eng. Inf. Technol.
**2017**, 4, 019. [Google Scholar] [CrossRef] - Cominetti, R.; Correa, J. Common-lines and passenger assignment in congested transit networks. Transp. Sci.
**2001**, 35, 250–267. [Google Scholar] [CrossRef] - Fu, H.L.; Sperry, B.R.; Nie, L. Operational impacts of using restricted passenger flow assignment in high-speed train stop scheduling problem. Math. Probl. Eng.
**2013**. [Google Scholar] [CrossRef] - Zhou, F.; Shi, J.G.; Xu, R.H. Estimation method of path-selecting proportion for urban rail transit based on AFC data. Math. Probl. Eng.
**2015**. [Google Scholar] [CrossRef] - Xu, Y.; Jia, B.; Ghiasi, A.; Li, X.P. Train routing and timetabling problem for heterogeneous train traffic with switchable scheduling rules. Transp. Res. Part C Emerg. Technol.
**2017**, 84, 196–218. [Google Scholar] [CrossRef] - Wang, Y.; Gao, Y.; Yu, X.Y.; Hansen, I.A.; Miao, J.R. Optimization models for high-speed train unit routing problems. Comput. Ind. Eng.
**2018**. [Google Scholar] [CrossRef] - Samà, M.; Pellegrini, P.; D’Ariano, A.; Rodriguez, J.; Pacciarelli, D. Ant colony optimization for the real-time train routing selection problem. Transp. Res. Part B: Methodol.
**2016**, 85, 89–108. [Google Scholar] [CrossRef] - Samà, M.; D’Ariano, A.; Pacciarelli, D.; Corman, F. Lower and upper bound algorithms for the real-time train scheduling and routing problem in a railway network. IFAC-Pap
**2016**, 49, 215–220. [Google Scholar] [CrossRef] - Kou, W.H.; Li, Z.P. Maximum flow distributing algorithm under restricted capacity condition at transportation network sites. J. Transp. Eng. Inf.
**2008**, 42, 639–665. [Google Scholar] [CrossRef] - Kou, W.H.; Li, Z.P. Maximum flow assignment algorithm for transshipment nodes with flow demands in transportation network. J. Southwest Jiaotong Univ.
**2009**, 44, 118–121. [Google Scholar] [CrossRef] - Bakó, A.; Hartványi, T.; Szüts, I. Transportation network realization with an optimization method. In Proceedings of the 2009 4th International Symposium on Computational Intelligence and Intelligent Informatics, Luxor, Egypt, 21–25 October 2009; pp. 81–84. [Google Scholar] [CrossRef]
- Gao, Q.P. A Minimum cost and maximum flow model of hazardous materials transportation. Adv. Mater. Res.
**2011**, 305, 363–366. [Google Scholar] [CrossRef] - Singh, V.K.; Tripathi, I.K.; Nimisha, N. Applications of maximal network flow problems in transportation and assignment problems. J. Math. Res.
**2010**, 2. [Google Scholar] [CrossRef] - Di, Z.; Yang, L.X.; Qi, J.G.; Gao, Z.Y. Transportation network design for maximizing flow-based accessibility. Transp. Res. Part B Methodol.
**2018**, 110, 209–238. [Google Scholar] [CrossRef]

No. | Author | Model | Solution Technique | ||
---|---|---|---|---|---|

Model Structure | Decision Variables | Constraints | |||

1 | Haghani (1989) | MINLP | Integer variables | a) Capacity constraint | A heuristic decomposition technique |

2 | Lin et al. (1997) | ILP | 0–1 variables | a) Operation principle b) Capacity constraint | Simulated annealing algorithm |

3 | Borndörfer et al. (2016) | MINLP | 0–1 variables | a) Capacity constraint b) Time constraint | Linearization of the objective function |

4 | Sadykov et al. (2013) | LP | 0–1 and integer variables | a) Operation principle b) Capacity constraint | A column generation approach |

5 | Fügenschuh et al. (2013) | MINLP | 0–1 and integer variables | a) Operation principle b) Capacity constraint | Tree-based reformulation and heuristic cuts |

6 | Samà et al. (2016) | ILP | 0–1 variables | a) Operation principle | Ant colony optimization |

No. | Name | Distance (up) (Km) | Distance (down) (Km) | Capacity (up) (10 ^{4} Tons/Year) | Capacity (down) (10 ^{4} Tons/Year) |
---|---|---|---|---|---|

1 | ${K}_{1}$ | 141 | 111 | 5925 | 4405 |

2 | ${K}_{2}$ | 130 | 95 | 5033 | 6219 |

3 | ${K}_{3}$ | 149 | 158 | 5163 | 4307 |

4 | ${K}_{4}$ | 90 | 78 | 6682 | 5151 |

5 | ${K}_{5}$ | 100 | 125 | 5947 | 4601 |

6 | ${K}_{6}$ | 155 | 138 | 4563 | 5929 |

7 | ${K}_{7}$ | 72 | 103 | 5342 | 4041 |

8 | ${K}_{8}$ | 118 | 144 | 4903 | 5000 |

No. | Name | Volume (10^{4} Tons/Year) | Freight rate No. 1 (¥/Ton) | Freight rate No. 2 (¥/Ton-km) |
---|---|---|---|---|

1 | ${f}^{1}$ | 241 | 5.7 | 0.0336 |

2 | ${f}^{2}$ | 381 | 6.4 | 0.0378 |

3 | ${f}^{3}$ | 111 | 7.6 | 0.0435 |

4 | ${f}^{4}$ | 375 | 9.6 | 0.0484 |

5 | ${f}^{5}$ | 285 | 10.4 | 0.0549 |

6 | ${f}^{6}$ | 186 | 14.8 | 0.0765 |

7 | ${f}^{7}$ | 251 | 6.4 | 0.0378 |

8 | ${f}^{8}$ | 213 | 7.6 | 0.0435 |

9 | ${f}^{9}$ | 216 | 9.6 | 0.0484 |

10 | ${f}^{10}$ | 481 | 7.6 | 0.0435 |

11 | ${f}^{11}$ | 137 | 9.6 | 0.0484 |

12 | ${f}^{12}$ | 462 | 6.4 | 0.0378 |

13 | ${f}^{13}$ | 182 | 7.6 | 0.0435 |

14 | ${f}^{14}$ | 326 | 9.6 | 0.0484 |

15 | ${f}^{15}$ | 128 | 5.7 | 0.0336 |

16 | ${f}^{16}$ | 192 | 6.4 | 0.0378 |

17 | ${f}^{17}$ | 194 | 7.6 | 0.0435 |

18 | ${f}^{18}$ | 399 | 9.6 | 0.0484 |

19 | ${f}^{19}$ | 483 | 10.4 | 0.0549 |

20 | ${f}^{20}$ | 342 | 9.6 | 0.0484 |

21 | ${f}^{21}$ | 477 | 7.6 | 0.0435 |

22 | ${f}^{22}$ | 475 | 9.6 | 0.0484 |

23 | ${f}^{23}$ | 226 | 9.6 | 0.0484 |

24 | ${f}^{24}$ | 427 | 14.8 | 0.0765 |

25 | ${f}^{25}$ | 336 | 6.4 | 0.0378 |

26 | ${f}^{26}$ | 402 | 7.6 | 0.0435 |

27 | ${f}^{27}$ | 205 | 9.6 | 0.0484 |

28 | ${f}^{28}$ | 497 | 7.6 | 0.0435 |

29 | ${f}^{29}$ | 377 | 9.6 | 0.0484 |

30 | ${f}^{30}$ | 162 | 10.4 | 0.0549 |

No. | Name | Paths |
---|---|---|

1 | ${f}^{1}$ | $s$→${K}_{1}^{\mathrm{Down}}$→${K}_{2}^{\mathrm{Down}}$→${K}_{3}^{\mathrm{Up}}$→${K}_{4}^{\mathrm{Down}}$→${K}_{5}^{\mathrm{Up}}$→${K}_{6}^{\mathrm{Down}}$→${K}_{7}^{\mathrm{Up}}$→${K}_{8}^{\mathrm{Up}}$→$t$ |

2 | ${f}^{2}$ | $s$→${K}_{1}^{\mathrm{Down}}$→${K}_{2}^{\mathrm{Down}}$→${K}_{3}^{\mathrm{Up}}$→${K}_{4}^{\mathrm{Down}}$→${K}_{5}^{\mathrm{Up}}$→${K}_{6}^{\mathrm{Down}}$→${K}_{7}^{\mathrm{Up}}$→${K}_{8}^{\mathrm{Up}}$→$t$ |

3 | ${f}^{3}$ | $s$→${K}_{1}^{\mathrm{Down}}$→${K}_{2}^{\mathrm{Down}}$→${K}_{3}^{\mathrm{Up}}$→${K}_{4}^{\mathrm{Down}}$→${K}_{5}^{\mathrm{Up}}$→${K}_{6}^{\mathrm{Down}}$→${K}_{7}^{\mathrm{Up}}$→${K}_{8}^{\mathrm{Up}}$→$t$ |

4 | ${f}^{4}$ | $s$→${K}_{1}^{\mathrm{Up}}$→${K}_{2}^{\mathrm{Down}}$→${K}_{3}^{\mathrm{Down}}$→${K}_{4}^{\mathrm{Up}}$→${K}_{5}^{\mathrm{Up}}$→${K}_{6}^{\mathrm{Down}}$→${K}_{7}^{\mathrm{Down}}$→${K}_{8}^{\mathrm{Down}}$→$t$ |

5 | ${f}^{5}$ | $s$→${K}_{1}^{\mathrm{Up}}$→${K}_{2}^{\mathrm{Up}}$→${K}_{3}^{\mathrm{Down}}$→${K}_{4}^{\mathrm{Up}}$→${K}_{5}^{\mathrm{Down}}$→${K}_{6}^{\mathrm{Up}}$→${K}_{7}^{\mathrm{Down}}$→${K}_{8}^{\mathrm{Down}}$→$t$ |

6 | ${f}^{6}$ | $s$→${K}_{1}^{\mathrm{Up}}$→${K}_{2}^{\mathrm{Up}}$→${K}_{3}^{\mathrm{Down}}$→${K}_{4}^{\mathrm{Up}}$→${K}_{5}^{\mathrm{Down}}$→${K}_{6}^{\mathrm{Up}}$→${K}_{7}^{\mathrm{Down}}$→${K}_{8}^{\mathrm{Down}}$→$t$ |

7 | ${f}^{7}$ | |

8 | ${f}^{8}$ | |

9 | ${f}^{9}$ | $s$→${K}_{1}^{\mathrm{Up}}$→${K}_{2}^{\mathrm{Down}}$→${K}_{3}^{\mathrm{Up}}$→${K}_{4}^{\mathrm{Up}}$→${K}_{5}^{\mathrm{Up}}$→${K}_{6}^{\mathrm{Up}}$→${K}_{7}^{\mathrm{Up}}$→${K}_{8}^{\mathrm{Up}}$→$t$ |

10 | ${f}^{10}$ | $s$→${K}_{1}^{\mathrm{Down}}$→${K}_{2}^{\mathrm{Down}}$→${K}_{3}^{\mathrm{Up}}$→${K}_{4}^{down}$→${K}_{5}^{\mathrm{Up}}$→${K}_{6}^{\mathrm{Down}}$→${K}_{7}^{\mathrm{Up}}$→${K}_{8}^{\mathrm{Up}}$→$t$ |

11 | ${f}^{11}$ | $s$→${K}_{1}^{\mathrm{Up}}$→${K}_{2}^{\mathrm{Up}}$→${K}_{3}^{\mathrm{Down}}$→${K}_{4}^{\mathrm{Up}}$→${K}_{5}^{\mathrm{Down}}$→${K}_{6}^{\mathrm{Up}}$→${K}_{7}^{\mathrm{Up}}$→${K}_{8}^{\mathrm{Up}}$→$t$ |

12 | ${f}^{12}$ | |

13 | ${f}^{13}$ | $s$→${K}_{1}^{\mathrm{Up}}$→${K}_{2}^{\mathrm{Down}}$→${K}_{3}^{\mathrm{Up}}$→${K}_{4}^{\mathrm{Down}}$→${K}_{5}^{\mathrm{Up}}$→${K}_{6}^{\mathrm{Down}}$→${K}_{7}^{\mathrm{Up}}$→${K}_{8}^{\mathrm{Up}}$→$t$ |

14 | ${f}^{14}$ | $s$→${K}_{1}^{\mathrm{Up}}$→${K}_{2}^{\mathrm{Up}}$→${K}_{3}^{\mathrm{Down}}$→${K}_{4}^{\mathrm{Up}}$→${K}_{5}^{\mathrm{Down}}$→${K}_{6}^{\mathrm{Down}}$→${K}_{7}^{\mathrm{Down}}$→${K}_{8}^{\mathrm{Down}}$→$t$ |

15 | ${f}^{15}$ | |

16 | ${f}^{16}$ | |

17 | ${f}^{17}$ | |

18 | ${f}^{18}$ | $s$→${K}_{1}^{\mathrm{Up}}$→${K}_{2}^{\mathrm{Down}}$→${K}_{3}^{\mathrm{Up}}$→${K}_{4}^{\mathrm{Up}}$→${K}_{5}^{\mathrm{Down}}$→${K}_{6}^{\mathrm{Up}}$→${K}_{7}^{\mathrm{Down}}$→${K}_{8}^{\mathrm{Down}}$→$t$ |

19 | ${f}^{19}$ | $s$→${K}_{1}^{\mathrm{Up}}$→${K}_{2}^{\mathrm{Up}}$→${K}_{3}^{\mathrm{Down}}$→${K}_{4}^{\mathrm{Up}}$→${K}_{5}^{\mathrm{Down}}$→${K}_{6}^{\mathrm{Up}}$→${K}_{7}^{\mathrm{Down}}$→${K}_{8}^{\mathrm{Down}}$→$t$ |

20 | ${f}^{20}$ | |

21 | ${f}^{21}$ | |

22 | ${f}^{22}$ | $s$→${K}_{1}^{\mathrm{Up}}$→${K}_{2}^{\mathrm{Down}}$→${K}_{3}^{\mathrm{Down}}$→${K}_{4}^{\mathrm{Up}}$→${K}_{5}^{\mathrm{Down}}$→${K}_{6}^{\mathrm{Down}}$→${K}_{7}^{\mathrm{Down}}$→${K}_{8}^{\mathrm{Down}}$→$t$ |

23 | ${f}^{23}$ | $s$→${K}_{1}^{\mathrm{Up}}$→${K}_{2}^{\mathrm{Up}}$→${K}_{3}^{\mathrm{Down}}$→${K}_{4}^{\mathrm{Down}}$→${K}_{5}^{\mathrm{Up}}$→${K}_{6}^{\mathrm{Up}}$→${K}_{7}^{\mathrm{Up}}$→${K}_{8}^{\mathrm{Down}}$→$t$ |

24 | ${f}^{24}$ | |

25 | ${f}^{25}$ | |

26 | ${f}^{26}$ | |

27 | ${f}^{27}$ | $s$→${K}_{1}^{\mathrm{Up}}$→${K}_{2}^{\mathrm{Down}}$→${K}_{3}^{\mathrm{Down}}$→${K}_{4}^{\mathrm{Up}}$→${K}_{5}^{\mathrm{Up}}$→${K}_{6}^{\mathrm{Down}}$→${K}_{7}^{\mathrm{Up}}$→${K}_{8}^{\mathrm{Down}}$→$t$ |

28 | ${f}^{28}$ | |

29 | ${f}^{29}$ | $s$→${K}_{1}^{\mathrm{Up}}$→${K}_{2}^{\mathrm{Up}}$→${K}_{3}^{\mathrm{Down}}$→${K}_{4}^{\mathrm{Down}}$→${K}_{5}^{\mathrm{Up}}$→${K}_{6}^{\mathrm{Up}}$→${K}_{7}^{\mathrm{Down}}$→${K}_{8}^{\mathrm{Down}}$→$t$ |

30 | ${f}^{30}$ |

No. | Parameters | Model I | Model II | No. | Parameters | Model I | Model II |
---|---|---|---|---|---|---|---|

1 | (10,8) | < 1 s | < 1 s | 8 | (30,4) | 1 s | < 1 s |

2 | (20,8) | < 1 s | < 1 s | 9 | (30,6) | 1 s | < 1 s |

3 | (30,8) | 1 s | 3 s | 10 | (30,10) | 1 s | 3 s |

4 | (40,8) | 1 s | 24 s | 11 | (30,12) | 1 s | 3 s |

5 | (50,8) | 1 s | 28 s | 12 | (30,14) | 1 s | 6 s |

6 | (60,8) | 1 s | 154 s | 13 | (30,16) | 1 s | 16 s |

7 | (70,8) | 1 s | 275 s |

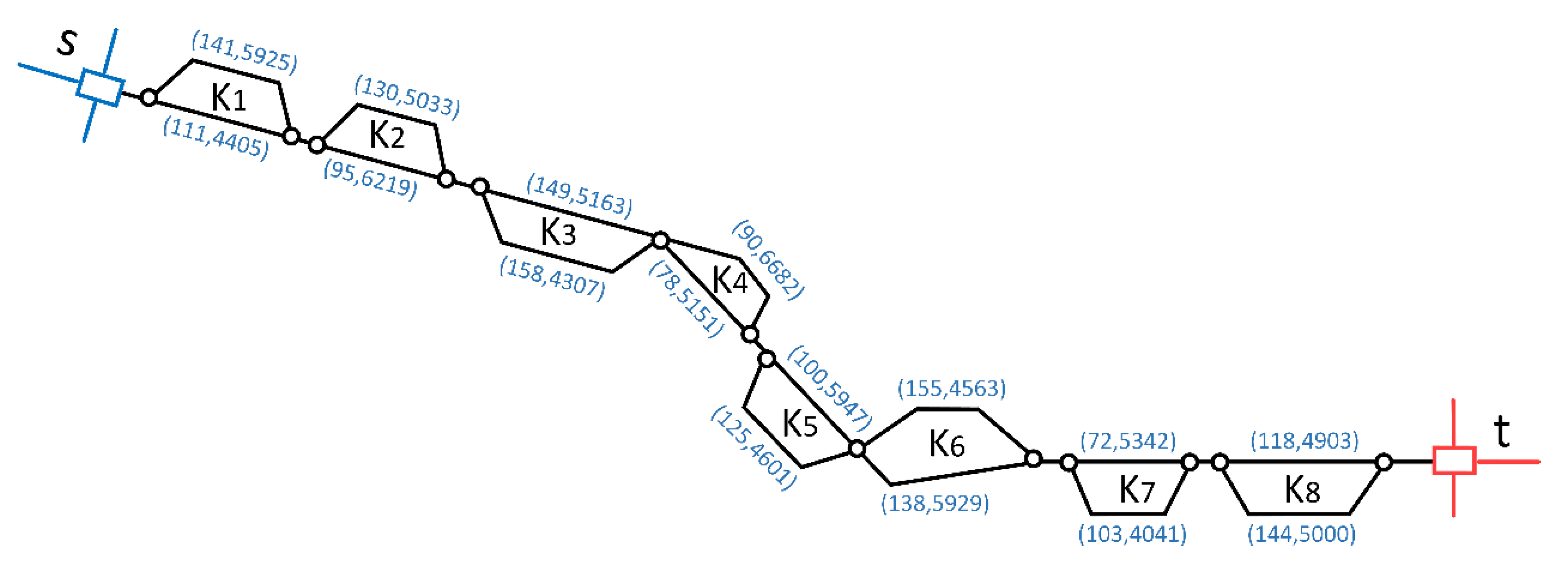

**Table 6.**Parameters of the rail network based on Table 2.

No. | Name | Distance (up) (Km) | Distance (down) (Km) | Capacity (up) (10 ^{4} Tons/Year) | Capacity (down) (10 ^{4} Tons/Year) |
---|---|---|---|---|---|

1 | ${K}_{1}$ | 141 | 111 | 5925 | 4405 |

2 | ${K}_{2}$ | 130 | 95 | 5033 | 6219 |

3 | ${K}_{3}$ | 149 | 158 | 4163 | 4307 |

4 | ${K}_{4}$ | 90 | 78 | 6682 | 5151 |

5 | ${K}_{5}$ | 100 | 125 | 5947 | 4601 |

6 | ${K}_{6}$ | 155 | 138 | 4563 | 5929 |

7 | ${K}_{7}$ | 72 | 103 | 5342 | 4041 |

8 | ${K}_{8}$ | 118 | 144 | 4903 | 5000 |

No. | Name | Paths |
---|---|---|

1 | ${f}^{1}$ | — |

2 | ${f}^{2}$ | |

3 | ${f}^{3}$ | $s$→${K}_{1}^{\mathrm{Down}}$→${K}_{2}^{\mathrm{Down}}$→${K}_{3}^{\mathrm{Down}}$→${K}_{4}^{\mathrm{Down}}$→${K}_{5}^{\mathrm{Up}}$→${K}_{6}^{\mathrm{Down}}$→${K}_{7}^{\mathrm{Up}}$→${K}_{8}^{\mathrm{Up}}$→$t$ |

4 | ${f}^{4}$ | $s$→${K}_{1}^{\mathrm{Up}}$→${K}_{2}^{\mathrm{Down}}$→${K}_{3}^{\mathrm{Down}}$→${K}_{4}^{\mathrm{Up}}$→${K}_{5}^{\mathrm{Up}}$→${K}_{6}^{\mathrm{Down}}$→${K}_{7}^{\mathrm{Up}}$→${K}_{8}^{\mathrm{Up}}$→$t$ |

5 | ${f}^{5}$ | |

6 | ${f}^{6}$ | |

7 | ${f}^{7}$ | |

8 | ${f}^{8}$ | |

9 | ${f}^{9}$ | $s$→${K}_{1}^{\mathrm{Down}}$→${K}_{2}^{\mathrm{Down}}$→${K}_{3}^{\mathrm{Down}}$→${K}_{4}^{\mathrm{Up}}$→${K}_{5}^{\mathrm{Down}}$→${K}_{6}^{\mathrm{Up}}$→${K}_{7}^{\mathrm{Up}}$→${K}_{8}^{\mathrm{Down}}$→$t$ |

10 | ${f}^{10}$ | |

11 | ${f}^{11}$ | $s$→${K}_{1}^{\mathrm{Down}}$→${K}_{2}^{\mathrm{Down}}$→${K}_{3}^{\mathrm{Down}}$→${K}_{4}^{\mathrm{Up}}$→${K}_{5}^{\mathrm{Down}}$→${K}_{6}^{\mathrm{Down}}$→${K}_{7}^{\mathrm{Down}}$→${K}_{8}^{\mathrm{Up}}$→$t$ |

12 | ${f}^{12}$ | |

13 | ${f}^{13}$ | |

14 | ${f}^{14}$ | $s$→${K}_{1}^{\mathrm{Up}}$→${K}_{2}^{\mathrm{Up}}$→${K}_{3}^{\mathrm{Down}}$→${K}_{4}^{\mathrm{Up}}$→${K}_{5}^{\mathrm{Up}}$→${K}_{6}^{\mathrm{Down}}$→${K}_{7}^{\mathrm{Up}}$→${K}_{8}^{\mathrm{Down}}$→$t$ |

15 | ${f}^{15}$ | - |

16 | ${f}^{16}$ | |

17 | ${f}^{17}$ | |

18 | ${f}^{18}$ | $s$→${K}_{1}^{\mathrm{Up}}$→${K}_{2}^{\mathrm{Down}}$→${K}_{3}^{\mathrm{Down}}$→${K}_{4}^{\mathrm{Down}}$→${K}_{5}^{\mathrm{Down}}$→${K}_{6}^{\mathrm{Up}}$→${K}_{7}^{\mathrm{Down}}$→${K}_{8}^{\mathrm{Down}}$→$t$ |

19 | ${f}^{19}$ | |

20 | ${f}^{20}$ | $s$→${K}_{1}^{\mathrm{Up}}$→${K}_{2}^{\mathrm{Down}}$→${K}_{3}^{\mathrm{Down}}$→${K}_{4}^{\mathrm{Up}}$→${K}_{5}^{\mathrm{Up}}$→${K}_{6}^{\mathrm{Down}}$→${K}_{7}^{\mathrm{Down}}$→${K}_{8}^{\mathrm{Up}}$→$t$ |

21 | ${f}^{21}$ | |

22 | ${f}^{22}$ | $s$→${K}_{1}^{\mathrm{Up}}$→${K}_{2}^{\mathrm{Down}}$→${K}_{3}^{\mathrm{Down}}$→${K}_{4}^{\mathrm{Down}}$→${K}_{5}^{\mathrm{Up}}$→${K}_{6}^{\mathrm{Down}}$→${K}_{7}^{\mathrm{Down}}$→${K}_{8}^{\mathrm{Down}}$→$t$ |

23 | ${f}^{23}$ | $s$→${K}_{1}^{\mathrm{Up}}$→${K}_{2}^{\mathrm{Down}}$→${K}_{3}^{\mathrm{Up}}$→${K}_{4}^{\mathrm{Down}}$→${K}_{5}^{\mathrm{Down}}$→${K}_{6}^{\mathrm{Down}}$→${K}_{7}^{\mathrm{Down}}$→${K}_{8}^{\mathrm{Down}}$→$t$ |

24 | ${f}^{24}$ | |

25 | ${f}^{25}$ | - |

26 | ${f}^{26}$ | |

27 | ${f}^{27}$ | |

28 | ${f}^{28}$ | |

29 | ${f}^{29}$ | $s$→${K}_{1}^{\mathrm{Up}}$→${K}_{2}^{\mathrm{Up}}$→${K}_{3}^{\mathrm{Down}}$→${K}_{4}^{\mathrm{Up}}$→${K}_{5}^{\mathrm{Up}}$→${K}_{6}^{\mathrm{Up}}$→${K}_{7}^{\mathrm{Up}}$→${K}_{8}^{\mathrm{Down}}$→$t$ |

30 | ${f}^{30}$ |

No. | Parameters | Solution Times | No. | Parameters | Solution Times |
---|---|---|---|---|---|

1 | (10,8) | < 1 s | 8 | (30,4) | 3 s |

2 | (20,8) | < 1 s | 9 | (30,6) | 4 s |

3 | (30,8) | 5 s | 10 | (30,10) | 5 s |

4 | (40,8) | > 24 h | 11 | (30,12) | 21 s |

5 | (50,8) | > 24 h | 12 | (30,14) | 35 s |

6 | (60,8) | > 24 h | 13 | (30,16) | 44 s |

7 | (70,8) | > 24 h |

No. | Parameters | Solution Times | No. | Parameters | Solution Times |
---|---|---|---|---|---|

1 | (10,8) | 41.5 s | 8 | (30,4) | 129 s |

2 | (20,8) | 107.1 s | 9 | (30,6) | 134.6 s |

3 | (30,8) | 135.9 s | 10 | (30,10) | 153.1 s |

4 | (40,8) | 216.2 s | 11 | (30,12) | 159.3 s |

5 | (50,8) | 254.4 s | 12 | (30,14) | 169.8 s |

6 | (60,8) | 326.1 s | 13 | (30,16) | 182.1 s |

7 | (70,8) | 380.9 s |
