Article

Comparison of Rain Gauge Network and Weather Radar Data: Case Study in Angra dos Reis, Brazil

by
Elton John Robaina da Silva
1,
Camila Nascimento Alves
1,2,
Priscila Celebrini de Oliveira Campos
1,
Raquel Aparecida Abrahão Costa e Oliveira
1,
Maria Esther Soares Marques
1,
José Carlos Cesar Amorim
1 and
Igor Paz
1,*
1
Instituto Militar de Engenharia, Praça General Tibúrcio 80, Praia Vermelha, Rio de Janeiro 22290-270, Brazil
2
Faculdade de Ciências e Tecnologia, Universidade Federal do Pará, Tv. We Vinte e Seis, 02—Coqueiro, Ananindeua 67130-660, Brazil
*
Author to whom correspondence should be addressed.
Water 2022, 14(23), 3944; https://doi.org/10.3390/w14233944
Submission received: 4 November 2022 / Revised: 20 November 2022 / Accepted: 27 November 2022 / Published: 4 December 2022
(This article belongs to the Section Water and Climate Change)

Abstract

:
This paper presents a comparison between rain gauge network and weather radar data in Angra dos Reis city, located in the State of Rio de Janeiro (RJ), Brazil. The city has a high incidence of natural disasters, especially associated with heavy rains in densely populated areas. In this work, weather radar data with a spatial resolution of 1 km were obtained from dual-polarimetric S-band radar operated by the Environmental State Institute of Rio de Janeiro (INEA), located in the Guaratiba neighborhood in Rio de Janeiro city, Brazil; the rain gauge measurements were provided by the National Center for Monitoring and Warning of Natural Disasters (CEMADEN), which is composed of a network with 30 rain gauges covering the studied area. The comparison between the two datasets enables the analysis of which radar products better fit the rain gauge network’s accumulated rainfall by quantifying the uncertainties in precipitation estimates at radar pixels where rain gauges are located. The results indicated that radar products generated with the help of regression techniques obtained from the relation between radar reflectivities and rain gauge measurements were a better fit, constituting essential information while dealing with efficient regulation for rainfall monitoring and forecasting to minimize the risks associated with extreme events.

1. Introduction

The vulnerability of urban areas to extreme events, particularly heavy rainfall, is a known and widely discussed problem [1,2,3,4,5]. The global increases in urbanization and population density in these areas, which are characterized by high levels of imperviousness and shorter response times, require an improvement in their capacities to adapt to climate change [6,7,8,9,10] and to better measure and model hydro-meteorological events [11,12,13].
Thus, there is great interest in assessing the reliability and spatiotemporal resolution of the available data. In the case of obtaining urban catchment-scale rainfall data, two sensors are mostly used: rain gauges and weather radars [14,15]. Rain gauges provide local rainfall measurements, which are relatively accurate albeit unable to cover large areas with dense networks and therefore limited in assessing the spatial rainfall variability [15,16,17,18,19]. On the other hand, weather radars provide spatiotemporal rainfall estimates by surveying large areas and have thus been used to address the sparseness of rain gauge networks [20,21,22].
Nevertheless, these weather radar estimates are not direct rainfall measurements such as those provided by rain gauges. Weather radars perform reflectivity measurements, from which rainfall intensities are indirectly obtained. This process has intrinsic uncertainties [23]. To cope with these uncertainties, some corrections have been applied [24]. In particular, for high rainfall intensities, dual-polarization technology exploring the flatness of large raindrops has been employed with the help of the specific differential phase (KDP) [25,26,27,28,29].
The goal of this study was to perform a comparison between rain gauge network and weather radar data in Angra dos Reis city, Brazil. The rain gauge measurements were provided by the National Center for Monitoring and Warning of Natural Disasters (CEMADEN), which is composed of a network with 30 rain gauges covering the studied area. The weather radar data were the result of dual-polarimetric S-band radar (operated by the Environmental State Institute of Rio de Janeiro—INEA [30]) located in the Guaratiba neighborhood (with an average distance of approximately 70 km from Angra dos Reis) in Rio de Janeiro city, Brazil. Thus, with this comparison, we analyzed which of Guaratiba’s S-band radar products better fit the rain gauge network’s accumulated rainfall by quantifying the uncertainties in precipitation estimates at radar pixels where rain gauges are located. This is especially important to cope with the well-known difficulty of rain gauge network sparseness [15,19,22]. Being able to estimate rainfall in ungauged areas with the help of weather radars would help decision-makers to improve rainfall monitoring and forecasting, minimizing the risks associated with extreme events.
To achieve these objectives, this paper is structured as follows: the second section presents the case study description, rainfall data (obtained from rain gauge network and S-band radar), the description of different radar products, the studied rainfall events, and the statistical methods used to analyze the rainfall data comparison; the third section presents the results; and finally, the fourth section presents the discussion and final considerations.

2. Materials and Methods

2.1. Case Study Area

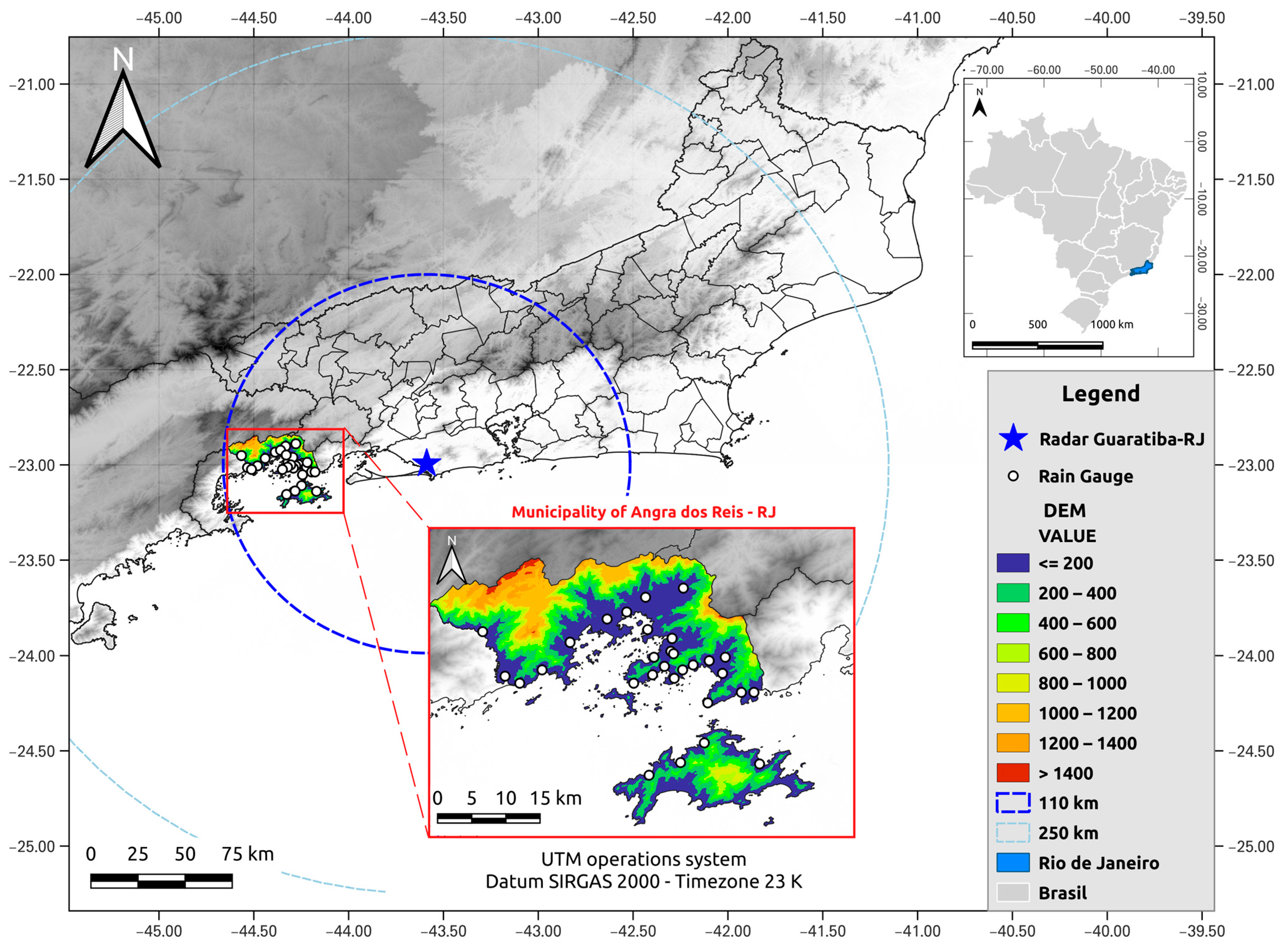

Angra dos Reis is located in the southern region of the State of Rio de Janeiro, Brazil (Figure 1). It is an 813.420 km2 semi-urbanized area with an estimated population of 210,171 inhabitants in 2021 [31], and it is located near an important nuclear power plant. The region is situated in the context of the geomorphological domain of the escarpments of Serra do Mar/Serra da Bocaina. The escarpments of Angra dos Reis are notable for having steep faces facing the ocean, alternating with embedded river valleys. The geology of the site is composed of igneous and metamorphic rocks of the Mesoproterozoic and Neoproterozoic ages, as well as orogenic and post-orogenic granites [32]. The city is crossed by torrential rivers with a torrential regime, grouping rivers into those that originate on the slopes of the Serra do Mar or on the top of the plateau and its tributaries, which flow into the Ilha Grande Bay [33].
Urbanization in the region has developed on slopes susceptible to shallow landslides induced by heavy rainfall. Between 2016 and 2018, the municipality recorded 52 occurrences of landslides, according to Civil Defense data [34]. It is noteworthy that, as in several other Brazilian municipalities, the municipality of Angra dos Reis has undergone an intense and disorderly process of urbanization, negatively affecting its sustainable development [35].

2.2. Rainfall Data

2.2.1. Rain Gauge Data

Rainfall data were obtained from the National Center for Monitoring and Warning of Natural Disasters (CEMADEN). The CEMADEN rain gauge network is composed of automatic rain gauges, which are connected to CEMADEN servers and transmit cumulative rainfall measurements in millimeters every 10 min. In periods where no rain is observed, rain gauges are configured to send an accumulated value of zero millimeters every 60 min. For this work, data from 30 rainfall stations located in the municipality of Angra dos Reis (RJ) were used (Figure 1 and Table 1).
The rain gauge network data are verified by an activity control system developed by CEMADEN, which identifies faults and filters the data generated by faulty equipment. The rainfall data are then made available without undergoing any further processing.
The rain gauges located in the city of Angra dos Reis were mostly distributed according to what the World Meteorological Organization (WMO) recommends for local-scale and mesoscale forecasting [36] and were located at distances of 3 km to 100 km from each other, mainly covering the coastal region. Nevertheless, the sparseness of the rain gauges’ distribution is a major limitation on the network’s ability to cover the entire territory of the region.

2.2.2. Radar Data

The State of Rio de Janeiro (RJ) has two dual-polarization S-band Doppler weather radars operated by the Environmental State Institute of Rio de Janeiro (INEA), located in the region of Guaratiba in Rio de Janeiro−RJ (Lat: −22°59′35.81077′′ S; Lon: −43°35′16.65427′′ W; Orthometric Height: 114.273 m + 4.35 m (tower floor) + 4.5 m (pedestal) ~ 123m) and in Macaé−RJ city (Lat: −22°24′20.99917′′ S; Lon: −41°51′37.65632′′ W; Orthometric Height: 72.867 m + 4 m (tower floor) + 4.5 m (pedestal) ~ 81 m). The equipment is currently configured to perform seven scans at different elevations (ranging from 0.5° to 7.5°) every 5 min. These radars can estimate the amount of rain within a radius of approximately 250 km and a rain intensity up to 480 km. The implementation of this equipment officially took place in February 2015, and the characteristics of its systems are summarized in Table 2.
In this study, only Constant-Altitude Plan Position Indicator (CAPPI) products [37,38] at 2 km height with a spatial resolution of 1 km, obtained from Guaratiba’s S-band radar data, in scans of 5 and 10 min were used. The capture height value was considered, assuming that precipitation measured above the surface takes 3 to 10 min to fall and that convective rains tend to persist due to their evolutionary nature [37].
The CAPPI product was determined by converting the value of a radar field to a grid point. The procedure is performed by interpolating the points collected within a given radius of action and weighting these points close to the range of points on the grid by the Barnes method [39]. In addition, filters are applied according to various criteria for removing unwanted points in interpolation [39,40,41]. Although the Cressman filter [42] has been widely used for Spatial Objective Analysis (SOA), the Barnes filter is preferable due to the ease of calculating the response function [43]. The Barnes method is widely used in geospatial sciences to reshape data values recorded at points distributed in a representative analytical field [44].
Radar reflectivity ( Z ) can be converted into precipitation intensity ( R ) through several empirical relationships, often called Z - R equations [45,46,47].
Z [ dBZ ] = a ( R [ mm · h 1 ] ) b
where a and b are experimentally determined constants that are related to the drop size distribution (DSD) in the atmosphere and radar reflectivity. DSD varies with the type and phase of precipitation (solid or liquid) and also depends on geographic location, altitude, and spatial exposure [48].
Through the introduction of double polarization in meteorology by weather radars [49], significant improvements could be achieved in rain measurements. The effectiveness of the use of dual-polarization radar for quantitative precipitation estimation (QPE) has been demonstrated by several previous studies [47,50,51]. Significant advantages have been observed in rainfall estimates using combinations of reflectivity ( Z ), differential reflectivity ( Z D R ), and the specific differential phase ( K D P ) compared to traditional methods ( Z - R ). The use of Z D R in combination with Z allows the mitigation of uncertainties related to DSD variability, while K D P -based methods are less sensitive to DSD variations and are immune to radar calibration errors, partial beam blocking, and attenuation by precipitation or a wet radome [27,47,52]. Thus, a typical solution for S-band radars is a combination of an R ( K D P ) relationship for higher rainfall rates and an R ( Z , Z D R ) relationship for lower rainfall rates, where K D P becomes noisier and more susceptible to DSD [53]. A similar combination for the determination of rain products was used by Paz et al. [17] in their research on the Bièvre river basin.
In this work, the specific differential phase ( K D P ) was calculated based on the variational method described by Maesaka et al. [54]. The authors identified that classical methods such as iterative filtering and local linear regression [55] may also estimate a negative K D P in the rain, although the positive value is expected for pure raindrops, which generates problems in rain estimation and the correction of attenuation [37,54]. The estimation method of the proposed K D P considers a monotonically increasing differential phase of propagation, where the differential phase ΦDP (named PHIDP in Table 2) increases as the radar range is limited to rain below the melting layer and/or hot clouds at weather radar frequencies. The K D P estimated by this method always assumes a positive value. The methodology can only be applied to radar data with a constant range resolution, being considered a sophisticated processing technique by Ryzhkov and Zrnic [56].
K D P = 1 2 Φ D P r
where r is the range.
In addition to these traditional relationships, methods combined with specific attenuation ( A ) have also been explored due to the low sensitivity of the R ( A ) relationship to the variability in DSD [53,57].

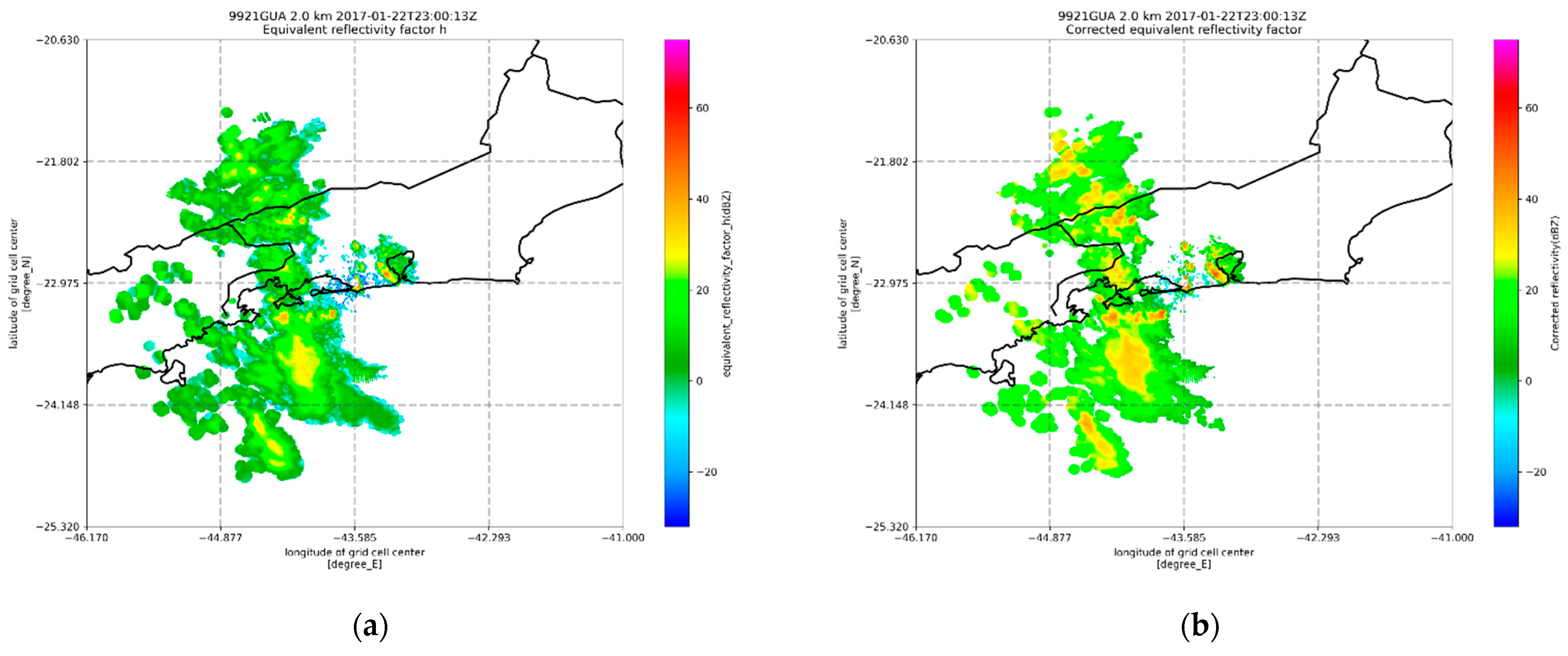

Specific attenuation ( A ) was obtained from the ZPHI method proposed by Testud et al. [58]. The method aims to correct radar-derived data as a function of attenuation, taking into account the variability in the drop size distribution (DSD) in the rainfall estimate [59]. Ryzhkov et al. [53] demonstrated that the use of attenuation for rainfall estimates is even more promising on S-band radars when compared to shorter-wavelength radars, since the specific attenuation is immune to reflectivity biases caused by incorrect radar calibration and partial beam block and effects caused by a wet radome, and R ( A ) is also immune to these factors. In addition, Le Bouar et al. [60] demonstrated significant advantages of the use of this method in relation to classical Z - R methods that do not take into account the attenuation.
The specific attenuation ( A ) is calculated from the radial profile of the attenuated reflectivity ( Z a ) and the differential phase Φ D P between intervals r 1 and r 2 , where r 1 is the first gate that contains precipitation, and r 2 is the last gate or gate immediately below the bottom of the melting layer. In the case of dual-polarization radars, the plane-integrated attenuation (PIA) is estimated using the full extent of the differential phase Φ D P along the way to spread the rain Δ Φ D P [53,58,61,62,63].
A ( r ) = [ Z a ( r ) ] β C ( β , P I A ) I a ( r 1 , r 2 ) + C ( β , P I A ) I a ( r , r 2 )
where
P I A = α Δ Φ D P ,   P I A ( r 1 , r 2 ) = α [ Φ D P ( r 2 ) Φ D P ( r 1 ) ]
I a ( r 1 , r 2 ) = 0.46 β r 1 r 2 [ Z a ( s ) ] β d s
I a ( r , r 2 ) = 0.46 β r r 2 [ Z a ( s ) ] β d s
C ( β , P I A ) = e x p ( 0.23   β   P I A ) 1
where α is the net ratio between A and K D P over the radius at a given temperature, β is a constant exponent that usually varies between 0.6 and 0.9 at microwave frequencies, and Z a represents the measured radar reflectivity that is not corrected by calibration and attenuation, expressed as a linear scalar [53].
Statistical studies performed by Cocks et al. [57] using S-band radar for different types of rain found that for continental rainfall events, α is on average 0.018 deg−1, and for tropical rainfall events, α is on average 0.028 deg−1. These results are similar to the values of α reported by Ryzhkov et al. [53], who used α values of 0.02–0.03 deg−1 for high-quality rainfall estimates in most areas of Hurricane Irene and 0.008–0.015 deg−1 for the Oklahoma flood case. In this study, we used 0.02 deg−1 as the value of α, and β was set to 0.64884 according to Helmus and Collis [41], a value similar to that used by [53,62,63] (0.62). It is noteworthy that, in this study, the product generated from the reflectivity corrected by the attenuation [64] through the ZPHI methodology was used for comparative purposes with the reflectivity of the equipment under study without any correction. Figure 2 illustrates a comparison between Guaratiba’s radar reflectivity without (Figure 2a) and with the ZPHI-method correction (Figure 2b).
In this study, three Z - R relationships were used in combination with R ( K D P ) and R ( A ) products for rainfall estimation. In addition, two corrected horizontal reflectivity products ( Z h ) were also tested. In this study, the variable Z h 1 denotes Guaratiba’s S-band radar reflectivity without the ZPHI-method correction, and Z h 2 refers to the reflectivity corrected by the ZPHI-method attenuation. In the following, the six radar products are detailed.
  • Product 1: R ( Z h , K D P ) , Marshall–Palmer
Product 1 was generated from the application of reflectivities Z h 1 and Z h 2 in a hybrid algorithm, which used the Z - R relationship for low rainfall intensity and R ( K D P ) for higher rainfall intensity. The chosen threshold reflectivity value for the algorithm was 40 dBZ, where, at usual weather radar wavelengths, strong echoes (>40 dBZ) are equivalent to convective precipitation, with stronger echoes (>60 dBZ) usually associated with hail [37]. Additionally, since the KDP becomes noisy when Z < 40 dBZ for S-band radar [46,62,65,66], the set value becomes a good choice.
R = 0.036 · 10 0.0625   dBZ   f o r   Z h 40   dBZ ,     w h e r e   Z h = Z h 1   o r   Z h 2   o r   R = 50.7 ( K D P ) 0.85     f o r   Z h > 40   dBZ
The Z - R relationship chosen for Product 1 was the one proposed by Marshall and Palmer [45] (with parameters a = 200 and b = 1.6 in Equation (1)), which verified that stratiform precipitations followed an exponential distribution. The R ( K D P ) relationship was calculated using the DSD proposed by Beard and Chuang [67] and Gu et al. [64] for determining the coefficients for S-band radar according to Figueras i Ventura et al. [27].
2
Product 2: R ( Z h , K D P ) , Morales
Product 2 follows the same premises as Product 1; however, the Z - R relationship proposed by Morales Rodriguez [68] (with parameters a = 378 and b = 1.34 in Equation (1)) was used, which describes the DSD of convective rainfall through a Gamma function.
R = 0.012 · 10 0.0746   dBZ   f o r   Z h 40   dBZ ,     w h e r e   Z h = Z h 1   o r   Z h 2   o r   R = 50.7 ( K D P ) 0.85     f o r   Z h > 40   dBZ
3
Product 3: R ( Z h , K D P ) , Pluv

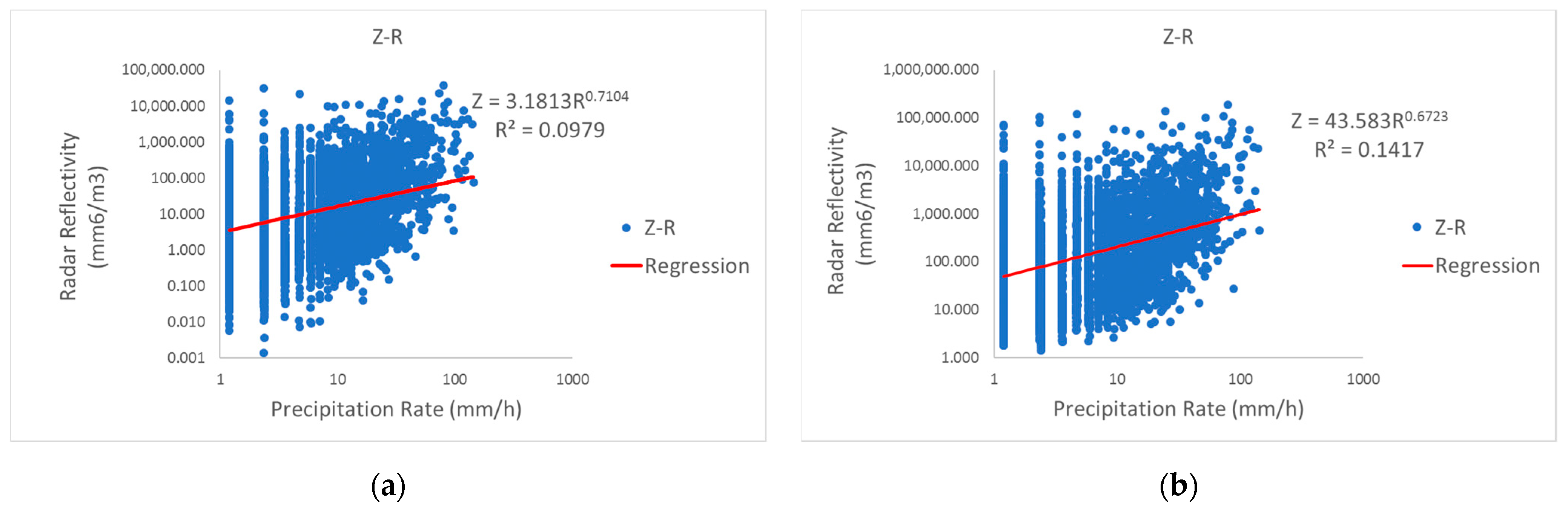

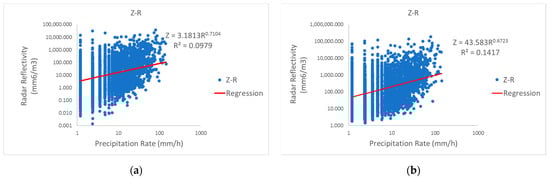

Product 3 follows the premises of Product 1, but the Z - R relationship was obtained by determining a power function between the local measurements from the 30 rainfall stations for the five studied events and the reflectivities Z h 1 and Z h 2 through the least-squares method, as shown in Figure 3. The obtained Z - R parameters in Equation (1) were a = 3.181 and b = 0.7104 for the Z - R relationship with Z h 1 , and a = 43.583 and b = 0.6723 for the Z - R relationship with Z h 2 .
R = 0.196 · 10 0.1408   dBZ   f o r   Z h 1 40   dBZ ,   o r   R = 50.7 ( K D P ) 0.85     f o r   Z h 1 > 40   dBZ
and
R = 0.0036 · 10 0.1487   dBZ   f o r   Z h 2 40   dBZ , o r R = 50.7 ( K D P ) 0.85     f o r   Z h 2 > 40   dBZ
4
Product 4: R ( Z h , A ) ,   Marshall—Palmer
Product 4 was obtained through the Marshall—Palmer Z - R     relationship [45] (with parameters a = 200 and b = 1.6 in Equation (1)) for low rainfall intensity ( 40   dBZ ) and the R ( A )   relationship for higher rainfall intensity ( > 40   dBZ ). The R ( A ) algorithm used by Ryzhkov et al. [53] and Wang et al. [61] was also used in this study.
R = 0.036 · 10 0.0625   dBZ   f o r   Z h 40   dBZ ,     w h e r e   Z h = Z h 1   o r   Z h 2 o r   R = 4120 · ( A ) 1.03     f o r   Z h > 40   dBZ
5
Product 5: R ( Z h , A ) , Morales
Product 5 was obtained through the Z - R relationship proposed by Morales Rodriguez [68] (similar to Product 2, with parameters a = 378 and b = 1.34 in Equation (1)) for low rainfall intensity ( 40   dBZ ) and the R ( A ) relationship for higher rainfall intensity ( > 40   dBZ ). Similar to Product 4, the R ( A ) algorithm used by Ryzhkov et al. [53] and Wang et al. [61] was also used in this study.
R = 0.012 · 10 0.0746   dBZ   f o r   Z h 40   dBZ ,     w h e r e   Z h = Z h 1   o r   Z h 2   o r   R = 4120 · ( A ) 1.03     f o r   Z h > 40   dBZ
6
Product 6: R ( Z h , A ) , Pluv
Product 6 was also obtained through the Z - R relationship for low rainfall intensity ( 40   dBZ ) and the R ( A ) relationship for higher rainfall intensity ( > 40   dBZ ). The Z - R relationships were those used in Product 3. Similar to Product 4, the R ( A ) algorithm used by Ryzhkov et al. [53] and Wang et al. [61] was also used in this study.
R = 0.196 · 10 0.1408   dBZ   f o r   Z h 1 40   dBZ ,   o r   R = 4120 · ( A ) 1.03     f o r   Z h 1 > 40   dBZ a n d
R = 0.0036 · 10 0.1487   dBZ   f o r   Z h 2 40   dBZ , o r   R = 4120 · ( A ) 1.03     f o r   Z h 2 > 40   dBZ

2.2.3. Rainfall Events Studied

The rainfall data obtained from these stations were used to study five severe precipitation events that affected the region, spread over 17 days. The events’ selection was based on the work of Alves [34], who studied the occurrence of mass movements in the city of Angra dos Reis associated with intense precipitation. Table 3 presents the studied rainfall events, the number of rain gauges used in each event, the rain gauges’ and radar’s temporal resolutions, and the number of radar time steps per event. In this study, only CAPPI products [37,38] at a 2 km height, generated from Guaratiba’s radar data, in scans of 5 and 10 min were used.

2.3. Statistical Methods

To statistically analyze the comparison between the rain gauge network measurements and Guaratiba’s radar data, four standard metrics were used in this study considering time series A and B , with the same number N of time steps.
  • The Root-Mean-Square Error ( R M S E ) between actual and predicted time series:
    R M S E ( A , B ) = 1 N i ( A i B i ) 2   ,
  • The Pearson correction coefficient ( C o r r   [ 1 , 1 ] ) estimates the strength and direction of the linear relationship between time series:
    C o r r ( A , B ) = i [ ( A i A ¯ i )   ( B i B ¯ i ) ] i ( A i A ¯ i ) 2   i ( B i B ¯ i ) 2   ,
  • The Nash–Sutcliffe efficiency ( N a s h   ( , 1 ] ) measures how well the outputs of a model reproduce observations against a model that uses only the average of the observed data:
    N a s h ( A , B ) = 1 i ( B i A i ) 2 i ( B i B ¯ i ) 2   .
  • The mean absolute error ( M A E ) between actual and predicted time series:
    M A E ( A , B ) = 1 N i | A i B i |   .

3. Results

In this section, a comparative analysis is carried out between the total precipitation measured at the 30 selected rain gauges located in Angra dos Reis (RJ) and the rainfall estimates computed from the different products generated with Guaratiba’s S-band radar data.

3.1. Rain Gauge Data vs. Estimated Rainfall Radar Dara from Reflectivity Z h 1

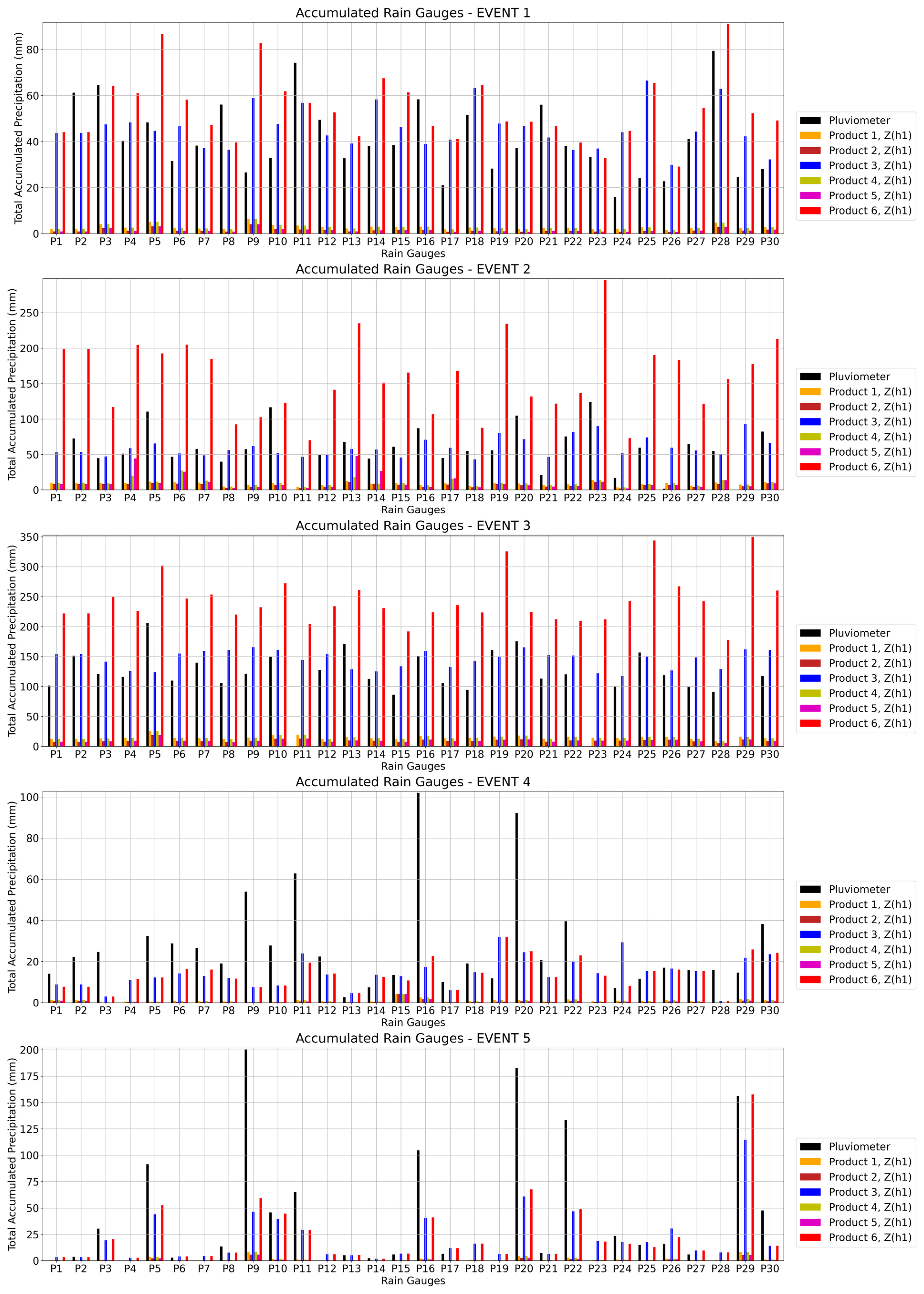

Firstly, Figure 4 presents the total accumulated precipitation of all studied rain gauge stations and Guaratiba’s six S-band radar products using Z h 1 (radar reflectivity without ZPHI-method correction) at radar pixels where rain gauges are located for all five studied events.
In Event 1, it is observed that in the total accumulated precipitation comparison, the total rainfall estimates from Products 3 and 6 were the closest to the rain gauges’ total measurements. Product 3 was closer to the rain gauges’ accumulated measurements in 18 of the 29 (62.1%) active rain gauges in this event, with a mean absolute difference of 34.0% of the total accumulated precipitation (which corresponds to a mean absolute difference of 14.0 mm). Product 6 was the second-best estimator, having been the closest product to the rain gauges’ accumulated measurements in 11 of the 29 (37.9%) active rain gauges, with a mean absolute difference of 44.7% of the total accumulated precipitation (corresponding to a mean absolute difference of 18.4 mm). In addition, there is a general underestimation in Products 1, 2, 4, and 5.
In Event 2, Product 3 presented the best estimates when compared to the total value of the accumulated rainfall in 21 of the 27 (77.7%) active rain gauges in this event, with a mean absolute difference of 30.8% of the total accumulated precipitation (which corresponds to a mean absolute difference of 19.0 mm). In addition, similar to Event 1, Products 1, 2, 4, and 5 underestimated the rainfall when compared with the rain gauge measurements in this event. On the other hand, in this event, Product 6 considerably overestimated the rain gauge measurements.
In Event 3, Product 3 was also the one that best estimated the total accumulated rainfall values observed in all 27 of the 27 (100%) active rain gauges studied, with a mean absolute difference of 22.7% of the total accumulated precipitation (which corresponds to a mean absolute difference of 28.8 mm). In addition, similar to Events 1 and 2, Products 1, 2, 4, and 5 underestimated the rainfall when compared with the rain gauge measurements in this event. In addition, similar to Event 2, Product 6 considerably overestimated the rain gauge measurements in this event.
In Event 4, it is observed that Product 3 presented closer estimates to 14 of the 28 (50%) active rain gauges than the other Products, with a mean absolute difference of 63.4% of the total accumulated precipitation (which corresponds to a mean absolute difference of 17.5 mm), and Product 6 presented closer estimates to the other 14 of the 28 (50%) active rain gauges than the other Products, with a mean absolute difference of 60.4% of the total accumulated precipitation (corresponding to a mean absolute difference of 16.7 mm). In addition, there is an underestimation, for the most part, of all products, including Products 3 and 6 but even more pronounced for Products 1, 2, 4, and 5.
In Event 5, Product 6 presented the best estimates in 9 of the 22 (40.9%) active rain gauges, Product 3 was closer to the total accumulated measurements in 2 of the 22 (9.1%) active rain gauges, and in the other 11 of the 22 (50%) active rain gauges, both Products 3 and 6 shared the best estimates, presenting comparable values. Thus, we may say that Product 6 presented the best estimates in 20 of the 22 (90.9%) active rain gauges, with a mean absolute difference of 48.0% of the total accumulated precipitation (corresponding to a mean absolute difference of 25.4 mm). In addition, similar to Event 4, there is an underestimation, for the most part, of all products, including Products 3 and 6 but even more pronounced for Products 1, 2, 4, and 5.

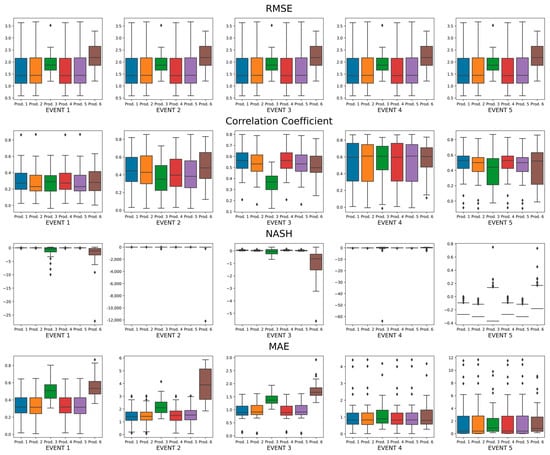

Furthermore, Figure 5 presents the statistical indices (RMSE, Pearson correction coefficient, Nash–Sutcliffe efficiency, and mean absolute error) obtained from the comparison between the rainfall time series of all studied rain gauge stations and the rainfall time series obtained from Guaratiba’s six S-band radar products at radar pixels where rain gauges are located for all five studied events.
In Event 1, the analyses carried out through RMSE and MAE showed that Products 1, 2, 4, and 5 performed better than Products 3 and 6; the analyses of the Corr index showed mostly similar coefficients of all products, with some important differences at a few rain gauges, and Nash index analyses showed that Products 1, 2, 4, and 5 mostly better fit the rain gauge data time series.
In Event 2, the analyses carried out through RMSE and MAE showed that Products 1, 2, 3, 4, and 5 performed better than Product 6; the analysis of the Corr index showed that Product 6 had a better correlation, with some important differences in a few rain gauges, and the analysis of the Nash index showed that Products 1, 2, 3, 4, and 5 better fit the time series of rain gauge data.
In Event 3, the analyses carried out through RMSE showed that Products 1, 2, 4, and 5 performed better than Products 3 and 6; the analysis of the Corr index showed mostly similar coefficients for all products except for Product 3, which presented worse Pearson correction coefficients than the others, and the Nash index analysis revealed that Products 1, 2, 4, and 5 better fit the time series of rain gauge data.
In Event 4, the analysis carried out through RMSE and MAE showed similar errors in all products; the analysis of the Corr index showed mostly similar coefficients, and the Nash index analysis also showed similarities among the products.
In Event 5, the analysis carried out through RMSE showed that Products 1, 2, 3, 4, and 5 performed better than Product 6; the analysis of MAE showed similar errors in all products; the analysis of the Corr index showed mostly similar coefficients, with some important differences in a few rain gauges, and the Nash index analysis also showed similarities among the products.

3.2. Rain Gauge Data vs. Estimated Rainfall Radar Data from Reflectivity Z h 2

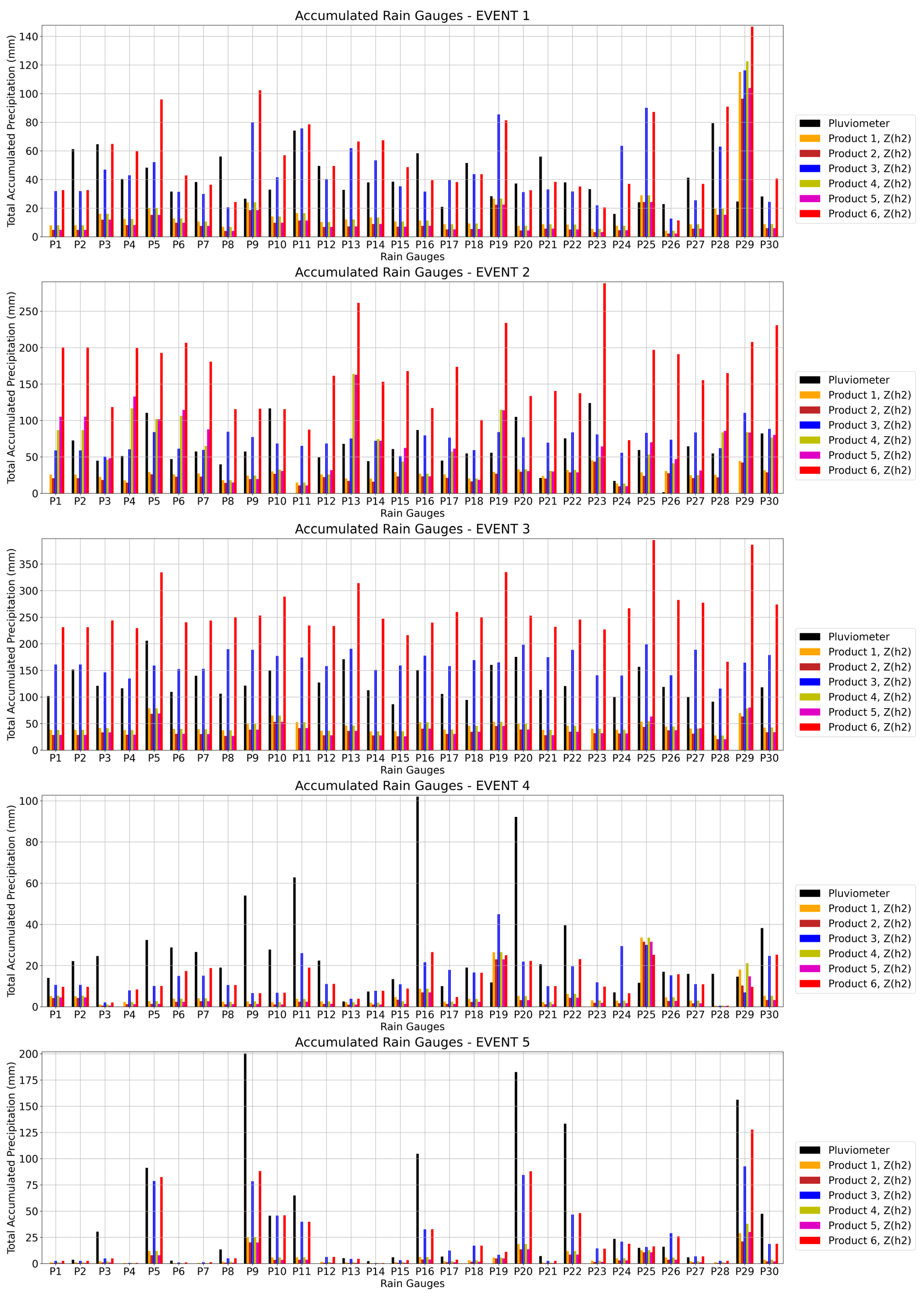

After applying the ZPHI methodology to correct Guaratiba’s S-band radar reflectivity and obtaining Z h 2 , we reanalyzed the six radar products with this correction in all five studied events. Figure 6 presents the total accumulated precipitation of all studied rain gauge stations and Guaratiba’s six S-band radar products using Z h 2 at radar pixels where rain gauges are located.
In Event 1, it was found that the values estimated by Products 3 and 6 were the closest to the accumulated total measured by rain gauges. Product 3 was the closest in 11 of the 29 (37.9%) active rain gauges, with a mean absolute difference of 52.5% of the total accumulated precipitation for Product 3 (which corresponds to a mean absolute difference of 21.6 mm). Product 6 was the second-best estimator, being the closest product to the accumulated measurements of the rain gauges in 11 of the 29 (37.9%) active rain gauges, with an absolute mean difference of 58.6% of the total accumulated rainfall (corresponding to a mean absolute difference of 24.1 mm). Furthermore, it is evident that although there is still a general underestimation in Products 1, 2, 4, and 5, after applying the reflectivity correction by the ZPHI method, the values of these products were maximized.
In Event 2, the estimates of the total accumulated precipitation of Product 3 were the closest to the total rain gauge measurements in 13 of the 27 (48.15%) active rain gauges, with a mean absolute difference of 34.3% of the total accumulated rainfall (corresponding to a mean absolute difference of 21.2 mm). Furthermore, Products 1, 2, 4, and 5 were maximized after applying the reflectivity correction by the ZPHI method but still underestimated the rain gauge data.
In Event 3, similar to Event 2, the estimates of the total accumulated precipitation of Product 3 were the closest to the total rain gauge measurements in 23 of the 27 (85.2%) active rain gauges, with a mean absolute difference of 32.2% of the total accumulated rainfall (corresponding to a mean absolute difference of 40.9 mm). Furthermore, Products 1, 2, 4, and 5 were also maximized after applying the reflectivity correction by the ZPHI method but still underestimated the rain gauge data.
In Event 4, the estimates of the total accumulated precipitation of Product 6 were the closest to the total rain gauge measurements in 10 of the 28 (35.71%) active rain gauges, with a mean absolute difference of 60.3% of the total accumulated rainfall (corresponding to a mean absolute difference of 16.7 mm). Furthermore, Products 1, 2, 4, and 5 were also maximized after applying the reflectivity correction by the ZPHI method, getting closer to the rain gauge measurements and, in some cases, overestimating them.
In Event 5, the estimates of total accumulated precipitation of Product 6 were the closest to the total rain gauge measurements in 9 of the 22 (40.9%) active rain gauges. Product 3 was closer to the total accumulated measurements in 4 of the 22 (18.2%) active rain gauges, and in the other 8 of the 22 (36.4%) active rain gauges, both Products 3 and 6 shared the best estimates, presenting comparable values; in 1 of the 22 (4.5%) active rain gauges, both Products 1 and 4 shared the best estimates, presenting comparable values. Thus, we may say that Product 6 presented the best estimates in 17 of the 22 (77.3%) active rain gauges, with a mean absolute difference of 44.8% of the total accumulated precipitation (corresponding to a mean absolute difference of 22.7 mm). In addition, Products 1, 2, 4, and 5 were maximized after applying the reflectivity correction by the ZPHI method but still underestimated the rain gauge data.

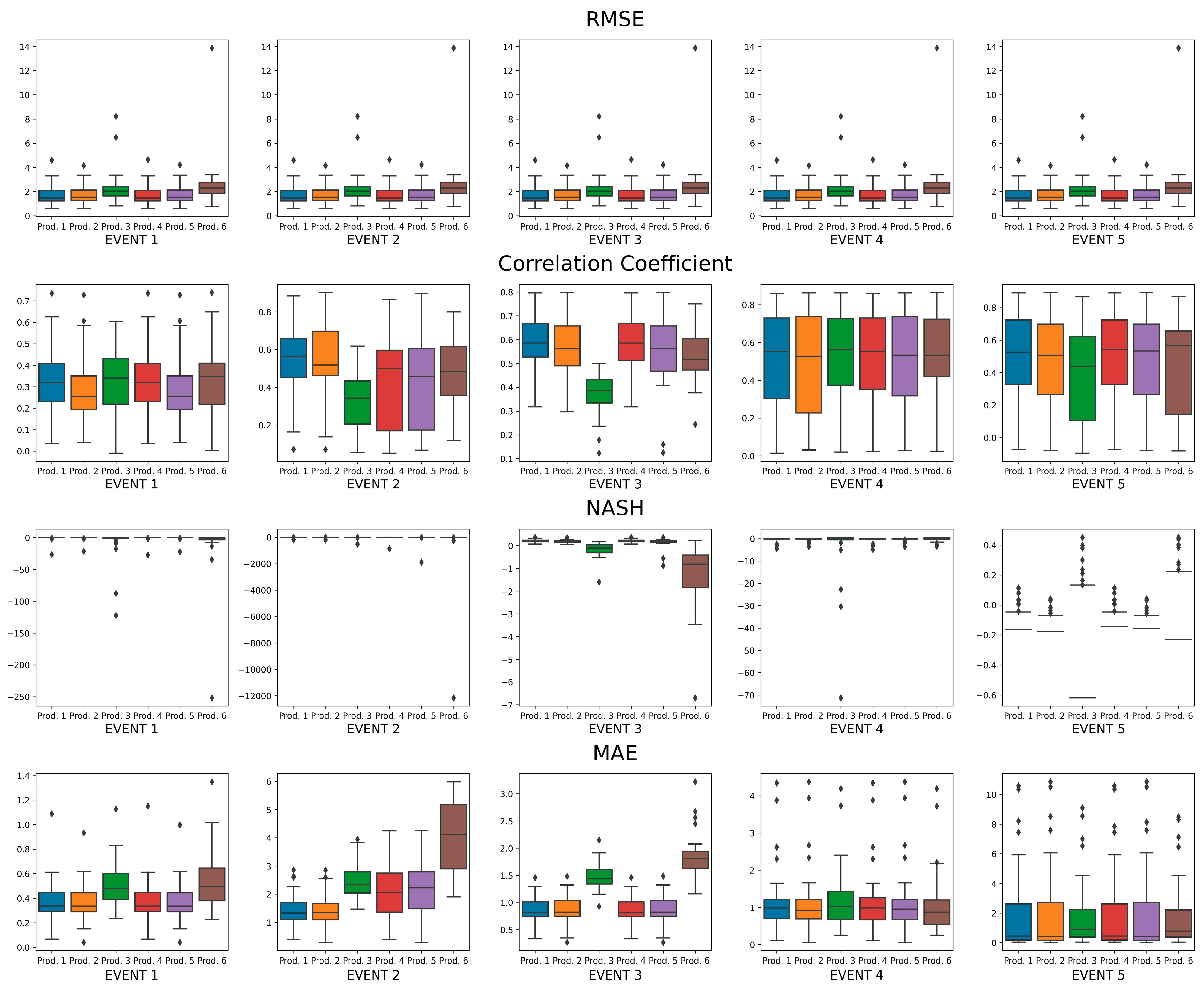

Furthermore, Figure 7 presents the statistical indices (RMSE, Pearson correction coefficient, Nash–Sutcliffe efficiency, and mean absolute error) obtained from the comparison between the rainfall time series of all studied rain gauge stations and the rainfall time series obtained from Guaratiba’s six S-band radar products at radar pixels where rain gauges are located for all the five studied events.
In Event 1, the analyses carried out using the RMSE, Corr, and Nash metrics show that all products presented similar behavior, with some important differences in a few rain gauges for Products 3 and 6. Nevertheless, when analyzing MAE estimates, it is observed that Products 1, 2, 4, and 5 present slightly better behavior than Products 3 and 6.
In Event 2, the RMSE and MAE indices showed that Products 1 and 2 performed better than Products 3, 4, 5, and 6; the analysis of the Corr index showed mostly similar coefficients for Products 1 and 2, with some important differences in a few rain gauges, and the Nash index analysis showed that Products 1, 2, 4 and 5 better fit the time series of rain gauge data.
In Event 3, the RMSE and MAE indices showed that Products 1, 2, 4, and 5 performed better than Products 3 and 6; the analysis of the Corr index showed mostly similar coefficients for Products 1, 2, 4, 5, and 6 with some important differences in a few rain gauges, and the Nash index analysis showed that Products 1, 2, 4, and 5 better fit the time series of rain gauge data.
In Event 4, the RMSE and MAE indices showed that all products presented similar behavior, except for Product 3 in some rain stations; the analysis of the Corr index showed mostly similar coefficients for all products, with some important differences in a few rain gauges, and the Nash index analysis showed that Products 1, 2, 4, 5, and 6 better fit the time series of rain gauge data.
In Event 5, the analysis carried out using the RMSE, MAE, Corr, and Nash metrics shows that all products presented similar behavior, with some important differences in a few rain gauges for Products 3 and 6.

4. Discussion

The present study performed a rainfall data comparison over the municipality of Angra dos Reis, located in the state of Rio de Janeiro, Brazil. Two main data sources were used in this work: a rain gauge network with 30 pluviometric stations installed in the case study area, managed by the National Center for Monitoring and Warning of Natural Disasters (CEMADEN), and S-band radar covering the studied area operated by the Environmental State Institute of Rio de Janeiro (INEA), located in the Guaratiba neighborhood in the municipality of Rio de Janeiro (RJ), Brazil.
Weather radar estimates are affected by different factors (e.g., beam blocking, the altitude of the observation, path attenuation, the indirectness of the measurement, and distance). Many researchers have already performed comparisons between radar and rain gauges in terms of precipitation amounts [69,70]. An observed limitation of this study is the lack of a specific Z - R relationship for the case study area. Studies with disdrometers have been used to determine a power law function to characterize the size and velocity of precipitation particles [71], which could be carried out for this region. In this way, a region-specific Z - R relationship could be used to minimize the bias, especially for low radar reflectivity ( 40   dBZ ). To cope with this limitation, some Z - R relationships have been tested in this work. Nevertheless, in a future study, other different regression techniques could be tested to analyze the best performance of the data, including for different severe events.
In this work, six different radar data products (with and without ZPHI-method correction) were statistically compared with local rain gauge measurements by quantifying the uncertainties in precipitation estimates at radar pixels where rain gauges are located. These products combined three Z - R relationships (Marshall–Palmer, Morales Rodriguez, and one obtained by determining a power function between local measurements from the 30 rainfall stations for the five studied events and the radar reflectivities through the least-squares method) applied for low rainfall intensity ( 40   dBZ ) and two polarimetric S-band radar moments ( K D P and attenuation) for higher rainfall intensity ( > 40   dBZ ). The proposed Z - R relationships were studied to identify a relationship that would better adapt to the conditions of the region, since there were no previous studies on a specific Z - R relationship for this locality.
The results show that the precipitation obtained from Guaratiba’s S-band radar data Products 1, 2, 4, and 5 has been highly underestimated when compared with the actual rainfall values measured by local rain gauges. On the other hand, the use of the ZPHI method to correct radar reflectivity proved to be a great alternative to minimize these biases, since the reflectivity previously corrected by this method allowed the generation of more reliable rainfall estimates when compared to the rain gauge measurements.
Furthermore, it is evident in our study that the estimates computed by Products 3 and 6 are generally the best for calculating accumulated precipitation in the severe events studied when compared to the rain gauge measurements. This is because these products make use of a power law that directly relates the radar reflectivity values to the rain gauge measurements through regression techniques and therefore reduce the bias caused by the incorrect calibration of the radar.
Although the results obtained with Products 3 and 6 are better than conventional techniques at first glance, they are directly based on the spatiotemporal interval from which they were generated, increasing the error with the spatiotemporal scale or even being unusable when applied to different events. In addition, the larger the number of samples, the more difficult it is to determine a power law that can be applied with confidence in any event. Therefore, an algorithm that defines a reliable power law based on regression techniques would be needed to continuously self-adjust and have efficient tools for outlier elimination in real time. Such a model would require a high computational capacity and would be directly related to the mesh of rain gauges that would need to feed it back all the time. A sparse rain gauge network would directly increase the estimation errors. Therefore, these characteristics make these models difficult to implement in real-time rainfall forecasting systems. Nevertheless, this will also be an issue of future work by this research group.
Finally, this work constitutes essential information for dealing with efficient regulation for rainfall monitoring and forecasting to minimize the risks associated with extreme events. This is especially important due to the significant variation in the occurrence and intensity of natural disasters associated with climate change (e.g., droughts, heatwaves, and floods) on seasonal, annual, and interdecadal scales [72,73,74].

Author Contributions

Conceptualization, E.J.R.d.S., C.N.A., P.C.d.O.C., R.A.A.C.e.O., M.E.S.M., J.C.C.A. and I.P.; methodology, E.J.R.d.S., C.N.A., P.C.d.O.C., R.A.A.C.e.O., M.E.S.M., J.C.C.A. and I.P.; software, E.J.R.d.S.; validation, E.J.R.d.S., C.N.A. and P.C.d.O.C.; formal analysis, E.J.R.d.S., C.N.A., P.C.d.O.C., R.A.A.C.e.O., M.E.S.M., J.C.C.A. and I.P.; investigation, E.J.R.d.S., C.N.A., P.C.d.O.C., R.A.A.C.e.O., M.E.S.M., J.C.C.A. and I.P.; resources, E.J.R.d.S., C.N.A. and P.C.d.O.C.; data curation, E.J.R.d.S. and C.N.A.; writing—original draft preparation, E.J.R.d.S., C.N.A., P.C.d.O.C., R.A.A.C.e.O., M.E.S.M., J.C.C.A. and I.P.; writing—review and editing, E.J.R.d.S., C.N.A., P.C.d.O.C., R.A.A.C.e.O., M.E.S.M., J.C.C.A. and I.P.; visualization, E.J.R.d.S., C.N.A., P.C.d.O.C., R.A.A.C.e.O., M.E.S.M., J.C.C.A. and I.P.; supervision, E.J.R.d.S., C.N.A., P.C.d.O.C., R.A.A.C.e.O., M.E.S.M., J.C.C.A. and I.P.; project administration, E.J.R.d.S., C.N.A., P.C.d.O.C., R.A.A.C.e.O., M.E.S.M., J.C.C.A. and I.P.; funding acquisition, E.J.R.d.S., C.N.A. and P.C.d.O.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by CAPES (Coordenação de Aperfeiçoamento de Pessoal de Nível-Brasil), grant number 001.

Data Availability Statement

Restrictions apply to the availability of these data. Data were obatained from the Environmental State Institute of Rio de Janeiro (INEA) and the Civil Defense of the municipality of Angra dos Reis (RJ) and are available on request from the corresponding author with the permission of INEA and/or the Civil Defense of the municipality of Angra dos Reis (RJ).

Acknowledgments

The authors would like to thank the Environmental State Institute of Rio de Janeiro (INEA) for providing the S-band radar data and the Civil Defense of the municipality of Angra dos Reis (RJ) for providing the rain gauge network measurements.

Conflicts of Interest

The authors declare no conflict of interest.
