Article

Cold Plasma Treatment for Efficient Control over Algal Bloom Products in Surface Water

1
Department of Environmental Engineering, Division of Civil, Environmental, Mineral Resource and Energy Engineering, Soil Environment Research Center, Chonbuk National University, 567 Baekje-daero, Deokjin-gu, Jeonju 54896, Korea
2
Rural Research Institute, Korea Rural Community Corporation, 870 Haean-ro, Sangnok-gu, Ansan 15634, Korea
*
Authors to whom correspondence should be addressed.
Water 2019, 11(7), 1513; https://doi.org/10.3390/w11071513
Submission received: 20 June 2019 / Revised: 11 July 2019 / Accepted: 12 July 2019 / Published: 21 July 2019
(This article belongs to the Section Wastewater Treatment and Reuse)

Abstract

:
Algal bloom significantly alters the physicochemical properties of water due to drastic pH change, dissolved oxygen depletion/super-saturation, and toxicity, which lead to ecosystem destruction. To prevent this, this study evaluated the reduction performance of algal biomass by applying a non-thermal or cold plasma process. We used chlorophyll-a (chl-a), suspended solids (SS), and turbidity as indicators of the biomass. Results demonstrated that their removal efficiencies were in the ranges 88–98%, 70%–90%, and 53%–91%, respectively. Field emission scanning electron microscopy indicated how the cell wall of microalgae was destroyed by cold plasma. Also, the removal kinetics of cold plasma confirmed the enhanced removal rate constants. The estimated required times for 99% removal were 0.4–1.2 d (chl-a), 1.3–3.4 d (SS), and 1.6–6.2 d (turbidity), respectively. Overall, cold plasma could be a useful option to effectively treat pollution associated with algal bloom in surface water.

1. Introduction

Microalgal bloom associated with the rapid growth of numerous algae and cyanobacteria in surface water has been frequently reported in receiving water worldwide [1]. In addition to the insufficient management of eutrophication by incoming non-point sources [2,3], climate change and global warming are also major causes of the significant blooms [1,4,5]. If the bloom occurs at around the water intake, it leads to serious drinking water quality problems [6], and thus securing the high quality of water resources from the bloom is currently a very important issue [7]. The bloom changes the physicochemical properties and microbial communities of surface water [8] due to drastic pH change and dissolved oxygen depletion/super-saturation, leading to fish deaths, bad taste, odor-causing compounds, and toxins [9,10].
These problematic issues made by microalgal biomass have become the main removal targets in surface water [11,12]. Therefore, newly suggested methods have been tested, such as modified local soil technology [3], advanced oxidation processes (AOPs) [13], and so on. In most cases, the amount of biomass has been quantified by either suspended solids (SS) [14], turbidity, or chlorophyll-a (chl-a) [15], and thus the control over the major indicator pollutants is crucial for water resources protection and security.
Various AOPs have been applied to remove microalgal biomass, but UV treatment has a limitation when the turbidity of the raw water is high [16], and O3 has difficulties in controlling the pH [17]. In the case of Fenton oxidation, excess sludge generation is problematic when the organic content is too high [18]. For ultrasonication and microwave treatment, cost can be a limiting factor despite the strong physicochemical oxidizing power [19].
Among various options, the non-thermal or cold plasma process has been known to overcome the disadvantages of conventional AOP. Cold plasma is known to cause a variety of oxidative and chemical species, such as radicals (e.g., H⋅, O⋅, and OH⋅ ) and molecules (e.g., H2O2 and O3), shock waves, ultraviolet, and electrohydraulic cavitation [13,20,21,22,23]. In addition, the cold plasma process is considered to be a process combining the advantages of other AOPs, and has relatively few constraints on temperature and pressure [24,25,26]. However, the cold plasma process for the removal of microalgae has rarely been reported.
This study therefore attempted an air-assisted cold plasma process as a method to treat indicators of microalgal biomass content. Experiments were designed to confirm the efficient elimination of algae by the cold plasma. Their specific objectives were: (1) to verify how the cold plasma effectively removes chl-a, SS, and turbidity at various initial concentrations; (2) to investigate the kinetic rate constants of the cold plasma process; (3) to find cause and effect of microalgal cell change in the cold plasma treatment; and (4) to estimate time for 99% removal based on the kinetics.

2. Materials and Methods

2.1. Experiment Set-Up

The water samples were taken from a local reservoir that suffered from algal bloom in Korea. The characteristics of the sample are shown in Table 1.
A lab-scale cold plasma process equipped with the direct aeration of carrier gas and air was applied to the sample. The air-assisted cold plasma was provided by Groon co. Ltd., in Jeonju city, Korea. The glow-discharge-based plasma generator (10 mA and 2.2 W) produced plasma in the passing air. The aeration pump (1.5 A and 330 W, WELCH, Model No. 2546 C-10) was operated with the air flowrate of 5 L/min, which was controlled by a flow meter (Dwyer, RMA-22-SSV, USA). After the air passed through a plasma-generating apparatus, reactive chemicals in the plasma state were directly contacted with the target pollutants in the water sample. A schematic diagram of the device is shown in Figure 1.
To investigate the removal efficiencies of indicator parameters, we diluted the original sample for five different runs, as summarized in Table 2. Under each initial concentration, cold plasma treatments were conducted for 24 h, and the samples were collected according to the experimental design for analyses.

2.2. Experimental Measurements

Using spectrophotometry, chl-a concentrations were analyzed by a method based on acetone extraction [27]. To quantify the total mass of microalgae, SS was determined by adapting 2540 D of the standard method for the examination of water and wastewater [28]. Turbidity was determined by a turbidity meter (Orion AQ4500, Thermo Scientific, Singapore), which recorded nephelometric turbidity units (NTUs).
The microalgal cell surface was observed using a field emission scanning electron microscope (FE-SEM). After centrifugation, the cells were resuspended by inserting a fixing solution containing 2% paraformaldehyde and 2% glutaraldehyde into 0.05 M cacodylate buffer (pH 7.2). We then kept the sample at room temperature overnight. Thereafter, cells were washed three times (10 min each) with 0.05 M sodium cacodylate buffer (pH 7.2). Then, cells were immersed in 1% osmium tetraoxide in 0.05 M sodium cacodylate buffer, pH 7.2, for 1.5 h at 4 °C. Again, after two times of washing with distilled water, stepwise dehydration in ascending ethanol content (30%, 40%, 50%, 70%, 80%, 90%, and 100%) was conducted. Overall, the pretreatment process took approximately 80–90 min to complete. The pretreatment was followed by a drying processes of: (1) two steps of chemical drying were conducted with 100% hexamethyldisilazane (HMDS) for 15 min each, and then (2) two rounds of critical point drying were conducted with 100% isoamyl acetate for 15 min. Afterwards, a gold film coating made the cell surface observable by FE-SEM equipment (SUPRA 40 VP, Carl Zeiss Oberkochen, Germany).

2.3. Statistical Analyses and Regressions

To determine the removal rate constant, k (d−1), the computer software SigmaPlot (Systat Software, Inc., San Jose, CA, USA) was used for regression based on first-order exponential decay assumptions of chl-a, SS, and turbidity over the cold plasma operation time. To estimate the response time for 99% removal of chl-a, SS, and turbidity, we replaced the concentration of the first-order exponential decay model as 0.01c0 with the obtained k (d−1), where c0 is the initial concentration of either chl-a, SS, or turbidity.

3. Results and Discussion

3.1. Degradation of Major Microalgal Indicators by Cold Plasma Application

The experiment was designed to verify the degradation performance of microalgal indicators by cold plasma. Experimental results were obtained based on the experimental design. Figure 2 shows the degradation trends of chl-a, SS, and turbidity according to the cold plasma contact time.
As shown in Figure 2a, the initial chl-a of Run 5 was 10.8 g/m3, which decreased to 1.2 g/m3 after 24 h, having an 88.8% removal efficiency. The chl-a of Run 4 started at 7.9 g/m3, and the final concentration after 24 h was merely 0.5 g/m3 (94.3% removal efficiency). Run 3 showed the highest removal efficiency of 98.8%, equivalent to a decrease from 6.4 g/m3 to 0.08 g/m3. In the case of Run 2 and Run 1, initial chl-a (3.1 g/m3 and 1.0 g/m3) declined to 0.07 g/m3 (97.7% removal) and 0.05 g/m3 (95.1% removal), respectively.
Figure 2b illustrates the dynamics of SS in the reactor. It was revealed that the cold plasma actively degraded suspended solids in the reactor, though Run 5, with the highest initial concentration, presented an initial fluctuation. The SS of Run 5 was measured to be 1.28 g/L, and after 24 h treatment the SS value was 0.29 g/L, showing a 77.3% removal efficiency. The SS values of Run 4 and Run 3 were measured as 1.01 g/L and 0.58 g/L, respectively. The final data were 0.15 g/L and 0.08 g/L. The removal efficiencies of the two runs were only 85.0% and 85.3%, respectively. Run 2 showed the highest removal efficiency of 90.5% (0.42 g/L to 0.04 g/L). The SS value of Run 1 was 0.1 g/L, and it decreased to 0.03 g/L, recording a 70.0% removal efficiency.
Figure 2c presents the turbidity according to the cold plasma contact time. The initial turbidity of Run 5 was 3267 NTU, and the final was recorded as 1519 NTU, showing a 53.5% removal. The initial turbidity of Run 4 (1800 NTU) reduced to 460 NTU (74.7%) after 24 h. Meanwhile, Run 3 showed the highest removal efficiency of 91.1% (1275 NTU to 113 NTU). The lower initial turbidities of Run 2 (346 NTU) and Run 1 (108 NTU) did not lead to higher removal efficiency. The final turbidities were 84.6 NTU (75.5%) and 41.3 NTU (61.8%), respectively.
Previous studies have shown that the AOP process was effective in chl-a removal when the initial concentration was ~160 mg/m3 [29,30], and was also shown to be effective in SS removal [25,31,32,33] and turbidity removal [14,34,35,36].
This study found that cold plasma could obtain chl-a removal efficiencies of over 94% when the initial concentration was higher than 1.4 g/m3 (Run 1). This result implies that cold plasma is very effective in chl-a reduction, even at extremely high initial chl-a (~10 g/m3). The obtained removal efficiencies indicate that the reactivity of chemical species from cold plasma seems to be very strong, since this study demonstrated little difference in efficacy for the tested range of initial chl-a.
Results also showed SS removal greater than 70% for all the experiments, indicating the efficacy of the cold plasma process, though a slight increase of SS (1.08 to 1.24 g/L) at 3 h was observable for higher initial SS (Run 5). This is possibly because algal cell disintegration, extracellular by-products separation, or intercellular materials release may increase or maintain the initial SS due to active simultaneous reactions.
The strong oxidizing power of the cold plasma process similarly confirmed the reduction of turbidity, though the treatment efficiencies were lower than those of chl-a and SS. In the case of Run 5, the turbidity increased to 4300 NTU during first 3 h and then started to decrease. This increase may be associated with the release of inner cell materials in the microalgae decomposition process, which is consistent with the literature [29]. These results indicate that the turbidity is not a good indicator for biomass removal assessment compared to chl-a and SS, though the cold plasma process could effectively oxidize turbidity, eventually obtaining material degradations of up to 91.1%.

3.2. Enhanced Degradation Kinetics in Cold Plasma Process

The removal rate constant (kchl-a) of Run 1 with a relatively low initial concentration (1 g/m3) was 3.75 d−1 (Table 3). When the chl-a concentration was over 10.8 g/m3 (Run 5) it was 11.84 d−1—approximately three times slower due to the increased concentration of chl-a. However, Runs 3, 4, and 5 showed slightly lower or similar removal rates than Run 2, which indicates that the removal rate could be maintained despite the increase of biomass being removed (Figure 3a). Therefore, it is considered that a high removal rate can be obtained at a low concentration, and a large amount of removal can be obtained at a high concentration. This large variation occurs possibly due to the difference in the initial amount of chl-a, but all cases showed higher values than that (3.55 d−1, R2 = 0.97) of UV-C degradation [37]. Based on the regression, removal rates (k) of chl-a were estimated.
The removal rate constant of SS showed a different pattern to chl-a (Figure 3a,b). The highest removal rate of Run 4 was 3.38 d−1. Depending on concentration, the removal rate constant ranged between 1.35 d−1 and 3.38 d−1 (Table 3). Especially, when the concentration of SS was approximately 100 mg/L (Run 1), a very low removal rate of 1.34 d−1 was recorded. It was judged that the removal rate was the lowest because of a low initial amount of SS. Therefore, the removal rate might be lowered due to the overload of particulate matter in this SS removal by cold plasma.
The removal rate constants of turbidity presented a slightly similar trend to that of SS (Figure 3b,c). Estimated removal rate constants of Runs 3 and 4 presented little difference, at 2.85 d−1 and 2.39 d−1, respectively (Table 3). Only Run 5 with the highest turbidity and Run 1 with the lowest turbidity showed significantly reduced removal rates (1.44 d−1 and 0.73 d−1).
This is a distinctively different removal trend from those of chl-a, which showed the highest removal rate in Run 1 (Figure 3a). This could be attributed to the nature of turbidity measurement, due to a wide range of particles causing incident light scattering. The residual cell wall (Figure 4c) and inner cell materials (Figure 2b,c) due to cold plasma application must have different properties in their shape, color, and reflectivity, leading to an unreliable determination for very high and low turbidity (Run 5 and 1).

3.3. Morphological Change of Microalgal Cell Surface by Cold Plasma

To verify the removal mechanism of chl-a, FE-SEM pictures of the cell surface was taken before and after the cold plasma treatment. Figure 4 illustrates the representative changes found on the cell surface. The pictures clearly show that the cold plasma caused substantial destruction of the microalgal cell wall. Especially, Figure 4b,c demonstrates the complete breakage and shrinkage of the cell surface, which implies the devastating decomposition of the inner cell materials including chl-a, though a residual skin-like cell wall still remained.
This indicates that the oxidation and reduction of reactive chemicals produced by the cold plasma can lead to bactericidal or bacteriolytic inactivation of the cells. This is consistent with previous results [26,30] and may suggest a stronger effect compared to previous literature. Figure 4c demonstrates that the changes of the cell surface caused severe damage to the cell surface due to continuous exposure to reactive chemical species. These results support the efficient inactivation of microorganisms in the cold plasma treatment.

3.4. Necessity of Enough Contact Time for Bloom Control

Figure 4c shows that cell wall debris of microalgae remained, constituting the remaining SS. This explains the low treatment efficiency of SS compared to the case of chl-a. It is evident that removal rates of chl-a for Runs 3, 4, and 5 were highly maintained, while those of SS were relatively low. So, it is judged that the removal was still effective even though the SS removal efficiency was lower than expected because of the residual SS. The cold plasma process was limited in its capability of complete SS reduction within a short contact time (24 h). Thus, the 99% response times for SS were much longer (1.3–3.4 d) than those for chl-a (Table 4).
The cloudy transparency of the cold-plasma-treated water (Figure S1 in Supporting Information) also supports the potential interference due to the remaining fine particles or dissolved solids from the degradation of biomass-related compounds. For these reasons, the 99% response time was extended significantly to ~6.2 d (Table 4). For Run 1, the initial turbidity was only 108 NTU, and a decrease to about 1 NTU would be required for a 99% removal efficiency. Therefore, more contact time was required to obtain such a low turbidity.

4. Conclusions

This study revealed that the strong oxidizing power from reactive chemicals produced by cold plasma led to excellent microalgal removal. Our experimental results based on chl-a, SS, and turbidity determinations as biomass indicators demonstrated substantially high removal efficiency (over 90.5%). Removal rates indicated that SS and turbidity tend to differ from chl-a due to the particulate matter produced by the degradation of large amounts of microalgal cell. FE-SEM analysis indicated that the removal mechanisms of chl-a and SS were due to severe deformation of the microalgal cell surface. The minimum time required to achieve a 99% removal efficiency for each indicator was estimated at approximately 1.6 d. Overall, this study verified the advanced performance of cold plasma from the viewpoints of chl-a, SS, and turbidity removal, and provides their kinetics. It may provide a sustainable approach to control a wide range of microalgal blooms without concerns about microalgal biomass harvesting.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4441/11/7/1513/s1, Figure S1: Effect of cold plasma: (A) before treatment; and (B) after treatment (24 h).

Author Contributions

H.-J.K., J.-S.J., and H.-W.K. conceived and designed the experiments; H.-J.K. and G.-S.N. performed all experiments; H.-J.K., C.-H.W., and H.-W.K. analyzed the data and wrote the paper; C.-H.W. and H.-W.K. took leadership of the project and the publication of the paper; All authors read and approved the submitted manuscript.

Funding

This research was funded by the Korean Ministry of Environment (MOE) as part of the ‘Knowledge-based environmental service (Waste to energy recycling) Human resource development Project’. This research was also supported by research funds of Chonbuk National University in 2019.

Acknowledgments

We thank the Center for University Research Facility (CURF) at Chonbuk National University for helpful support and comments in FE-SEM analyses.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Carmichael, W. A world overview—One-hundred-twenty-seven years of research on toxic cyanobacteria—Where. In Cyanobacterial Harmful Algal Blooms: State of the Science and Research Needs; Springer: Berlin/Heidelberg, Germany, 2008; pp. 105–125. [Google Scholar]
  2. Dahlmann, J.; Budakowski, W.R.; Luckas, B. Liquid chromatography–electrospray ionisation-mass spectrometry based method for the simultaneous determination of algal and cyanobacterial toxins in phytoplankton from marine waters and lakes followed by tentative structural elucidation of microcystins. J. Chromatogr. A 2003, 994, 45–57. [Google Scholar] [CrossRef]
  3. Pan, G.; Miao, X.; Bi, L.; Zhang, H.; Wang, L.; Wang, L.; Wang, Z.; Chen, J.; Ali, J.; Pan, M. Modified Local Soil (MLS) Technology for Harmful Algal Bloom Control, Sediment Remediation, and Ecological Restoration. Water 2019, 11, 1123. [Google Scholar] [CrossRef]
  4. Carpenter, S.R.; Caraco, N.F.; Correll, D.L.; Howarth, R.W.; Sharpley, A.N.; Smith, V.H. Nonpoint pollution of surface waters with phosphorus and nitrogen. Ecol. Appl. 1998, 8, 559–568. [Google Scholar] [CrossRef]
  5. Paerl, H.W.; Fulton, R.S.; Moisander, P.H.; Dyble, J. Harmful freshwater algal blooms, with an emphasis on cyanobacteria. Sci. World J. 2001, 1, 76–113. [Google Scholar] [CrossRef] [PubMed]
  6. Shen, Q.; Zhu, J.; Cheng, L.; Zhang, J.; Zhang, Z.; Xu, X. Enhanced algae removal by drinking water treatment of chlorination coupled with coagulation. Desalination 2011, 271, 236–240. [Google Scholar] [CrossRef]
  7. Havens, K.E.; James, R.T.; East, T.L.; Smith, V.H. N: P ratios, light limitation, and cyanobacterial dominance in a subtropical lake impacted by non-point source nutrient pollution. Environ. Pollut. 2003, 122, 379–390. [Google Scholar] [CrossRef]
  8. Peng, Y.; Liu, L.; Jiang, L.; Xiao, L. The roles of cyanobacterial bloom in nitrogen removal. Sci. Total Environ. 2017, 609, 297–303. [Google Scholar] [CrossRef]
  9. Cole, J.J. Interactions between bacteria and algae in aquatic ecosystems. Annu. Rev. Ecol. Syst. 1982, 13, 291–314. [Google Scholar] [CrossRef]
  10. Suurnäkki, S.; Gomez-Saez, G.V.; Rantala-Ylinen, A.; Jokela, J.; Fewer, D.P.; Sivonen, K. Identification of geosmin and 2-methylisoborneol in cyanobacteria and molecular detection methods for the producers of these compounds. Water Res. 2015, 68, 56–66. [Google Scholar] [CrossRef]
  11. Fischer, W.J.; Dietrich, D.R. Pathological and biochemical characterization of microcystin-induced hepatopancreas and kidney damage in carp (Cyprinus carpio). Toxicol. Appl. Pharmacol. 2000, 164, 73–81. [Google Scholar] [CrossRef]
  12. Kotak, B.G.; Zurawell, R.W.; Prepas, E.E.; Holmes, C.F. Microcystin-LR concentration in aquatic food web compartments from lakes of varying trophic status. Can. J. Fish. Aquat. Sci. 1996, 53, 1974–1985. [Google Scholar] [CrossRef] [Green Version]
  13. Amor, C.; Marchão, L.; Lucas, M.S.; Peres, J.A. Application of advanced oxidation processes for the treatment of recalcitrant agro-industrial wastewater: A review. Water 2019, 11, 205. [Google Scholar] [CrossRef]
  14. Scandelai, A.P.J.; Cardozo Filho, L.; Martins, D.C.C.; de Souza Freitas, T.K.F.; Garcia, J.C.; Tavares, C.R.G. Combined processes of ozonation and supercritical water oxidation for landfill leachate degradation. Waste Manag. 2018, 77, 466–476. [Google Scholar] [CrossRef] [PubMed]
  15. Divakaran, R.; Pillai, V.S. Flocculation of algae using chitosan. J. Appl. Phycol. 2002, 14, 419–422. [Google Scholar] [CrossRef]
  16. Rosenfeldt, E.J.; Linden, K.G. Degradation of endocrine disrupting chemicals bisphenol A, ethinyl estradiol, and estradiol during UV photolysis and advanced oxidation processes. Environ. Sci. Technol. 2004, 38, 5476–5483. [Google Scholar] [CrossRef] [PubMed]
  17. Ma, J.; Sui, M.; Zhang, T.; Guan, C. Effect of pH on MnOx/GAC catalyzed ozonation for degradation of nitrobenzene. Water Res. 2005, 39, 779–786. [Google Scholar] [CrossRef] [PubMed]
  18. Wink, D.A.; Nims, R.W.; Saavedra, J.E.; Utermahlen, W.E.; Ford, P. The Fenton oxidation mechanism: Reactivities of biologically relevant substrates with two oxidizing intermediates differ from those predicted for the hydroxyl radical. Proc. Natl. Acad. Sci. USA 1994, 91, 6604–6608. [Google Scholar] [CrossRef]
  19. Jones, D.A.; Lelyveld, T.; Mavrofidis, S.; Kingman, S.; Miles, N. Microwave heating applications in environmental engineering—A review. Resour. Conserv. Recycl. 2002, 34, 75–90. [Google Scholar] [CrossRef]
  20. Bogaerts, A.; Neyts, E.; Gijbels, R.; Van der Mullen, J. Gas discharge plasmas and their applications. Spectrochim. Acta Part B At. Spectrosc. 2002, 57, 609–658. [Google Scholar] [CrossRef]
  21. Joshi, A.A.; Locke, B.R.; Arce, P.; Finney, W.C. Formation of hydroxyl radicals, hydrogen peroxide and aqueous electrons by pulsed streamer corona discharge in aqueous solution. J. Hazard. Mater. 1995, 41, 3–30. [Google Scholar] [CrossRef]
  22. Locke, B.; Sato, M.; Sunka, P.; Hoffmann, M.; Chang, J.-S. Electrohydraulic discharge and nonthermal plasma for water treatment. Ind. Eng. Chem. Res. 2006, 45, 882–905. [Google Scholar] [CrossRef]
  23. Lee, D.; Lee, J.-C.; Nam, J.-Y.; Kim, H.-W. Degradation of sulfonamide antibiotics and their intermediates toxicity in an aeration-assisted non-thermal plasma while treating strong wastewater. Chemosphere 2018, 209, 901–907. [Google Scholar] [CrossRef] [PubMed]
  24. Jiang, B.; Zheng, J.; Qiu, S.; Wu, M.; Zhang, Q.; Yan, Z.; Xue, Q. Review on electrical discharge plasma technology for wastewater remediation. Chem. Eng. J. 2014, 236, 348–368. [Google Scholar] [CrossRef]
  25. Kwak, D.-H.; Jee, S.-I.; Kim, H.-J.; Won, C.-H. Feasibility of Glow Discharge Nonthermal Plasma as an Alternative Pretreatment for Low-Carbon Wastewater in a Biological Nutrient Removal Plant. Environ. Eng. Sci. 2018, 35, 1376–1386. [Google Scholar] [CrossRef]
  26. Kim, H.-J.; Won, C.-H.; Kim, H.-W. Pathogen Deactivation of Glow Discharge Cold Plasma While Treating Organic and Inorganic Pollutants of Slaughterhouse Wastewater. Water Air Soil Pollut. 2018, 229, 237. [Google Scholar] [CrossRef]
  27. Lawton, L.; Marsalek, B.; Padisák, J.; Chorus, I. Determination of cyanobacteria in the laboratory. In Toxic Cyanobacteria in Water: A Guide to Their Public Health Consequences, Monitoring and Management; CRC Press: Boca Raton, FL, USA, 1999; pp. 347–367. [Google Scholar]
  28. Rice, E.; Baird, R.; Eaton, A.; Clesceri, L. Standard Methods for the Examination of Water and Wastewater; American Public Health Association, American Water Works Association, and Water Environment Federation; Cenveo Publisher Services: Richmond, VA, Canada, 2012. [Google Scholar]
  29. Abrha, Y.; Kye, H.; Kwon, M.; Lee, D.; Kim, K.; Jung, Y.; Ahn, Y.; Kang, J.-W. Removal of Algae, and Taste and Odor Compounds by a Combination of Plant-Mineral Composite (PMC) Coagulant with UV-AOPs: Laboratory and Pilot Scale Studies. Appl. Sci. 2018, 8, 1502. [Google Scholar] [CrossRef]
  30. Miao, H.; Tao, W. The mechanisms of ozonation on cyanobacteria and its toxins removal. Sep. Purif. Technol. 2009, 66, 187–193. [Google Scholar] [CrossRef]
  31. Bukhari, A.A. Investigation of the electro-coagulation treatment process for the removal of total suspended solids and turbidity from municipal wastewater. Bioresour. Technol. 2008, 99, 914–921. [Google Scholar] [CrossRef] [Green Version]
  32. Sarika, R.; Kalogerakis, N.; Mantzavinos, D. Treatment of olive mill effluents: Part II. Complete removal of solids by direct flocculation with poly-electrolytes. Environ. Int. 2005, 31, 297–304. [Google Scholar] [CrossRef]
  33. Sun, J.; Li, X.; Feng, J.; Tian, X. Oxone/Co2+ oxidation as an advanced oxidation process: Comparison with traditional Fenton oxidation for treatment of landfill leachate. Water Res. 2009, 43, 4363–4369. [Google Scholar] [CrossRef]
  34. Borba, F.H.; Pellenz, L.; Bueno, F.; Inticher, J.J.; Braun, L.; Espinoza-Quiñones, F.R.; Trigueros, D.E.; de Pauli, A.R.; Módenes, A.N. Pollutant removal and biodegradation assessment of tannery effluent treated by conventional Fenton oxidation process. J. Environ. Chem. Eng. 2018, 6, 7070–7079. [Google Scholar] [CrossRef]
  35. Mahdad, F.; Younesi, H.; Bahramifar, N.; Hadavifar, M. Optimization of Fenton and photo-Fenton-based advanced oxidation processes for post-treatment of composting leachate of municipal solid waste by an activated sludge process. KSCE J. Civ. Eng. 2016, 20, 2177–2188. [Google Scholar] [CrossRef]
  36. Moreira, F.C.; Boaventura, R.A.; Brillas, E.; Vilar, V.J. Electrochemical advanced oxidation processes: A review on their application to synthetic and real wastewaters. Appl. Catal. B Environ. 2017, 202, 217–261. [Google Scholar] [CrossRef]
  37. Pfendler, S.; Munch, T.; Bousta, F.; Alaoui-Sosse, L.; Aleya, L.; Alaoui-Sossé, B.; Research, P. Bleaching of biofilm-forming algae induced by UV-C treatment: A preliminary study on chlorophyll degradation and its optimization for an application on cultural heritage. J. Environ. Sci. 2018, 25, 14097–14105. [Google Scholar] [CrossRef]

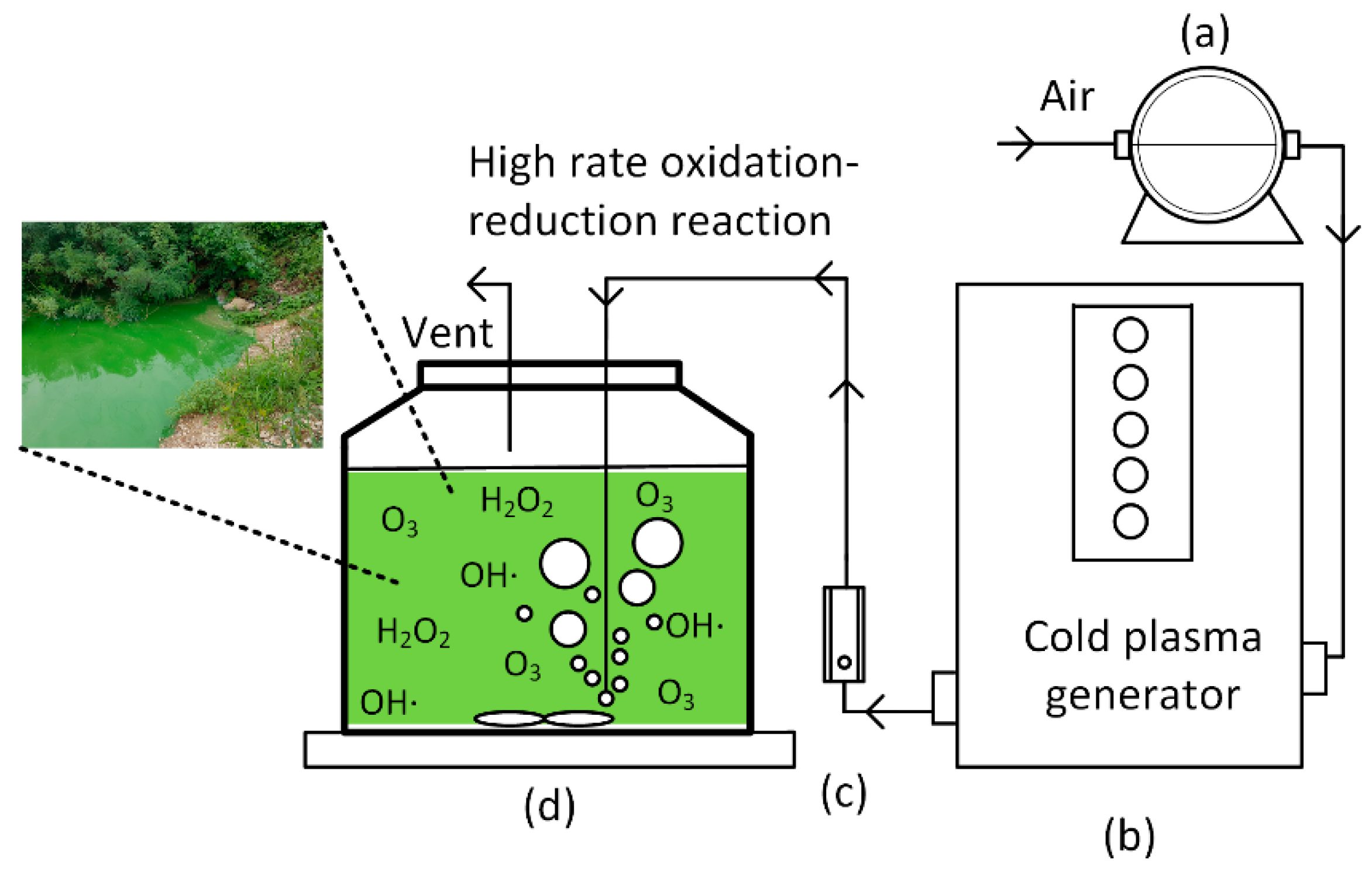

Figure 1. Lab-scale set-up of the air-assisted cold plasma process for batch experiments at an air flowrate of 5 L/min: (a) aerator, (b) cold plasma generator, (c) flow meter, and (d) magnetic stirring and reactor.
Figure 1. Lab-scale set-up of the air-assisted cold plasma process for batch experiments at an air flowrate of 5 L/min: (a) aerator, (b) cold plasma generator, (c) flow meter, and (d) magnetic stirring and reactor.
Water 11 01513 g001

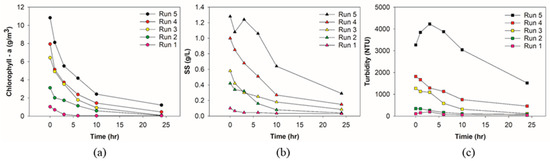

Figure 2. Concentration value by item according to each run and contact time: (a) chl-a; (b) SS; (c) turbidity.
Figure 2. Concentration value by item according to each run and contact time: (a) chl-a; (b) SS; (c) turbidity.
Water 11 01513 g002

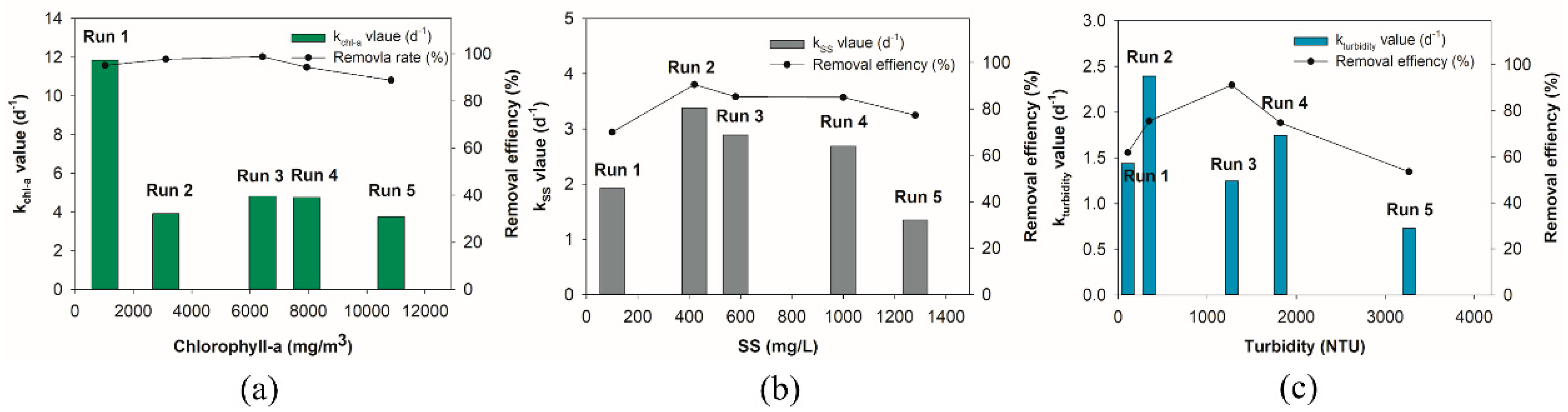

Figure 3. Regressed degradation kinetics rates according to the initial concentration and the removal efficiency at the end of each run: (a) chl-a (kchl-a); (b) SS (kSS); (c) turbidity (kturbidity).
Figure 3. Regressed degradation kinetics rates according to the initial concentration and the removal efficiency at the end of each run: (a) chl-a (kchl-a); (b) SS (kSS); (c) turbidity (kturbidity).
Water 11 01513 g003
Figure 4. SEM images showing morphological destruction of the microalgal cell by reactive chemicals from the cold plasma. (a) Original single cell before cold plasma application; (b) shrunken cell surface after cold plasma application; and (c) torn-off cell surface at the end of the cold plasma treatment.
Figure 4. SEM images showing morphological destruction of the microalgal cell by reactive chemicals from the cold plasma. (a) Original single cell before cold plasma application; (b) shrunken cell surface after cold plasma application; and (c) torn-off cell surface at the end of the cold plasma treatment.
Water 11 01513 g004
Table 1. Physical and chemical characteristic of sampled raw surface water. CODcr: chemical oxygen demand; TOC: total organic carbon; SS: suspended solids; TN: total nitrogen; Chl-a: chlorophyll-a.
Table 1. Physical and chemical characteristic of sampled raw surface water. CODcr: chemical oxygen demand; TOC: total organic carbon; SS: suspended solids; TN: total nitrogen; Chl-a: chlorophyll-a.
ItemAverage
CODcr (g/L)4.1
TOC (g/L)0.4
SS (g/L)1.2
TN (g/L)0.3
Turbidity (NTU)3600
Chl-a (g/m3)10.8
Table 2. Mixing ratio of raw surface water to dilution (distilled water).
Table 2. Mixing ratio of raw surface water to dilution (distilled water).
RunDilution Ratio a (times)
18.0
24.0
33.0
41.3
51.0
a Total water volume after dilution/raw water volume.
Table 3. The removal rate constant, k, was regressed by using the data obtained from each experimental condition of chl-a, SS, and turbidity.
Table 3. The removal rate constant, k, was regressed by using the data obtained from each experimental condition of chl-a, SS, and turbidity.
RunChl-aSSTurbidity
Experimental Removal Efficiency (%)Regressed Removal Rate, k (d−1)R2Experimental Removal Efficiency (%)Regressed Removal Rate, k (d−1)R2Experimental Removal Efficiency (%)Regressed Removal Rate, k (d−1)R2
195.111.840.9670.01.350.9061.80.730.71
297.73.920.9690.52.690.9875.51.740.96
398.84.800.9985.32.890.9291.12.850.96
494.34.750.9685.03.380.9674.72.390.94
588.83.750.9977.31.920.6653.51.440.52
Table 4. The removal rate k calculated using the data obtained from each experimental condition of chl-a, SS, and turbidity.
Table 4. The removal rate k calculated using the data obtained from each experimental condition of chl-a, SS, and turbidity.
Chl-aSSTurbidity
RunEstimated 99% Response Time a (d)Estimated 99% Response Time a (d)Estimated 99% Response Time a (d)
10.43.46.2
21.21.72.6
30.91.61.6
40.91.31.9
51.22.43.1
a 99% response time means that the concentration was lowered to 99% of its initial value.
