# Ensemble Kalman Filter Assimilation of ERT Data for Numerical Modeling of Seawater Intrusion in a Laboratory Experiment

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Material and Methods

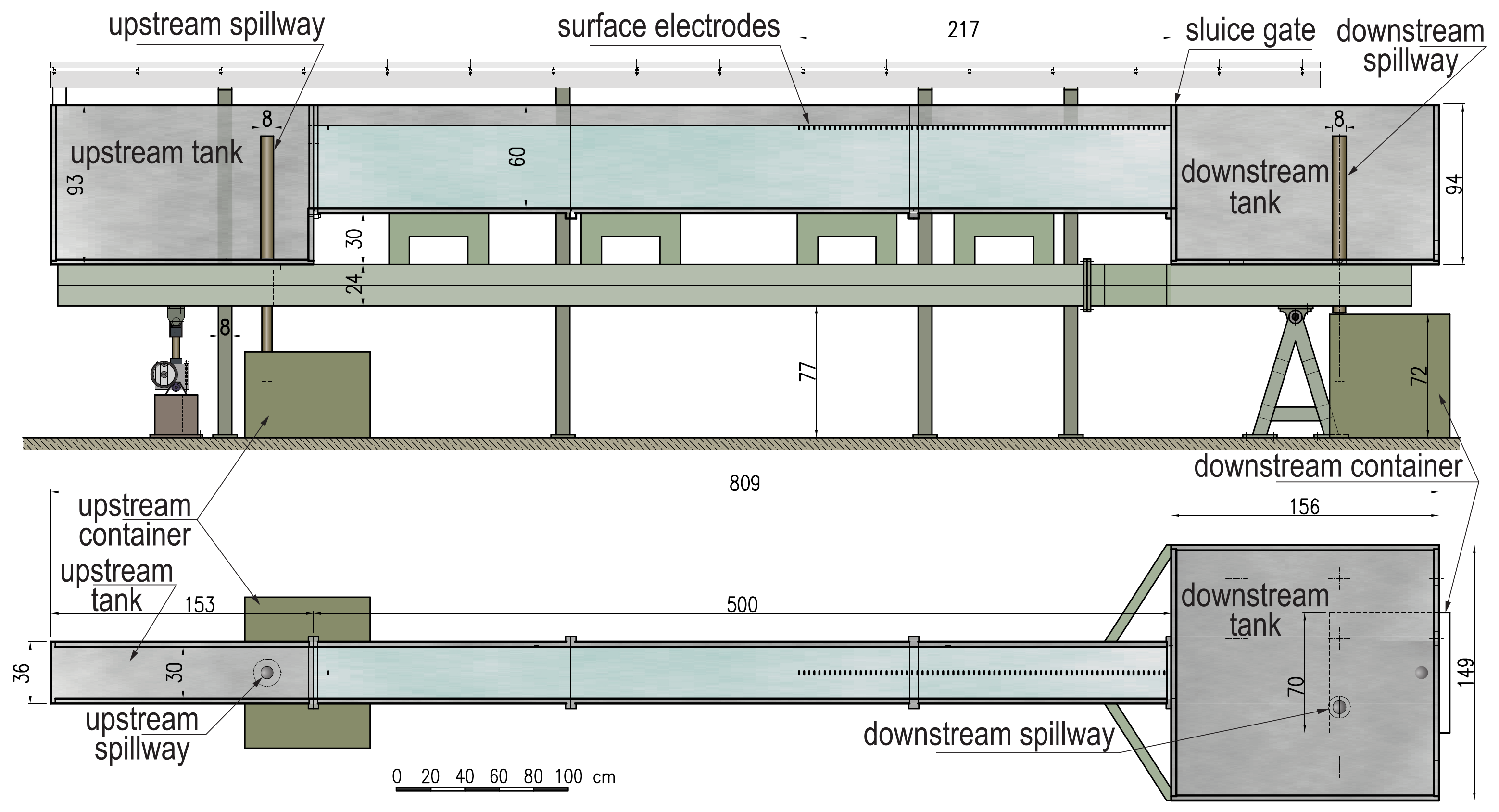

#### 2.1. Saltwater Intrusion Experiment

#### 2.2. Data Assimilation Approaches

#### 2.3. Groundwater Flow and Transport Modeling

#### 2.4. Electrical Modeling

#### 2.4.1. Forward Modeling

#### 2.4.2. Inverse Modeling

#### 2.5. Ensemble Kalman Filter with Nonlinear Observations and Dual-Step Update

## 3. Modeling and Data Assimilation Setup

#### 3.1. Fine- and Coarse-Resolution Groundwater Model

#### 3.2. Setup and Calibration of the Electrical Model

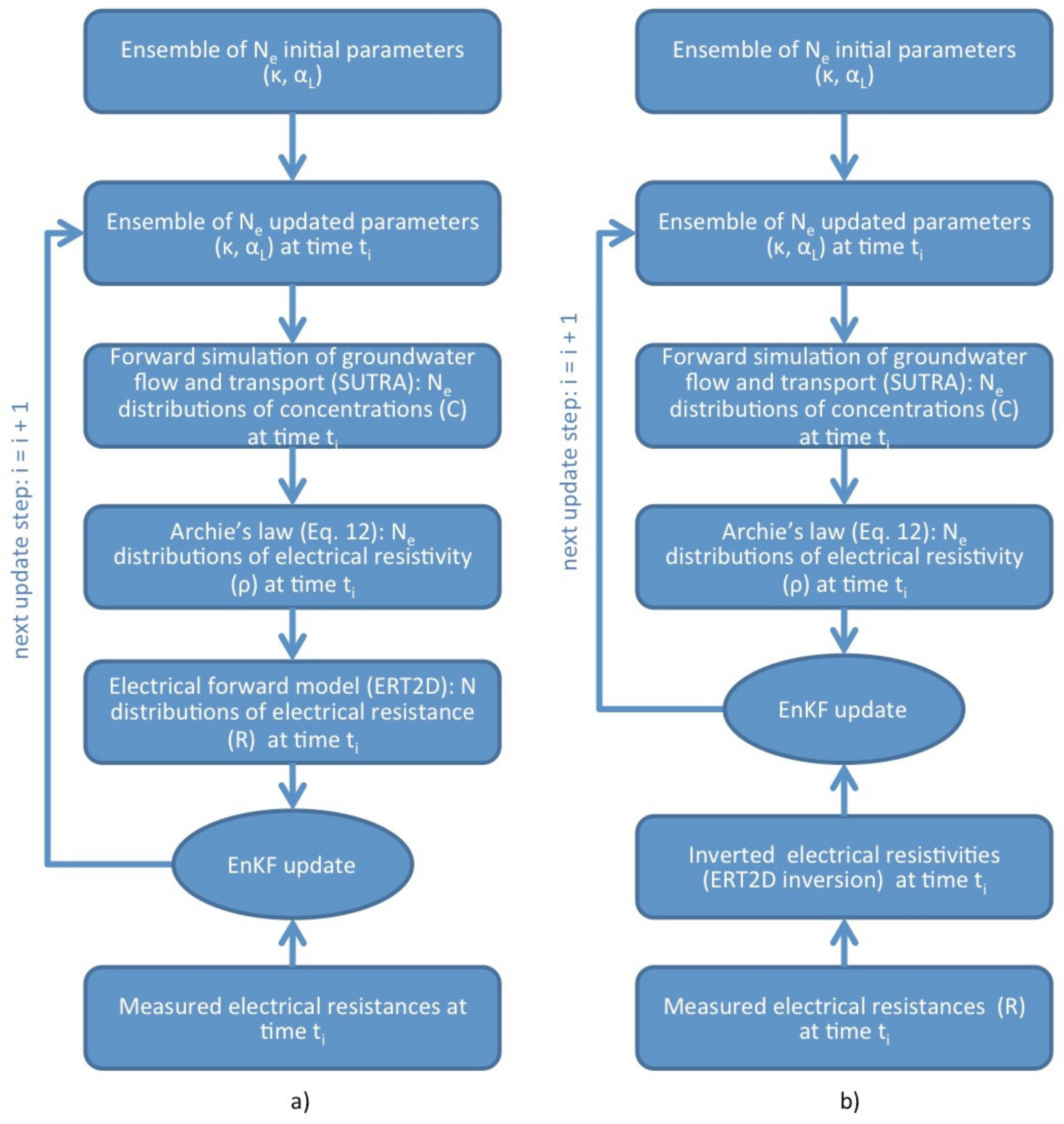

#### 3.3. Setup of the Data Assimilation Scenarios

#### 3.3.1. Joint Assimilation Method

#### 3.3.2. Sequential Assimilation Method

#### 3.3.3. Evaluation Metrics

## 4. Results and Discussion

#### 4.1. Data Assimilation Performance for System State

#### 4.1.1. Unbiased Initial Ensemble (Scenario 1): Joint Assimilation

#### 4.1.2. Unbiased Initial Ensemble (Scenario 1): Sequential Assimilation

#### 4.2. Parameter Estimation: Joint Versus Sequential Assimilation

#### 4.2.1. Unbiased Initial Ensemble: Scenario 1

#### 4.2.2. Biased Initial Ensemble (Scenario 2)

## 5. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Kundzewicz, Z.W.; Mata, L.J.; Arnell, N.W.; Doll, P.; Kabat, P.; Jimenez, B.; Miller, K.; Oki, T.; Zekai, S.; Shiklomanov, I. Freshwater Resources and Their Management; Cambridge University Press: Cambridge, UK, 2007; pp. 173–210. [Google Scholar]
- Bobba, A.G. Numerical modelling of salt-water intrusion due to human activities and sea-level change in the Godavari Delta, India. Hydrol. Sci. J.
**2002**, 47, S67–S80. [Google Scholar] [CrossRef] - Masterson, J.P. Simulated Interaction between Freshwater and Saltwater and Effects of Ground-Water Pumping and Sea-Level Change, Lower Cape Cod Aquifer System, Massachusetts; US Department of the Interior, US Geological Survey: Reston, VA, USA, 2004.
- Liu, J.; Rich, K.; Zheng, C. Sustainability analysis of groundwater resources in a coastal aquifer, Alabama. Environ. Geol.
**2008**, 54, 43–52. [Google Scholar] [CrossRef] - Werner, A.D.; Simmons, C.T. Impact of Sea-Level Rise on Sea Water Intrusion in Coastal Aquifers. Ground Water
**2009**, 47, 197–204. [Google Scholar] [CrossRef] [PubMed] - Barlow, P.M.; Reichard, E.G. Saltwater intrusion in coastal regions of North America. Hydrogeol. J.
**2010**, 18, 247–260. [Google Scholar] [CrossRef] - Chang, S.W.; Clement, T.P.; Simpson, M.J.; Lee, K.K. Does sea-level rise have an impact on saltwater intrusion? Adv. Water Resour.
**2011**, 34, 1283–1291. [Google Scholar] [CrossRef] [Green Version] - SIngha, K.; Day-Lewis, F.D.; Johnson, T.; Slater, L.D. Advances in interpretation of subsurface processes with time-lapse electrical imaging. Hydrol. Process.
**2015**, 29, 1549–1576. [Google Scholar] [CrossRef] - Comte, J.C.; Banton, O. Cross-validation of geo-electrical and hydrogeological models to evaluate seawater intrusion in coastal aquifers. Geophys. Res. Lett.
**2007**, 34, L10402. [Google Scholar] [CrossRef] - Zarroca, M.; Bach, J.; Linares, R.; Pellicer, X.M. Electrical methods (VES and ERT) for identifying, mapping and monitoring different saline domains in a coastal plain region (Alt Empordà, Northern Spain). J. Hydrol.
**2011**, 409, 407–422. [Google Scholar] [CrossRef] - Ogilvy, R.; Meldrum, P.; Kuras, O.; Wilkinson, P.; Chambers, J.; Sen, M.; Pulido-Bosch, A.; Gisbert, J.; Jorreto, S.; Frances, I.; et al. Automated monitoring of coastal aquifers with electrical resistivity tomography. Near Surf. Geophys.
**2009**, 7, 367–375. [Google Scholar] [CrossRef] [Green Version] - Satriani, A.; Loperte, A.; Imbrenda, V.; Lapenna, V. Geoelectrical surveys for characterization of the coastal saltwater intrusion in Metapontum forest reserve (Southern Italy). Int. J. Geophys.
**2012**, 2012. [Google Scholar] [CrossRef] - Hermans, T.; Vandenbohede, A.; Lebbe, L.; Martin, R.; Kemna, A.; Beaujean, J.; Nguyen, F. Imaging artificial salt water infiltration using electrical resistivity tomography constrained by geostatistical data. J. Hydrol.
**2012**, 438–439, 168–180. [Google Scholar] [CrossRef] - Rey, J.; Martínez, J.; Barberá, G.G.; García-Aróstegui, J.L.; García-Pintado, J.; Martínez-Vicente, D. Geophysical characterization of the complex dynamics of groundwater and seawater exchange in a highly stressed aquifer system linked to a coastal lagoon (SE Spain). Environ. Earth Sci.
**2013**, 70, 2271–2282. [Google Scholar] [CrossRef] - Kazakis, N.; Pavlou, A.; Vargemezis, G.; Voudouris, K.; Soulios, G.; Pliakas, F.; Tsokas, G. Seawater intrusion mapping using electrical resistivity tomography and hydrochemical data. An application in the coastal area of eastern Thermaikos Gulf, Greece. Sci. Total Environ.
**2016**, 543, 373–387. [Google Scholar] [CrossRef] [PubMed] - De Franco, R.; Biella, G.; Tosi, L.; Teatini, P.; Lozej, A.; Chiozzotto, B.; Giada, M.; Rizzetto, F.; Claude, C.; Mayer, A.; et al. Monitoring the saltwater intrusion by time lapse electrical resistivity tomography: The Chioggia test site (Venice Lagoon, Italy). J. Appl. Geophys.
**2009**, 69, 117–130. [Google Scholar] [CrossRef] - Binley, A.; Cassiani, G.; Middleton, R.; Winship, P. Vadose zone flow model parameterisation using cross-borehole radar and resistivity imaging. J. Hydrol.
**2002**, 267, 147–159. [Google Scholar] [CrossRef] - Pollock, D.; Cirpka, O.A. Fully coupled hydrogeophysical inversion of a laboratory salt tracer experiment monitored by electrical resistivity tomography. Water Resour. Res.
**2012**, 48. [Google Scholar] [CrossRef] - Jardani, A.; Revil, A.; Dupont, J. Stochastic joint inversion of hydrogeophysical data for salt tracer test monitoring and hydraulic conductivity imaging. Adv. Water Resour.
**2013**, 52, 62–77. [Google Scholar] [CrossRef] - Steklova, K.; Haber, E. Joint hydrogeophysical inversion: state estimation for seawater intrusion models in 3D. Comput. Geosci.
**2017**, 21, 75–94. [Google Scholar] [CrossRef] - Beaujean, J.; Nguyen, F.; Kemna, A.; Antonsson, A.; Engesgaard, P. Calibration of seawater intrusion models: Inverse parameter estimation using surface electrical resistivity tomography and borehole data. Water Resour. Res.
**2014**, 50, 6828–6849. [Google Scholar] [CrossRef] - Binley, A.; Hubbard, S.S.; Huisman, J.A.; Revil, A.; Robinson, D.A.; Singha, K.; Slater, L.D. The emergence of hydrogeophysics for improved understanding of subsurface processes over multiple scales. Water Resour. Res.
**2015**, 51, 3837–3866. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Chen, Y.; Zhang, D. Data assimilation for transient flow in geologic formations via ensemble Kalman filter. Adv. Water Resour.
**2006**, 29, 1107–1122. [Google Scholar] [CrossRef] - Hendricks Franssen, H.J.; Kinzelbach, W. Ensemble Kalman filtering versus sequential self-calibration for inverse modelling of dynamic groundwater flow systems. J. Hydrol.
**2009**, 365, 261–274. [Google Scholar] [CrossRef] - Zhou, H.; Gomez-Hernandez, J.J.; Franssen, H.J.H.; Li, L. An approach to handling non-Gaussianity of parameters and state variables in ensemble Kalman filtering. Adv. Water Resour.
**2011**, 34, 844–864. [Google Scholar] [CrossRef] - Schöniger, A.; Nowak, W.; Hendricks Franssen, H.J. Parameter estimation by ensemble Kalman filters with transformed data: Approach and application to hydraulic tomography. Water Resour. Res.
**2012**, 48. [Google Scholar] [CrossRef] - Crestani, E.; Camporese, M.; Bau, D.; Salandin, P. Ensemble Kalman Filter versus ensemble smoother for assessing hydraulic conductivity via tracer test data assimilation. Hydrol. Earth Syst. Sci.
**2013**, 17, 1517–1531. [Google Scholar] [CrossRef] - Li, L.; Zhou, H.; Gomez-Hernandez, J.J.; Franssen, H.J.H. Jointly mapping hydraulic conductivity and porosity by assimilating concentration data via ensemble Kalman filter. J. Hydrol.
**2012**, 429, 152–169. [Google Scholar] [CrossRef] - Crestani, E.; Camporese, M.; Salandin, P. Assessment of hydraulic conductivity distributions through assimilation of travel time data from ERT-monitored tracer tests. Adv. Water Resour.
**2015**, 84, 23–36. [Google Scholar] [CrossRef] - Zovi, F.; Camporese, M.; Franssen, H.J.H.; Huisman, J.A.; Salandin, P. Identification of high-permeability subsurface structures with multiple point geostatistics and normal score ensemble Kalman filter. J. Hydrol.
**2017**, 548, 208–224. [Google Scholar] [CrossRef] - Voss, C.I.; Provost, A.M. SUTRA: A Model for Saturated-Unsaturated, Variable-Density Ground-Water Flow with Solute or Energy Transport; Technical Report 02-4231; U.S. Geological Survey: Reston, VA, USA, 2010.
- Bertorelle, E. Laboratory Experiments on the Saltwater Intrusion Process. Master’s Thesis, University of Padova, Padova, Italy, 2014. [Google Scholar]
- Costantini, F.M. Un Caso Test Per L’intrusione Salina: Evidenze di Laboratorio e Numeriche. Master’s Thesis, University of Padova, Padova, Italy, 2015. [Google Scholar]
- Crestani, E.; Camporese, M.; Salandin, P. Physical and numerical modeling of seawater intrusion in coastal aquifers. In Proceedings of the EGU General Assembly Conference Abstracts, Vienna, Austria, 7–22 April 2016; Volume 18. [Google Scholar]
- Camporese, M.; Cassiani, G.; Deiana, R.; Salandin, P.; Binley, A. Coupled and uncoupled hydrogeophysical inversions using ensemble Kalman filter assimilation of ERT-monitored tracer test data. Water Resour. Res.
**2015**, 51. [Google Scholar] [CrossRef] - Voss, C.I. Seawater Intrusion in Coastal Aquifers—Concepts, Methods and Practices. In Theory and Appications of Transport in Porous Media; Chapter 9 USGS SUTRA Code—History, Pratical Use and Application in Hawaii; Kluwer Academic Publishers: Dordrecht, The Netherlands, 1999; Volume 14, pp. 249–313. [Google Scholar]
- Bouchedda, A. Inversion Conjointe des Données Électriques et de Radar en Forage. Ph.D. Thesis, Ecole Polytechnique de Montréal, Montréal, QC, Canada, 2010. [Google Scholar]
- Lesmes, D.P.; Friedman, S.P. Hydrogeophysics; Springer: Dordrecht, The Netherlands, 2005; Chapter 4; pp. 87–128. [Google Scholar]
- Cardarelli, E.; Fischanger, F. 2D data modelling by electrical resistivity tomography for complex subsurface geology. Geophys. Prospect.
**2006**, 54, 121–133. [Google Scholar] [CrossRef] - Binley, A.; Kemna, A. DC Resistivity and Induced Polarization Methods. In Hydrogeophysics; Springer: Dordrecht, The Netherlands, 2005; pp. 129–156. [Google Scholar]
- Gunther, T. Inversion Methods and Resolution Analysis for the 2D/3D Reconstruction of Resistivity Structures from DC Measurements. Ph.D. Thesis, TU Bergakademie Freiberg, Freiberg, Germany, 2004. [Google Scholar]
- Evensen, G. The ensemble Kalman filter for combined state and parameter estimation: Monte Carlo techniques for data assimilation in large systems. IEEE Control Syst.
**2009**, 29, 83–104. [Google Scholar] [CrossRef] - Burgers, G.; Jan van Leeuwen, P.; Evensen, G. Analysis Scheme in the Ensemble Kalman Filter. Mon. Weather Rev.
**1998**, 126, 1719–1724. [Google Scholar] [CrossRef] - Manoli, G.; Rossi, M.; Pasetto, D.; Deiana, R.; Ferraris, S.; Cassiani, G.; Putti, M. An iterative particle filter approach for coupled hydro-geophysical inversion of a controlled infiltration experiment. J. Comput. Phys.
**2015**, 283, 37–51. [Google Scholar] [CrossRef] - Camporese, M.; Cassiani, G.; Deiana, R.; Salandin, P. Assessment of local hydraulic properties from electrical resistivity tomography monitoring of a three-dimensional synthetic tracer test experiment. Water Resour. Res.
**2011**, 47. [Google Scholar] [CrossRef] - Kapur, J.N.; Kesavan, H.K. Entropy and Energy Dissipation in Water Resources; Chapter Entropy Optimization Principles and Their Applications; Water Science and Technology Library, Springer: Dordrecht, The Netherlands, 1992; Volume 9. [Google Scholar]

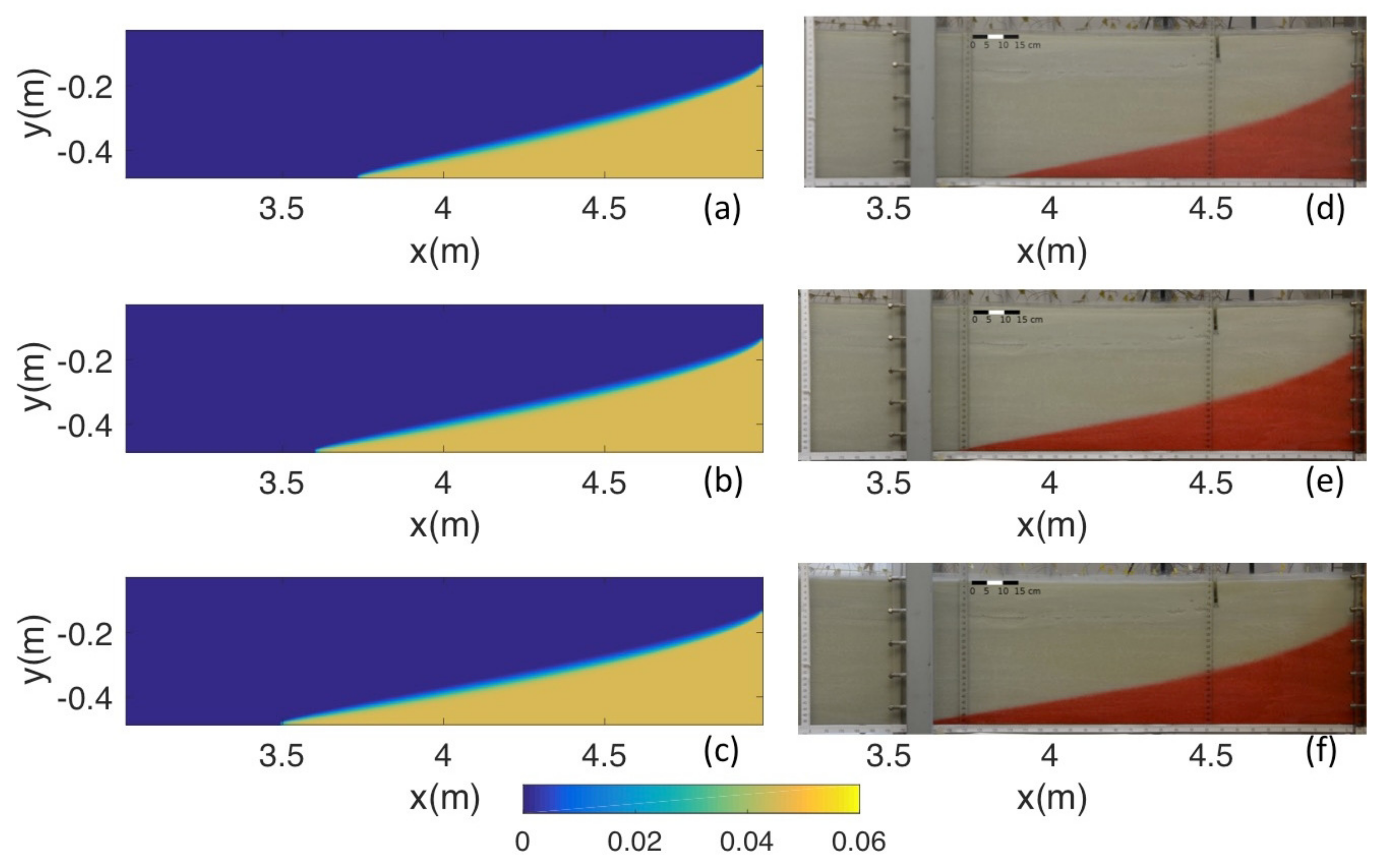

**Figure 3.**(

**a**–

**c**) Simulated salt concentrations and (

**d**–

**f**) observed saltwater wedge at (

**a**,

**d**) 14 h, (

**b**,

**e**) 18 h, and (

**c**,

**f**) 22 h from the beginning of the experiment. The colorbar indicates simulated concentrations in kg of solute per kg of solution.

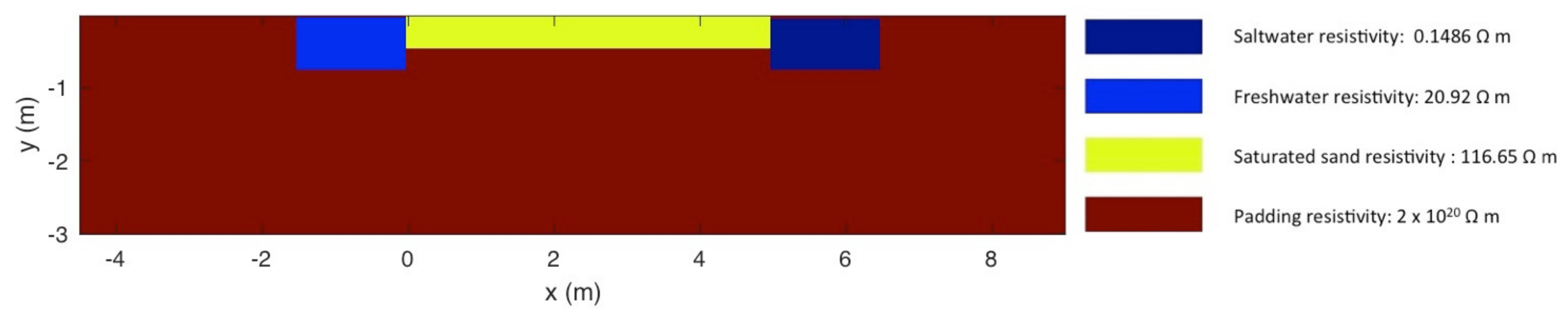

**Figure 4.**Setup of the electrical model for the saltwater intrusion experiment, including very large electrical resistivity padding to reproduce the geometry of the sandbox and tanks.

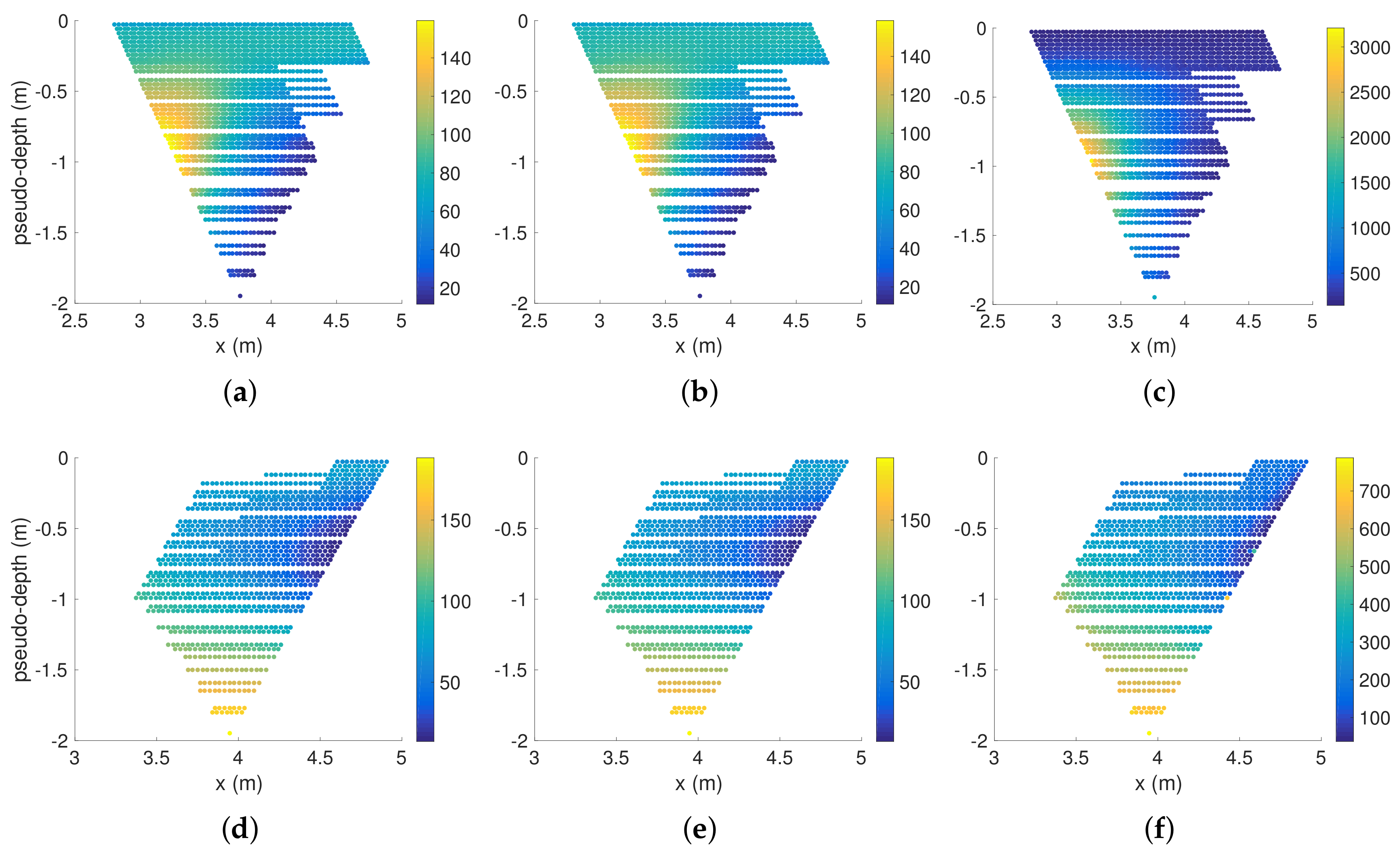

**Figure 5.**ERT pseudo-sections 14 h after the beginning of the experiment for the (

**a**–

**c**) reverse and (

**d**–

**f**) forward pole–dipole configurations: (

**a**,

**d**) apparent resistivities modeled with the fine groundwater grid; (

**b**,

**e**) apparent resistivities modeled with the coarse groundwater grid; (

**c**,

**f**) observed apparent resistivities. Colorbars indicate resistivity in $\mathrm{\Omega}\xb7$m.

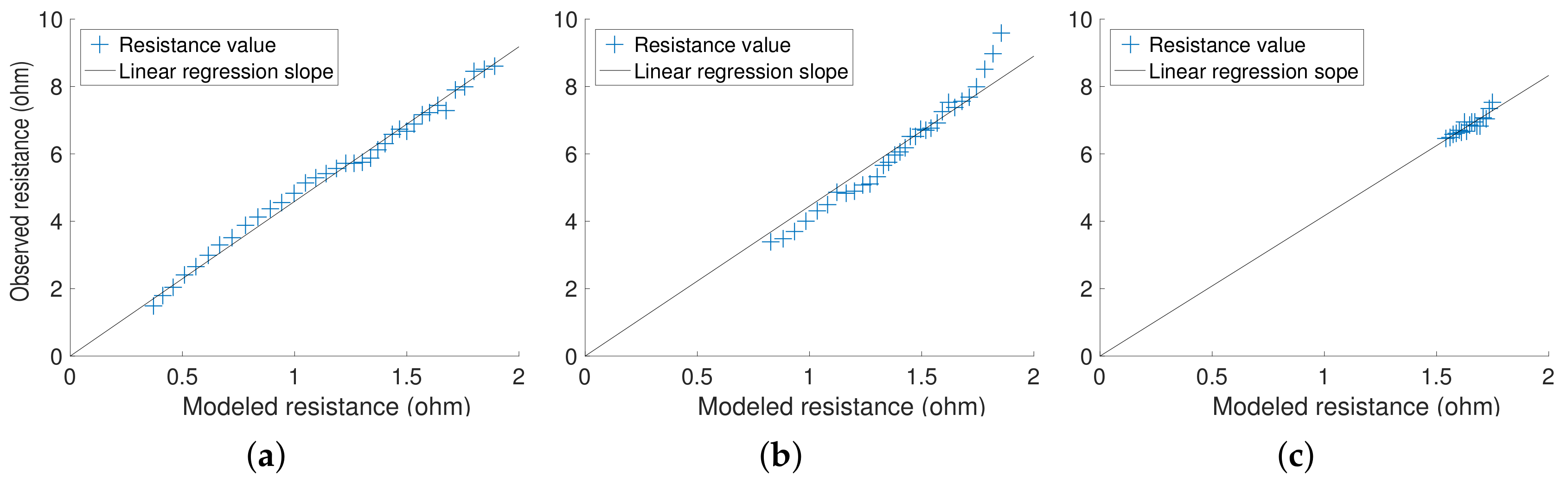

**Figure 6.**Observed versus modeled resistances 14 h after the beginning of the experiment for a pole–dipole separation distance of (

**a**) 0.81 m, (

**b**) 1.08 m, and (

**c**) 1.50 m.

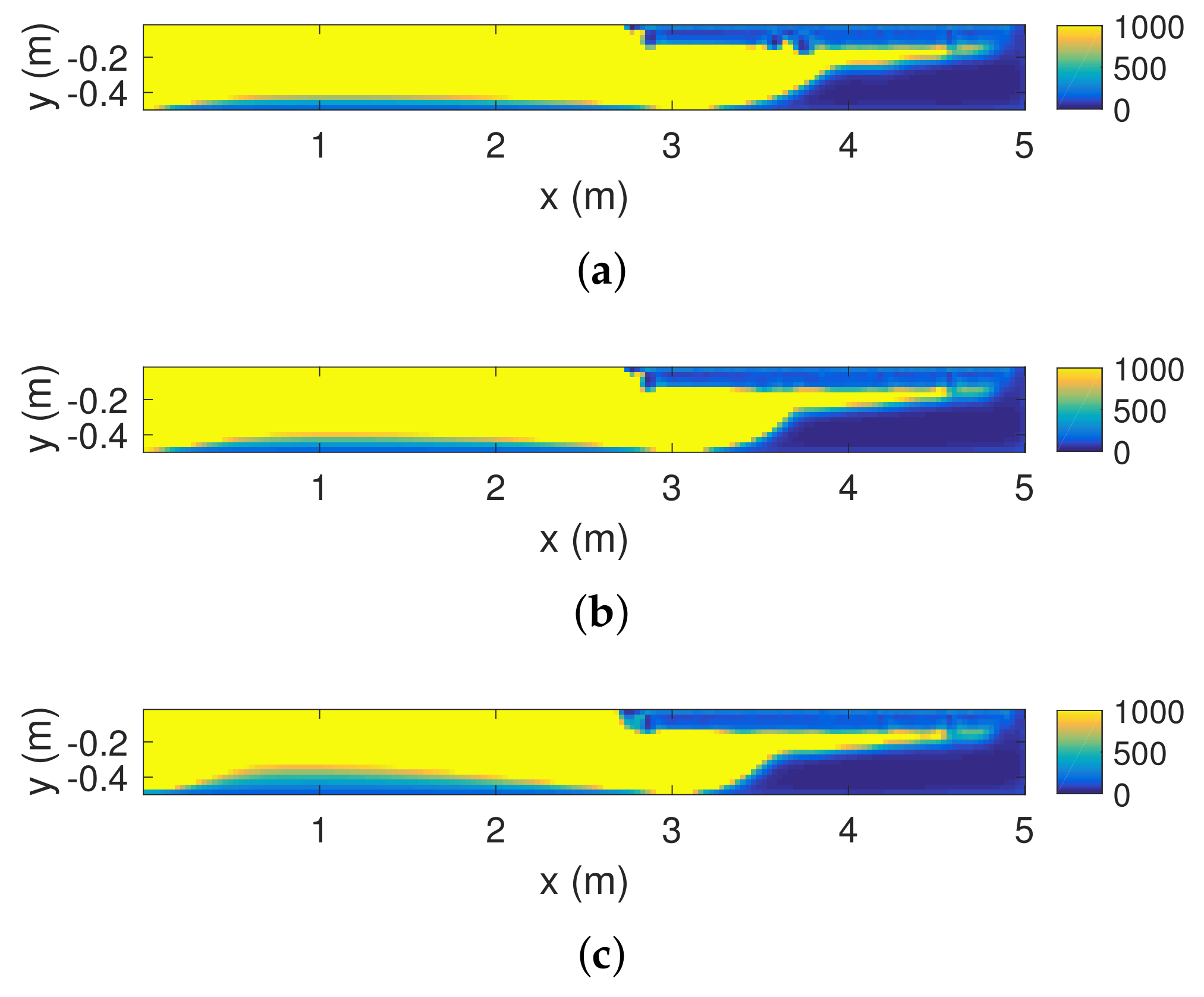

**Figure 7.**Inverted electrical resistivity distributions at (

**a**) 14 h, (

**b**) 18 h, and (

**c**) 22 h from the beginning of the experiment. Colorbars indicate bulk electrical resistivity in $\mathrm{\Omega}\xb7$m.

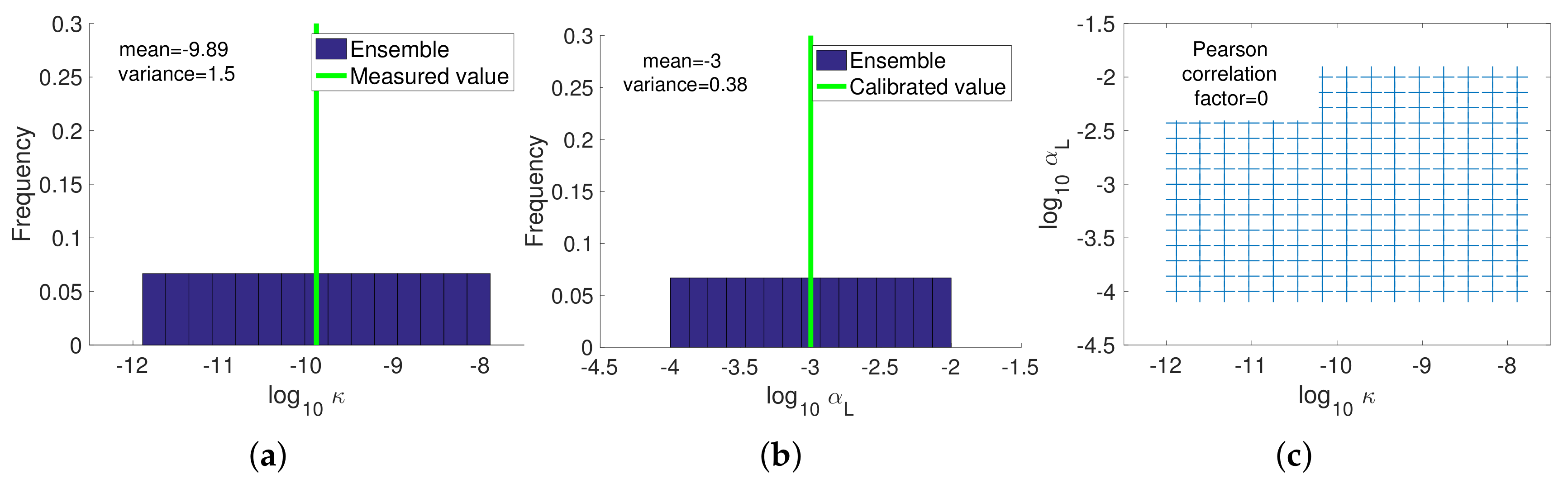

**Figure 8.**Scenario 1: initial ensemble of (

**a**) $lo{g}_{10}\kappa $ and (

**b**) $lo{g}_{10}{\alpha}_{L}$. (

**c**) Cross-plot of the prior joint distribution.

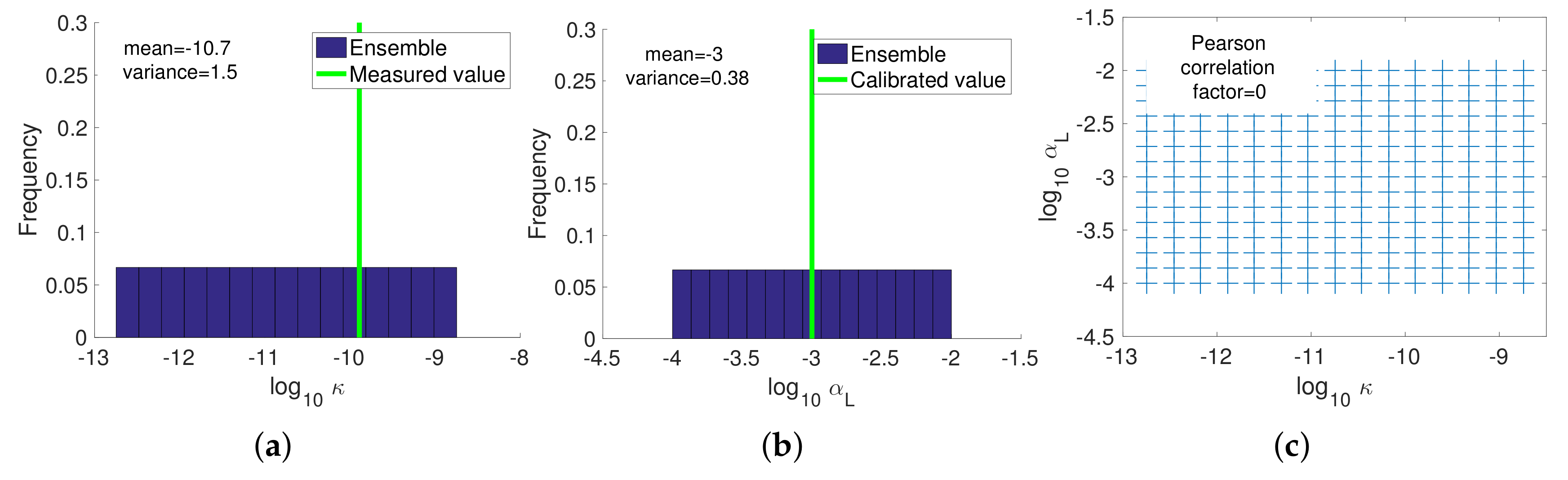

**Figure 9.**Scenario 2: initial ensemble of (

**a**) $lo{g}_{10}\kappa $ and (

**b**) $lo{g}_{10}{\alpha}_{L}$. (

**c**) Cross-plot of the prior joint distribution.

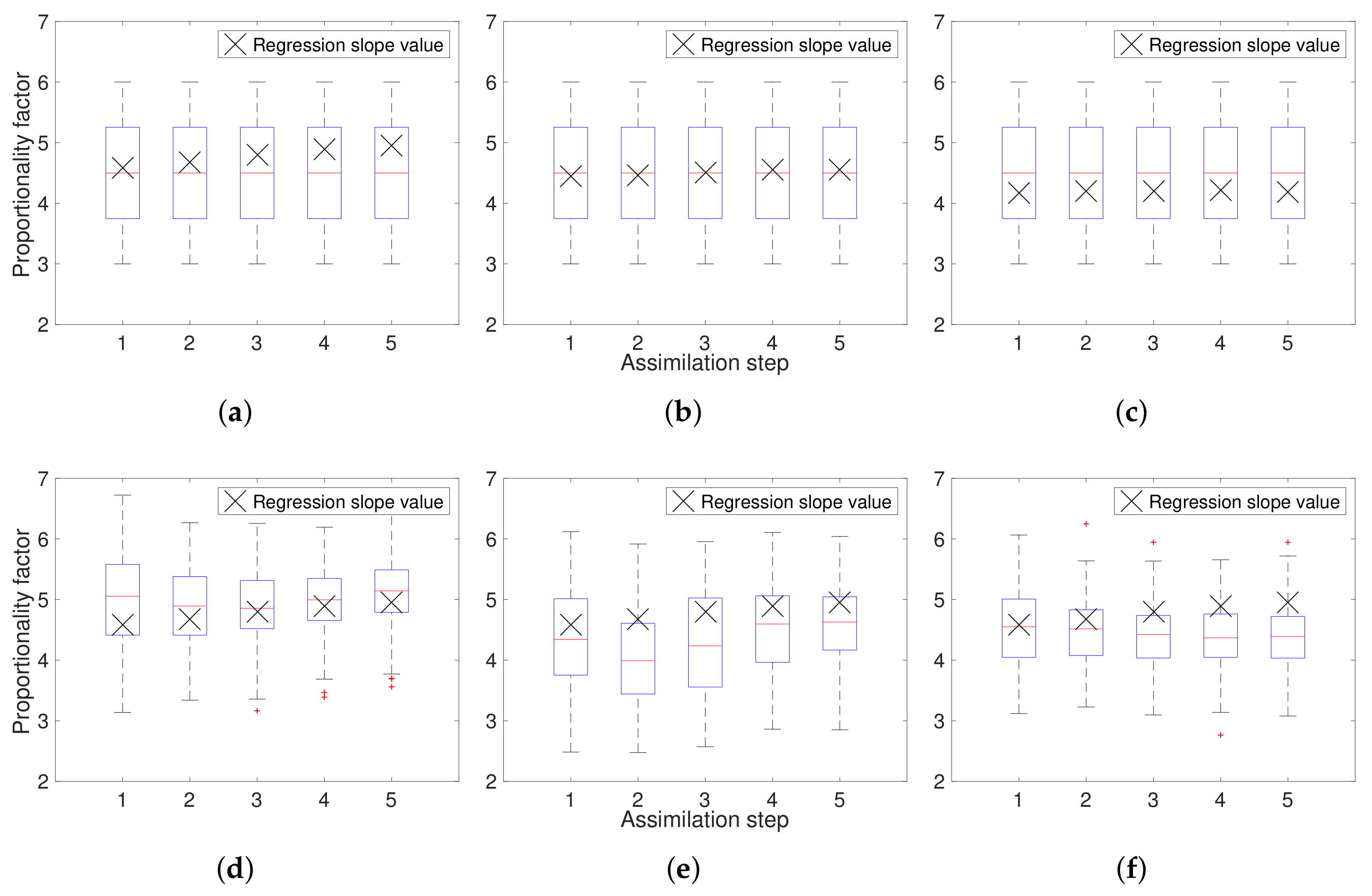

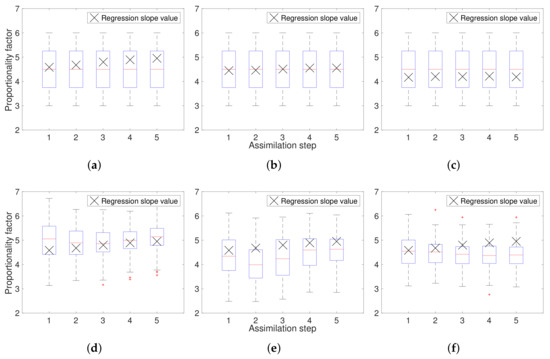

**Figure 10.**Box plots of the proportionality factor ensembles: (

**a**) before assimilation of measurements with 0.81 m electrode spacing; (

**b**) before assimilation of measurements with 1.08 m electrode spacing; (

**c**) before assimilation of measurements with 1.50 m electrode spacing; (

**d**) after assimilation of measurements with 0.81 m electrode spacing; (

**e**) after assimilation of measurements with 1.08 m electrode spacing; (

**f**) after assimilation of measurements with 1.50 m electrode spacing.

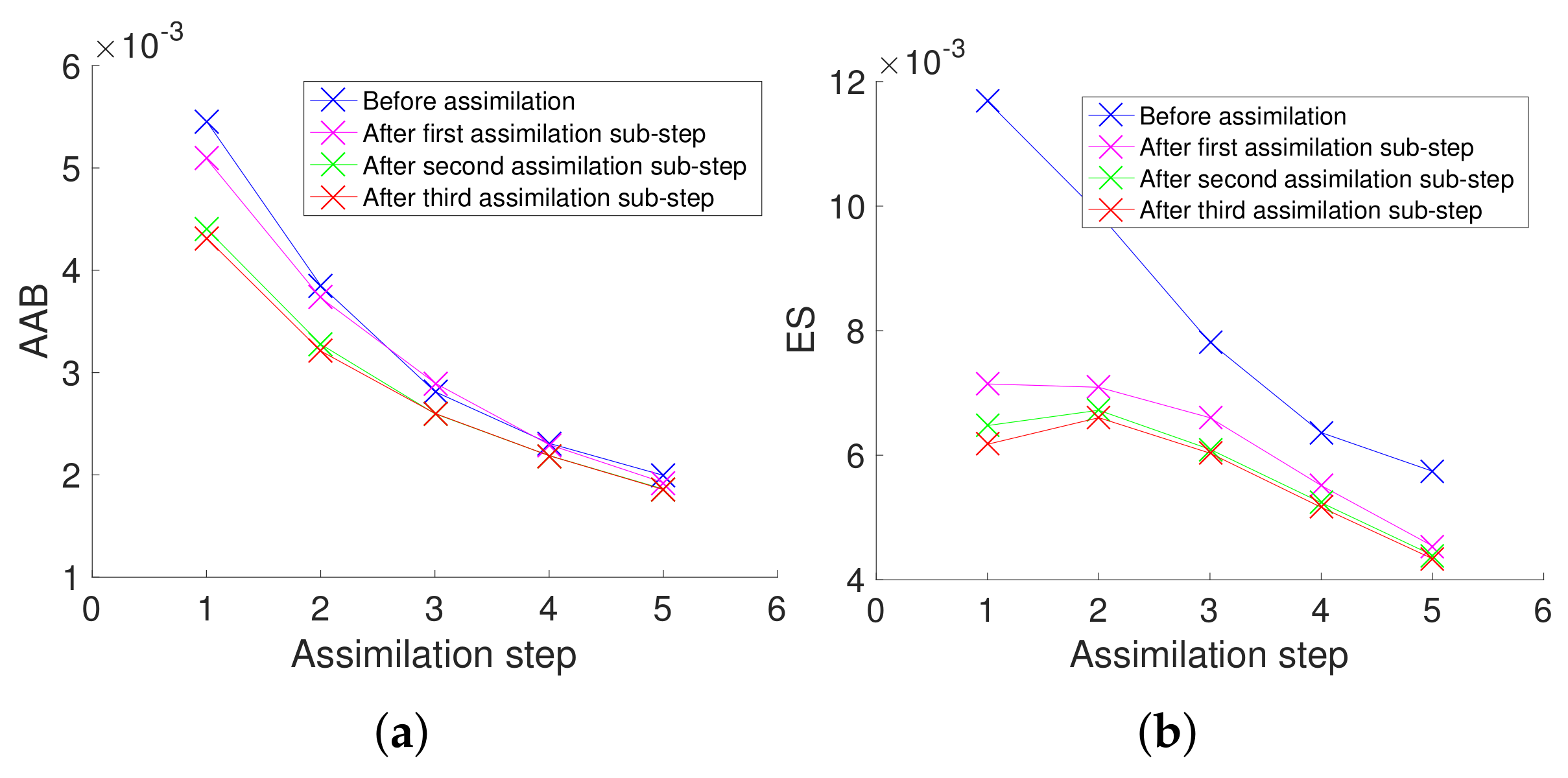

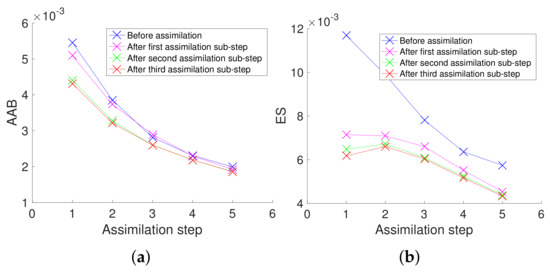

**Figure 11.**Evaluation metrics for concentration estimations by assimilating electrical resistance measurements: (

**a**) average absolute bias and (

**b**) ensemble spread. The first, second, and third assimilation substeps correspond to assimilations of data collected with 0.81 m, 1.08 m, and 1.50 m electrode spacing, respectively.

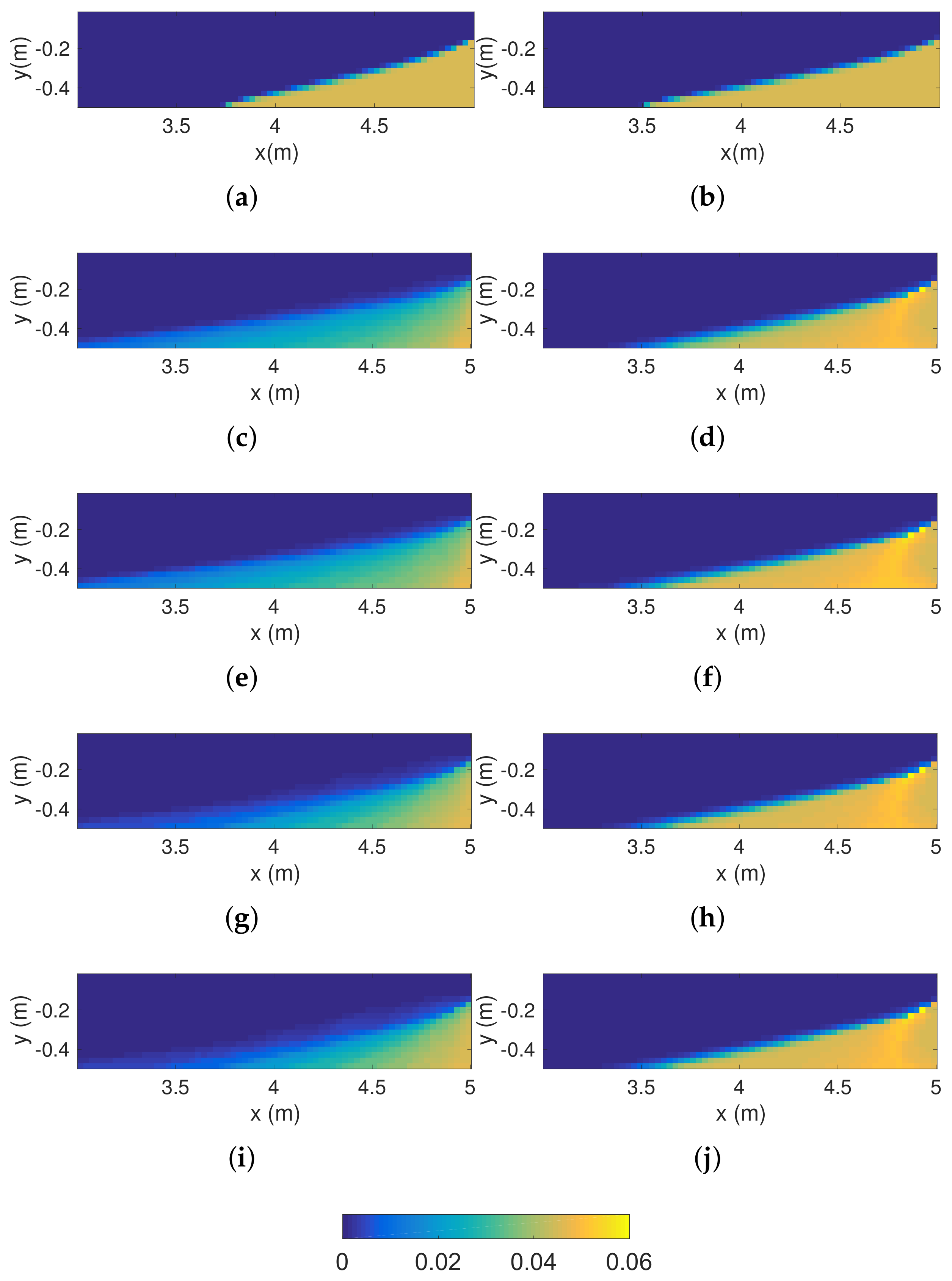

**Figure 12.**Concentration distributions at the (

**a**,

**c**,

**e**,

**g**,

**i**) first and (

**b**,

**d**,

**f**,

**h**,

**j**) last assimilation steps: (

**a**,

**b**) reference values; (

**c**,

**d**) before assimilation; (

**e**,

**f**) after assimilation of measurements with 0.81 m electrode spacing; (

**g**,

**h**) after assimilation of measurements with 1.08 m electrode spacing; (

**i**,

**j**) after assimilation of measurements with 1.50 m electrode spacing. The colorbar indicates concentration in kg of solute per kg of solution.

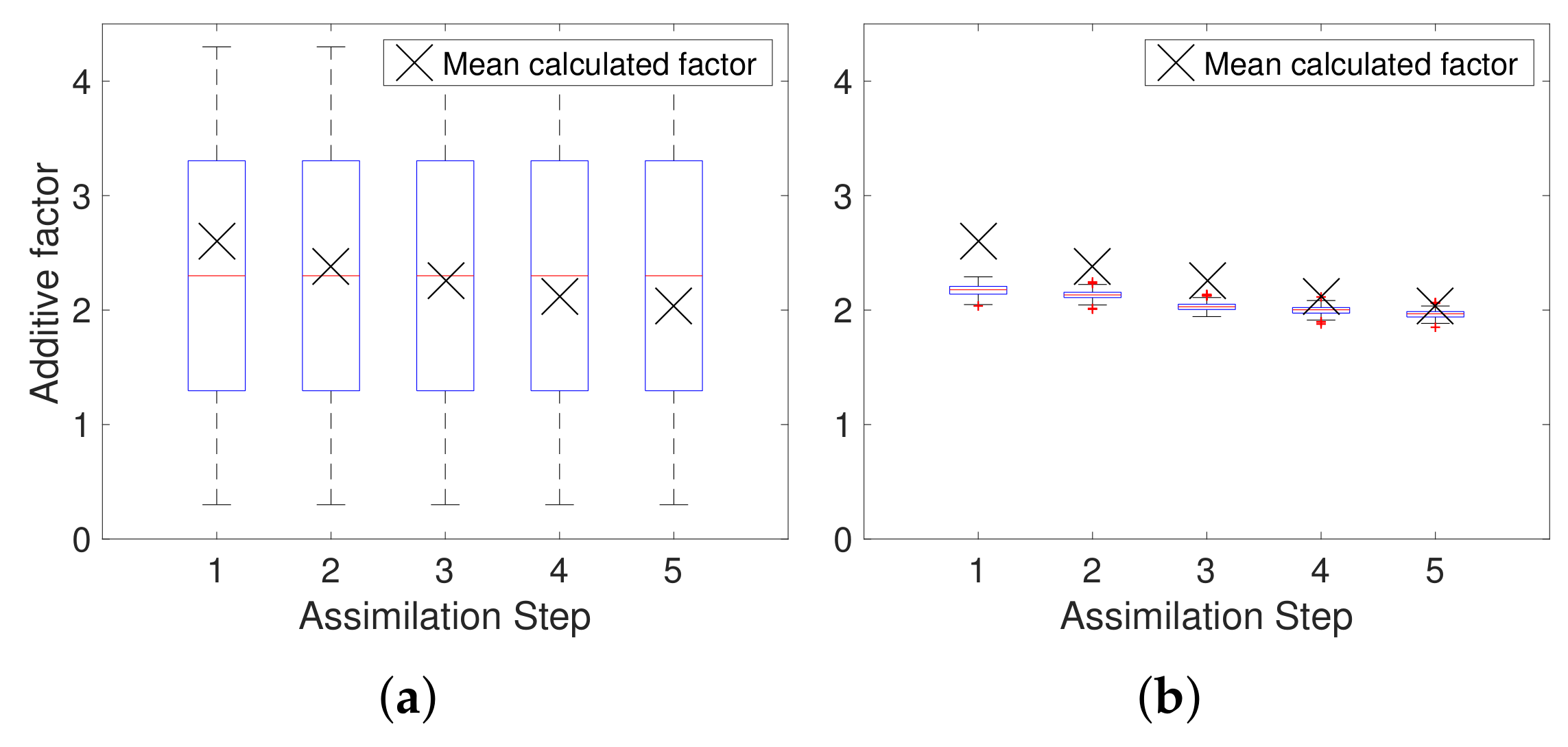

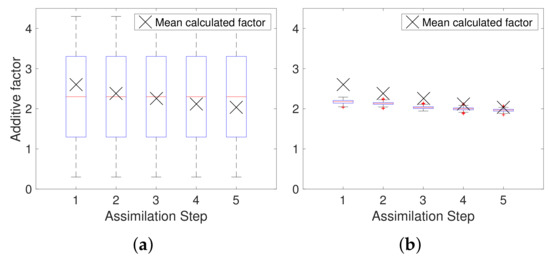

**Figure 13.**Additive factor box plots for the sequential approach in Scenario 1 (

**a**) before assimilation and (

**b**) after assimilation of inverted resistivities.

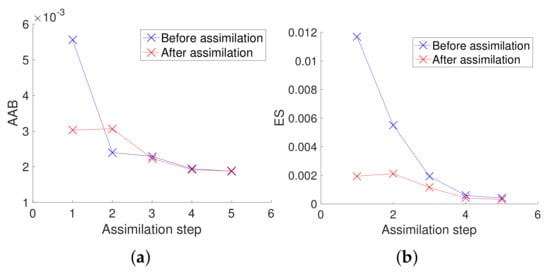

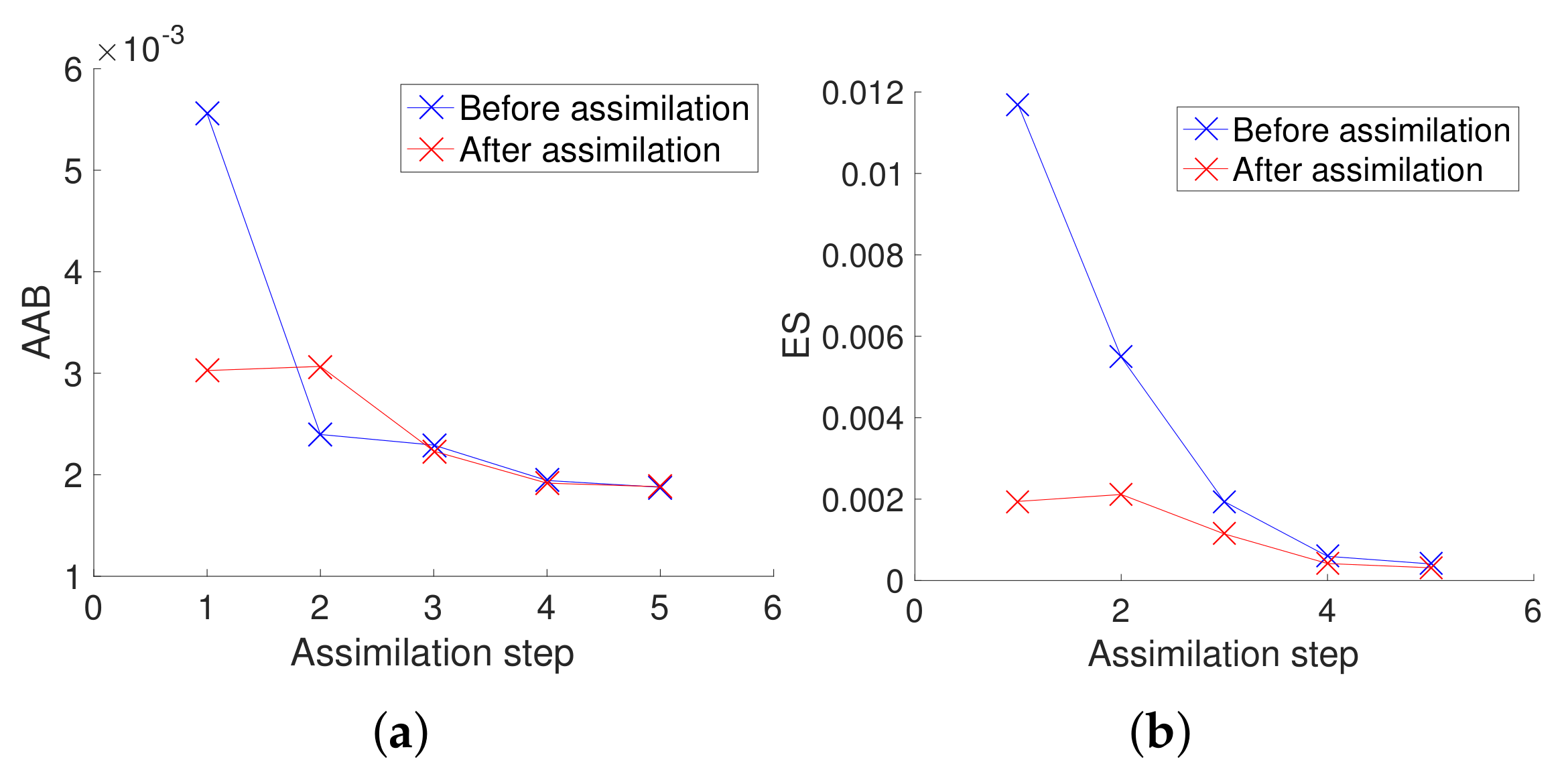

**Figure 14.**Evaluation metrics for concentration estimations by assimilating inverted electrical resistivity data: (

**a**) average absolute bias and (

**b**) ensemble spread.

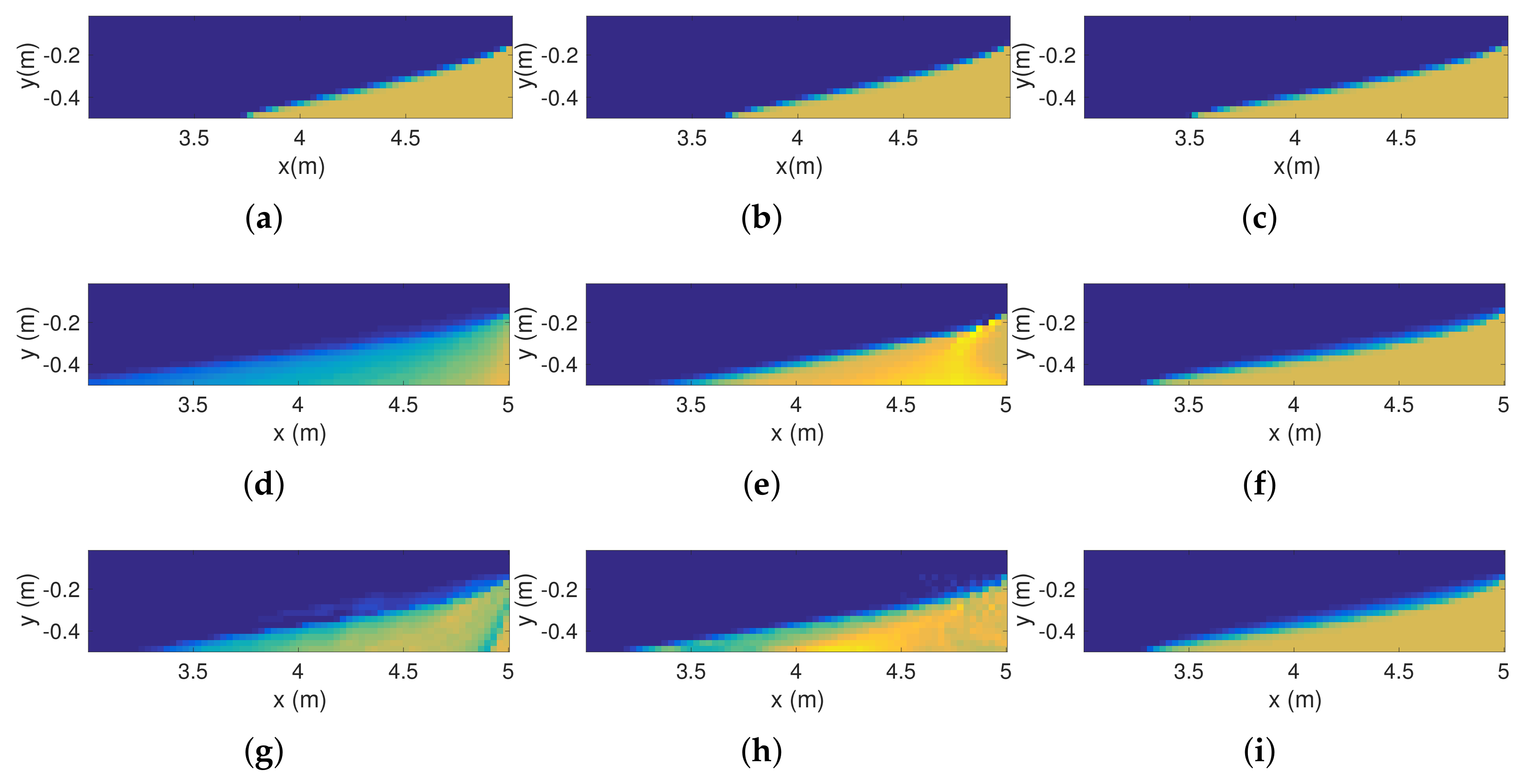

**Figure 15.**Reference concentration distributions at times (

**a**) 14 h, (

**b**) 16 h, and (

**c**) 22 h, corresponding to the first, second, and last assimilation steps, respectively. Concentration distributions in Scenario 1 with assimilation of inverted resistivities: (

**d**) before and (

**g**) after the first assimilation step; (

**e**) before and (

**h**) after the second assimilation step; (

**f**) before and (

**i**) after the last assimilation step.

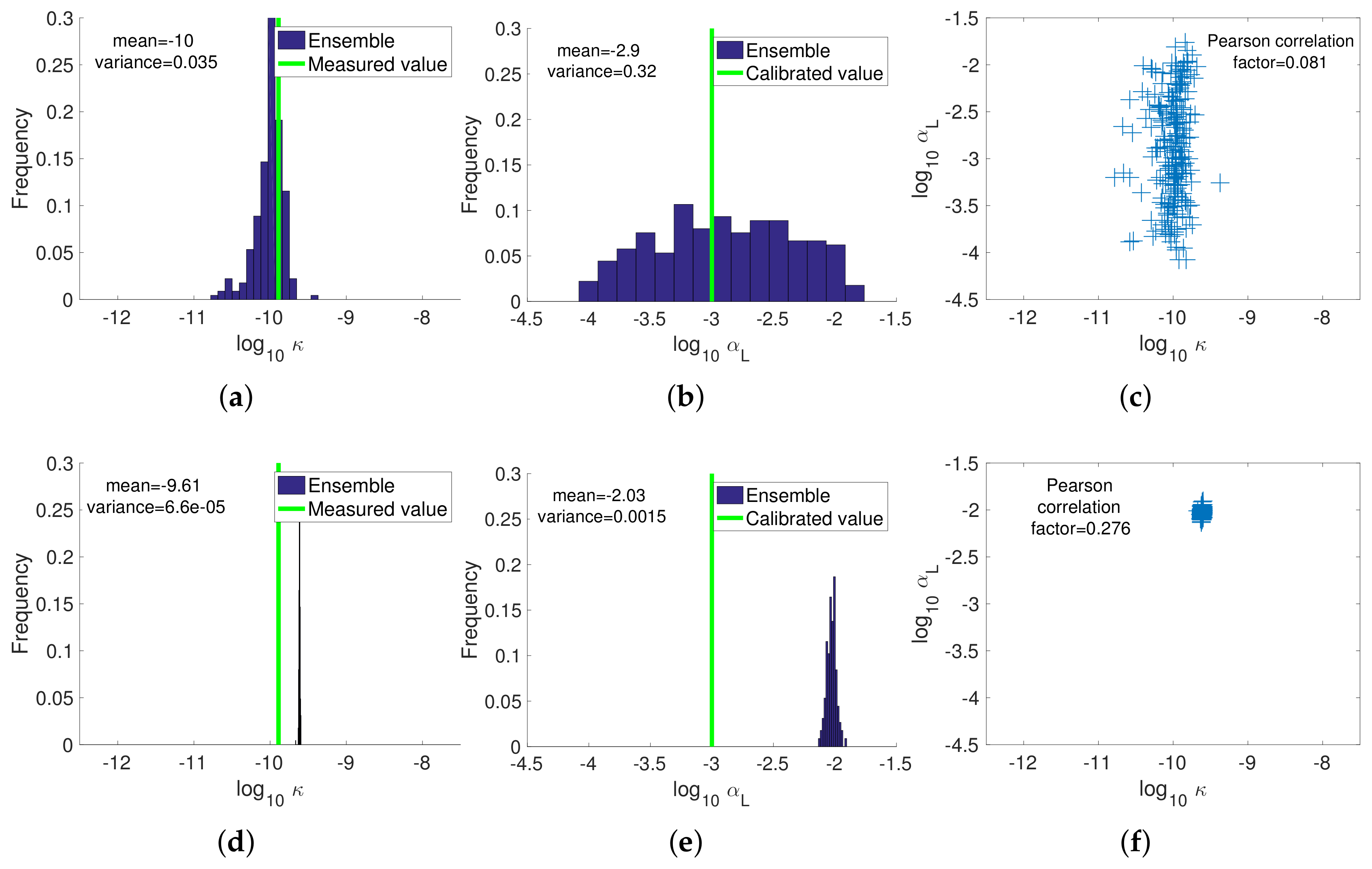

**Figure 16.**Scenario 1 (unbiased prior permeability): final distribution after last assimilation step of (

**a**) permeability and (

**b**) longitudinal dispersivity with the (

**a**,

**b**) joint approach and (

**d**,

**e**) sequential approach. Panels (

**c**,

**f**) show the corresponding scatter plots.

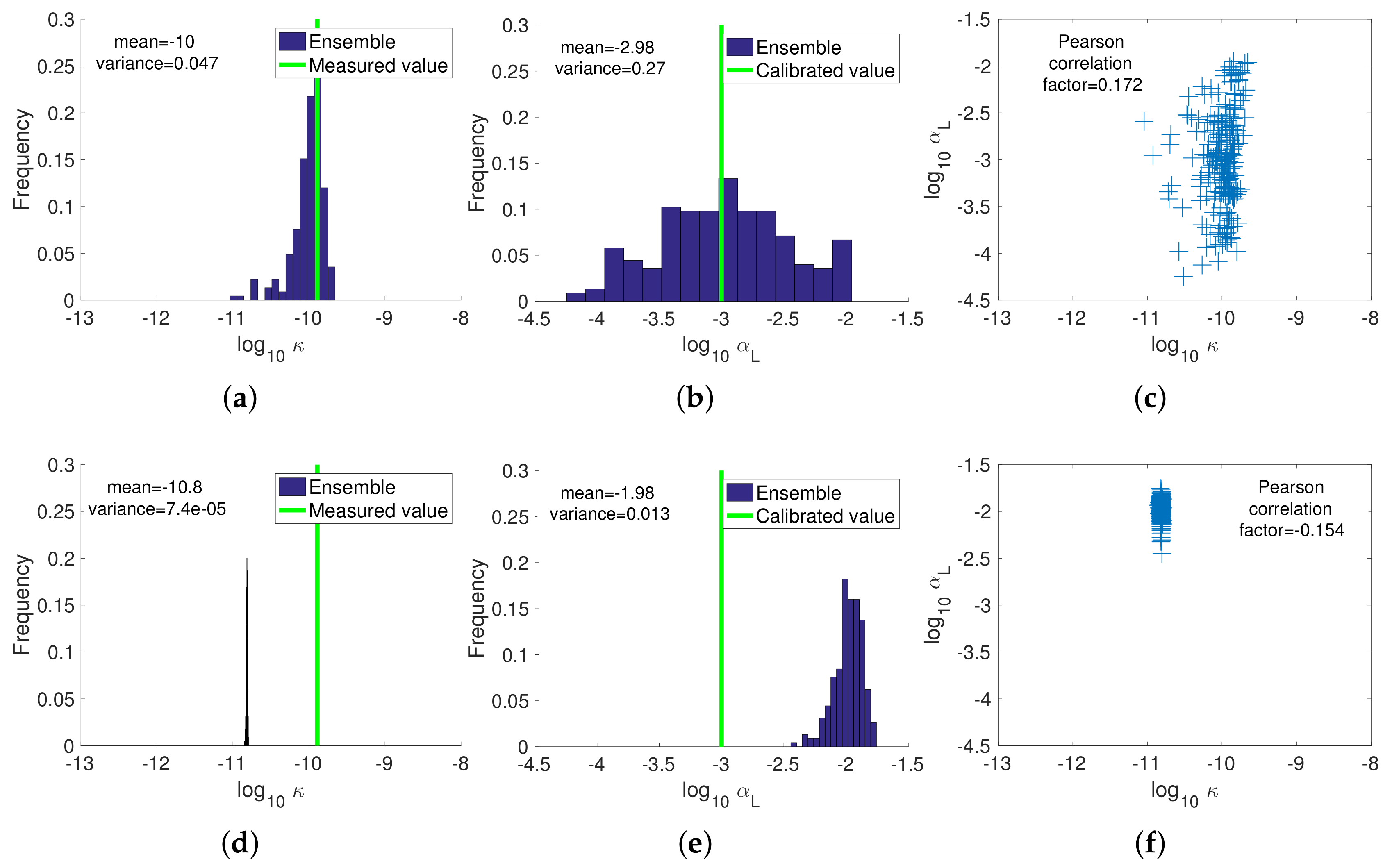

**Figure 17.**Scenario 2 (biased prior permeability): final distribution after last assimilation step of (

**a**) permeability and (

**b**) longitudinal dispersivity with the (

**a**,

**b**) joint approach and (

**d**,

**e**) sequential approach. Panels (

**c**,

**f**) show the corresponding scatter plots.

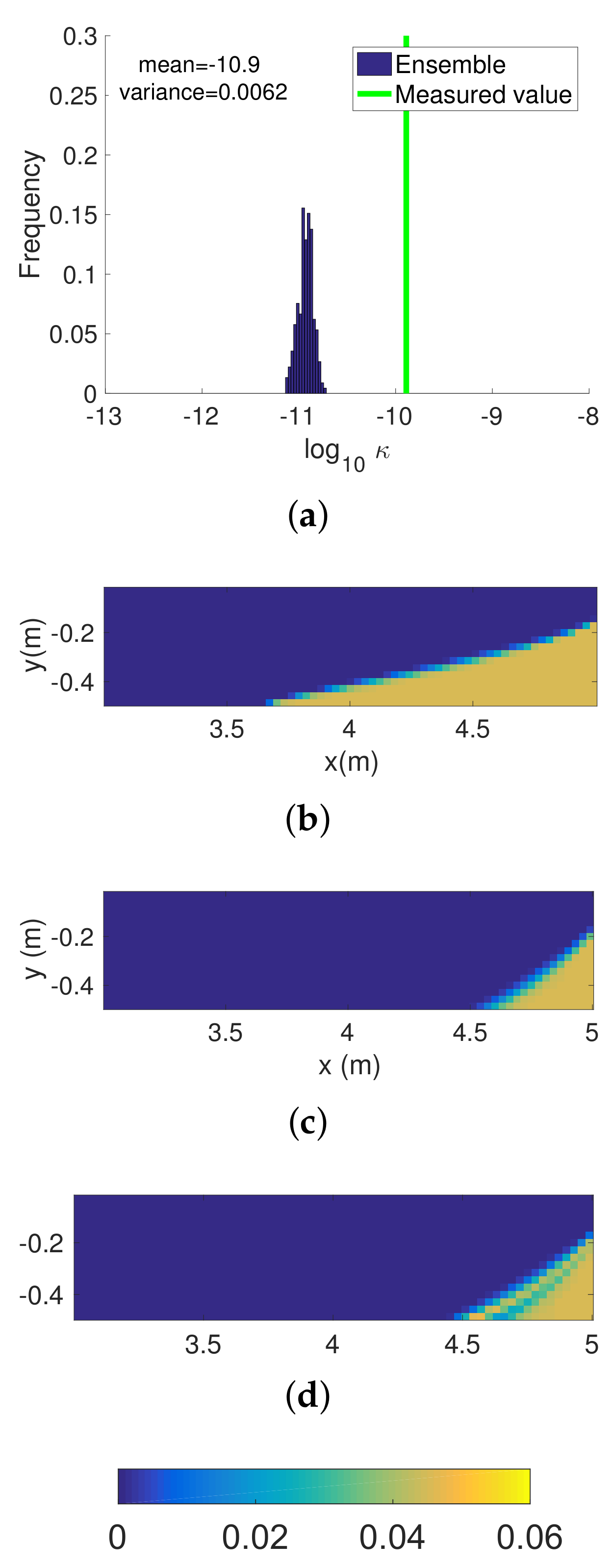

**Figure 18.**(

**a**) Predicted permeability ensemble, (

**b**) reference concentration distribution, (

**c**) predicted concentration distribution, and (

**d**) updated concentration distribution at the second assimilation step in Scenario 2 for the sequential approach.

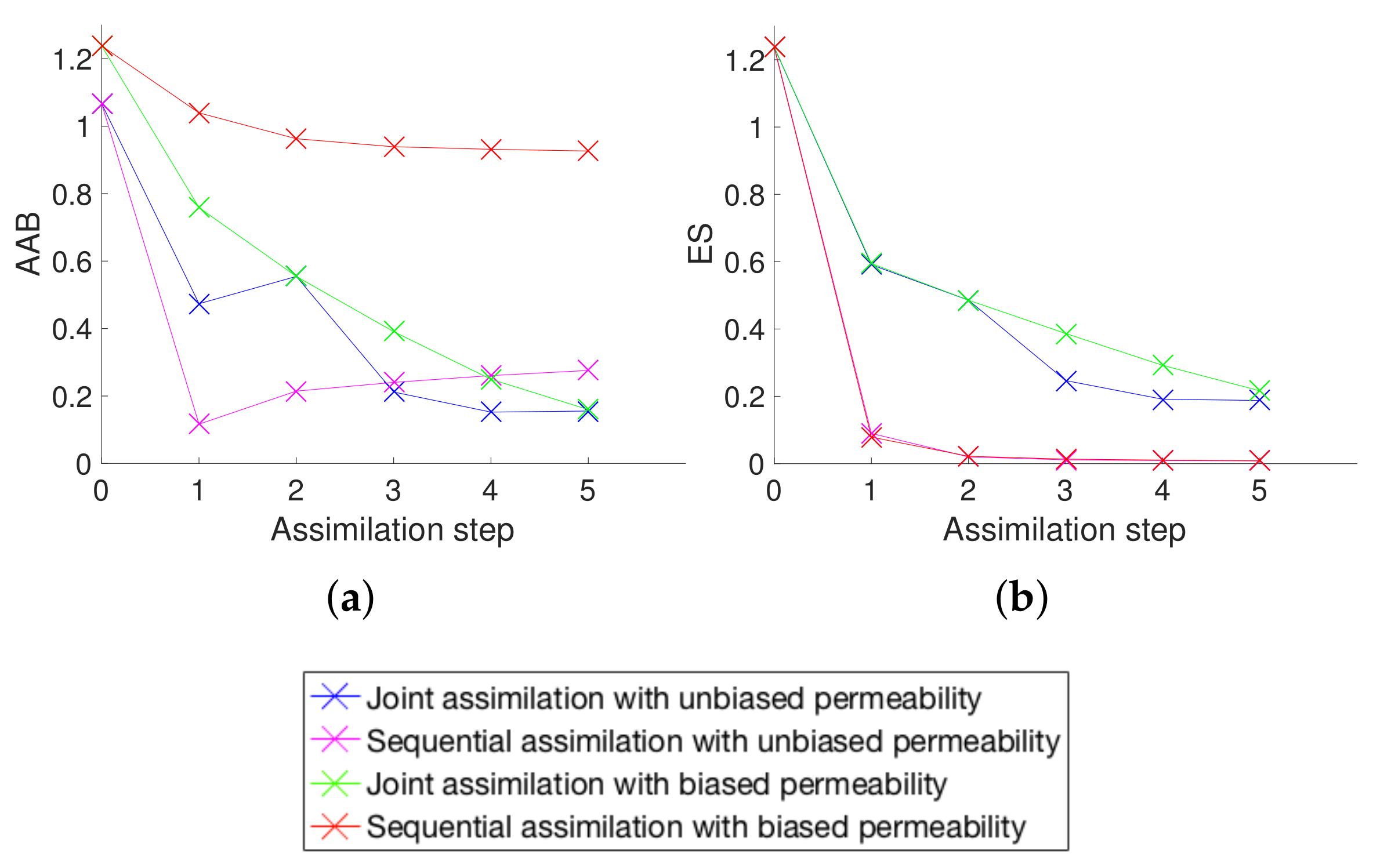

**Figure 19.**Evaluation metrics for the estimation of the permeability: (

**a**) average absolute bias and (

**b**) ensemble spread.

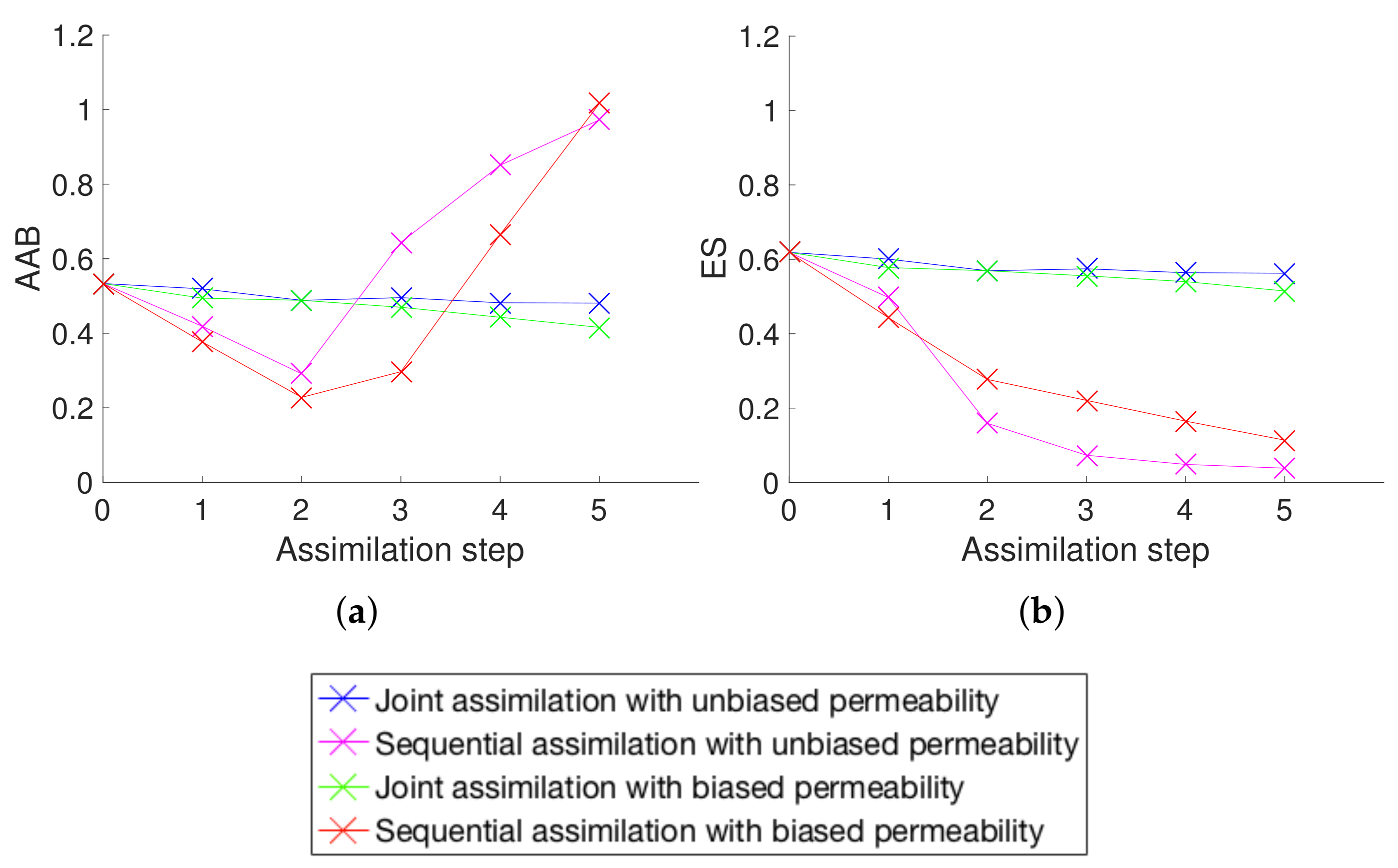

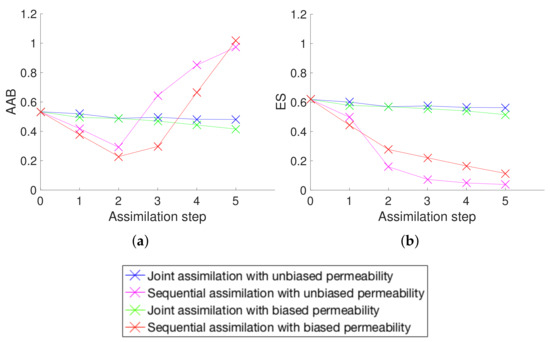

**Figure 20.**Evaluation metrics for the estimation of the dispersivity: (

**a**) average absolute bias and (

**b**) ensemble spread.

Update Step | X | HX | D |
---|---|---|---|

1 | Predicted concentrations | Predicted resistances (or electrical resistivities) | Perturbed observed resistances (or inverted electrical resistivities) |

2 | Soil hydraulic parameters ($\kappa $ and ${\alpha}_{L}$) | Predicted concentrations | Updated concentrations |

Granular Material Parameters | Value |

Porosity (n) | 0.367 |

Bulk porous matrix compressibility ($\alpha $) | $1\times {10}^{-8}$ [kg/(m · s${}^{2}$)]${}^{-1}$ |

Permeability ($\kappa $) | $1.30\times {10}^{-10}$ m${}^{2}$ |

Longitudinal dispersivity (${\alpha}_{L}$) | 1$\times {10}^{-3}$ m |

Transversal dispersivity (${\alpha}_{T}$) | 1$\times {10}^{-4}$ m |

Fluid Parameters | Value |

Fluid viscosity ($\mu $) | 0.001 kg/(m · s) |

Freshwater salt concentration (${C}_{0}$) | 0.0 kg/kg |

Seawater salt concentration (${C}_{s}$) | 0.0446 kg/kg |

Freshwater density (${\rho}_{0}$) | 1000 kg/m${}^{3}$ |

Linear coefficient of density to concentration ($\partial \rho /\partial C$) | 722.15 (kg · kg)/(kg · m${}^{3}$) |

Fluid compressibility ($\beta $) | $4.47\times {10}^{-10}$ [kg/(m · s${}^{2}$)]${}^{-1}$ |

Molecular diffusivity (${D}_{m}$) | $1\times {10}^{-8}$ m${}^{2}$/s |

Parameters | Value |
---|---|

Cell size in sand tank (length × height) | 0.03 m × 0.03 m |

Cell size in saltwater tank (length × height) | 0.06 m × 0.03 m |

Cell size in freshwater tank (length × height) | 0.192 m × 0.03 m |

Freshwater resistivity | 20.92 $\mathrm{\Omega}\xb7$m |

Saltwater resistivity | 0.1486 $\mathrm{\Omega}\xb7$m |

Formation factor (Humble formula) | 5.33 |

Minimum dipole spacing | 0.03 m |

Maximum dipole spacing | 0.18 m |

Spacing factor between pole and dipole | 1 to 12 |

Beginning of electrode line (from upstream boundary) | 2.83 m |

End of electrode line (from upstream boundary) | 4.96 m |

Infinity pole (from upstream boundary) | 0.06 m |
