# Time-Reversibility in Atmospheric Dispersion

## Abstract

**:**

“When you stir your rice pudding, Septimus, the spoonful of jam spreads itself round making red trails like the picture of a meteor in my astronomical atlas. But if you stir backwards, the jam will not come together again. Indeed, the pudding does not notice and continues to turn pink just as before. Do you think this is odd?”Tom Stoppard: Arcadia

## 1. Introduction

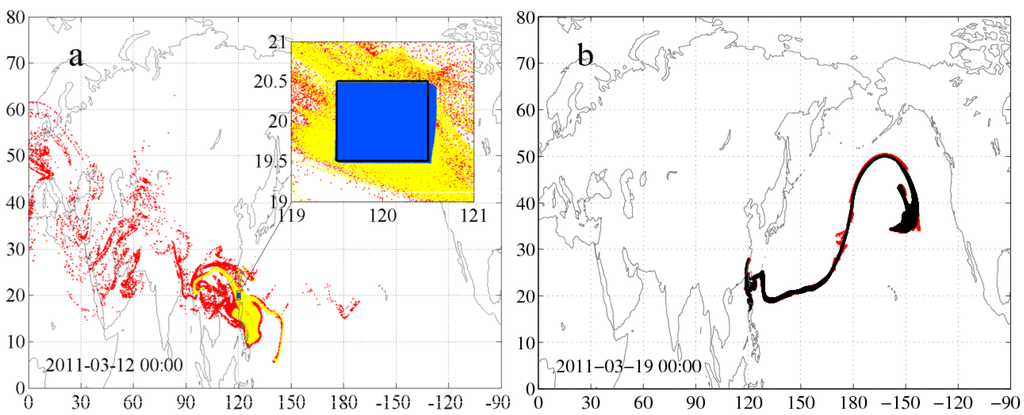

**Figure 1.**Forward (black) and backward (colored) pollutant clouds emitted instantaneously and consisting of ${n}_{0}=1.25\times {10}^{5}$ particles at (

**a**) $t=0$ and (

**b**) $t=7$ days. The forward pollutant cloud is initiated on 12 March 2011 at 00 UTC at ${120}^{\circ}$E, ${20}^{\circ}$N, 500 hPa in a ${1}^{\circ}\times {1}^{\circ}\times 100$ hPa cuboid beyond Indonesia. Colored dots denote the location of the particles whose backward simulation started at time ${t}_{\mathrm{b}}=2$ days (blue), ${t}_{\mathrm{b}}=7$ days (yellow) and ${t}_{\mathrm{b}}=9$ days (red), respectively. In the inset of panel (a) instead of black dots the initial position of the particles is illustrated by a black rectangular frame. This simulation is an element of the global study in Section 6.

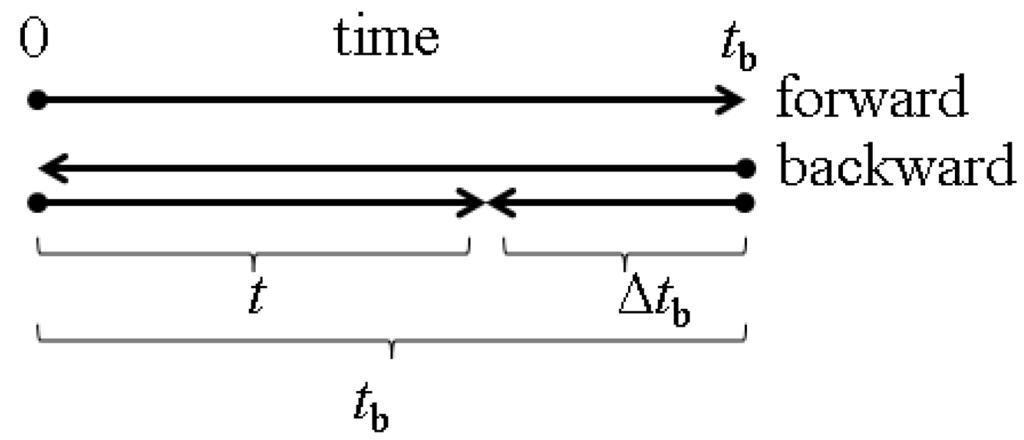

**Figure 2.**An outline of the time schedule of the forward and backward simulations. Forward simulation starts at Time 0 and terminates after nine days. Backward simulations start at time ${t}_{\mathrm{b}}$ (where the value of ${t}_{\mathrm{b}}$ can be $1,2,\dots ,9$ days) and terminate at Time 0. The comparison of the forward and backward cloud is carried out at time t ($t=0,1,\dots ,{t}_{\mathrm{b}}-1$ days) as a function of the time period $\Delta {t}_{\mathrm{b}}$ of the backward tracking.

## 2. The RePLaT Dispersion Model

## 3. Input Data

## 4. Statistical Parameters

#### 4.1. Proportion of Particles Returned to the Initial Volume

#### 4.2. Center of Mass and Standard Deviation of the Pollutant Clouds

#### 4.3. Figure of Merit in Space

#### 4.4. Pearson’s Correlation Coefficient

## 5. Case Study

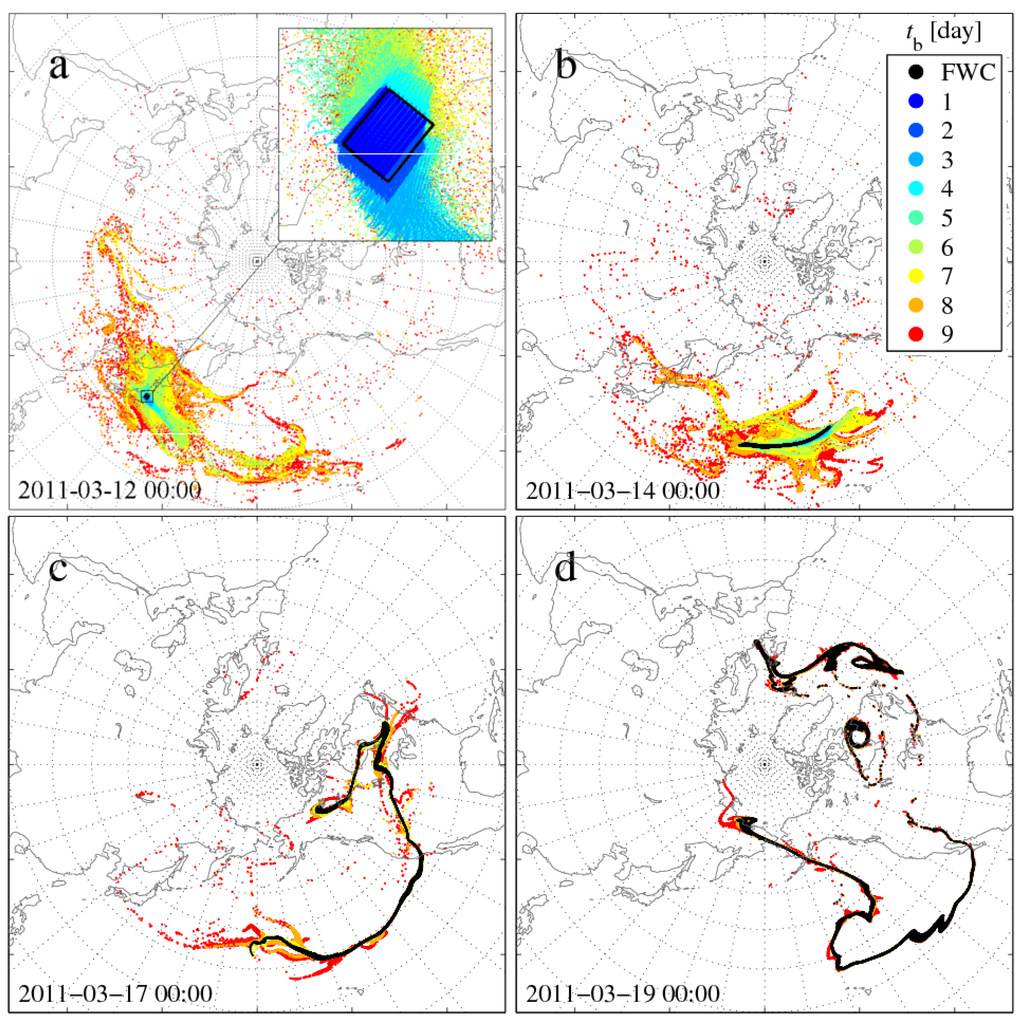

**Figure 3.**Forward (black) and backward (colored) pollutant clouds emitted instantaneously and consisting of ${n}_{0}=1.25\times {10}^{5}$ particles of the case study at (

**a**) $t=0$, (

**b**) $t=2$, (

**c**) $t=5$ and (

**d**) $t=7$ days. The forward pollutant cloud is initiated on 12 March 2011 at 00 UTC at ${141}^{\circ}$E, $37.{5}^{\circ}$N, 500 hPa in a ${1}^{\circ}\times {1}^{\circ}\times 100$ hPa cuboid beyond Fukushima. Dots colored according to the color bar on the right denote the location of the particles whose backward simulation started at time ${t}_{\mathrm{b}}$ (day). In the inset of panel (a), instead of black dots, the initial position of the particles is illustrated by a black rectangular frame. For better visibility, only every fifth particle of the clouds is plotted.

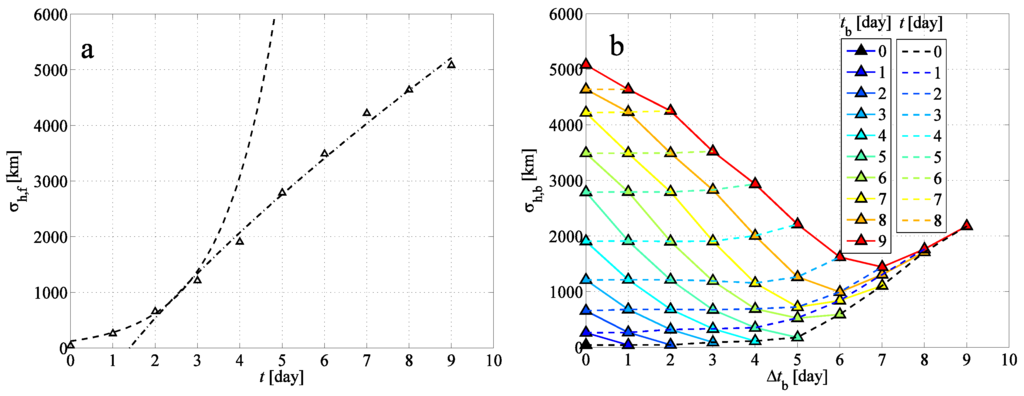

**Figure 4.**(

**a**) The horizontal standard deviation ${\sigma}_{\mathrm{h},\mathrm{f}}$ of the forward cloud (FWC) in Figure 3 as a function of time t with an exponential fit over $t=0$–2 days (dashed line) and a power-law fit over $t=2$–9 days (dash-dotted line); (

**b**) the horizontal standard deviation ${\sigma}_{\mathrm{h},\mathrm{b}}$ of the backward clouds (BWCs) in Figure 3 as a function of the time interval of the backward simulation $\Delta {t}_{\mathrm{b}}={t}_{\mathrm{b}}-t$. Solid lines represent the time evolution of the BWCs initiated at ${t}_{\mathrm{b}}$ (see color legend) backward in time; dashed lines connect the values corresponding to time t.

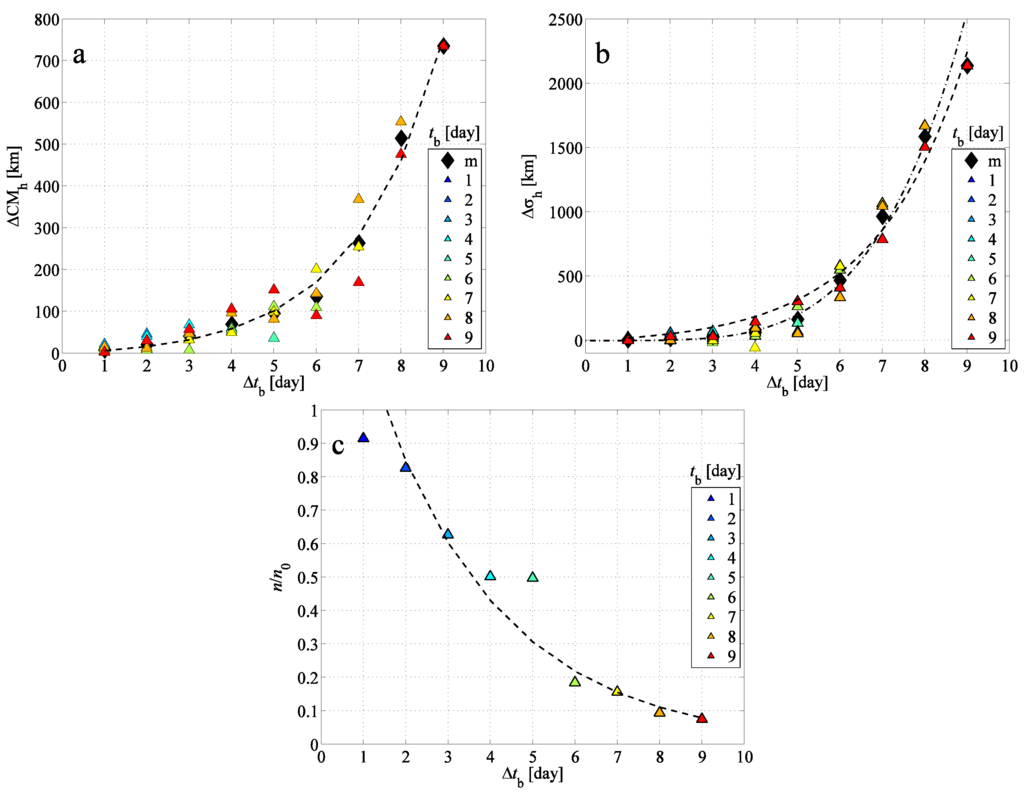

**Figure 5.**(

**a**) The horizontal difference $\Delta {\mathrm{CM}}_{\mathrm{h}}$ between the center of mass of the BWCs and the FWC depending on the time period $\Delta {t}_{\mathrm{b}}$ of the backward simulation; (

**b**) the difference $\Delta {\sigma}_{\mathrm{h}}$ between the horizontal standard deviations of the BWCs and FWC; (

**c**) the proportion $n/{n}_{0}$ of the particles returned back to the initial cuboid. Colored triangles indicate the starting time ${t}_{\mathrm{b}}$ of the backward simulations (see color legend); black diamonds (in some cases in overlap with triangles) are the mean values belonging to a given $\Delta {t}_{\mathrm{b}}$ (denoted by “m”). Dashed lines indicate exponential fits to the mean values; the exponents are given in Table 1. The dash-dotted line in panel (b) indicates a power-law fit to mean values over the interval $\Delta {t}_{\mathrm{b}}=3$–9 days with an exponent of 4.3.

**Table 1.**The exponent Λ (day${}^{-1}$) and the error of the exponential fits to the curves $\Delta {\mathrm{CM}}_{\mathrm{h}}$, $\Delta {\sigma}_{\mathrm{h}}$, $n/{n}_{0}$, ${\mathrm{FMS}}_{2\mathrm{D}}$, ${\mathrm{FMS}}_{3\mathrm{D}}$, ${\mathrm{PCC}}_{2\mathrm{D}}$ and ${\mathrm{PCC}}_{3\mathrm{D}}$ versus $\Delta {t}_{\mathrm{b}}$ of the case study in Figure 5 and Figure 6.

- | Λ |
---|---|

$\Delta {\mathrm{CM}}_{\mathrm{h}}$ | $0.481\pm 0.032$ |

$\Delta \sigma $ | $0.467\pm 0.050$ |

$n/{n}_{0}$ | $0.339\pm 0.032$ |

${\mathrm{FMS}}_{2\mathrm{D}}$ | $0.466\pm 0.048$ |

${\mathrm{FMS}}_{3\mathrm{D}}$ | $0.456\pm 0.040$ |

${\mathrm{PCC}}_{2\mathrm{D}}$ | $0.447\pm 0.028$ |

${\mathrm{PCC}}_{3\mathrm{D}}$ | $0.437\pm 0.027$ |

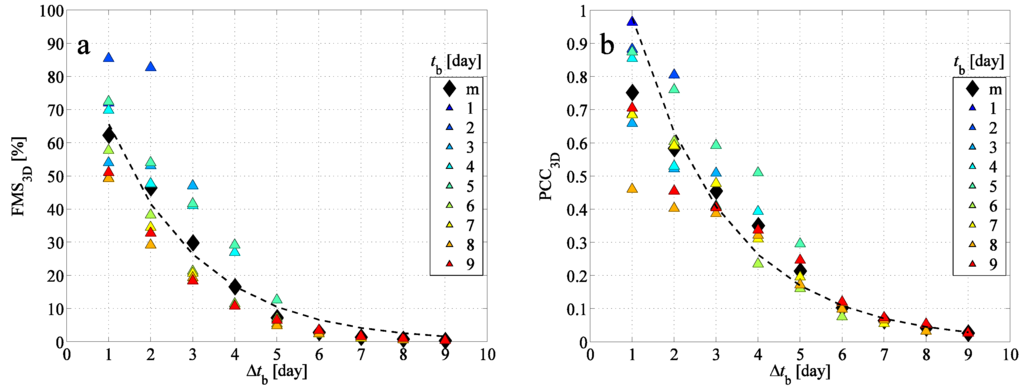

**Figure 6.**(

**a**) The figure of merit in space ${\mathrm{FMS}}_{3\mathrm{D}}$ between the BWCs and FWC depending on the time period $\Delta {t}_{\mathrm{b}}$ of the backward simulation; (

**b**) Pearson’s correlation coefficient ${\mathrm{PCC}}_{3\mathrm{D}}$ between the BWCs and FWC. Colored triangles indicate the starting time ${t}_{\mathrm{b}}$ of the backward simulations (see the color legend); black diamonds (in some cases in overlap with triangles) are the mean values belonging to a given $\Delta {t}_{\mathrm{b}}$ (denoted by “m”). Dashed lines indicate exponential fits to mean values; the exponents are given in Table 1.

## 6. Global Results

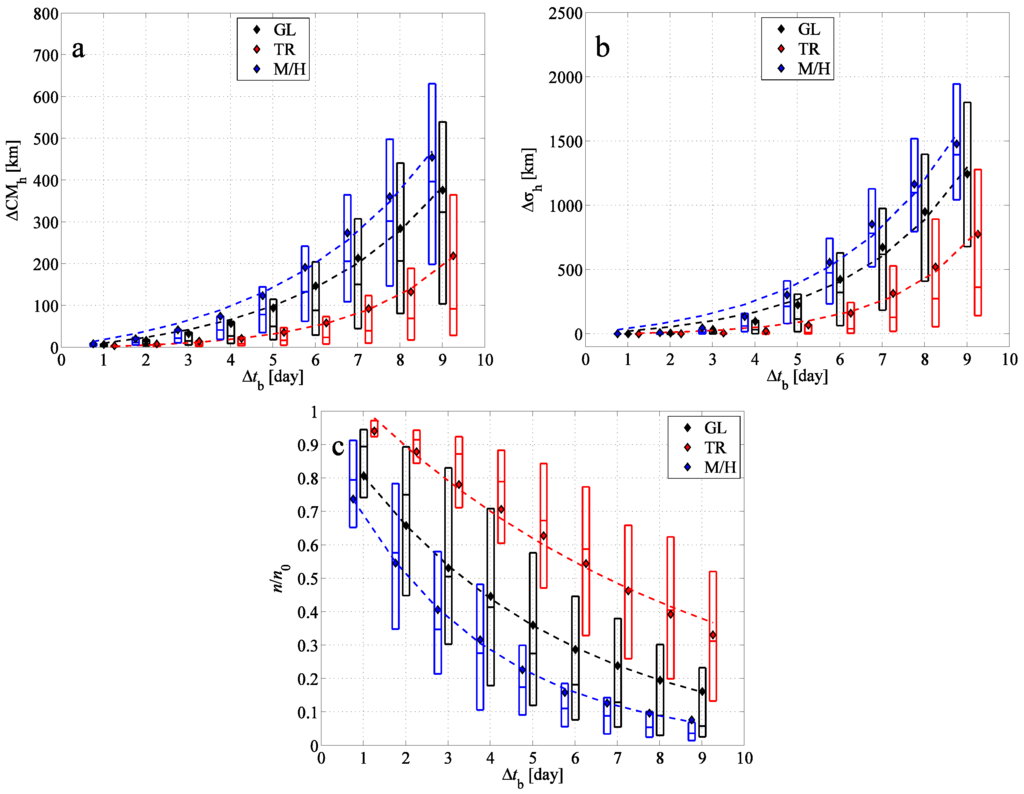

**Figure 7.**(

**a**) The horizontal difference $\Delta {\mathrm{CM}}_{\mathrm{h}}$ between the center of mass of the BWCs and the FWC depending on the time period $\Delta {t}_{\mathrm{b}}$ of the backward simulation; (

**b**) the difference $\Delta {\sigma}_{\mathrm{h}}$ between the horizontal standard deviations of the BWCs and FWC; (

**c**) the proportion $n/{n}_{0}$ of the particles returned back to the initial cuboid. The results are shown for the tropical region (TR, red), for mid- and high latitudes (M/H, blue) and for the globe (GL, black). Mean values (diamonds), medians and lower and upper quartiles (boxes with horizontal lines) are indicated. Dashed lines indicate exponential fits to the mean values; the exponents are given in Table 2.

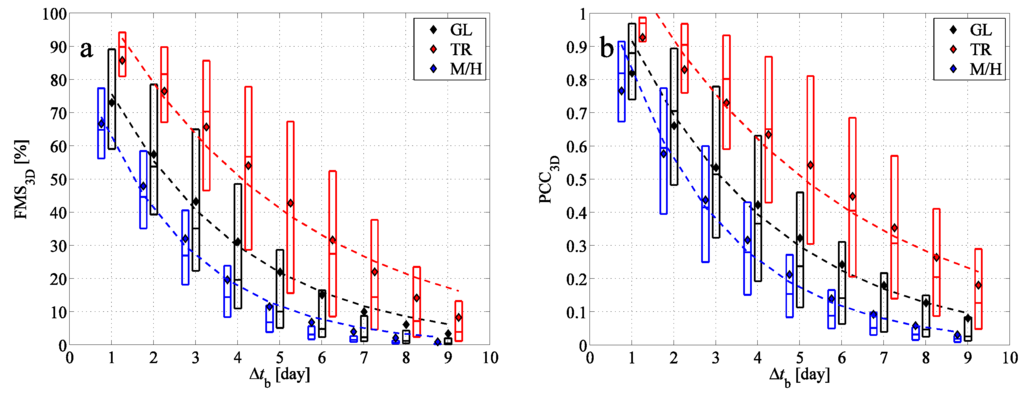

**Figure 8.**(

**a**) The figure of merit in space ${\mathrm{FMS}}_{3\mathrm{D}}$ between the BWCs and FWC depending on the time period $\Delta {t}_{\mathrm{b}}$ of the backward simulation; (

**b**) Pearson’s correlation coefficient ${\mathrm{PCC}}_{3\mathrm{D}}$ between the BWCs and FWC. Mean values (diamonds), medians and lower and upper quartiles (boxes with horizontal lines) are indicated for the tropical region (TR, red), for mid- and high latitudes (M/H, blue) and for the globe (GL, black). Dashed lines indicate exponential fits to the mean values; the exponents are given in Table 2.

**Table 2.**The exponent Λ (day${}^{-1}$) and the error of the exponential fits to the curves $\Delta {\mathrm{CM}}_{\mathrm{h}}$, $\Delta {\sigma}_{\mathrm{h}}$, $n/{n}_{0}$, ${\mathrm{FMS}}_{2\mathrm{D}}$, ${\mathrm{FMS}}_{3\mathrm{D}}$, ${\mathrm{PCC}}_{2\mathrm{D}}$ and ${\mathrm{PCC}}_{3\mathrm{D}}$ versus $\Delta {t}_{\mathrm{b}}$ for the globe (GL), for the tropical region (TR) and for mid- and high latitudes (M/H) in Figure 7 and Figure 8.

- | GL | TR | M/H |
---|---|---|---|

$\Delta {\mathrm{CM}}_{\mathrm{h}}$ | $0.290\pm 0.015$ | $0.267\pm 0.020$ | $0.422\pm 0.013$ |

$\Delta \sigma $ | $0.358\pm 0.035$ | $0.330\pm 0.037$ | $0.495\pm 0.034$ |

$n/{n}_{0}$ | $0.202\pm 0.001$ | $0.122\pm 0.006$ | $0.293\pm 0.004$ |

${\mathrm{FMS}}_{2\mathrm{D}}$ | $0.314\pm 0.025$ | $0.224\pm 0.031$ | $0.407\pm 0.031$ |

${\mathrm{FMS}}_{3\mathrm{D}}$ | $0.311\pm 0.014$ | $0.217\pm 0.020$ | $0.417\pm 0.019$ |

${\mathrm{PCC}}_{2\mathrm{D}}$ | $0.300\pm 0.058$ | $0.212\pm 0.064$ | $0.404\pm 0.070$ |

${\mathrm{PCC}}_{3\mathrm{D}}$ | $0.281\pm 0.029$ | $0.196\pm 0.036$ | $0.390\pm 0.040$ |

## 7. Outlook

**Table 3.**The exponent Λ (day${}^{-1}$) and the error of the exponential fits to the curves $\Delta {\mathrm{CM}}_{\mathrm{h}}$, $\Delta {\sigma}_{\mathrm{h}}$, $n/{n}_{0}$, ${\mathrm{FMS}}_{2\mathrm{D}}$, ${\mathrm{FMS}}_{3\mathrm{D}}$, ${\mathrm{PCC}}_{2\mathrm{D}}$ and ${\mathrm{PCC}}_{3\mathrm{D}}$ versus $\Delta {t}_{\mathrm{b}}$ of the case study described in Section 5, but with horizontal turbulent diffusivity ${K}_{\mathrm{h}}=50$ m${}^{2}$·s${}^{-1}$. The deviation $\Delta \Lambda $ of the Λ values of the case study with turbulent diffusivity from the case study without turbulent diffusivity is also shown.

- | Λ | $\Delta \Lambda $ |
---|---|---|

$\Delta {\mathrm{CM}}_{\mathrm{h}}$ | $0.498\pm 0.026$ | $0.017\pm 0.058$ |

$\Delta {\sigma}_{\mathrm{h}}$ | $0.481\pm 0.050$ | $0.014\pm 0.100$ |

$n/{n}_{0}$ | $0.379\pm 0.024$ | $0.040\pm 0.056$ |

${\mathrm{FMS}}_{2\mathrm{D}}$ | $0.514\pm 0.037$ | $0.048\pm 0.085$ |

${\mathrm{FMS}}_{3\mathrm{D}}$ | $0.538\pm 0.023$ | $0.082\pm 0.063$ |

${\mathrm{PCC}}_{2\mathrm{D}}$ | $0.464\pm 0.023$ | $0.017\pm 0.051$ |

${\mathrm{PCC}}_{3\mathrm{D}}$ | $0.447\pm 0.022$ | $0.010\pm 0.049$ |

## 8. Summary

## Acknowledgments

## Conflicts of Interest

## References

- Onishi, K.; Kurosaki, Y.; Otani, S.; Yoshida, A.; Sugimoto, N.; Kurozawa, Y. Atmospheric transport route determines components of Asian dust and health effects in Japan. Atmos. Environ.
**2012**, 49, 94–102. [Google Scholar] [CrossRef] - Rao, K.S. Source estimation methods for atmospheric dispersion. Atmos. Environ.
**2007**, 41, 6964–6973. [Google Scholar] - Seibert, P. Inverse modelling of sulfur emissions in Europe based on trajectories. In Inverse Methods in Global Biogeochemical Cycles; Kasibhatla, P., Heimann, M., Rayner, P., Mahowald, N., Prinn, R., Hartley, D., Eds.; American Geophysical Union: Washington, DC, USA, 2000; pp. 147–154. [Google Scholar]
- Uliasz, M.; Pielke, R.A. Application of the receptor oriented approach in mesoscale dispersion modeling. In Air Pollution Modeling and Its Application VIII; Springer: Berlin, Germany, 1991; pp. 399–407. [Google Scholar]
- Issartel, J.P.; Baverel, J. Inverse transport for the verification of the Comprehensive Nuclear Test Ban Treaty. Atmos. Chem. Phys.
**2003**, 3, 475–486. [Google Scholar] [CrossRef] - Mori, I.; Nishikawa, M.; Quan, H.; Morita, M. Estimation of the concentration and chemical composition of kosa aerosols at their origin. Atmos. Environ.
**2002**, 36, 4569–4575. [Google Scholar] [CrossRef] - Lin, T.H. Long-range transport of yellow sand to Taiwan in spring 2000: Observed evidence and simulation. Atmos. Environ.
**2001**, 35, 5873–5882. [Google Scholar] [CrossRef] - Šauliene, I.; Veriankaite, L. Application of backward air mass trajectory analysis in evaluating airborne pollen dispersion. J. Environ. En. Landsc. Manag.
**2006**, 14, 113–120. [Google Scholar] - Zemmer, F.; Karaca, F.; Ozkaragoz, F. Ragweed pollen observed in Turkey: Detection of sources using back trajectory models. Sci. Tot. Environ.
**2012**, 430, 101–108. [Google Scholar] [CrossRef] [PubMed] - Drumond, A.; Nieto, R.; Gimeno, L.; Ambrizzi, T. A Lagrangian identification of major sources of moisture over Central Brazil and La Plata Basin. J. Geophys. Res. Atmos.
**2008**, 113, D14. [Google Scholar] [CrossRef] - Straub, C.; Tschanz, B.; Hocke, K.; Kämpfer, N.; Smith, A. Transport of mesospheric H
_{2}O during and after the stratospheric sudden warming of January 2010: observation and simulation. Atmos. Chem. Phys.**2012**, 12, 5413–5427. [Google Scholar] [CrossRef] [Green Version] - Flesch, T.K.; Wilson, J.D.; Yee, E. Backward-time Lagrangian stochastic dispersion models and their application to estimate gaseous emissions. J. Appl. Meteorol.
**1995**, 34, 1320–1332. [Google Scholar] [CrossRef] - Kljun, N.; Rotach, M.; Schmid, H. A three-dimensional backward Lagrangian footprint model for a wide range of boundary-layer stratifications. Bound. Layer Meteorol.
**2002**, 103, 205–226. [Google Scholar] [CrossRef] - Dahl, J.M.; Parker, M.D.; Wicker, L.J. Uncertainties in trajectory calculations within near-surface mesocyclones of simulated supercells. Mon. Weather Rev.
**2012**, 140, 2959–2966. [Google Scholar] [CrossRef] - Lorenz, E.N. Deterministic nonperiodic flow. J. Atmos. Sci.
**1963**, 20, 130–141. [Google Scholar] [CrossRef] - Ott, E. Chaos in Dynamical Systems; Cambridge University Press: Cambridge, UK, 1993. [Google Scholar]
- Tél, T.; Gruiz, M. Chaotic Dynamics; Cambridge University Press: Cambridge, UK, 2006. [Google Scholar]
- Ottino, J. The Kinematics of Mixing: Stretching, Chaos, and Transport; Cambridge University Press: Cambridge, UK, 1989. [Google Scholar]
- Haszpra, T.; Tél, T. Topological entropy: A Lagrangian measure of the state of the free atmosphere. J. Atmos. Sci.
**2013**, 70, 4030–4040. [Google Scholar] [CrossRef] - Pudykiewicz, J.A. Application of adjoint tracer transport equations for evaluating source parameters. Atmos. Environ.
**1998**, 32, 3039–3050. [Google Scholar] [CrossRef] - Pierrehumbert, R.T.; Yang, H. Global chaotic mixing on isentropic surfaces. J. Atmos. Sci.
**1993**, 50, 2462–2480. [Google Scholar] [CrossRef] - Shepelyansky, D.L. Some statistical properties of simple classically stochastic quantum systems. Physica D
**1983**, 8, 208–222. [Google Scholar] [CrossRef] - Straume, A.G. A more extensive investigation of the use of ensemble forecasts for dispersion model evaluation. J. Appl. Meteorol.
**2001**, 40, 425–445. [Google Scholar] [CrossRef] - Mosca, S.; Graziani, G.; Klug, W.; Bellasio, R.; Bianconi, R. A statistical methodology for the evaluation of long-range dispersion models: An application to the ETEX exercise. Atmos. Environ.
**1998**, 32, 4307–4324. [Google Scholar] [CrossRef] - Haszpra, T.; Tél, T. Escape rate: A Lagrangian measure of particle deposition from the atmosphere. Nonlinear Process. Geophys.
**2013**, 20, 867–881. [Google Scholar] [CrossRef] - Bowman, K.P.; Carrie, G.D. The mean-meridional transport circulation of the troposphere in an idealized GCM. J. Atmos. Sci.
**2002**, 59, 1502–1514. [Google Scholar] [CrossRef] - Ryall, D.; Maryon, R. Validation of the UK Met. Office’s NAME model against the ETEX dataset. Atmos. Environ.
**1998**, 32, 4265–4276. [Google Scholar] [CrossRef] - D’Amours, R.; Malo, A.; Ménard, S. A zeroth order Lagrangian particle dispersion model: MLDP0. Available online: http://eer.cmc.ec.gc.ca/publications/DAmours.Malo.2004.CMC-EER.MLDP0.pdf (accessed on 17 November 2015).
- Saltbones, J.; Foss, A.; Bartnicki, J. Norwegian Meteorological Institute’s real-time dispersion model SNAP (Severe Nuclear Accident Program): Runs for ETEX and ATMES II experiments with different meteorological input. Atmos. Environ.
**1998**, 32, 4277–4283. [Google Scholar] [CrossRef] - Terada, H.; Chino, M. Development of an atmospheric dispersion model for accidental discharge of radionuclides with the function of simultaneous prediction for multiple domains and its evaluation by application to the Chernobyl nuclear accident. J. Nucl. Sci. Technol.
**2008**, 45, 920–931. [Google Scholar] [CrossRef] - Stohl, A.; Forster, C.; Frank, A.; Seibert, P.; Wotawa, G. Technical note: The Lagrangian particle dispersion model FLEXPART version 6.2. Atmos. Chem. Phys.
**2005**, 5, 2461–2474. [Google Scholar] [CrossRef] - Draxler, R.; Hess, G. NOAA Technical Memorandum ERL ARL-224. Description of the HYSPLIT_4 Modeling System; Air Resources Laboratory: Silber Spring, MD, USA, 2004. [Google Scholar]
- Dee, D.P.; Uppala, S.M.; Simmons, A.J.; Berrisford, P.; Poli, P.; Kobayashi, S.; Andrae, U.; Balmaseda, M.A.; Balsamo, G.; Bauer, P.; et al. The ERA-Interim Reanalysis: Configuration and performance of the data assimilation system. Q. J. R. Meteorol. Soc.
**2011**, 137, 553–597. [Google Scholar] [CrossRef] - Stohl, A.; Wotawa, G.; Seibert, P.; Kromp-Kolb, H. Interpolation errors in wind fields as a function of spatial and temporal resolution and their impact on different types of kinematic trajectories. J. Appl. Meteorol.
**1995**, 34, 2149–2165. [Google Scholar] [CrossRef] - Stohl, A.; Seibert, P.; Wotawa, G.; Arnold, D.; Burkhart, J.; Eckhardt, S.; Tapia, C.; Vargas, A.; Yasunari, T. Xenon-133 and caesium-137 releases into the atmosphere from the Fukushima Dai-ichi nuclear power plant: determination of the source term, atmospheric dispersion, and deposition. Atmos. Chem. Phys.
**2012**, 12, 2313–2343. [Google Scholar] [CrossRef] - McCaw, G. Long lines on the Earth. Emp. Surv. Rev.
**1932**, 1, 259–263. [Google Scholar] - Artale, V.; Boffetta, G.; Celani, A.; Cencini, M.; Vulpiani, A. Dispersion of passive tracers in closed basins: Beyond the diffusion coefficient. Phys. Fluids
**1997**, 9, 3162–3171. [Google Scholar] [CrossRef] - Huber, M.; McWilliams, J.C.; Ghil, M. A climatology of turbulent dispersion in the troposphere. J. Atmos. Sci.
**2001**, 58, 2377–2394. [Google Scholar] [CrossRef] - Von Hardenberg, J.; Fraedrich, K.; Lunkeit, F.; Provenzale, A. Transient chaotic mixing during a baroclinic life cycle. Chaos
**2000**, 10, 122–134. [Google Scholar] [CrossRef] [PubMed] - Ben-Mizrachi, A.; Procaccia, I.; Grassberger, P. Characterization of experimental (noisy) strange attractors. Phys. Rev. A
**1984**, 29, 975–977. [Google Scholar] [CrossRef] - Kalnay, E. Atmospheric Modeling, Data Assimilation, and Predictability; Cambridge University Press: Cambridge, UK, 2003. [Google Scholar]
