The Contribution of Geomagnetic Activity to Ionospheric foF2 Trends at Different Phases of the Solar Cycle by SWM

Abstract

Solar activity dominates the temporal variability of ionospheric properties, which makes it difficult to identify and isolate the effects of geomagnetic activity on the ionosphere. Therefore, the latter effects on the ionosphere are still unclear. Here, we use the spectral whitening method (SWM)—a proven approach to extract ionospheric perturbations caused by geomagnetic activity—to directly obtain, in isolation, the effects of geomagnetic activity. We study its contribution to the ionosphere for different phases of the solar cycle. The time lag between the solar and geomagnetic activities provides an opportunity to understand the contribution of geomagnetic activity to the perturbation of the ionosphere. The results suggest that this contribution to the ionosphere is significant when geomagnetic activity is at its maximum level, which usually happens in the declining phase of the solar cycle, but the contribution is very weak at the solar minimum and during the ascending phase. Then, by analyzing the contributions in different months, we find that the role of geomagnetic activity is larger around winter but smaller around summer.

1. Introduction

Ionospheric time variation has been studied for many years. It is driven by many mechanisms, such as neutral wind, solar, and geomagnetic activities, and particle precipitation driven by wave–particle interactions [1,2,3,4,5,6,7]. Many researchers have studied the effects of solar activity on the ionospheric trend variation [6,7]. Some studies have used particular observations to analyze the ionospheric trend variations, including the upper ionospheric electron density [8], the ionospheric temperature [9], and even differential GPS code biases [10]. In addition, a range of observations have been used to study ionospheric cooling, which can be summarized in several ways, including by analyzing the decrease in the peak height of the ionospheric F2 layer and the upper ionospheric density [11]. It is well known that solar activity strongly affects the ionosphere and dominates ionospheric variability with local time (LT) [6], so its effect on ionospheric trend variation is highly significant. These well-known solar-activity-induced variations make it difficult to detect and extract trend variations caused by other drivers, among which geomagnetic activity is also a very important driver [12]. As reported by Mikhailov and Marin [13], studies on trend variations in the critical frequency of the ionospheric F2 layer (foF2) should not neglect the effects of geomagnetic activity.

Thus, it is important to develop an effective approach to characterize the effects of geomagnetic activity on the ionosphere. In fact, application of different methods usually leads to interesting but puzzling results [14,15]. Therefore, finding a suitable approach is a focus in this field of research. Some authors have suggested that the effects of geomagnetic activity on the ionospheric trend cannot be extracted effectively using traditional methods, such as based on conventional monthly or annual mean Ap-index measurements, or analysis of geomagnetic activity indices [13].

This implies that different authors use different approaches to extract trend variations from the ionospheric observations and that the conclusions of analysis greatly depend on the adopted methods [15]. Researchers have used various novel mathematic methods to explore new geophysical mechanisms, such as the numerical differentiation method [16] and spectral analysis method [17]. In general, the useful extracted “signal” (such as the effect of geomagnetic activity) is very small and the “background” is very noisy, so special methods are required to reveal the perturbation driven by the “signal” in the observed foF2 trend variations. The spectral whitening method (SWM), first introduced by Wang et al. [18], may be an accurate and effective method for characterizing the effects of geomagnetic activity on ionospheric foF2 observations. As a mathematical method, it does not depend on input parameters such as geomagnetic indices (e.g., Ap). Ionospheric perturbations derived from the SWM are not affected by residual effects owing to solar activity during geomagnetically quiet periods. This approach can, therefore, remove the effects of solar activity more effectively than the conventional method.

In this paper, the SWM is used to study the contributions of geomagnetic activity to the ionospheric trends. The plausible causes of the contributions will be discussed at various phases of the solar cycle. Our research shows that the effects of geomagnetic activity on the ionosphere greatly vary during different phases of the solar cycle. The foF2 ionospheric is most notably affected by geomagnetic activity during the declining phase of the solar activity, especially around winter.

2. Data and Methods

2.1. Data

Our analysis covers high to low latitudes in both hemispheres. Twenty-seven ionosonde stations (see

Table 1. List of ionosonde stations.

Number	Station	Period	Latitude (° N)	Longitude (° E)
0	Mawson	1958–2000	−67.6	62.9
1	Port Stanley	1957–1990	−51.7	−57.8
2	Hobart	1950–2007	−42.9	147.3
3	Canberra	1950–2007	−35.3	149.0
4	Mundaring	1959–2007	−32.0	116.2
5	Townsville	1951–2007	−19.6	146.9
6	Huancayo	1957–1990	−12.1	−75.2
7	Maui	1957–1990	+20.8	−156.3
8	Chungli	1959–1990	+24.9	121.4
9	Yamagawa	1957–1990	+31.2	130.6
10	Kokubunji	1957–1990	+35.7	139.5
11	Akita	1957–1990	+39.7	140.1
12	Boulder	1958–1990	+40.0	−105.3
13	Alma Ata	1957–1990	+43.2	76.9
14	Wakkanai	1957–1990	+45.4	141.7
15	Dourbes	1957–1990	+50.1	4.6
16	Irkutsk	1957–1992	+52.5	104.0
17	Juliusruh-Ruegen	1957–2012	+54.6	13.4
18	Moscow	1957–1995	+55.5	37.3
19	Gorky	1958–1990	+56.1	44.3
20	Tomsk	1957–1994	+56.5	84.9
21	Sverdlovsk	1957–1995	+56.4	58.6
22	Churchill	1957–1996	+58.8	−94.2
23	Uppsala	1957–1990	+59.8	17.6
24	Yakutsk	1957–1991	+62.0	129.6
25	Lycksele	1957–1990	+64.7	18.8
26	Sodankyla	1957–1990	+67.4	26.6

) located between geographical latitudes +67.4° N and −67.6° S were selected because (1) they were as widely distributed as possible and (2) the foF2 observations cover at least 30 years. The common period covered by the data for all stations ranges from 1959 to 1990, with a time resolution of 1 h.

F10.7 is the solar radio flux at a wavelength of 10.7 cm measured for the earth’s orbit, which is most widely used as an index of solar activity. This index is generated daily at the National Center for Environmental Information (NOAA). The Ap index is obtained from the geomagnetic field measurements at a number of stations. It is usually used as a criterion of the general level of geomagnetic activity over the globe for a given day. In the research, in order to analyze the relationship between the foF2 and F10.7/Ap indices, both the original F10.7 and Ap index data are processed by nearest neighbor interpolation to obtain the data with 1-h time resolution.

The aa index, expressed in units of 1 nT, is a global geomagnetic activity index with a time resolution of 1 day. The advantage of the aa index is that its time series reaches further back to 1868 and covers a longer period than any of the other geomagnetic activity index time series. It is derived from the K indices obtained from two approximately antipodal observatories. Because it is based on data obtained from only two observatories, it is the simplest of all the 3 hourly planetary indices. The index strongly correlates with the ap and am indices. In addition, in this study the solar activity level is represented by the monthly averages of the daily sunspot number.

2.2. Spectral Whitening Method

The SWM is one kind of signal processing technique used for statistical estimation and detection, which is adopted to detect and remove the periodic disturbances from the background signal or data. Additionally, the detected disturbances by SWM are characterized by a Gaussian-type probability density distribution over all timescales. This process further simplifies statistical analysis and means that the disturbances derived by SWM may have occurred regardless of the underlying physical processes. As a result, the SWM is suitable for both decorrelating a data sequence or controlling the spectral shape. Comparing to some traditional methods, such as the monthly median method (MMM), the SWM has been proven to much more successfully identify and extract the aperiodic disturbance in the background ionosphere. Wang et al. [18] suggested that the SWM-derived disturbance in the ionosphere is more sensitive to external geophysical perturbations and geomagnetic storms. Chen et al. [19] proved that the SWM is very effective for extracting the effects of geomagnetic activity from ionospheric observations. In this study, the SWM is adopted to remove the periodicities in foF2 variations by flattening the Fourier spectrum, and therefore to identify the aperiodic disturbances driven by the geomagnetic activity. The SWM is a filtering method that is used to identify ionospheric perturbations caused by geomagnetic activity. For a time series, g(t), the SWM algorithm reads:

$$\{\begin{array}{l}\begin{array}{ccc}{g}_d^{*}(t)& =& \frac{1}{2\pi }{\displaystyle {\int }_{-\infty }^{+\infty }[{\displaystyle {\int }_{-\infty }^{+\infty }g(t)·e^{-2\pi it\xi }dt}]·\frac{P_0}{P_{env}(\xi )}·e^{2\pi it\xi }d\xi }\end{array}\\ \\ \begin{array}{lll}{g}_s(t_m)& =& \frac{1}{3}{\displaystyle \sum _{j=0}^2{g}_d^{*}(t_{m+j-1})}\end{array}\end{array}$$

(1)

where $P_{env}(\xi )$ is the upper envelope of the power spectrum of g(t). The $P_{env}(\xi )$ can be calculated using the complicated envelope function [20], which can give a good approximation by using the maximum value in a given data window. P₀ is the value that appears most often in the dataset of $P_{env}(\xi )$, i.e., the mode of $P_{env}(\xi )$. The transformation above actually consists of four steps: (i) A Fourier transform, shown as the bracketed part in Equation (1), is applied to the original data. (ii) The Fourier power spectrum is divided by its upper envelope $P_{env}(\xi )$ and the maximum intensity is now unified, so the spectrum is flattened and displays the spectral form of white noise. Actually, the aperiodic components are not discernible in the spectrum; thus, they are merely affected by the whitening process. (iii) The whitened spectrum is multiplied by P₀ to ensure the most common values of the spectrum intensity before and after the whitening are the same. (iv) A new time series, $g_d^{*}(t)$, is derived by using an inverse Fourier transform in the whitened spectrum from step (iii). However, the whitening process causes extra random dithers. Therefore, in order to reduce the enhanced noise, a three-point running average is applied to smooth $g_d^{*}(t)$ and the final result of SWM is $g_{\mathrm{s}}(t_{\mathrm{m}})$.

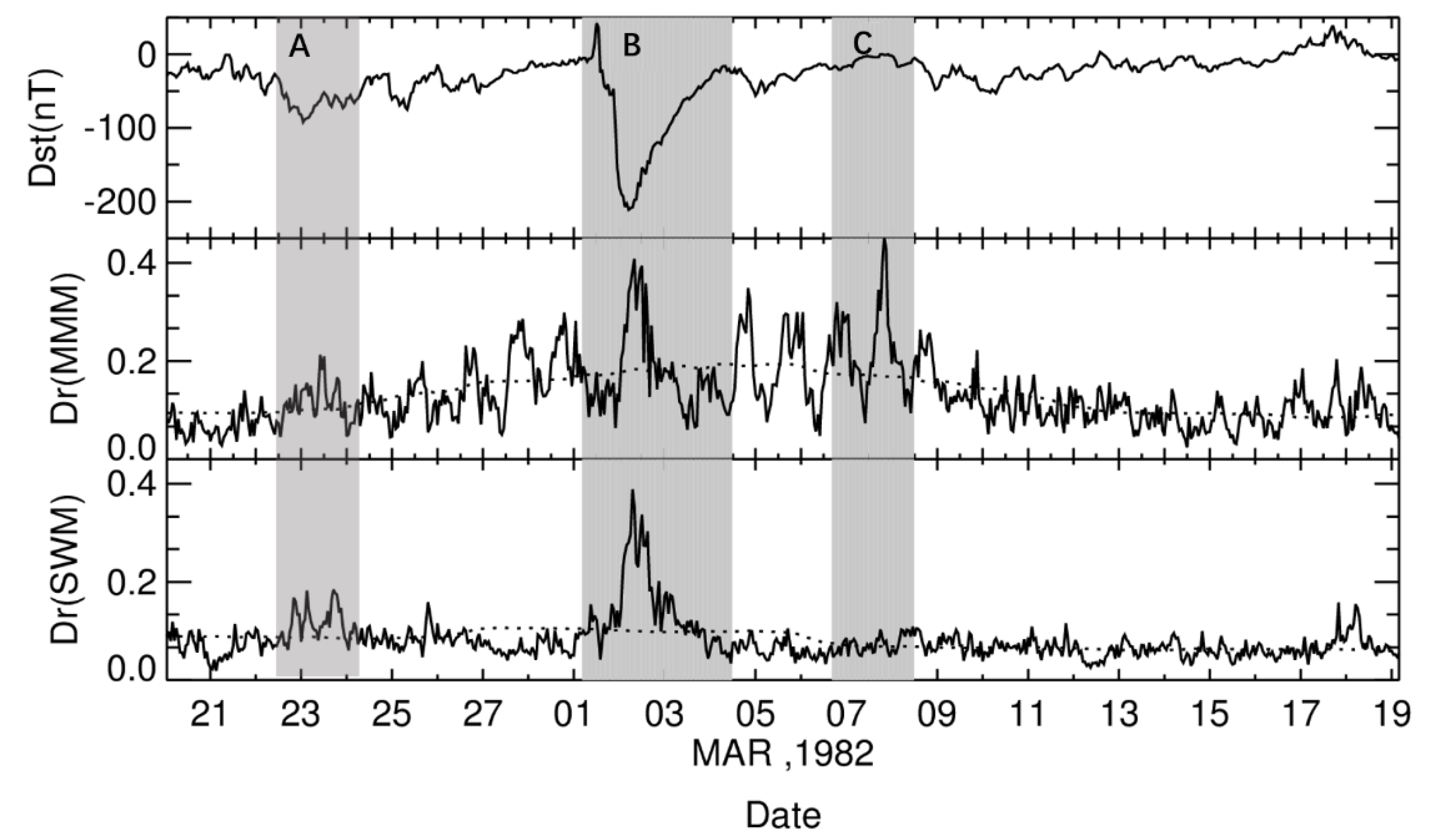

In this study, for a given ionospheric station, $g(t)$ denotes the time variation of foF2. The SWM has been shown to be more effective than the monthly median method (MMM) in the identification of ionospheric perturbations related to geomagnetic activity [19,21,22]. As shown in Figure 1, a strong geomagnetic storm occurred in March 1982. The ionospheric index Dr is defined as the mean of the absolute perturbation values of the global RfoF2 (relative value of the foF2) based on the SWM or MMM at the same time; it represents the overall level of global ionospheric perturbations. It suggests that the Dr (SWM) index is very effective in responding to global ionospheric perturbations before and after a geomagnetic storm. Regards the Dr (MMM) index, its response to geomagnetic storms can also be observed (shaded periods A and B in Figure 1), but many more strong and significant perturbations appear in shaded period C. This disturbance shows significant diurnal variation, which can be observed during the period ranging from 27 February to 9 March. Those disturbances should be the residuals of the diurnal variation, which is caused by the drawback of MMM. The dotted lines in Figure 1 represent the smoothed Dr. Since MMM is one kind of low-pass filtering method and as it is hard to filter the diurnal variation and 27-day quasi-periodicity, the Dr (MMM) values significantly fluctuate around the smoothed Dr (MMM) over a 27-day cycle.

2.3. Traditional Approach to Isolating Solar Activity

To study ionospheric trends without interference from the effects of solar activity, a traditional method was adopted. Firstly, a linear regression between the original foF2 and the F10.7 was calculated. This step estimated the effect of solar activity on the ionosphere. Then, the foF2 residuals were obtained between the original foF2 and the regression, which meant removing the effect of solar activity from the ionospheric observation. Many researchers have attempted to use different solar activity indices, such as Rz (solar sunspot number) and the daily F10.7, as proxies for extreme ultraviolet radiation (EUV) [12,23,24]. In general, estimation using F10.7 yields better results than that from Rz [25]. Therefore, in this study the effect of solar activity was isolated by estimating the foF2 residuals from a linear regression between foF2 and the solar activity measured by the F10.7 index:

$$\Delta fo\mathrm{F}2=fo\mathrm{F}2-(a\times \mathrm{F}10.7+b)$$

(2)

$$\Delta fo\mathrm{F}2=\alpha \times \mathrm{year}+\beta$$

(3)

where a and b are obtained from the regression between foF2 and F10.7 using least-squares minimization. The linear foF2 trend α was then obtained from Equation (3).

The SWM can directly isolate the effects of geomagnetic activity from ionospheric observations:

$$\Delta fo\mathrm{F}2\prime =SWM(fo\mathrm{F}2)$$

(4)

$$\Delta fo\mathrm{F}2\prime ={\alpha }^{\prime }\times \mathrm{year}+{\beta }^{\prime }$$

(5)

where SWM (foF2) refers to SWM use in extracting the effects of geomagnetic activity from foF2 following Equation (1). Here, α and α′ are expressed in units of MHz year⁻¹; α represents the residuals after removal of the effects of solar activity and α′ is the effect of geomagnetic activity on the ionosphere.

3. Analysis and Discussion

3.1. Validating the Effects of Solar and Geomagnetic Activity

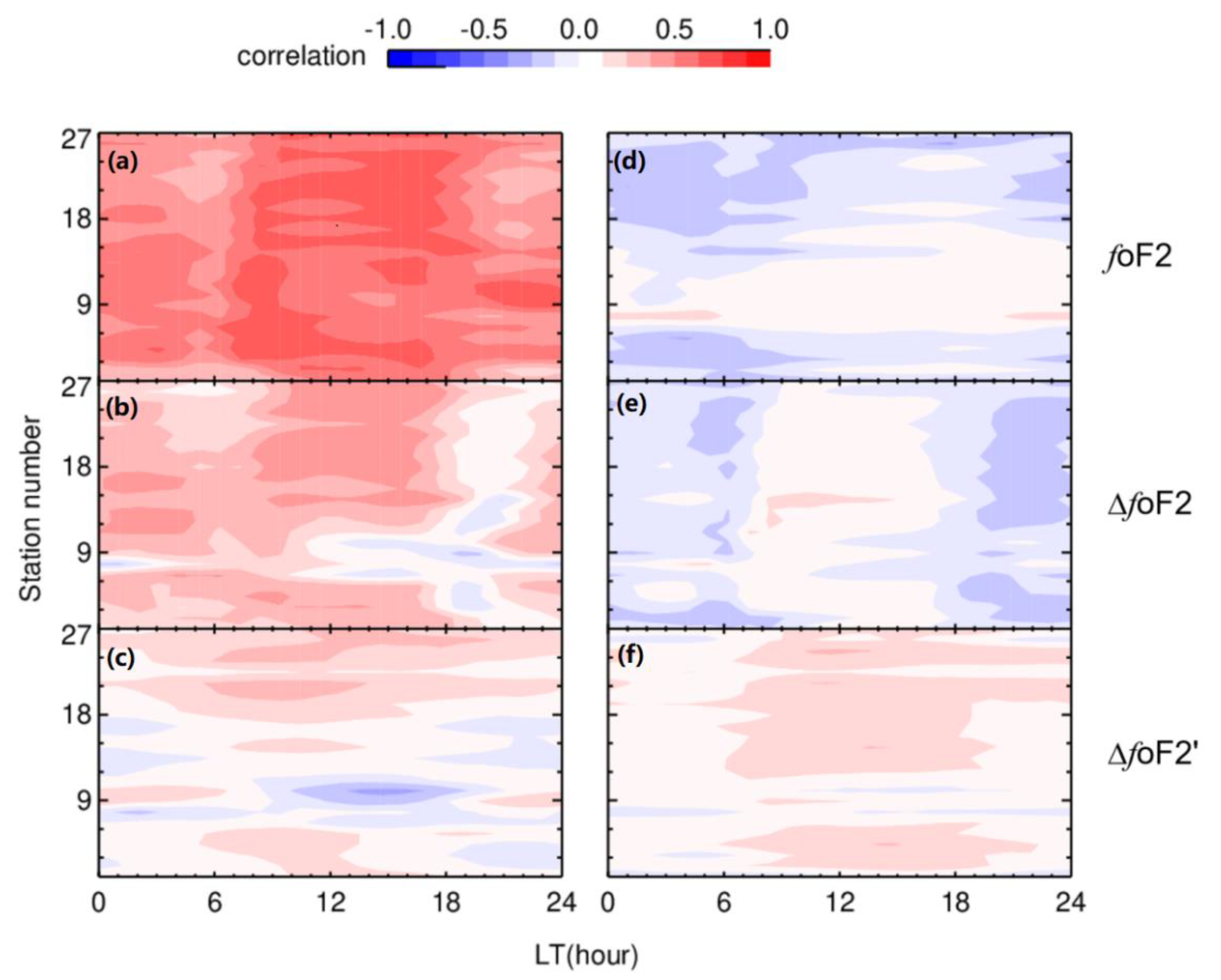

Figure 2 presents the relationships between the ionospheric foF2 and the solar activity index F10.7 (or the geomagnetic activity Ap index) at different LT (local time). The ionospheric foF2 observations were obtained from 27 global ionosondes (station numbers are indicated along the y axis) over a period of more than 30 years. The correlation coefficient between foF2 and F10.7 (Ap) is shown in Figure 2a,d. As the main driver, the effect of solar activity dominates the trend of ionospheric foF2; the correlation between the original foF2 values and the F10.7 index is very high, which are up to 0.7 in most ionospheric stations, especially during the daytime (Figure 2a). Due to the original foF2 and Ap including the data in the geomagnetic quiet period, which covers most of the data range, the correlation coefficients between foF2 and Ap are small. Therefore, the effects of geomagnetic activity are difficult to identify in the original observations (Figure 2d) and the correlation coefficient between foF2 and Ap does not exceed 0.1 for most stations. After processing the original data through the traditional method (Equations (2) and (3)), as shown in Figure 2b, the effect of solar activity on ∆foF2 is weakened, but the correlation coefficients between ∆foF2 and the F10.7 index are still very high (more than 0.7 for some stations). The effects of geomagnetic activity on ∆foF2 are weak (Figure 2e). This implies that the traditional method hardly extracts the geomagnetic activity effects. Using the SWM process (Equations (4) and (5)), the correlation coefficient between ΔfoF2’ and F10.7 (Ap) indices is presented in Figure 2e,f. Compared with traditional method, this suggests that the SWM can reject the effect of solar activity (the correlation coefficient is less than 0.3) and better extract the effect of geomagnetic activity from the ionosphere. The SWM may be suitable in studying the geomagnetic activity on the ionosphere. In fact, solar activity not only affects the ionosphere’s behavior, it also significantly modifies the variability in geomagnetic activity, so explorations of the effects of geomagnetic activity on the ionosphere should not completely neglect the variation of solar activity in different solar cycles.

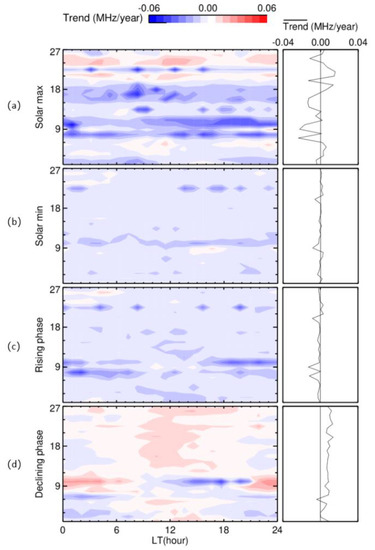

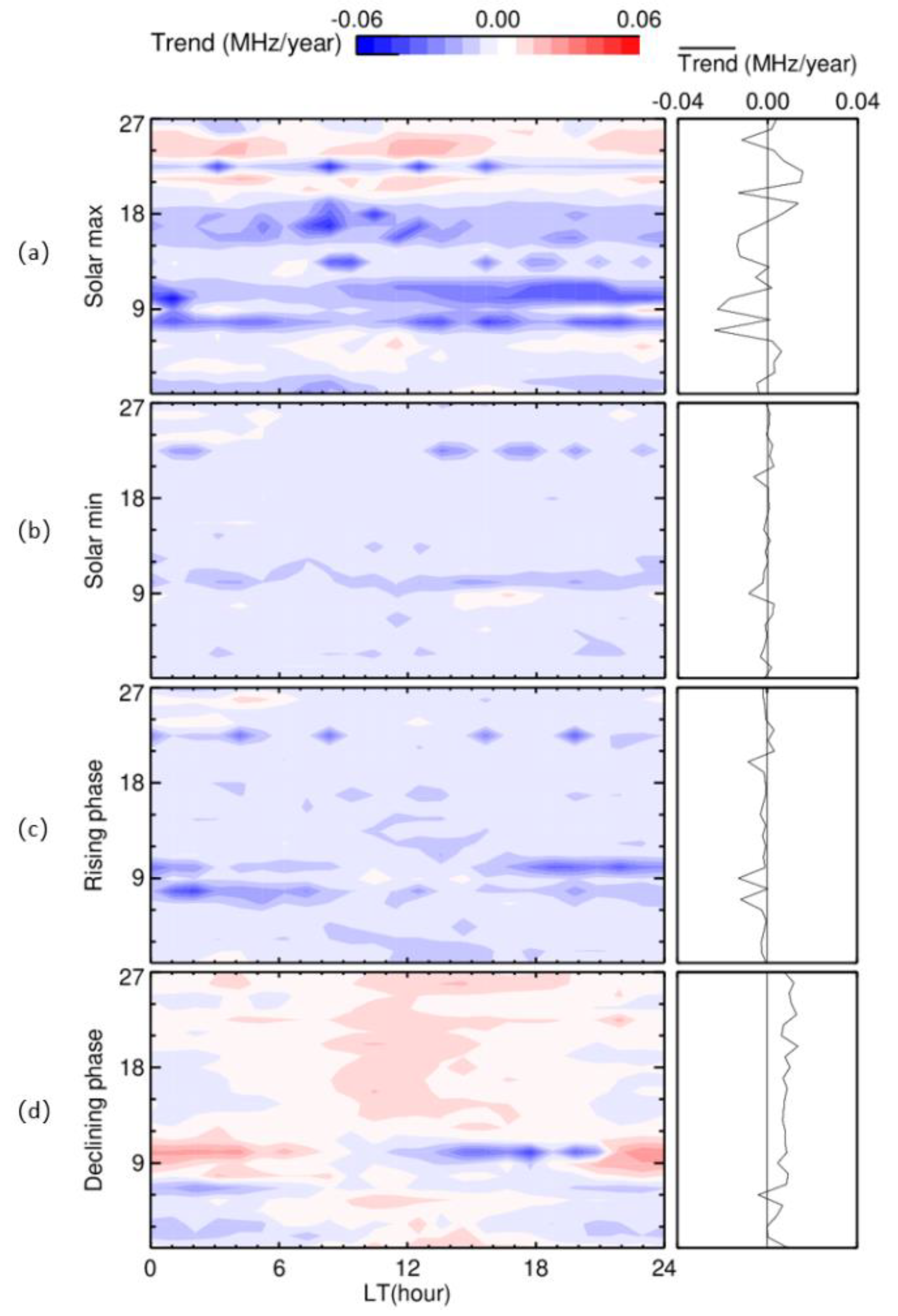

As presented above, since SWM may be a useful method for analyzing the effects of geomagnetic activity, the SWM will be further used to study the contribution of geomagnetic activity on the ionosphere at different phases of the solar cycle. In this study, solar maxima and minima were calculated based on the 13-month mean of the International Sunspot Number [26]. The middle of the period between a given cycle’s minimum and maximum was identified as an ascending year, and the equivalent middle of the period between a given cycle’s maximum and the minimum was defined as a declining year. Next, the full effect of geomagnetic activity at different phases of the solar cycle was calculated using the absolute values of the ionospheric perturbations over the course of one year in each phase (maxima, minima, ascending, and declining periods). Finally, the trend of the overall effect of geomagnetic activity was calculated using a linear equation. The specific algorithm was implemented as follows:

$$\{\begin{array}{l}Ge(T_S)=\frac{1}{T}{\displaystyle {\int }_0^T\left|\mathrm{SWM}(g(t))\right|}\mathrm{d}t\\ Ge(T_S)=a_s\times \mathrm{year}+{\beta }_s\end{array}\begin{array}{ccc}& & \begin{array}{ccc}(S=0,1,2,3)& & \end{array}\end{array}$$

(6)

where g (t) represents the ionospheric observations; SWM (g(t)) refers to extraction of the effects of geomagnetic activity from ionospheric observations using the SWM; T_S represents the different phases throughout the solar cycle (S = 0, 1, 2, and 3 represent the solar maximum, solar minimum, the ascending phase, and the declining phase, respectively); T is the time period covered by a given ionosonde station for one year; Ge is the mean level of the effect of geomagnetic activity on the ionosphere during one year of T_S; and α_s represents the ionospheric trend caused by geomagnetic activity at different phases of the solar cycle. The resulting Ge levels at different phases of the solar cycle are presented in Figure 3. The positive trend means that ionospheric variation caused by geomagnetic activity is rising with time during the period. On the other hand, the negative trend means that the effect of geomagnetic activity on the ionosphere is declining with time during the period. At the solar minimum and during the ascending phase, the trends are characterized by very small values (−0.005 to 0.005 MHz year⁻¹) and the positive trends are essentially equal to the negative trends. The effects of geomagnetic activity on ionospheric variations for the 27 stations are more dynamic and intense (−0.03 to 0.03 MHz year⁻¹) during solar maximum, although the positive (50.7%) and negative (49.3%) trends are almost the same. During the solar maximum, the effects obviously show positive trends at higher latitudes; however, the effects show negative trends at lower latitudes (form 15° S to 40° N). During the declining phase, it seems that the effects of geomagnetic activity on the ionospheric variations are most notable. The negative trends (11.3%) occur significantly less frequently than positive trends (88.7%), with an overall trend of close to 0.02 MHz year⁻¹. The negative trends only occur at lower latitudes in the afternoon region. For other regions, the closer the time is to noon, the stronger the positive trend is expected to be, as seen in the original data (Figure 2f), where geomagnetic activity had its greatest impact on the ionospheric trend.

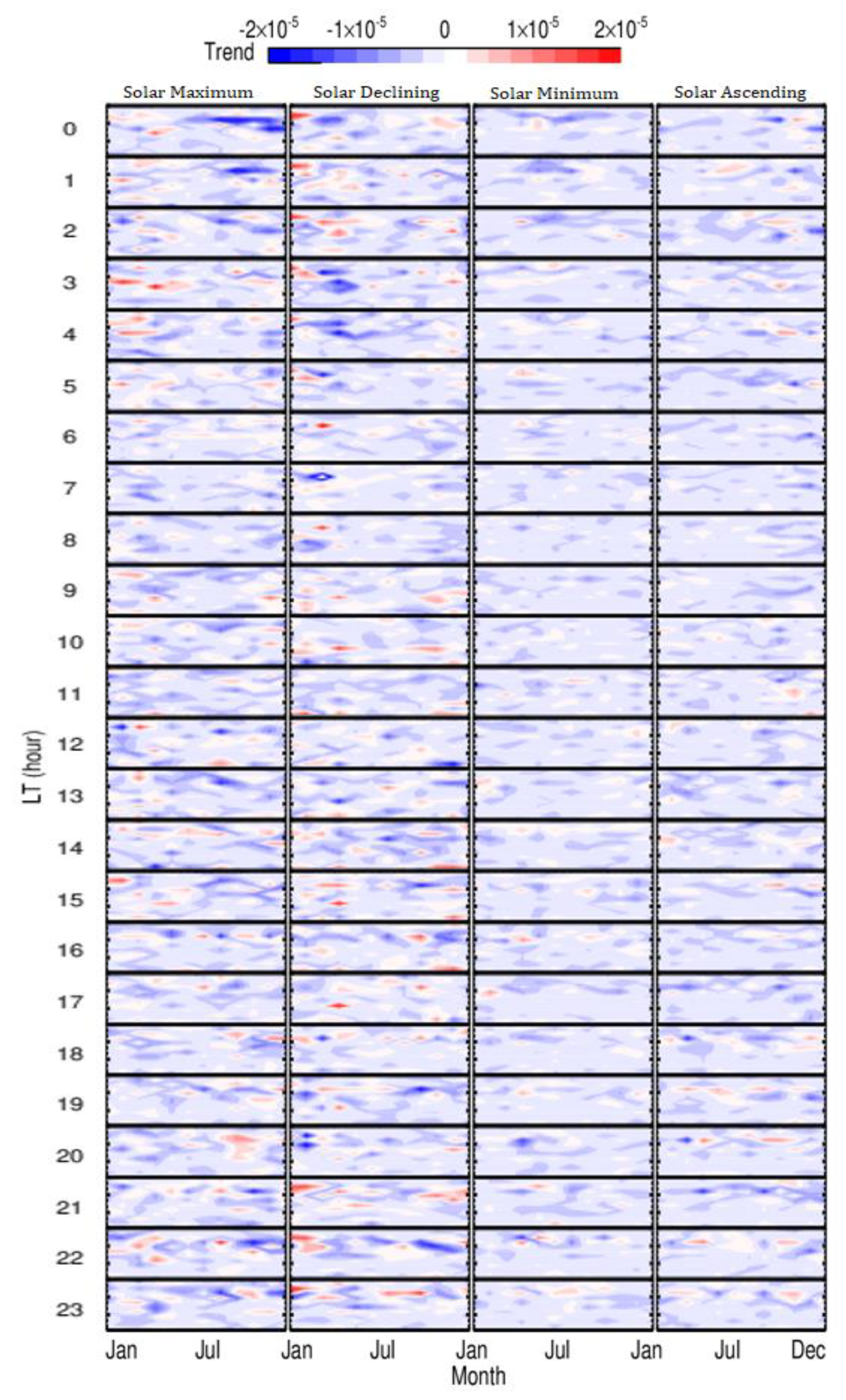

As far as we know, the response of the ionospheric F2-layer (foF2) to geomagnetic activity depends on the season and LT; thus, studying the dependence of ionospheric trends on the local time and season is necessary (as shown in Figure 4). This effect shows that the global ionosphere varies greatly with the seasonal trends at different phases of solar activity. In total, the global ionospheric trend varies hugely with different seasons, solar maxima, and declining years, but very weakly with solar minima and rising years. In general, the responses of the ionosphere to geomagnetic activity are larger around winter and smaller around summer.

3.2. Discussion

Using the SWM, we study the contribution of geomagnetic activity to the ionosphere. The result from the SWM is compared with the results from the MMM and a traditional method (as shown in Figure 1 and Figure 2, respectively). As presented in Figure 1, the disturbances derived from the MMM have an obvious residual of diurnal variation and 27-day quasi-periodicity. However, the results from SWM can avoid these phenomena. Moreover, in the range of the global scale, as shown in Figure 2, the correlation coefficient between the ΔfoF2’ (the geomagnetic effect on foF2 using the SWM) and Ap is much higher than that between ΔfoF2 (the geomagnetic effect on foF2 using a traditional method) and Ap. This suggests that the SWM can more effectively weaken the effects of solar activity and better extract the effects of geomagnetic activity. Both of the above comparisons may confirm that the SWM is a suitable method for extracting the effect of geomagnetic activity on foF2. Our previous research has also proved that the SWM is an effective method to reflect the ionospheric response to strong geomagnetic activity in special or global regions [18]. The goal of this paper is to further use this method to study the contribution of geomagnetic activity to the ionosphere in different phases of solar cycle.

As is well known, variations of ionospheric responses to geomagnetic activity significantly depend on location (longitude, latitude) and season; thus, studying global ionospheric variation responses to geomagnetic activity at different locations or in different seasons is challenging. Some related research studies have been performed previously. However, it seems that different approaches and methods can produce different results [15]. Bremer [14] found that the effects of geomagnetic activity on the F2-layer are not latitudinally dependent, but obvious longitudinal dependence can be found. However, using an improved method based on regression and the running mean, Mikhailov and Marin [15] obtained contradictory results. They suggested that the variation in the F2 layer is mainly dependent on latitude. Furthermore, Yue et al. [27] used an artificial neural net (ANN) method to explore the trends of foF2 in the Asia–Pacific sector. Their resulted showed no pronounced diurnal or latitudinal variations. However, for most stations there was a pronounced seasonal effect.

Wang et al. [18] firstly introduced the SWM, which is a mathematical method. The disturbances detected by the SWM have a Gaussian-type probability density function (PDF), further simplifying the statistical analysis and suggesting that the identified absolute disturbances can be compared regardless of the time and scales. In this study, the analysis based on this filter method covers regions ranging from high to low latitudes in both hemispheres to assess the perturbation of the ionosphere in different phases of the solar cycle. Based on the SWM process, diurnal variation can be found during the solar declining phase of the solar cycle; the significant effect of geomagnetic activity on the ionosphere exhibits an obvious solar cycle phase dependence (Figure 3). This result is similar to that produced by Mikhailov and Marin [15]. However, no significant latitudinal or longitudinal dependence is shown at any phase of solar cycle, similar to the results of Yue et al. [27].

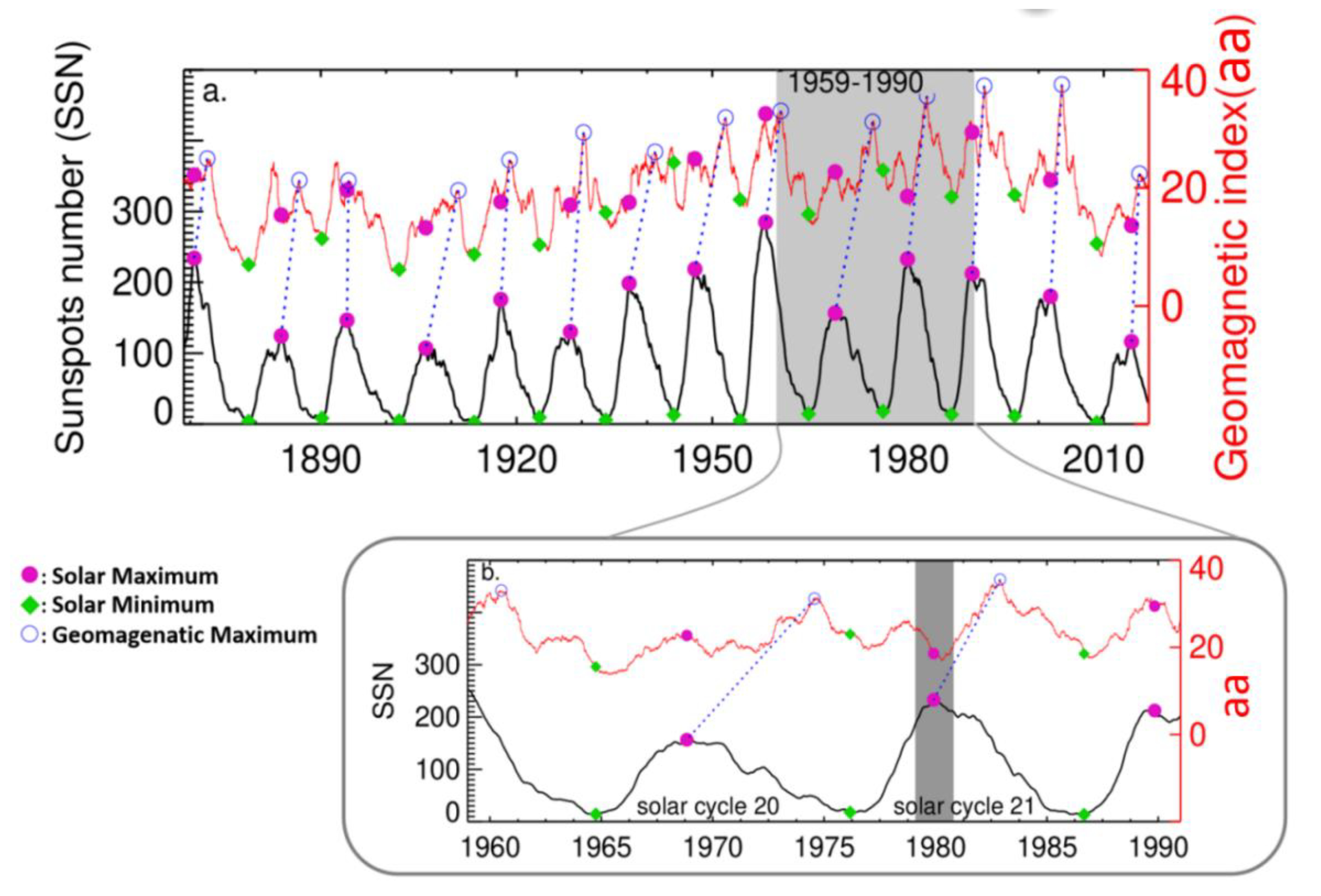

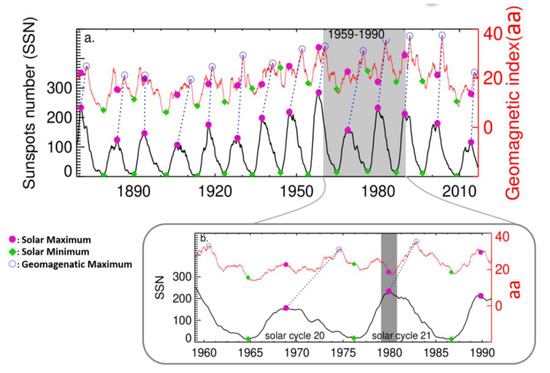

The relationship between the geomagnetic and solar activity is complex, as coronal mass ejections, high-speed streamers, and slow solar winds can affect temporal variations in geomagnetic activity over a solar cycle [28]. In fact, solar activity is an important driver of geomagnetic activity. As shown in Figure 5, the geomagnetic activity maximum always lags behind the solar activity maximum, which often appears during the declining phase of the solar activity cycle. However, the geomagnetic and solar activity minimum years occur close to each other in most solar cycles. During the solar maximum year, the annual average of the geomagnetic activity is often relatively low. Richardson et al. [28] found that this phenomenon is present from cycles 19 to 22 (hatching in Figure 5b). Such decreases in the geomagnetic activity are thought to be a manifestation of the so-called “Gnevyshev gap” [29,30,31,32], which suggests that strong solar activity modulates strong geomagnetic activity in a complicated fashion. The delay of geomagnetic activity with respect to the 11-year solar cycle has been known for many years [33]. However, as shown in Figure 5, the time scale of the delay is complex and dynamic; the delay time intervals appear to be different for different solar cycles.

This suggests that the trends for solar and geomagnetic activities are not synchronized and that the lag between the two can offer an opportunity to understand the contribution of geomagnetic activity to ionospheric trend variations. The geomagnetic activity affects the ionosphere differently under solar maximum and minimum periods. For solar maxima, more and stronger geomagnetic activities will mean that the effects of these activities on the ionosphere are easily identifiable. Their effects on ionospheric trends vary greatly with different stations, resulting from different regional ionosphere with different responses to geomagnetic storms [1,2]. However, during solar activity minimum years, the lower level of geomagnetic activity will contribute weakly to the long-term ionospheric trend, which will consequently have a very small value. During ascending years, the geomagnetic activity is also very weak, so its effect is the same as minimum years (Figure 3c). During a declining year, solar activity will drop to a mean level, which will have a relatively weak effect on the ionosphere, but geomagnetic activity will reach its maximum level. Thus, geomagnetic activity will play a more important role than other solar cycle phases in the ionosphere. As shown in Figure 3d, most regional variations are positive, and during daytime the trend is more significant. This is similar to the trend seen in the original data (Figure 2a). This suggests that the contribution of geomagnetic activity to the ionosphere is significant and is comparable to that of solar activity when geomagnetic activity is strong.

4. Conclusions

As is well known to all, the response of the ionospheric F2-layer to geomagnetic activity is very complicated. For example, with some increased geomagnetic activities, an increase in the molecular nitrogen concentration and a simultaneous decrease in the atomic oxygen concentration will result in ionospheric disturbance of the negative phase. On the other hand, the ionospheric disturbance of the positive phase includes uplifting due to vertical drifts (caused by enhanced equatorward neutral winds or increases of electric fields from the magnetosphere), plasma fluxes from the plasmasphere, and neutral composition changes. These two opposite physical processes compete with each other at large scales, which could result in diverse consequences for the ionosphere. For the above reasons, in order to statically demonstrate the contribution of geomagnetic activity to the ionospheric foF2, special algorithms or methods are required. In this paper, the SWM is adapted to extract the effects of geomagnetic activity on the ionosphere. Compared to traditional methods, the SWM can more effectively weaken the contributions of solar activity and better extract the effects of geomagnetic activity.

Using the SWM, the global effect of geomagnetic activity on the ionospheric foF2 in different phases (maximum, minimum, declining phase, and ascending phase) of solar activity are studied. The results suggest that this contribution to the ionosphere is significant when geomagnetic activity is at its maximum level, which usually happens in the declining phase of the solar cycle. This may be because the geomagnetic activity maximum generally lags behind the solar activity maximum, which often appears during the declining phase of the solar activity cycle. Furthermore, the time scale of the lag is complex and dynamic. On the other hand, the contribution is very weak in the solar minimum period and during the ascending phase. This suggests a complex relationship between solar activity and geomagnetic activity, with effects on the ionosphere. The results also reveal the obvious seasonal dependence of the ionospheric response; the responses of the ionosphere to geomagnetic activity are larger around winter and smaller around summer.
