Analytical Models for Measuring the Mechanical Properties of Yeast

Research Laboratory of Biophysics, National University of Science and Technology MISiS, Moscow 119049, Russia
*
Authors to whom correspondence should be addressed.
Cells 2023, 12(15), 1946; https://doi.org/10.3390/cells12151946
Submission received: 5 June 2023 / Revised: 21 July 2023 / Accepted: 26 July 2023 / Published: 27 July 2023
(This article belongs to the Special Issue Advances in Scanning Probe Microscopy in Cell Biology)

Abstract

:
The mechanical properties of yeast play an important role in many biological processes, such as cell division and growth, maintenance of internal pressure, and biofilm formation. In addition, the mechanical properties of cells can indicate the degree of damage caused by antifungal drugs, as the mechanical parameters of healthy and damaged cells are different. Over the past decades, atomic force microscopy (AFM) and micromanipulation have become the most widely used methods for evaluating the mechanical characteristics of microorganisms. In this case, the reliability of such an estimate depends on the choice of mathematical model. This review presents various analytical models developed in recent years for studying the mechanical properties of both cells and their individual structures. The main provisions of the applied approaches are described along with their limitations and advantages. Attention is paid to the innovative method of low-invasive nanomechanical mapping with scanning ion-conductance microscopy (SICM), which is currently starting to be successfully used in the discovery of novel drugs acting on the yeast cell wall and plasma membrane.

1. Introduction

A significant contribution to the determination of cell functions lies in the study of their structures, which in turn are characterized by mechanical properties. The elastic properties of cells change depending on their state. Therefore, the evaluation of these properties can be applied in cellular studies to obtain information about the state of health of cells or their level of damage [1]. There are two widely used approaches to the study of the mechanical properties of cells: (a) the study of the mechanical properties of the cell by an integral method, in which the cell is considered as a whole, and (b) the study of the mechanical properties of the structural components of the cell, in which lipid bilayers, biomembrane, and cytosolic proteins are studied in detail [2]. Probe microscopy methods are capable of visualizing and measuring the mechanical properties of soft or brittle biological objects both as a whole and in parts.
The classic method for studying the mechanical properties of yeast is cell rupture and the determination of the force required for this by micromanipulation [3]. At the moment, the most advanced method for studying the biomechanical properties of such cells is single probe microscopy (SPM), which has a high spatial resolution, allows research in biological media, and does not lead to cell death [4]. Significant progress has been made recently in the use of the atomic force microscopy (AFM) [5] and scanning ion-conductance microscopy (SICM) [6,7,8,9] methods to assess the physical properties of microorganisms. The main advantages of these SPM methods include the ability to conduct studies in physiological solutions, a small non-destructive mechanical effect on the biological object, and absence of the need for chemical fixation of the object, which makes it possible to study living cells. In addition, the high scanning speed (5 µm/s) and resolution (40 nm/pixel) make it possible to study the dynamics of nanoscale structures. Even though the resolution of AFM is higher than that of SICM, for living cells, the lateral resolution of SICM and AFM is comparable and is on the order of 10–20 nm. At the same time, the AFM method can mechanically affect the sample for local mechanical measurements, cell activation, or nanoscale “surgery”, while the SICM method can visualize fragile objects without contact [10]. As we have demonstrated earlier [6], it is impossible to visualize and measure the stiffness of drug-induced structural neoplasms on the surface of yeast using AFM.
In addition to visualization and obtaining mechanical properties, it is possible to record the physicochemical properties of samples via the AFM method when modifying the equipment. For example, using AFM-based force spectroscopy (AFM-FS), which makes it possible to study the forces of biomolecular adhesion at the level of individual molecules [11], one can obtain information about the intramolecular interactions of proteins and DNA/RNA chains [12] as well as analyze the molecular interactions of two single biomolecules attached to the substrate surface and AFM tip [13]. There are data on the implementation of the wavelet cross-correlation (XWT) technique in atomic force spectroscopy with simultaneous excitation of high cantilever modes to reproduce complex force dynamics with probe–sample contact [14]. XWT analysis provides parameters such as displacement, speed, and acceleration of the tip simultaneously for each contact; based on these data, it is possible to study the energy dissipation [15], which in turn provides information about the composition of the surface. Another application is nanoscale infrared AFM (AFM-nanoIR). It is based on the photothermal expansion of the absorbing regions of the sample by focusing the IR beam on the same region of the sample as the tip of the AFM, which causes the cantilever to oscillate in proportion to the aforementioned IR absorption [16]. AFM-nanoIR correlates topographic images from local areas of samples with chemical mapping. This can be used to determine the location of protein receptors on carcinogenic cells [17] or the interaction of amyloidogenic proteins with lipid layers [18]. Another combination that is gaining popularity is scanning electrochemical microscopy (SECM) with AFM or SICM. In these approaches, the probes are modified with a voltammetric ultramicroelectrode, making it possible to obtain the surface topography and electrochemical parameters. The method can be applied to various biological samples (living cells, yeast, bacteria, and DNA) as well as to record both extracellular and intracellular voltammograms [19,20].
It is worth noting alternative methods for extracting the mechanical properties of biological samples. For example, the recently presented parallel rheology model combines conventional viscoelastic elements with fractional calculus to record the macroscopic relaxation response of epithelial monolayers [21]. Because the model parameters are material properties, they are mechanical factors of the state of a biological object that can be used for diagnostics or as a target for regenerative medicine. Unfortunately, a significant limiting factor for the wide application of this model is the mathematical complexity of its fractional derivatives and the current lack of convenient numerical methods for analysis.
Another method for studying the elasticity of biological soft substances involves optical tweezers (OT). This method is based on a focused laser beam capable of influencing optical forces on micro- and nanoobjects due to momentum conservation during the interaction of light with matter [22]. Among its advantages are the non-contact method, the ability to study objects in the environment passing through the target, and a wide range of object sizes (from atomic [23] to micron size [24]) and cell types (living cells, bacteria, viruses, yeast [25,26,27,28]). Optical tweezers allow parameters such as the persistence length, Young’s modulus, and shear viscosity of liquid to be obtained; however, for visualization this method needs to be combined with other relevant methods, for example, multicolor epiluminescent fluorescence microscopy [29].
Unlike mammalian cells, microorganisms are endowed with a mechanically strong cell wall which is responsible for various cellular functions [30]. In this regard, the determination of the mechanical properties of the cell wall and the factors affecting them is important in the study of yeast or bacteria [31]. However, to extract useful information about the properties of the cell wall, the obtained experimental data must be mathematically modeled. The choice of a mathematical model is a decisive factor in the analysis of the obtained experimental data, as the plausibility of the determined physical quantity depends on it. At the moment, for the methods of probe microscopy and micromanipulation there are many different analytical models applicable to microorganisms. In this regard, the purpose of this review is to present the currently available mathematical models for various methods of studying the mechanical properties of yeast. We caution that the reader should refer to the original publication for the use of the presented equations. The equations presented in this paper are needed to verify whether the experiments conducted by the researchers contain the input parameters of the functions.
In the future, this review may contribute to the selection of optimally suitable functions of the energy of deformation, compression, or tension to create a new technique for obtaining the elastic modulus using the SICM method. At the same time, the combination of models of individual components of an animal cell with yeast models can expand the application of the SICM technique in study of the mechanical properties of both healthy yeast and yeast subjected to biological action, which can lead to the formation of soft structures on the cell surface with a modulus of elasticity of about kPa.

2. Mathematical Models for Measuring Mechanical Properties by Micromanipulation

One of the common methods for characterizing the mechanical properties of cells is micromanipulation compression [32,33,34]. In such experiments, force–deformation data are obtained by compressing the entire cage between flat parallel plates and measuring the force acting on it. As a result, the data obtained can be mathematically modeled to provide information about the mechanical properties of the cell wall. The mathematical models considered in this chapter are shown in Table 1, and their schemes are provided in Figure 1.
A simple model used in the micromanipulation method and suitable for the structure of yeast cells is the hollow sphere model. There are works that consider the modeling of compression of hollow spheres based on spherical shells filled with gas or spherical shells filled with an incompressible liquid [36,39]. They assume that the wall of the sphere is thin enough to be considered as a thin elastic shell in which stresses are expressed as wall tension and the wall cannot withstand out-of-plane shear stresses or bending moments. Because non-zero stresses are in the plane of the cell wall (axes OY and OX), this position is described as a plane stress (the principal stress along the OZ axis is assumed to be zero). In this case, the volume of the liquid is assumed to be constant, which indicates the impermeability of the sphere wall. An alternative finite element analysis approach based on the sea urchin model [40] was described and applied in [41], and the finite element method was applied with the assumption of cell wall permeability in [42], specifically, a variable volume of liquid inside the sphere.
The analysis of force–deformation data in compression can be carried out using the equation relating the stresses and deformations of the cell wall. Assuming that the cell wall is hyperplastic, the stress components can be derived from the strain energy function. There are different variants of the strain energy function applicable to cell walls. Examples of such functions are briefly provided in the work of J.D. Stanson et al., where they were used to interpret data on cell compression [35]. For example, certain models assume that the wall is incompressible [39,43], while others consider the strain energy function, which includes the Poisson ratio (for yeast, the Poisson’s ratio is assumed to be 0.5) [40,42]. When the constitutive equation or strain energy function is adopted, fitting the experimental data should allow the characterization of the properties of the cell wall material. However, to obtain an unambiguous value of the modulus of elasticity it is necessary to accurately measure such geometric parameters as the initial degree of stretching, the thickness of the cell wall, and the loss of fluid volume [42]. After this, the final equation must be evaluated using various types of mechanical tests.
For example, in the work of J.D. Stanson et al. an analytical model was developed and experimentally confirmed to describe the compression of a single yeast cell between parallel flat surfaces [35]. Based on the strain energy function of the sea urchin egg model (Figure 1A), the strain energy function of the cell wall is expressed as follows [40]:
W = E h 0 2 1 v 2 ( ε 1 2 + ε 2 2 + 2 v ε 1 ε 2 )
where W is the strain energy per unit of initial volume, ε is the infinitesimal strain, (with ε1 being the index meridional direction and ε2 the longitudinal direction), E is the modulus of elasticity, h0 is the initial wall thickness, and v is Poisson’s ratio.
Based on the assumption that this is the infinitesimal strain limit of the general large strain equivalent, which is assumed to be applicable to all deformations, the authors of the above work extended Equation (1) to large deformations, replacing infinitesimal strain directly with the Green strain (Ei)
W = E 2 1 v 2 ( E 1 2 + E 2 2 + 2 v E 1 E 2 )
and Hencky strain (Hi)
W = E 2 1 v 2 ( H 1 2 + H 2 2 + 2 v H 1 H 2 )
In another publication, Feng and Yang described the compression of a spherical membrane filled with liquid (Equations (4)–(7), Figure 1B) [36]. The cell wall in this model is divided into areas in contact with and not in contact with the compressive regions. There are separate groups of defining equations for the contact and non-contact regions:
d λ 1 d ψ = λ 1 λ 2 s i n ψ f 3 f 1 λ 1 λ 2 c o s ψ s i n ψ f 2 f 1 ;
d λ 2 d ψ = λ 1 λ 2 c o s ψ s i n ψ ;
d λ 1 d ψ = δ c o s ψ ω s i n ψ s i n 2 ψ f 2 f 1 ω δ ( f 3 f 1 ) ;
d λ 2 d ψ = ω s i n ψ δ c o s ψ s i n 2 ψ ;
where  ψ  is the angular position of the point measured from the vertical axis of symmetry, fi represents the functions of the principal tensions, and δ = λ2sinψ; and ω = /.
Cell compression consists of axisymmetric deformation; thus, λ1 and λ2 are principal stretches in the meridian and circumferential directions. The last modeling step is to use the strain energy functions from Equations (1)–(3) in Equations (4)–(7) to obtain the stresses.
Another approach was proposed in [44] as a simplification of an earlier model [34] which adopted the method of infinitesimal deformations. In this model, a cell is considered a fluid-filled sphere with thin, compressible, and linear elastic walls. Any change in the initial uninflated cell wall thickness h0 and the final cell wall thickness h is considered negligible. The principal Cauchy stresses in the wall are expressed as follows:
T 1 = E h 0 1 v 2 { λ 1 1 + v ( λ 2 1 ) }
T 2 = E h 0 1 v 2 { λ 2 1 + v ( λ 1 1 ) }
where λ1 and λ2 are the principal stretch ratios, equal to the ratio of the length of the membrane section before and after deformation; indices 1 and 2 correspond to the meridional and circumferential directions, respectively; T1 and T2 are the tensions in the wall corresponding to λ1 and λ2, respectively; E is the Young’s modulus of the cell wall; v is Poisson’s ratio; and h0 is the initial thickness of the cell wall.
In their model [35], Stanson et al. introduced the functions of infinitesimal strain (Equations (10)–(12)) based on the method of infinitesimal deformations [44]. Through the generated strain energy functions in terms of the second Piola–Kirchhoff stress and using the definition of the Green strain, the authors determined the main stresses in the case of finite strain in Equations (13)–(15) [45]. Using the definition of Hencky strain, the main stresses are expressed in Equations (16)–(18).
Infinitesimal strain:
f 1 = E h 0 1 v 2
f 2 = v E h 0 1 v 2
f 3 = E h 0 ( λ 1 λ 2 ) 1 + v
Finite (Green) strain:
f 1 = E h 0 2 1 v 2 { 3 λ 1 2 + v λ 2 2 ( 1 + v ) }
f 2 = E h 0 2 1 v 2 λ 1 λ 2 2 v λ 2 2 + λ 1 2 + 1 + v
f 3 = E h 0 2 1 v 2 { λ 1 λ 2 [ λ 1 2 1 + v λ 2 λ 1 [ λ 2 2 ( 1 + v ) }
Hencky strain:
f 1 = 2 E h 0 3 λ 1 2 λ 2 { 2 ln λ 1 2 λ 2 }
f 2 = 2 E h 0 3 λ 1 λ 2 2 { 1 ln λ 1 2 λ 2 }
f 3 = 2 E h 0 3 λ 1 λ 2 l n { λ 1 λ 2 }
By fitting the force–strain curves obtained through numerical simulation to experimental data, Stenson et al. determined the elastic modulus and the initial stretching coefficient [35]. The experimental data obtained by the authors are consistent with their mechanical model of the cell wall; however, the desired characteristics depend on the Poisson’s ratio and the thickness of the cell wall. In their subsequent work, Stenson et al. conducted an experiment on compression using micromanipulation at already high strain rates [31]. The data of the force–strain curves for yeast cells confirmed the operability of the previously used mechanical model of the cell and the possibility of neglecting the permeability of the cell wall at high strain rates, which made it possible to find the initial coefficient of cell expansion with the appropriate modulus of elasticity. In addition, the value of the elastic modulus agrees with the AFM data [46]. In this case, fixing the initial stretching coefficient leads to an inaccurate estimate of the elastic modulus.
Cellular expansive growth, typical of fungal cells, has mechanical aspects that are important in creating theoretical, mechanical, and biophysical models. Based on the work of A. Geitmann et al. [47] on the mechanics and modeling of cell wall growth and V. Fliert [48] on the expansion of thin viscous shells, Banavar et al. derived equations that determine the dynamics of the growing cell wall. The local normal cell wall force balance is [37]:
σ s s k s + σ φ φ k φ = P ; σ s s k s = P / 2 ,
where s is the parametrized arc length from the projection vertex, φ is the azimuth angle, ks and kφ are differential equations with respect to s and φ, P is the internal turgor pressure of the cell, and σss(s,t) and σφφ(s,t) are stresses along s and φ in the cell wall.
The response of a cell wall to stresses applied to it depends on its mechanical properties. It should be considered that the yeast cell wall is elastic for short periods of time [49] but expands irreversibly during division [50], with a characteristic liquid-like behavior of the cell wall in the growth areas. Therefore, Banavar et al. [37] suggested that the growing cell wall behaves as an inhomogeneous viscous liquid with a spatially changing viscosity µ(s) that increases with distance from the growth apex (Figure 1C). The local tangential velocity u(s,t) of a cell wall with a constant density is equivalent to its deformation rate s = δu/δs as well as to φ = (1/r)(dr/dt), where r is the local radius of the cell wall, and is related to stresses in the cell wall by Equations (20) and (21) [48]:
σ s s = 4 μ h s + φ 2 ;
σ φ φ = 4 μ h s 2 + φ ,
where h is the cell wall thickness.
As a result, we can summarize the main points that should be considered when developing an analytical model. First, the uniqueness of the obtained modulus of elasticity depends on the accuracy of measuring the parameters of the cell wall thickness, the initial degree of stretching, and the loss of fluid volume. Second, at high strain rates it is possible to neglect the permeability of the cell wall and use the impermeable sphere model. Third, not all parts of the cell are always elastic, meaning that during cell growth the behavior of the cell wall has a fluid-like character.

3. Mathematical Models for Measuring Mechanical Properties by the AFM Method

Atomic force microscopy is a well-established method that allows the study of various parameters of biological objects, including the mechanical properties of cells. The basic principle of AFM operation is based on recording the force interaction between a probe and the sample surface [51]. The probe is a tip mounted on a flexible cantilever that is illuminated by a laser beam. When the tip is mechanically deflected from the sample, the laser beam deflection is fixed by a photodiode, the magnitude of which depends on the forces of interaction between the tip and the sample (Figure 2). During the existence of this method many analytical models have been developed, the most relevant of which are presented in this section (Table 2). Model schemes are shown in Figure 3.
The Hertz model is used in most works devoted to evaluating the Young’s modulus of cells by AFM; this model describes a simple case of elastic deformation of two ideally homogeneous smooth bodies in contact under load (Figure 3A) [52]. The following assumptions are used in the model: (a) the shape of the indenter is parabolic, and (b) the sample thickness is much greater than the indentation depth.

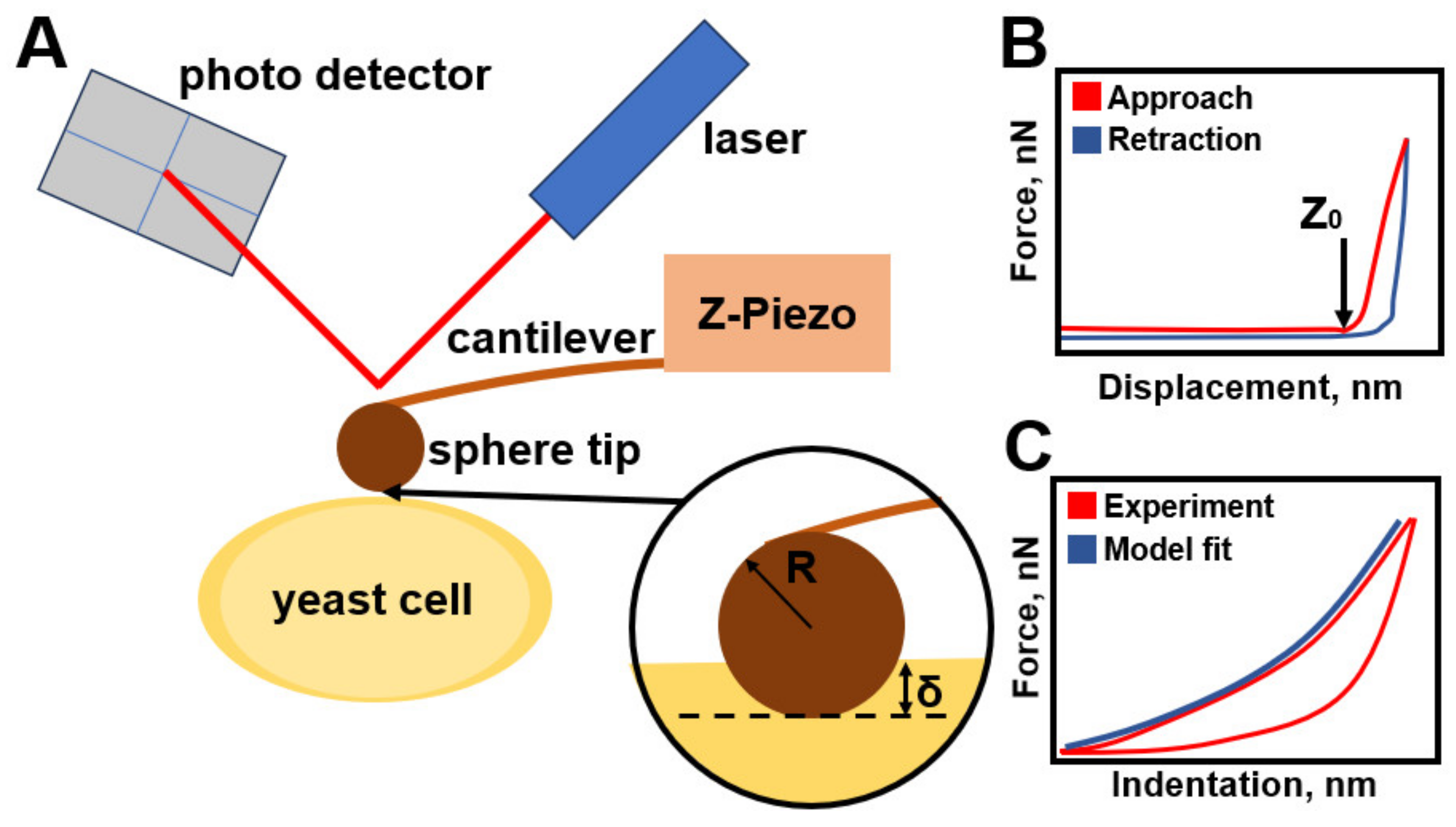

The force exerted by a cantilever with a probe of radius R on the cell is determined by the equation
F h = 4 R 3 E h 3 2
where h is the indentation depth and E* is the effective modulus of the probe–sample system, which is calculated by the equation:
1 E = 1 v t i p 2 E t i p E h 3 2
where Etip, vtip, Esample, and vsample are the Young’s moduli and Poisson’s ratios for the tip and sample materials, respectively. In the case where the tip material is much harder than the sample material, the following equation is used [64]:
E   E s a m p l e 1 v s a m p l e 2
The Hertz theory does not allow the probe to stick to the sample; for this case, Kendall and Roberts modified the model [65]; to characterize the elastic properties of cells, Mahaffy et al. used the dynamic Young’s modulus [66]. However, the cell surface is heterogeneous, and there is an error in the evaluation of the cell’s Young’s modulus by the Hertz model. In 1975, Derjaguin et al. presented the Deryagin–Muller–Toporov (DMT) model, which includes cohesive forces outside the contact surface (Figure 3B) [53]. In their theory, the profile of the deformed surface corresponds to the Hertz model. The DMT model is applicable in the presence of long-range surface forces outside the region of contact between the probe and the sample, and is valid when there is weak adhesion between the nanoindenter and the outer surface of the sample. Ricardo et al. used the DMT model to determine the AFM Young’s modulus of yeast cells as well as the change in cell wall stiffness under chemical stress caused by acetic acid [67,68]. It should be noted that in the DMT model, due to geometric limitations the real contact area and the depth of the dent are considered negligible. In this connection, the use of the model is a priority for objects with low cohesion and a small radius of curvature.
Another model for studying the elastic properties of cells by AFM is a model based on the theory of elastic shells [55,56], in which cells are represented as shells filled with liquid. In this model, the effective Young’s modulus is estimated from the ratio between the effective Young’s modulus, the shell thickness, and the bending modulus. The main problem with this approach is the determination of the boundary conditions and the contact radius of the probe with the sample. In addition, when evaluating the mechanical characteristics by the AFM method, the finite element model can be used [69].
Another way to model the mechanical characteristics of yeast is to represent the cell as a cylindrical shell. To test the finite element model, Zhao et al. [46] compared simulation results with theoretical results in cases where the shell is inflated [56] and indented (Figure 3C) [70]. In the case when the edges of the shell are free from restrictions, the internal pressure p creates only a hoop stress, and the radius of the cylinder increases by [56]
δ = p R 2 E h ,
where δ is the radial displacement, R is the cell radius, h is the wall thickness, and E is the modulus of elasticity.
In the case where the cylinder is subjected to equal and opposite radial loads, the equation for radial indentation is [70]
δ ( x , ϴ ) = F E h f ( R h , x , θ ) ,
where f is a complex function of R/h and the coordinate parameters x and θ.
Assuming that the cell wall is incompressible, L. Zhao et al. [46] modeled the mechanical model using the finite element model. At the end of each simulation, the maximum radial displacement is obtained with predetermined values of the elastic modulus E, the force F applied to the cage, the cage radius R, and the wall thickness h. The authors found that F and δ are linearly dependent on each other, while the cell wall elasticity constant kw depends on the mechanical properties and dimensions of the cell wall but does not depend on the internal pressure of the cell. By transforming the correlation, they calculated the elastic modulus of the cell wall:
E = 0.8 k w h ( R h ) 1.5
The main problem in studying the mechanical properties of the yeast cell wall is the frequent discrepancy between the elastic modulus obtained by AFM and micromanipulation methods. Thus, according to the data obtained by the AFM method, the Young’s modulus is about 0.2–1.6 MPa [71,72,73], while in studies using the micromanipulation method the value is about 100–200 MPa [31,74]. The reason for this discrepancy is the use of the classical Hertz–Sneddon analysis in AFM measurements, where it is assumed that the entire cell is a single continuous material [75]. The cell membrane is considered unstressed, and the force resisting deformation is negligible compared to the force of reaction from the cytoskeleton [76]. Therefore, AFM experiments analyzed using the Hertz–Sneddon equations provide information about the mechanical properties of the cytoskeleton, not the cell membrane. Because the cell wall is much stiffer than the cytoskeleton, the Young’s modulus of the cell wall obtained using the Hertz–Sneddon analysis has no physical meaning.
Vella et al. [54] considered the internal pressure in yeast cells and, using the elastic shell model (Figure 1D), calculated the Young’s modulus from the published AFM data of yeast cells [77], obtaining corrected values of 12–46 MPa, which is an order of magnitude higher than the values obtained using the Hertz model. However, their work is based on the theory of shells, in which the thickness of the shell h is much smaller compared to the radius of the cell sphere. Mercade’-Prieto et al. considered the case where the thickness of the yeast cell wall is large [38] and its analysis using the shell theory is impossible. They considered the indentation of spheres using finite element method (FEM) modeling, which considers Green strains and Hencky strains.
Using FEM during compression of a spherical shell (h/r = 0.05) with a sharp indenter (rind/r = 0.01) in the case of a single-layer cell wall, Mercade’-Prieto et al. confirmed [38] that the Reissner equation (Equation (28)) is applicable only to thin shells (h/r < 0.02); in the case of thicker shells, in which the probe is pressed into the shell, the Hertz–Sneddon equations are valid [78]. The values of the point loading F and wall stiffness Eh (where h is the wall thickness) in this case are calculated according to Equations (28) and (29):
F = 4 E h 2 3 ( 1 v 2 ) d r ;
E h = 2 k w d f ( h / r ) ,
where f(h/r) is a function depending on the deformation model and kwd is the cell wall elasticity constant.
In studies by Mercade’-Prieto et al., the corrected value of the Young’s modulus is 10 MPa [38], which is higher than when using the Hertz–Sneddon analysis but lower than when using micromanipulation compression [31].

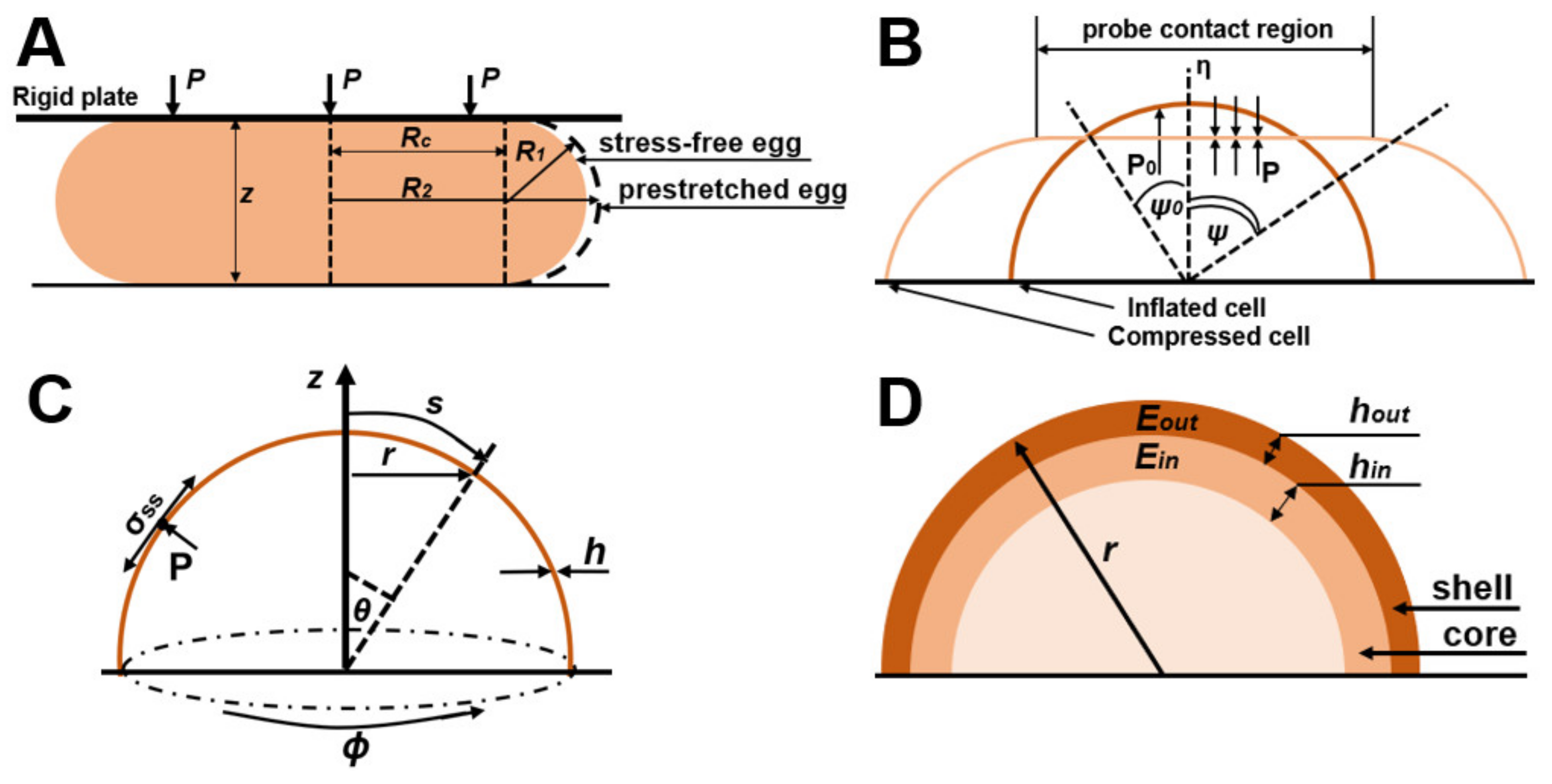

The authors then considered a double-layer model (Figure 1D) in which it is assumed that the outer layer (shell) of the cell wall has a thickness hout with a Young’s modulus Eout and is attached to an inner layer (core) of the cell wall which has a thickness hin with a Young’s modulus Ein. For the micromanipulation method, in the case of compression of a two-layer core-shell sphere to large deformations, the Young’s modulus is calculated by Equation (30). The results of the FEM are consistent with the micromanipulation data, and the Young’s modulus Ein is about 0.4–0.8 GPa.
E t o t a l = ( E h ) i n + ( E h ) o u t
When using the AFM method and a sharp indenter, the behavior of a two-layer cell wall at small deformations depends on the thicknesses of the two layers and the relative values of their elastic moduli Ein/Eout. When Ein/Eout = 1, the system behaves as a single-layer wall; when Ein/Eout = ∞, however, the system is analogous to the cell wall being pressed against a very rigid substrate [79]. In this regard, it is incorrect to use the Hertz–Sneddon analysis when Ein/Eout is low, while its use is optimal when Ein/Eout is high. FEM results obtained by Mercade’-Prieto et al. using the double layer model were determined using the pseudo-Hertz Equation (31) with pseudo-Hertz Young’s modulus (EpH) and Hencky strain ε = 0.004, in which the vertex displacement (d) is equal to the indentation depth (dind) [38].
F p a r a b o l o i d   = 4 r i n d 0.5 ( 2 r ) 1.5 3 ( 1 v 2 ) E p H ε 1.5
Equation (31) describes the force profile only for small deformations (d < 0.2hout). At a higher value of Ein/Eout, the inner layer behaves as a rigid substrate, in which case ddind and EpH~Eout. It is worth considering that when a rigid inner layer is present the outer layer is highly deformed even with low indentation. Thus, the model of a two-layer cell wall suggests the possibility of estimating the elasticity modulus by the AFM method (with a sharp probe) of only the outer layer and using the micromanipulation method to estimate the total stiffness of the wall. It should be noted that the determination of the Young’s modulus is affected by the contribution of the inner layer and by the rigidity of the substrate.
From models of contact mechanics based on the theories of Hertz, Boussinesq, and Sneddon [80,81,82], analytical expressions can be derived that relate the Young’s modulus, indentation, and force [81,82,83]. The main assumption in these models is the consideration of the sample as a layer of infinite thickness. In models of semi-infinite contact mechanics the rigidity of the substrate is not considered, which can lead to errors in determining the Young’s modulus of the cell. This is due to the reflection of the voltage applied by the probe back to the cell surface. This effect has been described as an artifact of the bottom effect [84].
P. Garcia and R. Garcia presented a method for determining the elasticity modulus of mammalian cells attached to a solid substrate (Figure 3E) [57]. The authors used a non-Hertz model to express the change in the area of contact with the imprint. In the presented theory, the force is defined as a function of the imprint and the contact radius as the sum of terms expressed in reciprocal powers of the sample thickness. In the case of a paraboloid probe with a shape calculated according to Equation (32), the force is expressed by Equation (33), while the expression is applicable only when the indentation is less than or equal to the radius of the tip:
f r = r 2 2 R
F s p e r e = F 0 1 h 0 + 1.133 δ R h + 1.497 δ R h 2 + 1.469 δ R δ R h 3 + 0.755 ( δ 2 R 2 ) h 4 , F 0 = 16 9 E c e l l R δ 3 2
where radial coordinate r = ((x2) + (y2))1/2, R is the radius of the probe, h is the height of the sample, δ is the indentation, F0 is the applied force, and Ecell is the Young’s modulus of the cell.
By performing finite element simulations, the authors confirmed that the Young’s modulus of cells measured by AFM depends on the solid substrate and that the artifact of the bottom effect is determined by the ratio between the contact radius and the thickness of the cell. The bottom effect theory of elasticity describes the above features, allowing the determination of the true elastic modulus of the cell without the influence of a solid substrate. However, there are cases in which the inaccuracy in determining cell rigidity is not caused by the bottom effect but by the presence of the cortical layer of the cell, which is much more rigid than the underlying internal cytoskeleton.
R. Vargas-Pinto et al. used the example of endothelial cells of the human umbilical vein to determine the reason for the discrepancy between the data on cell elasticity obtained for sharp and spherical probe tips (Figure 3F) [58]. Using FEM, the authors modeled the tip of the probe as a solid body [85], then the geometry of the sharp tip was simplified from a pyramid to a cone. The cell cytoskeleton was modeled as a cylindrical disk with a given radius and thickness and with a cortical layer surrounding the cell of a given thickness. The authors calculated the values for a spherical tip using Equation (22), while in the case of a sharp tip they used the previously described models of Rico et al. [59] and Briscoe et al. [60] for pyramidal and conical indenters, respectively, where it is taken into account that the sharp pointed tips are not an ideal cone but have a spherical cap at the top, meaning that the model behaves as a spherical tip at small indentations (δ < b2/R) and as a conical tip for large deformations:
F = 2 E 1 v 2 a δ m a 2 tan θ π 2 s i n 1 b a a 3 3 R + ( a 2 b 2 ) 1 2 m b t a n θ + a 2 b 2 3 R , δ a R a ( a 2 b 2 ) 1 2 n a t a n θ π 2 s i n 1 b a = 0 ,
where b = Rcosθ; a is the contact radius; R is the radius of the spherical tip; m = 21/2/π and n = 23/2/π for the top of the pyramid; and m = 1/2 and n = 1 for the cone.
Based on experimental data and simulations, R. Vargas-Pinto et al. concluded that the cortical layer is examined with sharp probes, while the rigidity of the cortical layer and cytoskeleton is recorded with spherical probes [58]. Work hardening or the influence of a solid substrate is unlikely due to the increase in the Young’s modulus with increasing indentation value; therefore, the presence of the cortical layer directly affects the discrepancy between the results obtained with a spherical or sharp probe. However, in the presented model, the elastic component and the active stress component are combined into an effective elastic response for ease of calculation. Accounting for these components would make it possible to characterize the mechanical characteristics of individual cell structures in more detail.
The main limitation of the use of the Hertz model in the study of biological objects is the impossibility of studying the viscoelastic properties, as in this model the curves of the approach and withdrawal forces coincide (i.e., there is no hysteresis). As the viscoelasticity of the sample is the main source of hysteresis in liquid media, the hysteresis area of the force curve is used to evaluate the viscoelastic properties of cells.
Ting’s viscoelastic solution reflects the approach–retraction hysteresis well, although it requires an appropriate choice of the viscoelastic function. In a recent work, Y. Efremov et al. presented a method based on the principle of elastic viscoelasticity (Figure 3G) and confirmed its applicability using FEM and experiments on living cells and hydrogels with known mechanical characteristics [61]. Equations (35) and (36) describe Ting’s solution for indentation of a viscoelastic sample with a rigid spherical probe tip:
F t , δ t = 4 R 3 ( 1 v 2 ) 0 t E t ξ δ 3 2 ξ d ξ ,             0 t t m 4 R 3 ( 1 v 2 ) 0 t 1 ( t ) E t ξ δ 3 2 ξ d ξ ,             t m t t i n d     ,
t 1 ( t ) t E t ξ δ ξ d ξ = 0 ,
where F is the force acting on the tip of the cantilever; δ is the indentation depth; t is the time initiated at the moment of initial contact (with tm being the duration of the rendezvous phase and tind the duration of the full indentation cycle); t1 is an auxiliary function defined by Equation (36); ξ is a dummy time variable required for integration; E(t) is Young’s modulus of relaxation; v is Poisson’s ratio; and R is the radius of the indenter.
Y. Efremov et al. described the function of the relaxation modulus by rheological models (standard linear solid-state rheology and power-law rheology) as presented in Equations (37) and (38) (Figure 3G), respectively [61]. The standard linear rigid body model is a combination of a spring and damper, with the spring parallel to the Maxwell element. With the successive addition of a Maxwell element different from the existing one (spring to shock absorber or shock absorber to spring), a power-law rheology model is obtained in which there are several relaxation times:
E t = E + ( E 0 E ) e t τ ,
E t = E 0 ( 1 + t t ) α ,
where E0 is the instantaneous modulus, E is the long-term modulus, and τ is the relaxation time.
Another example of using a viscoelastic model with continuous relaxation spectra is presented by P. Cai et al. [62], where a stretched Kohlrausch–Williams–Watts exponential function was used for stepwise data analysis [86]:
E t = E + ( E E ) e ( t τ r ) β
where β is the exponent used to represent relaxation time dispersion processes in the system and τr is the characteristic relaxation time.
In an earlier study by Y. Efremov et al., the Johnson–Kendall–Roberts model was applied to retraction curves to account for adhesion [63]. In the Johnson–Kendall–Roberts model (Figure 3H), the indentation depth δ, contact radius a, and maximum adhesive force Fad are represented by the following equations:
δ = a 2 R 3 4 a F a d R K ;
a = R K ( F a d + F + F a d ) 2 ;
F a d = 3 2 π γ R ,
where K = (4/3)E(1 − ν2) is the sample elasticity constant, F is the normal loading force, and γ is Dupre’s work of adhesion [65].
The Johnson–Kendall–Roberts model fits the retraction part well, with force–distance curves obtained at medium indentation speeds and low retention times to obtain data on the maximum adhesive force, Young’s modulus, and zero indentation point.
Summing up this section, we note the following conditions for choosing an analytical model. The Hertz model, which is the most widely used, does not provide for sticking of the probe to the sample; because of this, when choosing this model it is possible to obtain only the elastic properties of the object of study. In the theory of elastic shells, the main problem is the definition of boundary conditions. Moreover, due to the large thickness of the cell wall, its analysis using shell theory is not possible. While the core–shell model is well suited for studying the cell wall, it should be considered that the AFM method can only evaluate the outer layer of the cell, and this model does not consider the bottom effect. It is worth considering the discrepancy between the results obtained on spherical and sharp probes as well.
Despite significant progress in the understanding of cell mechanics, several provisions have not yet been studied. Combining AFM with other methods, such as scanning ion-conductance microscopy [87], could allow for obtaining data on mechanical properties that can effectively complement each other.

4. Mathematical Models for Measuring Mechanical Properties by the SICM Method

Recently, the use of the SICM method in the study of microbial cells, including yeast, has been developing [6,7,8,9]. The reason for this is the possibility of studying biological samples in their biological environment, as well as its low invasiveness. Scanning is non-contact and can provide the true topography of soft samples at a resolution comparable to AFM. Other advantages of the SICM method compared to AFM are the absence of lateral forces from the probe impacting on the sample and the reduction of the “height artifact” (10% underestimation of the height of a soft object by the SICM method versus 70% by the AFM method). The tilt angle of the nanocapillary used in the SICM method is smaller, which makes it possible to visualize details with almost vertical surface slopes. Due to its insensitivity to viscous drag forces, the imaging speed of SICM is higher than that of AFM [10]. The analytical models presented in this section are presented in Table 3.

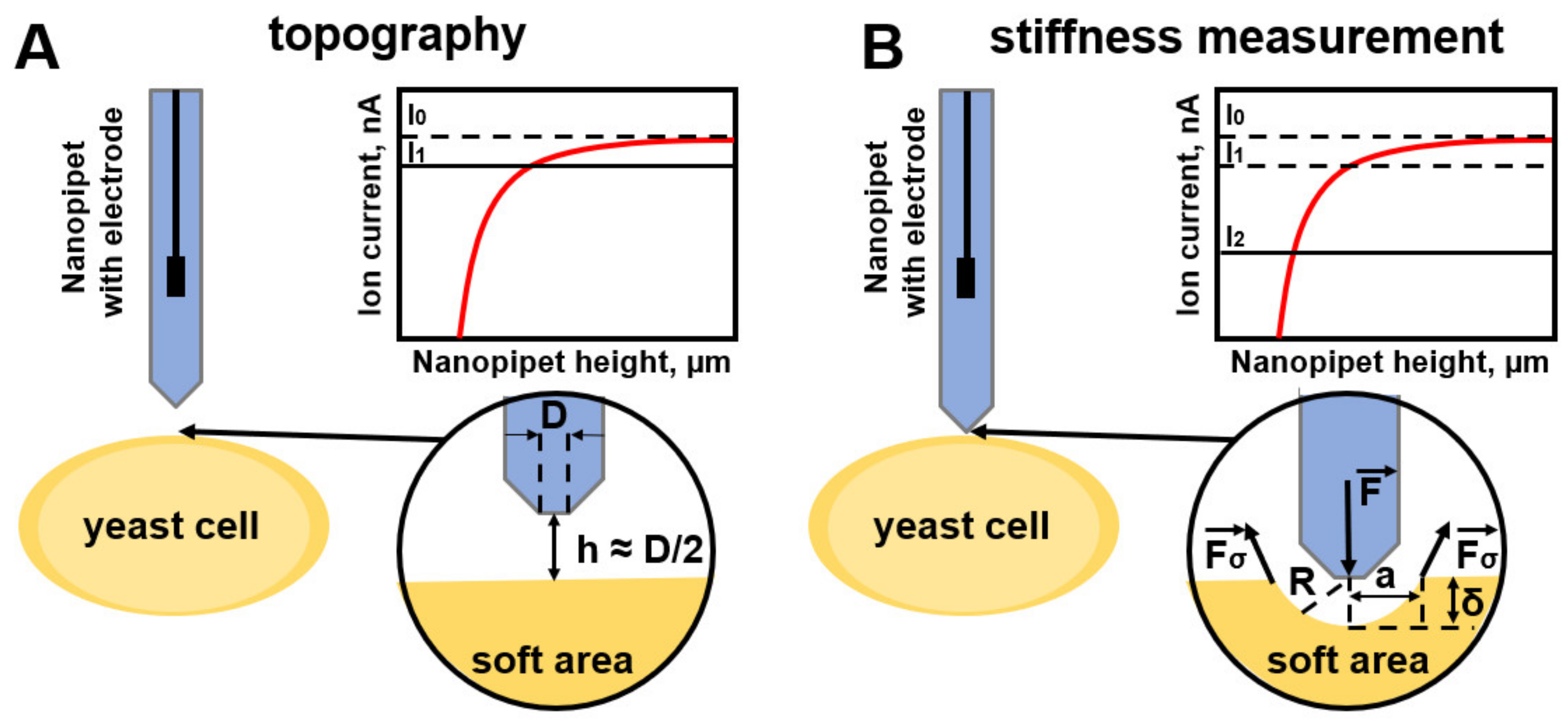

The innovative SICM method uses a nanopipette as a scanning probe. The scanning system feeds back a constant ion current flowing through the nanopipette to approach the cell surface while maintaining a constant tip-to-surface distance approximately equal to the inner radius of the nanopipette. Based on the obtained capillary heights, a three-dimensional topographic image of the cell membrane is created near the sample [91] (Figure 4A). To obtain the mechanical properties of the cell, Rheinlaender, J. and Schäffer applied hydrostatic pressure through a nanopipette [89].
To convert the tangent of the curve (IZ-curves) of the fall of the ion current from the vertical position of the probes into the local stiffness of the sample in terms of Young’s modulus, the authors created a model based on finite element calculations. By simulating the fluid flow caused by a pressure p0 applied to the upper end of the pipette and calculating the resulting deformation of an elastic sample as a function of z, the authors obtained IZ curves and their s between 98% and 99% of the current for various E/p0 ratios. The empirically subject relationship between s and the Young’s modulus of the sample is described by the following equation:
E s = p 0 A ( S S 1 ) 1 ,
where S is the s for an infinitely rigid sample and A is a constant depending on the geometry of the pipette.
Previously, D. Sanchez et al. simulated hydrodynamics inside and outside the nanopipette tip [88]. Based on the Hagen–Poiseuille law, an equation was derived that relates the flow of ion current I0 through a nanopipette with the pressure drop ΔP of the liquid in the capillary and the environment:
I 0 = 3 π t a n θ 8 η r i 3 P ,
where ΔP is the hydrostatic pressure drop between the nanopipette tip and the environment, ri is the radius of the inner hole of the nanopipette tip, θ is the semi-cone angle of the inner wall of the nanopipette tip, and h is the viscosity of the liquid.
D. Sanchez et al. used FEM to simulate the fluid flow in the nanopipette and the force at the tip boundary acting on a flat non-deformable sample [88]. They derived Equation (45) for the total normal force exerted on a flat surface of a non-deformable sample.
F = 2 π 0 P ( r ) r d r
At small distances between the nanopipette tip and the sample surface, the total impact force of the probe is greater, and depends on the distance from the tip to the surface (z) and the speed of approach of the probe (v). Thus, the tangential shear stress, presented in Equation (46), is determined by the viscosity h multiplied by the derivative with respect to the velocity component dvr/dz tangential to the surface; it is maximum at r = ri and is equal to 12 nN/mm2 [88].
F A = η d v r d z
Measurement of the mechanical properties of the cell membrane via the SICM method is possible by applying hydrostatic pressure as well as by indentation via internal colloidal pressure between the cell surface and the surface of the nanopipette tip [92]. R. Clarke et al. presented a new approach to the study of the Young’s modulus of mammalian cells [90]. The self-voltage in terms of the ion current drop ΔI as the probe approaches the sample is presented in Equation (47):
σ = H / 6 π ( r x l n ( I 0 / Δ I ) ) 3 ,
where H is Hamaker’s constant, r is the nanopipette radius, x is an empirically determined constant equal to 3.6 ± 0.2, I0 is the ion current far from the sample surface, and ΔI is the drop in the ion current when approaching the sample.
Thus, for cells without a glycocalyx, the Young’s modulus is
E = σ ( 1 h h 0 ) ,
where σ is the stress from Equation (47), h0 is the cell height, and h is the height of the indented cell area.
For cells with a glycocalyx, the total Young’s modulus is
E = ( h c + h s ) / ( h c E c + ( h c E c ) ) ,
where hc is the height of the cell cortex, hs is the height of the soft area of the cell cytoskeleton, Ec is the Young’s modulus of the cell cortex, and Es is the Young’s modulus of the cell cytoskeleton.
The most relevant technique for measuring the Young’s modulus via the SICM method has been presented by Kolmogorov et al. [93] based on the deformation of a double electric layer of decan–saline solution from a nanopipette [90]. The surface deformation is calculated from the dependence of the ion current on the distance to the sample surface and the dependence of the ion current on the distance to the undeformed surface (Figure 4B). The internal force is calculated from the force balance equation:
F = 2 F σ ,
where Fσ is the surface tension force of the decan–salt layer.
In the described work, it is assumed that the deformed region has the shape of a sphere with a contact radius a; according to the Hertz model, this parameter is expressed by Equation (51). The surface tension force is calculated using the Laplace Equation (52), in which R is the inner radius of the nanopipette, a is the distance between the point of maximum indentation depth (d) and the point of zero indentation of the surface, and σ is the surface tension parameter. From the combination of Equations (50)–(52), the internal force is calculated according to Equation (53).
a = R d ,
F σ = 2 π a σ ,
F = 4 π σ R d .
Summing up, the considered methods demonstrate the possibility of mapping the mechanical properties of mammalian cells with high resolution. In the case of AFM, it is possible to study the viscoelastic properties of biological objects; however, when studying soft cells this method is subject to scanning artifacts associated with large impact forces on the sample [8]. The SICM method in the no-pressure mode is free from this disadvantage, and the displacement from the tip surface to the cell surface is minimized. Unfortunately, at the moment there is no SICM method for obtaining viscoelastic properties. In this connection, the combination of these two methods has the potential to expand the study of numerous processes in the field of biophysics.

5. Conclusions

The correct choice of an analytical model for measuring the mechanical properties of cells plays a key role in obtaining relevant parameters. Despite the large amount of experimental data obtained, the choice of an appropriate mechanical model for a particular biological sample remains a matter of debate. The main reason for this is the complexity of the cell structure as well as the impact of third-party factors or instrumental impacts on the sample. The studies presented in this review can provide an approximate idea of the currently available models used to study the elastic and viscoelastic properties of cells. The currently available SICM method for determining cell stiffness does not accurately reflect the properties of the yeast cell wall. Familiarization with the generalized models presented in this work can allow the choice of the most appropriate cell model in the SICM method, which can contribute to progress in obtaining the elastic modulus of yeasts and of various structures on their surface. Moreover, the combination of SICM with AFM can become an advanced tool in the development and testing of mechanical models of cells, which can later be used in the development of antifungal drugs or the evaluation of antimicrobial therapies. In the near future, we plan to modernize the SICM method based on the presented models in order to obtain the viscoelastic properties of biological objects, including yeast cells.

Author Contributions

All authors have contributed to the conceptualization (by A.E.), writing (by N.S.) and approved the final version of this manuscript (by P.G.). All authors have read and agreed to the published version of the manuscript.

Funding

This work was carried out within the framework of the Implementation Program Priority 2030 Biomedical materials and bioengineering (NUST MISIS).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Guo, Q.; Xia, Y.; Sandig, M.; Yang, J. Characterization of Cell Elasticity Correlated with Cell Morphology by Atomic Force Microscope. J. Biomech. 2012, 45, 304–309. [Google Scholar] [CrossRef]
  2. Hansma, H.G. Surface Biology of DNA by Atomic Force Microscopy. Annu. Rev. Phys. Chem. 2001, 52, 71–92. [Google Scholar] [CrossRef]
  3. Mashmoushy, H.; Zhang, Z.; Thomas, C.R. Micromanipulation Measurement of the Mechanical Properties of Baker’s Yeast Cells. Biotechnol. Tech. 1998, 12, 925–929. [Google Scholar] [CrossRef]
  4. Savin, N.A.; Kolmogorov, V.S.; Timoshenko, R.V.; Klyachko, N.L.; Parkhomenko, Y.N.; Salikhov, S.V.; Majouga, A.G.; Erofeev, A.S.; Gorelkin, P.V. Application of Nanotechnologies in Studying Yeast Structure in Candida. Nanobiotechnol. Rep. 2021, 16, 450–472. [Google Scholar] [CrossRef]
  5. Gaboriaud, F.; Dufrêne, Y.F. Atomic Force Microscopy of Microbial Cells: Application to Nanomechanical Properties, Surface Forces and Molecular Recognition Forces. Colloids Surf. B Biointerfaces 2007, 54, 10–19. [Google Scholar] [CrossRef]
  6. Savin, N.; Kolmogorov, V.; Timoshenko, R.; Vaneev, A.; Iakovlev, A.; Suchalko, O.; Grammatikova, N.; Levshin, I.; Klyachko, N.; Parkhomenko, Y.; et al. Application of the Scanning Ion-Conductance Microscopy (SICM) in Study of Voriconazole Impact on Candida Parapsilosis Surface Structure. M&M 2021, 27, 494–495. [Google Scholar] [CrossRef]
  7. Levshin, I.B.; Simonov, A.Y.; Lavrenov, S.N.; Panov, A.A.; Grammatikova, N.E.; Alexandrov, A.A.; Ghazy, E.S.M.O.; Savin, N.A.; Gorelkin, P.V.; Erofeev, A.S.; et al. Antifungal Thiazolidines: Synthesis and Biological Evaluation of Mycosidine Congeners. Pharmaceuticals 2022, 15, 563. [Google Scholar] [CrossRef]
  8. Savin, N.; Erofeev, A.; Kolmogorov, V.; Salikhov, S.; Efremov, Y.; Timashev, P.; Grammatikova, N.; Levshin, I.; Edwards, C.; Korchev, Y.; et al. Scanning Ion-Conductance Microscopy Technique for Studying the Topography and Mechanical Properties of Candida Parapsilosis Yeast Microorganisms. Biomater. Sci. 2023, 11, 611–617. [Google Scholar] [CrossRef]
  9. Savin, N.; Kolmogorov, V.; Iakovlev, A.; Timoshenko, R.; Gorelkin, P.; Erofeev, A.; Korchev, Y.E. Antimicrobial Activity of Antifungal Drugs on Candida Parapsilosis Studied by Scanning Ionconductance Microscopy (SICM). Biophys. J. 2021, 120, 361a. [Google Scholar] [CrossRef]
  10. Rheinlaender, J.; Geisse, N.A.; Proksch, R.; Schäffer, T.E. Comparison of Scanning Ion Conductance Microscopy with Atomic Force Microscopy for Cell Imaging. Langmuir 2011, 27, 697–704. [Google Scholar] [CrossRef]
  11. Müller, D.J.; Dumitru, A.C.; Lo Giudice, C.; Gaub, H.E.; Hinterdorfer, P.; Hummer, G.; De Yoreo, J.J.; Dufrêne, Y.F.; Alsteens, D. Atomic Force Microscopy-Based Force Spectroscopy and Multiparametric Imaging of Biomolecular and Cellular Systems. Chem. Rev. 2021, 121, 11701–11725. [Google Scholar] [CrossRef]
  12. Shi, S.; Wu, T.; Zheng, P. Direct Measurements of the Cobalt-Thiolate Bonds Strength in Rubredoxin by Single-Molecule Force Spectroscopy. ChemBioChem 2022, 23, e202200165. [Google Scholar] [CrossRef]
  13. Cui, S.; Yu, J.; Kühner, F.; Schulten, K.; Gaub, H.E. Double-Stranded DNA Dissociates into Single Strands When Dragged into a Poor Solvent. J. Am. Chem. Soc. 2007, 129, 14710–14716. [Google Scholar] [CrossRef]
  14. Pukhova, V.; Banfi, F.; Ferrini, G. Complex Force Dynamics in Atomic Force Microscopy Resolved by Wavelet Transforms. Nanotechnology 2013, 24, 505716. [Google Scholar] [CrossRef]
  15. Pukhova, V.; Banfi, F.; Ferrini, G. Energy Dissipation in Multifrequency Atomic Force Microscopy. Beilstein J. Nanotechnol. 2014, 5, 494–500. [Google Scholar] [CrossRef]
  16. Dazzi, A.; Prazeres, R.; Glotin, F.; Ortega, J.M. Analysis of Nano-Chemical Mapping Performed by an AFM-Based (“AFMIR”) Acousto-Optic Technique. Ultramicroscopy 2007, 107, 1194–1200. [Google Scholar] [CrossRef]
  17. Clède, S.; Lambert, F.; Sandt, C.; Kascakova, S.; Unger, M.; Harté, E.; Plamont, M.-A.; Saint-Fort, R.; Deniset-Besseau, A.; Gueroui, Z.; et al. Detection of an Estrogen Derivative in Two Breast Cancer Cell Lines Using a Single Core Multimodal Probe for Imaging (SCoMPI) Imaged by a Panel of Luminescent and Vibrational Techniques. Analyst 2013, 138, 5627. [Google Scholar] [CrossRef] [Green Version]
  18. Ruggeri, F.S.; Habchi, J.; Chia, S.; Horne, R.I.; Vendruscolo, M.; Knowles, T.P.J. Infrared Nanospectroscopy Reveals the Molecular Interaction Fingerprint of an Aggregation Inhibitor with Single Aβ42 Oligomers. Nat. Commun. 2021, 12, 688. [Google Scholar] [CrossRef]
  19. Schulte, A.; Schuhmann, W. Single-Cell Microelectrochemistry. Angew. Chem. Int. Ed. 2007, 46, 8760–8777. [Google Scholar] [CrossRef]
  20. Fan, Y.; Han, C.; Zhang, B. Recent Advances in the Development and Application of Nanoelectrodes. Analyst 2016, 141, 5474–5487. [Google Scholar] [CrossRef] [Green Version]
  21. Bonfanti, A.; Fouchard, J.; Khalilgharibi, N.; Charras, G.; Kabla, A. A Unified Rheological Model for Cells and Cellularised Materials. R. Soc. Open Sci. 2020, 7, 190920. [Google Scholar] [CrossRef] [Green Version]
  22. Jones, P.H.; Maragò, O.M.; Volpe, G. Optical Tweezers; Cambridge University Press: Cambridge, UK, 2015; ISBN 9781107051164. [Google Scholar]
  23. Ashkin, A. Atomic-Beam Deflection by Resonance-Radiation Pressure. Phys. Rev. Lett. 1970, 25, 1321–1324. [Google Scholar] [CrossRef]
  24. Maragò, O.M.; Jones, P.H.; Gucciardi, P.G.; Volpe, G.; Ferrari, A.C. Optical Trapping and Manipulation of Nanostructures. Nat. Nanotechnol. 2013, 8, 807–819. [Google Scholar] [CrossRef] [Green Version]
  25. Ando, J.; Bautista, G.; Smith, N.; Fujita, K.; Daria, V.R. Optical Trapping and Surgery of Living Yeast Cells Using a Single Laser. Rev. Sci. Instrum. 2008, 79, 103705. [Google Scholar] [CrossRef] [Green Version]
  26. Volpe, G.; Maragò, O.M.; Rubinsztein-Dunlop, H.; Pesce, G.; Stilgoe, A.B.; Volpe, G.; Tkachenko, G.; Truong, V.G.; Chormaic, S.N.; Kalantarifard, F.; et al. Roadmap for Optical Tweezers. J. Phys. Photonics 2023, 5, 022501. [Google Scholar] [CrossRef]
  27. Ashkin, A.; Dziedzic, J.M.; Yamane, T. Optical Trapping and Manipulation of Single Cells Using Infrared Laser Beams. Nature 1987, 330, 769–771. [Google Scholar] [CrossRef]
  28. Ashkin, A.; Dziedzic, J.M. Optical Trapping and Manipulation of Viruses and Bacteria. Science 1987, 235, 1517–1520. [Google Scholar] [CrossRef]
  29. Lee, S.-H. Optimal Integration of Wide Field Illumination and Holographic Optical Tweezers for Multimodal Microscopy with Ultimate Flexibility and Versatility. Opt. Express 2018, 26, 8049. [Google Scholar] [CrossRef]
  30. Preston, R.D. Polysaccharide Conformation and Cell Wall Function. Annu. Rev. Plant Physiol. 1979, 30, 55–78. [Google Scholar] [CrossRef]
  31. Stenson, J.D.; Hartley, P.; Wang, C.; Thomas, C.R. Determining the Mechanical Properties of Yeast Cell Walls. Biotechnol. Prog. 2011, 27, 505–512. [Google Scholar] [CrossRef]
  32. Zhang, Z.; Ferenczi, M.A.; Lush, A.C.; Thomas, C.R. A Novel Micromanipulation Technique for Measuring the Bursting Strength of Single Mammalian Cells. Appl. Microbiol. Biotechnol. 1991, 36, 208–210. [Google Scholar] [CrossRef]
  33. Peeters, E.A.G.; Bouten, C.V.C.; Oomens, C.W.J.; Baaijens, F.P.T. Monitoring the Biomechanical Response of Individual Cells under Compression: A New Compression Device. Med. Biol. Eng. Comput. 2003, 41, 498–503. [Google Scholar] [CrossRef]
  34. WANG, C.X. Modelling the Mechanical Properties of Single Suspension-Cultured Tomato Cells. Ann. Bot. 2004, 93, 443–453. [Google Scholar] [CrossRef] [Green Version]
  35. Stenson, J.D.; Thomas, C.R.; Hartley, P. Modelling the Mechanical Properties of Yeast Cells. Chem. Eng. Sci. 2009, 64, 1892–1903. [Google Scholar] [CrossRef]
  36. Feng, W.W.; Yang, W.-H. On the Contact Problem of an Inflated Spherical Nonlinear Membrane. J. Appl. Mech. 1973, 40, 209–214. [Google Scholar] [CrossRef]
  37. Banavar, S.; Gomez, C.; Trogdon, M.; Petzold, L.; Yi, T.; Campas, O. Mechanical Feedback Coordinates Cell Wall Expansion and Assembly in Yeast Mating Morphogenesis. Biophys. J. 2018, 114, 326a. [Google Scholar]
  38. Mercadé-Prieto, R.; Thomas, C.R.; Zhang, Z. Mechanical Double Layer Model for Saccharomyces Cerevisiae Cell Wall. Eur. Biophys. J. 2013, 42, 613–620. [Google Scholar] [CrossRef]
  39. Lardner, T.J.; Pujara, P. Compression of Spherical Cells. In Mechanics Today; Elsevier: Amsterdam, The Netherlands, 1980; pp. 161–176. [Google Scholar]
  40. Cheng, L.Y. Deformation Analyses in Cell and Developmental Biology. Part II—Mechanical Experiments on Cells. J. Biomech. Eng. 1987, 109, 18–24. [Google Scholar] [CrossRef]
  41. Cheng, L.Y. Deformation Analyses in Cell and Developmental Biology. Part I—Formal Methodology. J. Biomech. Eng. 1987, 109, 10–17. [Google Scholar] [CrossRef]
  42. Smith, A.E.; Moxham, K.E.; Middelberg, A.P.J. On Uniquely Determining Cell–Wall Material Properties with the Compression Experiment. Chem. Eng. Sci. 1998, 53, 3913–3922. [Google Scholar] [CrossRef]
  43. Skalak, R.; Tozeren, A.; Zarda, R.P.; Chien, S. Strain Energy Function of Red Blood Cell Membranes. Biophys. J. 1973, 13, 245–264. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. WANG, C.X.; PRITCHARD, J.; THOMAS, C.R. Investigation of the Mechanics of Single Tomato Fruit Cells. J. Texture Stud. 2006, 37, 597–606. [Google Scholar] [CrossRef]
  45. Malvern, L.E. Introduction to the Mechanics of a Continuous Medium Prentice-Hall; Prentice Hall: Englewood Cliffs, NJ, USA, 1969. [Google Scholar]
  46. Zhao, L.; Schaefer, D.; Xu, H.; Modi, S.J.; LaCourse, W.R.; Marten, M.R. Elastic Properties of the Cell Wall of Aspergillus Nidulans Studied with Atomic Force Microscopy. Biotechnol. Prog. 2008, 21, 292–299. [Google Scholar] [CrossRef]
  47. Geitmann, A.; Ortega, J.K.E. Mechanics and Modeling of Plant Cell Growth. Trends Plant Sci. 2009, 14, 467–478. [Google Scholar] [CrossRef]
  48. Van De Fliert, B.W.; Howell, P.D.; Ockenden, J.R. Pressure-Driven Flow of a Thin Viscous Sheet. J. Fluid. Mech. 1995, 292, 359–376. [Google Scholar] [CrossRef]
  49. Klis, F.M.; de Koster, C.G.; Brul, S. Cell Wall-Related Bionumbers and Bioestimates of Saccharomyces Cerevisiae and Candida Albicans. Eukaryot. Cell 2014, 13, 2–9. [Google Scholar] [CrossRef] [Green Version]
  50. Goldenbogen, B.; Giese, W.; Hemmen, M.; Uhlendorf, J.; Herrmann, A.; Klipp, E. Dynamics of Cell Wall Elasticity Pattern Shapes the Cell during Yeast Mating Morphogenesis. Open Biol. 2016, 6, 160136. [Google Scholar] [CrossRef] [Green Version]
  51. Binnig, G.; Quate, C.F.; Gerber, C. Atomic Force Microscope. Phys. Rev. Lett. 1986, 56, 930–933. [Google Scholar] [CrossRef] [Green Version]
  52. Hertz, H. Ueber den kontakt elastischer koerper. J. Reine Angew. Math. 1881, 92, 156–171. [Google Scholar]
  53. Derjaguin, B.V.; Muller, V.M.; Toporov, Y.P. Effect of Contact Deformations on the Adhesion of Particles. J. Colloid. Interface Sci. 1975, 53, 314–326. [Google Scholar] [CrossRef]
  54. Vella, D.; Ajdari, A.; Vaziri, A.; Boudaoud, A. The Indentation of Pressurized Elastic Shells: From Polymeric Capsules to Yeast Cells. J. R. Soc. Interface 2012, 9, 448–455. [Google Scholar] [CrossRef] [Green Version]
  55. Emad, A.; Heinz, W.F.; Antonik, M.D.; D’Costa, N.P.; Nageswaran, S.; Schoenenberger, C.-A.; Hoh, J.H. Relative Microelastic Mapping of Living Cells by Atomic Force Microscopy. Biophys. J. 1998, 74, 1564–1578. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Timoshenko, S.; Woinowsky-Krieger, S. Theory of Plates and Shells, 2nd ed.; McGraw-Hill: New York, NY, USA, 1970. [Google Scholar]
  57. Garcia, P.D.; Garcia, R. Determination of the Elastic Moduli of a Single Cell Cultured on a Rigid Support by Force Microscopy. Biophys. J. 2018, 114, 2923–2932. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Vargas-Pinto, R.; Gong, H.; Vahabikashi, A.; Johnson, M. The Effect of the Endothelial Cell Cortex on Atomic Force Microscopy Measurements. Biophys. J. 2013, 105, 300–309. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Rico, F.; Roca-Cusachs, P.; Gavara, N.; Farré, R.; Rotger, M.; Navajas, D. Probing Mechanical Properties of Living Cells by Atomic Force Microscopy with Blunted Pyramidal Cantilever Tips. Phys. Rev. E 2005, 72, 021914. [Google Scholar] [CrossRef] [Green Version]
  60. Briscoe, B.J.; Sebastian, K.S.; Adams, M.J. The Effect of Indenter Geometry on the Elastic Response to Indentation. J. Phys. D Appl. Phys. 1994, 27, 1156–1162. [Google Scholar] [CrossRef]
  61. Efremov, Y.M.; Wang, W.-H.; Hardy, S.D.; Geahlen, R.L.; Raman, A. Measuring Nanoscale Viscoelastic Parameters of Cells Directly from AFM Force-Displacement Curves. Sci. Rep. 2017, 7, 1541. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Cai, P.; Takahashi, R.; Kuribayashi-Shigetomi, K.; Subagyo, A.; Sueoka, K.; Maloney, J.M.; Van Vliet, K.J.; Okajima, T. Temporal Variation in Single-Cell Power-Law Rheology Spans the Ensemble Variation of Cell Population. Biophys. J. 2017, 113, 671–678. [Google Scholar] [CrossRef] [Green Version]
  63. Efremov, Y.M.; Bagrov, D.V.; Kirpichnikov, M.P.; Shaitan, K.V. Application of the Johnson–Kendall–Roberts Model in AFM-Based Mechanical Measurements on Cells and Gel. Colloids Surf. B Biointerfaces 2015, 134, 131–139. [Google Scholar] [CrossRef]
  64. Vinckier, A.; Semenza, G. Measuring Elasticity of Biological Materials by Atomic Force Microscopy. FEBS Lett. 1998, 430, 12–16. [Google Scholar] [CrossRef]
  65. Johnson, K.L.; Kendall, K.; Roberts, A.D. Surface Energy and the Contact of Elastic Solids. Proc. R. Soc. Lond. A. Math. Phys. Sci. 1971, 324, 301–313. [Google Scholar] [CrossRef]
  66. Mahaffy, R.E.; Park, S.; Gerde, E.; Käs, J.; Shih, C.K. Quantitative Analysis of the Viscoelastic Properties of Thin Regions of Fibroblasts Using Atomic Force Microscopy. Biophys. J. 2004, 86, 1777–1793. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Ribeiro, R.A.; Vitorino, M.V.; Godinho, C.P.; Bourbon-Melo, N.; Robalo, T.T.; Fernandes, F.; Rodrigues, M.S.; Sá-Correia, I. Yeast Adaptive Response to Acetic Acid Stress Involves Structural Alterations and Increased Stiffness of the Cell Wall. Sci. Rep. 2021, 11, 12652. [Google Scholar] [CrossRef] [PubMed]
  68. Ribeiro, R.A.; Godinho, C.P.; Vitorino, M.V.; Robalo, T.T.; Fernandes, F.; Rodrigues, M.S.; Sá-Correia, I. Crosstalk between Yeast Cell Plasma Membrane Ergosterol Content and Cell Wall Stiffness under Acetic Acid Stress Involving Pdr18. J. Fungi 2022, 8, 103. [Google Scholar] [CrossRef] [PubMed]
  69. Ohashi, T.; Ishii, Y.; Ishikawa, Y.; Matsumoto, T.; Sato, M. Experimental and Numerical Analyses of Local Mechanical Properties Measured by Atomic Force Microscopy for Sheared Endothelial Cells. Biomed. Mater. Eng. 2002, 12, 319–327. [Google Scholar]
  70. MORLEY, L.S.D. The Thin-Walled Circular Cylinder Subjected to Concentrated Radial Loads. Q. J. Mech. Appl. Math. 1960, 13, 24–37. [Google Scholar] [CrossRef]
  71. Bui, V.C.; Kim, Y.U.; Choi, S.S. Physical Characteristics of Saccharomyces Cerevisiae. Surf. Interface Anal. 2008, 40, 1323–1327. [Google Scholar] [CrossRef]
  72. Dague, E.; Bitar, R.; Ranchon, H.; Durand, F.; Yken, H.M.; François, J.M. An Atomic Force Microscopy Analysis of Yeast Mutants Defective in Cell Wall Architecture. Yeast 2010, 27, 673–684. [Google Scholar] [CrossRef]
  73. Svaldo Lanero, T.; Cavalleri, O.; Krol, S.; Rolandi, R.; Gliozzi, A. Mechanical Properties of Single Living Cells Encapsulated in Polyelectrolyte Matrixes. J. Biotechnol. 2006, 124, 723–731. [Google Scholar] [CrossRef]
  74. Chaudhari, R.D.; Stenson, J.D.; Overton, T.W.; Thomas, C.R. Effect of Bud Scars on the Mechanical Properties of Saccharomyces Cerevisiae Cell Walls. Chem. Eng. Sci. 2012, 84, 188–196. [Google Scholar] [CrossRef] [Green Version]
  75. Cao, G.; Chandra, N. Evaluation of Biological Cell Properties Using Dynamic Indentation Measurement. Phys. Rev. E 2010, 81, 021924. [Google Scholar] [CrossRef] [Green Version]
  76. Sirghi, L. Atomic Force Microscopy Indentation of Living Cells; Formatex Research Center: Badajoz, Spain, 2010. [Google Scholar]
  77. Arfsten, J.; Leupold, S.; Bradtmöller, C.; Kampen, I.; Kwade, A. Atomic Force Microscopy Studies on the Nanomechanical Properties of Saccharomyces Cerevisiae. Colloids Surf. B Biointerfaces 2010, 79, 284–290. [Google Scholar] [CrossRef] [PubMed]
  78. Pan, X.; Mercadé-Prieto, R.; York, D.; Preece, J.A.; Zhang, Z. Structure and Mechanical Properties of Consumer-Friendly PMMA Microcapsules. Ind. Eng. Chem. Res. 2013, 52, 11253–11265. [Google Scholar] [CrossRef]
  79. Dimitriadis, E.K.; Horkay, F.; Maresca, J.; Kachar, B.; Chadwick, R.S. Determination of Elastic Moduli of Thin Layers of Soft Material Using the Atomic Force Microscope. Biophys. J. 2002, 82, 2798–2810. [Google Scholar] [CrossRef] [Green Version]
  80. Sneddon, I.N. The Relation between Load and Penetration in the Axisymmetric Boussinesq Problem for a Punch of Arbitrary Profile. Int. J. Eng. Sci. 1965, 3, 47–57. [Google Scholar] [CrossRef]
  81. Harding, J.W.; Sneddon, I.N. The Elastic Stresses Produced by the Indentation of the Plane Surface of a Semi-Infinite Elastic Solid by a Rigid Punch. Math. Proc. Camb. Philos. Soc. 1945, 41, 16–26. [Google Scholar] [CrossRef]
  82. Johnson, K.L. Contact Mechanics; Cambridge University Press: Cambridge, UK, 1985; ISBN 9780521255769. [Google Scholar]
  83. Pharr, G.M.; Oliver, W.C.; Brotzen, F.R. On the Generality of the Relationship among Contact Stiffness, Contact Area, and Elastic Modulus during Indentation. J. Mater. Res. 1992, 7, 613–617. [Google Scholar] [CrossRef]
  84. Gavara, N.; Chadwick, R.S. Determination of the Elastic Moduli of Thin Samples and Adherent Cells Using Conical Atomic Force Microscope Tips. Nat. Nanotechnol. 2012, 7, 733–736. [Google Scholar] [CrossRef] [Green Version]
  85. Costa, K.D.; Yin, F.C.P. Analysis of Indentation: Implications for Measuring Mechanical Properties With Atomic Force Microscopy. J. Biomech. Eng. 1999, 121, 462–471. [Google Scholar] [CrossRef]
  86. Williams, G.; Watts, D.C. Non-Symmetrical Dielectric Relaxation Behaviour Arising from a Simple Empirical Decay Function. Trans. Faraday Soc. 1970, 66, 80. [Google Scholar] [CrossRef]
  87. Ossola, D.; Dorwling-Carter, L.; Dermutz, H.; Behr, P.; Vörös, J.; Zambelli, T. Simultaneous Scanning Ion Conductance Microscopy and Atomic Force Microscopy with Microchanneled Cantilevers. Phys. Rev. Lett. 2015, 115, 238103. [Google Scholar] [CrossRef]
  88. Sánchez, D.; Johnson, N.; Li, C.; Novak, P.; Rheinlaender, J.; Zhang, Y.; Anand, U.; Anand, P.; Gorelik, J.; Frolenkov, G.I.; et al. Noncontact Measurement of the Local Mechanical Properties of Living Cells Using Pressure Applied via a Pipette. Biophys. J. 2008, 95, 3017–3027. [Google Scholar] [CrossRef] [Green Version]
  89. Rheinlaender, J.; Schäffer, T.E. Mapping the Mechanical Stiffness of Live Cells with the Scanning Ion Conductance Microscope. Soft Matter 2013, 9, 3230. [Google Scholar] [CrossRef]
  90. Clarke, R.W.; Novak, P.; Zhukov, A.; Tyler, E.J.; Cano-Jaimez, M.; Drews, A.; Richards, O.; Volynski, K.; Bishop, C.; Klenerman, D. Low Stress Ion Conductance Microscopy of Sub-Cellular Stiffness. Soft Matter 2016, 12, 7953–7958. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  91. Korchev, Y.E.; Milovanovic, M.; Bashford, C.L.; Bennett, D.C.; Sviderskaya, E.V.; Vodyanoy, I.; Lab, M.J. Specialized Scanning Ion-conductance Microscope for Imaging of Living Cells. J. Microsc. 1997, 188, 17–23. [Google Scholar] [CrossRef] [PubMed]
  92. Pellegrino, M.; Orsini, P.; Pellegrini, M.; Baschieri, P.; Dinelli, F.; Petracchi, D.; Tognoni, E.; Ascoli, C. Weak Hydrostatic Forces in Far-Scanning Ion Conductance Microscopy Used to Guide Neuronal Growth Cones. Neurosci. Res. 2011, 69, 234–240. [Google Scholar] [CrossRef]
  93. Kolmogorov, V.S.; Erofeev, A.S.; Barykin, E.P.; Timoshenko, R.V.; Lopatukhina, E.V.; Kozin, S.A.; Salikhov, S.V.; Klyachko, N.L.; Mitkevich, V.A.; Edwards, C.R.W.; et al. Scanning Ion-Conductance Microscopy for Studying β-Amyloid Aggregate Formation on Living Cell Surface. bioRxiv 2022. [Google Scholar] [CrossRef]
Figure 1. (A) Illustration of a sea urchin model, showing a yeast cell when compressed between two large rigid plates. (B) Illustration of a model of a hollow sphere filled with gas; cell geometry: ψ0 is the angular position of a point on the cell wall from the vertical axis of symmetry before compression and ψ determines the angle of a point on the edge of the contact area between the compression surface and the cell after compression. (C) Illustration of the shell model showing the geometry of the system and the image of the increase in the viscosity of the cell wall. (D) Illustration of the core–shell model; normalized compression force with total wall stiffness F/r(Eh)total under parallel compression for a two-layer model with an inner wall hin/r = 0.01 and an outer wall hout/r = 0.04 with different ratios of Young’s moduli.
Figure 1. (A) Illustration of a sea urchin model, showing a yeast cell when compressed between two large rigid plates. (B) Illustration of a model of a hollow sphere filled with gas; cell geometry: ψ0 is the angular position of a point on the cell wall from the vertical axis of symmetry before compression and ψ determines the angle of a point on the edge of the contact area between the compression surface and the cell after compression. (C) Illustration of the shell model showing the geometry of the system and the image of the increase in the viscosity of the cell wall. (D) Illustration of the core–shell model; normalized compression force with total wall stiffness F/r(Eh)total under parallel compression for a two-layer model with an inner wall hin/r = 0.01 and an outer wall hout/r = 0.04 with different ratios of Young’s moduli.
Cells 12 01946 g001
Figure 2. (A) Schematic representation of the elements of the AFM setup. The spherical tip interacts with the surface of the sample, which leads to the deflection of the microcantilever, which is recorded by the photodetector using a laser beam reflected from the microcantilever. In a typical measurement of mechanical curves, the base of the micro console is approached or retracted at a constant vertical speed and the force is recorded. (B) An example of the resulting F-Z curves, in which the arrow indicates the point of contact of the probe with the sample. (C) An example of converting an F-Z curve to a force–indentation curve, from which Young’s modulus is obtained.
Figure 2. (A) Schematic representation of the elements of the AFM setup. The spherical tip interacts with the surface of the sample, which leads to the deflection of the microcantilever, which is recorded by the photodetector using a laser beam reflected from the microcantilever. In a typical measurement of mechanical curves, the base of the micro console is approached or retracted at a constant vertical speed and the force is recorded. (B) An example of the resulting F-Z curves, in which the arrow indicates the point of contact of the probe with the sample. (C) An example of converting an F-Z curve to a force–indentation curve, from which Young’s modulus is obtained.
Cells 12 01946 g002
Figure 3. (A) Scheme of the Hertz model, where E is Young’s modulus, v is Poisson’s ratio, and X is indentation. Indexes 1 and 2 refer to two bodies, respectively. (B) Scheme of the DMT model, where R is the radius of the elastic sphere, a is the contact radius, and α is the shift from the center of the elastic sphere. (C) Diagram of a cylindrical shell model, where the AFM cantilever tip applies a normal force F, indenting (δ) a hypha with internal pressure P, radius R, and thickness h. (D) Illustration of the elastic shell model. A spherical shell with thickness h and undeformed radius R experiences internal pressure P and is loaded with a vertical point force F at the pole. This causes a vertical deflection w(r) and, in particular, a displacement w(0) = −w0 at the point of application of the force. (E) Illustration of the Non-Hertz Model. (F) Schematic of the FEM for sharp tip (1) or spherical tip (2). (G) Viscoelastic models can be used to relate the stress and strain by using elastic (springs, denoted E) and viscous (dashpots, denoted η) parts. (H) Scheme of the Johnson–Kendall–Roberts model, where a is the contact radius and Fad is the maximum adhesive force.
Figure 3. (A) Scheme of the Hertz model, where E is Young’s modulus, v is Poisson’s ratio, and X is indentation. Indexes 1 and 2 refer to two bodies, respectively. (B) Scheme of the DMT model, where R is the radius of the elastic sphere, a is the contact radius, and α is the shift from the center of the elastic sphere. (C) Diagram of a cylindrical shell model, where the AFM cantilever tip applies a normal force F, indenting (δ) a hypha with internal pressure P, radius R, and thickness h. (D) Illustration of the elastic shell model. A spherical shell with thickness h and undeformed radius R experiences internal pressure P and is loaded with a vertical point force F at the pole. This causes a vertical deflection w(r) and, in particular, a displacement w(0) = −w0 at the point of application of the force. (E) Illustration of the Non-Hertz Model. (F) Schematic of the FEM for sharp tip (1) or spherical tip (2). (G) Viscoelastic models can be used to relate the stress and strain by using elastic (springs, denoted E) and viscous (dashpots, denoted η) parts. (H) Scheme of the Johnson–Kendall–Roberts model, where a is the contact radius and Fad is the maximum adhesive force.
Cells 12 01946 g003
Figure 4. (A) Schematic representation of obtaining topography via the SICM method, where the probe stops when the ion current drops by 0.5% while being approximately at the nanocapillary radius from the sample surface. (B) Schematic representation of the measurement of sample stiffness by indenting it due to the internal colloidal pressure of the nanocapillary; the ion current drop is 2%.
Figure 4. (A) Schematic representation of obtaining topography via the SICM method, where the probe stops when the ion current drops by 0.5% while being approximately at the nanocapillary radius from the sample surface. (B) Schematic representation of the measurement of sample stiffness by indenting it due to the internal colloidal pressure of the nanocapillary; the ion current drop is 2%.
Cells 12 01946 g004
Table 1. Analytical models applicable to micromanipulation techniques.
Table 1. Analytical models applicable to micromanipulation techniques.
SourceModelFunctionAn ObjectDescription
J.D. Stenson et al. [31,35]Sea urchin egg modelInfinitely small deformation in Equations (10)–(12), final deformation in Equations (13)–(15), Hankey’s deformation in Equations (16)–(18)yeast cell wallIn the model, cells are thin-walled, liquid-filled spheres; the desired characteristics depend on the Poisson’s ratio and the thickness of the cell wall. It is possible to neglect cell wall permeability at high strain rates. Fixing the initial stretch factor leads to an inaccurate estimate of the elastic modulus.
Feng and Yang [36]Model of compression of hollow spheres filled with gasEquations (4)–(7) constitutive equations for contact and non-contact regionscell wall of tomato cellsThe cell wall in this model is divided into areas in contact and areas not in contact with compressive forces.
Banavar et al. [37]Shell theoryLocal normal balance of forces of the cell wall in Equation (19)
Stresses in the cell wall according to Equations (20) and (21)
growing cell wall dynamicsThe growing cell wall behaves like an inhomogeneous viscous liquid with a spatially changing viscosity that increases with distance from the growth apex
Mercade’-Prieto et al. [38]Core-shell modelwall stiffness
F/r(Eh)out
cell wallThe model gives an estimate of the overall stiffness of the cell wall (Figure 1D).
Table 2. Analytical models applicable to the AFM method.
Table 2. Analytical models applicable to the AFM method.
SourceModelFunctionAn ObjectDescription
H. Hertz [52]Hertz ModelCantilever Force Equation (22),
effective Young’s modulus Equation (23)
(When the material of the tip is significantly harder than the material of the sample, Equation (24))
homogeneous smooth bodiesThe model is used under the assumptions that the indenter shape is parabolic, and the sample thickness is much greater than the indentation depth.
The model does not allow the probe to stick to the sample.
B. Derjaguin [53]DTM model cell wallThe model is applicable in the presence of long-range surface forces outside the area of contact between the probe and the sample and is valid in the event of weak adhesion between the nanoindenter and the outer surface of the sample. Its use is a priority for objects with low cohesion and a small radius of curvature.
Zhao et al. [46]Cylindrical shell modelThe modulus of elasticity of the cell wall in Equation (28)cell wallIn the technique, F and δ are linearly dependent on each other, while the cell wall elasticity constant kw depends on the mechanical properties and dimensions of the cell wall but does not depend on the internal pressure of the cell.
Vella et al. [54]Elastic shell model internal pressure in yeast cellsYoung’s modulus is an order of magnitude higher than the values obtained using the Hertz model.
Mercade’-Prieto et al. [38]Single layer sphereThe values of F and Eh are calculated from Equations (28) and (29)cell wallCorrected values of the Young’s modulus are higher than using Hertz–Sneddon analysis but lower than using micromanipulation compression.
Mercade’-Prieto et al. [38]Double layer modelForce profile at small deformations in Equation (31).cell wallThe model of a two-layer cell wall suggests the possibility of estimating the elastic modulus by AFM only for the outer layer.
E. A-Hassan,
S.P. Timoshenko [55,56]
Theory of elastic shellsYoung’s modulus is estimated from the ratio between the effective Young’s modulus, shell thickness and bending moduluscellsCells in the model are represented as shells filled with liquid.
P. Garcia & R. Garcia [57]Non-Hertz modelIn the case of a paraboloid probe, the force is expressed by Equation (33).mammalian cells attached to a solid supportThe cell’s Young’s modulus depends on the solid substrate, and the bottom effect artifact is determined by the ratio between the contact radius and cell thickness. The model is applicable when the indentation is less than or equal to the tip radius.
R. Vargas-Pinto et al. [58]Hertz Model and Contact ModelThe force, in the case of a spherical tip, is expressed by Equation (29)
In the case of a sharp tip, the model is used Rico et al. [59] and Briscoe et al. [60], where the force is expressed in Equation (34)
mammalian cells with cortexCombining the models resolved the issue of inaccuracy in determining the rigidity of the cage. Sharp probes examine the cortical layer, and spherical probes record the rigidity of the cortical layer together with the cytoskeleton.
In the model presented, the elastic component and the active stress component are combined into an effective elastic response for ease of calculation.
Y. Efremov et al. [61]Elastic-Viscoelastic ComplianceTing’s solution for indentation of a viscoelastic sample with a rigid spherical tip Equations (35) and (36).living cells and hydrogelsIt reflects the approach-retraction hysteresis well but requires an appropriate choice of the viscoelastic function.
Y. Efremov et al. [61]
P. Cai et al. [62]
Standard Linear Solid-State Rheology and Power RheologyRelaxation time Equations (35) and (36),
Kohlrausch–Williams–Watts function Equation (37).
living cellsThe standard linear rigid body model is a combination of a spring and damper, in which the spring is parallel to the Maxwell element.
Y. Efremov et al. [63]Johnson-Kendall-Roberts modelThe indentation depth, contact radius, and maximum adhesive force are presented in Equations (38)–(40), respectively)living cells and hydrogelsThe model fits the retraction part well with force-distance curves.
Table 3. Analytical models applicable to the SICM method.
Table 3. Analytical models applicable to the SICM method.
SourceModelFunctionAn ObjectDescription
D. Sanchez et al. [88], Rheinlaender, J., & Schäffer [89]Hydrodynamic modelThe force exerted on a flat surface in Equation (43).
Young’s modulus of the sample in Equation (41).
cell membraneTo obtain the mechanical properties of the cell, hydrostatic pressure is applied through a nanopipette, which can lead to a mechanical response of the cell.
R. Clarke et al. [90]Internal colloidal pressure modelThe modulus of elasticity of the cell wall in Equation (28)cells with glycocalyx and cells without glycocalyxIndentation is performed by means of internal colloidal pressure between the cell surface and the surface of the nanopipette tip, which significantly reduces the invasiveness of the method.
Kolmogorov et al. [61], Savin N. et al. [8]Hertz ModelThe internal force is presented in Equation (51).Mammalian cells [61], yeast cells [8] The technique is based on the deformation of a double electric layer of decan-saline solution with a nanopipette.
The displacement from the tip surface to the cell surface is minimized. However, there is no method for obtaining viscoelastic properties in all presented SICM models.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Savin, N.; Erofeev, A.; Gorelkin, P. Analytical Models for Measuring the Mechanical Properties of Yeast. Cells 2023, 12, 1946. https://doi.org/10.3390/cells12151946

AMA Style

Savin N, Erofeev A, Gorelkin P. Analytical Models for Measuring the Mechanical Properties of Yeast. Cells. 2023; 12(15):1946. https://doi.org/10.3390/cells12151946

Chicago/Turabian Style

Savin, Nikita, Alexander Erofeev, and Petr Gorelkin. 2023. "Analytical Models for Measuring the Mechanical Properties of Yeast" Cells 12, no. 15: 1946. https://doi.org/10.3390/cells12151946

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
