Synthesis of New S-Triazine Bishydrazino and Bishydrazido-Based Polymers and Their Application in Flame-Retardant Polypropylene Composites

by
Ali Aldalbahi
*,
Bander S. AlOtaibi
,
Badr M. Thamer
and
Ayman El-Faham
Department of Chemistry, College of Science, King Saud University, P.O. Box 2455, Riyadh 11451, Saudi Arabia
*
Author to whom correspondence should be addressed.
Polymers 2022, 14(4), 784; https://doi.org/10.3390/polym14040784
Submission received: 24 January 2022 / Revised: 7 February 2022 / Accepted: 10 February 2022 / Published: 17 February 2022
(This article belongs to the Special Issue Advances in Flame Retardant Polymeric Materials II)
Browse Figures
Review Reports Versions Notes

Abstract

:
In this study six new s-triazine bishydrazino and bishydrazido-based polymers were synthesized via condensation of bishydrazino s-triazine derivatives with terephthaldehyde or via nucleophilic substitution of dichloro-s-triazine derivatives with terephthalic acid hydrazide. The synthesized polymers were characterized by different techniques. The new polymers displayed good thermal behavior with great values in terms of limited oxygen indexed (LOI) 27.50%, 30.12% for polymers 5b,c (bishydrazino-s-triazine based polymers) and 27.23%, 29.86%, 30.85% for polymers 7a–c (bishydrazido-s-triazine based polymers) at 800 °C. Based on the LOI values, these polymers could be classified as flame retardant and self-extinguishing materials. The thermal results also revealed that the type of substituent groups on the triazine core has a considerable impact on their thermal behavior. Accordingly, the prepared polymers were mixed with ammonium polyphosphate (APP) in different proportions to form an intumescent flame-retardant (IFRs) system and were introduced into polypropylene (PP) to improve the flame-retardancy of the composites. The best results were obtained with a mass ratio of APP: 5a–c or 7a–c of 2:1, according to the vertical burning study (UL-94). In addition, the presence of 25% “weight ratio” of IFR in the composite showed great impact and passed UL-94 V-0 and V-1 tests.

Graphical Abstract

1. Introduction

Polypropylene (PP) is considered as a vital commodity in the thermoplastic family, and has been extensively employed in numerous diverse usages like transportation, aviation, building and construction materials, the electrical and electronics field, and medical and consumer applications [1,2,3] as a consequence of its chemical and mechanical characteristics, its processability and machinability, cost price ratio, etc. [3]. Hence, raising the fire-retardant activities of plastics material is a critical task for many forms of usage [4,5]. For this reason, employing flame-retardant (FR) material is essential [6,7]. Because of the flammability problem of PP due to its low limiting oxygen index (LOI value is around 17.5%), many scientists have displayed an interest in improving the fire retardancy of polypropylene. They performed intensive work to achieve retardancy of PP. Several researchers recommended low weight material to increase the fire retardancy together with the desired mechanical, thermal and electrical properties. The most popular efficient flame retardant is the one having halogens such as bromine (Br2) and antimony trioxide (Sb2O3) synergistic systems. This type offered a good flame-retardancy system of PP [8]. Implementing this type of flame retardant is limited, as a consequence of releasing a large amount of toxic gases and smoke whenever halogenated flame-retardant burns. An alternative fire-retardant additive is a metal oxide, such as magnesium hydroxide and aluminum hydroxide. However, to acquire the similar grade of halogenated fire retardant, huge amount of metal oxide is needed to annihilate the mechanical properties of polypropylene [9,10,11].
Materials having a heterocyclic moiety such as a s-triazine ring in their backbone chain have acquired special attention as a result of the significant influence on the end-product properties [12,13,14]. The sophisticated structure of the s-triazine ring as well as the exceptional reactivity of the starting material cyanuric chloride (TCT) has been employed as a basic core for preparation of an enormous number of derivatives, as a result of its commercial accessibility and the three chlorine atoms can be exchanged by distinct nucleophiles with the control of temperature that make it valuable in material [15,16,17,18,19,20,21] and industrial applications [22,23,24,25]. Recently, many scientists reported that polymer-based s-triazine has been used in the design and advancement of fire-retardant derivatives [26,27,28], metal adsorption [29], carbon dioxide capture [30,31,32] and covalent organic frameworks [24,25,28]. Also, the design of the structure of s-triazine derivatives could be controlled at different temperatures [33]. These s-triazine derivatives achieved excellent synergistic intumescent flame retardant effect with ammonium polyphosphate (APP) [34,35,36].
Furthermore, attention to s-triazine-hydrazino derivatives has increased [37,38,39] with particular interest in coordination chemistry and supramolecular chemistry [40,41] in addition to its tremendous scope in the area of material chemistry [40,41], complexation with large metal ions [42], and pharmaceuticals [43].
In this regards, and in continuation of our previous work [44,45], we describe herein the synthesis and characterization of two groups of charring agent based on polymers containing s-triazine with hydrazine and hydrazido linkage in their backbone chain. The described derivatives have aniline, p-bromoaniline, p-methoxyaniline, linked to the s-triazine ring. The change of thermal behavior of the prepared compounds based on different substitutes will be studied. Correspondingly, the synthesized charring agent was applied to fire retard PP jointly with APP at different percentages in order to figure out the fire-retardancy characteristics of the described compounds based on the UL-94 V0 rating.

2. Materials and Methods

Polypropylene (PP) was obtained from SABIC company (PP 595A, Riyadh, Saudi Arabia). APP was purchased from Hubei Jusheng Technology Co. Ltd (Wuhan, China). All chemicals and solvents were purchased from their commercial sources. FT-IR (cm−1) was recorded on spectrophotometer (8201-PC, Shimadzu, Ltd., Kyoto, Japan). Scanning electron microscopy (SEM) was performed on a JEOL (SEM 6380 LA, Tokyo, Japan) to investigate the morphology of the prepared polymers. Differential scanning calorimetry (DSC) was conducted on a DSC, TA instrument Q1000 (New Castle, DE, USA) in the range between 30 °C and 300 °C under N2 atmosphere to investigate glass transition (Tg) of polymers. Thermogravimetric analysis (TGA) data for the prepared polymers were taken by using TA Q500 (New Castle, DE, USA) with a flow rate of 60 mL/min (N2 gas), starting from 30 to 800 °C to studied thermal behavior of prepared polymers. The reported analysis for each sample is the average of three reading.

2.1. Synthesis of 2,4-Bishydrazino-6-Substituted S-Triazine Derivatives, 3a–c

First, compounds 2a–c were prepared as described in Method S1 (Supporting information) following the reported methods [41,44]. The NMR spectra agreed with the reported data (Supporting information, Figures S1, S2 and S3). 2,4-Bishydrazino-6-substituted s-triazine derivatives were prepared as described in Method S2 (Supporting information) following the reported method [41,44] and used directly in the next step.

2.2. Synthesis of Polymer-Based S-Triazine Bishydrazino Derivatives, 5a–c

2,4-Bishydrazino-6-substituted s-triazine derivatives 3a–c (20 mmol) was added portion wise to a solution of terephthaldehyde 4 (2.68 gm, 20 mmol) in 100 mL ethanol containing three drops of acetic acid. The reaction mixture was allowed to cool at room temperature after being refluxed for 24 h. The obtained yellow solid was filtered, washed with cold ethanol, and then dried for 8 h at 60 °C to give the desired polymers 5a–c in yield 80–86%.

2.3. Synthesis of Polymer-Based S-Triazine Bishydrazido Derivatives, 7a–c

First, terephthalic acid hydrazide 6 was prepared according to the reported method [45] and then used for preparation of the desired polymers. Terephthalic acid hydrazide 6 (20 mmol) in 100 mL acetonitrile were added slowly to a solution of 2,4-dichloro-6-substituted s-triazine derivatives 2a–c (20 mmol) in 100 mL acetonitrile in a period of 15 min followed by addition of K2CO3 (45 mmol) at 25 °C. The reaction mixture was refluxed for 48 h, then solvent was removed under vacuum, and more water was added. The precipitated product was filtered, washed with water, ethanol, and then dried for 8 h at 60 °C to afford the desired polymers 7a–c in yield 80–85%.

2.4. UL-94 Test for Flame Retardant of PP Composites

The vertical burning test was examined rendering to the UL-94 test standard with the sample dimension of 130 mm × 13 mm × 3.2 mm. The samples were prepared before compounding. PP and all the additive materials were dried in vacuum oven for 24 h at 70 °C. All tested samples were prepared by mixing PP, APP and 5a–c or 7a–c using a two-roll mill mixing (Rheomixer-XSS-300, Chuang, China) at range of 170 °C–180 °C for 10 min with a roll speed of 100 rpm.

3. Results

3.1. Synthesis of Polymers

Based on the temperature-dependent reactivity of cyanuric chloride 1, the first chlorine in 1 was replaced by different aniline derivatives (aniline, p-bromoaniline or p-methoxyaniline) as described in the previous reported method by our group and others [40,41,42,43,44] to afford 2,4-dichloro-6-substituted s-triazine 2a–c (the NMR spectra agreed with the reported ones; Supporting information, Figures S1–S3). The 2nd and 3rd chlorine were replaced by hydrazine group following the method described in literatures [40,41,42,43,44] to give the 2,4-dihydrazino-6-substituted s-triazine 3a–c, which were utilized immediately to react with 4 to offer the target polymers 5a–c in good yields (Scheme 1, Table 1). For preparation of the polymers 7a–c, 2,4-dichloro-6-substituted s-triazine 2a–c were reacted with terephthatic acid hydrazide 6 in the presence of K2CO3 as a base to form the target polymers 7a–c in 80–85% yield as shown in Scheme 1.

3.2. Characterization of Polymers 5a–c and 7a–c

3.2.1. Solubility

The two class of polymers 5a–c and 7a–c showed weak solubility in different organic solvents, such as 1,4-dioxane, N-methylpyridone, dimethylsulfoxide, dimethylformamide, tetrahydrofuran, acetonitrile, methanol, ethanol, and halogenated solvents, such as CHCl3, CCl4, CH2Cl2.

3.2.2. FT-IR Spectrum Analysis

The FT-IR spectrum (Figure 1) for polymers 5a–c showed absorption peaks related to N-H bond in the range 3320 to 3350 cm−1. The C-H; sp3 and sp2 hydrogen have a characteristic peak in the range 2840–2950 cm−1. The peaks related to C=N bond of triazine ring observed at 1590 and 1550 cm−1. The peaks C=C of phenyl ring were observed at 1600, and 1490 cm−1 and the peak at 1270 cm−1 was related to the C–N bond of the triazine ring. In addition, the peaks at 757 and 688 cm−1 were attributed to the monosubstituted phenyl ring (Table 1). While FT-IR spectra (Figure 2) for polymers 7a–c showed, absorption peaks related to the N–H bond. C–H in the range 3320 to 3330 cm−1; sp3 and sp2 hydrogen has a characteristic peak in the range 2830–2950 cm−1. The peaks at 1590 and 1550 cm−1 were ascribed to the C=N of the triazine ring. The both peaks at 1630–1620 and 1490–1470 cm−1 were ascribed to C=O of the hydrazide group and C=C of the phenyl ring, respectively. The peak at 1270 cm−1 was assigned to the C–N bond of the triazine ring (Table 1). The shift in C=N and C–N values was due to the influence of the replacement groups on the aniline ring bonded to the triazine ring. In addition, the elemental analysis for the prepared 5a–c and 7a–c samples agreed with the calculated values as shown in Table 2.

3.2.3. X-ray Diffraction (XRD) Analysis

Figure 3 displays the XRD pattern of the 5a–c polymers; as observed from Figure 3, the spectra of 5c polymer does not exhibit any sharply peak due to its amorphous nature, which further supports its low compactness. While the two polymers 5a and 5c showed a mostly amorphous phase with few crystalline materials. In addition, the 5b polymer have more than five strong fairly sharp diffraction peaks appeared at 2θ = 5–30°, giving a pattern typical of crystalline materials.
Figure 4 displays XRD pattern of the 7a–c polymers, as observed from Figure 4 the polymers showed sharp peaks in the intensity versus scattering angle (2θ) plot. More than six strong fairly sharp diffraction peaks appeared at 2θ = 5–40° for 7c, 7b and 7a, giving a pattern typical of crystalline materials. Based on the XRD spectrum, it was found that the crystallization of 7a–c was higher than that of 5a–c. This might be attributed to the presence of oxygenated functional groups in 7a–c, which make the polymer chains more aligned by hydrogen bonding.

3.2.4. Scanning Electron Microscope (SEM)

The surface morphologies of the polymers 5a–c and 7a–c were examined by using a SEM. The polymer 5a (Figure 5) showed a globular, multidroplet morphology, and non-uniform porosity distribution with roughness compared to 5b, while the 5b showed less porosity and a rougher surface while 5c (Figure 5) was uniform, smooth with small pores and a rougher surface compared to its analogs 5a and 5b (Figure 5). On other hand, the polymers 7a–c (Figure 5) showed more roughness surface with nanosphere morphology. This might be attributed to the different group (CO–NH–NH) rather than the hydrazine (CH=N–NH-)-containing functional groups of the polymers, where in 5a–c there a direct conjugation between the benzene moiety and the functional groups (CH=N–N) which is not the case in 7a–c [46].

3.2.5. Thermogravimetric Analysis (TGA)

TGA was used to investigated the thermal degradation performances of the prepared polymers 5a–c. Degradation curves were obtained for the prepared compounds of the 5a–c (Figure 6 and summarized in Table 3). As observed from Figure 6 and Table 3, the first degradation peaks in the range 50–100 °C for compounds 5a–c, with mass loss about 2–3%, are related to the loss of the solvent content. Compounds 5a–c showed one main degradation peak in the range 320–460 °C, 340–450 °C and 350–450 °C with mass loss 57.88%, 50.50% and 43.70%, respectively. At 800 °C, the residual weight of 5a, 5b and 5c was 16.52, 25 and 31.55%, respectively. This result indicates that the nature of the substituent group in the Para site plays an important role in the thermal behavior of the prepared polymer. Where the electron-releasing group, as OCH3 in 5c and weak electron-attracting group as Br in 5b, is relatively more thermally stable than the unsubstituted one 5a.
Table 4 summarizes the thermal properties of the other series (bishydrazido derivatives) 7a–c (Figure 7). As shown in Figure 7 and Table 4 the thermal degradation process of polymers 7a and 7c were classified into main three steps; their initial decomposition was between 280–235 °C and 250–330 °C, with mass loss of 10% and 6%, respectively. The second degradation step started in a range of 335 °C to 440 °C and 330 to 430 °C with mass loss of 29% and 23%, for 7a and 7c, respectively. The main third degradation step started in the range of 470 °C to 630 °C and 440 to 650 °C with mass loss of 24% and 31%, for 7a and 7c, respectively. On the other hand, it was observed that the thermal behavior of the 7b sample differs from that of samples 7a and 7c as it occurred in two main steps. The main first and second degradation steps started in a range of 250 °C to 430 °C and 430 °C to 620 °C with mass loss of 38% and 34%, respectively. This result revealed that polymers-based s-triazine 7a and 7b have highly thermal stability compared to their analogs bihydrazino derivatives 5a,b, while 5c showed higher thermal stability compared to 7c. The substituent functional groups on the phenyl ring also affected the thermal stability of the prepared polymers. The electron-releasing groups, as OCH3 in 7c and weak electron-attracting group as Br in 7b, are relatively more thermally stable than the unsubstituted one 7a. These data agreed with our previously reported data [43].
The formed char could be utilized for the limiting oxygen index (LOI) calculation. To find out the relationship between the limit oxygen index and char residue CR of halogen-free polymer, van Krevelen equation used [47,48,49].
LOI = 17.50 + 0.4*(CR)
The flame retardancy characteristic of any polymer will be enhanced with higher char percentage [46,47]. Materials displaying lower than 26% LOI values are considered flammable, where values more than 26% are classified as self-extinguishing materials [47]. Based on the calculated LOI values as shown in Table 3 and Table 4, the polymer 5a can be classified as flammable material due to its LOI value less than 26%. In contrast, the polymers 5b,c and 7a–c can be classified as self-extinguishing materials as they have a high LOI value (5b = 27.50%, 5c = 30.12%, 7a = 27.23%, 7b = 29.86% and 7c = 30.85%, respectively) at 800 °C. The results in Table 3 and Table 4 showed that the two 5c and 7c have better thermal stability than 5a,b and 7a,b. This indicated that the type of substituent on the phenyl ring attached to the s-triazine core within the polymeric chain, where the methoxy group (electron-donating group) gave the highest char residue and the highest LOI value at 800 °C.

3.2.6. Differential Scanning Calorimetry (DSC)

DSC experiments for the prepared polymers 5a–c with different substituents were evaluated and conducted on a DSC, TA instrument Q1000 thermal analyzer under nitrogen. Scanning from –20 to 300 °C was used to estimate glass transition temperatures (Tg). The Tg value of 5a, 5b and 5c was 88.50, 91.60 and 84.80 °C, respectively (Table 3, Figure 8, and Figure S4).
The thermal properties of 7a–c polymers with different substituent were evaluated and summarized in Table 4, Figure 9 and Figure S5. The Tg of the polymers were tested by DSC. The Tg values of 7a–c polymers were in the range of 129–150 °C, which were found that Tg values of the polymers are slightly similar to each. There are no other obvious exothermic or endothermic peaks in the DSC scans were observed for 5a–c and 7a–c polymers, indicating the high purity sideways with a good stability of polymers.

3.2.7. Flammability of Neat PP and Its Composites UL-94

The achieved polymers 5a–c and 7a–c were mixed with APP to form several intumescent flame retardants (IFRs), which were blended in PP to form PP composites. The UL-94 test was employed to investigate the flame-retardant behavior of pure PP, PP/5a–c, PP/7a–c and PP/IFRs composites. The results in Table 5 show that neat PP is highly flammable, and did not pass the UL-94 test. Adding 5c, 5a and 5b at 25% with only 75% PP the composite did not pass the UL-94 rating (Table 5, F1-5c, F1-5a and F1-5b). However, addition of APP to the system made a remarkable improvement in the UL-94 rating of IFR-PP composite. The UL-94 rating was V-2 when the ratio of APP to 5a was 1:1. The same rating was noticed with 5b and 5c (Table 5, F2-5a, F2-5b and F2-5c). In addition, increasing the ratio of APP to 5a (5a 1:2 APP) led to a remarkable improvement in the UL-94 rating and the formed char-layer during combusting, which is unlike what happened in neat PP and other PP composites. For F3-5a (Table 5), the UL-94 rating was better and reached the V-1 rating of the UL-94 tests, which is better than PP itself, F1-5a and F2-5a. As for F3-5b, the UL-94 rating also improved and reached the V-1 rating of the UL-94 tests, which is better than PP itself, F1-5b and F2-5b. As for F3-5c (Table 5), the UL-94 rating also improved and reached the V-0 rating of the UL-94 tests, which showed better results compared to pure PP, F1-5c and F2-5c.
Moreover, F3-5c sample reached the UL-94 V-0 rating without dripping, while the other samples showed UL94 V-1 rating. This indicated that F3-5c composite has high efficiency in enhancing the flame retardancy behavior of PP amongst all PP-composites. These results established that the mixing of 5a–c with APP in ratio (1:2) improve the flame-retardant behavior of PP. Figure 10 indicated the photographs of F3-5a, F3-5b and F3-5c specimens after UL-94 tests. As indicated in Figure 10, F3-5a, F3-5b, and F3-5c specimens showed char residues, while neat PP showed a melted form without clear char residues.
The 7a–c polymers were mixed with same portion, when the addition of the 7a, 7b and 7c was 25% with only 75% PP, and the composite did not pass the UL-94 rating (F1-7a, F1-7b and F1-7c). However, after APP was added to the system, the IFR-PP composite’s UL-94 rating considerably improved. When the weight ratio of APP to 7a was 1:1, the UL-94 rating was V-2. The same rating was recorded with 7b and 7c (F2-7a, F2-7b and F2-7c). However, increasing the weight ratio of 7a–c (7a–c 1:2 APP) led to improved UL-94 rating and the formed char layer during combusting was observed compared to the neat PP and other PP composites. For F3-7a (Table 5), the UL-94 rating was better than PP itself, F1-7a and F2-7a and reached the V-1 rating of the UL-94 tests. As for F3-7a, the UL-94 rating was better than pure PP, F1-7b and F2-7b and reached the V-1 rating of the UL-94 tests. As for F3-7c, the UL-94 rating also better than pure PP, F1-7c and F2-7c and reached the V-0 rating of the UL-94 tests. Moreover, the F3-7c sample reached the UL-94 V-0 rating without dripping, while the other samples reached the UL-94 V-1 rating. This indicated that F3-7c composite is of high efficiency in enhancing the flame retardancy of PP among all PP composites. These results indicated that the combination of 7a–c with APP in weight ratio (1:2) would cause enormous improvement of flame-retardant behavior of PP. Figure 10 indicates photographs of F3-7a, F3-7b and F3-7c specimens after UL-94 tests. It can be seen from Figure 10 that char residues were observed for F3-7a, F3-7b and F3-7c, specimens, while neat PP is in a melted form without any char residues. Also, in comparison with some flame retardants, it seems clear that the prepared polymers can act as a flame retardant in PP/IFR systems as shown in Table 6.

4. Conclusions

Two types of polymer-based s-triazine bishydrazino and bishydrazido derivatives (5a–c and 7a–c) were synthesized, characterized and applied as charring agents together with APP (as acid source) to build an IFR system which could develop the thermal degradation performance of PP. The TGA data revealed that the achieved compounds have shown a good thermal stability and ability of char formation itself. The char residue of 5c, 5b and 5a reached 31.55, 25, and 16.55 wt% at 800 °C with LOI values of 30.12%, 27.50% and 24.11%, respectively; while char residue of 7c, 7b and 7a reached 33.38, 30.90, and 24.32 wt% at 800 °C with LOI values of 30.85%, 29.86% and 27.23%, respectively. Accordingly, replacing of the hydrazine group (C=N–NH-) in the series 5a–c by a hydrazido group (CO–NH–NH) in the series 7a–c increased the thermal stability of the polymers, and in addition the presence of the methoxy in the phenyl moiety in both series exhibited higher thermal stability. Therefore, the prepared derivatives (5a–c and 7a–c) were blended with APP to make an IFR system. Combustion testing revealed that PP-IFR blends could gain noteworthy LOI values, and pass the UL-94 V-0 rating and the flame-retardant efficacy is developed. When the mass ratio of the components for IFR are 75% APP and 25% 5a–c or 7a–c, the IFR represented the most efficient flame retardancy in PP. The PP-IFR has a UL-94 V2 rating with excessive dripping when the mass ratio of APP and 5a–c or 7a–c is 1:1. This has clearly established that the intumescent flame retardant is very effective in PP. Finally, the substituent effect also affected the thermal stability of the prepared polymers and IFR behaviors as shown from TGA data and UL-94 V0 as well. The electron-releasing group, as methoxy in 5c and 7c and weak electron-attracting group as bromine in 5b and 7b, are relatively more thermally stable than the unsubstituted one as in 5a and 7a. The hydrazido and hyrdazino derivatives with different substituted phenyl ring showed the same influence in the thermal stability and fire retardancy when blended with PP. The mechanism of flame-retardant PP by prepared polymers is still unknown, so more research will be needed in the future.
Finally, the reported polymers herein could be of interest as flame retardant agents and possess special interest for industrial chemistry.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/polym14040784/s1, (method S1, and method S2 are the general method used for the synthesis of 2a–c and 3a–c following the reported method in literates References [44,55] are cited in the supplementary materials; Figure S1 is the 1H and 13C NMR for 2a; Figure S2 is the 1H and 13C NMR for 2a; Figure S3 is the 1H and 13C NMR for 2c, Figure S4 is DSC full cycle of 5a–c samples and Figure S5 is DSC full cycle of 7a–c samples.

Author Contributions

Conceptualization, A.A. and A.E.-F.; investigation, B.S.A. and A.E.-F.; writing—original draft preparation, B.S.A., B.M.T. and A.E.-F.; writing—review and editing, A.A. and B.M.T.; supervision, A.A. and A.E; project administration, A.A.; funding acquisition, A.A. All authors have read and agreed to the published version of the manuscript.

Funding

Researchers Supporting Project at King Saud University, Riyadh, Saudi Arabia, project No (RSP-2021/30).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing not applicable. No new data were created or analyzed in this study. Data sharing is not applicable to this article.

Acknowledgments

The authors acknowledge the King Saud University, Riyadh, Saudi Arabia, for funding this work through Researchers Supporting Project number (RSP-2021/30).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhang, F.; Wang, Y.; Jin, Y.; Zhang, J. Simulated Effects of Physical Parameters on Heat Transfer of Intumescent Fire-Retardant Polypropylene during Burning. J. Macromol. Sci. Part B Phys. 2011, 50, 1185–1195. [Google Scholar] [CrossRef]
  2. Shao, Z.-B.; Deng, C.; Tan, Y.; Chen, M.-J.; Chen, L.; Wang, Y.-Z. Flame retardation of polypropylene via a novel intumescent flame retardant: Ethylenediamine-modified ammonium polyphosphate. Polym. Degrad. Stab. 2014, 106, 88–96. [Google Scholar] [CrossRef]
  3. Röder, H.; Vogl, O. 17th international Herman F. Mark Symposium: Polypropylene—A material of the future. Prog. Polym. Sci. 1999, 24, 1205–1215. [Google Scholar] [CrossRef] [Green Version]
  4. Wu, W.; Zhao, W.; Gong, X.; Sun, Q.; Cao, X.; Su, Y.; Yu, B.; Li, R.K.; Vellaisamy, R.A. Surface decoration of Halloysite nanotubes with POSS for fire-safe thermoplastic polyurethane nanocomposites. J. Mater. Sci. Technol. 2022, 101, 107–117. [Google Scholar] [CrossRef]
  5. Wu, W.; He, H.; Liu, T.; Wei, R.; Cao, X.; Sun, Q.; Venkatesh, S.; Yuen, K.K.R.; Roy, V.A.; Li, R.K. Synergetic enhancement on flame retardancy by melamine phosphate modified lignin in rice husk ash filled P34HB biocomposites. Compos. Sci. Technol. 2018, 168, 246–254. [Google Scholar] [CrossRef]
  6. Hu, X.-P.; Li, W.-Y.; Wang, Y.-Z. Synthesis and characterization of a novel nitrogen-containing flame retardant. J. Appl. Polym. Sci. 2004, 94, 1556–1561. [Google Scholar] [CrossRef]
  7. Wang, W.; Wen, P.; Zhan, J.; Hong, N.; Cai, W.; Gui, Z.; Hu, Y. Synthesis of a novel charring agent containing pentaerythritol and triazine structure and its intumescent flame retardant performance for polypropylene. Polym. Degrad. Stab. 2017, 144, 454–463. [Google Scholar] [CrossRef]
  8. Li, B.; Xu, M. Effect of a novel charring–foaming agent on flame retardancy and thermal degradation of intumescent flame retardant polypropylene. Polym. Degrad. Stab. 2006, 91, 1380–1386. [Google Scholar] [CrossRef]
  9. Rothon, R.; Hornsby, P. Flame retardant effects of magnesium hydroxide. Polym. Degrad. Stab. 1996, 54, 383–385. [Google Scholar] [CrossRef]
  10. Zhou, J.; Wang, J.; Tao, Y.; Fang, L.; Sun, J.; Fang, Q. New Triazine-Based Polymers with Low Dielectric Constants and High Thermostability Derived from Biorenewable Anethole and Thermocrosslinkable Benzocyclobutene. ACS Sustain. Chem. Eng. 2018, 6, 5620–5626. [Google Scholar] [CrossRef]
  11. Sagar, A.D.; Salunkhe, M.M.; Wadgaonkar, P.P.; Sarawade, B.D.; Mahajan, S.S. Synthesis and Characterization of Aromatic Polyamides Containing s-Triazine Rings in the Main Chain. J. Polym. Sci. A Polym. Chem. 1997, 35, 1077–1085. [Google Scholar] [CrossRef]
  12. Blotny, G. Recent Applications of 2,4,6-Trichloro-1,3,5-triazine and Its Derivatives in Organic Synthesis. ChemInform 2006, 37. [Google Scholar] [CrossRef]
  13. Xie, M.; Wei, W.; Jiang, Z.; Xu, Y.; Xie, J. Carbon nitride nanowires/nanofibers: A novel template-free synthesis from a cyanuric chloride–melamine precursor towards enhanced adsorption and visible-light photocatalytic performance. Ceram. Int. 2016, 42, 4158–4170. [Google Scholar] [CrossRef]
  14. Lee, D.-Y.; Chang, G.-D. Quantitative liquid chromatography–electrospray ionization-mass spectrometry analysis of amine-containing metabolites derivatized with cyanuric chloride and methylamine isotopologues. J. Chromatogr. A 2015, 1388, 60–68. [Google Scholar] [CrossRef]
  15. Karakaya, N.O.; Uysal, S. The synthesis and characterization of s-Triazine polymer complexes containing epoxy groups. J. Mol. Struct. 2020, 1203, 127370. [Google Scholar] [CrossRef]
  16. Sharma, A.; Sheyi, R.; Kumar, A.; El-Faham, A.; De La Torre, B.G.; Albericio, F. Investigating Triorthogonal Chemoselectivity. Effect of Azide Substitution on the Triazine Core. Org. Lett. 2019, 21, 7888–7892. [Google Scholar] [CrossRef]
  17. Sheyi, R.; Sharma, A.; El-Faham, A.; De La Torre, B.G.; Albericio, F. Phenol as a Modulator in the Chemical Reactivity of 2,4,6-Trichloro-1,3,5-triazine: Rules of the Game II. Aust. J. Chem. 2020, 73, 352–356. [Google Scholar] [CrossRef]
  18. Grate, J.W.; Mo, K.; Daily, M.D. Triazine-Based Sequence-Defined Polymers with Side-Chain Diversity and Backbone–Backbone Interaction Motifs. Angew. Chem. 2016, 128, 3993–3998. [Google Scholar] [CrossRef]
  19. Wu, Q.; Guo, J.; Fei, B.; Li, X.; Sun, J.; Gu, X.; Li, H.; Zhang, S. Synthesis of a novel polyhydroxy triazine-based charring agent and its effects on improving the flame retardancy of polypropylene with ammonium polyphosphate and zinc borate. Polym. Degrad. Stab. 2020, 175, 109123. [Google Scholar] [CrossRef]
  20. Zhou, J.; Wang, J.; Jin, K.; Sun, J.; Fang, Q. s-Triazine-based functional monomers with thermocrosslinkable propargyl units: Synthesis and conversion to the heat-resistant polymers. Polymer 2016, 102, 301–307. [Google Scholar] [CrossRef]
  21. Wen, P.; Wang, X.; Wang, B.; Yuan, B.; Zhou, K.; Song, L.; Hu, Y.; Yuen, K.K.R. One-pot synthesis of a novel s-triazine-based hyperbranched charring foaming agent and its enhancement on flame retardancy and water resistance of polypropylene. Polym. Degrad. Stab. 2014, 110, 165–174. [Google Scholar] [CrossRef]
  22. Qi, H.; Liu, S.; Chen, X.; Shen, C.; Gao, S. The flame retardant and thermal performances of polypropylene with a novel intumescent flame retardant. J. Appl. Polym. Sci. 2020, 137, 49047. [Google Scholar] [CrossRef]
  23. He, Y.; Liu, Q.; Liu, F.; Huang, C.; Peng, C.; Yang, Q.; Wang, H.; Hu, J.; Liu, H. Porous organic polymer bifunctionalized with triazine and thiophene groups as a novel adsorbent for removing Cu (II). Microporous Mesoporous Mater. 2016, 233, 10–15. [Google Scholar] [CrossRef]
  24. Gomes, R.; Bhaumik, A. A new triazine functionalized luminescent covalent organic framework for nitroaromatic sensing and CO2 storage. RSC Adv. 2016, 6, 28047–28054. [Google Scholar] [CrossRef]
  25. Wu, M.-X.; Yang, Y.-W. Applications of covalent organic frameworks (COFs): From gas storage and separation to drug delivery. Chin. Chem. Lett. 2017, 28, 1135–1143. [Google Scholar] [CrossRef]
  26. Liu, A.; Zhang, J.; Lv, X. Novel hydrazine-bridged covalent triazine polymer for CO2 capture and catalytic conversion. Chin. J. Catal. 2018, 39, 1320–1328. [Google Scholar] [CrossRef]
  27. Yu, C.-H.; Huang, C.-H.; Tan, C.-S. A Review of CO2 Capture by Absorption and Adsorption. Aerosol Air Qual. Res. 2012, 12, 745–769. [Google Scholar] [CrossRef] [Green Version]
  28. Puthiaraj, P.; Lee, Y.-R.; Zhang, S.; Ahn, W.-S. Triazine-based covalent organic polymers: Design, synthesis and applications in heterogeneous catalysis. J. Mater. Chem. A 2016, 4, 16288–16311. [Google Scholar] [CrossRef]
  29. Zhang, Q.; He, C.; Yin, P.; Shreeve, J.M. Insensitive Nitrogen-Rich Materials Incorporating the Nitroguanidyl Functionality. Chem.—Asian J. 2014, 9, 212–217. [Google Scholar] [CrossRef]
  30. El-Faham, A.; Osman, S.M.; Al-Lohedan, H.A.; El-Mahdy, G.A. Hydrazino-methoxy-1,3,5-triazine Derivatives’ Excellent Corrosion Organic Inhibitors of Steel in Acidic Chloride Solution. Molecules 2016, 21, 714. [Google Scholar] [CrossRef] [Green Version]
  31. El-Mahdy, G.A.; Al-Rasheed, H.H.; Al Alshaikh, M.; Al-Lohedan, H.A.; El-Faham, A. 2,4-Dihydrazino-6-Morpholino-1,3,5-Triaizne (DHMT) and 2,4-Dihydrazino-6-Piperidino-1,3,5-Triaizne (DHPT) as Promising Corrosion Inhibitors of Steel in Acidic Media. Int. J. Electrochem. Sci. 2016, 5459–5472. [Google Scholar] [CrossRef]
  32. Gamez, P.; Reedijk, J. 1,3,5-Triazine-Based Synthons in Supramolecular Chemistry. Eur. J. Inorg. Chem. 2006, 2006, 29–42. [Google Scholar] [CrossRef]
  33. Sharma, A.; El-Faham, A.; de la Torre, B.G.; Albericio, F. Exploring the Orthogonal Chemoselectivity of 2,4,6-Trichloro-1,3,5-Triazine (TCT) as a Trifunctional Linker with Different Nucleophiles: Rules of the Game. Front. Chem. 2018, 6, 516. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Wen, P.; Feng, X.; Kan, Y.; Hu, Y.; Yuen, R.K. Synthesis of a novel triazine-based polymeric flame retardant and its application in polypropylene. Polym. Degrad. Stab. 2016, 134, 202–210. [Google Scholar] [CrossRef]
  35. Xu, L.; Tan, X.; Xu, R.; Xie, J.; Lei, C. Influence of functionalized molybdenum disulfide (MoS 2 ) with triazine derivatives on the thermal stability and flame retardancy of intumescent Poly(lactic acid) system. Polym. Compos. 2019, 40, 2244–2257. [Google Scholar] [CrossRef]
  36. Tang, W.; Qian, L.; Chen, Y.; Qiu, Y.; Xu, B. Intumescent flame retardant behavior of charring agents with different aggregation of piperazine/triazine groups in polypropylene. Polym. Degrad. Stab. 2019, 169, 108982. [Google Scholar] [CrossRef]
  37. Soliman, S.M.; El-Faham, A.; Albering, J.H. Synthesis, X-ray crystal structure and DFT studies of two octahedral cobalt(II) complexes with N,N,N-tridentate triazine-type ligand. J. Co-ord. Chem. 2017, 70, 2261–2279. [Google Scholar] [CrossRef]
  38. Demeshko, S.; Dechert, S.; Meyer, F. Anion-π Interactions in a Carousel Copper(II)-Triazine Complex. J. Am. Chem. Soc. 2004, 126, 4508–4509. [Google Scholar] [CrossRef]
  39. Zerkowski, J.A.; Seto, C.T.; Whitesides, G.M. Solid-state structures of rosette and crinkled tape motifs derived from the cyanuric acid melamine lattice. J. Am. Chem. Soc. 1992, 114, 5473–5475. [Google Scholar] [CrossRef]
  40. Ramírez, J.; Stadler, A.-M.; Brelot, L.; Lehn, J.-M. Coordinative, conformational and motional behaviour of triazine-based ligand strands on binding of Pb(II) cations. Tetrahedron 2008, 64, 8402–8410. [Google Scholar] [CrossRef]
  41. Vilaivan, T.; Saesaengseerung, N.; Jarprung, D.; Kamchonwongpaisan, S.; Sirawaraporn, W.; Yuthavong, Y. Synthesis of Solution-Phase Combinatorial Library of 4,6-Diamino-1,2-dihydro-1,3,5-triazine and Identification of New Leads Against A16V+S108T Mutant Dihydrofolate Reductase of Plasmodium falciparum. Bioorganic Med. Chem. 2002, 11, 217–224. [Google Scholar] [CrossRef]
  42. Feng, C.; Zhang, Y.; Liu, S.; Chi, Z.; Xu, J. Synthesis of novel triazine charring agent and its effect in intumescent flame-retardant polypropylene. J. Appl. Polym. Sci. 2012, 123, 3208–3216. [Google Scholar] [CrossRef]
  43. Osman, S.M.; Khattab, S.; Aly, E.-S.A.; Kenawy, E.-R.; El-Faham, A. 1,3,5-Triazine-based polymer: Synthesis, characterization and application for immobilization of silver nanoparticles. J. Polym. Res. 2017, 24, 231. [Google Scholar] [CrossRef]
  44. Al-Rasheed, H.H.; Sholkamy, E.; Al Alshaikh, M.; Siddiqui, M.R.H.; Al-Obaidi, A.S.; El-Faham, A. Synthesis, Characterization, and Antimicrobial Studies of Novel Series of 2,4-Bis(hydrazino)-6-substituted-1,3,5-triazine and Their Schiff Base Derivatives. J. Chem. 2018, 2018, 1–13. [Google Scholar] [CrossRef] [Green Version]
  45. Al-Rasheed, H.H.; Mohammady, S.Z.; Dahlous, K.; Siddiqui, M.R.H.; El-Faham, A. Synthesis, characterization, thermal stability and kinetics of thermal degradation of novel polymers based-s-triazine Schiff base. J. Polym. Res. 2020, 27, 1–11. [Google Scholar] [CrossRef]
  46. Gopi, S.; Kathiresan, M. 1,4-Phenylenediamine based covalent triazine framework as an electro catalyst. Polymer 2017, 109, 315–320. [Google Scholar] [CrossRef]
  47. Alborzi, A.; Zahmatkesh, S.; Yazdanpanah, A. l-Lysine-derived optically active poly(hydrazide-imide)s: Synthesis, characterization and their application in removal of heavy metal ions. Polym. Bull. 2013, 70, 3359–3372. [Google Scholar] [CrossRef]
  48. Liu, Y.-L.; Chiu, Y.-C.; Chen, T.-Y. Phosphorus-containing polyaryloxydiphenylsilanes with high flame retardance arising from a phosphorus-silicon synergistic effect. Polym. Int. 2003, 52, 1256–1261. [Google Scholar] [CrossRef]
  49. Van Krevelen, D. Some basic aspects of flame resistance of polymeric materials. Polymer 1975, 16, 615–620. [Google Scholar] [CrossRef]
  50. Yang, R.; Ma, B.; Zhao, H.; Li, J. Preparation, Thermal Degradation, and Fire Behaviors of Intumescent Flame Retardant Polypropylene with a Charring Agent Containing Pentaerythritol and Triazine. Ind. Eng. Chem. Res. 2016, 55, 5298–5305. [Google Scholar] [CrossRef]
  51. Wang, Y.; Xu, M.-J.; Li, B. Synthesis of N-methyl triazine-ethylenediamine copolymer charring foaming agent and its enhancement on flame retardancy and water resistance for polypropylene composites. Polym. Degrad. Stab. 2016, 131, 20–29. [Google Scholar] [CrossRef]
  52. Li, B.; Zhan, Z.; Zhang, H.; Sun, C. Flame Retardancy and Thermal Performance of Polypropylene Treated With the Intumescent Flame Retardant, Piperazine Spirocyclic Phosphoramidate. J. Vinyl Addit. Technol. 2014, 20, 10–15. [Google Scholar] [CrossRef]
  53. Wen, P.; Wang, D.; Liu, J.; Zhan, J.; Hu, Y.; Yuen, K.K.R. Organically modified montmorillonite as a synergist for intumescent flame retardant against the flammable polypropylene. Polym. Adv. Technol. 2017, 28, 679–685. [Google Scholar] [CrossRef]
  54. Xu, Z.-Z.; Huang, J.-Q.; Chen, M.-J.; Tan, Y.; Wang, Y.-Z. Flame retardant mechanism of an efficient flame-retardant polymeric synergist with ammonium polyphosphate for polypropylene. Polym. Degrad. Stab. 2013, 98, 2011–2020. [Google Scholar] [CrossRef]
  55. Aldalbahi, A.; Alotaibi, B.; El-Faham, A. Synthesis, Characterization of sym-2,4,6-trisubstituted-s-Triazine Derivatives and Their Effects on Flame Retardancy of Polypropylene Composites. Processes 2020, 8, 581. [Google Scholar] [CrossRef]
Polymers 14 00784 sch001 550

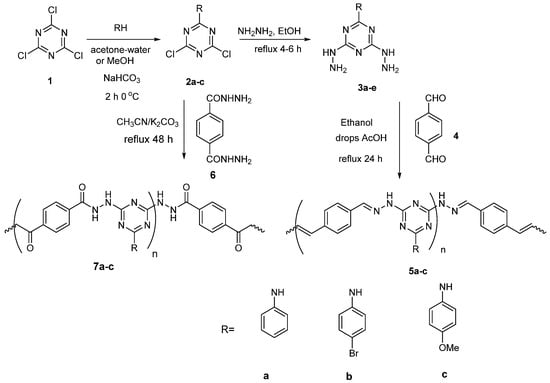

Scheme 1. Synthesis of polymer based-s-triazine bishydrazino and bishydrazido derivatives.
Scheme 1. Synthesis of polymer based-s-triazine bishydrazino and bishydrazido derivatives.
Polymers 14 00784 sch001
Polymers 14 00784 g001 550

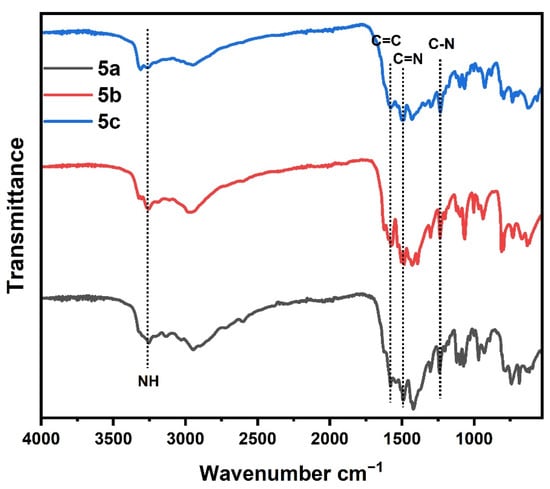

Figure 1. FT-IR spectrum of samples (5a–c).
Figure 1. FT-IR spectrum of samples (5a–c).
Polymers 14 00784 g001
Polymers 14 00784 g002 550

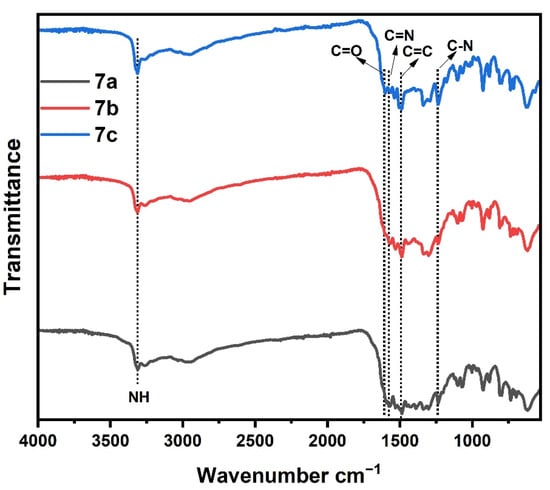

Figure 2. FT-IR spectrum of samples (7a–c).
Figure 2. FT-IR spectrum of samples (7a–c).
Polymers 14 00784 g002
Polymers 14 00784 g003 550

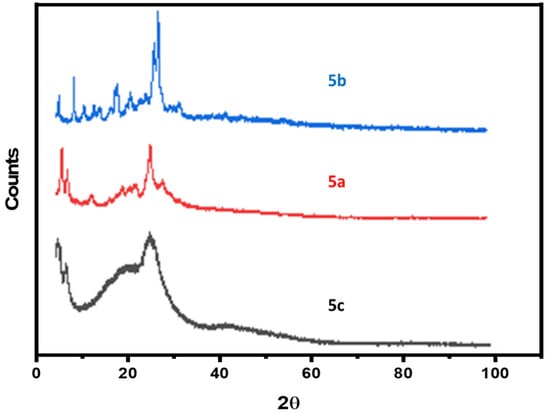

Figure 3. XRD spectrum of samples (5a–c).
Figure 3. XRD spectrum of samples (5a–c).
Polymers 14 00784 g003
Polymers 14 00784 g004 550
Figure 4. XRD spectrum of samples (7a–c).
Figure 4. XRD spectrum of samples (7a–c).
Polymers 14 00784 g004
Polymers 14 00784 g005 550
Figure 5. SEM images of samples (a) 5a, (b) 5b, (c) 5c, (d) 7a, (e) 7b, and (f) 7c.
Figure 5. SEM images of samples (a) 5a, (b) 5b, (c) 5c, (d) 7a, (e) 7b, and (f) 7c.
Polymers 14 00784 g005
Polymers 14 00784 g006 550

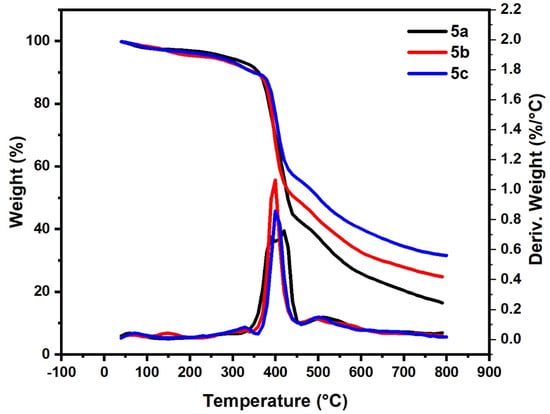

Figure 6. Thermogravimetric analysis of samples (5a–c).
Figure 6. Thermogravimetric analysis of samples (5a–c).
Polymers 14 00784 g006
Polymers 14 00784 g007 550

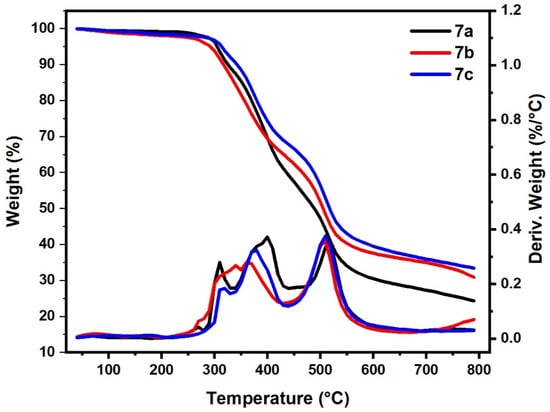

Figure 7. Thermogravimetric analysis of samples (7a–c).
Figure 7. Thermogravimetric analysis of samples (7a–c).
Polymers 14 00784 g007
Polymers 14 00784 g008 550

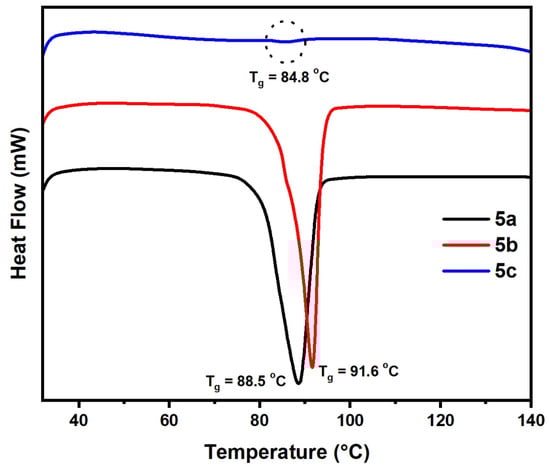

Figure 8. DSC analysis of samples (5a–c).
Figure 8. DSC analysis of samples (5a–c).
Polymers 14 00784 g008
Polymers 14 00784 g009 550

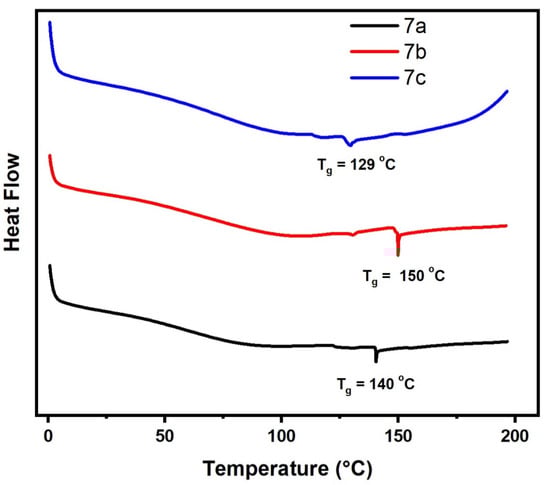

Figure 9. Differential scanning calorimetry (DSC) of samples (7a–c).
Figure 9. Differential scanning calorimetry (DSC) of samples (7a–c).
Polymers 14 00784 g009
Polymers 14 00784 g010 550

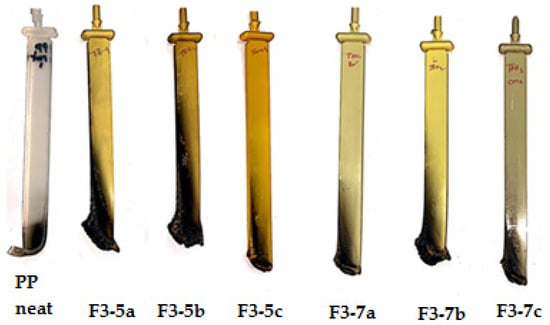

Figure 10. Flammability test of PP composites.
Figure 10. Flammability test of PP composites.
Polymers 14 00784 g010
Table
Table 1. FT-IR data for prepared polymers 5a–c & 7a–c.
Table 1. FT-IR data for prepared polymers 5a–c & 7a–c.
Compd.FT-IR (cm−1)
5a3320 (NH), 1600, 1490 (C=C), 1550 (C=N), 1270(C-N)
5b3330 (NH), 1600, 1490 (C=C), 1550 (C=N), 1270 (C-N)
5c3330 (NH), 1600, 1490 (C=C), 1550 (C=N), 1270 (C-N)
7a3330 (NH), 1620 (C=O), 1550 (C=N), 1470 (C=C), 1270 (C-N)
7b3330 (NH), 1630 (C=O), 1550 (C=N), 1490 (C=C), 1260 (C-N)
7c3330 (NH), 1620 (C=O), 1550 (C=N), 1490 (C=C), 1250 (C-N)
Table
Table 2. Calculated elemental analysis (%) and found (%) for 5a–c and 7a–c.
Table 2. Calculated elemental analysis (%) and found (%) for 5a–c and 7a–c.
PolymerCalculated (%)Found (%)
5aC, 68.34; N, 26.56; H, 5.10 C, 66.12; N, 25.01; H, 4.67
5bC, 54.70; N, 21.26; H, 3.83C, 56.89; N, 22.92; H, 4.95
5cC, 65.88; N, 24.26; H, 5.25 C, 63.28; N, 22.86; H, 5.94
7aC, 66.21; N, 27.25; H, 6.54C, 64.80; N, 25.90; H, 7.09
7bC, 46.17; N, 25.34; H, 3.19 C, 45.20; N, 26.04; H, 3.72
7cC, 54.96; N, 28.48; H, 4.36 C, 56.46; N, 30.03; H, 4.96
Table
Table 3. Thermal degradation parameters for 5a–c.
Table 3. Thermal degradation parameters for 5a–c.
Sample IDMain Degradation Step
(°C)		Mass Loss
(%)		TgResidue at 800 °CLOI *
(%)
5a320–46057.8888.5016.5224.11
5b340–45050.5091.6025.0027.50
5c350–45043.7084.8031.5530.12
* Calculated at 800 °C.
Table
Table 4. Thermal degradation parameters for 7a–c.
Table 4. Thermal degradation parameters for 7a–c.
Sample Stage I/Mass Loss
(%)		Stage II/Mass Loss
(%)		Stage III/Mass Loss
(%)		TgResidue at 800 °CLOI *
(%)
7a280–335/10335–440/29470–630/2414024.3227.23
7b250–430/38-430–620/3415030.9029.86
7c250–330/6330–430/23440–650/3112933.3830.85
* Calculated at 800 °C.
Table
Table 5. Flammability test data of the neat PP and its composites.
Table 5. Flammability test data of the neat PP and its composites.
SamplePP%AFR%APP%UL94drip
PP neat10000N/RYes
F1-5a75250N/RYes
F1-5b75250N/RYes
F1-5c75250N/RYes
F2-5a7512.5012.50V2Yes
F2-5b7512.5012.50V2Yes
F2-5c7512.5012.50V-2aYes
F3-5a758.3316.66V1cNO
F3-5b758.3316.66V1NO
F3-5c758.3316.66V0bNO
F1-7a75250N/RYes
F1-7b75250N/RYes
F1-7c75250N/RYes
F2-7a7512.5012.5V2Yes
F2-7b7512.5012.5V2Yes
F2-7c7512.5012.5V2Yes
F3-7a758.3316.66V1NO
F3-7b758.3316.66V1NO
F3-7c758.3316.66V0NO
V-0: rating is the highest flame-retardant rating; V-1: rating allows non-flaming drips and V-2: allows flaming drips.
Table
Table 6. Comparison of the flammability characteristics of the prepared polymers with other materials.
Table 6. Comparison of the flammability characteristics of the prepared polymers with other materials.
Flame RetardantPP%APP%IFR%LOIUL94Ref.
PEPADC70243035.5V-0[50]
CNCA-DA70203035.6V-0[42]
MTEC7618.242429.6V-0[51]
CFA7022.53035.2V-0[52]
HCFA80152029V-1[53]
PTPA75202533.0V-1[54]
F3-5c7516.662530.12V-0This work
F3-7c7516.662530.85V-0This work
Macromolecular charring agent (PEPADC), 4,6-dichloro-N-phenyl-1,3,5-triazin- 2-amine-ethylenediamine copolymer (CNCA-DA), N-methyl triazine-ethylenediamine copolymer (MTEC), triazine polymer charring-foaming agent (CFA), hyperbranched charring foaming agent (HCFA) and poly(N4-bis(ethylenediamino)-phenylphosphonic-N2, N6-bis-ethylenediamino-1,3,5-triazine-N-phenylphosphonate) (PTPA).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Aldalbahi, A.; AlOtaibi, B.S.; Thamer, B.M.; El-Faham, A. Synthesis of New S-Triazine Bishydrazino and Bishydrazido-Based Polymers and Their Application in Flame-Retardant Polypropylene Composites. Polymers 2022, 14, 784. https://doi.org/10.3390/polym14040784

AMA Style

Aldalbahi A, AlOtaibi BS, Thamer BM, El-Faham A. Synthesis of New S-Triazine Bishydrazino and Bishydrazido-Based Polymers and Their Application in Flame-Retardant Polypropylene Composites. Polymers. 2022; 14(4):784. https://doi.org/10.3390/polym14040784

Chicago/Turabian Style

Aldalbahi, Ali, Bander S. AlOtaibi, Badr M. Thamer, and Ayman El-Faham. 2022. "Synthesis of New S-Triazine Bishydrazino and Bishydrazido-Based Polymers and Their Application in Flame-Retardant Polypropylene Composites" Polymers 14, no. 4: 784. https://doi.org/10.3390/polym14040784

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
