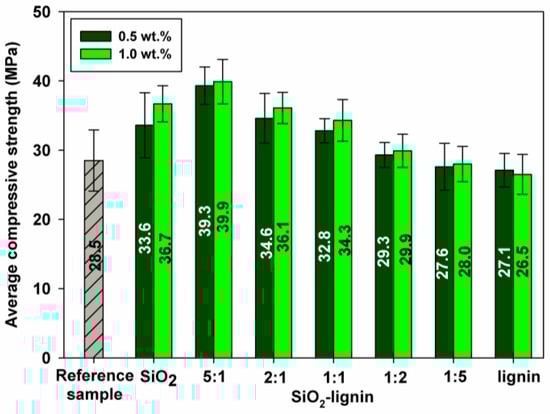

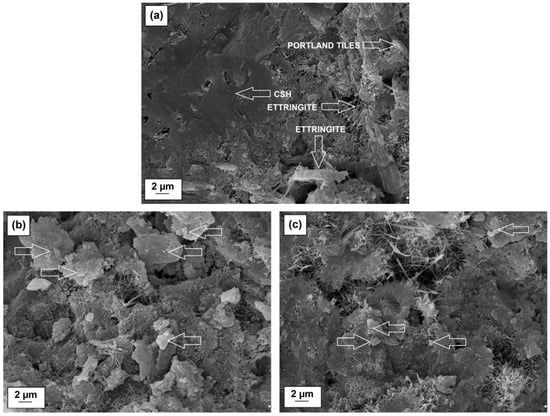

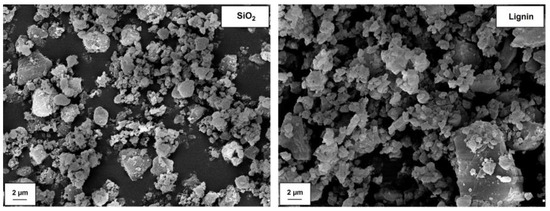

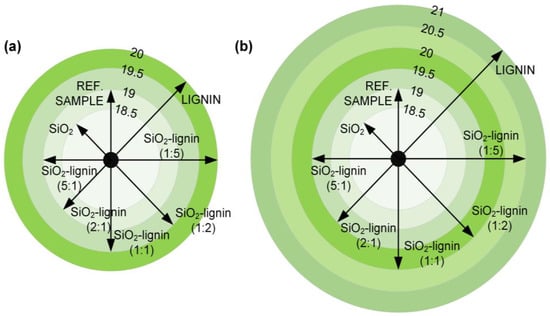

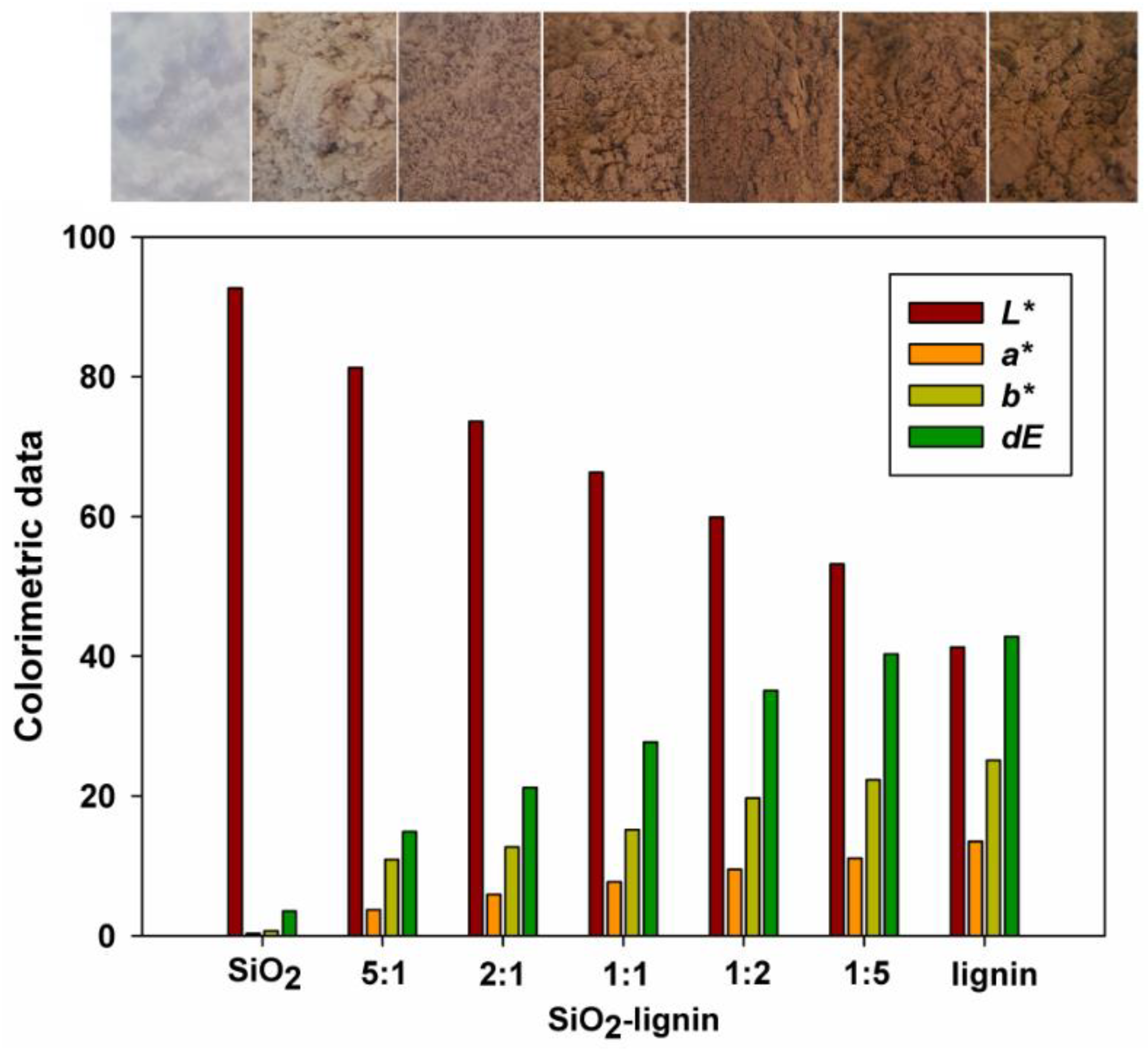

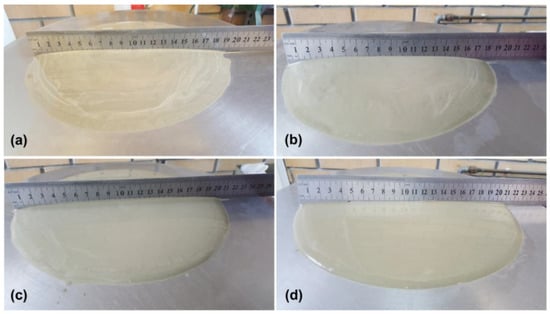

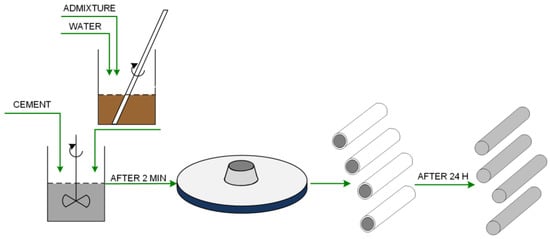

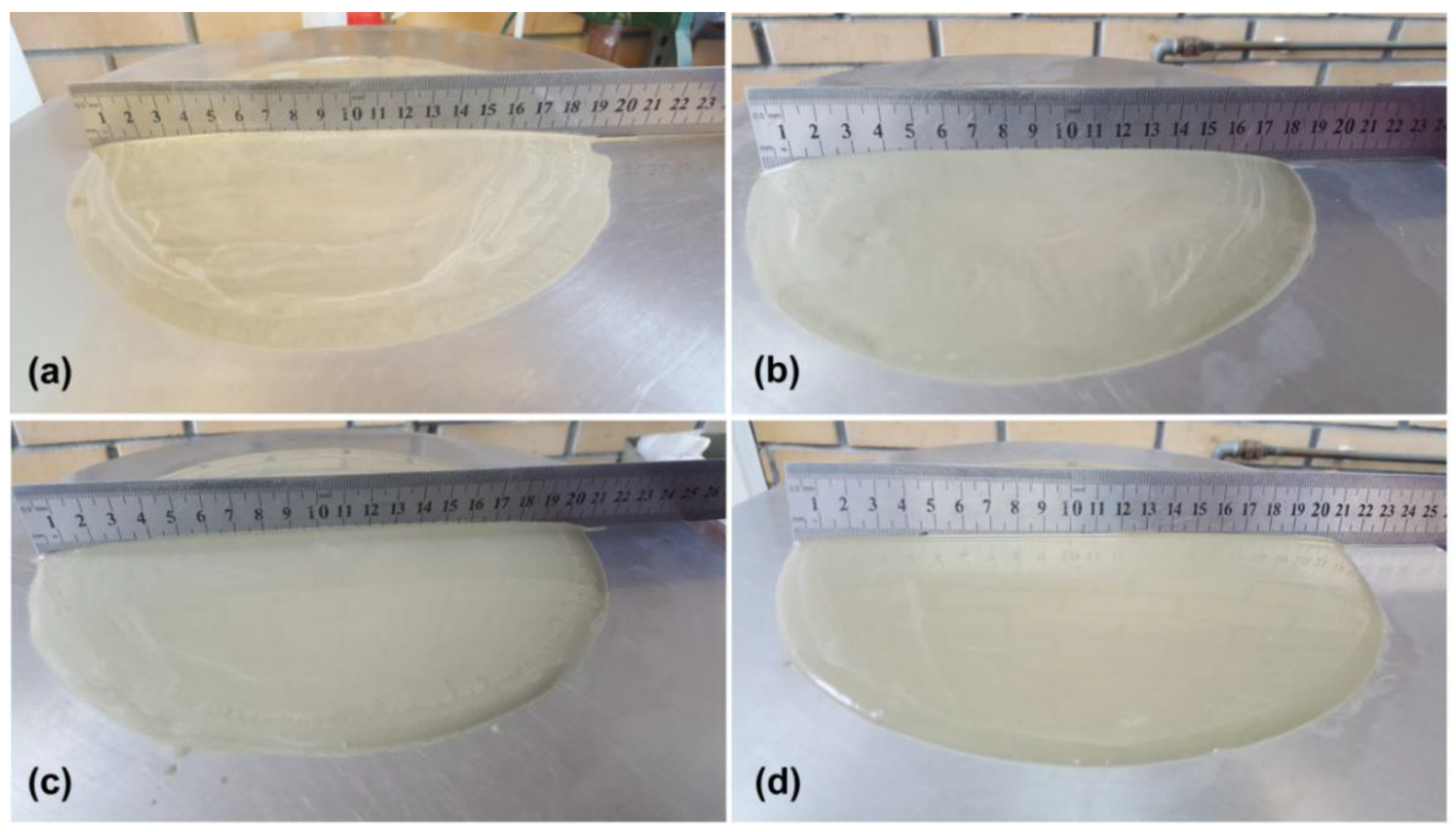

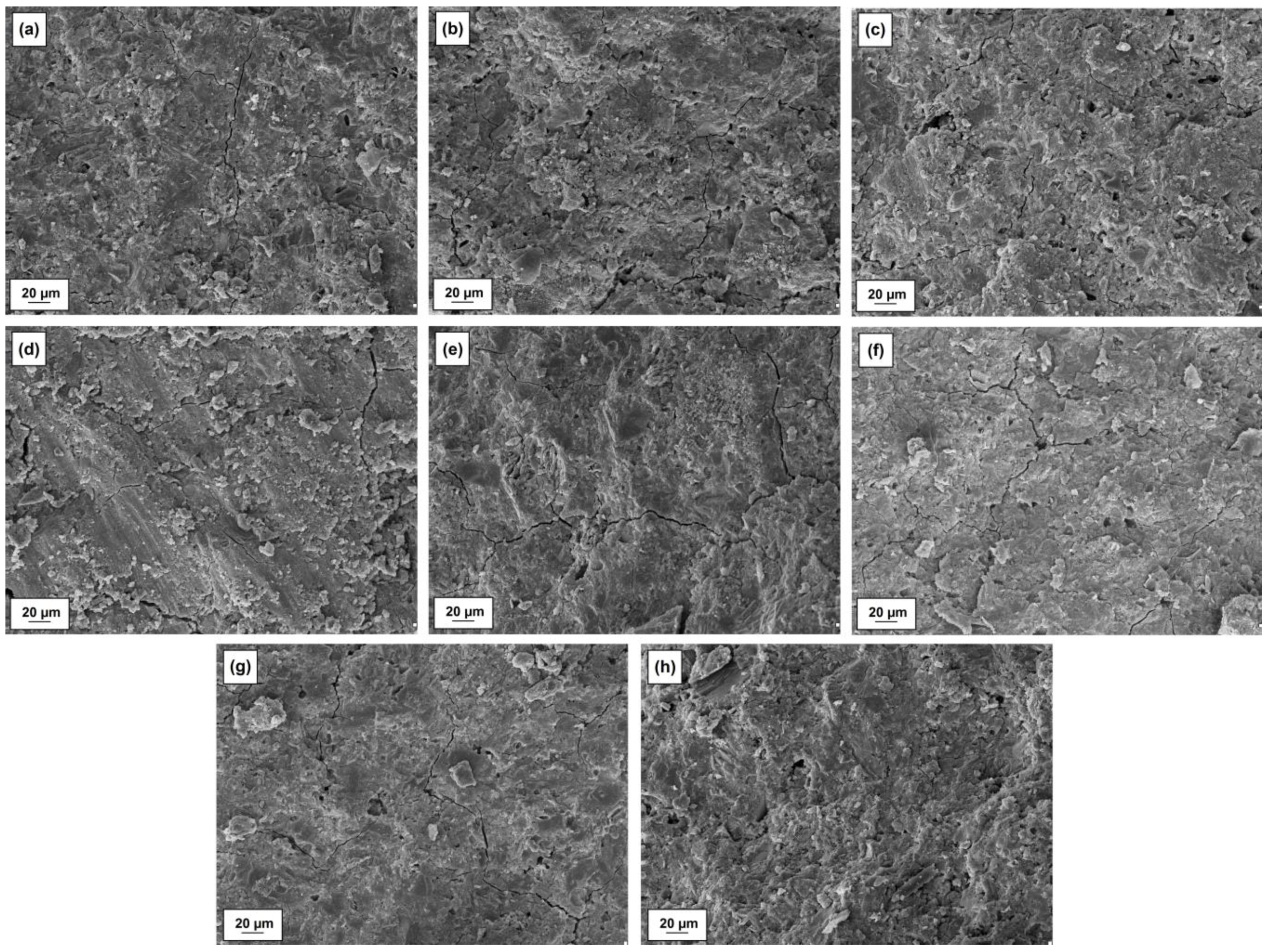

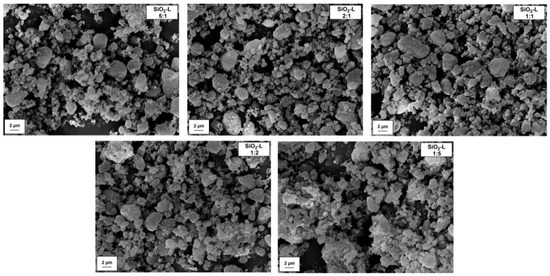

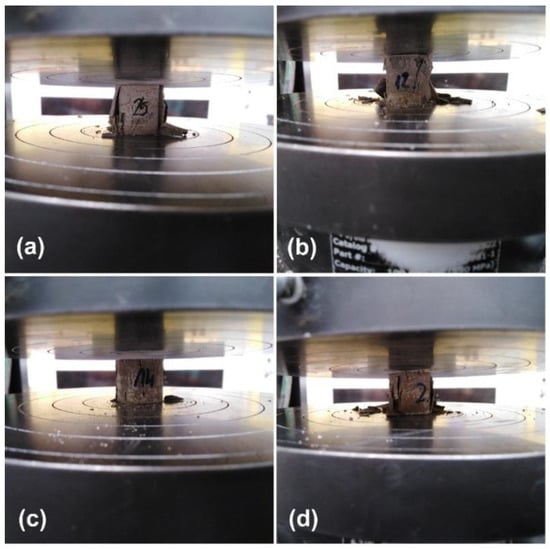

In the framework of this publication, silica-lignin hybrid materials were designed, obtained, characterized and then used as admixtures for cement composites. High-energy mechanical grinding of individual components was used to produce the systems that allowed ensuring adequate homogeneity of the final products. As a result of the analysis of Fourier transform infrared spectroscopy, it has been confirmed that weak physical interactions occur between the components. This allowed classifying the resulting systems as I class hybrid materials. In addition, the efficiency of obtaining final products was also inferred on the basis of obtained porous structure parameters and colorimetric data. The achieved bio-admixture with different weight ratios of silica and lignin was added to cement pastes in the amount ranging from 0.5 to 1 wt.%. The study showed that increasing the ratio of lignin in the admixture from 0.15 to 1 wt.% had a positive effect on the rheological properties of the pastes, while the mechanical properties of the composite were deteriorated. In turn, a higher amount of silica in the admixture acted in reverse. The most favorable results were obtained for a silica-lignin bio-admixture with a weight ratio of components equal to 5:1 wt./wt. A significant increase in compressive strength was gained at satisfactory plasticity of the paste.
This is an open access article distributed under the Creative Commons Attribution License
which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited
