Next Article in Journal
Properties of Poplar Fiber/PLA Composites: Comparison on the Effect of Maleic Anhydride and KH550 Modification of Poplar Fiber
Previous Article in Journal
Effect of Chitin Nanocrystals on Crystallization and Properties of Poly(lactic acid)-Based Nanocomposites
Previous Article in Special Issue
Gas Transport Phenomena and Polymer Dynamics in PHB/PLA Blend Films as Potential Packaging Materials
Open AccessArticle

Comparative Structure-Property Characterization of Poly(3-Hydroxybutyrate-Co-3-Hydroxyvalerate)s Films under Hydrolytic and Enzymatic Degradation: Finding a Transition Point in 3-Hydroxyvalerate Content

1
Research Center of Biotechnology of the Russian Academy of Sciences 33, Bld. 2 Leninsky Ave, 119071 Moscow, Russia
2
Federal State Budgetary Institution “Technological Institute for Superhard and Novel Carbon Materials”, 7a Tsentralnaya Street, Troitsk, 108840 Moscow, Russia
3
Faculty of Biology, M.V. Lomonosov Moscow State University, Leninskie Gory 1-12, 119234 Moscow, Russia
4
Research Center of Chemical Physics the Russian Academy of Sciences, Kosygin str. 4, 119991 Moscow, Russia
*
Author to whom correspondence should be addressed.
Polymers 2020, 12(3), 728; https://doi.org/10.3390/polym12030728 (registering DOI)
Received: 20 February 2020 / Revised: 14 March 2020 / Accepted: 20 March 2020 / Published: 24 March 2020

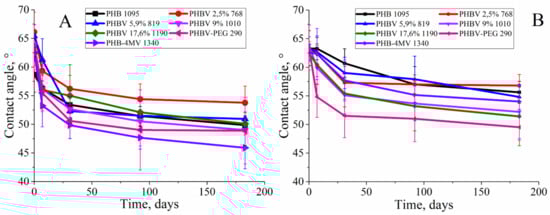

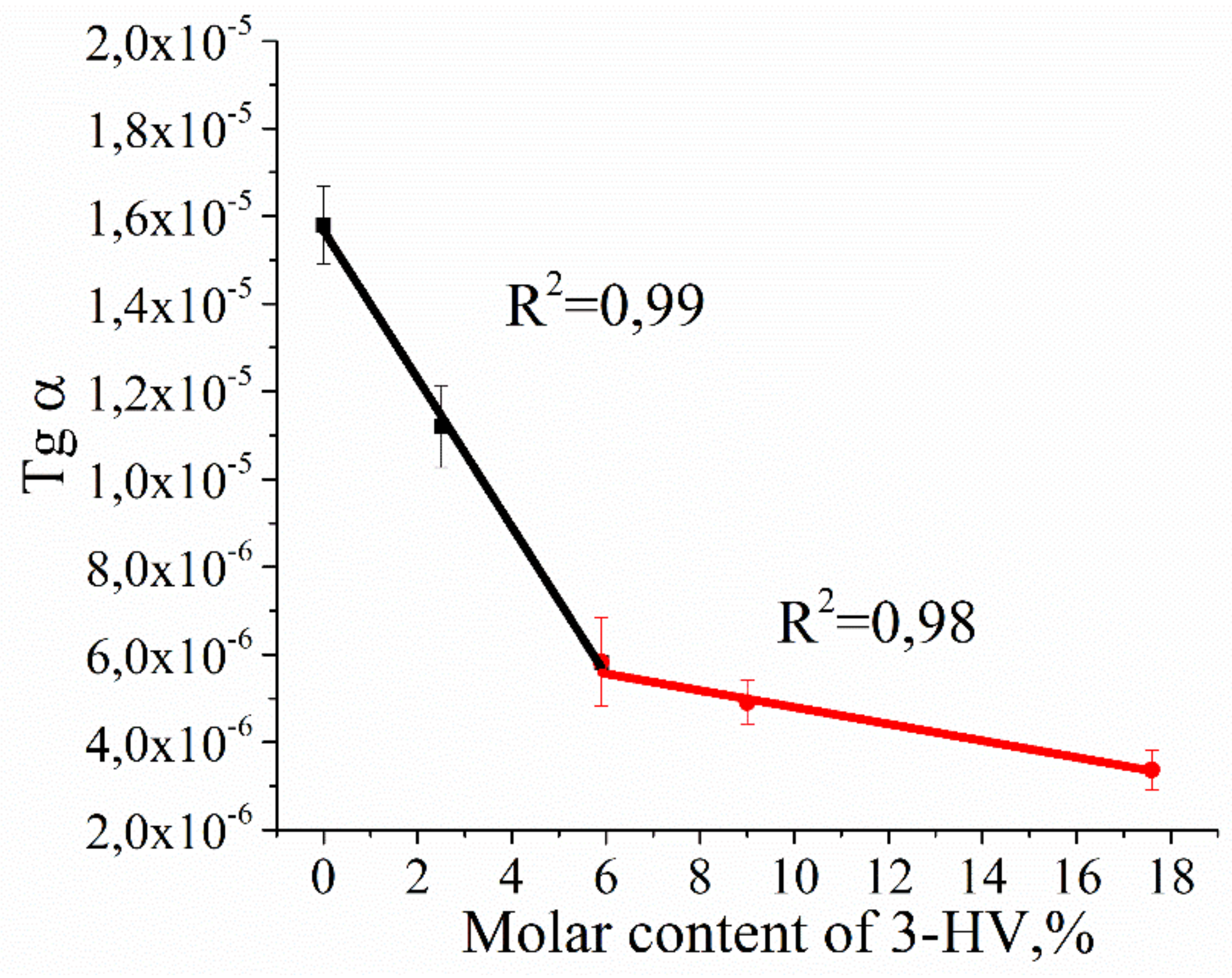

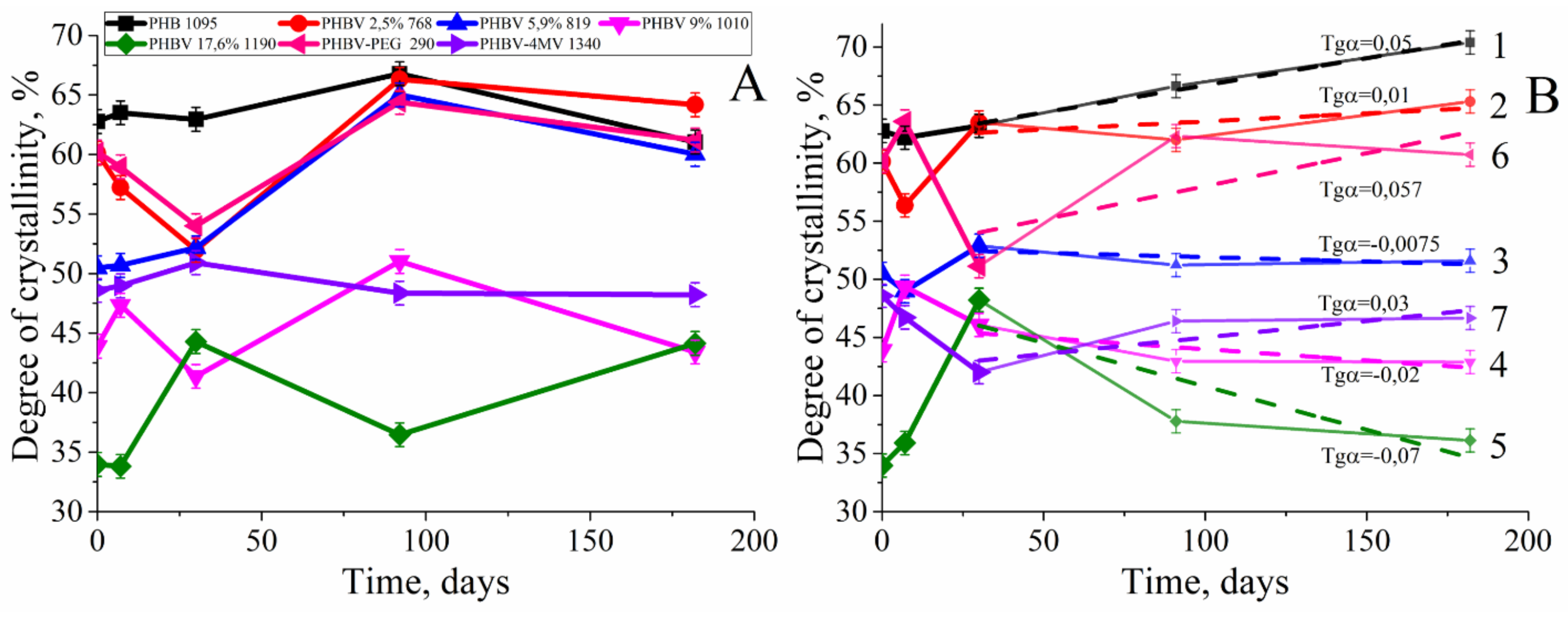

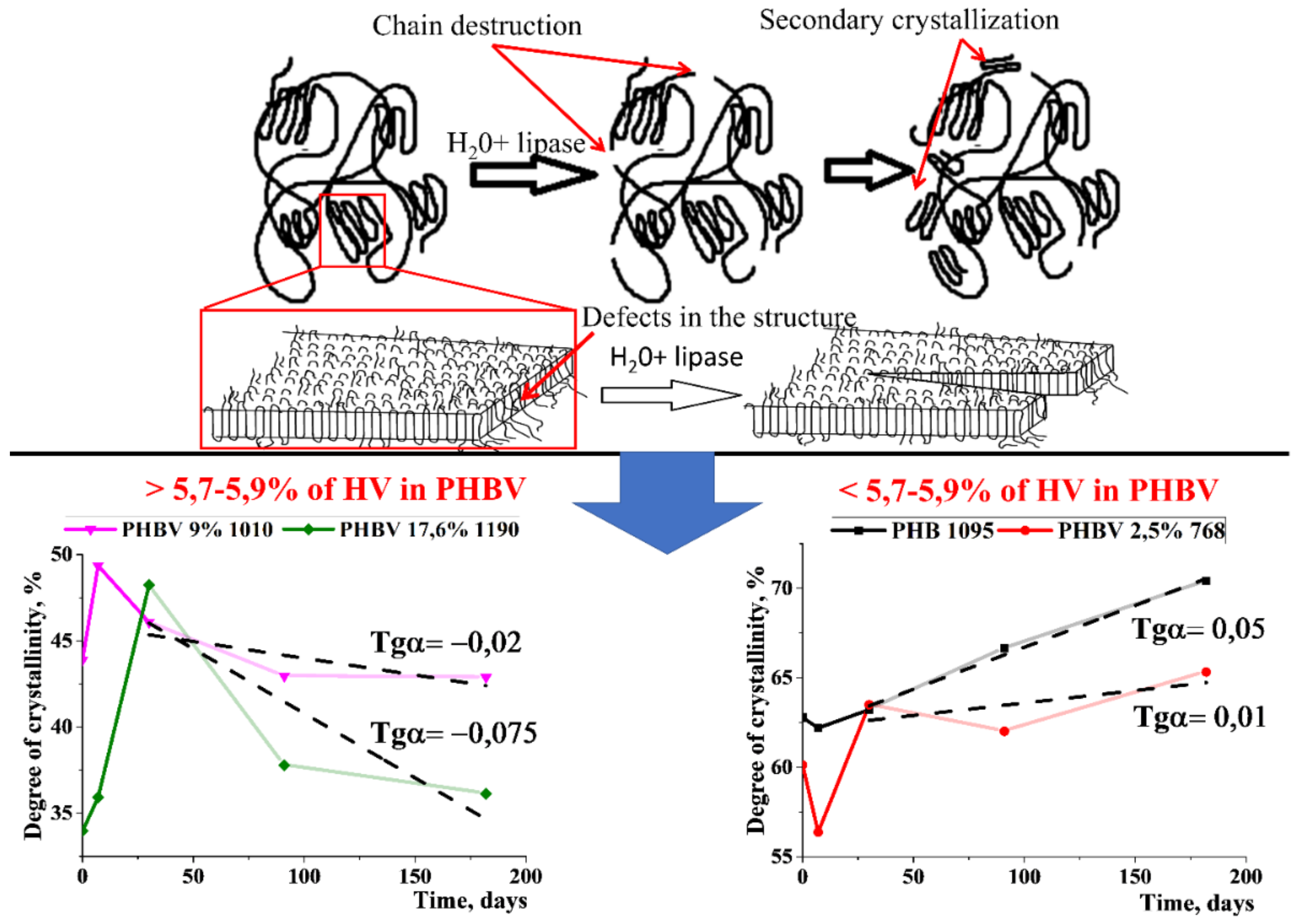

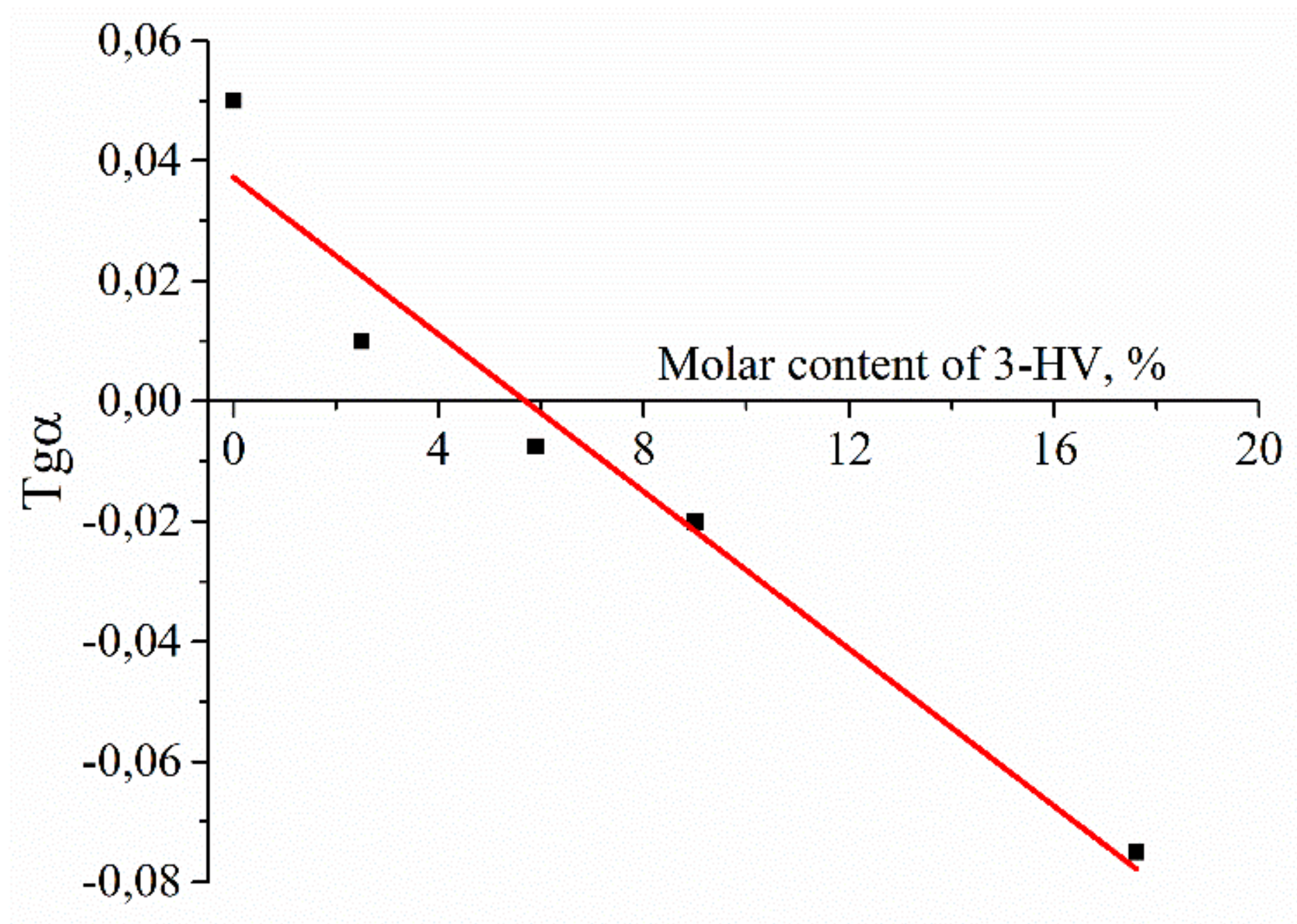

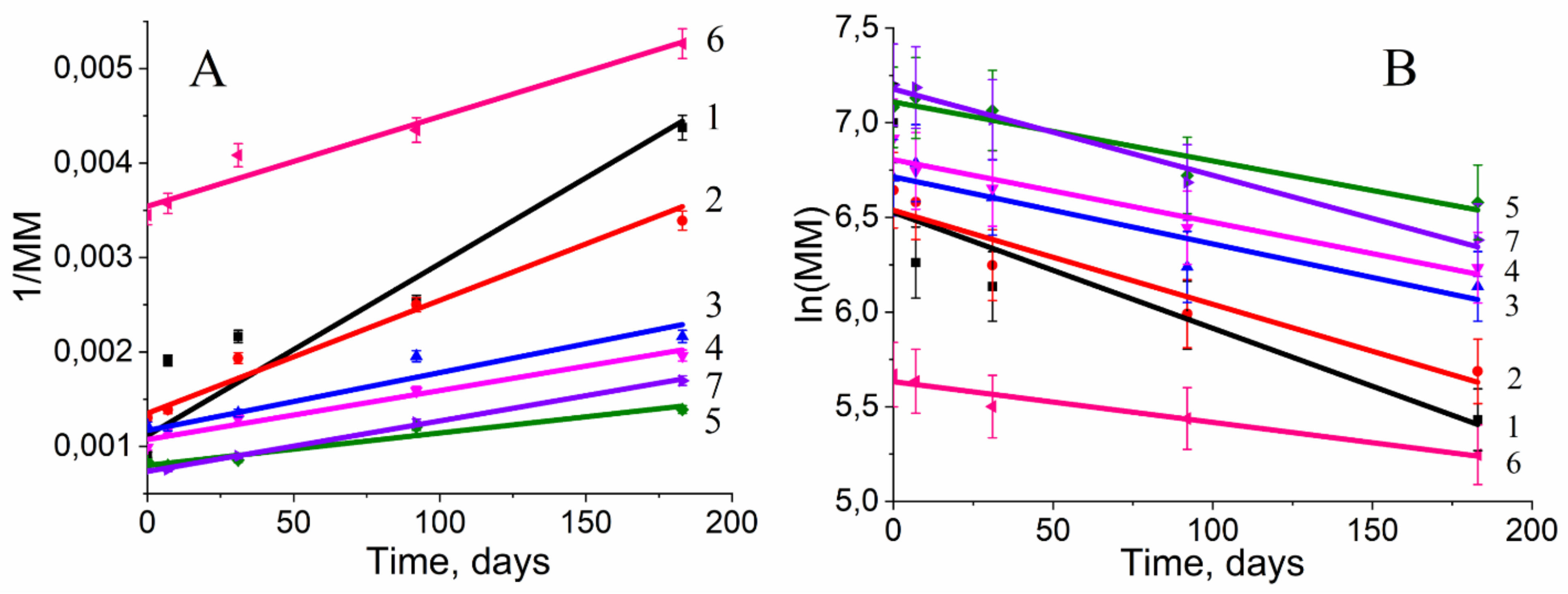

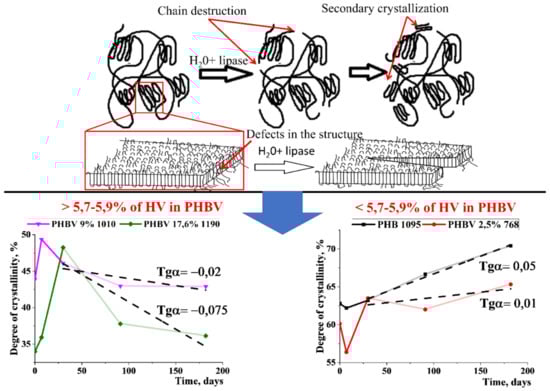

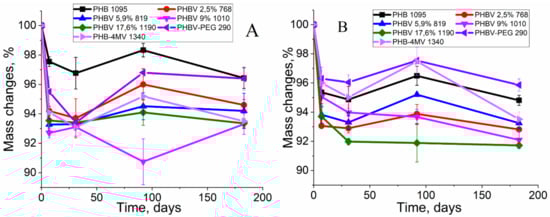

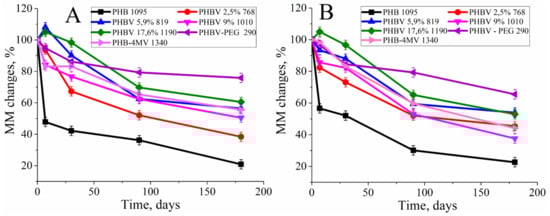

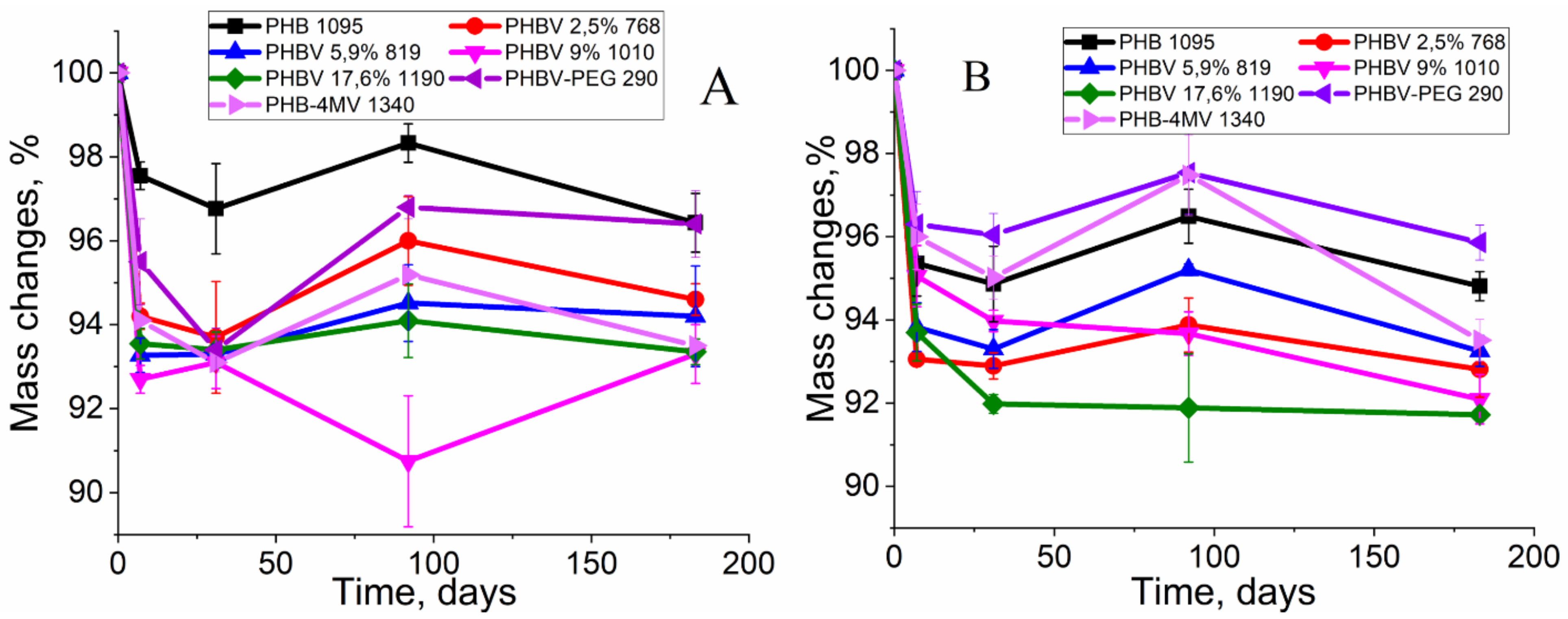

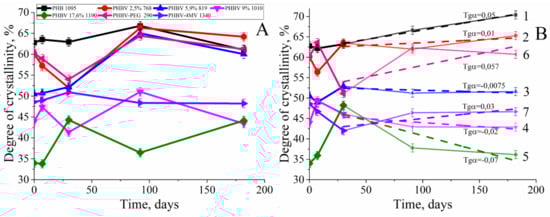

The hydrolytic and enzymatic degradation of polymer films of poly(3-hydroxybutyrate) (PHB) of different molecular mass and its copolymers with 3-hydroxyvalerate (PHBV) of different 3-hydroxyvalerate (3-HV) content and molecular mass, 3-hydroxy-4-methylvalerate (PHB4MV), and polyethylene glycol (PHBV-PEG) produced by the Azotobacter chroococcum 7B by controlled biosynthesis technique were studied under in vitro model conditions. The changes in the physicochemical properties of the polymers during their in vitro degradation in the pancreatic lipase solution and in phosphate-buffered saline for a long time (183 days) were investigated using different analytical techniques. A mathematical model was used to analyze the kinetics of hydrolytic degradation of poly(3-hydroxyaklannoate)s by not autocatalytic and autocatalytic hydrolysis mechanisms. It was also shown that the degree of crystallinity of some polymers changes differently during degradation in vitro. The total mass of the films decreased slightly up to 8–9% (for the high-molecular weight PHBV with the 3-HV content 17.6% and 9%), in contrast to the copolymer molecular mass, the decrease of which reached 80%. The contact angle for all copolymers after the enzymatic degradation decreased by an average value of 23% compared to 17% after the hydrolytic degradation. Young’s modulus increased up to 2-fold. It was shown that the effect of autocatalysis was observed during enzymatic degradation, while autocatalysis was not available during hydrolytic degradation. During hydrolytic and enzymatic degradation in vitro, it was found that PHBV, containing 5.7–5.9 mol.% 3-HV and having about 50% crystallinity degree, presents critical content, beyond which the structural and mechanical properties of the copolymer have essentially changed. The obtained results could be applicable to biomedical polymer systems and food packaging materials. View Full-Text
Keywords: poly(3-hydroxybutyrate); poly(3-hydroxybutyrate-co-3-hydroxyvalerate); poly(3-hydroxybutyrate-co-4-methyl-3-hydroxyvalerate); biodegradation; hydrolysis; pancreatic lipase; mechanical behavior poly(3-hydroxybutyrate); poly(3-hydroxybutyrate-co-3-hydroxyvalerate); poly(3-hydroxybutyrate-co-4-methyl-3-hydroxyvalerate); biodegradation; hydrolysis; pancreatic lipase; mechanical behavior
Show Figures

Figure 1

MDPI and ACS Style

Zhuikov, V.A.; Zhuikova, Y.V.; Makhina, T.K.; Myshkina, V.L.; Rusakov, A.; Useinov, A.; Voinova, V.V.; Bonartseva, G.A.; Berlin, A.A.; Bonartsev, A.P.; Iordanskii, A.L. Comparative Structure-Property Characterization of Poly(3-Hydroxybutyrate-Co-3-Hydroxyvalerate)s Films under Hydrolytic and Enzymatic Degradation: Finding a Transition Point in 3-Hydroxyvalerate Content. Polymers 2020, 12, 728.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
