Next Article in Journal
Crosslinking Effect on Thermal Conductivity of Electrospun Poly(acrylic acid) Nanofibers
Previous Article in Journal
Study on Crystallization Behaviors and Properties of F-III Fibers during Hot Drawing in Supercritical Carbon Dioxide
Previous Article in Special Issue
Facile Synthesis of Di-Mannitol Adipate Ester-Based Zinc Metal Alkoxide as a Bi-Functional Additive for Poly(Vinyl Chloride)
Article Menu

Export Article

Open AccessArticle

Influence of Oxidation Level of Graphene Oxide on the Mechanical Performance and Photo-Oxidation Resistance of a Polyamide 6

Department of Engineering, University of Palermo, Viale delle Scienze, ed. 6, 90128 Palermo, Italy
*
Authors to whom correspondence should be addressed.
Polymers 2019, 11(5), 857; https://doi.org/10.3390/polym11050857
Received: 23 April 2019 / Revised: 3 May 2019 / Accepted: 7 May 2019 / Published: 10 May 2019
(This article belongs to the Special Issue Degradation and Stabilization of Polymer-Based Materials)
  |
PDF [4521 KB, uploaded 10 May 2019]
  |

Abstract

The aim of this work is to study the relationship between the chemical-physical properties of graphene oxide (GO) and the performance of a polyamide 6 (PA6) in terms of mechanical reinforcement and resistance to UV-exposure. For this purpose, two samples of GO possessing different oxidation degrees were added (0.75 wt.%) to PA6 by way of a two-step technique and the materials achieved were carefully analysed from a morphological, chemical-physical, mechanical point of view. Photo-oxidation tests were carried out to assess the performance of this class of nanohybrids after 240 h of UV-exposure. The results reveal that both nanocomposites exhibit enhanced mechanical performance and durability of PA6. However, the most oxidized GO led to a higher increase of mechanical properties and a stronger resistance to UV-exposure. All the analyses confirm that both GO samples are well dispersed and covalently attached to PA6. However, the higher the oxidation level of GO the stronger and the more extended the chemical interphase of the nanocomposite. As regards photochemical stability, both GO samples display UV-shielding capacity but the most oxidized GO also shows radical scavenging activity by virtue of its nanocavities and defects, imparted by prolonged oxidation, which endows PA6 with an outstanding durability even after 240 h of UV-exposure. View Full-Text
Keywords: UV irradiation; reactive mixing; nanocomposites; durability; photo-stability; ATR/FTIR; photo-degradation; radical scavenging; antioxidant; UV-shielding UV irradiation; reactive mixing; nanocomposites; durability; photo-stability; ATR/FTIR; photo-degradation; radical scavenging; antioxidant; UV-shielding

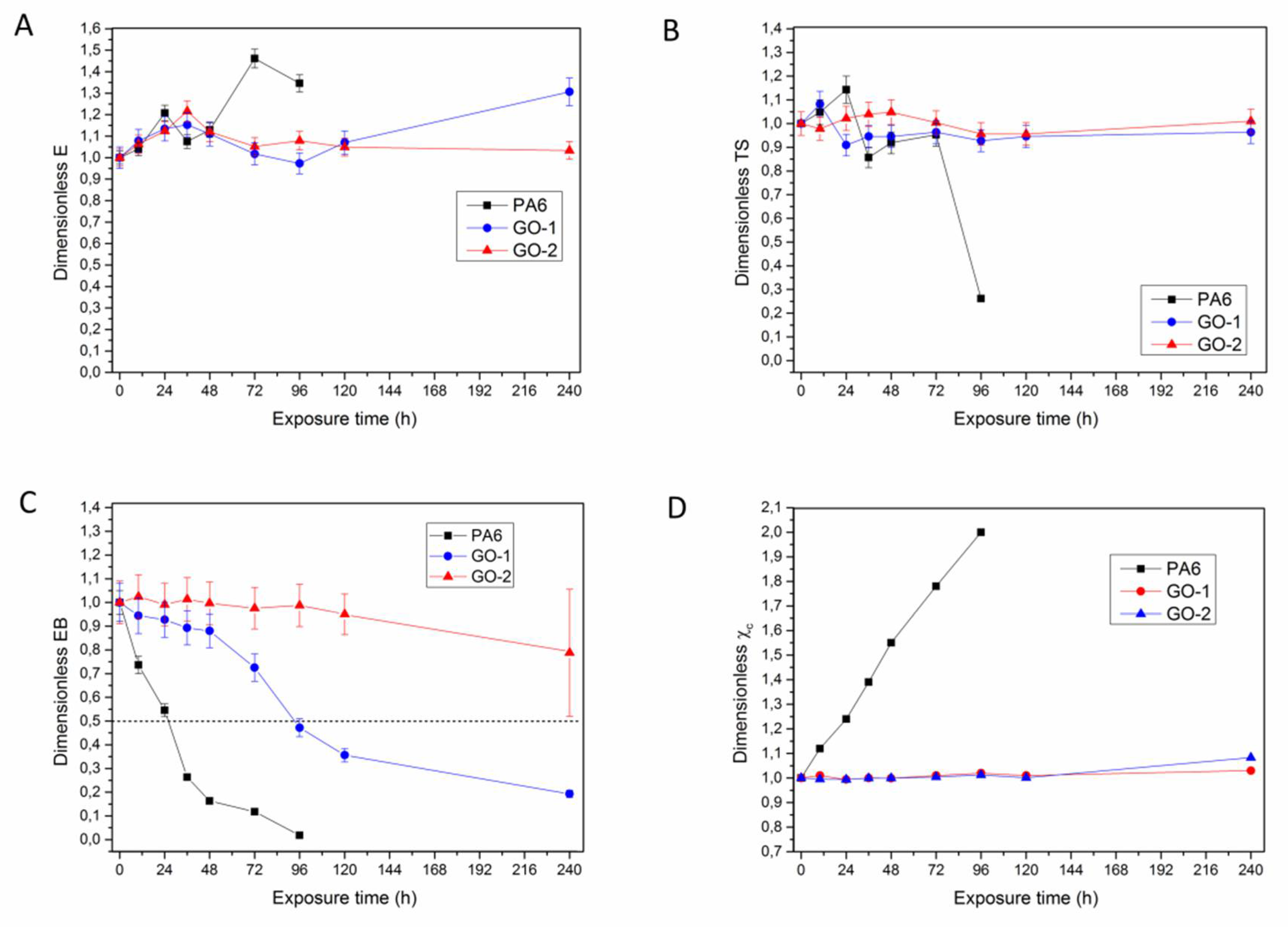

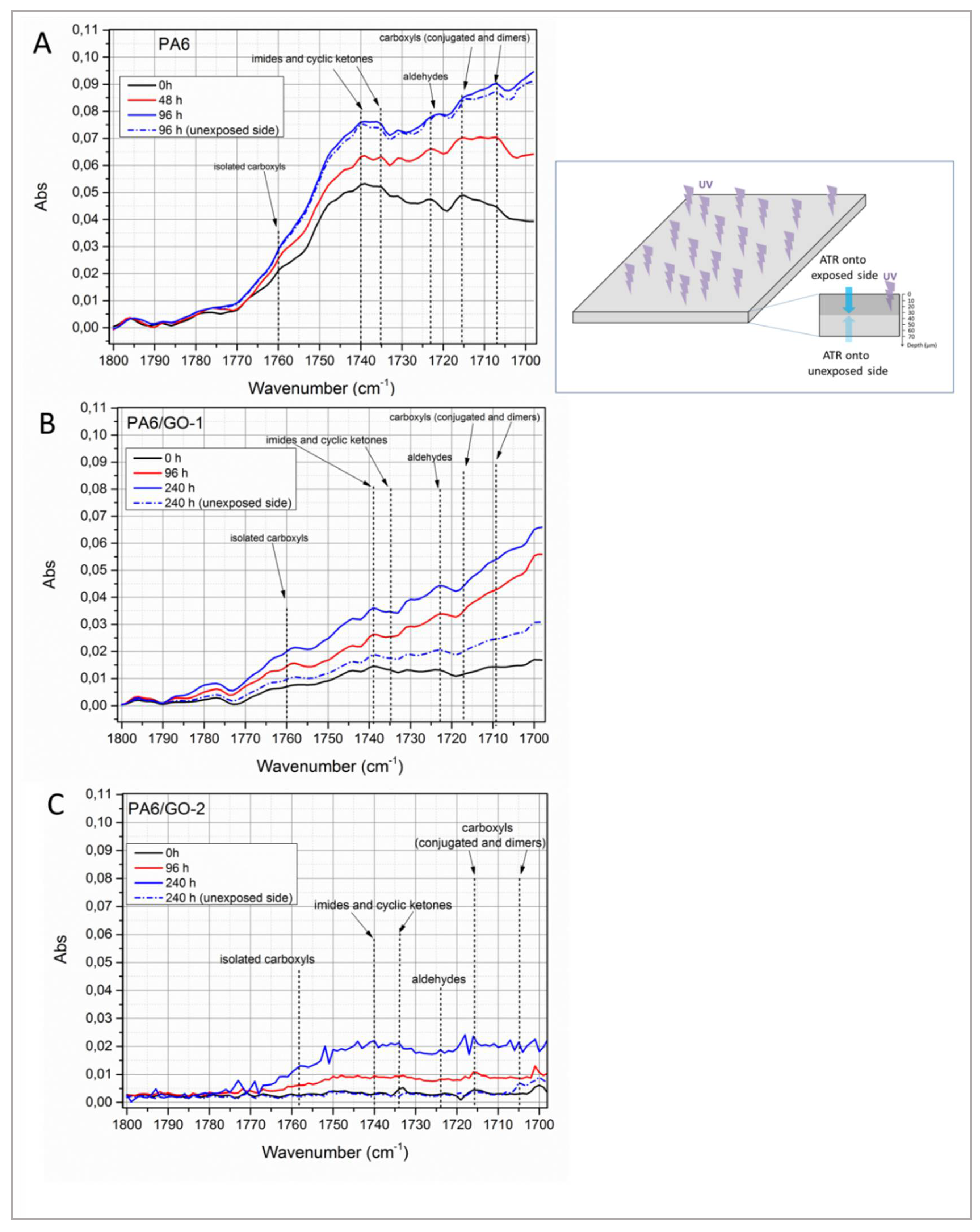

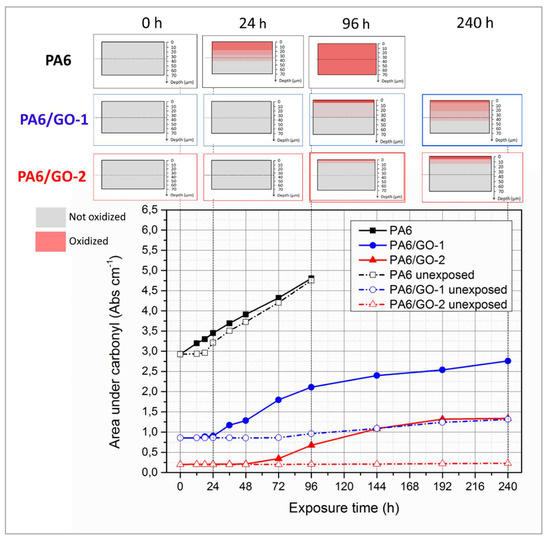

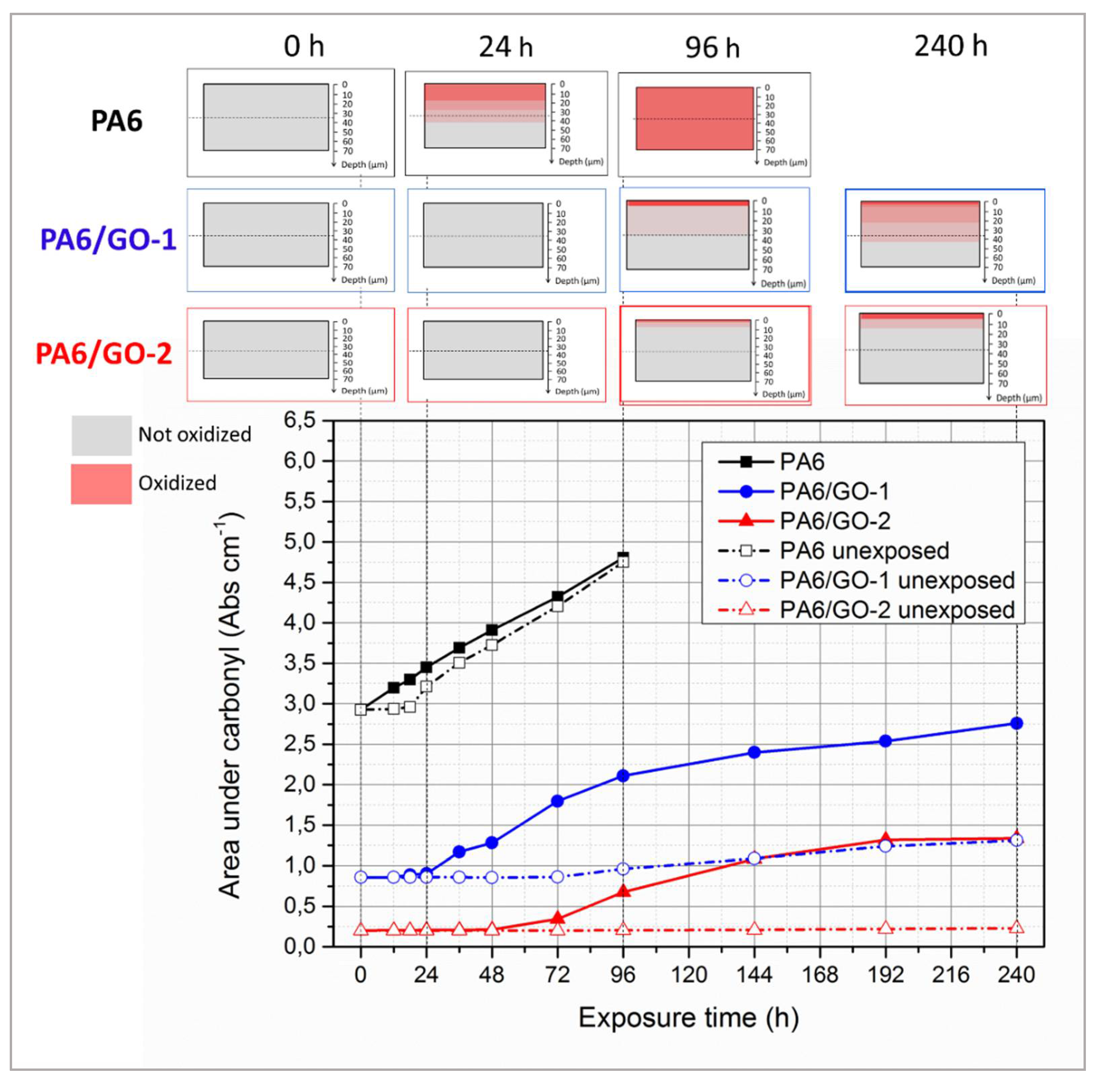

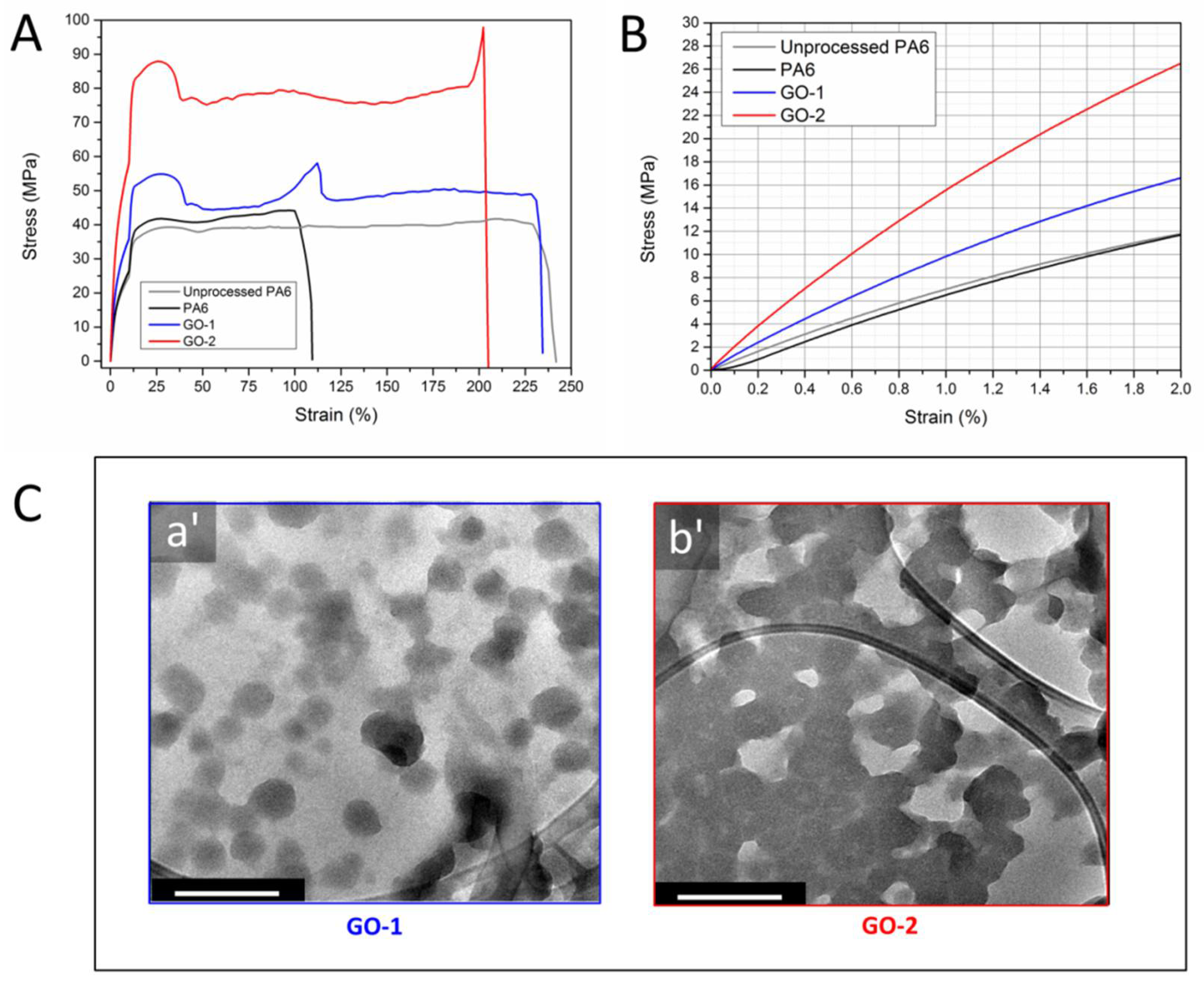

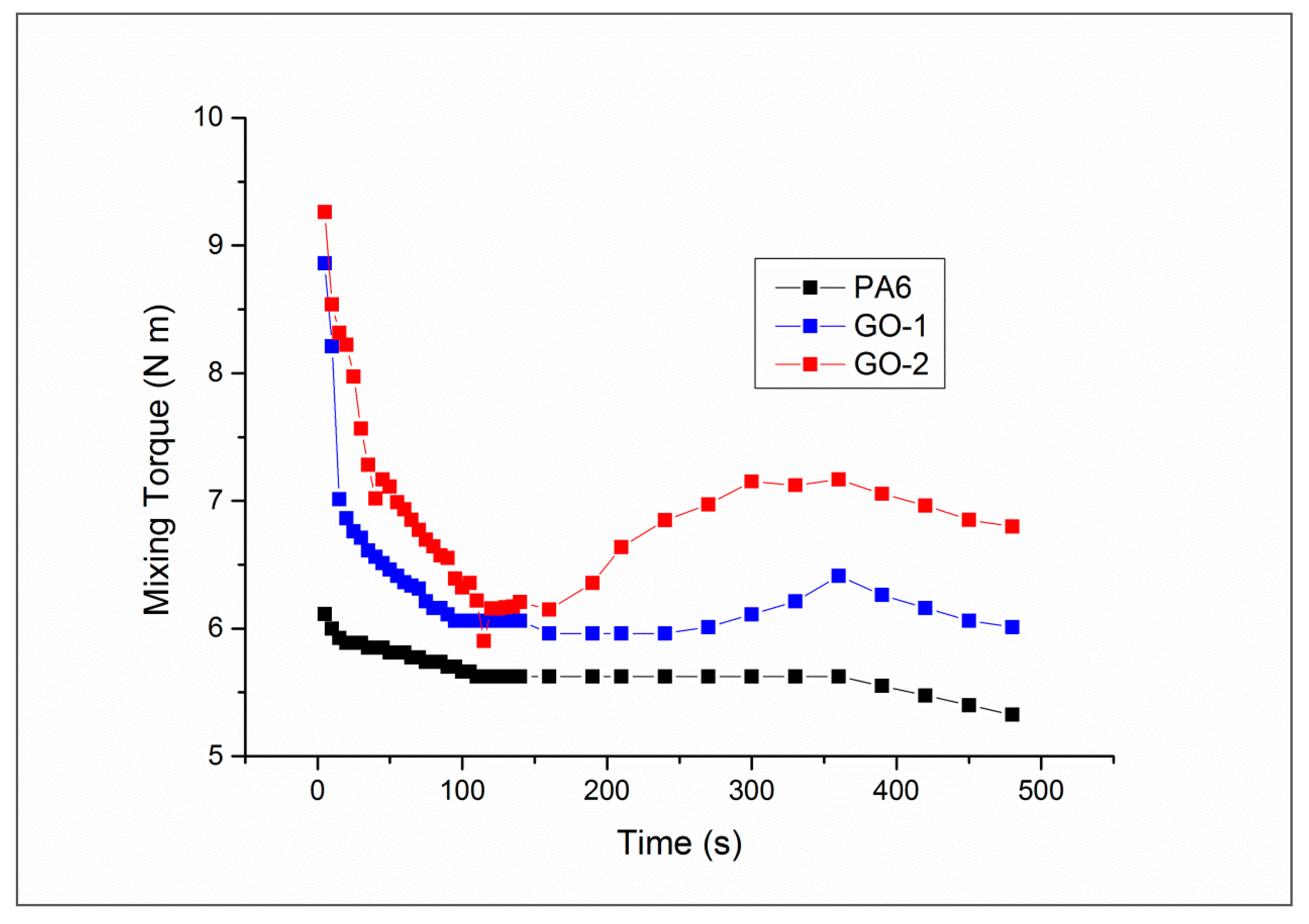

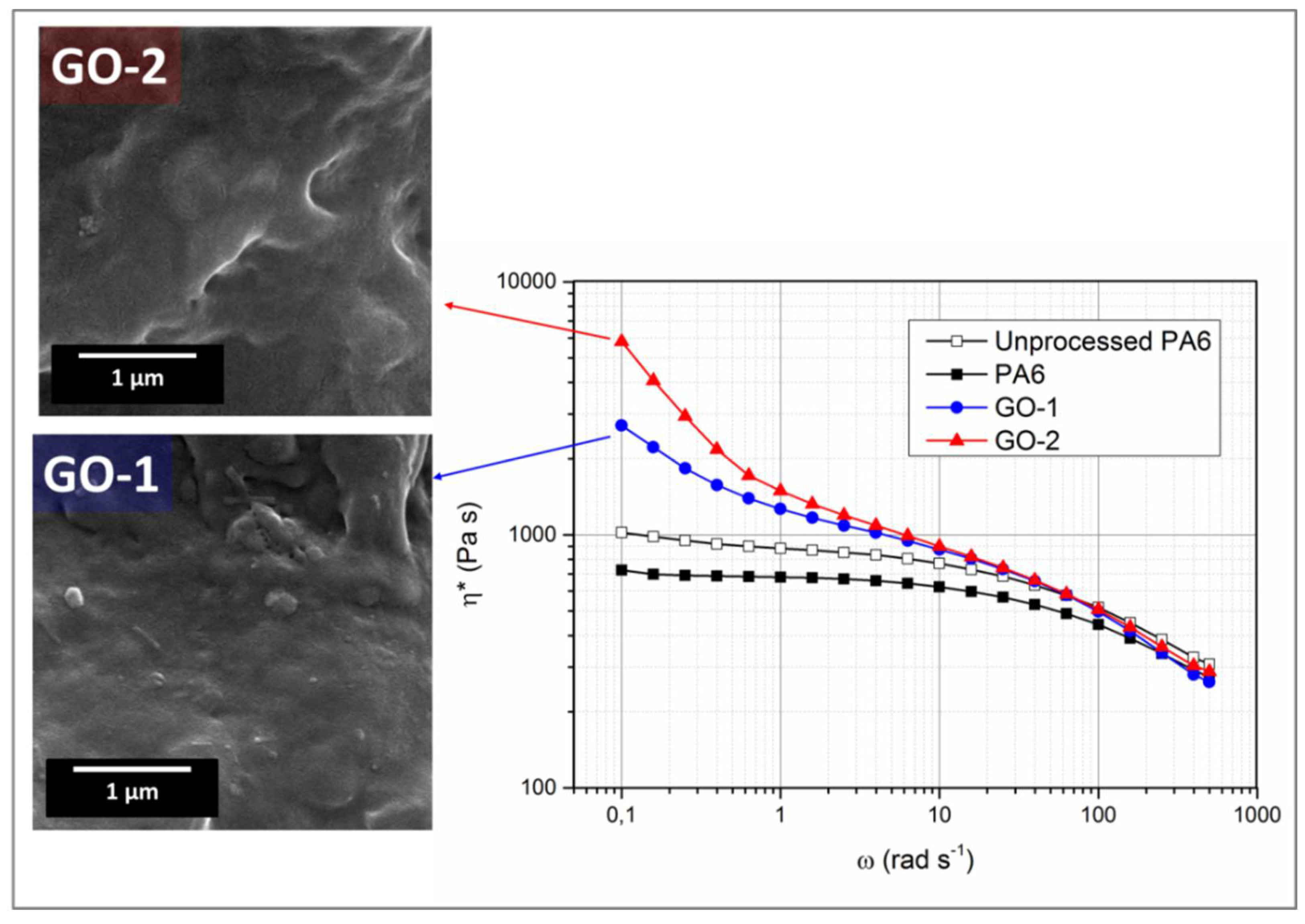

Figures

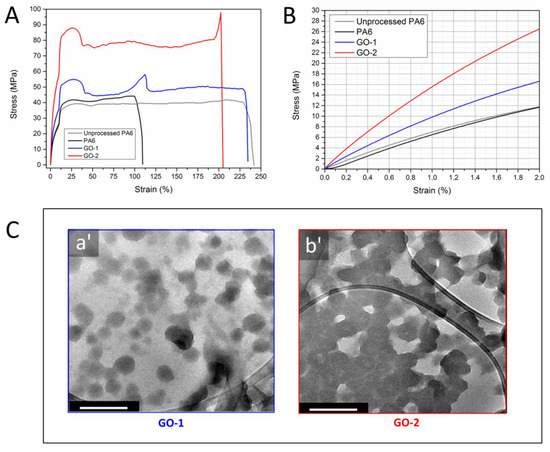

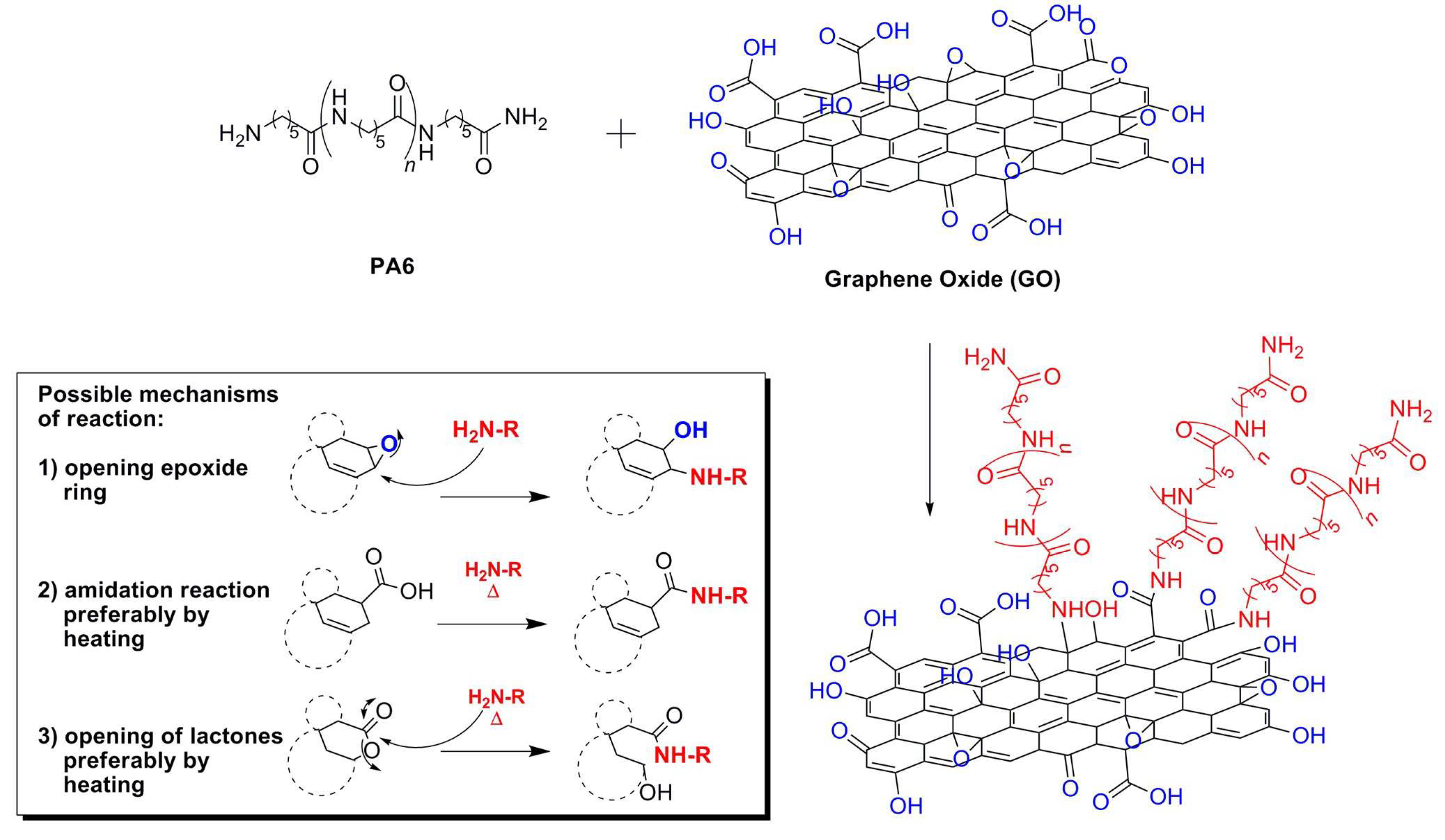

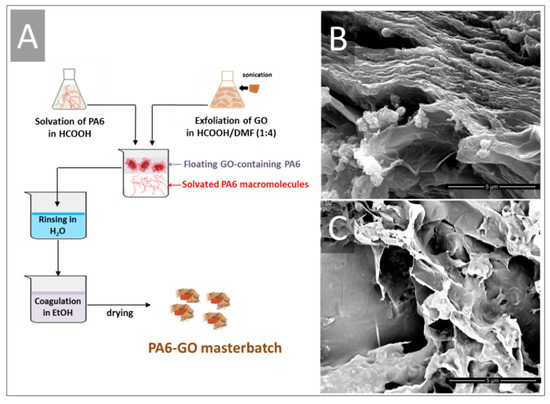

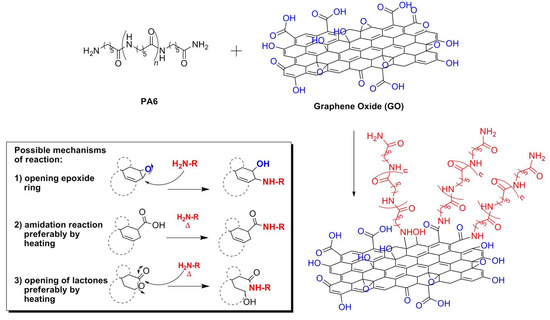

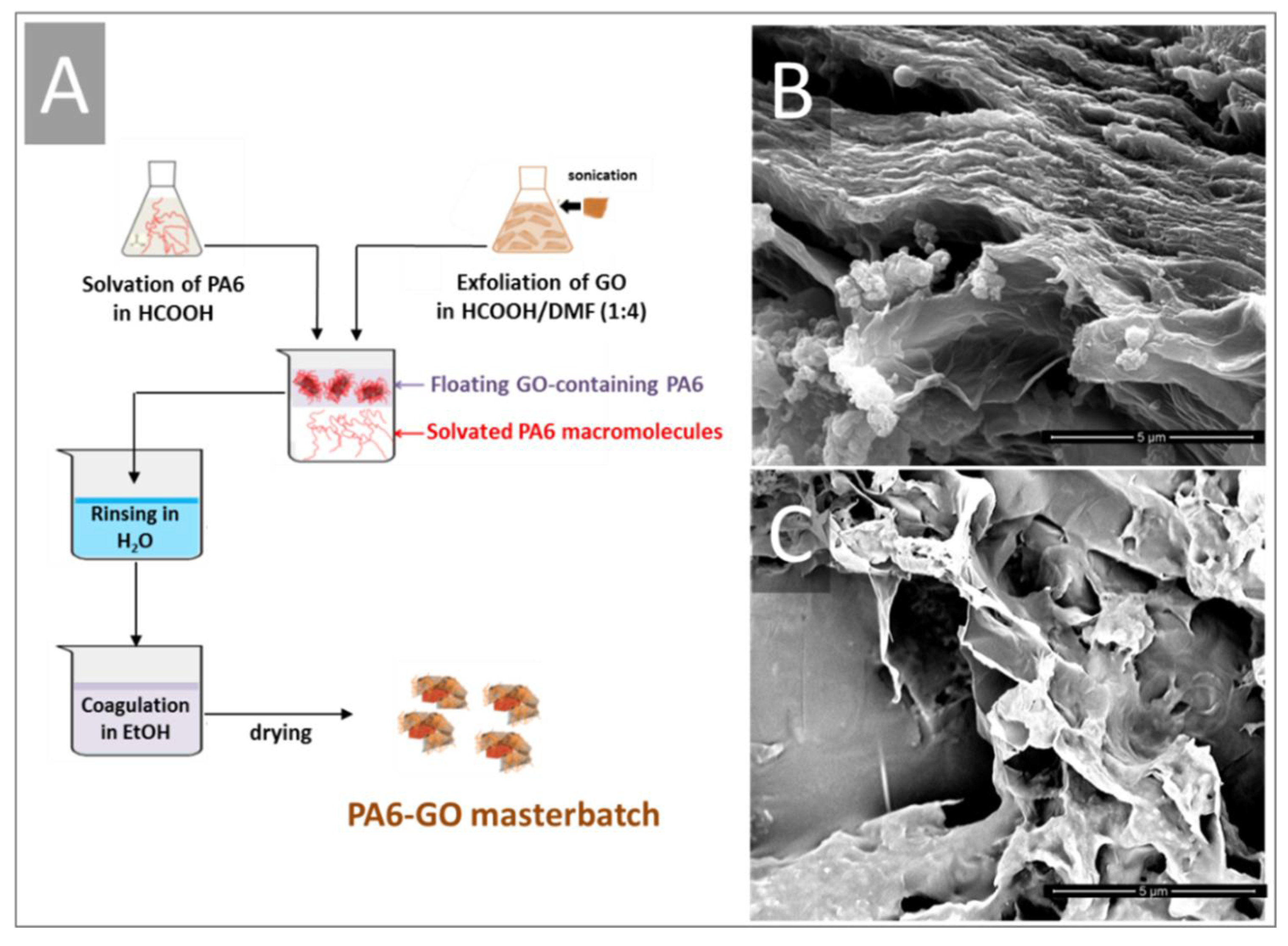

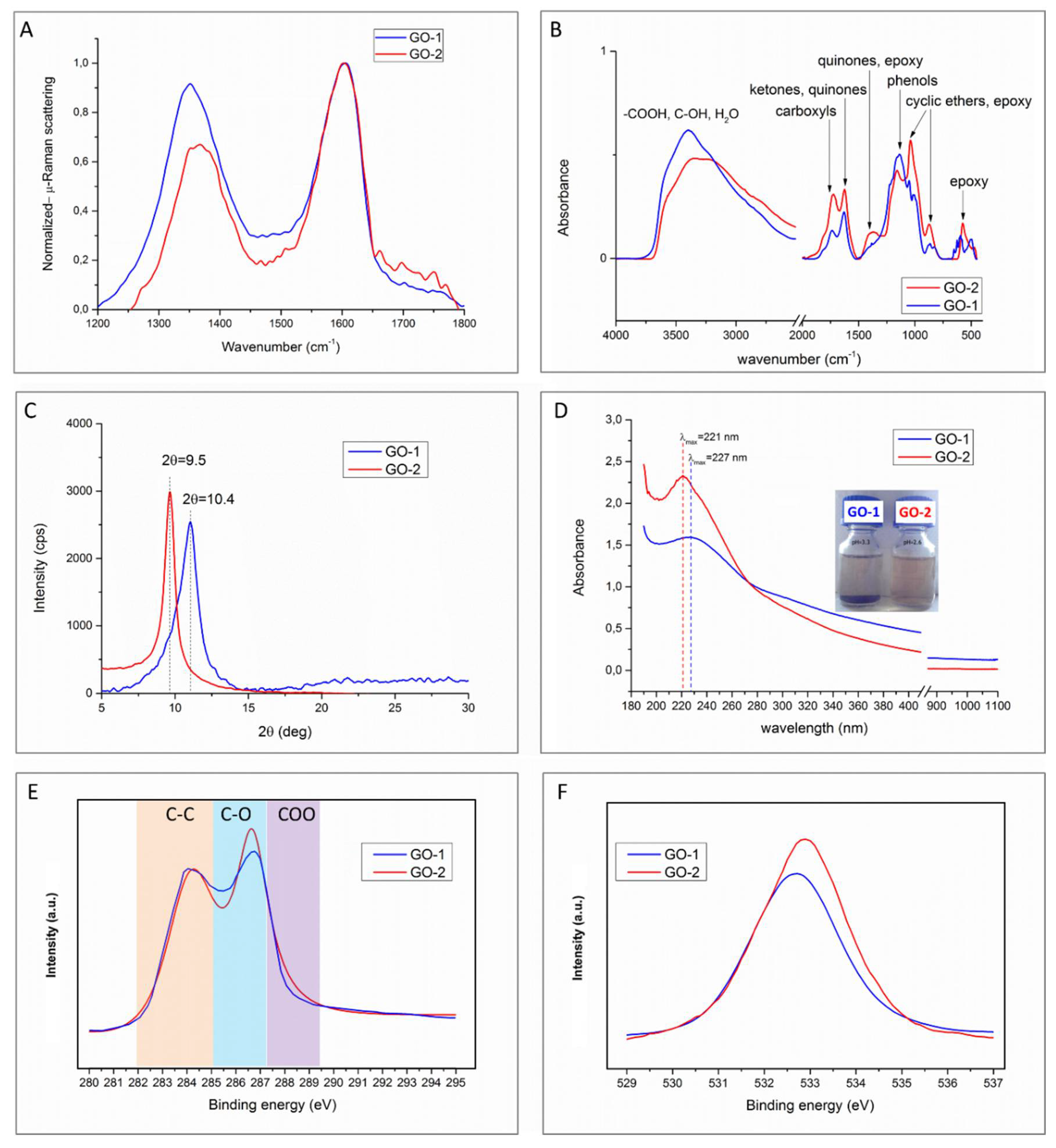

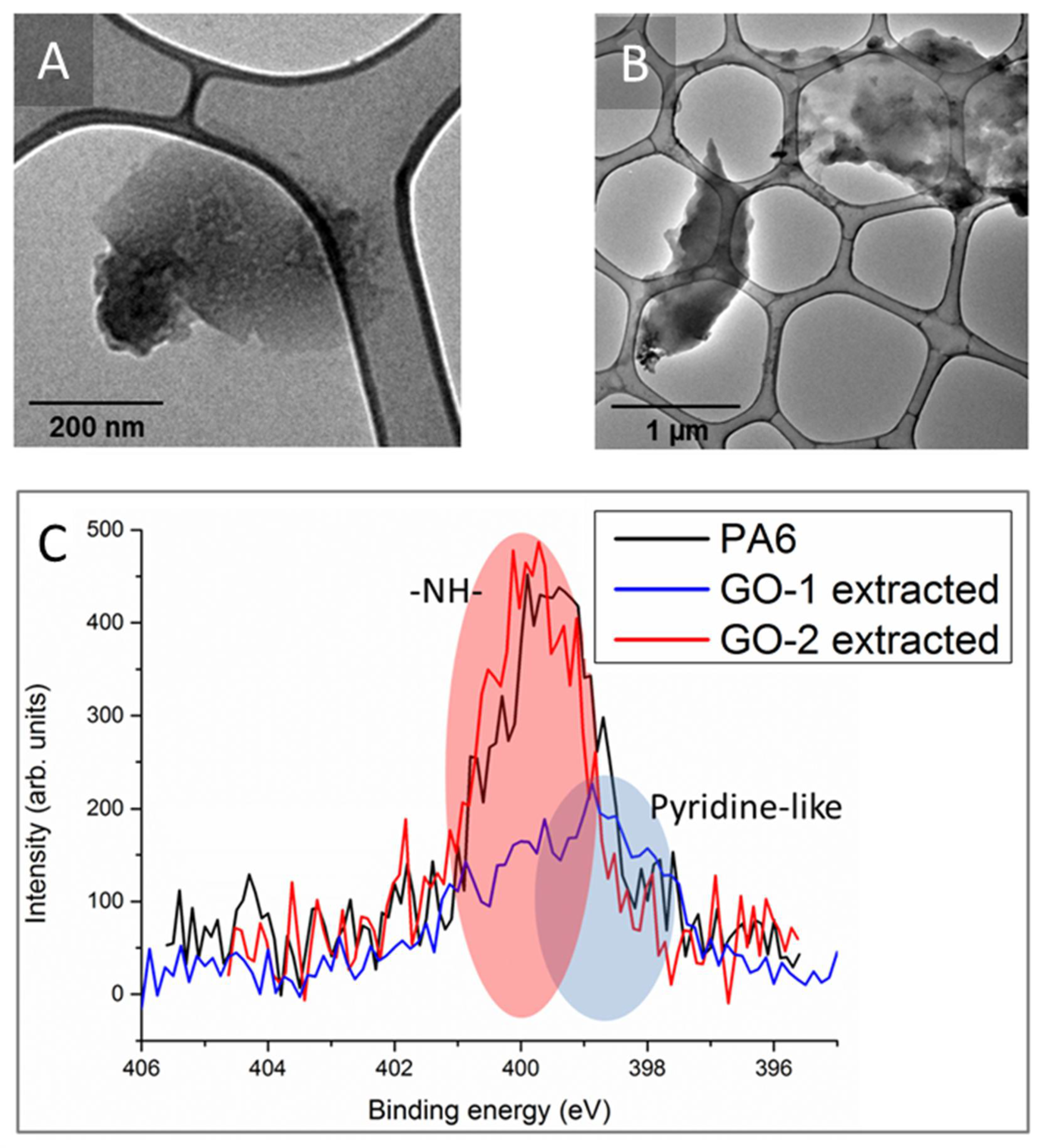

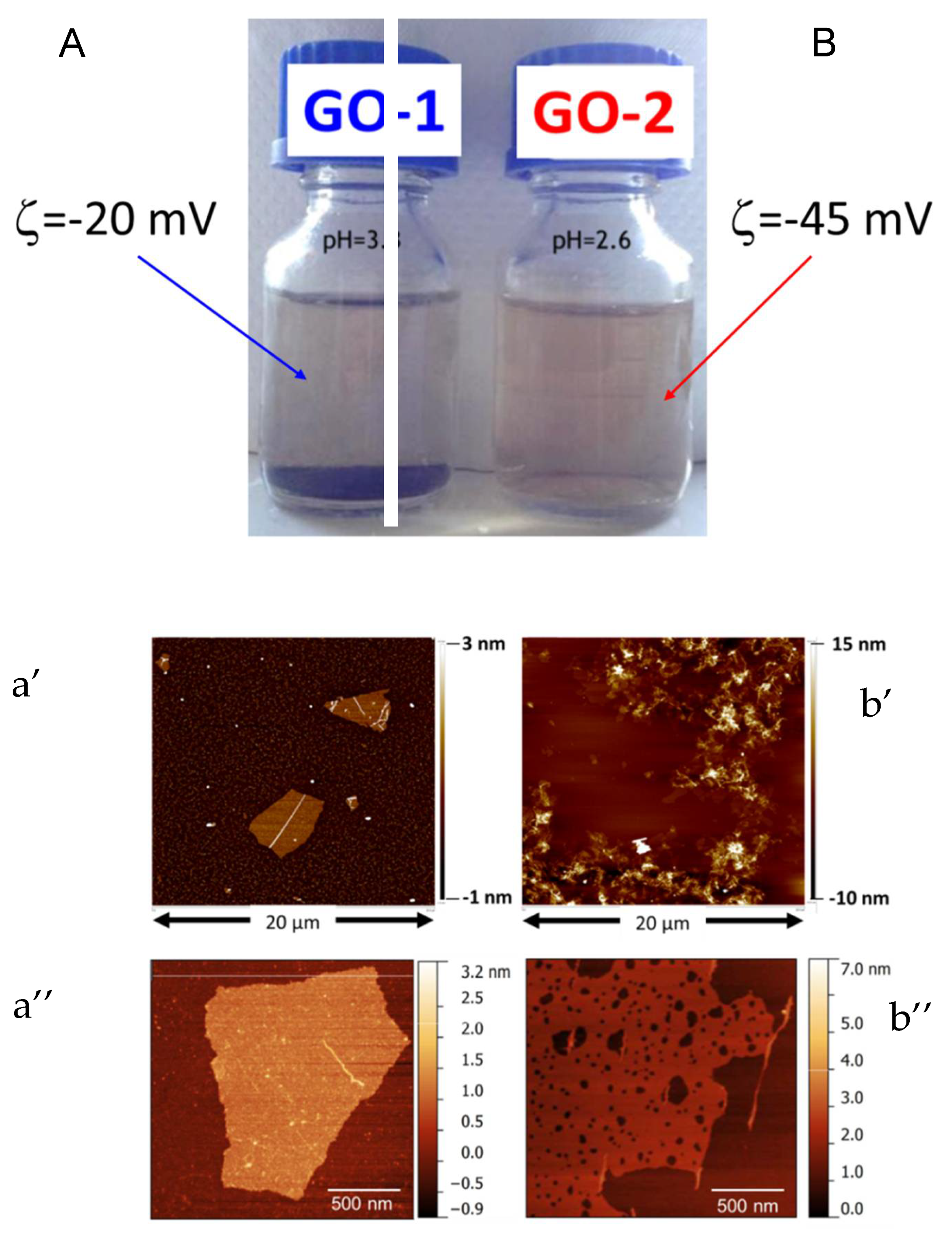

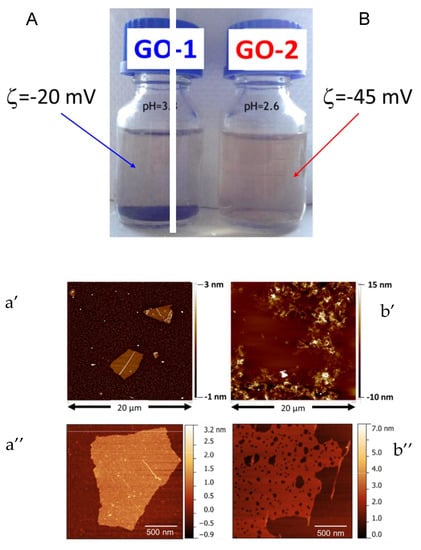

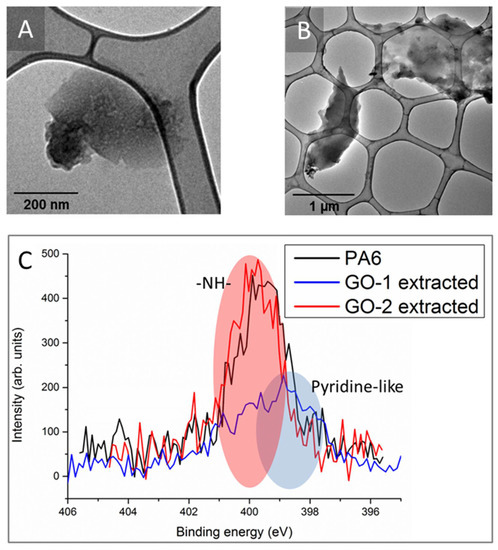

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Scaffaro, R.; Maio, A. Influence of Oxidation Level of Graphene Oxide on the Mechanical Performance and Photo-Oxidation Resistance of a Polyamide 6. Polymers 2019, 11, 857.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Polymers EISSN 2073-4360 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
