Polymers 2018, 10(12), 1314; https://doi.org/10.3390/polym10121314

Switchable Release of Bone Morphogenetic Protein from Thermoresponsive Poly(NIPAM-co-DMAEMA)/Cellulose Sulfate Particle Coatings

1
Leibniz-Institut für Polymerforschung Dresden e.V., Abteilung Polyelektrolyte und Dispersionen, Hohe Straße 6, 01069 Dresden, Germany
2
Technische Universität Dresden, Fachrichtung für Chemie und Lebensmittelchemie, 01062 Dresden, Germany
3
Universität Paderborn, Department Chemie, Organische und Makromolekulare Chemie, Warburger Str. 100, 33098 Paderborn, Germany
4
Medizinische Klinik V, Universitätsklinikum Heidelberg, INF 350, 69120 Heidelberg, Germany
5
Institute of Physical Chemistry, Department of Biophysical Chemistry, Heidelberg University, INF 253, 69120 Heidelberg, Germany
6
Max Planck Institute for Medical Research, Department of Cellular Biophysics and Central Scientific Facility “Cell Biology”, Jahnstr. 29, 69120 Heidelberg, Germany
*
Author to whom correspondence should be addressed.
Received: 26 October 2018 / Revised: 20 November 2018 / Accepted: 22 November 2018 / Published: 27 November 2018
Full-Text   |   PDF [3638 KB, uploaded 6 December 2018]   |

Abstract

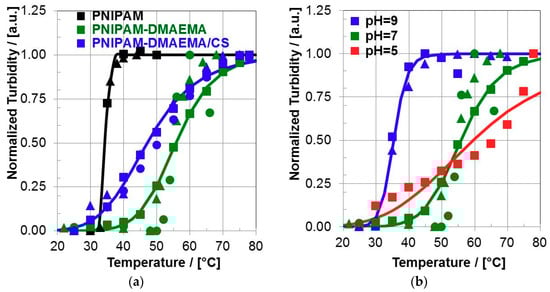

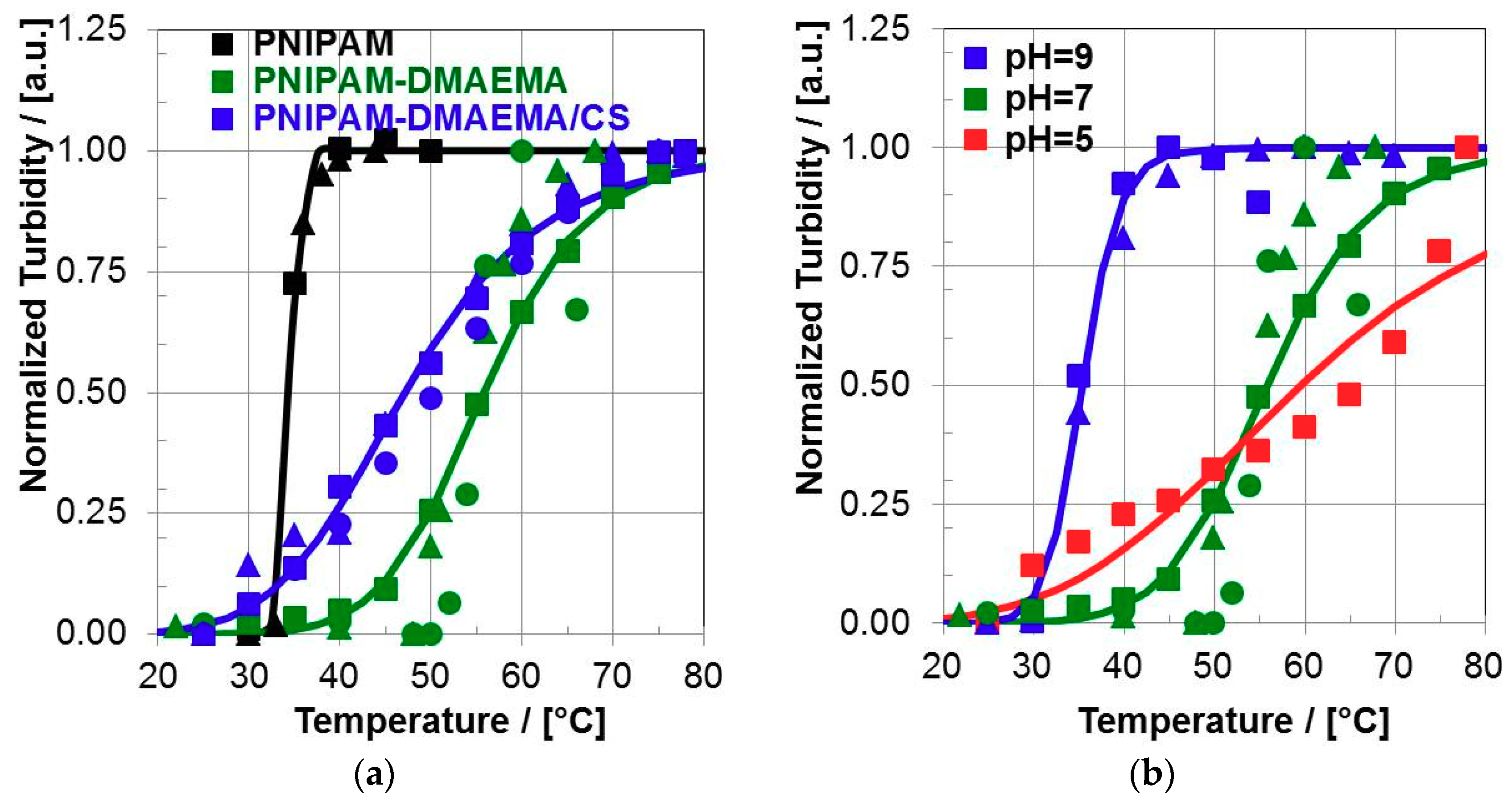

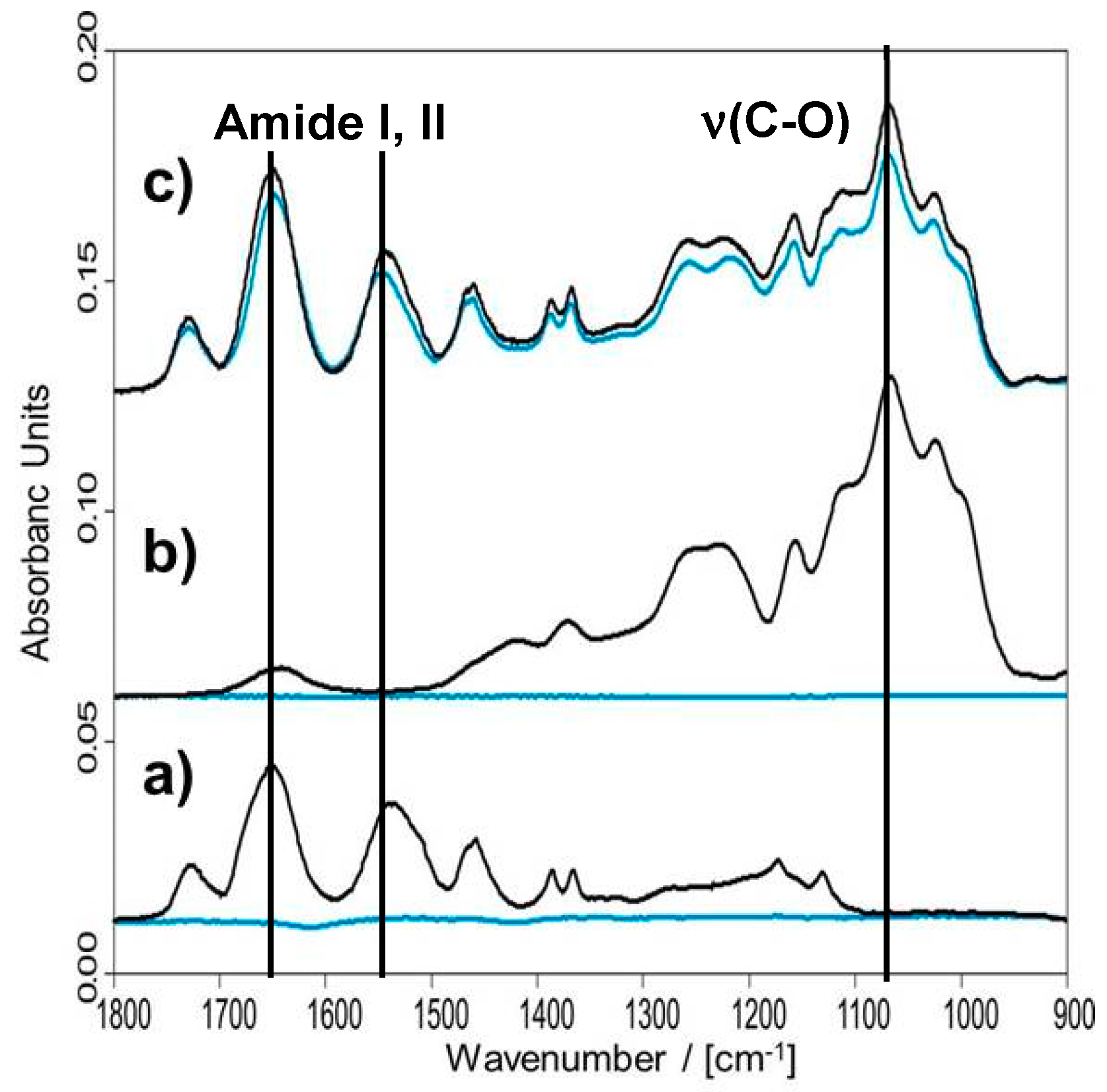

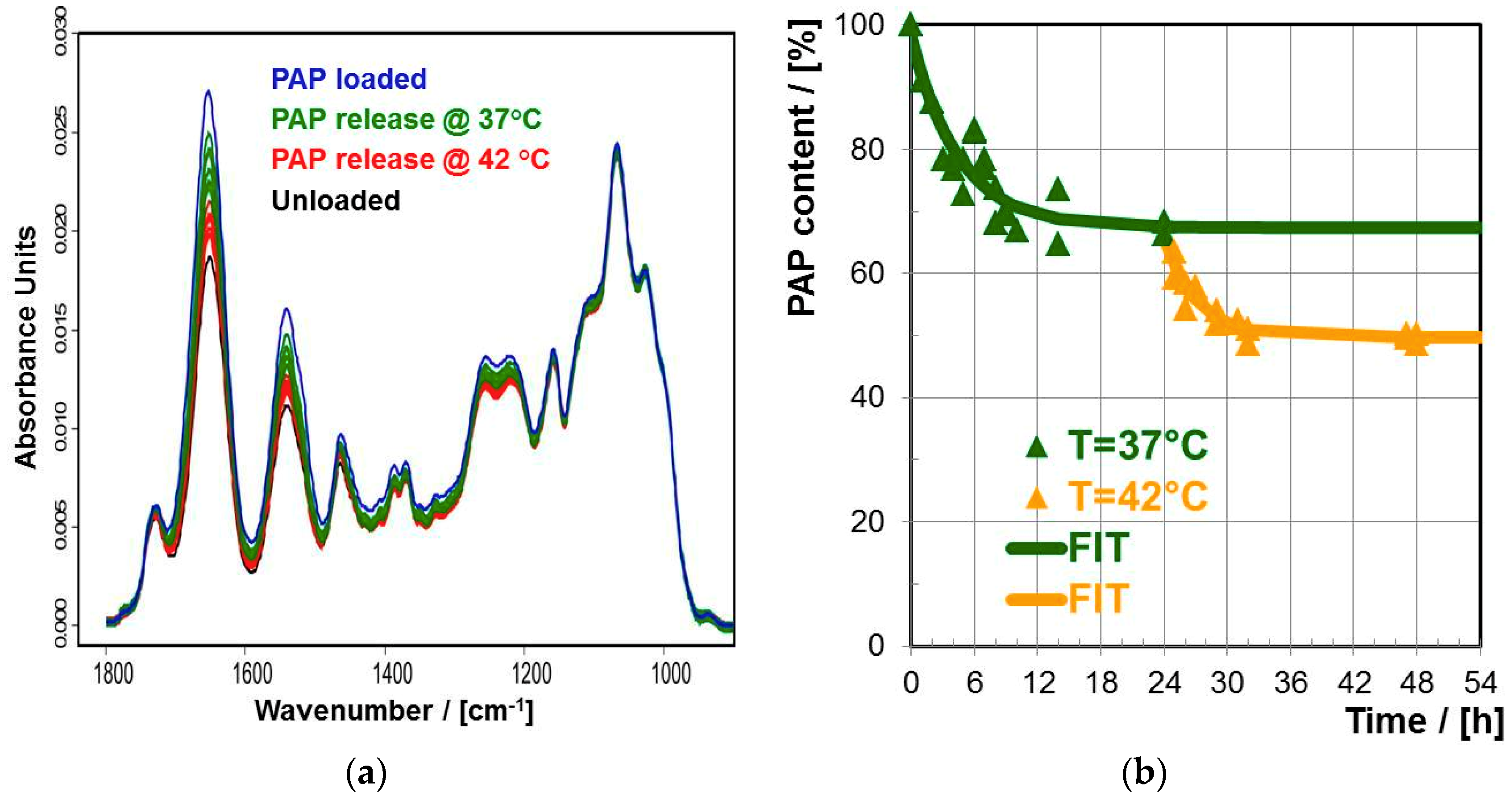

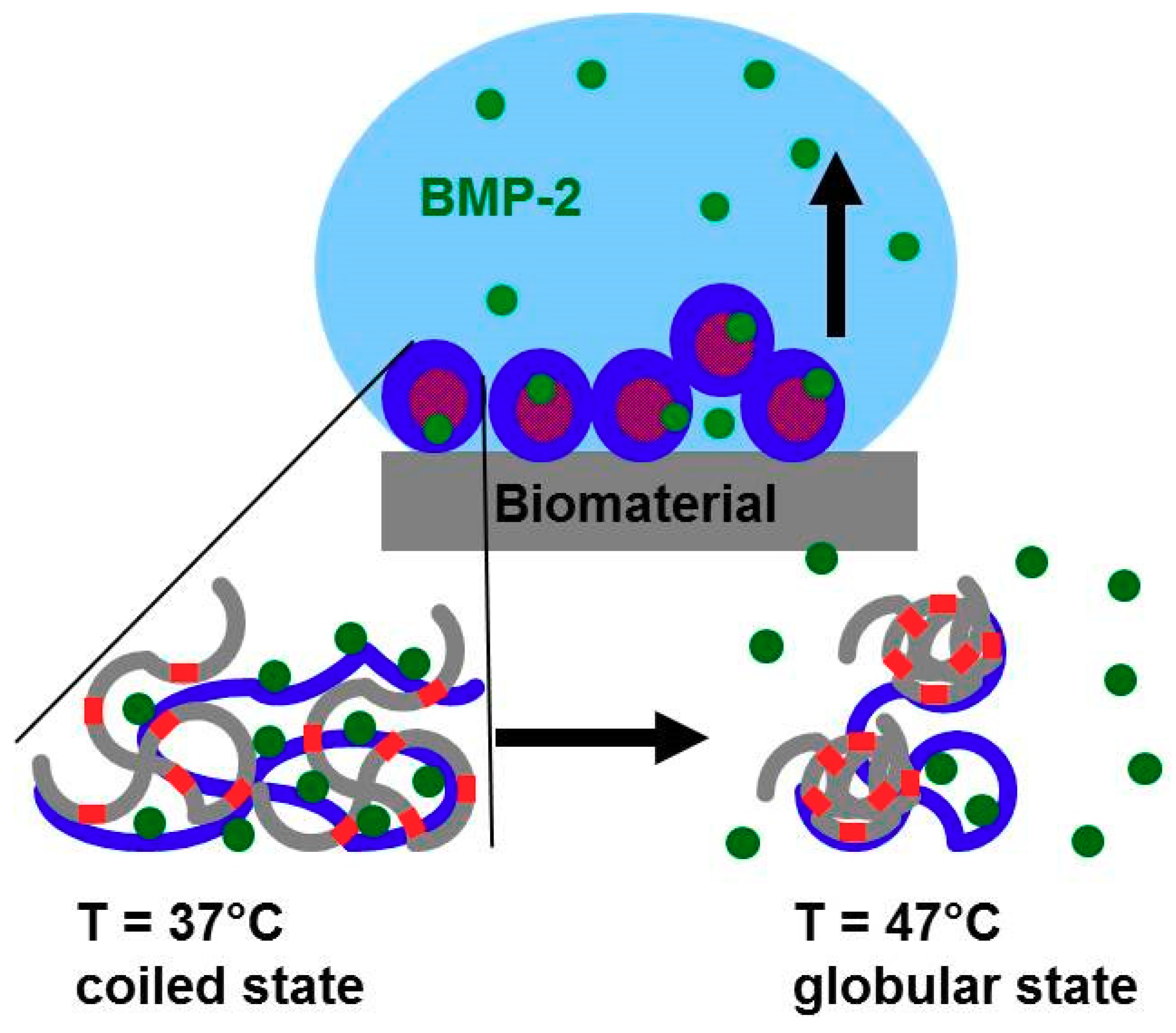

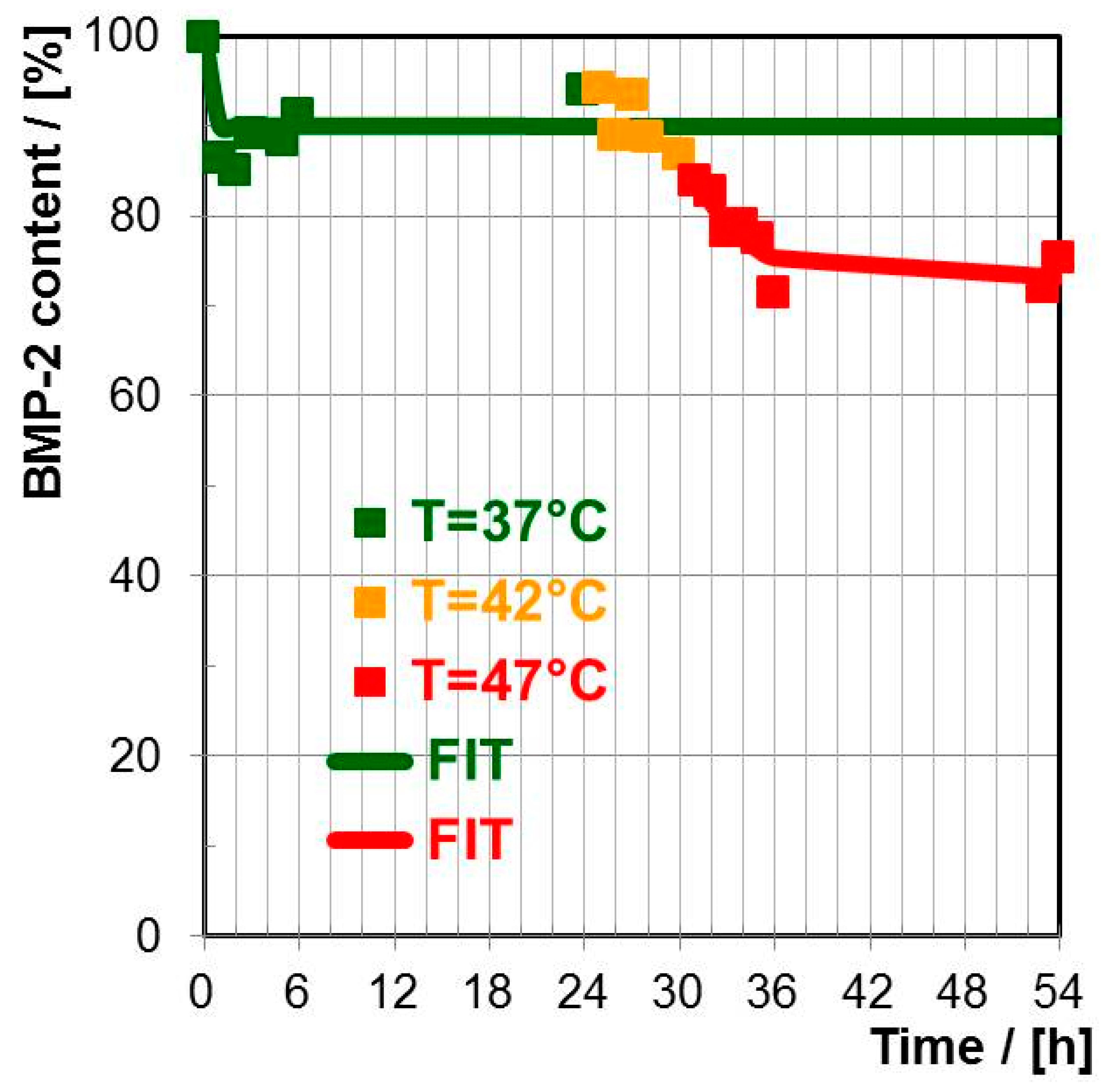

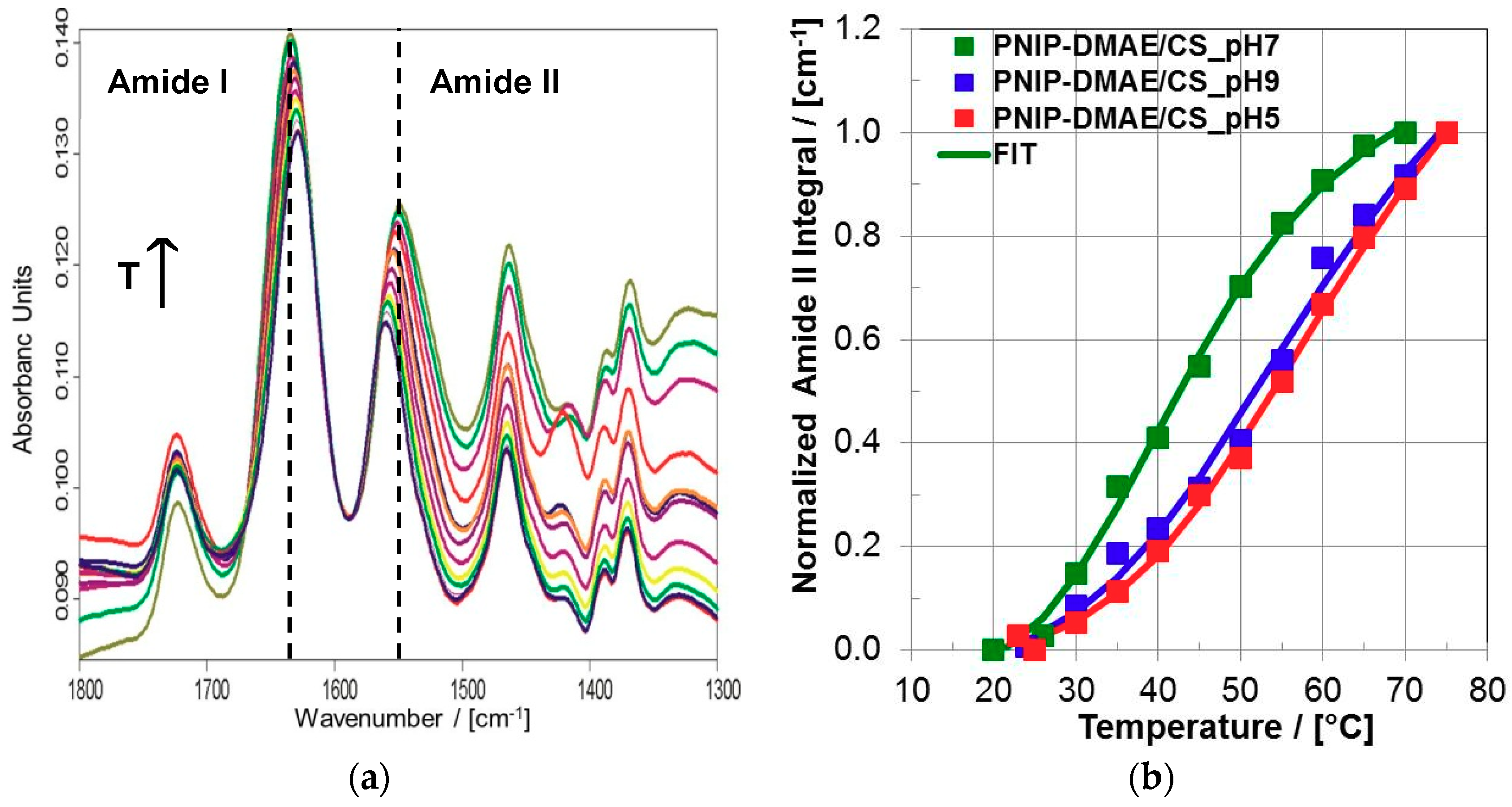

Thermoresponsive coatings of poly(N-isopropylacrylamide-co-DMAEMA)/cellulose sulfate (PNIPAM-DMAEMA/CS) complexes are reported eluting bone-morphogenetic-protein-2 (BMP-2) on demand relevant for implant assisted local bone healing. PNIPAM-DMAEMA/CS dispersions contained colloid particles with hydrodynamic radii RH = 170–288 nm at T = 25 °C shrinking to RH = 74–103 nm at T = 60 °C. Obviously, PNIPAM-DMAEMA/CS undergoes volume phase transition (VPT) analogously to pure PNIPAM, when critical VPT temperature (VPTT) is exceeded. Temperature dependent turbidity measurements revealed broad VPT and VPTT 47 °C for PNIPAM-DMAEMA/CS colloid dispersions at pH = 7.0. FTIR spectroscopy on thermoresponsive PNIPAM-DMAEMA/CS particle coatings at germanium model substrates under HEPES buffer indicated both wet-adhesiveness and VPT behavior based on diagnostic band intensity increases with temperature. From respective temperature courses empirical VPTT ≈ 42 °C for PNIPAM-DMAEMA/CS coatings at pH = 7.0 were found, which were comparable to VPTT found for respective dispersions. Finally, the PNIPAM-DMAEMA/CS coatings were loaded with BMP-2 and model protein papain (PAP). Time dependent FTIR spectroscopic measurements showed, that for T = 37 °C there was a relative protein release of ≈30% for PAP and ≈10% for BMP-2 after 24 h, which did not increase further. Heating to T = 42 °C for PAP and to 47 °C for BMP-2 further secondary protein release of ≈20% after 24 h was found, respectively, interesting for clinical applications. BMP-2 eluted even at 47 °C was found to be still biologically active. View Full-Text
Keywords: bone healing; protein delivery; polyelectrolyte complex; thermoresponsive polymers; bone morphogenetic protein 2 bone healing; protein delivery; polyelectrolyte complex; thermoresponsive polymers; bone morphogenetic protein 2
Figures

Figure 1
