Open AccessArticle

A Tunable NIR Filter with Sphere Phase Liquid Crystal

Department of Electronic Engineering, Shanghai Jiao Tong University, Shanghai 200240, China
Author to whom correspondence should be addressed.
Crystals 2019, 9(7), 349;
Received: 7 June 2019 / Revised: 3 July 2019 / Accepted: 6 July 2019 / Published: 8 July 2019
(This article belongs to the Special Issue Liquid Crystal Optics and Physics: Recent Advances and Prospects)
PDF [2342 KB, uploaded 8 July 2019]

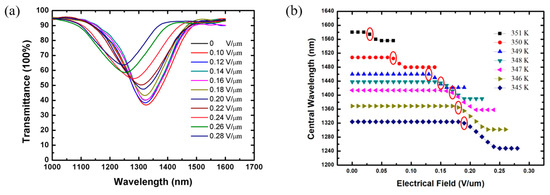

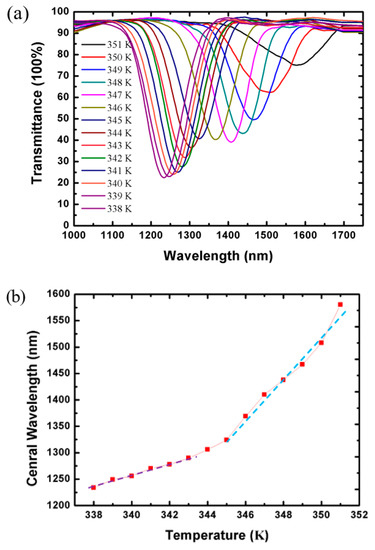

A near-infrared (NIR) filter with sphere phase liquid crystal (SPLC) is proposed, which shows a low operating electric field and large temperature-gradient modulations. The central wavelength of the Bragg reflection can be thermally tuned from 1580 nm to 1324 nm with a temperature-gradient of 42.7 nm/K. Meanwhile, the central wavelength can be electrically tuned over 76 nm within a low operating electric field of 0.3 V/μm. Thus, the SPLC filter may achieve a wavelength variation of 256 nm by thermal modulation and 76 nm by electrical modulation. The SPLC filter shows great potential applications in optical communication devices. View Full-Text
Keywords: liquid-crystal devices; filter; liquid crystals liquid-crystal devices; filter; liquid crystals

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Sun, C.; Lu, J. A Tunable NIR Filter with Sphere Phase Liquid Crystal. Crystals 2019, 9, 349.
