Crystals 2019, 9(3), 151; https://doi.org/10.3390/cryst9030151

Impact of Delay Time before Annealing MAI-PbI2-DMSO Intermediate Phase on Perovskite Film Quality and Photo-Physical Properties

Beijing Advanced Innovation Center for Materials Genome Engineering, Research Center for Sensor Technology, Beijing Key Laboratory for Sensor, MOE Key Laboratory for Modern Measurement and Control Technology, School of Applied Sciences, Beijing Information Science and Technology University, Jianxiangqiao Campus, Beijing 100101, China
*
Author to whom correspondence should be addressed.
Received: 1 March 2019 / Accepted: 8 March 2019 / Published: 14 March 2019
(This article belongs to the Special Issue Advances in Thin Film Solar Cells)
  |
PDF [2330 KB, uploaded 14 March 2019]
  |

Abstract

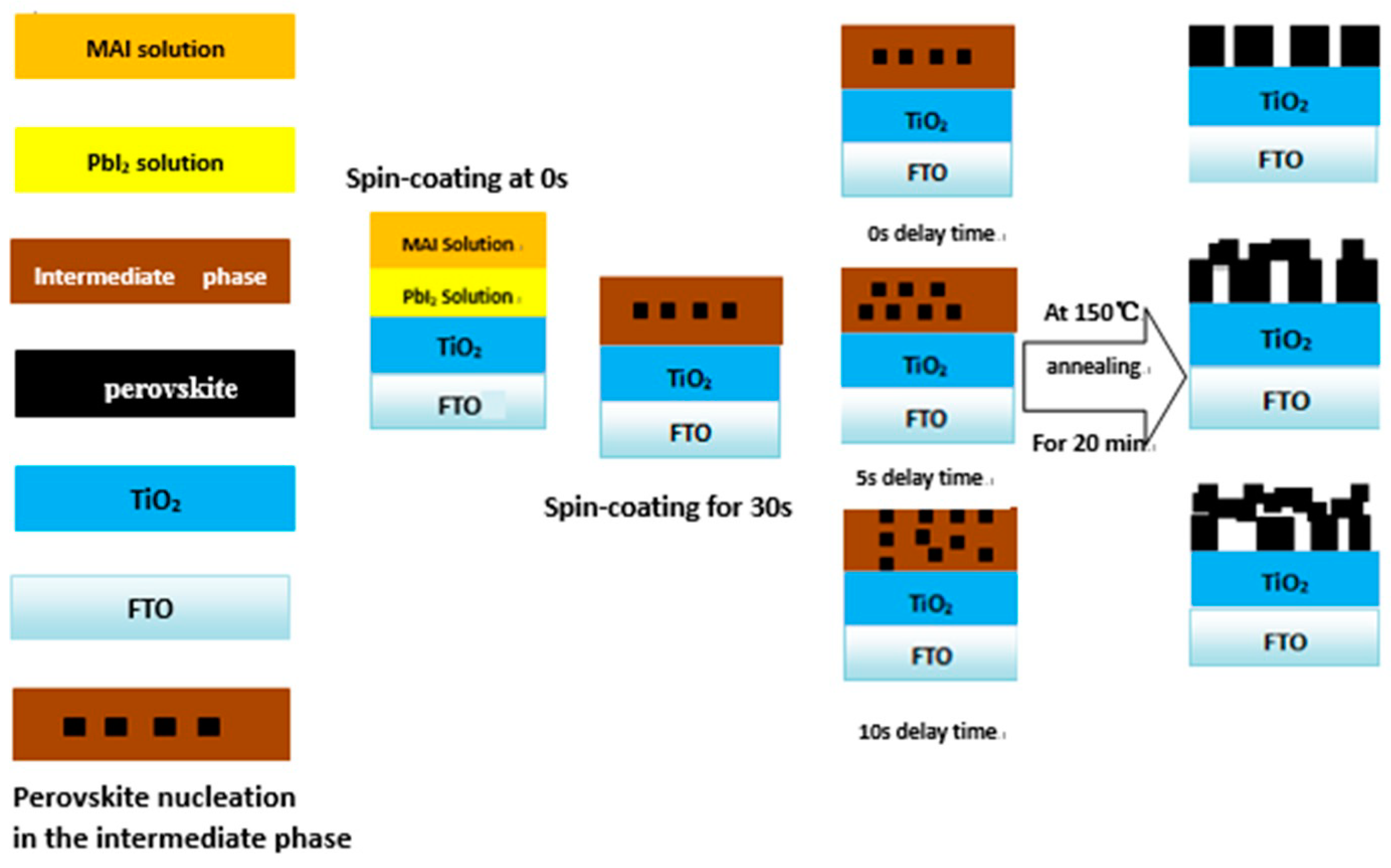

High-performance perovskite solar cells are strongly dependent on the quality of the perovskite layer. Two-step sequential deposition of CH3NH3PbI3 (MAPbI3) films is widely used to fabricate perovskite solar cells and many factors influence the quality of perovskite films, such as the delay time before annealing the MAI-PbI2-DMSO intermediate phase, which would impact the morphology and photo-physical properties of perovskite thin films. Here, the experimental research indicates that the impact of the delay time before annealing the MAI-PbI2-DMSO intermediate phase on the quality, crystallinity, and photo-physical properties of perovskite film is crucial. During the delay process, the delay time before annealing the MAI-PbI2-DMSO intermediate phase plays an important role in the nucleation process of perovskite grains inside the intermediate phase. With the extension of the delay time before annealing, the quality of the perovskite film deteriorates, thus the photo-physical properties change. We found that after the localized liquid–liquid diffusion of MAI and PbI2, with the extension of the delay time before annealing the MAI-PbI2-DMSO intermediate phase, the nucleation number of the perovskite grains increases and the grain size becomes smaller. Therefore, with the extension of the delay time before annealing, the device performance deteriorates. View Full-Text
Keywords: MAI-PbI2-DMSO intermediate phase; delay time; perovskite film quality MAI-PbI2-DMSO intermediate phase; delay time; perovskite film quality
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Yao, Y.; Zou, X.; Cheng, J.; Chen, D.; Chang, C.; Ling, T.; Ren, H. Impact of Delay Time before Annealing MAI-PbI2-DMSO Intermediate Phase on Perovskite Film Quality and Photo-Physical Properties. Crystals 2019, 9, 151.
