Next Article in Journal
Improving the Performance of 2-To-4 Optical Decoders Based on Photonic Crystal Structures
Next Article in Special Issue
Effect of Ag/rGO on the Optical Properties of Plasmon-Modified SnO2 Composite and Its Application in Self-Powered UV Photodetector
Previous Article in Journal
One-Step Removal of Calcium, Magnesium, and Nickel in Desalination by Alcaligenes aquatilis via Biomineralization
Previous Article in Special Issue
A Fundamental Reason for the Need of Two Different Semiconductor Technologies for Complementary Thin-Film Transistor Operations
Open AccessArticle

Hysteresis Reduction for Organic Thin Film Transistors with Multiple Stacked Functional Zirconia Polymeric Films

1
School of Electronics Engineering, Kyungpook National University, Daegu 41566, Korea
2
Department of Electronic Engineering, Hallym University, Chuncheon 24252, Korea
*
Authors to whom correspondence should be addressed.
Crystals 2019, 9(12), 634; https://doi.org/10.3390/cryst9120634
Received: 4 November 2019 / Revised: 24 November 2019 / Accepted: 27 November 2019 / Published: 28 November 2019
(This article belongs to the Special Issue Advances in Thin Film Materials and Devices)

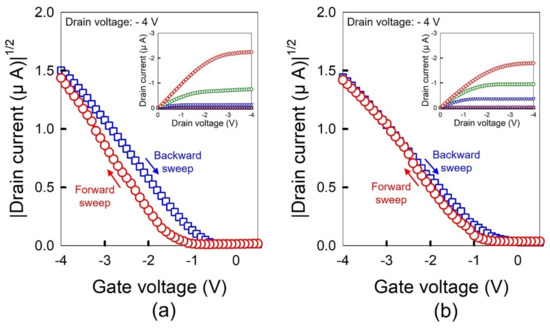

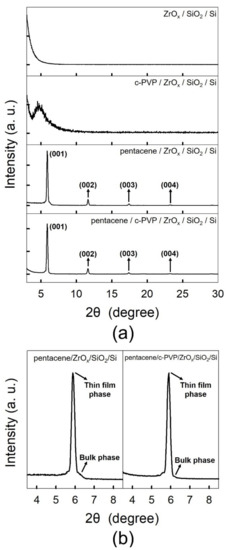

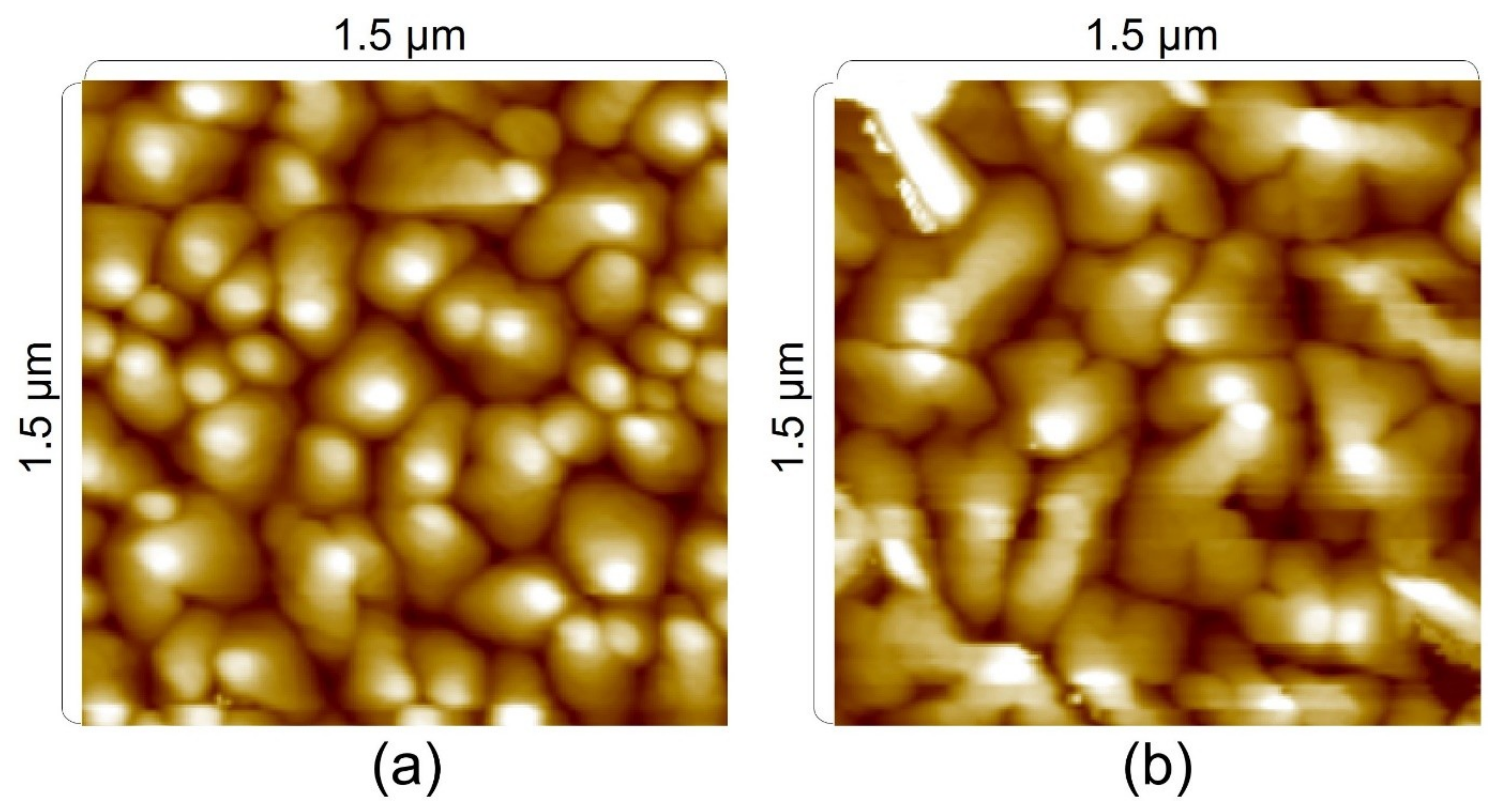

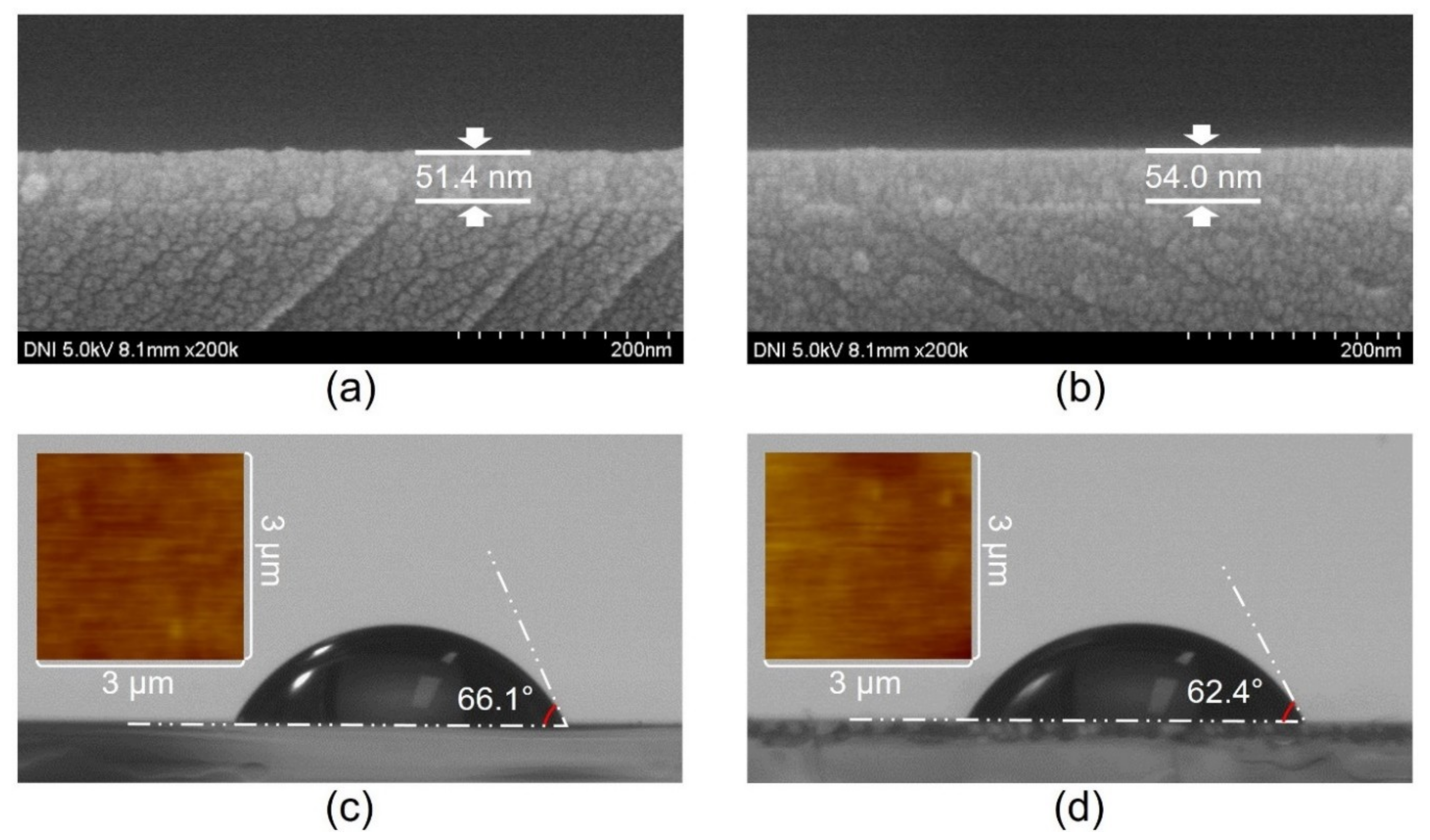

We show that transfer hysteresis for a pentacene thin film transistor (TFT) with a low-temperature solution-processed zirconia (ZrOx) gate insulator can be remarkably reduced by modifying the ZrOx surface with a thin layer of crosslinked poly(4-vinylphenol) (c-PVP). Pentacene TFTs with bare ZrOx and c-PVP stacked ZrOx gate insulators were fabricated, and their hysteresis behaviors compared. The different gate insulators exhibited no significant surface morphology or capacitance differences. The threshold voltage shift magnitude decreased by approximately 71% for the TFT with the c-PVP stacked ZrOx gate insulator compared with the bare ZrOx gate insulator, with 0.75 ± 0.05 and 0.22 ± 0.03 V threshold voltage shifts for the bare ZrOx and c-PVP stacked ZrOx gate insulators, respectively. The hysteresis reduction was attributed to effectively covering hysteresis-inducing charge trapping sites on ZrOx surfaces. View Full-Text
Keywords: hysteresis reduction; solution process; zirconia gate insulator; crosslinked PVP stacked; pentacene TFT hysteresis reduction; solution process; zirconia gate insulator; crosslinked PVP stacked; pentacene TFT
Show Figures

Graphical abstract

MDPI and ACS Style

Kwon, J.-H.; Choi, J.-H.; Bae, J.-H.; Park, J. Hysteresis Reduction for Organic Thin Film Transistors with Multiple Stacked Functional Zirconia Polymeric Films. Crystals 2019, 9, 634.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
