Crystals 2017, 7(5), 123;

Effects of Al and N2 Flow Sequences on the Interface Formation of AlN on Sapphire by EVPE

Department of Electronic Science and Engineering, Kyoto University, Kyoto 615-8510, Japan
Author to whom correspondence should be addressed.
Academic Editor: Ikai Lo
Received: 15 March 2017 / Revised: 18 April 2017 / Accepted: 21 April 2017 / Published: 27 April 2017
(This article belongs to the Special Issue Advances in GaN Crystals and Their Applications)
Full-Text   |   PDF [1182 KB, uploaded 27 April 2017]   |

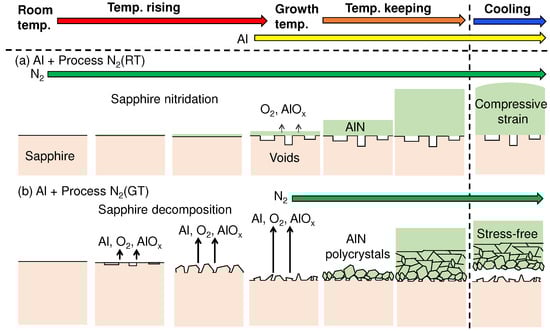

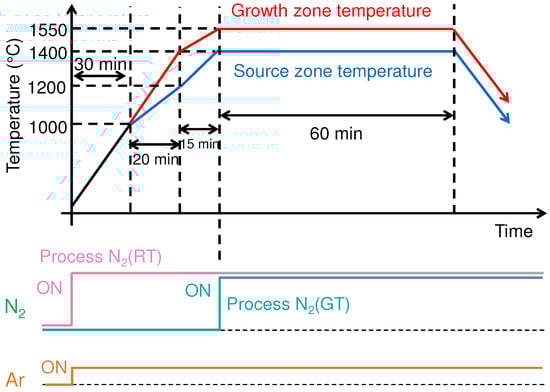

The interface formation mechanisms of AlN films on sapphire substrates grown by the elementary source vapor phase epitaxy (EVPE) method, which is a new AlN bulk fabrication method using Al and N2 as precursors, are investigated. Supplying N2 after the substrate temperature reaches the growth temperature [Process N2(GT)] causes the interface to become rough due to the thermal decomposition of sapphire. Self-separation occasionally occurs with the Process N2(GT), suggesting that the rough interface generates self-separating films with little strain. On the other hand, supplying N2 beginning at room temperature forms a relatively smooth interface with voids, which can be realized by the reaction between a nitrided sapphire surface and an Al source. View Full-Text
Keywords: AlN; EVPE; self-separation; void AlN; EVPE; self-separation; void

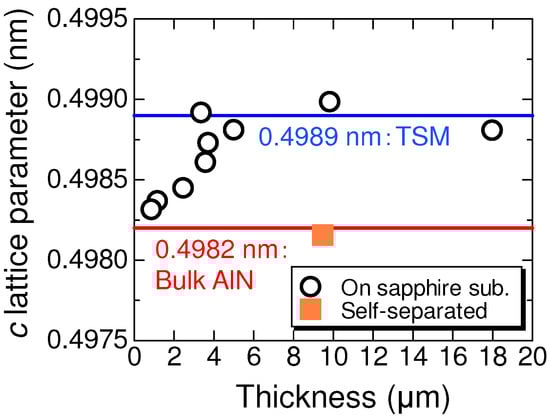

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
