Rational Engineering in Protein Crystallization: Integrating Physicochemical Principles, Molecular Scaffolds, and Computational Design

Abstract

X-ray crystallography remains the gold standard for high-resolution structural biology, yet obtaining diffraction-quality crystals continues to pose a major bottleneck due to inherently low success rates. This review advocates a paradigm shift from probabilistic screening to rational engineering, reframing crystallization as a controllable self-assembly process. We provide a comprehensive overview of strategies that connect fundamental physicochemical principles to practical applications, beginning with contact design, which involves the active engineering of crystal contacts through surface entropy reduction (SER), introduction of electrostatic patches. Complementing these molecular approaches, we discuss physicochemical strategies that exploit heterogeneous nucleation on functionalized surfaces and gold nanoparticles (AuNPs) to lower the energy barrier for crystal formation. We also address scaffold design, utilizing rigid fusion partners and polymer-forming chaperones to promote crystallization even from low-concentration solutions. Furthermore, we highlight principles for controlling the behavior of multi-component complexes, based on our experimental experience. Finally, we examine de novo lattice design, which leverages AI tools such as AlphaFold and RFdiffusion to program crystal lattices from first principles. Together, these strategies establish an integrated workflow that links thermodynamic stability with crystallizability.

1. Introduction

1.1. Historical Context and Current Challenges

Historically, protein crystallization was regarded as an empirical “art.” Early triumphs, such as Funke’s description of hemoglobin crystals in the 19th century, J.B. Sumner’s crystallization of urease in 1926, and J.C. Kendrew’s determination of myoglobin’s structure in the 1950s, targeted naturally abundant and stable proteins [1]. However, modern biology demands structures of challenging targets, including membrane proteins, low-abundance transcription factors, intrinsically flexible signaling proteins, and massive supramolecular complexes, exposing the limits of conventional empirical screening approaches.

Although high-throughput crystallization robotics now allow researchers to screen thousands of nanoliter-scale conditions, overall success rates have largely plateaued at approximately 20–30% [2,3]. This is because crystallization is not a random precipitation phenomenon but an ordered assembly process governed by specific, anisotropic interactions between molecules [4]. Packing within a crystal lattice is highly selective, and even small differences in surface physicochemical properties can determine success or failure. Therefore, blindly expanding the number of screening conditions ultimately faces diminishing returns and does not provide a fundamental solution.

1.2. Physicochemical Basis of Crystallization

Crystallization success hinges on two crucial factors: the presence of “sticky patches” on the protein surface and “conformational homogeneity” in the sample solution [4]. Sticky patches are surface regions capable of forming specific and reversible intermolecular interactions, such as hydrogen bonds, salt bridges, or hydrophobic interactions.

From the perspective of soft matter physics, protein crystal nucleation is often proposed to follow the two-step nucleation mechanism [5,6]. In this model, crystallization proceeds via the following steps: (1) Formation of metastable dense liquid clusters: The protein solution first forms metastable, condensed droplets of high solute concentration (dense liquid clusters), driven by short-range attractive interactions between proteins. This liquid-like cluster provides an environment with the necessary high supersaturation for crystal nucleation. (2) Appearance of the crystalline nucleus: Within this dense cluster, a crystal nucleus with a periodic, ordered structure emerges from conformational fluctuations.

To control this process, the protein surface’s physicochemical properties must be rationally modified to introduce directional interactions that favor the formation of an ordered lattice over amorphous aggregation or liquid–liquid phase separation (LLPS). Specifically, engineering is required to maximize the enthalpic contributions at the crystal contacts while simultaneously reducing the entropic penalty associated with crystallization.

2. Surface Engineering via Physicochemical Approaches

The thermodynamic driving force for crystallization is represented by the change in Gibbs free energy, ΔG_cryst = ΔH_cryst − TΔS_cryst. As a protein transitions from solution to a crystal lattice, it loses translational and rotational degrees of freedom, making the entropy change ΔS typically negative (unfavorable). To compensate for this entropic loss, an entropic gain from the release of solvent molecules and an enthalpic gain ΔH from crystal contact formation are required.

2.1. Surface Entropy Reduction (SER) and Its Extensions

One of the primary thermodynamic barriers to crystallization is the loss of conformational entropy TΔS_conf that occurs when flexible side chains on the protein surface become fixed within the crystal lattice. Large, flexible polar residues like lysine (Lys) and glutamic acid (Glu) have high conformational entropy and act as an “Entropy Shield,” inhibiting the formation of crystal contacts [7,8].

2.1.1. Lys/Glu to Ala Substitution

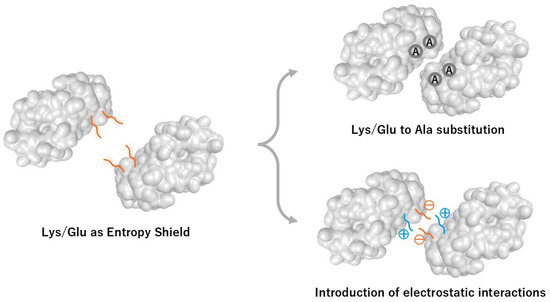

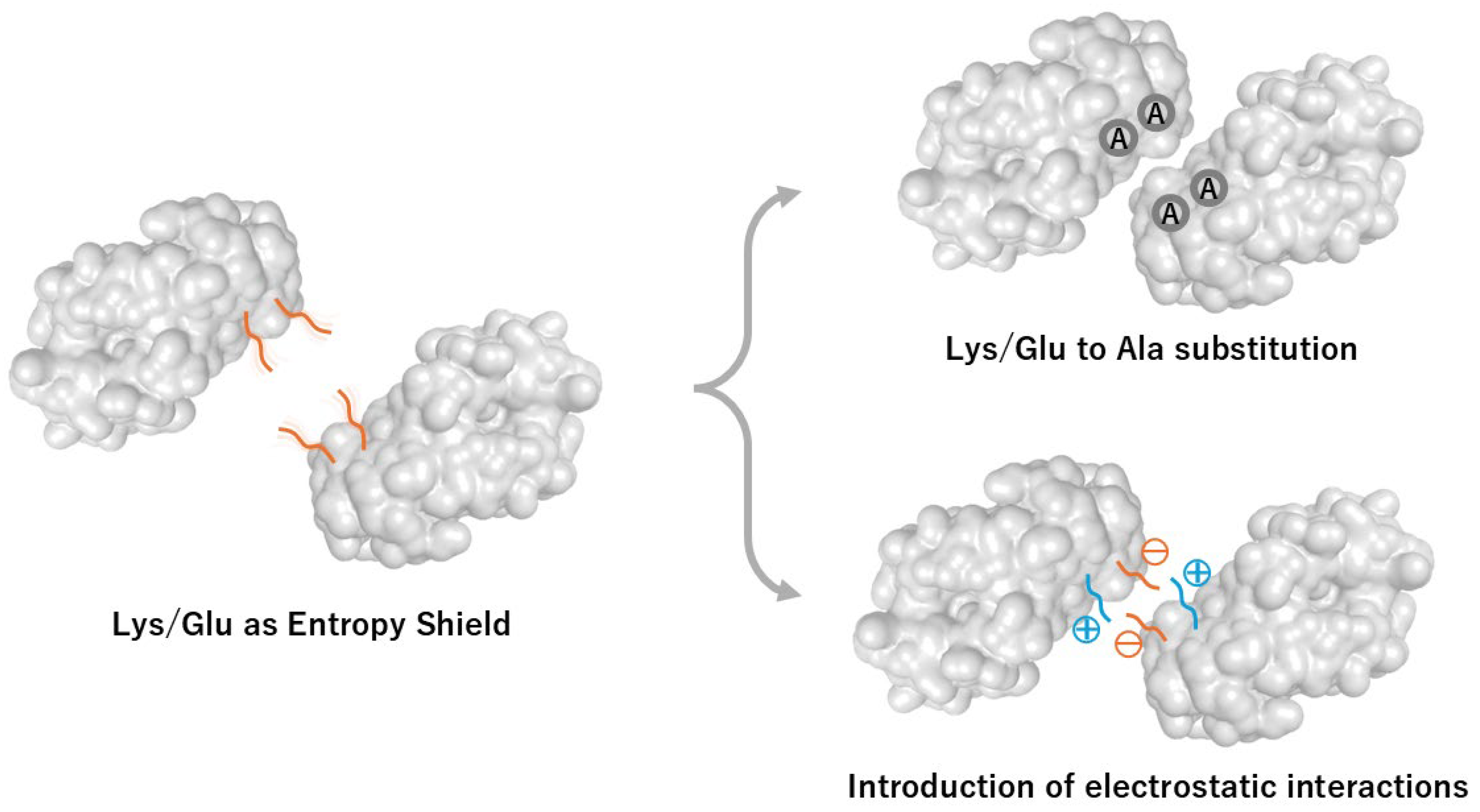

Derewenda and colleagues proposed the surface entropy reduction strategy, which involves substituting surface clusters of high-entropy residues (Lys/Glu) with alanine (Ala), which lacks a side chain and possesses minimal conformational entropy. In principle, substitution with Ala avoids the entropic loss penalty associated with crystallization by eliminating side-chain flexibility. Furthermore, the small Ala side chain can create cavities or grooves on the molecular surface, which may facilitate the formation of new crystal contacts by allowing hydrophobic residues from an adjacent molecule to fit in. This method has shown dramatic success with difficult-to-crystallize proteins like RhoGDI and PDZRhoGEF, enabling high-resolution structure determination [9,10]. For instance, a RhoGDI mutant yielded high-quality crystals not obtained with the wild type, leading to a successful 1.3 Å resolution analysis [11]. To facilitate this process, prediction tools like the SERp server have been developed to automatically select surface clusters for mutation, based on secondary structure prediction and evolutionary conservation, without disrupting the protein fold [12].

2.1.2. Use of Alternative Residues

While Ala is the standard substitution residue, replacement with tyrosine can be more effective in specific situations. Tyrosine is frequently observed at antigen–antibody interfaces. It is less geometrically restrictive than long polar chains and is better at forming specific interactions, such as hydrogen bonds or π-π interactions. This can induce strong contacts with a smaller entropic cost compared to long-chain polar residues [13].

2.1.3. Introduction of Electrostatic Interactions

While SER is an approach to “remove” the entropic barrier, recent efforts have progressed toward actively “creating” enthalpic favorability. This strategy involves the deliberate introduction of charged residues (Asp, Glu, Arg, Lys) at the intended crystal contact sites to form salt bridges with the adjacent molecule. In a notable case study, Weuster-Botz and colleagues dramatically improved the crystallization rate and yield of Lactobacillus brevis Alcohol Dehydrogenase (LbADH) by substituting a threonine with glutamic acid (T102E) [14]. Mechanistically, Molecular Dynamics (MD) simulations suggested that a weak, water-mediated interaction in the wild type was transformed into contacts with strengthened direct ionic bonds and hydrophobic interactions in the mutant, thereby increasing contact stability [15]. This approach is also being applied to streamline the crystallization of proteins in industrial purification processes, known as technical crystallization [16,17] (Figure 1).

2.2. Chemical Surface Modification

In addition to genetic engineering, chemical modification of purified proteins is a viable strategy. The most established method is the reductive methylation of lysine residues [18]. In this reaction, formaldehyde and dimethylamine borane are used to convert the primary amine of lysine into a tertiary amine, yielding dimethyllysine. This modification retains the positive charge of lysine but alters the solvation shell, thereby increasing hydrophobicity and bulkiness. Structural analysis indicates that dimethylated lysines are more prone to forming cation-π interactions and specific salt bridges (e.g., with Glu), exhibiting a stereochemically distinct interaction mode compared to unmodified lysine. Consequently, this method has a strong track record and is widely used as a salvage strategy for proteins that fail to crystallize in standard screens, with numerous reported successes [19].

2.3. Heterogeneous Nucleation and Surface Modification

While the strategies discussed above focus on engineering the protein molecule itself, physicochemical approaches targeting the nucleation environment are equally vital. According to classical nucleation theory, heterogeneous nucleation on a solid surface typically requires a lower activation energy barrier than homogeneous nucleation in bulk solution. The pioneering work of Ward and colleagues established the fundamental principle that surface topography and chemical functionality can strictly control the nucleation and orientation of crystals [20]. Specifically, they demonstrated that self-assembled monolayers (SAMs) with tailored functional groups could accelerate the nucleation and control the orientation of small molecule crystals, such as malonic acid [21]. Crucially, they extended these insights to biological macromolecules, utilizing in situ Atomic Force Microscopy (AFM) to directly visualize molecular growth steps and defect formation on insulin crystal surfaces, as well as the impact of sequence variations on lattice assembly [22,23].

Building on these “physical scaffold” concepts, recent strategies have employed functionalized materials to induce nucleation. Porous silicon has been shown to effectively confine protein molecules, facilitating crystallization even under conditions insufficient for spontaneous nucleation [24]. Similarly, Molecularly Imprinted Polymers (MIPs), designed with cavities that match the specific shape of the target protein, serve as “smart materials” to promote heterogeneous nucleation [25]. Furthermore, Gold Nanoparticles (AuNPs) have emerged as powerful nucleation-inducing reagents; their curvature and surface properties can facilitate the clustering of protein monomers, significantly enhancing crystallization success rates [26].

3. Utilizing Fusion Partners and Crystallization Chaperones

When surface engineering alone is insufficient, or when expression and stability issues are present, the use of fusion partners that provide a crystallization “scaffold” becomes a powerful strategy.

3.1. Rigid Fusion Partners

The main challenge with fusion protein methods is the flexibility of the linker between the target protein and the fusion partner, which can inhibit ordered formation within the crystal lattice. To address this, Maltose-Binding Protein (MBP), while well-known as a solubilization tag, is also utilized as a crystallization chaperone. The key to success with MBP is designing a short, rigid linker (e.g., an AAA linker) to eliminate flexibility between the domains, effectively allowing the helices of both partners to connect continuously [27]. This design permits the crystallizability of MBP to propagate to the target protein, thereby facilitating lattice formation. In the realm of G protein-coupled receptors (GPCRs), the strategy of replacing the intracellular loop 3 (ICL3) with T4 Lysozyme (T4L) or the thermostabilized cytochrome b562 (BRIL) proved to be revolutionary. These fusion partners provide the necessary polar surface area often lacking in the hydrophobic transmembrane domain, thereby dictating the formation of the crystal lattice [28,29]. This technique has successfully led to the resolution of numerous GPCR structures, including that of the β2-adrenergic receptor. Additionally, a “termini restraining” method has been reported where the N- and C-termini of membrane proteins are constrained using self-associating split-sfGFP to stabilize the overall protein structure and promote crystallization [30].

3.2. TELSAM as Polymeric Crystallization Enhancement

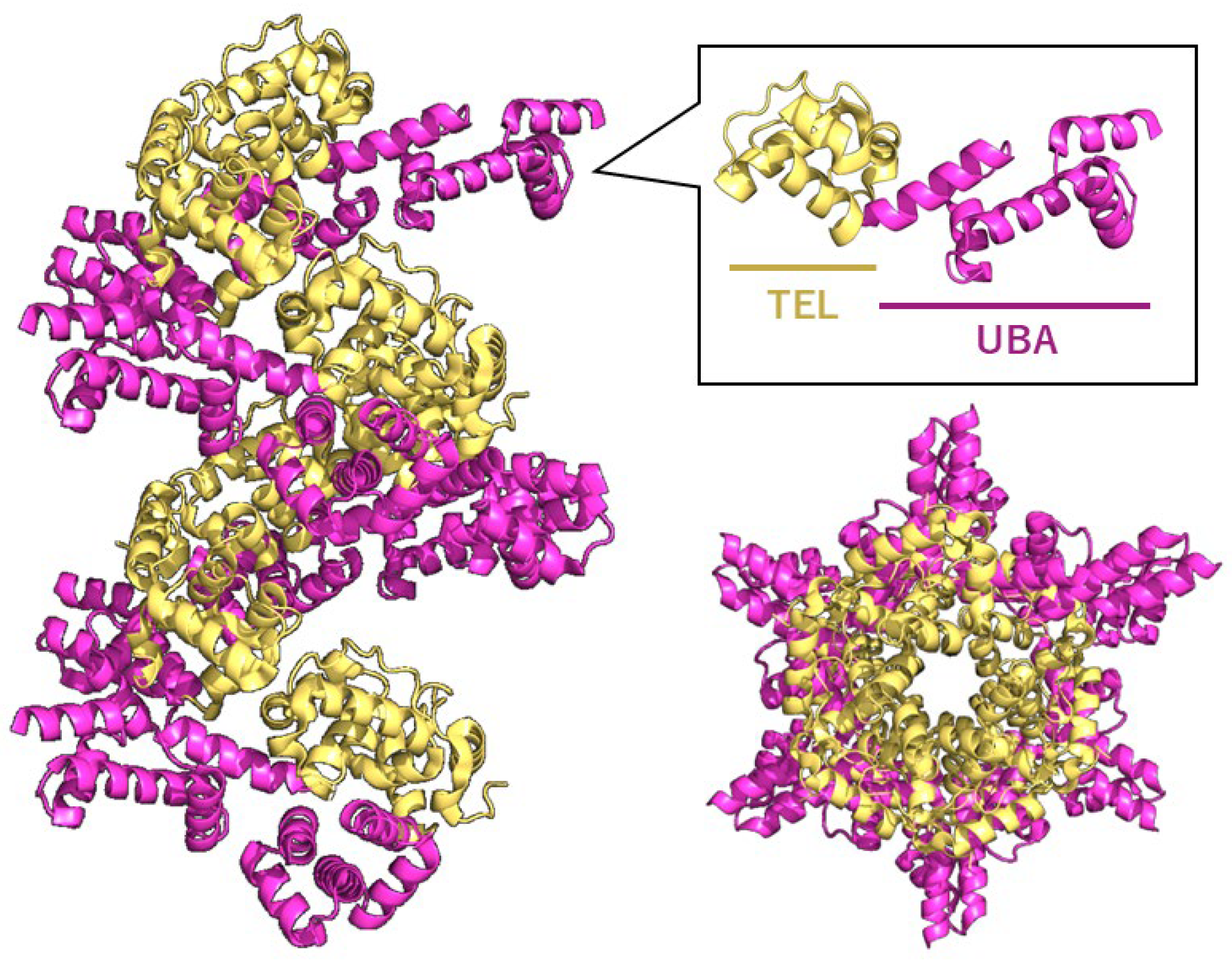

TELSAM represents a new paradigm among crystallization chaperones due to its intrinsic ability to form helical polymers. Polymerization occurs via head-to-tail interactions within the SAM domain, and the V112E mutation renders the assembly pH-dependent and reversible [31]. Fusing a target protein to TELSAM arranges the target helically, resulting in an avidity effect that amplifies the target’s interactions; this provides sufficient strength to stabilize the crystal lattice, even for interactions that would be too weak for crystallization on their own [32]. Contrary to conventional wisdom, TELSAM fusion proteins have been shown to crystallize even at extremely low protein concentrations of 0.1–0.2 mg/mL [33]. Interestingly, TELSAM can promote crystallization even with a flexible linker, largely because the strong orientation control provided by the polymer compensates for the linker’s freedom, effectively “trapping” the target protein within the crystal lattice. Recent work on the human TNK1 UBA domain demonstrated crystallization at just 0.2 mg/mL when fused to TELSAM, with the crystal lattice forming through the target protein even when the TELSAM polymers do not directly contact each other [33]. This feature makes it a powerful tool for proteins difficult to prepare in large quantities (Figure 2).

3.3. Antibody Fragments

Co-crystallization with antibody fragments is a classic and powerful technique that fixes a specific conformation of the target and expands the crystallizable surface area. Nanobodies are single-domain antibodies derived from camelids that are small, highly stable, and capable of binding to concave epitopes. They are widely used as crystallization chaperones, especially for membrane proteins like GPCRs and transporters [34]. Nanobodies stabilize a specific functional state of the target, enabling structural analysis.

4. Control of Complexes and Structural Homogeneity

Crystallizing multi-protein or protein–nucleic acid assemblies requires an additional conceptual layer beyond that applied to monomeric proteins: complexes behave as dynamic equilibria whose composition, structural uniformity, and stability are strongly influenced by buffer chemistry, precipitants, oxidation state, and mixing ratios. Accordingly, achieving diffraction-quality crystals relies on rational control of these equilibria. Drawing from both our experience and representative systems, we outline here general principles that guide the stabilization and homogenization of complexes prior to crystallization.

4.1. Identifying the Stable Unit

A critical first step is determining the minimal stable assembly, which often cannot be inferred solely from sequence-defined domain boundaries. Many complexes exhibit emergent stability only when maintained as specific subassemblies. In our studies of centromeric proteins, we found that the four components CENP-T, -W, -S, and -X form a robust heterotetramer (CENP-T-W-S-X), analogous to the histone H3–H4 complex [35]. Isolated crystallization of the CENP-T-W and CENP-S-X subcomplexes further revealed remarkable structural similarity between the two, including conservation of key tetramerization residues. These findings highlight a generalizable principle: biochemical delineation of the stable oligomeric state—using SEC, EMSA, thermostability measurements, and structure prediction—is often decisive for crystallization success. This approach is broadly applicable to transcriptional regulators, helicase–loader assemblies, and chromatin-associated complexes that frequently misbehave when fragmented into overly simplified constructs (Figure 3).

4.2. Controlling Dissociation and Optimizing Solution Conditions

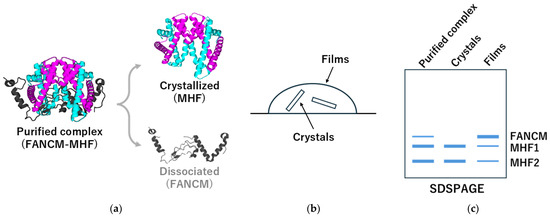

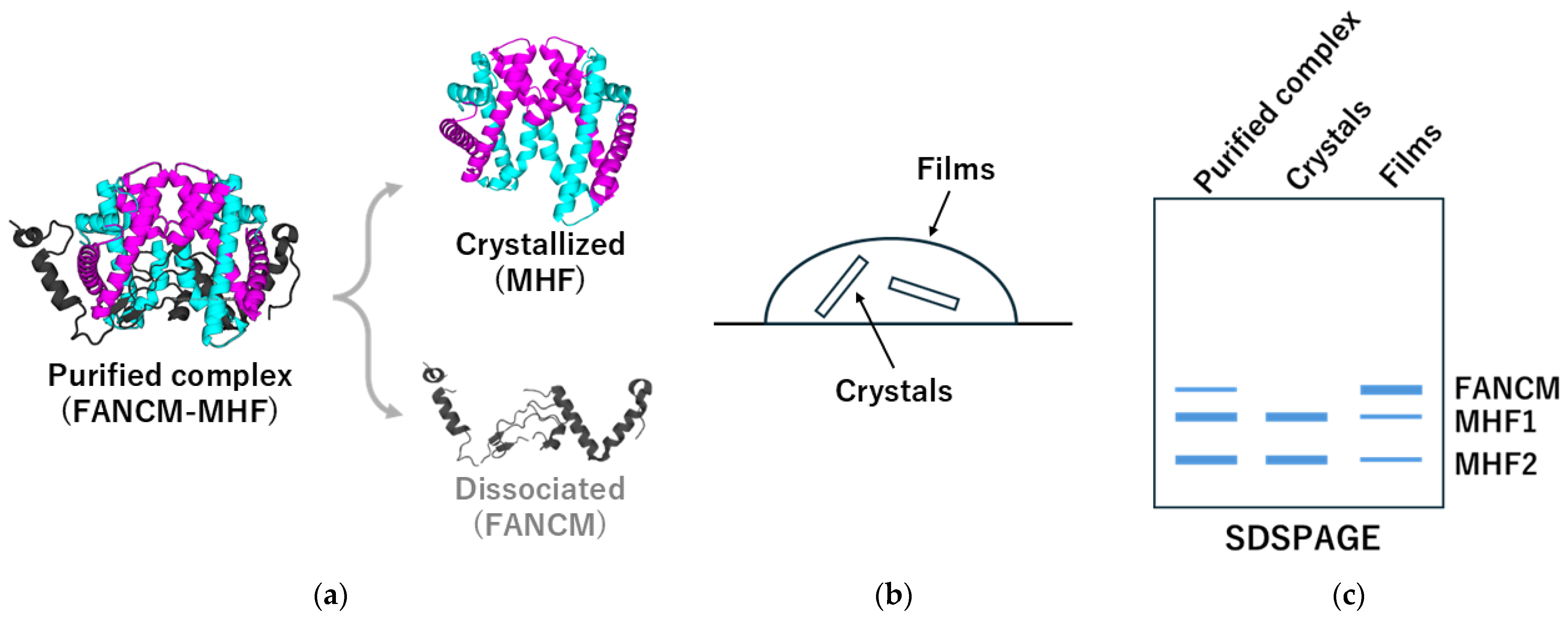

Because protein complexes exist in equilibrium, crystallization conditions can unintentionally promote dissociation, resulting in crystals composed of only the most stable subunit. This was evident in the crystallization of the FANCM–MHF complex, where initial crystals contained only the MHF (CENP-S-X) portion after the FANCM peptide dissociated under MPD-rich and mildly oxidative conditions [36]. Such behavior underscores the need to assess dissociation constants, evaluate sensitivity to precipitants and redox conditions, and tune ionic strength and buffer composition to maintain the correct assembly. Equally important is the verification of crystal composition—typically by SDS-PAGE or mass spectrometry of dissolved crystals—to avoid misinterpretation of results. In this way, crystallization becomes a controlled manipulation of binding equilibria rather than a passive screening process (Figure 4).

4.3. Engineering Nucleic-Acid Components in Protein–DNA Complex Crystallizations

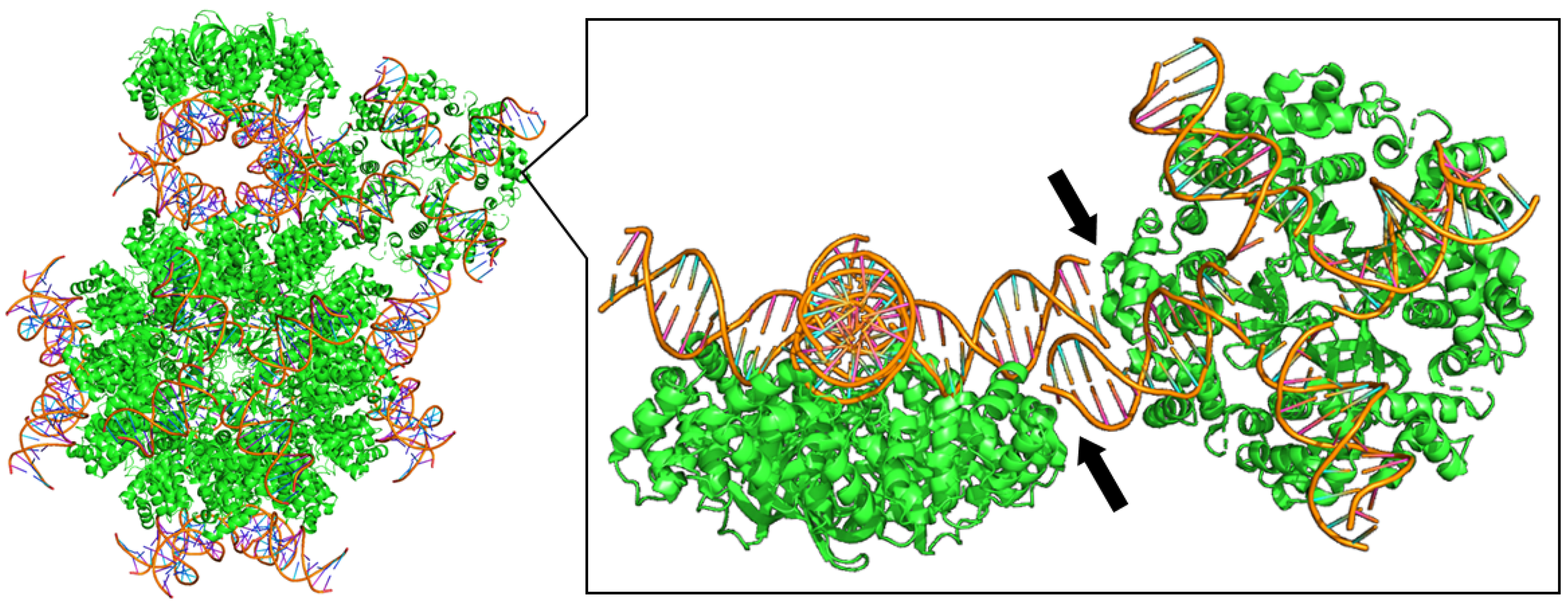

For protein–nucleic acid complexes, the nucleic acid frequently functions as a structural element of the crystal lattice rather than as a mere ligand. Consequently, DNA or RNA must be engineered with the same degree of intentionality as the protein construct. In the crystallization of the CENP-S-X complex, systematic variation in double-stranded DNA length revealed substantial effects on space group (P2₁ versus C2) and diffraction resolution, even when altered by only a few base pairs [37]. Differences between blunt and overhanging ends further influenced packing interactions and cryoprotection behavior.

Importantly, alternative crystallization attempts by another group using different DNA lengths, sequences, and stoichiometric ratios resulted in much lower resolution structures [38], underscoring how sensitive lattice formation is to nucleic-acid design variables. A similar principle emerges in structural studies of the Holliday junction-binding protein RuvA, where modifications in arm length, overhangs, or DNA sequence led to distinct binding modes and crystal packing arrangements [39]. Collectively, these observations demonstrate a generalizable rule: nucleic acids must be treated as active design parameters—length, end configuration, and sequence composition often dictate lattice architecture and must be optimized deliberately (Figure 5).

4.4. A Generalized Workflow for Stabilizing and Crystallizing Complexes

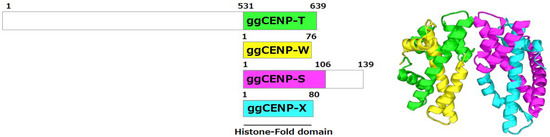

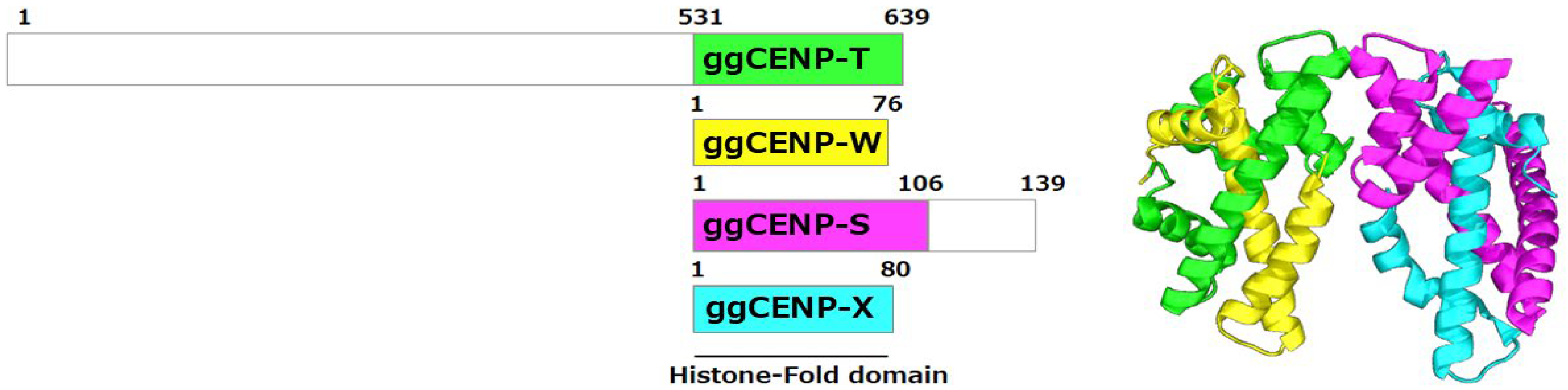

The principles illustrated by representative systems—including CENP-T-W-S-X [35], FANCM–MHF [35], and the DNA-dependent crystallization behavior of CENP-S-X [36,37]—enable a generalized workflow for complexes of diverse composition. The process begins by defining the minimal stable unit through biochemical analysis and structure-informed construct design. Once this assembly is established, its dissociation behavior must be characterized, as precipitants or oxidative conditions can shift equilibrium and promote partial disassembly, as observed for FANCM–MHF [36].

Solution stoichiometry should then be optimized so that the predominant species corresponds to the desired oligomeric form. For complexes involving nucleic acids or other ligands, these components must be treated as structural design variables, since even small modifications in DNA length, sequence, or end structure—illustrated by the contrasting crystallization outcomes of CENP-S-X–DNA in different laboratories [37,38]—can determine lattice symmetry and achievable resolution. Throughout this workflow, maintaining sample homogeneity is essential, and crystals must be validated by analyzing dissolved crystals to confirm their composition. Through this rational, equilibrium-informed approach, complex crystallization becomes a broadly transferable methodology rather than a system-specific empirical challenge.

5. Acceleration via AI and Computational Science

The evolution of AI structural prediction and computational science is revolutionizing crystallization strategies. These tools accelerate the entire process, from preliminary target assessment to the active design of crystal lattices.

5.1. AlphaFold for Construct Design and Structure Prediction

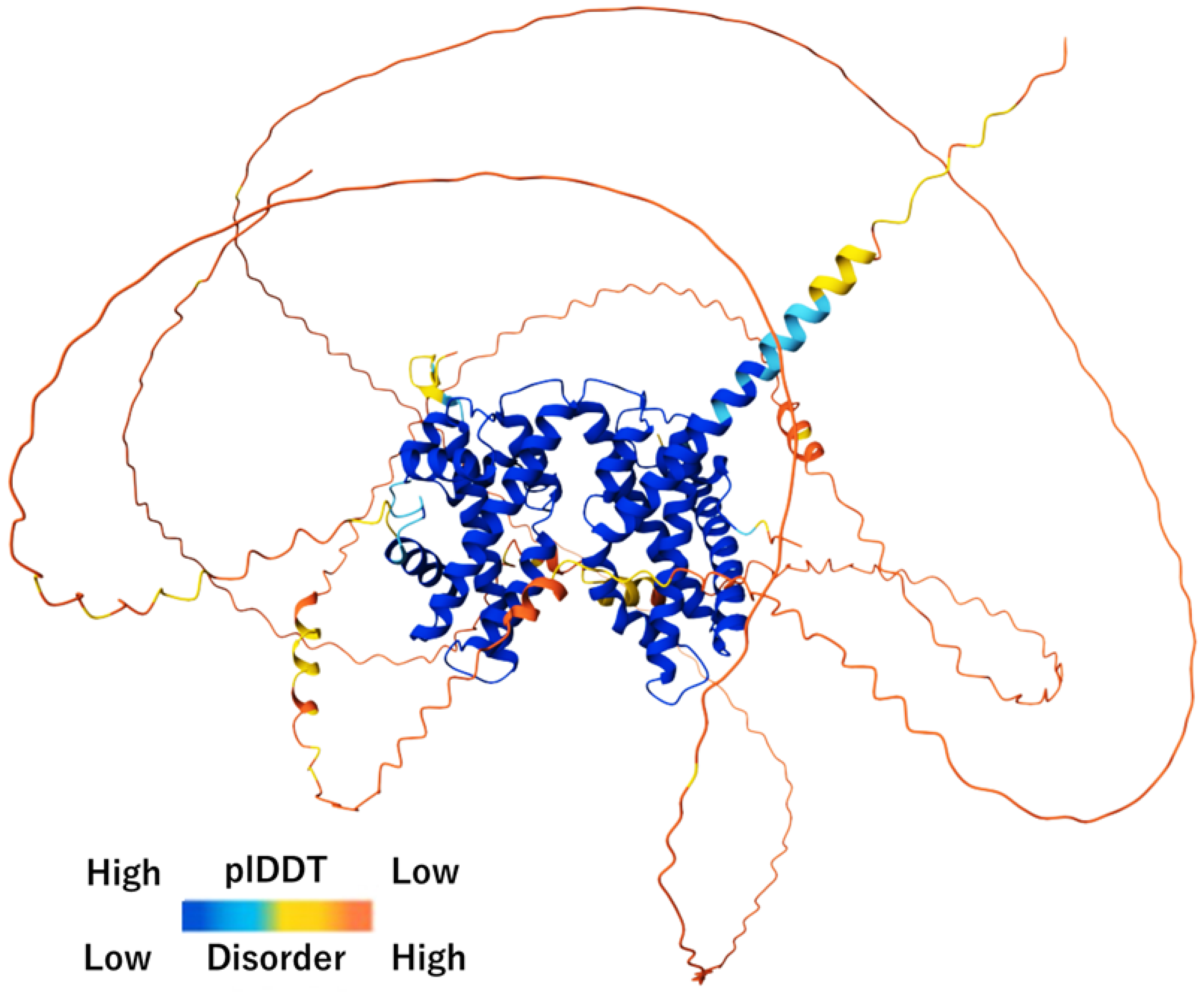

AlphaFold2 and the latest AlphaFold3 not only provide highly accurate structure predictions but also precisely predict domain boundaries and intrinsically disordered regions (IDRs) through the pLDDT score (local confidence score) and Predicted Aligned Error (PAE) [40,41]. In a landmark study covering the human proteome, the DeepMind team led by Jumper and Hassabis demonstrated that pLDDT scores correlate strongly with structural order, effectively distinguishing stable globular domains from unstructured regions [42]. In terms of applications, this capability allows for the rapid in silico design of crystallization-appropriate domain boundaries without the need for experimental limited proteolysis. Consequently, the identification of stable domains, traditionally determined by limited proteolysis and mass spectrometry, can now be achieved with high accuracy derived solely from sequence information. Furthermore, the predicted structural model can be utilized to identify potential sites for SER mutation (e.g., surface loops). For multi-component targets, AlphaFold-Multimer has proven essential for guiding co-crystallization strategies by predicting the complex’s stoichiometry and interaction interfaces with high accuracy, often outperforming traditional docking methods [43] (Figure 6).

5.2. De Novo Crystal Design and Artificial Lattices

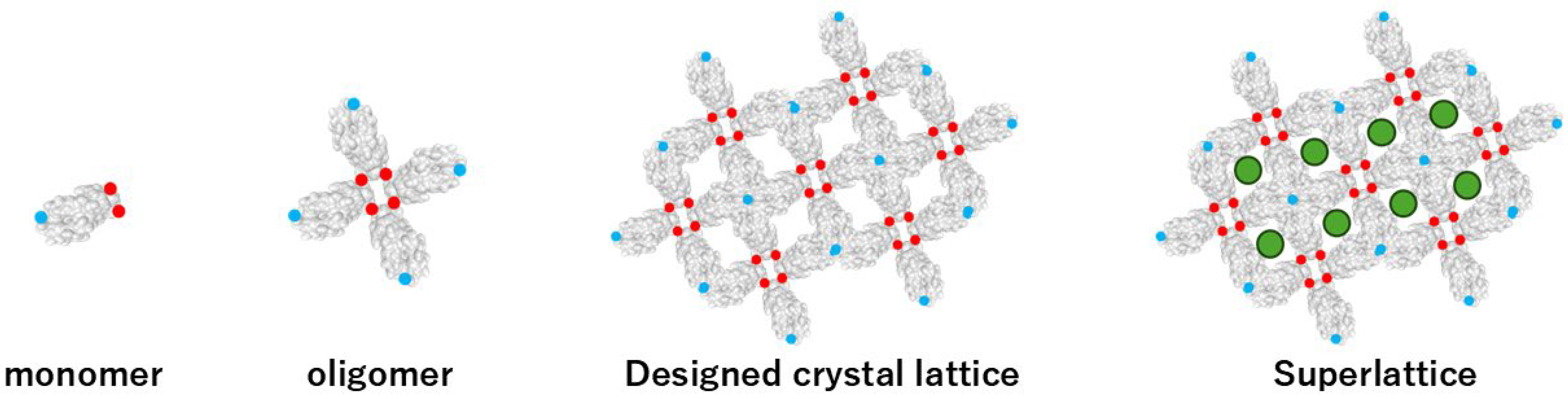

Protein design technologies have moved beyond merely modifying existing proteins to the level of De Novo (from scratch) design of proteins that self-assemble into specific crystal lattices. Generative AI models, such as RFdiffusion and deep network hallucination, now allow researchers to program protein backbones and symmetries with atomic precision [44]. Regarding programmed self-assembly, hierarchical assembly methods implemented in the Rosetta software suite are employed to computationally design proteins that self-assemble into three-dimensional crystal lattices with specific symmetries (e.g., P6 symmetry or cubic symmetry) [45,46]. Notably, Baker and colleagues utilized deep learning hallucination to generate extensive libraries of symmetric cyclic oligomers, which can serve as robust building blocks for larger assemblies. These designs involve engineering an oligomeric building block (e.g., a trimer) and computationally designing the interfaces using symmetry-docking algorithms so they interact at specific angles and distances [47]. In a significant application, Baker’s group utilized hierarchical sampling protocols in Rosetta to design highly porous three-dimensional protein crystals [48]. These artificial lattices are expected to function as the “ultimate scaffold” to capture and align guest proteins for structural analysis. A future possibility exists wherein a guest protein is fused to a part of this artificial lattice, allowing it to be arrayed according to the designed lattice’s order; this would enable structure determination even if the guest protein lacks intrinsic crystallizability, holding the potential to completely transform protein crystallization from a “probabilistic search” to a “deterministic design” (Figure 7).

6. Conclusions and Outlook

Protein crystallization is no longer adequately described as a “game of chance.” Instead, it is evolving into a rational engineering discipline that integrates physicochemical principles, molecular design, and computational prediction.

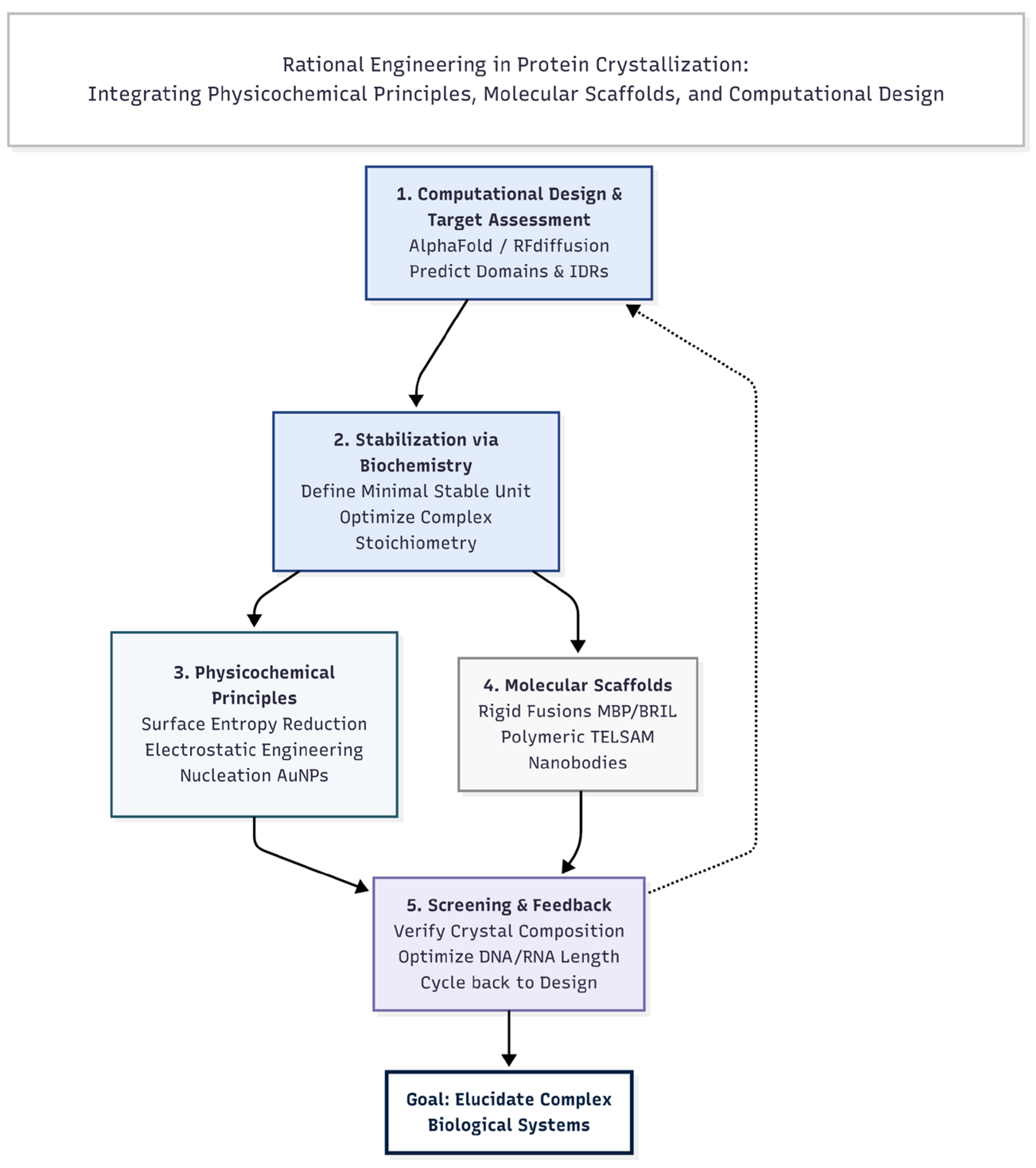

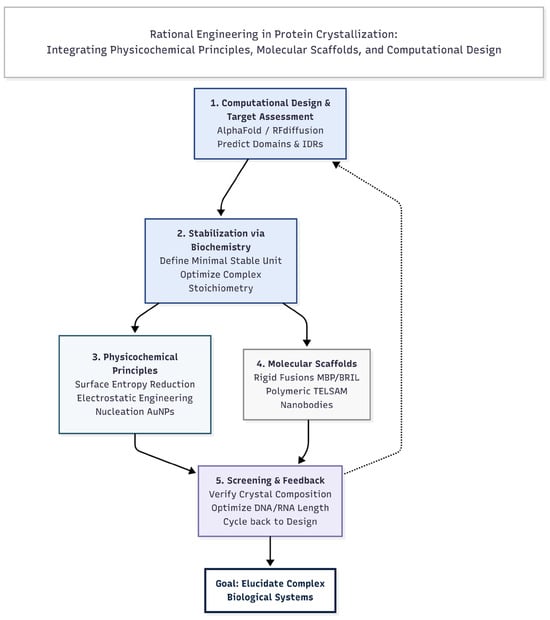

A practical workflow emerges from this perspective (Figure 8):

1.

Target Assessment (AI-informed)

Predict domain boundaries and IDRs using AlphaFold; identify regions suitable for truncation or surface redesign.

This reduces the need for labor-intensive proteolysis experiments.

2.

Stabilization by Biochemistry

Determine the minimal stable unit via biochemical assays and structure prediction.

For complexes, evaluate dissociation behavior and optimize stoichiometry.

3.

Physicochemical Principles (Strategy I)

Improve crystallizability by altering surface features through mutations—SER, electrostatic engineering, and context-dependent Arg substitutions—to introduce directional contacts and enhance lattice compatibility. Nucleation enhancement utilize heterogeneous nucleation by introducing external seeds such as gold nanoparticles (AuNPs) or using porous materials to lower the nucleation barrier, especially when surface mutations alone are insufficient.

4.

Scaffold Consideration (Strategy II)

Introduce crystallization chaperones or fusion partners such as MBP, BRIL, or TELSAM to provide rigid surfaces or polymeric orientation control.

TELSAM is particularly valuable for targets available only at low concentrations.

5.

Iterative Screening and Feedback

Always verify crystal composition, especially for complexes, and treat nucleic acids as tunable design variables.

Computational predictions can be fed back into construct redesign, enabling fast convergence on successful conditions.

Collectively, these strategies empower structural biologists to pursue increasingly complex and dynamic assemblies. While an element of “artistry” remains, crystallization has now matured into a highly systematic and engineerable process, poised to benefit further from the increasing integration of AI and de novo molecular design.
