Synthesis and DFT Investigation of New Low-Melting Supramolecular Schiff Base Ionic Liquid Crystals

Abstract

Supramolecular, low-melting (near or below 0.0 °C) ionic liquid crystals with two rings of Schiff bases were prepared and studied. The Schiff bases were synthesized using 4-substituted aniline derivatives and 4-pyridine carbaldehyde and then mixed in equimolar amounts with linear 1-bromoalkanes of different chain lengths, namely C6, C8, and C14. The mesomorphic behavior and thermal properties of the compounds were determined by polarized optical microscopy (POM) and differential scanning calorimetry (DSC). Only the ionic liquids analogous with 1-bromotetradecane exhibit mesomorphic behavior. All, except the smectic A (SmA) monomorphic fluorine-substituted complex, show dimorphic enantiotropic mesophases, namely SmA followed by nematic (N) mesophases depending on the temperature rise. The DSC and POM results for the induced mesophases were then treated with density functional theory calculations (DFT). The results showed that both the polarity of the polar groups and the length of the alkyl groups strongly influence the mesomorphic properties of the ionic liquids.

1. Introduction

Ionic liquids (ILs) can be defined as ionic materials possessing low melting points of less than 100 °C. Moreover, low-mass calamitic liquid crystals, consisting of two aromatic rings with at least one terminal substituent, are capable of showing the nematic phase of important applications at room temperature [1,2,3]. In general, ILs consist of organic or inorganic anions usually coupled with asymmetric large organic cations. ILs possess a large number of different physicochemical properties that qualify these materials for specific applications and often lead to significant results when applied compared to their behavior in conventional solvents [4,5]. Moreover, ILs are considered to be environmentally friendly solvents, since they usually show very low vapor pressure [6]. In addition, ILs reveal stability towards thermal degradation [7,8,9]. Therefore, they can be used as ideal substitutes for conventional organic solvents. Moreover, they exhibit exceptional solubility properties for inorganic, organic and organometallic compounds. ILs play an important role as starting materials for N-heterocyclic carbenes, which can be used in a variety of catalytic reactions [10,11,12,13]. At the macroscopic level, however, ILCs are identical to LCs in every way, because the material’s behavior is determined by the phase structure. As a result, ILCs are gaining popularity since they are projected to combine the numerous intriguing technical applications of ILs and LCs [14,15].

In the last three decades, ILs were massively investigated as they display broad electrochemical windows, elevated ionic conductivity [16] and a wide temperature range of their liquid state. Furthermore, many of the physical characteristics of ILs such as melting point, density, viscosity, polarity, and enthalpy of vaporization can be tailored simply through variation of their anion and cation pairing [17]. A lot of effort has been attempted to fabricate new classes of ILs, known as functionalized ionic liquids (FILs), which bear different functional groups in their cationic portion [18,19,20,21,22,23]. Functionalization of the cationic moiety of the FILs allow them to be tunable for specific applications such as reduced catalyst leaching and increased catalytic stability [24,25].

It is worth noting that Schiff base compounds are considered as a distinguished class of ligands that play a vital role in coordination chemistry. They display diverse chelating capability [26,27,28], functionalities [29] and various ranges of pharmacological, biological, and antitumor activities. Schiff bases involving hetero-atoms such as N and S in their chemical structures exhibit special importance due to their strong ability to coordinate with a variety of transition metal ions, affording a lot of uncommon configurations [30,31,32].

In this contribution, we extended our recent work of supramolecular Schiff base-induced liquid crystalline materials [33,34] to synthesize functionalized ionic liquid crystal (FILCs) two-ring Schiff bases with melting points close to or lower than 0.0 °C. These Schiff bases were designed using 4-substituted aniline derivatives and 4-pyridine carbaldehyde and finally paired with linear 1-bromoalkanes of various chain lengths. We investigated the mesomorphic behavior and thermal properties of these FILCs using polarized optical microscopy (POM) and differential thermal analysis (DSC). In addition, the DSC and POM results of the studied materials were linked using density functional theory (DFT).

2. Materials and Methods

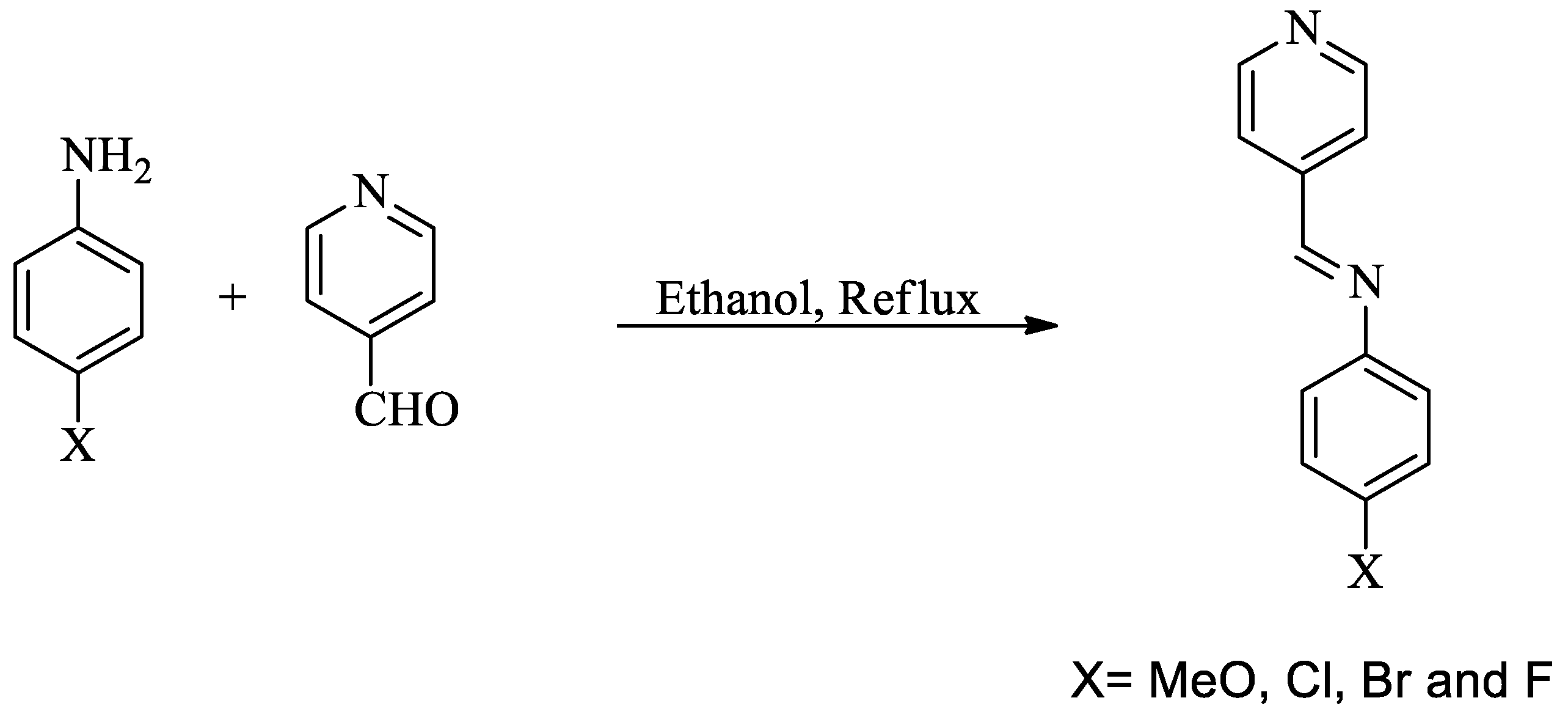

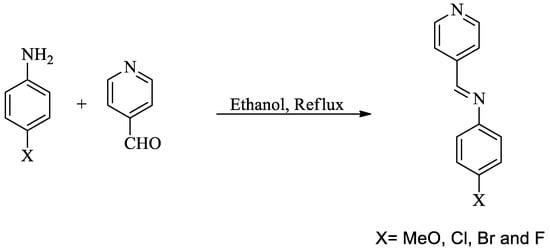

Chemicals were obtained from TCI Company, Japan (Tokyo Chemical Industry, Tokyo, Japan). Their purity is more than 98% in all compounds. Schiff bases were prepared and recrystallized twice from ethanol/water mixture and were checked to be TLC pure (Scheme 1).

3. Schiff Bases Synthesis

The Schiff bases were identified according to their reported melting points: I (98 °C) [35], II (74 °C) [36], III (80 °C) [35], and IV (82 °C).

4. The Ionic Liquids Synthesis

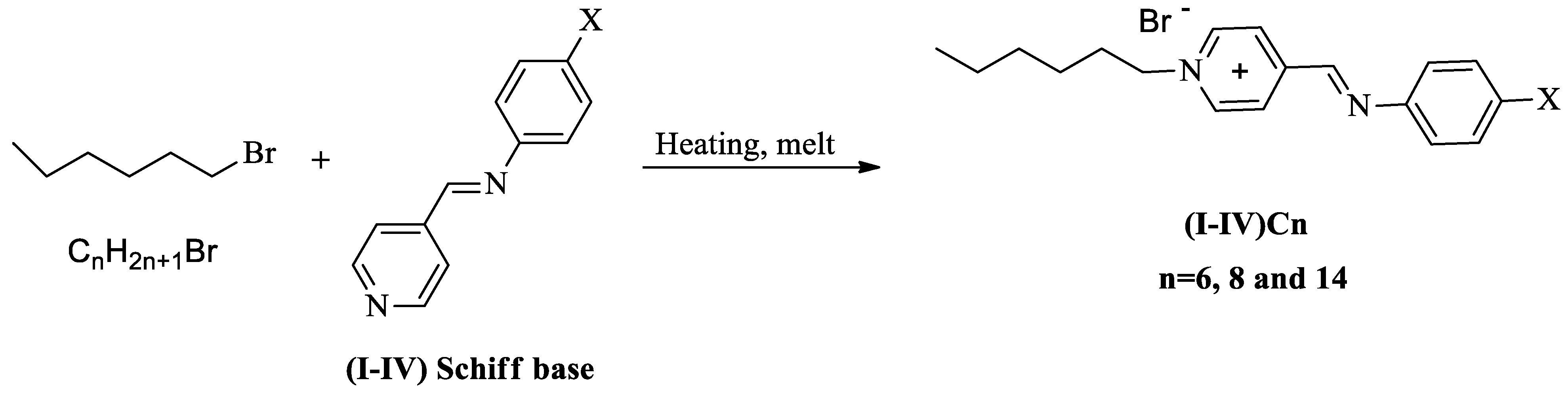

The Schiff base ionic liquids were prepared by mixing 1:1 molar ratios of any two complementary components of the particular Schiff bases with linear 1-bromo alkanes at various chain lengths, namely C6, C8, and C14; melting the appropriate amounts with stirring to produce a thorough blend; and then, cooling with stirring to room temperature to obtain the ionic liquids (Scheme 2).

The phase changes characterizing the materials were verified via differential scanning calorimetry (DSC), with a Shimadzu DSC-60A (SHIMADZU, Tokyo, Japan). A quantity of 2–3 mg was encapsulated in Al pans and heated or cooled in a dry nitrogen atmosphere. The samples were heated using a heating speed of 10.0 °C/min during the tests. The samples were heated to 100 °C from room temperature and then cooled to −20 °C at the same time rate. Finally, samples were reheated again to 150 °C, all under N₂ gas atmosphere. The accuracy in temperature monitoring is ˂1.0 °C.

5. Results and Discussion

The two-ring ILs 1:1 compounds ((I-IV)Cn) were investigated in terms of mesophases and optical analyses.

Table 1. Phase transitions: temperatures (T, °C) and enthalpies (∆H, kJ/mol) for the ((I-IV)Cn) functionalized ionic liquids. The abbreviations Cr-I, Cr-SmA, SmA-N and N-I denote the crystalline to isotropic, crystalline to smectic A, smectic A to nematic and nematic to isotropic transitions, respectively.

		°C	kJ/mol	°C	kJ/mol	°C	kJ/mol	°C	kJ/mol
Compounds		TCr-I	ΔHCr-I	TCr-SmA	ΔHCr-SmA	TSmA-N	ΔHSmA-N	TN-I	ΔHN-I
I/C6	MeO	90.1	16.9
II/C6	Cl	84.4	14.4
III/C6	Br	107.3	15.4
IV/C6	F	88.7	17.2
I/C8	MeO	97.0	16.0
II/C8	Cl	80.0	12.7
III/C8	Br	107.5	14.5
IV/C8	F	136.6	20.8
I/C14	MeO			3.4	8.7	65.9	0.70	84.6	2.36
II/C14	Cl			1.6	12.0	26.2	0.28	59.4	2.68
III/C14	Br			−0.8	6.3	21.4	0.11	96.1	7.20
IV/C14	F			3.5	9.0			78.2	8.60

epitomizes the transition temperatures, T, and their associated enthalpies, H, of all observed transitions, as determined by DSC measurements, for all prepared ((I-IV)Cn) ILs.

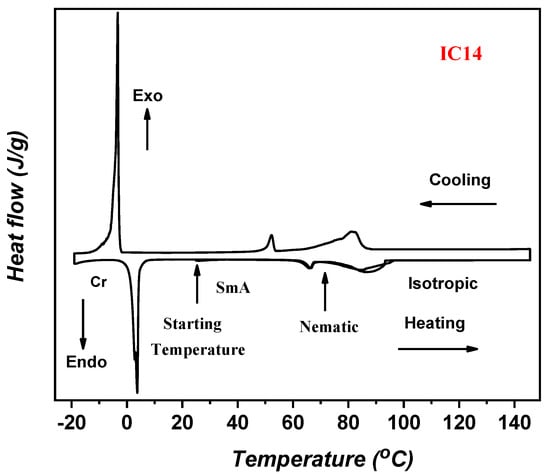

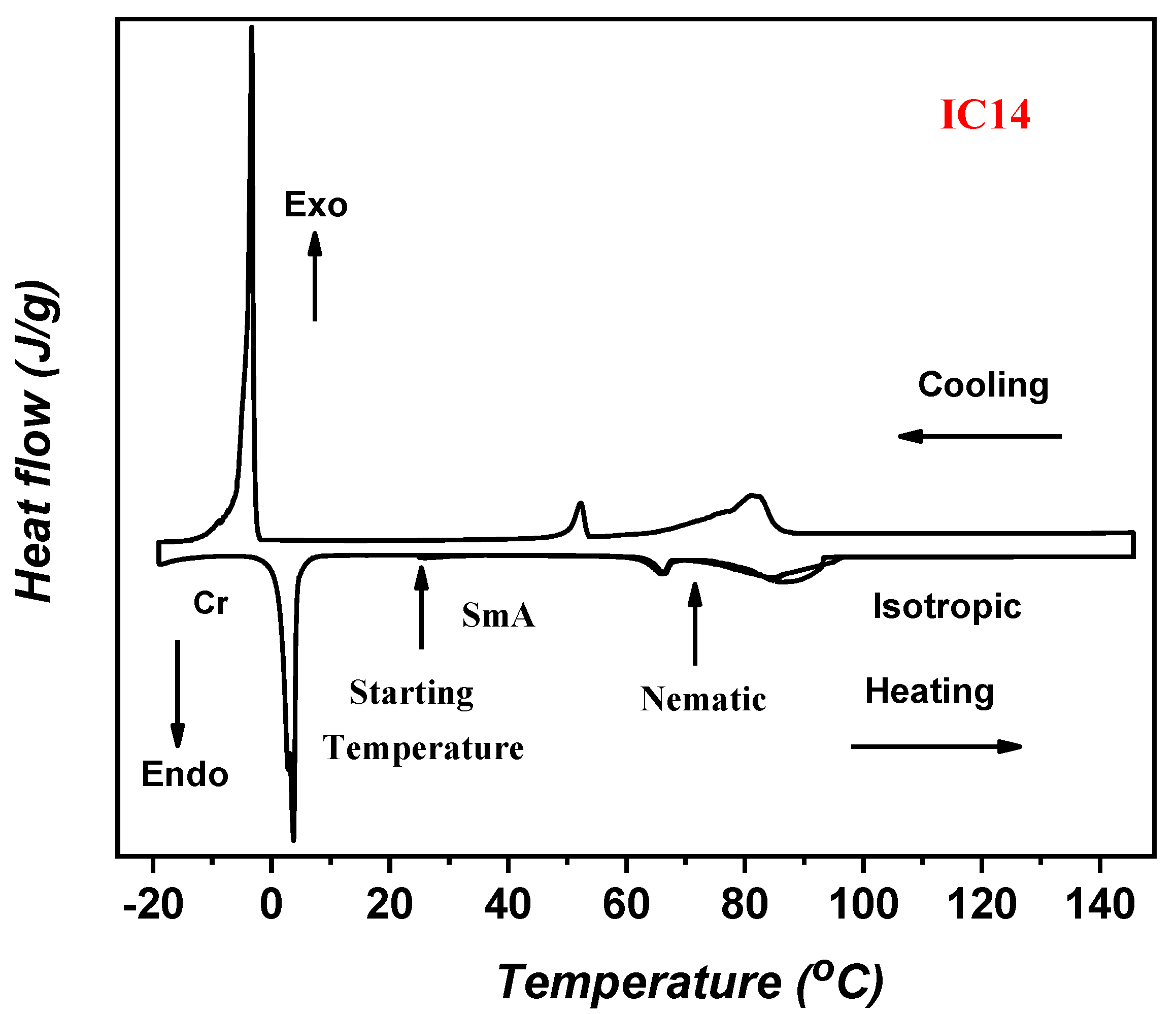

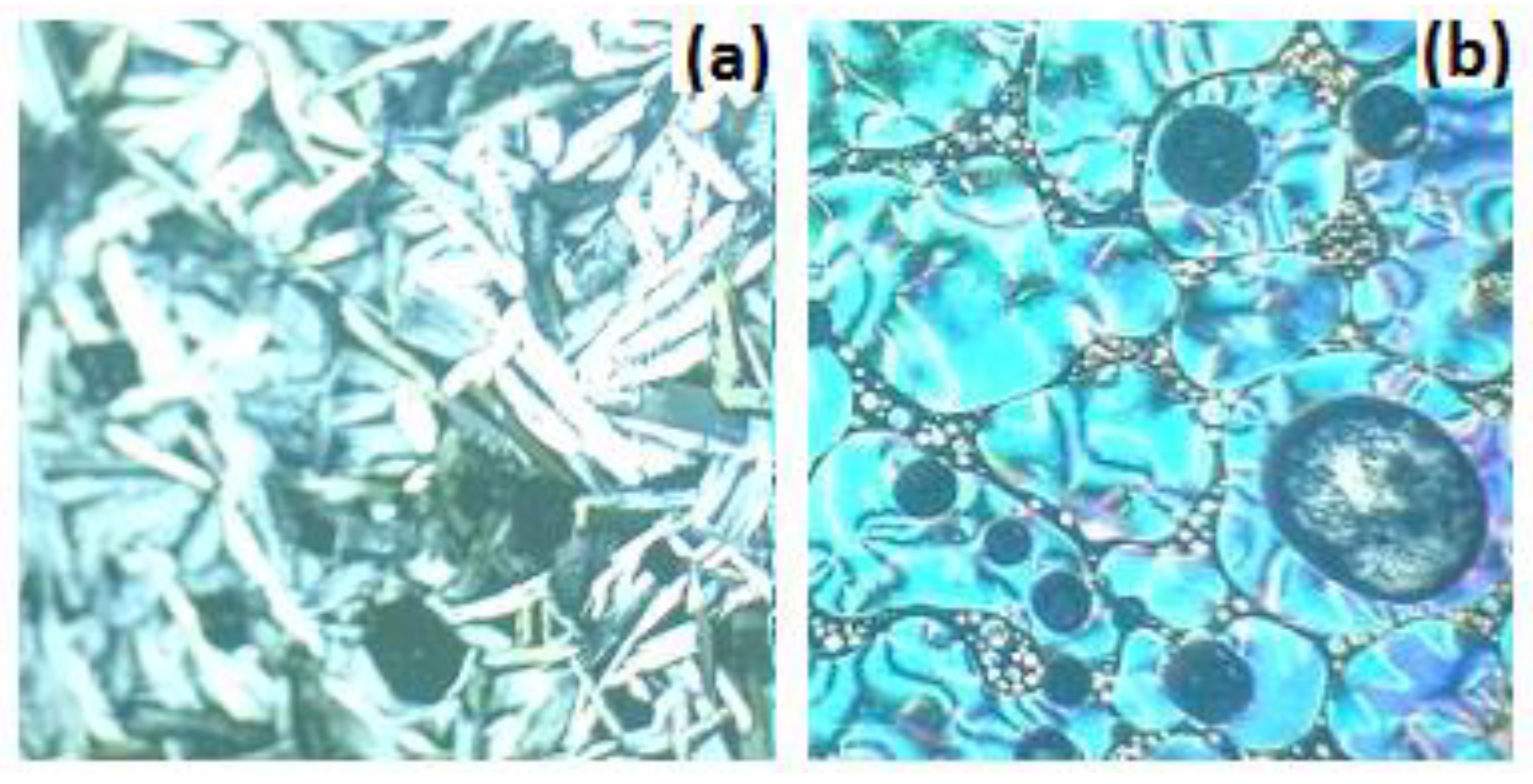

Figure 1 displays the DSC thermogram of sample I/C14 at a heating rate of 10.0 °C/min. We will only consider the results obtained from the second heating run in this manuscript. The temperature dependence of the heat capacity of the compound manifests an endothermic peak at 3.4 °C corresponding to a crystalline to smectic A (Cr-SmA) mesomorphic phase transition. By increasing the temperatures, a second endothermic peak at 65.9 °C, referring to SmA to nematic transition (SmA-N), is monitored. Finally, nematic to isotropic (N–I) transition is detected at 84.6 °C. The total mesomorphic temperature range of the material is satisfying (81.2 °C). Both mesomorphic transitions are observed upon cooling, proving the enantiotropic behavior of the observed mesophases. Displaying the mesophase behavior upon cooling can be taken as direct evidence for the thermal stabilities of the ILCs in the entire investigated temperature range. The mesophase textures have been identified by the polarized optical microscope, as shown in Figure 2, Table 1.

The DSC investigations (Table 1) show that the ILC analogues incorporating the 1-bromotetradecane exhibit mesomorphic behavior. The rest of the IL complexes formed with the 1-bromohexane and 1-bromooctane are non-mesomorphic, irrespective of the Schiff base moiety contributing in the ILs. In addition, all the ILs involving 1-bromotetradecane reveal dimorphic enantiotropic mesophases. According to the temperature elevation, two transitions are observed, namely Cr-SmA followed by SmA-N mesophase transitions. The only exception is shown for the fluoro-substituted ILCs (IV/C14), which reveals a monomorphic SmA monotropic behavior.

The impact of variation of the polar group on the mesomorphic behavior of the (I-IV)/C14 ILCs is shown in Table 1. The influence of the polar substituent on the temperature ranges of the different mesophases (SmA and N), as well as the total mesomorphic temperature range, is pronounced. The ILC (I/C14) bearing the electron-releasing MeO group shows SmA and N mesophase ranges of 62.5 and 17.8 °C, respectively (a total mesomorphic range of 81.2 °C). In addition, the halide derivatives exhibited overall mesomorphic ranges of 57.8, 96.6 and 74.7 °C for Cl, Br, and F, respectively, which indicated a wide range of temperature for the mesomorphic behavior in all the samples. It can be noticed that the smectogenic mesomorphic range is enhanced in the order MeO > Cl > Br (Table 1), while the nematogenic behavior is generally enhanced in the order Br > Cl > Me, i.e., upon the increase in negative inductive effect. The fluoro-derivative is the only exception, as mentioned above. The highly electron-withdrawing F group reveals only a SmA mesophase with a mesorange of 74.7 °C. This wide SmA mesophase range could be explained by the mesomeric resonance effect of the extremely small compact fluoro group. This effect could raise the π-cloud loop and promote the degree of π–π stacking in the fluoro-substituted ILC to the other derivatives. In other words, the incorporation of the small compact fluorine atom with the highest negative inductive effect only enhances the formation of the SmA mesophase (74.7 °C), rather than the N phase. The highly parallel interaction that could be promoted by the F atom could be responsible for the enhanced SmA mesophase.

6. DFT Theoretical Calculations

Geometrical Structures

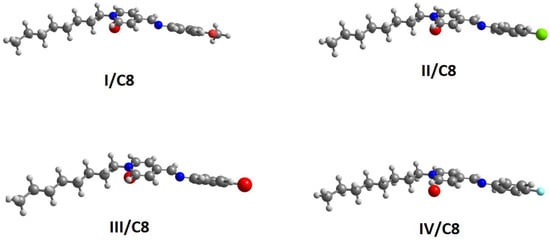

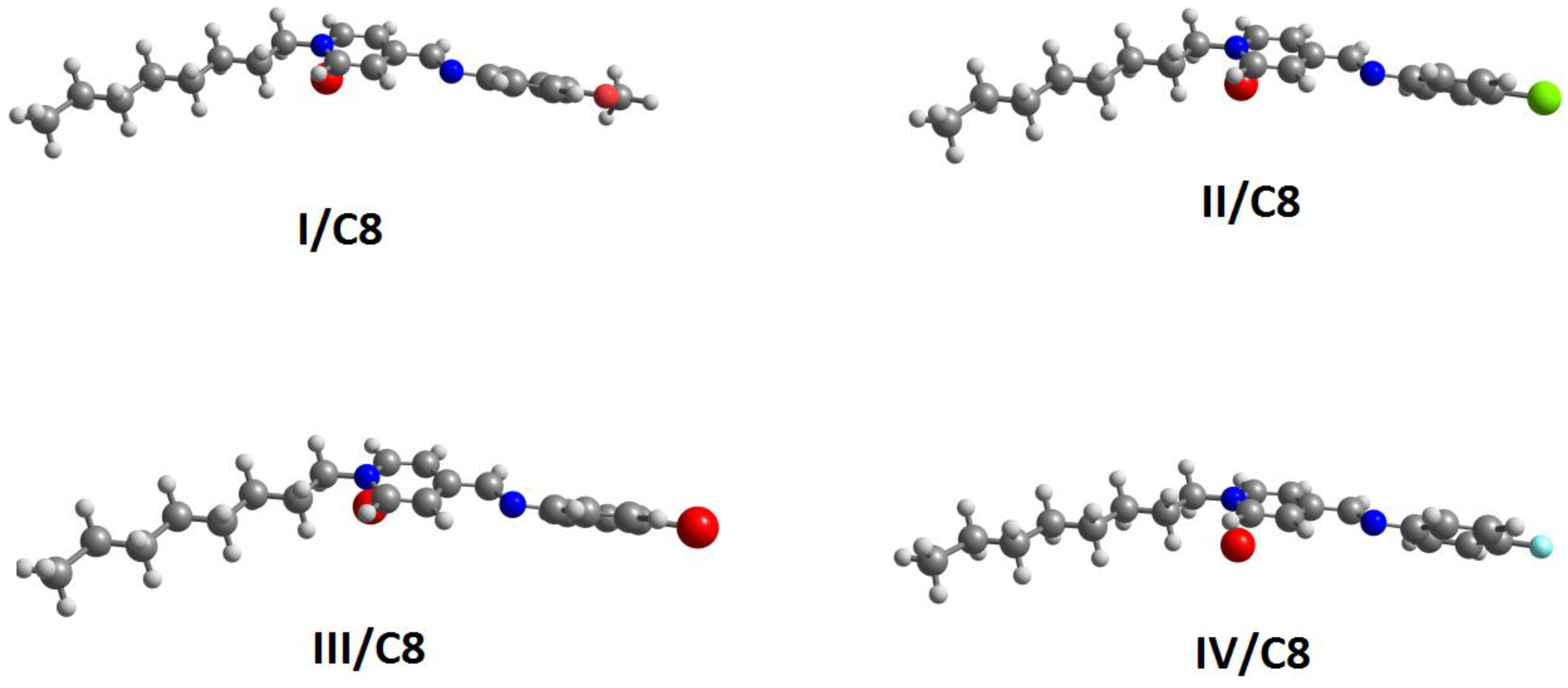

All the investigated compounds, (I-IV)C8, were optimized employing the DFT method using Gaussian 09 software (University of Cincinnati Libraries, OH, USA). The calculations were performed in gas phase using the B3LYP, 6-311g(d,p). Subsequence frequency counting was carried out to establish the most optimized real structures with the absence of imaginary frequency (Figure 3).

The relationships among the evaluated dimension parameters of all the prepared ILs, which are used to explain the mesomorphic properties including texture type, mesomorphic range, and stability, are shown in

Table 2. Mesomorphic parameters, polarizability, α, and aspect ratio of the investigated compounds.

Compounds	ΔTC	ΔTSmA	ΔTN	Dipole Moment, µ	Dimension Ǻ		Aspect Ratio (L/D)
					Width (D)	Length (L)
I/C6	0	0	0	6.20	9.51	23.00	2.42
I/C8	0	0	0	6.21	9.67	25.40	2.63
I/C14	81.2	62.5	18.7	6.22	9.85	34.54	3.55
II/C14	57.8	24.6	33.2	8.18	8.96	32.43	3.60
III/C14	96.9	22.2	74.7	7.98	9.05	32.74	3.62
IV/C14	74.7	74.7	0	8.16	9.00	31.54	3.52

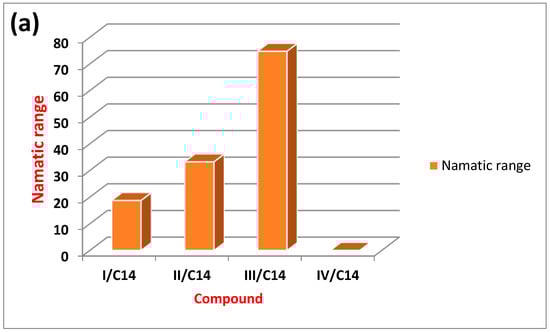

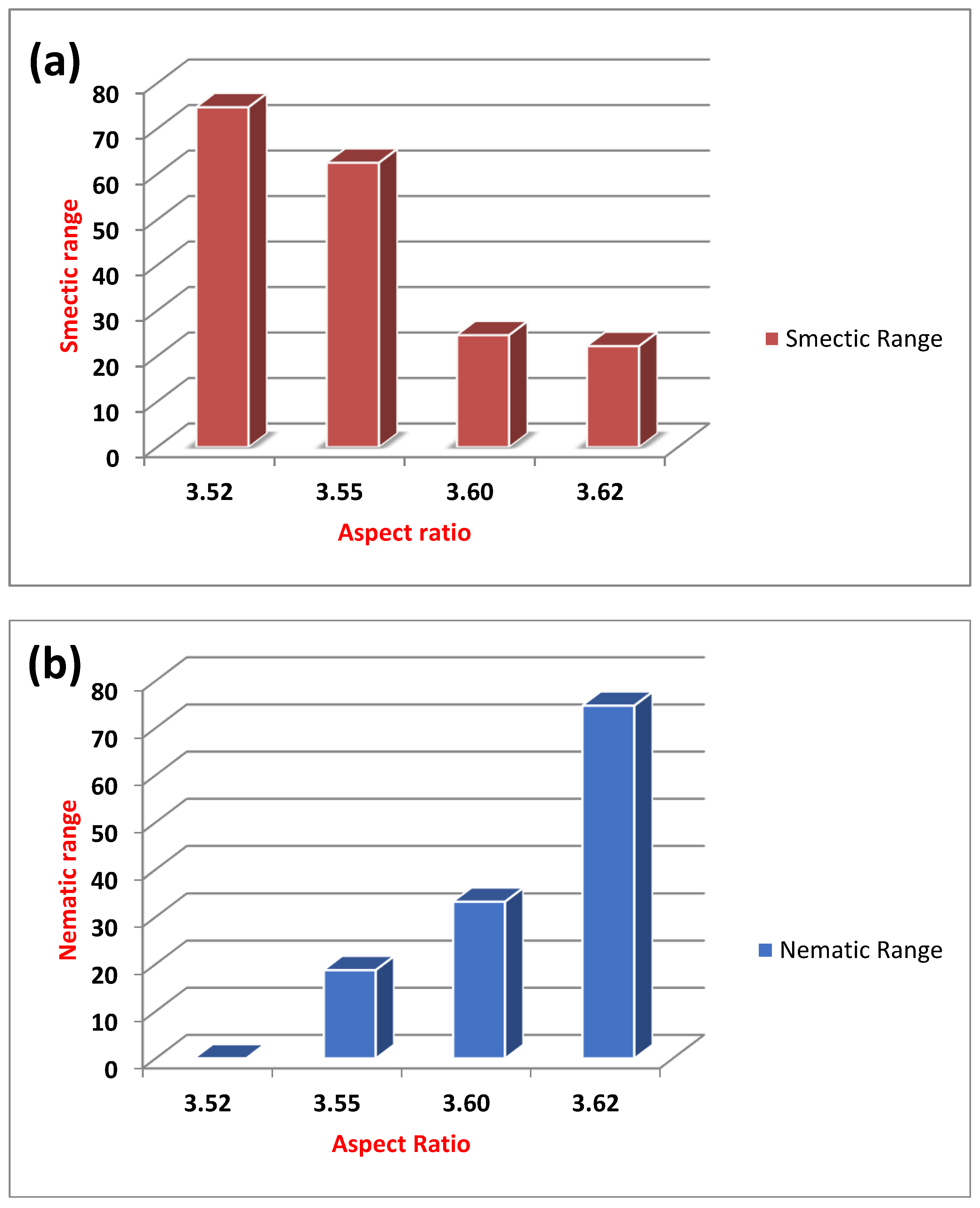

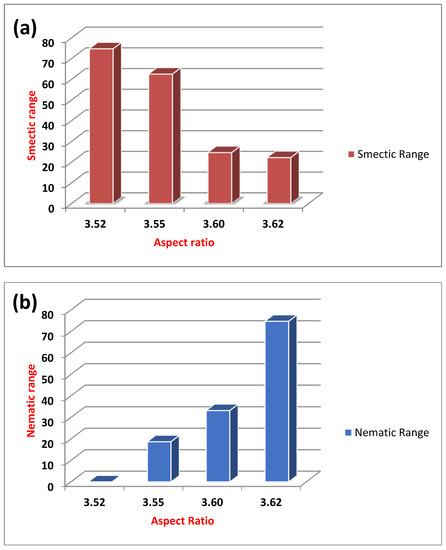

. The variation in aspect ratio of the compounds (length-to-width ratio) with the mesomorphic temperature range of the SmA and N mesophases of the compounds is displayed in Figure 4a,b.

It is well known that the intermolecular interaction increases upon the elevation of aspect ratio [37,38,39,40]. At high aspect ratios, the area of the intermolecular interaction increases. Additionally, the degree of molecular packing increases and the possibility of introducing a more ordered smectic mesophase dominates over the less ordered nematic mesophase. However, in our present series the situation is reversed: the nematic range increases as the aspect ratio increases and the smectic mesorange decreases. This finding can be illustrated in terms of the change in the dipole moment. Such little change in the dipole moment could affect the competitive lateral and terminal intermolecular interaction of the compounds (Table 2).

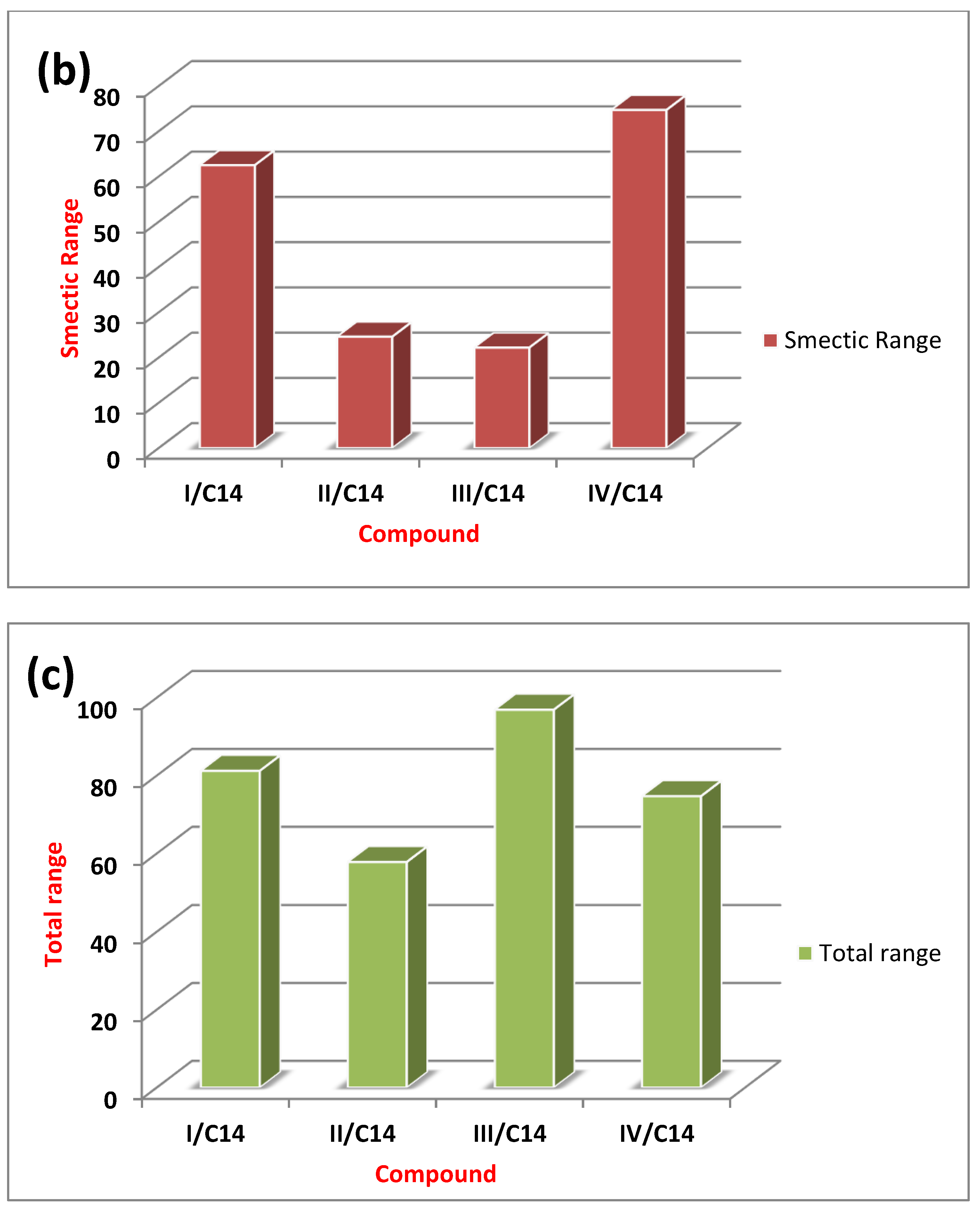

Figure 5 illustrates the relation between the type of the compact polar group of the prepared ILCs and the mesomorphic range (either smectic or nematic). A direct relationship can be noted between the type of terminal compact polar group and the mesomorphic range. For the high electronegative compact F-atom, the smectic mesophase is the dominant mesophase over the nematic one due to its high degree of intermolecular interaction that may enhance the existence of smectic over the nematic mesophase. However, the methoxy group of high mesomeric resonance effect with large space filling showed higher overall mesomorphic smectic range than the nematic mesophase. As indicated, due to the greater degree of alkyl aggregation of the methoxy chain, the smectic range increases [33,34,41].

7. Conclusions
