Layered Hybrid iron Fluorides
Abstract

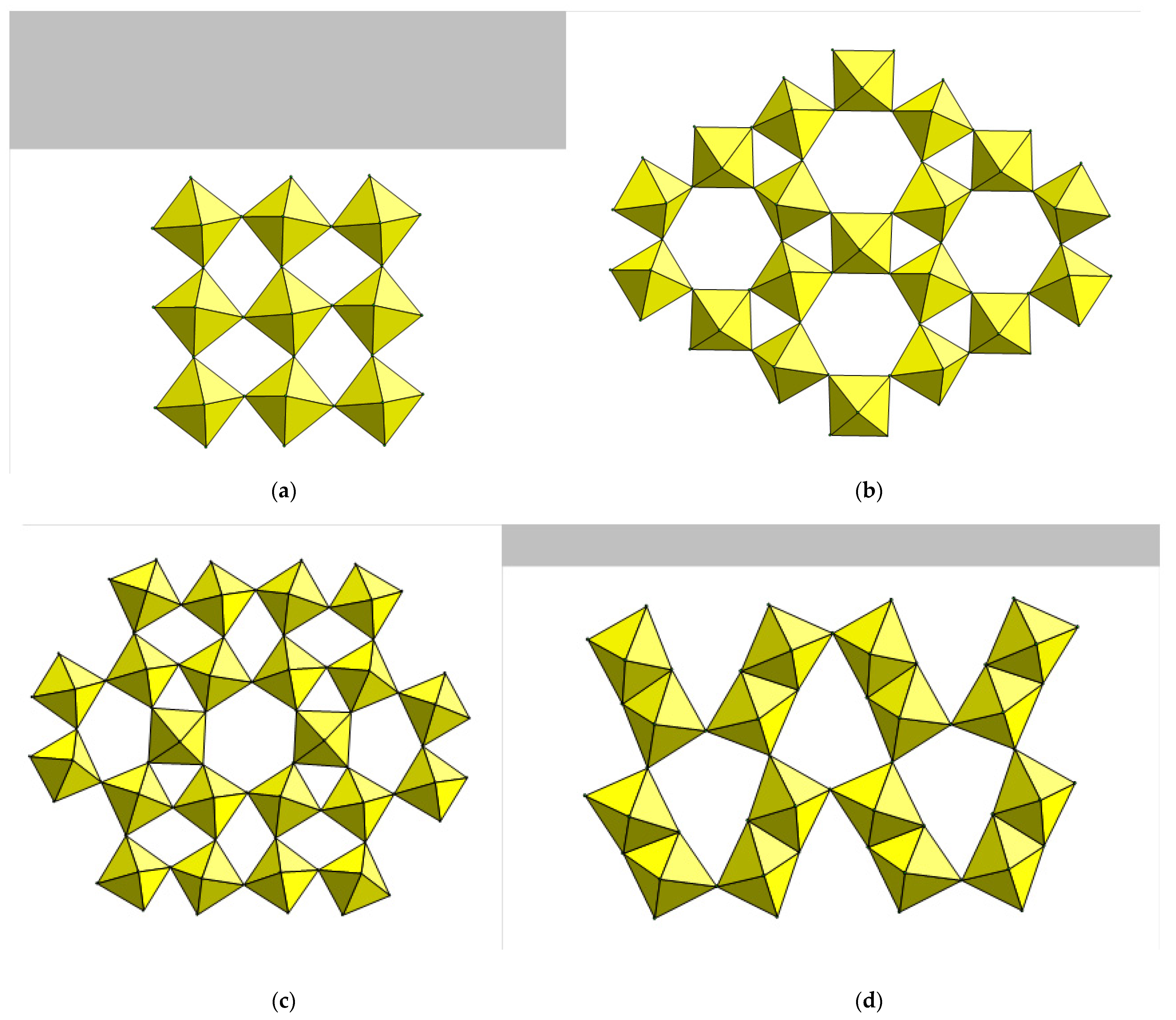

1. Introduction
2. Experimental Section
2.1. Chemicals
2.2. Synthesis

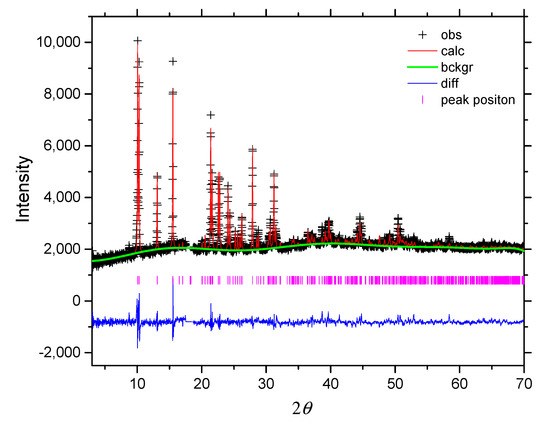

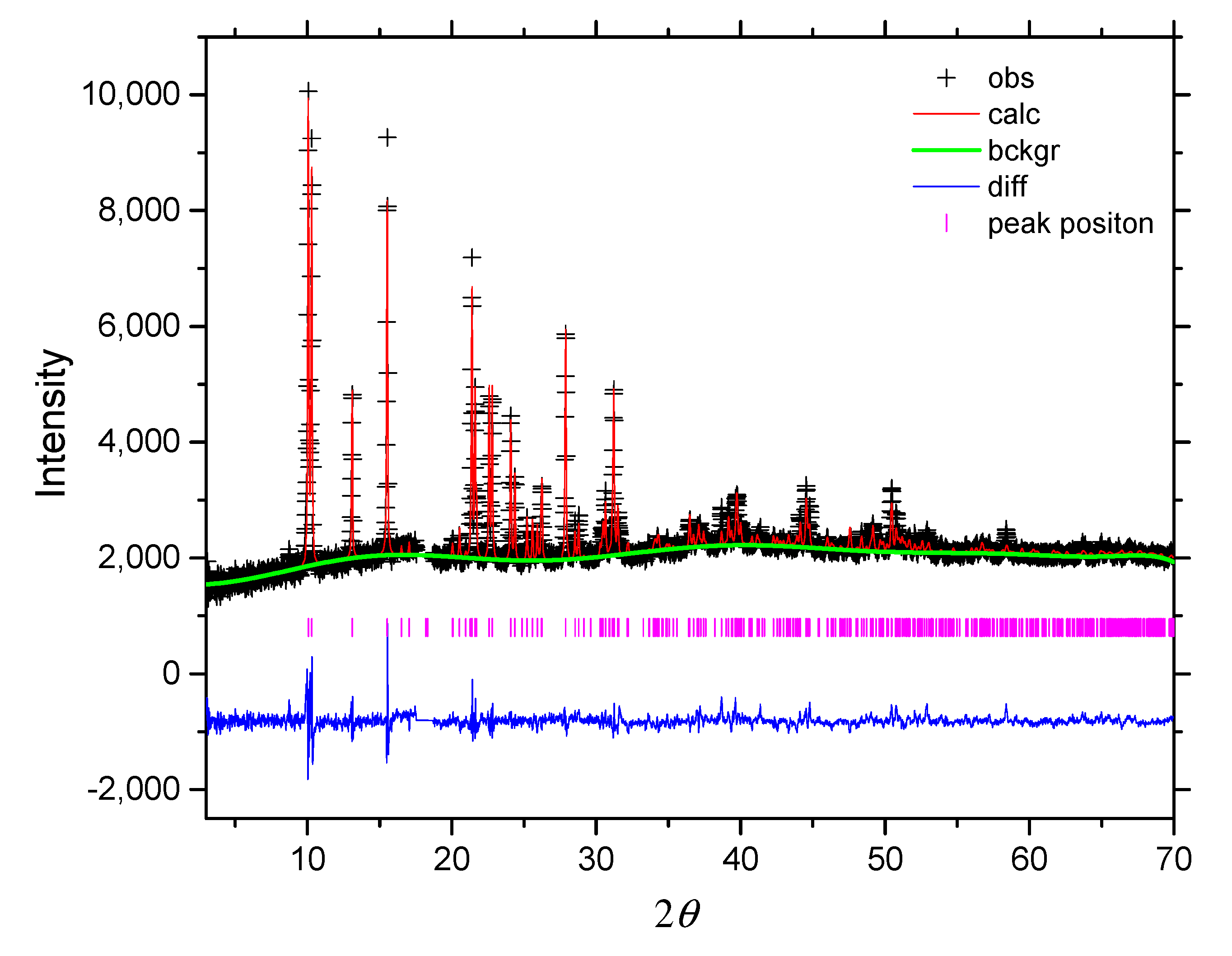

2.3. Characterisation

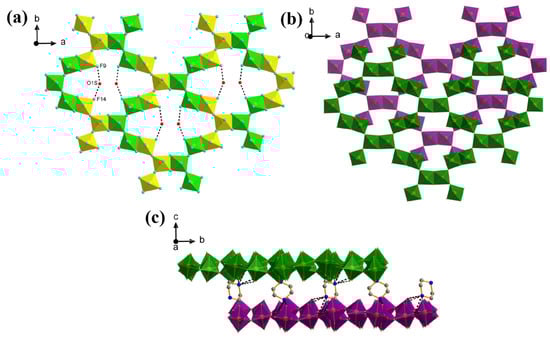

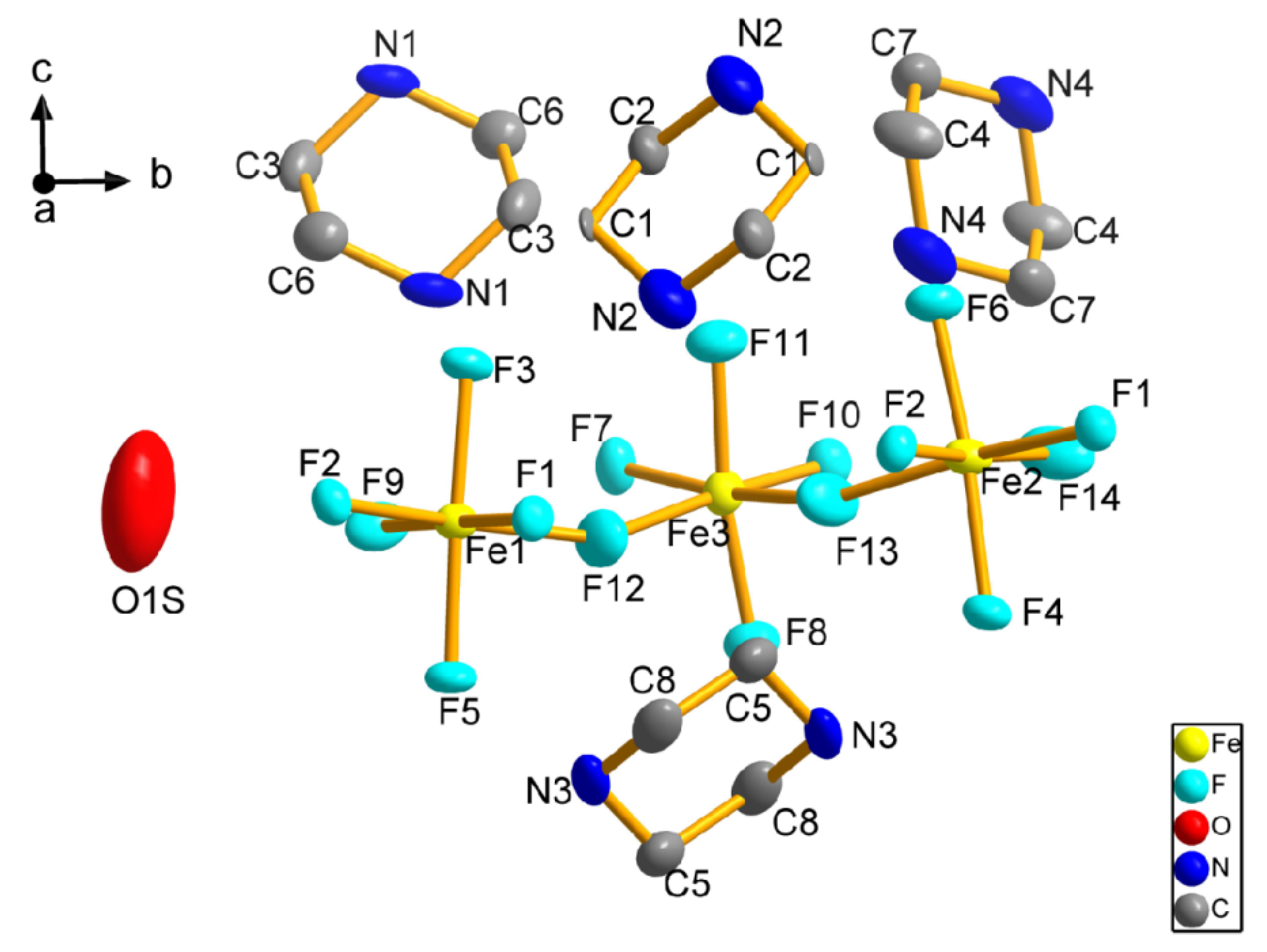

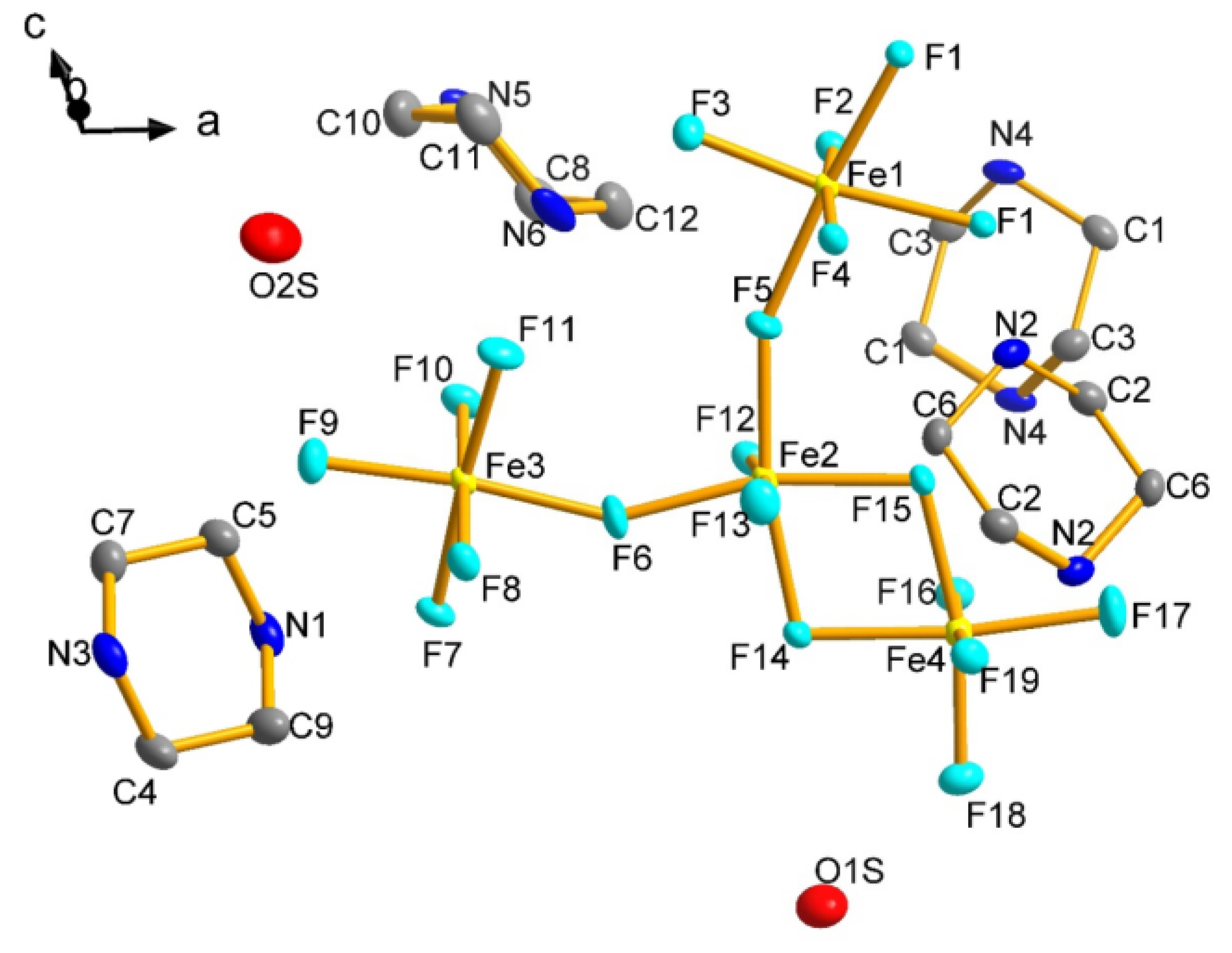

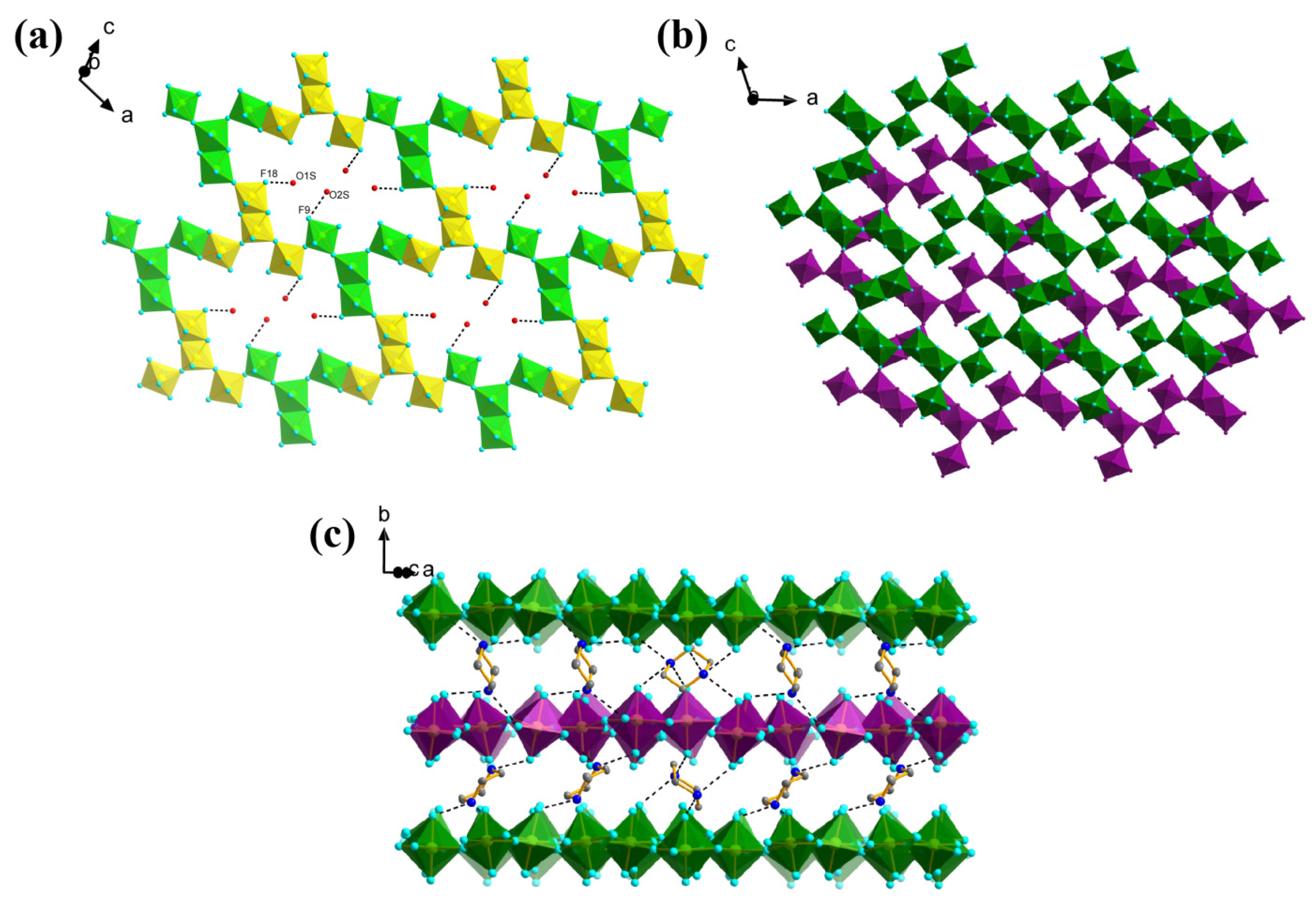

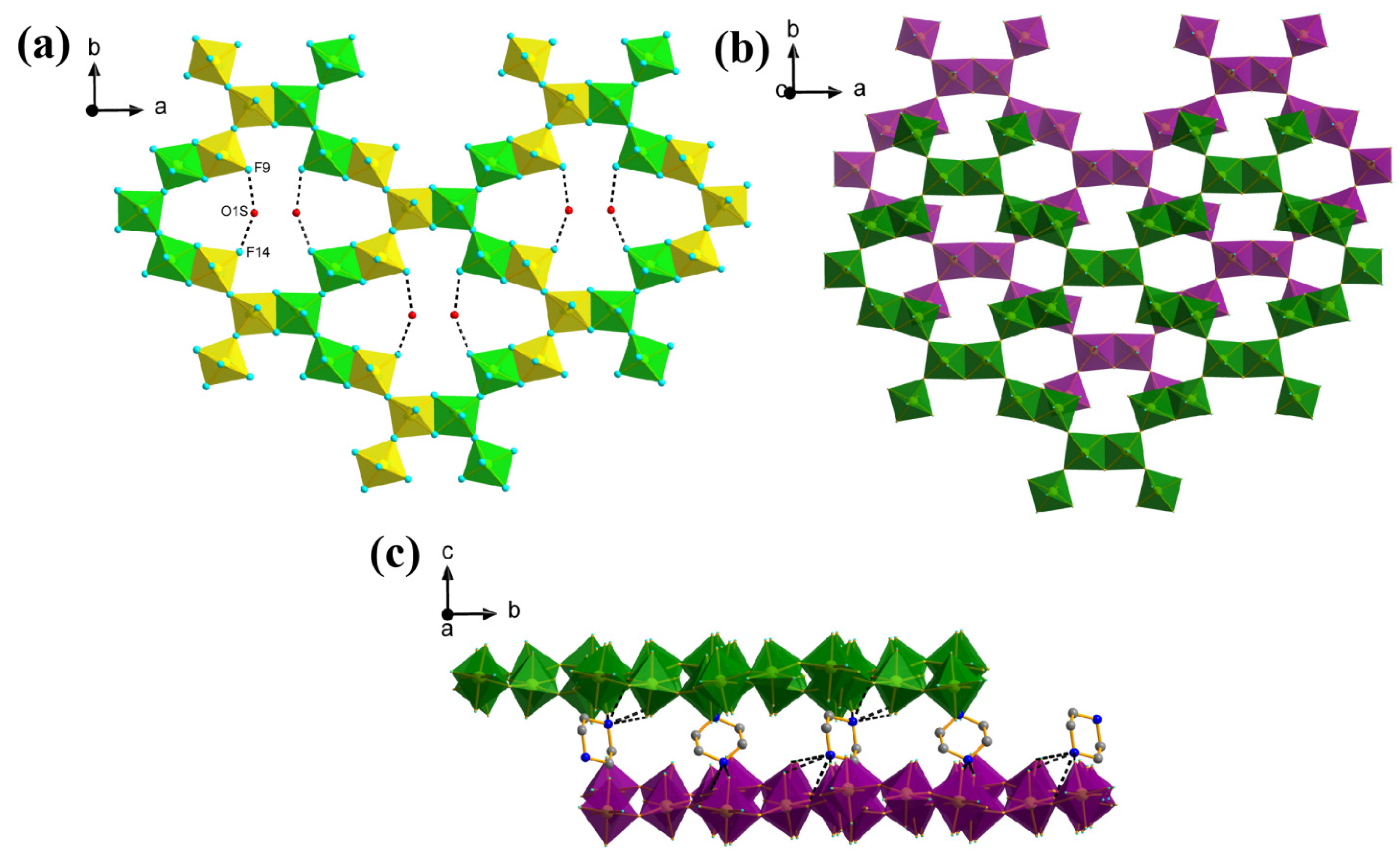

3. Results and Discussion
4. Conclusions
Supplementary Materials
Author Contributions
Funding
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- McNulty, J.A.; Lightfoot, P. Structural chemistry of layered lead halide perovskites containing single octahedral layers. IUCrJ 2021, 8, 485–513. [Google Scholar] [CrossRef] [PubMed]
- Li, X.T.; Hoffman, J.M.; Kanatzidis, M.G. The 2D halide perovskite rulebook: How the spacer influences everything from the structure to optoelectronic device efficiency. Chem. Rev. 2021, 121, 2230–2291. [Google Scholar] [CrossRef] [PubMed]
- Mercier, N.; Louvain, N.; Bi, W. Structural diversity and retro-crystal engineering analysis of iodometalate hybrids. CrystEngComm 2009, 11, 720–734. [Google Scholar] [CrossRef]
- Han, J.; Nishihara, S.; Inoue, K.; Kurmoo, M. On the nature of the structural and magnetic phase transitions in the layered perovskite-like (CH3NH3)2[FeIICl4]. Inorg. Chem. 2014, 53, 2068–2075. [Google Scholar] [CrossRef]
- Worley, C.; Yangui, A.; Roccanova, R.; Du, M.-H.; Saparov, B. (CH3NH3)AuX4·H2O (X = Cl, Br) and (CH3NH3)AuCl4: Low-band gap lead-free layered gold halide perovskite materials. Chem. Eur. J. 2019, 25, 9875–9884. [Google Scholar] [CrossRef] [PubMed]
- Vishnoi, P.; Zuo, J.L.; Li, X.T.; Binwal, D.C.; Wyckoff, K.E.; Mao, L.; Kautzsch, L.; Wu, G.; Wilson, S.D.; Kanatzidis, M.G.; et al. Hybrid layered double perovskite halides of transition metals. J. Am. Chem. Soc. 2022, 144, 6661–6666. [Google Scholar] [CrossRef]
- Han, C.; McNulty, J.A.; Bradford, A.J.; Slawin, A.M.Z.; Morrison, F.D.; Lee, S.L.; Lightfoot, P. Polar ferromagnet induced by fluorine positioning in isomeric layered copper halide perovskites. Inorg. Chem. 2022, 61, 3230–3239. [Google Scholar] [CrossRef]
- Ben Ali, A.; Greneche, J.M.; Leblanc, M.; Maisonneuve, V. [H3tren]3+ templated iron fluorides; synthesis, crystal structures and Mössbauer studies. Solid State Sci. 2009, 9, 1631–1638. [Google Scholar] [CrossRef]
- Adil, K.; Leblanc, M.; Maisonneuve, V.; Lightfoot, P. Structural chemistry of organically-templated metal fluorides. Dalton Trans. 2010, 39, 5983–5993. [Google Scholar] [CrossRef]
- Stephens, N.F.; Slawin, A.M.Z.; Lightfoot, P. A novel scandium fluoride, [C2N2H10]0.5[ScF4], with an unprecedented tungsten bronze-related layer structure. Chem. Commun. 2004, 614–615. [Google Scholar] [CrossRef]
- Stief, R.; Massa, W.Z. Jahn-Teller ordering in pipzH2[Mn2F8], a fluoromanganate(III) with a new layer structure. Anorg. Allg. Chem. 2006, 632, 797–800. [Google Scholar] [CrossRef]
- Aidoudi, F.H.; Downie, L.J.; Morris, R.E.; de Vries, M.A.; Lightfoot, P. A hybrid vanadium fluoride with structurally isolated S = 1 kagome layers. Dalton Trans. 2014, 43, 6304–6307. [Google Scholar] [CrossRef] [PubMed]
- Li, T.; Clulow, R.; Bradford, A.J.; Lee, S.L.; Slawin, A.M.Z.; Lightfoot, P. A hybrid fluoride layered perovskite, (enH2)MnF4. Dalton Trans. 2019, 48, 4784–4787. [Google Scholar] [CrossRef] [PubMed]
- Aidoudi, F.H.; Aldous, D.W.; Goff, R.J.; Slawin, A.M.Z.; Attfield, J.P.; Morris, R.E.; Lightfoot, P. An ionothermally-prepared S = 1/2 kagome lattice. Nat. Chemistry. 2011, 3, 801–806. [Google Scholar] [CrossRef] [PubMed]
- DeBurgomaster, P.; Ouellette, W.; Liu, H.; O’Connor, C.J.; Yee, G.T.; Zubieta, J. Solvatothermal chemistry of organically-templated vanadium fluorides and oxyfuorides. Inorg. Chim. Acta. 2010, 363, 1102–1113. [Google Scholar] [CrossRef]
- Pimenta, V.; Le, Q.H.H.; Clark, L.; Lhoste, J.; Hémon-Ribaud, A.; Leblanc, M.; Grenèche, J.M.; Dujardin, G.; Lightfoot, P.; Maisonneuve, V. New iron tetrazolate frameworks: Synthesis temperature effect, thermal behaviour, Mössbauer and magnetic studies. Dalton Trans. 2015, 44, 7951–7955. [Google Scholar] [CrossRef]
- Song, H.; Yang, G.; Cui, H.; Wang, C. Honeycomb-like porous iron fluoride hybrid nanostructure: Excellent Li-storage properties and investigation of the multi-electron reversible conversion reaction mechanism. J. Mater. Chem. A 2015, 3, 19832–19841. [Google Scholar] [CrossRef]
- Lemoine, K.; Zhang, L.T.; Greneche, J.M.; Hemon-Ribaud, M.; Leblanc, M.; Guiet, A.; Galven, C.; Tarascon, J.M.; Maisonneuve, V.; Lhoste, J. New amorphous iron-based oxyfluorides as cathode materials for high-capacity lithium-ion batteries. J. Phys. Chem. C 2019, 123, 21386–21394. [Google Scholar] [CrossRef]
- Rigaku. CrystalClear 2014; Rigaku Corporation: Tokyo, Japan, 2014. [Google Scholar]
- Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Cryst. Sect. C Struct. Chem. 2015, 71, 3–8. [Google Scholar] [CrossRef]
- Sheldrick, G.M. SHELXL-2018; Program for the Refinement of Crystal Structures; University of Göttingen: Göttingen, Germany, 2018. [Google Scholar]
- Farrugia, L.J. WinGX and ORTEP for Windows: An update. J. Appl. Cryst. 2012, 45, 849–854. [Google Scholar] [CrossRef]
- Larson, A.C.; Von Dreele, R.B. General Structure Analysis System (GSAS); Los Alamos National Laboratory: Los Alamos, NM, USA, 2004. [Google Scholar]
- Toby, B.H. EXPGUI, a graphical user interface for GSAS. J. Appl. Cryst. 2001, 34, 210–213. [Google Scholar] [CrossRef]
- Brese, N.E.; O’Keeffe, M. Bond-valence parameters for solids. Acta Cryst. B 1991, 47, 192–197. [Google Scholar] [CrossRef]
- Aldous, D.W.; Stephens, N.F.; Lightfoot, P. The role of temperature in the solvothermal synthesis of hybrid vanadium oxyfluorides. Dalton Trans. 2007, 4207–4213. [Google Scholar] [CrossRef]
- Leblanc, M.; Maisonneuve, V.; Tressaud, A. Crystal chemistry and selected physical properties of inorganic fluorides and oxide-fluorides. Chem. Rev. 2015, 115, 1191–1254. [Google Scholar] [CrossRef] [PubMed]
Compound | 1 | 2 | 3 |
---|---|---|---|
Formula | (H2pipz)3Fe4F18·2H2O | (H2pipz)2Fe3F13·H2O | (H2pipz)FeF5·H2O |
Formula weight | 865.90 | 608.88 | 257.02 |
Crystal system | monoclinic | monoclinic | monoclinic |
Space group | P2/c | C2/c | P21/n |
a/Å | 16.9178(13) | 20.5365(14) | 11.4695(8) |
b/Å | 13.6023(10) | 13.5405(9) | 5.8774(4) |
c/Å | 12.8848(10) | 13.5727(9) | 13.6090(10) |
β/o | 108.530(3) | 92.588(4) | 91.553(6) |
V/Å3 | 2811.4(4) | 3770.4(4) | 917.06(11) |
Z | 4 | 8 | 4 |
Measured ref | 23474 | 15772 | 7243 |
Independent ref | 4952 | 3321 | 1588 |
[R(int) = 0.0627] | [R(int) = 0.1532] | [R(int) = 0.0403] | |
GOOF | 1.006 | 1.014 | 1.045 |
Final R indices (I > 2σ(I)) | R1 = 0.0331 | R1 = 0.0608 | R1 = 0.0250 |
wR2 = 0.0843 | wR2 = 0.1364 | wR2 = 0.0756 |
Compounds | Bond Lengths | Sij | Bond Lengths | Sij | Bond Lengths | Sij | Bond Lengths | Sij | ||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | Fe1-F1 | 1.999(2) | 0.389 | Fe2-F5 | 1.945(2) | 0.451 | Fe3-F6 | 1.971(2) | 0.420 | Fe4-F14 | 2.024(2) | 0.364 |
Fe1-F1 | 2.018(2) | 0.370 | Fe2-F6 | 1.947(2) | 0.448 | Fe3-F7 | 1.9839(8) | 0.405 | Fe4-F15 | 2.007(2) | 0.381 | |
Fe1-F2 | 1.872(2) | 0.549 | Fe2-F12 | 1.884(2) | 0.531 | Fe3-F8 | 1.914(2) | 0.491 | Fe4-F16 | 1.879(2) | 0.539 | |
Fe1-F3 | 1.876(2) | 0.543 | Fe2-F13 | 1.846(2) | 0.589 | Fe3-F9 | 1.911(2) | 0.494 | Fe4-F17 | 1.9466(5) | 0.448 | |
Fe1-F4 | 1.910(2) | 0.497 | Fe2-F14 | 2.016(2) | 0.372 | Fe3-F10 | 1.911(2) | 0.494 | Fe4-F18 | 1.874(2) | 0.546 | |
Fe1-F5 | 1.972(2) | 0.419 | Fe2-F15 | 1.970(2) | 0.421 | Fe3-F11 | 1.909(2) | 0.497 | Fe4-F19 | 1.898(2) | 0.512 | |
2 | Fe1-F1 | 2.008(5) | 0.380 | Fe2-F1 | 1.984(5) | 0.405 | Fe3-F7 | 1.992(5) | 0.396 | |||
Fe1-F2 | 1.968(5) | 0.423 | Fe2-F2 | 2.027(5) | 0.361 | Fe3-F8 | 1.875(5) | 0.546 | ||||
Fe1-F3 | 1.905(5) | 0.502 | Fe2-F4 | 1.900(5) | 0.509 | Fe3-F10 | 2.020(5) | 0.367 | ||||
Fe1-F5 | 1.883(5) | 0.534 | Fe2-F6 | 1.905(5) | 0.502 | Fe3-F11 | 1.849(5) | 0.584 | ||||
Fe1-F9 | 1.875(5) | 0.544 | Fe2-F13 | 1.939(6) | 0.458 | Fe3-F12 | 1.924(6) | 0.477 | ||||
Fe1-F12 | 1.932(6) | 0.465 | Fe2-F14 | 1.859(6) | 0.568 | Fe3-F13 | 1.932(6) | 0.465 | ||||
3 | Fe1-F1 | 1.9098(11) | 0.495 | Fe1-F4 | 1.9833(11) | 0.407 | ||||||
Fe1-F2 | 1.9182(11) | 0.485 | Fe1-F4 | 1.9967(11) | 0.391 | |||||||
Fe1-F3 | 1.9020(11) | 0.506 | Fe1-F5 | 1.9052(11) | 0.502 | |||||||
