Article

Dicarboxylic Acid-Based Co-Crystals of Pyridine Derivatives Involving Structure Guiding Unconventional Synthons: Experimental and Theoretical Studies

by
Pranay Sharma
1,
Rosa M. Gomila
2,
Antonio Frontera
2,*,
Miquel Barcelo-Oliver
2 and
Manjit K. Bhattacharyya
1,*
1
Department of Chemistry, Cotton University, Guwahati 781001, Assam, India
2
Departament de Química, Universitat de les Illes Balears, Crta de Valldemossa km 7.7, 07122 Palma de Mallorca (Baleares), Spain
*
Authors to whom correspondence should be addressed.
Crystals 2022, 12(10), 1442; https://doi.org/10.3390/cryst12101442
Submission received: 24 September 2022 / Revised: 8 October 2022 / Accepted: 10 October 2022 / Published: 12 October 2022
(This article belongs to the Special Issue Characterisation and Study of Compounds by Single Crystal X-ray Diffraction)
Browse Figures
Review Reports Versions Notes

Abstract

:
Four co-crystals involving dicarboxylic acids and pyridine derivatives, viz. (ox)0.5(2-CNpy) (1), (adp)(4-CNpy)2 (2), (tp)(4-CNpy)2 (3) and (adp)(3-CNpy)2 (4) (ox = oxalic acid, tp = terephthalic acid, adp = adipic acid, CNpy = cyanopyridine), have been synthesized at room temperature in water medium. Crystal-structure analysis of co-crystal 1 reveals the presence of unconventional O···π(oxalic acid)-hole interaction with the C-C bond of ox moiety, along with parallel nitrile–nitrile interactions. The structural topologies of co-crystals 2–4 unfold the presence of antiparallel nitrile–nitrile interactions involving the CNpy moieties. The molecular associations involving the H-bonds and other unconventional contacts among the co-formers of the multicomponent co-crystals are analyzed using density functional theory (DFT) calculations combined with molecular electrostatic potential (MEP) surface, quantum theory of atoms-in-molecules (QTAIM) and noncovalent interaction (NCI) plot computational tools. The computational studies revealed the presence of unconventional O···π-hole interaction in 1 and the H-bonded synthons with π-stacked nitrile contacts involving CNpy moieties in co-crystals 2–4. The energetic features of the noncovalent contacts reveal the crucial roles of the H-bonding synthons and π-stacking interactions in the multicomponent compounds.

Graphical Abstract

1. Introduction

Multicomponent compounds (co-crystals, molecular salts, polymorphs) have attracted the interest of researchers owing to their significant physicochemical and pharmaceutical properties [1,2,3,4,5,6,7,8]. Co-crystals are structurally homogenous crystalline compounds, which contain two or more neutral building blocks that are present in definite stoichiometric ratios [9]. In recent years, a great deal of research interest has been devoted to multicomponent crystallization in both the academic and industrial fields, specifically for drug-development purposes [10,11,12,13]. The main reason is their ability to modify essential physicochemical prosperities, viz. the solubility, stability and bioavailability of compounds through multicomponent co-crystallization, without altering their primary effects [14,15]. Apart from their pharmaceutical significance, co-crystals have found profound applications in sensing, as micro- and nanocrystalline co-crystals possess chemical reactivity that is promising for sensors [16,17].
Various noncovalent interactions such as hydrogen bonding, π-stacking, van der Waal’s forces, etc., predominantly trigger the assembly of the multicomponent systems at a fixed stoichiometric ratio in ambient conditions [18,19,20]. Hydrogen bonding interactions are well-known for playing crucial roles in the molecular recognition, composition and stability of the co-crystals [21]. Hydrogen bonding interactions are often employed when designing a synthon, as they have been well-recognized as the most powerful force to organize molecules in the solid state [22]. The functional groups of carboxylic acids, alcohols, amides and heterocyclic bases of co-crystallized conformers are readily involved in strong hydrogen bonding interactions [23,24]. The bioactivities of such compounds as well as the generation of supramolecular layered assemblies are mainly due to the presence of these functional groups [25]. The aromatic π-stacking interactions observed between the aromatic rings of cyclic ligands are imperative in the development of pharmaceutically active flexible materials [26]. π-stacking interactions are important for systems containing aromatic rings, which usually range from large biological systems to relatively small molecules [27,28]. However, recently explored noncovalent interactions, viz. σ- and π-hole contacts, have also significantly contributed to the stabilities of supramolecular architectures [29,30,31]. Noncovalent nitrile–nitrile interactions play a crucial role in the stabilization of the supramolecular assemblies and are, therefore, of particular interest from the crystal-engineering viewpoint [32].
A synthon can be defined as a constituent part of a molecule to be synthesized, which is considered as the basis of the synthetic routes [33]. Supramolecular synthon-based innovative synthetic pathways have been employed by various research groups to develop co-crystals with potential pharmaceutical applications [34,35,36]. Substituted pyridine and dicarboxylic acid based supramolecular synthons have also been explored to design and develop molecular solids with potential applications [37,38].
Pyridine is effectively employed in the pharmaceutical industries as a raw material for various drugs, vitamins and fungicides [39,40]. Substituted pyridine derivatives have already acquired a great position in the fields of medicinal chemistry and agrochemicals [41,42]. It has been well-established that co-crystals containing dicarboxylic acids are also pharmaceutically active [43,44]. Co-crystallization of pharmaceutically active co-formers can enhance the physiochemical properties of the compounds through the formation of intermolecular noncovalent interactions [12]. The knowledge of the noncovalent interactions of pyridine and related N-donor heterocyclic ligands with dicarboxylic acids may be effectively useful in pharmaceuticals and also in the synthesis of porous materials [45]. Therefore, a proper fusion of experimental and theoretical studies is of the utmost importance, to visualize the role of such interactions in co-crystallized compounds of dicarboxylic acids and N-donor heterocyclic compounds. However, various research groups have explored the supramolecular architectures of co-crystals and salts of pyridine derivatives with dicarboxylic acids [46,47]. Lakshmipathi et al. have recently reported three 4-(1-Napthylvinyl) pyridine-based co-crystals and explored the structure–mechanical-property correlation, which is relevant towards various applications for photo switches, mechanical actuators, etc. [48].
To explore the supramolecular assemblies involving substituted pyridines and dicarboxylic acids, herein, we have reported the synthesis and crystal structures of four multicomponent co-crystals, viz. (ox)0.5(2-CNpy) (1), (adp)(4-CNpy)2 (2), (tp)(4-CNpy)2 (3) and (adp)(3-CNpy)2 (4). We have analyzed the pKa rule to categorize the synthesized multicomponent compounds as co-crystals duringthe self-assembly of the dicarboxylic acids and the pyridine derivatives. The nitrile fragments of the CNpy moieties of the co-crystals are involved in parallel and antiparallel nitrile–nitrile interactions, which stabilize the layered assembly of the crystal structures. The oxygen atom of ox moiety is involved in novel O···π-hole contacts with the C-C bond of neighboring ox moieties. We have further performed theoretical studies to analyze the H-bonding networks and π-stacking interactions along with the O···π-hole and nitrile–nitrile contacts observed in the solid state of the co-crystals, using various computational tools.

2. Materials and Methods

2.1. Materials and Methods

All the chemicals used in the present study, viz. oxalic acid, adipic acid, terephthalic acid, 4-cyanopyridine, 3-cyanopyridine and 2-cyanopyridine, were purchased from the commercial sources and used as received. Perkin Elmer 2400 Series II CHNS/O analyzer was used to carry out the elemental analysis of the compounds.

2.2. Syntheses of the Co-Crystals

To synthesize the co-crystals, the respective dicarboxylic acids (ox (1), adp (2, 4), tp (3)) and the cyanopyridine moieties (2-CNpy (1), 3-CNpy (4), 4-CNpy (2, 3)) were dissolved in 10 mL of deionized water in 1:2 ratios in round-bottomed flasks and mechanically stirred at room temperature for about two hours (Scheme 1). The solutions obtained were kept in cooling environment (below 4 °C) for crystallization; from which colorless single crystals suitable for single-crystal X-ray diffraction were obtained after few days. Yields: 0.126 g (1, 84.5%), 0.294 g (2, 83.0%), 0.306 g (3, 81.1%), 0.301 g (4, 85%). Anal. calcd. for C14H10N4O4 (1): C, 56.38%; H, 3.38%; N, 18.78%; found: C, 56.32%; H, 3.29%; N, 18.65%; anal. calcd. for C18H18N4O4 (2): C, 61.01%; H, 5.12%; N, 15.81%; found: C, 60.91%; H, 5.09%; N, 15.75%; anal. calcd. for C20H14N4O4 (3): C, 64.17%; H, 3.77%; N, 14.97%; found: C, 64.11%; H, 3.69%; N, 14.91%; anal. calcd. for C18H18N4O4 (4): C, 61.01%; H, 5.12%; N, 15.81%; found: C, 60.95%; H, 5.07%; N, 15.70%.

2.3. Crystallographic Data Collection and Refinement

Crystal structures of co-crystals 1–4 were determined using single-crystal X-ray diffraction technique. X-ray diffraction data were collected using Bruker APEX-II CCD diffractometer with graphite monochromatized Cu/Kα radiation (λ = 1.54178 Å). Semi-empirical absorption correction as well as scaling and merging the different datasets for the wavelength were performed with SADABS [49]. The crystal structures were solved by direct method and refined by full matrix least-squares techniques with SHELXL-2018/3 [50] using the WinGX [51] software. Due to the relatively poor-quality crystal of compound 3, it was moderately diffracting, and, therefore, some of the diffractions could not be included in the data integration and refinement, which results in comparatively higher R values [52]. The molecular structure and crystal packing of the compounds were drawn in Diamond 3.2. Collected data and refinement parameters for co-crystals 1–4 have been tabulated in Table 1.
CCDC 2122823, 2122838, 2122839 and 2122840 contain the supplementary crystallographic data for co-crystals 1–4, respectively. These data can be obtained free of charge at http://www.ccdc.cam.ac.uk or from the Cambridge Crystallographic Data Centre, 12 Union Road, Cambridge CB2 1EZ, UK; fax: (+44) 1223-336-033; or email: deposit@ccdc.cam.ac.uk.

2.4. Computational Methods

The energies and topological analyses of the supramolecular assemblies investigated herein were computed at the RI-BP86-D3/def2-TZVP [53,54] level of theory, using the crystallographic coordinates and the program Turbomole 7.2 [55], where only the positions of the H-atoms bonded to carbon were optimized. Grimme’s D3 dispersion [53] correction has been used, since it is convenient for the correct evaluation of noncovalent interactions. This level of theory combining the BP86 functional, the def2-TZVP basis set and the D3 dispersion corrections has been previously used to analyze noncovalent interactions in the solid state, including those studied herein [56,57,58,59]. The QTAIM and NCI plot’s [60] reduced density gradient (RGD) isosurfaces have been used to characterize noncovalent interactions, since both methods combined are useful to reveal noncovalent interactions in real space. The cubes needed to generate the NCI plot surfaces have been computed at the same level of theory using the wavefunctions generated by means of the Turbomole 7.2 program. The NCI plot index’s isosurfaces correspond to both favorable and unfavorable interactions, as differentiated by the sign of the second density Hessian eigenvalue and defined by the isosurface color. The QTAIM analysis [61] and the cube files from the wavefunctions have been computed at the same level of theory by means of the MULTIWFN program [62] and are represented using VMD software [63]. The features of QTAIM analyses that we use here to characterize the H-bonds are bond paths and bond critical points (CPs). A bond path was defined by Bader as “a single line of maximum electron density linking the nuclei of two chemically bonded atoms” [61]. It begins at one nucleus and proceeds in the direction of maximum (most positive) gradient of the electron density, ρ, to a maximum, a bond critical point (BCP). The entire bond path runs from the first nucleus over the bond CP to the second nucleus.

3. Results

3.1. Syntheses and General Aspects

(ox)0.5(2-CNpy) (1) has been synthesized by the reaction between one equivalent of ox and two equivalents of 2-CNpy at room temperature in deionized water medium. Similarly, (adp)(4-CNpy)2 (2) and (tp)(4-CNpy)2 (3) have been synthesized by the reaction between two equivalents of 4-CNpy with one equivalent of adp and tp, respectively. (adp)(3-CNpy)2 (4) has been prepared by reacting one equivalent of adp and two equivalents of 3-CNpy in water medium at room temperature (Scheme 1).
All the four compounds are fairly soluble in water and common organic solvents. It has been well-established that crystal-structure determination at low temperature can improve the quality of the datasets, resulting in more accurate structure determinations [64]. The crystal structures of co-crystals 1 and 2 have been redetermined at low temperatures with improved R and wR values (Tables S1 and S2), compared to those of the already-reported structures [65]. Improved R and wR values imply better experimental crystallographic data collection for compounds 1 and 2, compared to the already reported structures [66,67]. We also have explored the presence of unconventional O···π-hole, parallel and antiparallel nitrile–nitrile interactions, directing supramolecular assemblies in compounds 1 and 2 (vide infra). Moreover; the energetic features of the supramolecular assemblies of the co-crystals have also been investigated using computational tools to gain an insight into the roles of the noncovalent contacts towards the solid-state stabilities of the compounds.

3.2. pKa-Rule

One suitable approach to predict the formation of either co-crystal or molecular salt from two or more co-formers is pKa-rule [68]. The ∆pKa (=pKa (base) − pKa (acid)) of two conformers can give possible indications whether a co-crystal or a salt will be formed [69,70,71]. A ∆pKa < 0 will result in a co-crystal, and a ∆pKa > 3 will lead to a salt; however, in the region between 0 < ∆pKa < 3, the predictability is elusive, as it may be co-crystal or salt formation that takes place [70,71,72,73]. Table 2 represents the pKa and ∆pKa values of the co-formers and multicomponent compounds of 1–4. From the ∆pKa values, it is clear that all four compounds crystallize as co-crystals. All the dicarboxylic acids are associated with two pKa values (Table 2) corresponding to the presence of two carboxyl H-atoms. As soon as the first acidic proton of a dicarboxylic acid is deprotonated; it becomes an anion, from which it is harder to remove the proton than from the neutral dicarboxylic acid, resulting in a higher value for the second pKa than for the first [65].

3.3. Crystal Structure Analysis

The molecular structures of compounds 1–4 have been depicted in Figure 1a–d, respectively. (ox)0.5(2-CNpy) (1) crystallizes in a monoclinic crystal system with a P21/c space group. The asymmetric unit of 1 contains one molecule of 2-CNpy and 0.5 molecules of ox moiety (Figure 1a). Crystal-structure analysis reveals the presence of center of inversion in 1 located at the mid-point of the C-C bond of ox moiety. (adp)(4-CNpy)2 (2), (tp)(4-CNpy)2 (3) and (adp)(3-CNpy)2 (4) crystallize in a triclinic crystal system with a P 1   ¯ space group. The asymmetric units of 2 and 3 contain two molecules of 4-CNpy and one molecule of adp and tp, respectively (Figure 1b,c). Co-crystal 4 contains one adp moiety and two 3-CNpy moieties (Figure 1d) in the asymmetric unit. Further analysis reveals the presence of a crystallographic center of the inversions in 2, 3 and 4, located at the mid-points of the C-C bonds in adp and at the centroid of the aromatic ring of tp, respectively.
There is a simple method to determine if the pyridine ring of an organic moiety in multicomponent compounds is neutral or ionized. If the C–N–C bond angle of the pyridine ring is in the range of 117–118°, a neutral pyridine is indicated; meanwhile, an obtuse angle, in the range of 120–122°, indicates the ionization and formation of a pyridinium cation [74,75,76,77]. For compounds 1–4, the C–N–C bond angles are around 117–118°, thereby suggesting the presence of co-crystals (see Table 3). X-ray crystallography can also provide evidence in support of the acid deprotonation of the carboxylate groups, by considering the C-O distances. The average bond lengths of C=O and C-O(H) are typically around 1.21 and 1.30 Å, respectively [78,79]. However, in carboxylate anions, the two C-O lengths are expected to be identical, about 1.25 Å [80,81]. In compounds 1–4, the C=O and C-O(H) bond lengths are around 1.21 and 1.30 Å, respectively, which suggests the presence of neutral carboxylic acid groups in the co-crystals (see Table 4).
Crystal structure analysis of co-crystal 1 reveals the formation of two different supramolecular dimers involving the ox and 4-CNpy moieties (Figure 2). The neighboring ox moieties of 1 are interconnected via unconventional O···π-hole interactions [82,83] to form a supramolecular dimer (Figure 2a). The O1´ atom of an ox is involved in unconventional O···π-hole interactions with the π-electrons of the C-C bond of a neighboring ox, having a O1´···Cg distance of 3.14 Å. Such O···π-hole interactions involving the ox moieties are scarcely reported in the literature. Our research group has recently reported a similar O···π-hole interaction involving the C-C bond of the ox moieties in an oxalato bridged ternary Cu(II) complex, as first reported in [83]. Another interesting supramolecular dimer is also observed in the supramolecular assembly of 1, involving the 4-CNpy moieties (Figure 2b). The neighboring 4-CNpy moieties are involved in unusual parallel nitrile–nitrile [84] and π-stacking interactions. Unconventional parallel nitrile–nitrile interactions are observed between the nitrile moieties of 4-CNpy and the C⋯N distance of 3.66 Å. The C2–C21≡N22 angle is slightly deviated from linearity (179.6°), which may be due to the intermolecular supramolecular interactions involving the nitrile moieties [84]. Furthermore, aromatic π-stacking interaction is also observed in the supramolecular dimer having a centroid(N1, C2–C6)–centroid(N1, C2–C6) separation of 3.66 Å. These interactions have been further studied and characterized theoretically using various computational tools (vide infra).
The supramolecular dimers involving nitrile–nitrile contacts along with O–H⋯N and C–H⋯O hydrogen bonding interactions also stabilize the layered architecture of the compound along the crystallographic ab plane (Figure S1) (see Supplementary Materials). O–H⋯N hydrogen bonding interactions are observed in the layered assembly of 1, involving the –OH moiety of ox and the N atom of the pyridine ring of 4-CNpy having a O1´–H1⋯N1 distance of 1.61 Å (Table 5). Similarly, C–H⋯O hydrogen bonding interactions are observed involving the –CH moiety of 4-CNpy and the O atom of the ox moiety having a C3–H3⋯O2´ distance of 2.77 Å.
The aforementioned supramolecular dimer (shown in Figure 2b) along with C–H⋯N hydrogen bonding interactions stabilize the layered assembly of the compound along the crystallographic ac plane (Figure S2). C–H⋯N hydrogen bonding interactions are observed involving the –CH moiety and the N atom of the 4-CNpy moieties having a C5–H5⋯N22 distance of 2.99 Å.
Crystal structure analysis of co-crystal 2 reveals the formation of a supramolecular dimer assisted by antiparallel nitrile–nitrile and C–H⋯N hydrogen bonding interactions (Figure 3). Antiparallel nitrile–nitrile interactions [85] are observed between the nitrile moieties of 4-CNpy with aC⋯N separation of 3.47 Å. The C4–C41≡N42 angle is slightly deviated from linearity (179.3°), which may be due to the intermolecular supramolecular interactionsinvolving the nitrile moiety [86]. Moreover, C–H⋯N hydrogen bonding interactions are also observed in the supramolecular dimer having a C5–H5⋯N42 distance of 2.51 Å.
Assemblies of these supramolecular dimers along with C–H⋯N, O–H⋯N and C–H⋯O hydrogen bonding interactions stabilize the layered architecture of co-crystal 2 along the crystallographic bc plane (Figure S3). The –CH moiety of adp is involved in C–H⋯N hydrogen bonding interactions with the N atom of 4-CNpy having a C4´–H4´B⋯N42 distance of 2.82 Å. O–H⋯N hydrogen bonding interactions are also observed involving the –OH moiety of the adp ligand having a O1´–H1´⋯N1 distance of 1.93 Å. Moreover, C–H⋯O hydrogen bonding interactions arealso present in the layered architecture having a C2–H2⋯O2´distance of 2.66 Å.
The aforementioned supramolecular dimers of co-crystal 2 (represented in Figure 3) also stabilize the layered assembly of the co-crystal along the crystallographic ac plane, assisted by aromatic π-stacking interaction (Figure S4). Parallel aromatic π-stacking interaction is observed in the crystal structure with a centroid(N1, C2-C6)–centroid(N1, C2–C6) separation of 3.88 Å.
Antiparallel nitrile–nitrile, aromatic π-stacking, C–H⋯N and O–H⋯N hydrogen bonding interactions are involved in the stabilization of the layered assembly of co-crystal 3 along the crystallographic ac plane (Figure S5). Antiparallel nitrile–nitrile interactions are observed involving the nitrile moieties of 4-CNpy having aC⋯N separation of 3.77 Å. TheC4–C41≡N42 angle is found to be 178.4°; slightly deviated from linearity; this may be due to the intermolecular supramolecular interactions involving the nitrile moiety. Aromatic π-stacking interactions are observed involving the aromatic rings of the tp ligands having a centroid(C5´, C4´, C6´, C5´, C4´, C6´)–centroid(C5´, C4´, C6´, C5´, C4´, C6´) separation of 3.76 Å. Another π-stacking interaction involving the aromatic rings of 4-CNpy having a centroid(N1, C2–C6)–centroid(N1, C2–C6) separation of 3.76 Å is observed in the crystal packing. C–H⋯N and O–H⋯N hydrogen bonding interactions are also observed in the crystal structure having C5–H5⋯N42 and O1´–H1´⋯N1 distances of 2.66 and 1.89 Å, respectively.

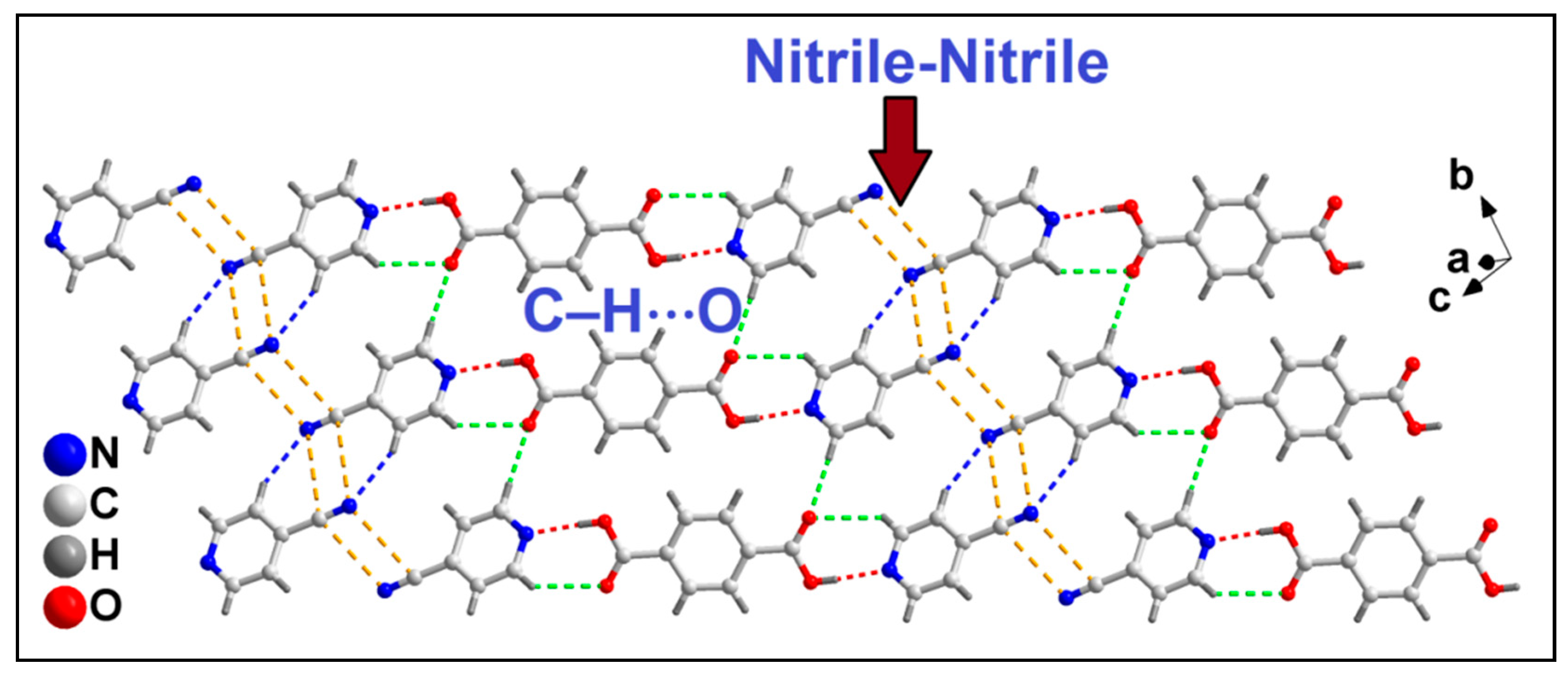

Figure 4 represents the layered assembly of co-crystal 3 along the crystallographic bc plane aided by antiparallel nitrile–nitrile and C–H⋯O hydrogen bonding interactions. Antiparallel nitrile–nitrile interactions are observed involving the nitrile moieties of 4-CNpy having aC⋯N separation of 3.33 Å. Moreover, C–H⋯O hydrogen bonding interaction is also observed involving the O3´ atom of tp and the –CH moiety of 4-CNpy (C6–H6⋯O3´ = 2.28 Å).
Crystal structure analysis of co-crystal 4 reveals the presence of antiparallel nitrile–nitrile, C–H⋯N, C–H⋯O and O–H⋯N hydrogen bonding interactions that stabilize the layered assembly of the compound along the crystallographic bc plane (Figure 5). The nitrile moieties of the adjacent 3-CNpy ligands are separated by a distance of 3.58 Å, thereby involved in antiparallel nitrile–nitrile interactions. The corresponding C4–C41≡N42 angle is also deviated from linearity and is found to be 179.6°. C–H⋯N hydrogen bonding interactions are observed in the layered assembly of 4 having C4–H4⋯N8 and C12–H12B⋯N8 distances of 2.58 and 2.81 Å, respectively. Moreover, C–H⋯O hydrogen bonding interactions are also observed involving the O-atom of the adp and –CH moieties of 3-CNpy having C6–H6⋯O11, C5–H5⋯O11 and C2–H2⋯O9 distances of 2.49, 2.91 and 2.64 Å, respectively. The –OH moiety of adp is involved in O–H⋯N hydrogen bonding interactions with the pyridine N atom of 3-CNpy with aO9–H9⋯N1 distance of 1.92 Å.
Figure S6 depicts the layered assembly of co-crystal 4 along the crystallographic ac plane aided by aromatic π-stacking and C–H⋯O hydrogen bonding interactions. Aromatic π-stacking interaction is observed between the aromatic rings of 3-CNpy moieties having a centroid(N1, C2–C6)–centroid(N1, C2–C6) separation of 3.92 Å, with the slipped angle of 19.2°. Moreover, C–H⋯O hydrogen bonding interactions are also observed involving the O-atoms and –CH moieties of neighboring adp moieties (C12–H12B⋯O9 = 2.97 Å; C13–H13A⋯O11 = 2.99 Å).

3.4. Theoretical Study

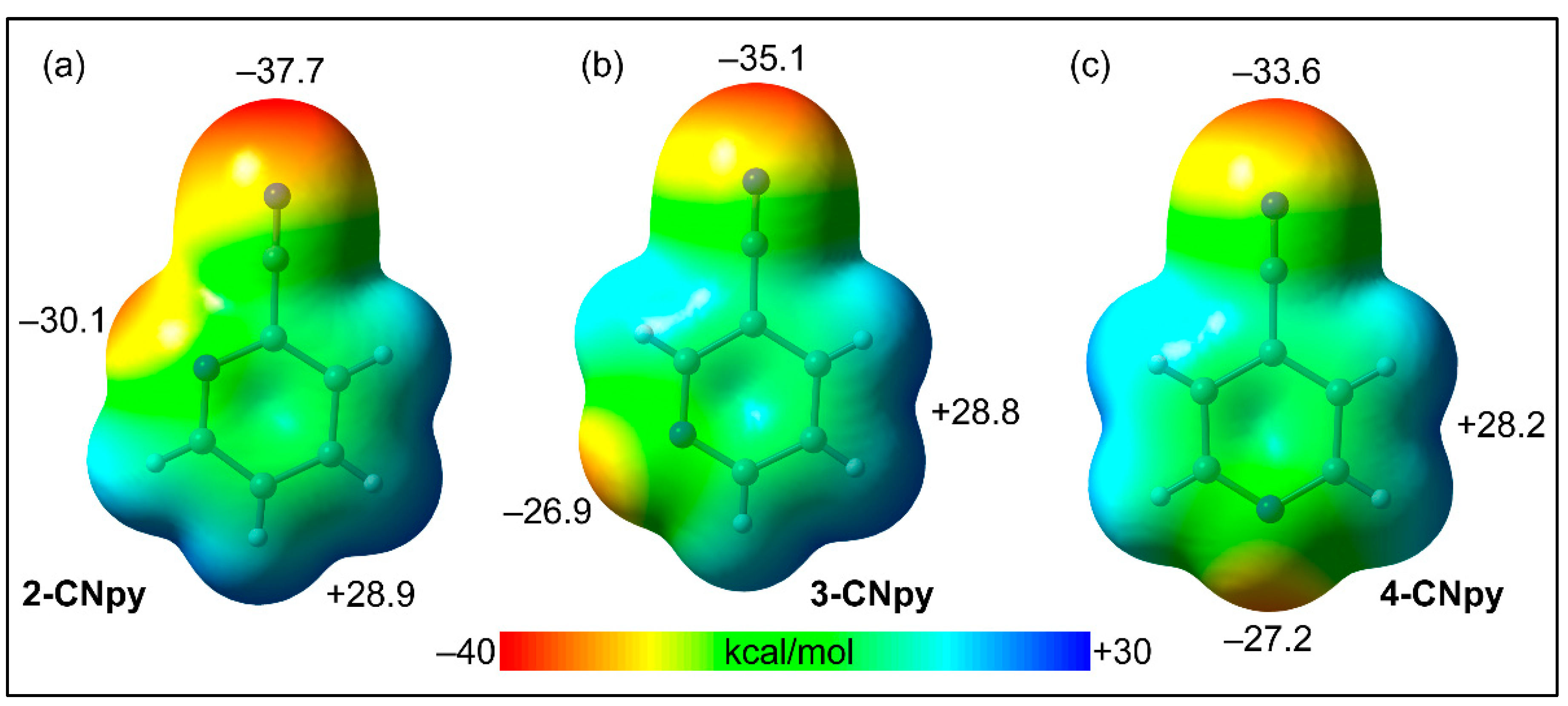

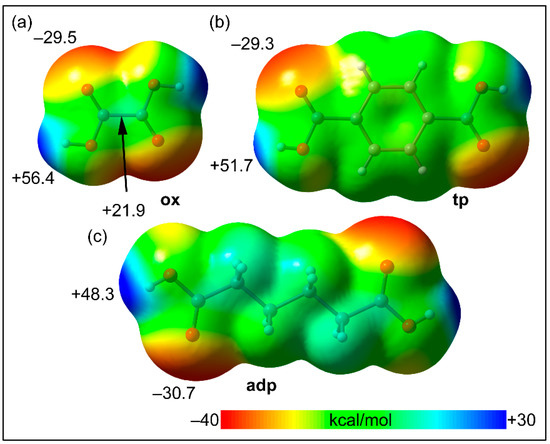

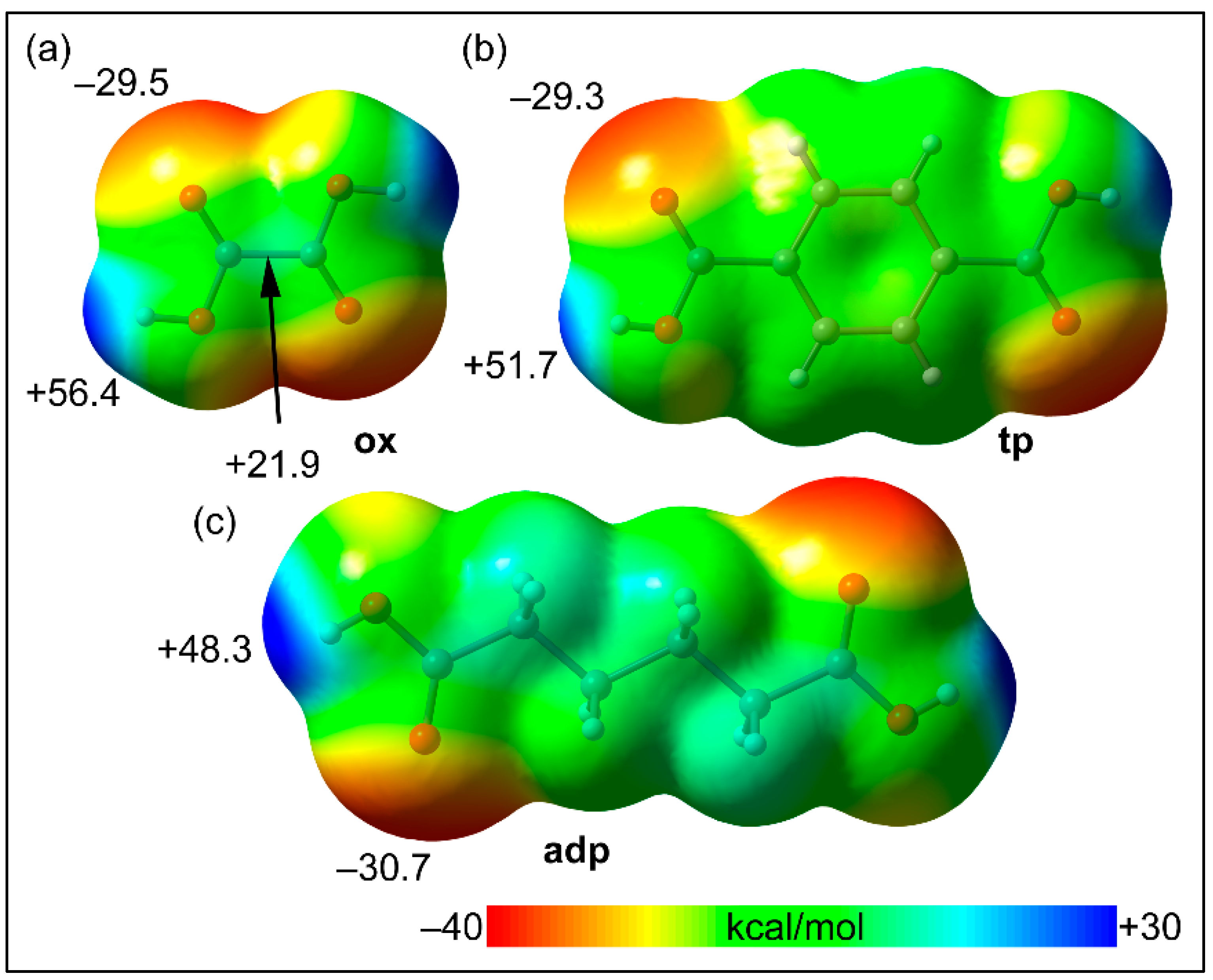

Initially, we have computed the molecular electrostatic potential (MEP) surfaces of the three CNpy moieties in order to compare their relative ability to participate in noncovalent interactions as electron donors (N-atoms) and acceptors (H-atoms). Figure 6 shows the MEP surfaces of 2-, 3- and 4-CNPy molecules, evidencing that the nitrile N-atom is more nucleophilic than the pyridine. Moreover, the 2-CNPy isomer is more nucleophilic than the rest. In contrast, all three isomers present similar MEP values at the H-atoms, thus suggesting a similar ability to participate in H-bonds as acceptors. Similarly, the MEP surfaces of the dicarboxylic acid used in this work have been also computed (see Figure 7), evidencing that the ox is the most acidic, followed by the tpH2 and adp, in line with their pKa values (1.27, 3.51 and 4.43, respectively). Their ability as H-bond acceptor (via the carbonyl O-atom) is similar in all acids. It is worth commenting that the MEP value is positive over the middle of the C–C bond in ox, thus providing an explanation to the O···π-hole interactions described above.

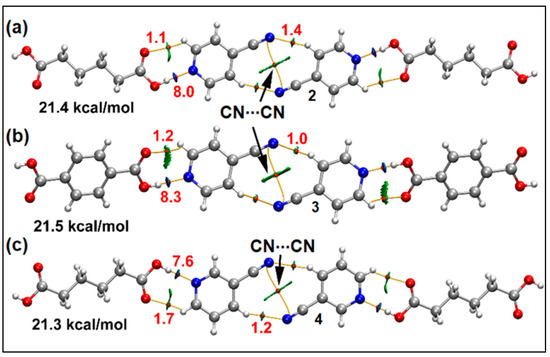

Co-crystals 2–4 present similar assemblies in the solid state, where the cyanopyridine rings form centrosymmetric dimers held together by C–H···N and antiparallel CN···CN interactions. Moreover, these dimers interact with the dicarboxylic acids, forming strong O–H···N and weak C–H···O H-bonds. Those assemblies have been analyzed, and the results gathered in Figure 8, including the QTAIM/NCI plot analyses. It can be observed that the three assemblies have similar dissociation energies (~21 kcal/mol). Such large dissociation energy confirms the relevance of these concurrent motifs in the solid state of the co-crystals. The QTAIM shows that each H-bond is characterized by a bond critical point (CP, represented by a red sphere in Figure 8) and bond path (represented as an orange line) connecting the H to the N-atoms of nitrile or pyridine or the O-atoms of the carboxylic groups. The interactions are also revealed by the NCI plot index, showing blue reduced density gradient (RDG) isosurfaces for the O–H···N H-bonds and green RDG isosurfaces for the C–H···O/N bonds, thus evidencing the strong and weak nature of the H-bonds, respectively. This is further confirmed by the dissociation energies computed for each H-bond contact (values in red in Figure 8, next to the bond CPs).
These values have been computed using the Vr energy predictor [87]. The O–H···N bond dissociation energies range from 7.6 kcal/mol in 4 to 8.3 kcal/mol in 3, and the CH···O/N H-bonds range from 1.0 to 1.7 kcal/mol. It is also worth mentioning that the existence of the antiparallel CN···CN interaction is confirmed by both the QTAIM and NCI plot methods, showing a bond CP interconnecting the N-atoms of both cyano groups and a green isosurface between both groups. The energies associated to these contacts are very small, ranging from 0.3 kcal/mol in 4 to 0.5 kcal/mol in 3. In comparison with the H-bond energy of the water dimer (–3.24 kcal/mol) [88], the OH···N H-bonds are significantly stronger, and the CH···O/N bonds are weaker.

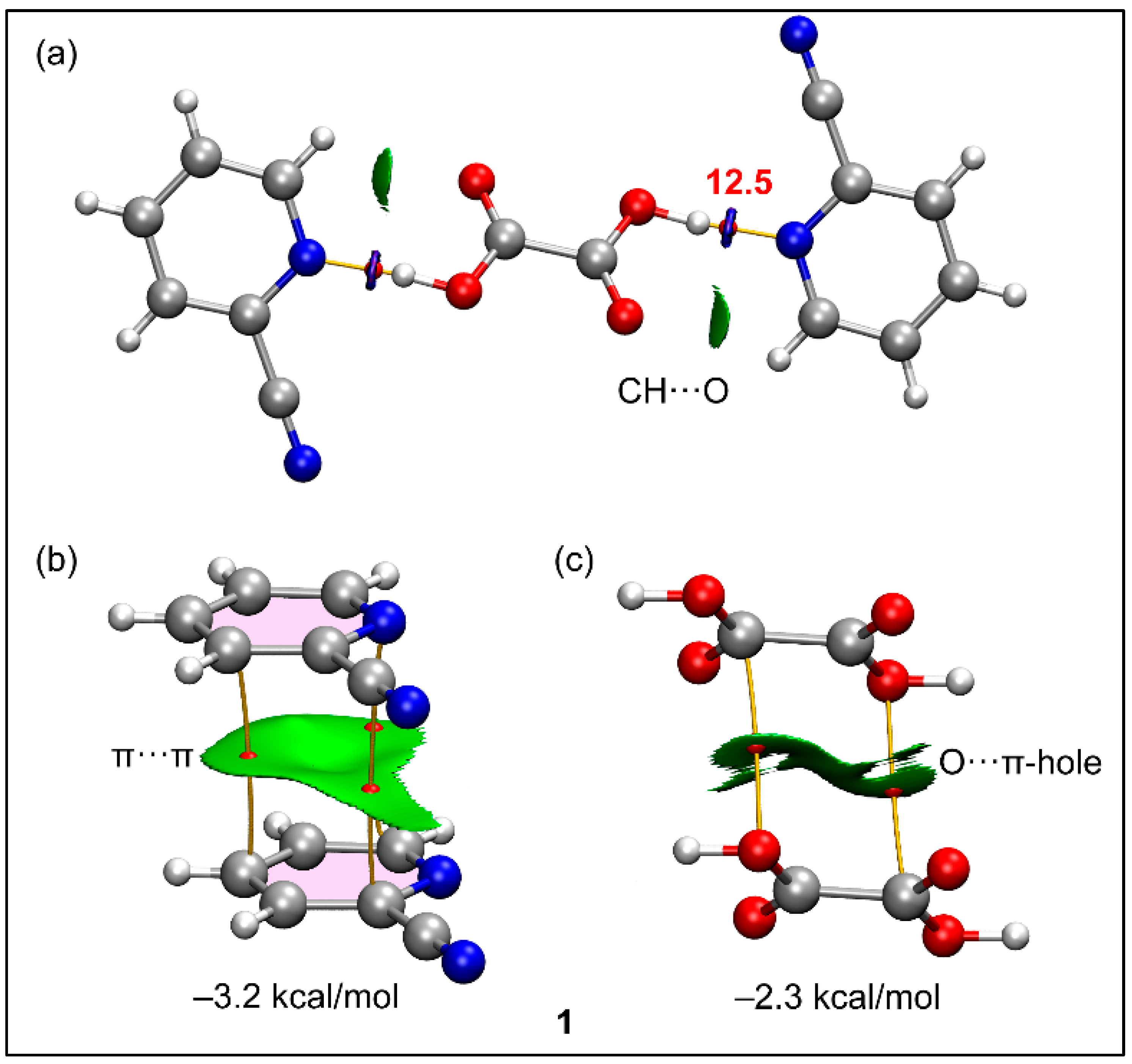

For compound 1, we have analyzed a similar assembly, where ox interacts with two 2-CNPy rings (Figure 9a). In this case, the H-bond dissociation energy is very large (12.5 kcal/mol), in line with the strong acidity of the oxalic acid. The NCI plot analysis disclosed a green RDG isosurface between the O-atom of ox and one aromatic proton of the 2-CNPy ring, thus suggesting a small C–H···O contribution to the formation of this trimeric assembly. We have also analyzed two additional interactions that are also important in the solid state, as described above (see Figure 2). For the π-stacked dimer, the QTAIM shows three bond CPs and bond paths connecting only the pyridine rings. However, the NCI plot analysis shows that the green RDG isosurface embraces the π-systems of both the pyridine and the cyano groups, thus suggesting the participation of the CN groups. In fact, the dimerization energy (–3.2 kcal/mol) is slightly greater in absolute value than that reported for the benzene dimer (–2.7 kcal/mol) [89], thus suggesting that the cyano groups have a favorable influence on the π-stacking.
Regarding the oxalic dimer (see Figure 9c), the dimerization energy is smaller than that of 2-CNPy dimer. The QTAIM shows the two CPs and bond paths connecting the O-atoms to the C-atoms, thus confirming the π-hole nature of these contacts. The NCI plot isosurface embraces the whole π-system, thus suggesting that this interaction can be also envisaged as a π-stacking.

4. Conclusions

Four co-crystals involving dicarboxylic acids and pyridine derivatives have been synthesized and characterized using the single-crystal X-ray diffraction technique. Crystal structure analysis of co-crystal1 reveals the presence of unconventional parallel nitrile–nitrile interactions involving the nitrile moieties of 2-CNpy. Further analysis reveals the involvement of the O-atom of ox in unconventional O···π-hole interactions with the π-hole located on the C-C bond of neighboring ox moiety. Crystal structure analysis of co-crystals 2, 3 and 4 unfold the presence of a structure guiding the antiparallel nitrile–nitrile synthons involving the nitrile moieties of CNPy, which provide stabilities to the layered architectures of the co-crystals. Various H-bonding interactions also provide additional reinforcement to the crystal structures. We have further investigated the energetic features of the supramolecular assemblies observed in the crystal structures using DFT calculations, MEP surface, QTAIM and NCI plot computational tools. The strongest H-bonding interactions correspond to the O–H···N and O–H···O with dissociation energies that range from 12.6 to 17.8 kcal/mol. The π–π and O···π-hole interactions are significantly weaker (–3.2 and –2.3 kcal/mol, respectively). The energetic aspects of the supramolecular assemblies of the compounds reveal the significance of H-bonding and π-stacking interactions in governing the solid-state stabilities of the compounds.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cryst12101442/s1. Figures S1–S6 and Tables S1 and S2 (see supplementary materials).

Author Contributions

Conceptualization, A.F. and M.K.B.; methodology, A.F.; software, A.F. and R.M.G.; formal analysis, A.F.; investigation, P.S. and R.M.G.; data curation, M.B.-O.; writing—original draft preparation, P.S. and M.K.B.; writing—review and editing, M.K.B.; visualization, A.F.; supervision, M.K.B.; project administration, A.F.; funding acquisition, A.F. All authors have read and agreed to the published version of the manuscript.

Funding

Financial support from ASTEC, DST, the Government of Assam (grant number: ASTEC/S&T/192(177)/2020-2021/43) and the Gobierno de España, MICIU/AEI (projects numbers. EQC2018-004265-P and PID2020-115637GB-I00) are gratefully acknowledged.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Chameli, D.; Bhavna, J.; Manish, K. Co-crystals of valsartan: Preparation and characterization. Res. J. Pharm. Dosage Forms Technol. 2019, 11, 143–146. [Google Scholar]
  2. Jayram, P.; Sudheer, P. Pharmaceutical co-crystals: A systematic review. Int. J. Pharm. Investig. 2020, 10, 246–256. [Google Scholar] [CrossRef]
  3. Wen, X.; Lu, Y.; Jin, S.; Zhu, Y.; Liu, B.; Wang, D.; Chen, B.; Wang, P. Crystal structures of six salts from nicotinamide and organic acids by classical H-bonds and other non-covalent forces. J. Mol. Struct. 2022, 1254, 132332–132345. [Google Scholar] [CrossRef]
  4. Yadav, A.V.; Shete, A.S.; Dabke, A.P.; Kulkarni, P.V.; Sakhare, S.S. Co-crystals: A novel approach to modify physicochemical properties of active pharmaceutical ingredients. Indian J. Pharm. Sci. 2009, 71, 359–370. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Vishweshwar, P.; McMahon, J.A.; Bis, J.A.; Zaworotko, M.J. Pharmaceutical co-crystals. J. Pharm. Sci. 2006, 95, 499–516. [Google Scholar] [CrossRef] [PubMed]
  6. Liu, L.; Wang, J.; Mei, X. Enhancing the stability of active pharmaceutical ingredients by the cocrystal strategy. Cryst. Eng. Comm. 2022, 22, 2015–2032. [Google Scholar] [CrossRef]
  7. O’Sullivan, A.; Long, B.; Verma, V.; Ryan, K.M.; Padrela, L. Solid-state and particle size control of pharmaceutical co-crystals using atomization-based techniques. Int. J. Pharm. 2022, 1, 121798–121821. [Google Scholar] [CrossRef] [PubMed]
  8. Nikhar, R.; Szalewicz, K. Reliable crystal structure predictions from first principles. Nat. Commun. 2022, 13, 3095–3107. [Google Scholar] [CrossRef] [PubMed]
  9. Aakeröy, C.B.; Fasulo, E.; Desper, J. Cocrystal or salt: Does it really matter? Mol. Pharm. 2007, 7, 317–322. [Google Scholar] [CrossRef]
  10. Thayyil, A.R.; Juturu, T.; Nayak, S.; Kamath, S. Pharmaceutical co-crystallization: Regulatory aspects, design, characterization, and applications. Adv. Pharm. Bull. 2020, 10, 203–212. [Google Scholar] [CrossRef] [PubMed]
  11. Samineni, R.; Chimakurthy, J.; Sumalatha, K.; Dharani, G.; Rachana, J.; Manasa, K.; Anitha, P. Co-crystals: A review of recent trends in co crystallization of BCS class II drugs. Res. J. Pharm. Technol. 2019, 12, 3117–3124. [Google Scholar] [CrossRef]
  12. Ngilirabanga, J.B.; Samsodien, H. Pharmaceutical co-crystal: An alternative strategy for enhanced physicochemical properties and drug synergy. NanoSelect 2021, 2, 512–526. [Google Scholar] [CrossRef]
  13. Nugrahani, I.; Parwati, R.D. Challenges and progress in nonsteroidal anti-inflammatorydrugs co-crystal development. Molecules 2021, 26, 4185. [Google Scholar] [CrossRef] [PubMed]
  14. Chamorro, A.I.; Boese, R.; Schauerte, C.; Merz, K. An experimental and theoretical approach to control salt vs cocrystal vs hybrid formation-crystal engineering of an E/Z-butenedioic acid/phthalazine system. Cryst. Growth Des. 2019, 19, 1616–1620. [Google Scholar] [CrossRef]
  15. Dai, X.; Chen, J.; Lu, T. Pharmaceutical cocrystallization: An effective approach to modulate the physicochemical properties of solid-state drugs. CrystEngComm 2018, 20, 5292–5316. [Google Scholar] [CrossRef]
  16. McNeil, S.K.; Kelley, S.P.; Beg, C.; Cook, H.; Rogers, R.D.; Nikles, D.E. Co-crystals of 10-methylphenthiazine and 1,3-dinitrobenzene: Implications for the optical sensing of TNT-based explosives. ACS Appl. Mater. Interfaces 2013, 5, 7647–7653. [Google Scholar] [CrossRef]
  17. Bucar, D.K.; MacGillivray, L.R. Preparation and reactivity of nano-crystalline co-crystals formed via sono-crystallization. J. Am. Chem. Soc. 2007, 129, 32–33. [Google Scholar] [CrossRef]
  18. Stoler, E.; Warner, J.C. Non-covalent derivatives: Co-crystals and eutectics. Molecules 2015, 20, 14833–14848. [Google Scholar] [CrossRef] [Green Version]
  19. Kumar, S.; Nanda, A. Pharmaceutical co-crystals: An overview. Indian J. Pharm. Sci. 2018, 20, 858–870. [Google Scholar]
  20. Dutta, D.; Sharma, P.; Gomila, R.; Frontera, A.; Barcelo-Oliver, M.; Verma, A.K.; Baruwa, B.; Bhattacharyya, M.K. Solvent-driven structural topologies in phenanthroline-based co-crystals of Zn(II) involving fascinating infinite chair-like {[(bzH)4Cl2]2−}n assemblies and unconventional layered infinite {bz-H2O-Cl}n anion-water clusters: Antiproliferative evaluation and theoretical studies. New J. Chem. 2022, 46, 5638–5652. [Google Scholar]
  21. Ashfaq, M.; Ali, A.; Kuznetsov, A.; Tahir, M.N.; Khalid, M. DFT and single-crystal investigation of the pyrimethamine-based novel co-crystal salt: 2,4-diamino-5-(4-chlorophenyl)-6-ethylpyrimidin-1-ium-4-methylbenzoate hydrate (1:1:1) (DEMH). J. Mol. Struct. 2021, 1228, 129445–129459. [Google Scholar] [CrossRef]
  22. Iizuka, M.; Nakagawa, Y.; Moriya, Y.; Satou, E.; Fujimori, A. Comparison of structure/function correlational property of three kinds of gemini-type thixotropic surfactants capable of forming crystalline nanofiber based on hydrogen bonding-solid-state structure, two-dimensional molecular film forming, and epitaxial growth behavior. Bull. Chem. Soc. Jpn. 2018, 91, 813–823. [Google Scholar]
  23. Zheng, Q.; Rood, S.L.; Unruh, D.K.; Hutchins, K.M. O-crystallization of anti-inflammatory pharmaceutical contaminants and rare carboxylic acid-pyridine supramolecular synthon breakdown. CrystEngComm 2018, 20, 6377–6381. [Google Scholar] [CrossRef]
  24. Ilyukhin, A.B.; Koroteev, P.S.; Novotortsev, V.M. Supramolecular interactions and self-assembling in adducts of cymantrenecarboxylic acid with amino derivatives of five- and six-membered heterocyclic N-bases. J. Mol. Struct. 2019, 1187, 38–49. [Google Scholar] [CrossRef]
  25. Sangeetha, M.; Mathammal, R. Establishment of the structural and enhanced physicochemical properties of the cocrystal-2-benzyl amino pyridine with oxalic acid. J. Mol. Struct. 2017, 1143, 192–203. [Google Scholar] [CrossRef]
  26. Wheeler, S.E. Local nature of substituent effects in stacking interactions. J. Am. Chem. Soc. 2011, 133, 10262–10274. [Google Scholar] [CrossRef]
  27. Wheeler, S.E.; Houk, K.N. Substituent effects in the benzene dimer are due to direct interactions of the substituents with the unsubstituted benzene. J. Am. Chem. Soc. 2008, 130, 10854–10855. [Google Scholar] [CrossRef] [Green Version]
  28. Sikorski, A.; Trzybinski, D. Networks of intermolecular interactions involving nitro groups in the crystals of three polymorphs of 9-aminoacridinium 2,4-dinitrobenzoate-2,4-dinitrobenzoic acid. J. Mol. Struct. 2013, 1049, 90–98. [Google Scholar] [CrossRef]
  29. Frontera, A.; Gamez, P.; Mascal, M.; Mooibroek, T.J.; Reedijk, J. Putting anion-π interactions into perspective. Angew. Chem. Int. Ed. 2011, 50, 9564–9583. [Google Scholar] [CrossRef]
  30. Schottel, B.L.; Chifotides, H.T.; Dunbar, K.R. Anion-π interactions. Chem. Soc. Rev. 2008, 37, 68–83. [Google Scholar] [CrossRef]
  31. Caltagirone, C.; Gale, P.A. Anion receptor chemistry: Highlights from 2007. Chem. Soc. Rev. 2009, 38, 520–563. [Google Scholar] [CrossRef] [PubMed]
  32. Ojala, C.R.; Ojala, W.H.; Britton, D. Solid-State intermolecular contacts involving the nitrile group in p-cyano-N-(p-cyanobenzylidene) aniline and 4, 4′-(azinodimethylidyne) bis-benzonitrile. J. Chem. Crystallogr. 2011, 41, 464–469. [Google Scholar] [CrossRef]
  33. Corey, E.J. General methods for the construction of complex molecules. Pure Appl. Chem. 1967, 14, 30–49. [Google Scholar] [CrossRef]
  34. Kumar, A.; Kumar, S.; Nanda, A. A review about regulatory status and recent patents of pharmaceutical co-crystals. Adv. Pharm. Bull. 2018, 8, 355–363. [Google Scholar] [CrossRef]
  35. Batisai, E. Multi-component crystals of anti-tuberculosis drugs: A mini-review. RSC Adv. 2020, 10, 37134–37141. [Google Scholar] [CrossRef]
  36. Desiraju, G.R. Supramolecular synthons in crystal engineering-A new organic synthesis. Angew. Chem. Int. Ed. 1995, 34, 2311–2327. [Google Scholar] [CrossRef]
  37. Ganie, A.A.; Rashid, S.; Ahangar, A.A.; Ismail, T.M.; Sajith, P.A.; Dar, A.A. Expanding the scope of hydroxyl-pyridine supramolecular synthon to design molecular solids. Cryst. Growth Des. 2022, 22, 1972–1983. [Google Scholar] [CrossRef]
  38. Denisov, G.L.; Nelyubina, Y.V. New co-crystals/salts of gallic acid and substituted pyridines: An effect of ortho-substituents on the formation of an acid–pyridine heterosynthon. Crystals 2022, 12, 497. [Google Scholar] [CrossRef]
  39. Pathare, P.; Tekale, S.; Shaikh, R.; Damale, M.; Sangshetti, J.; Rajani, D.; Pawar, R. Pyridine and benzoisothiazole decorated vanillin chalcones: Synthesis, antimicrobial, antioxidant, molecular docking study and ADMET properties. Curr. Org. Synth. 2020, 17, 367–381. [Google Scholar] [CrossRef]
  40. Amr, A.G.; Mohamed, A.M.; Mohamed, S.F.; Abdel-Hafez, N.A.; Hammam, A.G. Synthesis and anticancer activities of new pyridine, pyrane and pyrimidine derivatives fused with nitrobenzosubetrone moiety. Bioorg. Med. Chem. 2006, 14, 5481–5488. [Google Scholar] [CrossRef]
  41. Altaf, A.A.; Shahzad, A.; Gul, Z.; Rasool, N.; Badshah, A.; Lal, B.; Khan, E. A review on the medicinal importance of pyridine derivatives. J. Drug Des. Med. Chem. 2015, 1, 1–11. [Google Scholar]
  42. Henry, M.; Kananda, C.; Rotoloac, L.; Savinoa, B.; Owensa, E.A.; Cravotto, G. Benefits and applications of microwave-assisted synthesis of nitrogen containing heterocycles in medicinal chemistry. RSC Adv. 2020, 10, 14170–14197. [Google Scholar] [CrossRef]
  43. Przybyłek, M.; Jeliński, T.; Słabuszewska, J.; Ziołkowska, D.; Mroczynska, K.; Cysewski, P. Application of multivariate adaptive regression splines (MARSplines) Methodology for screening of dicarboxylic acid cocrystal using 1D and 2D molecular descriptors. Cryst. Growth Des. 2019, 19, 3876–3887. [Google Scholar] [CrossRef]
  44. Suzuki, N.; Kawahata, M.; Yamaguchi, K.; Suzuki, T.; Tomono, K.; Fukami, T. Comparison of the relative stability of pharmaceutical co-crystals consisting of paracetamol and dicarboxylic acids. Drug Dev. Ind. Pharm. 2018, 44, 582–589. [Google Scholar] [CrossRef] [PubMed]
  45. Singh, D.; Bhattacharyya, P.K.; Baruah, J.B. Structural studies on solvates of cyclic imide tethered carboxylic acids with pyridine and quinoline. Cryst. Growth Des. 2010, 10, 348–356. [Google Scholar] [CrossRef]
  46. Bedekovic, N.; Stilinovic, V.; Pitesa, T. Aromatic versus aliphatic carboxyl group as a hydrogen bond donor in salts and co-crystals of an asymmetric diacid and pyridine derivatives. Cryst. Growth Des. 2017, 17, 5732–5743. [Google Scholar] [CrossRef]
  47. Zhang, L.; Zhou, J.; Wu, Y.; Wang, P.; Jin, S.; Lu, Y.; Wang, D. Non-covalent bonded 2D/3D supramolecular adducts from 6-methylpyridine-3-carboxamide and carboxylic acids. J. Mol. Struct. 2022, 1264, 133256–133267. [Google Scholar] [CrossRef]
  48. Lakshmipathi, A.; Emmerling, F.; Bhattacharya, B.; Ghosh, S. Structure-mechanical property correlation of a series of 4-(1-Napthylvinyl) pyridine based co-crystals. J. Mol. Struct. 2022, 1268, 133670–133681. [Google Scholar] [CrossRef]
  49. SADABS, V2.05; Bruker AXS: Madison, WI, USA, 1999.
  50. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. A: Found. Crystallogr. 2008, 64, 112–122. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  51. Farrugia, L.J. WinGX and ORTEP for Windows: An update. J. Appl. Crystallogr. 1999, 32, 837–838. [Google Scholar] [CrossRef]
  52. Eisenberg, D.; Luthy, R.; Bowie, J.U. VERIFY3D: Assessment of protein models with three-dimensional profiles. Methods Enzymol. 1997, 277, 396–404. [Google Scholar]
  53. Grimme, S.; Antony, J.; Ehrlich, S.; Krieg, H. A consistent and accurate ab initio parametrization of density functional dispersion correction (DFT-D) for the 94 elements H-Pu. J. Chem. Phys. 2010, 132, 154104–154119. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Weigend, F. Accurate Coulomb-fitting basis sets for H to Rn. Phys. Chem. Chem. Phys. 2006, 8, 1057–1065. [Google Scholar] [CrossRef]
  55. Ahlrichs, R.; Bar, M.; Hacer, M.; Horn, H.; Kömel, C. Electronic structure calculations on workstation computers: The program system turbomole. Chem. Phys. Lett. 1989, 162, 165–169. [Google Scholar] [CrossRef]
  56. Gural’skiy, I.A.; Escudero, D.; Frontera, A.; Solntsev, P.V.; Rusanov, E.B.; Chernega, A.N.; Krautscheid, H.; Domasevitch, K.V. 1,2,4,5-Tetrazine: An unprecedented μ4-coordination that enhances ability for anion⋯π interactions. Dalton Trans. 2009, 38, 2856–2864. [Google Scholar] [CrossRef]
  57. Barrios, L.A.; Aromí, G.; Frontera, A.; Quiñonero, D.; Deyà, P.M.; Gamez, P.; Roubeau, O.; Shotton, E.J.; Teat, S.J. Coordination Complexes Exhibiting Anion···π Interactions: Synthesis, Structure, and Theoretical Studies. Inorg. Chem. 2008, 47, 5873–5881. [Google Scholar] [CrossRef] [PubMed]
  58. Das, A.; Choudhury, S.R.; Estarellas, C.; Dey, B.; Frontera, A.; Hemming, J.; Helliwell, M.; Gamez, P.; Mukhopadhyay, S. Supramolecular assemblies involving anion–π and lone pair–π interactions: Experimental observation and theoretical analysis. CrystEngComm 2011, 13, 4519–4527. [Google Scholar] [CrossRef]
  59. Sadhukhan, D.; Maiti, M.; Pilet, G.; Bauzá, A.; Frontera, A.; Mitra, S. Hydrogen Bond, π–π, and CH–π Interactions Governing the Supramolecular Assembly of Some Hydrazone Ligands and Their MnII Complexes—Structural and Theoretical Interpretation. Eur. J. Inorg. Chem. 2015, 2015, 1958–1972. [Google Scholar] [CrossRef]
  60. Contreras-Garcia, J.; Johnson, E.R.; Keinan, S.; Chaudret, R.; Piquemal, J.P.; Beratan, D.N.; Yang, W. NCIPLOT: A program for plotting non-covalent interaction regions. J. Chem. Theory Comput. 2011, 7, 625–632. [Google Scholar] [CrossRef]
  61. Bader, R.F.W. Atoms in molecules. Chem. Rev. 1991, 91, 893–928. [Google Scholar] [CrossRef]
  62. Lu, T.; Chen, F. Multiwfn: A multifunctional wavefunction analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef]
  63. Humphrey, J.W.; Dalke, A.; Schulten, K. VMD: Visual molecular dynamics. J. Mol. Graph. 1996, 14, 33–38. [Google Scholar] [CrossRef]
  64. Kottke, T.; Stalk, D. Crystal handling at low temperatures. J. Appl. Cryst. 1993, 26, 615–619. [Google Scholar] [CrossRef] [Green Version]
  65. Enkelmann, E.; Lipinski, G.; Mer, K. Cyanopyridines-suitable heterocycles for co-crystal syntheses. Eur. J. Inorg. Chem. 2021, 33, 3367–3372. [Google Scholar] [CrossRef]
  66. Sheldrick, G.M. A Short History of SHELX, SHELXTL Reference Manual; Bruker-AXS, Inc.: Madison, WI, USA, 1997. [Google Scholar]
  67. Wilson, A.J.C. Statistical bias in least-squares refinement. Acta Cryst. 1976, A32, 994–996. [Google Scholar] [CrossRef] [Green Version]
  68. Khan, E.; Khan, A.; Gul, Z.; Ullah, F.; Tahir, M.N.; Khalid, M.; Asif, H.M.; Asim, S.; Braga, A.A.C. Molecular salts of terephthalic acids with 2-aminopyridine and 2-aminothiazole derivatives as potential antioxidant agents; Base-Acid Base type architectures. J. Mol. Struct. 2020, 1200, 127126–127140. [Google Scholar] [CrossRef]
  69. Kumar, S.; Nanda, A. Approaches to design of pharmaceutical co-crystals: A review. Mol. Cryst. Liq. Cryst. 2018, 667, 54–77. [Google Scholar] [CrossRef]
  70. Stilinovic, V.; Kaitner, B. Salts and co-crystals of gentisic acid with pyridine derivatives: The effect of proton transfer on the crystal packing (and vice versa). Cryst. Growth Des. 2012, 12, 5763–5772. [Google Scholar] [CrossRef]
  71. Haynes, D.A.; Jones, W.; Motherwell, W.D.S. Co-crystallisation of succinic and fumaric acids with lutidines: A systematic study. CrystEngComm 2006, 8, 830–840. [Google Scholar] [CrossRef]
  72. Bowker, M.J.A.; Stahl, P.H.; Wermuth, C.G. Handbook of Pharmaceutical Salts; VHCA, Wiley-VCH: New York, NY, USA, 2002. [Google Scholar]
  73. Bhogala, R.; Basavoju, S.; Nangia, A. Tape and layer structures in co-crystals of some di- and tricarboxylic acids with 4,4′-bipyridines and isonicotinamide. From binary to ternary cocrystals. CrystEngComm 2005, 7, 551–562. [Google Scholar] [CrossRef]
  74. Aakeroy, C.B.; Hussain, I.; Forbes, S.; Desper, J. Exploring the hydrogen-bond preference of N–H moieties in co-crystals assembled via O–H (acid)⋯ N (py) intermolecular interactions. CrystEngComm 2007, 9, 46–54. [Google Scholar] [CrossRef]
  75. Schmidtmann, M.; Wilson, C.C. Hydrogen transfer in pentachlorophenol-dimethylpyridine complexes. CrystEngComm 2008, 10, 177–183. [Google Scholar] [CrossRef]
  76. Vishweshwar, P.; Babu, N.J.; Nangia, A.; Mason, S.A.; Puschmann, H.; Modal, R.; Horward, A.K. Variable temperature neutron diffraction analysis of a very short O−H···O hydrogen bond in 2,3,5,6-pyrazinetetracarboxylic acid dihydrate:  Synthon-assisted short Oacid−H···Owater hydrogen bonds in a multicenter array. J. Phys. Chem. A 2004, 108, 9406–9416. [Google Scholar] [CrossRef]
  77. Ruelas-Alvarez, G.Y.; Valenzuela, A.J.C.; Cruz-Enríquez, A.; Hopfl, H.; Campos-Gaxiola, J.J.; Rivera, M.A.R.; Rodríguez-Molina, B. Exploration of the luminescence properties of organic phosphate salts of 3-quinoline- and 5-isoquinolineboronic acid. Eur. J. Inorg. Chem. 2019, 22, 2707–2724. [Google Scholar] [CrossRef]
  78. Melendez, R.E.; Zaworotko, M.J. Toward crystal engineering of organic porous solids: Diammine salts of trimesic acid. Supramol. Chem. 1997, 8, 157–168. [Google Scholar] [CrossRef]
  79. Bis, J.A.; Vishweshwar, P.; Weyna, D.; Zaworotko, M.J. Hierarchy of supramolecular synthons:  Persistent hydroxyl···pyridine hydrogen bonds in co-crystals that contain a cyano acceptor. Mol. Pharm. 2007, 4, 401–416. [Google Scholar] [CrossRef] [PubMed]
  80. Bezerra, B.P.; Pogoda, D.; Perry, M.L.; Vidal, L.M.T.; Zaworotko, M.J.; Ayala, A.P. Co-crystal polymorphs and solvates of the anti-trypanosomacruzi drug benznidazole with improved dissolution performance. Cryst. Growth Des. 2020, 20, 4707–4718. [Google Scholar] [CrossRef]
  81. Cheney, M.L.; Weyna, D.R.; Shan, N.; Hanna, H.; Wojtas, L.; Zaworotko, M.J. Coformer selection in pharmaceutical co-crystal development: A case study of a meloxicam aspirin cocrystal that exhibits enhanced solubility and pharmacokinetics. J. Pharm. Sci. 2011, 100, 2172–2181. [Google Scholar] [CrossRef] [PubMed]
  82. Bauza, A.; Mooibroek, T.J.; Frontera, A. The bright future of unconventional σ/π-hole interactions. Chem. Phys. Chem. 2015, 16, 2496–2517. [Google Scholar] [CrossRef]
  83. Dutta, D.; Nath, H.; Frontera, A.; Bhattacharyya, M.K. A novel oxalato bridged supramolecular ternary complex of Cu(II) involving energetically significant π-hole interaction: Experimental and theoretical studies. Inorg. Chim. Acta 2019, 487, 354–361. [Google Scholar] [CrossRef]
  84. Dutta, D.; Islam, S.M.N.; Saha, U.; Frontera, A.; Bhattacharyya, M.K. Cu(II) and Co(II) coordination solids involving unconventional parallel nitrile(π)–nitrile(π) and energetically significant cooperative hydrogen bonding interactions: Experimental and theoretical studies. J. Mol. Struct. 2019, 1195, 733–743. [Google Scholar] [CrossRef]
  85. Dutta, D.; Sharma, P.; Frontera, A.; Gogoi, A.; Verma, A.K.; Dutta, D.; Sarma, B.; Bhattacharyya, M.K. Oxalato bridged coordination polymer of manganese(III) involving unconventional O⋯π-hole(nitrile) and antiparallel nitrile⋯nitrile contacts: Antiproliferative evaluation and theoretical studies. New J. Chem. 2020, 44, 20021–20038. [Google Scholar] [CrossRef]
  86. Das, B.K.; Bora, S.J.; Bhattacharyya, M.K.; Barman, R.K. Inverse bilayer structure of mononuclear CoII and NiII complexes of the type [M(H2O)3(SO4)(4-CNpy)]2. Acta Cryst. 2009, B65, 467–473. [Google Scholar] [CrossRef]
  87. Espinosa, E.; Molins, E.; Lecomte, C. Hydrogen bond strengths revealed by topological analyses of experimentally observed electron densities. Chem. Phys. Lett. 1998, 285, 170–173. [Google Scholar] [CrossRef]
  88. Nakayama, T.; Fukuda, H.; Kamikawa, T.; Sakamoto, Y.; Sugita, A.; Kawasaki, M.; Amano, T.; Sato, H.; Sakaki, S.; Morino, I.; et al. Effective interaction energy of water dimer at room temperature: An experimental and theoretical study. J. Chem. Phys. 2007, 127, 134302. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  89. Podeszwa, R.; Bukowski, R.; Szalewicz, K. Potential Energy Surface for the Benzene Dimer and Perturbational Analysis of π−π Interactions. J. Phys. Chem. A 2006, 110, 10345–10354. [Google Scholar] [CrossRef] [PubMed]
Crystals 12 01442 sch001 550

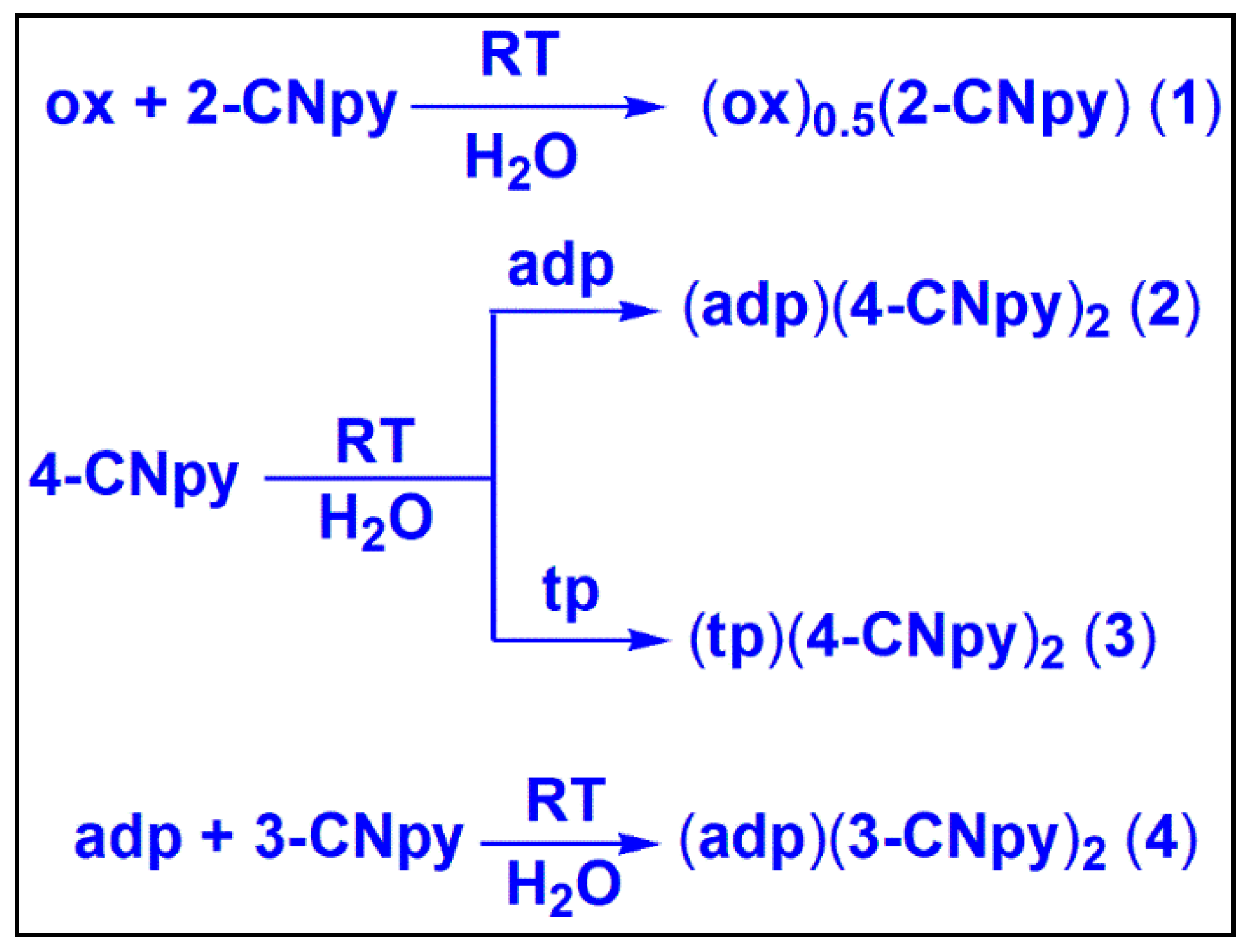

Scheme 1. Synthesis of compounds 1–4.
Scheme 1. Synthesis of compounds 1–4.
Crystals 12 01442 sch001
Crystals 12 01442 g001 550

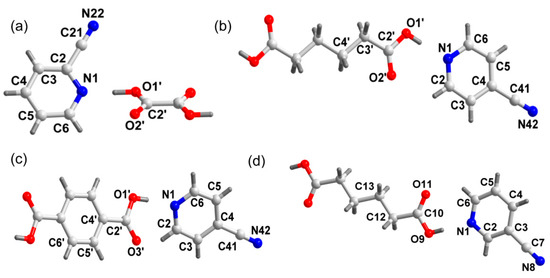

Figure 1. Molecular structures of (a) (ox)0.5(2-CNpy) (1), (b) (adp)(4-CNpy)2 (2), (c) (tp)(4-CNpy)2 (3) and (d) (adp)(3-CNpy)2 (4).
Figure 1. Molecular structures of (a) (ox)0.5(2-CNpy) (1), (b) (adp)(4-CNpy)2 (2), (c) (tp)(4-CNpy)2 (3) and (d) (adp)(3-CNpy)2 (4).
Crystals 12 01442 g001
Crystals 12 01442 g002 550

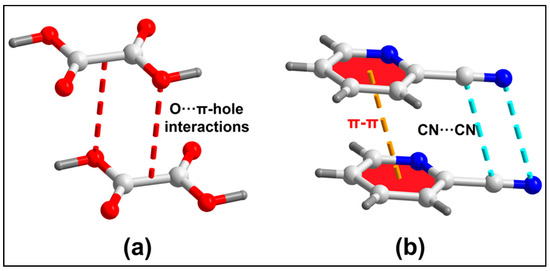

Figure 2. (a) Formation of supramolecular dimers of ox in 1, assisted by unconventional O···π-hole interactions; (b) formation of supramolecular dimers of 4-CNpy in 1, assisted by unusual parallel nitrile–nitrile and π-stacking interactions.
Figure 2. (a) Formation of supramolecular dimers of ox in 1, assisted by unconventional O···π-hole interactions; (b) formation of supramolecular dimers of 4-CNpy in 1, assisted by unusual parallel nitrile–nitrile and π-stacking interactions.
Crystals 12 01442 g002
Crystals 12 01442 g003 550

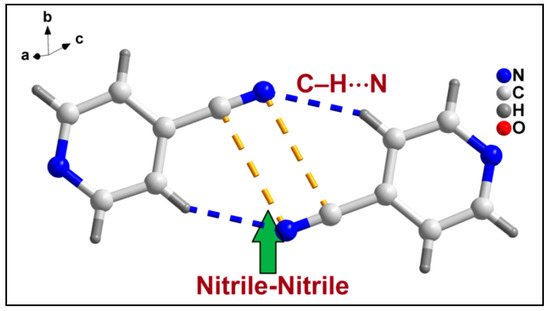

Figure 3. Formation of supramolecular dimer of co-crystal 2 involving 4-CNpy moieties assisted by antiparallel nitrile–nitrile and C–H⋯N hydrogen bonding interactions.
Figure 3. Formation of supramolecular dimer of co-crystal 2 involving 4-CNpy moieties assisted by antiparallel nitrile–nitrile and C–H⋯N hydrogen bonding interactions.
Crystals 12 01442 g003
Crystals 12 01442 g004 550
Figure 4. Layered assembly of co-crystal 3 along the crystallographic bc plane.
Figure 4. Layered assembly of co-crystal 3 along the crystallographic bc plane.
Crystals 12 01442 g004
Crystals 12 01442 g005 550

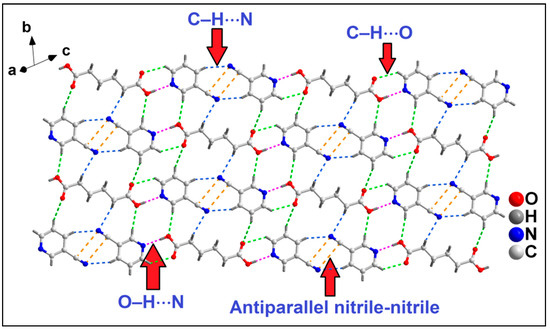

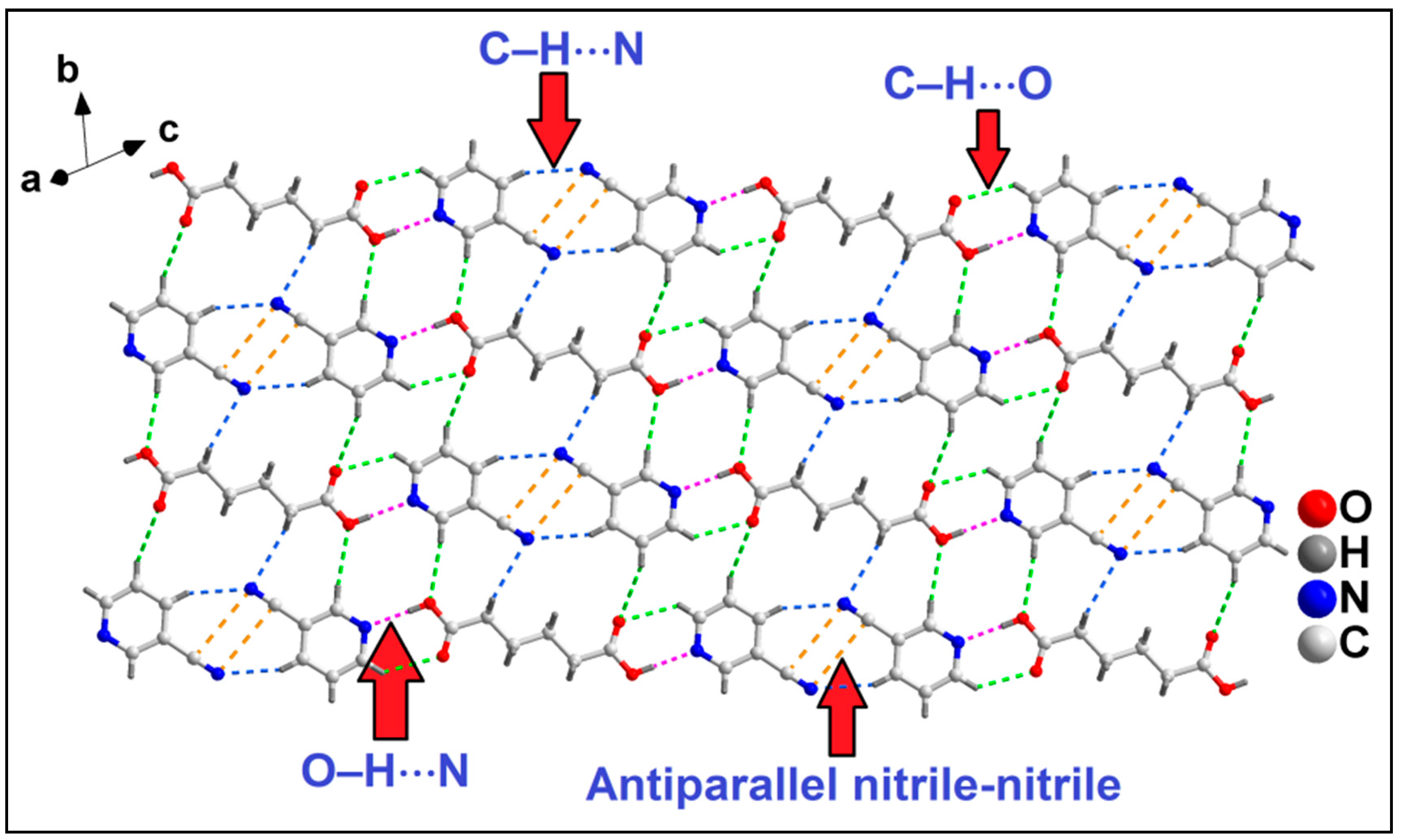

Figure 5. Layered assembly of co-crystal 4 along the crystallographic bc plane assisted by antiparallel nitrile–nitrile, C–H⋯N, C–H⋯O and O–H⋯N hydrogen bonding interactions.
Figure 5. Layered assembly of co-crystal 4 along the crystallographic bc plane assisted by antiparallel nitrile–nitrile, C–H⋯N, C–H⋯O and O–H⋯N hydrogen bonding interactions.
Crystals 12 01442 g005
Crystals 12 01442 g006 550
Figure 6. MEP surfaces of compounds 2-CNPy (a), 3-CNPy (b) and 4-CNPy (c) at the PB86-D3/def2-TZVP level of theory. The energies at selected points are given in kcal/mol. Isosurface 0.001 a.u.
Figure 6. MEP surfaces of compounds 2-CNPy (a), 3-CNPy (b) and 4-CNPy (c) at the PB86-D3/def2-TZVP level of theory. The energies at selected points are given in kcal/mol. Isosurface 0.001 a.u.
Crystals 12 01442 g006
Crystals 12 01442 g007 550
Figure 7. MEP surfaces of dicarboxylic acids; ox (a), tp (b) and adp (c) at the PB86-D3/def2-TZVP level of theory. The energies at selected points are given in kcal/mol. Isosurface 0.001 a.u.
Figure 7. MEP surfaces of dicarboxylic acids; ox (a), tp (b) and adp (c) at the PB86-D3/def2-TZVP level of theory. The energies at selected points are given in kcal/mol. Isosurface 0.001 a.u.
Crystals 12 01442 g007
Crystals 12 01442 g008 550
Figure 8. QTAIM and NCI plot analysis of the H-bonded assemblies of compounds 2, 3 and 4. The QTAIM energies are given in red for the H-bonds (in kcal/mol), and values in black correspond to the sum all the energies of all contacts.
Figure 8. QTAIM and NCI plot analysis of the H-bonded assemblies of compounds 2, 3 and 4. The QTAIM energies are given in red for the H-bonds (in kcal/mol), and values in black correspond to the sum all the energies of all contacts.
Crystals 12 01442 g008
Crystals 12 01442 g009 550
Figure 9. QTAIM and NCI plot analysis of the (a) H-bonded, (b) π-stacking and (c) π-hole assemblies of compound 1. The QTAIM energies are given in red for the H-bonds (in kcal/mol).
Figure 9. QTAIM and NCI plot analysis of the (a) H-bonded, (b) π-stacking and (c) π-hole assemblies of compound 1. The QTAIM energies are given in red for the H-bonds (in kcal/mol).
Crystals 12 01442 g009
Table
Table 1. Crystallographic data and structure refinement details for co-crystals 1–4.
Table 1. Crystallographic data and structure refinement details for co-crystals 1–4.
Parameters1234
FormulaC14H10N4O4C18H18N4O4C20H14N4O4C18H18N4O4
Formula weight149.13354.36374.35354.36
Temp (K)100.0100.0100.0294
Crystal systemMonoclinicTriclinicTriclinicTriclinic
Space groupP21/cP 1   ¯ P 1   ¯ P 1   ¯
a, (Å)3.664(2)3.8849(3)3.7596(4)4.0270(3)
b, (Å)13.887(8)10.5878(9)6.2540(7)10.8650(7)
c, (Å)13.455(6)11.7569(10)18.617(2)11.2177(7)
α, (°)9063.760(4)92.569(4)67.878(2)
β, (°)91.55(2)86.193(5)95.589(4)86.725(2)
γ, (°)9085.953(5)95.113(4)89.843(2)
Volume (Å3)684.5(6)432.34(6)433.29(8)453.84(5)
Z2111
Absorption coefficient (mm−1)0.9270.8180.8570.780
F(000)308186194186
D(calcd) (Mg/m3)1.4471.3611.4351.297
Index ranges−4 ≤ h ≤ 3, −16 ≤ k ≤ 16, −16 ≤ l ≤ 16−3 ≤ h ≤ 4, −12 ≤ k ≤ 12, −13 ≤ l ≤ 14−4 ≤ h ≤ 4, −7 ≤ k ≤ 7, −22 ≤ l ≤ 22−4 ≤ h ≤ 4, −13 ≤ k ≤ 13, −13 ≤ l ≤ 13
Crystal size, (mm3)0.49 × 0.20 × 0.190.45 × 0.39 × 0.330.23 × 0.15 × 0.130.28 × 0.15 × 0.12
θ range (°)6.374 to 66.5414.195 to 67.2234.776 to 133.118.524 to 140.024
Independent reflections1114154146401661
Reflections collected11665081464020138
Refinement methodFull-matrix least squares on F2Full-matrix least squares on F2Full-matrix least squares on F2Full-matrix least squares on F2
Data/restraints/parameters1166/0/1051541/0/1194640/0/1291661/0/119
Goodness-of-fit on F21.0981.0631.0941.089
Final R indices (I > 2σ(I))R1 = 0.0438, wR2 = 0.1149R1 = 0.0479, wR2 = 0.1327R1 = 0.0761, wR2 = 0.2427R1 = 0.0453, wR2 = 0.1220
R indices (all data)R1 = 0.0452, wR2 = 0.1162R1 = 0.0539, wR2 = 0.1376R1 = 0.0785, wR2 = 0.2455R1 = 0.0468, wR2 = 0.1231
Largest peak and hole (e·Å−3)0.22/−0.230.22/−0.240.43/−0.370.16/−0.15
Table
Table 2. pKa and ∆pKa values of multicomponent crystals (1–4).
Table 2. pKa and ∆pKa values of multicomponent crystals (1–4).
Multicomponent CrystalspKa (Base)pKa (Acid)pKa
(ox)0.5(2-CNpy) (1)−0.261.27/4.28−1.53/−4.54
(adp)(4-CNpy)2 (2)1.904.43/5.41−2.53/−3.51
(tp)(4-CNpy)2 (3)1.903.51/4.82−1.61/−2.92
(adp)(3-CNpy)2 (4)1.394.43/5.41−3.04/−4.02
Table
Table 3. C–N–C bond angles around the pyridine N-atoms in compounds 1–4.
Table 3. C–N–C bond angles around the pyridine N-atoms in compounds 1–4.
CompoundC–N–CBond Angle (°)
Compound 1C2–N1–C6117.4
Compound 2C2–N1–C6118.4
Compound 3C2–N1–C6117.9
Compound 4C2–N1–C6117.5
Table
Table 4. C–O bond lengths of the carboxylic acid moieties of compounds 1–4.
Table 4. C–O bond lengths of the carboxylic acid moieties of compounds 1–4.
CompoundC–OBond Length (Å)
Compound 1C2’–O1´1.31
C2´–O2´1.21
Compound 2C2´–O1´1.33
C2´–O2´1.21
Compound 3C2´–O3´1.21
C2´–O1´1.32
Compound 4C10–O111.19
C10–O91.32
Table
Table 5. Selected parameters for hydrogen bonding interactions in 1–4.
Table 5. Selected parameters for hydrogen bonding interactions in 1–4.
D–H⋯Ad(D–H)d(H⋯A)d(D–A)<(DHA)
1
C3–H3⋯O2´0.952.773.358(2)120.9
O1´–H1⋯N11.021.612.633(1)174.9
C5–H5⋯N220.952.993.458(2)132.7
2
C5–H5⋯N420.952.513.389(2)152.8
C2–H2⋯O2´0.952.663.331(1)127.4
O1´–H1´⋯N10.841.832.668(1)172.6
C4´–H4´B⋯N420.992.823.737(2)153.7
3
C5–H5⋯N420.942.663.517(4)149.2
N1–H1⋯O10.841.892.728(3)171.2
C6–H6⋯O3´0.952.283.124(2)145.6
4
C4–H4⋯N80.932.583.442(2)154.1
C12–H12B⋯N80.972.813.584(2)137.0
C6–H6⋯O110.932.493.194(2)145.3
C5–H5⋯O110.932.913.324(2)128.3
C2–H2⋯O90.932.643.423(1)145.6
O9–H9⋯N10.821.922.744(1)178.7
C12–H12B⋯O90.952.973.654(3)133.6
C13–H13A⋯O110.942.993.362(2)154.6
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Sharma, P.; Gomila, R.M.; Frontera, A.; Barcelo-Oliver, M.; Bhattacharyya, M.K. Dicarboxylic Acid-Based Co-Crystals of Pyridine Derivatives Involving Structure Guiding Unconventional Synthons: Experimental and Theoretical Studies. Crystals 2022, 12, 1442. https://doi.org/10.3390/cryst12101442

AMA Style

Sharma P, Gomila RM, Frontera A, Barcelo-Oliver M, Bhattacharyya MK. Dicarboxylic Acid-Based Co-Crystals of Pyridine Derivatives Involving Structure Guiding Unconventional Synthons: Experimental and Theoretical Studies. Crystals. 2022; 12(10):1442. https://doi.org/10.3390/cryst12101442

Chicago/Turabian Style

Sharma, Pranay, Rosa M. Gomila, Antonio Frontera, Miquel Barcelo-Oliver, and Manjit K. Bhattacharyya. 2022. "Dicarboxylic Acid-Based Co-Crystals of Pyridine Derivatives Involving Structure Guiding Unconventional Synthons: Experimental and Theoretical Studies" Crystals 12, no. 10: 1442. https://doi.org/10.3390/cryst12101442

APA Style

Sharma, P., Gomila, R. M., Frontera, A., Barcelo-Oliver, M., & Bhattacharyya, M. K. (2022). Dicarboxylic Acid-Based Co-Crystals of Pyridine Derivatives Involving Structure Guiding Unconventional Synthons: Experimental and Theoretical Studies. Crystals, 12(10), 1442. https://doi.org/10.3390/cryst12101442

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
