# Theoretical and Experimental Study of a Thermo-Mechanical Model of a Shape Memory Alloy Actuator Considering Minor Hystereses

^{1}

^{2}

^{3}

^{4}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Design Concept of the SMA Actuator

_{n}. Initially, the free ends of the SMA wire and the spring are connected at point A. At room temperature, the SMA wire is in martensite state and has maximum deformation x

_{m}= CA while the spring is at its minimum deformation state AE = x

_{n}− x

_{m}. This position is the equilibrium state of the actuator at room temperature T

_{∞}, which is assumed to be not higher than the final martensitic temperature M

_{f}.

_{m}to x

_{0}. The hardening forces the SMA wire to recover its original shape, which is its original undeformed length. The coordinate x

_{0}is the equilibrium position of the wire in the austenitic state corresponding to the maximally stretched spring. Once this coordinate is reached, the rise in wire temperature does not change the displacement of point A because the final austenitic temperature is reached. The whole volume of the wire is transformed into austenite, and after reaching this temperature, there are no structural-phase changes. After the voltage is switched off, the wire gradually lowers its temperature, turns into martensite and returns to the maximum stretched position corresponding to the point x

_{m}.

## 3. Development of One-Dimensional Dynamic Model of the Actuator

#### 3.1. Mathematical Modelling of the SMA Actuator Dynamics

_{0}= BC (see Figure 1), and its longitudinal deformation is x. Then, the length s and the strain ε of the wire are

_{s}(x,T) is the force in the SMA wire, ρ

_{s}is the density of the SMA wire, V

_{s}(x) is the volume of SMA wire, c

_{p}is the heat capacity of the wire, A

_{s}(x) is the surface area of the wire, h

_{c}is the convective heat transfer coefficient, ${T}_{\infty}$ is the room temperature; R(x,T) is the resistance of SMA wire and u is the voltage applied to the ends of the wire. The temperature dependence of h

_{c}is neglected.

_{c}is the electrical resistivity of the SMA wire and A

_{w}is its cross-sectional area.

_{0}is the initial diameter of the SMA wire and μ is the Poisson ratio. Considering the above relations, the system (3) is rewritten in the form

_{R}(T) is the temperature-dependent stiffness of the SMA wire presented by the following equation

_{m}, E

_{T}and E

_{d}are Young’s modulus of fully twined, partly twined, and detwinned martensite, respectively; ${\epsilon}_{m}^{y}$ is the yield strain of the twined martensite; ${\epsilon}_{m}^{d}$ is the minimum strain of detwinned martensite; E

_{a}is Young’s modulus of austenite.

_{s}is about 8%, the manufacturer recommends no more than 2.5% for extending the wire lifecycle [27]:

_{1}≈ 1.0165, k

_{2}≈ 1.042 and k

_{2}/k

_{1}≈ 1.025. These results show that the errors due to simplification of the equation are 1.065% for the time constant and 2.5% for the limit temperature, which values are entirely acceptable.

_{s}V

_{0}c

_{p}, one obtains:

^{E}and ${T}^{E}$ of the system (27) are found accepting $\ddot{x}=0$, $\dot{x}=0$ and $\dot{T}=0$:

#### 3.2. Mathematical Modelling of the Minor and Sub Minor Hystereses

_{m}is the volume of the martensite in the total volume vs. of the SMA wire. According to Madill’s model [41]:

_{0}are the current and tensile stress at $\theta =0$, ${k}_{m}^{C}$, ${k}_{m}^{H}$ referred to as temperature constants of cooling and heating, respectively, and M

_{s}, M

_{f}, A

_{s}, A

_{f}are the start martensite, final martensite, start austenite and final austenite temperatures correspondingly. The functions ${R}_{ma}^{C}\left(t\right)$, ${R}_{mb}^{C}\left(t\right)$, ${R}_{ma}^{H}\left(t\right)$, and remain constant if the wire is just being heated or just being cooled, and changes only if the sign of the fluctuation of the temperature changes.

_{s}, M

_{f}] or [A

_{f}, A

_{s}], the functions depend on the values of the martensite fraction ${R}_{m}^{f}$ and temperature T

_{f}at which the sign of the temperature fluctuation changes. If the sign of the temperature fluctuation changes from positive to negative, i.e., from heating to cooling, then

_{s}, A

_{s}]. In this case, the hysteresis does not exist, but a jump discontinuity in the point T

_{f}of change of the fluctuation sign of the relative martensite fraction is avoided. In Figure 3, a case is illustrated where a discontinuity is possible. If M

_{s}< T

_{f}< A

_{s}then, after moving from points A to B during heating, a cooling appears at point T

_{f}. If (14) is applied, the cooling process starts from point B, and the jump BC appears, followed by a smooth cooling along the curve DEA.

_{m}can be considered if cooling from a temperature T > A

_{f}is present and for ${T}_{f}\in \left[{M}_{s},{A}_{s}\right]$ a heating appears.

_{0}is when the SMA changes from austenite to martensite, i.e., the cooling process is present, and the SMA is in austenite phase.

_{i}(i = 1, 2, …, 14). A numerical algorithm for determining the fluctuation points is developed, and the results are depicted in Figure 5b. According to the algorithm, the sign of the temperature derivative as a function of time is calculated by the function $sd{T}_{i}=sign\dot{T}$ and its values are ±1. An additional function $sdd{T}_{i}=sd{T}_{i+1}-sd{T}_{i}$ that successively finds the differences of two adjacent signums of the temperature derivatives indicates that a fluctuation occurs if it obtains a value of ±2. Depending on where the point of the temperature fluctuation is, the appropriate equation for calculating the relative martensitic fraction is applied. The two graphs in Figure 6 show both cases for possible calculations of martensite fraction. If the model (36) is used (Figure 6a) it can be distinguished 10 cases of jump points. The relative martensite fraction is a smooth function only for the points T

_{12}÷ T

_{14}which lies outside the temperature interval [M

_{f},A

_{f}]. In Figure 6b, the points obtained using the improved model are shown. As one can see, the degenerated hysteresis loop appears for points T

_{0}÷ T

_{8}. Points T

_{9}and T

_{10}describe a sub minor hysteresis loop, and a minor loop starts from point T

_{11}.

## 4. Numerical Study of the System Behaviour Using Pulse Width Modulation Control

_{0}is the amplitude of the rectangular pulse, f is the frequency of the waveform, n = trunc(t × f) is the consecutive number of the period, $0<z<1$ is the duty cycle of the waveform. The function trunc(k) returns the greatest integer less than or equal to k.

_{p}= 900 J/(kg·°C), h

_{c}= 18 W/(m

^{2}·°C). The dashed line (pos.1) depicts the temperature time evolution without using PWM. As can be seen, the temperature reaches its limit value (19). In the same graph, the temperature when PWM is applied is shown (pos.2). The parts of the curve in which the wire is heated are shown in red, and the parts in which the cooling is performed are shown in blue. The limit temperature (19) cannot be reached when PWM is used due to cooling sections depending on duty cycle value. Maximum wire temperature and temperature increasing rates are controlled by changing the duty cycle value, which can improve the control of the actuator, especially in cases where a smoother operation is required. The limited cooling rate is a major factor that limits the actuator’s performance [44].

## 5. Experimental Studies and Validation of the Model

## 6. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## References

- Jani, J.M.; Leary, M.; Subic, A.; Gibson, M.A. A review of shape memory alloy research, applications and opportunities. Mater. Des.
**2014**, 56, 1078–1113. [Google Scholar] [CrossRef] - Todorov, T.; Mitrev, R.; Penev, I. Force analysis and kinematic optimization of a fluid valve driven by shape memory alloys. Rep. Mech. Eng.
**2020**, 1, 61–76. [Google Scholar] [CrossRef] - Petrini, L.; Migliavacca, F. Biomedical Applications of Shape Memory Alloys. J. Metall.
**2011**, 2011, 501483. [Google Scholar] [CrossRef] - Anjum, N.; He, J.; Ain, Q.; Tian, D. Li-He’s modified homotopy perturbation method for doubly-clamped electrically actuated microbeams-based microelectromechanical system. Facta Univ.-Ser. Mech. Eng.
**2021**, in press. [Google Scholar] [CrossRef] - Noll, M.-U.; Lentz, L.; von Wagner, U. On the discretization of a bistable cantilever beam with application to energy harvesting. Facta Univ.-Ser. Mech. Eng.
**2019**, 17, 125–139. [Google Scholar] [CrossRef] - Marinković, D.; Rama, G.; Zehn, M. Abaqus implementation of a corotational piezoelectric 3-node shell element with drilling degree of freedom. Facta Univ.-Ser. Mech. Eng.
**2019**, 17, 269–283. [Google Scholar] [CrossRef] [Green Version] - Tanaka, K.A. Thermomechanical sketch of shape memory effect: One-dimensional tensile behavior. Res. Mech.
**1986**, 18, 251–263. [Google Scholar] - Liang, C.; Rogers, C.A. One-dimensional thermomechanical constitutive relations for shape memory material. J. Intell. Mater. Syst. Struct.
**1990**, 1, 207–234. [Google Scholar] [CrossRef] - Brinson, L.C. One dimensional constitutive behavior of shape memory alloys: Thermomechanical derivation with nonconstant material functions and redefined martensite internal variable. J. Intell. Mater. Syst. Struct.
**1993**, 4, 229–242. [Google Scholar] [CrossRef] - Sayyaadi, H.; Zakerzadeh, M.R.; Salehi, H. A comparative analysis of some one-dimensional shape memory alloy constitutive models based on experimental tests. Sci. Iran.
**2012**, 19, 249–257. [Google Scholar] [CrossRef] [Green Version] - Achenbach, M. A model for an alloy with shape memory. Int. J. Plast.
**1989**, 5, 371–395. [Google Scholar] [CrossRef] - Seelecke, S.; Müller, I. Shape memory alloy actuators in smart structures: Modeling and simulation. Appl. Mech. Rev.
**2004**, 57, 23–46. [Google Scholar] [CrossRef] - Roh, J.-H. Thermomechanical Modeling of Shape Memory Alloys with Rate Dependency on the Pseudoelastic Behavior. Math. Probl. Eng.
**2014**, 2014, 204165. [Google Scholar] [CrossRef] - Kurzawa, M.; Stachowiak, D. Investigation on thermo-mechanical behavior of shape memory alloy actuator. Arch. Electr. Eng.
**2017**, 66, 751–760. [Google Scholar] [CrossRef] - Sedlák, P.; Frost, M.; Benešová, B.; Ben Zineb, T.; Šittner, P. Thermomechanical model for NiTi-based shape memory alloys including R-phase and material anisotropy under multi-axial loadings. Int. J. Plast.
**2012**, 39, 132–151. [Google Scholar] [CrossRef] - Tanaka, K.; Nishimura, F.; Tobushi, H. Phenomenological Analysis on Subloops in Shape Memory Alloys Due to Incomplete Transformations. J. Intell. Mater. Syst. Struct.
**1994**, 5, 487–493. [Google Scholar] [CrossRef] - Segui, C.; Cesari, E.; Pons, J. Phenomenological modelling of the hysteresis loop in thermoelastic martensitic transformations. Mater. Trans.
**1992**, 33, 650–658. [Google Scholar] - Liu, M.; Hao, L.; Zhang, W.; Zhao, Z. A novel design of shape-memory alloy-based soft robotic gripper with variable stiffness. Int. J. Adv. Robot. Syst.
**2020**, 17, 172988142090781. [Google Scholar] [CrossRef] - Manfredi, L.; Huan, Y.; Cuschieri, A. Low power consumption mini rotary actuator with SMA wires. Smart Mater. Struct.
**2017**, 26, 115003. [Google Scholar] [CrossRef] - Abuzied, H.; Abbas, A.; Awad, M.; Senbel, H. Usage of shape memory alloy actuators for large force active disassembly applications. Heliyon
**2020**, 6, e04611. [Google Scholar] [CrossRef] - Chaitanya, S.K.; Dhanalakshmi, K. Control of Shape Memory Alloy Actuated Gripper using Pulse-Width Modulation. IFAC Proc. Vol.
**2014**, 47, 408–413. [Google Scholar] [CrossRef] - Soother, D.K.; Daudpoto, J.; Chowdhry, B.S. Challenges for practical applications of shape memory alloy actuators. Mater. Res. Express
**2020**, 7, 073001. [Google Scholar] [CrossRef] - Prechtl, J.; Seelecke, S.; Motzki, P.; Rizzello, G. Self-Sensing Control of Antagonistic SMA Actuators Based on Resistance-Displacement Hysteresis Compensation. In Proceedings of the ASME 2020 Conference on Smart Materials, Adaptive Structures and Intelligent Systems, Virtual, Online, 15 September 2020. [Google Scholar] [CrossRef]
- Ujihara, M.; Carman, G.; Lee, D. Thermal energy harvesting device using ferromagnetic materials. Appl. Phys. Lett.
**2007**, 91, 093508. [Google Scholar] [CrossRef] - Elahinia, M.; Esfahani, E.; Wang, S. Properties and Applications Control of SMA Systems: Review of the State of the Art Shape Memory Alloys: Manufacture, Properties and Applications; Nova Science Publishers: Hauppauge, NY, USA, 2010; pp. 49–68. [Google Scholar]
- Featherstone, R.; Teh, Y.H. Improving the speed of shape memory alloy actuators by faster electrical heating. In Experimental Robotics IX; Springer: Berlin/Heidelberg, Germany, 2006; pp. 67–76. [Google Scholar]
- Dynalloy, Inc. Technical Characteristics of Flexinol Actuator Wire; Dynalloy, Inc.: Irvine, CA, USA, 2018; Available online: https://www.dynalloy.com/pdfs/TCF1140.pdf (accessed on 1 September 2021).
- Villoslada, A.; Escudero, N.; Martín, F.; Flores, A.; Rivera, C.; Collado, M.; Moreno, L. Position control of a shape memory alloy actuator using a four-term bilinear PID controller. Sens. Actuator A Phys.
**2015**, 236, 257–272. [Google Scholar] [CrossRef] [Green Version] - Kha, N.B.; Ahn, K.K. Position Control of Shape Memory Alloy Actuators by Using Self Tuning Fuzzy PID Controller. In Proceedings of the 2006 1ST IEEE Conference on Industrial Electronics and Applications, Singapore, 24–26 May 2006; pp. 1–5. [Google Scholar]
- Samadi, S.; Koma, A.Y.; Zakerzadeh, M.R.; Heravi, F.N. Control an SMA-actuated rotary actuator by fractional order PID controller. In Proceedings of the 5th RSI International Conference on Robotics and Mechatronics (ICRoM), Tehran, Iran, 25–27 October 2017. [Google Scholar]
- Ma, N.; Song, G. Control of shape memory alloy actuator using pulse width modulation. Smart Mater. Struct.
**2003**, 12, 12712. [Google Scholar] [CrossRef] [Green Version] - Kim, M.; Shin, Y.J.; Lee, J.Y.; Chu, W.S.; Ahn, S.H. Pulse width modulation as energy-saving strategy of shape memory alloy based smart soft composite actuator. Int. J. Precis. Eng. Manuf.
**2017**, 18, 895–901. [Google Scholar] [CrossRef] - Motzki, P.; Gorges, T.; Kappel, M.; Schmidt, M.; Rizzello, G.; Seelecke, S. High-speed and high-efficiency shape memory alloy actuation. Smart Mater. Struct.
**2018**, 27, 075047. [Google Scholar] [CrossRef] - Price, A.D.; Jnifene, A.; Naguib, H.E. Design and control of a shape memory alloy based dexterous robot hand. Smart Mater. Struct.
**2007**, 16, 1401. [Google Scholar] [CrossRef] - Pan, C.H.; Wang, Y.B.; Pan, H.Y. Development of dynamically artificial flowers driven by shape memory alloy and pulse width modulation. In Proceedings of the 2015 IEEE International Workshop on Advanced Robotics and Its Social Impacts (ARSO), Lyon, France, 30 June–2 July 2015; pp. 1–6. [Google Scholar]
- Song, G.; Ma, N. Control of Shape Memory Alloy Actuators Using Pulse-Width Pulse-Frequency (PWPF) Modulation. J. Intell. Mater. Syst. Struct.
**2003**, 14, 15–22. [Google Scholar] [CrossRef] - Song, H.; Kubica, E.; Gorbet, R. Resistance modelling of SMA wire actuators. In Proceedings of the International Workshop Smart Materials, Structures & NDT in Aerospace, Montreal, QC, Canada, 2–4 November 2011. [Google Scholar]
- Sittner, P.; Dayananda, G.N.; Brz-Fernandes, F.M.; Mahesh, K.K.; Novak, V. Electric resistance variation of NiTi shape memory alloy wires in thermomechanical tests: Experiments and simulation. Mater. Sci. Eng.
**2008**, 481–482, 127–133. [Google Scholar] - Talebi, H.; Golestanian, H.; Zakerzadeh, M.R.; Homaei, H. Thermoelectric Heat Transfer Modeling of Shape Memory Alloy Actuators. In Proceedings of the 22st Annual International Conference on Mechanical Engineering-ISME2014, Ahvaz, Iran, 22–24 April 2014; Shahid Chamran University: Ahvaz, Iran, 2014. ISME2014-2206. [Google Scholar]
- Ikuta, K.; Tsukamoto, M.; Hirose, S. Mathematical model and experimental verification of shape memory alloy for designing micro actuator. In Proceedings of the 1991 IEEE Micro Electro Mechanical Systems, Nara, Japan, 30 January–2 February 1991; pp. 103–108. [Google Scholar]
- Madill, D.R.; David, W. Modeling and L2-Stability of a Shape Memory Alloy Position Control System. IEEE Trans. Control Syst. Technol.
**1998**, 6, 473–481. [Google Scholar] [CrossRef] - Mitrev, R.; Todorov, T.; Fursov, A.; Fomichev, V.; Il’in, A. A Case Study of Combined Application of Smart Materials in a Thermal Energy Harvester with Vibrating Action. J. Appl. Comput.
**2021**, 7, 327–381. [Google Scholar] - Todorov, T.S.; Fursov, A.S.; Mitrev, R.P.; Fomichev, V.V.; Valtchev, S.; Il’in, A.V. Energy Harvesting with Thermally Induced Vibrations in Shape Memory Alloys by a Constant Temperature Heater. IEEE/ASME Trans. Mechatron.
**2021**. [Google Scholar] [CrossRef] - Nizamani, A.M.; Daudpoto, J.; Nizamani, M.A. Development of Faster SMA Actuators Shape Memory Alloys–Fundamentals and Applications; IntechOpen: London, UK, 2017; pp. 105–126. [Google Scholar]
- Mitrev, R.P.; Todorov, T.S. A Case Study of Experimental Evaluation of the Parameters of Shape Memory Alloy Wires. In Proceedings of the 10th International Scientific Conference on Engineering, Technologies and Systems, TechSys 2021, Plovdiv, Bulgaria, 27–29 May 2021. in press. [Google Scholar]
- Ralev, Y.; Todorov, T. Experimental setup for testing shape memory alloys. Bulg. J. Eng. Des.
**2015**, 27, 5–9. [Google Scholar] - Szykowny, S.; Elahinia, M.H. Heat transfer analysis of shape memory alloy actuators. In Proceedings of the IMECE2006, ASME International Mechanical Engineering Congress and Exposition, Chicago, IL, USA, 5–10 November 2006. [Google Scholar]

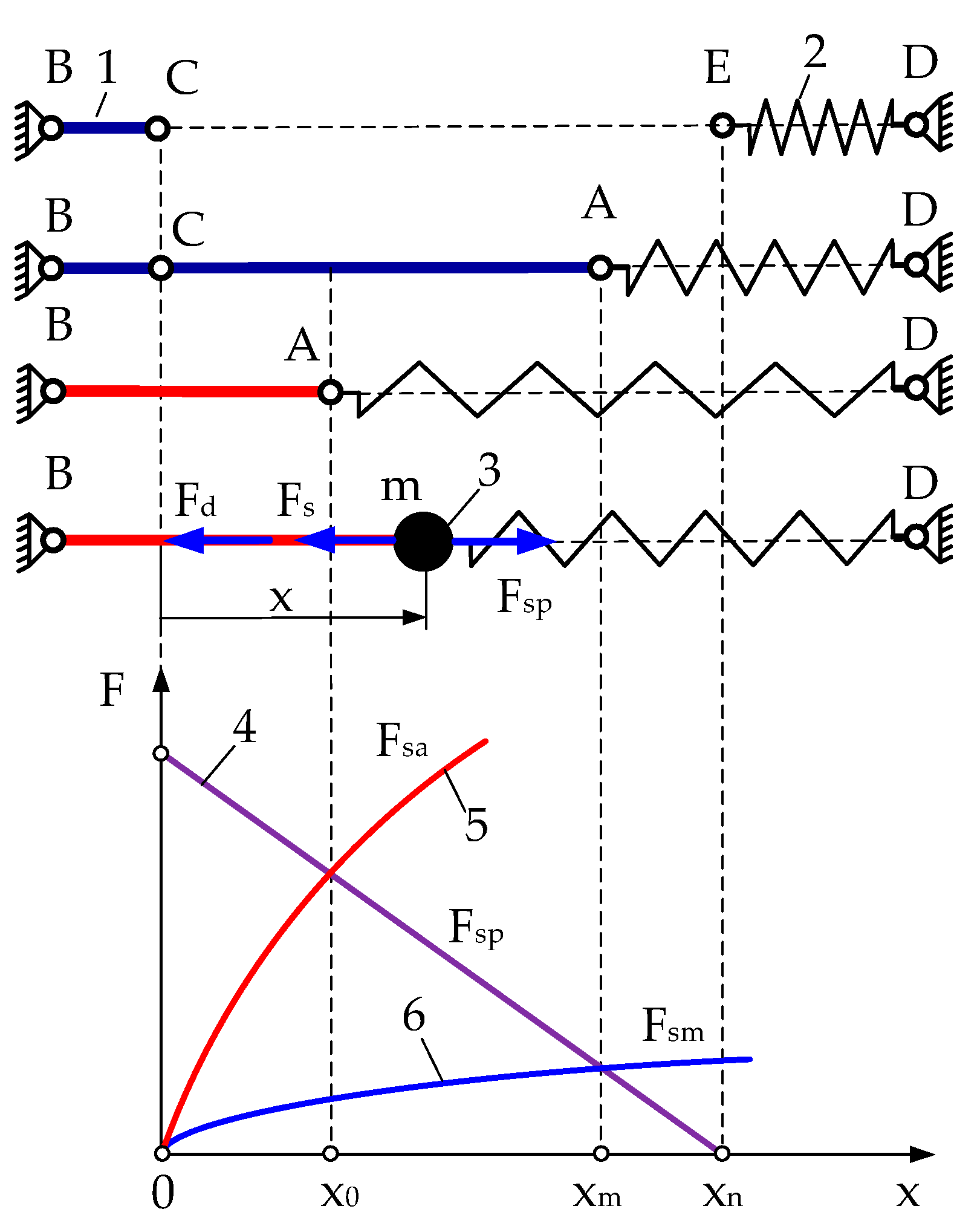

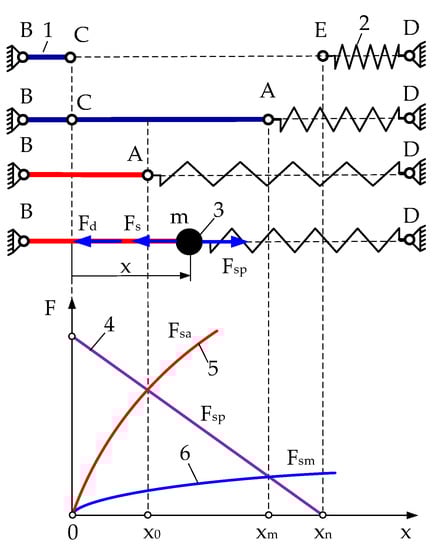

**Figure 1.**Schematic diagram of the SMA actuator: 1—SMA wire, 2—bias spring, 3—point mass, 4—force-deformation diagram of the spring, 5—force—deformation diagram of the wire in the austenitic state, 6—force—deformation diagram of the wire in the martensitic state, F

_{sp}—spring force, F

_{d}—damping force, F

_{s}—SMA wire force.

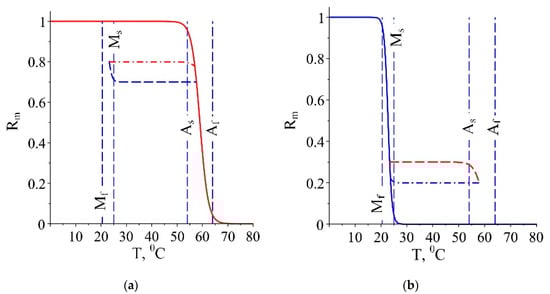

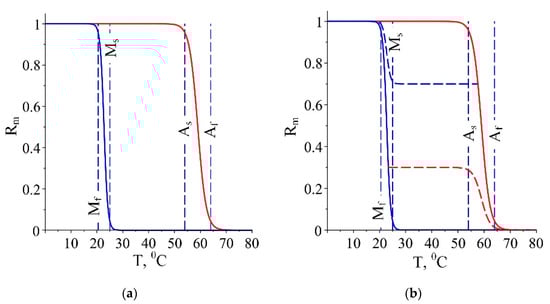

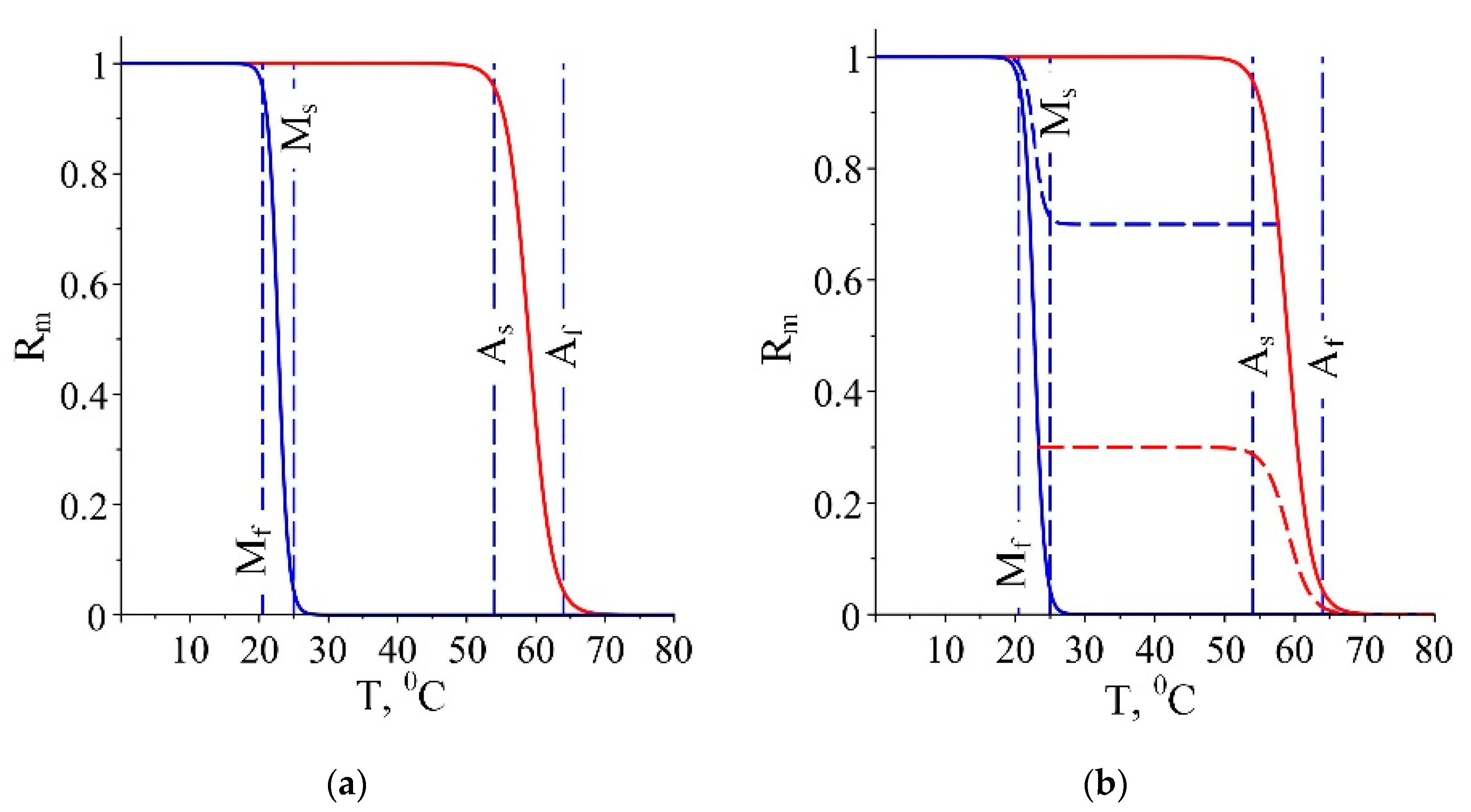

**Figure 2.**Diagram of relative martensitic fraction R

_{m}vs. temperature

**T**: (

**a**) Major hysteresis if the sign of the temperature fluctuation changes when M

_{f}> T > A

_{f}; (

**b**) Minor hystereses if the change of the sign of the temperature fluctuation is between M

_{f}and M

_{s}or A

_{s}and A

_{f}.

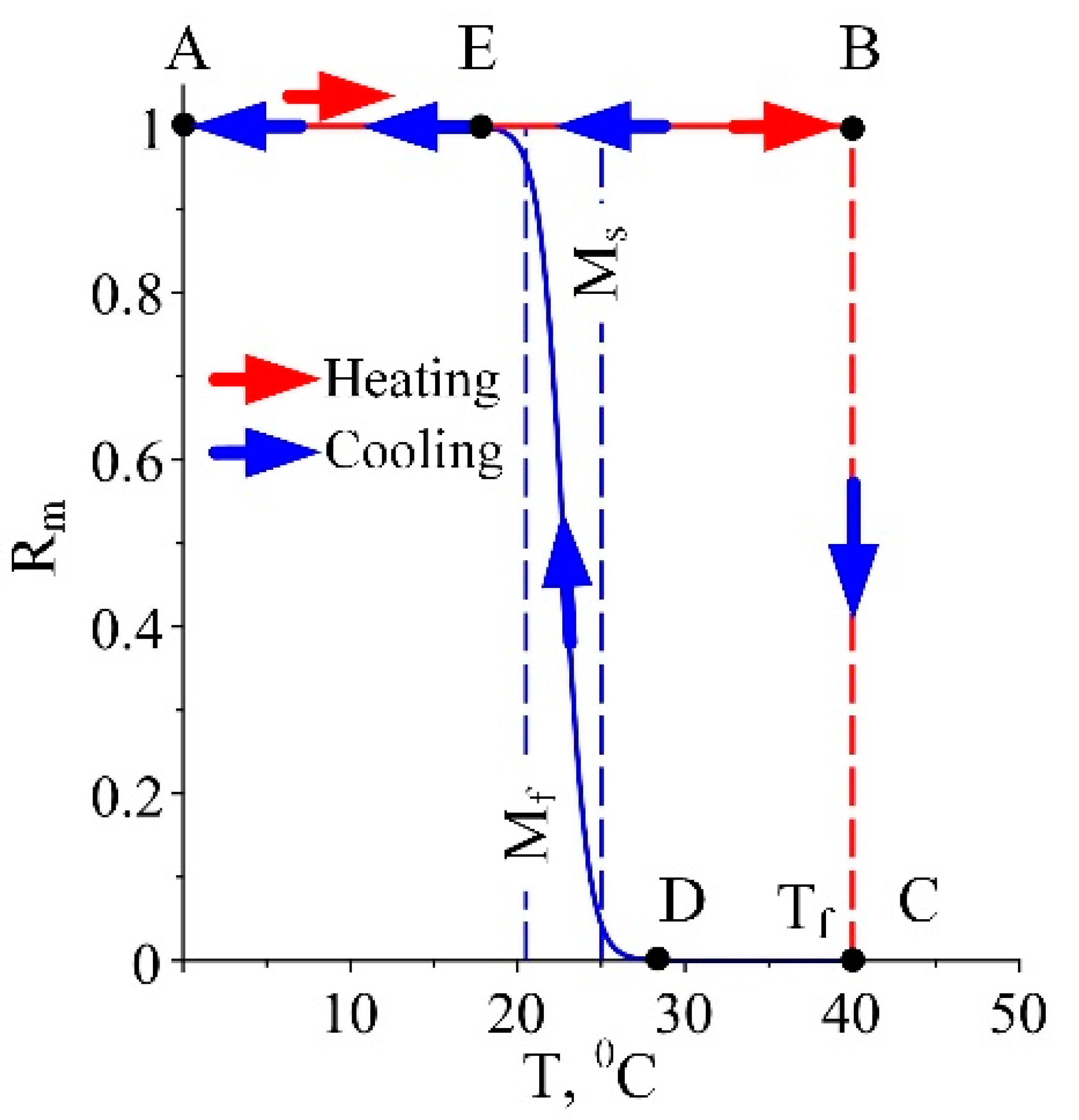

**Figure 3.**A jump discontinuity in the martensite fraction when the change of the sign of the temperature fluctuation is in the interval [M

_{s}, A

_{s}].

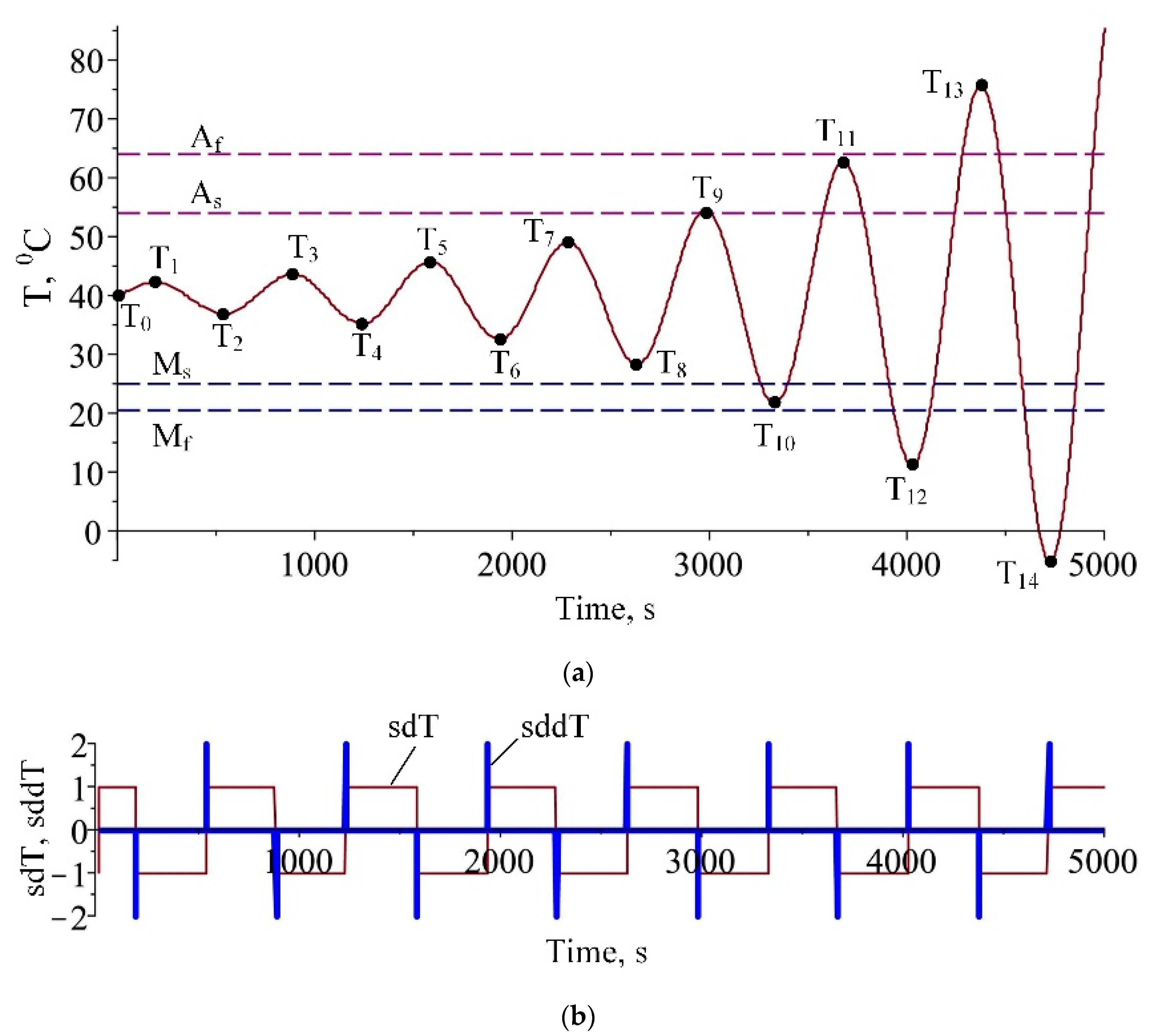

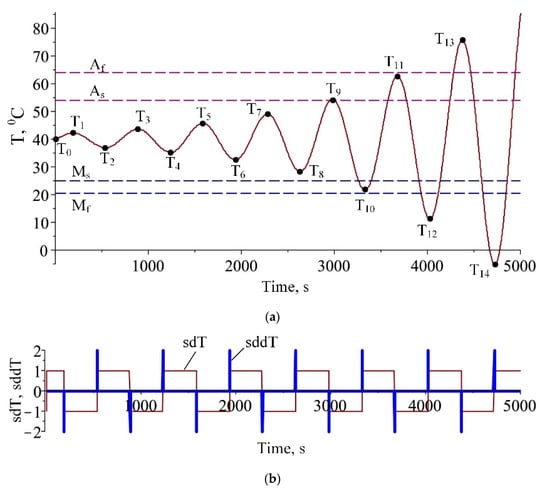

**Figure 5.**Graph of the test function: (

**a**) graph of the temperature; (

**b**) temperature indicators sdT and sddT.

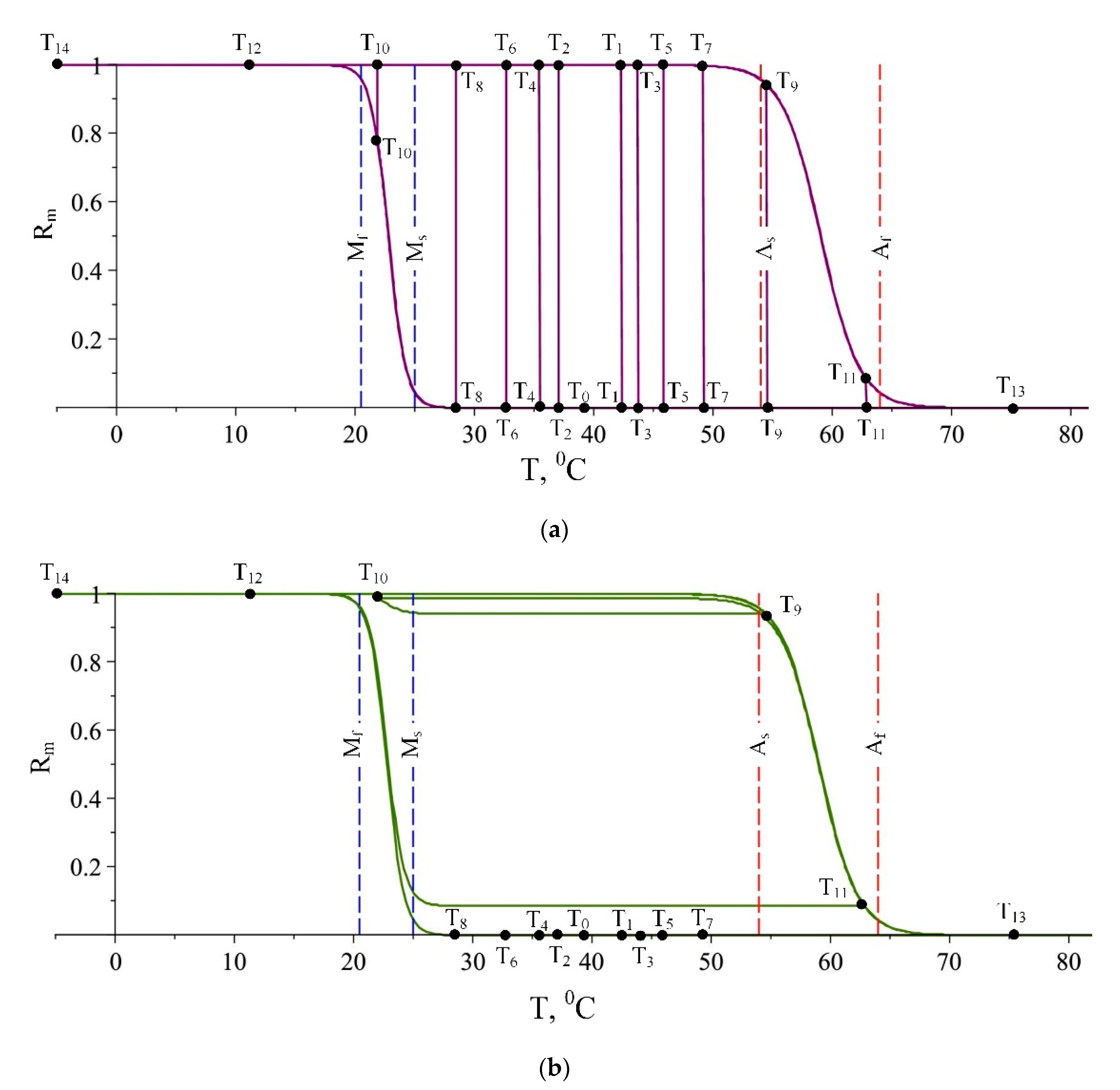

**Figure 6.**Calculated relative martensitic fraction R

_{m}: (

**a**) The case without considering the minor and sub minor loops; (

**b**) The case with minor and sub minor loops.

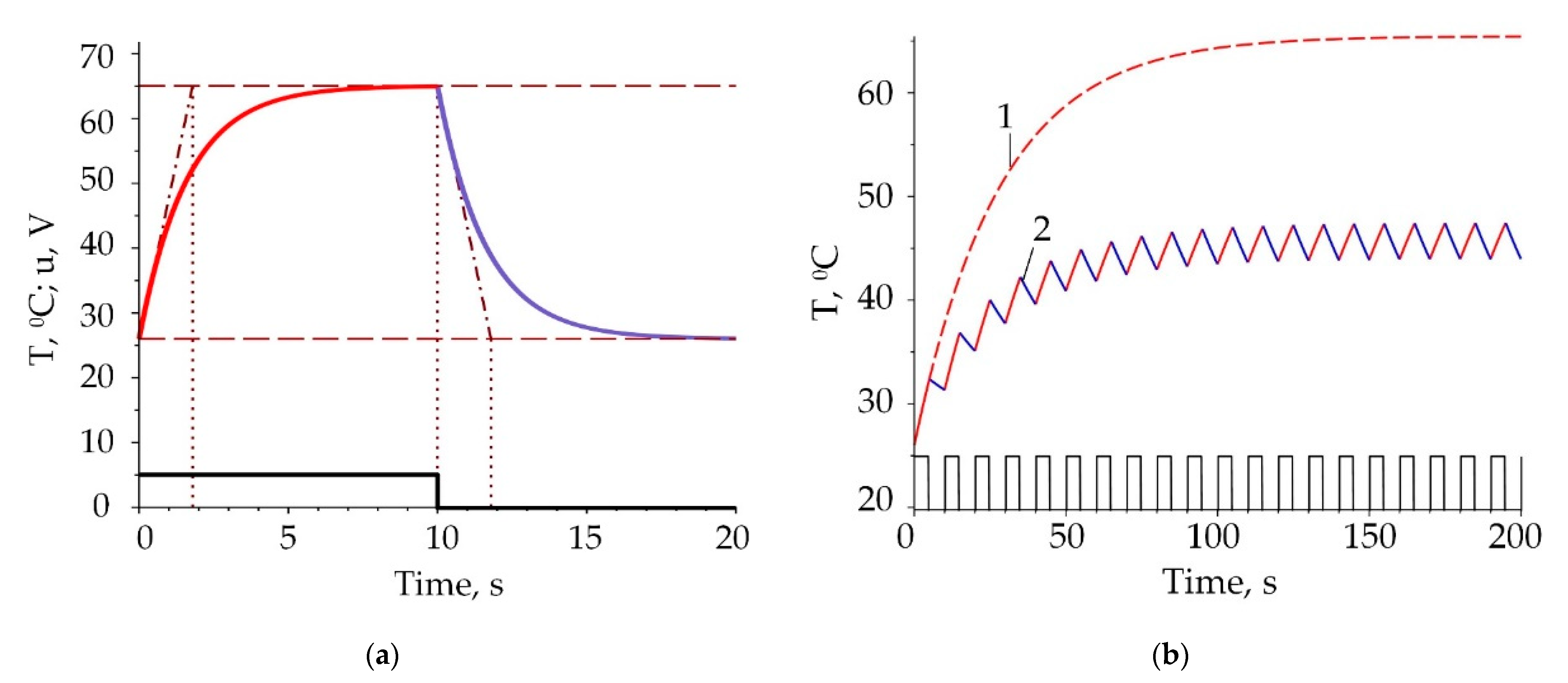

**Figure 7.**Time evolution of the SMA wire temperature: (

**a**) at f = 0.05 Hz, z = 0.5; (

**b**) at f = 0.1 Hz, z = 0.5.

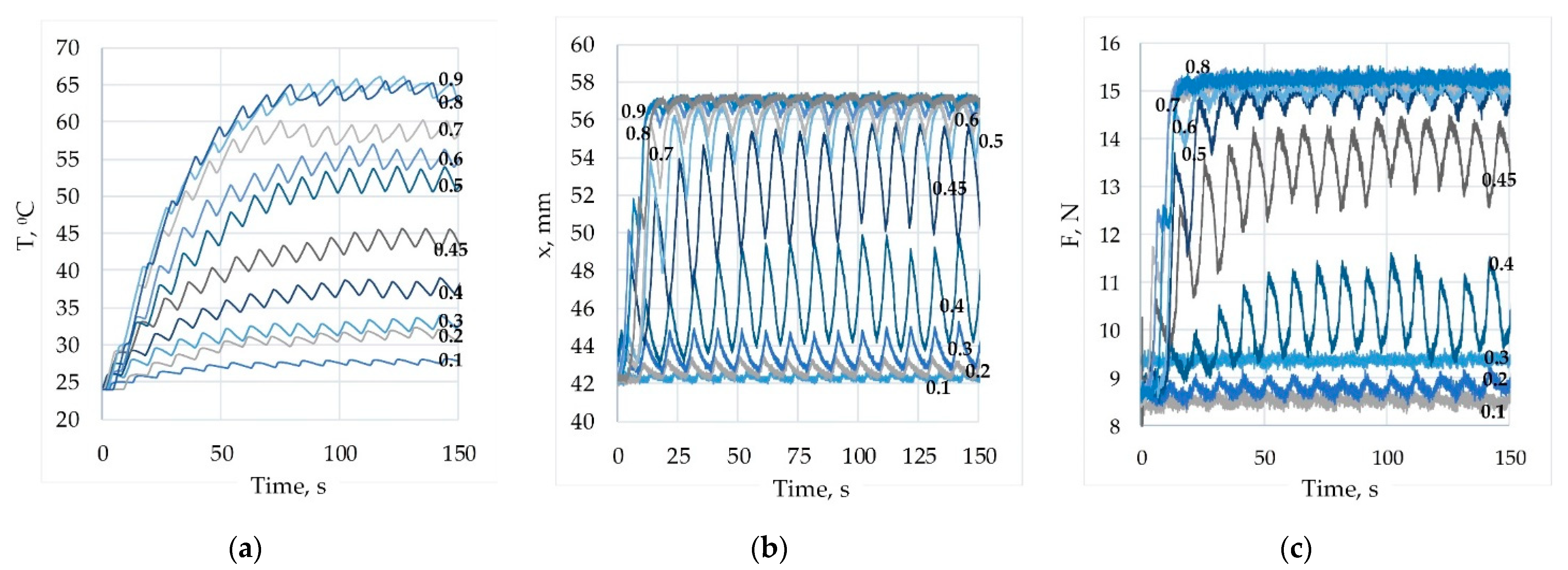

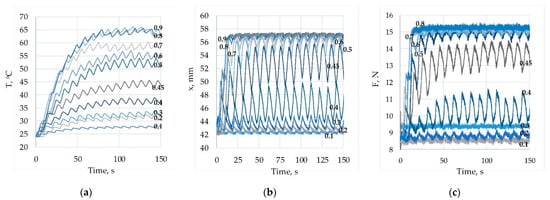

**Figure 9.**Parametric study of the temperature T (

**a**), displacement x (

**b**) and SMA force F (

**c**) for change of duty cycle from 0.1 to 0.9 and f = 0.1 Hz.

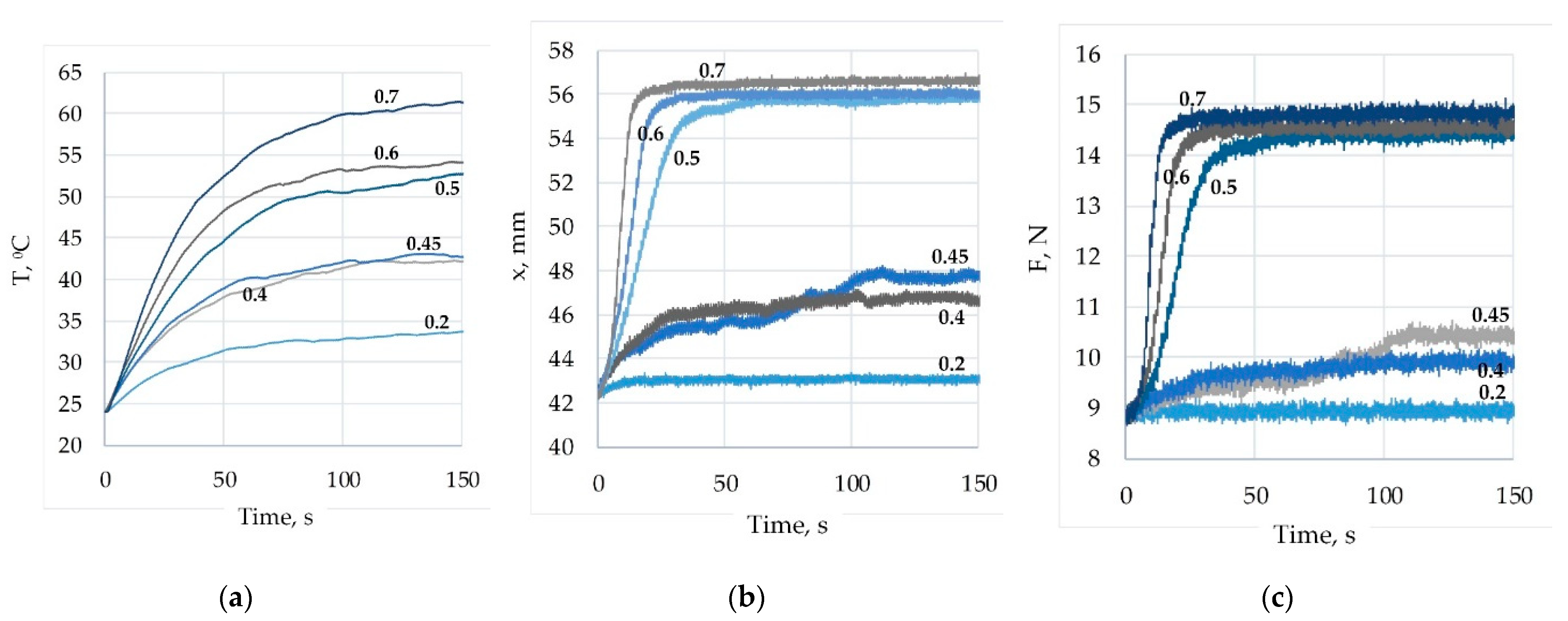

**Figure 10.**Parametric study of the temperature T (

**a**), displacement x (

**b**) and SMA force F (

**c**) for change of duty cycle from 0.1 to 0.7 and f = 1 Hz.

**Figure 11.**Parametric study of the temperature T (

**a**), displacement x (

**b**) and SMA force F (

**c**) for change of duty cycle from 0.1 to 0.7 and f = 10 Hz.

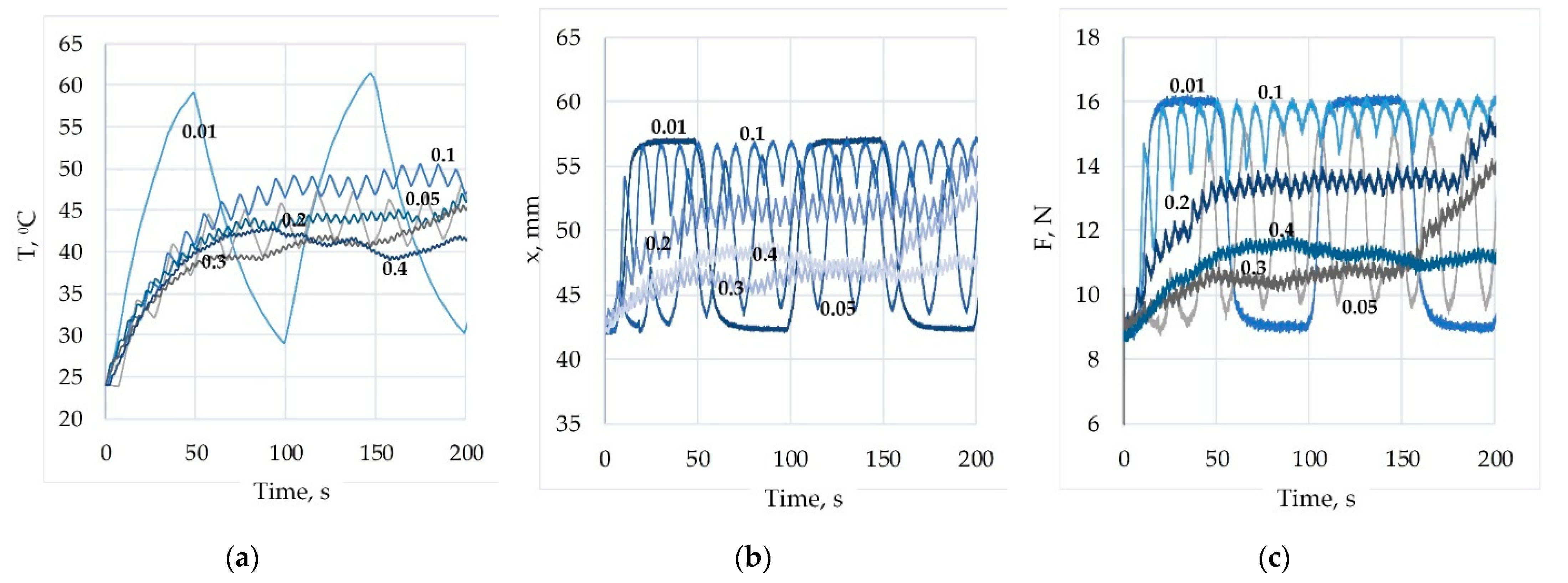

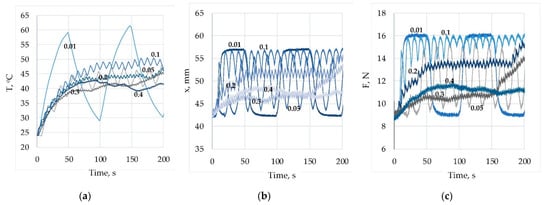

**Figure 12.**Parametric study of the temperature T (

**a**), displacement x (

**b**) and SMA force F (

**c**) for different frequencies and z = 0.5.

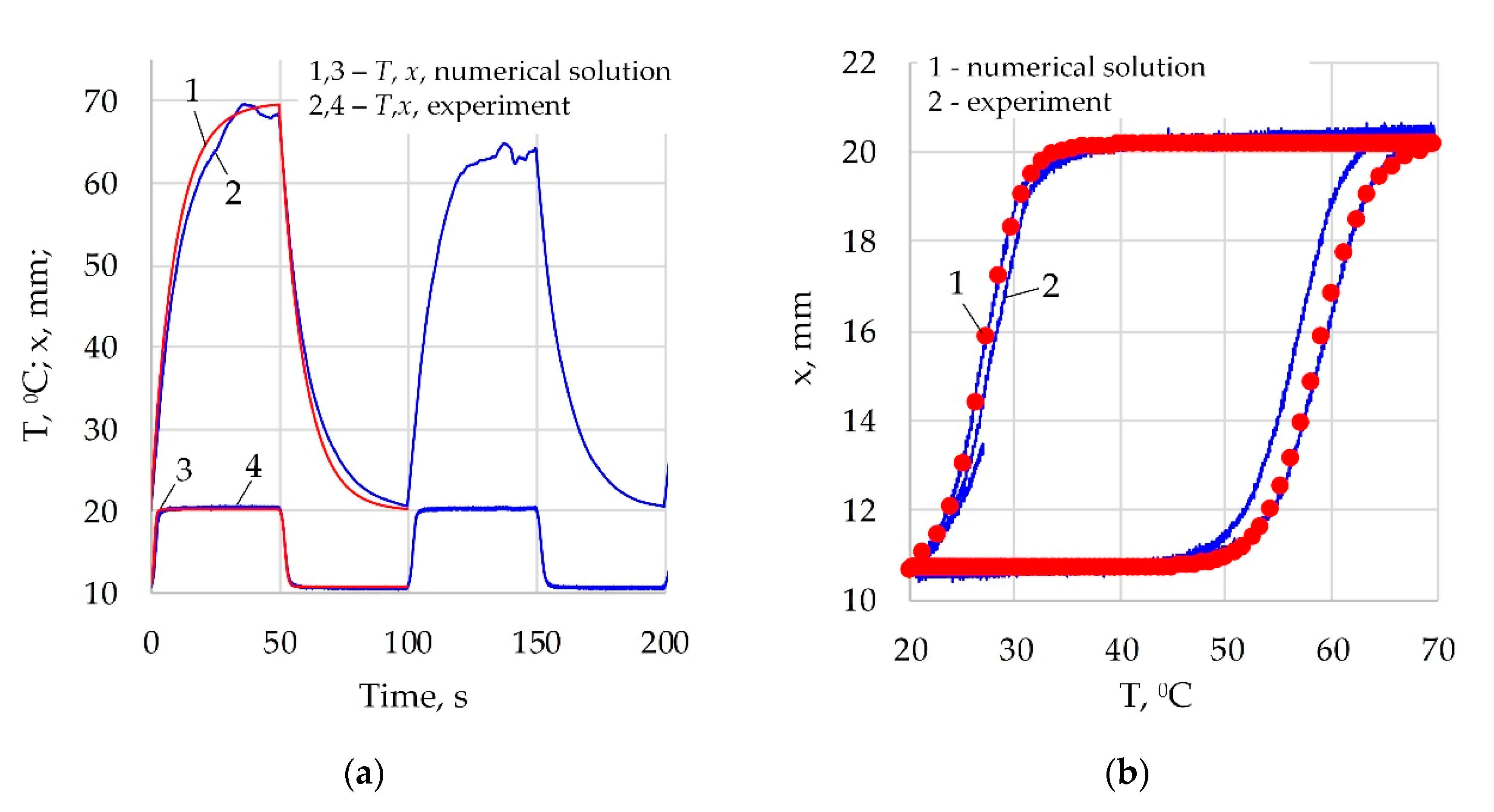

**Figure 13.**Comparison of experimental and numerical results: (

**a**) time evolution of the displacement x and temperature T of the wire; (

**b**) temperature hysteresis.

Parameter | Notation | Value | Unit |
---|---|---|---|

Diameter of SMA wire | d | 0.00035 | m |

Initial length of SMA wire | s_{0} | 0.160 | m |

Voltage | u | 5 | V |

Resistance | R | 52 | Ω |

Density of SMA | ${\rho}_{s}$ | 6450 | kg/m^{3} |

Specific heat | ${c}_{p}$ | 200 | J/(kg·°C) |

Convection heat transfer coefficient | ${h}_{c}$ | 70 | W/(m^{2}·°C) |

Room temperature | 26 | °C | |

Martensite Young’s Module | ${E}_{m}$ | 21.7 × 10^{9} | Pa |

Young’s modulus of NiTi at partly twinned martensite | ${E}_{T}$ | 0.56 × 10^{9} | Pa |

Young’s modulus of NiTi at detwinned martensite | ${E}_{d}$ | 11.1 × 10^{9} | Pa |

Austenite Young’s modulus | ${E}_{a}$ | 55.5 × 10^{9} | Pa |

Yield strain of twined martensite | ${\epsilon}_{m}^{y}$ | 0.0024 | - |

Minimum strain of detwinned martensite | ${\epsilon}_{m}^{d}$ | 0.044 | - |
