Synthesis and Spectroscopy of Buckminsterfullerene Cation C60+ in a Cryogenic Ion Trapping Instrument

School of Chemistry, University of Edinburgh, Joseph Black Building, David Brewster Road, Edinburgh EH9 3FJ, UK
Author to whom correspondence should be addressed.
Crystals 2021, 11(9), 1119;
Submission received: 19 August 2021 / Revised: 9 September 2021 / Accepted: 10 September 2021 / Published: 14 September 2021
(This article belongs to the Special Issue Applications of Fullerene Material)


The assignment of several diffuse interstellar bands in the near-infrared to C 60 + ions present at high abundance in space has renewed interest in the astrochemical importance of fullerenes and analogues. Many of the latter have not been produced in macroscopic quantities, and their spectroscopic properties are not available for comparison with astronomical observations. An apparatus has been constructed that combines laser vaporisation synthesis with spectroscopic characterisation at low temperature in a cryogenic trap. This instrument is used here to record the electronic absorptions of C 60 + produced by laser vaporisation of graphite. These are detected by (helium tagged) messenger spectroscopy in a cryogenic trap. By comparison with spectra obtained using a sublimed sample of Buckminsterfullerene, the observed data show that this isomer is the dominant C 60 + structure tagged with helium at m / z = 724 , indicating that the adopted approach can be used to access the spectra of other fullerenes and derivatives of astrochemical interest.

Graphical Abstract

1. Introduction

The discovery of fullerenes in 1985 resulted from attempts to simulate circumstellar conditions to see whether they promote the formation of long carbon-chain molecules detected by radioastronomy in dense clouds [1]. Ever since, speculations have been made about the role of this carbon allotrope in the context of the diffuse interstellar band (DIB) enigma. These are absorption features in the visible to near-infrared regions that are observed in the spectra of stars viewed through interstellar clouds. The molecules responsible remain (mostly) unidentified despite the detection of the first DIBs around 100 years ago [2].
In the early 1990s, condensed phase experiments using matrix isolation spectroscopy identified electronic absorptions of C 60 + in the near infrared [3,4,5,6]. Shortly after, this spectral region was observed toward reddened stars and two interstellar features were found [7] lying within the wavelength range that cold, gas phase, C 60 + was predicted to absorb [6]. The proposed assignment [7,8] of two DIBs at 9577 and 9632 Å to C 60 + present in diffuse clouds stimulated laboratory efforts to obtain spectroscopic data in the gas phase that would enable direct comparison with astronomical data. In 2015, experiments using a cryogenic 22-pole ion trap, in which gas phase C 60 + ions were cooled to internal temperatures below 10 K , were reported. These revealed a striking match to the 9577 and 9632 Å DIBs, thus providing strong evidence for the presence of C 60 + in the interstellar medium (ISM) [9]. Moreover, additional vibronic bands in the laboratory spectrum were identified [9,10] and interstellar absorptions at the corresponding wavelengths observed [11]. These intrinsically weaker features were also recently detected using the Hubble Space Telescope, in data that are free from telluric H 2 O absorptions in this spectral region [12,13]. In addition, laboratory studies using a different technique, by embedding C 60 + ions in helium droplets, provided confirmation of the spectroscopic characteristics obtained from ion trapping experiments [14,15]. The topic is the subject of several recent reviews [16,17,18].
An important finding from these studies is the remarkable abundance of C 60 + in diffuse clouds, which is found to be similar to that of diatomics CH and CH+ [11]. Its high column density, N ( C 60 + ) = 2 × 10 13 cm 2 toward HD 183143 [10], suggests that there may be a significant number of other fullerenes and analogues present in the ISM. In addition, C 60 was detected earlier [19,20] in various nebulae (see [21] and references therein) by emission of infrared radiation. Recently, laboratory infrared spectra of C 60 + , C 60 H + , and C 70 H + were also reported and compared with observations [22,23,24].
In the context of their electronic transitions and the DIBs, fullerene analogues containing cosmically abundant atoms have long aroused interest [25]. Evaluation of their astrochemical significance, however, awaits measurement of their spectroscopic properties in the gas phase at low temperature, which is necessary for direct comparison with observational data in the visible. A prerequisite to obtaining such data is their synthesis. Many fullerenes and analogues have not yet been produced and isolated in macroscopic quantities, and lack a traditional organic chemistry synthesis route. An exception is the endohedrals containing rare gas atoms or small molecules inside the C 60 cage that have been synthesised using a “molecular surgery” approach (see, e.g., [26] and references therein), of which the electronic transitions of H 2 @ C 60 + and He @ C 60 + were recently reported [27,28].
The generation of some analogues such as endohedral metallofullerenes in the gas phase by laser vaporisation has been reported following analysis of mass spectra (e.g., [29] and references therein). Following their synthesis, a major challenge associated with spectroscopic detection is cooling to low temperatures such that only the lowest vibrational level in the ground electronic state is populated. This is especially important for comparison with astronomical observations, where nonpolar species reach 30–80 K. Due to its 174 vibrational degrees of freedom, cooling C 60 is a formidable experimental task, and traditional methods such as supersonic expansions suffer from the limited number of collisions [30]. On the other hand, buffer gas cooling has been successful at relaxing the internal modes of C 60 + in an ion trap [9], and more recently those of C 60 in a collision cell [31]. In the ion trap study, number densities of helium buffer gas of 4 × 10 15 cm 3 coupled with an interaction time of >500 ms led to millions of collisions with cryogenic helium. This technique was exploited to prepare C 60 + ions for spectroscopic characterisation, finally leading to its confirmation as the carrier of the 9577 and 9632 Å DIBs [9].
In this contribution, a cryogenic ion trapping instrument is used to spectroscopically demonstrate the formation of the Buckminsterfullerene cation, C 60 + , as the dominant structure with m / z = 720 generated by laser vaporisation of graphite, paving the way to studies on other fullerenes and analogues of astrochemical interest. The experiment is described in Section 2, results are compared with previous work using sublimed C 60 in Section 3, and conclusions are given in Section 4.

2. Experimental

Ions are generated by laser vaporisation of a graphite rod ( 99.997 % , particle size: 20–100 μ m ) using the frequency-tripled emission of a pulsed Nd:YAG laser source. Pulses of 20 mJ in energy and 7 ns in duration are focused onto the rod as it is swept by a 50 μ s -long pulse of helium gas. Products of the interaction between the laser-induced plasma and the helium gas are expanded into a high vacuum chamber. Both the laser and the piezo valve are pulsed at a repetition rate of 10 Hz. The species produced are collimated by a skimmer before entering the first quadrupole mass filter of the laser vaporisation-diffuse interstellar band-solid quadrupole trap (LV-DIB-s4PT) instrument. A full description of the apparatus is given in [32].
For spectroscopic measurement, ions with m / z = 720 generated from 5 laser pulses are accumulated in the s4PT trap. Here they undergo collisions with cryogenically cold He atoms (nominal temperature, T nom = 4.2 K ), present with a number density of 10 15 cm 3 , during the first 500 ms of the trapping period. These conditions result in the formation of weakly bound complexes of C 60 + with helium, C 60 + He n . After pumping out the buffer gas, the ion cloud is exposed to radiation from a continuous wave diode laser, using a mechanical shutter to control the exposure time, before the trap contents are extracted and analysed by mass spectrometry. The number of ions on alternate trapping cycles are monitored with ( N i ) and without ( N 0 ) laser radiation (<1 mW) to account for fluctuations in the number of ions stored. Typical values of N 0 in these experiments were 500–1000.

3. Results and Discussion

A mass spectrum showing the distribution of C n + synthesised in the source is shown in Figure 1a. These data were obtained by operating the first quadrupole in the LV-DIB-s4PT instrument in transmission mode and guiding the ions to the second mass spectrometer. In this mass range, the most intense peaks are those C n + that possess even n. This intensity pattern, with the most abundant peak at m / z = 720 , followed by other prominent ones separated by C 2 units, is characteristic of the formation of fullerenes.
Presented in panel (b) of Figure 1 is a mass spectrum of the trap contents following ion storage at 4.2 K in dense ( 10 15 cm 3 ) helium buffer gas. This demonstrates the formation of weakly bound C 60 + He appearing at m / z = 724 which are used to obtain spectroscopic information by action spectroscopy. Tagging C 60 + ions with He enabled the electronic spectra of C 60 + He n complexes to be recorded, from which the absorption band wavelengths for C 60 + were determined [9,33]. In [9], a commercial sample of C 60 was sublimed and ionised by 50 eV electron impact. The resulting C 60 + ions were loaded into the trap and complexes were formed by collisions with cryogenically cold helium buffer gas. Independently of the synthesis procedure, electronic excitation of C 60 + He by absorption of a ∼ 1.3 eV energy photon breaks the weak bond between the fullerene ion and the helium atom. The spectrum is thus obtained by monitoring attenuation of ions with m / z = 724 . A mass spectrum of the trap contents in this work, following irradiation of the ion cloud at ν ¯ = 10 , 438 cm 1 , is shown in panel (c) of Figure 1. This demonstrates dissociation of the synthesised C 60 + He complexes.
The near-infrared absorptions of C 60 + have been assigned to the lowest energy 2 E 1 g X 2 A 1 u electronic transition (in D 5 d ). Recent theoretical work indicates that C 60 + undergoes a Jahn-Teller distortion from the D 5 d minimum such that the upper 2 E 1 g state is split into two components with A g and B g symmetry (in C 2 h ), leading to two transitions separated by 41 cm 1 (see Figure 3 in [34]). Transitions from the A u ground electronic state to these components are believed to be responsible for the absorption bands of C 60 + at 10,378 and 10,438 cm 1 .
An example spectrum from previous experiments on a sublimed sample of C 60 is presented in Figure 2 (top trace). These data are those reported in [35], and show the two strongest absorption bands in the electronic spectrum near 10,438 and 10,378 cm 1 . These 12 C 60 + He absorptions have widths of approximately 2 cm 1 which is caused by the ∼ 2 ps lifetime of the excited electronic state. Also shown in Figure 2 (bottom) are data reported here for 12 C 60 + He following helium tagging of m / z = 720 ions produced by laser vaporisation of graphite. The spectrum was recorded by monitoring the attenuation (1– N i / N 0 ) of ions with m / z = 724 . As is evident from inspection of Figure 2, the two sets of data are equivalent, with absorption band profiles that are almost superimposable, aside small differences due to the signal-to-noise ratio.
Previous experiments (see Figure 3 in [9]) indicate that the 10,378 and 10,438 cm 1 transitions arise from the same structural isomer of C 60 + , as indicated by near complete attenuation of ions with m / z = 724 following irradiation of the ion cloud on resonance. In the present work, increasing the laser fluence led to saturation of the number of ions with this m / z at an attenuation (1– N i / N 0 ) of ∼ 80 % (not shown), leading to the conclusion that the majority of C 60 + ions tagged with He in the trap are the distorted ( C 2 h / D 5 d ) soccer ball form. The structure(s) of the remaining 20 % are unknown; however, their spectroscopic properties could be explored in future studies. Other, non-isolated pentagon cage structures have been reported in [36].

4. Conclusions

Buffer gas cooling and spectroscopic characterisation in a cryogenic ion trap have been used to demonstrate the formation of the Buckminsterfullerene cation C 60 + by laser vaporisation of graphite. The 2 B g X 2 A u and 2 A g X 2 A u electronic band origins near 10,378 and 10,438 cm 1 were detected by messenger spectroscopy, and found to be consistent with results of experiments using a sublimed sample of C 60 , indicating that of the C 60 + ions tagged with helium in the trap ( m / z = 724 ), the (slightly distorted) D 5 d / C 2 h soccer ball isomer dominates. Although the formation of the Buckminsterfullerene cation C 60 + by laser vaporisation is well established, the presented data demonstrate that this synthesis route provides a sufficient yield of ions to allow spectroscopic characterisation in an ion trap. These proof-of-principle results are a first step toward obtaining the electronic absorptions of other fullerene cations and analogues that are sought after in the context of the enigmatic diffuse interstellar bands. It is thus anticipated that the adopted approach of combining laser vaporisation synthesis with spectroscopic characterisation in a cryogenic trap can enable data on a variety of structures that have not been produced in macroscopic quantities to be recorded at low temperature to enable direct comparison with astronomical observations.

Author Contributions

Conceptualization, E.K.C.; investigation, E.K.C., J.R. and S.M.M.B.; writing—original draft preparation, E.K.C.; writing—review and editing, E.K.C., J.R. and S.M.M.B.; funding acquisition, E.K.C. All authors have read and agreed to the published version of the manuscript.


EKC acknowledges financial assistance from the Royal Society (Grants RGF∖EA∖181035, URF∖R1∖180162) and the School of Chemistry, University of Edinburgh.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Kroto, H.W.; Heath, J.R.; O’Brien, S.C.; Curl, R.F.; Smalley, R.E. C60: Buckminsterfullerene. Nature 1985, 318, 162–163. [Google Scholar] [CrossRef]
  2. McCall, B.J.; Griffin, R.E. On the discovery of the diffuse interstellar bands. Proc. R. Soc. A 2013, 469, 20120604. [Google Scholar] [CrossRef]
  3. Kato, T.; Kodama, T.; Shida, T.; Nakagawa, T.; Matsui, Y.; Suzuki, S.; Shiromaru, H.; Yamauchi, K.; Achiba, Y. Electronic absorption spectra of the radical anions and cations of fullerenes: C60 and C70. Chem. Phys. Lett. 1991, 180, 446–450. [Google Scholar] [CrossRef]
  4. Gasyna, Z.; Andrews, L.; Schatz, P.N. Near-infrared absorption spectra of C60 radical cations and anions prepared simultaneously in solid argon. J. Phys. Chem. 1992, 96, 1525–1527. [Google Scholar] [CrossRef]
  5. D’Hendecourt, L.; Fostiropoulos, K.; Léger, A. Spectroscopie de Molécules Aromatiques. Test du Modèle PAH en Astrophysique. Ph.D. Thesis, Paris University, Paris, France, 1992. [Google Scholar]
  6. Fulara, J.; Jakobi, M.; Maier, J.P. Electronic and infrared spectra of C 60 + and C 60 in neon and argon matrices. Chem. Phys. Lett. 1993, 211, 227–234. [Google Scholar] [CrossRef]
  7. Foing, B.H.; Ehrenfreund, P. Detection of two interstellar absorption bands coincident with spectral features of C 60 + . Nature 1994, 369, 296–298. [Google Scholar] [CrossRef]
  8. Foing, B.H.; Ehrenfreund, P. New evidences for interstellar C 60 + . Astron. Astrophys. 1997, 319, L59–L62. [Google Scholar]
  9. Campbell, E.K.; Holz, M.; Gerlich, D.; Maier, J.P. Laboratory confirmation of C 60 + as the carrier of two diffuse interstellar bands. Nature 2015, 523, 322–323. [Google Scholar] [CrossRef]
  10. Campbell, E.K.; Holz, M.; Maier, J.P.; Gerlich, D.; Walker, G.A.H.; Bohlender, D. Gas phase absorption spectroscopy of C 60 + and C 70 + in a cryogenic ion trap: Comparison with astronomical measurements. Astrophys. J. 2016, 822, 17. [Google Scholar] [CrossRef] [Green Version]
  11. Walker, G.A.H.; Bohlender, D.A.; Maier, J.P.; Campbell, E.K. Identification of more interstellar C 60 + bands. Astrophys. J. Lett. 2015, 812, L8. [Google Scholar] [CrossRef] [Green Version]
  12. Cordiner, M.A.; Cox, N.L.J.; Lallement, R.; Najarro, F.; Cami, J.; Gull, T.R.; Foing, B.H.; Linnartz, H.; Lindler, D.J.; Proffitt, C.R.; et al. Searching for interstellar C 60 + using a new method for high signal-to-noise HST/STIS spectroscopy. Astrophys. J. Lett. 2017, 843, L2. [Google Scholar] [CrossRef] [Green Version]
  13. Cordiner, M.A.; Linnartz, H.; Cox, N.L.J.; Cami, J.; Najarro, F.; Proffitt, C.R.; Lallement, R.; Ehrenfreund, P.; Foing, B.H.; Gull, T.R.; et al. Confirming interstellar C 60 + using the Hubble Space Telescope. Astrophys. J. Lett. 2019, 875, L28. [Google Scholar] [CrossRef] [Green Version]
  14. Kuhn, M.; Renzler, M.; Postler, J.; Ralser, S.; Spieler, S.; Simpson, M.; Linnartz, H.; Tielens, A.G.G.M.; Cami, J.; Mauracher, A.; et al. Atomically resolved phase transition of fullerene cations solvated in helium droplets. Nat. Commun. 2016, 7, 13550. [Google Scholar] [CrossRef] [PubMed]
  15. Spieler, S.; Kuhn, M.; Postler, J.; Simpson, M.; Wester, R.; Scheier, P.; Ubachs, W.; Bacalla, X.; Bouwman, J.; Linnartz, H. C 60 + and the diffuse interstellar bands: An independent laboratory check. Astrophys. J. 2017, 846, 168. [Google Scholar] [CrossRef] [Green Version]
  16. Maier, J.P.; Campbell, E.K. Fullerenes in space. Angew. Chem. Int. Ed. 2017, 56, 4920–4929. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Campbell, E.K.; Maier, J.P. Perspective: C 60 + and laboratory spectroscopy related to diffuse interstellar bands. J. Chem. Phys. 2017, 146, 160901. [Google Scholar] [CrossRef] [Green Version]
  18. Linnartz, H.; Cami, J.; Cordiner, M.; Cox, N.L.J.; Ehrenfreund, P.; Foing, B.; Gatchell, M.; Scheier, P. C 60 + as a diffuse interstellar band carrier; a spectroscopic story in 6 acts. J. Mol. Spectrosc. 2020, 367, 111243. [Google Scholar] [CrossRef]
  19. Sellgren, K.; Werner, M.W.; Ingalls, J.G.; Smith, J.D.T.; Carleton, T.M.; Joblin, C. C60 in reflection nebulae. Astrophys. J. Lett. 2010, 722, L54–L57. [Google Scholar] [CrossRef] [Green Version]
  20. Cami, J.; Bernard-Salas, J.; Peeters, E.; Malek, S.E. Detection of C60 and C70 in a young planetary nebula. Science 2010, 329, 1180–1182. [Google Scholar] [CrossRef] [Green Version]
  21. Roberts, K.R.G.; Smith, K.T.; Sarre, P.J. Detection of C60 in embedded young stellar objects, a Herbig Ae/Be star and an unusual post-asymptotic giant branch star. Mon. Not. R. Astron. Soc. 2012, 421, 3277–3285. [Google Scholar] [CrossRef] [Green Version]
  22. Gerlich, D.; Jašík, J.; Strelnikov, D.V.; Roithová, J. IR spectroscopy of fullerene ions in a cryogenic quadrupole trap. Astrophys. J. 2018, 864, 62. [Google Scholar] [CrossRef]
  23. Palotás, J.; Martens, J.; Berden, G.; Oomens, J. The infrared spectrum of protonated buckminsterfullerene C60H+. Nat. Astron. 2020, 4, 240–245. [Google Scholar] [CrossRef]
  24. Palotás, J.; Martens, J.; Berden, G.; Oomens, J. The infrared spectrum of protonated C70. Astrophys. J. Lett. 2021, 909, L17. [Google Scholar] [CrossRef]
  25. Kroto, H.W.; Jura, M. Circumstellar and interstellar fullerenes and their analogues. Astron. Astrophys. 1992, 263, 275–280. [Google Scholar]
  26. Bloodworth, S.; Hoffman, G.; Walkey, M.C.; Bacanu, G.R.; Herniman, J.M.; Levitt, M.H.; Whitby, R.J. Synthesis of Ar@C60 using molecular surgery. Chem. Commun. 2020, 56, 10521–10524. [Google Scholar] [CrossRef]
  27. Strelnikov, D.V.; Jašík, J.; Gerlich, D.; Murata, M.; Murata, Y.; Komatsu, K.; Roithová, J. Near- and mid-IR gas-phase absorption spectra of H2@ C 60 + -He. J. Phys. Chem. A. 2018, 122, 8162–8166. [Google Scholar] [CrossRef] [Green Version]
  28. Campbell, E.K.; Reedy, E.S.; Rademacher, J.; Whitby, R.J.; Hoffman, G. Electronic spectroscopy of He@ C 60 + for astrochemical consideration. Astrophys. J. 2020, 897, 88. [Google Scholar] [CrossRef]
  29. Dunk, P.W.; Mulet-Gas, M.; Nakanishi, Y.; Kaiser, N.K.; Rodríguez-Fortea, A.; Shinohara, H.; Poblet, J.M.; Marshall, A.G.; Kroto, H.W. Bottom-up formation of endohedral mono-metallofullerenes is directed by charge transfer. Nat. Commun. 2014, 5, 5844. [Google Scholar] [CrossRef]
  30. Stewart, J.T.; Brumfield, B.E.; Gibson, B.M.; McCall, B.J. Inefficient vibrational cooling of C60 in a supersonic expansion. ISRN Phys. Chem. 2013, 2013, 675138. [Google Scholar] [CrossRef] [Green Version]
  31. Changala, P.B.; Weichman, M.L.; Lee, K.F.; Fermann, M.E.; Ye, J. Rovibrational quantum state resolution of the C60 fullerene. Science 2019, 363, 49–54. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Campbell, E.K.; Dunk, P.W. LV-DIB-s4PT: A new tool for astrochemistry. Rev. Sci. Instrum. 2019, 90, 103101. [Google Scholar] [CrossRef]
  33. Campbell, E.K.; Holz, M.; Maier, J.P. C 60 + in diffuse clouds: Laboratory and astronomical comparison. Astrophys. J. Lett. 2016, 826, L4. [Google Scholar] [CrossRef]
  34. Lykhin, A.O.; Ahmadvand, S.; Varganov, S.A. Electronic transitions responsible for C 60 + diffuse interstellar bands. J. Phys. Chem. Lett. 2019, 10, 115–120. [Google Scholar] [CrossRef] [PubMed]
  35. Campbell, E.K.; Maier, J.P. Isomeric and isotopic effects on the electronic spectrum of C 60 + -He: Consequences for astronomical observations of C60+. Astrophys. J. 2018, 858, 36. [Google Scholar] [CrossRef] [Green Version]
  36. Löffler, D.; Bajales, N.; Cudaj, M.; Weis, P.; Lebedkin, S.; Bihlmeier, A.; Tew, D.P.; Klopper, W.; Böttcher, A.; Kappes, M.M. Non-IPR C60 solids. J. Chem. Phys. 2009, 130, 164705. [Google Scholar] [CrossRef] [PubMed]

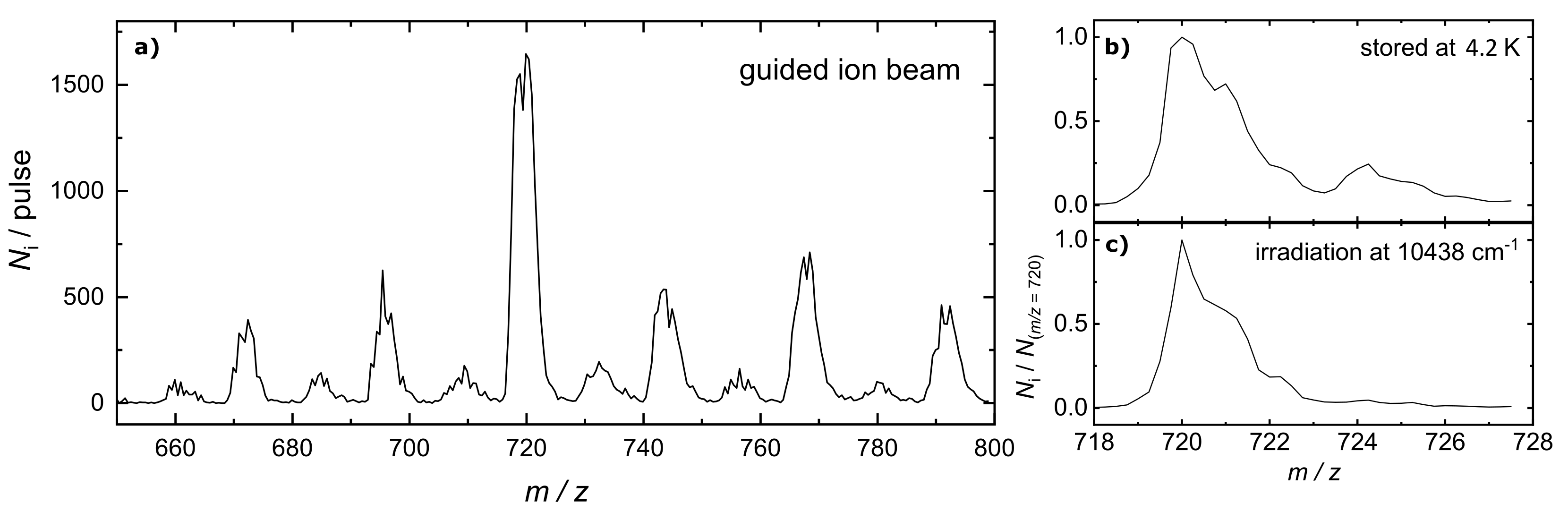

Figure 1. (a) Mass spectrum of positive ions generated by laser vaporisation of graphite. (b) Contents of trap following storage of C 60 + ions in cold and dense helium buffer gas. (c) Mass spectrum obtained following irradiation of stored ions at 10,438 cm 1 , revealing dissociation of C 60 + He .
Figure 1. (a) Mass spectrum of positive ions generated by laser vaporisation of graphite. (b) Contents of trap following storage of C 60 + ions in cold and dense helium buffer gas. (c) Mass spectrum obtained following irradiation of stored ions at 10,438 cm 1 , revealing dissociation of C 60 + He .
Crystals 11 01119 g001

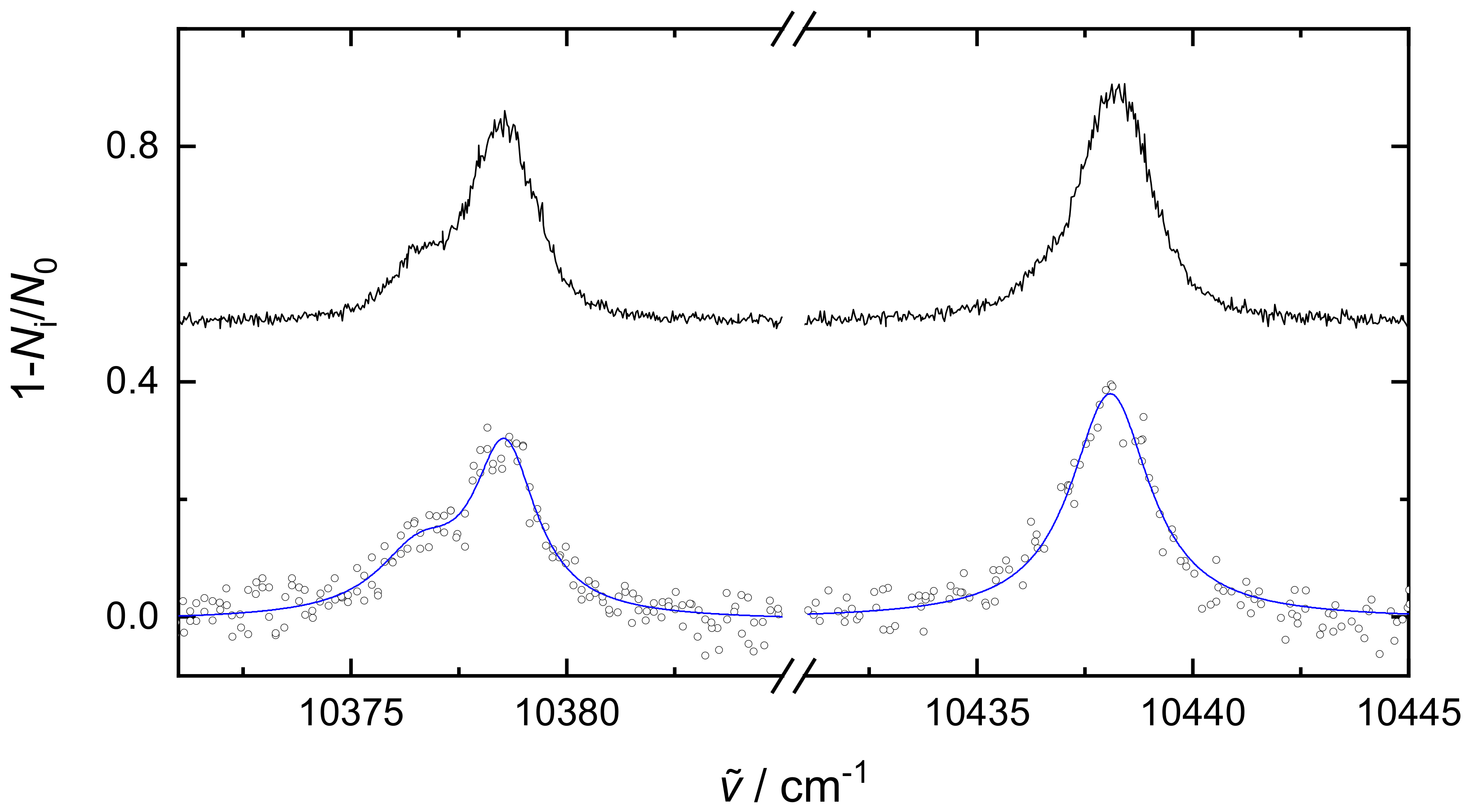

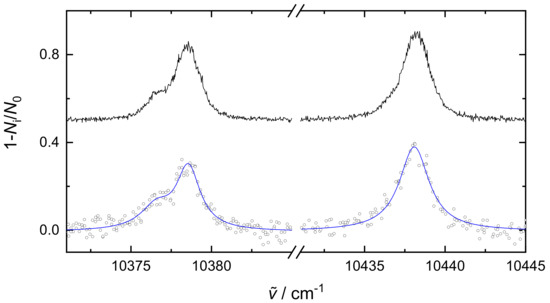

Figure 2. Origin bands of the 2 B g X 2 A u and 2 A g X 2 A u electronic transitions of C 60 + He near 10,378 and 10,438 cm 1 , respectively. The experimental data obtained with laser vaporisation of graphite (circles) have been fit with Lorentzian profiles (blue line). Also shown are previous data (solid line, top) from [35] following experiments with a sublimed sample of C 60 .
Figure 2. Origin bands of the 2 B g X 2 A u and 2 A g X 2 A u electronic transitions of C 60 + He near 10,378 and 10,438 cm 1 , respectively. The experimental data obtained with laser vaporisation of graphite (circles) have been fit with Lorentzian profiles (blue line). Also shown are previous data (solid line, top) from [35] following experiments with a sublimed sample of C 60 .
Crystals 11 01119 g002
