Article

Improving the Solubility of Aripiprazole by Multicomponent Crystallization

1
Pharmacy Faculty, Hubei University of Chinese Medicine, Wuhan 430070, China
2
Technical Engineering Research Center of Traditional Chinese Medicine Processing in Hubei Province, Wuhan 430070, China
*
Authors to whom correspondence should be addressed.
Crystals 2021, 11(4), 343; https://doi.org/10.3390/cryst11040343
Submission received: 27 February 2021 / Revised: 22 March 2021 / Accepted: 25 March 2021 / Published: 28 March 2021
(This article belongs to the Special Issue Multicomponent Pharmaceutical Solids)

Abstract

:
Aripiprazole (ARI) is a third-generation antipsychotic with few side effects but a poor solubility. Salt formation, as one common form of multicomponent crystals, is an effective strategy to improve pharmacokinetic profiles. In this work, a new ARI salt with adipic acid (ADI) and its acetone hemisolvate were obtained successfully, along with a known ARI salt with salicylic acid (SAL). Their comprehensive characterizations were conducted using X-ray diffraction and differential scanning calorimetry. The crystal structures of the ARI-ADI salt acetone hemisolvate and ARI-SAL salt were elucidated by single-crystal X-ray diffraction for the first time, demonstrating the proton transfer from a carboxyl group of acid to ARI piperazine. Theoretical calculations were also performed on weak interactions. Moreover, comparative studies on pharmaceutical properties, including powder hygroscopicity, stability, solubility, and the intrinsic dissolution rate, were carried out. The results indicated that the solubility and intrinsic dissolution rate of the ARI-ADI salt and its acetone hemisolvate significantly improved, clearly outperforming that of the ARI-SAL salt and the untreated ARI. The study presented one potential alternative salt of aripiprazole and provided a potential strategy to increase the solubility of poorly water-soluble drugs.

Graphical Abstract

1. Introduction

In the past few decades, a number of drugs have shown poor physicochemical properties, especially aqueous solubility and stability, often affecting their absorption in the gastrointestinal tract [1]. Multicomponent crystal formation is an effective strategy to improve pharmacokinetic profiles without altering the main chemical structures and inherent biological activity [2,3]. Co-crystals and salts are two common forms of multicomponent crystals which might have higher solubility and faster dissolution behavior compared to untreated drugs [4,5]. Compared to cocrystals, salt formation is the simplest and most cost-effective strategy and has significant advantages in addressing poor aqueous solubility because of ionizable drugs [6].
Aripiprazole (ARI), a third-generation antipsychotic, is a dopamine D2 receptor partial agonist and D1 receptor agonist which can ameliorate hyperprolactinemia induced by other antipsychotic drugs and cause fewer side effects, such as weight gain, diabetes, and dyslipidemia [7,8]. However, ARI belongs to the Biopharmaceutics Classification System (BCS) class II and its clinical use is limited by its poor aqueous solubility [9,10]. As a weakly basic drug, salt formation is one of the most popular and effective approaches to improve physicochemical properties, especially solubility [6,11,12]. Many salts of ARI have been reported. Freire et al. reported successively eight crystal structures of ARI salts with nitrate, perchlorate, oxalate, phthalate, homophthalate, thiosalicilate, and two different dihidrogenphosphates [13,14,15,16]. Nanubolu et al. reported five ARI salts with benzoic acid, 2,4-dihydroxy benzoic acid, 2,5-dihydroxy benzoic acid, salicylic acid, and hydrochloric acid [17]. However, these studies mainly focus on the structure illustration, and key pharmaceutical properties were not given. While Zhao et al. synthesized six ARI salts with gallic acid, 4-aminosalicylic acid, acetylsalicylic acid, maleic acid, fumaric acid, and malic acid and evaluated their solubility and dissolution profile [18], new ARI salts with ideal pharmaceutical properties are still in demand.
Continuing to explore the excellent salts of ARI, we successfully obtained a new ARI salt with adipic acid (ADI) and its acetone hemisolvate, along with a known ARI salt with salicylic acid (SAL). The molecular structures of the ARI and cocrystal formers (CCF) are displayed in Scheme 1. Their comprehensive characterizations were conducted using powder X-ray diffraction (PXRD) and differential scanning calorimetry (DSC). The crystal structures of the ARI-ADI salt acetone hemisolvate and ARI-SAL salt were elucidated by single-crystal X-ray diffraction (SXRD) for the first time. Furthermore, computational studies, including molecular electrostatic potential surface (MEPS) and Hirshfeld surface analysis (HSA), were applied to explore molecular interactions between the active pharmaceutical ingredient (API) and CCF. Above all, their pharmaceutical properties, such as powder hygroscopicity, stability, solubility, and the intrinsic dissolution rate (IDR), were evaluated. The results showed that the solubility and IDR of the ARI-ADI salt and its acetone hemisolvate significantly improved. This study provides a potential strategy to increase the solubility of poorly water-soluble drugs and gain a comprehensive understanding of the structure–property relationship.

2. Materials and Methods

2.1. Materials

The aripiprazole was purchased from Sun Chemical & Technology (Shanghai, China) Co., Ltd., and the CCF were purchased from J&K Scientific Ltd. (Beijing, China). All chemicals were used without further purification. All reagents used for this study were of analytical grade and purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). Purified water was prepared by Millipore UP Water Purification System (Merck, Kenilworth, NJ, USA).

2.2. Preparation of Multicomponent Crystals

ARI-SAL salt. The equimolar amounts of ARI (224.2 mg, 0.5 mmol) and SAL (69.1 mg, 0.5 mmol) were dissolved in 30 mL of acetonitrile-water mixed solvent (v/v, 1:1) at 60 °C. The resulting solution was filtered and then kept for eight days at 35 °C. White block crystals were obtained. The bulk samples were prepared by slurry method. A mixture of ARI (448 mg, 1 mmol) and SAL (138 mg, 1 mmol) was added to 6 mL of acetonitrile-water mixed solvent (v/v, 1:1) and stirred for 12 h at a speed of 350 rpm. The solid obtained by filtering the solution was dried to a constant weight in a vacuum oven at 30 °C.
ARI-ADI salt acetone hemisolvate. The mixture of ARI (224.2 mg, 0.5 mmol) and ADI (36.5 mg, 0.25 mmol) was dissolved in 20 mL of acetone at 60 °C. The resulting solution was filtered and then kept for four days at 35 °C. White block crystals were obtained. The bulk samples were prepared by slurry method. A mixture of ARI (448 mg, 1 mmol) and ADI (73 mg, 0.5 mmol) was added into 6 mL of acetone solution and stirred for 12 h at a speed of 350 rpm. The solid obtained by filtering the solution was dried to a constant weight in a vacuum oven at 30 °C.
Additionally, ARI-ADI salt was obtained by drying ARI-ADI salt acetone hemisolvate in a vacuum oven at 70 °C for 2 h.

2.3. Characterization

2.3.1. Single Crystal X-ray Diffraction (SXRD)

The crystal structures were determined with a Bruker APEX-II CCD diffractometer using graphite monochromatic Mo-Kα radiation (λ = 0.71073 Å) at 296K. Frame integration was performed using SAINT (version 7.68A) [19]. The resulting raw data were scaled and the absorption was corrected using a multi-scan averaging of symmetry-equivalent data by SADABS [20]. The structure was solved by the direct method with the olex2 software and then refined via full-matrix least-squares procedures using SHELXL-2014 on F2 with anisotropic displacement parameters (ADPs) for non-hydrogen atoms [21,22]. The H atoms were located in idealized difference Fourier maps and refined as riding models with isotropic thermal parameters (Uiso(H) = 1.2 Ueq(C), Uiso(H) = 1.2 Ueq(N), and Uiso(H) = 1.5 Ueq(O)).
Diamond [23] (version 4.6.3, Crystal Impact GbR, Bonn, Germany) was used for preparing crystal packing diagrams.

2.3.2. Powder X-ray Diffraction (PXRD)

Powder X-ray diffraction (PXRD) patterns were recorded on a Bruker D8 ADVANCE X-ray powder diffractometer (Bruker, Germany) with Cu-Kα radiation at 40 KV and 40 mA. After sieving through 100 mesh, about 50 mg samples were measured in the 2-theta range of 5–50° at a scan rate of 8°/min.

2.3.3. Differential Scanning Calorimetry (DSC)

DSC analyses were taken on a Mettler Toledo DSC1 instrument (Mettler, Zurich, Switzerland). An amount of 3~5 mg samples were put into aluminum pans with pinhole lids and heated in the 30~300 °C temperature range at a constant heating rate of 10 °C/min under a nitrogen flux of 50 cm3/min.

2.4. Computational Studies

2.4.1. Acid Dissociation Constant (pKa)

The formation of the resultant supramolecules can be predicted according to the pKa difference (ΔpKa = pKa[base] − pKa[acid]) of corresponding acid/base pairs [24,25]. It is generally accepted that a salt will be formed if the ΔpKa value is greater than 3, and a ΔpKa value less than 0 will lead to the formation of cocrystals. However, if the ΔpKa value is in the range of 0~3, it will be not accurate to predict the resulting formation [25]. The pKa values of ARI and CCF were calculated by MarvinSketch 15.6.29 (ChemAxon, Budapest, Hungary) [26].

2.4.2. Molecular Electrostatic Potential Surface (MEPS)

The molecular structures of ARI and CCF were extracted from their crystal structures. Full geometry optimization and wave functions were performed by density function theory (DFT) using the B3LYP hybrid functional with 6-311G(d) basis set in the Gaussian 09 software. MEPS was mapped on the 0.001 a.u. electron density isosurface and analyzed by the Multiwfn program [27] and VWD program [28].

2.4.3. Hirshfeld Surface Analysis (HSA)

HSA and fingerprint plots were performed by CrystalExplorer 17.5 software [29], providing information about the nature of intermolecular interactions and their quantitative contribution to the Hirshfeld surface [30].

2.5. Powder Hygroscopicity

Dry glass weighing bottles (outside diameter 50 mm, height 25 mm) were placed in a dryer with ammonium chloride saturated solution at 25 °C ± 1 °C and weighed (m1) after 24 h of storage. Then, about 100 mg samples were put into the bottles and weighed accurately (m2), respectively. After storage at the aforementioned conditions with the caps opened for 24 h, each sample was weighed again (m3). The hygroscopicity could be calculated by the following equation.
Mass Change (%) = (m3 − m1) / (m2 − m1) × 100%.

2.6. Stability Test

The stabilities of ARI-SAL salt and ARI-ADI salt acetone hemisolvate were studied under high-temperature (60 ± 1 °C) and high-humidity (95 ± 5%) tests. Materials were randomly selected and exposed to high temperature and high humidity conditions. The storage times were 10 days and PXRD was applied to measure the final samples.

2.7. Solubility Experiment

2.7.1. Solubility Test

The solubility measurements were performed under water (pH 7.0), hydrochloric acid buffer (pH 1.2), acetate acid-sodium acetate buffered solution (pH 4.5), and phosphate buffer solution (pH 6.8), respectively. An excess number of samples were added to a test tube containing 10 mL of solvent and the tube was shaken in an orbital shaker (37 ± 0.5 °C) until reaching the equilibrium condition (48 h). The solution was filtered through a 0.45 µm mixed cellulose ester membrane and then analyzed by HPLC (LC-20, Shimadzu, Japan) equipped with a SP-20 ultraviolet detector at 254 nm wavelength. Quantitative tests were performed on a YMC C8 column (250 × 4.6 mm, 5 µm) with an external standard method. The mobile phase consisted of acetonitrile and water (containing 0.1% trimethylamine) (65:35, v/v), with a flow rate of 1.0 mL/min. Each test was performed in triplicate.

2.7.2. Intrinsic Dissolution Rate (IDR) Test

IDR is a key physicochemical parameter commonly used to assess in vivo dissolution and reflect bioavailability of drugs [31]. In this work, IDR was measured by the rotary basket method, which was applied to distinguish their dissolution properties. Prior to the IDR test, round discs of the samples should be compressed with a hydraulic press (Jintan Ruiding Machinery Co., Ltd. Changzhou, China). Specifically, 300 mg samples were compressed at a pressure of 115.2 MPa for 10 s to form smooth discs 8 mm in diameter. The acquired discs were coated with beeswax on three sides. The intrinsic dissolution study was performed at 100 rpm in 500 mL of hydrochloric acid buffer (pH 1.2) as a dissolution medium at 37 °C. The ARI concentration in solution was measured at the predetermined time interval by the same analysis method as the solubility test. The sink conditions were maintained during the entire dissolution experiment, and each test was performed in triplicate.

3. Results and Discussion

3.1. Characterization

3.1.1. SXRD Analysis

The crystal structures revealed that both ARI-SAL salt and ARI-ADI salt acetone hemisolvate were salts and the protonation occurred at the N2 atom, forming a strong charge assisted hydrogen bond formed by the strongest acceptor from the carboxylate anion interacting with strongest N+-H donor of piperazinium (see Appendix A). The crystallographic data are listed in Table 1 and the hydrogen bonding parameters are given in Table 2. The C16-H16A⋯Cl1 hydrogen bonds in Table 2 correspond to the typical intramolecular interaction characteristic of the dichlorophenyl-1-piperazinyl group in all reported ARI variants [16,17,18].
ARI-SAL salt. The ARI-SAL salt crystallized in the monoclinic P21/c space group with an aripiprazole cation, balanced by a salicylic counter-ion, in the asymmetric unit (Figure 1a). The O5 atom of salicylic anion presented positional disorder over two sites with a 0.6: 0.4 site-occupancy. ARI-SAL salt, like other lactam compounds, formed a centrosymmetric N1-H1⋯O1 dimer R 2 2 (8) motif with its inversion-related molecule [32]. Interestingly, the dimer formed a 1D ribbon through the short Cl1⋯O1 interaction, which formed another new dimeric substructure (Figure 2a). Furthermore, the dimer units were arranged helically into the three-dimensional network (Figure 2b) by the bifurcated N-H⋯O hydrogen bonds (N2+-H2⋯O3- and N2-H2⋯O4 hydrogen bond) and two weaker C-H⋯O interactions (C27-H27⋯O1 and C17-H17A⋯O5 hydrogen bond), which generated two types of helices propagated along the b axis (Figure 2c,d).
ARI-ADI salt acetone hemisolvate. The ARI-ADI salt acetone hemisolvate crystallized in the triclinic P-1 space group. The ORTEP diagram contained an aripiprazole cation, half of an adipic acid counter-ion (bisected by an inversion center), and half of an acetone molecule (Figure 1b). The solvent acetone molecule was disordered with a position occupancy of 0.5 due to the location on the symmetric center, and acted as a filler in spatial network. The centrosymmetric N1-H1⋯O1 dimer R 2 2 (8) motif with its inversion-related molecule also can be found and formed a 1D ribbon by the strongest charged N2+-H2⋯O3 hydrogen bond (Figure 3a). The 1D ribbon interacted with its adjacent ribbon and then formed a 2D sheet through a C15-H15A⋯Cl1 hydrogen bond (Figure 3b). Finally, the 2D sheets were arranged into the three-dimensional network by a weak C11-H11A⋯π hydrogen bond (Figure 3c).

3.1.2. PXRD Analysis

The ARI multicomponent crystals were synthesized and characterized by PXRD. As seen in Figure 4, their experimental patterns show significant differences compared with those of ARI, which are confirmed as new crystalline forms due to the absence of the characteristic peak of ARI at 20.483° and 22.199°. The characteristic PXRD peaks of the ARI-SAL salt were 12.948°, 18.401°, and 19.849°, while those of the ARI-ADI salt were 25.079°, 14.976°, and 18.256°, which were different from those of its acetone hemisolvte with characteristic PXRD peaks at 18.197° and 24.897°. Importantly, the experimental patterns of ARI-ADI salt acetone hemisolvate and ARI-SAL salt coincided well with their own calculated PXRD patterns from single crystal structures, indicating that the bulk pure samples were prepared successfully.

3.1.3. DSC Analysis

As reported by Zhao Yanxiao [18], the DSC thermogram (Figure 5) of ARI exhibited two endothermic peaks and a small exothermic peak. The endothermic peak at 138.94 °C corresponded to the melting point of form III, while the second endothermic peak at 147.79 °C represented the melting point of form I, demonstrating that form III might be transformed to form I during the heating process. As expected, the DSC thermograms of ARI multicomponent crystals were distinct from those of ARI and CCF. A single melting endothermic peak was observed at 182.38 °C for the ARI-SAL salt, indicating the formation of pure solid phase. For the ARI-ADI salt acetone hemisolvate, a weak endothermic event of desolvation and a sharp melting endothermic peak were observed at 57.43 °C and 121.18 °C, respectively, which implied that it had a poor thermodynamic stability and may transform into a desolvated salt. As we intended, the ARI-ADI salt showed a single melting endothermic peak at 120.36 °C.

3.2. Theoretical Calculation

3.2.1. Acid Dissociation Constant (pKa)

ARI is a weak base with a pKa of 7.46, and both salicylic acid and adipic acid are weak acid excipients with pKa values of 2.79 and 3.92, respectively. According to the ΔpKa rule, if the difference of pKa between active pharmaceutical ingredients and CCF was greater than 3, the binary mixture tended to form a salt type [25]. Therefore, we predicted that both of the synthesized multicomponent crystals of ARI were salts, which could be confirmed by especially single-crystal X-ray diffraction.

3.2.2. Molecular Electrostatic Potential Surface

MEPs can provide some clear information in terms of the electrophilic and nucleophilic attack region of the molecule. The values of MEP, related to the strength of intermolecular interactions, can predict the formation possibility of multicomponent crystals. The MEPs mapped on van der waals (VDW) surface of ARI, SAL, and ADI are given in Figure 6, where the red color represents a positive electrical potential and the blue color represents a negative electrical potential. The pKa values were calculated by MarvinSketch and are presented in the black color.
As reported by Zhao Yanxiao [18], the global maxima and minima values of the electrostatic potential on the surface in ARI were +36.98 and −41.23 kcal/mol, which corresponded to carbonyl and amino group of the lactam ring, respectively, and formed the N-H⋯O homodimers as evidenced in this study. The N2 and N3 atoms of the piperazinyl group had little difference in electrical potential, but the N3 atom had the strong p-π conjugative effect with adjacent benzene ring. As a result, the N2 atom was vulnerable to electrophilic attack, and no ARI variant containing an exclusive protonation of the N3 atom was observed [16]. The global maxima value of the electrostatic potential on the surface in SAL was +53.86 kcal/mol, which corresponded to carboxylate group with a low pKa value (pKa = 2.79). As result, the deprotonated N+-H⋯O hydrogen bond was formed in ARI-SAL salt. For ADI, the global and secondary maxima values were +49.71 and +49.66 kcal/mol, which corresponded to both of the carboxylate groups with identical nucleophilic reactivity, respectively. As expected, the deprotonated N+-H⋯O hydrogen-bonding contacts occurred in real ARI-ADI salt, where the stoichiometric ratio of ARI to ADI was 1:0.5.

3.2.3. Hirshfeld Surface Analysis

The 3D Hirshfeld surface and 2D fingerprint plots of two multicomponent crystals of ARI are given in Figure 7. In their 3D Hirshfeld surface, the large and deep red spots correspond to the close-contact N-H⋯O interactions. The H⋯H contacts appear as scattered points in the middle region of the 2D fingerprint plots, which were the predominate type of interactions. The relative percentage contributions of H⋯H contacts in theARI-SAL salt were markedly lower than that of the ARI-ADI salt acetone hemisolvate and compensated by the C⋯H/H⋯C contacts shown as a pair of “wings”. However, these interactions displayed higher interatomic distance. Interactions with less interatomic distance are presented in fingerprint plots as pointy regions. The reciprocal O⋯H contacts, corresponding to O-H⋯O, N-H⋯O, and C-H⋯O interactions, are presented as long, sharp, symmetrical spikes. Additionally, the Cl⋯H contacts, corresponding to the Cl⋯H-C, Cl⋯H-O and Cl⋯H-N interactions, appear as a pair of “wings” and have equivalent relative percentage contributions to their own Hirshfeld surfaces.

3.3. Powder Hygroscopicity

The moisture absorption is a crucial parameter that should be considered during the process of drug development, production, and storage. Therefore, the powder hygroscopicity was measured under 25 °C/80% RH condition. Ten days later, the hygroscopic gain of ARI was 0.32 ± 1.30%. Meanwhile, ARI-SAL salt and ARI-ADI salt and its acetone hemisolvate showed greater hygroscopicity, with hygroscopic gains of 2.60 ± 0.78%, 1.36 ± 0.32%, and 1.13 ± 0.7%, respectively. This might be presumably due to the presence of a polar group (i.e., –OH and –COOH) introduced by synthesizing carboxylate salts, leading to the formation of hydrogen bonds with water molecules [33].

3.4. Stability Test

Moisture and high temperatures may cause the transformation of drug crystal forms and degradation, especially for solvates. Thus, close attention was paid to their stability under high humidity and high temperatures in this work. Figure 8 illustrates that the ARI-SAL salt was stable, while the ARI-ADI salt acetone hemisolvate was unstable under a high temperature. There were significant differences at the two-theta range of 19° to 27° compared with the starting PXRD pattern. In conjunction with DSC patterns of ARI-ADI salt acetone hemisolvate, we speculated that desolvation occurred under high temperatures. Unexpectedly, the PXRD pattern of the ARI-ADI salt was inconsistent with that of its acetone hemisolvate under high temperatures, demonstrating that ARI-ADI salt might be unstable under high temperatures.

3.5. Solubility

3.5.1. Equilibrium Solubility Test

The results of the equilibrium solubility experiments are summarized in Figure 9. The equilibrium solubility of the ARI-ADI salt in water, hydrochloric acid buffer, and acetate acid-sodium acetate buffered solution were 0.13, 0.63, and 0.15 mg/mL, respectively, which was much better than that of the ARI and ARI-SAL salt but slightly smaller than that of the ARI-ADI salt acetone hemisolvate. However, the equilibrium solubility of the ARI-SAL salt was even worse than that of the ARI in both the hydrochloric acid buffer solution and acetate acid-sodium acetate buffered solution, though slightly better in water. In addition, the equilibrium solubility of ARI and its salts in the phosphate buffer solution were too low to be acquired accurately.

3.5.2. IDR Test

Given its kinetic nature, IDR assumes a better correlation with in vivo drug dissolution dynamics than solubility [34]. Thus, IDR studies were carried out at pH 1.2 in this work, and the results are summarized in Figure 10. The ARI held an IDR of 0.5051 mg·cm−2·min−1, while the IDR of the ARI-ADI salt, slightly lower than that of its acetone hemisolvate, significantly increased to 0.9263 mg·cm−2·min−1 and was about twice as much as that of the ARI. Not unexpectedly, the IDR of the ARI-SAL salt was only 0.3745 mg·cm−2·min−1, significantly lower than that of the ARI.
These findings indicated that ARI-ADI salt and its acetone hemisolvate had predictable advantages in vivo absorption over ARI-SAL salt and the untreated ARI. This may be due to many causes. First, the relatively higher hygroscopicity and lower melting point may lead to easier dissolution in an aqueous solvent, because of it demanding less lattice energy to break. Molecular constituents were also one of the important causes. The CCF of ARI-ADI salt was more soluble than that of the ARI-SAL salt, and their solubility behaviors follow the rule of thumb that the greater solubility of the CCF, the more soluble the salt will be [18]. Finally, their spatial structures may also be associated with their differences in solubility. The ADI molecules linked with the solvent molecules to form a hydrophilic layer. As a result, water molecules permeate more easily into the layer stacking spatial structure and cause it to disintegrate in aqueous solvent.

4. Conclusions

In this study, a new ARI-ADI salt and its acetone hemisolvate were successfully synthesized and fully characterized by various methods, along with a reported ARI-SAL salt. Their crystal structures revealed that the proton transferring occurred from a carboxylic group of CCF to the N2 atoms of the piperazine region from the ARI. Structural analysis showed that the ARI-SAL salt was arranged helically by two helices propagated along the b axis, while the ARI-ADI salt acetone hemisolvate presented a typical layer stacking with the help of weak C-H⋯Cl and C-H⋯π hydrogen bonds. The reactivity of ARI and CCF was predicted by MEPS and matched well with their hydrogen bond schemes. Hirshfeld surface analysis was also used to clarify the intermolecular interactions. Furthermore, the ARI-ADI salt had a significant advantage over the ARI and ARI-SAL salt in terms of equilibrium solubility and IDR. This study provided a valuable insight into the formation of multicomponent pharmaceutical salts and presented potential alternative formulations of ARI.

Author Contributions

Conceptualization, D.Y. and J.T.; tests and data interpretation, Q.Z., Z.T., Y.W. and Y.Z.; writing—original draft preparation, Q.Z.; review and editing, Q.Z., Y.L. and G.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The data used to support the findings of this study are included within the article.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

The supplementary crystallographic data for this paper have been deposited in the Cambridge Crystallographic Data Center and have reference numbers CCDC 1991810 and 2023732. These data can be obtained free of charge via http://www.ccdc.cam.ac.uk (accessed on 26 March 2021).

References

  1. Sethiya, A.; Agarwal, D.K.; Agarwal, S. Current Trends in Drug Delivery System of Curcumin and its Therapeutic Applications. Mini Rev. Med. Chem. 2020, 13, 1190–1232. [Google Scholar] [CrossRef]
  2. Berry, D.J.; Steed, J.W. Pharmaceutical cocrystals, salts and multicomponent systems; intermolecular interactions and property based design. Adv. Drug Deliv. Rev. 2017, 117, 3–24. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Diniz, L.F.; Carvalho, P.S., Jr.; Pena, S.A.C.; Gonçalves, J.E.; Souza, M.A.C.; de Souza Filho, J.D.; Bomfim Filho, L.F.O.; Franco, C.H.J.; Diniz, R.; Fernandes, C. Enhancing the solubility and permeability of the diuretic drug furosemide via multicomponent crystal forms. Int. J. Pharm. 2020. [Google Scholar] [CrossRef] [PubMed]
  4. Clements, M.; Roex, T.L.; Blackie, M. Multicomponent Crystal Systems of Known Antimalarial Drug Molecules. ChemMedChem 2015, 10, 1786–1792. [Google Scholar] [CrossRef]
  5. Sanphui, P.; Mishra, M.K.; Ramamurty, U.; Desiraju, G.R. Tuning mechanical properties of pharmaceutical crystals with multicomponent crystals: Voriconazole as a case study. Mol. Pharm. 2015, 12, 889–897. [Google Scholar] [CrossRef] [PubMed]
  6. Elder, D.P.; Holm, R.; Diego, H.L. Use of pharmaceutical salts and cocrystals to address the issue of poor solubility. Int. J. Pharm. 2013, 453, 88–100. [Google Scholar] [CrossRef] [PubMed]
  7. Prommer, E. Aripiprazole. Am. J. Hosp. Palliat. Care 2017, 34, 180–185. [Google Scholar] [CrossRef]
  8. Cuomo, A.; Beccarini Crescenzi, B.; Goracci, A.; Bolognesi, S.; Giordano, N.; Rossi, R.; Facchi, E.; Neal, S.M.; Fagiolini, A. Drug safety evaluation of aripiprazole in bipolar disorder. Expert Opin. Drug Saf. 2019, 18, 455–463. [Google Scholar] [CrossRef]
  9. Borrego-Sánchez, A.; Sánchez-Espejo, R.; Albertini, B.; Passerini, N.; Cerezo, P.; Viseras, C.; Sainz-Díaz, C.I. Ground Calcium Carbonate as a Low Cost and Biosafety Excipient for Solubility and Dissolution Improvement of Praziquantel. Pharmaceutics 2019, 11, 533. [Google Scholar] [CrossRef] [Green Version]
  10. Lyszczarz, E.; Hofmanova, J.; Szafraniec-Szczesny, J.; Jachowicz, R. Orodispersible films containing ball milled aripiprazole-poloxamer(R)407 solid dispersions. Int. J. Pharm. 2020. [Google Scholar] [CrossRef]
  11. Gao, L.; Zhang, X.R.; Chen, Y.F.; Liao, Z.L. A new febuxostat imidazolium salt hydrate: Synthesis, crystal structure, solubility, and dissolution study. J. Mol. Struct. 2019, 1176, 633–640. [Google Scholar] [CrossRef]
  12. Miraglia, N.; Agostinetto, M.; Bianchi, D.; Valoti, E. Enhanced oral bioavailability of a novel folate salt: Comparison with folic acid and a calcium folate salt in a pharmacokinetic study in rats. Minerva Ginecol. 2016, 68, 99–105. [Google Scholar]
  13. Freire, E.; Polla, G.; Baggio, R. Aripiprazole salts I Aripiprazole nitrate. Acta Crystallogr. C 2012, 68 Pt 4, o170–o173. [Google Scholar] [CrossRef]
  14. Freire, E.; Polla, G.; Baggio, R. Aripiprazole salts. II. Aripiprazole perchlorate. Acta Crystallogr. C 2012, 68 Pt 6, o235–o239. [Google Scholar] [CrossRef]
  15. Freire, E.; Polla, G.; Baggio, R. Aripiprazole salts. III. Bis(aripiprazolium) oxalate-oxalic acid (1/1). Acta Crystallogr. C 2013, 69 Pt 2, 186–190. [Google Scholar] [CrossRef]
  16. Freire, E.; Polla, G.; Baggio, R. Aripiprazole salts IV. Anionic plus solvato networks defining molecular conformation. J. Mol. Struct. 2014, 1068, 43–52. [Google Scholar] [CrossRef]
  17. Nanubolu, J.B.; Sridhar, B.; Ravikumar, K.; Cherukuvada, S. Adaptability of aripiprazole towards forming isostructural hydrogen bonding networks in multi-component salts: A rare case of strong O–H⋯O− ↔ weak C–H⋯O mimicry. CrystEngComm 2013, 15, 4321–4335. [Google Scholar] [CrossRef]
  18. Zhao, Y.; Sun, B.; Jia, L.; Wang, Y.; Wang, M.; Yang, H.; Qiao, Y.; Gong, J.; Tang, W. Tuning Physicochemical Properties of Antipsychotic Drug Aripiprazole with Multicomponent Crystal Strategy Based on Structure and Property Relationship. Cryst. Growth. Des. 2020, 20, 3747–3761. [Google Scholar] [CrossRef]
  19. SAINT Version 7.68A. Software for the CCD Detector System; Bruker AXS Inc: Madison, WI, USA, 2009. [Google Scholar]
  20. Sheldrick, G.M. SADABS, Bruker/Siemens Area Detector Absorption Correction Program; University of Göttingen: Göttingen, Germany, 1998. [Google Scholar]
  21. Sheldrick, G.M. A short history of SHELX. Acta Crystallogr. A 2008, 64, 112–122. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Sheldrick, G.M. SHELXL2015, Program for Crystal Structure Refinement; University of Göttingen: Göttingen, Germany, 2015. [Google Scholar]
  23. Pennington, W. DIAMOND—Visual Crystal Structure Information System. J. Appl. Crystallogr. 1999, 32, 1028–1029. [Google Scholar] [CrossRef] [Green Version]
  24. Sedghiniya, S.; Soleimannejad, J.; Janczak, J. The salt-cocrystal spectrum in salicylic acid-adenine: The influence of crystal structure on proton-transfer balance. Acta Crystallogr. C Struct. Chem. 2019, 75 Pt 4, 412–421. [Google Scholar] [CrossRef]
  25. Sanphui, P.; Bolla, G.; Nangia, A. High Solubility Piperazine Salts of the Nonsteroidal Anti-Inflammatory Drug (NSAID) Meclofenamic Acid. Cryst. Growth. Des. 2012, 12, 2023–2036. [Google Scholar] [CrossRef]
  26. Khan, M.F.; Nahar, N.; Rashid, R.B.; Chowdhury, A.; Rashid, M.A. Computational investigations of physicochemical, pharmacokinetic, toxicological properties and molecular docking of betulinic acid, a constituent of Corypha taliera (Roxb.) with Phospholipase A2 (PLA2). BMC complement. Altern. Med. 2018, 18, 48–62. [Google Scholar] [CrossRef] [Green Version]
  27. Lu, T.; Chen, F. Multiwfn: A multifunctional wavefunction analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef] [PubMed]
  28. Manzetti, S.; Lu, T. The geometry and electronic structure of Aristolochic acid: Possible implications for a frozen resonance. J. Phys. Org. Chem. 2013, 26, 473–483. [Google Scholar] [CrossRef]
  29. Zhang, X.; Zhou, L.; Wang, C.; Li, Y.; Wu, Y.; Zhang, M.; Yin, Q. Insight into the Role of Hydrogen Bonding in the Molecular Self-Assembly Process of Sulfamethazine Solvates. Cryst. Growth. Des. 2017, 17, 6151–6157. [Google Scholar] [CrossRef]
  30. Spackman, M.A.; Jayatilaka, D. Hirshfeld Surface Analysis. CrystEngComm 2009, 11, 19–32. [Google Scholar] [CrossRef]
  31. Yang, D.; Cao, J.; Jiao, L.; Yang, S.; Zhang, L.; Lu, Y.; Du, G. Solubility and stability advantages of a new cocrystal of berberine chloride with fumaric acid. ACS Omega 2020, 4, 8283–8292. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Steiner, T. Competition of hydrogen-bond acceptors for the strong carboxyl donor. Acta Crystallogr. B 2001, 57, 103–106. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Newman, A.W.; Reutzel-Edens, S.M.; Zografi, G. Characterization of the “hygroscopic” properties of active pharmaceutical ingredients. J. Pharm. Sci. 2008, 97, 1047–1059. [Google Scholar] [CrossRef] [PubMed]
  34. Shevchenko, A.; Bimbo, L.M.; Miroshnyk, I.; Haarala, J.; Jelínková, K.; Syrjänen, K.; Veen, B.; Kiesvaara, J.; Santos, H.A.; Yliruusi, J. A new cocrystal and salts of itraconazole: Comparison of solid-state properties stability and dissolution behavior. Int. J. Pharm. 2012, 436, 403–409. [Google Scholar] [CrossRef] [PubMed]

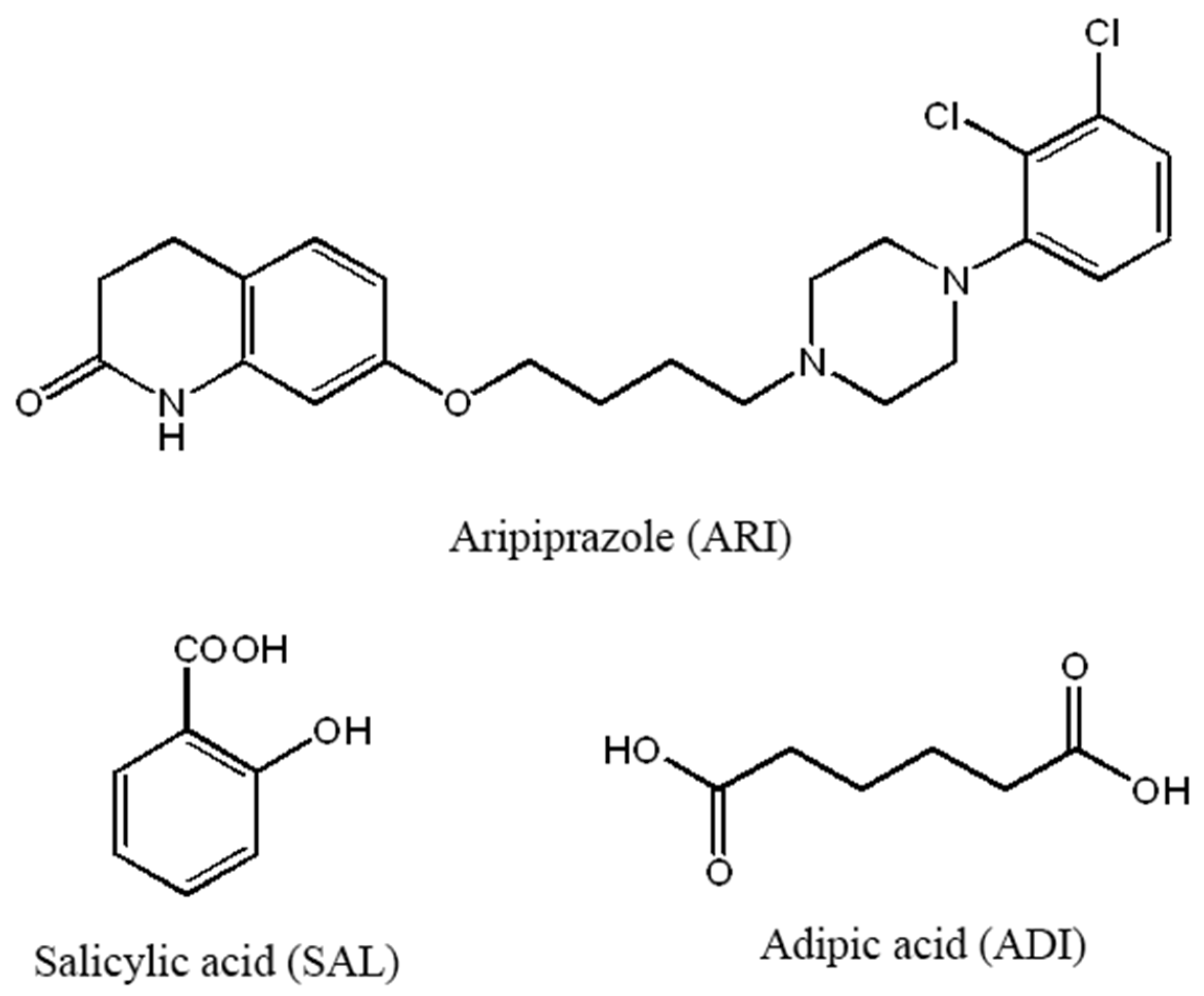

Scheme 1. Molecular structures of aripiprazole and cocrystal formers.
Scheme 1. Molecular structures of aripiprazole and cocrystal formers.
Crystals 11 00343 sch001

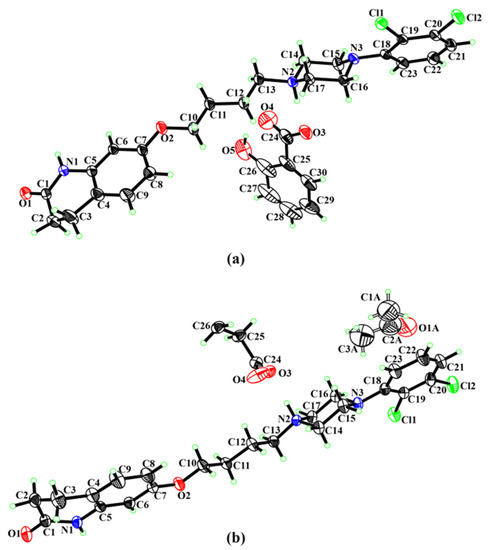

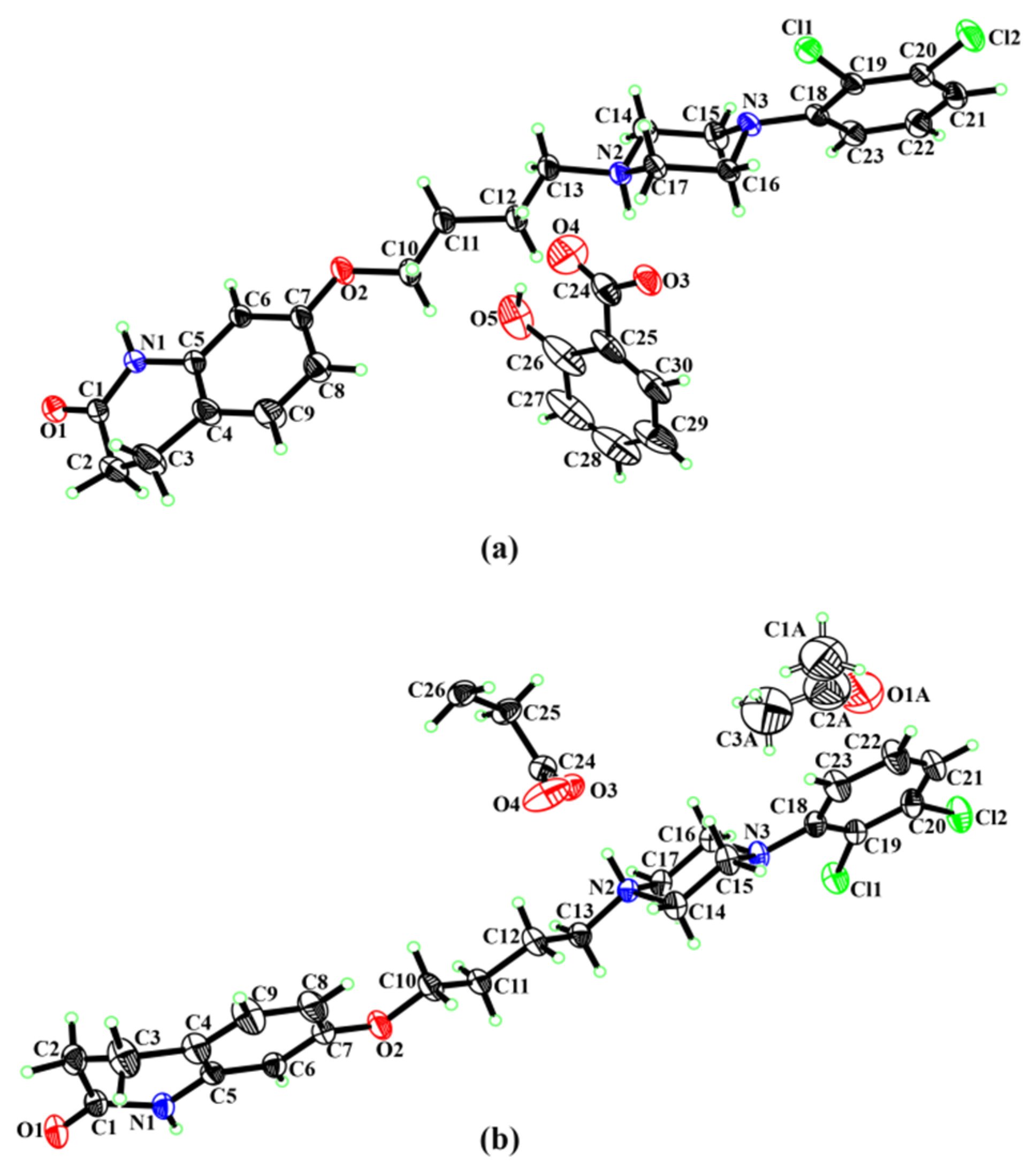

Figure 1. The molecular structures of two ARI multicomponent crystals with displacement ellipsoids drawn at the 30% probability level: (a) ARI-SAL salt; (b) ARI-ADI salt acetone hemisolvate.
Figure 1. The molecular structures of two ARI multicomponent crystals with displacement ellipsoids drawn at the 30% probability level: (a) ARI-SAL salt; (b) ARI-ADI salt acetone hemisolvate.
Crystals 11 00343 g001

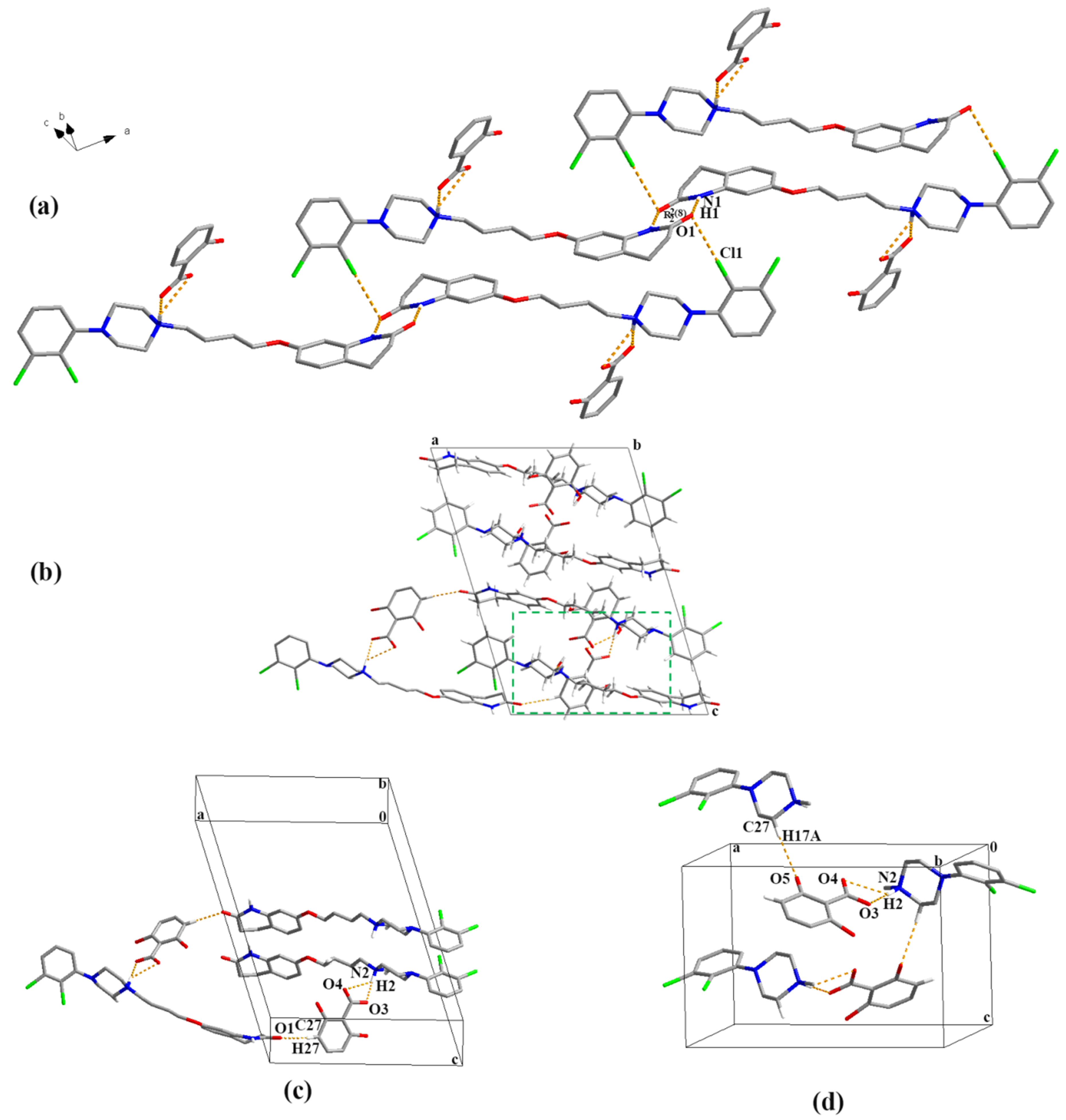

Figure 2. Packing diagrams of ARI-SAL salt: (a) the 1D ribbon was formed by N1-H1⋯O1 hydrogen bond and short Cl1⋯O1 interaction; (b) packing diagram for ARI-SAL salt viewed down the b axis and the green dashed wireframe indicates two different types of helices; (c) the type-1 helix was propagated by the bifurcated N-H⋯O hydrogen bond and weaker C27-H27⋯O1 interactions; (d) the type-2 helix was propagated by the bifurcated N-H⋯O hydrogen bond and C17-H17A⋯O5 interactions (only a partial aripiprazole molecule was drawn for clarity).
Figure 2. Packing diagrams of ARI-SAL salt: (a) the 1D ribbon was formed by N1-H1⋯O1 hydrogen bond and short Cl1⋯O1 interaction; (b) packing diagram for ARI-SAL salt viewed down the b axis and the green dashed wireframe indicates two different types of helices; (c) the type-1 helix was propagated by the bifurcated N-H⋯O hydrogen bond and weaker C27-H27⋯O1 interactions; (d) the type-2 helix was propagated by the bifurcated N-H⋯O hydrogen bond and C17-H17A⋯O5 interactions (only a partial aripiprazole molecule was drawn for clarity).
Crystals 11 00343 g002

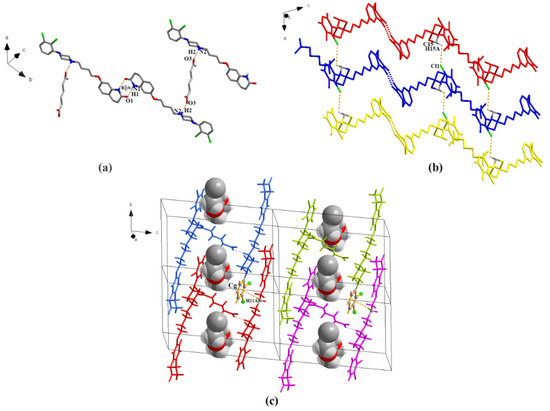

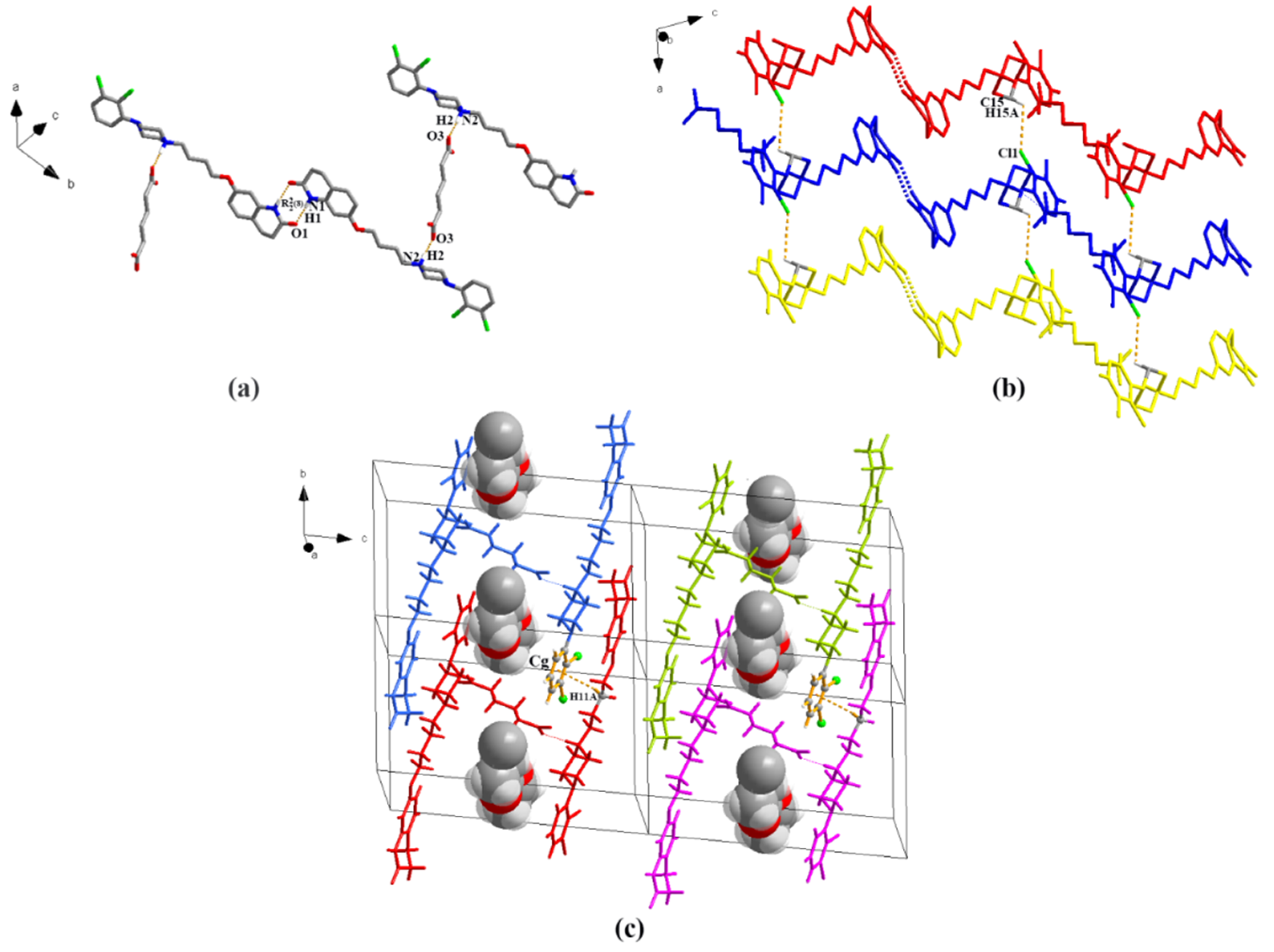

Figure 3. Packing diagrams of ARI-ADI salt acetone hemisolvate: (a) the 1D ribbon formed by N1-H1⋯O1 and N2-H2⋯O3 hydrogen bond; (b) the 2D sheet formed by C15-H15A⋯Cl1 hydrogen bond; (c) packing diagram for ARI-ADI salt acetone hemisolvate formed by C11-H11A⋯Cg hydrogen bond.
Figure 3. Packing diagrams of ARI-ADI salt acetone hemisolvate: (a) the 1D ribbon formed by N1-H1⋯O1 and N2-H2⋯O3 hydrogen bond; (b) the 2D sheet formed by C15-H15A⋯Cl1 hydrogen bond; (c) packing diagram for ARI-ADI salt acetone hemisolvate formed by C11-H11A⋯Cg hydrogen bond.
Crystals 11 00343 g003

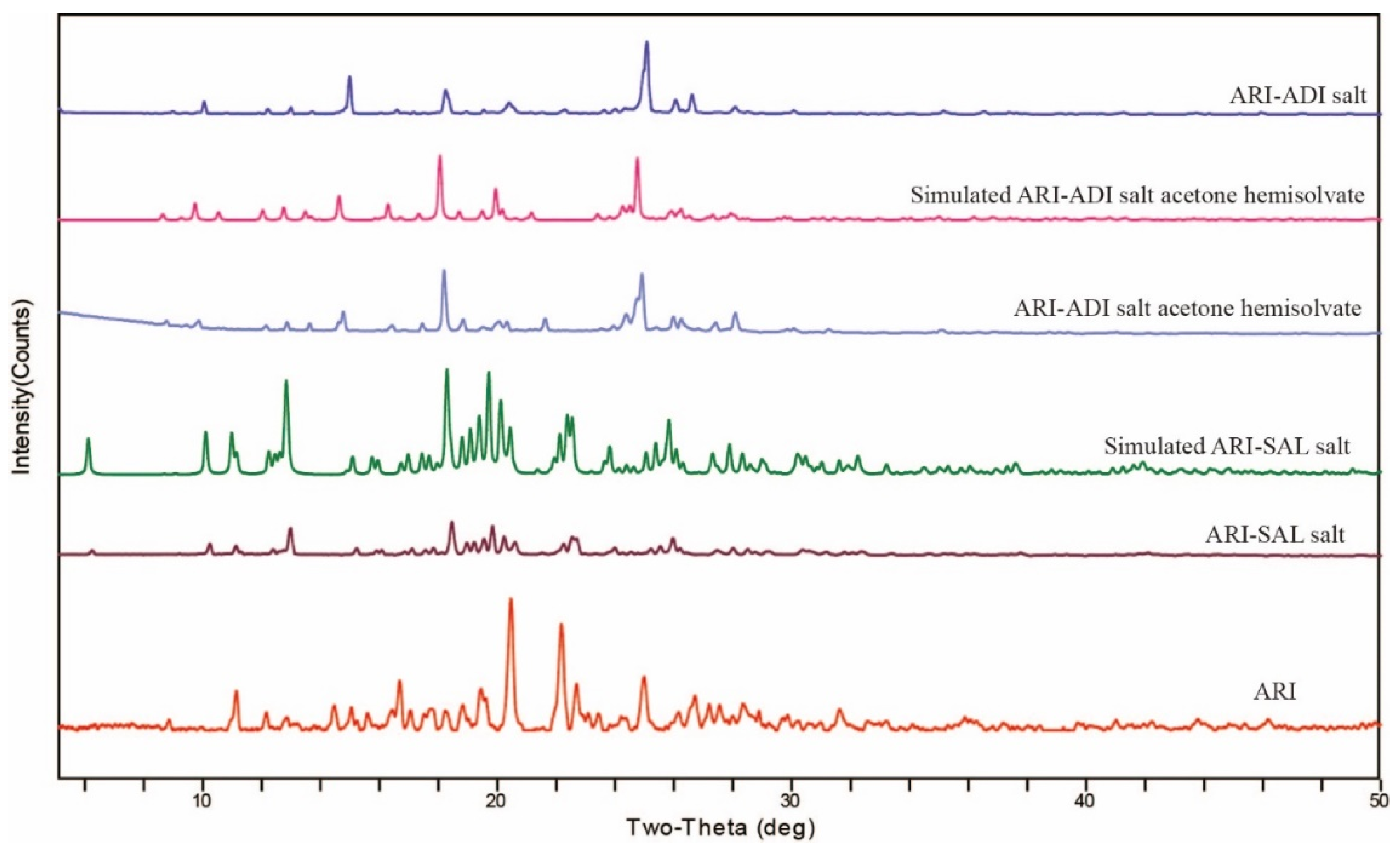

Figure 4. PXRD patterns of ARI and its crystal salts.
Figure 4. PXRD patterns of ARI and its crystal salts.
Crystals 11 00343 g004

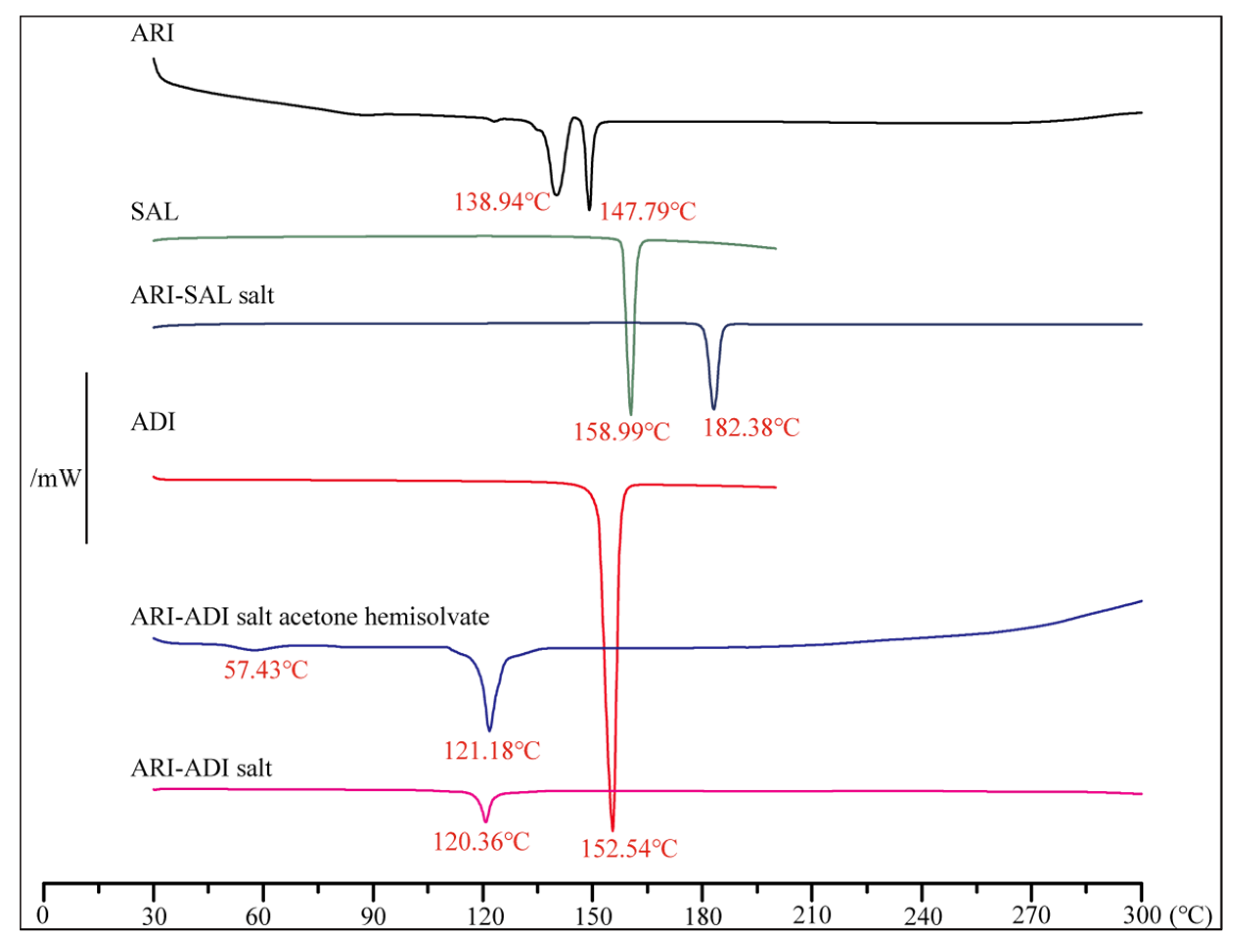

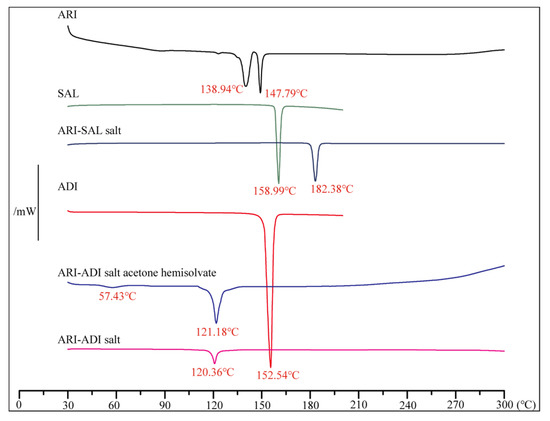

Figure 5. DSC thermograms of ARI, CCF, and its crystal salts.
Figure 5. DSC thermograms of ARI, CCF, and its crystal salts.
Crystals 11 00343 g005

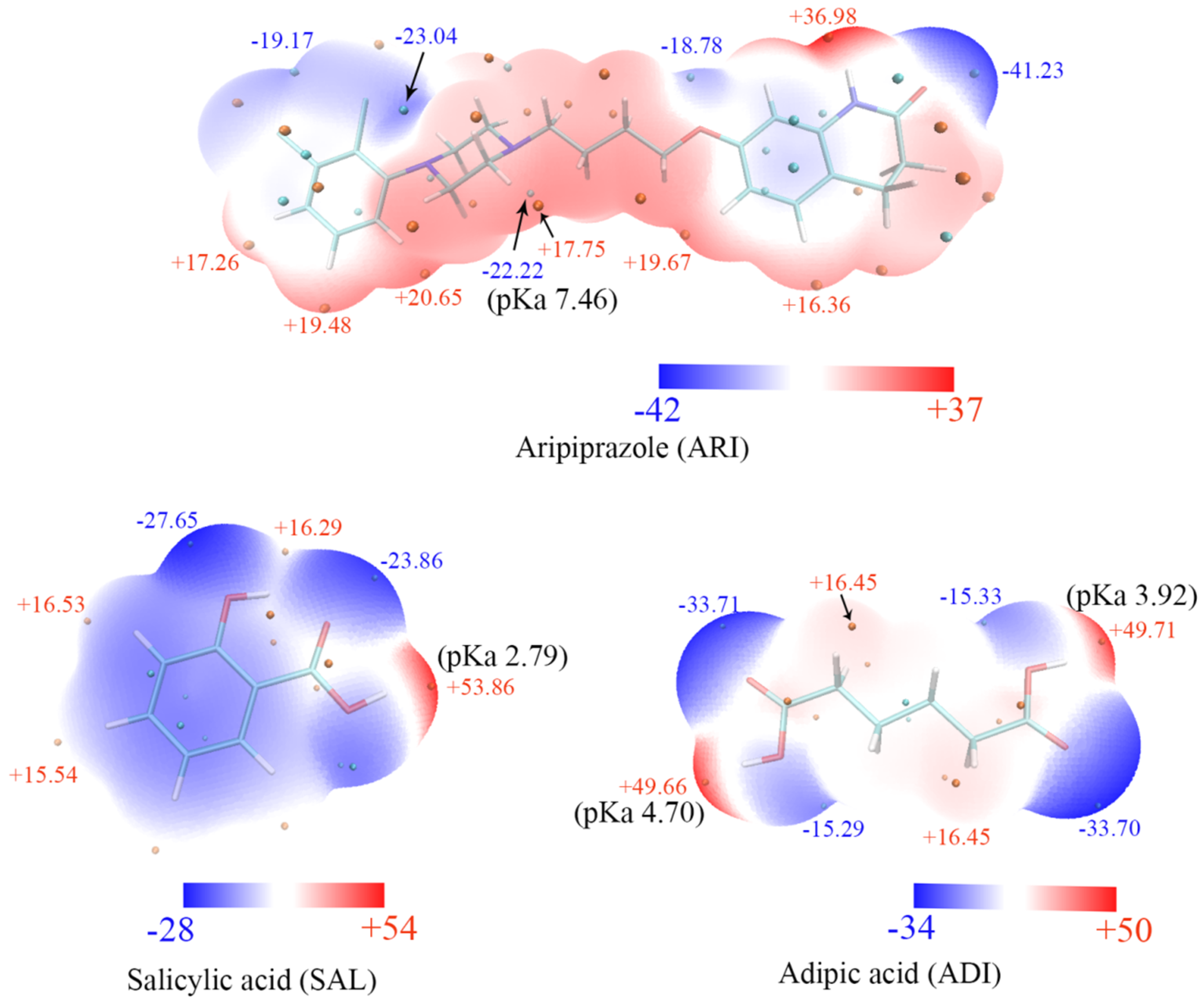

Figure 6. Electrostatic potential mapped onto the 0.001 a.u. electron density isosurface of ARI, SAL, and ADI. The maximal and minimal extreme points of electrical potential are marked with red and blue, repectively. The pKa values are presented in black.
Figure 6. Electrostatic potential mapped onto the 0.001 a.u. electron density isosurface of ARI, SAL, and ADI. The maximal and minimal extreme points of electrical potential are marked with red and blue, repectively. The pKa values are presented in black.
Crystals 11 00343 g006

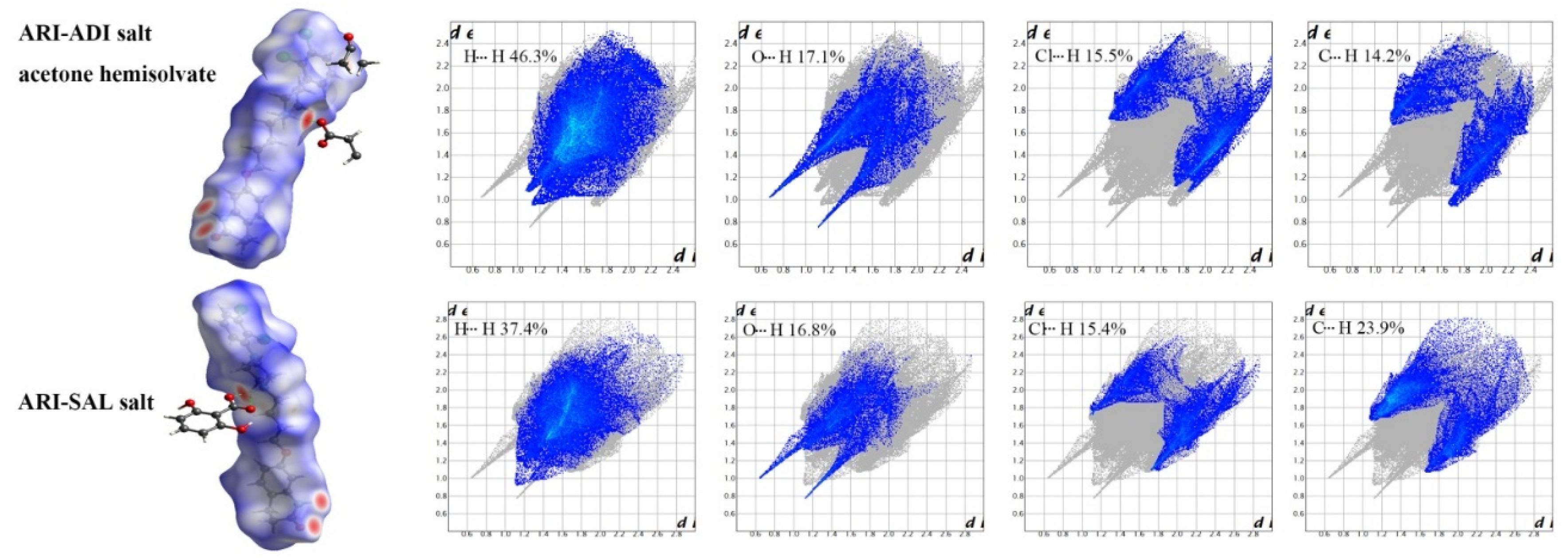

Figure 7. The 3D Hirshfeld surface and 2D fingerprint plots of two multicomponent crystals of ARI.
Figure 7. The 3D Hirshfeld surface and 2D fingerprint plots of two multicomponent crystals of ARI.
Crystals 11 00343 g007

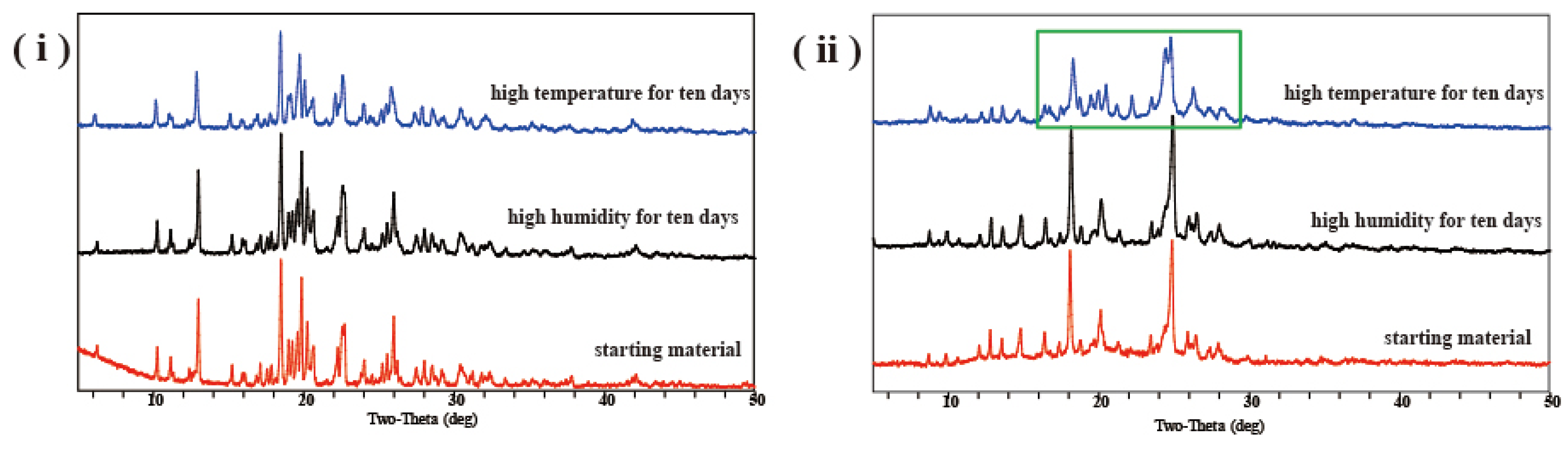

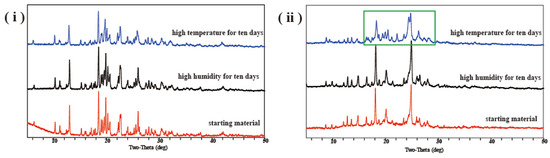

Figure 8. Results of stability testing of ARI-SAL salt (i) and ARI-ADI salt acetone hemisolvate (ii).
Figure 8. Results of stability testing of ARI-SAL salt (i) and ARI-ADI salt acetone hemisolvate (ii).
Crystals 11 00343 g008

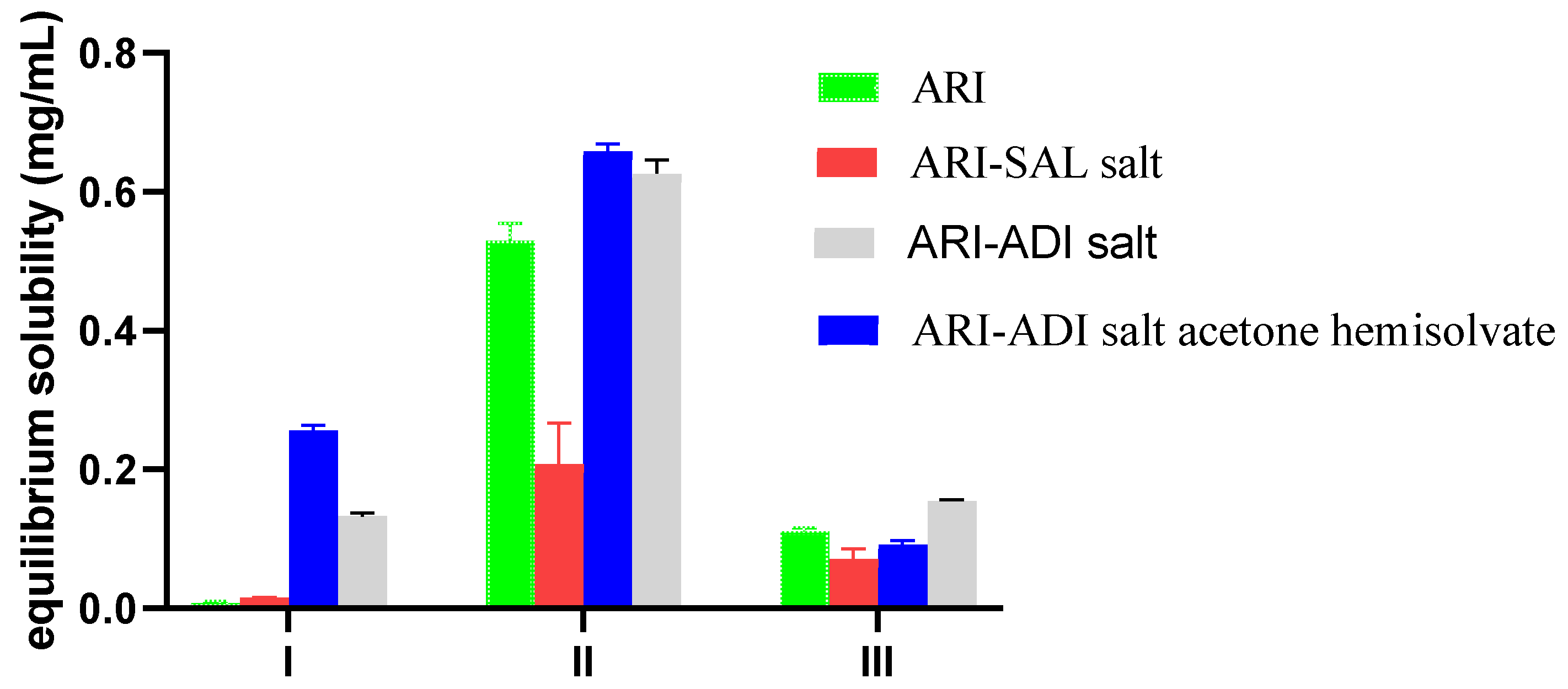

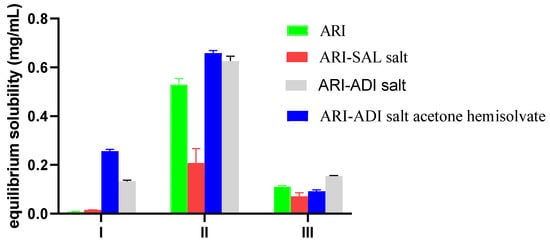

Figure 9. The equilibrium solubilities of ARI and its crystal salts in different solutions. I: water (pH 7.0); II: hydrochloric acid buffer (pH 1.2); III: acetate acid-sodium acetate buffered solution (pH 4.5).
Figure 9. The equilibrium solubilities of ARI and its crystal salts in different solutions. I: water (pH 7.0); II: hydrochloric acid buffer (pH 1.2); III: acetate acid-sodium acetate buffered solution (pH 4.5).
Crystals 11 00343 g009

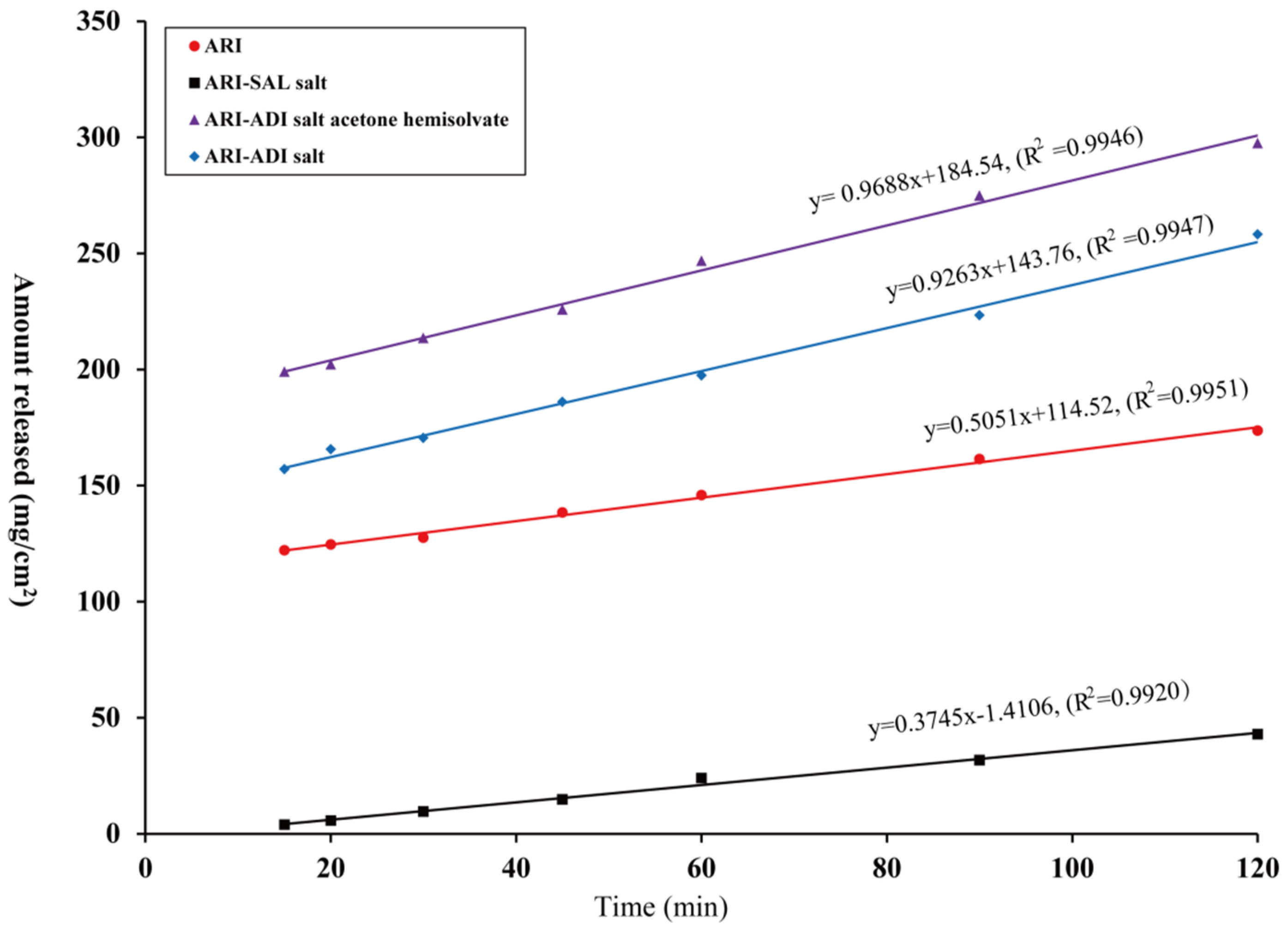

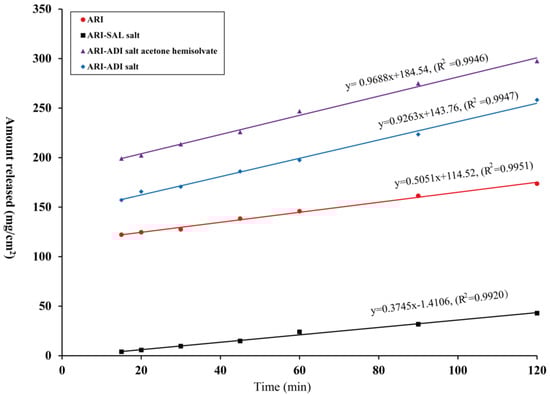

Figure 10. Intrinsic dissolution profiles of the ARI and its crystal salts in hydrochloric acid buffer (pH 1.2).
Figure 10. Intrinsic dissolution profiles of the ARI and its crystal salts in hydrochloric acid buffer (pH 1.2).
Crystals 11 00343 g010
Table 1. Crystallographic data of two multicomponent crystals of aripiprazole.
Table 1. Crystallographic data of two multicomponent crystals of aripiprazole.
Compound ReferenceARI-SAL SaltARI-ADI Salts Acetone Hemisolvate
Chemical formulaC23H28Cl2N3O2·C7H5O3C23H28Cl2N3O2·0.5(C6H8O4)·0.5(C3H6O)
Formula mass586.49550.48
Crystal systemmonoclinictriclinic
Space groupP 21/cP-1
a/Å15.082 (2)7.6388(12)
b/Å9.6912 (13)10.7268(17)
c/Å21.220 (3)18.390(3)
α/°9097.229(3)
β/°106.743 (2)93.641(3)
γ/°90105.529(3)
Unit cell volume/Å32970.1 (7)1432.9(4)
Temperature/k296(2)296(2)
No. of formula units per unit cell, Z42
Crystal density (g/cm3)1.3121.276
No. of reflections measured96127725
No. of independent reflections64834047
Rint0.02890.0321
Final R1 values (I > 2σ(I))0.08060.0689
Final wR (F2) values (I > 2σ(I))0.25260.2135
Final R1 values (all data)0.11270.1308
Final wR (F2) values (all data)0.28480.2725
F(000)1232582
Goodness of fit on F21.0840.963
CCDC Number19918102023732
Table 2. Main hydrogen bonding parameters of two multicomponent crystals of ARI.
Table 2. Main hydrogen bonding parameters of two multicomponent crystals of ARI.
D-H⋯AD-H/ÅH⋯A/ÅD⋯A/ÅD-H⋯A/°
ARI-SAL SaltC16-H16A⋯Cl10.972.6753.248118
O5-H5⋯O40.821.7892.497143
N2-H2⋯O30.981.6912.670177
N2-H2⋯O40.982.5033.122121
N1-H1⋯O1i0.862.0622.908168
C17-H17A⋯O5ii0.972.5423.467160
C27-H27⋯O1iii0.932.3603.287174
Symmetry transformation: i: −x+2, −y, −z+1; ii: −x+1, y−1/2, −z+3/2; iii: −x+2, y+1/2, −z+3/2.
ARI-ADI salt acetone hemisolvateC16-H16A⋯Cl10.972.5953.214121
N1-H1⋯O1i0.862.0232.869167
N2-H2⋯O30.981.7292.685164
C15-H15A⋯Cl1ii0.972.9573.448112
C11-H11A⋯π(Cg)iii0.972.963.843151
Symmetry transformation i: −x+1, −y−1, −z; ii: x+1, y, z; ii: x, −1+y, z. Cg is the centroid of C18/C19/C20/C21/C22/C23 atoms
